Supporting Multiple Persistence Models for PaaS

Applications using MDE

Issues on Cloud Portability

Elias Adriano Nogueira da Silva

, Daniel Lucr

edio

, Ana Moreira

and Renata Fortes

ICMC-USP, S

ao Carlos, Brazil

DC-UFSCar, S

ao Carlos, Brazil

NOVA-LINCS, FCT - UNL, Lisboa, Portugal

Keywords:

Cloud Computing, Model-driven Engineering, Platform-as-a-Service, Portability, Persistence.

Abstract:

In cloud computing, lock-in refers to the difﬁculty of porting an application from one platform to another. An

example of such difﬁculty can be witnessed when porting an application from Platform-as-a-Service Google

App Engine to Microsoft Azure. Differences in their implementations are substantial, yielding non-portable

applications. Standardization could address this problem, but existing initiatives are still to be accepted. This

paper addresses lock-in by proposing a model-driven engineering design approach that decouples platform

speciﬁc code from the application logic. The resulting platform-independent models, as well as corresponding

model transformations, can be reused to generate distinct platform-speciﬁc implementations, hence reducing

the programming effort spent coding repetitive tasks. Such transformations can be made available for reuse on

a repository for cloud providers. We have implemented transformations to handle persistence for Google App

Engine and Azure, and discuss how model-driven engineering can reconcile the differences between features

of the persistence models of GAE and Azure.

1 INTRODUCTION

In a recent report, the IEEE Computer Society

high-

lights 22 technologies with potential to change the

scenario of computer science and its role in industry

until 2022 (Alkhatib et al., 2014). Apart from fore-

seeing relevant research roadmaps, it also discusses a

vision for each of those technologies. One such tech-

nology is cloud computing.

Cloud computing is not a new technological

model, but the integration of technologies from the

past (Chen et al., 2011). What is new though, is the

different ways in which it is used to provide comput-

ing power as-a-service through the Internet. Accord-

ing to Armbrust et al., cloud computing permits ac-

quiring computing resources on demand, enables pay-

ment according to the utilization volume, and allows a

company to ignore the sources of the resources (Arm-

brust et al., 2009).

Several technological requirements are needed for

the cloud model to operate properly. The most com-

mon are virtualization technologies, standards and in-

http://www.computer.org/

terfaces that allow shared access, facilitated instan-

tiation and management of virtual servers (IaaS –

Infrastructure-as-a-Service). Moreover, there are dif-

ferent kinds of resources in the cloud. Load balanc-

ing, data persistence and analytics are just some of

the many options available for application developers.

Given this variety, and depending on its ﬁeld of exper-

tise, each cloud provider offers a different set of com-

putational resources. Some even provide a complete

development platform (PaaS – Platform-as-a-Service)

that puts together many different resources under con-

trol of the cloud provider.

Both the heterogeneity and diversity of cloud

services result in increased complexity as well as

reduced reuse and portability of the applications

(da Silva et al., 2013). In practice, some applications

need to be highly specialized with respect to a partic-

ular type of resource (e.g. hardware, platform and/or

set of services), yielding the lock-in problem (Arm-

brust et al., 2009). For example, when choosing a par-

ticular PaaS provider, the application developer usu-

ally has to follow a speciﬁc data management system

and programming style. This typically reduces porta-

331

Adriano Nogueira da Silva E., Lucrédio D., Moreira A. and Fortes R..

Supporting Multiple Persistence Models for PaaS Applications using MDE - Issues on Cloud Portability.

DOI: 10.5220/0005441203310342

In Proceedings of the 5th International Conference on Cloud Computing and Services Science (CLOSER-2015), pages 331-342

ISBN: 978-989-758-104-5

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

bility, resulting in applications “locked-in” to that par-

ticular environment.

Some strategies based on standardization have

been proposed to address that portability issue (Arm-

brust et al., 2009; Petcu and Vasilakos, 2014). How-

ever, standards take time to deﬁne and approve, and

require time to be accepted by a large part of devel-

opment community. Currently, there are so many dif-

ferent standards being proposed (Petcu and Vasilakos,

2014) that even choosing one may be a difﬁcult task.

Moreover, cloud providers may wish to use speciﬁc

technologies to create solutions that are aligned with

their own business requirements, hence choosing not

to follow the standards. Thus, until standardization

becomes a fact, the portability problem, and in partic-

ular lock-in, remains.

We have been exploring how Model-Driven Engi-

neering (MDE) (see Section 2) can be used to address

portability (da Silva et al., 2013) Approaches based

on MDE (France and Rumpe, 2007) have been inves-

tigated in several other contexts and may constitute

an interesting alternative to address the problem. Our

long-term goal is to build a repository of MDE trans-

formations and use code generation to reduce the de-

velopment effort for each platform, consequently re-

ducing repetitive programing tasks, increasing porta-

bility and minimizing the lock-in effects.

The present paper takes Google App Engine

(GAE) and Microsoft Azure, two well-known plat-

forms available in the market, and shows how MDE

conciliates the differences between their cloud persis-

tence models. We show how these differences can be

hidden behind a single conceptual model and discuss

a set of MDE artifacts to support this idea. This can

be seen as an abstraction layer that allows specifying

entities and a set of code generators that use these en-

tities to build similar persistence models even if the

storage mechanisms are different.

The two central points of the idea are (i) using

a DSL for modeling entities and (ii) building a set

of transformations that can generate code for dif-

ferent targets from the same set of source models.

Such code-generation approach allows developers fo-

cusing on platform-independent models, thus achiev-

ing portability by reducing the lock-in effects. Both

the models created using DLS and their respective

transformations for various different platforms can be

made available in a repository for reuse.

In a previous paper (da Silva et al., 2013) we dis-

cuss the general approach, but we do not show how

persistence is dealt with, which is one of the most

interesting parts of our work. Here we extend that

work, presenting the differences between the persis-

tence models of GAE and Azure. We also show

details of how these differences can be conciliated

through an MDE process, resulting in applications

that can be more easily ported between these two

cloud providers.

As our approach is generic, transformations con-

sidering standards may also be added to the repository

later. Although the typical claimed MDE-beneﬁts are

expected (e.g., facilitated maintenance and increased

productivity), an analysis of the economic viability of

creating and maintaining a repository of transforma-

tions is out of the scope of this paper

The rest of this paper is organized as follows. Sec-

tion 2 presents some conceptual background, includ-

ing a more detailed deﬁnition of the lock-in problem,

the different types of cloud portability, concepts of

MDE and an overview of the previously proposed

MDE approach. Section 3 discusses the two plat-

forms that were the subject of this study (GAE and

Azure), focusing on the differences in their persis-

tence models. Section 4 presents our proposed solu-

tion using MDE and Section 5 discusses some points

about the performed evaluation of the proposal. Sec-

tion 6 presents related work and, ﬁnally, Section 7

concludes with some ﬁnal remarks and future work.

2 BACKGROUND

This section starts with a discussion of lock-in and

known types of portability. It then introduces model-

driven engineering, and ﬁnishes with a summary of

our vision on the use of MDE to support PaaS porta-

bility.

2.1 The Lock-in Problem

Lock-in is the difﬁculty faced to move data and pro-

grams from one cloud platform to run on another one

(Armbrust et al., 2009). This is a major issue in the

PaaS scenario: in order to take advantage of a very

ﬂexible cloud architecture, the applications are devel-

oped conforming to the speciﬁcity of the chosen plat-

form. For example, to offer great elasticity, the GAE

PaaS provider imposes a speciﬁc programming style

and speciﬁc data management policy. Thus, an ap-

plication developed for it may not be easily ported to

a different PaaS provider, nor can its data. Even if

the developer wants to host an application in his own

private cloud later, considerable effort may be neces-

sary to rebuild the code, redeploy it, and migrate all

Mohaghegi and Dehlen presented a review of experi-

ences from applying MDE in industry (Mohagheghi and

Dehlen, 2008).

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

332

the data. This lack of portability causes the lock-in

effect.

The possibility of becoming “locked in” on a par-

ticular platform, not being able to choose a different

one later (customer lock-in), leaves developers in a

difﬁcult position. They mostly fear being charged

abusive fees later, or having their applications un-

available due to lack of service quality (Armbrust

et al., 2009).

2.2 Types of Portability

Prior to deciding on the adoption of a cloud model,

an organization should take into account the viabil-

ity of the one that better ﬁts its business. It must

carefully analyze the constraints related to cloud plat-

forms, both technical and organizational (da Silva

et al., 2013), as well as its business requirements

(Khajeh-Hosseini et al., 2011).

Portability is a key attribute for the improvement

and dissemination of the cloud model.The existing

literature discusses four main types of portability in

the cloud scenario: (i) portability of virtual machines

between cloud providers, (ii) portability of applica-

tions in the context of IaaS, (iii) portability of PaaS

applications and (iv) data portability between cloud

providers(Bozman, 2010; Petcu et al., 2013; Ran-

abahu and Sheth, 2010; Shirazi et al., 2012).

This paper focuses on portability of PaaS appli-

cations. However, the code generators and repository

proposed here can be used in other contexts. Petcu

et al. present a list of initiatives to handle portability

(Petcu and Vasilakos, 2014). They also discuss the

reasons, scenarios, taxonomies, measurements, and

requirements for portability. Several other authors are

also looking at the problem and proposing alternatives

to address it (see Section 6). One such alternative is

the use of model-driven engineering (MDE).

2.3 Model-Driven Engineering(MDE)

Despite the advancements of the software develop-

ment techniques, concerns about reuse, productivity,

maintenance, documentation, validation, optimiza-

tion, portability and interoperability are still under

discussion.

Model-Driven Engineering (MDE) aims at solv-

ing some of those issues (Kleppe et al., 2003), shift-

ing the focus of modern development methodologies

from implementation to conceptual modeling. Thus,

models are now ﬁrst-class citizens, and transforma-

tion mechanisms are used to generate code from them,

reducing developers’ effort (Kleppe et al., 2003) and

increasing portability and productivity (da Silva et al.,

2013). The vision is that MDE will reduce the acci-

dental complexity by increasing the level of abstrac-

tion used to develop software.

According to Schmidt, MDE technologies ”offer

a promising approach to address the inability of third-

generation languages to alleviate the complexity of

platforms and express domain concepts effectively”

(Schmidt, 2006). That is exactly our goal: use MDE

to abstract away platform-speciﬁc details, building

conceptual domain models that express the essence

and logic of the domain. From these models, applica-

tions can then be generated through automatic trans-

formations, thus reducing the development effort for

implementations on different platforms.

Such models are abstract descriptions or speciﬁ-

cations of the system and are usually represented as a

combination of graphical (Domain-Speciﬁc Modeling

Languages – DSML) and textual elements (Domain-

Speciﬁc Languages – DSL) (Brambilla et al., 2012).

DSLs are small languages focused on a particu-

lar problem/domain, and are normally declarative

(Deursen et al., 2000). The language deﬁnition usu-

ally requires a metamodel which is capable of cap-

turing the common and variable points of a speciﬁc

domain (Brambilla et al., 2012; Deursen et al., 2000).

2.4 A Model-driven Approach for

Cloud PaaS Portability

In a previous study (da Silva et al., 2013) we dis-

cussed a vision for using MDE to increase cloud PaaS

portability, and discussed how to build a DSL and

a set of code transformations, based on the Model-

View-Controller (MVC) architecture, to reduce the

effort of developing cloud applications. We also pre-

sented a DSL metamodel, samples of code trans-

formations, the grammar of the DSL and a quasi-

experiment (Wohlin et al., 2000; Juristo and Moreno,

2010) showing that MDE helps both reducing the de-

velopment effort and achieving portability. Fig. 1

summarizes the methodology followed.

Adopting a typical MDE life-cycle, this method-

ology obeyed to the following strategy:

1. Case studies were developed to identify the main

concepts of PaaS. These studies involved a care-

ful analysis of the different providers’ documen-

tation, as well as the development of sample ap-

plications for different platforms.

2. Next, these concepts were used to prototype a

speciﬁcation language. This language serves

to support the creation of platform-independent

models that developers will use to specify the ap-

plications’ structure and logic. This step involves

SupportingMultiplePersistenceModelsforPaaSApplicationsusingMDE-IssuesonCloudPortability

333

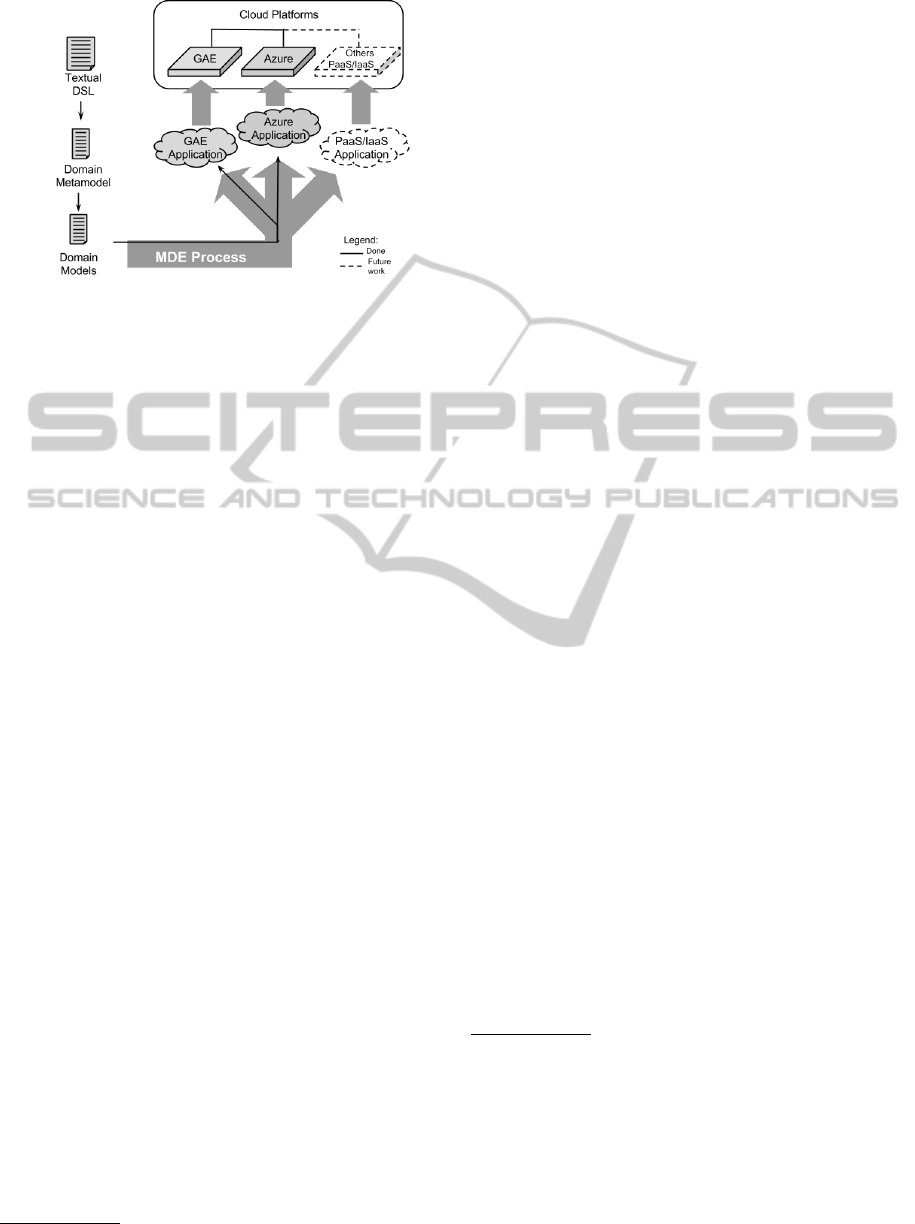

Figure 1: A MDE approach for cloud PaaS portability.

the development of a domain metamodel and a

concrete syntax.

3. Based both on the case studies and on the speciﬁ-

cation language, transformations were deﬁned to

automatically generate code for cloud platforms.

4. Tests were performed to verify the conformance

between the generated code and the platforms’ re-

quirements.

3 PERSISTENCE IN PaaS

The PaaS model leverages the ﬂexibility of the cloud

model, by providing a complete platform for soft-

ware development. A cloud platform hides many of

the complexities of developing cloud software, there-

fore increasing scalability and elasticity. In the PaaS

model, the development platform is provided as-a-

service. Applications that are developed for this par-

ticular platform can beneﬁt from a speciﬁc program-

ming model that can be fully, ﬁne grained, managed

by the platform provider.

Among the existing platforms, we selected two

well-known ones for developing our prototype: the

Google App Engine

(GAE) and the Windows Azure.

However, as the developed DSL is platform indepen-

dent (although domain dependent), it can be used to

generate code for any other platform. One of the ser-

vices managed by the provider is data persistence. By

deﬁning its own way to store data, a provider may in-

corporate services such as load balancing, automatic

data distribution and optimized querying. This is so

for the two selected platforms for our study. Both

GAE and Azure offer PaaS solutions incorporating

NoSQL storage. This service is provided to applica-

tions through simple conﬁguration steps.

https://cloud.google.com/appengine

Actually, Azure offers two types of cloud services:

IaaS and PaaS. It is not hard porting an IaaS applica-

tion because this offer is based on virtual machines

(VM). Just migrating a VM from one provider to an-

other causes little impact on the systems being virtu-

alized, as all that is needed for them to run is a copy

of the virtual disk. The Open Virtualization Format

(OVF

) makes this task even easier, by providing a

standard format so that there is little effort to port a

virtual machine from one provider to another, as long

as both support this format. The main issue in this

case is to choose a different provider that accepts the

same VM format

However, in terms of PaaS, both Azure and GAE

offer solutions based on Java servlets and JSP with

NoSQL storage. Even if they allow the same set of

technologies (Java based), applications implemented

for them are not portable. This happens mainly be-

cause of the differences between their persistence

models. (Section 3 discusses these models in detail.)

Indeed, Gorton in a post

at Software Engineering In-

stitute’s blog and Armbrust et al. (Armbrust et al.,

2010) highlight that the differences in data manage-

ment technologies make applications less reusable by

different providers.

The next subsections present speciﬁc details of

each platform persistence model, and ﬁnish with a

discussion of the main issues found.

3.1 Google App Engine

Google App Engine DataStore is typically one of the

ﬁrst choices for big data applications. The DataStore

is GAE’s native API and its scalability is managed by

the platform itself, which means that the user does not

need to worry about the actual storage details.

GAE’s DataStore offers two mechanisms to spec-

ify persistent entities: Java Data Objects

(JDO) and

Java Persistence API

(JPA) . The JDO and JPA inter-

faces are implemented using the Datanucleus

plat-

form, which is an open-source implementation of

JDO and JPA. With JDO/JPA, GAE allows the def-

inition of simple entity relationships. As a result,

even without direct relational support from the actual

OVF: http://www.dmtf.org/standards/ovf

Paasify may be an interesting solution to select com-

patible PaaS: http://www.paasify.it/vendors.

http://blog.sei.cmu.edu/post.cfm/importance-software-

architecture-big-data-systems-013

http://www.oracle.com/technetwork/java/index-jsp-

135919.html

http://www.oracle.com/technetwork/java/javaee/tech/

persistence-jsp-140049.html

http://www.datanucleus.org/

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

334

database system, applications can use GAE’s DataS-

tore to manage related entities.

For simplicity reasons, we chose JDO for this

study. To persist an entity in GAE’s DataStore, all

that is necessary is to annotate a class according to

the JDO speciﬁcation. Related entities (one-to-one

and one-to-many) are also managed by GAE automat-

ically through proper annotations.

Let us consider a simple example: a clinical labo-

ratory system must maintain a record of customers,

doctors and examinations; each customer has one

doctor, and each doctor may choose among a set of

examinations to be performed.

The ﬁrst step is to annotate the classes that repre-

sent persistent entities according to the JDO speciﬁ-

cation. After this, calls to JDO’s CRUD

methods

can be used directly. In summary, all that is needed to

make an entity persistent are some annotations. The

actual storage of the entity and its related entities is

performed by the platform.

It is important to stress that even with the possibil-

ity to deﬁne simple relationships through annotations,

the GAE DataStore service is a NoSQL solution. If a

relational solution is needed, a fully-ﬂedged SQL so-

lution, such as the MySQL-based service offered by

GAE (Google Cloud SQL), is recommended. A trade-

off between scalability and robustness is necessary in

these cases.

3.2 Windows Azure

Windows Azure is the Microsoft’s cloud platform,

which offers different services, such as virtualization,

storage and web hosting. Similarly to GAE, Azure’s

PaaS solution supports regular web-based applica-

tions (pages, controllers and other classes/libraries),

but with a wider choice of languages (.Net, Node.js,

PHP, Java, etc.).

Azure offers persistence through four main stor-

age options:

• Table Storage: this is Azure’s NoSQL persis-

tence solution. It is a simple persistence model

that allows applications to store basic data types

(e.g., integer, string, boolean). It is a highly scal-

able solution, but with three major restrictions.

First, Azure’s Table Storage structures do not di-

rectly support relationships between entities. Sec-

ond, there is a limit of 255 properties per entity,

and every entity must deﬁne at least two proper-

ties for identiﬁcation, which leaves 253 properties

for general use. Third, data in a single entity can-

not exceed one MByte.

CRUD: Create, Retrieve, Update and Delete.

• SQL Database: formerly known as SQL Azure,

this is a fully managed relational database service.

Being a relational database, it is not as scalable as

the NoSQL service.

• SQL Server in Windows Azure VM: if the de-

veloper wants more control over the DBMS, he

may opt to deploy his own instance of SQL Server

in a virtual machine. This renders more control,

but also requires more effort to setup, manage the

database server, and the virtual machine.

• Blob Storage: this service supports the storage of

large, non-structured data. It has great scalability,

but it is focused on ﬁles like audio and video.

As Azure also allows NoSQL services, which of-

fer a good combination between storage and scala-

bility for big data applications, we also chose this

model in Azure for our study. However, unlike GAE

JDO/JPA-based implementation, Azure does not have

an ofﬁcial support for JPA/JDO. As a result, the de-

veloper has to deal with relationships manually. Ad-

ditionally, there are many restrictions in Azure, for

example: persistence is deﬁned through inheritance,

and not annotations as in GAE; the identiﬁcation ﬁeld

(primary key) has to be manually managed.

In Azure Table Storage, entities are stored in table

structures called partitions. One partition can store

multiple entities, which may be of different types.

An entity has a unique identiﬁcation ﬁeld. Partition

names and identiﬁcation ﬁelds are both strings, and

are inherited by the entity classes.

To perform CRUD operations, the Table Storage

API has some predeﬁned methods. Listing 1 shows

an example of how an entity can be persisted. The

method “saveOrUpdate” (line 1) is used to either cre-

ate or update an entity. First, a table client object is

obtained (“tableClient”), based on some predeﬁned

connection string (line 2). Next, a table operation is

created, in this case, to insert or replace an entity (line

3). Then, the table (partition) is created, if it does

not exist already (line 5). Finally, the operation is ex-

ecuted (line 6). In this example, for simplicity, the

name of the partition and of the entity class will be

the same.

Listing 1: Persisting an entity in Azure.

1 p ubli c void s av eOr Upd at e (

Tab leS erv i ce E nt i ty tse ) {

2 Clo udT abl eCl ien t t abl eC lie nt =

Clo udS t or a ge A cco unt . parse (

sto r ag e Con nec t io n Str i ng ) .

cre ate C lou dTa b le C lie nt () ;

3 Tab le O pe r at i on tab leO per at i on =

Tab leO pe r at i on .

ins ert OrR epl ace ( tse ) ;

4 try {

SupportingMultiplePersistenceModelsforPaaSApplicationsusingMDE-IssuesonCloudPortability

335

5 tab le Cli en t . ge t Ta b le R ef e ren ce

( ts e . ge tC las s () .

get Si m pl e Na me () ) .

cre ate IfN otE xis t () ;

6 tab le Cli en t . e xe cute ( t se .

ge tCl as s () . get Sim pl e Na m e

() , ta ble Ope rat ion ) ;

7 } c at ch ( S to r ag e Ex c ept ion e) {

... }

8 }

Dealing with relationships requires manual man-

agement of the id ﬁelds. For one-to-one relationships,

it is possible to simply store the id ﬁeld of the related

(dependent) entity as a property in the container en-

tity. For example, in the customer-has-a-doctor one-

to-one relationship, to obtain the doctor for a given

customer, ﬁrst we obtain its id ﬁeld, and then we per-

form a query in the Doctor table.

For one-to-many or many-to-many relationships,

the strategy is to maintain a separate entity for rela-

tionships. Listing 2 illustrates the idea. In this exam-

ple, “Relationship” (line 1) is a persistent entity that

merely stores two string values: the “end1” and the

“end2” (lines 2 and 3), each representing an end of

the relationship. This entity will be stored in a parti-

tion of its own, called “Relationship” (line 5).

Listing 2: Persistent relationship in Azure.

1 p ub li c cl as s Rel at i on shi p e xt en ds

Tab leS erv i ce E nt i ty {

2 pr iv at e String end 1 ;

3 pr iv at e String end 2 ;

4 pu bl ic R e la tio nsh ip () {

5 thi s . par tit io n Ke y = "

Rel at ion shi p ";

6 }

7 ... se tt ers and getter s ...

8 }

The “Relationship” entity from Listing 2 can be

used to establish a relationship between any two en-

tities. A Method “saveRelationship” realises a rela-

tionship between two entities, instantiating the “Rela-

tionship” entity and persisting it using calls to Azure’s

API.

Once the relationship is established, retrieving all

related entities can be done by searching through the

“Relationship” partition. The example of Listing 3

shows a way to implement this strategy. The method

“getAllRelatedEntities” (line 1) gets all entities re-

lated to a given entity. The id of the containing en-

tity and the class of the related entity are provided as

arguments. First, all relationships are retrieved (line

2) through the “getAll” method, which is not shown

here but should be trivial to imagine. Then, the re-

sulting list is iterated in search for instances that have

a matching “end1” property (lines 4-5). For those

matching relationships, the instance corresponding to

the “end2” is retrieved and added to the result (line 6).

A method “retrieve”, which is not shown here, looks

into the partition of the corresponding entity class and

returns the instance itself.

Listing 3: Retrieving related entities in Azure.

1 p ub li c List g etA llR e la t edE nti t ie s (

St ri ng end1I d , C la ss e nd2 Cl as s ) {

2 List < Re la ti on sh ip > tem p = getAll (

Rel at i on shi p . clas s ) ;

3 L ist result = new A rr ayL is t () ;

4 for ( Rel ati on s hi p r : tem p ) {

5 if (r . ge tE nd1 () . eq uals ( end1Id

)) {

6 re su lt . add ( re tri ev e (

en d2Cla ss , c . g et En d2

() ) ) ;

7 }

8 }

9 re tu rn r es ul t ;

10 }

The implementation of Listing 3 is not very ef-

ﬁcient, as it examines all relationships every time.

However, it is not difﬁcult to optimize this code with

more reﬁned structures such as trees or hash func-

tions.

3.3 Difﬁculties in Conciliating Both

Persistence Models

Although both GAE and Azure offer NoSQL services,

GAE adds a layer that facilitates the management of

relationships between persistent entities, while Azure

demands some additional effort to be able to de-

liver similar functionality. The problem, however, is

not the extra effort required by Azure. In fact, the

jpa4azure

third-party API, adds an object-relational

mapping layer to Azure, similar to what is natively

available in GAE. (At the time we started our re-

search, this API was not stable, at least according to

our tests; so we decided to implement our own layer.)

The problem, really, is that even allowing the use of

the same set of technologies, the differences between

the platforms impose speciﬁc programming styles on

developing for each one. For this reason, the effort

spent on speciﬁc programing tasks cannot be reused.

Even considering the existence of a common API, the

problem remains, due to the differences between the

implementations and storage philosophies. Standard-

ization could be an alternative, but as we discussed

before, it is not the path followed in this work.

https://jpa4azure.codeplex.com/

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

336

Hence, despite the apparent similarities of the

platforms (which use the same set of technologies:

Java back-end, web-based front-end, and NoSQL per-

sistence), the resulting applications have considerable

differences. If for a small application like the one pre-

sented here the differences are so substantial, in a real

case, managing thousands of persistent entities, the

effort of developing such a system can increase very

fast. If we consider other platforms, supporting differ-

ent technologies such as Redis

or memcacheDB

the problem becomes even worse.

We argue that MDE can solve the portability prob-

lem in a more fundamental way, reaching ﬂexibil-

ity levels that no API or standard can provide. The

next section describes our proposal, based on a single

platform-independent development model that hides

the details of the platforms. This proposal also helps

to reduce the extra effort needed by Azure, or any

other platform that uses different technology.

4 SUPPORTING MULTIPLE PAAS

PERSISTENCE MODELS

USING MDE

This section presents a model implemented using the

previously developed DSL, discusses the speciﬁc de-

tails of the generated code for GAE and Azure, gives a

synthesis of the whole generation process, and offers

some highlights on the work done.

Listing 4 presents the model for the clinical labo-

ratory system. This example uses the language pre-

sented in a previous work (da Silva et al., 2013),

which is summarized next. First, the model deﬁnes

some basic conﬁguration properties, such as the ap-

plication name (line 1), visual theme (line 2), version

(line 3), title (line 4), and a set of tabs to be displayed

in the main interface (lines 5-10). Next are the entities

and their relationships. The syntax is straightforward.

Some points to highlight are the deﬁnition of the pri-

mary keys (lines 14, 27 and 34), which are inspired by

JDO’s annotations, and the possibility to deﬁne cus-

tom labels to be displayed in the main interface (line

36).

Listing 4: Model of the clinical laboratory system.

1 ap pli ca t io n weblab {

2 th em e = " d efaul t "

3 version 1

4 ti tl e " We bL ab - Ex am R eq ue sts "

5 tab tab 1 {

http://redis.io/

http://memcachedb.org/

6 title " R eq ues ts "

7 co nt ain s : Cu st ome r

8 co nt ain s : Ex ami nat io n

9 co nt ain s : Doctor

10 }

11 }

13 e nt it y Cus to me r {

14 pk { id: Key ( s trate gy = ID EN TIT Y )

re adO nl y = tr ue }

15 pro pe rt y na me : St ri ng

16 pro pe rt y add re ss : S tr in g

17 pro pe rt y emai l : St ri ng

18 pro pe rt y phone1 : Str in g

19 pro pe rt y phone2 : Str in g

20 pro pe rt y birt h : Dat e

21 pro pe rt y doctor : Doc to r

22 pro pe rt y gender : Str in g

23 pro pe rt y e xa m in ati ons : E xam in ati on

[]

24 }

26 e nt it y E xa min at i on {

27 pk { id: Key ( s trate gy = ID EN TIT Y )

re adO nl y = tru e }

28 pro pe rt y na me : St ri ng

29 pro pe rt y m at er ial : String

30 pro pe rt y pric e : Do ub le

31 }

33 e nt it y Do ct or {

34 pk { id: Key ( s trate gy = ID EN TIT Y )

re adO nl y = tru e }

35 pro pe rt y na me : St ri ng

36 pro pe rt y nr : S tr in g ti tl e = "

Li ce nse N um be r "

37 }

Listing 4 also shows the relationships established

for this system. One customer has one doctor (line

21) and many examinations (line 23 - the [] sufﬁx in-

dicates that a property may have multiple instances).

These appear in the model as properties mapped to

other entities.

We developed two sets of transformations, one for

GAE and another for Azure. A more generic view of

this process can be seen in previous work (da Silva

et al., 2013). Here we extend that description by de-

tailing how persistence can be handled. The result-

ing transformations are to be collected to populate our

repository.

4.1 Generating Persistence Code for

GAE

Since GAE has JDO support, the transformations are

not too difﬁcult to deﬁne. One JDO-annotated Java

class is generated for each persistent entity, includ-

ing its properties and relationships. There is a single,

SupportingMultiplePersistenceModelsforPaaSApplicationsusingMDE-IssuesonCloudPortability

337

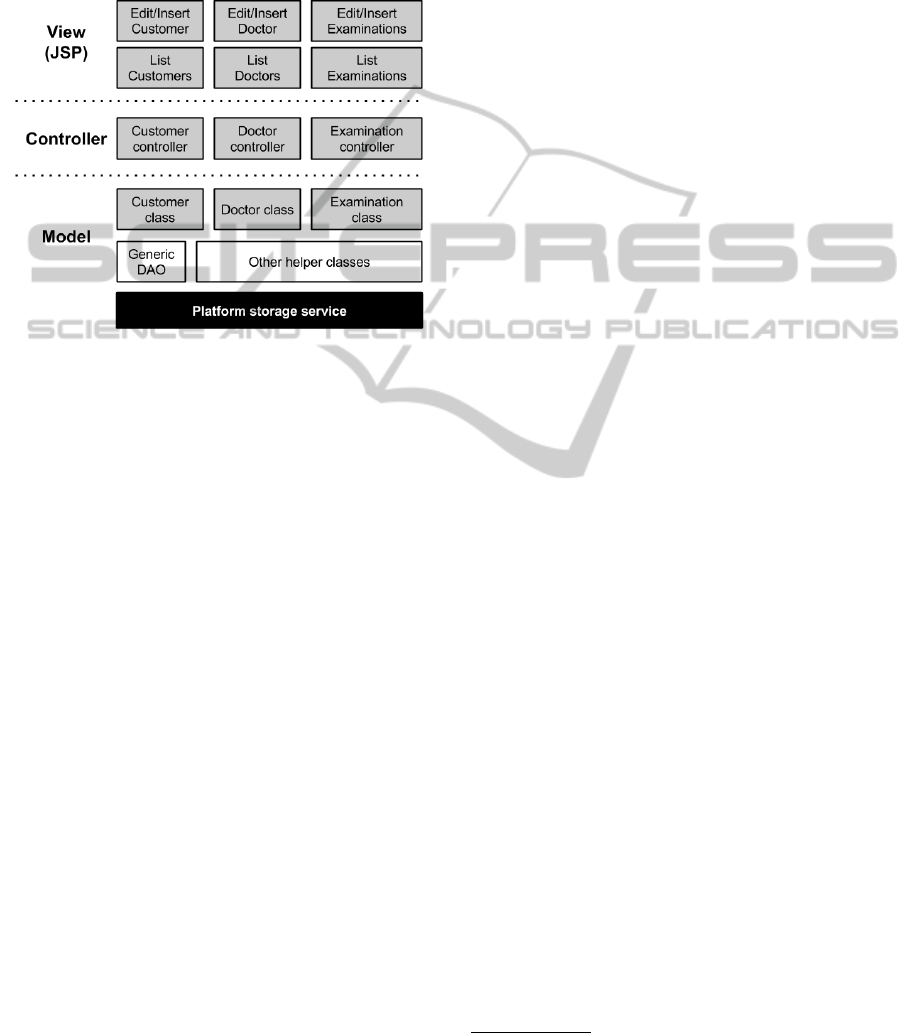

generic, non-generated data-access object (DAO) that

performs basic CRUD operations. The invocations of

the CRUD operations for each entity are generated

in speciﬁc controller classes. One controller class is

generated for each entity.

Listing 5 shows part of the generated controller

class for the “Customer” entity in GAE. The method

“saveCustomer” (line 3) persists a customer, given its

properties and the doctor’s id. Among other actions,

such as obtaining parameters from the HTTP request

and dealing with errors and page re-directions, this

controller method retrieves the corresponding doctor

(line 5), associates it with the customer being per-

sisted (line 6), and saves the instance (line 7). Please,

note the calls to the generic DAO in lines 5 and 7.

Listing 5 also shows how one-to-many relation-

ships are persisted. The method “addExaminationTo-

Customer” (line 11) ﬁrst obtains the related entities,

in this case, customer (line 13) and examination (line

14), then it adds the examination to the customer’s list

of examinations (line 15), and ﬁnally it asks DAO to

persist the customer and its examinations (line 16).

Please note the calls to the generic DAO in lines 13,

14 and 16.

Listing 5: Generated Controller for GAE.

1 p ub li c cl as s Cus tom e rC o nt r oll er {

2 ... // o th er c ont ro lle r actions

3 pu bl ic void s a ve Cus tom er ( Cu sto me r

c , int do ct orI d ) {

4 ... // o th er a ct io ns

5 Do ct or d = ( Doctor )

Gen er i cD A OJ DO . INS TA NC E .

re tri ev e ( Doctor . class ,

do cto rI d ) ;

6 c. s et Doc to r (d ) ;

7 Gen er i cD A OJ DO . INS TA NC E . sa ve (c

);

8 ... // o th er a ct io ns

9 }

11 pu bl ic void

add E xa m ina tio n ToC ust o me r ( int

cu st omerId , in t ex a mi nat ion Id

) {

12 ... // o th er a ct io ns

13 Cu stome r c = ( C ust om er )

Gen er i cD A OJ DO . INS TA NC E .

re tri ev e ( C us to mer . class ,

cu s to mer Id ) ;

14 Exa mi nat io n e = ( E xa min ati on )

Gen er i cD A OJ DO . INS TA NC E .

re tri ev e ( E xa min ati on .

class , exam ina tio nI d ) ;

15 c. a ddE xam ina tio n (e ) ;

16 Gen er i cD A OJ DO . INS TA NC E . sa ve (c

);

17 ... // o th er a ct io ns

18 }

19 }

4.2 Generating Persistence Code for

Azure

For Azure, one class per persistent entity is generated.

For basic CRUD operations, as well as for dealing

with relationships manually, there is a single, generic,

non-generated data-access object (DAO). Listings 1,

2 and 3 illustrate the idea of how this generic DAO

works. Finally, invocations to the CRUD operations

are generated in controller classes, similarly to GAE.

Listing 6 shows part of the generated controller class

for the “Customer” entity in Azure. It is similar to the

GAE controller, with the following three differences:

• the relationship between customer and doctor

(one-to-one) is based exclusively on the doctor’s

id (line 5);

• ids need to be manually managed. In this case,

and for simplicity, a random unique id is gener-

ated whenever a new entity is persisted (line 6);

• the relationship between customer and examina-

tion (one-to-many) is established by persisting a

new relationship entity (line 13). This “saveRela-

tionship” method is related to relationship shown

in Listing 2.

Listing 6: Generated Controller for Azure.

1 p ub li c cl as s Cus tom e rC o nt r oll er {

2 ... // o th er c on t ro lle r actions

3 pu bl ic void s a ve Cus tom er ( Cu sto me r

c , S tring d oc to rId ) {

4 ... // o th er a ct io ns

5 c. s et Doc to r ( d oc torId ) ;

6 c. setI d ( UU ID . r an dom UUI D () .

to Str in g () ) ;

7 Tab le S to rag e . I NS TA NCE . save ( c)

;

8 ... // o th er a ct io ns

9 }

11 pu bl ic void

add E xa m ina t io n ToC ust o me r (

St ri ng c us to merId , Str ing

exa mi n at i on Id ) {

12 ... // o th er a ct io ns

13 Tab le S to rag e . I NS TA NCE .

sav eRe lat ion shi p (

cu st omerId , ex am ina tio nId

)

14 ... // o th er a ct io ns

15 }

16 }

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

338

4.3 The Code Generation Process

The architecture of the generated applications is sim-

ilar for GAE and Azure. Two JSP pages (for editing

and listing entities) are generated for each entity, as

well as one persistent class and one controller. Figure

2 illustrates this architecture.

Figure 2: Architecture of the generated applications (GAE

and Azure). Shaded elements are generated. White ele-

ments are non-generated. Black elements represent plat-

form services.

However, there are signiﬁcant differences between

these two platforms. In GAE, there is no need to man-

ually deal with relationships or identiﬁcation ﬁelds.

Hence, the generated application is simpler, with an-

notated entities and basic controller classes being gen-

erated straightforwardly. A simple, generic DAO was

enough for basic CRUD operations.

For Azure, the generated applications are less sim-

ple. The extra layer to deal with relationships resulted

in a more complex generic DAO. There is also the

need to deal with identiﬁcation ﬁelds.

5 FINAL DISCUSSION

The strategy presented here is similar to Object-

relational mapping (ORM) frameworks like Hiber-

nate. However, while Hibernate uses annotated java

classes or a relational-entity model to generate SQL

commands and other elements of the software such as

classes, views, controllers and database structure, we

use a DSL for modeling entities and generate MVC

applications including annotated classes, based on

speciﬁc details of each PaaS embedded in MDE trans-

formations. Both strategies use code generation, but

our approach can be considered as a level above and

could even include ORM frameworks. Once the trans-

formations are deﬁned, the developer no longer needs

to worry about platform-speciﬁc details. As long

as the transformations are correct, s/he only needs

to work on the platform-independent model. In the

end, applications developed with our approach can

be made as portable as necessary, by including new

transformations to support other platforms or tech-

nologies.

Adjustments and adaptations in the code genera-

tion process, if necessary, become less frequent over

time, and the investment made through this extra ef-

fort eventually pays off. In this research, the initial in-

frastructure described here was built by a single devel-

oper in a period of 3.2 months, including the time to

study the related technologies (Xtext

and Xtend

From an evidence-based point of view (see for

example (Tichy, 1998; Juristo and Moreno, 2010;

Wohlin et al., 2000)), the case study discussed con-

stitutes some evidence that it is possible to use our

approach to deal with different persistence models at

an higher level of abstraction and to port applications

between different cloud providers. But to reinforce

such evidence, we performed a more careful evalua-

tion.

We deﬁned a set of test cases, which 10 users ex-

ecuted on the same application generated for the two

platforms (GAE and Azure). After executing the tests,

the users perceived no difference in terms of function-

ality, what indicates an evidence that portability can

be achieved by means of our approach. We also ob-

served considerable gains in productivity, due to the

automation power of MDE transformations.

From that evaluation, we concluded that it was

possible to port an application between cloud plat-

forms in such a way that the ﬁnal users do not perceive

the differences when using the two versions. This is

particularly interesting if we consider that the under-

lying data management mechanisms are different, as

discussed in Section 3. This promotes MDE as a pos-

sible alternative to port application between different

cloud providers.

6 RELATED WORK

There are several different proposals for developing

portable cloud applications, being standardization and

open source software the more popular in the industry.

In academia, many authors also attempt to use MDE

to solve to lock-in problem.

Sharma and Sood (Sharma R., 2011) present a

model-driven approach for interoperability in SaaS

https://eclipse.org/Xtext/

http://eclipse.org/xtend/

SupportingMultiplePersistenceModelsforPaaSApplicationsusingMDE-IssuesonCloudPortability

339

(Software-as-a-Service). They deﬁne the models at

different abstraction levels, based on the separation

of concerns between CIM (Computation Indepen-

dent Model), PIM (Platform Independent Model) and

PSM (Platform Speciﬁc Model), hence building on

MDA

. Each level can be composed by one or more

models to specify the structural, functional and be-

havioral aspects of a system. For PIMs a formal deﬁ-

nition of the operations offered by the service is used,

which can be accessed through an interface that must

later be composed with other services to build a com-

plete system. Business rules are speciﬁed through the

declaration of restrictions, pre-conditions and post-

conditions and invariants in OCL (Object Constraint

Language). Transformations convert the PIM into

a Web-Service Description Language (WSDL) PSM.

The ﬁnal step is the transformation of the WSDL PSM

into WSDL speciﬁcations. The main difference from

our work is that they use MDE to generate WSDL.

Their approach is for SOA while ours is speciﬁc for

cloud PaaS.

Miranda et al. present their vision on how MDE

can support the development of adaptive multi-cloud

applications, thus integrating MDE and Software

Adaptation techniques (Miranda et al., 2013). De-

velopers are requested to tag the components indi-

cating in which cloud they will be deployed. MDE

techniques are then applied to generate an XML-

based cloud deployment plan. The source code and

the XML deployment plan are processed to gener-

ate cloud compliant artifacts to access the underlying

cloud services. This work aims at generating the de-

ployment plan while our targets the design and devel-

opment time.

MODAClouds

(MOdelDriven Approach for the

design and execution of applications on multiple

Clouds) aims at supporting system developers and op-

erators in exploiting multiple clouds and in migrat-

ing their applications from cloud to cloud as needed

(Ardagna et al., 2012). Its main objective is to provide

methods, a decision support system, an open source

IDE and runtime environment for the high-level de-

sign, early prototyping, semi-automatic code gener-

ation, and automatic deployment of applications on

multiple clouds. It also helps administrators to mon-

itor the services and measure their quality. While

the project is developing a post-fact adoption standard

(Petcu, 2011) with CloudML, a domain-speciﬁc mod-

eling language and runtime environment that facili-

tates the speciﬁcation of cloud application provision-

ing, deployment, and adaptation, we argue that each

enterprise can build its own language or generation

http://www.omg.org/mda/

http://www.modaclouds.eu/

strategy more aligned with their business.

The REMICS project proposes an approach for

migrating legacy systems to the cloud (Mohagheghi

and Sæ andther, 2011; Mohagheghi and Dehlen,

2008). Formed by a consortium of several research

institutions, consulting and cloud users, the REMICS

has a robust design. Its main purpose is to specify,

develop and evaluate a tool for migrating services us-

ing MDE. The proposed migration process consists

of understanding the legacy system in terms of its

architecture and functionality, and designing a new

Service-Oriented Architecture (SOA) application that

provides the same or better functionality. This project

is more related to reenginering and migration strate-

gies for legacy applications while ours is for new

ones.

All these approaches use MDE to protect the de-

veloper from platform details, which is one of the in-

tended uses of MDE. Our approach focuses on PaaS

portability, with special emphasis on persistence. Our

results are similar to what is seen in the literature,

combining the portability of MDE with its inherent

productivity beneﬁts, we expect that our efforts sup-

port the leveraging of this new computation model.

A strategy to solve the portability without MDE is

described in (Giove et al., 2013). Giove et al. propose

a library called CPIM (Cloud Provider Independent

Model), that encapsulates PaaS-level services such as

message queues, noSQL, and caching. Instead of re-

lying on the providers following a standard, they add

a mediation layer that hides the details of the under-

lying PaaS provider and exposes a common API that

allows platform-independent code to be developed on

top of it. The result is that applications can be more

easily ported between providers, as long as both sides

of the implementation (application and supporting li-

brary) comply with the mediation layer. Their cur-

rently supported platforms are GAE and Azure, but

new platforms can be added by providing a proper li-

brary to the layer.

Both our approach and the CPIM library attempt

to deal with the differences between PaaS services.

Both agree that standardization may not be the only

solution. And both allow platform-independent ap-

plications to be speciﬁed. Our proposal has the ad-

vantage of allowing developers to work on a higher

abstraction level. Therefore, we can collect additional

beneﬁts in terms of productivity and maintenance. On

the other hand, CPIM requires no effort to setup a

modeling and code generation environment, resulting

in less upfront investment and being easier to adopt.

In fact, an hybrid solution, combining MDE and a

mediation layer, could bring beneﬁts from both ap-

proaches.

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

340

More research issues and approaches related to the

development of systems to the cloud model can be

found in Armbrust et al. (Armbrust et al., 2009) and

our previous work (da Silva et al., 2013). Cloud com-

puting is still evolving, and research opportunities are

still being identiﬁed. The presented approaches are

still being investigated and are far from being mature.

More research and evaluations are still necessary.

7 CONCLUDING REMARKS AND

FUTURE WORK

This paper shows how the differences in cloud per-

sistence models can make an application difﬁcult to

reuse and/or be ported to a different provider. It ex-

tends our previous work (da Silva et al., 2013) on ex-

ploring the use of MDE to overcome portability in

cloud computing, and shows how that previous ap-

proach can be used to solve the persistence related

lock-in issue.

The main contribution of our work is to show that

there is an alternative path to the standardization of

cloud technologies. MDE can increase the portability

of the applications, but it can also lead to additional

beneﬁts inherently associated with it, consequently,

reducing the impacts of lock-in.

Our approach is focused on persistence, and there-

fore it has good support for CRUD operations.

A limitation of our approach, that is inherent to

most MDE approaches, is that if the generated code

needs to be adapted or modiﬁed, the MDE life-cycle

can be broken. Changes in the generated code have to

be replicated, either in the models or in the transfor-

mations, which is not a trivial task. This is why it is

often recommended to leave generated code unmodi-

ﬁed

In the near future we plan to include more plat-

forms to implement the repository of models and

transformations, and to perform some more evalua-

tions, which includes applying our approach to other

case studies.

ACKNOWLEDGEMENTS

We would like to thank FAPESP (processes

2012/24487-3 and 2012/04549-4), Coordination of

Superior Level Staff Improvement - CAPES and

There are some efforts to solve the inconsistencies

between changes made manually in generated code (An-

tkiewicz and Czarnecki, 2006; Hettel et al., 2008). Such

research area is often called round-trip engineering.

Brazil-Europe Erasmus Mundus project (process

BM13DM0002) for partially funding this research.

REFERENCES

Alkhatib, H., Faraboschi, P., Frachtenberg, E., Kasahara,

H., Lange, D., Laplante, P., Merchant, A., Milojicic,

D., and Schwan, K. (2014). IEEE CS 2022 Report.

Antkiewicz, M. and Czarnecki, K. (2006). Framework-

speciﬁc modeling languages with round-trip engineer-

ing. Model Driven Engineering Languages and Sys-

tems, pages 692–706.

Ardagna, D., Di Nitto, E., Mohagheghi, P., Mosser, S.,

Ballagny, C., D’Andria, F., Casale, G., Matthews, P.,

Nechifor, C.-S., Petcu, D., and Others (2012). Moda-

clouds: A model-driven approach for the design and

execution of applications on multiple clouds. In Mod-

eling in Software Engineering (MISE), 2012 ICSE

Workshop on, pages 50–56. IEEE.

Armbrust, M., Fox, A., Grifﬁth, R., Joseph, A. D., Katz,

R., Konwinski, A., Lee, G., Patterson, D., Rabkin, A.,

Stoica, I., and Zaharia, M. (2009). Above the clouds:

A Berkeley view of cloud computing. Dept. Electrical

Eng. and Comput. Sciences, University of California,

Berkeley, Rep. UCB/EECS, 28.

Armbrust, M., Fox, A., Grifﬁth, R., Joseph, A. D., Katz,

R., Konwinski, A., Lee, G., Patterson, D., Rabkin, A.,

Stoica, I., and Zaharia, M. (2010). A view of cloud

computing. Commun. ACM, 53(4):50–58.

Bozman, J. (2010). Cloud Computing: The Need for Porta-

bility and Interoperability. IDC Analyze the Future,
