A Lightweight Approach for Extracting Product Records from the Web

Andrea Horch, Holger Kett and Anette Weisbecker

Fraunhofer Institute for Industrial Engineering IAO, Nobelstraße 12, 70569, Stuttgart, Germany

Keywords:

Web Data Extraction, Product Record Extraction, Tag Path Clustering.

Abstract:

Gathering product records from the Web is very important to both shoppers and on-line retailers for the purpose

of comparing products and prices. For consumers, the reason for doing this is to ﬁnd the best price for

a product, whereas on-line retailers want to compare their offers with those of their competitors in order to

remain competitive. Due to the huge number and vast array of product offers in the Web an automated approach

for collecting product data is needed. In this paper we propose a lightweight approach to automatically identify

and extract product records from arbitrary e-shop websites. For this purpose we have adopted and extended

the existing technique called Tag Path Clustering for clustering similar HTML tag paths and developed a novel

ﬁltering mechanism especially for extracting product records from websites.

1 INTRODUCTION

Obtaining product records from the Web is an es-

sential step when extracting product and especially

price information from e-shop websites which is im-

portant for consumers as well as for on-line retail-

ers. Whereas the consumers compare prices to ﬁnd

the cheapest price for a special product on the Web,

retailers compare their own prices with the prices of

their competitors in order to remain competitive.

According to (Simon and Fassnacht, 2008) price

reductions compared to classical advertising activities

are more efﬁcient and can be realised signiﬁcantly

easier and faster. (McGovern and Levesanos, 2014)

show that one of the success factors for on-line retail-

ers is knowing the prices of the competitors and being

able to adjust their own prices.

E-commerce is a constantly growing market. In

2014 the turnover of Europe’s e-commerce increased

by 16.3% to 363.1 billion Euros. The number of on-

line retailers in Europe is estimated to be 640,000

(Nagelvoort et al., 2014). The rising number of on-

line retailers leads to an increasing number of on-line

product offers. Handling the comparison of such an

amount of products and price data is hardly manage-

able on a manual basis. Hence, online retailers as

well as consumers need software support for automat-

ically comparing products and price data. Such soft-

ware tools need to automatically identify, extract and

structure the product and price information on the e-

shop websites for comparing prices and displaying the

analysed data to the users. Automatically identifying

and extracting product and price information from ar-

bitrary e-shop websites is a very challenging task as

different e-shops are selling a variety of products of

different domains and there are various types of e-

shop software using differently structured templates

for displaying the product information. The ﬁrst and

one of the most important steps when gathering prod-

uct and price information from the Web is the iden-

tiﬁcation and extraction of the single product records

on the e-shop website.

This paper proposes a lightweight approach,

called LightExtraction, for identifying and extracting

product records from arbitrary e-shop websites. The

approach was built up by following the idea of Tag

Path Clustering like presented in (Grigalis, 2013) and

(Grigalis and Cenys, 2014) and simplifying the ﬁl-

tering steps by exploiting the need for common at-

tributes for displaying product descriptions on e-shop

websites like product name, product image and prod-

uct description.

The paper is structured as follows: In Section 2

we present the related work. Section 3 show the re-

sults of the analysis of a set of product records of 30

different e-shop websites. Section 4 introduces our

novel approach. We demonstrate the adequacy of our

approach through an experiment and highlight its re-

sults in Section 5, and we conclude in Section 6.

420

Horch A., Kett H. and Weisbecker A..

A Lightweight Approach for Extracting Product Records from the Web.

DOI: 10.5220/0005441404200430

In Proceedings of the 11th International Conference on Web Information Systems and Technologies (WEBIST-2015), pages 420-430

ISBN: 978-989-758-106-9

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

2 RELATED WORK

There are several existing approaches in science and

practice for extracting data records from the Web.

Tools like Dapper

, Kimono

or import.io

can be

used to extract data directly from a website. Before

such a tool is able to extract the relevant data it needs

to be conﬁgured. The conﬁguration is made manu-

ally by a graphical user interface, e.g. an integrated

browser, where the navigation steps to reach the page,

which includes the data of interest, have to be sim-

ulated in the graphical interface and the data for the

extraction has to be marked.

Another interesting tool for web data extraction

is Crawlbot

. Crawlbot offers a web service as well

as an API for crawling product price data, historical

weather data or news articles from the Web. For the

automated extraction Crawlbot needs the URL (Uni-

form Resource Locator) of the product or article to

be scraped. Crawlbot analyses the website of the

given URL, structures it into its attributes (e.g. prod-

uct name, product price) and returns the attributes

of the product or article in a well structured format.

The problem with using Crawlbot to get the struc-

tured product descriptions of a whole e-shop is that

the URL of each product detail page has to be deﬁned

as input since Crawlbot cannot handle pages includ-

ing more than one product record. Thus, for obtaining

the URLs of the product detail pages another auto-

mated mechanism is needed.

Over the years many scientiﬁc approaches to au-

tomatically identify and extract data records from the

Web have been developed. Some of the approaches

are based on machine learning, others are based on

phrase analysis or Tag Path Clustering. There are also

hybrid methods, which rely on several techniques.

The most popular scientiﬁc approaches for auto-

matically detecting and extracting data records from

websites are the MDR (Mining Data Records in Web

Pages) algorithm described in (Liu et al., 2003) and

the ViNTs (Visual information aNd Tag structure

based wrapper generator) tool introduced in (Zhao

et al., 2005).

The MDR algorithm compares the child nodes of

each node in an HTML tree starting at the root node

for discovering data regions inside a web page. The

node comparison is done either by calculating the

string edit distance (e.g. Levenshtein distance) or by

a tree matching algorithm (e.g. Simple Tree Match-

ing). The similarity of nodes is deﬁned by a pre-

http://open.dapper.net/

https://www.kimonolabs.com/

https://import.io/

http://www.diffbot.com/products/crawlbot/

set threshold. Through this procedure the algorithm

searches for similar child node combinations in each

node. A node containing several similar child nodes

is considered as a data region including a set of data

records. MDR traverses only the trees of nodes which

are not covered by already identiﬁed data regions and

which include at least three child nodes. The similar-

structured child nodes of a data region are the data

records.

The MDR algorithm is very useful when search-

ing for the data regions inside a website, but another

approach is needed for identifying the data region of

a website containing the relevant data records for ex-

traction.

ViNTS is a tool for automatically generating a

wrapper for extracting search result records of an ar-

bitrary search engine. For building a wrapper for a

search engine ViNTS needs some sample result pages

and an empty result page of the search engine as input.

ViNTS renders the sample result pages and removes

all content lines, which also appear in the empty re-

sult page, in order to remove all irrelevant content. On

the sample result pages ViNTS identiﬁes some can-

didate search result records as sample input for the

wrapper generation step. The candidate search result

records are detected by three steps. In the ﬁrst step the

Candidate Content Line Separators, which are HTML

tags like <p> or <tr> separating single search re-

sult records, have to be determined. For this purpose

ViNTS translates the content lines of the HTML tree

into a pair of type code and position code. The type

code speciﬁes the content type of the content line like,

for example, text, link-text or link, whereas the posi-

tion code represents the left x coordinate of the ren-

dering box of the content line. All pairs (type code,

position code), which can be found at least three times

inside the HTML tree, are considered as probable

Candidate Content Line Separators. In (Zhao et al.,

2005) this step is done by a sufﬁx tree. In the next

step the search result page is segmented into multiple

content line blocks by using the Candidate Content

Line Separators. Consecutive blocks are grouped by

their visual similarity with regard to a preset thresh-

old. The visual similarity is calculated by the type

distance, shape distance and position distance. The

type distance of blocks speciﬁes their edit distance

(e.g. Levenshtein distance) of their type codes. The

shape distance measures the difference between the

indention sequences of the shapes of the blocks. The

position distance of two blocks deﬁnes the difference

between their closest points to the left boundary of the

search result page. In the last step of the candidate

record detection the ﬁrst line of every record becomes

identiﬁed by a set of four predeﬁned heuristic rules:

ALightweightApproachforExtractingProductRecordsfromtheWeb

421

(1) the line following an <hr>-tag, (2) the only line

in the block starting with a number, (3) the only line

in the block having the smallest position code or (4)

the only line in the block following a blank line. After

having identiﬁed the sample candidate result records

ViNTS builds the wrapper. For this purpose ViNTS

determines the tag paths beginning at the root node of

the result page (<html>-tag) for each identiﬁed ﬁrst

line element. The minimal sub-tree of the result page,

including all search result records, is calculated based

on the tag paths. The search result records are sub-

trees of the result page, which are siblings and have

the same or a similar tag structure. These sub-trees

can be separated by a separator fulﬁlling the follow-

ing conditions: (1) common subset of the sub-trees of

all records, (2) occurs only once in a sub-tree of each

record and (3) contains the rightmost sub-tree of each

result record. There can be several separators for a

dataset. The wrapper is built by using the smallest tag

path for detecting the data region including the search

result records and the separators to separate the result

records within the data region.

ViNTS needs sample result pages and an empty

result page as input, which can be difﬁcult when ex-

tracting product records from e-shop websites since

there is usually no empty result page which can be

used.

(Walther et al., 2010) present an approach for ex-

tracting structured product speciﬁcations from pro-

ducer websites. For the retrieval of the product spec-

iﬁcation the algorithm locates the product detail page

on the producer’s website and extracts and structures

the product attributes of the product speciﬁcation.

For searching the producer’s page with the product

speciﬁcation (Walther et al., 2010) process keyword-

based Web search by using the popular search en-

gines Google, Bing and Yahoo. After the Web search

step (Walther et al., 2010) rank the results by using

a method called “Borda ranking” described in (Liu,

2006) followed by the analysis of the page URI, the

page title and the page content based on domain spe-

ciﬁc terms for ﬁnding the producer site within all can-

didates which were found by the Web searches. For

extracting the product data in form of key-value pairs

(Walther et al., 2010) execute three different wrap-

per induction algorithms on the product detail page.

Each of the three algorithms cluster the HTML nodes,

which contain text to a node cluster as a ﬁrst step.

The ﬁrst algorithm is chosen if there are example key

phrases provided as input. The algorithm ﬁlters the

clusters created in the ﬁrst step of the nodes, which

contain the example phrases. The XPath description

of the nodes is used for wrapper generation. If no key

phrases are provided as input the second algorithm

is used, which exploits domain knowledge from al-

ready stored product data as key phrases to ﬁnd the

relevant nodes in the cluster for generating the wrap-

per. If there are neither example key words nor do-

main knowledge provided as input the third algorithm

generates the wrapper from training sets, which are

product pages of related products. In the last step

the key-value pairs are extracted by text node splitting

based on identifying separators like a colon in the text

nodes.

The problem when using the approach of (Walther

et al., 2010) for automated product record extraction

is that example product data for arbitrary product do-

mains is required, which has to be given by the users

in the form of key phrases, or which must be provided

from the system as knowledge. For obtaining good

results, the key phrases provided by the users or sys-

tem must ﬁt the phrases of the product detail page of

the producers, otherwise the approach will not work.

Additionally, numerous steps and different algorithms

are needed for the data extraction task.

The approach proposed in (Anderson and Hong,

2013) for extracting product records from the Web is

based on Visual Block Model (VBM) a product of the

HTML tag tree and the Cascading Style Sheet (CSS)

of a web page. The VBM is created by the rendering

process of a layout engine like WebKit

. (Anderson

and Hong, 2013) ﬁlter the basic blocks of the page,

which are blocks containing other visual blocks. In

the next step the similarity of the basic blocks is de-

ﬁned by calculating the visual similarity, the width

similarity and the block content similarity. Blocks

are visually similar since all of their visual properties

are the same. Width similarity of blocks is given if

their width properties are within a 5 pixels threshold

of each other. The block content similarity exists if

the blocks include similar child blocks, which is cal-

culated by using Jacard index described in (Real and

Vargas, 1996) and a preset similarity threshold. For

the product record extraction (Anderson and Hong,

2013) select a seed candidate block, which is a single

basic block. The seed block is identiﬁed by selecting

a visual block in the centre of the page and tracing

the visual blocks around that block by moving clock-

wise in the form of a Ulam Spiral

until reaching a

basic block which is taken as seed block. The seed

block is within one or more container blocks where

one is assumed to be a data record block. Thus, all of

them are taken as candidate blocks. Clusters for all of

the candidate blocks are created based on the calcu-

lation of block content similarity to all blocks in the

VBM. The cluster including the maximum number of

http://www.webkit.org/

http://mathworld.wolfram.com/PrimeSpiral.html

WEBIST2015-11thInternationalConferenceonWebInformationSystemsandTechnologies

422

container blocks is taken as the cluster containing the

product records.

The approach of (Anderson and Hong, 2013) de-

pends on the selection of a correct seed block. For

the selection of the seed block the algorithm starts in

the page centre and moves clockwise in the form of a

Ulam Spiral to identify a basic block including prod-

uct information. The clockwise direction was cho-

sen so as to not reach the edge of the page or include

noisy features like a left menu. The algorithm follows

the assumption that the page menu appears on the

left side of the page. But this assumption is not cor-

rect for pages of the Arab world like bestarabic.com

where the page menu is located on the right side of

the page. Thus, the approach can fail for pages with a

non-standard page structure.

Another approach called ClustVX described in

(Grigalis, 2013) and (Grigalis and Cenys, 2014) is

based on clustering XPaths and CSS elements of the

HTML elements in the DOM tree of a web page. The

proposed extraction process takes the web page ren-

dered by a web browser and starts pre-processing.

The pre-processing comprises the embedding of vi-

sual features into the element attributes, the trans-

forming of the HTML code into valid XHTML and

the removing of text formatting elements (e.g. <i>

or <b>). After the pre-processing an XPath string

enriched with visual information (e.g. font, font-size,

font-colour), called Xstring, is generated for each el-

ement of the page tree. The elements are clustered

by Xstring similarity, that means elements having the

same Xstring belong to the same cluster. For identi-

fying the data region of the elements in the cluster the

longest common XPath preﬁx of all elements in the

cluster is calculated. In order to segment data records

the approach identiﬁes if each data record of a data

region has its own parent node or if all data records of

the region are under the same parent node, which is

done by comparing the XPath strings of the elements

beginning after the longest common XPath preﬁx. If

each element has its own parent node the data records

are the children of the longest common tag path node.

In the case that all data records have the same parent

node, the approach uses a technique called “HTML

tree hopping”. The HTML tree hopping technique

searches the ﬁrst data item in the ﬁrst data record of

the data region, then searches the ﬁrst item of the sec-

ond data record. The separator of the data records

can be found in the HTML tree above the ﬁrst item of

the second data record and can be used to separate all

data records of the data region. For determining the

importance of the data regions in order to detect the

data region including the relevant page data (Grigalis

http://www.bestarabic.com/mall/ar/

and Cenys, 2014) calculate the visual weight of each

data region. The visual weight of a data region is the

product of the average area of one data record and the

square of the number of data items. The data records

of the most important data region are extracted by col-

lecting the elements of the identiﬁed tag paths from

the HTML tree.

ClustVX is suitable for identifying and extracting

data records from arbitrary web pages, but it includes

many different process steps which are not necessary.

Using the novel approach proposed in this paper the

data records of a web page can be identiﬁed and ex-

tracted by a few steps. As we prove in Section 5 our

novel approach achieves as good results as the ap-

proaches of (Liu et al., 2003) and (Grigalis and Cenys,

2014).

3 PRODUCT RECORD ANALYSIS

In order to develop an algorithm for identifying and

extracting product records from arbitrary e-shop web-

sites we have analysed the element structure of prod-

uct records of 30 different e-shop websites.

The selected e-shop websites comprise a wide va-

riety of product categories, various page structures as

well as different languages, diverse character sets and

different currencies as there were e-shop websites se-

lected from the United States of America, the United

Kingdom, Spain, Greece and Germany.

For each of the e-shop websites the product

records of a randomly selected product overview page

was analysed. The selected websites, the criteria

and the collected data for the analysis of the prod-

uct records as well as the result data for the assay are

shown in Table 1.

In the rows of the table the following data for the

selected e-shop websites can be found:

• Column 1: The URL of the e-shop websites.

• Column 2: The number of analysed product

records which corresponds to the number of prod-

uct records available on the selected product

overview page of the e-shop website.

• Column 3: The name of the tag which represents

a product record on the page.

• Column 4-6: The most frequent number of par-

ent elements of the HTML elements which repre-

sent the product records. That means, most of the

product record elements have this number of par-

ents. The maximum number of parent elements

shows the maximum number of parents one or

more of the product record elements have. The

minimum number of parent elements correspond

ALightweightApproachforExtractingProductRecordsfromtheWeb

423

Table 1: Product Record Analysis.

URL

number of analysed product records

tag name of product record element

most frequent number of parents

min. number of parents

max. number of parents

most frequent number of children

min. number of children

max. number of children

most frequent number of img elements

min. number of img elements

max. number of img elements

most frequent number of anchor elements

min. number of anchor elements

max. number of anchor elements

average length of included text

http://de.vila.com/ 10 div 11 11 11 41 25 76 6 2 20 5 3 12 609

http://raanthai.co.uk/ 72 div 19 19 19 28 27 29 1 1 1 4 4 4 129

http://www.bestbuy.com/ 14 div 7 7 7 158 126 158 1 1 1 15 14 15 1,056

http://merseyfuels.co.uk/ 10 tr 11 11 11 13 13 13 1 1 1 2 2 2 170

http://www.zazzle.de/ 60 div 11 11 11 8 8 8 1 1 1 2 2 2 45

http://www.e-shop.gr/ 9 table 19 19 19 25 20 25 3 3 3 3 2 3 305

https://www.hairshop-pro.de/ 24 div 10 10 10 21 21 21 1 1 1 3 3 3 102

http://www.my-hairshop.de/ 10 li 10 10 10 20 20 20 1 1 1 4 4 4 167

http://www.basic-hairshop.de/ 15 li 10 10 10 11 11 11 1 1 1 3 3 3 62

http://www.powells.com/ 25 li 9 9 9 15 15 23 1 1 6 3 3 3 61

http://heyshop.es/ 42 div 8 8 8 6 6 8 1 1 1 1 1 1 33

http://us.nextdirect.com/ 24 div 9 9 9 8 8 8 1 1 1 2 2 2 35

http://www.media-dealer.de/ 19 form 9 9 9 41 41 45 2 2 3 4 4 4 471

http://www.thinkgeek.com/ 11 div 8 8 8 6 6 9 1 1 1 1 1 1 53

http://www.ﬂaconi.de/ 17 div 7 7 7 15 15 17 1 1 1 3 3 3 85

http://www.mrwonderfulshop.es/ 16 li 10 10 10 13 13 13 2 2 2 2 2 2 71

http://www.dutyfreeshops.gr/ 15 div 7 7 7 18 18 20 1 1 2 4 4 4 77

http://www.sammydress.com/ 60 li 8 8 8 14 13 17 1 1 1 3 3 3 98

http://www.fragrancenet.com/ 17 section 9 9 9 20 20 20 1 1 1 3 3 3 86

http://www.perfume.com/ 20 div 10 10 10 10 10 10 1 1 1 2 2 2 47

http://www.sunglasshut.com/ 13 div 14 14 14 47 39 47 2 2 2 8 7 8 1,740

http://surrealsunglasses.es/ 18 li 10 10 10 39 39 42 2 2 2 6 6 6 65

http://www.smartbuyglasses.gr/ 44 ul 11 11 11 17 15 20 1 1 1 4 3 4 58

http://zyloeyewear.com/ 33 div 9 9 9 10 10 10 1 1 1 2 2 2 45

http://www.tokotoukan.com/ 17 div 8 8 8 9 9 18 1 1 1 3 3 6 82

http://www.adidas.de/ 44 div 13 13 13 28 28 56 1 1 7 5 3 7 97

http://batterypark.gr/ 18 div 12 12 12 58 56 58 1 1 1 3 3 3 974

http://www.you.gr/ 20 div 11 11 11 32 31 34 1 1 1 6 6 6 258

http://www.fk-shop.es/ 96 div 7 7 7 38 36 39 3 2 4 7 6 7 108

http://la-shop.es/ 9 div 8 8 8 19 19 19 1 1 1 4 4 4 299

to the minimum number of parent elements one or

more product record elements have.

• Column 7-9: The most frequent number of chil-

dren elements of the HTML elements which rep-

resent the product records. That means, most of

the product record elements have this number of

children. The maximum number of children el-

ements shows the maximum number of children

one or more of the product record elements have.

The minimum number of parent elements corre-

spond to the minimum number of parent elements

one or more product record elements have.

• Column 10-12: The most frequent number of im-

age elements (<img> tag) included in the HTML

elements which represent the product records.

That means, most of the product record elements

include this number of images. The maximum

number of image elements shows the maximum

number of images one or more of the product

record elements contain. The minimum number

of images elements correspond to the minimum

number of image elements one or more product

record elements include.

• Column 13-15: The most frequent number of an-

WEBIST2015-11thInternationalConferenceonWebInformationSystemsandTechnologies

424

chor elements (<a> tag) included in the HTML

elements which represent the product records.

That means, most of the product record elements

include this number of anchors. The maximum

number of anchor elements shows the maximum

number of anchors one or more of the product

record elements contain. The minimum number

of anchors elements correspond to the minimum

number of anchor elements one or more product

record elements include.

• Column 16: The average length of included text

shows the average length of text included in a

product record built over all product record ele-

ments on the product overview page.

The analysis of the collected product record data led

to the following results:

• There are seven different tag types including the

product records in the selected page set for the

analysis. With 63.3% the most product records

are represented by a <div> tag and still 20% are

included in a <li> tag. Additionally, the prod-

uct records were represented once by a <tr> tag,

a <table> tag, a <form> tag, a <section> tag

and a <ul> tag. Since the tag type of the prod-

uct records vary in almost 40% of the selected

pages there cannot be made an assumption about

the type of tag including the product records.

• Considering the parent elements of the product

record elements of the selected pages the num-

ber and path of parent was exactly the same for

all product records inside a page for 100% of the

analysed pages. That leads to the conclusion that

all product records of one page are located in the

same data region. Thus, if the parent path of one

or more product records could be identiﬁed the re-

maining product records can be obtained based on

the path built from parent elements.

• 36.7% of the product records of the selected pages

include the same children whereas even 63.3%

contain a different number of child elements. The

number of included child elements in the consid-

ered page set comprises a range from 6 to 158

children. For this reason the product records can-

not be identiﬁed based on analysing their child el-

ement structure.

• 66.7% of the product records of the considered

pages include exactly one image element. 80%

of the product records include the same number

of image elements as the other product record ele-

ments of the page, whereas this number differs for

20%. The range of the number of image elements

varies from 1 to 20 elements. On this account one

can only assume that a product record will usu-

ally include at least one image element, but no as-

sumption can be made about the number of image

elements.

• 73,3% of the product records include the same

number of anchor elements as the other product

record elements of the page, whereas it differs for

26,7%. The range of the number of anchor el-

ements varies from 1 to 15 elements. Therefore

it can be only assumed that a product record will

usually include at least one anchor element, but it

cannot be made an assumption about the number

of anchor elements.

• Each product record element of the selected pages

contains text. The average length of the text in-

cluded in one product record element comprises

a range from 33 to 1,740 characters. Thus, no as-

sumption of the text length inside a product record

element can be made, but it can be expected that a

product record contains some text.

4 APPROACH

The proposed approach, called LightExtraction, is a

lightweight method for automatically detecting and

extracting product records from e-shop websites.

The existing approaches presented in Section 2

need many steps to identify and extract relevant data

records from web pages. The MDR algorithm is a

slim approach, but for the identiﬁcation of the relevant

datasets an additional method is needed. In contrast,

LightExtraction automatically detects and extracts the

product records of an e-shop Web page through only

a few steps.

The functionality of the developed algorithm is

based on the results of the analysis of the product

records presented in Section 3. The LightExtraction

algorithm is shown in form of pseudo code in Fig-

ure 1. LightExtraction uses a clustering technique

based on a special tag path representation of the ele-

ments in the HTML page tree of a web page for iden-

tifying and extracting product records.

The input for the algorithm is the URI of a web

page, which is retrieved and rendered in the ﬁrst step

e.g. by using Selenium WebDriver

. All information

like CSS or information created by JavaScript code is

made available in the HTML page tree. Since the ma-

jority of e-shop websites are automatically generated

by modern e-shop software which uses templates for

viewing the content of a database the product records

http://docs.seleniumhq.org/projects/webdriver/

ALightweightApproachforExtractingProductRecordsfromtheWeb

425

1 render web page

3 for each element in HTML page tree:

4 remove style & script elements

5 if product record filter matches:

6 generate tag path

7 add element to tag path cluster

9 get tag path of cluster with max. elements

11 results = elements with identified tag path

11 results += elements with same parent path

13 return results

Figure 1: LightExtraction Algorithm.

are usually located in the same data region of the e-

shop website and contain similar or even the same el-

ements. For this reason the page elements are ﬁltered

by analysing their basic structure as described in Sec-

tion 4.1 and then the elements are clustered based on

a special tag path representation as depicted in Sec-

tion 4.2. The elements are extracted by the created

tag paths as described in Section 4.3. The output of

the algorithm are the HTML elements of the web page

including the product records.

4.1 Element Filtering

After the rendering process LightExtraction runs

through all elements inside the HTML page tree. The

algorithm rejects all elements having only a styling

purpose like <b>, <strong> or <em> or elements

including JavaScript code like <script>. In the next

step LightExtraction checks if the element probably

is a product record by using a special ﬁlter. The ﬁl-

ter compares the structure of the element to a ba-

sic element structure, which is expected for a prod-

uct record. The ﬁlter of LightExtraction assumes

that a product record (1) contains at least ﬁve child

nodes and additionally, that it (2) includes some text

(product name and description) and (3) an image tag

(<img>, product image) as well as (4) an anker tag

(<a>, hyperlink to product detail page). In this

way LightExtraction prevents the detection of single

record items or items of large navigation menus as

product records. The ﬁlter was implemented as a sim-

ple if-statement which checks the elements for having

the mentioned structure.

4.2 Element Clustering

For the element clustering a special tag path is built

for each element. The ﬁrst part of the tag path de-

scribes the path from root element (<html>) of the

web page to the actual element (including the actual

element). An asterisk in square brackets is added af-

ter the actual element for marking it. The second part

of the tag path consists of the tag paths of all child

elements from the child element to its last element.

That means the tag paths of all child elements are

connected together to one long tag path. In order to

be able to distinguish different elements which would

have the same paths (e.g. the tr and td elements of the

same table) as well as to store the information which

part is the parent path an asterisk in square brackets is

used to highlight the actual element.

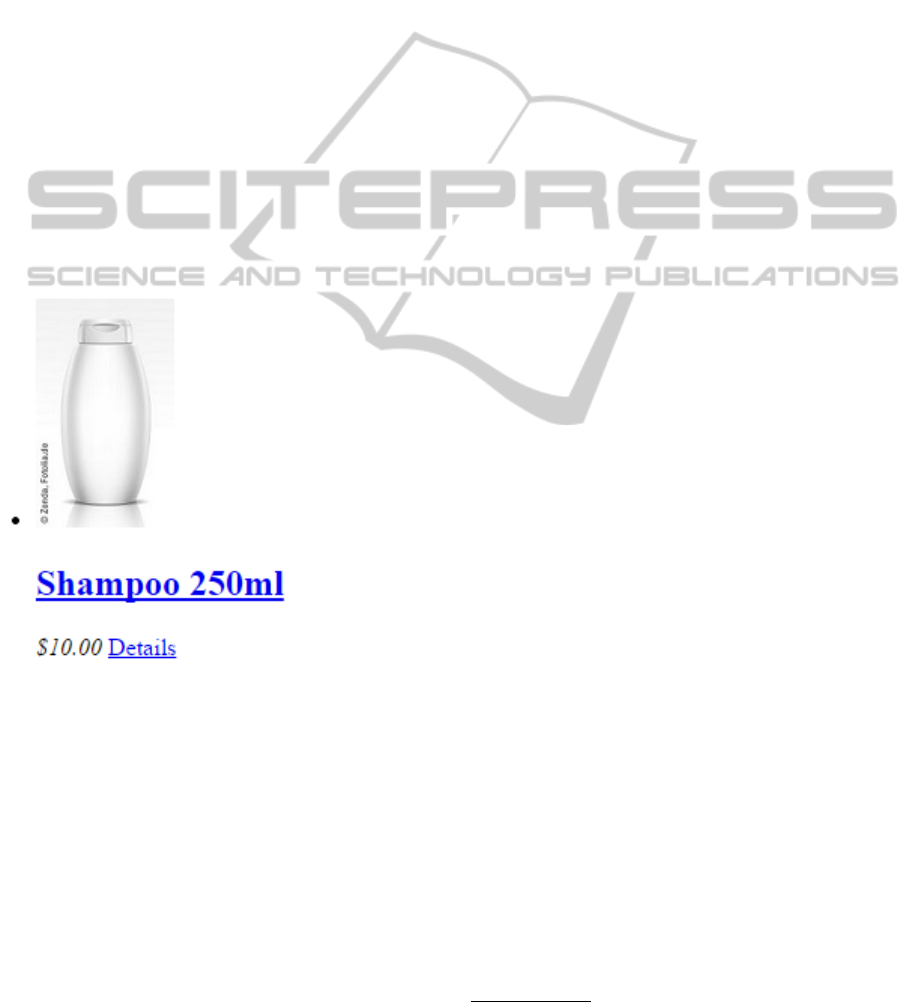

Figure 2a shows the HTML snippet of an example

product record. The Web browser view of this product

is presented in Figure 2b and its tag paths created by

LightExtraction is shown in Figure 2c. The ﬁrst line

of Figure 2c represents the tag path of the searched

list element including the product record data. The tag

path until the asterisk in square brackets represents the

tag path from the root element to the actual element,

the path after this marking shows the element paths of

the actual element’s children which were compound

to one long path string. The tag path built by LightEx-

traction does not properly represent the HTML tree of

the element since the tag paths of the child elements

are put together to a single long tag path string not

respecting the structure of the children in the HTML

tree. But the structure of the element’s children is not

important for the clustering of the HTML elements

since the goal is to cluster elements with the same tag

name, having the same path from root and containing

the same child elements.

The elements are clustered based on the created

tag path. That means each element cluster comprises

elements having exactly the same tag path. Thus, an

element cluster contains only the same element types

(e.g. <div>), which are probably elements of the

same data region of the web page and which include

the same child elements.

4.3 Product Record Extracting

LightExtraction assumes that the cluster containing

the maximum number of elements includes the ma-

jority of the product records. Thus, LightExtration

takes the tag path of that cluster for identifying all

clusters containing data records by searching for all

elements in all clusters having the same element tag

path. The elements with the same element tag path

are the elements of the same data region as the ele-

ments of the cluster including the maximum number

of elements. LightExtraction considers the result set

of that last step as the product records of the web page

and extracts them.

WEBIST2015-11thInternationalConferenceonWebInformationSystemsandTechnologies

426

...

<body>

<div>

...

</a>

<h2>

<a href="http://www.shop.com/shampoo250.html">Shampoo 250ml</a>

</h2>

</em>

<a href="http://www.shop.com/shampoo250.html">Details</a>

</div>

</li>

...

</ul>

</div>

</body>

</html>

(a) HTML snippet.

(b) Web browser view.

...

/html/body/div/ul/li[*]/a/img/div/h2/a/span/a

/html/body/div/ul/li/a[*]/img

/html/body/div/ul/li/a/img[*]

/html/body/div/ul/li/div[*]/h2/a/span/a

/html/body/div/ul/li/div/h2[*]/a

/html/body/div/ul/li/div/h2/a[*]

/html/body/div/ul/li/div/span[*]

/html/body/div/ul/li/div/a[*]

...

Figure 2: HTML snippet, Web browser view and tag path snippet of a product record.

5 EXPERIMENT

For evaluation the proposed approach is compared to

the two existing approaches MDR and ClustVX by an

experiment. We have chosen MDR since it is one of

the most popular approaches for the automated detec-

tion and extraction of data records from web pages.

ClustVX was selected as a recent approach promis-

ing very good results. The experiment comprises the

identiﬁcation and extraction of product records from

the same data set of web pages by each approach and

the comparison of the extracted results by evaluation

metrics.

5.1 Experimental Setup

For the experiment we implemented the LightEx-

traction approach in Python

. The rendering of the

HTML page tree is done by Firefox Selenium Driver

https://www.python.org/

ALightweightApproachforExtractingProductRecordsfromtheWeb

427

for Python

. For the navigation in the HTML page

tree we use Beautiful Soup

For MDR we use the MDR implementation avail-

able on the MDR Website

of the Department of

Computer Science of the University of Illinois at

Chicago (UIC).

Since the ClustVX Demonstration Website

not available we have made our own implementation

in Python. For the rendering of the HTML page tree

and the navigation in the HTML tree we use Firefox

Selenium Driver for Python and Beautiful Soup.

According to (PostNord, 2014) in 2014 the ﬁve

product categories most often bought online in Eu-

rope were clothes, books, home electronics, cosmet-

ics and CDs. We have created an experimental dataset

containing randomly selected web pages. The dataset

has to be a mixture of web pages of at least three dif-

ferent countries and each web page must include one

of the most popular product categories. The result

dataset is shown in Table 2.

Since MDR can identify and extract data regions

as well as the included data records but it is not able

to decide which is the data region containing the rel-

evant data records, we manually identify the relevant

data region (if extracted) and count the correctly and

incorrectly extracted data records for the evaluation.

5.2 Evaluation Metrics

For the evaluation of the results and the comparison

of the different approaches we use the precision and

recall measures, which are common metrics in the

ﬁeld of information retrieval. The deﬁnition of preci-

sion and recall in the context of information retrieval

is given in Equation 1 and Equation 2 (Rijsbergen,

1979).

Precision =

|Relevant Records ∩ Retrieved Records|

|Retrieved Records|

(1)

Recall =

|Relevant Records ∩ Retrieved Records|

|Relevant Records|

(2)

Since LightExtraction and the other approaches have

to classify the elements of the web pages into rele-

vant data records (product record) and other elements

http://selenium-python.readthedocs.org/en/latest/api.html

http://www.crummy.com/software/BeautifulSoup/

http://www.cs.uic.edu/

liub/WebDataExtraction/MDR-

download.html

http://clustvx.no-ip.org/

(irrelevant data) we can use the terms True Positives,

False Positives, True Negatives and False Negatives

for calculating precision and recall.

A True Positive (TP) is a correct hit, which is a

correctly extracted data record (in our case: a prod-

uct record). False Positives (FP) are incorrect hits

or false alarms, which are incorrectly extracted data

records. True Negative (TN) means a correct rejec-

tion, which is a correctly rejected data record. In our

context True Negatives cannot be measured since the

number of all negative data records on website is un-

known. Incorrect rejections or missing hits are de-

ﬁned as False Negatives (FN), which are incorrectly

rejected data records (product records, which have not

been detected).

Expressing the equations using the terms True

Positive (TP), False Positive (FP) and False Negative

(FN) Equation 1 leads to Equation 3 and Equation 2

to Equation 4.

Precision =

True Positives

True Positives + False Positives

(3)

Recall =

True Positives

True Positives + False Negatives

(4)

5.3 Experimental Results

The results of the experiment are shown in Table 3.

The number of product records available on each

page of the experiment is given in the column “total”.

MDR obtains a precision of 39.77% and a recall of

11.99%, ClustVX reaches a precision of 98.99% and

a recall of 67.47%, while LightExtraction achieves

a precision of 98.43% and a recall of 85.96%. The

results show that both LightExtraction and ClustVX

achieve much better results than MDR. LightExtrac-

tion obtains a similarly good precision as ClustVX

and even a better recall.

The reason for the missing product records (False

Nagatives) of row 1 and row 10 is that these are lo-

cated in a second product data region which Ligh-

tExtractor is not recognizing. The product records of

row 5 were not identiﬁed since LightExtractor has de-

tected some promotion product records in the web-

site menu contains 47 records which is a higher num-

ber of elements than the number of the “real” product

records which is 24. The False Positives of row 3 and

10 appear since the elements are located in the same

data region as the product records.

In order to avoid such incorrect results the ﬁlter of

the LightExtraction algorithm has to be improved in

WEBIST2015-11thInternationalConferenceonWebInformationSystemsandTechnologies

428

Table 2: Experimental Dataset.

No. URI for Data Extraction Product Category

1 http://www.barnesandnoble.com/u/new-books-ﬁction-nonﬁction-bestsellers/379004022 Books

2 http://www.ebay.com/chp/Baitcasting-Reels-/108153 Miscellaneous

3 http://www.terrashop.de/ Books

4 http://www.very.co.uk/home-garden/curtains-blinds/made-to-measure-curtains-blinds/e/b/116982.end Clothes

5 http://www.electricshop.com/televisions/televisions/icat/subtelevisions/iﬂt/tag-screentype%7C46 4kultrahd 2755 Home Electronics

6 http://www.alconeco.com/makeup/eyes Cosmetics

7 https://thecomicbookshop.comicretailer.com/comics-sale Comic Books

8 http://coozina.gr/store/home.php?cat=188 Housewares

9 http://atlasstoked.com/ Clothes

10 http://www.bestarabic.com/mall/ar/ CDs & DVDs

Table 3: Experimental Results. See Table 2 for the URIs of the experimental websites.

No. Total

MDR algorithm ClustVX LightExtraction

TP FP FN Precision Recall TP FP FN Precision Recall TP FP FN Precision Recall

1 43 0 0 43 0.00% 0.00% 30 0 13 100.00% 69.77% 30 0 13 100.00% 69.77%

2 25 0 0 25 0.00% 0.00% 25 0 0 100.00% 100.00% 25 0 0 100.00% 100.00%

3 12 8 24 4 25.00% 66.67% 12 0 0 100.00% 100.00% 12 3 0 80.00% 100.00%

4 12 0 0 12 0.00% 0.00% 12 0 0 100.00% 100.00% 12 0 0 100.00% 100.00%

5 24 24 0 0 100.00% 100.00% 24 0 0 100.00% 100.00% 0 0 24 0.00% 0.00%

6 45 0 0 45 0.00% 0.00% 45 0 0 100.00% 100.00% 45 0 0 100.00% 100.00%

7 59 0 0 59 0.00% 0.00% 10 0 49 100.00% 16.95% 59 0 0 100.00% 100.00%

8 36 0 0 36 0.00% 0.00% 36 0 0 100.00% 100.00% 36 0 0 100.00% 100.00%

9 12 3 29 9 9.38% 25.00% 3 0 9 100.00% 25.00% 12 0 0 100.00% 100.00%

10 24 0 0 24 0.00% 0.00% 0 2 24 0.00% 0.00% 20 1 4 95.24% 83.33%

Total: 292 35 53 257 39.77% 11.99% 197 2 95 98.99% 67.47% 251 4 41 98.43% 85.96%

future work by adding new criteria as well as decision

rules for product record identiﬁcation which would

make the ﬁlter more ﬂexible as the current one.

6 CONCLUSIONS

This paper presents a lightweight approach called

LightExtraction for automatically detecting and ex-

tracting product records from web pages of online

shops. The proposed approach uses a ﬁltering tech-

nique for rejecting irrelevant elements. It clusters the

elements of the HTML page tree by their tag paths.

For this purpose LightExtraction generates the tag

path for each element of the HTML page tree and adds

elements with identical tag paths to the same element

cluster. The tag path comprises the path from the ﬁrst

parent node (<html> tag) to the last child node of the

element. The element is marked in the tag path by

an asterisk in square brackets. The element cluster in-

cluding the maximum number of elements is expected

to contain the majority of product records. LightEx-

traction uses the tag path of the maximum cluster for

detecting all elements in all clusters, which are prod-

uct records.

In an experiment the novel approach is compared

to the existing approaches MDR and ClustVX. The

results of the experiment show that LightExtraction

can achieve much better results than MDR with sim-

ilarly good precision and an even better recall than

ClustVX, whereas LightExtractor needs signiﬁcantly

less process steps than ClustVX.

ACKNOWLEDGEMENTS

The work published in this article was partially

funded by the SME E-COMPASS project of the Eu-

ropean Union’s Seventh Framework Programme for

research, technological development and demonstra-

tion under the grant agreement no. 315637.

REFERENCES

Anderson, N. and Hong, J. (2013). Visually extracting

data records from the deep web. In Proceedings of

the 22nd International World Wide Web Conference

(WWW 2013), WWW ’13, pages 1233–1238, New

York, NY, USA. ACM.

Grigalis, T. (2013). Towards web-scale structured web data

extraction. In Proceedings of the Sixth ACM Interna-

tional Conference on Web Search and Data Mining,

WSDM ’13, pages 753–758, New York, NY, USA.

ACM.

Grigalis, T. and Cenys, A. (2014). Unsupervised structured

data extraction from template-generated web pages.

pages 169–192.

Liu, B. (2006). Web Data Mining: Exploring Hyperlinks,

Contents, and Usage Data (Data-Centric Systems and

ALightweightApproachforExtractingProductRecordsfromtheWeb

429

Applications). Springer-Verlag New York, Inc., Se-

caucus, NJ, USA.

Liu, B., Grossman, R., and Zhai, Y. (2003). Mining data

records in web pages. In Proceedings of the Ninth

ACM SIGKDD International Conference on Knowl-

edge Discovery and Data Mining, KDD ’03, pages

601–606, New York, NY, USA. ACM.

McGovern, C. and Levesanos, A. (2014). Optimizing pric-

ing and promotions in a digital world: From product-

led to customer-centric strategies. Online.

Nagelvoort, B. et al. (2014). European

b2c e-commerce report 2014. Website.

http://www.adigital.org/sites/default/ﬁles/studies/

european-b2c-ecommerce-report-2014.pdf.

PostNord (2014). E-commerce in europe 2014. Website.

http://www.postnord.com/globalassets/global/english/

document/publications/2014/e-commerce-in-europe-

2014.pdf.

Real, R. and Vargas, J. M. (1996). The Probabilistic Basis

of Jaccard’s Index of Similarity. Systematic Biology,

45(3):380–385.

Rijsbergen, C. J. V. (1979). Information Retrieval.

Butterworth-Heinemann, Newton, MA, USA, 2nd

edition.

Simon, H. and Fassnacht, M. (2008). Preismanage-

ment: Strategie - Analyse - Entscheidung - Umset-

zung. Gabler Verlag, Wiesbaden.

Walther, M., H

ahne, L., Schuster, D., and Schill, A. (2010).

Locating and extracting product speciﬁcations from

producer websites. In ICEIS 2010 - Proceedings of the

12th International Conference on Enterprise Informa-

tion Systems, Volume 4, SAIC, Funchal, Madeira, Por-

tugal, June 8 - 12, 2010, pages 13–22.

Zhao, H., Meng, W., Wu, Z., Raghavan, V., and Yu, C.

(2005). Fully automatic wrapper generation for search

engines. In Proceedings of the 14th International

Conference on World Wide Web, WWW ’05, pages

66–75, New York, NY, USA. ACM.

WEBIST2015-11thInternationalConferenceonWebInformationSystemsandTechnologies

430
