CoMA: Resource Monitoring of Docker Containers

Lara Lorna Jim

enez, Miguel G

omez Sim

on, Olov Schel

en, Johan Kristiansson, K

are Synnes

and Christer

Ahlund

Dept. of Computer Science, Electrical and Space Engineering, Lule

a University of Technology, Lule

a, Sweden

Keywords:

Docker, Containers, Containerization, OS-level Virtualization, Operating System Level Virtualization,

Virtualization, Resource Monitoring, Cloud Computing, Data Centers, Ganglia, sFlow, Linux, Open-source,

Virtual Machines.

Abstract:

This research paper presents CoMA, a Container Monitoring Agent, that oversees resource consumption of

operating system level virtualization platforms, primarily targeting container-based platforms such as Docker.

The core contribution is CoMA, together with a quantitative evaluation verifying the validity of the mea-

surements reported by the agent for three metrics: CPU, memory and block I/O. The proof-of-concept is

implemented for Docker-based systems and consists of CoMA, the Ganglia Monitoring System and the Host

sFlow agent. This research is in line with the rising trend of container adoption which is due to the resource

efﬁciency and ease of deployment. These characteristics have set containers in a position to topple virtual

machines as the reigning virtualization technology in data centers.

1 INTRODUCTION

Traditionally, virtual machines (VMs) have been the

underlying infrastructure for cloud computing ser-

vices(Ye et al., 2010). Virtualization techniques

spawned from the need to use resources more efﬁ-

ciently and allow for rapid provisioning. Native vir-

tualization (Type I) (VMware Inc, 2007b)(VMware

Inc, 2007a) is the standard type of virtualization be-

hind cloud services. There are several established

platforms that offer this type of virtualization such

as, Xen hypervisor (Barham et al., 2003), Linux Ker-

nel Virtual Machine (KVM) (Tafa et al., 2011) and

VMware (VMware Inc, 2007a). Full-virtualization,

Para-virtualization and Hardware-assisted virtualiza-

tion are different techniques that attempt to enhance

the effectiveness of VMs, with varying degrees of suc-

cess and certain tradeoffs. However, none of these

techniques are on par with today’s expectations in the

cloud computing industry. It has been demonstrated

that VMs introduce a signiﬁcant overhead that does

not allow for an optimized use of resources (Xu et al.,

2014). The unfulﬁlled potential for improvement of

VMs is where OS-level virtualization comes in.

OS-level virtualization has become popular in re-

cent years by virtue of its resource efﬁciency. This

light-weight type of virtualization executes processes

quasi-natively (Felter et al., 2014),(Xavier et al.,

2013). On top of a shared Linux kernel, several

of what are generally referred to as “containers”

run a series of processes in different user spaces

(Elena Reshetova, 2014). In layman’s terms, OS-

level virtualization generates virtualized instances of

kernel resources, whereas hypervisors virtualize the

hardware. Moreover, containers run directly on top

of an operating system, whereas VMs need to run

their OS on top of a hypervisor which creates a per-

formance overhead (Xu et al., 2014). The downside

of containers is that they must execute a similar OS to

the one that is hosting the containers. There are var-

ious implementations of OS-level virtualization, with

differences in isolation, security, ﬂexibility, structure

and implemented functionalities. Each one of these

solutions is oriented towards different use cases. For

example, chroot() jails (Elena Reshetova, 2014) are

used to sandbox applications and Linux containers

(LXC)

are used to create application containers.

In March 2013, the Docker platform was released

as an open-source project based on LXC and a year

later, the environment was moved from LXC to lib-

container

. Docker is based on the principles of con-

tainerization, allowing for an easy deployment of ap-

plications within software containers as a result of

its innovative and unique architecture (Felter et al.,

https://linuxcontainers.org/

http://www.infoq.com/news/2013/03/Docker

145

Jiménez L., Gómez Simón M., Schelén O., Kristiansson J., Synnes K. and Åhlund C..

CoMA: Resource Monitoring of Docker Containers.

DOI: 10.5220/0005448001450154

In Proceedings of the 5th International Conference on Cloud Computing and Services Science (CLOSER-2015), pages 145-154

ISBN: 978-989-758-104-5

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

2014). Docker implements certain features that were

missing from OS-level virtualization. It bundles the

application and all its dependencies into a single ob-

ject, which can then be executed in another Docker-

enabled machine. This assures an identical execu-

tion environment regardless of the underlying hard-

ware or OS. The creation of applications in Docker

is ﬁrmly rooted in the concept of versioning (Docker

Inc, 2014b). Modiﬁcations of an application are com-

mitted as deltas (Docker Inc, 2014c), which allows

roll backs to be supported and the differences to pre-

vious application versions to be inspected. This is an

exceptional method of providing a reliable environ-

ment for developers. Furthermore, Docker promotes

the concept of reusability, since any object that is de-

veloped can be re-used and serve as a “base image”

to create some other component. Another essential

aspect of Docker is that it provides developers with

a tool to automatically build a container from their

source code.

The main difference between a Docker container

and a VM is that while each VM has its own OS,

dependencies and applications running within it, a

Docker container can share an OS image across mul-

tiple containers. In essence, a container only holds

the dependencies and applications that have to be run

within them. For example, assuming a group of con-

tainers were making use of the same OS image, the

OS would be common to all containers and not be du-

plicated contrary to the case of a VM topology.

Docker has become the ﬂagship in the container-

ization technology arena since its release (Felter et al.,

2014) (Docker Inc, 2013). This open-source project

has gained much notoriety in the ﬁeld of cloud com-

puting, where major cloud platforms and companies

(e.g. Google, IBM, Microsoft, AWS, Rackspace, Red

Hat, VMware) are backing it up. These companies

are integrating Docker into their own infrastructures

and they are collaborating in Docker’s development.

Recently, a few alternatives to Docker have cropped

up, such as Rocket

, Flockport

and Spoonium

An adequate monitoring of the pool of resources

is an essential aspect of a cloud computing infrastruc-

ture. The monitoring of resources leads to improved

scalability, better placement of resources, failure de-

tection and prevention, and maintenance of architec-

tural consistency, among others. This is relevant for

VMs, and it is just as applicable to OS-level virtual-

ization. Out of this need to monitor containers, within

the paradigm of OS-level virtualization platforms, the

following research questions have been addressed in

https://coreos.com/blog/rocket/

http://www.ﬂockport.com/start/

https://spoon.net/docs

this paper:

• How could an OS-level virtualization platform be

monitored to obtain relevant information concern-

ing images and containers?

This paper presents an investigation of this issue

as well as an implementation of a Container Mon-

itoring Agent.

• Is the resource usage information about the run-

ning containers reported by our Container Moni-

toring Agent valid?

This paper details a quantitative evaluation of the

validity of the measurements collected by the pro-

posed Container Monitoring Agent.

The rest of the paper is organized as follows. Sec-

tion 2 presents state-of-the-art research related to the

monitoring of containers and virtual machines. Sec-

tion 3 explains the different components of the moni-

toring system architecture. Section 4 presents the re-

sults obtained. Section 5 discusses the research ques-

tions. Finally, Section 6 presents the conclusions of

the paper and discusses the possibilities for future

work.

2 RELATED WORK

There is an active interest in industry and in research

to build monitoring solutions (Ranjan and Tai, 2014).

In (Kutare et al., 2010) the term monalytics is coined.

Monalytics refers to a deployment of a dynamically

conﬁgurable monitoring and analytics tool for large-

scale data centers, targeting the XEN hypervisor. One

of the monalytics’ topologies deﬁned, matches the

architecture chosen for the monitoring solution pro-

vided in this paper. The research of (Meng et al.,

2012) is centered on providing a state monitoring

framework that analyzes and mitigates the impact

of messaging dynamics. This technique ensures the

trustworthiness of the measurements collected by a

distributed large-scale monitoring tool on XEN-based

virtual machines. Most existing monitoring research

for data center management target virtual machines.

To the best of our knowledge, at the time of writing

this paper, there were no research papers on the topic

of monitoring the Docker platform.

When this monitoring solution for Docker was de-

veloped, there were a lack of open-source implemen-

tations to monitor Docker. However, recently, several

other monitoring systems for Docker have appeared.

Datadog agent (Datadog Inc, 2014) is an open-

source tool developed by Datadog Ink which moni-

tors Docker containers by installing an agent within

the host where the Docker platform is running. It is

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

146

an agent-based system which requires metrics to be

pushed to the Datadog cloud thereby making the task

of monitoring entirely dependent on Datadog’s cloud.

Unlike the Datadog agent, the monitoring agent for

the Docker platform presented in this paper is not only

open-source, but also independent of any particular

collector. It can be integrated within different mon-

itoring architectures after the proper conﬁguration is

done.

cAdvisor is an open-source project created by

Google Inc (Bryan Lee, 2014) to monitor their own

lmctfy containers (Google Inc, 2014). Support to

monitor the Docker platform was later added to it.

Therefore, this monitoring tool provides Docker met-

rics, which are shown in real time but are not stored

for more than one minute. This feature may be use-

ful to test container performance but, due to the small

data time frame displayed, it is not possible to get a

historical of the metrics collected.

The Host sFlow agent (InMon Inc, 2014) is an

open-source tool to monitor the resource consumption

of a host. It has recently incorporated the option to

monitor the Docker platform, making it a viable open-

source monitoring solution for Docker. However, this

agent adheres to the sFlow standard

, which enforces

constraints on the information it is able to send as

there is no dedicated sFlow structure for Docker. By

contrast, the solution provided in this paper does not

have limitations on the metrics that can be obtained.

The monitoring agent presented here can be modi-

ﬁed to select which metrics, out of all the available,

to monitor.

As shown above, only the solution proposed in

this paper manages to provide a monitoring module

for Docker that is open-source, does not adhere to

a particular collector or monitoring framework pro-

vided some conﬁguration is done, and allows for the

selection of a certain subset of metrics from all the

available ones.

3 SYSTEM ARCHITECTURE

To monitor Docker containers, three separate modules

could be employed: our Container Monitoring Agent

(CoMA), a metrics’ collector and a host monitoring

agent. The solution proposed in this paper, to create

a distributed Docker monitoring system consists of:

CoMA, the Ganglia Monitoring System and the Host

sFlow agent.

In Figure 1, a possible layout of the proposed

monitoring architecture is shown. This ﬁgure repre-

http://www.sﬂow.org/developers/speciﬁcations.php

Figure 1: Cloud topology.

Figure 2: General overview of the host.

sents three clusters. Each one of the monitored hosts

represented in Figure 1 have the structure presented

in Figure 2.

3.1 CoMA: CONTAINER

MONITORING AGENT

We have developed CoMA, the agent that moni-

tors containers of OS-level virtualization platforms

such as Docker. CoMA retrieves information about

the containers and images in the Docker platform.

It also tracks the CPU, memory and block I/O re-

sources being consumed by the running containers.

CoMA can be accessed as an open-source project at

https://github.com/laraljj/CoMA.

The collection of Docker metrics in CoMA is ac-

complished via two modules. One module makes

requests to the platform’s Remote API (Docker Inc,

2014a) to collect data about the containers and im-

ages. These include: the number of Go routines be-

ing executed by the Docker platform; the images that

have been created in each host and information about

these (e.g. size and virtual size); the number of con-

tainers that have been created and from which image

they have been built; the status of all the containers in

the host (i.e. whether they are running or stopped).

The second module obtains information about re-

source usage and resource limitations of the running

containers. These metrics are obtained by accessing

the control groups (cgroups) feature of the Linux ker-

nel (Paul Menage, 2014), which accounts and sets

CoMA:ResourceMonitoringofDockerContainers

147

limits for system resources within different subsys-

tems. The container resources monitored by this mod-

ule include CPU, memory and block I/O. The num-

ber of measurements recorded by CoMA vary accord-

ing to the number of containers that have been de-

ployed. For the Docker platform as a whole, there

are 18 CPU related metrics. Per container, 18 CPU

related metrics, 24 memory related metrics, and 100

block I/O related metrics are measured. This means

that when a single container is running, there are a to-

tal of 160 measurements available, 142 of these are

container speciﬁc and 18 of these are related to the

Docker platform itself. Therefore, when two contain-

ers are running there will be 302 measurements, 142

measurements for one container, 142 measurements

for the other container and 18 measurements for the

Docker platform. The metrics that are being reported

by CoMA can be selected according to the needs of

each speciﬁc deployment, so that only the values of

those metrics are dispatched to the collector, instead

of all of them.

3.2 Complementary Components

3.2.1 The Ganglia Monitoring System

The Ganglia Monitoring System (Massie et al., 2012)

is an open-source distributed monitoring platform to

monitor near real-time performance metrics of com-

puter networks. Its design is aimed at monitoring fed-

erations of clusters. The Ganglia Monitoring System

was selected as collector due to its capacity to scale,

its distributed architecture and because it supports the

data collection of the Host sFlow agent. However, in

the interest of ﬁtting the requirements of a different

system, a stand-alone collector could be used instead.

The system is comprised of three different units:

gmond, gmetad and gweb. These daemons are self-

contained. Each one is able to run without the inter-

vention of the other two daemons. However, architec-

turally they are built to cooperate with each other.

Gmond is a daemon that collects and sends met-

rics from the host where it is running to gmetad. This

is not a traditional monitoring agent, as it does not sit

passively waiting for a poller to give the order to re-

trieve metrics. Gmond is able to collect metric values

on its own, but gmond’s built-in metrics’ collection

may be replaced by the Host sFlow agent. This setup

implies that, for the architecture chosen, gmond acts

as in-between software layer for the Host sFlow agent

and gmetad.

Gmetad is a daemon running a simpliﬁed version

of a poller, since all the intelligence of metric re-

trieval lays, in our case, with the Host sFlow agent

and gmond. Gmetad must be made aware of from

which gmonds to poll the metrics. Gmetad obtains the

whole metric dump from each gmond, at its own time

interval, and stores this information using the RRD-

tool (i.e. in “round robin” databases).

Gweb is Ganglia’s visualization UI. It allows for

an easy and powerful visualization of the measure-

ments collected, mostly in the form of graphs. New

graphs combining any number of metrics can be gen-

erated, allowing the visualization of metrics to be cus-

tomized depending on individual needs.

3.2.2 The Host sFlow Agent

The Host sFlow agent was selected as the host moni-

toring agent to track the resources consumed by the

OS in the host running the OS-level virtualization

platform. Monitoring resources both at the host level

and at the virtualization platform level makes it possi-

ble to compare the values of the metrics for soundness

checks, tracking problems at both levels.

The Host sFlow agent may retrieve information

from within an OS running on bare metal or from

within the hypervisor if the aim is to monitor virtual

machines. This agent can be run in multiple OSs and

hypervisors. The agent itself obtains the same metrics

as gmond’s built-in collector does. The difference be-

tween these two solutions is that the sFlow standard,

used by the Host sFlow agent to relay metrics, is con-

siderably more efﬁcient than gmond. This is because

each sFlow datagram carries multiple metric values,

which reduces the number of datagrams that need to

be sent over the network. For example, monitoring

1,000 servers with gmond would create the same net-

work overhead as 30,000 servers with the sFlow pro-

tocol (Massie et al., 2012). The sFlow protocol’s ef-

ﬁciency justiﬁes the usage of the Host sFlow agent in

this monitoring system.

4 EVALUATION

The primary evaluation objective is to assess the va-

lidity of the values of the metrics collected with

CoMA. Validity in this context means to establish, for

the metrics reported by CoMA, whether the measured

values reﬂect the real values. Given the numerous

metrics reported about CPU, memory and block I/O, a

small subset of these metrics has been selected for the

evaluation. This validity assessment is carried out on

user CPU utilization, system CPU utilization, mem-

ory usage and number of bytes written to disk. User

CPU utilization and system CPU utilization refer to

the percentage of CPU that is employed to execute

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

148

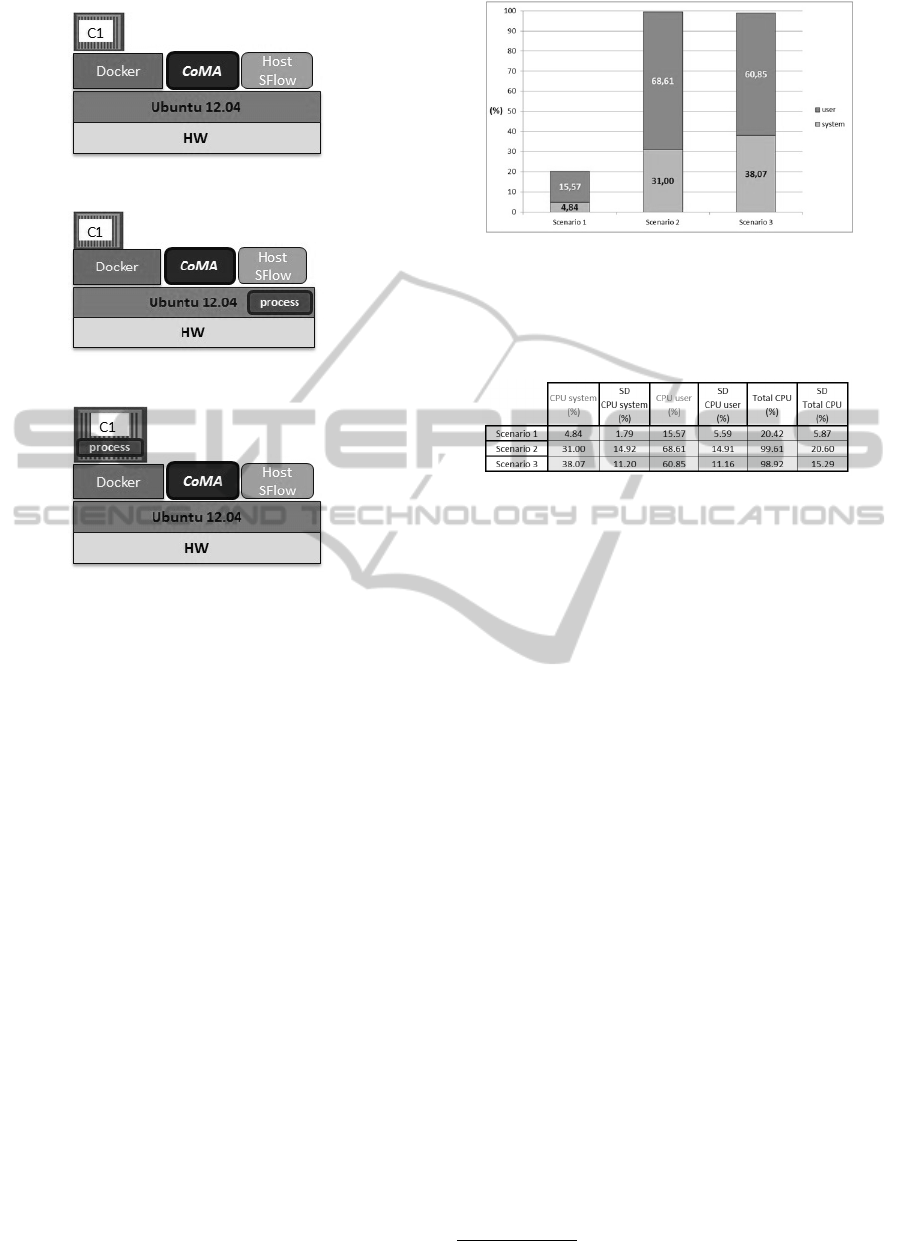

Figure 3: Scenario 1, no workload (baseline).

Figure 4: Scenario 2, workload on host OS.

Figure 5: Scenario 3, workload in container.

code in user space and in kernel space, respectively.

It should be noted that for all tests, Ubuntu 12.04 LTS

and the Docker platform 1.3.1 have been run on the

same Dell T7570 computer. This computer runs an

Intel Pentium D 2.80 GHz (800 MHz) and 2 GB of

RAM at 533 MHz.

The evaluation presented collects for each host:

host-speciﬁc metrics (reported by the Host sFlow

agent) and the metrics from the Docker platform (re-

ported by CoMA). The purpose of collecting the val-

ues for both sets of metrics was to compare and con-

trast the host’s resource consumption against the re-

source consumption of the Docker platform, that is,

against the resource consumption of the collection of

containers and images within the host. The objective

of this comparison is to offer a reliable overview of

the system from a resource usage perspective. Com-

paring both sets of metrics, a system administrator can

pinpoint the origin of a particular misbehavior by de-

termining if the issue is due to the Docker platform

(i.e. a speciﬁc container) or due to some other prob-

lem within the host but independent of the containers.

4.1 Validity of CPU and Memory

Measurements

Three different scenarios have been set up to assess

Figure 6: Host CPU utilization reported by the Host sFlow

agent.

Table 1: Host CPU utilization reported per scenario. To-

tal CPU is the aggregation of user CPU and system CPU.

Standard Deviation (SD).

the collected values of the memory and CPU-

utilization metrics. For all scenarios, 6 rounds, each

one of 30 minutes have been run. Scenario 1 (Figure

3) presents a baseline of the CPU and memory usage

while the OS is executing Docker, which runs a sin-

gle unlimited container executing /bin/bash, the Host

sFlow Agent and CoMA. The container was not ac-

tively used during this scenario. Scenario 2 (Figure

4) is set up like Scenario 1, except for the fact that a

workload generator was executed natively in the OS.

This means that the process did not run container-

ized. Stress-ng

has been used to generate load on

both CPU and memory. In order to create load on the

CPU, two workers were launched so that there would

be a worker per core. Each CPU worker executed

sqtr(rand()) to generate load. To stress the memory,

ﬁve workers were started on anonymous mmap, each

one of these workers was set to 420MB. Scenario 3

(Figure 5) has been laid out exactly like Scenario 2,

the only difference being that the stress-ng processes

were executed containerized.

4.1.1 CPU: A Single Container

The data obtained from each scenario were processed.

Figure 6 shows user CPU, system CPU and total CPU

utilization reported at the host level for each scenario.

Figure 7 displays CPU utilization pertaining to the

process or processes running within that single con-

tainer deployed in the three scenarios.

In order to determine that the measurements of the

CPU metrics collected with CoMA are valid, the data

http://kernel.ubuntu.com/ cking/stress-ng/

CoMA:ResourceMonitoringofDockerContainers

149

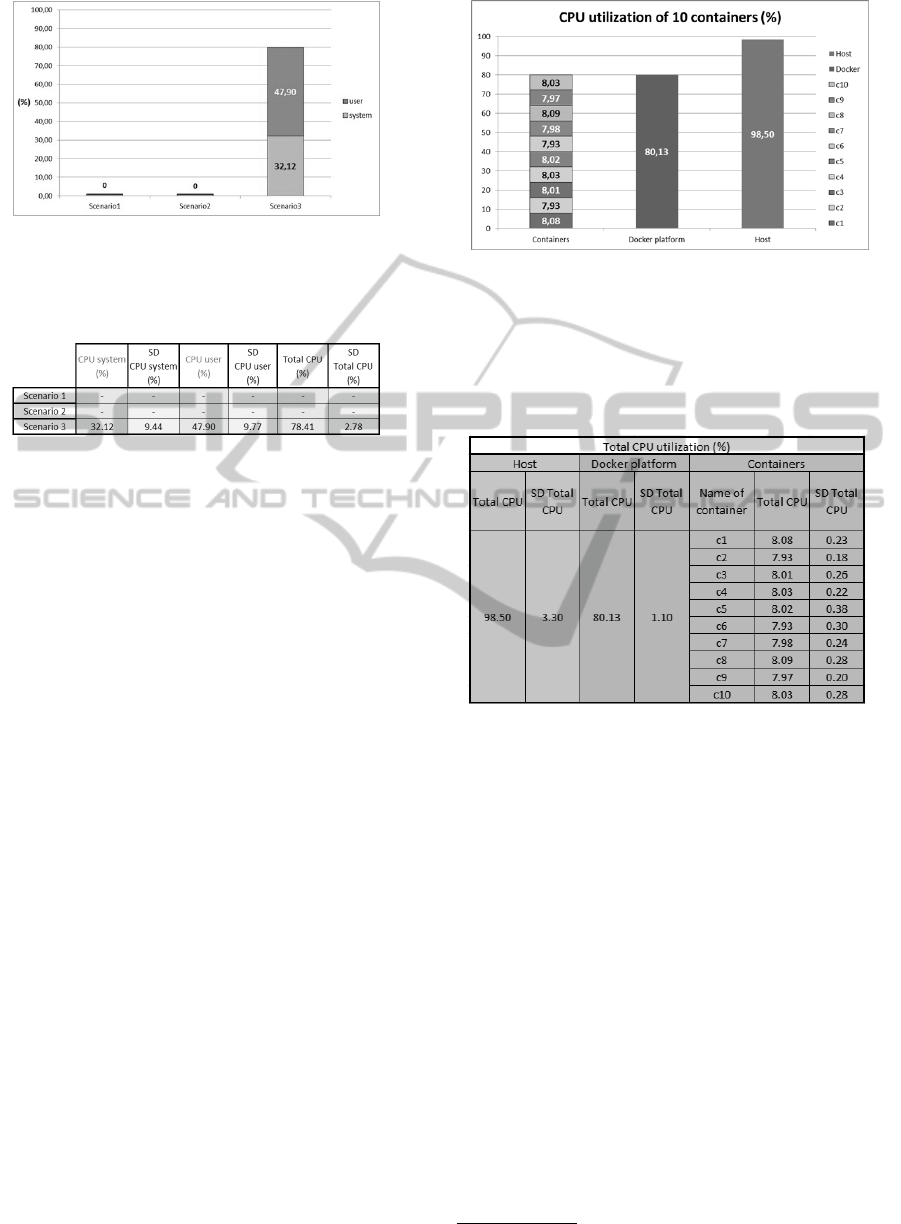

Figure 7: Container CPU utilization reported by CoMA.

Table 2: Container CPU utilization reported by CoMA per

scenario. Note that there are no processes running in Sce-

nario 1 and Scenario 2.

obtained from Scenario 3, which can be visualized in

Figure 6 and 7, has been compared. The total CPU

of Scenario 1 (Table 1), aggregated to the total CPU

of the container reported by CoMA in Scenario 3 (Ta-

ble 2), should resemble the total CPU reported by the

host in Scenario 3 (Table 1). The aggregation of those

ﬁrst two values (20.42% and 78.41%) results in a total

CPU of 98.83% and a standard deviation of 6.5. The

total CPU utilization of the whole host in Scenario 3

is 98.92% with a standard deviation of 15.29. These

results verify that the values of the CPU metrics gath-

ered by CoMA are valid.

The CPU utilization data retrieved from this eval-

uation allows for other noteworthy observations to be

made. In Figure 6 and Table 1 a small difference of

0.69% can be ascertained, between running the stress-

ng processes natively (Scenario 2) or containerized

(Scenario 3). The disparity that exists between these

two scenarios is due to several reasons. First, the in-

trinsic variable nature of the data collected has a di-

rect impact on the results attained. However, its ir-

regularity is acceptable as the standard deviations cal-

culated demonstrate, since these are reasonable and

valid for these data. Second, the stress-ng processes

themselves may be accountable for a certain variation.

It can also be noticed that there seems to be a ten-

dency in the way these stress-ng processes are ex-

ecuted. When stress-ng was run within a container

more system CPU utilization was accounted for com-

pared to when stress-ng was run natively. The effect

is the exact opposite when it comes to user CPU uti-

lization, as can be visualized in Figure 6. This last

observation has been veriﬁed by computing the corre-

lation coefﬁcient between system CPU utilization and

user CPU utilization. A nearly perfect negative corre-

Figure 8: Total CPU utilization of 10 containers, where

each container runs the same process generating a symmet-

ric CPU load across all containers. CoMA reports the values

for the containers and for the Docker platform. The Host

sFlow agent reports the values for the host.

Table 3: Total CPU utilization and standard deviations (SD)

for Figure 8.

lation of -0.99 was obtained for Scenario 2 and -0.98

for Scenario 3.

4.1.2 CPU: Multiple Containers

These scenarios prove that the CPU utilization re-

trieved by CoMA, of one container, is valid. However,

whether the agent is able to properly report the CPU

metrics for multiple simultaneously running contain-

ers should also be demonstrated. For this purpose,

two tests were carried out. For the ﬁrst test, ten con-

tainers ran the exact same stress-ng process to gen-

erate load on the CPU with two workers, one per

core. In accordance with the default process sched-

uler in Linux, the Completely Fair Scheduler (CFS)

, the expected outcome of this test is for each con-

tainer to employ a similar portion of the total CPU.

As it can be observed in Figure 8 and Table 3, each

container is granted an average of around 8% of the

CPU. The aggregation of each container’s total CPU

utilization adds up to 80.07% which almost matches

http://lwn.net/Articles/230501/

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

150

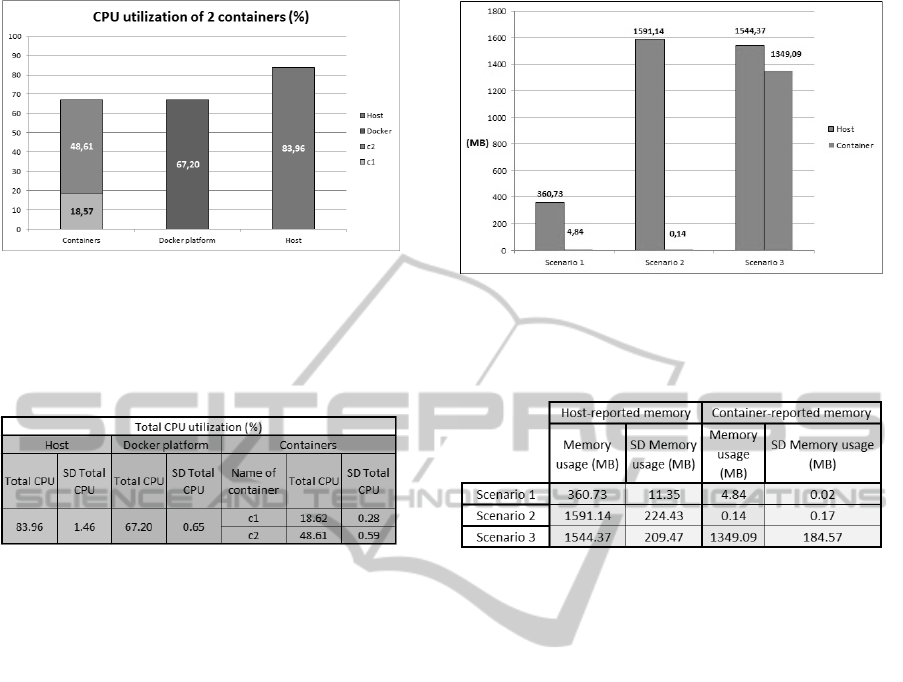

Figure 9: Total CPU utilization of 2 containers with asym-

metric processes running in each container. CoMA reports

the values for the containers and for the Docker platform.

The Host sFlow agent reports the values for the host.

Table 4: Total CPU utilization and standard deviations (SD)

for Figure 9.

the total CPU utilization of the whole Docker plat-

form (80.13%) as reported by CoMA.

This test shows that each container reports its

own set of CPU measurements independently and is

able to do so effectively. However, a different test

was carried out to verify this by running asymmet-

ric processes in two containers. Each container ran

the stress-ng process with different settings so as to

generate an uneven load across the two containers.

As represented by Figure 9 and Table 4, CoMA re-

ported just that. A container used 48.61% of the total

CPU whilst the other container employed 18.57% of

the total CPU. Both containers together used 67.18%,

which resembles the value (67.20 %) reported by

CoMA of the total CPU utilization of the Docker plat-

form.

4.1.3 Memory: A Single Container

The memory data captured for all scenarios is dis-

played in Figure 10. It should be mentioned that there

is a greater ﬂuctuation in the memory-reported values

than in the CPU values. This phenomenon is due to

the manner in which Linux manages its memory. The

memory management methodology applied by Linux

varies according to the needs of the OS at any given

time. This adds another layer of complexity when

analyzing the metrics collected. The host’s mem-

ory usage in Scenario 1 (360.73MB) aggregated to

the container’s memory usage reported by CoMA in

Figure 10: A comparison of the memory usage reported by

the host and the container per scenario.

Table 5: Memory usage and standard deviations (SD) for

Figure 10.

Scenario 3 (1349.09MB), should be somewhat sim-

ilar to the host’s memory consumption in Scenario

3 (1544.37MB). In this case there is a difference of

around 165MB. As it has been explained before, this

discrepancy is caused by the memory management

enforced by Linux, as well as by the error introduced

in the averaging process of the results.

4.1.4 Memory: Multiple Containers

Much like it happens with CPU, the previous sce-

narios establish that the memory metrics provided by

CoMA are valid for a single container. The two CPU

tests performed with multiple simultaneously running

containers, were also carried out for memory. As it

can be observed in Figure 11 and Table 6, when the

same process is running in each container, the mem-

ory usage value presented by CoMA per container has

a greater variability than that observed in the same

test for CPU utilization. As it has been previously

explained, these ﬂuctuations are due to the change-

able nature of how memory is managed by the OS.

However, each container’s memory usage is close to

152MB. The aggregated memory usage of all 10 con-

tainers adds up to 1519.92MB. The Host sFlow agent

reports a memory usage of 1773.62MB for the whole

host during this test. The difference of 253.70MB be-

tween these last two values, represents the memory

being employed by the OS to run non-containerized

processes. A second test, where two containers were

CoMA:ResourceMonitoringofDockerContainers

151

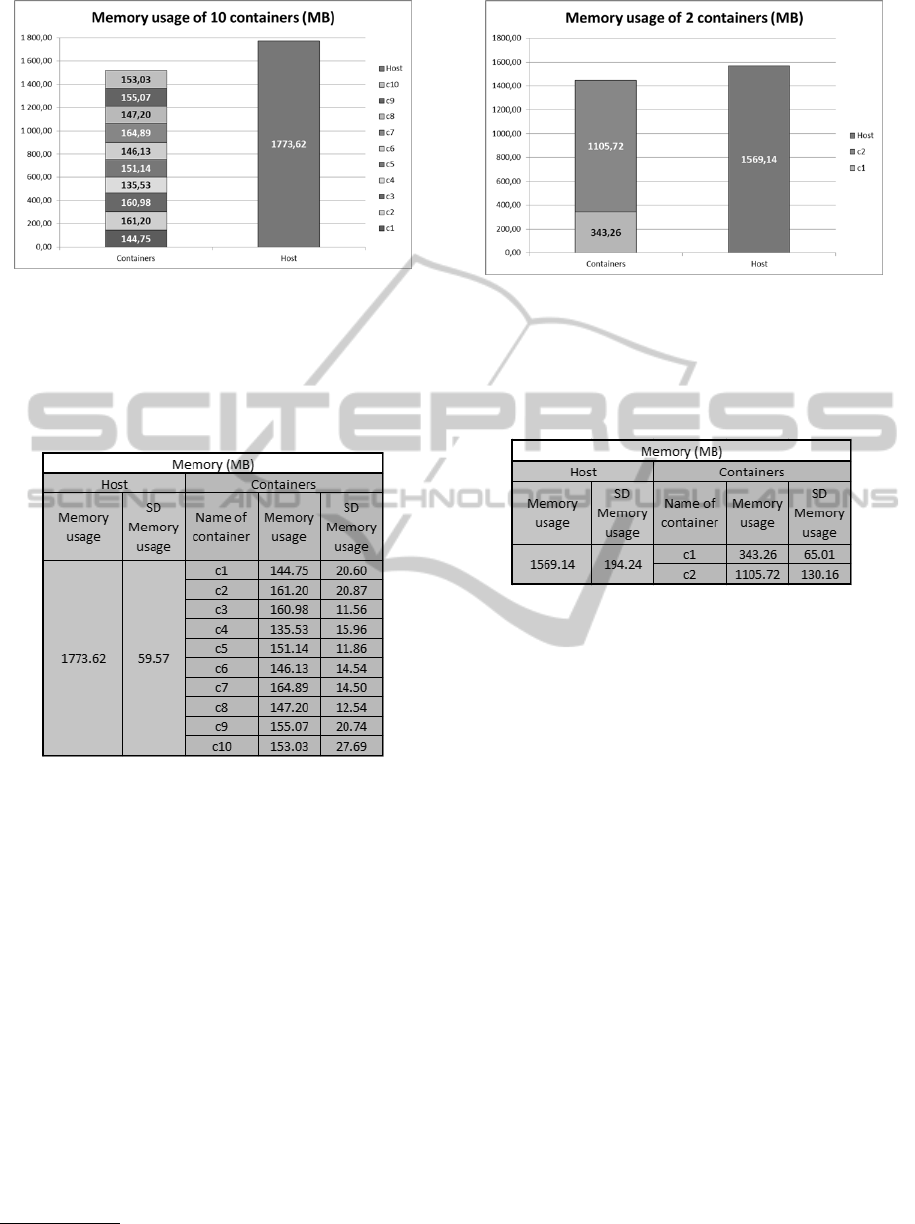

Figure 11: Memory usage of 10 containers, where each con-

tainer runs the same process. This generates a symmetric

memory use across all containers. CoMA reports the values

for the containers and for the Docker platform. The Host

sFlow agent reports the values for the host.

Table 6: Memory usage and standard deviations (SD) for

Figure 11.

conﬁgured to make a disparate use of memory was

also carried out. Figure 12 and Table 7 reﬂect the re-

sults obtained, which are consistent with the values

gathered when running a symmetric memory load on

10 containers.

4.2 Validity of block I/O Measurements

To evaluate whether the block I/O measurements

gathered by CoMA were solid, the I/O tool ﬁo

was

used to write 1000MB directly to the ext4 ﬁlesystem

mounted by the host by making use of the –v ﬂag

(Docker Inc, 2014d) on the container. In order to

achieve this, ﬁo was conﬁgured to initiate ﬁve work-

ers, each worker performing random write operations

of 200 MB in the shared folder between the host and

the container.

The test of writing 1000MB to disk was executed

at 12:00 and it ﬁnished by 12:07. As Figure 13 shows,

http://freecode.com/projects/ﬁo

Figure 12: Memory usage of 2 containers with asymmet-

ric processes running in each container. CoMA reports the

values for the containers and for the Docker platform. The

Host sFlow agent reports the values for the host.

Table 7: Memory usage and standard deviations (SD) for

Figure 12.

exactly 1000MB were reported to have been written

during that time.

A separate test was created, following the same

principle previously explained, to write to disk from

three simultaneously running containers. Fio was

conﬁgured for each container with a disparate number

of workers and ﬁle sizes. The ﬁrst container spawned

two workers, each of which had to write 300MB to

the shared folder. The second container initiated three

workers, each with a ﬁle size of 250MB. The third

container started ﬁve workers, where each worker had

to write 200MB to disk. For each container, the num-

ber of bytes that CoMA reported were written to disk

was exactly right, down to the last byte. The ﬁrst con-

tainer took 20 minutes to write the 600MB to disk.

The second and third container took around 16 min-

utes to write 750MB and 1000MB to disk, respec-

tively. The time taken for each container to complete

the task of writing these ﬁles to memory is closely

linked to the number of workers running and the num-

ber of containers writing to disk.

5 DISCUSSION

This section discusses CoMA as well as the evalua-

tion results obtained in terms of the research questions

proposed.

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

152

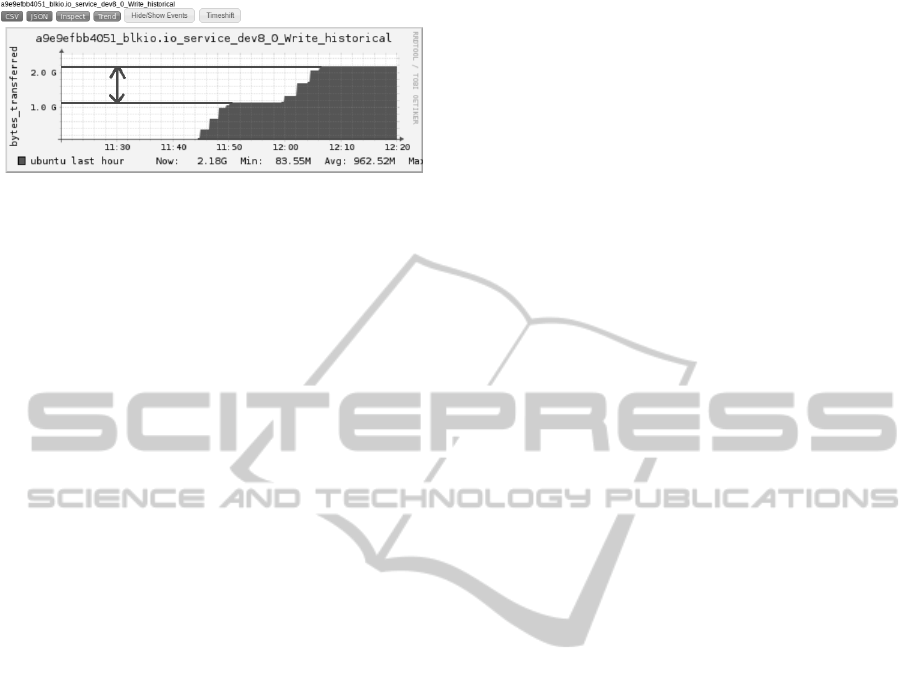

Figure 13: Bytes written to disk by container.

How could an OS-level virtualization platform be

monitored to obtain relevant information concerning

images and containers?

CoMA retrieves information about the usage of

CPU, memory and block I/O of running contain-

ers from the Linux kernel’s control groups. It also

fetches the data concerning images and containers us-

ing Docker’s Remote API.

Is the resource usage information about the run-

ning containers reported by our Container Monitor-

ing Agent valid?

The evaluation provides validation across the fol-

lowing three blocks of metrics: CPU, memory and

block I/O. The most complex metric to validate was

the memory usage of a container. This is due to the

way memory is managed in an OS, which causes the

memory usage baseline in Scenario 1 to account a

slightly overestimated usage. The authenticity of all

the measurements that can be collected with CoMA

could not be tested because of the number of metrics

that CoMA is able to gather. Nevertheless, since the

values are being reported by the Linux kernel, assess-

ing at least one metric from each group of metrics is

sufﬁcient to establish the validity of CoMA. It should

be mentioned that CoMA can be modiﬁed to only dis-

patch a subset of desired metrics.

CoMA’s CPU utilization is dependent on the test-

bed that has been set up. This means that CoMA’s

resource usage is contingent on the hardware that has

been employed, the number of containers that had

been deployed, the number of metrics being sent and

the sampling rate set for CoMA. This last value can

be conﬁgured to obtain measurements closer or fur-

ther away from real-time monitoring, depending on

the requirements. There are certain tradeoffs in the

selection of the sampling rate. A higher sampling rate

would mean obtaining more accurate measurements

in terms of time, but more resources would be used in

order to monitor the platform. It is worth mentioning

that CoMA itself consumes around 15.25% of CPU

with a standard deviation of 5.87 for the speciﬁc test-

bed presented in the evaluation section. This number

may seem high, but it is relative to the hardware be-

ing employed. An Intel Pentium D 2.8GHz and 2GB

RAM at 533MHz was used in this case. Had con-

ventional cloud computing hardware been used, this

percentage would be much lower. Moreover, in this

test-bed all available metrics are collected, if fewer

of them were collected the percentage of CPU used

would decrease. It should also be mentioned that the

monitoring solution itself shall be optimized so as to

minimize its impact.

It has been previously mentioned that CoMA

could be employed to monitor similar OS-level vir-

tualization platforms. For this to happen, said OS-

level virtualization platform would have to account

resource usage in a similar fashion to Docker, i.e. us-

ing the Linux kernel’s control groups. However, the

information pertaining to the containers and images

that is collected through Docker’s Remote API, is spe-

ciﬁc to the Docker platform itself.

6 CONCLUSION AND FUTURE

WORK

Monitoring the resource consumption of OS-level vir-

tualization platforms such as Docker, is important to

prevent system failures or to identify application mis-

behavior. CoMA, the Container Monitoring Agent

presented in this paper, reports valid measurements

as shown by our evaluation. It currently tracks CPU

utilization, memory usage and block I/O of running

containers. CoMA could be conﬁgured to gather a

subset of the available metrics to suit the monitoring

needs of a particular system or application. This pa-

per has presented a possible implementation solution

of CoMA to build a distributed and scalable monitor-

ing framework, using the open-source projects Gan-

glia and the Host sFlow agent.

It would be positive to monitor the network us-

age of the containers, since this feature has not yet

been implemented in CoMA. Moreover, establishing

thresholds on certain metrics collected by CoMA to

trigger alarms or actions would be beneﬁcial. Also,

assessing CoMA’s behavior when numerous contain-

ers are deployed on commonly used hardware in data

centers is required. This would be a proper test-bed to

gauge CoMA’s performance in a realistic cloud com-

puting scenario.

Another area for further research would be to

employ machine learning techniques on the values

collected, to maximize resource usage by modify-

ing each container’s resource constraints based on the

needs of the running containers. There is also the pos-

sibility of applying data analytics on the information

captured by CoMA to build an autonomous system for

container placement within a cloud or across clouds.

CoMA:ResourceMonitoringofDockerContainers

153

There are new and upcoming OS-level virtual-

izations platforms that could rival Docker, such as

Rocket. CoMA could be also employed and evalu-

ated with these recent virtualization platforms.

REFERENCES

Barham, P., Dragovic, B., Fraser, K., Hand, S., Harris, T.,

Ho, A., Neugebauer, R., Pratt, I., and Warﬁeld, A.

(2003). Xen and the art of virtualization. SIGOPS

Oper. Syst. Rev., 37(5):164–177.

Bryan Lee (Accessed: 2014). cAdvisor monitoring

tool. http://blog.tutum.co/2014/08/07/using-cadvisor-

to-monitor-docker-containers/.

Datadog Inc (Accessed: 2014). Docker-ize Datadog with

agent containers . https://www.datadoghq.com/2014/

06/docker-ize-datadog/.

Docker Inc (2013). What is Docker technology ? https://

www.docker.com/whatisdocker/.

Docker Inc (Accessed: 2014a). Docker remote API. https://

docs. docker.com/ reference/api/docker remote api/.

Docker Inc (Accessed: 2014b). Docker working with LXC.

https://docs.docker.com/faq/.

Docker Inc (Accessed: 2014c). File sytem architecture of

the Docker platform . https://docs.docker.com/terms/

layer/.

Docker Inc (Accessed 2014d). Volume system with Docker.

https://docs.docker.com/userguide/dockervolumes/.

Elena Reshetova, Janne Karhunen, T. N. N. A. (2014). Se-

curity of os-level virtualization technologies.

Felter, W., Ferreira, A., Rajamony, R., and Rubio, J. (2014).

An updated performance comparison of virtual ma-

chines and linux containers. technology, 28:32.

Google Inc (Accessed: 2014). lmctfy: Let Me Contain That

For You . https://github.com/google/lmctfy.

InMon Inc (Accessed: 2014). HostsFlow monitoring tool .

http://host-sﬂow.sourceforge.net/.

Kutare, M., Eisenhauer, G., Wang, C., Schwan, K., Talwar,

V., and Wolf, M. (2010). Monalytics: Online monitor-

ing and analytics for managing large scale data cen-

ters. In Proceedings of the 7th International Confer-

ence on Autonomic Computing, ICAC ’10, pages 141–

150, New York, NY, USA. ACM.

Massie, M., Li, B., Nicholes, B., Vuksan, V., Alexander,

R., Buchbinder, J., Costa, F., Dean, A., Josephsen, D.,

Phaal, P., and Pocock, D. (2012). Monitoring with

Ganglia. O’Reilly Media, Inc., 1st edition.

Meng, S., Iyengar, A. K., Rouvellou, I. M., Liu, L., Lee, K.,

Palanisamy, B., and Tang, Y. (2012). Reliable state

monitoring in cloud datacenters. In Proceedings of the

2012 IEEE Fifth International Conference on Cloud

Computing, CLOUD ’12, pages 951–958, Washing-

ton, DC, USA. IEEE Computer Society.

Paul Menage (Accessed: 2014). Control Groups (cgroups)

Documentation . https://www.kernel.org/doc/

Documentation/cgroups/cgroups.txt. Available since:

2004.

Ranjan, R., B. R. L. P. H. A. and Tai, S. (2014). A note

on software tools and techniques for monitoring and

prediction of cloud services softw: Pract. exper., 44:

771–775.

Tafa, I., Beqiri, E., Paci, H., Kajo, E., and Xhuvani, A.

(2011). The evaluation of transfer time, cpu con-

sumption and memory utilization in xen-pv, xen-hvm,

openvz, kvm-fv and kvm-pv hypervisors using ftp and

http approaches. In Intelligent Networking and Col-

laborative Systems (INCoS), 2011 Third International

Conference on, pages 502–507.

VMware Inc (2007a). Understanding Full Vir-

tualization, Paravirtualization and Hardware

Assist. http://www.vmware.com/ﬁles/pdf/

VMware paravirtualization.pdf. Accessed: 2014

(white paper).

VMware Inc (2007b). Virtualization Overview. http://

www.vmware.com/ pdf/ virtualization.pdf. Accessed:

2014 (white paper).

Xavier, M., Neves, M., Rossi, F., Ferreto, T., Lange, T.,

and De Rose, C. (2013). Performance evaluation of

container-based virtualization for high performance

computing environments. In Parallel, Distributed and

Network-Based Processing (PDP), 2013 21st Euromi-

cro International Conference on, pages 233–240.

Xu, F., Liu, F., Jin, H., and Vasilakos, A. (2014). Man-

aging performance overhead of virtual machines in

cloud computing: A survey, state of the art, and future

directions. Proceedings of the IEEE, 102(1):11–31.

Ye, K., Huang, D., Jiang, X., Chen, H., and Wu, S. (2010).

Virtual machine based energy-efﬁcient data center ar-

chitecture for cloud computing: A performance per-

spective. IEEE-ACM International Conference on

Green Computing and Communications and Inter-

national Conference on Cyber, Physical and Social

Computing, 0:171–178.

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

154
