Cloud-side Execution of Database Queries for Mobile Applications

Robert Pettersen, Steffen Viken Valv˚ag,

Age Kvalnes and Dag Johansen

Department of Computer Science, University of Tromsø, The Arctic University of Norway, Tromsø, Norway

Keywords:

Mobile, Cloud, Performance.

Abstract:

We demonstrate a practical way to reduce latency for mobile .NET applications that interact with cloud

database services. We provide a programming abstraction for location-independent code, which has the po-

tential to execute either locally or at a satellite execution environment in the cloud, in close proximity to the

database service. This preserves a programmatic style of database access, and maintains a simple deployment

model, but allows applications to ofﬂoad latency-sensitive code to the cloud. Our evaluation shows that this

approach can signiﬁcantly improve the response time for applications that execute dependent queries, and that

the required cloud-side resources are modest.

1 INTRODUCTION

Use of cloud-provided services is integral to the op-

eration of modern distributed and mobile applica-

tions. In particular, cloud databases simplify appli-

cation logic by serving as highly available reposito-

ries for critical state. For improved scalability and

availability these databases are commonly NoSQL,

with limited support for tabular relations and trans-

actions and with a more relaxed consistency model

than a conventional relational database. Queries are

issued through a programmatic interface, rather than

a domain-speciﬁc, high-level query language.

This promotes a usage pattern where multiple,

consecutively-issued queries implement a single logi-

cal transaction. For example, an atomic update can be

implemented as a read of the old value, followed by

a conditional write of the new value, with the predi-

cate that the old value remains unchanged. Or a col-

lection of related records can be retrieved in multiple

steps, by manually following foreign key references,

rather than using higher-level features like joins and

subqueries.

When the database is hosted in the cloud, issu-

ing a sequence of dependent queries entails multiple

round-trips of communication, and network latency

becomes an important concern. For example, we have

measured a latency of 50− 350ms for accessing the

Amazon DynamoDB (DeCandia et al., 2007) cloud

database from a mobile device (Pettersen et al., 2014),

whereas a study covering 260 global vantage points

reports an average round-trip time (RTT) of 74ms for

accessing Amazon EC2 instances (Li et al., 2010). Is-

suing a sequence of queries to the cloud can result in

unwanted delays that are perceptible by users.

This paper demonstrates a practical way to signif-

icantly reduce completion-latency when mobile ap-

plications execute dependent queries against a cloud

database. Our approach is to provide a program-

ming abstraction—satellite execution—for location-

independent code, which has the potential to exe-

cute either locally on a device, or be ofﬂoaded to the

cloud. If an application experiences high latency, or

needs to issue a long sequence of database queries, the

latency-sensitive code can be ofﬂoaded to the cloud

and executed in close proximity to the database ser-

vice. This ensures low-latency database access on

demand, while preserving the programmatic style of

database access.

Our system, called Dapper, signiﬁcantly extends

and integrates the functionality of two previous sys-

tems: Rusta (Valv˚ag et al., 2013) and Jovaku (Pet-

tersen et al., 2014). Rusta is a platform for developing

cloud applications that can utilize client-side storage

and processing capacity, while the Jovaku system pro-

vides a distributed infrastructure for caching of cloud

database data through the ubiquitous DNS service.

A goal with Rusta was to express computations

in a location-independent way, allowing for oppor-

tune execution in the cloud or at client-side devices.

This was accomplished by expressing computations

in the Scala programming language and using built-

in closure features to create transferable execution

contexts. Dapper uses .NET reﬂection to achieve the

586

Pettersen R., Viken Valvåg S., Kvalnes Å. and Johansen D..

Cloud-side Execution of Database Queries for Mobile Applications.

DOI: 10.5220/0005451605860594

In Proceedings of the 5th International Conference on Cloud Computing and Services Science (CLOSER-2015), pages 586-594

ISBN: 978-989-758-104-5

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

same, thereby approaching the problem of transfer-

ability in a more general manner; any part of the exe-

cution context of a program written in any .NET sup-

ported language can be made transferable.

Jovaku’s application-transparent interfacing with

Amazon’s DynamoDB through DNS was in part made

possible by a cloud-side relay-node. Software on this

node bridged DNS with DynamoDB by turning DNS

requests into database queries. Dapper not only sup-

ports use of DNS for caching of data on behalf of a

mobile application, but also transforms and extends

the Jovaku cloud-side node into a platform for host-

ing and executing ofﬂoaded .NET code.

To illustrate the beneﬁts of our approach, we

quantify latency savings when cloud database queries

are executed from the cloud rather than at the client-

side device. We examine communication traces of

popular phone applications to determine the practi-

cality of our approach, and we measure the perfor-

mance of the Dapper cloud-side platform to assess

added costs.

The rest of the paper is structured as follows. Sec-

tion 2 elaborates on the background and context of

our work, motivating our general approach. Sec-

tion 3 describes Dapper, and the programming ab-

stractions that enable cloud-side execution of queries.

Section 4 contains our performance evaluation, with

measurements of typical reductions in latency, and

the maximum query processing throughput that can

be achieved in various conﬁgurations. Section 5 dis-

cusses related work, and Section 6 concludes.

2 BACKGROUND

The desire to reduce latency for mobile applications

tends to encourage a split application architecture,

where parts of the application logic executes on the

device, and other parts execute in the cloud. Higher-

level operations such as submitting a comment or gen-

erating a news feed are delegated as a whole to the

cloud, to avoid multiple round-trips of communica-

tion.

The split between frontend and backend also has

a tangential beneﬁt: it allows a variety of frontends,

often tailored for different devices, to access the same

backend service. For example, an on-line chess ser-

vice will typically offer both a web-based frontend,

as well as clients for various mobile devices and plat-

forms. Users should be able to switch seamlessly be-

tween client devices, e.g. moving from their laptop

to their phone, so the state of on-going games must

be maintained by the backend. This requires frequent

communication with the cloud to retrieve and update

application state.

Many frameworks and platforms aim to ease the

development of mobile applications that are fac-

tored into separate backend and frontend components.

One example is Parse (Parse, 2015), which provides

a backend-as-a-service solution that offers backend

cloud storage, as well as the ability to deploy appli-

cation modules that execute in the cloud, close to the

data. One common downside of these approaches is

that the device-speciﬁc and cloud-speciﬁc parts of the

application are deployed independently, through dif-

ferent channels. This increases the risk of breakage,

when old versions deployed on devices interact with

the newest version deployed in the cloud.

We approach the problem differently; rather than

explicitly deploying parts of applications in the cloud,

we empower applications to ofﬂoad latency-sensitive

code on demand, in a dynamic manner. Ofﬂoaded

code will execute in close proximity to the backend

storage service, where latency is low. Thus, we ad-

dress the main motivating concern—improving ap-

plication responsiveness as experienced by users—

without dictating a static deployment model for ap-

plications.

A key idea underlying this work is to move com-

putations closer to the data that they touch, which is a

well-known technique that ﬁnds diverse applications.

When processing streams of data, the demand for net-

work bandwidth can be reduced by ﬁltering streams

closer to the source, pushing computations upstream.

When processing stored data, similar gains can be

made by scheduling computations to execute locally

on the storage nodes, using functional programming

models like MapReduce (Dean and Ghemawat, 2004)

for location independence.

Our experience from mobile agents (Johansen

et al., 2001; Johansen et al., 1999) and MapReduce-

style distributed data processing have inspired some

key aspects of this work. As in Cogset (Valv˚ag et al.,

2013), we promote a functional programming model

using the visitor pattern, where latency-sensitive code

has the ability to visit the backend storage service as

desired. In this case, a visitor also resembles a mo-

bile agent; although restricted to movesback and forth

between a client device and the cloud, it retains the

deﬁning ability to carry state.

3 DAPPER

Instead of statically partitioning applications into

client- and cloud-side components, Dapper enables

individual objects to move dynamically between the

client and the cloud. This is accomplished by ex-

Cloud-sideExecutionofDatabaseQueriesforMobileApplications

587

Client

Relay

Node

Client

Relay

Node

(a) Baseline, client communicating directly with DB

(b) With satellite execution

Single roundtrip

Multiple Get/Puts

Figure 1: How satellite execution is applied to eliminate

extraneous round-trips of communication between a client

and the cloud, reducing latency.

tending the mobile platform with a satellite execu-

tion environment hosted on a cloud-side relay-node.

Dapper implements the relay-node and provides pro-

gramming abstractions for an application to temporar-

ily execute an object at the satellite.

The decision to deploy an object for satellite ex-

ecution is taken at run-time. Deployment involves

moving an object’s code (i.e., its class) and its cur-

rent state. Incurred state changes while executing re-

motely are included when the object is moved back

to the client. Objects can move repeatedly between

the client and the cloud, for example in response to

changes in application environment or state.

In this work, we demonstrate how satellite execu-

tion can reduce completion-latency for cloud database

queries. Queries are expressed as objects that interact

programmatically with the database. Through satel-

lite execution the objects are deployed in close prox-

imity to the targeted cloud database. This approach

preserves the advantages of a programmatic database

interface; for example, objects can perform computa-

tions, transformations, cryptographic operations, and

any other manipulations of parameters and interme-

diate results that may be required when performing a

sequence of queries. Figure 1 illustrates our approach,

public inte r fa ce IContext

{

Task<object> Get ( s tri ng key ) ;

Task<List<object>> GetMany ( string key ) ;

Task<bool> Put ( str ing key , object val ue ) ;

}

Figure 2: Dapper interface to key/value databases or stores.

showing how multiple round-trips between a client

and the cloud can be replaced with a single round-trip

to the relay-node and multiple low-latencyintra-cloud

interactions with the database.

Our implementation targets Amazon DynamoDB,

a popular NoSQL cloud database service, but it can

easily be adapted to work with any similar services.

The relay-node is an Amazon EC2 instance in the

same availability zone as the DynamoDB service,

running an unmodiﬁed Windows Server 2012 image.

The relay-node software is written in C# and uses an

asynchronous programming model to efﬁciently han-

dle a large number of clients and database connec-

tions.

Amazon’s ofﬁcial C# API is used to perform Dy-

namoDB operations. But Dapper exposes this API to

the programmer indirectly, through a database con-

text object providing general database operations, im-

plementing the IContext interface shown in Figure 2.

This indirection separates application logic from the

particular database, promoting customization ﬂexibil-

ity. For example, an application can be run fully

client-side by providing a context object that binds to

a client-side database.

To be eligible for satellite execution, a class must

implement the ISatellite interface. Figure 3 shows

an example implementing a bag-of-queries capable of

satellite execution, given a database context. Queries

are added to the bag by invoking AddQuery(); the

queries are aggregated in the

queryList ﬁeld. Exe-

cute() issues the queries via the database context ob-

ject and stores results in the

responseList ﬁeld. The

client can retrieve query results by invoking GetRe-

sponses().

An object is moved for execution at a relay-node

when the application invokes the Dapper run-time’s

ExecuteAt() function, shown in Figure 4, specifying

the object and the particular satellite execution envi-

ronment. ExecuteAt() transfers the object, in a seri-

alized state, to the relay-node, where the object is de-

serialized and its Execute() function is invoked. After

the Execute() function completes, the object is moved

back to the client. Dapper exposes .NET task-based

asynchronous programming primitives, as shown in

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

588

[ S e ri a l i za bl e ]

public c l a s s QueryBag : I S er i al i z a b l e , I S a t e l l i t e

{

private List<string>

re sp o n s e L i st ;

private List<string>

q u e ry L is t ;

public async Task Execute ( IC ontext ctx )

{

foreach ( var query in

q u e ry L is t )

{

var queryResponse =

await ctx . GetMany ( query );

i f (

re sp o n s e L i s t == null )

re sp o n s e L i s t = new Lis t<string > ();

re sp o n se Li s t . AddRange ( queryResponse ) ;

}

public void AddQuery( s tr ing query )

{

i f (

q u e ry L is t == nu ll )

q u e ry L is t = new L ist<string > ();

q u e ry L is t . Add( query );

}

public L ist<string> GetResponses ( )

{

return

re sp o n s e L i s t ;

}

Figure 3: Implementation of a bag-of-queries that can exe-

cute remotely in the cloud via satellite execution.

async Task<object> ExecuteAt ( object obj ,

Node l o ca t i o n = nu ll )

Figure 4: Interface for requesting remote execution.

ﬁgures 3 and 4, for the application to determine com-

pletion of remote execution and for the remote envi-

ronment to efﬁciently handle actual execution.

Dapper employs several techniques to reduce the

amount of data communicated between the client and

the relay-node. One technique is to cache previously

received assemblies at the relay-node. Thus, if in-

stances of the same class are moved repeatedly, the

corresponding byte codes need only be communi-

cated once. Assembly-versioning determines the va-

lidity of a cached assembly. Another optional opti-

mization is to communicate only changed state back

from the remote environment—when remote execu-

tion completes, Dapper determines the difference in

object state before and after execution and communi-

cates that difference back to the client for object re-

construction. This is implemented using a custom se-

rialization protocol; default serialization offers more

convenience and is employed unless otherwise speci-

ﬁed.

A user typically assigns different levels of trust to

applications hosted on the same mobile device. For

example, the user could entrust one application with

access to data such as a contact list, but deny that ac-

cess to another application. It is important for satel-

lite execution not to weaken enforcement of this dif-

ferentiated trust. For example, if the relay-node pro-

vides no isolation between execution environments,

code executed on behalf of one application could po-

tentially access code and data belonging to another

application, thereby compromising trust assigned by

the user at the mobile device.

Dapper relies on .NET application domains (Ap-

plication Domains, 2015) to create separate and iso-

lated execution domains for received assemblies at

the relay-node. Each of these domains is conﬁg-

ured with a whitelist of library-assemblies that are

available to the hosted assembly. Also, some library-

assemblies are made partially available subject to call-

interception and approval.

4 EVALUATION

Our relay-node was hosted on two types of Ama-

zon EC2 instances in our experiments. The ﬁrst type

was t1.micro, equipped with 613 MB memory and

a single-core 64-bit vCPU operating at 1.85 GHz.

The second type was t2.medium, equipped with 4

GB memory and a two-core vCPU operating at 2.50

GHz. Both types of instances were running Microsoft

Windows Server 2012 R2. We used Amazon’s Dy-

namoDB as the cloud-side database, instantiated in

the same availability zone as our relay-node.

Dapper runs on a variety of Microsoft Windows

platforms, including phone, store, and desktop. We

used two different client-side platforms for the exper-

iments: (1) a phone with 2 GB memory and a four-

core QualCom Snapdragon 800 2.2 GHz CPU and (2)

a desktop machine with 64 GB memory and a four-

core Intel Xeon E5-1620 3.7 GHz CPU. The phone

ran Windows Phone 8.1 and communicated over 4G,

whereas the desktop machine ran Windows 10 and

was connected to a LAN.

We ﬁrst report on a black-box examination of

the cloud communication patterns of some popular

mobile device applications. Here we sought to dis-

cover patterns consistent with sequences of dependent

queries, with the motivation that satellite execution

could be used in place of such interactions. We con-

ﬁgured our phone platform to communicate through

an access point instrumented to capture all ingress and

egress packets. We then inspected packet traces look-

Cloud-sideExecutionofDatabaseQueriesforMobileApplications

589

Figure 5: Example communication pattern between mobile

device and cloud assumed to be of a request/reply type.

Table 1: Summary of cloud interactions during phone ap-

plication startup.

Application # request/reply # connections

Social networking

1 1

2 1

Instant messaging

1 4

2 3

7 1

Short messaging

1 7

2 3

4 1

6 1

Picture exchange

1 1

2 2

ing for what appeared as consecutive request/reply

cloud interactions without intervening user actions.

The particular pattern we looked for is exempliﬁed

in Figure 5, which shows two interactions assumed to

be of a request/reply type.

Our ﬁndings for cloud interactions during startup

of four popular applications are summarized in Ta-

ble 1. We observed that the applications communicate

over a number of separate network connections, rang-

ing from 2 for the social networking application to

12 for the short messaging application. Most of these

connections are to different services within the same

cloud, but some are external, typically in support of

content distribution such as Akamai (Nygren et al.,

2010). The number of assumed request/reply interac-

tions varied across applications and connections, with

the instant- and short messaging applications respec-

tively having as many as 7 and 6 consecutive interac-

tions. These ﬁndings suggest satellite execution could

be effective if applied in these popular applications.

We continue with an experiment that quantiﬁes la-

tency when a client issues cloud database queries di-

Figure 6: Increasing number of queries executed with and

without satellite execution.

rectly and when utilizing the cloud-side relay-node.

For this we used the bag-of-queries implementation

outlined in Figure 3 to issue queries to the cloud

database. Latency when the bag contained between

1 and 5 queries is shown in Figure 6. The ﬁgure

presents results, averaged over 1000 runs, for both

phone and desktop with the relay node hosted on a

t1.micro instance. As shown, there are signiﬁcant la-

tency savings when the bag contains more than one

query. This is because latency between the relay-node

and the database is low, and the round-trip latency be-

tween the client and the cloud—approximately 64 ms

for desktop and 105 ms for phone—overshadows the

low cost of serializing and transferring the query bag.

The DynamoDB library uses the HTTP 100-

continue feature when interacting with the cloud

database. Use of this feature adds a communication

round-trip to database interaction, needlessly inﬂat-

ing latency, as described in (Pettersen et al., 2014).

We therefore used platform interfaces to disable this

HTTP feature on desktop. Similar interfaces do not

exist on Windows Phone, however. The results in

Figure 6 consequently include one additional round-

trip latency for phone, compared to desktop. To bet-

ter convey the latency difference between phone and

desktop, the ﬁgure also includes results where one

round-trip latency has been subtracted from phone.

Even after this normalization, phone has signiﬁcantly

higher latency than desktop, demonstrating the rela-

tive importance of our satellite execution technique

for the mobile platform.

The data on popular applications in Table 1 only

indicates that latency savings are possible; determin-

ing the degree to which the interaction could exploit

satellite execution would require access to application

source code. To approximate the savings that could be

experienced in a deployed application we reconstruct

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

590

(a) Desktop: adding a friend (b) Desktop: adding a friend, with satellite execution

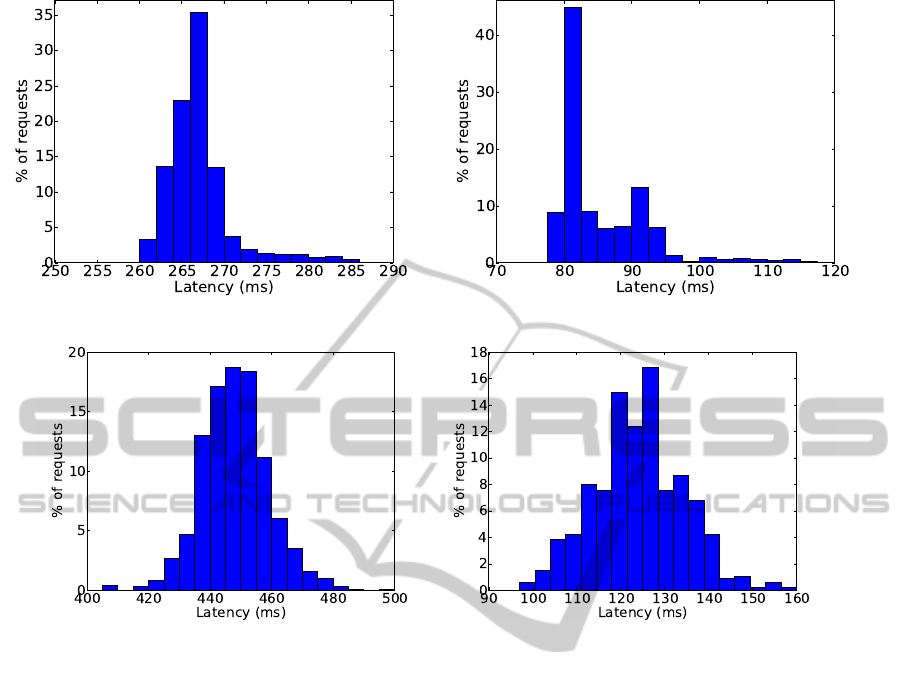

Figure 7: Latencies when adding a friend to a social network, with and without Dapper’s satellite execution.

a scenario where a friend connection is established in

the MSRBook, a social networking application based

on Deuteronomy (Levandoski et al., 2011). The ad-

dition of a friend in this network involves friend and

news feed updates for both concerned parties, for a

total of 4 queries. Equivalent queries were placed in

our bag-of-queries and we ran the friend-add action

1000 times on both the desktop and the mobile plat-

form, with and without satellite execution. Figure 7

illustrates latency savings. Savings due to satellite

execution are pronounced; on desktop latency drops

from around 265 ms to approximately 100 ms, while

it drops on mobile from around 450 ms to approxi-

mately 125 ms.

On a mobile device such as a smartphone, a

person uses around 24 different applications every

month (Nielsen, 2014). Even the modest resource al-

locations available to the Amazon t1.micro instance

used in our experiments are likely to be ample for a

relay-node dedicated to a single mobile device. But

if the relay-node functionality was a service offered

by the cloud database provider, in a fashion similar

to the Parse application module service (Parse, 2015),

the relay-node would likely be shared among many

mobile devices and its capacity would be an issue. We

therefore last consider an experiment where the relay-

node serves an increasing number of mobile devices.

In the experiment we conﬁgured each client (i.e.

mobile device) with a 4-query bag at the relay-node.

Queries in these bags were repeatedly executed, en-

suring high contention for relay-node resources. We

then increased the number of clients, in an attempt to

reveal relay-node capacity. Results for the t1.micro

instance are shown in Figures 8(a)–(c). From the

ﬁgures we observe that the t1 instance is capable of

completing around 50 bags per second before per-

formance tapers off. This maximum performance is

likely due to CPU becoming a bottleneck, as indicated

by the data in Figure 8(c). This is corroborated by

t2.medium instance performance, which is shown in

Figures 8(d)–(f). The t2.medium instance has approx-

imately twice the CPU capacity of the t1.micro in-

stance, and also completes bags at twice the rate of

the t1.micro instance.

Cloud-sideExecutionofDatabaseQueriesforMobileApplications

591

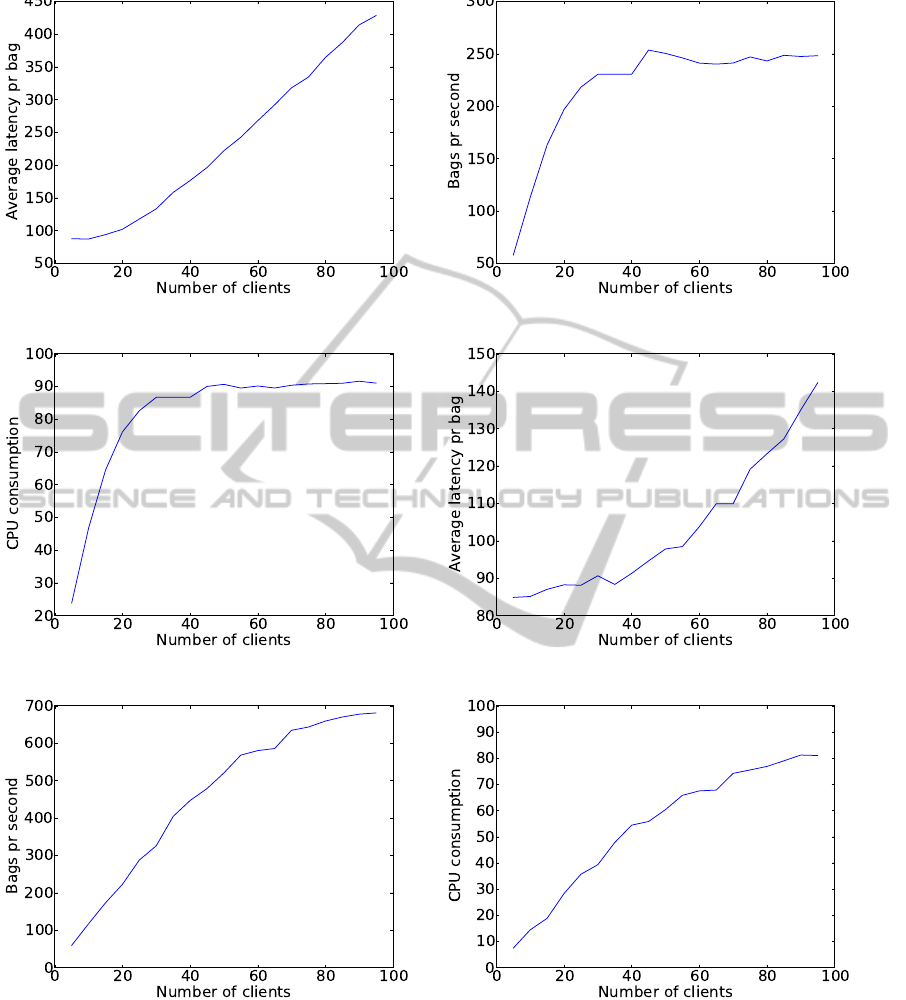

(a) Bag completion-time on t1.micro (b) Bags per second on t1.micro

(e) Bags per second on t2.medium (f) CPU consumption on t2.medium

Figure 8: t1.micro and t2.medium relay-node performance

5 RELATED WORK

The complexity of developing and deploying appli-

cations that span a variety of mobile devices, per-

sonal computers, and cloud services, has been rec-

ognized as a new challenge. Users expect applica-

tions and their state to follow them across devices,

and to realize this functionality, one or more cloud

service must usually be involved in the background.

Sapphire (Zhang et al., 2014) is a recent and compre-

hensive system that approaches this problem by mak-

ing deployment more conﬁgurable and customizable,

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

592

separating the deployment logic from the application

logic. The aim is to allow deployment decisions to

be changed, without major associated code changes.

Applications are factored into collections of location-

independent objects, communicating through remote

procedure calls. Like Sapphire, Dapper provides a

location-independent programming abstraction, but

preserves a monolithic application structure, which

allows the application to be installed in its entirety on

a single device through a regular distribution channel

like an app store. Code is then transferred on demand

from the device to the cloud, as objects move to the

cloud to enjoy low-latency execution. The decision to

visit the cloud or stay on the local device can be made

dynamically, at run time.

With Dapper, we introduce relay-nodes in the

cloud as an architectural tier between the cloud and

mobile devices. Similar middle tiers have been pro-

posed for example with Cloudlets (Satyanarayanan,

2013), and are implemented in code-ofﬂoading

systems like COMET (Gordon et al., 2012),

MAUI (Cuervo et al., 2010), and CloneCloud (Chun

et al., 2011). However, the goal of these systems

is often to augment mobile devices with additional

computing power, or to conserve energy (Tilevich and

Kwon, 2014), so the added tier may be located close

to the devices, on local server machines, or wherever

cheap computing power is available. In contrast, our

motivation is not to ofﬂoad work, but to reduce the

latency of accessing cloud services, and thus the new

tier sits as close to the cloud services as possible.

Concretely, Dapper reduces latency by elim-

inating extraneous round-trips of communication

to the cloud. An alternative way to achieve that

is by having cloud databases support more expres-

sive query languages, so that more sophisticated

transactions can be submitted as a single operation.

Indeed, relational databases with full SQL support

are part of the offerings of major cloud providers

like Amazon. However, the ability to access the

database via a general-purpose programming lan-

guage remains appealing for its generality and

ﬂexibility. This is a lesson learned from program-

ming models like MapReduce (Dean and Ghemawat,

2004), Oivos (Valv˚ag and Johansen, 2008), and

Cogset (Valv˚ag et al., 2013), where data is accessed

programmatically through user-deﬁned visitor func-

tions that can integrate easily with legacy code

and libraries. The programming model in Dapper

follows a similar philosophy, with the difference that

user-deﬁned functions are visiting a database in the

cloud rather than a partition of data in a cluster.

6 CONCLUSION

This work focuses on the general issue of latency

as a concern for applications that interact with the

cloud, and looks speciﬁcally at scenarios where multi-

ple consecutive queries are issued to a database in the

cloud. Intuitively, latency can be reduced by shorten-

ing communication distances, so our idea is to move

the location where queries are issued closer to the

database. Since cloud databases commonly have pro-

grammatic interfaces, we implement a general mech-

anism for code-ofﬂoading to support this pattern.

Having a relay-node in the cloud, located in close

proximity to the database service, has already proven

to be a useful technique for caching, and beneﬁcial

for read-mostly workloads (Pettersen et al., 2014).

Here, we extend the relay-node with functionality for

satellite execution, allowing code that has moved tem-

porarily from a mobile device to execute in an envi-

ronment with low-latency database access. This gives

beneﬁts for additional workloads, which may include

updates.

The key characteristic that a workload must ex-

hibit to beneﬁt from our approach is dependencies be-

tween queries. For example, if the results from one

query are used to shape the next query, there is a de-

pendency between the two. So long as there is no

need for user interaction, a whole sequence of depen-

dent queries can be ofﬂoaded to the cloud. By elimi-

nating extraneous round-trips of communication, this

improves response times.

To estimate the potential for improvement in real

applications, our evaluation examines the communi-

cation patterns of some popular applications through

a black-box technique. This has yielded some indica-

tions that dependent queries occur in practice, since

sequences of up to 7 requests were observed back-to-

back over the same connection on startup. Looking

at a concrete implementation of a social networking

application from (Levandoski et al., 2011), we found

speciﬁc examples. For example, a friend request re-

sults in 4 dependent queries; when ofﬂoaded to the

cloud from a phone, the completion time of a friend

request dropped from 450 ms to approximately 125

ms.

Our implementation handles the practicalities of

transferring assemblies of .NET code, serializing

and deserializing objects, and sandboxing code that

executes on the relay-node. Our evaluation gives

some data points on performance: a single Amazon

t1.micro instance can serve hundreds of queries per

second. One such instance can thus easily handle load

imposed by a large number of applications. So, we

can dramatically reduce latency without disrupting

Cloud-sideExecutionofDatabaseQueriesforMobileApplications

593

application architectures and with minimal require-

ments for resources in the cloud.

REFERENCES

Application Domains (2015). http://msdn.microsoft.com/

en-us/library/cxk374d9%28v=vs.90%29.aspx.

Chun, B.-G., Ihm, S., Maniatis, P., Naik, M., and Patti, A.

(2011). Clonecloud: elastic execution between mobile

device and cloud. In Proceedings of the sixth confer-

ence on Computer systems, EuroSys ’11, pages 301–

314, New York, NY, USA. ACM.

Cuervo, E., Balasubramanian, A., Cho, D.-k., Wolman, A.,

Saroiu, S., Chandra, R., and Bahl, P. (2010). Maui:

making smartphones last longer with code ofﬂoad. In

Proceedings of the 8th international conference on

Mobile systems, applications, and services, MobiSys

’10, pages 49–62, New York, NY, USA. ACM.

Dean, J. and Ghemawat, S. (2004). MapReduce: Simpliﬁed

data processing on large clusters. In Proceedings of

the 6th symposium on Operating Systems Design and

Implementation, OSDI ’04, pages 137–150. USENIX

Association.

DeCandia, G., Hastorun, D., Jampani, M., Kakulapati,

G., Lakshman, A., Pilchin, A., Sivasubramanian, S.,

Vosshall, P., and Vogels, W. (2007). Dynamo: Ama-

zon’s highly available key-value store. SIGOPS Oper.

Syst. Rev., 41:205–220.

Gordon, M. S., Jamshidi, D. A., Mahlke, S., Mao, Z. M.,

and Chen, X. (2012). Comet: code ofﬂoad by mi-

grating execution transparently. In Proceedings of the

10th USENIX conference on Operating Systems De-

sign and Implementation, OSDI’12, pages 93–106,

Berkeley, CA, USA. USENIX Association.

Johansen, D., Lauvset, K. J., van Renesse, R., Schneider,

F. B., Sudmann, N. P., and Jacobsen, K. (2001). A

TACOMA retrospective. Software - Practice and Ex-

perience, 32:605–619.

Johansen, D., Marzullo, K., and Lauvset, K. J. (1999). An

approach towards an agent computing environment. In

ICDCS’99 Workshop on Middleware.

Levandoski, J. J., Lomet, D. B., Mokbel, M. F., and Zhao,

K. (2011). Deuteronomy: Transaction support for

cloud data. In CIDR, pages 123–133. www.cidrdb.org.

Li, A., Yang, X., Kandula, S., and Zhang, M. (2010). Cloud-

Cmp: comparing public cloud providers. In ACM

SIGCOMM, pages 1–14.

Nielsen (2014). http://www.nielsen.com/us/en/insights/

news/2014/smartphones-so-many-apps–so-much-

time.html.

Nygren, E., Sitaraman, R. K., and Sun, J. (2010). The aka-

mai network: A platform for high-performance inter-

net applications. SIGOPS Oper. Syst. Rev., 44(3):2–

19.

Parse (2015). http://www.parse.com.

Pettersen, R., Valv˚ag, S. V., Kvalnes, A., and Johansen,

D. (2014). Jovaku: Globally distributed caching for

cloud database services using DNS. In IEEE Interna-

tional Conference on Mobile Cloud Computing, Ser-

vices, and Engineering, pages 127–135.

Satyanarayanan, M. (2013). Cloudlets: at the leading edge

of cloud-mobile convergence. In Proceedings of the

9th international ACM Sigsoft conference on Quality

of software architectures, pages 1–2. ACM.

Tilevich, E. and Kwon, Y.-W. (2014). Cloud-based execu-

tion to improve mobile application energy efﬁciency.

Computer, 47(1):75–77.

Valv˚ag, S. V., Johansen, D., and Kvalnes, A. (2013).

Cogset: A high performance MapReduce engine.

Concurrency and Computation: Practice and Expe-

rience, 25(1):2–23.

Valv˚ag, S. V. and Johansen, D. (2008). Oivos: Simple

and efﬁcient distributed data processing. In Proceed-

ings of the 10th IEEE International Conference on

High Performance Computing and Communications,

HPCC ’08, pages 113–122. IEEE Computer Society.

Valv˚ag, S. V., Johansen, D., and Kvalnes, A. (2013). Po-

sition paper: Elastic processing and storage at the

edge of the cloud. In Proceedings of the 2013 Inter-

national Workshop on Hot Topics in Cloud Services,

HotTopiCS ’13, pages 43–50, New York, NY, USA.

ACM.

Zhang, I., Szekeres, A., Aken, D. V., Ackerman, I., Gribble,

S. D., Krishnamurthy, A., and Levy, H. M. (2014).

Customizable and extensible deployment for mobile/-

cloud applications. In 11th USENIX Symposium on

Operating Systems Design and Implementation (OSDI

14), pages 97–112, Broomﬁeld, CO. USENIX Asso-

ciation.

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

594
