A Lightweight Tool for Anomaly Detection in Cloud Data Centres

Sakil Barbhuiya, Zafeirios Papazachos, Peter Kilpatrick and Dimitrios S. Nikolopoulos

School of Electronics, Electrical Engineering and Computer Science, Queen’s University Belfast, BT7 1NN, Belfast, U.K.

Keywords:

Anomaly Detection, Cloud Computing, Data Centres, Monitoring, Correlation.

Abstract:

Cloud data centres are critical business infrastructures and the fastest growing service providers. Detecting

anomalies in Cloud data centre operation is vital. Given the vast complexity of the data centre system software

stack, applications and workloads, anomaly detection is a challenging endeavour. Current tools for detecting

anomalies often use machine learning techniques, application instance behaviours or system metrics distribu-

tion, which are complex to implement in Cloud computing environments as they require training, access to

application-level data and complex processing. This paper presents LADT, a lightweight anomaly detection

tool for Cloud data centres that uses rigorous correlation of system metrics, implemented by an efﬁcient corre-

lation algorithm without need for training or complex infrastructure set up. LADT is based on the hypothesis

that, in an anomaly-free system, metrics from data centre host nodes and virtual machines (VMs) are strongly

correlated. An anomaly is detected whenever correlation drops below a threshold value. We demonstrate and

evaluate LADT using a Cloud environment, where it shows that the hosting node I/O operations per second

(IOPS) are strongly correlated with the aggregated virtual machine IOPS, but this correlation vanishes when

an application stresses the disk, indicating a node-level anomaly.

1 INTRODUCTION

Data centres that host Cloud computing services are

catalysts for the economy and for society. Despite

the success and proliferation of the Cloud computing

paradigm, hosting data centres face immense chal-

lenges in terms of managing the scale and complex-

ity of their hardware infrastructure and their system

software stack. The hosted workloads also become

increasingly complex and diverse. The complexity of

the data centre ecosystem gives rise to frequent dis-

ruption of service, which manifests as lack of respon-

siveness, lower than expected performance, or com-

plete disruption of service. Anomaly detection in data

centres is a recently emerged ﬁeld of research which

explores methods to automate the detection and di-

agnosis of service disruption in data centres via the

monitoring of system generated logs and metrics.

Log analytic tools (Lou et al., 2010; Xu et al.,

2009) extract features from logs and use statistical

learning techniques to automatically build models that

detect and diagnose system anomalies in data centres.

These models are not easy to understand by human

operators as they may detect problems in a high di-

mensional feature space without providing meaning-

ful explanations for the detected problems. Besides,

learning-based tools require a log parser for mining

the console logs in order to create the features of the

model. Log parsers require the source code of hosted

applications in order to recover the inherited syntax

of logs, and source code may not always be acces-

sible for legacy applications. As an alternative to us-

ing console logs, a number of anomaly detection tools

use system metrics (Tan et al., 2012; Wang, 2009;

Ward and Barker, 2013; Kang et al., 2010; Jiang et al.,

2009). Such metrics can be collected with minimum

overhead and without requiring access to the source

code of hosted applications.

Some tools (Wang, 2009; Kang et al., 2010) use

system metrics for detecting anomalies in Cloud data

centres and are developed to take the elasticity of

Cloud computing environments into consideration.

These tools provide higher accuracy and effective-

ness of detection. However, implementing them in

a large-scale Cloud system is complex as the tools

are conﬁgured in multiple layers of data monitoring

and analysis. EbAT (Wang, 2009) implements metrics

distribution, entropy time series construction, and en-

tropy time series processing across multiple monitor-

ing layers, before deploying an online tool for detect-

ing anomalies. Peerwatch (Kang et al., 2010) extracts

correlated behaviours between multiple instances of

individual applications and then applies those ex-

tracted correlations to identify anomalies. The use of

343

Barbhuiya S., Papazachos Z., Kilpatrick P. and S. Nikolopoulos D..

A Lightweight Tool for Anomaly Detection in Cloud Data Centres.

DOI: 10.5220/0005453403430351

In Proceedings of the 5th International Conference on Cloud Computing and Services Science (CLOSER-2015), pages 343-351

ISBN: 978-989-758-104-5

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

application-level metrics in anomaly detection algo-

rithms may raise enormously the volume of data to

process in a large-scale system.

This paper introduces LADT (Lightweight

Anomaly Detection Tool), a lightweight tool

which monitors system-level and virtual machine

(VM)-level metrics in Cloud data centres to detect

node-level anomalies using simple metrics and

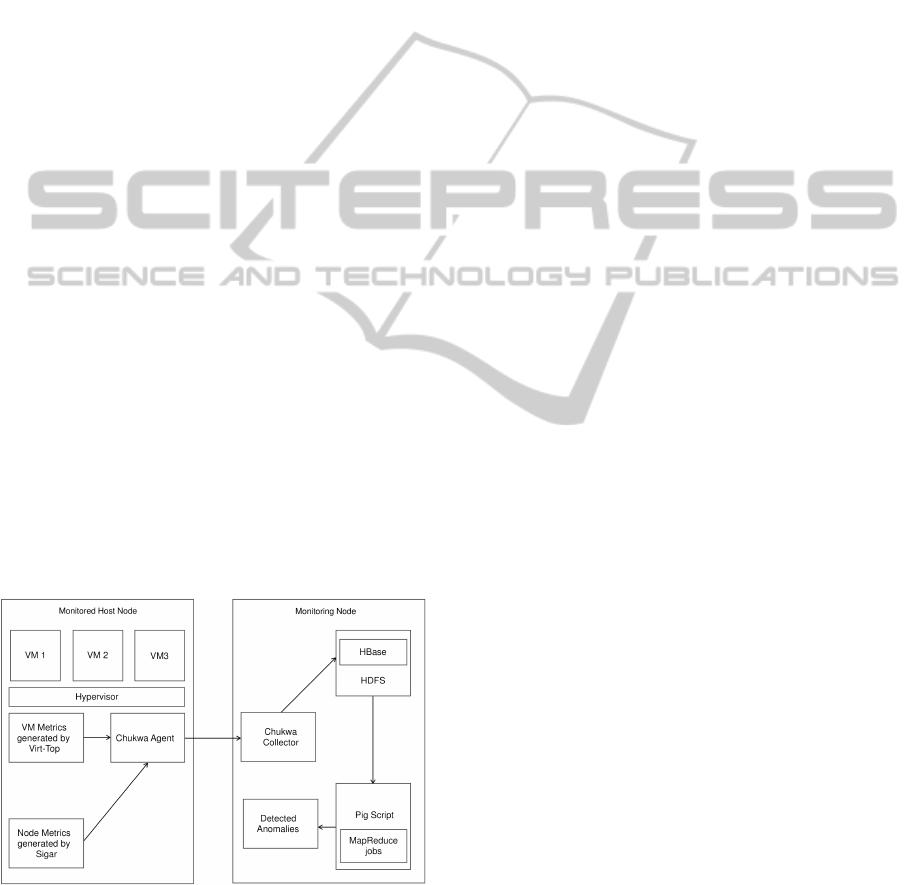

correlation analysis. LADT addresses the complexity

of implementing efﬁcient monitoring and analysis

tools in large-scale Cloud data centres, by collecting

and storing the metrics generated by nodes and VMs

using Apache Chukwa (Rabkin and Katz, 2010). The

LADT algorithm performs correlation analysis on

the collected data using Apache Pig (Olston et al.,

2008) and MapReduce jobs in order to complete the

analysis in a timely manner.

As a use case, we deploy LADT to add a new di-

mension in anomaly detection for Cloud data centres,

namely correlation analysis between node-level disk

I/O metrics and VM-level disk I/O metrics. LADT

implements a simple algorithm, which uses Pearson’s

correlation coefﬁcient. When the average correlation

coefﬁcient value for a number of consecutive time in-

tervals drops below a threshold, an alarm is raised

to indicate an anomaly. The metrics data required in

this use case are limited to disk I/O activity data and

the algorithm to detect the anomalies is lightweight.

The major contribution of LADT over other tools in

this context is the ability to efﬁciently monitor and

detect anomalies in a Cloud data centre without re-

quiring complex algorithms, application source code

availability, or complex infrastructure set up.

We evaluate LADT in a lab-based Cloud ecosys-

tem, where it continuously collects and stores system

metrics from all nodes and VMs. The tool shows that

the disk I/O metrics in each hosted node are strongly

correlated with the aggregate VM disk I/O metrics,

but this correlation vanishes when a disk-stressing ap-

plication is introduced in a node, indicating a node-

level anomaly.

The remainder of the paper is organised as fol-

lows. Section 2 presents background and related work

in anomaly detection. Section 3 and Section 4 pro-

vide detail of the LADT architecture and algorithm,

respectively. Experimental results are presented and

discussed in Section 5. Section 6 concludes the paper

and discusses future work.

2 BACKGROUND AND RELATED

WORK

In this section we describe the challenges of detecting

anomalies in Cloud data centres. A number of differ-

ent tools and methods are considered and placed into

separate categories based on the input they analyse.

We consider two cases for monitoring and detecting

anomalies: console log based anomaly detection and

anomaly detection based on system metrics.

2.1 Anomaly Detection Challenges

Cloud data centres are implemented as large-scale

clusters with demanding requirements for service per-

formance, availability and cost of operation. As a re-

sult of scale and complexity, data centres exhibit large

numbers of system anomalies caused by operator er-

ror (Oppenheimer et al., 2003), resource over/under

provisioning (Kumar et al., 2007), and hardware

or software failures (Pertet and Narasimhan, 2005).

These anomalies are inherently difﬁcult to identify

and resolve promptly via human inspection (Kephart

and Chess, 2003). Thus, automatic system monitor-

ing that captures system state, behaviour and perfor-

mance becomes vital. Computer system logs are the

main source of information for anomaly detection.

Logs can be of two types: structured or unstructured.

Unstructured logs are free-form text strings, such as

console logs, which record events or states of inter-

est and capture the intent of service developers (Lou

et al., 2010), whereas structured logs are numerical

logs, such as logs of system metrics, which capture

workload and system performance attributes, such as

CPU utilisation, memory usage, network trafﬁc and

I/O.

2.2 Console Log based Anomaly

Detection

Analytic tools for anomaly detection based on console

logs, such as SEC (Rouillard, 2004), Logsurfer (The

and Prewett, 2003) and Swatch (Hansen and Atkins,

1993) check logs against a set of rules which deﬁne

normal system behaviour. These rules are manually

set by developers based on their knowledge of system

design and implementation. However, rule-based log

analysis is complex and expensive because it requires

signiﬁcant effort from system developers to manu-

ally set and tune the rules. Moreover, modern sys-

tems consisting of multiple components developed by

different vendors and the frequent upgrades of those

components make it difﬁcult for a single expert to

have complete knowledge of the total system and to

set the rules effectively. This complexity has given

rise to statistical learning based log analytic tools such

as the works of Lou et al. (Lou et al., 2010) and Xu

et al. (Xu et al., 2009), which extract features from

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

344

console logs and then use statistical techniques to au-

tomatically build models for system anomaly identiﬁ-

cation.

Lou et al. (Lou et al., 2010) propose a statisti-

cal learning technique which consists of a learning

process and a detection process. The learning pro-

cess groups the log message parameters and then dis-

covers the invariants among the different parameters

within the groups. For new input logs, the detection

process matches their invariants among the parame-

ters with learned invariants from the learning process.

Each mismatch in the invariants is considered to be

anomalous. Xu et al. (Xu et al., 2009) propose a new

methodology to mine console logs to automatically

detect system problems. This ﬁrst creates feature vec-

tors from the logs and then applies the PCA (Principal

Component Analysis) algorithm on the feature vec-

tors to detect anomalies. However, the learning based

tools require a custom log parser for mining the con-

sole logs in order to create the features for the learned

model. The log parsers require source code of the

hosted applications to recover the inherent structure

of the logs.

2.3 System Metric based Anomaly

Detection

A number of anomaly detection tools use system met-

rics (Tan et al., 2012; Wang, 2009; Ward and Barker,

2013; Kang et al., 2010; Jiang et al., 2009), which can

be collected with minimum overhead and without re-

quiring any access to the source code of hosted appli-

cations. Using system metrics for detecting anomalies

has advantages over traditional log-based anomaly

detection tools due to consideration of elasticity and

workload evolution in Cloud computing, but also due

to provisioning, scaling, and termination of services

in short periods of time. Some of these tools are based

on feature selection and machine learning outlier de-

tection to ﬂag anomalies (Azmandian et al., 2011).

EbAT (Wang, 2009) is a tool that uses entropy

based anomaly detection. EbAT analyses metric dis-

tributions and measures the dispersal or concentration

of the distributions. The metrics are aggregatedby en-

tropy distributions across the Cloud stack in order to

form entropy time-series. EbAT uses online tools like

spike detection, signal processing and subspace meth-

ods to detect anomalies in the entropy time-series.

The tool incurs the complexity of analysing the met-

ric distributions and also requires third party tools to

detect anomalies.

PeerWatch (Kang et al., 2010) uses canonical cor-

relation analysis (CCA) to extract the correlations be-

tween multiple application instances, where attributes

of the instances are system resource metrics such as

CPU utilisation, memory utilisation, network trafﬁc

etc. PeerWatch raises an alarm for an anomaly when-

ever some correlations drop signiﬁcantly. As a re-

sult of analysing the application instance behaviours

and correlating them, this tool is capable of detecting

application-level or VM-level anomalies. However,

this approach requires statistical metrics analysis and

knowledge of the hosted applications, which is a lim-

itation in large-scale Clouds, where hundreds of dif-

ferent types of applications run on the VMs.

Varanus (Ward and Barker, 2013) uses a gossip

protocol, which is layered into Clouds, groups and

VMs in order to collect system metrics from the VMs

and analyse them for anomalies. This approach al-

lows in-situ collection and analysis of metrics data

without requiring any dedicated monitoring servers to

store the data. However, setting up a dedicated gos-

sip protocol across thousands of VMs in a large-scale

Cloud environment and maintaining the gossip based

overlay network over each of the VMs is a challeng-

ing task.

The metric-based black box detection technique

presented in (Tan et al., 2012) uses the LFD (Light-

Weight Failure Detection) algorithm to detect sys-

tem anomalies. LFD raises an alarm when there is a

lack of correlation between two speciﬁc system met-

rics. The anomaly indicates a system problem and

each such problem is associated with a speciﬁc sys-

tem metrics pair. LFD is a lightweight algorithm with

lowercomplexitythan EbAT, PeerWatch and Varanus.

Furthermore, LFD does not require any training or

source code and understandingof hosted applications.

The LFD follows a decentralised detection approach,

where each node analyses its own system metrics in

order to achieve higher scalability. However, this

may also limit LFD in large-scale Cloud data centres,

where it may not be feasible to implement LFD on

each node individually, due to overhead.

In this paper we address the limitations of ex-

isting system anomaly detection tools by introduc-

ing LADT. LADT uses Apache Chukwa (Rabkin and

Katz, 2010) for collecting metrics data from all nodes

and VMs in a data centre, and HBase (Vora, 2011)

for storing the data in servers to allow centralised

monitoring of Cloud systems. LADT implements a

new correlation algorithm to perform the correlation

analysis on the centrally stored metrics data. The

LADT algorithm correlates node-level and VM-level

metrics, which is a new approach to correlation anal-

ysis in detecting Cloud system anomalies. Further-

more, the LADT algorithm deals with the synchro-

nisation problem between the node and VM gener-

ated metrics timestamp. This problem arises due to

ALightweightToolforAnomalyDetectioninCloudDataCentres

345

latency in storing the VM-level metrics in the moni-

toring server and results in poor correlation analysis.

LADT is lightweight as it uses a simpliﬁed infrastruc-

ture set-up for metrics data monitoring and the LADT

algorithm uses the simple Pearson correlation coefﬁ-

cient for analysing the metrics data. We program the

algorithm using Apache Pig (Olston et al., 2008) to

leverage MapReduce jobs in order to achieve higher

throughput. We use disk I/O metrics from both nodes

and VMs in an actual Cloud set-up to detect I/O per-

formance anomalies.

3 LADT ARCHITECTURE

The following sub-sections describe the architecture

of the LADT tool and its functionality.

3.1 Metrics Data Monitoring

LADT utilises an agent-basedmonitoring architecture

to retrieve system metrics from the hosting nodes and

VMs in a Cloud data centre. The monitoring agent

extracts system metrics from the nodes and VMs at

regular time intervals. The collector gathers the data

extracted by the agents. LADT uses the agents and

collectors provided by Apache Chukwa’s (Rabkin and

Katz, 2010) runtime monitoring. The Chukwa agent

collects CPU, memory, disk, and network information

from the hosting nodes using sigar (Sigar, 2014) and

from the VMs using Virt-Top (Virt-Top, 2014). The

Chukwa collector then collects the output generated

by the agents. The collector processes the data and

registers the input to HBase, which is installed in the

monitoring node.

Figure 1: LADT Architecture.

Figure 1 illustrates the architectural overview of

LADT. The tool installs one Chukwa agent for col-

lecting both node-level and VM-level metrics on each

monitored node in the data centre. LADT uses

Chukwa collectors running on data analysis servers,

for collecting node-level and VM-level metrics into

HBase. The correlation analysis on the stored met-

rics is performed with Pig Script. Each Chukwa agent

consists of adaptors which are dynamically loadable

modules that run inside the agent process. LADT

sends the metrics from the agents to the Chukwa col-

lectors via HTTP. The primary task of the collector is

to parse the collected data from the agent and store the

extracted information in an HBase database. HBase

runs on top of the Hadoop Distributed File System

(HDFS) (Shvachko et al., 2010).

3.2 Metrics Data Analysis

LADT runs the metrics correlation analysis on the

stored metrics using Apache Pig (Olston et al., 2008),

which in turn executes MapReduce jobs. A Pig Script

written in Pig Latin implements the LADT algorithm

to explore the correlation between the node-level and

VM-level metrics and to detect anomalies. The Pig

Script program ﬁrst loads both the node-level and

VM-level system metrics from HBase. It then takes

the mean values of the metric samples in 15-second

windows. The program groups the mean values into

5-minute windows and calculates the Pearson Corre-

lation Coefﬁcient between the node-level and VM-

level metrics in each group. Finally, the program

compares the correlation coefﬁcient value with the

threshold value and generates an anomaly alarm if

it ﬁnds the coefﬁcient value is below an adjustable

threshold level.

4 LADT Hypothesis and Algorithm

The underlying approach of LADT is based on the

premise of the LFD technique, which identiﬁes two

metrics that are correlated during normal operation

but diverge in the presence of an anomaly.

4.1 LFD: The Baseline Method

LFD is a lightweight technique for anomaly detection

proposed by Tan et al. (Tan et al., 2012). The hypoth-

esis of LFD is that in an anomaly-free system, when-

ever an application requests service, the processing

alternates between two phases: the communication

phase and the compute phase. In the communication

phase, the application responds to requests received

from the user, reads data from the disk, or writes data

to the disk. In the compute phase, the application op-

erates on the received inputs or requests. At the op-

erational level, the compute phase is characterised by

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

346

user-space CPU activity, whereas the communication

phase is characterised by the behaviour of one or more

types of system-level resource consumption, includ-

ing kernel-space CPU time, disk I/O or network I/O.

Behavioural change between the two phases results in

a correlation between user-space CPU utilisation and

system resource consumption. The LFD also hypoth-

esises that in the case of an anomaly, there will be

a signiﬁcant change in the relationship between the

compute phase and the communication phase. Hence,

there will be lack of correlation between user-space

CPU utilisation and system resource consumption,

based on which anomalies can be detected in the sys-

tem.

4.2 LADT Hypothesis

LADT formulates a new hypothesis, according to

which there is strong correlation between the node-

level and VM-level metrics in a Cloud system. Also,

that this correlation will drop signiﬁcantly in the event

of any performance anomaly at the node-level and a

continuous drop in the correlation can indicate the

presence of a true anomaly in the node.

4.3 LADT Algorithm

We propose a new algorithm based on LFD, to corre-

late node-level and VM-level metrics. We use disk

I/O metrics as a running example. The algorithm

correlates disk I/O between the hosting node and the

VMs in order to detect anomalies in IaaS Cloud en-

vironments. LADT computes the Pearson correlation

coefﬁcient (ρ) between the hosting node disk IOPS

and the aggregated VM disk IOPS. Pearson’s correla-

tion coefﬁcient is the ratio of the covariance between

the two metrics to the product of their standard devi-

ations as described in Equation 1 and ranges between

-1.0 and 1.0.

covariance(N, V)

(1)

where N = time-series of node disk IOPS

V = time-series of VM disk IOPS

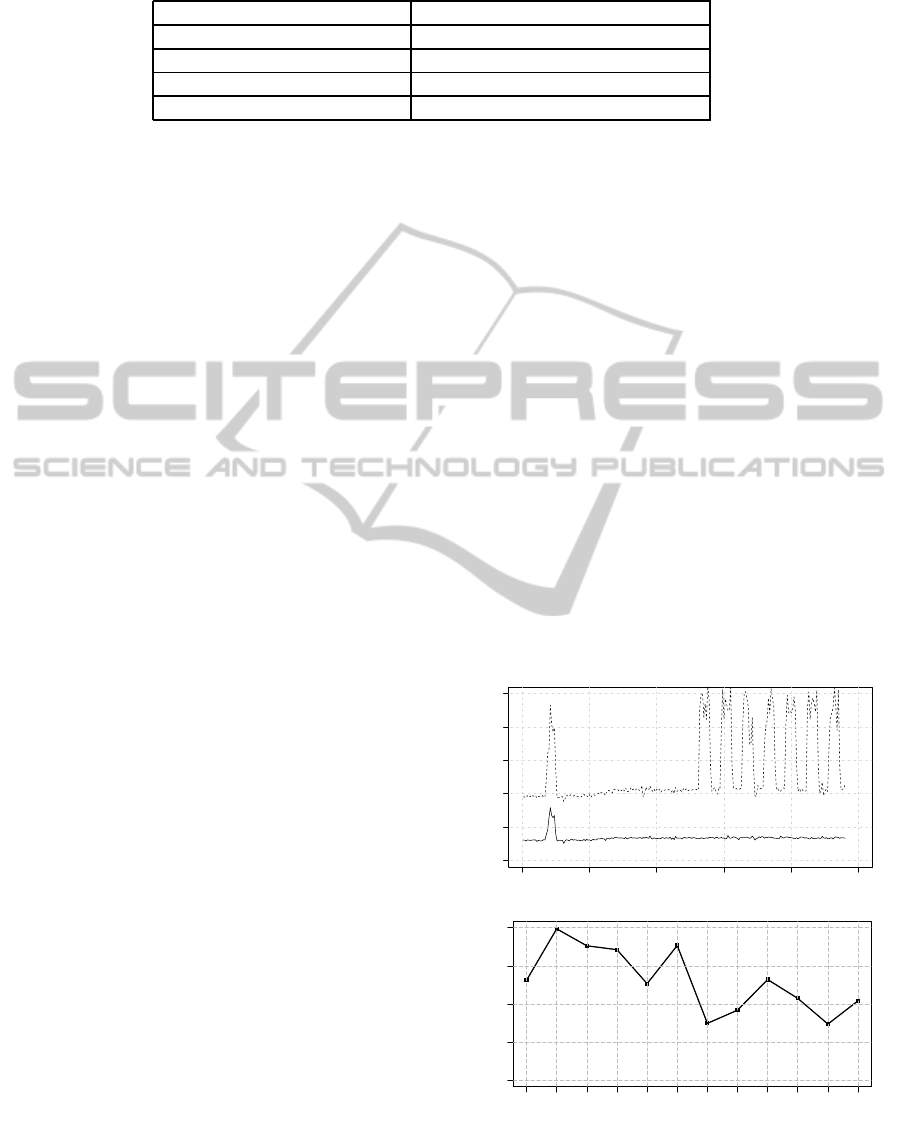

Similar to the LFD algorithm, there are ﬁve tun-

able parameters in the LADT algorithm, which are

summarised in Table 1. LADT collects raw disk I/O

metrics with a 3 second period from both the nodes

and VMs. The metrics collection period is set to

more than a second in order to mitigate the timestamp

synchronisation problem between the node-level and

VM-level metrics, which arises as a result of latency

in storing VM-level metrics in the LADT monitoring

server. Before calculating the correlation coefﬁcient

between the metrics, their mean values are taken in

small windows (LW = 5) in order to reduce noise. An

anomaly alarm is raised when the average of D con-

secutive values of the correlation coefﬁcient drops be-

low the threshold T in order to detect the true anoma-

lies by considering a larger range of system behaviour.

We keep the same parameter values as the LFD

algorithm for four parameters (LW = 5, LS = 5, W =

60, D = 10) (Tan et al., 2012), which we experi-

mentally found to achieve best performance. How-

ever, the correlation window slide, S is changed from

12 to 60 as this amortises better the overhead of a

Pig (Hadoop) program, which is used to execute the

LADT algorithm. Therefore, each correlation coefﬁ-

cient value considers the last LW ×W = 300 seconds

(5 minutes) of system behaviour.

5 EXPERIMENTAL EVALUATION

This section describes the workload and the exper-

imental set-up used to evaluate LADT. The section

also analyses our experimental results and the func-

tionality of the LADT tool.

5.1 Experimental Set-up

For evaluating LADT we have established a Cloud

testbed with three compute nodes: Host1, Host2, and

Host3 on three Dell PowerEdge R420 servers. Each

node is running CentOS 6.5 with the 2.6.32 Linux ker-

nel and has 6 cores, 2-way hyper-threaded, clocked at

2.20 GHz with 12GB DRAM clocked at 1600 MHz.

Each node includes a 7.2K RPM hard drive with 1TB

of SATA and an onBoard Broadcom 5720 Dual Port

1GBE network card. We run three VMs on each

compute node using KVM. Each VM runs the disk

I/O intensive Data Serving benchmark from Cloud-

Suite (Ferdman et al., 2012). Disk read/write met-

rics are generated every three seconds in the nodes

using sigar (Sigar, 2014) and in the VMs using Virt-

Top (Virt-Top, 2014).

The experiment runs over a time period of 60 min-

utes, where we inject an anomaly in Host1 at the end

of the ﬁrst 30 minutes. We use a disk stressing ap-

plication which increases the disk read/write opera-

tions and runs for two minutes with a two minute

interval between runs for the remaining 30 minutes.

This anomaly reﬂects a Blue Pill or a Virtual Machine

Based Rootkit (VMBR) attack on a Cloud system,

where the attacker introduces fake VMs via a hidden

hypervisor on the victim hosting node to get access

to the hardware resources such as CPU, memory, net-

work or disk (Dahbur et al., 2011). This anomaly may

ALightweightToolforAnomalyDetectioninCloudDataCentres

347

Table 1: Tunable parameters in LADT Algorithm.

LW, low-pass window width raw samples to take mean

LS, low-pass window slide raw samples to slide

W, correlation window width samples to correlate

S, correlation window slide samples to slide detection window

D, diagnosis window correlation coefﬁcients to consider

also represent a distributed denial-of-service (DDoS)

attack, which forces the cloud service to consume sys-

tem resources such as processor power, memory, disk

space, or network bandwidth to an intolerable level

(Rajasekar and Imaﬁdon, 2010).

Earlier research (Antunes et al., 2008) has already

used system resource-level anomaly analysis to deal

with such attacks. The work of Antunes et al. (An-

tunes et al., 2008) analyses system resource utilisation

to explore the normal system behaviour and builds a

model, based on which it detects the abnormal be-

haviours in the system, and subsequently, the attacks.

However, this approach to detecting attacks requires

a large amount of historical data and use of machine

learning techniques. In contrast, LADT can detect the

attacks using correlation analysis between the node-

level and the VM-level metrics.

LADT is implemented in the testbed, which uses

Chukwa agents in each of the hosting nodes to col-

lect both the hosting node and VM disk read/write

metrics. The tool stores the collected metrics in the

HBase running in the monitoring node, which is an

Intel Xeon E5-2650 server. Finally, in the monitoring

node, LADT analyses the stored metrics by running

the algorithm programmed in Pig Latin, which cal-

culates the correlation between the individual hosting

node disk I/O operations and the aggregated disk I/O

operations of all the VMs in that node, to detect the

anomaly injected in Host1.

5.2 Results and Discussion

We provide experimental results for each host in time-

series of total disk I/O operations per second (IOPS)

and correlation coefﬁcient values between the node

disk IOPS and aggregated disk IOPS of all the VMs

in the node. We present the normalised values of the

IOPS, which are the mean values in small windows of

15 seconds, including 5 samples of metrics data (the

frequency of metrics collection is 3 seconds). The

correlation coefﬁcient values are calculated in corre-

lation windows of 5 minutes, covering 5 minutes of

metrics data. Hence, there are 12 correlation intervals

in the 60 minutes of experiment.

The results presented in Figure 2 shows that

Host1’s disk IOPS remains around 400 for the ﬁrst

30 minutes and starts ﬂuctuating in the next 30 min-

utes as a result of the injected anomaly, whereas the

aggregated disk IOPS of the VMs remains below 200

throughout the experiment. The reason for the lower

values of the aggregated disk IOPS of the VMs is

the use of the extra software layer of the hypervisor,

which is interposed between guest operating systems

and hardware (Li et al., 2013). The hypervisor mul-

tiplexes I/O devices by requiring guest operating sys-

tems to access the real hardware indirectly and hence

induces an overhead in the I/O context.

The correlation analysis for Host1 in Figure 2

clearly shows that there is a strong correlation be-

tween the hosting node IOPS and the aggregated

IOPS of the VMs for the ﬁrst half of the experi-

ment, where the correlation coefﬁcient values are of-

ten above 0.5 with an average value of 0.6. However

the correlation value drops below 0.0 suddenly at the

sixth interval when the disk stress starts. The coefﬁ-

cient value remains very low throughout the second

half with an average value of -0.02. This is a clear re-

ﬂection of the injected anomaly in Host1, which dis-

torts the correlation between the hosting node IOPS

and aggregated IOPS of the VMs.

Mean Value Intervals

IOPS

0 50 100 150 200 250

0 200 400 600 800 1000

Correlation Intervals

Correlation Coefficient

2 4 6 8 10 12

−1.0 −0.5 0.0 0.5 1.0

1 2 3 4 5 6 7 8 9 10 11 12

Figure 2: (Top) Time-series of node disk IOPS (dashed)

and aggregated VM disk IOPS (solid) in Host1. (Bottom)

Correlation coefﬁcients between the two time-series mea-

surements.

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

348

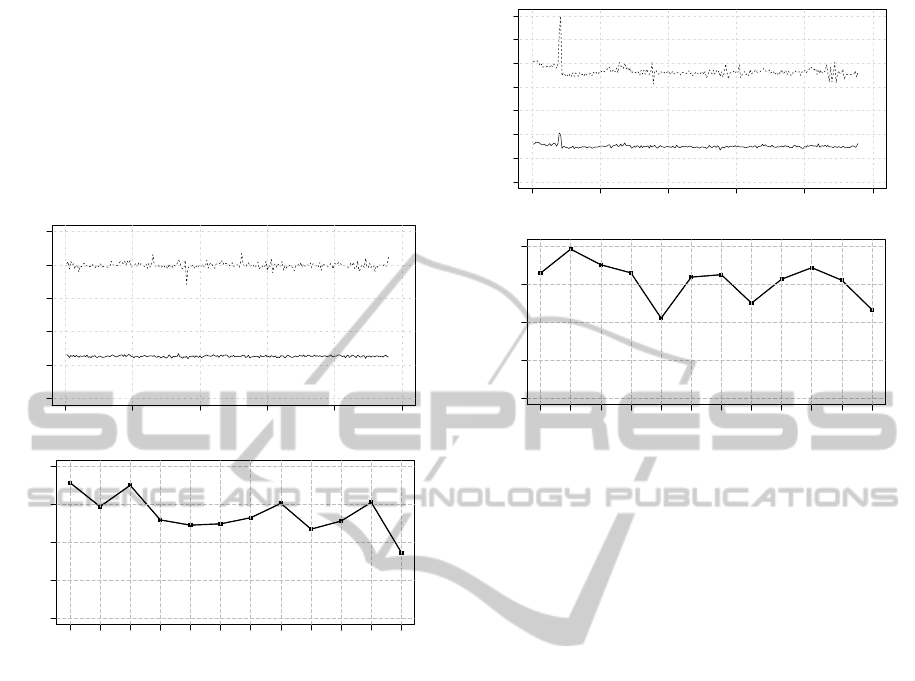

Figure 3 shows that for Host2, the node IOPS and

aggregated IOPS of the VMs are steady and their cor-

relation coefﬁcient average value is 0.4. The low av-

erage is due to the temporary drops, which happen

because of the ﬂuctuation in the overhead of I/O oper-

ations in the VMs (Li et al., 2013). Similar behaviour

is exhibited by Host3 (Figure 4), where in fact there

are more correlation coefﬁcient values above 0.5 and

a better average coefﬁcient value of 0.5.

Mean Value Intervals

IOPS

0 50 100 150 200 250

0 100 200 300 400 500

Correlation Intervals

Correlation Coefficient

2 4 6 8 10 12

−1.0 −0.5 0.0 0.5 1.0

1 2 3 4 5 6 7 8 9 10 11 12

Figure 3: (Top) Time-series of node disk IOPS (dashed)

and aggregated VM disk IOPS (solid) in Host2. (Bottom)

Correlation coefﬁcients between the two time-series mea-

surements.

Experimental results also reveal that when using

LADT for disk I/O metric data collection and corre-

lation analysis, a latency of 10 minutes is observed,

where a 5 minute latency is required to hold a his-

torical metrics data set of a 5 minute window and

5 additional minutes are used to analyse the metrics

data. This latency is comparable to the latency of on-

line data centre service troubleshooting tools (Wang,

2009) and, as yet, beneﬁts from no optimisation of the

analysis workﬂow at the server, which we are explor-

ing in ongoing work.

5.3 LADT Overhead

Our next experiment assesses LADT in terms of

the overhead that it introduces on hosted application

VMs, because of the LADT agents that collect met-

rics simultaneously with the execution of application

workloads. To investigate this we executed a test

where a single VM runs a data serving benchmark for

Mean Value Intervals

IOPS

0 50 100 150 200 250

0 100 300 500 700

Correlation Intervals

Correlation Coefficient

2 4 6 8 10 12

−1.0 −0.5 0.0 0.5 1.0

1 2 3 4 5 6 7 8 9 10 11 12

Figure 4: (Top) Time-series of node disk IOPS (dashed)

and aggregated VM disk IOPS (solid) in Host3. (Bottom)

Correlation coefﬁcients between the two time-series mea-

surements.

the duration of 10000 data operations with a rate of

200 operations/sec. With an agent running concur-

rently with the data serving benchmark, and during

an execution interval of 50 seconds, the average up-

date and read latencies of the benchmark were 0.21

ms and 8.28 ms, respectively. With no agent running

and during the same 50 second execution interval, the

average update and read latencies were 0.21 ms and

6.97 ms, respectively. In both cases we observed the

expected response time from the benchmark and any

differences observed in the average latencies of the

update and read operations were justiﬁed by the vari-

ability introduced by the storage medium.

5.4 Further Analysis

We observe that during normal operation there is a

strong correlation between the node disk IOPS and

aggregated disk IOPS of the VMs in all three host-

ing nodes. However, the correlation becomes weaker

during some intervals for short periods. This happens

because in these intervals the overhead on the VM I/O

operationsresulting from accessing the disk indirectly

via the hypervisor (Li et al., 2013) rises unpredictably

and degrades the VM IOPS with respect to the cor-

responding node IOPS. Although the correlation co-

efﬁcient value drops in some intervals even when the

hosts are in a stable expected state, this drop is not as

signiﬁcant as it is in the case of an anomaly. More-

over, the correlation coefﬁcient average drops below

ALightweightToolforAnomalyDetectioninCloudDataCentres

349

0 when an anomaly occurs, whereas the average co-

efﬁcient value ranges between 0.4 and 0.6 when the

hosts are anomaly-free. We also observe that, even

though all three hosts are running identical workloads

in their VMs, both the IOPS and the correlation co-

efﬁcient averages vary across the hosts. This again

happens because of the varying overhead in the IOPS

due to the hypervisor layer between the hosts and the

VMs.

We conclude that the correlation coefﬁcient values

require normalisation in order to avoid false alarms

for anomaly, which could arise because of a ﬂuctua-

tion in the overhead on VM IOPS. We detect the true

anomalies by considering a larger period of system

behaviour and this is done by taking the average of

D consecutive coefﬁcient values and checking if it is

below the threshold value, T. The values of T and D

depend on how often the user wishes to get an alarm

for the anomalies. From the results, we observe the

anomaly as the security attack in Host1 when the cor-

relation coefﬁcient value drops signiﬁcantly and stays

low for a longer period of time.

6 CONCLUSION AND FUTURE

WORK

We presented LADT, a lightweight anomaly detection

tool for Cloud data centres. LADT is based on the

hypothesis that, in an anomaly-free Cloud data cen-

tre, there is a strong correlation between the node-

level and VM-level performance metrics and that this

correlation diminishes signiﬁcantly in the case of ab-

normal behaviour at the node-level. The LADT al-

gorithm raises an anomaly alarm when the corre-

lation coefﬁcient value between the node-level and

VM-level metrics drops below a threshold level. We

have demonstrated a lightweight distributed imple-

mentation of LADT using Chukwa and also demon-

strated that the tool can detect node-level disk per-

formance anomalies by correlating the hosting node

IOPS with the aggregated hosted VM IOPS. Such

anomalies may arise as a result of security attacks

such as distributed denial-of-service (DDoS). We also

demonstrated that LADT introduces acceptably low

overhead, while recognizing that the implementation

is amenable to optimisation along the entire path of

metrics collection, data aggregation and analysis.

We intend to conduct a detailed analysis of pos-

sible attack models of the system. LADT can

also detect CPU/memory/network related perfor-

mance anomalies, due to the performance implica-

tions of virtualisation and resource management soft-

ware stacks. We wish to explore these anomalies

in more detail, using both controlled and uncon-

trolled set-ups (i.e. production-level set-ups with un-

seen anomalies) in our Cloud testbed. We plan to

conduct a more thorough analysis of LADT perfor-

mance, scalability and intrusion minimisation with re-

spect to the hosted VMs. We are particularly inter-

ested in co-executing VMs with diverse characteris-

tics (e.g. CPU-intensive, I/O-intensive), and latency

sensitivity. Our aim is to understand whether adapt-

ing parameters such as the number of agent adaptors

in the hosts, the frequency of data collection per VM

in the hosts and the number of data aggregation tasks

and cores used by collectors is necessary to keep the

monitoring overhead low.

ACKNOWLEDGEMENTS

This work has been supported by the European Com-

mission and the Seventh Framework Programme un-

der grant agreement FP7-610711 (CACTOS).

REFERENCES

Antunes, J., Neves, N., and Verissimo, P. (2008). Detec-

tion and prediction of resource-exhaustion vulnerabil-

ities. In Software Reliability Engineering, 2008. IS-

SRE 2008. 19th International Symposium on, pages

87–96.

Azmandian, F., Mofﬁe, M., Alshawabkeh, M., Dy, J.,

Aslam, J., and Kaeli, D. (2011). Virtual machine

monitor-based lightweight intrusion detection. ACM

SIGOPS Operating Systems Review, 45(2):38–53.

Dahbur, K., Mohammad, B., and Tarakji, A. B. (2011). A

survey of risks, threats and vulnerabilities in cloud

computing. In Proceedings of the 2011 International

Conference on Intelligent Semantic Web-Services and

Applications, ISWSA ’11, pages 12:1–12:6, New

York, NY, USA. ACM.

Ferdman, M., Adileh, A., Kocberber, O., Volos, S., Al-

isafaee, M., Jevdjic, D., Kaynak, C., Popescu, A. D.,

Ailamaki, A., and Falsaﬁ, B. (2012). Clearing the

clouds: a study of emerging scale-out workloads

on modern hardware. In Proceedings of the seven-

teenth international conference on Architectural Sup-

port for Programming Languages and Operating Sys-

tems, ASPLOS ’12, pages 37–48, New York, NY,

USA. ACM.

Hansen, S. E. and Atkins, E. T. (1993). Automated system

monitoring and notiﬁcation with swatch. In Proceed-

ings of the 7th USENIX Conference on System Admin-

istration, LISA ’93, pages 145–152, Berkeley, CA,

USA. USENIX Association.

Jiang, M., Munawar, M. A., Reidemeister, T., and Ward,

P. A. (2009). System monitoring with metric-

correlation models: Problems and solutions. In Pro-

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

350

ceedings of the 6th International Conference on Au-

tonomic Computing, ICAC ’09, pages 13–22, New

York, NY, USA. ACM.

Kang, H., Chen, H., and Jiang, G. (2010). Peerwatch: A

fault detection and diagnosis tool for virtualized con-

solidation systems. In Proceedings of the 7th Inter-

national Conference on Autonomic Computing, ICAC

’10, pages 119–128, New York, NY, USA. ACM.

Kephart, J. O. and Chess, D. M. (2003). The vision of auto-

nomic computing. Computer, 36(1):41–50.

Kumar, V., Cooper, B. F., Eisenhauer, G., and Schwan,

K. (2007). imanage: Policy-driven self-management

for enterprise-scale systems. In Proceedings of the

ACM/IFIP/USENIX 2007 International Conference

on Middleware, Middleware ’07, pages 287–307, New

York, NY, USA. Springer-Verlag New York, Inc.

Li, D., Jin, H., Liao, X., Zhang, Y., and Zhou, B. (2013).

Improving disk i/o performance in a virtualized sys-

tem. J. Comput. Syst. Sci., 79(2):187–200.

Lou, J.-G., Fu, Q., Yang, S., Xu, Y., and Li, J. (2010). Min-

ing invariants from console logs for system problem

detection. In Proceedings of the 2010 USENIX Con-

ference on USENIX Annual Technical Conference,

USENIXATC’10, pages 24–24, Berkeley, CA, USA.

USENIX Association.

Olston, C., Reed, B., Srivastava, U., Kumar, R., and

Tomkins, A. (2008). Pig latin: A not-so-foreign lan-

guage for data processing. In Proceedings of the 2008

ACM SIGMOD International Conference on Manage-

ment of Data, SIGMOD ’08, pages 1099–1110, New

York, NY, USA. ACM.

Oppenheimer, D., Ganapathi, A., and Patterson, D. A.

(2003). Why do internet services fail, and what can be

done about it? In Proceedings of the 4th Conference

on USENIX Symposium on Internet Technologies and

Systems - Volume 4, USITS’03, pages 1–1, Berkeley,

CA, USA. USENIX Association.

Pertet, S. and Narasimhan, P. (2005). Causes of failure in

web applications. Technical report, CMU-PDL-05-

109.

Rabkin, A. and Katz, R. (2010). Chukwa: A system for re-

liable large-scale log collection. In Proceedings of the

24th International Conference on Large Installation

System Administration, LISA’10, pages 1–15, Berke-

ley, CA, USA. USENIX Association.

Rajasekar, N. C. and Imaﬁdon, C. (2010). Exploitation of

vulnerabilities in cloud storage. In Proceedings of the

First International Conference on Cloud Computing,

GRIDs, and Virtualization, pages 122–127.

Rouillard, J. P. (2004). Refereed papers: Real-time log ﬁle

analysis using the simple event correlator (sec). In

Proceedings of the 18th USENIX Conference on Sys-

tem Administration, LISA ’04, pages 133–150, Berke-

ley, CA, USA. USENIX Association.

Shvachko, K., Kuang, H., Radia, S., and Chansler, R.

(2010). The hadoop distributed ﬁle system. In Pro-

ceedings of the 2010 IEEE 26th Symposium on Mass

Storage Systems and Technologies (MSST), MSST

’10, pages 1–10, Washington, DC, USA. IEEE Com-

puter Society.

Sigar (2014). https://support.hyperic.com/display/sigar/home.

Tan, J., Kavulya, S., Gandhi, R., and Narasimhan, P.

(2012). Light-weight black-box failure detection for

distributed systems. In Proceedings of the 2012 Work-

shop on Management of Big Data Systems, MBDS

’12, pages 13–18, New York, NY, USA. ACM.

The, J. P. and Prewett, J. E. (2003). Analyzing cluster log

ﬁles using logsurfer. In in Proceedings of the 4th An-

nual Conference on Linux Clusters.

Virt-Top (2014). http://virt-tools.org/about/.

Vora, M. (2011). Hadoop-hbase for large-scale data. In

Computer Science and Network Technology (ICC-

SNT), 2011 International Conference on, volume 1,

pages 601–605.

Wang, C. (2009). Ebat: Online methods for detecting utility

cloud anomalies. In Proceedings of the 6th Middle-

ware Doctoral Symposium, MDS ’09, pages 4:1–4:6,

New York, NY, USA. ACM.

Ward, J. S. and Barker, A. (2013). Varanus: In situ mon-

itoring for large scale cloud systems. In Proceed-

ings of the 2013 IEEE International Conference on

Cloud Computing Technology and Science - Volume

02, CLOUDCOM ’13, pages 341–344, Washington,

DC, USA. IEEE Computer Society.

Xu, W., Huang, L., Fox, A., Patterson, D., and Jordan,

M. I. (2009). Detecting large-scale system prob-

lems by mining console logs. In Proceedings of

the ACM SIGOPS 22Nd Symposium on Operating

Systems Principles, SOSP ’09, pages 117–132, New

York, NY, USA. ACM.

ALightweightToolforAnomalyDetectioninCloudDataCentres

351
