Dynamic Testing and Deployment of a Contract Monitoring Service

Ellis Solaiman

, Ioannis Sfyrakis

and Carlos Molina-Jimenez

School of Computing Science, Newcastle University, Newcastle, U.K.

Computer Laboratory, University of Cambridge, Cambridge, U.K.

Keywords:

Service Agreement, Electronic Contract, Service Monitoring, Model Checking, Automated Testing, Service

Oriented Computing, Cloud Computing.

Abstract:

Internet and cloud based services involve electronic interactions that are normally regulated using service

agreements (SA). Once an agreement between business partners is in place, a service can be monitored and/or

enforced using an SA equivalent electronic contract. Because of the dynamic nature of such Internet and

cloud based relationships, the rapidity at which electronic contracts are constructed, veriﬁed for correctness,

tested, and deployed is an extremely important factor. This paper describes a model checker based framework

for supporting the automated testing and deployment of electronic contracts. The central components of

the framework are a contract monitoring service called the Contract Compliance Checker (CCC), the SPIN

model checker, and EPROMELA, a language developed speciﬁcally for modeling electronic contracts. We

describe how SPIN can be used to automatically generate execution sequences from an EPROMELA model of

a contract, and how such sequences can then be used to test the correctness of the model equivalent electronic

contract deployed to the CCC.

1 INTRODUCTION

Internet and cloud computing advances have made it

possible for businesses to provide infrastructure and

software services to their business partners and to

their customers at affordable costs. Before such busi-

ness relationships can commence, legal service agree-

ments (SA) need to be negotiated and agreed. Legal

agreements, explicitly deﬁne the permissible actions

of the interacting parties, thus providing a legal basis

for the resolution of any disputes. A Legal agreement

can also be used as a guide for developing an elec-

tronic contract (Molina-Jimenez et al., 2003).

The main purpose of an electronic contract is to

regulate (monitor and/or enforce) electronic service

exchanges between the contracted parties, making

sure that business participants adhere to the SA in

place, and that performed actions comply with vari-

ous message timing and sequencing constraints. Elec-

tronic contracts are not conﬁned to the business do-

main, and can also be used for example to monitor/en-

force SAs between the components of distributed sys-

tems in the cloud and/or the ”Internet of Things”.

Constructing an electronic contract that is correct

(free from conﬂicts, and which correctly represents

the requirements of the original legal document), is a

challenging and time consuming task. Cloud based

business relationships can be both complex and of a

highly dynamic nature (Molina-Jimenez et al., 2011)

therefore it is important that the process of convert-

ing a legal document into an electronic contract that

is correct, is automated as much as possible. Previ-

ous work towards this goal has been extensive, and

has covered problems such as electronic contract rep-

resentation and modeling (Strano et al., 2008), and

contract model veriﬁcation (Solaiman et al., 2003)

(Abdelsadiq et al., 2011). Naturally, ensuring that a

model of an electronic contract is correct, does not

guarantee that the electronic contract itself is also cor-

rect. In this paper, we focus on the challenge of en-

suring that an electronic contract acts correctly at run

time, and that modiﬁcations and/or corrections that

need to be made to the rule base of the electronic con-

tract can be applied quickly. To this end, we develop a

model checker based framework to support automatic

electronic contract deployment and testing.

The central component of our framework is the

contract compliance checker (CCC) (Fig. 1) (Strano

et al., 2009) (Molina-Jimenez et al., 2012), which es-

sentially is the System Under Test (SUT). The CCC is

an independent contract monitoring service that when

provided with an executable speciﬁcation of a con-

463

Solaiman E., Sfyrakis I. and Molina-Jimenez C..

Dynamic Testing and Deployment of a Contract Monitoring Service.

DOI: 10.5220/0005453704630474

In Proceedings of the 5th International Conference on Cloud Computing and Services Science (CLOSER-2015), pages 463-474

ISBN: 978-989-758-104-5

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

buyer seller

CCC

communication channel

monitoring channel

biz events

(S,TF,BF)

trusted third party

response:

CC | NCC

electronic

contract

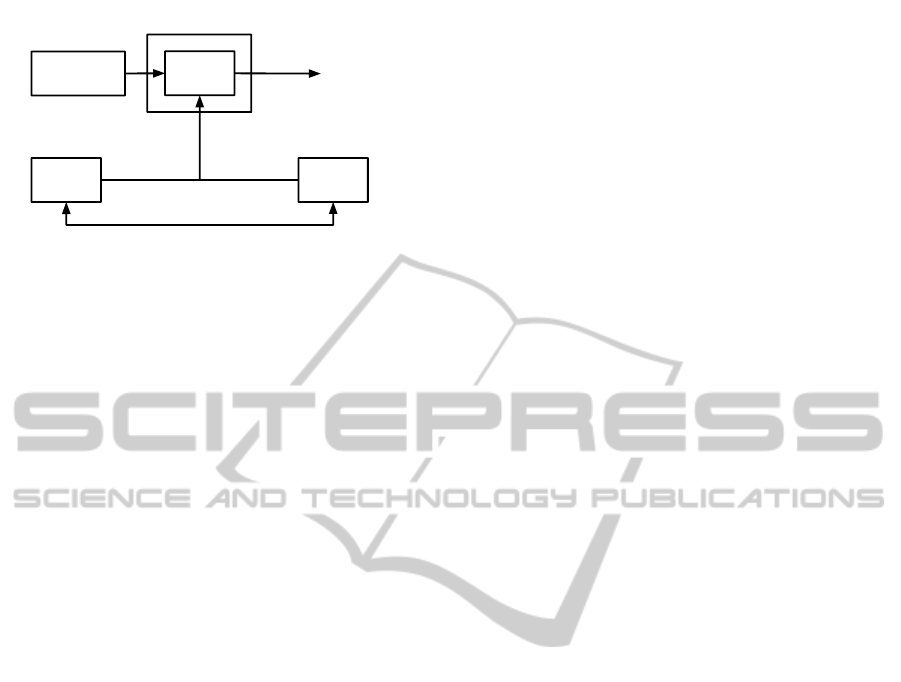

Figure 1: The CCC deployed as a contract monitor.

tract, can be deployed by the contracted parties or by

a third party. The CCC is able to observe and log

relevant interaction events, which it processes to de-

termine whether the actions of the business partners

are consistent with respect to the rights, obligations,

and prohibitions declared in the original legal con-

tract. Namely, the CCC declares interaction events as

either contract compliant (CC) or non contract com-

pliant (NCC).

As can be seen in Fig 1, business partners use a

communication channel for exchanging their business

messages. In addition they use a monitoring channel

for notifying events of interest to the CCC. Notably,

the ﬁgure shows that the CCC can cope with excep-

tions and failures, observing events that have been de-

clared by the interacting parties as either S (success-

ful), TF (technical failure), or BF (business failure).

The ability of the CCC to correctly declare in-

teraction events as (CC) or (NCC) relies on an exe-

cutable contract that has been speciﬁed correctly. Our

goal is to provide a framework that enables; rapid test-

ing of a deployed executable contract, and rapid up-

date of the contract rules when testing detects errors.

To do so, one must be able to exhaustively supply the

CCC with execution sequences that it would be ex-

pected to observe during runtime. Our approach is to

resort to model checker based testing.

Previous research into the area of model checker

based testing of electronic contracts, (Abdelsadiq

et al., 2010), describes the basic idea: construct a

behavioural model of the SUT and validate the be-

haviour using a model checker. Such a validated

model can then be used for generating executable test

cases for the SUT.

The model checking tool we use is SPIN (Holz-

mann, 2003), a tool originally designed for the ver-

iﬁcation of communication protocols. SPIN’s input

language, Promela, provides constructs for modeling

communication concepts such as messages, channels,

and basic data types that include bit, bye, arrays. etc.

Using these basic constructs alone for modeling elec-

tronic contracts, at a sufﬁciently high level of abstrac-

tion, is extremely challenging. This in turn makes the

process of generating accurate execution sequences

required for testing the CCC difﬁcult.

To address these challenges, a fundamental com-

ponent of our testing framework is EPROMELA, a

high level language developed speciﬁcally for mod-

eling electronic contracts (Abdelsadiq et al., 2011).

EPROMELA extends Promela with constructs for ex-

pressing core electronic contract concepts contained

in the CCC, thus enabling the construction of a con-

tract model at a level of abstraction that is equivalent

to the actual electronic contract.

This paper makes two contributions: 1) we de-

scribe the architecture of the CCC service, highlight-

ing architectural improvements we have made that al-

low for dynamic update of rules coded in an electronic

contract speciﬁcation. 2) we describe how SPIN, and

EPROMELA, can be instrumented with the aid of ap-

propriate automation and message parsing tools, to

produce business events that can accurately test the

executable contract deployed within the CCC service.

The remainder of the paper is structured as fol-

lows: In Section 2 we describe key electronic con-

tracting concepts with the aid of a simple example. In

Section 3 we present the enhanced architecture of the

CCC. Section 4 is dedicated to presenting our model

checker based testing framework. In Section 5 we dis-

cuss related work. Conclusions and future work sug-

gestions are presented in Section 6.

2 BACKGROUND

In order to elaborate key electronic contracting con-

cepts, we present a simple scenario. Let us assume

that Fig. 1 describes a relationship where two organi-

sations, a Buyer and a Seller (a store), agree to a busi-

ness contract. Below are some of its clauses:

1. The buyer can place a buy request with the store

to buy an item.

2. The store is obliged to respond with either buy

conﬁrmation or buy rejection within 3 days of re-

ceiving the buy request.

(a) No response from the store within 3 days will

be treated as a buy rejection.

3. The buyer can either pay or cancel the buy request

within 7 days of receiving a conﬁrmation.

(a) No response from the buyer within 7 days will

be treated as a cancellation.

The clauses of such a legal agreement should take into

consideration all relevant business operations (shown

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

464

Store

Buyer

Store

rej

BuyRej

Buyer

req

Store

BuyReq

Buyer

Store

Buyer

pay

BuyPay

Buyer

Store

Buyer

canc

Store

Buyer

Store

conf

startEv

endEv

BuyCanc

BuyConf

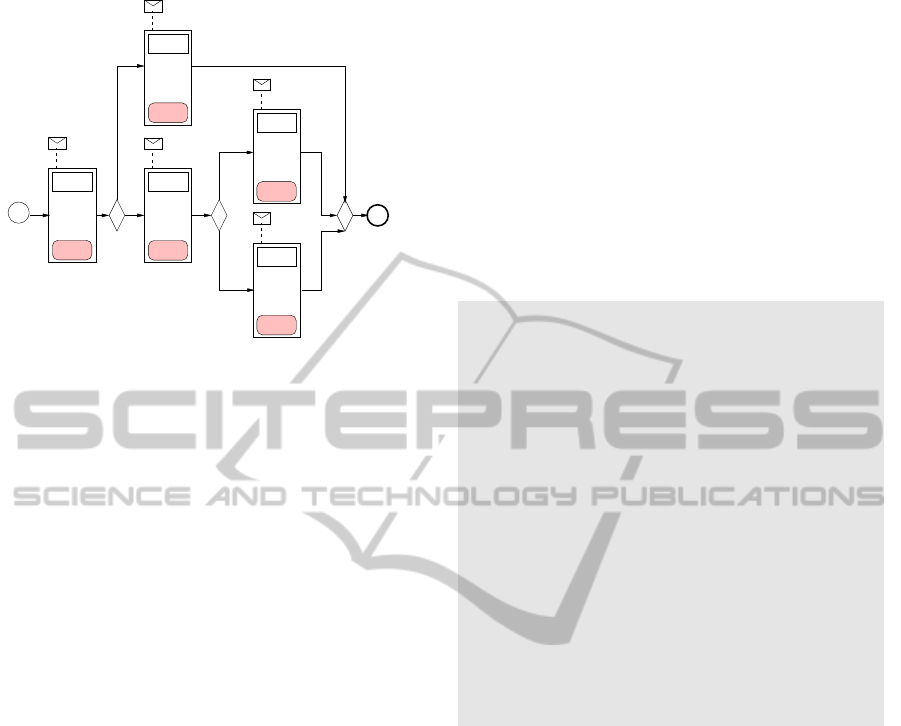

Figure 2: Correct choreography of contract example.

in bold in the contract text). A contract distinguishes

operations as Rights, Obligations, Prohibitions (the

ROP set). A Right is an operation that a party is al-

lowed to perform under certain conditions, an Obli-

gation is an operation that a party is expected to do

under certain conditions, and a Prohibition is an op-

eration that a party is not allowed to do under certain

conditions.

To support our discussion, we will use a graph-

ical representation of the contract written in BPMN

(Business Process Management Notation) choreogra-

phy language (OMG, 2011) (see Fig. 2).

The ﬁgure involves ﬁve activities, each result-

ing in a message (BuyReq, BuyRej, BuyConf, Buy-

Pay, BuyCanc) being sent from a sender (shown as

a white label in each activity), to a receiver (shown

as a shaded label). These messages correspond to the

ﬁve business operations (buy request, buy reject, buy

conﬁrmation, buy payment, buy cancellation) shown

in bold in the English text of the contract. The dia-

monds in the ﬁgure are gateways. The ﬁgure includes

two exclusive fork gateways (G1 and G2) and a single

exclusive merge gateway (G3).

The choreography speciﬁcation describes, from a

global perspective, all permissible message sequences

that can be exchanged between the partners, and is

used by the interacting parties for two purposes: i)

designing and implementing their individual parts of

the business process; and ii) it is also very useful as a

guide for developing the electronic contract.

The electronic contract designer is able to use the

legal contract and choreography, to accurately iden-

tify and extract the ROPs attributed to the business

partners, and to specify the rules which operate on

the ROP set (Molina-Jimenez and Shrivastava, 2013).

Rule implementation requires an appropriate speciﬁ-

cation language; contract rules written for the CCC

monitoring service are currently realised using the

Drools Rule Language (DRL) (RedHat, 2013).

An example of a rule that deals with receipt of a

buy request event by the CCC, written using Drools

can be seen below. Line 5 checks that the buyRequest

operation is a right that the buyer is currently allowed

to perform. If so then buyRequest is declared by the

CCC as contract compliant (line 13). This operation

is also removed from the buyer’s ROP set (line 8),

meaning that the buyer no longer has a right to per-

form this operation. At lines 10 and 11, the seller is

given an obligation to perform one of 2 operations:

buyConﬁrm, or buyReject.

1 rule "Buy Request Received"

2 //Verify type of event, originator, and

responder

3 when

4 $e: Event(type=="BUYREQ",

originator=="buyer", responder=="store",

status=="success")

5 eval(ropBuyer.matchesRights(buyRequest))

6 then

7 //Remove buyer’s right to place other Buy

Requests

8 ropBuyer.removeRight(buyRequest, seller);

9 //Add seller’s obligation to either accept

or reject order

10 BusinessOperation[] bos = {buyConfirm,

buyReject};

11 ropSeller.addObligation("React To Buy

Request", bos, buyer, 60,2);

12 System.out.println("* Buy Request Received

rule triggered");

13 responder.setContractCompliant(true)

14 end

Each of the activities declared in the choreography of

Fig. 2 has a rule such as the one shown above. Typ-

ically, for each activity in a choreography, each busi-

ness partner can have several rights, obligations, and

prohibitions in force.

Once an electronic contract speciﬁcation has been

completed, it can be loaded into the CCC for deploy-

ment and testing. As operations are executed, and

events are received by the CCC, rights, obligations

and prohibitions are granted to and revoked.

The CCC processes each event to determine if it is

contract compliant (CC) or none contract compliant

(NCC). The execution of a business operation (ob-

served from the outcome event) is said to be CC if

it satisﬁes the following three conditions and is said

to be NCC if it does not: 1) it matches an opera-

tion within the set of business operations expected by

the CCC, 2) it matches the ROP set of its role player

(meaning, the role player that performed the opera-

tion has a right/obligation/prohibition to perform that

particular operation), and 3) it satisﬁes the constraints

stipulated in the contractual clauses. An example of a

DynamicTestingandDeploymentofaContractMonitoringService

465

constraint is the seven day deadline in clause 3 of the

contract discussed earlier.

We also consider that the execution of a given se-

quence of operations is NCC if it includes one or more

operations that are ﬂagged by the CCC as NCC. A se-

quence of operations is also known as an execution

sequence or execution trace, and drives the choreog-

raphy from its initial state to a ﬁnal state.

To ease the introduction of basic concepts, our le-

gal contract example and corresponding choreogra-

phy of Fig. 2, deal with successful outcome events

only. However, a contract monitoring service such

as the CCC should also be able to observe out-

come events that include exceptional circumstances

(Molina-Jimenez et al., 2009). Therefore, follow-

ing the ebXML standard (OASIS, 2006), we assume

that at the end of a business conversation, each party

independently declares an execution outcome event

from the set {Success(S), BizFail(BF), TecFail(TF)}

as shown in Fig. 1. Success events model success-

ful execution outcomes. TecFail models protocol re-

lated failures detected at the middleware level, such

as a late, or a syntactically incorrect message. BizFail

models semantic errors in a message detected at the

business level, e.g., the credit card details extracted

from the received payment document are incorrect.

Adding exceptional outcome events to the CCC’s

set of observable events, naturally means that the

CCC has to monitor a much larger number of exe-

cution sequences. The task of generating these in or-

der to test the CCC effectively is extremely challeng-

ing, and strengthens the case for needing to automate

the testing process. Before moving on to our testing

framework, let us ﬁrst take a look at the new architec-

ture of the CCC.

3 ARCHITECTURE OF THE

CONTRACT COMPLIANCE

CHECKER (CCC)

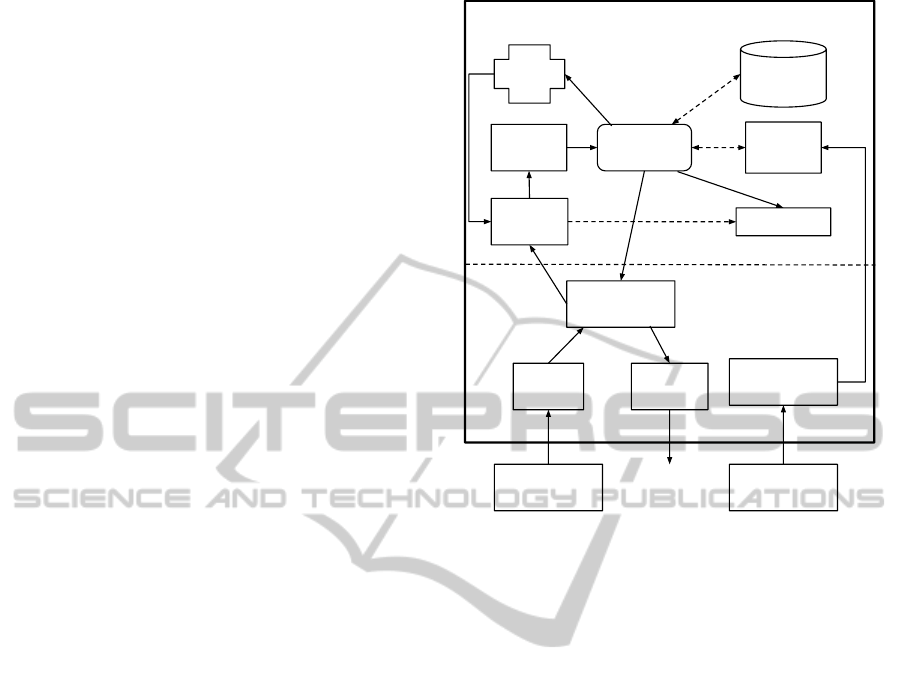

The overall architecture of the CCC is shown in

Fig. 3. It consists of two layers: The CCC Engine

(The Logical Layer), and the new addition is the CCC

Service (The Presentation Layer). The CCC Engine

is responsible for processing business events and for

determining whether they are contract compliant or

not. The CCC Service is an interface to the CCC En-

gine, it is used for delivering business events to the

CCC, and for collecting the corresponding responses.

In addition, the CCC Service can be used by the rule

administrator for loading and editing the rules that

represent the contract. The functionality of the ar-

BEvent

queue

outcome

queue

BizObj2XML /

XML2BizObj

filter

mism.bo

BEvent

queue

ROP set

contract

rules

BEvent

logger

timer

rule editor

(Browser)

relevance

engine

monitoring

channel

outcome events

(S, TF, BF)

timeout events

set / reset

timeouts

update

(add/del)

response

CC | NCC

Presentation Layer

Logical Layer

upload rule

service

Figure 3: Architecture of the contract compliance checker.

chitecture is as follows: A business event is received

through the monitoring channel as an XML document

that includes the names of the participants, the busi-

ness operation, and its outcome from the set: (Suc-

cess, BizFail, TecFail):

<event>

<originator>buyer</originator>

<responder>seller</responder>

<type>BuyReq</type>

<status>success</status>

</event>

The event shown here is produced as a result of

the implementation of a conversation synchronization

protocol between the interacting parties. The protocol

guarantees mutually agreed conversation outcomes. It

is the responsibility of the interacting partners to ap-

ply the protocol. A detailed discussed can be found

in (Molina-Jimenez et al., 2007). The XML docu-

ment representing the business event is passed to the

BEvent queue. Business events are retrieved, and con-

verted using the xml2BizObj/BizObj2xml Convertor

from their XML format into business event objects.

Events are then passed to the CCC Engine. The ﬁlter

mism.bo, discards mismatched business events that

are not among the permitted events deﬁned within the

ROP set. Business events that pass this ﬁlter are in-

serted into the BEvent queue. All deadlines are set

and reset by the relevance engine, and enforced by the

timer. Timeout events are added to the ﬁlter mism.bo

as required by the contract, and are examined by the

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

466

ﬁlter to decide if bevents are mismatched. For exam-

ple, receiving a buy conﬁrmation event from the store

after the 3 day deadline has elapsed, will be treated as

mismatched. The relevance engine removes a busi-

ness event from the head of the bevent queue and

compares it to the rules stored in the contract rules.

Rules that match the bevent under examination are

triggered to determine if their conditions are satisﬁed.

The actions of the rules whose conditions are satisﬁed

are executed, and this may alter (add/del) the current

state of the ROP sets. For our example in Fig. 2, a

rule triggered by a BuyConf business event and ﬁnds

its conditions satisﬁed will delete (disable) the store’s

right to execute another BuyConf business operation,

and delete the store’s right to execute a BuyRej opera-

tion. The rule also will add (impose) an obligation on

the buyer to either initiate the execution of a BuyPay,

or initiate the execution of BuyCanc. The bevent is

then stored in the BEvent logger as a record for any

future dispute resolution. The relevance engine even-

tually declares the business event either CC or NCC

and produces a response as a business object, which

is sent out to the Presentation Layer. The business ob-

ject passes through the xml2BizObj/BizObj2xml Con-

verter, where it is serialized into an XML message of

the following format:

<contractcompliant> true|false

</contractcompliant>

</result>

The xml2BizObj/BizObj2xml Converter inserts the

response into the outcome queue, which can be

accessed by the contracted parties. The Presentation

Layer allows a ”rule manager” to update the contract

rules at run time. For this purpose, rules can be edited

using the rule editor (in a browser) and sent to the

rule upload service as a conventional RESTful POST

operation. The rule upload service is responsible

for producing a drl (Drools) ﬁle (for example new–

rules.drl) from the payload of the POST operation,

and for uploading it to the CCC Logical Layer to

replace the Contract Rules.

The CCC Logical Layer is implemented using

JBoss’s Drools rules Engine (version 6.1 as of the year

2014) (RedHat, 2013). The Drools rules engine pow-

ers the decision making capabilities of the relevance

engine. The relevance engine, acts as a wrapper for

the Drools rule engine and its responsibilities include

the initialisation of the contract, as well as the addi-

tion and processing of events received from the Pre-

sentation Layer.

The Presentation layer, a new addition to the

CCC, exposes the CCC as a RESTful web service.

Its aim is to enable the exchange of XML event mes-

sages between the CCC and the contracted clients,

and to ease the editing and update of the contract

rules (these were previously hard coded). The Pre-

sentation Layer is implemented using the JBoss En-

terprise Application Platform (EAP), (RedHat, 2014).

The BEvent queue and the outcome queue, are imple-

mented using JBoss’s HornetQ (a message oriented

middleware layer), and using the Java Message Ser-

vice (JMS) API. A Message Driven Bean (MDB) re-

ceives business events from HornetQ and passes them

to the XML2BizObj/BizObj2XML converter, which is

implemented using Java. The upload rule service is

part of the Drools Workbench– a web authoring and

rules management application.

4 MODEL CHECKER BASED

TESTING

To claim categorically that the CCC functions cor-

rectly, we need to test that it can correctly identify

contract compliant and non-contract compliant execu-

tions of sequences and their constituent business op-

erations. To this end, one needs to be able produce

sequences of operations that are known to be con-

tract compliant, and also produce sequences that in-

clude both contract compliant and non contract com-

pliant operations.The challenge here is the production

of such sequences.

4.1 Testing Framework

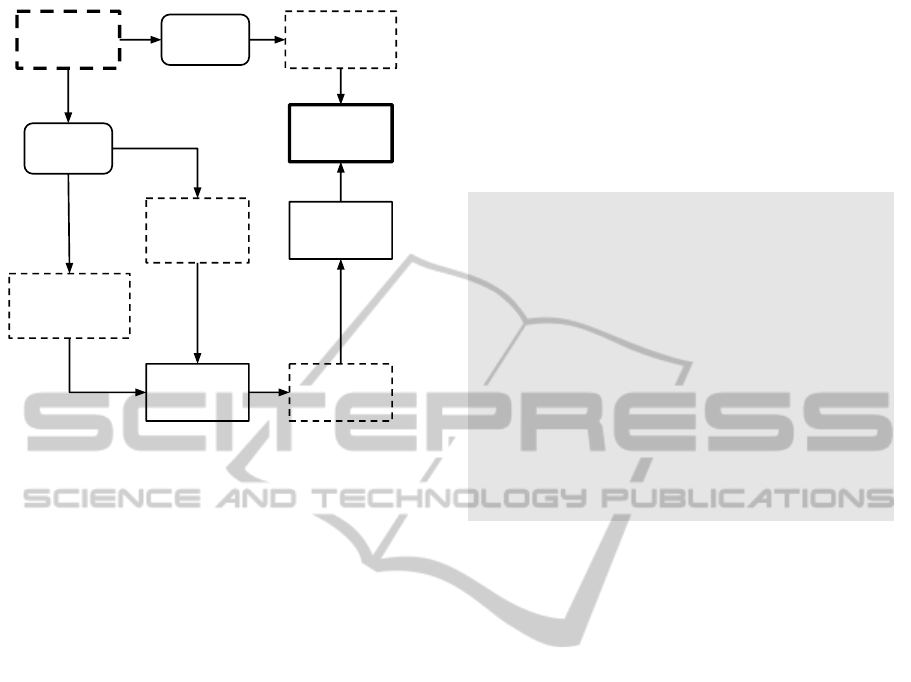

Fig. 4 shows the main elements of our testing frame-

work. Squares with smooth corners represent hu-

mans involved in the design process. Tools are rep-

resented by solid squares with sharp corners, and

dashed squares represent data.

As stated earlier, a central component of our test-

ing framework is the SPIN model checker. SPIN

models are constructed using Promela, and speciﬁ-

cally using EPROMELA, a modeling language de-

veloped precisely for modelling electronic contracts

(Abdelsadiq et al., 2011). EPROMELA is essen-

tially a high level tool that extends Promela with con-

structs for expressing core electronic contract con-

cepts contained in the CCC. Correctness properties

that an EPROMELA model is expected to satisfy,

can be expressed by the model designer using Lin-

ear Temporal Logic (LTL). When provided with a

model of the contract and appropriate LTL properties,

SPIN is able to verify the correctness of the model

with respect to those properties. With the aid of tools

for message parsing and automation, SPIN also can

DynamicTestingandDeploymentofaContractMonitoringService

467

natural

contract text

contract

designer

negated (trap)

properties in

LTL

model of

contractual

operations

contract

designer

SPIN model

checker

message

sequences

message

parsing tool

CCC

electronic

contract in

Drools

Figure 4: Model Checker based testing framework.

be instrumented to generate message sequences that

can be used to test the ability of the CCC to de-

tect contract compliant and non contract compliant

message sequences, a process that we will describe

next. Model checker based sequence generation fol-

lows these steps:

1. The designer constructs an abstract model of the

System Under Test (SUT), and veriﬁes that the

model is correct in that it satisﬁes the correctness

properties of interest.

2. The veriﬁed abstract model is used for generat-

ing execution sequences. This is done by pre-

senting the veriﬁcation tool with the veriﬁed ab-

stract model, together with a negated correctness

requirement in LTL (a trap property), and then

challenging the veriﬁcation tool to ﬁnd and pro-

duce counter examples that violate the LTL.

3. Each counter example contains an execution se-

quence that can be extracted with the aid of a mes-

sage parsing tool.

4.2 Example

We begin by building an EPROMELA model of our

example contract presented in the Background sec-

tion. To ease the task of parsing the counter exam-

ples of interest, we include within the EPROMELA

model print statements that produce the required

XML events. The end of each execution sequence is

marked using a reset message).

4.2.1 Model Construction and Veriﬁcation

Below is a section of our EPROMELA contract

model, which includes the rule that deals with the

BUYRREQ operation of Fig. 2. Each of the opera-

tions for the choreography in Fig. 2 has a rule which

updates the status of the ROP set belonging the par-

ticipants as they transition from state to state.

1 RULE(BUYREQ)

2 {

3 WHEN::EVENT(BUYREQ,

IS_R(BUYREQ,BUYER),SC(BUYREQ))->{

4 SET_X(BUYREQ,BUYER);

5 atomic{

6 printf("<originator>buyer</originator>");

7 printf("<responder>store</responder>");

8 printf("<type>BUYREQ</type>");

9 printf("<status>success</status>");

10 }

11 SET_R(BUYREQ,0);

12 SET_O(BUYREJ,1);

13 SET_O(BUYCONF,1);

14 RD(BUYREQ,BUYER,CCR,CO);

15 }

16 END(BUYREQ);

Line 3 of the model deals with receiving a

successful buy request event SC(BUYREQ).

IS_R(BUYREQ,BUYER) is a guard that checks if

the BUYER has a right to perform the BUYREQ op-

eration. If so, then SET_X(BUYREQ,BUYER) declares

that this operation has been executed, and the buyer’s

right to execute BUYREQ is removed at line 11. The

rule then sets an obligation to the Store to execute

either BUYREJ or BUYCONF (lines 12 - 13). At

line 6 we introduce the print statements required

for parsing the generated execution sequences. The

print statements produce XML events in the format

expected by the CCC.

Each of the operations BUYREQ, BUYREJ, BUY-

CONF, BUYPAR, BUYCANC, has a rule such as

the one above. Events are generated using an

EPROMELA Event Generator module, which mod-

els the interaction between the business partners.

Events exercise rules such as the one above through

another EPROMELA module known simply as the

Rule Manager. For a full description, see (Abdelsadiq

et al., 2011). When the entire EPROMELA model

has been constructed, SPIN can be used to verify that

the model is free from any inconsistencies. Common

correctness properties such as absence of deadlocks

and reachability of states, can easily be checked using

SPIN’s conﬁguration options. Checking for contract

speciﬁc correctness properties however, requires the

application of Linear Temporal Logic (LTL) formu-

lae. Typical correctness properties of the electronic

contracting domain are those that express mutual ex-

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

468

clusion of rights, obligations, and prohibitions; for ex-

ample the requirement that the execution of a given

operation (such as making a purchase order) is never

simultaneously obliged and prohibited. Thanks to the

contract constructs offered by EPROMELA, this cor-

rectness requirement can be elegantly and intuitively

expressed in LTL as follows:

[]!(IS_O(BUYREQ, BUYER) && IS_P(BUYREQ, BUYER))

Where [] is the LTL always operator. ! is the

universal not, IS_O(BUYREQ, BUYER) returns true

if the BUYREQ operation is currently obliged and

IS_P(BUYREQ, BUYER) returns true if the BUYREQ

operation is currently prohibited. Instructing SPIN to

run through the EPROMELA model using this LTL,

will drive SPIN to ﬁnd any examples that violate this

property. If such an example is found then it is pre-

sented as a counter example to the designer, who must

then correct the model.

4.2.2 Generating the Test Sequences

Once the contract model has been veriﬁed for required

correctness properties, it can be used as an oracle

for producing sequences that can test the electronic

contract. Test sequence generation is very similar to

veriﬁcation in that we make use of LTL properties.

We can (as described in the previous section) instruct

SPIN to ﬁnd undesirable examples of sequences that

violate a desirable property. But we also need to to be

able to instruct SPIN to ﬁnd desirable sequences that

violate a non-desirable property. The latter is done by

negating a desirable LTL property converting it into a

trap property.

As a very simple example, let us instruct SPIN to

generate all sequences of messages that end with a

BUYREJECT operation. The LTL formulae required

for this task is as follows:

!<>IS_X(BUYREJ,STORE)

Where < > is the LTL eventually operator. The

formulae states that the model will not eventually

reach a state where BUYREJ is executed. SPIN can

now be instrumented to show all sequences that do

end with BUYREJ. From the command line we apply

the following steps (CorrectChore is the name if the

ﬁle that contains the EPROMELA model):

1. % spin -a CorrectChore is used for generat-

ing the veriﬁer source code in C.

2. % cc -o pan pan.c is used for compiling the

veriﬁer.

3. % ./pan -a -e -c100 instructs SPIN to pro-

duce all the counter examples (trail ﬁles) that it

can ﬁnd, which violate the trap property. By de-

fault SPIN produces the ﬁrst one it ﬁnds and stops.

The -c100 parameter instructs SPIN to generate

the ﬁrst 100 counter examples it ﬁnds. The num-

ber of counter examples requested needs to be

above the actual number of counter examples that

SPIN could possibly ﬁnd. This number can be de-

termine by the designer using trial and error.

4. spin -tN -s -r -B CorrectChore converts

the N

trail ﬁle into a text ﬁle that includes

the XML messages involved in the execution

sequence.

Given the potentially large number of trail ﬁles that

can be produced by SPIN, it is advisable to mecha-

nise the process. We use a simple shell script for this

purpose. The following text represents the contents

of one of the trail ﬁles produced by the Linux shell

script. To ease readability, we have removed some

irrelevant lines.

2: proc 0 (Buyer) line 35 "CorrectChore" Sent

BuyReq,1

3: proc 1 (Store) line 71 "CorrectChore" Recv

BuyReq,1

<originator>buyer</originator>

<responder>store</responder>

<type>BUYREQ</type>

<status>success</status>

5: proc 1 (Store) line 114 "CorrectChore"

Sent BuyRej,1

6: proc 0 (Buyer) line 049 "CorrectChore"

Recv BuyRej,1

<originator>store</originator>

<responder>buyer</responder>

<type>BUYREJ</type>

<status>success</status>

<originator>reset</originator>

<responder>reset</responder>

<type>reset</type>

<status>reset</status>

The execution sequence shown above includes a

BUYREQ message sent from the buyer to the store,

followed by BUYREJ sent by the store to the buyer.

The status element indicates the outcome of the ex-

ecution of the operation. The status in this example

accounts only for successful execution outcomes (No

exceptional circumstances such as technical failures

are assumed), consequently, the content of this ele-

ment is always success. The last message is the reset

message, which we artiﬁcially include to mark the end

of the sequence.

As can be appreciated from this example, the ﬁles

produced by SPIN and the shell script need parsing in

order to extract the XML tagged messages.

DynamicTestingandDeploymentofaContractMonitoringService

469

4.2.3 Sequence Parsing

Our parser is built using Python. It extracts all the

XML tagged messages from a given sequence and

stores each message as an individual XML ﬁle. The

parser achieves this by creating a recursive grammar

that describes the precise structure of the business

events inside a sequence. As seen in the code seg-

ment below in lines 2 - 5, we ﬁrst deﬁne the XML

tags we want to ﬁnd.

1 #define grammar for sequence file

2 tagOriginator = pyp.Literal("<originator>")

+ pyp.Word(pyp.alphas) +

pyp.Literal("</originator>")

3 tagResponder = pyp.Literal("<responder>") +

pyp.Word(pyp.alphas) +

pyp.Literal("</responder>")

4 tagType = pyp.Literal("<type>") +

pyp.Word(pyp.alphas) +

pyp.Literal("</type>")

5 tagStatus = pyp.Literal("<status>") +

pyp.Word(pyp.alphas) +

pyp.Literal("</status>")

6 lineString = tagOriginator | tagResponder |

tagType | tagStatus

The parser reads a ﬁle containing a message sequence,

and searches for matches against each line according

to the following rule in line 6: If there is a line that

includes a tag deﬁnition of either the originator, re-

sponder, type, or status, then the match is successful.

If the parser ﬁnds a match, then it performs the fol-

lowing actions: i) the parser creates a new folder with

the name of the sequence, ii) it extracts the XML part

that is matched according to the above rule, iii) a new

XML ﬁle is created that includes the extracted busi-

ness event. Thus, the folder ExeSeq1–xml for the se-

quence shown above will contain three XML ﬁles be-

cause the sequences contains three messages, namely

BUY REQ → BUY REJ → reset.

4.2.4 Testing the Electronic Contract

After loading and initialising the CCC with the rules

that encode the electronic contract, we can proceed

with sending each of the execution sequences to the

BEvent queue. Responses are collected from the out-

come queue (see Fig. 3). The following lines show the

results of testing the execution sequence BUY REQ →

BUY REJ → reset:

1 filename: event1.xml

2 -Begin Request to CCC service-

3 BusinessEvent [originator=buyer,

responder=store, type=BUYREQ,

status=success]

4 -End Request to CCC service-

6 -Begin Response from CCC service-

7 <result>

8 <contractCompliant>true</contractCompliant>

9 </result>

10-End Response from CCC service-

12 filename: event2.xml

13 -Begin Request to CCC service-

14 BusinessEvent [originator=store,

responder=buyer, type=BUYREJ,

status=success]

15 -End Request to CCC service-

17 -Begin Response from CCC service-

18 <result>

19 <contractCompliant>true

</contractCompliant>

20 </result>

21 -End Response from CCC service-

23 filename: event3.xml

24 -Begin Request to CCC service-

25 BusinessEvent [originator=reset,

responder=reset, type=reset,

status=reset]

26 -End Request to CCC service-

27 -Begin Response from CCC service-

28 <result>

29 <contractCompliant>true

</contractCompliant>

30 </result>

31 -End Response from CCC service-

The operations (BUYREQ and BUYREJ) included in

the sequence, are declared contract compliant by the

CCC indicating that the contract rules have been

coded correctly with respect to the LTL property in

Section 4.2.2. The ﬁrst operation is sent to the CCC in

line 3, and its response <contractCompliant>true

is shown at line 8. Similarly, BUYREJ operation

is sent to the CCC at line 14, and its response

<contractCompliant>true can be seen at line 19.

4.2.5 Testing None Compliant Events

A model that has been veriﬁed, will by default gen-

erate test sequences with events corresponding to the

execution of contract compliant operations only. An

EPROMELA model can be tuned to generate se-

quences which include unknown and noncompliant

business events using the EPROMELA Event Gener-

ator module mentioned under Section 4.2.1. Thus we

can alter the EPROMELA model to follow any varia-

tion of the choreography shown in Fig. 2. For exam-

ple the modiﬁed choreography of ﬁgure Fig. 5 does

not correctly reﬂect the original text contract.

The particularity of this diagram is that it produces

contract compliant sequences such as BuyReq →

BuyRe j. In addition, it produces non–contract com-

pliant sequences, for instance it allows for cancella-

tion after payment which is not stipulated in the orig-

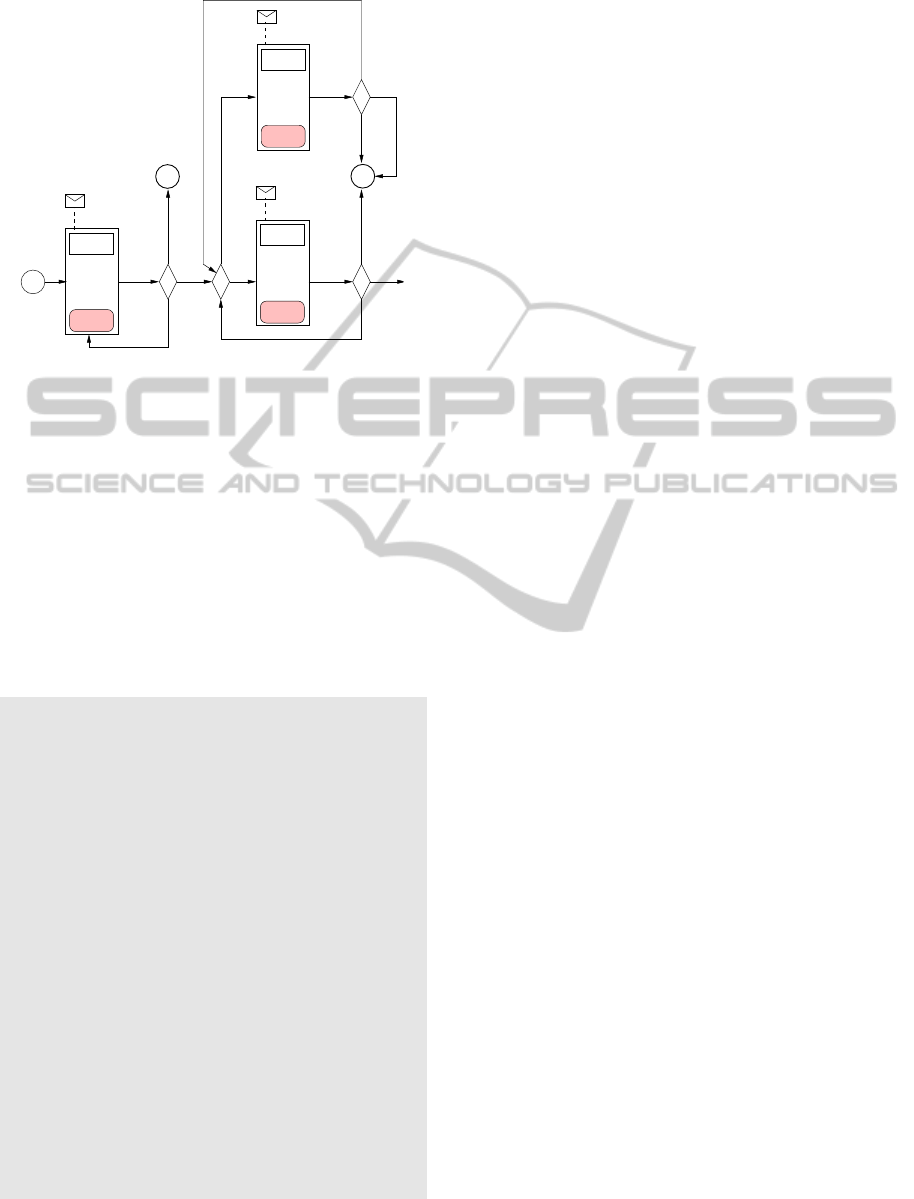

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

470

Buyer

req

Store

BuyReq

Store

Buyer

Store

rej

BuyRej

Buyer

Store

Buyer

pay

BuyPay

endEv

Buyer

Store

Buyer

Store

conf

startEv

BuyCanc

BuyConf

Buyer

canc

Figure 5: Incorrect choreography of contract example.

inal contract. Consequently, the execution of Buy-

Canc within the sequence BuyReq → BuyCon f →

BuyPay → BuyCanc should be declared non contract

compliant by the CCC. The following text shows the

results of the execution of the non–contract compli-

ant sequence discussed above. The ﬁrst 2 events

BUYREQ, BUYCONF, were declared contract com-

pliant by the CCC as expected. To save space we only

show the outcome of the 2 events of relevance in this

example (BUYPAY followed by BUYCANC):

1 filename: event3.xml

2 -Begin Request to CCC service-

3 BusinessEvent [originator=buyer,

responder=store, type=BUYPAY,

status=success]

4 -End Request to CCC service-

6 -Begin Response from CCC service-

7 <result>

8 <contractCompliant> true

</contractCompliant>

9 </result>

10 -End Response from CCC service-

12 filename: event4.xml

13 -Begin Request to CCC service-

14 BusinessEvent [originator=buyer,

responder=store, type=BUYCANC,

status=success]

15 -End Request to CCC service-

17 -Begin Response from CCC service-

18 <result>

19 <contractCompliant> false

</contractCompliant>

20 </result>

21 -End Response from CCC service-

The process BUYPAY is contract compliant (lines 3

and 8). The execution of BUYCANC at line 14 and the

corresponding response received at line 19 indicates

that the CCC has declared BUYCANC non–contract

compliant. This is the desired behaviour from the

CCC, as it has detected that this sequence of events

is not consistent with the contract.

Store

Buyer

Store

conf

BuyConf

Buyer

Store

Buyer

pay

BuyPay

Success

Technical Failure

Business Failure

Success

Technical Failure

Business Failure

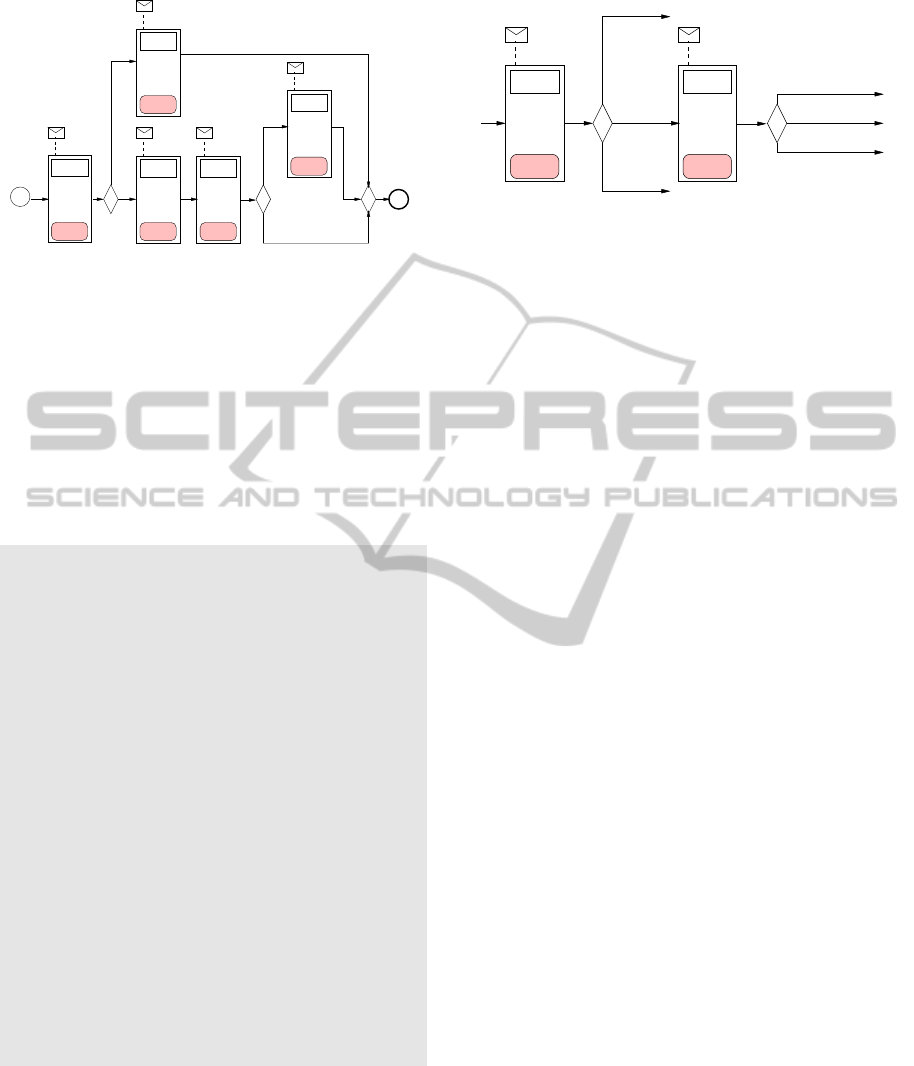

Figure 6: Execution model with success and failures.

4.3 Accounting for Exceptional

Outcome Events

The contract example we have used so far assumes

that the execution of operations always succeeds; it

does not account for potential failures. More realis-

tic examples would include the execution of activities

as shown in Fig. 6, which account for successful and

failed outcomes.

As discussed in Section 2, and following the

ebXML standard (OASIS, 2006), we would like to be

able to detect two types of failures; business failures,

and technical failures. To this end, the EPROMELA

modeling language has been designed with the ability

to deal with these 2 types of failures. As an example

of an electronic contract that can handle exceptional

outcomes, we add the following clause to our origi-

nal contract to account for potential semantic errors

(business failures) in the execution of any operation:

4. Failure handling: if after 2 attempts, an operation

is not performed correctly, then the contractual

interaction shall be declared terminated.

Fig. 7 shows a partial choreography representation of

the contract for three out of its ﬁve tasks only (for

readability). The contract allows for a ﬁnite number

of retries if business failures are encountered. The ac-

tual number of retries will normally be a conﬁguration

parameter. In the ﬁgure, S and BF stands for Success

and Business Failure, respectively. Similarly, rqBF,

rjBF, and coBF, represent counters that keep track

of the number of failed executions of the operations;

BUYREQ, BUYREJ, and BUYCONF, respectively. N

represents an arbitrary integer that in our example al-

lows for two failure execution (N = 2). The execution

of each activity leads to a gateway with three outgoing

arrows. As an example, at BUYREQ, a successful (S)

execution leads to the normal execution of the con-

tract, namely to G2. Alternatively, if the execution

completes in BF and the number of failed executions

rqBF of the BUYREQ operation is less than N, the

execution is tried again. However, if the outcome is

BF and it has already failed N times, the contractual

DynamicTestingandDeploymentofaContractMonitoringService

471

Store

Buyer

Store

rej

BuyRej

Buyer

Store

Buyer

canc

BuyCanc

Buyer

Store

Buyer

pays

BuyPay

Store

Buyer

Store

conf

BuyConf

Buyer

req

Store

BuyReq

startEv

endEv

BF & coBF<N BF & caBF<N

endEv

BF & rqBF<N

BF & rjBF<N BF & paBF<N

BF & rqBF=N

BF & coBF=N

BF & rjBF=N

BF & paBF=NBF & caBF=N

G4G1 G5

Figure 7: Contract example that accounts for failures.

interaction is terminated. Failure handling with the

remaining activities is similar, except that gateways

G2 and G5 introduce additional alternative execution

paths. For instance, after failing to complete success-

fully BUYREJ at the ﬁrst attempt, the initiator is al-

lowed to choose BUYREJ again or alternatively can

execute BUYCONF. Below we show how an excep-

tion such as the business failure of the BUYREQ oper-

ation described above can be intuitively and naturally

modeled using EPROMELA. The rule for BUYREQ

described in Section 4.2.1 can be easily enhanced as

follows:

1 /*handle failure outcome event*/

2::EVENT(BUYREQ,IS_R(BUYREQ,BUYER),

BF(BUYREQ))->{

3 atomic{

4 printf("<originator>buyer</originator>");

5 printf("<responder>store</responder>");

6 printf("<type>BUYREQ</type>");

7 printf("<status>bizfail</status>");

8 }

9 if /*1st notification of BF*/

10 ::(ReqFailBefore==NO)->

ReqFailBefore=YES;

11 printf("First BUYREQ-BF");

12 RD(BUYREQ,BUYER,CCR,CO);

13 /*2nd notification of BF*/

14 ::(ReqFailBefore==YES)->

abncoend=TRUE;

15 printf("Last BUYREQ-BF");

16 SET_R(BUYREQ,0);

17 atomic{

19 printf("<originator>reset</originator>");

20 printf("<responder>reset</responder>");

21 printf("<type>reset</type>");

22 printf("<status>reset</status>");

23 RD(BUYREQ,BUYER,NCCR,CND); /*abnormal

contract end*/

The model can now also handle BUYREQ events that

result in BF outcomes (line 2). If a failed event is

received, then the rule checks if a failure of this kind

has happened before. If not (line 10), then this ﬁrst

failure is registered, and contract execution is allowed

to continue (line 12). On the other hand, if this is the

second time BUYREQ has been received with a BF

outcome then the rule terminates contract interaction

at line 23.

The EPROMELA model includes rules like the

one described above for dealing with each of the 5

business events shown in bold in our contract exam-

ple. After the model has been veriﬁed using SPIN, the

electronic contract deployed to the CCC can be tested,

in combination with the testing framework described

previously, using much more realistic execution se-

quences that include exceptions. A detailed descrip-

tion of how exceptions are handled in the CCC can be

found in (Molina-Jimenez et al., 2009).

5 RELATED WORK

Research work on the monitoring of cross-

organizational interactions between parties was

pioneered by Minsky (Ungureanu and Minsky, 2000)

with work on Law Governed Interaction (LGI). The

notion of rights, obligations and prohibitions was

introduced in (Ludwig and Stolze, 2003). A useful

summary about various issues involved in contract

management is provided in (Hvitved, 2010).

Linear Temporal Logic (LTL) is a powerful tool

for specifying correctness properties in a model

whether it is for verifying the correctness of the

model, or for the generation of test sequences. How-

ever not all correctness properties can be expressed

using LTL; for example it is not possible to specify

that a particular property will hold for every 3rd or

4th state of the system. Such limitations are discussed

in (Galton, 1987), where extensions to LTL are sug-

gested. In addition, despite the advantages of model

checker based testing, it does have its disadvantages;

building a model of the SUT and describing the re-

quired LTL properties relies heavily on the skills of

the technical person who must also be intimately fa-

miliar with the SUT. The advantages and disadvan-

tages of model checker based testing are discussed in

(El-Far, 2001) where the author provides a practical

guide. Naturally it is difﬁcult to ensure complete cov-

erage of all possible system behaviors during testing

with manually speciﬁed LTL properties. Therefore,

it is extremely desirable to be able to systematically

create complete test suites according to some test ob-

jective (Fraser et al., 2009). (Van der Aalst and Pesic,

2006) propose to automate the task of specifying LTL

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

472

properties by means of a graphical language (DecSer-

Flow) that is then mapped into LTL formulas. Using

this language, the designer can specify a set of com-

mon or frequent correctness requirements.

It is worth noting at this point that we are in the

process of developing an LTL Manager component

for our testing framework. The LTL Manager in-

cludes a repository that can be populated with tem-

plates of LTL formulae for common contract related

properties that must be satisﬁed by all contracts. For

example that a business operation is not simultane-

ously prohibited and obliged at the same time.

Although model checker based testing techniques

have been studied widely in the software engineering

community (Utting and Legeard, 2006) (Pezze and

Young, 2008) (Torsel, 2013), their use in the testing

of a contract monitoring service has received little at-

tention. The principles of model checker based test-

ing of electronic contracts are investigated previously

by us in (Abdelsadiq et al., 2010), however contract

models in this work are built using Promela, the basic

input language of SPIN. Attempting to predict how

a designer would use basic Promela to model a con-

tract is an impossible task, which makes developing

tools for automating the testing process extremely dif-

ﬁcult. An important contribution of this paper is that

we highlight the beneﬁts of developing a tool based

framework that has been tailored speciﬁcally to lever-

age the capabilities of a domain speciﬁc modelling

tool such as EPROMELA (Abdelsadiq et al., 2011),

which was developed speciﬁcally for modeling elec-

tronic contracts.

6 CONCLUSION AND FUTURE

WORK

Ensuring the correct functionality of an electronic

monitoring service such as the contract compliance

checker (CCC), becomes more difﬁcult as the number

of execution sequences that the CCC is expected to

observe increase. We have seen that cloud and Inter-

net based interactions between business partners can

indeed be extremely complex, and this is especially

true when exceptional outcome events from these in-

teractions are taken into consideration. Reproducing

such complex exchanges in order to test the correct

functionality of the CCC is difﬁcult and cannot be

achieved manually. In addition, it is extremely impor-

tant to be able to correct and update the rule base of

the monitoring service rapidly so that interruptions to

the deployed service are reduced as much as possible.

In order to address these issues, we have presented

a model checker based framework that includes tools

to automate the testing process. By using the SPIN

model checker in combination with EPROMELA, a

high level modeling language designed speciﬁcally

for modeling electronic contracts, we can build ver-

iﬁed models that accurately resemble the System Un-

der Test (SUT) with relative ease. By using appropri-

ate LTL formulae within an EPROMELA model, we

can instrument SPIN to automatically produce con-

tract compliant, and none contract compliant execu-

tion sequences that are capable of exhaustively testing

the correct operation of the CCC. In addition, we have

presented a new and enhanced architecture and im-

plementation of the CCC, with an additional Presen-

tation Layer that exposes the CCC as a web service.

An important feature is that the Presentation Layer

includes a Drools editing and upload service that en-

ables dynamic update of the electronic contract rules

at runtime.

There are a number of future research directions

which we are currently exploring. Drools, the lan-

guage we use for specifying electronic contracts is

verbose, and not as declarative and readable as would

be ideal. We have developed a contract speciﬁca-

tion language called EROP (for Events, Rights, Obli-

gations, and Prohibitions) (Strano et al., 2009), and

are in the process of completing a tool for translat-

ing EROP to Drools. Also we would like to enhance

the CCC, which currently acts as a passive monitor,

with the capability to act as a contract enforcer. The

aim of a contract enforcement service would be to en-

sure that an operation is executed only if it is contract

compliant.

An important item for future work is to conduct

experiments in order to determine how the presented

testing framework performs as the number of possi-

ble events increases. The veriﬁcation and testing of

the CCC can be further automated in several ways;

in addition to the development of the LTL Man-

ager component discussed in Section 5, we would

like to create a translation tool that can produce an

EPROMELA model from an electronic contract spec-

iﬁcation written in EROP automatically. This would

reduce the risk of introducing unwanted errors into

the contract model during construction. We believe

that this goal is achievable because of the semantic

similarities between EPROMELA and the electronic

contracting concepts within the CCC.

REFERENCES

Abdelsadiq, A., Molina-Jimenez, C., and Shrivastava, S.

(2010). On model checker based testing of electronic

contracting systems. In IEEE International Confer-

DynamicTestingandDeploymentofaContractMonitoringService

473

ence on Commerce and Enterprise Computing (CEC

2010). IEEE.

Abdelsadiq, A., Molina-Jimenez, C., and Shrivastava, S.

(2011). A high level model checking tool for verify-

ing service agreements. In The 6th IEEE International

Symposium on Service-Oriented System Engineering

(SOSE 2011). IEEE.

El-Far, I. K. (2001). Enjoying the perks of model-based

testing. In Proc. of the Software Testing, Analysis, and

Review Conference (STARWEST 2001).

Fraser, G., Wotawa, F., and Ammann, P. (2009). Testing

with model checkers: A survey. Software Testing, Ver-

iﬁcation and Reliability, pages 215–261.

Galton, A. (1987). Temporal logics and computer science:

An overview. Academic Press, pages ch. 1, pp. 2748.

Holzmann, G. J. (2003). The Spin model checker: primer

and reference manual. AddisonWesley Professional.

Hvitved, T. (2010). A survey of formal languages for

contracts. In n Fourth Workshop on Formal Lan-

guages and Analysis of ContractOriented Software

(FLACOS10).

Ludwig, H. and Stolze, M. (2003). Simple obligation and

right model (sorm)-for the runtime management of

electronic service contracts. In 2nd Intl Workshop

on Web Services, eBusiness, and the Semantic Web

(WES03) LNCS, volume 3095, pages 62–76.

Molina-Jimenez, C. and Shrivastava, S. (2013). Establish-

ing conformance between contracts and choreogra-

phies. In 15th IEEE Conference on Business Infor-

matics (CBI). 2013, Vienna, Austria: IEEE Computer

Society. IEEE.

Molina-Jimenez, C., Shrivastava, S., and Cook, N. (2007).

Implementing business conversations with consis-

tency guarantees using message-oriented middleware.

In IEEE 11th Intl Enterprise Computing Conf. (EDOC

07), pages 51–62.

Molina-Jimenez, C., Shrivastava, S., Solaiman, E., and

Warne, J. (2003). Contract representation for run-

time monitoring and enforcement. In 2003 IEEE In-

ternational Conference on E-Commerce (CEC 2003).

IEEE.

Molina-Jimenez, C., Shrivastava, S., and Strano, M. (2009).

Exception handling in electronic contracting. In IEEE

Conference on Commerce and Enterprise Computing

(CEC). 2009, Vienna, Austria. IEEE.

Molina-Jimenez, C., Shrivastava, S., and Strano, M. (2012).

A model for checking contractual compliance of busi-

ness interactions. IEEE TRANSACTIONS ON SER-

VICES COMPUTING, 5(2):276–289.

Molina-Jimenez, C., Shrivastava, S., and Wheater, S.

(2011). An architecture for negotiation and enforce-

ment of resource usage policies. In IEEE Interna-

tional Conference on Service Oriented Computing &

Applications (SOCA). IEEE.

OASIS (2006). ebXML Business Process Speciﬁ-

cation Schema Technical Speciﬁcation v2.0.4.

Available: http://docs.oasis-open.org/ebxml-

bp/2.0.4/OS/spec/ebxmlbp-v2.0.4-Spec-os-en.pdf.

OMG (2011). Documents associated with business

process model and notation (bpmn) version 2.0.

http://www.omg.org/spec/BPMN/2.0/.

Pezze, M. and Young, M. (2008). Software Testing and

Analysis: Process, Principles and Techniques. Wiley.

RedHat (2013). ”Drools”. http://www.drools.org/.

RedHat (2014). JBoss Enterprise Application Platform

v 6.3. http://www.redhat.com/en/technologies/jboss-

middleware/application-platform.

Solaiman, E., Molina-Jimenez, C., and Shrivastava, S.

(2003). Model checking correctness properties of

electronic contracts. In International Conference on

Service Oriented Computing (ICSOC03). Springer.

Strano, M., Molina-Jimenez, C., and Shrivastava, S. (2008).

A rule-based notation to specify executable electronic

contracts. In Rule Representation, Interchange and

Reasoning on the Web: International Symposium

(RuleML). Springer-Verlag.

Strano, M., Molina-Jimenez, C., and Shrivastava, S.

(2009). Implementing a rule-based contract compli-

ance checker. In Software Services for e-Business and

e-Society: 9th IFIP WG 6.1 Conference on e-Business,

e-Services and e-Society (I3E). Springer.

Torsel, A.-M. (2013). A testing tool for web applications

using a domain-speciﬁc modelling language and the

nusmv model checker. In IEEE Sixth International

Conference on Software Testing, Veriﬁcation and Val-

idation.

Ungureanu, V. and Minsky, N. H. (2000). Establishing busi-

ness rules for interenterprise electronic commerce. In

14th International Symposium on Distributed Com-

puting (DISC00), pages 179–193.

Utting, M. and Legeard, B. (2006). Practical Model-Based

Testing: A Tools Approach. MorganKaufmann.

Van der Aalst, W. and Pesic, M. (2006). Decserﬂow: To-

wards a truly declarative service ﬂow language. In

Bravetti M, Nunez M, Zavattaro G (eds) International

Conference on Web Services and Formal Methods

(WS-FM 2006), volume 4184, pages 1–23. Lecture

Notes in Computer Science Springer-Verlag.

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

474
