Towards a Model-based Toolchain for Remote Conﬁguration and

Maintenance of Space-aware Systems

Jan Olaf Blech

, Peter Herrmann

, Ian Peake

and Heinz Schmidt

RMIT University, Melbourne, Australia

Norwegian University of Science and Technology (NTNU), Trondheim, Norway

Keywords:

Model-driven Software Engineering, Industrial Automation.

Abstract:

We present work towards a toolchain that combines our existing tools Reactive Blocks and BeSpaceD with

our remote collaboration and visualization facility VxLab. Software development in areas such as oil and gas,

mining or automation is subject to remote conﬁguration and maintenance of installations. Different reasons

are driving this trend including difﬁcult accessibility of remote sites and outsourcing to offsite experts or due to

cheaper labor costs. Here, we concentrate on work towards remote conﬁguration, installation and maintenance

of the software controlling these installations and their spatial constraints.

1 INTRODUCTION

Industrial activities connected to natural resources of-

ten take place on remote locations, e.g., mining dis-

tricts in the Australian Outback or oil rigs in the North

Sea. To reduce the high expense for accommodation

and transport of employees, the industry production

on such places is increasingly automated and con-

trolled, conﬁgured resp. maintained from a remote

location.

In many cases, work is done by machines or robots

that cooperate in close proximity to each other. Ma-

chinery has an inﬂuence on the physical space, for

example by heat emission or occupying it physically,

that can have an inﬂuence on the entire plant. The

coordination of the machines as well as the necessity

to achieve a good productivity lead to complex con-

trol software with extraordinary functional and safety

requirements. Furthermore, due to the changing en-

vironment at, e.g., a mining area, the control software

frequently needs to be conﬁgured in a customized way

which leads to refactoring and adaptation. This calls

for highly skilled software experts who could be per-

manently positioned at the remote spots at enormous

costs only.

To cope with this challenge, we present initial

work on the development of a toolchain allowing

distributed development, adaptation, installation and

maintenance of control software for space-aware cy-

ber-physical systems. In particular, we aim at com-

bining and amending three existing tools:

Reactive Blocks IDE

BeSpaceD

User

robot controler

robot

control

service

Figure 1: The toolchain.

1. Reactive Blocks (Kraemer et al., 2009) is a model-

based engineering technique for reactive systems.

2. BeSpaceD (Blech and Schmidt, 2014; Blech and

Schmidt, 2013) is a tool for the veriﬁcation of spa-

tiotemporal properties.

3. VxLab (Blech et al., 2014b) is a technique for the

cooperation of experts at various places in order

to simulate, validate and visualize industrial pro-

cesses.

As proof of concept, we create a toolchain that al-

lows software developed by Reactive Blocks to con-

trol a pair of cooperating ABB IRB120 industrial

robot arms that are located at RMIT University in

Melbourne. To verify properties with respect to spa-

tial behavior, we use the existing connection between

Reactive Blocks and BeSpaceD (Han et al., 2014;

Herrmann et al., 2014). Moreover, we extend the ex-

isting VxLab functionality in a way that the instal-

lation of the generated software in the control com-

puters of the robots is directly supported. This al-

lows, for instance, software experts located in Trond-

331

Olaf Blech J., Herrmann P., Peake I. and Schmidt H..

Towards a Model-based Toolchain for Remote Conﬁguration and Maintenance of Space-aware Systems.

DOI: 10.5220/0005454703310336

In Proceedings of the 10th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE-2015), pages 331-336

ISBN: 978-989-758-100-7

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

heim to communicate via VxLab with process engi-

neers in Bangalore and maintenance personal in Mel-

bourne about software adaptations for the robots. The

changes can be carried out and veriﬁed for func-

tional and spatial correctness by the software experts.

Thereafter the code can be sent to a robot simulator

in Melbourne and the process engineers may decide

if the adaptations are correct and sufﬁciently safe. Fi-

nally, the code can be automatically installed at the

control computer of the robots and the robots exhaus-

tively tested before being used in production. The

planned toolchain is depicted in Fig. 1.

Existing languages for specifying automation

software comprise the IEC 61131 and IEC 61499

standards. Other means for specifying the behavior

of robots such as C- and .Net-based solutions exist

as well and are widely adopted throughout industry.

In academics, solutions based on languages such as

BIP (Basu et al., 2006) (e.g., industrial automation ap-

plications (Abdellatif et al., 2012; Blech et al., 2011)),

Lustre (Halbwachs et al., 1991), Scade (e.g., applica-

tions (Gudemann et al., 2007)), and UML/P (e.g., use

case (Thomas et al., 2013)) have been successfully

adopted for robot control systems. These come with

veriﬁcation tools that allow the checking of system

properties as well as code generation. Different solu-

tions for the veriﬁcation of industrial automation sys-

tem have been realized by us in the past (e.g., (Blech

and Biha, 2011; Adiego et al., 2014) for IEC 61131

based systems). The remote collaborative conﬁgu-

ration and maintenance solution proposed here, the

spatial veriﬁcation application and the use of reac-

tive blocks for conﬁguration of robot software sys-

tems, is new. Solutions for collaborative engineer-

ing, however, exist in the literature (e.g., (Kamrani

and Nasr, 2008)). We are also developing solutions

for collaborative engineering in mining and related ar-

eas based on some of the techniques described here

(see (Blech et al., 2014a)). The focus of that work,

however, is on event response (e.g., reaction to some

failure in a machine) rather than conﬁguration of sys-

tems. In (Han et al., 2014; Herrmann et al., 2014) we

already showed that Reactive Blocks and BeSpaceD

can be combined in order to verify that models of

robot control software fulﬁll certain spatial properties.

2 BACKGROUND

INFRASTRUCTURE

Below, we sketch the model-based engineering

method Reactive Blocks, the spatiotemporal veriﬁca-

tion tool BeSpaceD, and the virtual laboratory VxLab

that form the ingredients of our toolchain.

2.1 Reactive Blocks

Reactive Blocks

(Kraemer et al., 2009) facilitates the

model-based development of reactive software. In

particular, we have attached importance to reusing the

models of certain sub-functionality that may appear

in various applications of a certain domain. The par-

tial models are realized as building blocks that each

consists of a UML 2.x activity diagram modeling de-

tailed implementation logic and an abstract Exter-

nal State Machine (ESM) (Kraemer and Herrmann,

2009) specifying the interface behavior of the build-

ing block. System models can be developed by taking

building blocks from libraries, creating others one-

self, and combining the various blocks using the oper-

ators of UML activities. Since we provided the UML

activities and ESMs with a formal semantics (Krae-

mer and Herrmann, 2010), system models can be au-

tomatically analyzed for functional errors by a built-

in model checker (Kraemer et al., 2009). An extended

version allows also the veriﬁcation of real-time prop-

erties (Han and Herrmann, 2013). The system mod-

els are automatically transformed into executable Java

code.

2.2 BeSpaceD

In (Blech and Schmidt, 2014; Blech and Schmidt,

2013), we introduce BeSpaceD as a tool framework

for specifying behavior of distributed cyber-physical

systems and formally reasoning about them. Be-

SpaceD emphasizes on spatial behavior but is not re-

stricted to this. It allows the veriﬁcation of safety

properties such as the absence of physical collisions

between interacting robots and obstacles, the cover-

age of sensor ranges, or WLAN ranges. Speciﬁca-

tion is done using abstract datatypes out of a devel-

opment environment supporting the Scala program-

ming language. The abstract datatypes can be gen-

erated by Scala programs or by instantiation of other

software. Operations such as checking and reasoning

in BeSpaceD is realized using library functions cre-

ating veriﬁcation goals. Veriﬁcation goals are solved

by standard tools such as SAT and SMT solvers or by

specialized algorithms.

2.3 VxLab and Industrial Robot

Control

Our Virtual “x” laboratory (VxLab) (Blech et al.,

2014b) aims at enabling decision making and design

Before being marketed by BitReactive AS (http://

www.bitreactive.com), the tool was named Arctis.

ENASE2015-10thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

332

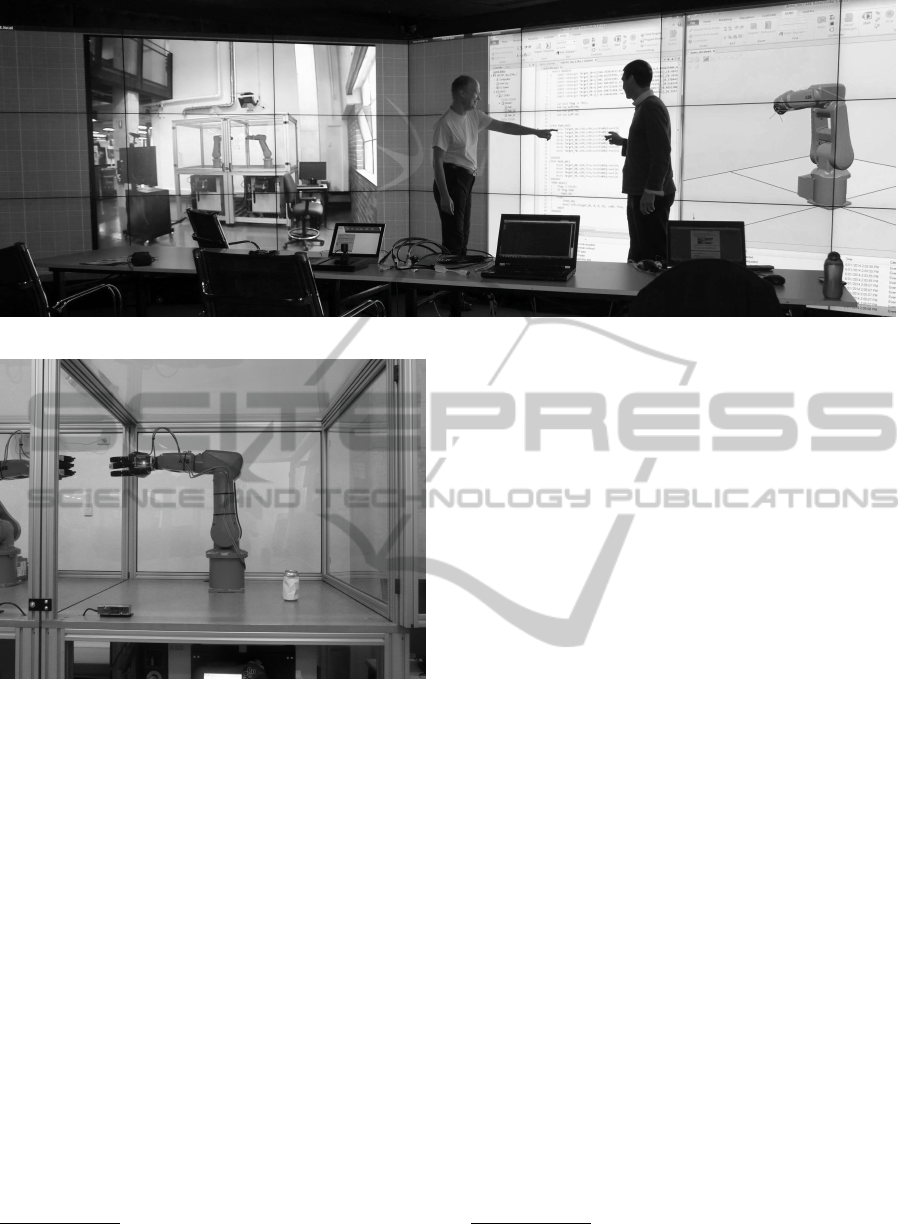

Figure 2: VxLab in operation (Blech et al., 2014b).

Figure 3: An ABB IRB120 Robot Arm.

among leaders, experts and technicians distributed

globally, over multiple use cases (signiﬁed by the

“x” parameter) such as scientiﬁc computing, gam-

ing, software development, engineering and architec-

ture. VxLab is a generalization of x = “Interoperation

Testing” realized in the VITELab, a predecessor eRe-

search facility of the Australia-India Research Centre

for Automation Software Engineering (AICAUSE)

AICAUSE is a partnership between RMIT University

and the ABB Groups in Australia and India with sup-

port from the Victorian State Government. VITELab

is designed as a global “lab scope” connecting in-

dustry and university sites to enable collaboration for

experimental design and testing of distributed cyber-

physical systems.

VxLab includes, among other facilities, the

Global Operations Visualization (GOV)lab, providing

a high resolution visualization wall with integrated

video conferencing/streaming to remote sites, the

Cyber-physical Simulation (CS)Rack, a blade server

conﬁgurable via OpenStack (openstack.org), and a

See http://rmit.edu.au/research/aicause.

dedicated private network with high-speed connection

to industry partners. Further, the Advanced Manufac-

turing Robot Interoperation Test (AMRIT) lab pro-

vides two ABB IRB120 robot arms with standard

IRC5 controllers and Robotiq adaptive 3-ﬁngered

grippers, that will be used in our proof of concept.

GOV lab uses SAGE visualization middleware

, to

prototype next generation applications via “mash-

ups” combining user interfaces of existing software

(running on local, remote or even virtual hosts) with

concept images/video.

A view of the AMRIT lab from the GOV Lab is

shown in Fig. 2. One of the robots is depicted in

Fig. 3. The GOV Lab has been applied to collabo-

ratively develop, test and monitor cyber-physical ap-

plications remotely, such as in the AMRIT lab, with

multiple users ﬂexibly and simultaneously interacting

with multiple applications/services, such as ABB’s

RobotStudio IDE/Simulation tool and live views of

robots. For example, we developed a concept demon-

stration where real and virtual robots interact in real

time. A .Net application synchronizes, via the Robot-

Studio API, operation of two independent robot con-

trollers, one real, one simulated. On the video wall,

a simulated robot is positioned as an overlay over the

live camera view in the place where its live counter-

part would exist in a fully integrated system.

3 REMOTE DEVELOPMENT AND

CONTROL OF ROBOTS

As discussed in Sect. 2.1, Reactive Blocks allows the

creation of system models by composition of reusable

building blocks. To exemplify the engineering pro-

cess, we created a ﬁrst Reactive Blocks model for the

http://sagecommons.org.

TowardsaModel-basedToolchainforRemoteConfigurationandMaintenanceofSpace-awareSystems

333

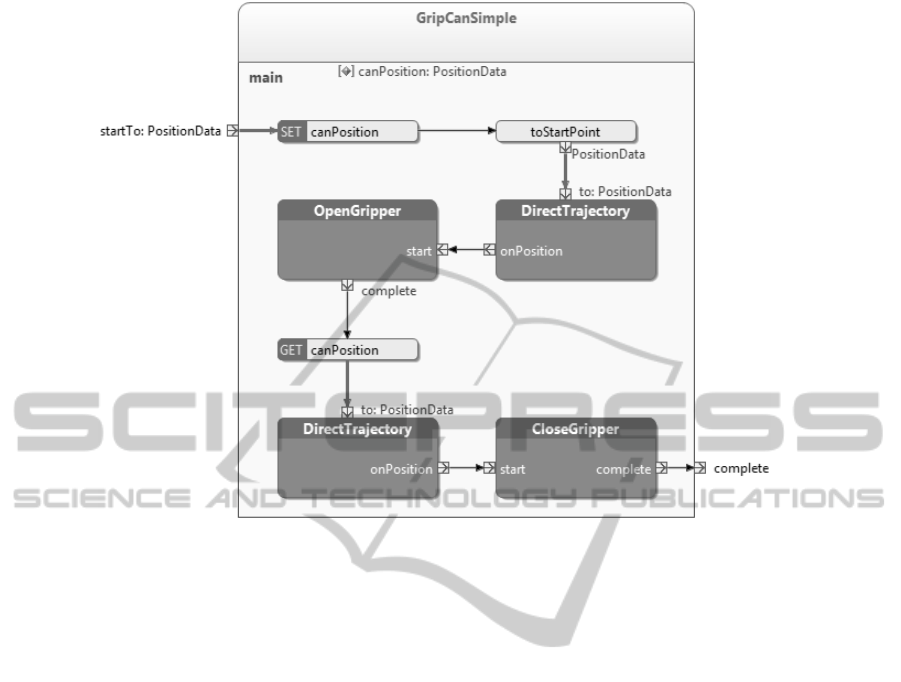

Figure 4: Activity GripCanSimple.

remote software control part of the robot. A result

is the UML 2.x activity diagram modeling the behav-

ior of a building block GripCanSimple which is de-

picted in Fig. 4. This building block represents the

task to grip a can, e.g., the white one shown in Fig. 3,

with a robot arm. The activity uses four inner build-

ing blocks which are taken by simple drag-and-drop

from a library.

The building block DirectTrajectory represents

the movement of the grip from its present position and

orientation on a linear trajectory to another one. UML

activities model behavior similarly to Petri nets such

that we can interpret behavior as a sequence of token

ﬂows. Block DirectTrajectory is started at the pin to

and tokens passing this pin contain an object of class

PositionData that describes the position and orienta-

tion to be moved to. When the robot arm has reached

its new position and orientation, the block terminates

via issuing a token through pin onPosition. Likewise,

opening and closing of the grip can be realized using

library blocks.

With these library blocks, it is relatively simple

to create other building blocks modeling more com-

plex robot behavior. As shown in Fig. 4, a proof-of-

concept implementation for GripCanSimple is started

by a token received through the parameter node, i.e.,

the pin at the activity edge, startTo that contains the

position of the can to be gripped. The token forwards

to a set variable action in which the position informa-

tion is stored in the variable canPosition. Thereafter,

it reaches operation toStartPoint that refers to a Java

method of the same name which is triggered. By this

method, the starting point of gripping the can is com-

puted which is 30 cm above the can position with an

orientation such that the grip points downwards. Af-

terwards, this position information is forwarded to an

instance of building block DirectTrajectory that en-

capsulates the code to move the robot grip to the start-

ing point. In the succeeding steps, the grip is opened

and thereafter lowered to the position of the can. Fi-

nally, the grip is closed until a certain resistance is

reached such that the can is solidly gripped without

being deformed. When this step is ﬁnished, building

block GripCanSimple terminates via sending a token

to its environment through parameter node complete.

The building block GripCanSimple was checked

for functional correctness by the built-in model

checker of Reactive Blocks. In particular, it was ver-

iﬁed whether the own ESM of the block as well as

those of the inner blocks are satisﬁed (Kraemer et al.,

2009). If required, one can further verify if the block

fulﬁls certain real-time properties, e.g., that a can is

gripped within a certain time interval (Han and Her-

rmann, 2013).

Moreover, our building blocks can be proven

with BeSpaceD for spatiotemporal properties (see

Sect. 2.2). For example, one can verify whether block

GripCanSimple guarantees that a can is gripped with-

ENASE2015-10thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

334

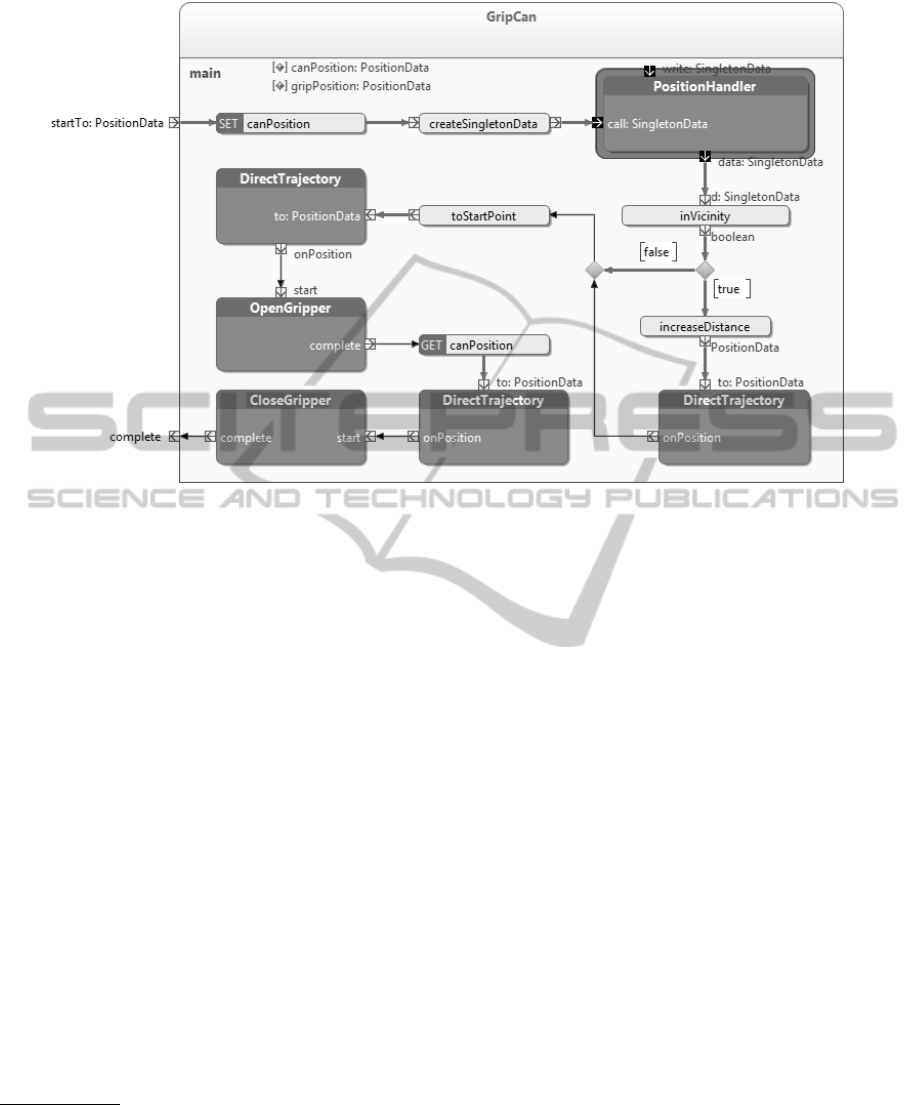

Figure 5: Activity GripCan.

out being previously overturned. This property does

not hold since the grip can initially be very close to

the can such that it can be touched on the trajectory to

the starting point 30 cm above the can.

To avoid overturning, we replace building block

GripCanSimple by GripCan that is depicted in Fig. 5.

Here, we do not move the grip immediately to the

starting point if it is close to the can but ﬁrst increase

the distance to the can. For that, we read the current

position of the grip using the singleton block

Posi-

tionHandler. Thereafter operation inVicinity checks if

the grip is close to the can. If that is the case, the token

leaves the decision node behind inVicinity through the

edge with guard true to an instance of block Direct-

Trajectory that moves the grip to a position farer away

from the can before it is moved to the starting point.

For this variant, BeSpaceD can verify that the can is

not overturned during gripping.

Similarly, we can create building blocks for the

other functions of the robot and compose them to a

Reactive Blocks model specifying the overall system

behavior. When this model passes the correctness

proofs, it can directly be transformed to Java code.

The main task for the proof of concept is to create

In contrast to other building blocks, all inner blocks

of a singleton refer to the same block instance (Gunawan

et al., 2012). That is particularly useful if a single set of

data should be accessed from various points in a system

model. Here, we store the current grip position in the sin-

gleton block PositionHandler which, for instance, is also

accessed in block DirectTrajectory.

the functionality of the building blocks in our library

(like DirectTrajectory) such that the RobotStudio-

and .Net-based RMIT robots can be directly accessed.

For this, we want to use a robot conﬁguration service

that offers an API containing routines to instantiate

robot movements. An initial version of this service is

already tested and it is not difﬁcult to call its routines

from Java. Thus, after being started by ﬂows via pin

to, the building blocks DirectTrajectory, OpenGrip-

per, and CloseGripper call routines of this service.

Thereafter, they wait until receiving a conﬁrmation

message from the service which leads to terminating

the blocks with ﬂows through pins onPosition resp.

complete. Further, the robot conﬁguration service can

be offered as a cloud based service such that it may

also be operated from remote stations.

As in the existing .Net based solution, the Java

code is only specifying the overall behavior and does

not need to run on the robot system directly. It emits

more detailed motion control commands which are

stored and processed on a stack in the local robot

controller. These local commands comprise exact ro-

tation and movement information whereas the Java

code is responsible for the control ﬂow of the under-

lying application and communication with additional

devices.

The system is tested and the results are visualized

using VxLab. This includes camera feedback and ac-

cess to sensor and actuator conﬁguration information.

Further, VxLab supports the management of the pro-

duced code and the robot conﬁguration service.

TowardsaModel-basedToolchainforRemoteConfigurationandMaintenanceofSpace-awareSystems

335

4 CONCLUSION AND ONGOING

WORK

We presented our ideas and ﬁrst work towards

a toolchain for developing robot control software.

The toolchain comprises development using Reac-

tive Blocks, spatial veriﬁcation, remote deployment

of control software as well as remote visualization

and monitoring of the robots. As of now, Reactive

Blocks, spatial veriﬁcation using BeSpaceD and the

remote visualization and monitoring via VxLab exist.

Remote deployment and conﬁguration of robots is on-

going work.

REFERENCES

Abdellatif, T., Bensalem, S., Combaz, J., Silva, L. D.,

and Ingrand, F. (2012). Rigorous Design of Robot

Software: A Formal Component-based Approach.

Robotics and Autonomous Systems, 60(12):1563–

1578.

Adiego, B. F., Darvas, D., Vinuela, E. B., Tournier, J.-C.,

Suarez, V. M. G., and Blech, J. O. (2014). Modelling

and Formal Veriﬁcation of Timing Aspects in Large

PLC Programs. In 19th IFAC World Congress.

Basu, A., Bozga, M., and Sifakis, J. (2006). Modeling Het-

erogeneous Real-time Components in BIP. In Soft-

ware Engineering and Formal Methods. IEEE Com-

puter.

Blech, J. O. and Biha, S. O. (2011). Veriﬁcation of PLC

Properties Based on Formal Semantics in Coq. In 9th

International Conference on Software Engineering

and Formal Methods (SEFM), volume LNCS 7041.

Springer-Verlag.

Blech, J. O., Hattendorf, A., and Huang, J. (2011). An In-

variant Preserving Transformation for PLC Models.

In Model-Based Engineering for Real-Time Embed-

ded Systems Design. IEEE Computer.

Blech, J. O. and Schmidt, H. (2013). Towards Modeling

and Checking the Spatial and Interaction Behavior of

Widely Distributed Systems. In Improving Systems

and Software Engineering Conference.

Blech, J. O. and Schmidt, H. (2014). BeSpaceD: Towards

a Tool Framework and Methodology for the Speci-

ﬁcation and Veriﬁcation of Spatial Behavior of Dis-

tributed Software Component Systems. Technical re-

port, arXiv.org.

Blech, J. O., Schmidt, H., Peake, I., Kande, M., Ra-

maswamy, S., Sudarsan SD, and Narayanan, V.

(2014a). Collaborative Engineering through Inte-

gration of Architectural, Social and Spatial Models.

In Emerging Technologies and Factory Automation

(ETFA). IEEE Computer.

Blech, J. O., Spichkova, M., Peake, I., and Schmidt, H.

(2014b). Cyber-Virtual Systems: Simulation, Vali-

dation & Visualization. In Evaluation of Novel Ap-

proaches to Software Engineering.

Gudemann, M., Angerer, A., Ortmeier, F., and Reif, W.

(2007). Modeling of Self-Adaptive Systems with

SCADE. In Circuits and Systems (ISCAS), pages

2922–2925. IEEE Computer.

Gunawan, L. A., Kraemer, F. A., and Herrmann, P. (2012).

Behavioral Singletons to Consistently Handle Global

States of Security Patterns. In Distributed Appli-

cations and Interoperable Systems (DAIS), volume

LNCS 7272, pages 73–86. Springer-Verlag.

Halbwachs, N., Caspi, P., Raymond, P., and Pilaud, D.

(1991). The Synchronous Data Flow Program-

ming Language LUSTRE. Proceedings of the IEEE,

79(9):1305–1320.

Han, F., Blech, J. O., Herrmann, P., and Schmidt, H. (2014).

Towards Verifying Safety Properties of Real-Time

Probability Systems. In 11th International Workshop

on Formal Engineering approaches to Software Com-

ponents and Architectures (FESCA). EPTCS.

Han, F. and Herrmann, P. (2013). Modeling real-time sys-

tem performance with respect to scheduling analysis.

In 6th IEEE International Conference on Ubi-Media

Computing, pages 663–671. IEEE Computer.

Herrmann, P., Blech, J. O., Han, F., and Schmidt, H. (2014).

A Model-based Toolchain to Verify Spatial Behavior

of Cyber-Physical Systems. In Asia-Paciﬁc Services

Computing Conference (APSCC). IEEE Computer.

Kamrani, A. K. and Nasr, E. A., editors (2008). Collab-

orative Engineering, Theory and Practice. Springer-

Verlag.

Kraemer, F. A. and Herrmann, P. (2009). Automated En-

capsulation of UML Activities for Incremental Devel-

opment and Veriﬁcation. In Model Driven Engineer-

ing Languages and Systems (MoDELS), LNCS 5795,

pages 571–585. Springer-Verlag.

Kraemer, F. A. and Herrmann, P. (2010). Reactive Seman-

tics for Distributed UML Activities. In Joint WG6.1

International Conference (FMOODS) and WG6.1 In-

ternational Conference (FORTE), LNCS 6117, pages

17–31. Springer-Verlag.

Kraemer, F. A., Sl

atten, V., and Herrmann, P. (2009). Tool

Support for the Rapid Composition, Analysis and Im-

plementation of Reactive Services. Journal of Systems

and Software, 82(12):2068–2080.

Thomas, U., Hirzinger, G., Rumpe, B., Schulze, C., and

Wortmann, A. (2013). A New Skill based Robot Pro-

gramming Language using UML/P Statecharts. In

Robotics and Automation (ICRA), pages 461–466.

IEEE Computer.

ENASE2015-10thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

336
