Towards Dynamic QoS Monitoring in Service Oriented Architectures

Norman Ahmed

1,2

and Bharat Bhargava

Dep

artment of Computer Science, Purdue University, 305 N. University St., W. Lafayette, IN 47906, U.S.A.

Air Force Research Laboratory/RIS, 525 Brooks Rd, Rome, NY 13441, U.S.A.

Keywords: Service Oriented Architecture, Web Services, Aspect Oriented Programming, Web Services Security, Cloud

Computing, Quality of Service.

Abstract: Service Oriented Architecture (SOA) is an architectural style that provides agility to align technical

solutions to modular business Web Services (WS) that are well decoupled from their consumers. This

agility is established by interconnecting WS family of standards specification protocols (commonly referred

to as WS-* (WS-star)) to enable security, ease of service interoperability and orchestration complexities

when extending services across organizational boundaries. While orchestrating services or chaining services

in varying ways to satisfy different business needs, on highly scalable cloud platforms is undeniably useful,

it is increasingly challenging to effectively monitor Quality of Service (QoS), especially, service response

time. This is due to a) lack of proper formulation of the WS-star interconnections mechanisms, and b) the

transient performance behaviour intrinsic to the heterogeneity of the hardware and shared virtualized

network and IO resources built on the cloud platforms. We present an analysis of WS-star standards,

classifying and discussing their inter-dependencies to provide a basis for QoS monitoring context on

protocol formulation. We then illustrate a practical implementation of a dynamic QoS monitoring

mechanism using runtime service instrumentation with Aspect Oriented Programming (AOP). Preliminary

evaluations show the efficiency of computing QoS on a transient performance cloud platform.

1 INTRODUCTION

Service Oriented Architecture (SOA) is the

architectural style that provides agility to align

technical solutions to modular business Web

Services (WS) that are well decoupled from their

consumers in the cloud environment. Built on a

Virtualization of heterogeneous hardware and

software stack on a SOA-based architecture as its

technical foundation, cloud computing is a

computing model that enables socio-economic

benefits due to its on demand computing resource

availability.

In this computing model, service providers and

consumers are typically decoupled by means of

common universal registries known as Universal

Description Discovery and Integration (UDDI) and

mediation mechanisms. Service capabilities,

interface options, Quality of Service (QoS), and

security constraints are described in the Service

Level Agreement (SLA) (Overton, 2002) that is

typically published in the UDDI.

The SLA document represents a contractual

agreement for obligating the service provider to

comply both functional and non-functional

parameters of the registered service. The non-

functional parameters are QoS attributes, such as

service response time and service up time (i.e. 95%-

99.999%) that are not known by the consumers

before runtime (Erl, 2005) nor by the provider when

orchestrating variable services to satisfy different

business needs.

To ease the interoperability complexity and

security concerns, especially for web services, SOA

encourages the use of WS-* standardized

specification, referred to WS-star. The forefronts of

these protocol specifications are the ones used for

data transport (i.e. SOAP/HTTP(s), WS_Security,

and WS_SecureConversation) message level

security. Typically, services are developed and

deployed by multiple software designers and system

integrators without prior knowledge of their

effective protocol interconnections when service are

orchestrated, the process of chaining services in

various ways to satisfy different business needs.

Due to the magnitude of the available standards,

chained services have higher chance of overlapping

163

Ahmed N. and Bhargava B..

Towards Dynamic QoS Monitoring in Service Oriented Architectures.

DOI: 10.5220/0005460001630171

In Proceedings of the 5th International Conference on Cloud Computing and Services Science (CLOSER-2015), pages 163-171

ISBN: 978-989-758-104-5

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

some functionality, especially security

functionalities, that hinder the overall QoS

advertised in the published SLA. Coupled with the

transient performance behaviour inherent in cloud

platforms, further complicates this mixture of

standard-based design and contractual compliance

requirements to guarantee QoS.

Consider a realistic scenario where two or more

orchestrated services deployed in the cloud that

implement WS_Security to enforce encryption and

digital signatures for both inbound and outbound

traffic. The overall response time across the chain

will be highly impacted due to the potential security

functionalities overlap across the services. The main

reason is that each service performs encryption and

digital signature, which is typically a performance

hog. One alternative solution in this case is the use

of WS_SecureConversation. However, detecting

such overlap is increasingly challenging due to the

nature of these services’ development and

deployment by multiple teams in different times.

Typically, a Business Process Execution Language

(BPEL) is used during orchestration to either

determine response time by waiting till response is

received or configure it with a proper timeout. Note

that these response time evaluations are statically

performed in nature.

In addition, there is transient variable

performance behaviour of the clouds’ VM network

and IO interfaces due to multi tenant resource

sharing (Mei, et. Al. 2013). For example, over 300

million test cases conducted on nine cloud providers

over seven days (Alistair, 2011) have shown

performance time-of-the-day variability in

virtualized environments. Later studies (Zhonghong,

2012) showed such transient performance behaviour

is due to the hardware heterogeneity that the cloud is

built of. Therefore, it is prudent to dynamically

uncover QoS friendly alternatives at runtime to

improve service response time, thus, the main

objective of our work.

There is a large array of research that addresses

WS performance issues; to name a few, some QoS

monitoring research have been designed around

service selection (Fung, 2005), (Tian, 2004)

composition (Mietzner, 2010), (Fung 2005), and

dynamic soft QoS guaranteeing (Abdelzaher, 1999).

An area that has been substantially overlooked and

poorly studied is the understanding of the underlying

WS-* standard specification behaviour under the

cloud, especially, regarding service response time

for web services.

In this work, we propose a dynamic QoS

monitoring scheme on SOA-based services on

virtualized shared cloud platforms. The goal is to

capture the improper protocol formulation and the

underlying platform performance variations to

effectively compute service response time without

any modification to the service code to improve hard

QoS guaranteeing on virtualized environments.

In this paper, we present analysis of WS-* (WS-

star) by classifying and discussing their

interdependencies to show QoS impacts on improper

protocol formulation. We then illustrate dynamic

QoS monitoring mechanisms in a widely adopted

service container (JBoss). Thus, our contribution is

two fold:

 We developed an effective scheme for

dynamically monitoring orchestrated

services and computing service response

time in cloud environments without service

code modification or recompilation.

 While the proposed instrumentation scheme

is designed for QoS monitoring, it can also

be used to detect malicious service in the

chain, simply, by instrumenting the method

calls that reach beyond its intended service

end point.

The rest of the paper is organized as follows.

Section 2 gives a brief overview of SOA ecosystem

with especial emphasis on web services. We then

discuss WS-security protocols and their

interdependencies in section 3. We show our

proposed approach in section 4 followed by the

implementation and experimentation to illustrate the

effectiveness of our approach in section 5 and the

related work in section 6. Finally, section 7 provides

the conclusion and future work.

2 SOA ECO SYSTEM

SOA is an architectural style that promotes a high

degree of service decoupling and rapid system

development and deployment that span across

traditional organization boundaries. The traditional

SOA triangle paradigm consists of a service registry

(i.e. UDDI), a service provider and a consumer as

depicted in Figure 1.

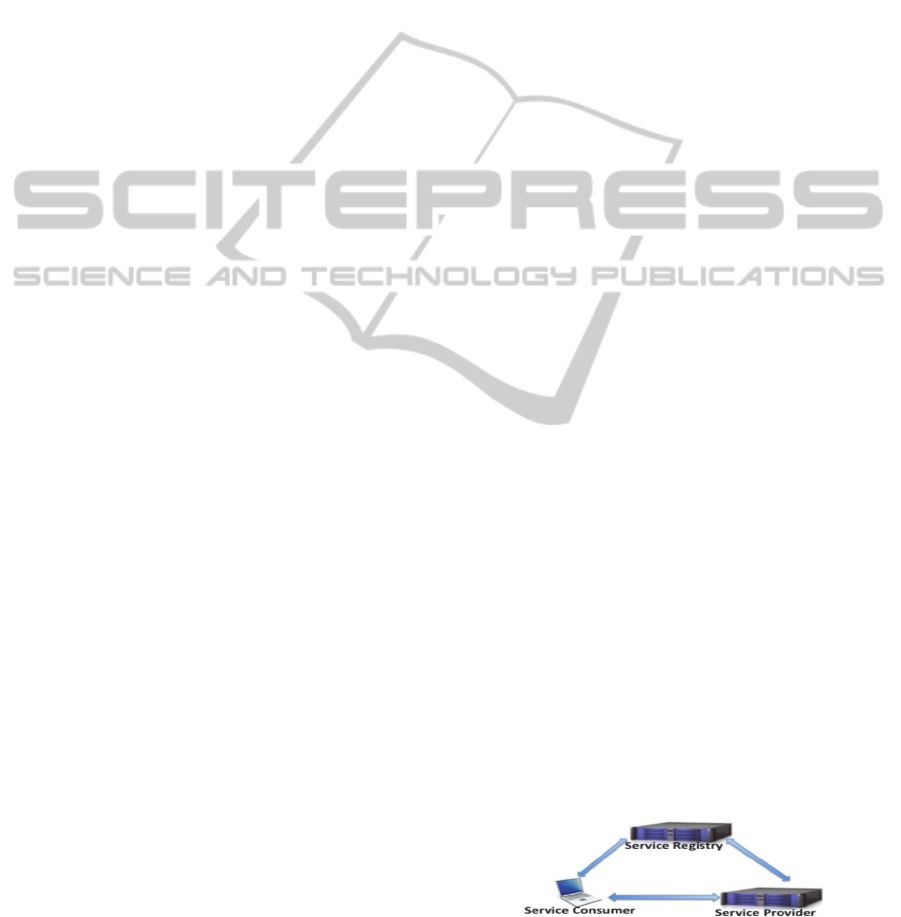

Figure 1: SOA Triangle System Model.

At a high level, web service (WS) is an approach of

building web accessible services where the service

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

164

providers publish/register their service in the UDDI

registry and the service consumers discover and

invoke it. The two wide spread paradigms for

building services compliant with WS protocols are a

Representational State Transfer (REST) (Erl, 2012),

referred to RESTful services, and the Simple Object

Access Protocol (SOAP)-based services (discussed

next).

WS are built on standard specifications to

facilitate their integration and secure execution. The

core of the WS architecture (WS Architecture, 2002)

outlines a set of service characterization that enables

these complex functionalities to co-exist. However,

the actual specifications of the standards have been

collaborated and authored by many organizations

such as; W3C, OASIS, OMG, IBM, Microsoft,

Oracle, and xmlsoap.org, which makes difficult to

fully realize the goals of their interactions.

There has been a considerable research effort

that addresses the magnitude of the available

standards, their cross-referencing design and

development difficulties. For example, in (Gamble,

2011), authors proposed a Security Meta-Language

for guiding the formulation of secure messages in

WS architecture that model the security relevant

portions of the standard for their consistent,

comprehensive, and correct applications.

Others have addressed this through the use of

enterprise-level integration (i.e. Apache Camel),

meditation (i.e. Enterprise Service Bus), and

Orchestration (i.e. BPEL) tools. However,

dynamically monitoring these critical protocol

functionalities over transient performance platforms

has not been sufficiently addressed in these tools and

in a generic fashion.

2.1 RESTful Services

The RESTful Services paradigm is a lightweight

service implementation scheme that avoids

preserving service state and the use of the

underlying message level security. In other words,

the traditional encryption and digital signatures are

not employed in this service model due to its

computational and bandwidth requirements.

RESTful services are stateless services where

responding in a timely manner to every service

request is critical, thereby widely used in non-

critical applications such as; gmail access, facebook

updates, amazon consumer interactions, etc.

A transport security layer (TSL) or SSL over

HTTP (https) is typically used to secure RESTful

services. Such security solutions are sufficient for

point-to-point connection oriented where a service

call is authenticated and securely responds to the

request. However, this point-to-point security

solutions are ill suited in orchestrated/chained

service interactions where a service request from a

consumer has to reach out to other services in which

these services further reach other services in the

chain that are possibly in different domains in order

to respond to such request.

To remedy these limitations, the use of message-

level security is introduced in the standard protocols

such as: WS_Security, WS_SecureConversation, and

WS_Policy. The key idea of message level security

is to structure and wrap the message (both the

request and response) by sealing it in an envelope

(SOAP) and associating it with security attributes

(saml token) to safeguard its access and on transit.

2.2 SOAP-based Services

SOAP-based services provide granular message

level security using WS-* family of protocols in

which WS-Security is at the forefront.

Cryptographic and digital signature techniques are

the core of protecting SOAP messages from attacks.

As a consequent, this introduces a performance

overhead to the services (Liu, 2005). As the services

are orchestrated, these performance overheads

increase in the order of magnitude due to the

overlaps of the security functionalities. Detecting

these overlaps of such critical security

functionalities to improve QoS is the focus of our

work.

In order to effectively illustrate the

interconnection of the performance-degrading

protocol formulation and avoid hiding the concept in

a myriad of protocol standards, we limit our protocol

interdependency analysis (discussed next) to only

those protocols that impact QoS, specificaly policy

enforcement and message level security protocols,

confidentiality and integrity.

3 WEB SERVICE PROTOCOL

INTERDEPENDENCIES

WS decoupling is typically achieved by means of

common registries known as Universal Description

and Discovery Integration (UDDI). Services

deployed in UDDI are discoverable through either

WS Application Language (WADL) or WS

Description Language (WSDL) standard

specifications as depicted in Figure 2 (top left box),

and access control protocols (bottom left box).

TowardsDynamicQoSMonitoringinServiceOrientedArchitectures

165

WADL and WSDL are the two defacto standards

for defining web service capabilities. These include:

service URI, services, security capabilities, and QoS

attributes using WS_PolicyAttachment for

encryption, signatures, policies, and WS-Addressing

for end point service response delivery. Discovery

and access control protocols have no impact on QoS,

therefore, in this work; we only give special

emphasis on confidentiality and integrity protocols.

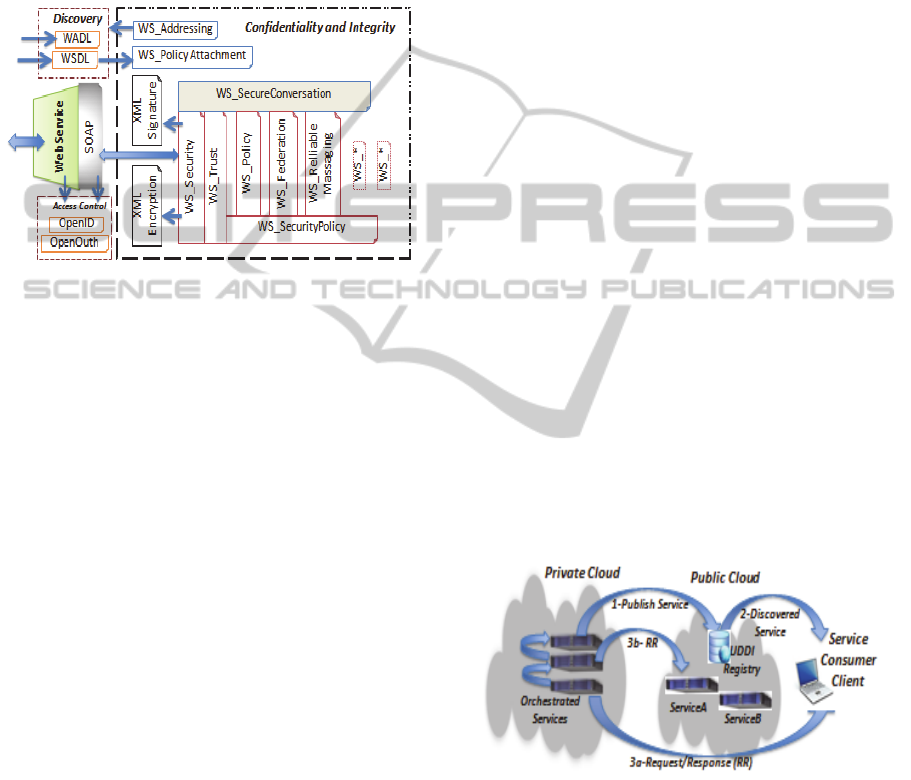

Figure 2: Anatomy of End-to-End Web Service Security

Protocols - Service Discovery (top left box), Access

Control (lower left box), and Confidentiality and Integrity

for message level security (right box).

WS-Security is the core of WS-star protocol for

confidentiality and integrity of the service. The WS-

Security standard describes the security attributes of

service and task delegation between services to

facilitate secure authentication, authorization and

invocations. Each new security concept or interface

specification defined in WS-Security brings

additional WS-* family of standards which play a

significant role in expressing a web service’s

security posture.

For example, bridging communication between

secure environments require protocols to specify

cross-domain access controls. The Security

Assertion Markup Language (SAML) provides the

authentication and authorization among and across

services, even in different security domains (Oasis-

open, 2007), and eXtensible Access Control

Language (XACML) provides the security policy

enforcements for the authorizations that cross the

organizational boundaries (Oasis-open, 2012).

Further, WS-Trust is required to broker

authentication information, however, WS-Trust does

not describe the security functionality of services

and its capacity to fulfill the security needs. Instead,

it delegates to WS-SecurityPolicy to describe the

security policy which in turn uses WS-Policy. WS-

Policy exchanges policy decisions and enforcement

capabilities for every request, introducing more

latency for QoS constraint services, especially if

such capabilities deployed in a remote service

domains.

In addition, WS-Security defines XML-Signature

and XML-Encryption standards for digital signatures

and encryption of XML documents to ensure the

integrity of the exchanged SOAP

messages/envelope. The more security capabilities

added the more standard protocols needed. Thus, the

SOAP message size increases, which consequently

require more bandwidth and computationally

intensive operations in encryption, signature, and

verifications in which contribute to other QoS

issues, especially when services are deployed across

cloud domains or consumers with resource

constrained devices (mobile).

QoS violations are imminent when improper

protocol formulation is coupled with the transient

performance behaviour of the underlying platform.

A recent study (Zhonghong, 2012) shows that the

virtualized heterogeneous hardware built on the

cloud has performance variations that can reach up

60% between instances. Thus, dynamically

intercepting and monitoring orchestrated services on

such platforms are crucial in order to improve QoS

guarantees and consequently prevent SLA

violations.

4 SYSTEM MODEL

A motivating example of cross-domain service

orchestration scenario is depicted in Figure 3 below.

Figure 3: High-level architecture for orchestrated services

across private and public clouds.

The high-level architecture above depicts a typical

orchestrated service deployment across security

domains, public and private. The top arrows marked

(1-Publish Service) and (2-Discovered Service)

show the service registration flow to the UDDI by

the service provider where then the consumer client

(depicted as the laptop) discovers that service. The

client invokes that service as shown by the arrow-

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

166

marked (3a-Request/Response (RR)) and gets back a

response. The arrow marked (3b-RR) between the

clouds show the cross-domain service invocation

that jointly satisfy the consumers’ request. Note that

all arrows represent a bio-directional data flow.

Chaining services in such environments is

typically configured using BPEL. However, once

services are deployed in the service container or

application servers (eg. Jboss, Oracle, IBM

Glassfish, etc.), these configurations are static, and

thereby, fail to adapt to the changes of the

underlying cloud platforms. Computing service

response time in such setting typically requires

reconfiguring or even re-designing the services.

We approached this problem by deploying

interceptors in the service containers to seamlessly

collect service information at runtime and compute

response times while considering the transient

behaviour of the deployed cloud platform. Service

information can then be analyzed by machine

learning to predict future QoS attributes,

dynamically update SLA in the registry, or even

migrate services instances to cloud platforms that are

experiencing less performance issues in different

regions. In this work, we focus on the detection

scheme only.

4.1 QoS Criteria

There are several non-functional QoS metrics

categories and service performance attributes in

SOA-based WS. In this work, we only consider WS

performance, specifically service response time for

orchestrated services on cloud platforms.

4.2 Approach Overview

Most QoS attributes in SOA are not a one-size-fit-all

for all consumer requests. A priori knowledge of any

given QoS attribute for the prospective consumer is

difficult to predict (Erl, 2005). Several QoS

monitoring approaches offered solutions that

improve QoS over the years. However, none have

addressed the impact of the overlapping security

protocols due to their criticality of the service

protection coupled with the performance variability

of the underlying cloud platforms.

The basic idea of our approach is to non-

intrusively instrument services without introducing

overhead. Our design is based on two steps,

detection and aggregation. We use Aspect Oriented

Programming (AOP), a dynamic application

instrumentation framework first introduced in

(Kiczales, 1997). AOP allows service code

instrumentation without modifications or

recompilation of the code. The instrumented data

collected/detected at runtime from each service is

then forwarded to the QoS auditor web service

(referred as QAudit) to aggregate and then compute

response time.

4.3 Service Instrumentation with AOP

Typically, collecting accurate QoS information at

runtime is achieved by inserting general purpose

logging statements in pre-compile time and during

service composition. QoS metrics can then be based

on the aggregate of these logs. Such techniques are

inefficient and ill suited in cloud computing

platforms due to the performance variability

behaviour that are not under the control of the

service provider. Since accurate QoS attributes

cannot be predicted during service registration,

dynamic service instrumentation is critical.

We achieve such dynamicity with AOP. A basic

AOP model defines two instrumentation primitives

known as pointcut designators (PCD) and advice.

The PCD's are typically points in the program where

inserting instrumentation is not too hard, for

example, method calls are very often used as one of

the fundamental PCD. These PCD's are simple

instrumentation primitives that can gather critical

information without any modifications to the code.

On the other hand, the advice is the point where

an aspect to be instrumented can be weaved in. The

result of PCD and advice generated will then

forwarded to externally configured component, in

our case, QAudit. QAudit web service evaluates the

best QoS metrics under that given cloud platforms

performance behaviour or overlapping security

functionalities on the services, in which the service

provider can take any action necessary such as;

either update the SLA for the prospective users,

reconfigure security protocols or project future QoS

metrics of the given time of the day.

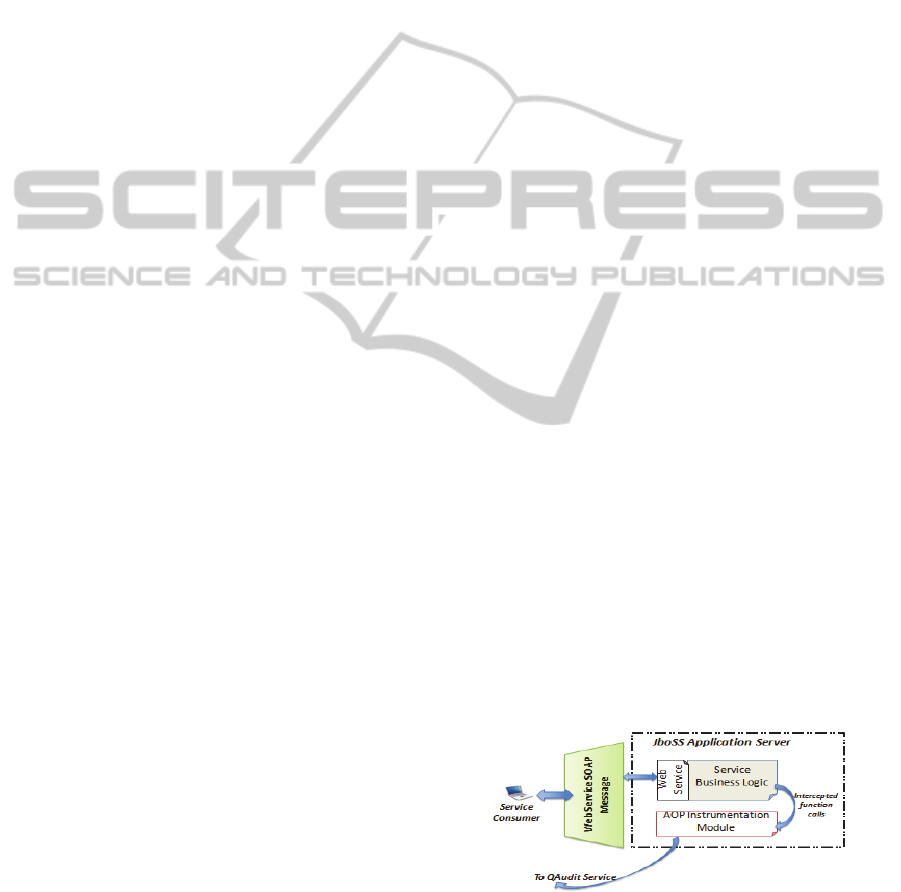

Figure 4: Service Anatomy and AOP Instrumentation

Module inside the Jboss service container or app server.

AOP enables user level service interception

capabilities within application servers. As depicted

TowardsDynamicQoSMonitoringinServiceOrientedArchitectures

167

in Figure 4, we used an AOP plugin as a module in

the Jboss Application server where our services are

deployed, known as JbossAOP (JbossAOP, 2003).

JbossAOP instruments services deployed in the

service container by intercepting the execution of all

aspects of the program, such as specific object on

the program, a function parameter values, or method

calls within or across program calls.

The performance overhead of the AOP depends

on the knowledge of the application (Alexanderson,

2010). For QoS monitoring, the overhead is

proportion to the number of the interception points

within the services. To limit such overhead, we only

intercept WS-Security related function calls,

specifically, prior and post encryption, and signature

operations in which are negligible when tested in

public cloud environment as shown in our previous

work (Azarmi, et. al. 2012). Note that one can also

instrument communication methods if needed to

uncover rogue/compromised service reaching

outside its intended endpoints.

4.4 QoS Auditor Web-service

As depicted in service anatomy diagram in Figure 4

above, the service container enables hooks to

instrument the services’ business logic where the

instrumented data can then be sent to the listening

service, QoS Auditor (QAudit) web service. The

QAudit receives the pre and post WS_Security

function call timing information collected from the

diverse orchestrated services under the current

performance of the services’ environment (VM’s).

For example, some services are deployed in cloud

platforms that are built on different hardware,

hypervisor, and possibly running VM migration and

load balancing algorithms by the cloud provider to

accommodate between the tenants.

4.5 QoS Monitoring in Orchestrated

Services

The

WS Business Process Execution Language

(WSBPEL) defines the orchestration of WS standard

language for service chaining and execution.

Identifying performance bottlenecks in orchestrated

services from multiple providers within BPEL

engines is a challenging task given the dynamicity of

the cloud platforms that’s not known a priori.

As described in the previous section, AOP

instruments services deployed in the service

container by intercepting the execution of all aspects

of the program (i.e. method calls) across program

calls. Since orchestrated services are also program

calls across domains, AOP can effectively intercept

orchestrated WS. We will describe our

implementation approach in the next section.

5 IMPLEMENTATION AND

EXPERIMENTATION

We are interested in computing service response

time for secure web services orchestrated across

cloud platforms (public/private) as illustrated in the

high-level architecture in Figure 3. In this section,

we discuss our prototype and show the preliminary

evaluations on private cloud deployments, and the

proposed QoS computations scheme.

5.1 Experimental Setup

Our experimental cloud platform uses a private

cloud built on OpenStack, a cloud management

software stack, on a cluster of 4 machines (Dell

Z400) with Intel Xeon 3.2 GHz Quad-Core with

8GB of memory. At a high-level, OpenStack

consists of a controller and computing management

applications. We divided our four machines into one

controller node and 3 compute nodes. As the name

implies, the controller node is to simplify cloud

platform management by enabling on demand

elasticity, i.e., provision/de-provisioning VM

instances, adding/removing hardware and instantly

making it available in the computing resource pool.

The three compute nodes allow us provisioning

20 virtual CPU’s (vCPU) in which we assigned 10

small VM instances, 2 vCPU per instance for service

deployments. We used a total of 10 VMs with

Ubuntu Linux for service consumer (clients) and

secure services in all of our experiments.

5.2 Implementation

We developed a CXF-based secure web services

(WS_Security and WS_SecureConversation enabled)

and deployed in Jboss application server. The

integration of AOP with Jboss container was done

using JbossAOP (JbossAOP, 2003) library, a

pluggable user specified instrumentation module for

Jboss application servers. We leveraged AspectJ

(AspectJ, 2001), a stand-alone Java implementation

of AOP, as the service instrumentation algorithms

for intercepting the WS-Security method calls.

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

168

5.3 Preliminary Results

It has been previously reported that performance

difference between WS-Security and

WS_SecureConversation in web services are in the

order of magnitude higher in WS-Security (Liu, et.al.

2005). To illustrate in the context of service

orchestration under the transient performance

behaviour of the cloud, we configured three secure

services that implement

WS_Security with 3 others

that implement WS_SecureConversation with the

same logic, a secure weather report, deployed in a

Linux virtual machines described above.

We orchestrated the 3 services with different

configurations while assuring the security of the

service. Service configuration is application and

domain specific, thus, to illustrate the basic concept;

we chained and invoked services in the following

format:

Req





















…

Req





















…

Req





...

The requests Req

interacts with service S

implemented with WS_Security and then S

implemented with WS_SecureConversation and so on.

To mimic the performance variability of the

cloud platforms, services requests and responses

were performed while the system is running cpu and

memory intensive applications. We observed the

system performance using the built in Ubuntu

system monitor (krell) showing a load over 50%-

70% usage of the memory and cpu. The service

response times received by QAudit service, when

aggregated, ranged between microseconds to

seconds; thus, clearly show QoS impacts on security

function overlaps.

These observations show the non-intrusive way

of computing QoS in cloud platforms. However, the

actual results may vary depending on the service

logic and other factors when expended into the

public cloud deployments, thereby, considering it in

our future work.

6 RELATED WORK

To the best of our knowledge, there is no in-depth

analysis of WS-star protocol formulation in SOA in

the context of QoS monitoring that reflect the

transient performance behaviour of the underlying

cloud platforms. Thus, we divide our related work

section into two parts; we first discuss works in WS-

* performance improvements and next we provide

QoS Management tools and techniques that are

relevant to our work.

6.1 WS*- Performance Improvements

There are large volumes of research that employ

different methods to address performance

improvements on web-services. To name a few:

SOAP header envelope reduction techniques,

efficient XML parsing and compression methods,

and binary and canonicalization techniques.

With the rise of business heterogeneity,

orchestrated services pose further callings for

selecting and complying with an accurate advertised

QoS attributes, especially service response time. As

these schemes have set the foundation of WS

performance improvement, our approach was

inspired by such mechanisms and further extended

to dynamically monitor orchestrated services in a

virtualized environment.

6.2 QoS Management

QoS management can be classified into three

categories: resource allocation, service composition,

monitoring and fine-tuning QoS parameters within

the services. In this work, we focused on the latter

two. It’s intuitive to see that an effective resource

sharing can aid QoS guarantees; moreover, service

composition or selection also plays a critical role in

such guarantees.

To highlight some studies in this category, early

works, such as (Abdelzaher and Shin, 1999),

proposed a virtual service that enables the selection

of multiple deployed concrete services depending on

the users’ QoS interest. A set of cooperative

autonomous agents that enable optimal web service

composition is proposed in (Brahmi, 2013). Within

the context of service selection, similar to QAudit

approach, Q-Peer (Li, et.al. 2007), a distributed QoS

registry is proposed to monitor and collect

information on running services to assist consumers

for the reliability of the service where as we focus

on service response time improvements.

It has been noted that the inaccuracy and

violations of QoS in various papers and spurred a

wide range of research approaches, to name a few;

QoS verifications during service registration

(Abdelzaher and Shin, 1999), extending UDDI

functionalities (ShaikhAli et. al, 2003), introducing

new protocol languages to define SLA (Lamanna,

2003), SLA template adjustments (Spillner and

Schill, 2009) and new frameworks for dynamic

service monitoring and selections in a realistic

TowardsDynamicQoSMonitoringinServiceOrientedArchitectures

169

environment (Tian, et. al, 2004). Along the lines of

the WS protocol research, a modification of WS-

Agreement protocol to enable dynamic run-time

renegotiation and SLA adjustments to guarantee

QoS when SLA violation is expected to occur is

proposed in (Modica, et. al, 2007).

All of the above approaches face adaptability

challenges due to the proposed changes required in

the protocol standards. Our work can accurately and

non-intrusively detects the transient behaviour of the

cloud platforms to prevent SLA violations without

modifying the service code or the standard

protocols. Furthermore, our work will complement

the works of fine-tuning QoS parameters for

efficient service composition, selection and

monitoring schemes to maximize QoS and prevent

SLA violations.

7 CONCLUSIONS

Guaranteeing hard QoS on orchestrated web-

services in SOA and virtualized cloud platforms are

increasingly challenging due to security critical

functionality overlaps and the transient performance

behaviour of such platforms. In this paper, we

developed an effective mechanism to dynamically

monitor orchestrated services and compute service

response tme while considering the underlying

performance behaviour of the cloud platforms.

We implemented our proposed approach with

Aspect Oriented programming (AOP) and illustrated

with a practical scenario to validate our design using

three secure services deployed in a private cloud. In

our future work, we consider experimental traces

over periods of time in our private with public (i.e.

Amazon) cloud instances deployed in different

geographic locations.

ACKNOWLEDGEMENTS

Authors would like to thank Jim Hanna at AFRL for

setting up the experimental platform, and special

thanks to the reviewers for their valuable feedback

that made this paper more readable.

REFERENCES

Abdelzaher, T. F., & Shin, K. G., 1999. QoS Provisioning

with qContracts in Web and Multimedia Servers. In

the 20

IEEE Real-Time Systems Symposium.

Alexanderson, R., Ohman, P., and Karlson, J., 2010.

Aspect Oriented Implementation of Fault Tolerance:

An assessment Overhead. In Computer Safety,

Reliability, and Security. Lecture Notes in Computer

Science, Volume 6351, pp 466-479.

Alistair C., 2011. Cloud Performance From the Users

Prospective. http://www.bitcurrent.com/download/

cloud-performance-from-the-end-user-perspective/.

AspectJ, 2001. http://eclipse.org/aspectj/

Azarmi, M., Angin, P., Bhargava, B., Ahmed, N., et al.,

2012. End-to-End Security in Service Oriented

Architecture, In SRDS12, the 31

IEEE Int.

Symposium on Reliable Distributed Systems.

Brahmi, Z., 2013. QoS-aware Automatic Web Service

Composition based on Cooperative Agents. In

WETICE, The 22

IEEE International Workshops on

Enabling Technologies: Infrastructure for

Collaborative Enterprises.

Erl, T., 2005. Service-Oriented Architecture: Concepts,

Technology, and Design, Prentice Hall.

Erl T., et al, 2012. SOA with REST, Prentice Hall. 1

ed.

Fung, C. et al., 2005. A Study of Service Composition

with QoS Management. In ICWS’05, IEEE

International Conference on Web Services.

Gamble, R. and Baird, R., 2011. Developing Security

Meta-language Framework. In Proceedings of the 44th

Hawaii Int. Conference on System Sciences.

JbossAOP, 2003. http://www.jboss.org/jbossaop.

Kiczales, et al., 1997. Aspect-Oriented Programming. In

ECOOP’97, Object-Oriented Programming, lecture

Notes in CS. Vol. 1241, pp. 220–242.

Lamanna, D., Skene, J., and Emmerich, W., 2003. SLAng:

A Language for Service Level Agreements. In the 9

IEEE Workshop on Future Trends of Distributed

Computing Systems. FTDCS.

Li, F., et al., 2007. Q-Peer: A Decentralized QoS Registry

Architecture for Web Services. In ICSOC’07,

International Conference on Service Oriented

Computing. LNCS 4749,pp.145-156.

Liu, H., Pallikara, S., and Fox, G., 2005. Performance of

Web Service Security. In Proceedings of the 13th

Annual Mardi Gras Conference.

Mei, Y. et al., 2013, Performance Analysis of Network I/O

Workloads in Virtualized Data Centers. In IEEE

Transactions on Service Computing.

Mietzner, et al., 2010. Combining Horizontal and Vertical

Composition of Services. In Proceedings of the IEEE

International Conference on Service-Oriented

Computing and Applications.

Modica, G., et al., 2007. Dynamic Re-negotiations of SLA

in Service Composition Scenarios. In SEAA07,

EuroMICRO conference of Software Engineering and

Advance Applications.

Oasis-open.org, 2007. Security Assertion Markup

Language (SAML). https://www.oasis-open.

org/committees/download.php/27819/sstc-saml- tech-

overview-2.0-cd-02.pdf.

Oasis-open.org, 2012. eXtensible Access Control

Language (XACML). https://www.oasis-open.org/com

mittees/tc_home.php?wg_abbrev=xacml#C URRENT.

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

170

Overton, C. 2002, On the Theory of Internet SLAs.

Journal of Computer Resource Measurement, (106):

32-45.

ShaikhAli, A., Rana, O. F., Al-Ali, R., and Walker, D. W.,

2003. Uddie: An Extended Registry for Web Services.

In Proceedings of IEEE Workshop on Applications

and the Internet. pp. 85-89.

Spillner, J., & Schill, A., 2009, Dynamic SLA Template

Adjustments based on Service Property Bonitoring.

In CLOUD'09. IEEE International Conference on

Cloud Computing. pp. 183-189.

Tian, M. et al., 2004. Efficient Selection and Monitoring

of QoS-aware with the WS-QoS Framework. In

WI’04, IEEE/WIC/ACM International Conference on

Web Intelligence. pp.152-158.

WS Architecture, 2002. http://www.w3.org/TR/ws-arch/.

Zhonghong, O., et al., 2012. Exploiting Hardware

Heterogeneity within the Same Instance Type of

Amazon EC2. In Proceedings of the 4

USENIX

Conference on Hot Topics in Cloud Computing.

TowardsDynamicQoSMonitoringinServiceOrientedArchitectures

171
