Dynamic Large Scale Product Lines through Modularization

Approach

Asmaa Baya, Bouchra El Asri, Ikram Dehmouch and Zineb Mcharfi

IMS Team, SIME Laboratory, ENSIAS, University Mohammed V Rabat, Rabat, Morocco

Keywords: Software Product Line, Feature Model, Modularization, Large Scale Systems.

Abstract: Software product line (SPL) now faces major scalability problems because of technical advances of the past

decades. However, using traditional approaches of software engineering to deal with this increasing

scalability is not feasible. Therefore, new techniques must be provided in order to resolve scalability issues.

For such a purpose, we propose through this paper a modularization approach according to two dimensions:

In the first dimension we use Island algorithm in order to obtain structural modules. In the second

dimension we decompose obtained modules according to features binding time so as to obtain dynamic sub-

modules.

1 INTRODUCTION

Software Product Line (SPL) has been an attractive

approach for medium and large companies. Because,

it allows the optimization of product development

process and planed reuse, through the identification

and reuse of common features that are shared by

several products. However, there is a risk of not

getting a viable return on investment if the pre-

developed assets are not sufficiently reused.

In principle, a product line presents concepts of a

given business domain. But recently product lines

are being used not only to describe variability of a

well defined domain, but were extended to other

types of requirements such as variability of contexts.

As a result, SPL engineering now faces major

scalability issues. Indeed, creating and managing

such large product lines models is becoming a very

complex activity, time consuming and error prone.

That’s why, effective approach for separation of

concerns is becoming a major challenge.

In this paper, we are interested in looking at how

large and complex product line can be managed

through an appropriate representation mechanism.

To achieve that, we explore the possibility of

product line modularization approach that gives due

consideration to large scale particularities.

The remainder of this paper is organized as

follows. In Section 2, we give an overview of large

software product lines, and then we present some

main concepts like variability and separation of

concerns. In section 3, we present our approach for

modularization of product lines. Finally, Section 5

concludes the paper.

2 BACKGROUND

2.1 Large Software Product Lines

In the mid of 1990s, software product lines began to

draw attention of researchers community and

became an independent approach of software

engineering (Maier, 1998; Benavides, Segura and

Ruiz-Cortés 2010). Over last years, SPL was

integrated massively in several business domains

such as mobile phones, automotive systems,

aerospace, etc. (Pohl, Bockle and Linden 2005;

Parra 2011).

Product line engineering is a process that

delivers reusable components, which can be reused

to develop new applications for the domain instead

of developing them from scratch. So, the main

advantage that promote the use of software product

lines is the possibility of planned, proactive and

systematic reuse of the common artifacts (also called

core assets), where related products are treated as a

product family.

Over the last decades, many technical advances

of software engineering were introduced to SPL. As

439

Baya A., El Asri B., Dehmouch I. and Mcharﬁ Z..

Dynamic Large Scale Product Lines through Modularization Approach.

DOI: 10.5220/0005460204390444

In Proceedings of the 17th International Conference on Enterprise Information Systems (ICEIS-2015), pages 439-444

ISBN: 978-989-758-097-0

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

a result, an increasing number of concerns emerge,

and large scale is becoming a main characteristic of

all system dimensions: lines of code, number of

stakeholders employing the system for different

purposes, amount of data stored, etc. So, models are

becoming too large for human cognitive abilities,

and too imprecise for automated reasoning.

The main complexity introduced by SPL

compared to other software engineering approach, is

the management of variability. This variability

increase in large scale since, systems evolve

continuously through successive iterations along

multiple dimensions, such as: new stakeholders’

requirements, emergence of operating environment

constraints, incorporation of new technologies, etc.

Consequently, classic management approaches of

SPL are hardly applicable; instead, new approaches

must be based on:

 Flexible and dynamic structure in order to

accommodate changes at all levels

(Rosenmüller 2011),

 Agile approaches with several iterations is

required for dealing with emergent requirements

(Urli et al. 2012),

 Traceability must be taking into account in

order to revert the changes made by an

evolution through the system life cycle (Lamb,

Jirapanthong and Zisman 2011).

2.2 Variability in Space & Variability

in Time

Variability is defined as the ability of a software

system or artifact to be efficiently extended,

changed, customized or configured for use in a

particular context (Svahnberg, Gurp and Bosch

2005). So, the developer can specify the

particularities of a system corresponding to the

specific expectations of a client, and then obtain a

concrete variant.

Variability is the main difference between SPL

and other Software engineering approaches. So,

managing variability in an efficient way is a primary

challenge of SPL. Existing work on software

variation management can be generally split into two

categories:

 The variability in space is the existence of an

artifact in different shapes at the same time

(Pohl, Bockle and Linden 2005). In others

words, at the same time two products may

contain variants which have different

implementation versions.

 The variability in time is the existence of

different versions of an artifact that are valid

at different times (Pohl, Bockle and Linden

2005). Variability in time is used to describe

change of the artefact versions over time, and

their variability dependencies (Elsner et al.

2010). For a product line this means adding,

removing, or changing features or their

dependencies. Variability in time is used also

to describe also binding time of variability.

Indeed, there always is a certain amount of

variability that cannot be anticipated,

therefore, it must be delayed to a later point in

the development (compilation, load, runtime,

etc.).

2.3 Separation of Concerns in SPL

Product line engineering aims at identifying and

exploiting commonalities and variability within a

family of software systems. This means that

developers must take into account a large number of

products, and a large number of stakeholders for

each product. So, an increasing number of concerns

must be managed by developers.

In order to overcome this difficulty, SPL

approaches have proposed different ways to separate

concerns (Hubaux, Tun, and Heymans 2013), using

several criteria such as:

Functional and non-functional aspects, like in

aspect oriented programming (Kiczales et al. 1997),

several approaches in SPL separate between

functional features that represent the core assets and

non functional features that ensure quality of

service, adaptation to the execution environment, etc

(Noorian, Bagheri and Du 2012; Soltani at al. 2012;

Siegmund et al. 2011).

Some approach separate models according to the

main characteristics of concerns contained in these

models. For example depending on types of

variability (Svahnberg, Gurp and Bosch 2005),

management constraints (Grunbacher et al. 2009),

etc.

The process of configuration allows a separation

of concerns because a feature model is specialized in

a staged way (necessary features for a stage are

selected and other features are removed), according

to features binding time (Lee 2013), stakeholders

requirements (Czarnecki, Helsen and Eisenecker

2005), a defined workflow of configuration (Hubaux

et al. 2010.)

Although the need for separation of concerns in

SPL is recognized, there is no consensus about the

best criteria to use, and the efficient way to

implement this separation. The issue addressed in

this paper is how to separate concerns in a too large

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

440

SPL in such way that later composition become

easy.

3 TOWARDS DYNAMIC

MODULARIZATION

APPROACH

Our work aims at proposing a new modularization

approach for large scale SPL, which we confound in

this work with feature models. Based on the

challenges discussed in the previous section, we are

convinced that using these large models in their

initial state is not feasible. That’s why; we propose

to decompose our models in order to simplify their

management. In what follows, we present the

concept of modularization and then we detail each

proposed dimension, and explain adopted

techniques.

3.1 Modularization

Modularization is a well known software technique.

It allows developers to decompose a large system

into manageable subsystems, which can be

developed and checked in isolation (Apel et al.

2013; Ostermann et al. 2011). The main idea behind

modular reasoning is information hiding. Indeed, a

module is composed of an internal and external part.

The internal part hides implementation details of the

module, and is not accessible for the rest of modules.

The external part is called an interface and describes

a contract with the rest of the world (Kästner, Apel

and Ostermann 2011).

Over the last decades much research has

provided modularity mechanisms. Herbsleb and

Grinter (1999) propose a Hierarchical decomposition

of models. This means that the system is divided

into several hierarchical levels of abstraction. New

approaches propose to design patterns of

decomposition (

Wojcik et al. 2006). So, after

identifying quality requirements developer choose

the adequate patterns depending on the system

architecture. Based on these approaches,

Penzenstadler (2010) propose a well defined

catalogue of decomposition criteria.

On the basis of presented approaches of

modularity as well as the analysis of large-scale

systems, we designed our own vision of modularity.

In fact, the purpose of modularity in this work is to

facilitate the models composition and ensure

flexibility and tolerance to change. To achieve that,

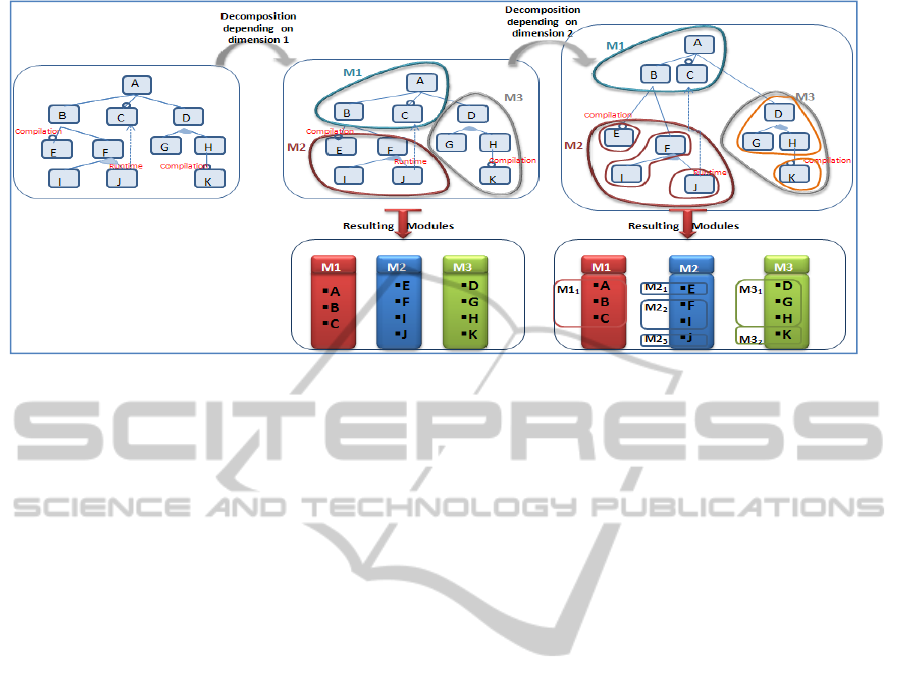

we opted for the decomposition depending on two

dimensions: The first dimension allow a structural

decomposition of the feature model. The second

dimension is decomposition according to features

binding time, which offer o dynamic views of the

model.

3.2 First Dimension

The purpose of this first decomposition is to obtain

modules that contain significant information about a

coherent sub-topic. In other words, the concepts

within a module must be semantically related to

each other, and weakly related to the outside of the

module. Thus, the dependence between the different

concepts of the model is the key element to consider

in this decomposition.

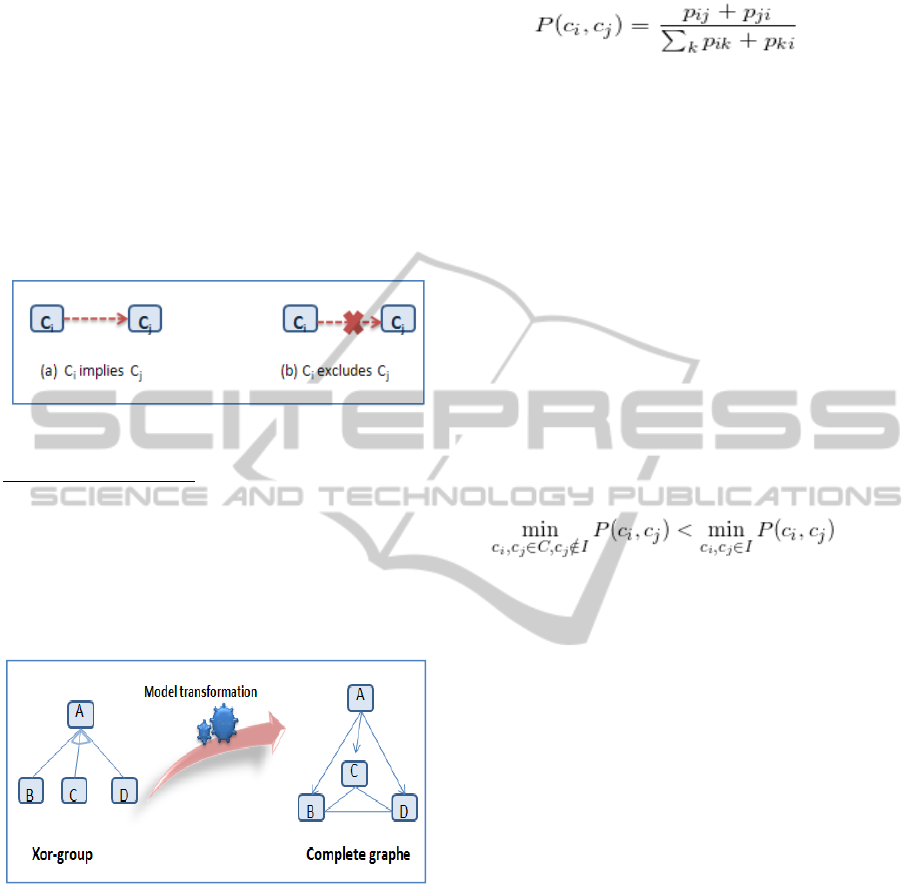

Our goal in what follows is to detect the features

contained in a feature model FM, and are strongly

linked together, so that they may constitute separate

modules m

. In order to achieve this goal, we make

use of the ’island’ algorithm (Batagelj 2003). This

algorithm gets the most important sub-graphs

contained in a complex network. Such an algorithm,

both general and efficient has been used in several

scientific fields such as genetics (Whitley, Rana, &

Heckendorn 1998), as it was taken up in the

computer field for the modularization of large

networks such as ontologies (Stuckenschmidt,

Schlicht 2009).

In the present work, we were inspired by the

work of Stuckenschmidt and Schlicht (2009). This

work deals with the decomposition of ontologies

according to the structure of its classes. In our case,

we try to introduce specific characteristics of feature

models by performing some transformations before

applying the island algorithm. In the following, we

detail the steps of the decomposition according to

our first dimension.

3.2.1 Step 1

We consider a feature model FM, composed of

several features C = {c

, c

, ... , c

}. We consider the

set D = {d

, d

, ..., d

} of dependencies between

features. Since we think in terms of dependencies

between features, the first action would be to list all

the existing dependencies. For this, we will

transform our FM into a graph whose nodes are the

features. In what concern relations of this graph, we

will resume the explicit dependencies contained in

the FM, as we will explicit the implicit

dependencies.

Explicit dependencies: In a FM, we find the

following dependencies:

DynamicLargeScaleProductLinesthroughModularizationApproach

441

o The directed relationships "parents → children"

between the features in spite of their types

(mandatory, optional, or-group, and xor-group);

o The constraints between features are also

considered as directed relationships from c

to c

if « c

implies c

» or « c

excludes c

».

Henceforth, instead of textual expression of

constraints, we will represent them graphically

in the feature model as dotted arches in order to

reason about the graphical model only. Fig. 1

shows the graphical representation of

constraints.

Figure 1: Graphical representation of constraints.

Implicit dependencies: In a feature model, the

features are related to their parent with vertical and

hierarchical relations or related by constraints with

horizontal relationships. However, the features of a

xor-goup are linked by implicit mutual exclusion

relations between them. In order to explicit this

relation, we propose to transform xor-goup in

complete graph as shown in Fig. 2.

Figure 2: Transformation of xor-group to complete graph.

3.2.2 Step 2

The second step is to assign weights to dependencies

of the feature model. This weight reflects the

strength of the dependency between two features.

Indeed, the strength of the dependency between a

feature c

and a feature c

is proportional to the total

number of dependency strengths of relations with

other features of the model. Thus, the weight P (c

)

is calculated by dividing the sum of the weights of

all relations between c

and c

by the sum of the

weights of all relations that c

has to other features.

(1)

Where:

: is the weight of the oriented relationship between

and c

. We assume that this value is equal to 1.

3.2.3 Step 3

At this level, we have a graph that contains all the

dependencies between features, in addition to the

weight of each dependency. So, we can apply the

island algorithm to this graph in order to determine

the modules.

We consider a model FM transformed to graph G

= {C, D, P}. A set of features I is considered an

island in G if and only if it induces a connected sub-

graph and the lines inside the island I are stronger

related among them than with the neighboring

features. In other words, there is a maximum

spanning tree that contains all the features of I such

that:

(2)

As a result of applying island algorithm, we may

obtain very large modules that represent the same

difficulties of the initial model. In this case, the

island algorithm can be applied iteratively and at

several modules to refine the result. We may also

obtain isolated features that don’t belong to any

module. In this case, these features must be assigned

to the island of the neighboring features they have

the strongest relation to.

3.3 Second Dimension

In this work, our ultimate aim is to propose a

modularization approach that deals with special

issues of SPL. That’s why we propose a

decomposition approach that attach due importance

to variability concept especially to « Binding-time ».

In fact, developer can introduce variability at several

binding-times: either at a high abstraction level like

design, and compilation, we name that an “early

binding”, or at a low abstraction level like load or

runtime, and we name that a “late binding”.

In order to introduce this crucial aspect of

variability in our contribution, we propose to

decompose the resulted modules of the first

decomposition to sub-modules depending on the

binding times of their features. Indeed, the features

of a given module that are mandatory or those

varying but whose inclusion in the resulting system

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

442

Figure 3: Example of feature model modularization.

is decided at modeling level must belong to the same

sub-module. Then, features are assembled in sub-

modules depending to their binding-times

(compilation or runtime). Fig. 3 illustrates the

modularization following the two dimensions

described above. In this example, a feature module

is composed to three modules M

, M

and M

according to the first dimension. Then, these

modules are composed to sub-modules. Each sub

module corresponds to a binding-time: design,

compilation and execution.

4 CONCLUSIONS

The work presented in this paper provides the

conceptual foundations of composition in large scale

systems. We recognize that this approach handles

the operation of composition at a high level of

abstraction. So, additional techniques that deal

specially with the details of implementation must be

combined with this approach. For example, we

propose to use the superimposition of code as a

complementary approach (Apel and Lengauer 2008;

Apel et al. 2009).

The basic aim of this approach is to analyse the

different aspects of variability and try to manage it

in a large scale SPL. To achieve that, we propose to

decompose a large feature model into manageable

modules depending to the features type. Each

module is defined by an interface that exposes

necessary information to communicate with other

modules. Then we propose to define interfaces at

several level of abstraction, in order to allow a

dynamic binding so as to allow insertion of features

changes that arise during the SPL life cycle. Then,

we propose to compose these modules in order to

obtain composite interface of the resulted FM.

The main advantage of this approach is to allow

agility through a proactive process. In fact,

stakeholders can express new requirements or

constraints. So, changes can be inserted through

module interfaces even after compilation. We must

notice that additional mechanism must be inserted in

order to coordinate between changes at interface

level and changes at implementation level using a

complementary approach of composition that

implements these changes. Interfaces can also be

used as a support to explicit traceability of varying

features. Hence, traceability information could be

used to analyze the design change impact when

evolving SPL.

REFERENCES

Apel, S, Batory, D, Kästner, C & Saake, G 2013,

‘Feature-oriented software product lines: Concepts

and implementation’, Springer Science & Business

Media, Berlin.

Apel, S, Janda, F, Trujillo, S & Kästner, C 2009, ‘Model

superimposition in software product lines’, in the

Proceedings of the International Conference on Model

Transformation, pp. 4-19.

Apel, S & Lengauer, C 2008, ‘Superimposition: A

language-independent approach to software

composition’, in the Proceedings of the International.

Symposium of Software Composition, pp. 20–35.

Batagelj, V 2003, ‘Analysis of large networks – islands’,

presented at Dagstuhl seminar 03361: Algorithmic

Aspects of Large and Complex Networks.

Benavides, D, Segura, S & Ruiz-Cortés, A 2010,

‘Automated analysis of feature models 20 years later:

a literature review’, Information Systems, vol. 35, no.

DynamicLargeScaleProductLinesthroughModularizationApproach

443

6, pp. 615-363.

Czarnecki, K, Helsen, S & Eisenecker, WU 2005. ‘Staged

configuration through specialization and multi-level

configuration of feature models’, in Software Process:

Improvement and Practice, vol. 10, no. 2, pp 143–169.

Elsner, C, Botterweck, G, Lohmann, D & Schröder-

Preikschat,W 2010, ‘Variability in time - product line

variability and evolution revisited’, in the proceedings

of the 4

International workshop on Modelling

Variability of Software-intensive Systems, Essen,

Germany, pp.131-137.

Grunbacher, P, Rabiser, R, Dhungana, D & Lehofer, M

2009, ‘Structuring the product line modeling space:

Strategies and examples’, in the 3rd International

Workshop on Variability Modelling of Software-

Intensive Systems, Seville, pp. 77–82.

Herbsleb, JD & Grinter, RE 1999, ‘Splitting the

organization and integrating the code: Conway’s law

revisited’, in the Proceedings of the 21st international

conference on Software engineering, Los Angeles, pp.

85-95.

Hubaux, A, Heymans, P, Schobbens, PY & Deridder, D

2010. ‘Towards multi-view feature-based

configuration’, in 16th International Working

Conference on Requirements Engineering:

Foundation for Software Quality (REFSQ’10).

Springer-Verlag.

Hubaux, A, Tun, TT & Heymans, P 2013, ‘Separation of

concerns in feature diagram languages: a systematic

survey’, ACM Computing Surveys, vol. 45, no. 4,

article no. 51.

Kästner, C, Apel, S & Ostermann, K 2011, ‘The road to

feature modularity?’, in the Proceedings of the 15th

International Software Product Line Conference, New

York, pp. 21-26.

Kiczales, G, Lamping, J, Mendhekar, A, Maeda, C,

Lopes, CV, Loingtier, JM & Irwin, J 1997, ‘Aspect

Oriented Programming’ , in ECOOP 97, pp 220-242.

Lamb, LC, Jirapanthong, W & Zisman, A 2011,

‘Formalizing traceability relations for product lines’,

in ICSE Workshop on Traceability in Emerging Forms

of Software Engineering(TEFSE), pp 42–45.

Lee, K 2013. ‘Variability and Aspect Orientation’.

Systems and Software Variability Management,

Springer, Berlin, pp 293-300.

Maier, MW 1998, ‘Architecting principles for systems-of-

systems’, Systems Engineering, vol. 1, no. 4, pp. 267-

284.

Noorian, M, Bagheri, E & Du, W 2012, ‘Non-functional

Properties in Software Product Lines: A Taxonomy for

Classification’, in SEKE, pp. 663-667.

Ostermann, K, Giarrusso, PG, Kästner, C & Rendel, T

2011, ‘Revisiting information hiding: Reflections on

classical and non classical modularity’, in the

Proceedings of the 25th European Conference on

Object-Oriented Programming, Lancaster, pp. 155-

178.

Parra, C 2011, ‘Towards dynamic software product lines:

unifying design and runtime adaptations’. Europe

Laboratory, phD thesis, University of Lille.

Penzenstadler, B 2010, ‘DeSyRe: decomposition of

systems and their requirements: transition from system

to subsystem using a criteria catalogue and systematic

requirements refinement’, phD thesis, Technical

University of Munich.

Pohl, K, Bockle, G & Linden. FJ 2005, Software product

line engineering: foundations, principles and

techniques, Springer, New York.

Rosenmüller, M 2011, ‘Towards flexible feature

composition: Static and dynamic binding in software

product lines’, phD thesis, University of Magdeburg.

Siegmund, N, Rosenmuller, M, Kastner, C, Giarrusso, PG,

Apel, S & Kolesnikov, SS 2011, ‘Scalable prediction

of non-functional properties in software product lines’,

in proceedings of the 15th Software Product Line

Conference, Munich, pp.160–169.

Soltani, S, Asadi, M, Gašević, D, Hatala, M & Bagheri, E

2012, ‘Automated planning for feature model

configuration based on functional and non-functional

requirements’, in Proceedings of the 16th

International Software Product Line Conference,

Salvador, Brazil.

Stuckenschmidt, H, Schlicht, A (2009), ‘Structure-Based

Partitioning of Large Ontologies. Modular

Ontologies’. Lecture Notes in Computer

Science, Springer, vol. 5445.

Svahnberg, M, Gurp, JV & Bosch, J 2005, ‘A taxonomy

of variability realization techniques: Research

articles’, Software Practice and Experience, vol. 35,

no. 8, pp.705–754.

Urli, S, Blay-Fornarino, M, Collet, P & Mosser, S 2012,

‘Using composite feature models to support agile

software product line evolution’, in Proceedings of the

6th International Workshop on Models and Evolution,

New York, pp. 21-26.

Whitley, D, Rana, S & Heckendorn, RB (1998), ‘The

Island Model Genetic Algorithm: On Separability,

Population Size and Convergence’, in Journal of

Computing and Information Technology, vol. 7, pp.

33-47.

Wojcik, R, Bachmann, F, Bass, L, Clements, P, Merson,

P, Nord, R & Wood, B 2006, ‘Attribute-driven design

(ADD)’, Technical Report CMU/SEI-2006-TR-023,

Carnegie Mellon University.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

444
