Dynamic and Scalable Real-time Analytics in Logistics

Combining Apache Storm with Complex Event Processing for Enabling New

Business Models in Logistics

Benjamin Gaunitz, Martin Roth and Bogdan Franczyk

Information Systems Institute, Leipzig University, Grimmaische Straße 12, Leipzig, Germany

Keywords: Real-time Analytics, Logistics, Complex Event Processing.

Abstract: In this paper we present an approach for an information system which is capable of processing and analys-

ing vast amounts of data. In addition to Big Data solutions we do not focus on ex post batch processing but

on online stream processing. We use Apache Storm in combination with Complex Event Processing to pro-

vide a scalable and dynamic event-driven information system, providing logistics businesses with relevant

information in real-time to increase their data and process transparency.

1 INTRODUCTION

For logistics companies, especially for providers of

courier, express and parcel services, it is essential to

deliver goods and services in a highly time critical

environment to satisfy customer needs. Those com-

panies that are able to react as fast as possible to

changing conditions will have benefits in the market

competition by reducing costs and increasing effi-

ciency. Modern logistics companies produce an

enormous amount of data every day by tracking

millions of shipments around the world as well as

the fleet delivering these shipments. For example in

2013 2.66 billion shipments were handled by Couri-

er, Express and Parcel services in Germany (BIEK,

2014). With the rise of the Internet of Things and the

enhancement of sensor technology it is not only

possible to track shipments location-wise but also

monitoring sensor data such as temperature, orienta-

tion and acceleration resulting in an exponential

growth of the amount of data which is produced by

each tracked object. In addition to that, external

sources such as traffic or weather services also gen-

erate business-relevant data which has to be pro-

cessed.

The field of Big Data is well-known and has

been widely covered in the recent years. However in

the context of Big Data, data is analysed after a

business process is finished. The results and insights

are available ex post and in terms of logistics cannot

be used to affect currently running transports.

(Hackathorn, 2003) introduces the term ‘action

distance’ which describes the distance between the

occurrence of a business relevant event and the mo-

ment when any action is taken. The reasons for this

distance are diverse and range from a spatial to a

social gap. As time passes, the value of the business

event decreases, hence the smaller the action dis-

tance, the higher is the value of the business event

and therefore the benefit for the company.

This results in the urge of minimising the latency

between the information and the action and is sum-

marised under the term Fast Data (Mishne et al.,

2013). This advancement from Big Data to Fast Data

creates a need for real-time analytics systems.

With real-time analytics logistics companies are

able to react proactive to problems occurring during

the transport. Therefore, logistics providers are not

only able to answer question like “Where is my

shipment?” but also “Where will my shipment be on

a certain point of time?”.

The following are upcoming trends in logistics

which require a broad usage of real-time analytics

approaches in the future.

Real-time routing: Logistic chains consist of dif-

ferent steps. Usually the last step, the delivery to the

recipient, is the most expensive for logistics provid-

er. Increasing the efficiency on this last leg can re-

duce costs significantly. (Jeske et al., 2013) defines

one scenario where delivery trucks are rerouted in

real-time. The route of each truck is calculated con-

stantly according to the delivery sequence and the

289

Gaunitz B., Roth M. and Franczyk B..

Dynamic and Scalable Real-time Analytics in Logistics - Combining Apache Storm with Complex Event Processing for Enabling New Business Models

in Logistics.

DOI: 10.5220/0005467602890294

In Proceedings of the 10th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE-2015), pages 289-294

ISBN: 978-989-758-100-7

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

current traffic situation. The goal of this approach is

to decrease idle time and therefore increase the utili-

zation of the fleet and the delivery quality. Also

customer satisfaction can be improved by providing

arrival times and increasing on-time delivery. In

order to enable real-time rerouting an appropriate IT

system has to be implemented which is capable of

handling data from multiple input sources such as

traffic services, ERP systems (delivery sequence)

and fleet management systems and execute complex

calculations (e.g. Travelling Salesman Problem) on

this data with extremely low latency.

Synchromodality: Synchromodality is an ad-

vancement of multi-, inter- and co-modality with the

objective to use any available form of transportation

at any time and point in the logistics chain and also

switch freely between them (van Stijn et al., 2013).

The ideal transport mode can be selected based on a

set of defined criteria. These could be for example

transport cost, transport speed, load factor or, with

the rising importance of green logistics, carbon diox-

ide emissions. To enable synchromodality seamless-

ly and successfully within the logistics chain it is

necessary to improve data transparency between all

participants. This includes detailed information

about the transported freight as well as about the

load factor on any transport vehicle which is and can

be used potentially.

Fourth-party Logistics Provider: In fourth-

party logistics (4PL) the logistics provider (4PLP)

does not have any assets and does not fulfil any

transport at all. The 4PLP acts as a coordinator for

several logistics provider (Nissen and Bothe, 2002).

As many partners are used during the transport pro-

cess it is essential that in a case of delivery quality

failure the relevant transport partner is identified and

conceivably the transport process is reorganised to

ensure a reliable delivery, regarding time and quali-

ty. In this scenario each shipment is tracked concern-

ing their geo location and certain sensor values, such

as ambient temperature, acceleration and orientation.

Before the transport is started, a service level agree-

ment is created which defines the quality of the

transport and timeslots for each leg. The continuous

real-time tracking of shipments creates the possibil-

ity for logistics companies to react to nonconformi-

ties instantaneously.

(Ellis, 2014) defines five components of real-

time architectures: Collection, Data Flow, Pro-

cessing, Storage and Delivery. As all of those are

essential, we will focus on the processing of data.

This paper presents an approach for a distributed

information system which will be capable to analyse

and process these vast amounts of data in real-time,

combining Apache Storm and Complex Event Pro-

cessing.

The paper is structured as follows: Section 2 de-

scribes the requirements of a real-time system archi-

tecture regarding the above mentioned trends. Relat-

ed research which has been conducted in the area of

real-time analytics and logistics is presented in Sec-

tion 3. In Section 4 we present and explain the tech-

nical foundation which we used for our idea. The

real-time analytics system we designed is described

in Section 5.

2 REQUIREMENTS ANALYSIS

After the emergence of Big Data in recent years the

next-level approach is summarised under the term

Fast Data. It is an evolution from batch to stream

processing. While for batch processing the analysed

data is definite, for stream processing the analysed

data is infinite. This creates the need for new tech-

nologies and techniques to analyse this stream of

data.

The upcoming trends in the last section show the

importance of a small action distance otherwise

these trends will not be realisable. Real-time routing

for example where the dispatcher receives the in-

formation after the transport has finished is not valu-

able. This results in a need for low latency to process

the information quickly to retain its value.

As logistics business operates 24/7 all around the

world and low latency is essential for high infor-

mation value a highly stable information system is

needed, otherwise the latency will increase and the

information value decrease.

Additionally in all three future trends a large

amount of data is produced. In real-time routing it is

the data of the delivery fleet, for synchromodality it

is the data about the utilisation of each usable means

of transport and in 4PLP it is even each shipment

which creates data. As the amounts of generated data

can vary heavily it is necessary that the information

system is scalable. But vertical scalability is limited

by the resources that can be added to a machine, thus

horizontal scalability – adding machines to a cluster

is essential.

According to (Ellis, 2014) real-time analytics

systems have exactly these three features:

 Low Latency

 Horizontal Scalability

 High Availability

Another requirement is data transparency to cre-

ate process transparency. Especially in 4PL and

ENASE2015-10thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

290

synchromodal logistics each business partner needs

to introduce information systems to increase the data

transparency of its operations, e.g. utilisation data

being available system wide. The barrier for integra-

tion has to be low as small and medium enterprises

are essential for successful 4PL and synchromodal

logistics.

3 RELATED WORK

The combination of real-time analytics and logistics

and the benefits and opportunities resulting of this

combination have not been researched widely yet.

(Jeske et al., 2013) presents DHL’s view on Big

Data. Current and future scenarios in logistics are

presented partly relying on real-time analytics such

as real-time routing (as described in Section 1) and

crowd-based pick-up and delivery, where any person

can deliver shipments on the go. Many other use

cases for logistics are presented as well which can

create value-added services for logistics businesses.

The publication offers a business view; technical

implementations or considerations are not presented.

In (Toshniwal et al., 2014), published by Twitter

employees, the usage of Apache Storm by Twitter is

outlined. Twitter runs “several hundreds of topolo-

gies” on “hundreds of servers (spread across multi-

ple data centres)” producing “several” billions

events and terabytes of data per day. Apache Storm

is used for processing the content in various streams

and also for machine learning algorithms. They

especially highlight the stable behaviour of Storm

during runtime, the low latency (~1ms) and the high

availability (99.9%). On the other hand it is stated

that a dynamic re-optimisation of the topologies is

one of the issues considered for future research

which we also identified as a disadvantage (see

Section 5). Our approach includes a proposal for

bypassing this disadvantage by using Complex

Event Processing in addition to Apache Storm (see

Section 5). Despite the paper is not about the domain

of logistics it is a good overview of the capabilities

of real-time analytics and the technical foundations

of Apache Storm.

(Isoyama et al., 2012) has examined technical is-

sues that emerge from Distributed Complex Event

Processing in clusters which we describe in Section

5.2. They also propose a possible implementation to

solve these issues, though a complete solution is not

presented. The result still lacks the possibility of full

scalability of Complex Event Processing.

(Schwegmann et al., 2013) use real-time analyt-

ics in combination with event-driven Business Ac-

tivity Monitoring. The paper is about the usage of

Complex Event Processing with a Business Process

Management System to calculate KPIs in real-time

which are used to make predictions about future

process behaviour by applying statistical evaluations

to these KPIs. While the same assumption of mini-

mising the action distance to increase the business

value is taken as basis, the main focus is on creating

future predictions which we do not regard in this

paper

4 TECHNICAL FOUNDATIONS

Businesses are event-driven. They have to react to

unpredictable external and internal events (Bruns

and Dunkel, 2010). Our approach is embedded in an

Event-Driven Architecture (EDA) to process these

business relevant events. In an EDA the components

themselves are event-driven. This means that com-

munication between them is done with the usage of

events, small data objects containing information.

The business data is transmitted continuously to the

system in form of an infinite event stream. The event

stream is the foundation of an EDA.

The two major components that we use in our

system are Apache Storm and Complex Event Pro-

cessing which we will explain in the following sec-

tion.

4.1 Apache Storm

Apache Storm was developed by BackType, which

was later acquired by Twitter, to analyse the users’

click behaviour in real-time and soon became an

Apache Top-Level project (Ellis, 2014). Apache

Storm is scalable out of the box and can easily be set

up on clusters or cloud services like Amazon's EC2.

Basically Apache Storm works like Hadoop.

With Hadoop it is possible to analyse large amounts

of data within a distributed cluster. Each node within

the cluster analyses a small set of the data, the re-

sults of all nodes are being merged after the analysis

process (Map-Reduce algorithm) (Dean and

Ghemawat, 2008). Just as Hadoop, Apache Storm is

horizontally scalable and able to process large

amounts of data in a distributed cluster. But unlike

Hadoop, which is designed for analysing data ex

post in fixed sized batches, Apache Storm is event-

driven and analyses and processes data in form of an

(infinite) event stream in real-time thus making

results available immediately.

The basic components of Apache Storm are

spouts and bolts. Spouts are the sources of data

DynamicandScalableReal-timeAnalyticsinLogistics-CombiningApacheStormwithComplexEventProcessingfor

EnablingNewBusinessModelsinLogistics

291

which is emitted in form of tuples. Tuples and

events can be used interchangeably in this context.

For example these tuples can be data from traffic,

weather, location or sensor tracking services. Bolts

are the components which process and evaluate the

tuples. If needed, bolts can emit their calculated

results for further evaluation to other bolts.

These two components are combined in so called

topologies. Topologies are directed-acyclic graphs

which define the flow of events from the sources

(spouts) to the sink passing one or multiple nodes

(bolts). The foundation of each topology is a cluster

of physical or virtual machines. Depending on the

configuration and the work load Storm will create

multiple instances of each bolt and distribute them

across the cluster to ensure a fast event processing.

It is possible to add and remove machines to the

Apache Storm cluster to easily adapt to changing

event flow rates. Also crashed machines will not be

a problem as bolts are replicated throughout the

cluster and the event flow is rerouted to the existing

machines. For further technical details see (Ellis,

2014; Toshniwal et al., 2014; Apache Storm, 2014)

There are also two major disadvantages of Apache

Storm regarding the above defined requirements.

The first one is that topologies cannot be changed

once set up and running. The current workaround is

to shutdown a topology and restart an updated ver-

sion. As this workaround can last up to a few

minutes, it will result in losing events and / or in-

creasing latency significantly.

The other disadvantage is the programmatical evalu-

ation of events within the bolts i.e. using conditional

expressions. This can result in code that is hard to

read, understand and manage and since it is hard-

coded it is conceivably one of the reasons a dynamic

update of the evaluation is not possible within the

bolts.

4.2 Complex Event Processing

CEP is the main component for event processing in

an Event Driven Architecture (Bruns and Dunkel,

2010). According to (Luckham, 2002) it is a soft-

ware technology which is used to analyse causal,

temporal and spatial relationships between events in

real-time. So in CEP events are not evaluated sepa-

rately but rather in their context. (Bruns and Dunkel,

2010) defines three essential elements of CEP com-

ponents: event model, event rules and the event

engine, respectively in the terms of (Luckham et al.,

2011): event schema, rules and event processing

agent.

The event model defines the events which

contain information that is business relevant e.g. a

sensor event containing the current ambient tem-

perature. The event model is not further regarded in

this paper.CEP components use rules to evaluate the

events and their relations to each other. In most CEP

components the event rules are defined declarative

with the usage of a Domain Specific Language, the

Event Processing Language (EPL). This EPL is used

to create SQL-like statements containing the events

defined in the event model and the conditions they

should apply to. The third element is the CEP en-

gine. In combination with the event rules the CEP

engine analyses the event stream in real-time for

patterns defined in the EPL. CEP engines are able to

analyse event streams from multiple sources and can

handle millions of events per second depending on

their hardware and configuration. Examples for CEP

components are Esper, Drools, Microsoft StreamIn-

sight and TIBCO BusinessEvents & Streambase.

Current CEP solutions are not scalable in a full

extent. While vertical scaling – adding resources to a

machine – is easily possible, limitations exist for

horizontal scaling – adding machines to a cluster

(see Section 5.2). As vertical scaling is limited by

the resources (CPU, memory, HDD) that can be

managed by one machine, the maximum amount of

ICA8Rm9udFN0eWxlPg0KICAgICAgICA8TmV1d

as well, so support for horizontal scaling is required.

4.3 Benefits of Integrating Complex

Event Processing in Apache Storm

The combination of Apache Storm and CEP results

in the following benefits. Apache Storm is a good

basis for distributed computing as it is horizontally

scalable by default and fault-tolerable. With the

usage of a CEP engine we are able to bypass the

disadvantages and additionally use the horizontal

scaling feature provided by Storm which is currently

not possible with CEP engines (see Section 5.2).

As stated above CEP engines include the ability

to register rules which are used to evaluate incoming

events. In contrary to Apache Storm these rules,

which are comparable to the processing algorithm

within the bolts, are expressed using EPL state-

ments. The rules within the CEP engine can be

changed dynamically and are immediately applied to

all events which are received after the update. There-

fore giving us the ability of reacting to changing

circumstances or focuses of interest in terms of the

business relevant data while being flexible by adding

and removing resources depending on the workload.

ENASE2015-10thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

292

5 APPROACH

This section presents and evaluates our approach for

an information system being able to process and

analyse vast amounts of data in real-time with being

extendable and changeable at any time during opera-

tions.

5.1 Scenario

The foundation of our system is an Apache Storm

topology with multiple internal and external data

sources, which could be shipments, means of

transport or traffic services (see Figure 1). The

amount of data emitted by these sources is the event

stream thus containing the business relevant data.

The spouts (Spout 1 to Spout i) are the connectors to

the event stream and emit the data in form of tuples

to the topology. The spouts are the starting point of

the event flow within our Apache Storm topology.

The events in form of tuples are then passed to the

bolt in tier 1. The events are evaluated according to

the EPL statements. Either the results are directly

forwarded to the connected systems or are being

passed to next tier for further evaluation. It is rec-

ommended to use general rules in the lower tiers and

get more specific the higher the bolt is inside the

topology. This will ensure that uninteresting events

are already filtered in the beginning and reduce the

load on the more complex statements. The architec-

ture is comparable to an array of sieves for filtering

sand where the holes in the sieve become smaller the

further the sand flows through the array. However

we are not interested what is left in the sieves but

rather what flows through.

As already stated, in Apache Storm a bolt is a

template for handling events. Storm will create sev-

eral instances of one bolt according to the load and

configuration parameters. In our model each in-

stance of a bolt creates and starts a CEP engine.

Events will only flow to one instance of a bolt so we

need to assure that each CEP instance in one tier has

exact the same statements implemented the holes in

our sieve. To do so, we need another component, the

statement repository. The statement repository con-

tains all the rules for one tier / bolt which will be

used to evaluate the incoming events. Whenever a

new instance of a bolt is created the CEP engine,

which is created with this bolt, will pull all the cur-

rent statements from the repository and vice versa

subscribe itself for updates to the repository. This

subscription enables us to pass new or changed

statements to all CEP engines immediately and in

order with that realising the requirement of fast

adaption to changing environments as mentioned in

the beginning of this paper. This feature giving ex-

ecutives, users and analysts to change rules on the

fly and let them, the domain experts, decide what is

interesting.

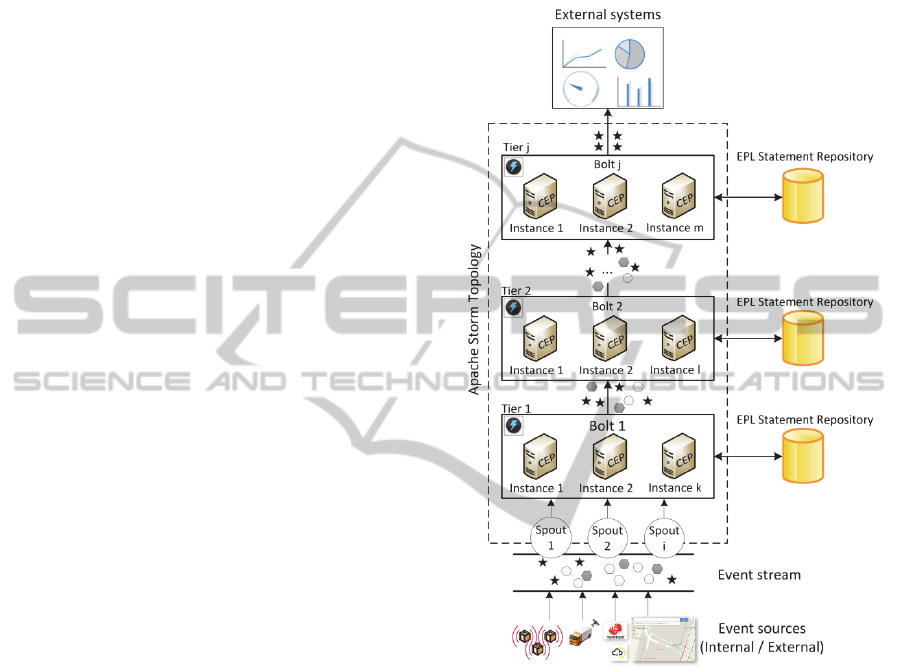

Figure 1: Apache Storm in Combination with Complex

Event Processing.

5.2 Evaluation and Further Research

Currently the analysis of Complex Event Processing

in a distributed environment has a major drawback.

We have to distinguish between two different EPL

rule categories: stateless and stateful. Stateless rules

need information only from the current event which

is evaluated. No information about preceding events

is necessary to process the rule. E.g. "every Even-

tA(temperature > 30)". Contrarily stateful rules need

information about other events. E.g. "Event A fol-

lowed by Event B". This category includes sliding

windows, patterns and abundance detection of

events. While it is not a problem to process stateless

rules in a distributed system, the processing of state-

ful rules is complicated. Each event is evaluated by

DynamicandScalableReal-timeAnalyticsinLogistics-CombiningApacheStormwithComplexEventProcessingfor

EnablingNewBusinessModelsinLogistics

293

exactly one of multiple CEP engines within each

tier. Each CEP engine has its own context which is

not visible to the other instances. Stateful rules need

in contrary to stateless rules, additional context in-

formation. To successfully evaluate events, the con-

text has to be shared between all event processors.

(Isoyama et al., 2012) proposes a solution to adjust

the distribution of events throughout the cluster.

This is not a full scale solution of the problem of

context sharing within distributed CEP engine. The

most useful approach for our scenario would be the

implementation of an external shared context state

which according to (Isoyama et al., 2012) will result

in high overloads and performance issues when the

separate CEP engine instances will access the shared

context state. Further research in this area has still to

be conducted.

6 CONCLUSIONS

In this paper we presented an approach for an infor-

mation system being capable of analysing vast

amounts of data in real-time and thus enabling busi-

nesses to react immediately by reducing the action

distance. The system we presented is completely

based on open source software. Because of missing

licence fees it is possible for small and medium

logistics enterprises to implement and use real-time

analytics for their operational work to offer value-

added services such as real-time tracking or SLA

monitoring and therefore increasing the business

profit and improve customer satisfaction.

ACKNOWLEDGEMENTS

The work presented in this paper was funded by the

German Federal Ministry of Education and Research

under the project LogiLeit (BMBF 03IPT504A).

REFERENCES

Apache Storm (2014), “storm”, available at:

https://storm.apache.org/ (accessed 16 January 2015).

BIEK (2014), Anzahl der Sendungen von Kurier-,

Express- und Paketdiensten (KEP) in Deutschland in

den Jahren 2000 bis 2013 (in Millionen), Statista -

Das Statistik-Portal.

Bruns, R. and Dunkel, J. (2010), Event-Driven

Architecture, Springer, Berlin, Heidelberg.

Dean, J. and Ghemawat, S. (2008), “MapReduce. Simpli-

fied Data Processing on Large Clusters”,

Communications of the ACM, Vol. 51 No. 1, pp. 107–

113.

Ellis, B. (2014), Real-Time Analytics, 1st ed., Wiley,

Indianapolis.

Hackathorn, R. (2003), “Minimizing Action Distance”,

available at: http://www.tdan.com/view-articles/5132/

(accessed 19 January 2015).

Isoyama, K., Kobayashi, Y., Sato, T., Kida, K., Yoshida,

M. and Tagato, H. (2012), “A scalable complex event

processing system and evaluations of its perfor-

mance”, in Proceedings of the 6th ACM International

Conference on Distributed Event-Based Systems,

ACM, New York, NY, pp. 123–126.

Jeske, M., Grüner, M. and Weiß, F. (2013), Big Data in

Logistics, Troisdorf, Germany.

Luckham, D., Schulte, R., Adkins, J., Bizarro, P., Jacob-

sen, H.-A., Mavashev, A., Michelson, B.M. and Nib-

lett, P. (2011), Event Processing Glossary: Version

2.0.

Luckham, D.C. (2002), The Power of Events, Addison-

Wesley, Boston.

Mishne, G., Dalton, J., Li, Z., Sharma, A. and Lin, J.

(2013), “Fast data in the era of big data”, in Ross, K.

and Data, ACM Special Interest Group on Manage-

ment of (Eds.), Proceedings of the 2013 ACM SIG-

MOD International Conference on Management of

Data, ACM, New York, NY, USA, pp. 1147–1158.

Nissen, V. and Bothe, M. (2002), “Fourth Party Logistics

– ein Überblick”, Logistik Management, Vol. 4 No. 1,

pp. 16–26.

Schwegmann, B., Matzner, M. and Janiesch, C. (2013), “A

Method and Tool for Predictive Event-Driven Process

Analytics”, in Alt, R. and Franczyk, B. (Eds.), Pro-

ceedings of the 11th International Conference on

Wirtschaftsinformatik, Leipzig, Univ., Leipzig.

Toshniwal, A., Donham, J., Bhagat, N., Mittal, S., Rya-

boy, D., Taneja, S., Shukla, A., Ramasamy, K., Patel,

J.M., Kulkarni, S., Jackson, J., Gade, K. and Fu, M.

(2014), “Storm@twitter”, in SIGMOD '14: Proceed-

ings of the 2014 ACM SIGMOD International Confer-

ence on Management of Data, ACM, New York, NY,

USA, pp. 147–156.

van Stijn, E., Hesketh, D., Tan, Y.-H., Klievink, B., Over-

beek, S., Heijmann, F., Pikart, M. and Buterly, T.

(2013), “The Data Pipeline”, in United Nations Eco-

nomic Commission for Europe (Ed.), Connecting In-

ternational Trade: Single Windows and Supply Chains

in the Next Decade, United Nations, New York and

Geneva, pp. 158–183.

ENASE2015-10thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

294
