BlueKey

A Bluetooth Secure Solution for Accessing Personal Computers

Aziz Barbar

and Anis Ismail

American University of Science & Technology, Beirut, Lebanon

University Institute of Technology, Lebanese University, Sidon, Lebanon

Keywords: Security, Personal Computers, Computer Locking/Unlocking, Bluetooth, Mobile Application.

Abstract: A major realm of security breach for today’s users is unprivileged access, modification or sometimes

forgery of critical business, or user information. Existing computer locking/unoking methods serve as an

intermediate barrier against unethical deeds. The proposed solution BlueKey is a software-based solution

installed on Personal Computers (PC) that safely unlocks the PC by securing the Bluetooth communication

channel between the user’s mobile device and his/her PC. BlueKey helps end-users in not typing their

passwords every time they need to access their PCs. At the same level, this solution includes a mobile

application that allows the owner to fully control his/her PC via Bluetooth, and runs a breach detector

module with safety measures to protect the PC when it is locked. At the technical level, BlueKey is a

platform free application written using Java programming language, fulfilling the Write Once Run

Anywhere (WORA) concept. This system is built using Java Development Kit (JDK) and compiled using

Java Virtual Machine (JVM), and runs with Java Runtime Environment (JRE). Alongside, the mobile

application is developed using Java 2 Micro Edition (J2ME), which is compatible with Android, Symbian,

and BlackBerry operating systems.

1 INTRODUCTION

Security is the science of building a nearly perfect

breach-proof shield by implementing cryptographic

functions to encipher vital information. Security

methods are not only a business of the modern world,

yet it has roots that began around 2,000 B.C. in Egypt

when hieroglyphics were used to decorate tombs to

tell the story of life of the deceased. Just over 3,000

years later, and during World War II, security played

an essential role in giving the upper hand to those

parties which first implemented it. And the Germans

were the first to deploy secure channels, and that was

by inventing the “Enigma” machine that encoded

communications among different squads in the army,

the naval, ground forces, and air forces. But as time

progressed, these methods evolved to be the corner

stone that secures the digital world we live in today

(Harris, 2011). Confidentiality, Integrity,

Authenticity, and Availability are among the major

aims of any security product that is built.

Confidentiality (Bishop, 2004) is the act of keeping

data secretes and unpublished. Integrity (Bishop,

2004) is the act of preserving the data transmitted,

and ensures authorized modifications. Availability

(Bishop, 2004) is the act of approving authorized

access to resources. Authenticity (Bishop, 2004) is

the act of ensuring that this action is traceable from

that entity.

This paper targets computer-locking/unlocking

methods for Personal Computers (PC) and laptops

without having to enter manually the password to

unlock the machine. These methods are found

nowadays in all operating systems such as Windows,

Mac OS, and Linux, where the major function of

these methods is to prevent unethical users to gain

access to a computer, and corrupt or misuse the data

stored in them.

In this paper, section 2 will present the work done

in this field, section 3 will show the proposed system

architecture, section 4 will tackle the implementation

and obtained results, and finally section 5 concludes

the work.

2 RELATED WORK

In Windows OS, a user desktop may be locked for

security reasons either by setting an automatic screen

lock that is initiated with the screensaver after a set

509

Barbar A. and Ismail A..

BlueKey - A Bluetooth Secure Solution for Accessing Personal Computers.

DOI: 10.5220/0005470905090515

In Proceedings of the 17th International Conference on Enterprise Information Systems (ICEIS-2015), pages 509-515

ISBN: 978-989-758-097-0

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

period of inactivity, or by manually choosing lock the

computer. Once the computer screen lock is invoked,

access to the computer will only be allowed to the

user whose account is currently logged on to the

computer or by an authorized administrator

(Microsoft, 2015).

The ability to easily lock the Linux desktop is

useful in a wide range of situations (Spidle, 2015.).

Whether users are just walking away from your

computer for a few minutes or operate a public

machine, it is important that the user configures the

Linux computer to protect his/her private data and

prevent unauthorized system changes. Linux includes

some basic built-in features that allows user to

initiate a lockdown on the system, but if user wants

more control over the computer system locking

features, he/she needs to install the lockdown

manager packages freely available to most Linux

distributions. There are two ways to lock the Linux

desktop, Simple Desktop Lockdown and Complete

System Lockdown. Initially the simple desktop

lockdown, the user has to perform a series of steps;

first he/she has to launch the screen-saver preferences

panel. On the other hand, the second way to lock a

Linux desktop is the complete system lockdown

method.

Desktop Lock (Desktop Lock, 2014) is a

computer security protection and access control

software product. Users can lock their computers to

prevent people from accessing their private

documents and resources. Users can lock their

computers explicitly or automatically when system

becomes idle. The user can customize the

appearances of the locked desktop with the options

provided by Desktop Lock. Desktop Lock also

supports hotkey to lock the system.

PC Lockup (PC Lockup, 2014) is computer

security software, which enables you to apply

password protection to Windows and restrict others

from being able to use your PC while you are away.

It starts automatically with Windows and optionally

locks your desktop upon loading. It hides your

desktop at the same time and shows a picture, which

you can change in the options. An allowed time

schedule and duration can be defined for each user to

restrict access to your PC in definite hours. PC

Lockup also supports monitor power save options

and has some additional useful features like built-in

password protected screen saver and network user

validation feature for Windows logon to increase

your security. You will find the program interface

very easy to negotiate.

3 SYSTEM ARCHITECTURE

The system architecture is composed of layers. We

represent the system architecture as diagrams that

illustrate the layers, topology, components,

interactions, and stakeholders of the system. Layer

architecture is a technique used in designing

computer software, hardware, and communications

in which system or network components are isolated

in layers so that changes can be made in one layer

without affecting the others.

3.1 Application Layer Architecture

The diagram shown in Figure 1 illustrates the

different layers of the application. The application

comprises of three architectural layers ordered as,

Operating System, Application Core Structure, and

Application Configuration Interface. The operating

system layer forms the platform that accommodates

the application and makes it operable on a computer.

The operating system favors the application to

functions and handles its requests and modules. The

application core structure layer contains the

application code structure that communicates with

the operating system. In addition, it contains all the

application major functions and defines the actual

operations.

Figure 1: Application Layer.

This Application configuration interface layer

contains a GUI (Graphical User Interface) interactive

forms that interact with the application users. These

GUI forms provide input data entered by the users

and passed to the application core structure as

parameters and operable data.

3.2 Mobile Application Layer

Architecture

The mobile application comprises of three layers

(Figure 2), Smart Phone Firmware, Mobile

Application Core Structure, and Mobile Application

Control Console (GUI). The Smart Phone Firmware

layer is the software platform that controls the entire

functions of a smart phone. It is pretty much as the

operating system of a computer.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

510

Figure 2: Mobile Application Layer.

The Mobile Application Core Structure is the

layer which forms the communication between

BlueKey application and the phone. This

communication includes the basic computer control

functions and the classes that handle the instructions

that will travel via Bluetooth to predetermined MAC

(the administrator computer) and forces the computer

to execute these commands. The Mobile Application

Control Console is the layer that communicates with

the administrator, and receives his/her button presses.

3.3 Operational-logic Diagram

(Reachable Device)

Figure 3 illustrates the procedure that takes place in

the authentication process. Initially, the computer

would scan for reachable devices, and enables the

user to choose the trusted devices. In the first case,

the mobile holder is within the Bluetooth range of the

corresponding computer.

Figure 3: Operational Logic (Reachable Device).

At this point the computer is in unlocking mode.

In the second case, the mobile holder is out of the

Bluetooth range causing the corresponding computer

to lock instantly. At the practical level, the Bluetooth

receptor in the computer keeps track of the Bluetooth

MAC address of the enabled devices and performs

the suitable action.

3.4 Operational-logic Diagram

(Unreachable Device)

Figure 4 justifies the operational logic of the

application in case of the mobile phone is out of the

computer Bluetooth range. At this stage, the

computer would not define the MAC address as

reachable, as a result the application orders the

computer to lock, hence, the administrator is away

from his/her machine.



CoveredArea

UncoveredArea

Compute

MobilePhone

OutofRange

Unlocke d



Locked

Cracke



Router



Figure 4: Operational Logic (Unreachable Device).

Figure 4 shows an intruder trying to run a

password-cracking tool to break into a PC. One of

the features of this system is the ability to inform the

administrator of a possible crack. If a single key is

pressed or any motion is detected on the mouse pad,

the application triggers an alert message on the

administrator’s mobile via Bluetooth, notifying

him/her of a possible intrusion.

3.5 Use-case Diagrams

Use-case (Whitte, 1986) is a diagram that shows the

interactions between the system and external systems

and users. It graphically describes who will use the

system and in what ways the user expects to interact

with the system. The use-case diagram is comprised

of actors, and processes. The actors are the man-like

characters, and they form all the actions initiators,

meaning they initiate actions on the system, and the

oval shaped components are the processes pertaining

to the possible actions that are supported by the

system. In the BlueKey use-case (Figure 5) the actors

are administrator, trusted party, computer, and

mobile application or the mobile phone itself. And

the processes are add, drop, specify privilege,

authenticate access application and access resources

for actor administrator, moreover authenticate, access

resources and exploit for the actor trusted party. For

the actor mobile application the processes are

request. The actor computer has processes executes

BlueKey-ABluetoothSecureSolutionforAccessingPersonalComputers

511

and sends message. Remark that process

“configures” is not mentioned as administrator’s

processes since all the mentioned processes of

administrator are configuration of the system, but the

use-case rules state that between an actor and another

there must exist a process, which in this case is

“configure”.

Figure 5: BlueKey Use-case.

3.6 System Sequence Diagram

System Sequence Diagram (SSD) (Choubey, 2012) is

a diagram that depicts the interaction between an

actor and the system for a use case scenario.

Moreover it helps identify high-level messages that

enter and exit the system.

Application first time Login For the first time

to enter a password to be considered by the

application a login password. The application would

request from the administrator through

requestappinfo() method with no parameter usually

it’s a GUI (graphical user interface window),

afterwards the administrator would provide the

specific password by provides() method with a string

parameter. Consequently, the application would

inform the administrator that the information entered

has been saved in a file. Application nth time Login

After the password is requested and saved in

corresponding file, every login would require the

administrator to provide this exact password to gain

permission to enter to the application configuration

options and settings (Figure 6).

Figure 6: Login SSD.

Figure 7: Scanning SSD.

Scanning Settings (Figure 7) after login the

administrator would start configuring his/her mobile

device and other desired trusted mobile devices. The

administrator presses the configuration button; this

would initiate a Bluetooth scan facility to trace any

mobile device within the computer Bluetooth range.

The administrator would then select the MAC

addresses of the desired mobile devices, then the

administrator is meant to set the parameters of his/her

mobile device for locking and unlocking the PC, and

then save these configurations in a respective file

(repository file). Authentication this part of the

application procedure is formulated when the

administrator’s mobile is usually publishing it MAC

address. A condition is implemented within the

application at the level of coding to control the

distance-locking combination. If the distance of the

mobile device within the range, the application

would authenticate this mobile device instantly, on

the other hand, if the mobile device is out of the

range the application would lock instantly. In case, a

cracker is trying to attack the PC, the method

Scanner () would detect any change in data input, and

initiate a read action from the default message file

and send an alert message to the administrator’s

mobile device. At this point, the Administrator would

send a Bluetooth control command to shutdown, or

restart the PC under attack.

4 SYSTEM IMPLEMENTATION

AND TESTING

BlueKey System is written in Java programming

language, since Java technology is a high-level

programming, a platform independent language, and

has GUI features that provide friendly user interface.

Java is a WORA (Write Once Run Anywhere),

furthermore, Java is used to create standalone

applications which may run on a single computer or

in distributed network.

4.1 BlueKey Graphical User Interface

The mobile phone acts as a wireless “key” to the

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

512

administrator desktop. This system requires the use

of Bluetooth on the device and the PC to pair the

two. The Bluetooth signal includes a crude

“distance” between the two devices. When the device

goes out of range, the system will automatically

trigger the screensaver and can also lock the screen

of the computer with a password. The BlueKey

system keeps monitoring the distance, and when the

device comes back within range, the computer

automatically wakes up without ever having to enter

a password. Before the administrator runs the

BlueKey System for the first time, he/she should

make sure that the Bluetooth is set up on his/her

computer, and he/she has paired his/her Bluetooth

device with respective computer. The system will run

in the background, and display a small icon in the

taskbar to show its status. So the administrator will

be able to click on the icon to configure its settings.

When running the BlueKey System to configure a

device, a GUI interface will be displayed. This

interface contains several tabs, among them, a tab to

configure the Bluetooth device, another to specify the

proximity Details, and another to lock the PC.

4.1.1 Bluetooth Device Configuration

The initial GUI screen (Figure 11) would be

displayed containing several buttons and text fields.

When the administrator clicks on the “Scan for

devices” button, a list of MAC addresses along with

the Names of all devices within the range of the

computers Bluetooth receiver would be displayed in

the text field named “Bluetooth Device”. When the

administrator chooses a device to configure, he/she

would then select the button “Use selected device”,

the MAC address will be displayed in the text Field

“MAC Address”. Moreover, the administrator could

click on the “Delete” button to remove a configured

device, or click on “Rename” button to rename the

selected one.

4.1.2 System Details

In the System Details tab, locking and unlocking

details will be displayed. The administrator can set

the distance and times to lock and unlock the

computer. The distance is a numeric value between

0-255 which is a rough range of how far the

Bluetooth device is from the computer. At the bottom

of the tab, “Measure atm” displays the current

distance, as well as the minimum and maximum

distances that have (Figure 8) been detected.

The duration corresponds to the number of

seconds the Bluetooth device needs to be outside of

the distance before the computer locks. The

administrator may need to use some trial and error to

find the right value. The “Unlocking” options are

similar to those of “Locking” options, but have

exactly opposite functions. When the Bluetooth

device is detected within the specified distance for

the complete duration, the computer unlocks.

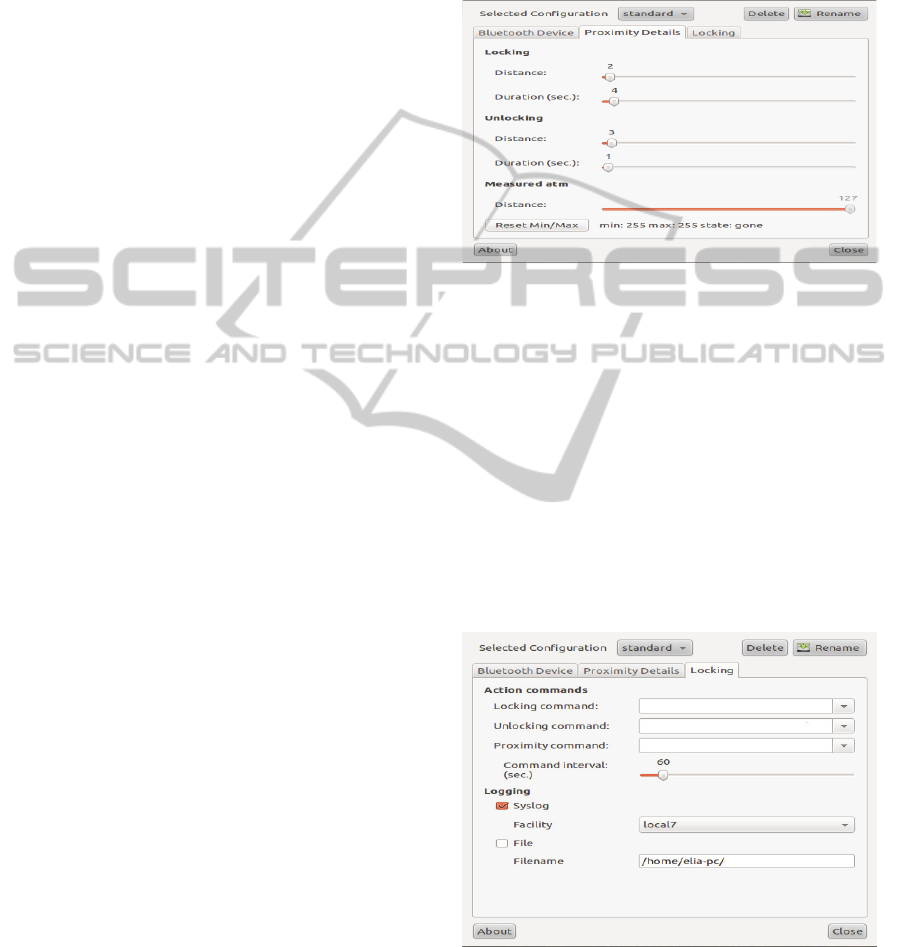

Figure 8: Computer application configuration windows.

4.1.3 System Features

The final preferences tab, “Locking” (Figure 9),

controls how the system locks and unlocks the

computer. In the “Locking Command/Unlocking

command” text fields, the application developer

would previously embed the specific command to

lock and unlock the computer in correspondence to

the existing computer platform. Basically, BlueKey

System will call screensaver-command to control the

screensaver–turning functions appropriately.

Consequently, the administrator would also need to

set up a screensaver.

Figure 9: Computer Application Locking/Unlocking

Window.

4.2 Desktop Application Testing

BlueKey application consists of several components.

BlueKey-ABluetoothSecureSolutionforAccessingPersonalComputers

513

The components are majorly divided into a login

process, cryptography process, scan process, plug-in

detection process, messaging process, file sender

process, and a mobile application server process. The

launches the application. The login page is sort of a

welcome screen that debriefs the first time user on

the application. In the Login page a password should

be provided and then saved in a file in a specific

directory.

BlueKey application consists of several

components. The components are majorly divided

into a login process, cryptography process, scan

process, plug-in detection process, messaging

process, file sender process, and a mobile application

server process. The login page is the first page to

appear when the user launches the application. The

the first time user on the application. In the Login

page a password should be provided and stored in a

file under a specific directory. A message box

appears for first time users giving the indications for

the following step and a little note about the

Operating System identity.

4.2.1 Cryptography and Password Testing

Cryptography process ensures that some

cryptographic algorithm secures confidential data

related to the system. In BlueKey, the DES algorithm

is applied and tested to ensure that the password is

still the same after the encryption and the decryption

processes.

4.2.2 File Testing

Every time the user runs the BlueKey Application, all

files are inspected for their existence. If not, the

creation of a new file should be proved. Then, two

testing phases are conducted. One of them ensures

the creation of new file after being deleted, and the

other ensures the creation of the whole folder that

holds the file to be created. Another testing criterion

is applied on the hidden file, when the user enters the

password, the directory that holds the file that’s

containing the password is checked to make certain

that the file is hidden. If the user wishes to change

the admin password, the file containing the password

should be checked if changed that’s to say

overridden. As for the trusted MAC addresses should

be appended to the previously saved MAC addresses.

Even if the user deletes any of these files

(AdminMac, TrustedMac) the application will

generate it again.

4.2.3 Scan Testing

Scanning is a major part of the workflow within the

application itself. The testing of this component is

briefed out as activating the Bluetooth hardware

device, and simply pressing “SCAN” (Figure 10).

This triggers an embedded Bluetooth scan class that

does Bluetooth explorations of all devices that are

within the range of a specific PC. Tests are applied

to check if all the inbound devices are listed on the

configuration console. The types of devices that are

included within the list are the BB, Sony Ericsson,

Samsung, iPhone, Nokia except for the HTC. In

addition to that, out-of-bound devices are tested for

their removal from the list.

Figure 10: BlueKey Scan Window.

An additional feature that alarms against hackers

attacks is the Pre-Alarm system. User should set his

account settings, provide his username and password

and enter his mobile phone number to enable the

trigger automatic warning messages. The

administrator has the privilege of changing the

application password, can send files via Bluetooth

through the application to his/her own mobile phone,

and can launch the mobile application from within

the Desktop Application.

4.2.4 Activation Testing

After activating the pinging process, the application

is checked to ensure that the MAC addresses in the

AdminMac and TrustedMac files are being pinged

simultaneously. All the trusted devices including the

admin device should be out of range for the system to

lock. Ping should stop only when deactivated.

Pushing the lock process to take place by moving the

device out of the Bluetooth range proves this and

then moving it within range, hence when unlocked,

ping is verified. The unlock process of the

application may face some defects that may lead the

system to crash.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

514

4.2.5 Operating System Detection Testing

The application is tested on both platforms, Windows

and Linux. The detection of OS holding the

application is perfectly done and suitable code is

automatically launched corresponding to the platform

being boot.

4.3 Mobile Application Testing

The mobile application enables the user to have full

control over the desktop holding the application. The

application is verified to be able to allow the admin

to browse, access all resources, and have full control

over the PC hosting the application. The mobile

server that enables the full control over the PC,

works on both internet and Bluetooth technologies. A

password should be provided for authentication for

the connection to take place. The mobile application

takes some time after connecting to stream the PC

screen and consequently click events trigger the

execution process. Integrating the application

increments all together, system should be tested as a

whole to ensure reduced errors, acceptable

performance and tolerable errors.

5 CONCLUSIONS AND FUTURE

WORK

BlueKey provides the user an ease of use during the

authentication process, and an ease of mind for

knowing that the personal resources are safe, and a

full control from a 24/24 companion, which is the

user’s mobile phone. The authentication process is

no longer manual; the PC knows the user and

authenticates him/her without even providing a

password. Moreover, the application changes the PC

into a smarter one since it enables it to lock itself

whenever the user is out of the desktop Bluetooth

range; it becomes automatically safe even if the user

leaves it unlocked. It provides efficiency of time and

minimization of effort, through the remote desktop

control that can be done in all times anywhere, from

the mobile screen via Bluetooth or Internet. Future

plans include finalizing the development of the Pre-

alarm messaging system and adding more features to

it, such as allowing the warning messages to be sent

via the Web for free.

REFERENCES

Harris S., 2011. textbook, 200075, Available:

www.cccure.org/Documents/Cryptography/cisspallino

ne.pdf

Bishop M., 2004. Introduction to Computer Security,

Addison-Wesley.

Whitte J. L., 1986. Bentley-Whitten. Systems Analysis and

Design for Global Enterprise 7th, McGraw-Hill

International Edition, pp 31-32.

Choubey M. K., 2012. IT Infrastructure and Management

(For the GBTU and MMTU). p. 53.

Microsoft, 2015. Locking and Unlocking a User Desktop,

http://technet.microsoft.com/en-us/library/

dd277426.aspx.

Spidle J., 2015. How to Lock Down the Desktop in Linux,

http://www.ehow.com/how_5887726_lock-down-

desktop-linux.html.

Desktop Lock, 2014, http://www.toplang.com/

desktoplock.htm.

PC Lockup, 2014, http://www.softheap.com/wlock.html.

BlueKey-ABluetoothSecureSolutionforAccessingPersonalComputers

515
