KIKIMIMI

Voice Separation System for Automating Post Evaluation

of Learning Support System

Takahiro Nakadai

, Tomoki Taguchi

, Ryohei Egusa

, Miki Namatame

, Masanori Sugimoto

Fusako Kusunoki

, Etsuji Yamaguchi

, Shigenori Inagaki

Yoshiaki Takeda

and Hiroshi Mizoguchi

Department of Mechanical Engineering, Tokyo University of Science, 2641 Yamazaki, Noda-shi, Chiba-ken, Japan

Graduate School of Human Development and Environment, Kobe University, Hyogo, Japan

Tsukuba University of Technology, Ibaraki, Japan

Hokkaido University, Hokkaidou, Japan

Department of Computing, Tama Art University, Tokyo, Japan

Keywords: Kinect Sensor, Microphone Array, Signal Processing, Learning Support System.

Abstract: A learning support system with a body experience has a favorable influence on learning in children because

they obtain a sense of immersion. It is important to evaluate the learning effect of a learning support system.

However, the learning effect of the learning support system was almost evaluated manually in previous

research. The authors propose an evaluation system called “KIKIMIMI” for automating the post-evaluation

of a learning support system by reactions from the learner’s voice. In this paper, we report the validity of

KIKIMIMI as a system for automating a post-evaluation.

1 INTRODUCTION

A learning support system with a body experience

has a favorable influence on learning in children

because they obtain a sense of immersion. It is also

very good for children to interact with computers.

The extinct animals learning system is the major

example (Figure 1-2) (Tomohiro Nakayama, 2014).

The extinct animals learning can only be learned

with a textbook because it is not possible to go back

in time. Therefore, a learning support system with a

body experience is effective.

However, the learning effect of the learning

support system was almost evaluated manually in

previous research using, for example, a

questionnaire, an interview, a post-evaluation by a

recording, and so on. The authors focused on a post-

evaluation using a learner’s voice recording.

The technology for automating the post-evaluation

of a learning support system by reactions from the

learner’s voice has been thoroughly researched

(Tomoki Taguchi, 2014). The technology researched

until now is shown in Figure 1. Automation of the

post-evaluation by a static learner’s voice recording

is shown in Figure 1. However, research on the

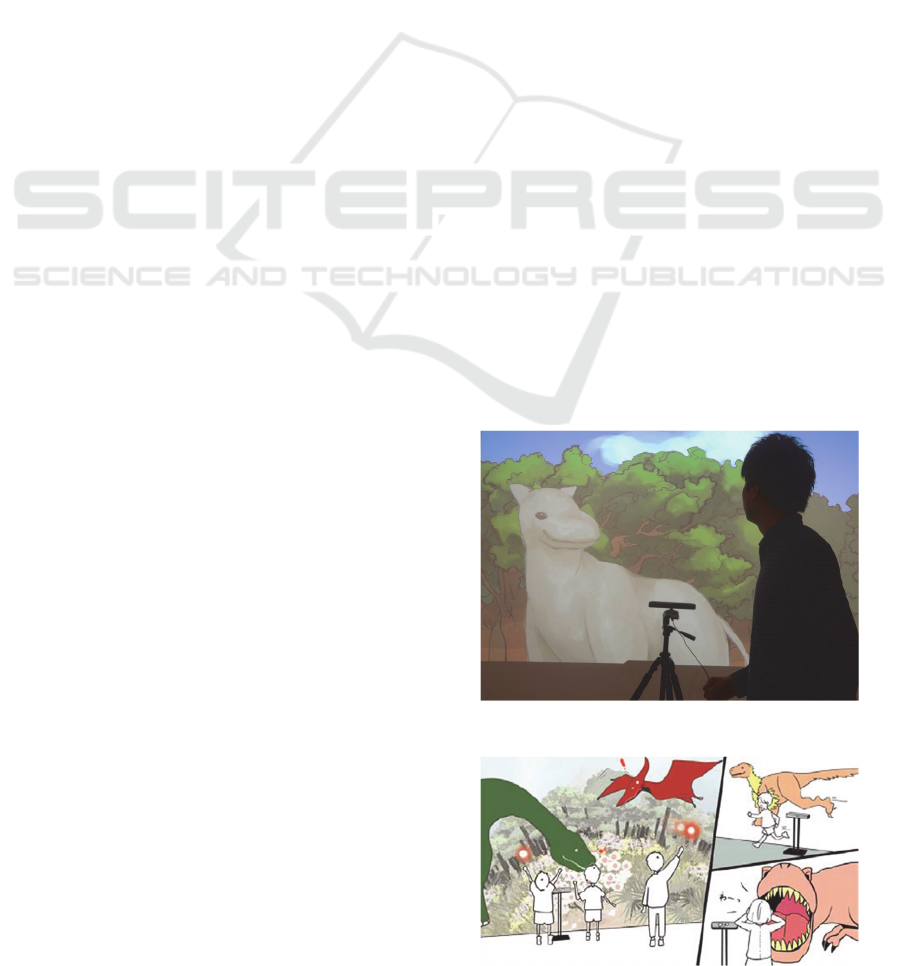

Figure 1: The extinct animals learning system.

Figure 2: Learning support system.

301

Nakadai T., Taguchi T., Egusa R., Namatame M., Sugimoto M., Kusunoki F., Yamaguchi E., Inagaki S., Takeda Y. and Mizoguchi H..

KIKIMIMI - Voice Separation System for Automating Post Evaluation of Learning Support System.

DOI: 10.5220/0005476303010306

In Proceedings of the 7th International Conference on Computer Supported Education (CSEDU-2015), pages 301-306

ISBN: 978-989-758-108-3

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

Figure 3: Flowchart of the developed technology.

evaluation by a moving learner’s voice recording is

being developed. If this research advances, all of the

learners’ voices in a spacious room can be separated

selectively. This research is very important (Figure

3).

In this research, we propose an evaluation

system called “KIKIMIMI” for automating the post-

evaluation of a learning support system by reactions

from the learner’s voice. In this paper, we describe

the details of KIKIMIMI.

2 AUTOMATING THE

POST-EVALUATION SYSTEM

2.1 Problems Associated with Wireless

Microphones

Here, we describe the methods used to record a

learner’s voice from previous research. It is

important for the field of education to perform an

evaluation by recording a voice. As a resort, learners

were recorded by a wearable microphone, e.g., a

noise-cancelling microphone and wireless

microphone (Masafumi Goseki, 2012). A wearable

microphone has some problems. It is a burden for

children to wear a heavy wireless microphone. In

addition, a distraction, psychological and physical

burdens, and an increase in tension of children are

also problems associated with the use of a wireless

microphone. A distraction is caused when children

recognize the wearable microphone. As a result,

children’s interest decreases. Psychological and

physical burdens are caused when the wearable

microphone is too heavy for children. As a result,

the children cannot act as a natural learner. An

increase in tension is caused when the learner is in

an unnatural state. Children almost never have a

wearable microphone in a general environment.

Children may be uncomfortable because they are

unnatural with the wearable microphone. Therefore,

a noncontact recording technique is needed in the

field of education. We propose KIKIMIMI to solve

these problems.

2.2 Proposed Techniques

We now describe the details of the proposed

techniques. There are many necessary techniques for

noncontact recordings, e.g., a hands-free function,

noise-canceling, and a voice-separation technique

(Takahiro Nakadai, 2014). These techniques do not

need a medium to record using a wearable

microphone. The voice-separation technique can

selectively separate to remove noise. This technique

is noncontact recording.

In this research, we utilized the voice-separation

technique because it is a noncontact recording

technique and could capture sound at an objective

angle locally. This technique is combined with a

microphone array with signal processing that can

separate children’s voices from background noise in

general living environments.

We proposed the KIKIMIMI system for

automating the post-evaluation of a learning support

system by reactions from the learner’s voice in this

research.

3 VOICE-SEPARATION SYSTEM

3.1 Separation Technique

Here, we describe the voice-separation technique

applied to KIKIMIMI. We selected the method

called delay-and-sum beamforming (DSBF) because

it is robust in real environments (Ngoc-Vinh Vu,

2010). DSBF is a method in which an objective

voice can be amplified. The method uses the time

lag of an input signal during signal processing. The

outline of this method is shown in Figure 4. The

delay times are calculated by the distance from an

objective talker to each microphone. An objective

Record by Camera or Microphone

Use Wearable Microphone

Voice Separation with Kinect Sensor

The Learner： Static

Voice Separation with Kinect Sensor

The Learner： Moving

Voice separation of All Learners in

Spacious Room

CSEDU2015-7thInternationalConferenceonComputerSupportedEducation

302

Figure 4: Schematic of the DSBF method.

voice can be amplified with an additional delay time.

This position of an objective voice is called “focus,”

which is applied for voice separation of the objective

talker.

However, the moving learner’s position is

uncertain when a moving learner is playing with the

learning support system. In order to determine their

focus, we need a way to recognize the moving

learner’s position. Therefore, we selected the Kinect

sensor by Microsoft (Riyad A. El-laithy, 2012). We

can capture a learner’s head-position information

with the recording-time information from the depth

sensor. We can continue updating to determine the

focus of the moving learner’s head position. As a

result, the voice-separation technique is able to be

applied to a moving learner. We can capture the

objective learner’s voice from the background noise.

3.2 Details of KIKIMIMI

A photograph of the Kinect sensor is shown in

Figure 5. The details of the Kinect sensor are shown

in Figure 6. The microphones in this Kinect sensor

are installed as four elements. Four microphone

elements can synchronize a recording. The depth

sensor can obtain the head-position information of a

detected person by recording the time information.

Four recording files and the head-position

information can synchronize a recording.

The details of KIKIMIMI are shown in Figure 7.

Four recording files are obtained from the four

microphone elements in the Kinect sensor. We can

capture the learner’s head-position information with

the recording-time information from the depth

sensor. We can continue updating to determine the

focus of the moving learner’s head position

combined with the head-position and recording-time

information. As a result, the voice-separation

technique is able to be applied to a moving learner.

We can capture the objective learner’s voice from

the background noise.

Figure 5: Photograph of the Kinect sensor.

Figure 6: Kinect sensor.

Figure 7: Voice-separation system.

Microphone

Depth Sensor

Kinect sensor

Head Position

Rec.

Vo i c e

Rec.

Vo i c e

Rec.

Vo i c e

Rec.

Vo i c e

Separated Voice

Kinect sensor

KIKIMIMI System

KIKIMIMI-VoiceSeparationSystemforAutomatingPostEvaluationofLearningSupportSystem

303

4 OPERATING KIKIMIMI

4.1 Operating Environment

Here, we describe the operating environment when

KIKIMIMI is operating, as shown in Figure 8–10.

First, KIKIMIMI was installed. Second, the learner

moved linearly in front of KIKIMIMI (2.5–3.0 m).

Finally, two people talking were placed near the

learner.

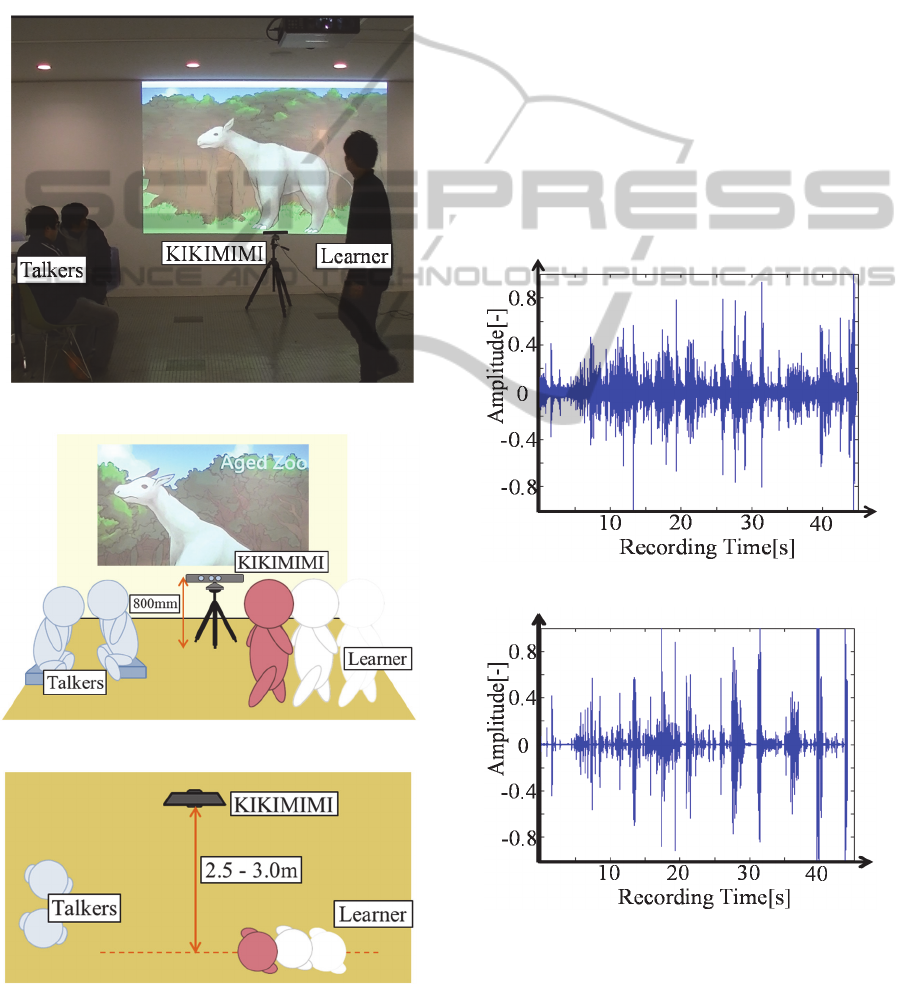

Figure 8: Operating state of KIKIMIMI.

Figure 9: Operating environment #1.

Figure 10: Operating environment #2.

Two people were talking without minding

anything. We confirmed that KIKIMIMI operated in

an environment with confusing background noise

such as environmental noise and another talking

voice.

KIKIMIMI operated using the Kinect sensor. We

can obtain four recording files. We can also obtain

the learner’s head-position information with

recording-time information from the depth sensor.

Some information obtained by KIKIMIMI was

utilized for the sound-separation technique.

4.2 Operating Results

Some results obtained by KIKIMIMI are now

presented. We compared the results before voice-

separation signal processing with those after this

signal processing. The results are shown in Figure

11–12. Figure 11 shows a waveform before voice-

separation signal processing. Figure 12 shows a

waveform after voice-separation signal processing.

Figure 11: Before signal processing.

Figure 12: After signal processing.

The vertical and horizontal axes show the voice

amplitude and recording time, respectively. Figure

11 shows are very noisy waveform. The voices of

CSEDU2015-7thInternationalConferenceonComputerSupportedEducation

304

two people talking and environmental noise are

present in Figure 11. Consequently, the learner’s

voice was not able to be heard because it was

obscured by noise. Figure 12 is clearer than Figure

11. We can recognize some of the recorded voices,

e.g., “It’s very big,” “Have a good coat of hair,”

“They live in such a forest,” “It’s cute,” and so on.

We can also recognize a nonverbal voice in some of

the recorded voices, e.g., “Oh,” “Awesome,” “What,”

and so on. As a result, we can also recognize

nonverbal voices or reactions.

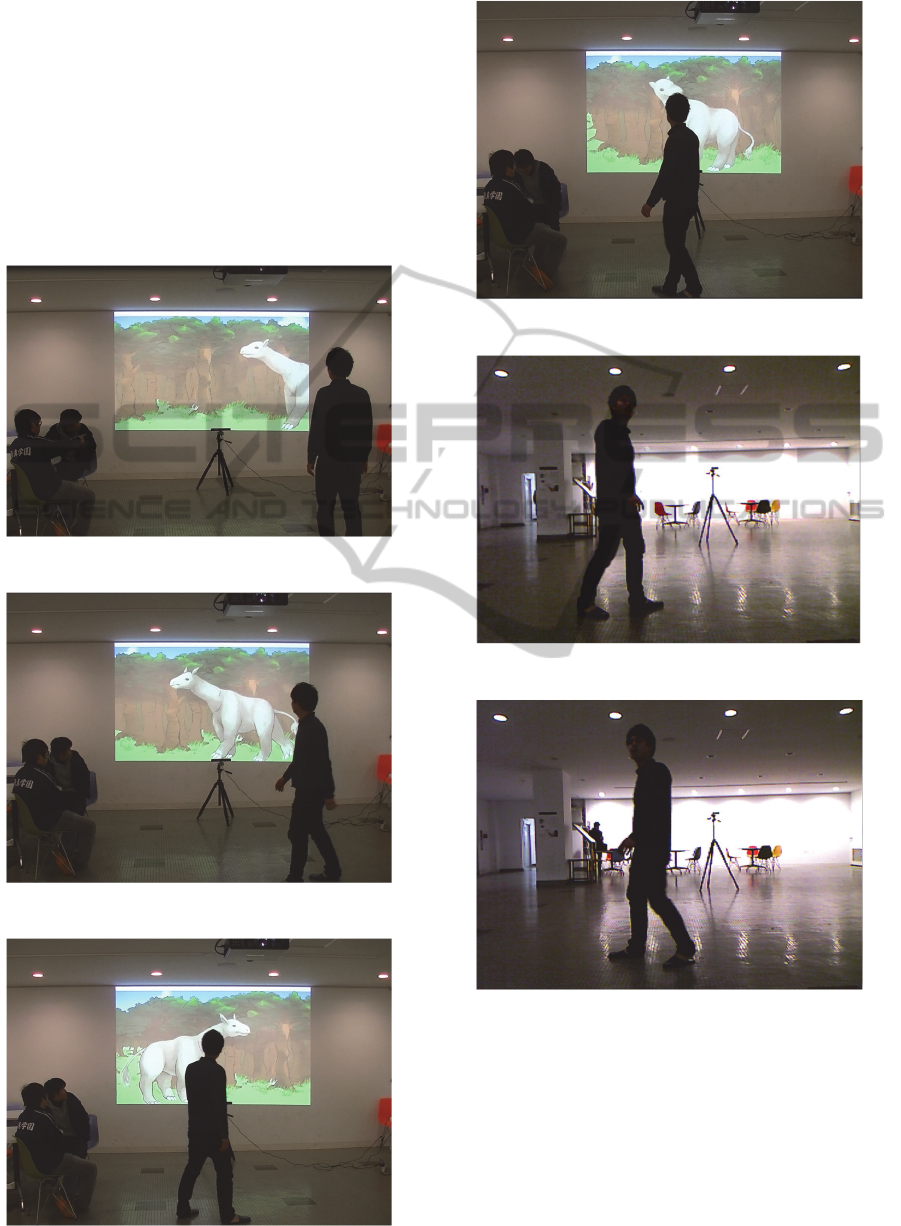

Figure 13: Operating KIKIMIMI after 10 s.

Figure 14: Operating KIKIMIMI after 20 s #1.

Figure 15: Operating KIKIMIMI after 20 s #2.

Figure 16: Operating KIKIMIMI after 30 s.

Figure 17: Perspective from Kinect sensor #1.

Figure 18: Perspective from Kinect sensor #2.

The operating states of KIKIMIMI are shown in

Figure 13–16. Figure 13 shows the operation of

KIKIMIMI after 10 s, where the learner gets used to

the learning support system. In the same way, this is

the period of time during which the two people

begin talking. In Figure 14–15, the operation of

KIKIMIMI is shown after 20 s, where the learner

moves linearly. Figure 16 shows the operation of

KIKIMIMI after 30 s, where the learner was finding

KIKIMIMI-VoiceSeparationSystemforAutomatingPostEvaluationofLearningSupportSystem

305

a characteristic of the learning support system. The

learner stopped and vocalized nonverbal voices.

As a reference, the perspectives from the Kinect

sensor are shown in Figure 17–18. From the above,

we can obtain a noncontact recording of the moving

learner’s voice when they are playing with the

learning support system. Consequently, it is

concluded that KIKIMIMI is a suitable system for

automating a post-evaluation.

5 CONCLUSIONS

In this paper, we proposed an evaluation system

called “KIKIMIMI” for automating the post-

evaluation of a learning support system by reactions

from a learner’s voice. The focus of this study was

on the post-evaluation of a learner’s voice recording.

We selected a voice-separation technique because it

could capture a noncontact recording and sound at

an objective angle locally. We could capture a

learner’s head-position information by recording the

time information from the depth sensor. We aimed

to obtain a noncontact recording of the moving

learner’s voice when they are playing with the

learning support system.

In this research, we confirmed that KIKIMIMI

operated in environment with confusing background

noise for automating a post-evaluation. As a result, it

is suggested that KIKIMIMI can possibly capture an

objective voice.

In the future, KIKIMIMI will be used as a

system for automating a post-evaluation.

ACKNOWLEDGEMENTS

This work was supported in part by Grants-in-Aid

for Scientific Research (B). I am particularly

grateful for the illustration (Figure 2) produced by

Ms. Midori Aoki.

REFERENCES

Tomohiro Nakayama, Ryuichi Yoshida, Takahiro Nakadai,

Takeki Ogitsu, Hiroshi Mizoguchi, Kaori Izuishi,

Fusako Kusunoki, Keita Muratsu, and Shigenori

Inagaki, “Immersive Observation Support System

toward Realization of 'Interactive Museum' -Observing

'Live' Extinct Animals while Walking in a Virtual

Paleontological Environment-,” Proceedings of the

11th International Conference on Advances in

Computer Entertainment Technology (ACE2014),

Poster_149(1)-(4), November 2014.

Tomoki Taguchi, Ryohei Egusa, Masanori Sugimoto,

Fusako Kusunoki, Etsuji Yamaguchi, Shigenori

Inagaki, Yoshiaki Takeda, and Hiroshi Mizoguchi,

“Developing Voice Separation System for Support

Education Research: Determining Learner Reaction

without Contact,” Journal of Convergence Information

Technology (JCIT), Vol. 9, No. 3, pp.12-17, May

2014.

Takahiro Nakadai, Tomohiro Nakayama, Tomoki

Taguchi, Ryohei Egusa, Miki Namatame, Masanori

Sugimoto, Fusako Kusunoki, Etsuji Yamaguchi,

Shigenori Inagaki, Yoshiaki Takeda, and Hiroshi

Mizoguchi, “Sound-Separation System using

Spherical Microphone Array with Three-Dimensional

Directivity-KIKIWAKE 3D: Language Game for

Children,” International Journal on Smart Sensing and

Intelligent Systems (S2IS), Vol. 7, No. 4, pp.1908-

1921, December 2014.

Masafumi Goseki, Ryohei Egusa, Takayuki Adachi,

Hiroshi Mizoguchi, Miki Namatame, Fusako

Kusunoki, Shigenori Inagaki, “Puppet Show for

Entertaining Hearing-Impaired, Together with

Normal-Hearing People—A Novel Application of

Human Sensing Technology to Inclusive Education,”

International Conference on Innovative Engineering

Systems (ICIES2012), pp.121-124, December 2012.

Nogoc-Vinh Vu, Hua Ye, J. Whittington, J. Devlin, and

M. Mason, “Small Footprint Implementation of Dual-

Microphone Delay-and-Sum Beamforming for In-Car

Speech Enhancement,” IEEE International Conference

on Acoustics, Speech, and Signal Processing, pp.1482-

1485, March 2010.

Riyad A. El-laithy, Jidong Huang, and Michael Yeh,

“Study on the Use of Microsoft Kinect for Robotics

Applications,” IEEE/ION International Conference on

Position Location and Navigation Symposium

(PLANS), pp.1280-1288, April 2012.

CSEDU2015-7thInternationalConferenceonComputerSupportedEducation

306
