Towards Transactional Electronic Services on Mobile End-user Devices

A Sustainable Architecture for Mobile Signature Solutions

Thomas Zefferer

Institute for Applied Information Processing and Communications (IAIK), Graz University of Technology,

Inffeldgasse 16a, 8010 Graz, Austria

Keywords:

Mobile Signature Solution, Mobile Devices, Assessment, Architecture, Security, Usability.

Abstract:

In the European Union, transactional e-services from security-critical domains such as e-government or e-

banking often require users to create legally binding electronic signatures. Currently available solutions, which

enable users to create such signatures, have usually been designed for classical end-user devices such as

desktop computers or laptops and cannot be applied on mobile end-user devices. This complicates a use

of transactional e-services on mobile devices and excludes a growing number of users, who prefer mobile

access to services. To address this problem, this paper develops a mobile signature solution that can be

applied on mobile end-user devices. Possible architectures for this solution are systematically derived from

a generic model ﬁrst. The best alternative is subsequently determined by means of systematic assessments.

This ﬁnally yields a technology-agnostic mobile signature solution that can be used as a basis for concrete

implementations. By keeping the proposed solution on a rather abstract level, its validity is assured, even

if available mobile technologies and the current state of the art change. This way, the proposed solution

represents a sustainable basis for future signature solutions and paves the way for transactional e-services on

mobile end-user devices.

1 INTRODUCTION

Electronic signatures have evolved to a fundamen-

tal building block of transactional electronic services

(e-services). Relying on asymmetric cryptographic

methods such as RSA (Rivest et al., 1978) or ECDSA

(ANSI, 2005), electronic signatures provide integrity,

authenticity, and non-repudiation. Electronic sig-

natures are for instance frequently used in the e-

government domain to obtain written consent from

remote users. Furthermore, they are also employed

by e-banking solutions to facilitate a remote autho-

rization of ﬁnancial transactions. The potential of

electronic signatures has been especially recognized

in the European Union (EU), where EU laws such

as the EU Signature Directive (The European Parlia-

ment and the Council of the European Union, 1999)

or the EU eIDAS Regulation (The European Parlia-

ment and the Council of the European Union, 2014)

provide a legal foundation for electronic signatures.

Concretely, these laws deﬁne the concept of Quali-

ﬁed Electronic Signatures (QESs). QESs represent

a special class of electronic signatures and are de-

ﬁned to be legally equivalent to handwritten signa-

tures. Therefore, QESs are especially relevant for

transactional e-services that require legally binding

written consent from remote users. The relevance

of QESs raises the need for signature solutions that

enable users to create legally binding electronic sig-

natures in online procedures. During the past years,

such solutions have been developed in various Euro-

pean countries. Examples are smart card based so-

lutions, which have for instance been introduced and

deployed in Austria (Leitold et al., 2002), Belgium

(Fairchild and de Vuyst, 2012), or Portugal (Ag

encia

para a Modernizac¸

ao Administrativa, 2015). Other

signature solutions available in Europe enable users to

create QESs using their mobile phones. Examples are

the Austrian Mobile Phone Signature (A-Trust, 2015)

or the Estonian Mobiil-ID (ID.ee, 2015). During the

past years, available signature solutions have facili-

tated transactional e-services from various domains.

For a long time, transactional e-services have been

developed for classical end-user devices such as desk-

top computers and laptops. Accordingly, existing sig-

nature solutions are tailored to the characteristics of

these devices as well. This applies to smart card

based solutions as well as to approaches relying on the

user’s mobile phone. Existing signature solutions im-

plicitly assume that the user accesses e-services with

586

Zefferer T..

Towards Transactional Electronic Services on Mobile End-user Devices - A Sustainable Architecture for Mobile Signature Solutions.

DOI: 10.5220/0005482405860597

In Proceedings of the 11th International Conference on Web Information Systems and Technologies (WEBIST-2015), pages 586-597

ISBN: 978-989-758-106-9

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

a desktop computer or laptop and in addition makes

use of a smart card or a mobile phone to create re-

quired QESs. Unfortunately, this assumption is not

valid any longer. During the past few years, desktop

computers and laptops have been gradually replaced

by smartphones and related mobile end-user devices.

This raises various challenges for e-service, which

need to be prepared for access by mobile devices. In

particular, this also applies to existing signature solu-

tions for the creation of QESs. Being tailored to the

characteristics of classical end-user devices, these so-

lutions usually cannot be applied on smartphones and

other mobile end-user devices. For instance, mobile

devices usually lack support for card-reading devices,

which are a prerequisite for smart card based solu-

tions. Similarly, signature solutions relying on mobile

phones usually cannot be applied on smartphones or

tablet computers either, as their underlying security

concepts have been designed for scenarios, in which

the mobile phone is used as an additional device and

is solely used during the creation of QESs. The in-

appropriateness of existing signature solutions raises

the need for new solutions that enable users to create

QESs on modern mobile end-user devices. Only if

such solutions are provided, transactional e-services

can be adapted such that they can be accessed from

and used with mobile end-user devices.

To facilitate the development and provision of

such a solution, this paper identiﬁes possible architec-

tures and assesses them with regard to relevant suc-

cess factors. This way, the best architecture of sig-

nature solutions for mobile end-user devices is deter-

mined and a sustainable basis for concrete implemen-

tations is provided. To achieve this goal, a thorough

methodology is followed, which is also reﬂected by

the structure of this paper. In Section 2, requirements,

success factors, and relevant target platforms are iden-

tiﬁed. From the identiﬁed requirements, an abstract

model is derived in Section 3. This model is used

to systematically identify possible architectures. In

Section 4 and Section 5, all possible architectures are

assessed in terms of the success factors identiﬁed in

Section 2. This way, the most suitable architecture is

determined. Conclusions are ﬁnally drawn in Section

2 PRELIMINARIES

Signature solutions that enable users to create QESs

on their mobile devices need to satisfy several require-

ments. At the same time, these solutions also need

to consider relevant success factors. Finally, relevant

target platforms must be identiﬁed, on which these

solutions shall be applicable. As preparation for the

identiﬁcation of possible architectures, these aspects

are discussed in this section.

2.1 Requirements

Putting the focus on the EU, relevant requirements for

legally binding electronic signatures, i.e. QESs, are

mainly deﬁned in EU laws. Concretely, the EU eI-

DAS Regulation (The European Parliament and the

Council of the European Union, 2014), which is about

to replace the EU Signature Directive (The European

Parliament and the Council of the European Union,

1999), deﬁnes the concept of QESs, its relation to

other types of electronic signatures, and requirements

that must be met by QESs. From this regulation, the

following set of basic requirements for QESs can be

extracted:

• R1: Reliance on QSCD. QESs must be cre-

ated with a Qualiﬁed Signature Creation Device

(QSCD). QSCDs are certiﬁed hardware devices

that are able to reliably and securely store crypto-

graphic key material and that are capable to carry

out cryptographic operations using this key mate-

rial. Requirements of QSCDs are deﬁned in An-

nex II of the EU eIDAS Regulation (The Euro-

pean Parliament and the Council of the European

Union, 2014). Requirements for the related con-

cept of Secure Signature Creation Devices (SS-

CDs), which represent the pendant to QSCDs in

the EU Signature Directive (The European Par-

liament and the Council of the European Union,

1999), are also deﬁned in relevant standards such

as the CEN Workshop Agreement 14169 (CEN,

2004).

• R2: Reliance on Qualiﬁed Certiﬁcates. Ac-

cording to the EU eIDAS Regulation (The Eu-

ropean Parliament and the Council of the Eu-

ropean Union, 2014), QESs must be based on

qualiﬁed certiﬁcates. These are electronic certiﬁ-

cates that need to satisfy several special require-

ments, which are deﬁned in Annex I of the EU

eIDAS Regulation (The European Parliament and

the Council of the European Union, 2014). Most

of these requirements deﬁne mandatory contents

of qualiﬁed certiﬁcates.

• R3: Appropriate User Authentication. QESs

are based on so-called advanced electronic sig-

natures (AdESs), which are also deﬁned by the

EU eIDAS Regulation (The European Parliament

and the Council of the European Union, 2014).

According to Art. 26 of this regulation, AdESs

and hence also QESs must be ’created using elec-

tronic signature creation data that the signatory

TowardsTransactionalElectronicServicesonMobileEnd-userDevices-ASustainableArchitectureforMobileSignature

Solutions

587

can, with a high level of conﬁdence, use under his

sole control’ (The European Parliament and the

Council of the European Union, 2014). This im-

plies that solutions for the creation of QESs must

implement a reliable user authentication and au-

thorization mechanism, in order to reliably pro-

tect the user’s cryptographic key material stored

in the QSCD. This usually implies application

of a multi-factor authentication scheme including

for example the authentication factors Knowledge

and Possession.

Based on these three basic requirements, possible

architectures of signature solutions for mobile end-

user devices will be systematically derived in Section

2.2 Success Factors

According to the followed methodology, identiﬁed

possible architectures will be assessed with regard

to relevant success factors. So far, there is hardly

any speciﬁc related work on success factors of sig-

nature solutions for mobile devices. Hence, we ob-

tain relevant success factors from related work on mo-

bile applications, mobile government, and signature

solutions for classical end-user devices. Concretely,

we consider works by (El-Kiki and Lawrence, 2006),

(Al-khamayseh et al., 2007), (El-Kiki, 2007), (Karan

and Khoo, 2008), and (Al-Hadidi and Rezgui, 2009).

Although these works identify relevant success

factors on different levels of abstraction, several com-

mon ﬁndings can be extracted. Concretely, the factors

Security, Usability, and Feasibility are identiﬁed as

key for success by most authors. We hence focus on

these factors when assessing possible architectures of

signature solutions for mobile end-user devices. The

factors Security and Usability will be explicitly con-

sidered by conducting respective assessments in Sec-

tion 4 and in Section 5, respectively. In addition, the

success factor Feasibility is implicitly considered by

limiting the identiﬁcation of possible architectures to

those being feasible on current mobile end-user de-

vices.

2.3 Target Platforms

To assess possible architectures, characteristics of

mobile platforms, i.e. mobile end-user devices and

mobile operating systems, must be taken into account.

Currently available mobile platforms differ in terms

of inherent characteristics, provided features, capa-

bilities, and limitations. Hence, a growing number

of considered platforms increases the complexity of

conducted assessments. Therefore, we limit our as-

sessments to the two currently dominating platforms

Google Android (Google, 2015) and Apple iOS (Ap-

ple, 2015). This is reasonable, as these two platforms

together share more than 95% of the entire smart-

phone market (mobiForge, 2015).

3 POSSIBLE ARCHITECTURES

The development of signature solutions that support

the creation of QESs is a challenging task, as several

legal requirements, success factors, and characteris-

tics of employed end-user devices need to be consid-

ered. In this section, possible architectures for such

solutions are identiﬁed. For this purpose, an abstract

model is introduced ﬁrst. This model is derived from

the identiﬁed requirements of QESs. Subsequently,

possible architectures are derived from this abstract

model.

3.1 Abstract Model

The legal basis of QESs deﬁnes three basic require-

ments. From these requirements, an abstract model

of signature solutions can be derived. This model

is intentionally kept on a technology-agnostic and

implementation-independent level. This way, it can

serve as basis for the systematic identiﬁcation of pos-

sible architectures. The derived abstract model is

shown in Figure 1. It identiﬁes relevant components

of signature solutions supporting QESs and illustrates

basic interactions between these components.

The abstract model shown in Figure 1 consists of

the Signatory and four top-level components, i.e. the

QSCD, the Signature Creation Application (SCA),

the Service Provider (SP), and the User Client (UC).

The functionality of the SCA is covered by three sub-

components, i.e. the Signature Processing Compo-

nent (SPC), the Signatory Authentication Component

(SAC), and the DTBS Viewer (DTBSV). According

to the model shown in Figure 1, a typical signature-

creation process comprises the following steps:

1. The Signatory uses the UC to access a service pro-

vided by the SP.

2. The SP requires the Signatory to create a QES.

Hence, the SP sends the Data-To-Be-Signed

(DTBS) to the SPC.

3. The SPC forwards the DTBS to the QSCD, which

is required to create the QES according to Re-

quirement R1.

4. To cover Requirement R3, the QSCD requires the

Signatory to provide valid Authentication Data

WEBIST2015-11thInternationalConferenceonWebInformationSystemsandTechnologies

588

Signature Creation Application (SCA)

User Client

(UC)

Signatory

User Interaction

DTBS Viewer

(DTBSV)

Service

Provider (SP)

Service

Provision

QSCD

DTBS

Signature

Processing

Component

(SPC)

Signatory

Authentication

Component

(SAC)

DTBS

Binding

DTBS

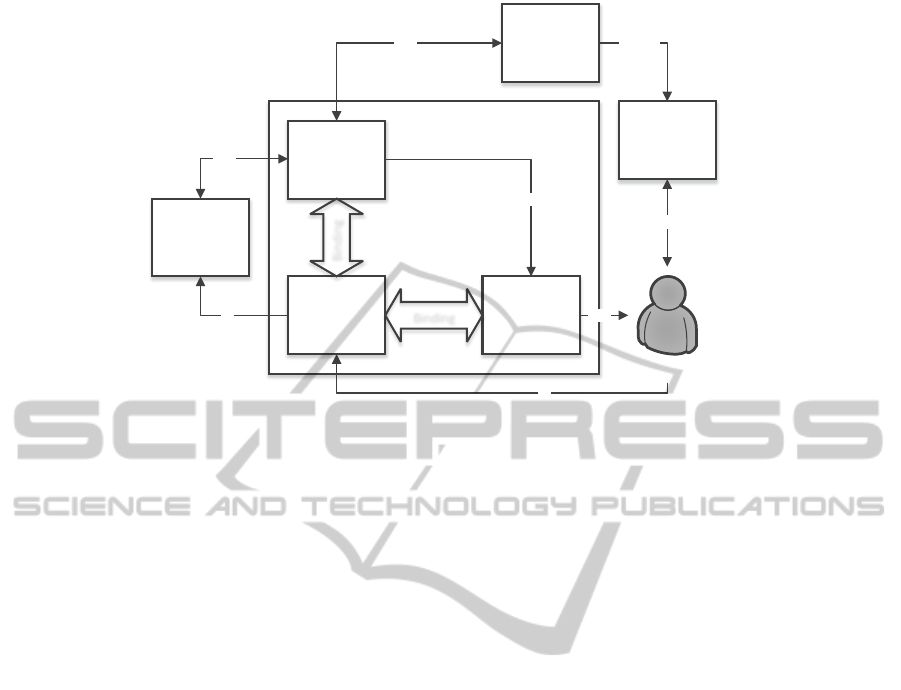

Figure 1: Abstract model.

(AD), in order to authorize the signature-creation

process in the QSCD.

5. Required AD are collected by the SAC.

6. At the same time, the SPC forwards the DTBS to

the DTBSV. The DTBSV displays the DTBS, so

that the Signatory can check whether or not he or

she wants to provide the required AD.

7. After provision of the AD, the SAC forwards the

AD to the QSCD.

8. The QSCD creates the QES on the DTBS.

9. The resulting Signed Data (SD) are returned to the

SPC, which forwards them to the SP.

10. The Signatory is notiﬁed of the successful

signature-creation process via the UC.

In addition to this basic process ﬂow, two aspects

need to be noted. First, there must be bindings be-

tween subcomponents of the SCA as illustrated in

Figure 1. These bindings assure that the DTBS for-

warded to the QSCD correspond to the DTBS dis-

played to the Signatory and that provided AD are used

to authorize the signing of displayed DTBS only. Sec-

ond, Requirement R2 is not directly covered by this

abstract model. As Requirement R2 mainly concerns

the structure and contents of issued signing certiﬁ-

cates, this requirements needs to be considered during

the certiﬁcate-issuing process. This mainly concerns

the responsible Certiﬁcation Authority (CA), which is

not directly involved in signature-creation processes.

3.2 Architecture Candidates

The abstract model shown in Figure 1 identiﬁes rel-

evant components and deﬁnes the basic process ﬂow

of a signature-creation process. Due to its abstract na-

ture, this model is perfectly suitable to systematically

derive possible architectures of signature solutions for

mobile end-user devices.

To further develop the abstract model towards a

concrete solution, the implementation of the identi-

ﬁed components needs to be ﬁxed. Aiming for a sig-

nature solution that can be applied on mobile end-

user devices, identiﬁed components can—from a con-

ceptual perspective—be implemented in two different

ways. They can either be implemented locally on the

mobile device or remotely in a server environment.

By varying locally and remotely implemented com-

ponents, different architectures can be derived. As

the abstract model comprises six (sub)components,

there are 64 different variations. However, only three

(sub)components can be implemented remotely in

practice, as all components with direct user inter-

face to the Signatory must be implemented locally

in any case. Hence, only the QSCD, the SPC, and

the SP can be implemented either locally or remotely.

This reduces the number of possible variations to

eight. These eight variations can be subsumed to four

architectures by varying the implementation of the

QSCD and the SPC only. Accordingly, each of these

four architectures must consider both a Local Service

Provider (LSP) and a Remote Service Provider (RSP).

The four resulting architectures are shown in Figure 2.

The four possible architectures, i.e. architecture

candidates (ACs),all comprise the same components

TowardsTransactionalElectronicServicesonMobileEnd-userDevices-ASustainableArchitectureforMobileSignature

Solutions

589

User Domain

Signature Creation Application

(SCA)

Signatory

Authentication

Component

(SAC)

Signatory

DTBS Viewer

(DTBSV)

Service Provider Domain

Remote

Service

Provider (RSP)

User Client

(UC)

DTBS

Local

Service

Provider

(LSP)

Service

Provision

Signature

Processing

Component

(SPC)

DTBS

QSCD

Service Provision

Binding

DTBS

User Interaction

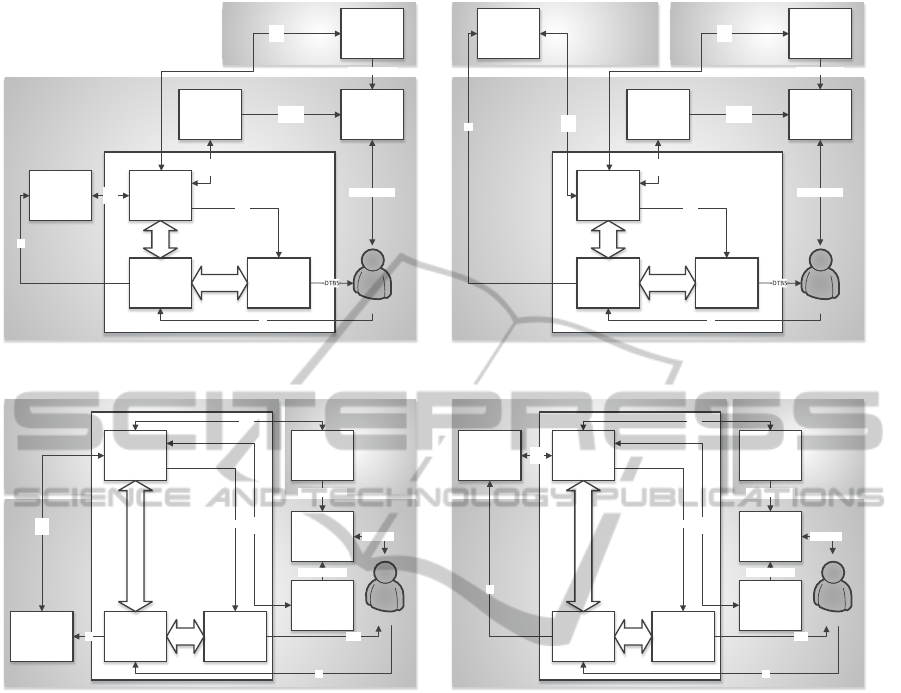

(a) Architecture Candidate A (AC A).

Signature-Service

Provider Domain

User Domain

Signature Creation Application

(SCA)

Signatory

Authentication

Component

(SAC)

Signatory

DTBS Viewer

(DTBSV)

Service Provider Domain

Remote

Service

Provider (RSP)

User Client

(UC)

DTBS

Local

Service

Provider (LSP)

Service

Provision

Signature

Processing

Component

(SPC)

DTBS

QSCD

Service Provision

Binding

DTBS

User Interaction

(b) Architecture Candidate B (AC B).

Signature-Service

Provider Domain

Service Provider Domain

User Domain

Signature

Creation

Application

(SCA)

Signatory

Authentication

Component

(SAC)

Signatory

DTBS Viewer

(DTBSV)

Remote

Service

Provider (RSP)

Signature

Processing

Component

(SPC)

QSCD

DTBS

Local

Service

Provider (LSP)

User Client

(UC)

DTBS

Service Provi sion

Service Provision

Binding

DTBS

Interaction

Signature-Service

Provider Domain

Service Provider Domain

User Domain

Signature

Creation

Application

(SCA)

Signatory

Authentication

Component

(SAC)

Signatory

DTBS Viewer

(DTBSV)

Remote

Service

Provider (RSP)

Signature

Processing

Component

(SPC)

QSCD

DTBS

Local

Service

Provider (LSP)

User Client

(UC)

DTBS

Service Provi sion

Service Provision

Binding

DTBS

Interaction

(d) Architecture Candidate D (AC D).

Figure 2: Architecture Candidates (ACs).

as the abstract model, from which they have been

derived. However, depending on the respective AC,

the components are spread over different domains.

The components LSP, UC, DTBSV, and SACs are

implemented in the local User Domain in any case.

Similarly, the RSP is always implemented in the re-

mote Service Provider Domain. Hence, the four ACs

mainly differ regarding their implementation of the

components QSCD and SPC.

As all ACs have been derived from the abstract

model shown in Figure 1, they implicitly comply with

the requirements identiﬁed in Section 2. Hence, they

can all be used as basis for the development of sig-

nature solutions for mobile end-user devices. To de-

termine the most appropriate approach, the four ACs

are assessed with regard to the identiﬁed relevant suc-

cess factors Security and Usability in the following

sections.

4 SECURITY ASSESSMENT

Security is crucial for signature solutions that enable

users to create legally binding QESs. These solutions

must assure that created signatures cannot be forged

and that access to secret cryptographic signing keys

is restricted to the legitimate Signatory. The level of

provided security depends on the concrete implemen-

tation, but is also heavily inﬂuenced by the underlying

architecture. In this section, the four identiﬁed ACs

shown in Figure 2 are assessed in order to reveal their

advantages and disadvantages in terms of security.

4.1 Methodology

A thorough security assessment requires an elabo-

rate methodology to assure meaningful results. Exist-

ing approaches such as Common Criteria (CC) based

concepts (Common Criteria, 2013) are useful to as-

WEBIST2015-11thInternationalConferenceonWebInformationSystemsandTechnologies

590

sess a concrete solution but are less effective for the

comparison of different approaches on a pure con-

ceptual level. Hence, we only roughly base the fol-

lowed methodology on the approved concept of CC,

but adapt it where necessary. Concretely, the follow-

ing steps are conducted to assess and compare the four

ACs in terms of security. First, assumptions are made

to deﬁne the scope of the assessment. Then, rele-

vant assets are identiﬁed and mapped to the four ACs,

in order to identify protection-deserving components

and communication paths. This way, the security of

the four ACs can be compared on conceptual level.

Finally, capabilities of the two chosen target platforms

to appropriately protect protection-deserving compo-

nents and communication paths are analyzed. This

way, the implementation perspective is taken into ac-

count as well.

4.2 Assessment

Following the deﬁned methodology, the scope of the

conducted security assessment is deﬁned ﬁrst by mak-

ing two basic assumptions. First, we assume that

server-based components are secure. This is reason-

able, as these components can be operated in an es-

pecially protected environment such as certiﬁed data-

processing centers. Second, we assume that QSCDs

are secure. This is also a valid assumption, as QSCDs

need to undergo strict certiﬁcation procedures.

4.2.1 Assets

After deﬁning the security assessment’s scope, rele-

vant assets need to be identiﬁed. For the present use

case, relevant assets can be extracted directly from the

abstract model shown in Figure 1. Concretely, the fol-

lowing assets can be identiﬁed:

• DTBS. The DTBS must be protected from eaves-

dropping and unauthorized modiﬁcations by ad-

versaries. This is crucial to assure that exactly

those data deﬁned by the SP are signed. Further-

more, the DTBS must also be protected when be-

ing displayed to the Signatory via the DTBSV, in

order to enable the Signatory to check what ex-

actly is about to be signed.

• AD. The conﬁdentiality of the AD must be as-

sured to prevent adversaries, who are able to in-

tercept AD, from reusing them and from creating

QESs on behalf of the legitimate Signatory.

• SD. The integrity of the SD must be guaranteed, in

order to prevent adversaries from applying modi-

ﬁcations to invalidate the created QES. Depend-

ing on the use case, the conﬁdentiality of the SD

might also be necessary.

Note that there are several additional assets that

deserve protection. For instance, the Signatory’s se-

cret signing key must be kept conﬁdential in any case.

However, this key and other related assets are stored

inside the QSCD, which is assumed to be secure.

Hence, assets protected by the QSCD are not consid-

ered in detail for the conducted assessment.

4.2.2 Conceptual Assessment

With the help of the three identiﬁed assets, the secu-

rity of the four ACs can be compared on conceptual

level. For this purpose, Figure 3 lists all components,

on which identiﬁed assets are potentially prone to at-

tacks. Essentially, these are all components used by

the four ACs that are not assumed to be secure. In ad-

dition, Figure 3 also lists all relevant communication

paths between relevant components, on which trans-

ferred assets are potentially prone to attacks. For the

sake of simplicity, several communication paths have

been combined to derive six more general classes of

communication paths. For instance, the communica-

tion paths between the Signatory and the DTBSV, and

between the Signatory and the SAC have been com-

bined to one communication-path class (Local Soft-

ware (SW) ↔ Signatory). For all listed components

and communication-path classes, we have assessed

their relevance for the four ACs. Concretely, we have

assessed for each AC, which assets are present at

which components and communication-path classes.

The results of this mapping is shown in Figure 3.

Obtained results indicate that AC D is advanta-

geous from a conceptual perspective, as it has the low-

est number of components and communication-path

classes, on which assets are prone to attacks.

4.2.3 Mapping to Target Platforms

The comparison on conceptual level clearly indi-

cates AC D to be advantageous. However, the

plain number of potentially vulnerable components

and communication-path classes is a ﬁrst indicator

only. Capabilities to protect these components and

communication-path classes using currently available

technologies must also be taken into account. This

can be achieved by analyzing related work on secu-

rity features and vulnerabilities of current mobile plat-

forms. Such analyses have for instance been provided

by (Enck et al., 2009), (Rogers and Goadrich, 2012),

or (Zefferer et al., 2013). From the results of these

works, several interesting ﬁndings can be derived.

The security of all local components processing

one or more assets depends to a large extent on se-

curity features provided by the mobile platform, on

TowardsTransactionalElectronicServicesonMobileEnd-userDevices-ASustainableArchitectureforMobileSignature

Solutions

591

SD DTBS AD SD DTBS AD SD DTBS AD SD DTBS AD

Components

LSP X X X X X X X X

SPC X X X X

SAC X X X X

DTBSV

X X

Communication-Path Classes

Local SW ↔ Local SW

X X X X

Local SW ↔ Remote SW

X X X X X X X X

Local SW ↔ Local QSCD

X X X X

Local SW ↔ Signatory

X X X X

Local SW ↔ Remote QSCD

X X X X

Remote SW ↔ Local QSCD

X X

Architecture Candidates (ACs)

AC A

AC B

AC C

AC D

Figure 3: Conceptual architecture comparison.

which these components are implemented. Con-

cretely, this applies to the components LSP, SPC,

SAC, and DTBSV. In practice, the security of these

components depends on the underlying platform’s ca-

pabilities to protect local software. On both target

platforms considered in this paper, i.e. Android and

iOS, third-party software must be implemented by

means of mobile apps. Both platforms feature var-

ious security mechanisms that improve the security

of installed apps. Examples are sandboxing mecha-

nisms, which isolate installed apps from each other. A

detailed overview of security mechanisms integrated

into Android and iOS has been provided by (Rogers

and Goadrich, 2012) and (Zefferer et al., 2013). In

principle, these mechanisms work reliably in practice

and provide a sufﬁcient level of security. However,

they become useless, if attackers gain root access to

the mobile operating system, e.g. by exploiting known

vulnerabilities. In this case, the security of installed

apps cannot be taken for granted any longer. It can

hence be concluded that even though featured secu-

rity mechanisms provide a certain level of security,

absolute security of local components must not be as-

sumed. This applies to both target platforms and im-

plies that locally processed and stored assets are po-

tentially prone to attacks.

While root access is a problem for all local com-

ponents, several speciﬁc aspects need to be consid-

ered for the component SAC. The functionality of this

component is rather simple and basically limited to

obtaining AD from the Signatory and forwarding ob-

tained AD to the QSCD. Because of its limited func-

tionality, the SAC can also be implemented by other

means than mobile apps. For instance, in case a local

Subscriber Identity Module (SIM) is used as QSCD,

a simple SIM application can be used to implement

the functionality of the SAC. In this case, the pro-

vided security level of SIM applications is relevant.

Unfortunately, an attacker with unlimited root access

to the operating system must be assumed to have the

opportunity to compromise SIM applications as well.

Hence, also alternative implementations of the SAC

do not provide absolute security. Another relevant

aspect is the fact that the SAC potentially needs to

implement enhanced authentication functionality in

case a remote QSCD is used. In this case, the QSCD

does not implicitly implement the authentication fac-

tor Possession, as it is not in physical possession of

the Signatory. Hence, more sophisticated authentica-

tion mechanisms potentially need to be implemented

by the SAC, in order to implement multi-factor au-

thentication schemes. Depending on the concrete im-

plementation of these schemes, this can enable addi-

tional attack vectors.

Except for the SAC, the achievable security is

comparable for all local components that store or pro-

cess assets. In contrast, the situation is more complex

for the different communication-path classes, over

which assets are transmitted. The security of assets

transmitted between different local software compo-

nents (Local SW ↔ Local SW) mainly depends on

inter-process communication (IPC) capabilities of the

underlying mobile platform. The two target platforms

Android and iOS differ signiﬁcantly in this aspect.

Android provides broad support for IPC and enables

an easy exchange of data between local components.

This improves the feasibility of mobile applications,

but reduces security, as IPC features can also be em-

ployed by e.g. malware to compromise assets. This is

especially the case if provided features are used in a

wrong way (Chin et al., 2011). On Android, the secu-

rity of data exchanged between local software compo-

nents hence depends heavily on a correct use of pro-

vided IPC features. On iOS, the situation is less crit-

ical, as limited IPC features are provided only. This

decreases feasibility, but at the same time reduces the

probability of security-critical implementation errors.

While the communication between local software

WEBIST2015-11thInternationalConferenceonWebInformationSystemsandTechnologies

592

components is potentially problematic, data exchange

between local and remote software (Local SW ↔ Re-

mote SW) can be protected by means of established

protocols. For instance, Transport Layer Security

(TLS) (Network Working Group, 2008) can be used

to reliably assure the conﬁdentiality and integrity of

data exchanged between local and remote software.

In contrast, the communication path between the Sig-

natory and local software is more problematic. Nei-

ther Android nor iOS provide secure input/output ca-

pabilities. ARM TrustZone is a potential future so-

lution to this problem, but yet not available on most

mobile devices.

Regarding the communication between local soft-

ware and a local QSCD (Local SW ↔ Local QSCD),

a trade-off between feasibility and security can be

identiﬁed. Android provides mobile apps the oppor-

tunity to access local hardware elements that imple-

ment QSCD functionality. However, this implies that

also malware residing on the mobile device can do

so. In contrast, iOS is more restrictive. This reduces

the feasibility of ACs relying on local QSCDs on this

platform, but also prevents access by malware. Where

available, secure communication between local soft-

ware and local QSCDs must not be taken for granted.

In case of local software and a remote QSCD (Lo-

cal SW ↔ Remote QSCD), the situation is differ-

ent. As this setup requires cross-domain communi-

cation, additional remote software is needed to extent

the QSCD’s functionality by means of cross-domain

communication capabilities. Again, communication

between this module and local software can be easily

secured with the help of established protocols such as

TLS. The situation is more difﬁcult in case of remote

software and a local QSCD (Remote SW ↔ Local

QSCD). Again, cross-domain communication is re-

quired, which implies the need for an additional mod-

ule to enhance the QSCD with cross-domain commu-

nication capabilities. If this module is implemented

as mobile app, communication between this app and

the local QSCD is required. This corresponds to the

communication-path class Local SW ↔ Local QSCD.

If the local SIM is used as QSCD, the required addi-

tional module can also be implemented as SIM appli-

cation. However, this requires a cooperation of the

mobile network operator, as communication between

remote software and the local SIM needs to rely on

the mobile network.

Focusing on the implementation perspective with

special regard to the two target platforms Android and

iOS shows that security cannot be assured for vari-

ous components and communication-path classes. By

mapping obtained ﬁndings to the four ACs, the best

AC, i.e. the one that includes the fewest problem-

atic components, can be identiﬁed. For a compara-

tive analysis, it is sufﬁcient to focus on those com-

ponents and communication-path classes, for which

there are differences between the four ACs. Figure

3 shows that this applies to one component and four

communication-path classes.

Concretely, the SPC is the only component that

shows AC-speciﬁc differences regarding the three rel-

evant assets. Concretely, the assets SD and DTBS

are prone to attacks on the component SPC for AC

A and AC B only. Hence, AC C and AC D are ad-

vantageous in this regard. Similar conclusions can be

drawn for the communication between local software

components. This is required for the exchange of as-

sets by AC A and AC B only. As IPC is potentially

insecure on the assessed target platforms, AC A and

AC B must be regarded as disadvantageous.

The remaining three communication-path classes,

for which there are differences between the four

ACs, are all related to data exchange between soft-

ware components and the QSCD. Simply counting

the occurrences of assets on these communication-

path classes indicates that AC D is advantageous from

a conceptual perspective. Following this approach,

only the asset AD is transmitted once. For all other

ACs, all three assets are present at least once on one of

the three communication-path classes. The advantage

of AC D is also revealed when taking into account a

concrete implementation on the two target platforms.

As discussed above, secure communication is easier

to achieve for remote QSCDs than for local QSCDs.

Thus, AC B and AC D are advantageous in this re-

gard.

4.3 Findings

From the conducted security assessment of the four

ACs, several ﬁndings can be derived. A compari-

son of the four ACs on a pure conceptual level yields

AC D to be advantageous, as this AC shows the low-

est number of components and communication paths,

on which identiﬁed assets are potentially prone to at-

tacks. Similar ﬁndings are also obtained, when the

implementation perspective and the current state of

the art of mobile platforms is taken into account. Con-

cretely, the conducted assessment has revealed that a

local implementation of the SPC is disadvantageous.

Furthermore, a local implementation of the QSCD has

turned out to be disadvantageous as well. Thus, AC

D is also advantageous from an implementation per-

spective. The other three ACs suffer from the inability

to provide a sufﬁcient level of security on current mo-

bile platforms. Although the concrete threat potential

depends on the functionality being implemented lo-

TowardsTransactionalElectronicServicesonMobileEnd-userDevices-ASustainableArchitectureforMobileSignature

Solutions

593

cally, AC D is advantageous in any case, as it imple-

ments as many components remotely as possible.

5 USABILITY ASSESSMENT

In addition to security, usability has also been iden-

tiﬁed as crucial success factor. In this section, we

hence assess the usability of the four identiﬁed ACs.

More precisely, we assess the ACs’ capabilities to

serve as basis for concrete usable implementations.

For this purpose, the followed methodology is intro-

duced ﬁrst. Based on this methodology, the usabil-

ity assessment is then conducted. Finally, relevant

ﬁndings obtained from the conducted assessment are

summarized.

5.1 Methodology

As both chosen target platforms provide similar in-

put and output capabilities, the basic level of usability

provided by Android and iOS is the same. The usabil-

ity of a mobile signature solution hence only depends

on its underlying architecture and implementation. In

contrast to the conducted security assessment, plat-

form speciﬁcs therefore do not need to be taken into

account. Instead, the usability of the four ACs can

be compared on a completely platform-independent

level. Accordingly, the following methodology has

been followed for the conducted usability assessment.

First, usability-inﬂuencing aspects are derived from

related scientiﬁc work. The four ACs are then as-

sessed and ranked according to the derived aspects.

This ﬁnally yields the AC that is best suited to serve

as basis for usable signature solutions.

5.2 Assessment

Following the deﬁned methodology, the four ACs are

assessed in this section. For this purpose, relevant us-

ability aspects are identiﬁed ﬁrst. The assessment is

then based on these aspects.

5.2.1 Usability Aspects

Following the deﬁned methodology, relevant usability

aspects are derived from related scientiﬁc work. Un-

fortunately, there is hardly any speciﬁc work on rel-

evant usability factors for mobile signature solutions.

The probably best suited approach for the present use

case has been introduced by (Harrison et al., 2013),

who have proposed the PCMAD usability model for

mobile applications. This model deﬁnes the aspects

Effectiveness, Efﬁciency, Satisfaction, Learnability,

Memorability, Errors, and Cognitive Load to be cru-

cial for mobile applications. Recent usability anal-

yses of signature solutions for classical end-user de-

vices have shown that the need for certain software

and hardware can also be a usability-reducing factor

(Zefferer and Krnjic, 2012). By combining this ﬁnd-

ing with the PCMAD model proposed by (Harrison

et al., 2013), the following set of relevant usability as-

pects can be derived: Effectiveness, Efﬁciency, Satis-

faction, Hardware Independence, Software Indepen-

dence, Learnability, Memorability, Cognitive Load,

and Error Robustness. Based on these aspects, the

usability of the four ACs is analyzed in the following

subsection.

5.2.2 Usability Analysis

The usability assessment of the four ACs is based on

nine usability aspects. In the following, each of these

aspects is discussed separately for the four ACs. In

addition, the four ACs are ranked according to their

capability to comply with the respective aspect.

(Harrison et al., 2013) describe the aspect Effec-

tiveness as the ’ability of a user to complete a task

in a speciﬁed context’. In general, all ACs provide

service availability, i.e. allow the successful comple-

tion of signature-creation processes. However, ser-

vice availability is reduced, if required remote com-

ponents cannot be accessed, e.g. because of a lacking

Internet connection. In this regard, AC A is advanta-

geous, as it implements locally as many components

as possible. Service availability can also be reduced

by the need for additional entities. Solutions based

on AC C typically require the Signatory’s mobile net-

work operator to access the local QSCD. In roaming

scenarios, solutions based on AC C are hence prob-

lematic. In summary, AC A is ranked best, as it to-

tally avoids remote components and is independent

from additional entities. AC C is ranked last, as it re-

lies on remote components and typically requires on

an additional external entity.

For the usability aspect Efﬁciency, the situation

is slightly different. Efﬁciency deﬁnes the speed

and the accuracy, with which an intended task can

be completed by the user (Harrison et al., 2013).

With regard to mobile signature solutions, efﬁciency

is mainly affected by the complexity of the required

user-authentication process, as this is the only manda-

tory user interaction. In general, user authentication

is typically more complex in case of remotely im-

plemented QSCDs. In this case, the QSCD is not

under physical control of the Signatory and hence

cannot implicitly cover the authentication factor pos-

session. Therefore, more complex authentication

schemes must be applied to assure an adequate level

WEBIST2015-11thInternationalConferenceonWebInformationSystemsandTechnologies

594

of security, which increases complexity. Accordingly,

AC A and AC C are by trend more efﬁcient than AC

B and AC D.

The factor Satisfaction describes ’the perceived

level of comfort and pleasantness afforded to the user

through the use of software’ (Harrison et al., 2013).

The aspect satisfaction is hence mainly inﬂuenced by

the provided user interface (UI). As the UI rather de-

pends on the concrete implementation than on the un-

derlying architecture, a conceptual comparison of the

four ACs is difﬁcult. Nevertheless, AC C can be iden-

tiﬁed as slightly disadvantageous. Its reliance on a

local QSCD and a remote SPC potentially requires

reliance on alternative technologies such as SIM ap-

plications. These technologies provide fewer oppor-

tunities to implement satisfactory UIs. Accordingly,

AC C is ranked worse compared to the other three

ACs with regard to the aspect Satisfaction.

The usability aspect hardware independence must

be considered, as the need to acquire and maintain ad-

ditional hardware potentially reduces usability. This

has been shown by means of several usability tests.

With regard to the four ACs, AC A and AC C must be

regarded as disadvantageous. Accordingly, they are

ranked worse than AC B and AC D. Similar to hard-

ware independence, also software independence is a

crucial usability aspect. Again, the need to acquire

and maintain additional software potentially reduces

usability. AC A and AC B implement the SPC locally

and hence realize more software components on the

mobile end-user device than AC C and AC D. Hence,

with regard to the aspect Software Independence, AC

C and AC D are advantageous and are ranked better

than AC A and AC B.

The ability of a user to learn how to use an ap-

plication is covered by the aspect Learnability and

also contributes to an application’s overall usability.

The learnability of an application is closely related to

its complexity, which is measured by the aspect Efﬁ-

ciency. Hence, similar conclusions can be drawn for

the aspect Learnability as for the aspect Efﬁciency.

ACs requiring a more complex user-authentication

scheme are more complex and hence more difﬁcult

to learn. Accordingly, AC B and AC D are ranked

worse than AC A and AC C. Similar results can also

be obtained for the aspects Memorability and Cogni-

tive Load. Memorability describes the ability of a user

to retain how to use an application. Cognitive load

describes the impact that using the respective appli-

cation has on the performance of other tasks that are

carried out in parallel. Similar to learnability, memo-

rability and cognitive load are both related to the ap-

plication’s complexity. Hence, also for these aspects,

AC A and AC C are advantageous.

Finally, error robustness has been identiﬁed as

crucial usability aspect as well. For a conceptual com-

parison of different ACs, it can be assumed that re-

motely implemented components are less prone to er-

rors. This is reasonable, as remote components can

be implemented in data-processing centers that fea-

ture redundancy mechanisms to assure required ser-

vice levels. Under this assumption, the error robust-

ness of an AC increases with the number of remote

components. This yields AC D to be the most advan-

tageous solution followed by AC B and AC C. AC A

shows the poorest error robustness.

5.3 Findings

Figure 4 summarizes the results of the conducted us-

ability assessment. For each identiﬁed aspect, Fig-

ure 4 shows the determined ranking of the four ACs.

In addition, an overall ranking is derived from the

aspect-speciﬁc results. This yields AC A as the most

usable AC. AC C and AC D share the second rank.

While results obtained from the conducted usabil-

ity assessment seem quite clear, they suffer from sev-

eral limitations. First, usability has been assessed

by means of abstract architectures only. In practice,

usability is also heavily inﬂuenced by the concrete

implementation of a speciﬁc architecture. Second,

derivation of the overall ranking has implicitly as-

sumed that all usability aspects are equally important.

This is usually not the case in practice, where the rel-

evance of different aspects depends on the concrete

context.

Nevertheless, the conducted usability assessment

yields several useful ﬁndings, as it clearly indicates,

which architectures are beneﬁcial regarding which us-

ability aspects. Obtained results also show that AC

D is the most bipolar AC. For most assessed aspects,

AC D is either among the best or among the worst

candidates. Most usability aspects, for which AC D is

disadvantageous, are related to the aspect efﬁciency.

Hence, the main usability drawback of AC D is appar-

ently its reduced efﬁciency, which is mainly caused

by the need for more complex user-authentication

schemes. If this drawback can be removed, AC D will

represent the most usable AC.

6 CONCLUSIONS

The continuing success and popularity of mobile

computing raises the requirement for signature solu-

tions that can be applied and used on mobile end-

user devices. In this paper, this problem has been ad-

dressed by identifying possible architectures for such

TowardsTransactionalElectronicServicesonMobileEnd-userDevices-ASustainableArchitectureforMobileSignature

Solutions

595

Effectiveness

Efficiency

Satisfaction

Hardware Independence

Software Independence

Learnability

Memorability

Cognitive Load

Error Robustness

Sum

Overall Ranking

Architecture Candidates (ACs)

AC A

AC B

AC C

AC D

Figure 4: Usability assessment.

solutions. In total, four ACs denoted as AC A, AC B,

AC C and AC D have been systematically derived that

basically cover all possible implementation variants.

Pros and cons of the four ACs have been revealed by

means of a security and usability assessment. With

regard to security, AC D has turned out to be advan-

tageous, as it avoids to a large extent the implemen-

tation of components on potentially insecure mobile

devices. With regard to usability, AC A has been de-

termined as best alternative. AC D has reached the

second rank and has also been identiﬁed as most bipo-

lar alternative, whose usability could be signiﬁcantly

improved by means of efﬁcient user-authentication

schemes. Overall, AC D can hence be identiﬁed as

the overall winner, if concrete solutions basing on this

architecture manage to implement appropriately efﬁ-

cient user-authentication schemes.

All models and architectures proposed and devel-

oped in this paper have been intentionally kept on an

abstract level. The same holds true for conducted as-

sessments, which have also mainly been applied on a

conceptual level. Staying on an abstract level might

appear disadvantageous at a ﬁrst glance, as this ap-

proach does not immediately yield a concrete imple-

mentation or solution. However, the mobile market is

currently undergoing fast and frequent technological

changes. Proposing and developing a concrete solu-

tion that bases on the current state of the art is hence

not sustainable. Therefore, the solution developed in

this paper remains independent from the current state

of the art. This way, this paper provides a sustainable

architectural basis for future mobile signature solu-

tions and paves the way for transactional e-services

on mobile end-user devices in the long term.

REFERENCES

A-Trust (2015). Handy-Signatur - Your digital identity.

https://www.handy-signatur.at.

encia para a Modernizac¸

ao Administrativa (2015).

Cart

ao de Cidad

ao. http://www.cartaodecidadao.pt.

Al-Hadidi, A. and Rezgui, Y. (2009). Critical Success Fac-

tors for the Adoption and Diffusion of m-Government

Services: A Literature Review. In Proceedings of

the European Conference on e-Government, ECEG,

pages 21–28.

Al-khamayseh, S., Lawrence, E., and Zmijewska, A.

(2007). Towards Understanding Success Factors in

Interactive Mobile Government.

ANSI (2005). Public Key Cryptography for the Financial

Services Industry, The Elliptic Curve Digital Signa-

ture Algorithm (ECDSA). http:// webstore. ansi.org/

RecordDetail.aspx?sku=ANSI+X9.62%3A2005.

Apple (2015). iOS 8. https://www.apple.com/at/ios/.

CEN (2004). CWA 14169 - Secure Signature-Creation De-

vices ”EAL 4+”. Technical report, European Commit-

tee for Standardization.

Chin, E., Felt, A. P., Greenwood, K., and Wagner, D.

(2011). Analyzing Inter-Application Communication

in Android. In Proceedings of the 9th International

Conference on Mobile Systems, Applications, and Ser-

vices, MobiSys 2011, MobiSys ’11, pages 239–252.

ACM Press.

Common Criteria (2013). Common Criteria.

http://www.commoncriteriaportal.org/.

El-Kiki, T. (2007). mGovernment: A Reality Check. In

Conference Proceedings - 6th International Confer-

ence on the Management of Mobile Business, ICMB

2007, page 37. IEEE.

El-Kiki, T. and Lawrence, E. (2006). Mobile User Satisfac-

tion and Usage Analysis Model of mGovernment Ser-

vices. In Proceedings of the Second European Mobile

Government Conference, pages 91–102.

Enck, W., Ongtang, M., and McDaniel, P. (2009). Under-

standing Android Security. IEEE Security & Privacy,

7:50–57.

Fairchild, A. and de Vuyst, B. (2012). The Evolution of

the e-ID card in Belgium: Data Privacy and Multi-

Application Usage. In The Sixth International Con-

ference on Digital Society, pages 13–16, Valencia.

Google (2015). Android. https://www.android.com/.

Harrison, R., Flood, D., and Duce, D. (2013). Usability

of Mobile Applications: Literature Review and Ratio-

WEBIST2015-11thInternationalConferenceonWebInformationSystemsandTechnologies

596

nale for a New Usability Model. Journal of Interac-

tion Science, 1(1):1.

ID.ee (2015). Mobiil-ID. http://id.ee/index.php?id=36881.

Karan, K. and Khoo, M. (2008). Mobile Diffusion and De-

velopment: Issues and Challenges of m-Government

with India in Perspective. In Proceedings of the 1st

International Conference on M4D Mobile Communi-

cation Technology for Development, pages 138–149.

Leitold, H., Hollosi, A., and Posch, R. (2002). Security Ar-

chitecture of the Austrian Citizen Card Concept. In

18th Annual Computer Security Applications Confer-

ence, 2002. Proceedings., pages 391–400.

mobiForge (2015). Mobile software statistics 2014.

http://mobiforge.com/research-analysis/mobile-

software-statistics-2014.

Network Working Group (2008). The Transport Layer Se-

curity (TLS) Protocol Version 1.2. http://tools.ietf.org/

rfcmarkup/5246.

Rivest, R. L., Shamir, A., and Adleman, L. (1978). A

Method for Obtaining Digital Signatures and Public-

Key Cryptosystems. Commun. ACM, 21(2):120–126.

Rogers, M. and Goadrich, M. (2012). A Hands-on Compar-

ison of iOS vs. Android. In Proceedings of the 43rd

ACM Technical Symposium on Computer Science Ed-

ucation, SIGCSE ’12, page 663, New York, NY, USA.

ACM.

The European Parliament and the Council of the European

Union (1999). Directive 1999/93/EC of the European

Parliament and of The Council of 13 December 1999

on a Community framework for electronic signatures.

http://eur-lex.europa.eu/LexUriServ/LexUriServ.do?

uri=OJ:L:2000:013:0012:0020:EN:PDF.

The European Parliament and the Council of the European

Union (2014). Regulation (EU) No 910/2014 of

the European Parliament and of The Councilof

23 July 2014 on electronic identiﬁcation and trust

services for electronic transactions in the internal

market and repealing Directive 1999/93/EC. http://

eur-lex.europa.eu/legal-content/EN/TXT/HTML/

?uri=CELEX:32014R0910&from=EN.

Zefferer, T., Kreuzhuber, S., and Teuﬂ, P. (2013). Assess-

ing the Suitability of Current Smartphone Platforms

for Mobile Government. In Technology-Enabled Inno-

vation for Democracy, Government and Governance,

pages 125–139.

Zefferer, T. and Krnjic, V. (2012). Usability Evaluation of

Electronic Signature Based E-Government Solutions.

In Proceedings of the IADIS International Conference

WWW/INTERNET 2012, pages 227–234.

TowardsTransactionalElectronicServicesonMobileEnd-userDevices-ASustainableArchitectureforMobileSignature

Solutions

597
