A Generalized Service Replication Process in Distributed

Environments

Hany F. El Yamany

, Marwa F. Mohamed

, Katarina Grolinger

and Miriam A. Capretz

Faculty of Computers and Informatics, Suez Canal University, Old Campus, Ismailia, Egypt

Department of Computer Engineering, Western University, London, ON, Canada

Keywords: Service Replication, Service-Oriented Architecture, Cloud, Mobile Computing, Replication Process, Quality

of Service.

Abstract: Replication is one of the main techniques aiming to improve Web services’ (WS) quality of service (QoS) in

distributed environments, including clouds and mobile devices. Service replication is a way of improving

WS performance and availability by creating several copies or replicas of Web services which work in

parallel or sequentially under defined circumstances. In this paper, a generalized replication process for

distributed environments is discussed based on established replication studies. The generalized replication

process consists of three main steps: sensing the environment characteristics, determining the replication

strategy, and implementing the selected replication strategy. To demonstrate application of the generalized

replication process, a case study in the telecommunication domain is presented. The adequacy of the

selected replication strategy is demonstrated by comparing it to another replication strategy as well as to a

non-replicated service. The authors believe that a generalized replication process will help service providers

to enhance QoS and accordingly attract more customers.

1 INTRODUCTION

Nowadays, the Web is structured as a mesh of

heterogeneous distributed environments including

service-oriented architecture (SOA) (Erl, 2008),

cloud computing (Erl et al., 2013), and mobile

computing (Fling, 2009). Web services have a key

role in managing and encapsulating business

processes inside such environments. Web services

are described, discovered, published, and executed

using standard protocols such as WSDL for service

description, SOAP for message exchange, and

UDDI for service registry and discovery (W3C,

2004; Papazoglou, 2008).

Quality of service (QoS) (Al-Masri et al., 2007;

W3C, 2003) is a significant factor in describing and

establishing the service level agreement (SLA)

among service providers and consumers. In

particular, the SLA is an official contract between

the provider and the consumer which specifies non-

functional requirements, specifically focussing on

performance and availability (Michlmayr et al.,

2009; Papazoglou et al., 2005). Web service

replication is a way of improving WS performance

and availability by creating several copies or replicas

of Web services which may work either in parallel

or sequentially under defined circumstances and

regulations (Salas et al., 2006; May et al., 2009).

This paper introduces a generalized replication

process in distributed environments with the

objective of helping service providers select and

implement an appropriate service replication

strategy and consequently increase the quality of

service provided. The discussed replication process

consists of three main steps: sensing the

environment characteristics, determining the

replication strategy, and implementing the selected

replication strategy. A mobile authentication case

study is presented to demonstrate the use of the

approach.

The rest of this paper is organized as follows:

Section 2 introduces the replication literature review.

Section 3 introduces a generalized replication

process for distributed environments. Section 4

presents the evaluation case study. Finally, Section 5

concludes the paper.

2 REPLICATION LITERATURE

REVIEW

Two main replication types may be distinguished

186

El Yamany H., F. Mohamed M., Grolinger K. and Capretz M..

A Generalized Service Replication Process in Distributed Environments.

DOI: 10.5220/0005485201860193

In Proceedings of the 5th International Conference on Cloud Computing and Services Science (CLOSER-2015), pages 186-193

ISBN: 978-989-758-104-5

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

depending on whether the number and location of

replicas change during runtime: static replication

and dynamic replication. In static replication, the

predefined replica communication group does not

change during runtime; when a single replica

becomes unresponsive, this replica is still considered

a member of the communication group. In other

words, the number and position of replicas are fixed

over time (Guerraoui et al., 1997). Static replication

is planned at design time (Słota et al., 2005)

according to predefined parameters, and

implementation is carried out regardless of any

changes that may occur during runtime.

Dynamic replication supports a changing number

of replicas, changes in physical locations, and

selection of running replicas during runtime (Keidl

et al., 2003; Mohamed et al., 2013). It is performed

in two different styles: Dynamic replica selection

(Thakur et al., 2012) and Dynamic replica

placement (Mohamed et al., 2013; Dustdar, 2007).

The replication process can be implemented using

different techniques depending on the components

involved and their characteristics. Salas et al. (2006)

classified the replication process into three

techniques according to the interactions among

replicas and requests: active, passive and semi-

active techniques. Like Salas et al. (2006), May et

al. (2009) also recognized three categories, but the

categories are different: parallel, serial and

composite techniques. Zheng et al. (2008) expanded

the replication techniques from the work of Salas et

al. (2006) by combining active, passive, and time-

replication techniques. Time replication means that a

particular service is invoked a finite number of times

before its status is declared as failed. Liu et al.

(2011) took a very different approach and generated

a diverse group of replication techniques using a

directed acyclic graph (DAG), which are

characterized as active, passive, hybrid, active-

passive, and passive-active. In their study, they

produced a graph model to represent a replication

scheme defined as a directed acyclic graph DAG, G

≡ (V, E), where the vertex set V refers to a set of WS

replicas and the directed edge set E refers to the

replica invocation. In this approach, the directed

edges capture a replication schema.

Several researchers have proposed different

replica selection strategies and algorithms (Sayal et

al., 1998; da Silva et al., 2004; Björkqvist et al.,

2012). Sayal et al. (1998) described six replica

selection algorithms: Fixed, Ping, Hops, Parallel,

Probabilistic, and Refresh. Da Silva

et al. (2004)

presented five server selection policies: Random

Selection, Parallel Invocation, HTTPing (or Probe),

Best Last, and Best Median. Finally, Björkqvist et

al. (2012) defined two replica selection algorithms:

Distributed Shortest Queue Selection (D-SQ) and

Distributed Round Robin Selection (D-RR).

Although extensive efforts have been made in

both academia and industry in the area of service

replication, we are not aware of any studies that

discuss a generalized replication process. The

approach introduced in this paper builds on diverse

service replication research to create a generalized

replication process with the objective of helping

service providers increase QoS.

3 GENERALIZED REPLICATION

PROCESS

Distributed environments such as service-oriented

architecture (SOA), cloud computing, and mobile

computing typically use replication technology to

improve operational characteristics, including

availability and performance. Unfortunately,

replication encounters challenges in these

environments.

3.1 Generalized Replication Process:

Overview

To help practitioners determine the most suitable

replication approach for a specific scenario, a

generic replication process is needed. This section

introduces a generalized replication process for

distributed environments based on the replication

approaches presented in the previous sections.

Specifically, the findings from the reviewed studies

are integrated to form a generic replication process.

Figure 1 illustrates the use-case scenario: a client

demands a service through a service provider, where

the target service may be located and published in a

cloud, SOA, or mobile environment. If the service

provider (typically the business service provider or

service owner) on behalf of the client(s) or

consumer(s) detects a delay in answering incoming

requests due to technical problems such as resource

failures, service(s) overload, or network issues, the

service provider should find a solution to speed up

the answering process using service replication.

How this replication process should be implemented

will vary with respect to several metrics, including

the characteristics of the host environment.

For example, in the cloud, the service provider

could deploy a replica in any location where there

are no technical challenges, whereas in a mobile

AGeneralizedServiceReplicationProcessinDistributedEnvironments

187

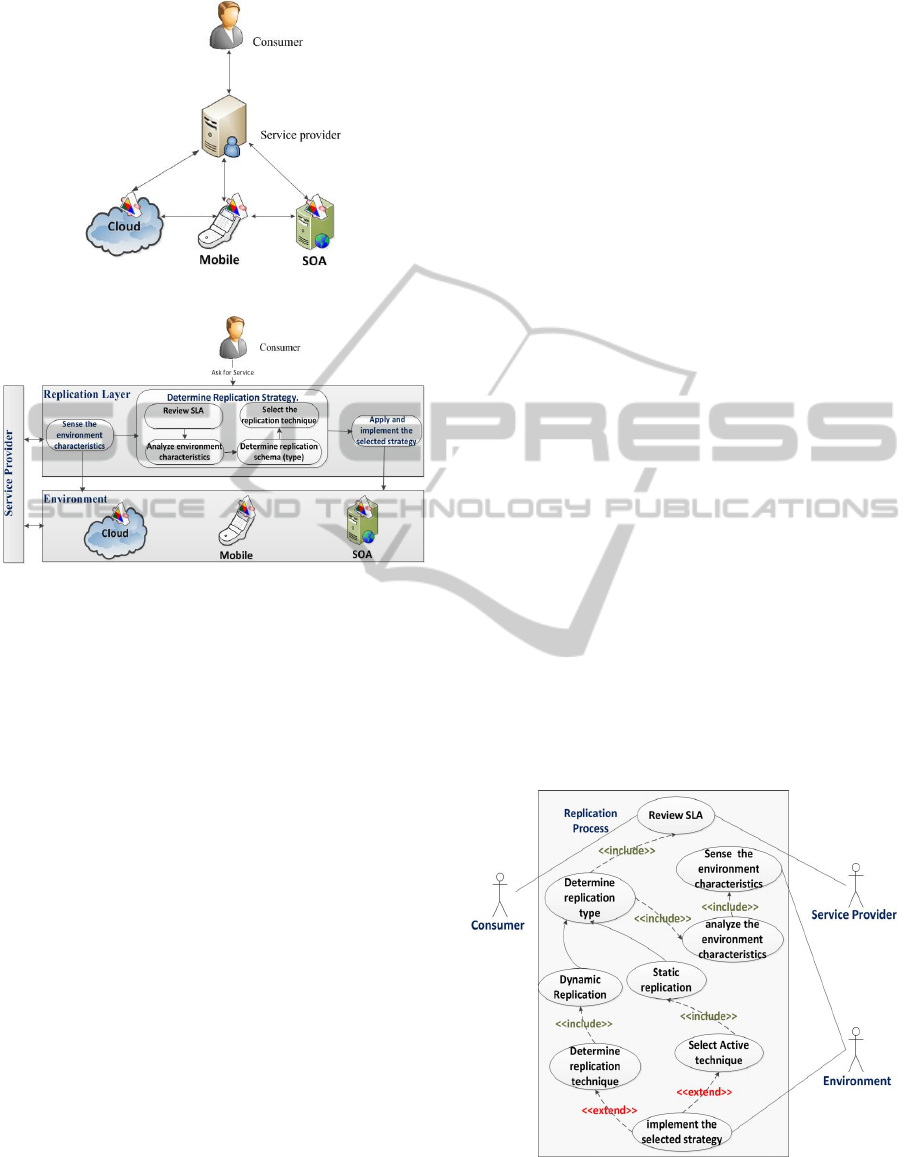

Figure 1: Replication environment interactions.

Figure 2: Generalized replication process.

environment, the nearest device or station may need

to be selected to host the required replica.

Four major actors must be considered when

designing a generic replication process for different

distributed environments: consumers, service

providers, replication actors, and the environment.

As shown in Fig. 2, the replication process is divided

into four layers representing these actors and their

behaviour:

 The consumer layer represents the users who

are seeking the published services. A service-

level agreement (SLA) is enforced when the

consumer binds with the target service. The

service provider must work within the signed

SLA to achieve the QoS terms listed in the

SLA and attain high consumer satisfaction and

loyalty.

 The service provider layer consists of the

services or business owners. It continuously

interacts with the replication and environment

layers to host, publish, and enhance the

business services that it owns or works on.

Service providers monitor and update their

services to keep current consumers and attract

new consumers.

 The replication layer maintains the QoS

parameters as defined in the SLA by providing

additional replicas as needed.

 The environment layer could be a cloud, SOA,

or mobile environment; in this layer, services

or businesses are located and accessed.

Moreover, this layer might be called the

infrastructure layer because it contains all

required physical and logical resources to host

the services created by the various providers

and targeted by consumers.

3.2 Generalized Replication Process:

Steps

Figure 3 represents the basic interconnections

between the defined replication process activities in

Fig. 2 and the main actors or layers: the consumer,

service provider, replication, and environment

layers. To achieve a robust replication process, the

following steps should be followed, as shown in Fig.

1) Sense the environment characteristics: this

activity occurs between the replication and

environment layers to obtain the current status of the

consumed services in terms of QoS characteristics.

In addition, the capabilities of the available

resources in terms of functional characteristics are

investigated. For example, this activity may search

for a trusted server in a cloud to host a new replica

or assign the nearest node to run the new replica in a

mobile environment. Examples of the detected

characteristics of the various environments are given

in Table 1. The information obtained is saved in a

database located inside the environment layer to be

used in step 2.

Figure 3: Replication process use-case model.

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

188

Table 1: Detected environmental characteristics.

Environment Functional

characteristics

Non-functional

characteristics

SOA

Number of hops

Number of servers

Server performance

Server availability

Type of WS:

composite or basic.

Cloud Number of replicas

Trusted servers

Service performance

Service availability

Ensure service

consistency.

Type of service:

deterministic or not

Mobile Mobile battery

power

Number of replicas

Nearest node

Service availability

Network traffic

2) Determine the replication strategy: This step is

composed of the four steps as shown in Fig. 2,

which can be described as follows:

a. Review SLA: this activity checks the signed

SLA contract periodically or when a change in

quality is detected by environmental sensing

with respect to the defined non-functional terms

specified in the SLA. The SLA contract could

be maintained inside the service provider layer

or in the environment layer based on the

agreement between providers, consumers, and

environment owners. First, the SLA items are

reviewed against current environment

characteristics to determine the replication

target (e.g., availability or performance) on

which the replication layer must focus when a

violation occurs. Then it notifies the provider

and the consumer of the result. In addition, it

retrieves the environment and functional

capabilities from the first step to determine the

candidate host for the new replica.

b. Analyze Environment Characteristics: this

activity examines the environment

characteristics collected in Step 1 to match them

with the characteristics of the corresponding

selection algorithm. For example, as shown in

Table 2, if the Hops replication selection

algorithm is selected within a dynamic

replication strategy, the number of hops should

Table 2: Expected strategy requirements.

Replica Selection

Algorithm

Algorithm description ← Replication

Type

← Actions

Ping/Probe The client periodically sends a ping request to all

available replicas and then forwards request(s) to

the replica with minimal ping round-trip time.

Dynamic Service performance

Hops The client sends requests to the nearest replica

according to the number of hops between the

replica and the client.

Static/Dynamic Number of hops

Parallel The client sends requests to all available replicas.

The one which works on the incoming request first

responds to request and communicate with the

consumer directly.

Static/Dynamic In dynamic case, service

availability

Probabilistic Replica selection is based on a probability that has

been calculated and assigned to each replica.

Probability is calculated based on SLA.

Static/Dynamic SLA review

Refresh/Best Last The client sends requests to the server with the

minimal request latency. Latency samples are

refreshed periodically.

Dynamic Service availability and

performance

Best Median Replica selection depends on the lowest median

response time among the set of successful

invocations recorded for each replica used.

Dynamic Service availability and

performance

Shortest Queue Service selection depends on the smallest number

of queued invocations as determined by locally

maintained statistics related to service activities.

Dynamic Service availability and

performance

Round Robin A list of active replicas is maintained and updated

periodically by adding /removing the newly

activated /deactivated replicas. Upon service

replica selection, the requests are rotated around a

list of active replicas.

Static/Dynamic In dynamic case, service

availability

Random Random replica selection Static/Dynamic In dynamic case, service

availability

AGeneralizedServiceReplicationProcessinDistributedEnvironments

189

be considered and estimated. At the end of this

activity, the defined replication actions are

saved in a database to be considered in the

implementation activity.

c. Determine Replication Type: Depending on the

data collected from the previous activities, the

detection process determines the type of

replication, as shown in Table 3. This activity

obtains the required information from the SLA

Review and Analyze Environment

Characteristics processes to make a decision

about the replication type. Section 2 shows two

different types of replication that can be used:

static and dynamic replications. In static

replication, only the active replication technique

can be used. But within dynamic replication, all

replication techniques can be used.

Table 3: Data needed to determine the replication type.

Enviro

nment

Target Characteristic Replicati

on Type

SOA Availability

Performance

Uses a fixed number of

replicas

Servers have average

load performance

Static

Availability

Performance

Responsivenes

The number of replicas

is needed during

runtime

Variable servers

Dynamic

Cloud Availability

Security

Services are

deterministic

Multicast consumer

requests

Static

Availability

Security

Services are

deterministic or

nondeterministic

Multicasting not

required

Dynamic

Mobile Availability Always runs in a

dynamic environment

Dynamic

Table 4: Composition of the replication strategy.

Replicatio

n Type →

Replication

Target →

Replication

Techniques

Replication

Strategy

Static Availability Active Parallel

Performance Static load

balancing

Round Robin

Probabilistic

Dynamic

Availability Active –

Passive –

Semi-Active

Ping or Probe,

Refresh, Best

Last, or Best

Median.

Performance Dynamic load

balancing

Distributed

Round Robin

Selection

Responsivenes

Dynamic load

balancing

Weighted

Round Robin

Figure 4: Sequence diagram for the Implement the

Selected Replication Strategy activity.

d. Select Replication Technique: Once the

replication type and target have been

determined, the process moves on to selecting

the replication technique. Table 4 shows how

the replication strategy is selected and

composed (Steps 2a to 2d) based on the

replication target, replication type, and selected

replication technique.

3) Implement the Selected Replication Strategy:

The sequence diagram shown in Fig. 4 illustrates

how this process is executed. When a replica is

needed, the implementation process obtains the

strategy type and name to be used from the database.

Basically, it verifies the selected strategy

requirements against the current state of the

deployed environment to ensure a correct replication

process. Once the implementation has been

accomplished successfully, a notification is sent to

both the provider and consumer that their agreed

QoS terms are still being achieved as expected.

4 MOBILE AUTHENTICATION

CASE STUDY

This section describes a scenario from a

telecommunication company in which a huge

number of cell phones are authenticated when

connected to the company network through a

particular Web service called mobile authentication

service. Eventually, this service lacks availability

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

190

and/or performance during peak times. In this paper,

the steps of the introduced replication process are

used to overcome the availability and performance

challenges for this service. The architecture of the

mobile authentication service environment can be

divided into three layers: The mobile layer

represents the users who are seeking mobile

authentication service. The portal layer contains the

replication management middleware which controls

the interaction between consumers and the WSs

replicas. The cloud layer contains all the physical

and logical resources required to host the services. In

such an environment, the replication management

middleware (Portal) will follow the suggested

replication steps as described in Section 3:

1) Sense the environment characteristics: As

outlined in Table 1, the replication management

middleware will collect the information;

specifically, for this use case, the collected

information is listed in Table 5. This case study

assumes that three WS replicas are running on one

virtual machine, but are installed on different ports.

The WS is deterministic because for a given input, it

always produces the same output. The user enters

username and password, and then the system

responds with “successful login” or not.

Table 5: Mobile authentication case study characteristics.

Environmental

characteristics

General Mobile authentication case

study

Functional

characteristics

Number of

replicas

Three replicas used

Trusted servers One virtual server with

Web services installed on

three different ports

Non-

functional

characteristics

Performance Required

Availability Required

Ensure service

consistency

Not required, because the

WSs are retrieving data

from a database. The case

study makes no changes to

data.

Service type:

deterministic

or not

Deterministic service.

2) Determine the replication strategy consists of the

following steps:

a. Review SLA: The replica management

middleware reviews the SLA to determine the

replication target. The target of this case study

is ensuring Web service availability and

performance.

b. Analyze Environment Characteristics: the

replication management middleware will

analyze the strategic requirements depending on

the environmental characteristics and SLA

target. The selection process can be managed by

consumers or the service provider. In this case

study, the service provider manages the

selection process, and therefore the Best Last

and Best Median methods are ignored because

they depend on consumer preferences; the

consumer selects the replicas with lowest

response time or median lowest response time

depending on the invocation history.

Moreover, in this case study, all Web service

replicas are placed on one virtual machine, and

therefore the Hops and Probabilistic strategies are

removed from the selection list. The Random

strategy cannot provide the desired service

availability because the failed copy may be selected,

and therefore it is also removed. Moreover, the aim

of the case study is to forward consumer requests to

the best available WS; the load balancing carried out

by Round Robin is eliminated. Hence, the selection

list contains four strategies: Ping, Parallel, Refresh

and Shortest Queue, as shown in Table 6.

Table 6: Analysis of case-study characteristics.

Replica

selection

algorithm

Strategic requirements Selection

list

Ping/Probe Service availability √

Hops Number of hops X

Parallel Service availability. √

Probabilistic SLA review, host performance

history.

Refresh Service availability and

performance

√

Best last Service availability and

performance

Best Median Service availability and

performance

Shortest

Queue

Service availability and

performance

√

Round Robin Service availability X

Random Service availability X

c. Determine Replication Type: in this step, there

are three options for replication type: static,

dynamic service placement, and dynamic

service selection. Depending on the cloud row

in Table 3, static replication is ignored, and

dynamic replication is used. The mobile

authentication service deals with a large number

of users, so that multicasting of consumers’

requests to provide service availability is

undesirable because it may cause network

failure. Moreover, all replicas are installed on a

AGeneralizedServiceReplicationProcessinDistributedEnvironments

191

private cloud, and therefore dynamic service

selection is chosen. Dynamic service

replacement is preferable when multiple

independent resources are available.

d. Select Replication Technique: according to

Table 6, there are four choices: Ping, Parallel,

Refresh and Shortest Queue. The Parallel

strategy is dropped from the selection list

because multicasting of consumers’ requests is

not supported in this case study. The Shortest

Queue strategy is out of consideration because it

selects the replica with the lowest load to

achieve the shortest response time, which is the

same target as the Refresh strategy. The Ping

selection process is based on the WS host/port

with the lowest ping round-trip time, but the

Refresh strategy depends on the WS with the

lowest response time. Therefore, the preferred

option in this case is the Refresh strategy.

3) Implementation: A simulation of this

environment was constructed and run using the

specifications shown in Table 7.

Table 7: Specifications of simulation environments.

Cloud Google App Engine

(Platform as a Service)

Portal Apache/2.2.11 (Win32) PHP/5.3.0

Processors: Intel(R) core i3

Memory 4 GB

Mobile Smart Phone

The implementation scenario can be described as

follows:

 The replication management middleware

(RMM) ensures that the cloud environment

has three Web service replicas. If not, the

middleware transfers the required replicas to

the cloud environment.

 RMM notifies the users and the telecom

company admin(s) to access the service. Users

access authentication services. Each user types

his/her username and password and presses

Enter.

 RMM passes consumer requests to the best

available mobile authentication service using

the Refresh algorithm.

 The mobile authentication service processes

the consumers’ requests and sends a response

back to replication management middleware.

Then RMM forwards the results to the

consumer.

The experiments were conducted using

ApacheBench Version 2.0.40-dev by passing

different consumer loads (1, 3, 5, 8) over 100 times

(100, 300, 500, 800 requests). Then throughput and

response time were recorded for three cases: the case

without replication and the Ping and Refresh

strategies. As shown in Figs. 5 and 6, the Refresh

replication strategy provides better throughput rates

than non-replication. The Refresh strategy passes

consumer requests to the best available service, so

that the WS used can be changed during runtime;

this leads to a balance in incoming requests between

replicas, but not in an equally likely manner.

In the case of the Ping strategy, before every

request, a ping was sent to all ports, and the port

with minimal round-trip time was selected. The

selection depends on the round-trip time of the ping

message, not on the service response time, and

therefore it is no better than the Refresh strategy.

However, it is better than the case without

replication for high consumer loads (5, 8) because

the port can be changed during runtime, so that load

balancing occurs, but not in an equally likely

manner.

Figure 5: Response time when running 1700 requests.

Figure 6: Throughput when running 1700 requests.

5 CONCLUSIONS

In this paper, a generalized service replication

process was introduced to manage and control

replication inside distributed environments. The

4000

5000

6000

7000

8000

9000

10000

11000

12000

1358

Response time (ms)

load (consumers)

Without Replication Ping Refresh

1358

Throughput (request per s)

load (consumers)

Without replication Ping Refresh

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

192

process consists of three steps: sensing the

environment characteristics, planning a complete

replication strategy, and implementing the selected

replication strategy. The application of the

generalized process is demonstrated in a case study

involving a telecommunication scenario. The

selected replication algorithm, the Refresh

algorithm, was compared to the Ping algorithm and

non-replicated service. Results show that the Refresh

algorithm outperformed both Ping and non-

replication in terms of throughput and response time.

Future work will include deploying the

generalized replication process in a real-world

environment and expanding the validation. In

addition, it is planned to extend the review of the

replication process to cover embedded systems and

other distributed environments such as the Internet

of Things (IoT) and cyber physical systems.

REFERENCES

Al-Masri, E. & Mahmoud, Q. H., 2007. QoS-based

discovery and ranking of Web services. In Computer

Communications and Networks, 2007 (ICCCN 2007),

Proceedings of 16th International Conference, pp.

529-534. IEEE.

Björkqvist, M., Chen, L. Y., & Binder, W., 2012.

Dynamic replication in service-oriented systems.

Proceedings of the 2012 12th IEEE/ACM

International Symposium on Cluster, Cloud, and Grid

Computing (CCGRID 2012), pp. 531-538. IEEE

Computer Society.

da Silva, J. A. F. & das Chagas Mendonça, N., 2004.

Dynamic invocation of replicated Web services.

WebMedia and LA-Web, 2004. Proceedings, pp. 22-

29. IEEE.

Dustdar, S. & Juszczyk, L., 2007. Dynamic replication and

synchronization of Web services for high availability

in mobile ad-hoc networks. Service Oriented

Computing and Applications, vol. 1, no. 1, pp. 19-33.

Erl, T., 2008. SOA: Principles of Service Design, vol. 1.

Upper Saddle River: Prentice-Hall.

Erl, T., Puttini, R., & Mahmood, Z., 2013. Cloud

Computing: Concepts, Technology & Architecture.

Pearson Education.

Fling, B., 2009. Mobile Design and Development:

Practical Concepts and Techniques for Creating

Mobile Sites and Web Apps. O’Reilly Media.

Guerraoui, R. & Schiper, A., 1997. Software-based

replication for fault tolerance. Computer, vol. 30, no.

4, pp. 68-74.

Keidl, M., Seltzsam, S., & Kemper, A., 2003. Reliable

Web service execution and deployment in dynamic

environments. In Technologies for E-Services, pp.

104-118. Springer, Berlin, Heidelberg.

Liu, A., Li, Q., & Huang, L., 2011. Quality-driven Web

services replication using directed acyclic graph

coding. In Web Information System Engineering

(WISE 2011), pp. 322-329. Springer, Berlin,

Heidelberg.

May, N. R., Schmidt, H. W., & Thomas, I. E., 2009.

Service redundancy strategies in service-oriented

architectures. Proceedings, Software Engineering and

Advanced Applications, 2009 (SEAA'09) 35th

Euromicro Conference, pp. 383-387. IEEE.

Michlmayr, A., Rosenberg, F., Leitner, P., & Dustdar, S.,

2009. Comprehensive QOS monitoring of Web

services and event-based SLA violation detection.

Proceedings, 4th International Workshop on

Middleware for Service Oriented Computing, pp. 1-6.

ACM.

Mohamed, M. F., ElYamany, H. F., & Nassar, H. M.,

2013. A study of an adaptive replication framework

for orchestrated composite Web services.

SpringerPlus, vol. 2, no. 1, pp. 1-18.

Papazoglou, M. P. & Van den Heuvel, W. J., 2005. Web

services management: A survey. Internet Computing,

IEEE, vol. 9, no. 6, pp. 58-64.

Papazoglou, M., 2008. Web Services: Principles and

Technology. Pearson Education.

Salas, J., Perez-Sorrosal, F., Patiño-Martínez, M., &

Jiménez-Peris, R., 2006. WS-replication: a framework

for highly available Web services. Proceedings of the

15th International Conference on World Wide Web,

pp. 357-366. ACM.

Słota, R., Nikolow, D., Skitał, Ł., & Kitowski, J., 2005.

Implementation of replication methods in the grid

environment. In Advances in Grid Computing (AGC

2005), pp. 474-484. Springer, Berlin, Heidelberg.

Sayal, M., Breitbart, Y., Scheuermann, P., & Vingralek,

R., 1998. Selection algorithms for replicated Web

servers. ACM SIGMETRICS Performance Evaluation

Review, vol. 26, no. 3, pp. 44-50.

Thakur, M. R. & Sanyal, S., 2012. A PAXOS-Based State

Machine Replication System for Anomaly Detection.

arXiv Preprint, arXiv:1206.2307.

W3C Working Group Note: Web Services Architecture,

2004. Available from: http://www.w3.org/TR/ws-arch/

[14 March 2015].

W3C Working Group Note: QoS for Web Services:

Requirements and Possible Approaches, 2003.

Available from http://www.w3c.or.kr/kr-office/TR/

2003/ws-qos/ [14 March 2015].

Zheng, Z., & Lyu, M. R., 2008. A distributed replication

strategy evaluation and selection framework for fault

tolerant Web services. Proceedings, Web Services

2008 (ICWS’08) IEEE International Conference, pp.

145-152. IEEE.

AGeneralizedServiceReplicationProcessinDistributedEnvironments

193
