Serious Games Scenario Modeling for Non-experts

Yohan Duval

1,3

, David Panzoli

1,2

, Axel Reymonet

, Jean-Yves Plantec

, J

ome Thomas

and Jean-Pierre Jessel

IRIT, University of Toulouse, Toulouse, France

CUFR Jean-Franc¸ois Champollion, Albi, France

ACTIA Automotive, Toulouse, France

Keywords:

Serious Games, Authoring, Scenario Modeling, Game-based Learning.

Abstract:

The use of serious games and gamiﬁed softwares is a new and growing trend for training professionals in a

wide variety of disciplines where procedures and decision-making are key (automotive diagnostic, surgery,

etc). Serious Games are safer, less expensive and advocated to be more efﬁcient. Unfortunately, there is a

lack of methodology and tools adapted for non-computing experts to develop their own gamiﬁed learning

scenarios. In this paper, we propose an approach allowing trainers to model professional activities in the form

of serious games scenarios. Trainers are enabled to express their expertise using a domain speciﬁc graphical

representation which will be implemented eventually in an easy-to-use authoring tool. The produced scenarios

describe both the actions necessary for completing the professional procedure and the associated pedagogy to

provide the learner with relevant educational feedback. The proposed approach speciﬁes a model matching

those requirements, and is illustrated by an application example in the automotive context. We intend to

demonstrate that an appropriate model is likely to make scenario editing accessible to trainers who are not

necessarily familiar with computer modeling in the ﬁrst place.

1 INTRODUCTION

(Alvarez and Djaouti, 2011) deﬁnes a Serious Game

as a “computer application, for which the original

intention is to combine with consistency, both seri-

ous aspects [. . . ] with playful springs from the video

game”. Serious Games are becoming a new form

of well-appreciated training tools, because of their

safety, their low cost and their efﬁciency (Van Est

et al., 2011). Although trainers would beneﬁt intro-

ducing Serious Games in their training, developing

such tools is too difﬁcult for them, for obvious com-

plexity reasons, but also, we believe, in lack of an

adapted methodology.

Yet, involving the trainer in the process is essen-

tial for two reasons. Firstly, they have the knowledge

to describe professional activities in which they are

specialized, using their own natural language. Sec-

ondly, they are able to provide learners with relevant

pedagogical feedback during the execution of these

activities, such as the accomplishment of important

educational objectives or the validation of acquired

skills with Multiple Choice Questions (MCQ). How-

ever, trainers do not have the necessary computing ex-

pertise to transfer in a natural manner these two di-

mensions into a computer intelligible-formal format.

In this paper, we deﬁne a scenario as the descrip-

tion of the professional activities in terms of game in-

teractions associated with the description of the ped-

agogical feedback. Our objective is to propose an

approach that empowers the trainers with the abil-

ity to create serious game scenarios on their own

by expressing their expertise as naturally as possi-

ble. Throughout the article, we illustrate our approach

with a scenario from the Diag’Adventures project, set

in the automotive context. Particularly, the game sce-

nario we refer to describes the ﬁrst steps of a car di-

agnostic operation, where activities are expected to

be carried out on the car as well as on the diagnos-

tic software. Figure 1 displays the virtual environ-

ment in which the game is set. In order to fulﬁll the

steps of the procedure, the user can switch at any time

between the garage view (a), where they can interact

mainly with a virtual car, and the diagnostic software

view (b). Whereas the garage is entirely simulated

in a 3D virtual environment, it is interesting to note

that the genuine diagnostic software is utilised. This

entails a more immersive simulation of the process,

474

Duval Y., Panzoli D., Reymonet A., Plantec J., Thomas J. and Jessel J..

Serious Games Scenario Modeling for Non-experts.

DOI: 10.5220/0005489904740479

In Proceedings of the 7th International Conference on Computer Supported Education (CSEDU-2015), pages 474-479

ISBN: 978-989-758-107-6

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

(a)

(b)

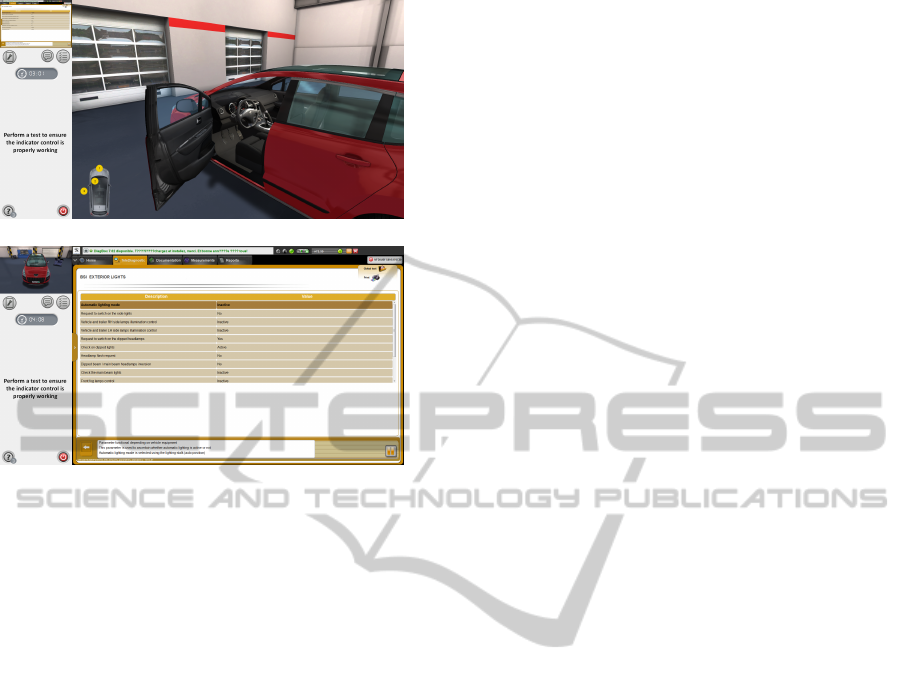

Figure 1: The game environment of Diag’Adventures fea-

tures two views : (a) the interactive car in 3D and (b) the

diagnostic software.

which should allow for a less steep learning curve

and a more efﬁcient transfer into the real world of

the knowledge acquired virtually, since it eases the

back and forth transitions between the game and the

real-life activities. In the next section, we will brieﬂy

review the related work. Then, we will point out the

coexistence of two separate dimensions within a sce-

nario: the description of the activity and the peda-

gogy. This will lead us to propose a model, which

we will detail and illustrate with the aforementioned

scenario. We conclude that our approach empowers

the trainers with the necessary tools to describe their

professional and pedagogical expertise in an expres-

sive yet formal fashion.

2 RELATED WORK

In the domain of virtual environment modeling, pre-

vious works have already been carried out to allow

non-experts to perform this complex and multidis-

ciplinary task. Existing textual modeling languages

have been used to describe and orchestrate virtual en-

vironments. (Ishida, 2002) has extended the Scheme

language to describe interaction scenarios between

agents inside a 3D environment. The Q language

thus created introduces in particular cues and actions,

which refer respectively to observations and modiﬁ-

cations in the environment. This allows an event trig-

gering system which is expressive enough to be used

by non-experts. In (Devillers and Donikian, 2003),

authors have chosen to deﬁne their own grammar to

design a textual language that allows the orchestra-

tion of agents in a 3D virtual world into multiple sub-

scenarios. This language provides a syntax close to

C++, and has the particularity of proposing instruc-

tions that can be represented as Finite State Machines.

It is also possible to use Extensible Markup Language

(XML) or JavaScript Object Notation (JSON) with

speciﬁc schemas to describe different objects in a vir-

tual environment (Tang et al., 2013) or to describe

Web-Based Multimodal Interaction Scenarios (Kat-

surada et al., 2003). These languages have the advan-

tage of being simpler to implement thanks to a large

amount of dedicated tools. However, the direct use of

these languages to describe activities in a virtual en-

vironment implies that the author of the scenario has

computer-expert skills, and therefore this approach

does not match our requirements.

Graphical notations can also be resorted to for the

design of scenarios in a virtual environment. For

instance, Uniﬁed Modeling Language (UML) class

and state diagrams are used in (Tang and Hanneghan,

2008). (Buche et al., 2010) designs procedures in a

virtual world using UML activity diagrams. (Pan-

zoli et al., 2014) uses the Business Process Model

and Notation (BPMN) language to model the activ-

ities and the interactions of several actors in a 3D

virtual operating room. Game scenarios can also

be described using Petri Nets (Ara

ujo and Roque,

2009). They proved to be powerful mathematical

analysis tools, but as such their usage is restricted

to an expert population. These last three represen-

tations have the advantage of being easier to use by

non-computing experts due to their graphical nature.

However, they still lack expressiveness: BPMN does

not support the deﬁnition of virtual world objects

attributes (Tang and Hanneghan, 2008), Petri Nets

have difﬁculties to model events in scenarios (Tang

and Hanneghan, 2008), and UML is too complex

since modeling every aspect of a scenario requires

the use of many types of diagrams (Tang and Han-

neghan, 2008)(Ara

ujo and Roque, 2009). To over-

come these problems, some researchers have used

their own representation. One common way to do so

is to use graphical blocks. (Van Est et al., 2011) uses

high-level conﬁgurable building blocks to describe

serious games scenarios. This representation allows

non-experts to naturally express professional activi-

ties over time with actions and events; however, it still

lacks support for the description of concurrent tasks

and for a clear description of the associated pedagogy.

SeriousGamesScenarioModelingforNon-experts

475

Puzzle blocks, used in Scratch (Resnick et al., 2009)

and Alice (Kelleher and Pausch, 2006) for teaching

programming to children, allow the description of

various games scenario using a user-friendly repre-

sentation. However, these blocks are too low-level for

a non-computing expert to simply express high-level

activities.

The graphical approach seems to be the most rele-

vant choice for deﬁning a higher-level framework and

methodology within the reach of non-programming

experts. Indeed, textual languages do not provide

them with enough expressiveness to describe in a for-

mal and simple representation both the professional

activities and the pedagogy. Existing traditional and

custom graphical notations do not provide every fea-

ture we need either. However, the principle of cues

and actions (Ishida, 2002), also used by (Van Est

et al., 2011) with events and actions, is interesting

since it allows non-experts to naturally express the

common distinction between observing and modi-

fying the virtual environment. We are also inter-

ested in using conﬁgurable building blocks (Van Est

et al., 2011) as the scenario description basis, com-

bined with BPMN (White, 2004) (Panzoli et al., 2014)

and activities diagram notations (Buche et al., 2010),

since it gives users the possibility to model high-level

tasks with traditional representations.

3 PROPOSED APPROACH

As we pointed out in the introduction, trainers have

the knowledge to describe both professional activities

and associated pedagogical feedback in a natural lan-

guage. On the other hand, they lack the computing

expertise to transfer this knowledge into a computer-

intelligible format, to ﬁnally create scenarios ﬁtting

their need and directly interpretable by a Serious

Game Engine. Most of the methods previously dis-

cussed describe activities in an actor-centered point

of view. Our approach will propose a method that de-

scribes these activities from the virtual environment

point of view. As a matter of fact, it allows trainers

to focus on the expected result instead of what the

player should do in order to reach this result, which

is more natural and straightforward to them. Besides,

we did not notice any custom graphical modeling no-

tation (blocks modeling) that uses existing and ex-

pressive representations (UML, BPMN) to model ac-

tivities. Therefore, we will endeavor to specify a pre-

cise graphical syntax allowing non-computing experts

to naturally express learning scenarios in a virtual en-

vironment. Furthermore, none of the previous meth-

ods takes into account the description of pedagogical

feedback during the player’s activities. Regarding our

approach, we want to give the trainer the possibility

to add educational information in the scenario, so the

learner can get direct feedback during their learning

sessions. Two dimensions in the process of describing

serious game scenarios distinctly arise. On the one

hand, the professional activities need to be described

as sequences of tasks. On the other hand, pedagogi-

cal objectives and feedback (advice messages, MCQ,

etc.) need to be modeled and associated to the ex-

ecution of the activities. These two dimensions are

orthogonal as they cannot be naturally described us-

ing the same representation. However, they share a

common entity: the activity block, which simply rep-

resents an elementary action in the virtual environ-

ment. Those two dimensions, along with their respec-

tive properties, are detailed in the next sections.

3.1 Scenario Modeling: Activities

The ﬁrst dimension consists in describing how the

learners activities should be modeled. The goal we

seek to achieve is to allow a non-computing expert

trainer to make use of their expertise to describe these

activities as naturally as possible using a graphical

representation. Basically, the graphical notation is

expected to mediate between i) the description in a

natural language of one or several professional activi-

ties, and ii) the equivalent description in a formal lan-

guage that can be used by the game engine to run the

scenario. BPMN is a good candidate, since its pri-

mary goal is to provide a notation that is readily un-

derstandable by all business users, from the business

analysts to the technical developers to the business

people (White, 2004). However, this representation

does not support the conﬁguration of each individual

task. This is why the conﬁgurable building blocks ap-

proach introduced in (Van Est et al., 2011) is interest-

ing: it allows the division of the global activity into

a set of individual conﬁgurable tasks. For the rest of

this paper, we will call them activity blocks.

Some activity blocks can be generic enough to be

reused in whatever scenarios, like logic blocks or vari-

ables. However, a large majority of blocks will be

context-speciﬁc. Anyway, we classify them into 3

categories: events, actions, and observations. Each

of these blocks represent a different notion, but they

all aim at describing activities from the objective per-

spective of the virtual environment rather than the

player’s subjective point of view. It allows to describe

the expected result without having to specify how to

reach this result.

The ﬁrst notion a trainer would want to describe

is the need to wait for a speciﬁc change in the virtual

CSEDU2015-7thInternationalConferenceonComputerSupportedEducation

476

environment to resolve the next task. This is exactly

why we deﬁne event blocks. In most cases, they will

be used to wait for the player to do an action, like ‘

When the door is opened, then . . . ”. But it can also be

used to wait for a particular state of the environment

induced by a previous action from the player, for ex-

ample “When the car speed is above 60 km/h, then

. . . ”. We represent Events as circles.

The second notion the trainer would need to de-

scribe is the fact that at some point during the ex-

ecution of a given activity, they want to modify the

virtual environment to place the learner in a speciﬁc

situation. We use Actions blocks to express this idea.

For example, it could be “Move the car from A to B”,

or “Change the Camera View to the inside of the car”.

We choose to represent Actions as rectangles.

Finally, the trainer may want to check one or sev-

eral attributes of the virtual environment, to perform

different actions depending on the observed result.

We deﬁne observation blocks to represent this notion.

It helps to represent cases like “If the lights are on,

then . . . else . . . ”. We represent Observations as dia-

mond shapes.

We deﬁne each of these activity blocks to be able

to possess a set number of arguments, so they can

be reused in different contexts. For example, for the

event “When the car speed is above 60 km/h, then

. . . ”, the speed limit could be a variable argument in

the block. Additionally, we want to allow the scenario

author to reuse sequences of activity blocks in future

scenarios or in different sections of a same scenario,

without them having to describe the sequence twice.

In this perspective, we let the trainer deﬁne composite

blocks, which are basically the merging of a sequence

of elementary activity blocks into one higher-level

block. They also have a set number of arguments, so

it is possible to quickly modify some of the parame-

ters of the internal elementary blocks. These compos-

ite blocks are stored in a library accessible from any

scenario.

Finally, the trainer may want to describe concur-

rent activities, to express the fact that two different

tasks can be performed in parallel. To represent this

idea, we use the BPMN notion of pools. A scenario

has at least one pool, which contains the main activ-

ities description. It starts with a special event block

named “Start” and ends with a another named “End”.

From this single pool, we can add as much as nec-

essary, each of them containing a series of activities,

starting with a global event to specify when the asso-

ciated concurrent activities is being started.

3.2 Scenario Modeling: Pedagogy

The second dimension consists in deﬁning how

should be modeled the pedagogical feedback the

learner will receive in the virtual environment while

they play a training session. We introduce pedagogy

blocks to describe these feedback.

A learning scenario has pedagogical objec-

tives (Alvarez and Djaouti, 2011) (Garris et al., 2002)

that need to be speciﬁed so the learner knows their

progress along their activity and what they have

learned so far. To let the non-expert express this no-

tion, we deﬁne objective blocks. The writer can in-

stantiate as many of these blocks as necessary.

We also introduce a tree view representation so the

trainer can hierarchically order these objectives. In

practice, completing one (high-level) objective could

depend on completing multiple sub-objectives, and so

on in a recursive fashion. Starting from the root which

represents the global objective of the scenario, the au-

thor will be able to specify a hierarchy between ob-

jectives and sub-objectives.

3.3 Associating the Activity and the

Pedagogy

Having described both the activities and the pedagogy

of a scenario, by means of their respective graphical

notation, interconnecting those two dimensions hap-

pens at the level of the activity block. The associa-

tion is performed by the author. It consists, for each

elementary objective (a leaf on the objective tree),

in deﬁning two notions: which task starts the objec-

tive? and which task completes the objective? This is

achieved by connecting each objective to a composite

block (i.e. a series of block as detailed in section 3.1),

the ﬁrst block within which being related to starting

the objective and the last block being related to com-

pleting the objective.

In the objectives description, the author is given

the possibility to deﬁne two sequences of feedback

blocks per objective: one for when the the objective

is started, and another for when it is completed. They

can then express logic like “When the sub-objective 1

is started, display the advice. . . ” or “When the objec-

tive 2 is completed, launch a MCQ to check acquired

knowledge”.

3.4 Application Example

To illustrate the proposed approach, we have come up

with the Figure 2 presenting a scenario description ex-

ample applied to the context of car diagnosis. In this

scenario, the trainee is merely expected to establish

SeriousGamesScenarioModelingforNon-experts

477

Main Activity: connect the diagnostic

software to the car

Concurrent Activity 1: plug the VCI to the

car

Concurrent Activity 2: plug the VCI to the

USB port

Start

Test Variable

(Activity 1 AND

2 OK )

End

YES

Start

End

Move Camera To

(CAR_VCI_PLUG)

Start

Move Camera To

(COMPUTER_VCI_PLUG)

End

Connect VCI to car

Connect VCI to

computer

Access Vehicle

Selection

Select Vehicle

Connect

Diagnostic

Software to car

Connect VCI to

car

Navigate through

the Diagnostic

software

Access Vehicle

Selection

Select Vehicle

Connect VCI to

computer

Screen

(Wecome)

Button

(Peugeot)

Screen

(Select Vehicle)

Button

(Peugeot

3008)

Button

(Auto Detect)

Popup

(Confirm

VIN)

Screen

(Auto Detect)

Button

(OK)

Plugged

(VCI_TO_CAR)

Plugged

(VCI_TO_USB)

Pedagogy

Description

Professional

Activities

Description

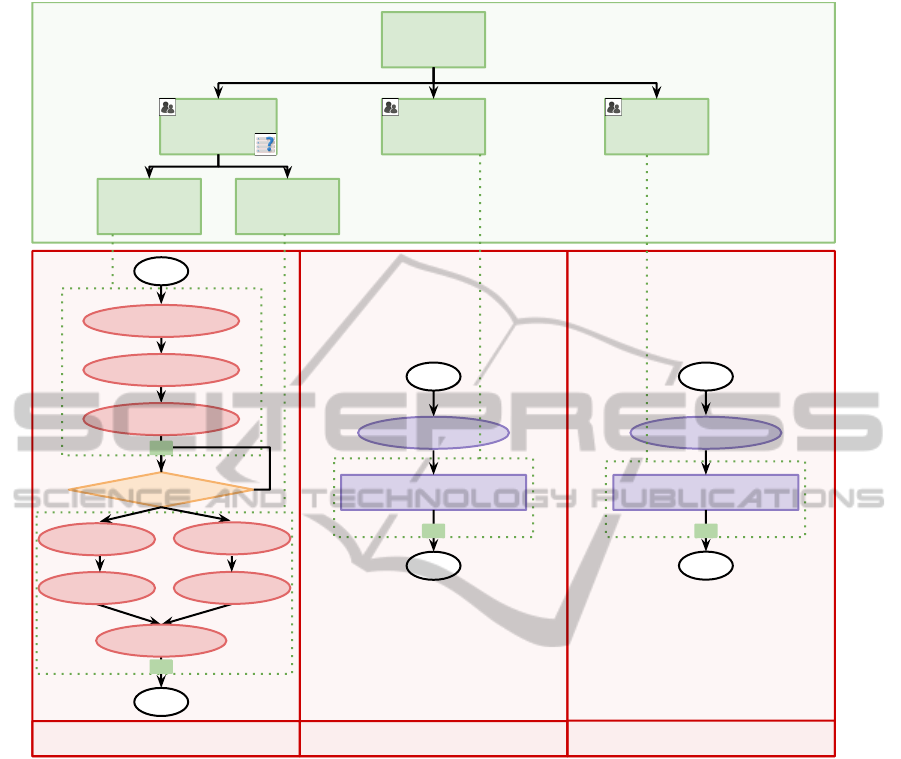

Figure 2: A toy-example scenario in Diag’Adventures. At the top (green), the pedagogy tree. At the bottom (red), the

activities. Learning objectives and activities are connected by the dotted green lines.

the connection between the diagnostic software and

the (virtual) car. The process is described in the pro-

fessional activities description view. The software is

mainly a succession of screens, in which the user can

interact with a number of GUI elements, to progress

in their diagnostic activity. We could just have de-

scribed the succession of screens that would complete

the main objective, if we did not care how the learner

accessed them. However, in this particular scenario,

we want the user to follow an optimal path; this is why

we also describe the buttons that lead to this optimal

use of the software. The two concurrent activities de-

scribe interactions in the 3D virtual environment that

can be done at any time during the scenario.

In the pedagogy description, we deﬁned the hi-

erarchy between the scenario objectives and sub-

objectives. Each leaf of the tree is then associated

with a sequence of activity blocks in the activities de-

scription view. Pedagogical feedback are represented

by the icons on the objective nodes/leaves. As an

example, when the “Navigate through the diagnotic

software” objective is started, we change the support-

ing message to indicate to the learner what they have

to do. Then, when this objective is completed, we

present a MCQ to the user to check if they have un-

derstood the process.

Through this example, we see the two advantages

of the graphical representation and the methodology

we propose. Firstly, it makes a clear division between

the descriptions of the professional activities and the

pedagogy. This allows trainers to simply express their

dual-expertise into two orthogonal dimensions, and

to establish the link between them only afterwards.

Secondly, the common entity shared by these two di-

mensions, the activity block, uses a speciﬁc syntax

which gives enough expressiveness for the user to de-

CSEDU2015-7thInternationalConferenceonComputerSupportedEducation

478

scribe a large amount of professional activities. That

being said, it must be noted that the expressiveness is

restricted to a speciﬁc context and therefore the ap-

proach is more suited for describing procedural ac-

tivities as compared to activities entailing an absolute

freedom of the learner inside the environment. As a

matter of fact, it is easier to monitor the player’s ac-

tions in a procedural scenario where we describe the

optimal path, than in a free scenario where we could

merely describe checkpoints. Besides, the pedagogy

feedback could not be described as accurately as in

a procedure. In the future, we plan to work on this

aspect in order to cover a larger number of scenarios.

4 CONCLUSION AND

PERSPECTIVES

In this paper we have described a methodology and

the associated graphical modeling approach allowing

the description of serious games scenarios. The main

idea is to split a scenario into two dimensions differ-

ent by nature yet connected: the pedagogy and the

procedure. It is advocated that a non-computing ex-

pert can then express his expertise in the most natural

fashion.

Future work will address the design and imple-

mentation of an authoring tool to validate this ap-

proach. We will deﬁne and model a number of var-

ious representative scenarios using our methodology.

We intend to measure the expressiveness of our repre-

sentation, and assess the proportion of the situations

likely to be imagined by a trainer that can be mod-

eled. Among these scenarios, we will have a partic-

ular interest in the description of collaborative tasks

like in (Panzoli et al., 2014) or (Buche et al., 2010).

ACKNOWLEDGEMENTS

Diag’Adventures is supported by the Midi-Pyr

ees

region and collaboratively developed by ACTIA Au-

tomotive, OPERANTIS, and the University JF Cham-

pollion.

REFERENCES

Alvarez, J. and Djaouti, D. (2011). An introduction to seri-

ous game deﬁnitions and concepts. Serious Games &

Simulation for Risks Management, page 11.

Ara

ujo, M. and Roque, L. (2009). Modeling games with

petri nets. Breaking New Ground: Innovation in

Games, Play, Practice and Theory. DIGRA2009. Lon-

dres, Royaume Uni.

Buche, C., Bossard, C., Querrec, R., and Chevaillier, P.

(2010). Pegase: A generic and adaptable intelligent

system for virtual reality learning environments. In-

ternational Journal of Virtual Reality, 9(2):73–85.

Devillers, F. and Donikian, S. (2003). A scenario language

to orchestrate virtual world evolution. In Proceedings

of the 2003 ACM SIGGRAPH/Eurographics sympo-

sium on Computer animation, pages 265–275. Euro-

graphics Association.

Garris, R., Ahlers, R., and Driskell, J. E. (2002). Games,

motivation, and learning: A research and practice

model. Simulation & gaming, 33(4):441–467.

Ishida, T. (2002). Q: A scenario description language for

interactive agents. Computer, 35(11):42–47.

Katsurada, K., Nakamura, Y., Yamada, H., and Nitta, T.

(2003). Xisl: a language for describing multimodal

interaction scenarios. In Proceedings of the 5th inter-

national conference on Multimodal interfaces, pages

281–284. ACM.

Kelleher, C. and Pausch, R. (2006). Lessons learned from

designing a programming system to support mid-

dle school girls creating animated stories. In Visual

Languages and Human-Centric Computing, 2006.

VL/HCC 2006. IEEE Symposium on, pages 165–172.

IEEE.

Panzoli, D., Sanselone, M., Sanchez, S., Sanza, C.,

Lelardeux, C., Duthen, Y., and Lagarrigue, P. (2014).

Introducing a design methodology for multi-character

collaboration in immersive learning games. Sixth In-

ternational Conference on Virtual Worlds and Games

for Serious Applications: VS-Games 2014.

Resnick, M., Maloney, J., Monroy-Hern

andez, A., Rusk,

N., Eastmond, E., Brennan, K., Millner, A., Rosen-

baum, E., Silver, J., Silverman, B., et al. (2009).

Scratch: programming for all. Communications of the

ACM, 52(11):60–67.

Tang, S. and Hanneghan, M. (2008). Towards a domain spe-

ciﬁc modelling language for serious game design. In

6th International Game Design and Technology Work-

shop, Liverpool, UK.

Tang, S., Hanneghan, M., and Carter, C. (2013). A platform

independent game technology model for model driven

serious games development. Electronic Journal of e-

Learning, 11(1):61–79.

Van Est, C., Poelman, R., and Bidarra, R. (2011). High-

level scenario editing for serious games. In GRAPP,

pages 339–346.

White, S. A. (2004). Introduction to bpmn. IBM Corpora-

tion.

SeriousGamesScenarioModelingforNon-experts

479
