A Modelling Concept to Integrate Declarative and Imperative

Cloud Application Provisioning Technologies

Uwe Breitenb

ucher

, Tobias Binz

, Oliver Kopp

1,2

, Frank Leymann

and Johannes Wettinger

IAAS, University of Stuttgart, Stuttgart, Germany

IPVS, University of Stuttgart, Stuttgart, Germany

Keywords:

Cloud Application Provisioning, Automation, Declarative Modelling, Imperative Modelling.

Abstract:

Efﬁcient application provisioning is one of the most important issues in Cloud Computing today. For that

purpose, various provisioning automation technologies have been developed that can be generally categorized

into two different ﬂavors: (i) declarative approaches are based on describing the desired goals whereas (ii) im-

perative approaches are used to describe explicit sequences of low-level tasks. Since modern Cloud-based

business applications become more and more complex, employ a plethora of heterogeneous components and

services that must be wired, and require complex conﬁgurations, the two kinds of technologies have to be in-

tegrated to model the provisioning of such applications. In this paper, we present a process modelling concept

that enables the seamless integration of imperative and declarative provisioning models and their technologies

while preserving the strengths of both ﬂavors. We validate the technical feasibility of the approach by applying

the concept to the workﬂow language BPEL and evaluate its features by several criteria.

1 INTRODUCTION

With the growing adoption of Cloud Computing in

enterprises, the rapid and reliable provisioning of

Cloud applications becomes a more and more impor-

tant task. Especially the increasing number of avail-

able Cloud services offered by providers, e. g., Ama-

zon and Google, provide powerful Cloud properties

such as automatic elasticity, self-service, or pay-per-

use features that are provided completely by the au-

tonomous management capabilities of Cloud environ-

ments (Leymann, 2009). Due to this trend, more

and more business applications are outsourced to the

Cloud (Binz et al., 2014). As a result, Cloud-based

business applications become (i) increasingly com-

plex and (ii) employ a plethora of heterogeneous soft-

ware, middleware, and XaaS components offered by

different providers including non-trivial dependencies

among each other. Consequently, the provisioning

of such applications becomes a serious management

challenge: (i) different kinds of Cloud offerings (IaaS,

PaaS, SaaS, etc.) must be provisioned and (ii) com-

plex conﬁgurations are required to setup and wire in-

volved components. This typically requires the com-

bination of multiple management technologies, espe-

cially if the application components are distributed

across multiple Clouds (Breitenb

ucher et al., 2013).

However, combining (i) proprietary APIs,

(ii) non-standardized conﬁguration management

tools, and (iii) different virtualization technologies

in a single automated provisioning process is a

complex modelling and integration challenge using

traditional approaches such as workﬂows. The main

reason for this complexity results from the nature of

technologies that have to be combined: There are

declarative technologies, such as Chef (Opscode,

Inc., 2015; Nelson-Smith, 2013) or Puppet (Puppet

Labs, Inc., 2015), which only describe the desired

goal state of application components without specify-

ing the actual tasks that have to be executed to reach

this state. Imperative technologies, e. g., scripts or

workﬂows, explicitly specify each technical step to

be executed in detail. Although there are technologies

for orchestrating imperative approaches with each

other homogeneously (Kopp et al., 2012), combining

declarative and imperative approaches results in

implementing huge amounts of wrapper code as the

two ﬂavors are hardly interoperable with each other

as there is no means to orchestrate them seamlessly.

In this paper, we tackle these issues. The ﬁrst

contribution is a detailed state of the art analysis of

declarative and imperative provisioning approaches

487

Breitenbücher U., Binz T., Kopp O., Leymann F. and Wettinger J..

A Modelling Concept to Integrate Declarative and Imperative Cloud Application Provisioning Technologies.

DOI: 10.5220/0005495104870496

In Proceedings of the 5th International Conference on Cloud Computing and Services Science (CLOSER-2015), pages 487-496

ISBN: 978-989-758-104-5

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

including a critical evaluation. To tackle the ana-

lyzed issues, we present a modelling approach that

enables integrating declarative and imperative provi-

sioning models and the corresponding technologies

seamlessly. We introduce the concept of Declarative

Provisioning Activities that allows describing declar-

ative goals directly in the control and data ﬂow of an

imperative workﬂow model. Based on our approach,

developers are able to model provisioning workﬂows

that specify not only imperative statements but declar-

ative statements as well—without polluting the model

with technical integration details. The approach en-

ables to beneﬁt from the strengths of both ﬂavors:

Declarative models can be used to specify high-level

management goals, whereas imperative logic enables

modelling complex cross-cutting conﬁguration and

wiring tasks on a very low level of technical abstrac-

tion. We validate the technical feasibility of the ap-

proach by presenting a prototypical implementation,

which is integrated in the standards-based Cloud man-

agement ecosystem OpenTOSCA (Binz et al., 2013;

Breitenb

ucher et al., 2014; Kopp et al., 2013) and the

imperative workﬂow language BPEL (OASIS, 2007).

We evaluate the approach by several criteria based on

the conducted analysis and discuss its limitations.

The remainder of this paper is structured as fol-

lows: In Section 2, we conduct a detailed analy-

sis regarding declarative and imperative provisioning

technologies as well as combination concepts. Sec-

tion 3 presents our approach of Declarative Provision-

ing Activities, which is validated in terms of a proto-

typical implementation in Section 5 and evaluated in

Section 6. Section 7 concludes the paper and gives an

outlook on future work.

2 STATE OF THE ART ANALYSIS

In this section, we conduct a detailed state of the art

analysis of declarative and imperative provisioning

approaches and existing technologies including a crit-

ical evaluation. Afterwards, we discuss related work

that attempts to combine the two ﬂavors.

2.1 The Declarative Flavor

Declarative approaches can be used to describe the

provisioning of an application by modelling its de-

sired goal state, which is enforced by a declarative

provisioning system. They typically employ domain-

speciﬁc languages (DSLs) (G

unther et al., 2010) to

describe goals in a declarative way, i. e., only the

what is described without providing any details about

the technical how. For example, a declarative spec-

iﬁcation may describe that a Webserver has to be

installed on a virtual machine, but without specify-

ing the technical tasks that have to be performed to

reach this goal. The main strength of declarative ap-

proaches is that the technical provisioning logic, i. e.,

the technical tasks to be performed, is inferred au-

tomatically by the provisioning system, which eases

modelling provisionings as the technical execution

details are hidden (Herry et al., 2011). One of the

most prominent examples of declarative provisioning

description languages is Amazon CloudFormation

This JSON-based language enables to describe the de-

sired application deployment using Amazon’s Cloud

services including their conﬁguration in a declara-

tive model, which is consumed to fully automatically

setup the application. In comparison to such provider-

speciﬁc languages, which quickly lead to a vendor

lock-in, provider-independent technologies were de-

veloped such as Puppet (Puppet Labs, Inc., 2015).

Due to the automatic inference of provisioning

logic, declarative systems have to understand the

declared statements. This restricts declarative pro-

visioning capabilities to standard component types

and predeﬁned semantics that are known by the run-

time (Breitenb

ucher et al., 2014). Thus, individual

customizations for the provisioning of complex ap-

plication structures cannot be realized arbitrarily and

have to comply with the general, overall provision-

ing logic. As a consequence, the declarative approach

is rather suited for applications that consist of com-

mon components and conﬁgurations, but is limited

in terms of deploying big, complex business appli-

cations that require speciﬁc conﬁgurations with non-

trivial component dependencies. Even mechanisms to

integrate script executions, API calls, or service invo-

cations at certain points in their deployment lifecycle,

as supported by many declarative approaches, do of-

ten not provide the required ﬂexibility as the overall

logic cannot be changed arbitrarily. As the integration

of other technologies is often not supported natively,

models get polluted by glue and wrapper code, which

results in complex models including low-level techni-

cal integration details (Wettinger et al., 2014). Nev-

ertheless, the declarative ﬂavor is very important due

to (i) native support by Cloud providers and (ii) huge

communities providing reusable artifacts.

2.2 The Imperative Flavor

In contrast to the declarative ﬂavor, the imperative

provisioning approach enables developers to specify

each technical detail about the provisioning execution

http://aws.amazon.com/cloudformation/

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

488

by creating an explicit process model that can be ex-

ecuted fully automatically by a runtime. Imperative

models deﬁne (i) the control ﬂow of activities, (ii) the

data ﬂow between them, as well as (iii) all techni-

cal details required to execute these activities. Thus,

compared to declarative approaches, they describe not

only what has to be done, but also how the provision-

ing tasks have to be executed. Imperative processes

are typically implemented using (i) programming lan-

guages such as Java, (ii) scripting languages, e. g.,

Bash or Python, and (iii) workﬂow languages such

as BPEL (OASIS, 2007) or BPMN (OMG, 2011).

However, programming and scripting languages are

not suited for the provisioning of serious business

applications as they are not able to provide the ro-

bust and reliable execution features that are supported

by the workﬂow technology (Leymann and Roller,

2000; Herry et al., 2011). Since general-purpose

workﬂow languages do not natively support modeling

features for application provisioning, we developed

BPMN4TOSCA (Kopp et al., 2012), which is a BPMN

extension that supports API calls, script-executions,

and service invocations based on the TOSCA stan-

dard (OASIS, 2013) (a standard to describe Cloud ap-

plications). This language can be used to seamlessly

integrate such tasks as it provides a separate activity-

type for each of them. However, BPMN4TOSCA lacks

support for the direct integration of declarative provi-

sioning technologies, which need to be wrapped for

their invocation. Thus, similar to general-purpose

technologies, seamlessly integrating domain-speciﬁc

technologies into one process is not possible. To wrap

management technologies, we presented a manage-

ment bus that provides a uniﬁed API for the invoca-

tion of arbitrary technologies (Wettinger et al., 2014).

However, invoking the bus obfuscates the actual tech-

nical statements, which impedes maintaining and un-

derstanding process models.

Imperative approaches are suited to model com-

plex provisionings that employ a plethora of hetero-

geneous components, especially for multi-cloud ap-

plications (Petcu, 2014). As they provide full control

over the tasks to be executed, imperative models are

able to automate exactly the manual steps that would

be executed by a human administrator who provisions

the application manually. Thus, while declarative ap-

proaches are rather suited for standard provisionings,

imperative approaches enable developers to deﬁne ar-

bitrary provisioning logic. The main drawback of the

imperative approaches results from the huge amount

of statements that must be modelled since the runtime

infers no logic by itself. Consequently, manual pro-

cess authoring is a labor-intensive, time-consuming,

and error-prone task that requires a lot of low-level,

technical expertise in different ﬁelds (Breitenb

ucher

et al., 2014; Breitenb

ucher et al., 2013): Heteroge-

neous services need to be orchestrated (e. g., SOAP-

based and RESTful provider APIs), low-level tech-

nologies must be integrated, and, especially, declara-

tive technologies must be wrapped. As currently no

technology supports the seamless integration of both

ﬂavors, their orchestration results in large, polluted,

technically complex processes that require multiple

different wrappers to support the various invocation

mechanisms and protocols (Wettinger et al., 2014).

These wrappers decrease the transparency as only

simpliﬁed interfaces are exposed to the orchestrating

process while the technical details, which are in many

cases of vital importance to avoid errors when mod-

elling multiple steps that depend on each other, are

abstracted completely. In addition, wrappers signif-

icantly impede maintaining processes as not simply

the orchestration process has to be adapted, but wrap-

per code needs to be modiﬁed and built again, too.

2.3 Integration Approaches

In this section, we present related work that attempts

to combine both ﬂavors. There are several gen-

eral purpose concepts that attempt to bridge the gap

between imperative provisioning logic and declara-

tive models which generate provisioning workﬂows

by analyzing the declarative speciﬁcations (Breit-

enb

ucher et al., 2014; Breitenb

ucher et al., 2013;

Eilam et al., 2011; Keller et al., 2004; El Maghraoui

et al., 2006; Herry et al., 2011; Levanti and Ran-

ganathan, 2009; Mietzner, 2010). These approaches

are able to interpret declarative speciﬁcations mod-

elled using a domain-speciﬁc modelling language for

generating provisioning plans, which can be exe-

cuted fully automatically. The advantage of these

approaches is the full control over the executed pro-

visioning steps as the resulting workﬂows can be

adapted and conﬁgured arbitrarily. However, the

complexity, lack of transparency, and the polluted

control and data ﬂows of the resulting workﬂows are

still problems that impede extending the plans if cus-

tomization is required. Thus, the approach we present

in this paper may be applied to these technologies for

improving the quality of the generated processes. As

a result of the discussion in this section, to ensure cor-

rect operation and to ease the creation of complex pro-

visioning processes for non-trivial business applica-

tions, it is of vital importance to employ an extensible

orchestration approach that supports the seamless or-

chestration of imperative and declarative provisioning

technologies. Therefore, the main goals of this paper

are (i) a seamless integration of declarative and im-

AModellingConcepttoIntegrateDeclarativeandImperativeCloudApplicationProvisioningTechnologies

489

, s

, …, s

}

Imperative Statements

IPE

, g

, …, g

}

Declarative Statements

…

DPE

Data

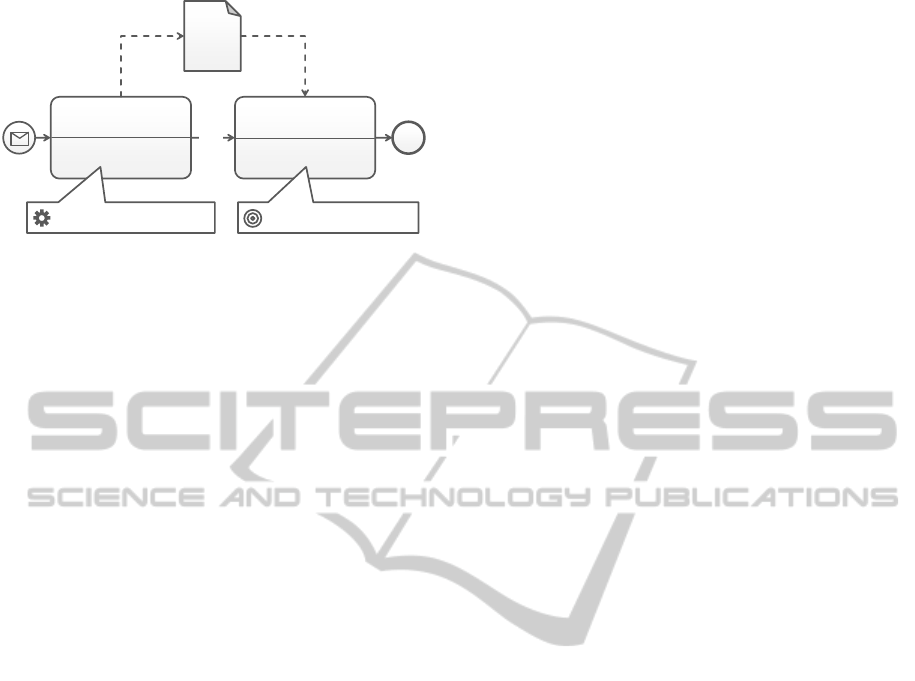

Figure 1: Concept of the direct integration approach.

perative provisioning modelling approaches as well as

(ii) the orchestration of the corresponding provision-

ing technologies through workﬂow models.

3 INTEGRATED MODELLING

In this section, we present an approach that enables

integrating declarative and imperative provisioning

models seamlessly into the control and data ﬂow of

an imperative workﬂow. In Section 3.1, we introduce

the abstract concept of the approach in a technology-

independent manner and deﬁne data handling con-

cepts in Section 3.2. In Section 4, we apply the ap-

proach to the workﬂow language BPEL in order to

show how the concept can be realized using a con-

crete standardized workﬂow language.

3.1 Declarative Provisioning Activities

The general modelling approach is shown in Fig-

ure 1 and based on extending standardized, imperative

workﬂow languages such as BPMN or BPEL by the

concept of Declarative Provisioning Activities. These

activities enable to specify declarative provisioning

goals directly in the control ﬂow of a workﬂow model

that describes the tasks to provision a certain applica-

tion. To present the conceptual contribution indepen-

dently from a concrete workﬂow language, we ﬁrst

introduce the general concept in an abstract way and

show its applicability to the standardized workﬂow

language BPEL afterwards. Therefore, in this section,

we distinguish only between (i) Imperative Provision-

ing Activities and (ii) Declarative Provisioning Activ-

ities that abstract from concrete realizations of pro-

visioning tasks in different workﬂow languages. Of

course, other control and data ﬂow constructs, such

as events and gateways, are also required to model

executable processes. However, these are language-

speciﬁc and do not inﬂuence the presented concept.

An Imperative Provisioning Activity (IPA) de-

scribes a technically detailed execution of a provi-

sioning task as a sequence of one or more impera-

tive statements. This can be, for example, a script

implemented in Python or a simple HTTP-POST re-

quest that speciﬁes a URL and data to be sent. Thus,

the term is an abstraction of several existing impera-

tive approaches such as scripts and programs that im-

plement a workﬂow activity or the invocation of an

API etc. The modeling and execution of such Impera-

tive Provisioning Activities is supported natively by

many workﬂow languages through general-purpose

concepts or by domain-speciﬁc extensions, respec-

tively. For example, BPMN natively supports the exe-

cution of script-tasks (OMG, 2011), the BPEL exten-

sion BPEL4REST (Haupt et al., 2014) enables send-

ing arbitrary HTTP requests, and BPMN4TOSCA na-

tively supports orchestrating provisioning operations

based on the TOSCA-standard—especially the exe-

cution of conﬁguration scripts on a target VM (Binz

et al., 2013; Wettinger et al., 2014). This enables or-

chestrating arbitrary provisioning tasks using work-

ﬂows that describe the technical details required for

the automated provisioning of complex applications.

In contrast to this, we introduce the new con-

cept of Declarative Provisioning Activities (DPA) in

this paper that enables specifying desired provision-

ing goals in a declarative manner. A DPA consists

of a set of declarative statements that describe what

has to be achieved, e. g., a desired conﬁguration of

a certain application component, but without speci-

fying any technical details about how to achieve the

declared goals. Similar to other activity-constructs

of workﬂow languages, Declarative Provisioning Ac-

tivities are modelled directly in the control and data

ﬂow of the process model the same way as IPAs. This

enables combining Imperative and Declarative Provi-

sioning Activities intuitively while preserving a clear

understanding about the overall ﬂow. The operational

semantics of Declarative Provisioning Activities are

deﬁned as follows: If the control ﬂow reaches the ac-

tivity, the declarative statements, i. e., the modelled

goals, are enforced by the runtime that executes the

workﬂow. The activity is executed until all goals are

achieved and all affected application components are

in the desired state speciﬁed by the DPA. Then, the

activity completes and the control ﬂow continues fol-

lowing the links to the next activities. Process models

that contain both provisioning activity types are called

Integrated Provisioning Models in this paper.

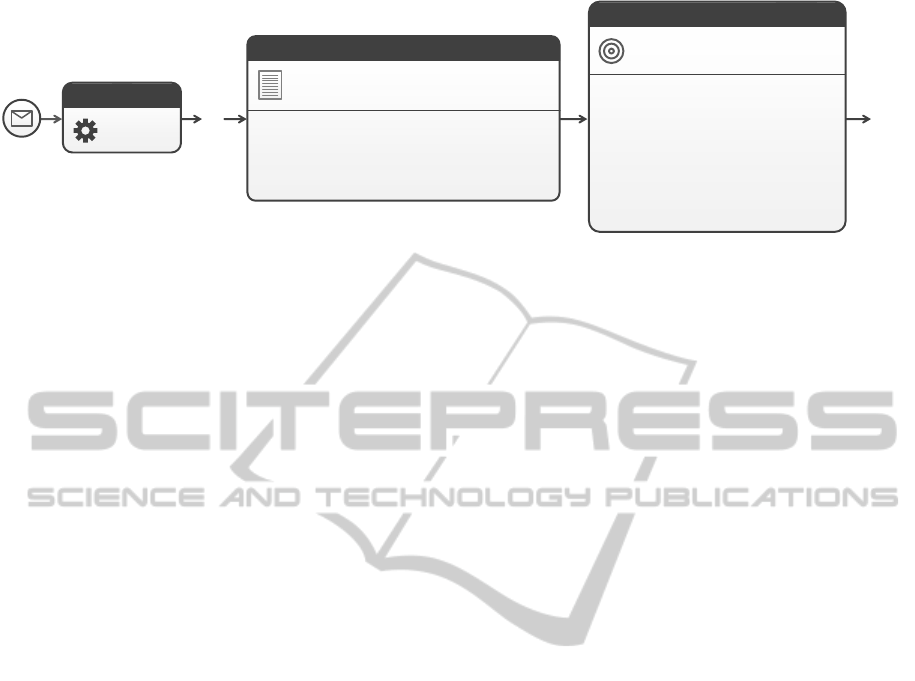

Figure 2 shows an example of an Integrated Pro-

visioning Model that contains two Imperative Pro-

visioning Activities and one Declarative Provision-

ing Activity, which (i) instantiate a virtual machine,

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

490

…

apt-get update

apt-get -y install mysql-server

mysql -u root -h localhost pDB < db_data.sql

TargetVM: var [IP-Address]

Credentials: var [Credentials]

Install MySQL-Database (IPA)

package 'apache_httpd' do

http_port 8080

https_port 8081

ensure 'installed'

end

package 'php5_mod' do

ensure 'installed'

end

TargetVM: var [IP-Address]

Credentials: var [Credentials]

Install Apache Webserver (DPA)

HTTP

POST

Create VM (IPA)

Figure 2: Simpliﬁed example of an Integrated Provisioning Model that (i) instantiates a virtual machine, (ii) installs a database,

and (iii) installs a Webserver on the virtual machine (We omitted some tasks for reasons of space).

(ii) install a MySQL-database, and (iii) install an

Apache Webserver on the virtual machine. The ﬁrst

IPA is an HTTP request to an API of a Cloud provider

or an infrastructure virtualization technology that trig-

gers the instantiation of the virtual machine. The

activity speciﬁes the request including all required

conﬁguration parameters and invokes the API corre-

spondingly. After waiting for the successful instanti-

ation, the IP-address and SSH credentials of the VM,

which can be polled at the API, are stored in two vari-

ables of the workﬂow model: “IP-Address” and “Cre-

dentials”. As these are standard tasks, we omit details

in the ﬁgure for reasons of space.

The second IPA installs a MySQL database on

the VM: The shown activity uses a low-level Bash

script that imperatively speciﬁes statements to be ex-

ecuted to install the database and to import a refer-

enced SQL-ﬁle, which is uploaded to the VM by an

IPA (omitted in the ﬁgure). To copy and execute this

script on the VM, the process variables that store the

IP-Address and SSH credentials of the target VM are

used by the IPA to access the virtual machine via SSH

and to execute the imperatively speciﬁed statements.

To model the installation and conﬁguration of the

Apache Webserver on the virtual machine, the DSL of

the conﬁguration management technology Chef (Op-

scode, Inc., 2015) is used to declaratively deﬁne the

desired installation. Consequently, a Declarative Pro-

visioning Activity is modelled that speciﬁes the de-

sired goals by declaratively describing the state and

conﬁguration of the Webserver that has to be enforced

when executing the activity. Similarly to the second

script-based IPA, the activity employs the same pro-

cess variables to access the virtual machine.

This example shows that the direct integration of

declarative and imperative languages and technolo-

gies in one orchestration process provides a powerful

modeling approach as the corresponding imperative

programming or scripting-languages, respectively, as

well as the domain-speciﬁc languages of declarative

approaches can be used seamlessly in one process

model. Therefore, there is no need to write complex

wrapper code or to invoke services wrapping these

technologies that pollute the process model. Thus,

the approach enables using the right technology for

the right task while ensuring full-control over their

orchestration without polluting the workﬂow model.

3.2 Data Handling

Both types of activities exchange data within the

workﬂow. Therefore, we deﬁne three concepts in-

cluding their operational semantics that enable de-

scribing the data ﬂow between provisioning activi-

ties: (i) Input parameters, (ii) output parameters, and

(iii) content injection. We continue abstracting from

individual data storage concepts of workﬂow lan-

guages by simply referring to “process variables” and

show in the next section how these concepts can be

realized in the concrete workﬂow language BPEL.

As shown in Figure 2, the script-activity and the

declarative Chef-activity reference process variables

(“IP-Address” and “Credentials”) that are assigned to

a “TargetVM” and a “Credentials” attribute of the ac-

tivities. These attributes represent predeﬁned activity-

speciﬁc input parameters of the activity implementa-

tion. When the activity gets executed by the work-

ﬂow, the runtime copies the content of the referenced

process variables “by value” and takes them as input

parameters for invoking the implementation.

To exchange produced data between DPAs and

IPAs, both may specify output parameters that con-

tain the results of their execution. Each output pa-

rameter is represented as a pair of (i) activity-internal

data reference and (ii) workﬂow process variable. An

activity-internal data reference is a reference to a data

container in the language of the activity. For exam-

ple, an environment variable of a script. When the

execution of the statements is ﬁnished, the referenced

data is copied by the activity implementation to the

speciﬁed process variables “by value”.

Content injection enables using process variables

AModellingConcepttoIntegrateDeclarativeandImperativeCloudApplicationProvisioningTechnologies

491

1 <extensionActivity>

2 <REST:POST ResponseVar="VMCreationResponse"

3 URL="https://ec2.amazonaws.com/?Action=RunInstances

4 &ImageId=ami-31814f58

5 &InstanceType=m1.small&..." />

6 </extensionActivity>

7 ...

8 <extensionActivity>

9 <DPA:Chef TargetVM="$bpelvar[IP-Address]" Credentials="$bpelvar[Credentials]">

10 package 'apache_httpd' do

11 http_port $bpelvar[HTTPPort]

12 https_port 8081

13 ensure 'installed'

14 end ...

15 </DPA:Chef>

16 </extensionActivity>

Listing 1: Snippet of a BPEL model that employs an HTTP-Request as IPA and a DPA that declares Chef statements.

directly in the declarative or imperative language of a

provisioning activity. These serve as placeholders that

are replaced by the current content of the referenced

variable when the execution of the activity starts. For

example, a script may use the variable “IP-Address”

to write the IP of the VM into ﬁrewall rules to enable

accessing the Webserver from the outside.

4 REALIZATION USING BPEL

In this section, we prove that the presented approach

is practically feasible by applying the integrated mod-

elling concept to the workﬂow standard BPEL. There-

fore, we (i) show how Imperative Provisioning Ac-

tivities can be realized using existing constructs and

extensions of BPEL and how (ii) Declarative Provi-

sioning Activities can be modelled and executed using

the so called “BPEL extension activities” (OASIS,

2007). The result is a Standards-based Integrated

Provisioning Modelling Language that supports the

direct orchestration of imperative languages as well

as declarative languages.

In general, we realize DPAs by applying the BPEL

concept of extension activities that allow to imple-

ment custom activity types in BPEL using program-

ming languages such as Java (Kopp et al., 2011).

BPEL-workﬂow runtimes support registering multi-

ple different types of extension activities including

their implementations. If the control ﬂow of a work-

ﬂow reaches an extension activity-element, its imple-

mentation is executed by the workﬂow engine and the

whole XML-content of the extension activity-element

in the BPEL model is passed to the implementation of

the extension activity as input. Thus, the concept en-

ables modelling arbitrary XML-deﬁnitions which are

parsed and interpreted by the extension activity im-

plementation. To select the right implementation, the

element name of the extension activity-element’s ﬁrst

child serves as lookup key for the workﬂow engine.

Hence, we can realize arbitrary types of DPAs by im-

plementing small programs that are executed when

the control ﬂow reaches one of these activities.

We show how IPAs und DPAs can be realized us-

ing extension activities by conducting an example.

A modeller, e. g., developers or operations person-

nel (H

uttermann, 2012), manually models an Inte-

grated Provisioning Model that consists of Declar-

ative as well as Imperative Provisioning Activities

where suitable. The XML shown in Listing 1 is an ex-

cerpt of a BPEL model that instantiates a virtual ma-

chine on the Cloud-offering Amazon EC2 and installs

an Apache Webserver on it. The instantiation of the

VM is modelled as activity that sends an HTTP-POST

request to the management API of Amazon

(lines 1-

6). We employ here the BPEL4REST extension ac-

tivity approach (Haupt et al., 2014), which supports

deﬁning output parameters: The Amazon API syn-

chronously returns the instance ID of the virtual ma-

chine in the HTTP response. As the provisioning of a

virtual machine takes some time, the ID can be used to

poll the status of the VM instantiation. Therefore, we

store the response in a process variable called “VM-

CreationResponse” (line 2). The implementation of

the extension activity reads this mapping and writes

the content of the HTTP response as value to the VM-

CreationResponse variable. This variable can be used

by other activities to monitor the current VM status

http://docs.aws.amazon.com/AWSEC2/latest/

APIReference/API RunInstances.html

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

492

OpenTOSCA Runtime Environment

Workflow

Engine

Artifact

Manager

Cloud Provider B

API

Cloud Provider A

API

…

HTTP

Plan

Chef-DPA EA

HTTP-EA

SSH

CSAR

Importer

CSAR

Control Data Management …

Figure 3: Prototypical implementation of the integrated concept based on the OpenTOSCA runtime environment.

and to retrieve the IP-address of the running virtual

machine when the instantiation ﬁnished using similar

API calls (omitted in Listing 1).

After the VM is provisioned, a Chef-DPA installs

the Webserver on it (lines 8-16). This DPA deﬁnes

the attributes used in our previous example with iden-

tical semantics. Similar to the HTTP extension activ-

ity, the extension activity implementation of the Chef-

DPA reads its XML fragment, extracts the relevant in-

formation, and enforces the declared goals by access-

ing the VM using SSH, installing a Chef agent, and

sending the declarative statements to this agent that

enforces them. In this example, the input parameter

concept is used to specify the target VM on which the

Webserver has to be installed and the credentials to

access the VM (line 9). The referenced BPEL vari-

ables of the workﬂow model are replaced by the ex-

tension activity implementation for execution. In ad-

dition, also the content injection concept is realized:

In line 11, a BPEL variable is speciﬁed as conﬁgura-

tion for the HTTP-port of the Webserver. Thus, when

executing the DPA, its implementation retrieves the

value of the “HTTPPort” workﬂow variable and re-

places the placeholder before enforcing the declared

conﬁguration—similarly as for input parameters.

5 PROTOTYPE

To prove the technical feasibility of the presented ap-

proach, we implemented a prototype based on the

OpenTOSCA ecosystem, which consists of the open-

source modelling tool Winery (Kopp et al., 2013), the

imperative runtime environment OpenTOSCA (Binz

et al., 2013), and the self-service portal Vinothek (Bre-

itenb

ucher et al., 2014). The system is based on the

TOSCA standard (OASIS, 2013), which enables de-

veloping application packages that are portable across

different platforms. TOSCA speciﬁes a metamodel

for (i) describing the application’s structure as topol-

ogy model and (ii) enables using management work-

ﬂows to provision and manage the modelled appli-

cations. In addition, TOSCA standardizes a package

format called CSAR that contains the topology model,

all management workﬂows, and all artifacts that are

required to provision and manage the described ap-

plication, e. g., application ﬁles or installation scripts.

CSARs can be created using the modelling tool Win-

ery. A CSAR is consumed by the OpenTOSCA run-

time which deploys the workﬂows contained therein.

Therefore, the runtime employs a workﬂow engine

(WSO2 BPS)

to execute BPEL workﬂows. Using

the Vinothek, their execution can be triggered.

Figure 3 shows a simpliﬁed architecture of the

OpenTOSCA runtime environment including our pro-

totypical realization of the integrated modelling con-

cept. The CSAR Importer is responsible for consum-

ing CSARs and processing the contained data, e. g.,

by storing the models in local databases. The Con-

trol then triggers the local deployment of all man-

agement workﬂows so that they can be executed by

the Vinothek to provision a new application instance

or to manage a running instance. The concept pre-

sented in this paper is realized by implementing ex-

tension activity-plugins for the workﬂow engine. The

HTTP-extension activity, for example, can be used

in BPEL workﬂows to invoke management APIs of

providers to instantiate or manage virtual machines.

As described in the previous section, DPAs can then

use process variables to access these virtual machines

in order to install or conﬁgure software etc. To im-

plement these extension activities, e. g., the Chef-

DPA, we delegate executing the declaratively de-

scribed goals to a component called Artifact Manager.

This plugin-based manager is able to execute various

conﬁguration management technologies such as Chef

or also imperative scripts, e. g., Bash scripts (Wet-

tinger et al., 2014). Thus, implementing IPAs and

DPAs is eased by invoking this manager. Of course,

arbitrary technologies can be integrated without us-

ing the manager, too. For modelling Integrated Provi-

http://wso2.com/products/

AModellingConcepttoIntegrateDeclarativeandImperativeCloudApplicationProvisioningTechnologies

493

Table 1: Criteria Evaluation.

Feature Declarative Imperative Integrated Approach

Full control x x

Complex deployments (x) (x) x

Hybrid and multi-Cloud applications (x) x x

Seamless integration x

Component wiring (x) x x

XaaS integration (x) x x

Full automation x x x

Straightforwardness x x

Extensibility (x) x x

Flexibility (x) (x)

sioning Models, we employ the modelling tool BPEL

Designer

. Since the prototype is based on TOSCA

and BPEL, it provides an end-to-end, standards-based

Cloud application management platform that enables

integrating various technologies seamlessly.

6 EVALUATION

In this section, we evaluate the presented approach

by comparing it with the plain declarative and imper-

ative management ﬂavors. For the comparison, we

reuse the management feature criteria for comparing

service-centric and script-centric management tech-

nologies (Breitenb

ucher et al., 2013) and additionally

add criteria that are derived from the features of each

ﬂavor discussed in Section 2. As a result, the criteria

represent requirements that must be fulﬁlled to fully

automatically provision the kind of complex compos-

ite Cloud applications described in the introduction

(cf. Section 1). An “x” in Table 1 denotes that the

corresponding approach fully supports the criterion.

An “x” in parentheses denotes partial support.

Full control means that provisioning may be cus-

tomized arbitrarily by the process modeller in each

technical detail. As declarative approaches infer the

details about the execution by themselves, the general

provisioning logic cannot be changed easily. In con-

trast to this, imperative approaches explicitly model

each step to be performed and can be, therefore, cus-

tomized arbitrarily. Because the integrated approach

supports both, it fulﬁlls this criterion completely.

Complex deployments denotes that real, non-

trivial business applications that employ various het-

erogeneous components and services can be deployed

using a technology of the ﬂavor. Declarative ap-

proaches reach their limits at a certain point of re-

quired customizability: as the provisioning logic is in-

ferred by a general-purpose provisioning system, only

https://eclipse.org/bpel/

known declarative statements can be understood and

processed (cf. Section 2). Thus, if a very speciﬁc,

arbitrarily customized application structure or conﬁg-

uration has to be deployed, declarative approaches are

often not able to fulﬁll these rare and very special re-

quirements completely. The integration of low-level

execution code such as scripts partially solves this

problem. In contrast to this, based on the full control

criterion, in general arbitrary complex provisionings

can be described using imperative approaches such as

scripts or workﬂows. However, the technical com-

plexity of the resulting processes is often hardly man-

ageable and maintainable as the integration of tech-

nologies, as explained in Section 2, leads to a lot of

glue and wrapper code, which results in many lines of

process implementation code. Thus, plain imperative

approaches are not ideal for handling such cases com-

pletely and are, therefore, only partially suited. The

integration approach presented in this paper solves

these issues as the optimal technology can be chosen

without polluting the process with wrapper code.

The hybrid and multi-Cloud applications crite-

ria evaluate the support for applications that are ei-

ther hosted on (i) a combination of private and public

Cloud services or (ii) Cloud services offered by dif-

ferent providers. Since many declarative approaches

such as Amazon CloudFormation employ proprietary,

non-standardized domain-speciﬁc languages, many of

these technologies are not able to provision a dis-

tributed application as described above. General pur-

pose technologies such as TOSCA (OASIS, 2013) al-

low to provision hybrid as well as multi-Cloud appli-

cations, for example, by using the TOSCA plan gen-

erator (Breitenb

ucher et al., 2014). However, if multi-

ple providers are involved, typically their proprietary

languages have to be used as the declarative general-

purpose technologies are not able to support all indi-

vidual technical features. Based on the criteria full

control and complex deployments, the imperative as

well as the proposed approach fulﬁll this criterion.

Seamless integration evaluates the capability to

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

494

employ arbitrary management technologies without

(i) polluting the model or (ii) leading to abstracted

wrapper calls (cf. Section 2). As extensively dis-

cussed in the previous sections, neither declarative

nor imperative approaches natively support all re-

quired integration concepts. In contrast, the presented

approach fulﬁlls this criterion due to the introduced

concept of Declarative Provisioning Activities.

The component wiring criterion means that multi-

ple application components can be wired. Declarative

approaches support this partially as unknown compo-

nents or complex wiring tasks cannot be described in

an arbitrary manner. The imperative as well as the in-

tegrated approach solve this issue as any task to wire

such components can be orchestrated arbitrarily.

XaaS integration means the ability to orchestrate

various kinds of Cloud services that represent appli-

cation components. Generic declarative approaches

support this only partially as complex conﬁguration

tasks are hard to model. Proprietary approaches such

as Amazon CloudFormation are bound to a certain

provider and, therefore, require glue code to integrate

other services. The imperative and the presented ap-

proach fully support this requirement following the

argumentation of component wiring.

The full automation criterion is fulﬁlled by all

kinds of approaches, as all of them enable a fully au-

tomated provisioning of the described applications.

Straightforwardness evaluates, if describing the

provisioning of an application can be done in an efﬁ-

cient manner requiring appropriate effort. The declar-

ative approaches are typically easy to learn, as techni-

cal complexity is shifted to the provisioning systems

and only the desired goals have to be speciﬁed. Imper-

ative approaches such as scripts or workﬂows quickly

become huge and complex due to the directly visi-

ble low-level details about the (i) control ﬂow and the

(ii) data ﬂow. In addition, in many cases, trivial steps

have to be modelled explicitly. The presented integra-

tion approach fulﬁlls this criterion completely as the

optimal technology can be selected for a certain pro-

visioning task. Even a single DPA may be modelled

that declares all provisioning goals.

The extensibility criterion means the ability to in-

volve other management technologies. Declarative

approaches allow this by using glue code at certain

points in the inferred logic. Due to the full control

criterion, imperative approaches are able to include

arbitrary implementations at any point in the process.

Thus, the integrated approach supports this feature.

The declarative approaches do not support ﬂexi-

bility due to the full control criterion. However, also

using imperative approaches are limited in terms of

ﬂexibility: If a complex application leads to a huge

provisioning process, adapting this process is a chal-

lenging task. Therefore, imperative as well as the pre-

sented approach fulﬁll this criterion only partially. To

tackle these issues, we conduct research on modelling

situation-aware processes to increase the ﬂexibility.

To summarize the evaluation, the presented ap-

proach proﬁts from all beneﬁts of the two provision-

ing ﬂavors while solving drawbacks by the strengths

of each other. Whereas complex application provi-

sionings can be modelled in a ﬂexible manner pre-

serving the full control over the provisioning, stan-

dard tasks can be modelled easily using declarative

speciﬁcations in a straightforward manner. Even dis-

tributed application structures, for example, hybrid

and multi-Cloud applications can be provisioned us-

ing the integrated approach described in this paper.

One of the most important criterion, the seamless inte-

gration of provisioning technologies, is solved by the

concept of Declarative Provisioning Activities while

imperative technologies are typically integrated al-

ready in existing languages. Thus, while the result-

ing process models are implemented in a standards-

compliant manner, intuitive provisioning modelling

helps developing and maintaining models.

6.1 Limitations

In this section, we discuss the limitations of the pre-

sented approach. A drawback is the tight coupling

of Integrated Provisioning Models to the structure of

the application to be provisioned. Imperative orches-

trations to provision the components of a certain ap-

plication structure are sensitive to structural changes:

Different combinations of components lead to differ-

ent models that must be created and maintained sepa-

rately (Breitenb

ucher et al., 2013; Eilam et al., 2011;

El Maghraoui et al., 2006). Thus, as the concept of

Integrated Provisioning Models is based on impera-

tively orchestrating the two kinds of provisioning ac-

tivities, this applies also for the approach presented

in this paper. As a result, Integrated Provisioning

Models for new applications often have to be created

from scratch while maintaining existing processes re-

sults in complex, time-consuming adaptations (Breit-

enb

ucher et al., 2014). To tackle this tight coupling

of imperative orchestrations and concrete structures,

we did research on generic process fragments for ap-

plication management, which can be reused for indi-

vidual applications (Breitenb

ucher et al., 2013; Breit-

enb

ucher et al., 2013). We plan to combine this ap-

proach with the presented concept. In addition, cur-

rently only the provisioning of applications is sup-

ported by our concept. Therefore, we plan to extend

the concept to support also management.

AModellingConcepttoIntegrateDeclarativeandImperativeCloudApplicationProvisioningTechnologies

495

7 CONCLUSION

In this paper, we presented a process modelling ap-

proach that enables the seamless integration of im-

perative and declarative provisioning models by in-

troducing the concepts of (i) Declarative Provision-

ing Activities and (ii) Integrated Provisioning Mod-

els. The approach enables intuitive provisioning mod-

elling without handling technical integration issues of

regarding different technologies and domain-speciﬁc

languages that pollute the control as well as the data

ﬂow of the resulting workﬂow models. To prove the

technical feasibility of the approach, we applied the

presented concept to the workﬂow language BPEL

and extended the standards-based application man-

agement system OpenTOSCA. In addition, we eval-

uated its features by several criteria. The evaluation

shows that the presented approach enables to beneﬁt

from strengths of both ﬂavors. In future work, we plan

to apply the concept also for application management.

ACKNOWLEDGEMENTS

This work was partially funded by the projects

SitOPT (Research Grant 610872, DFG) and NEMAR

(Research Grant 03ET40188, BMWi).

REFERENCES

Binz, T., Breitenb

ucher, U., Kopp, O., and Leymann, F.

(2014). Migration of enterprise applications to the

cloud. it - Information Technology, Special Issue: Ar-

chitecture of Web Application, 56(3):106–111.

Binz, T. et al. (2013). OpenTOSCA – A Runtime for

TOSCA-based Cloud Applications. In ICSOC 2013,

pages 692–695. Springer.

Breitenb

ucher, U., Binz, T., Kopp, O., and Leymann, F.

(2013). Pattern-based runtime management of com-

posite cloud applications. In CLOSER 2013, pages

475–482. SciTePress.

Breitenb

ucher, U., Binz, T., Kopp, O., and Leymann, F.

(2014). Vinothek - A Self-Service Portal for TOSCA.

In ZEUS 2014, volume 1140 of CEUR Workshop Pro-

ceedings, pages 69–72. CEUR-WS.org.

Breitenb

ucher, U., Binz, T., Kopp, O., Leymann, F., and

Wettinger, J. (2013). Integrated cloud application pro-

visioning: Interconnecting service-centric and script-

centric management technologies. In CoopIS 2013,

pages 130–148. Springer.

Breitenb

ucher, U. et al. (2014). Combining Declarative and

Imperative Cloud Application Provisioning based on

TOSCA. In IC2E 2014, pages 87–96. IEEE.

Eilam, T., Elder, M., Konstantinou, A., and Snible, E.

(2011). Pattern-based composite application deploy-

ment. In IM 2011, pages 217–224. IEEE.

El Maghraoui, K., Meghranjani, A., Eilam, T., Kalantar, M.,

and Konstantinou, A. V. (2006). Model driven provi-

sioning: bridging the gap between declarative object

models and procedural provisioning tools. In Middle-

ware 2006, pages 404–423. Springer.

unther, S., Haupt, M., and Splieth, M. (2010). Utilizing

Internal Domain-Speciﬁc Languages for Deployment

and Maintenance of IT Infrastructures. Technical re-

port, Very Large Business Applications Lab Magde-

burg, Otto von Guericke University Magdeburg.

Haupt, F., Fischer, M., Karastoyanova, D., Leymann, F., and

Vukojevic-Haupt, K. (2014). Service Composition for

REST. In EDOC 2014. IEEE.

Herry, H., Anderson, P., and Wickler, G. (2011). Auto-

mated planning for conﬁguration changes. In LISA

2011. USENIX.

uttermann, M. (2012). DevOps for Developers. Apress.

Keller, A., Hellerstein, J. L., Wolf, J. L., Wu, K. L., and Kr-

ishnan, V. (2004). The champs system: change man-

agement with planning and scheduling. Network Op-

erations and Management Symposium, 2004, pages

395–408.

Kopp, O., Binz, T., Breitenb

ucher, U., and Leymann, F.

(2012). BPMN4TOSCA: A Domain-Speciﬁc Lan-

guage to Model Management Plans for Composite

Applications. In Business Process Model and Nota-

tion, pages 38–52. Springer.

Kopp, O., Binz, T., Breitenb

ucher, U., and Leymann, F.

(2013). Winery – A Modeling Tool for TOSCA-based

Cloud Applications. In ICSOC 2013, pages 700–704.

Springer.

Kopp, O. et al. (2011). A Classiﬁcation of BPEL Exten-

sions. Journal of Systems Integration, 2(4):2–28.

Levanti, K. and Ranganathan, A. (2009). Planning-based

conﬁguration and management of distributed systems.

In IM 2009, pages 65–72.

Leymann, F. (2009). Cloud Computing: The Next Revo-

lution in IT. In Proc. 52th Photogrammetric Week,

pages 3–12.

Leymann, F. and Roller, D. (2000). Production workﬂow:

concepts and techniques. Prentice Hall PTR.

Mietzner, R. (2010). A method and implementation to deﬁne

and provision variable composite applications, and its

usage in cloud computing. Dissertation, University of

Stuttgart, Germany.

Nelson-Smith, S. (2013). Test-Driven Infrastructure with

Chef. O’Reilly Media, Inc.

OASIS (2007). Web Services Business Process Execution

Language (WS-BPEL) Version 2.0. OASIS.

OASIS (2013). Topology and Orchestration Speciﬁcation

for Cloud Applications Version 1.0.

OMG (2011). Business Process Model and Notation

(BPMN), Version 2.0.

Opscode, Inc. (2015). Chef ofﬁcial site: http://

www.opscode.com/chef.

Petcu, D. (2014). Consuming resources and services

from multiple clouds. Journal of Grid Computing,

12(2):321–345.

Puppet Labs, Inc. (2015). Puppet ofﬁcial site: http://

puppetlabs.com/puppet/what-is-puppet.

Wettinger, J. et al. (2014). Uniﬁed Invocation of Scripts

and Services for Provisioning, Deployment, and Man-

agement of Cloud Applications Based on TOSCA. In

CLOSER 2014, pages 559–568. SciTePress.

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

496
