Adopting an Agent and Event Driven Approach for Enabling Mutual

Auditability and Security Transparency in Cloud based Services

Mou

ssa Ouedraogo¹, Eric Dubois¹, Djamel Khadraoui¹, Sebastien Poggi² and Benoit Chenal²

¹Luxembourg Institute of Science and Technology, 5 Avenue des hauts Fourneaux, L4362 Esch/Alzette, Luxembourg,

Luxembourg

²Victor Buck Services S.A, L-8308 Capellen, Luxembourg, Luxembourg

Keywords: Cloud, Security Transparency, Mutual Auditability, Monitoring, Event Specification and Detection.

Abstract: We propose an event-driven approach for the automated audit of cloud based services security. The pro-

posed approach is a solution to two of the intrinsic security issues of cloud based services, notably the need

of security transparency and mutual auditability amongst the stakeholders. We leverage a logic based event

specification language to represent patterns of events which occurrence can be evidence of security anomaly

or breach or simply a sign of a nefarious use of the cloud infrastructure by some of its users. The use of ded-

icated algorithms for the detection of composite events coalesced with the definition of primitive events

structure based on XCCDF format ensures the reuse and interoperability with security audit tools based on

the Security Content and Automation Protocol-SCAP. The implementation and application of the approach

on a cloud service dealing with electronic archiving have demonstrated its feasibility and viability.

1 INTRODUCTION

For most businesses and individuals, Cloud based

services are the alternative to achieving cost-

efficiency in the provisioning and consumption of

services. However companies dealing with security

and/or privacy critical data, have often shown some

reluctance to fully embrace the trend, even if there is

evidence that the trend is starting to sift at least for

the banking and financial sector (http://

www.businesscloudnews.com/2014/06/02/cloud-in-

financial-services-what-is-it-not-good-for/). Several

factors could explain such an attitude towards the

cloud: In the cloud, the data and the mechanisms

necessary for its processing may reside in the pro-

vider’s premises. This leads to some devolution of

security matters about such data and processes to the

cloud provider whose capability and/or due dili-

gence to deal with the security issues may be mis-

trusted or simply feeble. The uncertainty on the ac-

tual location of the data is also exacerbated by the

complexity of the chain of provider-consumer. In

fact, although a CSP may be registered in a given

country, the chain of provider-consumer may be

such that the actual data centre used by the CSP is

located elsewhere. Given the stored information may

be subject to the legislation of the country where it is

stored physically, this may also pose serious privacy

management challenges. In fact there may be ambi-

guity in understanding which regulation applies for a

data about a third country citizen (which should

normally be subjected to national regulation) but

stored in another country, where regulation towards

privacy may be well different. The multi-tenancy

aspect that is most often used to characterize cloud

computing also introduces a new risk unique to

cloud services, the possibility of attacks from other

consumers, who may be competitors or simply

hackers, co-located on the same infrastructure, e.g.,

servers, hard disks, virtual machines. This is well

exemplified by “Amazon Zeus botnet” incident in-

volving Amazon EC2’s infrastructure (McAfee and

Guardian Analitics, 2012), whereby cybercriminals,

by initially hacking into a service hosted by Amazon

cloud infrastructure, were able to install command-

and-controls infrastructure with the aim to infect

client computers and steal their banking credentials.

This incident is a reminder that the security of the

cloud service is only as good as at its weakest link

given that a vulnerability at a tenant application may

result in the jeopardy of the whole service. This

status quo calls for techniques that help to foster

more security assurance in the cloud realm. Security

assurance being the ground for confidence that secu-

rity deployed and/or managed by a third party is

correctly implemented and also effective against the

565

Ouedraogo M., Dubois E., Khadraoui D., Poggi S. and Chenal B..

Adopting an Agent and Event Driven Approach for Enabling Mutual Auditability and Security Transparency in Cloud based Services.

DOI: 10.5220/0005496205650572

In Proceedings of the 5th International Conference on Cloud Computing and Services Science (CLOSER-2015), pages 565-572

ISBN: 978-989-758-104-5

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

risks (Ouedraogo et al., 2012). In third party services

such as the cloud, security assurance can be practi-

cally met by probing the security of the CSP through

audits and by gaining more visibility on its security

policy and operation through security transparency

mechanism (Winkler, 2011). Consequently, achiev-

ing a wider adoption of cloud based services would

depend on how effective issues related to mutual

auditability and security transparency can be ad-

dressed (Chen, 2010; Ouedraogo et al., 2013; Nuñez

et al., 2013; Sunyaev and Schneider, 2013). Tech-

nics and approaches tailored in that vein of idea

should enable the Cloud Service Consumer (CSC),

provided the existence of contractual clauses with

the Cloud Service Provider (CSP), to gather evi-

dence that corroborate or challenge compliance,

performance and security claim made by the CSP,

while at the same time enabling the latter to monitor

the activity and traffic of the users to ensure no

abuse and nefarious use of the cloud is made.

This paper’s contribution can be summarized as

an effort to leverage Event-driven computing (Luck-

ham, 2005; Etzion and Niblett, 2010) and Multi

agent systems-MAS- (Ganzha and Paprzycki, 2014)

to foster more security transparency and enable mu-

tual-auditability in a cloud setting. To achieve this,

we resort to a tree based specification of security

events of interest by the CSC and CSP while within

the infrastructure, software agents are generated for

capturing such events in case they materialize. We

amalgamate real time security related event detec-

tion and logic-based rules for empowering both the

CSC and CSP, with effective means of depicting and

promptly detecting anomalies and security or QoS

breaches. An event is here considered as a happen-

ing of interest (related to security or quality of ser-

vice procurement) to the CSP or CSC.

The paper is organized as follows: Section 2

analyses the related work. Section 3 provides a de-

scription of the adopted architecture. In Section 4

we specify monitor-able event using a logic based

language. Section 5 shows how audits and transpar-

ency are enforced, while Section 6 presents an appli-

cation case. Section 7 provides some concluding

remarks.

2 RELATED WORKS

Initiatives purporting to address the issue of mutual

trust and transparency in the cloud have mainly re-

volved around the topic of audit, Virtual machine

introspection and Service level agreement. Audits

standards including SSAE16 (www.ssae16.com),

and its international version ISAE3402 (http://

isae3402.com/) rely in a large part on the words and

assessment of the CSP, information that cannot be

guaranteed to be immune from bias. Recent efforts

in cloud audits have leaned towards automation. For

instance, the CSA cloud-audit (http://cloudaudit.org/

CloudAudit/Home.html) pur-ports the automation of

standard audit and related assurance and compliance

effort by providing a controlled set of interfaces to

allow CSCs or their representatives to assess their

services. Dolitszcher et al. (2013) propose a cloud

audit methodology based on the usage of MAS for

conducting the audit of virtual machines dynamical-

ly allocated to clients to account for changes within

the cloud infrastructure.

Rak et al. (2011) adopts APIs derived from the

mOSAIC project (http://www.mosaic-project.eu/) to

build up an SLA-oriented cloud application that

enables the management of security features related

to user authentication and authorization. An exten-

sion of the work of Rak et al. can be found through

the EU FP7 project Specs aiming to deliver a plat-

form for providing a security services based on SLA

management. The SLA monitoring in SLA@SOI

relies on EVEREST+ (Lorenzoli and Spanoudakis,

2010), which is a general-purpose engine for moni-

toring the behavioural and quality properties of dis-

tributed systems based on events captured from them

during the operation of these systems at runtime.

The major problem with the adoption of SLA man-

agement as a means to enhance security transparen-

cy is primarily on its practicality. Indeed the aca-

demic notion of SLA appears to be far more exten-

sive than it is in reality. In the context of this work,

the authors have approached a number of CSPs in

Luxembourg with the aim to get a glimpse on the set

of items that were part of their SLA. Most often,

such documents were restricted to the sole aspects of

allocated bandwidth, storage capacity, etc..; while

the only security aspect included was related to ser-

vice availability. Clearly, the items included in those

specifications were those the companies were confi-

dent they could deliver on. Their argument on the

most pressing and challenging issues such as securi-

ty was that stringent mechanisms were in place for

its guarantee as evidenced by their certifications.

Unlike the existing initiatives, our approach lev-

erages events processing to enable mutual audit

between the CSC and CSP. While existing commer-

cial and open source solutions for event analytics

such as Splunk (Carasso, 2012), Arcsight (http://

www.arcsight.net/) and Graylog2 (https://

www.graylog.org/graylog2-v0-92/) are based on log

analysis, our initiative is based on near-real time

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

566

Figure 1: Architecture of the event specification monitoring for transparency and mutual auditability.

detection of primitive events followed by a reason-

ing on whether the specified composite event has

materialized. Thus, allowing the concerned

CSC/CSP to promptly take mitigating actions. Also,

provided the existence of a contractual agreement,

both the CSP and CSC can specify and launch a

monitoring of the security of the other.

Additionally our approach is that the event driven

specifications provides a good expressivity for cap-

turing events of interest emanating from an SLA, an

internal policy or external regulations while allow-

ing the reuse of existing security management tools.

3 HIGH LEVEL ARCHITECTURE

OF THE APPROACH

Our event driven approach and tool is made of three

main components as depicted in Figure 1.

The first component is a case tool or Event de-

signer that offers a graphical design interface to the

cloud stakeholders, for specifying patterns of events

that are of interest. Upon the design of the events

composites that could result from combining differ-

ent patterns to monitor, the stakeholder provides

technical details for each event using an event speci-

fication format of choice. In the context of our work,

the Extensible Configuration Checklist Description

(XCCDF) format (Waltermire et al., 2011) is adopt-

ed as further elaborated in Section 4.1. The case tool

also serves as a dashboard for the visualization of

the events status once the monitoring is triggered.

The second component relates to the elaboration

of a multi-agent system embedded within the cloud

infrastructure (CI) with the purpose of detecting

each primitive events specified within the Event

Designer console. The definition and management of

the detection agents are performed using JADE plat-

form (Bellifemine et al., 2008). The peculiarity of

the agent structure and organization is adopted from

the work of Ouedraogo et al. (2014).

The third component is the event processing lay-

er. Individual atomic events captured from the cloud

infrastructure are sent by specialized agents to the

reasoning layer where dedicated algorithms detailed

in Section 5 will be resorted for informing the stake-

holder when a specified pattern has materialized.

In the following we further elaborate on how

those three components play a role in practically

delivering mutual audit and help foster better trans-

parency.

4 SPECIFICATION OF

MONITORABLE EVENTS

The decision to adopt an event driven approach to

audit and monitor the security in the cloud is under-

score by the argument that events provide a power-

ful construct to capture current state of a system and

deviations from expectation and to predict future

security or QoS related issues ( Luckham, 2005;

Etzion and Niblett, 2010). Additionally a well-

defined architecture can support event based moni-

Reasoning Layer

Cloud Infrastructure &

with Detection agents

CSP

Event Designer

and Visualization

CSC

AdoptinganAgentandEventDrivenApproachforEnablingMutualAuditabilityandSecurityTransparencyinCloud

basedServices

567

toring in ensuring the prompt dissemination of its

occurrence to the interested parties who would make

judgment on the course of action to adopt. Amongst

others, it may be a way to hold cloud providers ac-

countable for a security breach that may has

stemmed from a lax in their security; a breach of

SLA or other escrows between the two parties. The

set of patterns and the detection algorithms associat-

ed could also constitute a powerful tool for a cloud

provider concerned with activities of its clients.

A prerequisite for effective event patterns detec-

tion is the definition of a clear event structure cou-

pled with the adoption of a pattern specification

language that is expressive enough to capture the

realm of events of interest and their propensity. Only

after that one can begin to implement the required

strategy for the ensuing detection. This section pro-

vides an insight into our event based approach.

4.1 A Primitive Event Structure to

Ensure Re-Use of Existing Security

Tools

Commonly an event is defined as an occurrence of

interest within a system or domain (Etzion and Nib-

lett, 2010). Subsequently, dealing with events could

purport the monitoring of a system or process with

the intent to flag exceptional or anomalous behav-

iors. Alternatively, event analysis could be the base-

line for (i) predicting a major event before they actu-

al takes place as in fraud detection application, fi-

nancial market trends and natural disaster; (ii) diag-

nosing a problem based on deductive reasoning after

the observation of symptomatic events. While most

event structure includes header information that

provides meta-information about the event (identifi-

cation number, occurrence time, description, catego-

ry, etc...), attributes related to the event payload is

intrinsically linked to the intent sought for their pro-

cessing. For instance, for the description of an event

structure pertinent to a credit card fraud, the geo-

graphical locations where individual purchase takes

place and the amount of money involved are very

salient information to capture. Owing to the fact that

this audit emphasis on anomalies related to security,

the idea was then to adopt an event structure that

could allow the re-use of existing security audits

tools given the area of network and system audits is

already beaming with a plethora of tools. The adop-

tion of an Extensible Configuration Checklist De-

scription Format (XCCDF) like format as a baseline

for the primitive events structure was thus to ensure

reuse and interoperability with Security Content and

Automation Protocol (SCAP) tools. XCCDF is an

XML based format used to specify security check-

lists and benchmarks amongst others. The overarch-

ing purpose of the format is to provide a uniform

expression of security checklists, benchmarks, and

other configuration guidance, and thereby foster

more widespread application of good security prac-

tices. With analogy to the XCCDF format, we speci-

fy an event with the following attributes:

In the context of this work, the most relevant attrib-

utes associated to a primitive event include the rule

attribute which is the underlining policy based on

which the associated probe (either a SCAP tool or an

in-house program) could interpret and carry out the

specificities of the rule, leading to the detection of

the primitive event. Furthermore, the rule attribute

encompasses and provides reasoning about the ex-

pected and exceptional behaviours and states. The

field associated to a rule take as input a path leading

to a file, thus allowing one to define a comprehen-

sive set of policy that should drive the detection of

primitive events of interest. A rule could be speci-

fied in a logical language such as Etalis (Anicic et

al., 2012) and Drools fusion (http://

www.drools.org/) or programing language including

Python as in the case of our implementation. The

category attribute is a field we added, for allowing

the user to systematically classify events based on

their typology and/or interest for the stakeholders.

Secondary event attributes such as name, identifica-

tion, description, timestamp, frequency, denote re-

spectively, the given name unique identifier of the

event, a succinct description of it, the time at which

the event was created, the frequency at which the

tool should be probing the event.

4.2 Event Patterns Specification

We hereafter use the term event pattern to refer to

any composite event whereby primitive events

(leaves of the tree) are associated through a logical

operator or connector. An event tree can thus be a

simple event patterns or a combination of patterns of

different semantic leading to a much complex event

specification. Adopting a tree based representation

also allows leveraging relevant graph theories for the

efficient processing of the event nodes. Our event-

based cloud audit and monitoring is based on event

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

568

patterns specification using the Yet Another Lan-

guage for Event Specification or YALES logic

(Zhang and Unger, 1996). The choice of YALES

lies on its expressiveness but also to the fact that it

allows to capture synchronous and asynchronous

events and also provides event counter and calendar

constructs. YALES distinguishes three types of

events: temporal events denoting the explicit time

instants in real life and can be deemed relative tem-

poral event when the offset is equal to span. Calen-

dar events express the periodical activities that occur

regularly or irregularly many times in terms of real

life time measurements and primitive events. A

primitive event is considered as an explicit event

taking place at a discrete or during a time span.

More precisely, our framework and tool allows both

the cloud client and provider to declare and detect

the following event patterns or event composite

(note that this list of pattern is not exhaustive and

new one can be added for detection purpose):

Disjunction of Events, E

1 E2 ... En or any

Pattern: This pattern of events, occurs when one or

more of primitive events E1,..,En occurs. The detec-

tion algorithm for the ANY pattern is later provided.

Conjunction of Events, A (m, {E1, E2 ... En})|

Part of: This pattern of event occurs if all the con-

stituent events occur. With a slight extension and

with the notation of A (m, {E1, E2... En}) where m

< n, we can express the idea that if at least m out of

n events occur, the event pattern has happened.

Sequences of Events, E1; E2; ..; En | All in Or-

der: A sequence of events pattern expresses the

requirement that occurrence of composite events be

strictly in order in time, i.e. no adjacent events that

occur at the same time are counted.

Event Counter, C (E, n^ | n | n+ | n-): | Over-

time, Equals, More, Less: A way to tell how many

times an event has occurred is useful. The event

counter as an event pattern is designed to provide

this kind of mechanism. Event counter, C (E, n^),

will occur upon every nth occurrence of E. In this

case C (E, n^) may be triggered more than once; C

(E, n) is validated at when at the nth occurrence of

E. Thus C (E, n) is only triggered once. C (E, n+) is

validated when E has occurred not less than n times;

while C (E, n-) will be flagged when E has occurred

less than n times but at least once.

Moving Window, W (n, E, span): A moving

window uses a moving interval with a fixed span to

provide aggregate event information. Here, W (n, E,

span) is used to mean that if there are more than n of

E occurrences during a time period, then the compo-

site event should be raised.

Put the Occurrence of an Event in Context of a

Sequence of Other Events E: C | [E1, E2] and E

IN C | [E1, E2]: Events in periods or intervening

events are those that occur in a period marked by

two reference events E1and E2. Two alternative

cases can be considered: The first supposes a left-

closed and right-open interval that we refer to as

BETWEEN event pattern; and the second one con-

sidering a left-closed and right-closed interval re-

ferred to as IN event pattern. While both detection

patterns BETWEEN and IN would require the event

of interest to occur after the initiating event (E1), the

IN pattern is detected only after the right-end event

has occurred as opposed to the BETWEEN event.

5 FROM EVENTS

SPECIFICATION TO AUDIT

The previous section provided the foundation for

specifying the patterns of events relevant to the se-

curity audit. In this section, we depict how in prac-

tice patterns are used and analyzed to support mutual

auditability and increase cloud transparency. The

mutual audit process and the ensuing increase in

transparency between the CSC and the CSP is sup-

ported by two main steps once the composite events

have been specified: the generation and triggering of

software agents for conducting detecting the primi-

tive events and the reasoning on whether an overall

event pattern of interest has taken place. This will

ultimately lead to the generation of reports and alerts

on the dashboard of the cloud stakeholder of interest.

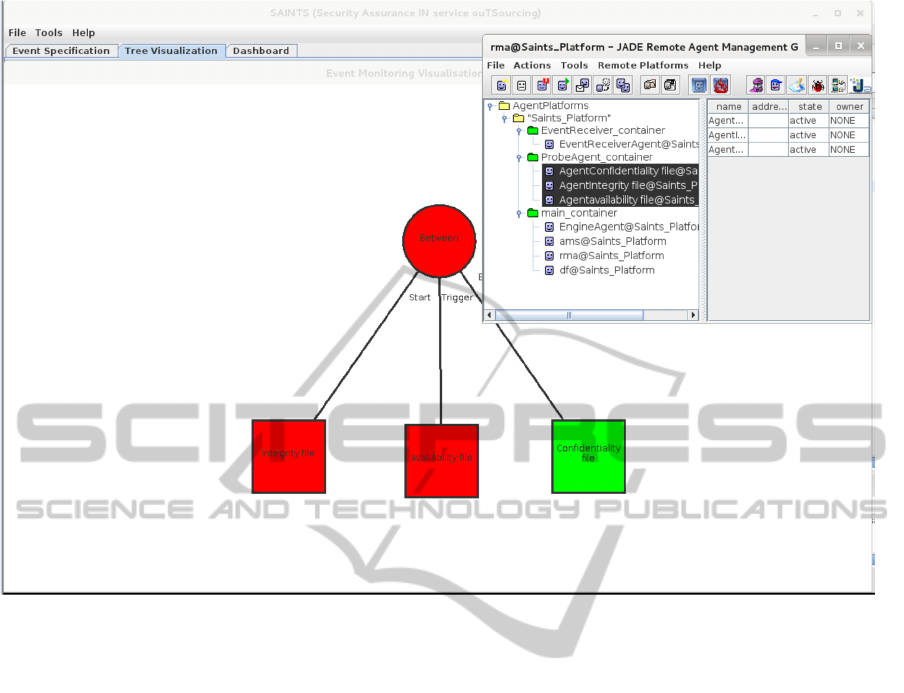

5.1 Generation and Triggering of

Agents

To conduct the audits, an organization of software

agents is used. The first type of agent or probe

agents, purport to conduct the detection of the primi-

tive events within the pattern specified by the cloud

stakeholder. The second type of agent is a single

agent in some cases, referred to as Event receiver

which role is to filter and aggregate the set of inputs

that arrive from the probe agents before they are

passed to the reasoning engine. In order to ensure

the intrinsic link between a primitive event and a

probe agent, we adopt the following reference for-

mat for agent during their generation:

Agent<EventName>@<Domain>, where domain

refers to the name given to the audit platform; and

eventName- a unique name given to the event in the

event structure provided in Section 3.1. In practice,

AdoptinganAgentandEventDrivenApproachforEnablingMutualAuditabilityandSecurityTransparencyinCloud

basedServices

569

the probes agents actually carrying out the instruc-

tion within the Rule field of the primitive event, thus

triggering an existing security tool or launching a

pseudo code before collecting the results of the

check. The creation and management of the agents

can be done through a MAS platform such as JADE.

5.2 Reasoning and Detecting a Pattern

Primitive events alone may not always be significant

to portray the emergency of a situation. In contrast,

considering a pool of events from the same or differ-

ent sources within the infrastructure of the CSC/CSP

may reveal a pattern that relate to an anomaly or

impending risk for the service stakeholder. As men-

tioned in the previous section, since we have adopt-

ed a tree based representation and validation of

event patterns, efficiently detecting a pattern of

events depends on how the tree is processed, and

individual events are handled upon their detection.

With this in mind, we have tailored for each of the

event pattern specified in Section 3.2, a dedicated

algorithm that is resorted by the reasoning engine to

determine whether the composite event has material-

ized. Owing to page limitation, we only provide a

description of some amongst them:

Any: this operator has a list of events and is validat-

ed if one of those events occurs. If the operator

above this operator is a count operator, then

this operator will reset only the event that validated

it. This ensures that any other subsequent event in

the list that was partially validated, will still be ac-

counted for.

Algorithm:

boolean valid = false

for each event in list {

if event is validated {

add event to happenedList

valid = true

}

return valid

Part Of: This operator has a list of events and a

trigger number. It is validated when the number of

events validated in the list is equal or above to the

trigger number. If the operator above this operator is

a count operator, this operator will reset only the

events of the list that are validated. Therefore if

another event in the list was partially validated, it

will not lose its current state.

Algorithm :

clearhappenedList

for each event in list {

if event is valdiated {

add event to happenedList

}

if happenedList size >= trigger {

return true

}

return false

5.3 Audit Reporting

Upon the processing of the events by the reasoning

engine, it sends the result to the Report Generator

which subsequently displays it at the HMI or Dash-

board. Given the adoption of a tree based specifica-

tion of the composite events to monitor for, the

Event designer could also serve the purpose of visu-

al dashboard whereby events detected by the agents

get automatically highlighted in a different colour.

For further details information on the detected

events, another dashboard could be added, giving

details on the event’s name, primary identifier , date

of creation, the probe agent tasked with detecting it,

and its status (for instance Occur or not happened).

Such information could then allow the CSP and CSC

to respectively, to detect any nefarious and mali-

cious use of its service by a CSC, detect any security

anomaly within their virtual machines and/or held

the CSP accountable for a breach of contractual

agreement related to security and quality of service.

6 APPLICATION TO A REAL

SCENARIO

The scenario described thereafter is a real use case

we have worked on though the names of the compa-

nies involved have been altered.

L-BANK which is actually affiliated to an inter-

national Bank, has decided to use the service of

D.CLOUD owing to the fact that the local branch

was closing down. As information related to the

bank customers could not be moved beyond the

boundary of the country, it was therefore imperative

to found a reliable service that could carry out the

archiving in accordance with the legal framework.

D.CLOUD was chosen primarily for the fact that

archiving was the core of its business and also be-

cause of the security reliability (supported by certifi-

cations). This means a considerable amount of ar-

chives (bank customers’ information) were ready to

be transferred to D.CLOUD through SFTP connec-

tion mode for fast integration. L-BANK was then

given an access to D.CLOUD’s standard web portal.

D-CLOUD could create new archives, search, re-

store, and consult individual archives. This portal is

accessible directly over Internet (HTTPS) or through

a VPN. At the end of the retention period, the

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

570

Figure 2: Launch of a JADE based agents and visualization of archive’s related events.

documents are available for deletion or archiving.

From L-BANK’s view point the following events

were identified as being relevant for monitoring:

-Confidentiality of the ANY (C1, C2) where

C1: An attacker or the cloud provider staff may ac-

cess. the archive stored on the cloud provider server

without authorisation.

C2: An error in storage or a bad virtual separation

may cause a breach of confidentiality.

- Integrity of the Archives ANY (I1, I2, I3)

I1: Unauthorised modification by hackers may occur

when the archive is stored on the CSP’s server.

I2: A loss of integrity of the archive due to a corrup-

tion of data may occur when the cloud client con-

sults the archive through the archive portal.

I3: In the documents management configuration,

when the client consults the archive, an error may

cause a loss of integrity or a deletion of the archive.

-Availability of the Archives ANY (A1, A2) where

A1:The platform may be unavailable due to a traffic

overloading or a denial of service attack.

A2: Transmission and communication errors may

occur when the archive is send to the cloud client.

The D-CLOUD in turn was concerned with un-

warranted modification and activities from L-BANK

with consequences on its services:

ANY (M1, M2) where:

M1:The cloud client may intentionally or not upload

a malicious file as a archive.

M2: an error in the system or archive maintenance

may result in unwanted changes.

Noteworthy, the specifcation of composite events

combining events from the three groups is possible

as it was the case during the application to the use

case (Figure 1-2). Similarly most of the events above

listed can be further specified as composite events of

their own, but due to page restriction such an exr-

cicse will not be conducted in this paper.

7 CONCLUDING REMARKS

This paper has reported on an initiative for address-

ing security transparency and allowing mutual au-

ditability within a cloud realm. Given that the use of

raw logic based language may prove a challenge for

some stakeholders wishing to engage in the system-

atic audit and monitoring of security and QoS relat-

ed parameters, the choice of a tree based representa-

tion was made. Another key aspect of the approach

is the adoption of the XCCDF format, which enables

the reuse of existing security management tools.

AdoptinganAgentandEventDrivenApproachforEnablingMutualAuditabilityandSecurityTransparencyinCloud

basedServices

571

The initial prototype based on the concepts and algo-

rithms presented has been validate on an electronic

archiving platform with the event specification and

detection console allocated to a dedicated virtual

machine, while the multi agent system platform

JADE has been adopted for the specification and

management of agent entrusted with the role of de-

tecting primitive events as can be seen in Figure 2.

NAGIOS plugins (

Pervilä, 2007) along with other

tailored programs where developed for the detection

of primitive events within the Infrastructure.

The initial results were very encouraging as most

of the security events of concerns provided by the

SaaS provider and consumer and specified using the

Event designer were detecting, by simulating altera-

tions and attacks targeting the archived files. Fur-

thermore, the capacity of the VM required for host-

ing the whole application (Event Designer and mul-

ti-agent detection platform) was confine to a 2 Go of

RAM and in single CPU. Nonetheless, further appli-

cations are envisaged for better appraising the effect

of deploying simultaneously a multitude of agents

for detecting and reporting events of interest.

AKNOWLEDGEMENTS

This work has been conducted in the context of the

SAINTS project, financed by the national fund of

research of the Grand Duchy of Luxembourg (FNR)

under grant number C12/IS/3988336. The authors

also thanks Maimouna Seck and Charles Hubert

Duthilleux for their work on implementing the tool.

REFERENCES

Anicic D., Rudolph S., Fodor P., Stojanovic N.: Stream

reasoning and complex event processing in ETALIS.

Semantic Web 3(4): 397-407 (2012).

Bellifemine F., Caire G, Poggi A., Rimassa G. 2008

JADE: A software framework for developing multi-

agent applications. Lessons learned. Information &

Software Technology 50(1-2): 10-21.

Carasso D. (2012) Exploring Splunk, CITO Research,

New York.

Chen Y, Paxson V, Katz RH (2010) What’s New About

Cloud Computing Security? Report EECS Depart-

ment, University of California, Berkeley,

http://www.eecs.berkeley.edu/Pubs/TechRpts

/2010/EECS-2010-5.html.

Dölitzscher F., Knahl M., Reich C., Clarke N.L. 2013

Anomaly Detection in IaaS Clouds. In proceedings of

CloudCom (1) 387-394.

Etzion O., Niblett P. 2010. Event Processing in Action.

Manning Publications Company 2010, ISBN 978-1-

935182-21-4, pp. I-XXIV, 1-360.

Lorenzoli D., Spanoudakis G. 2010 EVEREST+: Runtime

SLA Violations Prediction: In: Proceedings of the 5th

Middleware for Service-oriented Computing Work-

shop, ACM.

Luckham D. C. (2005) The power of events - an introduc-

tion to complex event processing in distributed enter-

prise systems. ACM 2005, ISBN 978-0-201-72789-0,

pp. I-XIX, 1-376.

Ganzha M, Paprzycki M. (2014): Agent-oriented compu-

ting for distributed systems and networks. J. Network

and Computer Applications 37: 45-46 (2014). McAfee

and Guardian Analytics. 2012. Dissecting. Operation

High Roller. Accessed 10 December 2014. From:

http://www.mcafee.com/us/resources/reports/rp.operat

ion-high-roller.pdf.

Nuñez D., Fernandez – Gago C., Pearson S., Felici M.

2013 A Metamodel for Measuring Accountability At-

tributes in the Cloud. In: Proceedings of the 2013

IEEE International Conference on Cloud Computing

Technology and Science (CloudCom 2013), IEEE.

Ouedraogo M., Khadraoui D., Mouratidis, H. and Dubois

E. (2012): Appraisal and reporting of security assur-

ance at operational systems level. Journal of Systems

and Software 85(1): 193-208 (2012).

Ouedraogo M, Mouratidis M (2013) Selecting a cloud

service provider in the age of cybercrime, Computers

& Security, vol.38, pp.3-13 Special issue on Cyber-

crime in the Digital Economy, Elsevier.

Ouedraogo M., Kuo C.T, Tjoa S., Preston D, Dubois E.,

Simões P., Cruz T.: Keeping an Eye on Your Security

Through Assurance Indicators. In proceedings of

SECRYPT 2014: 476-483.

Pervilä, M.A., 2007. Using Nagios to monitor faults in a

self-healing environment. In:Seminar on Self-Healing

Systems. University of Helsinki.

Rak M, Liccardo L, Aversa R 2011. A SLA-based inter-

face for security management in cloud and GRID inte-

grations. In: Proceedings of the 7

International. Con-

ference on Information Assurance and Security (IAS),

pp.378-383, IEEE.

Robert J. Zhang, Elizabeth A. Unger (1996) Event Speci-

fication and Detection Technical report TR CS-96-8,

1996, Kansas State University.

Sunyaev A., Schneider S. 2013. Cloud services. certifica-

tion Communication of the ACM 56(2): 33-36, ACM

digital Library.

Waltermire D., Schmidt, C., Scarfone K.

Winkler V. (2011) Securing the cloud- cloud computer.

security techniques and tactics. Syngress.

Ziring N. 2012. Specification for the Extensible Configu-

ration Checklist Description Format (XCCDF) Ver-

sion 1.2, NIST Interagency Report 7275Revision 4,

National Institute of Standards and Technology

Gaithersburg, MD 20899-89.

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

572
