Reverse Engineering an IPhone Applications using Dynamic Analysis

Philippe Dugerdil and Roland Sako

Geneva School of Business Adminsitration, Univ. of Applied Sciences Westen Switzerland (HESSO),

7 route de Drize, CH-1227 Geneva, Switzerland

Keywords: Reverse Engineering, Mobile Application, Dynamic Analysis.

Abstract: Mobile applications are becoming very complex since business applications increasingly move to the

mobile. Hence the same problem of code maintenance and comprehension of poorly documented apps, as in

the desktop world, happen to the mobile today. One technique to help with code comprehension is to reverse

engineer the application. Specifically, we are interested in the functional structure of the app i.e. how the

classes that implement the use cases interact. Then we adapted, to the iPhone, the code analysis technique

we developed for the desktop applications. In this paper we present the reverse engineering process and tool

we used to reverse engineer the code of an iPhone app and show, in a case study, how these tools are used.

1 INTRODUCTION

According to several surveys, mobile business

applications are the trend of the day, although not all

surveys agree on the strength of the trend

(Appcelerator/IDC, 2013); (IDC, 2013); (Zend,

2013) (Wasserman, 2011). With the growing interest

in B2B and B2E mobile apps (IDC, 2013) mobile

development becomes mainstream (IBM, 2014)

(Hammond, 2013). Then the very same problems of

application maintenance and understanding arise as

in desktop applications. There are no reasons to

believe that mobile apps will be any easier to

maintain than desktop ones. In particular the lack of

documentation could even be higher, on average,

than on traditional desktop platform since these

applications are notoriously developed using agile

approaches such as Scrum which leaves a lot of

freedom to the developer as to what documentation

to produce. Then we decided to develop a mobile

version of our methodology for the reverse

engineering of applications. This is a complete set of

techniques and tools to analyze the functional

structure of an application (Dugerdil and Niculescu,

2014) to improve its understanding hence its

maintenance. Indeed it is known for a long time that

to “understand” a large software system, the

structural aspects of the system are more important

than any single algorithmic component (Tilley et al.,

1996). Since there are several views of software

architecture (Clements et al., 2002), each targeting a

particular purpose, we developed a new one

specifically targeted at software understanding. The

latter is what we call the functional structure of the

system (Dugerdil and Niculescu, 2014) i.e. the

structure of the components of the system that

implement the high level business function of the

software, together with their relationships. Our

approach rests on dynamic analysis techniques i.e.

the analysis of the execution trace of the program

corresponding to some scenario (use-case) relevant

to the business. One key problem in dynamic

analysis is to cope with the amount of data to

process. In fact, the execution trace file can contain

several hundreds of thousands of events. To cope

with this data volume, we developed a trace

segmentation technique (Dugerdil, 2007) that has

showed to be very efficient at analyzing the

interactions between the components of the system.

In this paper we first present our reverse engineering

framework for software system (Section 2). Then we

show the tools we developed specifically to adapt

our framework to the reverse engineering of

Objective-C applications on the iPhone (Section 3).

Next, in Section 4, we present a case study. Section

5 presents the related work and Section 6 concludes

the paper.

2 REVERSE ENGINEERING

The goal of our reverse engineering process is to

261

Dugerdil P. and Sako R..

Reverse Engineering an IPhone Applications using Dynamic Analysis.

DOI: 10.5220/0005498002610268

In Proceedings of the 10th International Conference on Software Engineering and Applications (ICSOFT-EA-2015), pages 261-268

ISBN: 978-989-758-114-4

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

recover the functional structure of the program

((Dugerdil and Niculescu, 2014) i.e. to analyze what

classes or components support the high level

function of the application. The process starts with

the recovery of the use-cases of the system, if they

are not readily available from the documentation of

the app (which is generally the case), by watching

the users interacting with the system. We simply ask

the user to go through all the business-relevant

scenario and we take note of all the actions he does

with the app. (In the case of legacy desktop

applications we even video-record the actions of the

user. But this is not required here because the use-

cases for mobile apps are usually much simpler).

Starting from the use cases allows us to concentrate

on scenarios of business value. Next we instrument

the source code of the program to be able to generate

the execution traces (i.e. the sequence of method

calls in a given run of the system). Code

instrumentation consists of inserting extra statements

in the source code to record events when the

methods are executed. An event is generated when

the method is entered and exited. Next the system is

run according to the use-cases and the corresponding

execution trace is recorded. Finally, an off-line

analysis of the execution trace is performed to

recover the functional structure of the system using

many views. Figure 1 illustrates a simplified version

of the reverse engineering process with only the key

tasks.

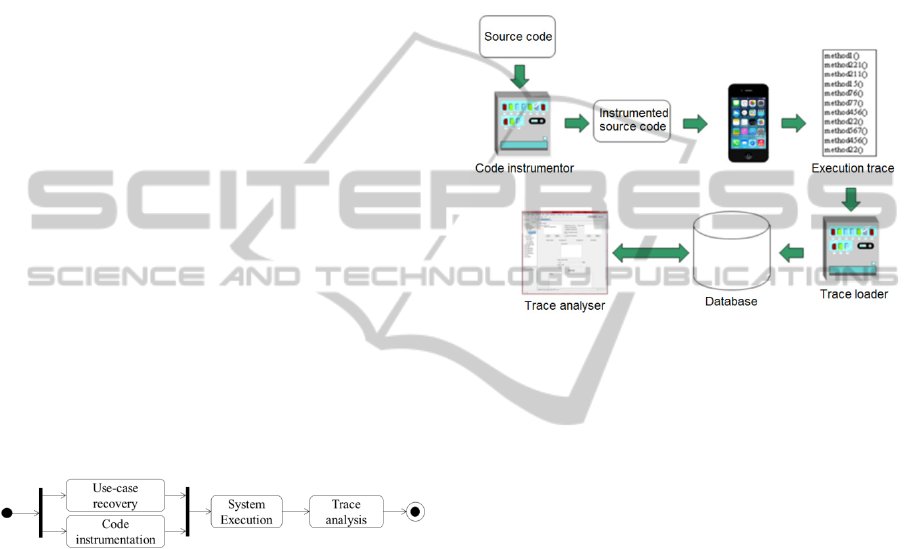

Figure 1: Reverse Engineering process.

This process has been implemented using a set of

tools that are presented in Figure 2. To instrument

the source code, many variants exist among which:

• developing an instrumentor for the programing

language of the system;

• leveraging an AOP environment to inject the

“instrumentation aspects” into the code.

Depending on the programming language

considered, the second option may not be available.

For Objective-C it is indeed the case and we

developed our own code instrumentor that will be

detailed in the next section. Once the code has been

instrumented it is compiled and shipped onto the

iPhone. Then the app is run according to the use-

cases and the execution trace is recorded in a file on

the device. Next, the file is downloaded from the

device and uploaded into a trace database using a

trace loader which performs a few integrity checks.

Finally, the trace is analyzed using our trace analysis

tools. The latter is able to present the information

from the trace using several views. Since Objective-

C does not have any package construct, the

identification of the events uses only the class name.

There are two formats for the events to be recorded

in the execution trace. The first is for method entry

and the second for method exit. By recording these

two kinds of events, we can reconstruct the call

graph with the call hierarchy.

Figure 2: Tools workflow.

The syntax of the events is the following:

[SCI] [DCI] ’[‘ [TN] ’]’ [Sign] ’AS’ [Type] ‘[‘ [TS] ‘]’ [Param]

‘END’ [SCI] [DCI] ’[‘ [TN] ’]’ [Sign] ’AS’ [Type] ‘[‘ [TS] ‘]’

With :

[SCI] : Static class identifier : the class in which

the executed method is implemented.

[DCI] : Dynamic class identifier : the class of the

instance that executed the method.

[TN] : Thread number.

[Sign] : Method signature.

[Type] : Type of the element returned by the

method.

[TS] : Time stamp of the event

[Param]: List of the comma-separated values for

the primitive-typed parameters of the

method. Non primitive-typed values are

replaced by ‘_’.

The first event represents the entry into a method

and the second, headed by the keyword ‘END’,

indicates the exit from the method. The thread

number allows us to gather all the events that belong

to the same thread for further analysis.

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

262

3 APP INSTRUMENTATION

Dynamic analysis as opposed to static analysis aims

at observing the application’s behavior while it is

running. Although many techniques can be used

(Hamou-Lhadj and Lethbridge, 2004) we decided to

use code instrumentation because, on the mobile

device, there are not many alternatives. Indeed one

cannot install any profiling or debugging

environment without deeply impacting the behavior

of the code. The least intrusive technique is simply

to add lightweight tracing statements in the

application source code to write the events in a flat

file. Each of the recorded events must contain the

signature of the method called. As for the class

identifier we record the name of the class and, in

case of the languages using module or package

declarations, the package or module in which the

class is defined. Once the trace file is generated (that

could contain millions of events), it is loaded into a

database for further processing. Many of the existing

dynamic techniques focus on the monitoring of the

low level instructions of the program, in particular

when the purpose is to analyze an app for which

only the compiled code is available. Since we wish

to reverse engineer the functional structure of the

app, access to the source code is a must.

The first step to build our own instrumentor for

Objective-C is to be able to parse the source code.

To build such a parser, several possibilities exist.

Tools like JavaCC (JavaCC, 2014) YaCC (YaCC,

2014) or ANTLR (ANTLR, 2014) are capable of

generating a parser given the syntax definition of the

programming language in the EBNF format. Such

parser is completed by adding some extra parsing

instructions in the target language. The main

difference between these tools is the language in

which the parser is generated. Our choice was

JavaCC which generates a parser in Java. This is

because JavaCC -encoded grammars are available

for several programming languages, including

Objective-C, and also because we had some

previous successful experience with it. However we

do not only need to parse the code, we also need to

build an abstract syntax tree (AST) of the code in

memory so that we could add the extra trace event

generation code to some of the nodes in the AST.

We used the Java Tree Builder (JTB, 2014) to

produce the AST. Some Visitor (Gamma et al.,

1995) classes are generated by the same tool to visit

each node of the AST. We use the “Visitor” classes

to add the instrumentation instructions at the proper

locations in the code: as the first statement of each

method and right before each of the methods’ exit

statements. The output of the parser generation

process is represented by two packages named

syntaxtree and visitor which respectively

contain the AST elements and their associated

“visitors”. Because every single abstract syntax tree

element comes with its own “Visitor” class, we

focused on the ones responsible for the handling of

methods. The added instructions in the source code

must satisfy two conditions:

1 Do not produce any changes to the application

semantics;

2 Limit as much as possible the impact on the

application processing time.

The first constraint is self-evident. The second

condition aims at avoiding any impact on the

scheduling of multi-threaded applications. To be

able to record the events during the execution of the

app, we need to build a little runtime program, called

HEGTrace, to write the events to a flat file. Then the

instructions we insert into the source code of the

methods are simple calls to the function of

HEGTrace. The latter contains:

• A class with two methods to write an event at

the entry and at the exit of the instrumented

method.

• A class responsible for converting the

primitive-typed values of the parameters into

NSString, to write these values in the trace

event (see the [Param] element of the trace

event grammar).

Every iOS application has its own set of directories

in which it can read and write files. An application’s

private file system is called a Sandbox (Apple iOS,

2014) and it is specific to the application. Inside a

sandbox, there are three predefined directories:

Documents, Library and tmp

. To store a trace

file, the HEGTrace program can write in either the

Library or Documents directory. But we should

avoid tmp, since its content may be cleared away by

the system when the application stops running.

Because these folders generally contain user-

generated content and other resources used by the

application’s logic, we need to make sure the trace

files we write will not interfere with the existing

files. To do so, we create the trace files in a custom

folder inside the Library folder:

<Application_Home>/Library/HEG_TRACE/trace_[timestamp].

This will not only ensure that our tool does not

hamper the application’s behavior but also allows

the running of our use-cases in sequence to get

several trace files all at once. Next, to upload the

trace file into the desktop machine for further

ReverseEngineeringanIPhoneApplicationsusingDynamicAnalysis

263

analysis we pull it out of the iPhone using iExplorer

(iExplorer, 2014) which gives access to the part of

the device’s file system where the applications

reside. A technique to shortcut the creation of the

trace file could have been to embed a socket

communication module in our HEGTrace program

to “pipe” all the data in real time to a listening

socket. However this would require a permanent

connection to server and this would not respect our

second constraint to have as little an impact on the

processing time as possible. Another alternative

technique to trace file writing could have been to

monitor the application execution using an

embarked version of a debugger such as GDB

(GDB, 2014). Unlike C++ or Java, the runtime of

Objective-C (Objective C, 2014) uses a specific

syntax to do message sending. A message sending is

a statement like [object1 foo:@”arg”]

meaning that object1 is sent a message whose

“selector” is foo: and whose argument is “arg”.

This syntax is converted to

objc_msgSend(object1,foo(“arg”))

by the Objective-C runtime. Then, using the

debugger, we would set a break on every

objc_msgSend to monitor the execution. As the

iOS devices use the ARM processor, fetching the

right registers could give access to all the methods’

execution context. But this technique would delay

the program execution at each message sending and

then would exaggeratedly slow down the whole

application, therefore not respecting the second

constraint. The chosen instrumentation technique

using our own instrumentor has the extra advantage

to be applicable to any programming language

provided that a LALR-analyzable grammar is

available. Hence the technique presented in this

paper can be extended to the Android platform

(Parada and de Brisolara, 2012) since it uses Java as

the programming language.

4 CASE STUDY

We chose to reverse engineer an app that is used to

search and display the acts and articles of the Swiss

Law recorded in the device. With our reverse

engineering technique we can quickly identify what

classes are involved in the delivery of a given

functionality and what are the dynamic caller-callee

relationships for the use-case. As an example, here is

the analysis of the classes involved in the use-case

“Read a judgment of the Swiss Federal Court”. In

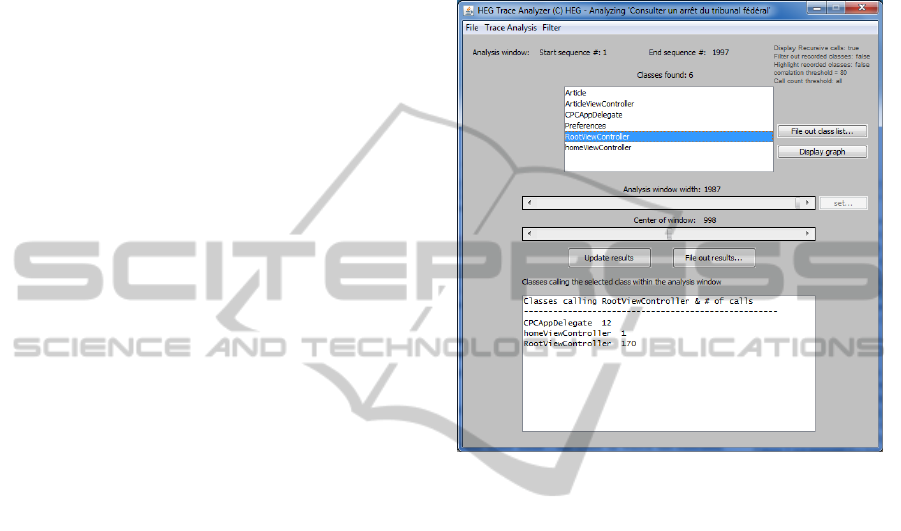

Figure 3 the trace analyzer tool displays the classes

involved in the use-case and specifically what class

calls what other class. As we can see in the display,

the class RootViewController is called by 3

other classes:

• CPCAppDelegate 12 times

• homeViewController only once

• RootViewController 170 times.

Figure 3: Trace analyzer.

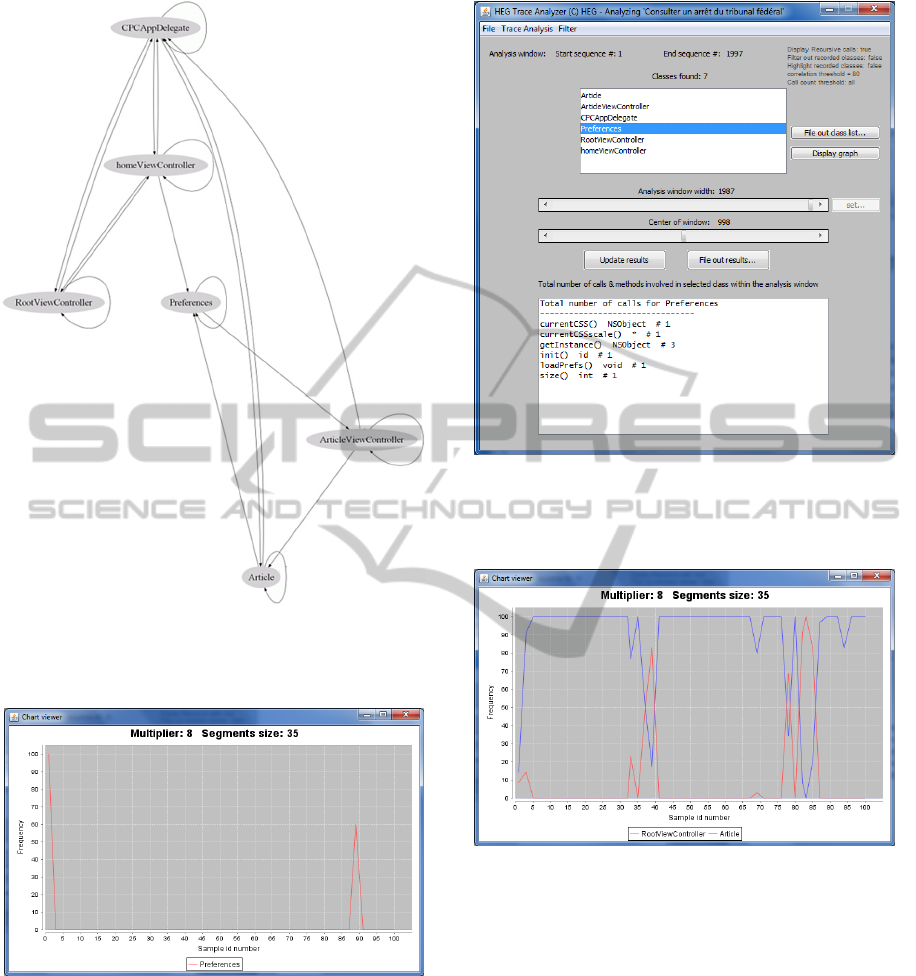

Figure 4 displays the call graph with all the involved

classes. In this figure we can see that four classes are

coupled bi-directionally which, on the point of view

of program quality, could be something to

investigate further. But this is neither the case of the

ArticleViewController nor the

Preferences classes. The call graph is generated

by our tool using the Graphviz open source library

(Graphviz, 2015). Now we are interested to know

when, in the course of the execution, the classes are

involved. Then our trace analysis tool could display

a “time series” graph of the classes’ presence in the

trace. But the problem is that the trace is quite huge.

Then the display of each and every method in the

trace would lead to a very dense graph. To overcome

the problem we introduce a little bit of statistical

processing: we segment the trace in contiguous

segments of a predefined size and, for each segment,

we count the number of times a given class is called.

Therefore the size of the horizontal display is now

given by the number of segments in the trace which

is user-defined.

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

264

Figure 4: caller-callee graph.

Figure 5 presents such a time series graph for the

Preference class.

Figure 5: Preference class time series.

As we can see, the class is used at the beginning of

the processing and close to the end. Figure 6

displays the methods that are called in the

Preferences class. We observe that very few

calls are made in this class. Indeed this class holds

the application’s preferences parameters. All the

behavior, showed by Figure 5 and 6, rightfully

represents what we could expect from a class which

holds preferences information. Next, we could

compare the time series of two classes.

Figure 6: Methods called in Preference class.

Figure 7 shows the joint time series for the classes

RootViewController and Article.

Figure 7: Joint time series for 2 classes.

Interestingly, the involvement of these two classes

seems opposite. In the few segment where the

Article class is much less involved then the

RootViewController class is heavily involved.

A further source code investigation revealed that the

hundreds of Article objects (i.e. articles of the

law) to be loaded in memory from a file are loaded

all at once. Because this process is not in a dedicated

thread, it blocks everything else until it is

finished.The RootViewController contains a

UITableView and implements its delegate and

datasource protocols (Apple UITableView, 2014).

Because the structure of the law acts and articles is

hierarchical, a RootViewController is

reclusively created every time the user browses a

ReverseEngineeringanIPhoneApplicationsusingDynamicAnalysis

265

subcategory of the law acts and articles. Then the

relevant Article objects are accessed in memory,

inserted into the UITableView cells and the

RootViewController is quit. This explains the

sudden “bursts” of activity of the

RootViewController following the activity on

Article objects. With this information we can

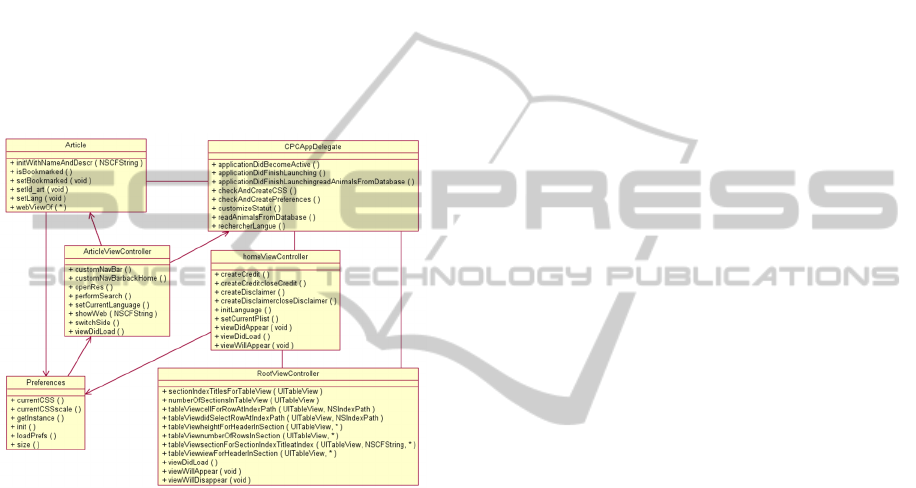

now reconstruct the dynamic UML class diagram

corresponding to the executed use case (Figure 8).

This diagram represents the implementation classes

of the functional structure of the system in relation to

the use-case. It contains the classes, methods and

dynamic associations involved in the execution of

the use-case. In some sense this represents a

“projection” of the use-case to the whole system.

Figure 8: Class diagram of the functional structure.

Today, this UML class diagram is built by hand

from the output of the tool. We intend however to

integrate our tool with the software modeling

environment we use (IBM’s Rational Software

Architect) so that this class diagram could be created

automatically.

5 RELATED WORK

Dynamic analysis of iOS applications has been a

subject of interest for a few years. For example, it

has been used to check the security of the app when

its source code is unavailable and specifically to do

black-box penetration testing. However, when the

source code of the app is available, the tester

generally turns to static code review and white box

testing. Gianchandani (Gianchandani, 2014) uses

snoop-it (Snoop-it, 2014) to hook into a chosen

application’s process and to monitor network and

file system activities. He also uses Introspy

(Introspy, 2014) which is composed of a tracer

module and an analyzer module. After having

selected the API to trace, the tracer will log the

corresponding calls to a database. Next, the analyzer

will produce a human readable report in HTML.

However the tool does not target all the custom

application classes but focuses on the specific ones

related, but not limited to cryptography, data storage

and networking. Szydlowski M. et al (Szydlowski et

al., 2011) proposed a technique to performs

automatic dynamic analysis of iOS applications by

hooking to the application’s delegate and triggering

all of the UI controls on every view. The result is a

state model of the application. However, most of the

dynamic analysis methods operate on the low level

instructions. Hence, hooking to the running process

is needed. But Apple does not include any default

debugger on the device and installing one requires to

jailbreak the iPhone. An alternative consists of

running the application on the iOS Simulator (iOS

Simulator, 2014) that comes with XCode then

monitoring its process using GDB (GDB, 2014) or

LLDB (LLDB, 2014). But the dynamic analysis of a

simulated application using a debugger does not

provide as much information as is available when

writing the trace events to a file and analyzing the

file off-line. Indeed the latter method let us perform

statistical analysis which is difficult when using a

debugger. Moreover, working on a simulated device,

the technique does not allow analyzing apps that

involve sensors such as accelerometer, compass or

camera as they cannot be reproduced in the iOS

Simulator.

6 CONCLUSIONS

The contribution of this paper is to present a reverse-

engineering process and the associated tools to

reverse-engineer iPhone applications. Of course, the

technique is not limited to iPhone apps since the

core of the technique is to generate a trace file by

instrumenting the source code of the app. Then it is

applicable to whatever environment, provided that

we can build a source code instrumentor for the

associated programming language. In particular,

since we already developed an instrumentor for

Java, we are ready to analyze any Android

application. The trace analyzer we developed

provides a rich set of view through which the

maintenance engineer can study the running of the

code. In our simple case study, we observed that the

“time series” technique can visually present the

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

266

mutual behavior of the classes in a convenient

format. It provides some useful clues as to how

classes interact when running the use-cases. The

dynamic UML class diagram of the functional

structure of the use-case conveniently summarizes

all the programming elements involved in the

execution of the use-cases.

The drawback of our reverse-engineering technique

is that we are unsure to go through the all the

alternative paths in each of the scenarios since the

latter are recovered from the observation of the

users. For example, in the case of legacy desktop

applications, we investigated a semi-automated

technique to recover the use case from the legacy

code (Dugerdil, Sennhauser, 2013) with moderate

success however, due to the complexity of the task.

Indeed, use-case recovery from source code is still

an open problem. As future work we will integrate

our tool with IBM’s RSA to be able to generate the

dynamic UML class diagram automatically. We also

intend to develop new views to represent the

dynamic business-level application semantics.

Indeed we are building domain concept ontologies

whose concepts will be dynamically identified in the

executed code. This technique will help to close the

semantic gap between the high level business

domain concepts and the code level.

REFERENCES

ANTLR 2014. ANother Tool for Language Recognition.

http://www.antlr.org/ Accessed on Oct 12, 2014.

Apple iOS 2014. File System Programming Guide https://

developer.apple.com/library/mac/documentation/File

Management/Conceptual/FileSystemProgrammingGui

de/FileSystemOverview/FileSystemOverview.html.

[Accessed on Oct 12, 2014].

Appcelerator/IDC 2013. Mobile Developer report. www.

appcelerator.com.s3.amazonaws.com/pdf/developer-

survey-Q2-2013.pdf. [Accessed on March 5, 2015].

Apple UITableView 2014. UITableView Class Reference,

https://developer.apple.com/library/ios/documentation/

UIKit/Reference/UITableView_Class/. [Accessed on

Oct 12, 2014].

Clements P., Kazman R., Klein M. 2002. Evaluating

Software Architecture. Addison-Wesley.

Dugerdil Ph. 2007 - Using trace sampling techniques to

identify dynamic clusters of classes. IBM CAS

Software and Systems Engineering Symposium

(CASCON) October 2007.

Dugerdil Ph., Sennhauser D. 2013. Dynamic Decision

Tree for Legacy Use-Case Recovery. 28th ACM

Symposium On Applied Computing (SAC 2013)

Coimbra, Portugal, March 18-22, 2013.

Dugerdil Ph., Niculescu M. 2014. Visualizing Software

Structure Understandability. 23rd Australasian

Software Engineering Conference (ASWEC) 2014.

Sydney, 2014. IEEE Digital Library.

Gamma E., Helm R., Johnson R., Vlissides J. 1995 Design

Patterns. Elements of Reusable Object Oriented

Software. Addison-Wesley.

Gianchandani P. 2014. Damn Vulnerable iOS Application

(DVIA). http://damnvulnerableiosapp.com/#learn

[Accessed on Oct 12, 2014].

GDB. 2014. GNU Debugger http://www.gnu.org/software

/gdb/ [Accessed on Oct 12, 2014].

Graphviz 2015. http://www.graphviz.org/Home.php.

[Accessed on April 17, 2015].

Hammond J.S. 2013. Development Landscape: 2013,

Forrester Research.

Hamou-Lhadj A., Lethbridge T.C. 2004. A Survey of

Trace Exploration Tools and Techniques. Proc. of the

IBM Conference of the Centre for Advanced Studies

on Collaborative Research.

IBM 2014. IBM Mobile First initiative. www.03.

ibm.com/press/us/en/presskit/39172.wss. [Accessed on

Oct 12, 2014].

IDC 2013. IDC Predictions 2013 Competing on the 3rd

Platform. www.idc.com/getdoc.jsp?containerId=

WC20121129 [Accessed on March 5, 2015].

iExplorer 2014. http://www.macroplant.com/iexplorer/

[Accessed on Oct 12, 2014].

Introspy-iOS 2014. https://github.com/iSECPartners/Intro

spy-iOS. [Accessed on Oct 12, 2014].

iOS Simulator, 2014. https://developer.apple.com/library/

ios/documentation/IDEs/Conceptual/iOS_Simulator_

Guide/GettingStartedwithiOSStimulator/GettingStarte

dwithiOSStimulator.html. [Accessed on Oct 12, 2014].

JavaCC 2014. Java Compiler Compiler – The Java Parser

Generator. https://javacc.java.net/ [Accessed on Oct

12, 2014].

JTB 2014. Java TreeBuilder.http://compilers.cs.ucla.edu/

jtb/ [Accessed on Oct 12, 2014].

LLDB 2014. LLDB Debugger, http://lldb.llvm.org/.

[Accessed on Oct 12, 2014].

Objective C 2014. Runtime Reference. https://developer

.apple.com/library/mac/documentation/Cocoa/Referen

ce/ObjCRuntimeRef/Reference/reference.html.

[Accessed on Oct 12, 2014].

Parada A.G., de Brisolara L.B. 2012. A model driven

approach for An-droid applications development.

Proc. Brazilian Symposium on Computing System

Engineering (SBESC).

Snoop-it 2014. https://code.google.com/p/snoop-it/

[Accessed on Oct 12, 2014].

Szydlowski et al. 2011. Challenges for Dynamic Analysis

of iOS Applications. Proc. of the IFIP WG 11.4

international conference on Open Problems in

Network Security.

Tilley S.R., Santanu P., Smith D.B. 1996. Toward a

Framework for Program Understanding. Proc. IEEE

Int. Workshop on Program Comprehension.

Wasserman A.I. 2011. Software Engineering Issues for

Mobile Application Development. Proc. 2nd Workshop

ReverseEngineeringanIPhoneApplicationsusingDynamicAnalysis

267

on Software Engineering for Mobile Application

Development MobiCase'11.

YaCC 2014. Yet Another Compiler-Compiler. http://

dinosaur.compilertools.net/yacc/. [Accessed on Oct

12, 2014].

Zend 2013. Developer Pulse Survey - Second Quarter

2013. http://static.zend.com/topics/Zend-Developer-

Pulse-report-Q2-2013-0523-EN.pdf [Accessed on

March 5, 2015].

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

268
