Speaking in Tongues

Practical Evaluation of TLS Cipher Suites Compatibility

Manuel Koschuch

, Taro Fruhwirth

, Alexander Glaser

, Silvie Schmidt

and Matthias Hudler

Competence Centre for IT-Security, FH Campus Wien, University of Applied Sciences

Favoritenstrasse 226, 1100 Vienna, Austria

FH Campus Wien, University of Applied Sciences, Favoritenstrasse 226, 1100 Vienna, Austria

Keywords:

OpenSSL, O-Saft, Bettercrypto, Openssl-compare, Applied Crypto Hardening, Cipher Suite, Cipher String.

Abstract:

The Transport Layer Security (TLS) protocol is still the de-facto standard for secure network connections

over an insecure medium like the internet. But its ﬂexibility concerning the algorithms used for securing a

channel between two parties can also be a weakness, due to the possible agreement on insecure ciphers. In

this work we examine an existing white paper (Applied Crypto Hardening) giving recommendations on how

to securely conﬁgure SSL/TLS connections with regard to the practical feasibility of these recommendations.

In addition we propose an additional conﬁguration set with the aim of increasing compatibility as well as

security. We also developed a small Cipher Negotiation Crawler (CiNeg) to test TLS-handshakes using given

cipher conﬁgurations with a supplied list of websites and show its practical usability.

1 INTRODUCTION

Since its initial public speciﬁcation in 1995, the

Transport Layer Security (TLS) protocol (Dierks and

Rescorla, 2008), originally and until v3.0 known as

Secure Sockets Layer (SSL) (Freier et al., 2011),

has become the de-facto standard for secure network

communications over an insecure channel. One of

the main reasons for its widespread usage (from web-

browsers to mobile apps to embedded systems) is the

ﬂexibility this protocol offers with regard to the cryp-

tographic algorithms used in a session.

To achieve this ﬂexibility, the concept of cipher

suites, described by cipher strings, is employed. Sec-

tion 2 gives an overview of these strings and how

they are used in the SSL/TLS handshake process. But

this mechanism also creates practical problems: due

to compatibility issues, or simple misconﬁguration,

a potentially very large number of SSL/TLS secured

systems using insecure conﬁgurations exist. In addi-

tion, the cipher suites that — given a speciﬁc cipher

string conﬁguration — are actually negotiated with a

speciﬁc server often remain unclear.

Several guides exist to support administrators on

how to choose secure and compatible cipher strings,

usually mostly focused on a single (or small range of)

product(s). One guide that tries to take a broader ap-

proach to this topic is the Applied Crypto Hardening

(ACH) white paper (Breyha et al., 2015), which is cur-

rently (2/2015) still in draft status and in near constant

ﬂux. In Section 2.4 we give a more detailed descrip-

tion of the recommendations presented in this guide.

Our main motivation for this work was now to de-

termine how well the cipher strings recommended in

(Breyha et al., 2015) are usable in practice, how they

scale with different SSL/TLS versions, and what ci-

pher suites are effectively negotiated when using the

given strings in a practical setting. We also devel-

oped a small Cipher Negotiation Crawler (CiNeg) to

perform TLS-handshakes with a given list of websites

and show its practical usability. Section 3 details our

results.

Finally, we propose another cipher string, trying

to ﬁnd a balance between security and compatibility,

and evaluate its practical applicability in Section 4,

summing up our results and ﬁndings in Section 5.

2 TRANSPORT LAYER

SECURITY PROTOCOL

Transport Layer Security (TLS) is, as well as its

predecessor SSL, a hybrid cryptographic protocol

(SSL speciﬁcations were last updated in (Freier et al.,

Koschuch M., Fruhwirth T., Glaser A., Schmidt S. and Hudler M..

Speaking in Tongues - Practical Evaluation of TLS Cipher Suites Compatibility.

DOI: 10.5220/0005507900130023

In Proceedings of the 6th International Conference on Data Communication Networking (DCNET-2015), pages 13-23

ISBN: 978-989-758-112-0

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

2011), TLS is speciﬁed in (Dierks and Allen, 1999)

and was most recently updated in (Popov, 2015)). It

employs asymmetric cryptography during the initial

handshake phase to verify the authenticity of usually

at least one (the server side) of the communicating

parties, as well as to exchange a symmetric key be-

tween those parties. The data communication itself is

then encrypted and integrity protected using symmet-

ric techniques.

The initial handshake can be divided into four

phases, as detailed in Figure 1, where the individual

phases perform the following functions:

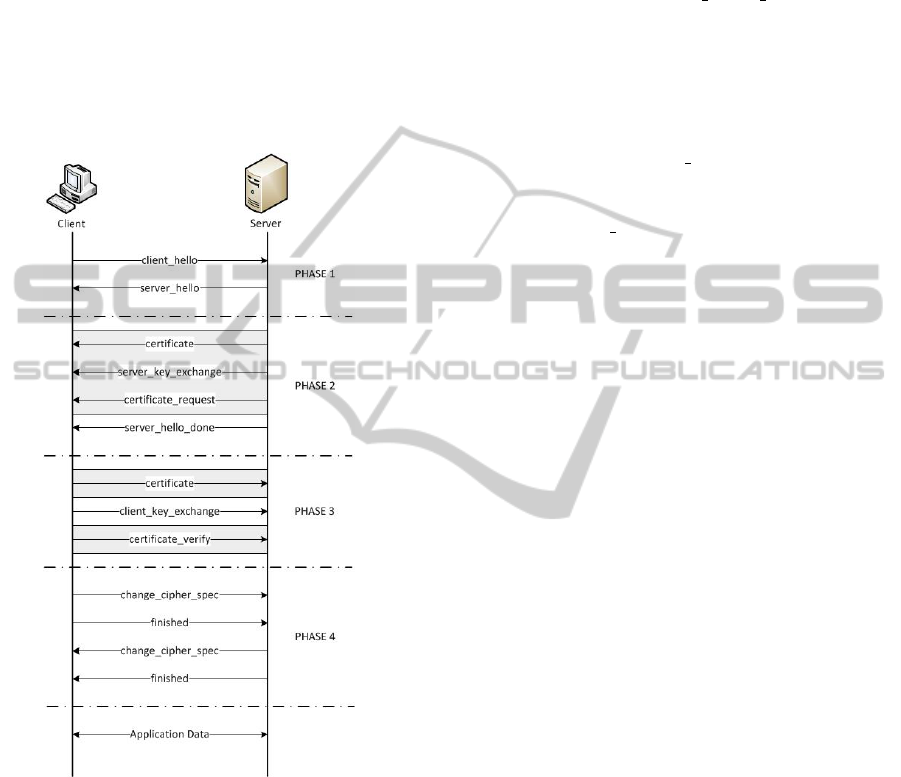

Figure 1: TLS Basic Handshake (cf. (Stallings, 2008)). The

shaded messages are optional or situation dependent.

during phase 1 security capabilities are established.

This includes information about the protocol version,

session ID, cipher suite, compression method, as well

as the initial random number.

Phase 2 contains three optional messages by the

server, i.e. certiﬁcate, key exchange, and the request

for a client certiﬁcate. Usually, in the context of a

web-server communicating with a client via HTPP

over SSL (HTTPS), at least the server certiﬁcate is

sent to authenticate the server.

In phase 3 the client may send its certiﬁcate if re-

quested by the server. In any case the client sends key

exchange information, depending on the actual cipher

suite agreed upon in phase 1. At the end of phase 3

the client may send a certiﬁcate veriﬁcation (forcing

it to employ the private key corresponding to the one

present in the client’s certiﬁcate).

During phase 4 the change cipher spec messages

are sent both ways, and the handshake is ﬁnished by

exchanging a message symmetrically encrypted with

the agreed upon key and cipher.

The most interesting part of this handshake for

our work is phase 1, in particular the negotiation of

the cipher suites. Usually the client offers a list of

supported suites in its client hello message, with the

server selecting a suite from its own conﬁguration

shared with the client and communicates it back to the

client in the server hello message. The cipher suites

supported by server and client depend on their respec-

tive conﬁguration, as well as on the SSL/TLS version

used.

2.1 Cipher Suites

A cipher suite deﬁnes the cryptographic algorithms

used during an SSL/TLS connection, and usually con-

tains information about the primitives for key ex-

change, authentication, symmetric encryption, and in-

tegrity protection.

An example suite, given in the format used

by OpenSSL, would be DHE-RSA-AES128-SHA:

ephemeral Difﬁe-Hellman (Difﬁe and Hellman, 2006)

is used for agreeing on a symmetric key, RSA (Rivest

et al., 1978) signatures for checking the authenticity

of the parties involved, AES (NIST, 2001) with a 128-

bit key for symmetric bulk data encryption, and SHA-

1 (NIST, 2012) for calculation of the HMAC integrity

protection value.

Supported cipher suites vary by SSL/TLS version

and speciﬁc implementations, and are, among others,

speciﬁed in (Dierks and Allen, 1999; Medvinsky and

Hur, 1999; Chown, 2002; Moriai et al., 2005; Lee

et al., 2005; Eronen and Tschofenig, 2005; Dierks and

Rescorla, 2006).

The most commonly used algorithms for the dif-

ferent cryptographic primitives are:

Key Exchange: RSA, or Difﬁe-Hellman (DH) or

its equivalent over elliptic curves (ECDH),

both in ephemeral and non-ephemeral varieties

((EC)DH(E))

Authentication: RSA, or the Digital Signature Algo-

rithm (DSA) or its equivalent over elliptic curves

(ECDSA)

Encryption: AES, RC4, or CAMELLIA

DCNET2015-InternationalConferenceonDataCommunicationNetworking

Hash: MD5, or a member of the SHA family (-1,-2,-

256,-384)

Most of the software products employing

SSL/TLS allow for some kind of control over

which cipher suites are available for negotiation,

thereby enabling the users and/or administrators for

enforcing certain minimum security requirements or

enabling compatibility with a wider range of devices.

The desired cipher suites can either be explicitly

enumerated or, as in the case of OpenSSL, given

as logical compositions of classes of algorithms

(e.g. “no SHA-1 AND no RC4 AND AES”, see

https://www.openssl.org/docs/apps/ciphers.html for a

detailed discussion of the expressions allowed).

Regardless of the approach taken, in practice it

is often unclear or at least quite cumbersome to de-

termine which actual cipher suite is being negotiated

when connecting to a particular server. In this work

we try to introduce a structured tool-assisted approach

to answer this question, as well as use this approach

to evaluate the practical applicability and compatibil-

ity of an existing project (Breyha et al., 2015) giving

cipher string recommendations.

2.2 OpenSSL

The OpenSSL

project offers an open source toolkit

written in C to implement SSL/TLS protocols, to-

gether with comprehensive utilities for creating and

verifying digital certiﬁcates. OpenSSL is also the de-

fault cryptographic library used in the Apache

and

nginx

HTTP servers. Both servers combined com-

prise about 67,26% of current domains served (ac-

cording to Analyzer.cc

Analyzer.cc also gives the most used version (as of

1/2015) as 0.9.8e (25.3%), followed by version 1.0.0

and 0.9.8g, with 14.3% and 13.2%, respectively. Ta-

ble 1 shows the top ﬁve OpenSSL versions according

to Analyzer.cc.

Table 1: Top 5 OpenSSL versions in use (according to

http://technology.analyzer.cc/application/openssl).

OpenSSL Version Installations %

0.9.8e 119,839 25.31%

1.0.0 67,937 14.35%

0.9.8g 62,510 13.20%

1.0.1e 56,580 11.95%

0.9.8o 36,191 7.64%

other 130,343 27.53%

https://www.openssl.org/

http://httpd.apache.org/

http://nginx.org/

http://technology.analyzer.cc/application/openssl

2.3 SSL/TLS Version Distribution

To get recent statistics on SSL/TLS usage and its

versions’ dissemination we used SSL Pulse

. As

of December 2014, 1.5 million public websites are

SSL/TLS enabled; due to efﬁciency concerns SSL

Pulse recently decided to use the top 200,000 sites

(according to Alexa’s list

) for its monitoring and the

resulting statistics. SSL Pulse offers various statistics

concerning SSL/TLS trends. From that we ﬁnd that -

as of Dec.7th, 2014 - almost a quarter (22.6%) of the

websites scanned uses weak or insecure cipher suites,

i.e. these sites support symmetric ciphers with a key

length lower than 128 bits. This percentage of web-

sites is 1.1% less than a month earlier, i.e. there is

a positive trend concerning cipher strength. Further-

more, SSL Pulse examines the usage of SSL/TLS ver-

sions, i.e. SSL v2.0, SSL v3.0, TLS v1.0, TLS v1.1,

and TLS v1.2.

Table 2 shows the usage of SSL/TLS versions in

December 2014 compared to November 2014. It is

obvious that SSL support is declining and the per-

centage of sites deploying TLS is growing, yet there

is still a considerable number of servers available that

are able to fallback to SSL when a client requests to

do so, making it all the more important to choose ci-

pher strings in a way to avoid this from happening.

2.4 Available Tools

As already mentioned before, several projects exist

trying to give administrators guidelines on how to

securely conﬁgure SSL/TLS installations by deploy-

ing speciﬁcally crafted cipher strings. In this work

our interest is twofold: ﬁrst we want to examine the

recommendations given in the Applied Crypto Hard-

ening (ACH) project (Breyha et al., 2015) on their

practical usability and compatibility. In addition, we

try to deﬁne our own new cipher string, trying to

strike a balance between the two conﬁgurations given

in (Breyha et al., 2015). We chose the ACH project

mainly for two reasons: the decision ﬁnding process

is open and well documented on a public mailing

list (http://lists.cert.at/cgi-bin/mailman/listinfo/ach)

as well as in the corresponding Git repository

(https://git.bettercrypto.org/ach-master.git).

And the contributors to the document come from

academic research as well as from the industry, giving

a broad perspective on the topic. These two properties

lend credibility to the notion that a conﬁguration cre-

ated and recommended this way is actually sensible

https://www.trustworthyinternet.org/ssl-pulse/

http://www.alexa.com/

SpeakinginTongues-PracticalEvaluationofTLSCipherSuitesCompatibility

Table 2: SSL/TLS Trends: absolute and relative numbers of sites supporting the respective version. (Data from

https://www.trustworthyinternet.org/ssl-pulse/, 1/2015).

Protocol Nov.2014 abs. Nov.2014 % Dec.2014 abs. Dec.2014 % Trend

SSL v2.0 23,238 16.6% 25,096 15.5% - 1.1%

SSL v3.0 91,526 60.6% 80,085 53.5% - 7.1%

TLS v1.0 149,132 99.5% 150,293 99.6% + 0.1%

TLS v1.1 68,595 45.4% 70,933 47.4% + 2.0%

TLS v1.2 72,701 48.1% 75,022 50.1% + 2.0%

in practice. Two cipher strings are provided by ACH

(as of draft revision 1333f7a):

Cipher String A is a conﬁguration for strong secu-

rity, i.e. using strong ciphers, but offering less com-

patibility, i.e. fewer clients (Breyha et al., 2015):

EDH+ aRSA +AES256: EECDH +aRSA +AES256:

!SSLv3.

Cipher String B is conﬁgured with weaker ciphers,

but it offers better compatibility (Breyha et al., 2015):

EDH+ CAMELLIA: EDH +aRSA: EECDH +aRSA

+AESGCM: EECDH +aRSA +SHA256: EECDH:

+CAMELLIA128: +AES128: +SSLv3: !aNULL:

!eNULL:!LOW:!3DES: !MD5: !EXP: !PSK: !DSS:

!RC4: !SEED: !IDEA: !ECDSA: kEDH: CAMEL-

LIA128 -SHA: AES128 -SHA.

More detailed explanation for selecting these

ciphers and their compatibilities can be found in

(Breyha et al., 2015).

To evaluate these two strings in practice we used

two additional tools: Openssl-compare

, allowing us

to test a given cipher string against a certain OpenSSL

version and determining the resulting supporting ci-

pher suites.

And O-Saft

to test a given cipher string against a

server.

3 PRACTICAL EVALUATION

In this section we describe the practical tests per-

formed and all the results and conclusions we derive

from these. We start with estimating the practical

compatibility of cipher string A and B from (Breyha

et al., 2015), and conclude by examining the available

cipher suites in different OpenSSL versions.

3.1 Methodology

We ﬁrst try to estimate the percentage of websites

a client with a given cipher string conﬁguration can

successfully connect to, taking into account the dis-

tribution of SSL/TLS versions as well as the cipher

https://github.com/azet/openssl-compare

https://www.owasp.org/index.php/O-Saft

suites described by the cipher string. To do this we

use openly available tools as detailed in Section 2.4

as well as our own command line application CiNeg,

detailed in the next Subsection.

We then try to verify our estimations by using

CiNeg to connect to Alexa’s top 1,000/top 25,000

sites and record the negotiated cipher suites.

Finally, we specify a new cipher string and ver-

ify its usability and compatibility by performing the

scans again.

3.2 Compatibility Estimation for ACH’s

Cipher Strings

In addition to the tools listed in Section 2.4, we devel-

oped the tool CiNeg, which creates an SSL/TLS ses-

sion for a given list of websites with a chosen cipher

string. CiNeg only tries to connect once, which re-

sults in small differences of the responding web sites

caused by the timeout after 2.5 seconds. CiNeg only

uses the given URL and does not try connecting to any

sub-domains. The tool uses the installed OpenSSL

client, version 1.0.1f in our case. The output shows

the negotiated cipher suite and the protocol version

used.

We estimate the compatibility of the cipher strings

A and B with web servers which support SSL or TLS,

using the results from scans with our CiNeg tool given

in Table 3.

3.2.1 Compatibility Estimation for Cipher

String A

Cipher string A only supports TLS 1.2 cipher suites.

This massively reduces the number of compatible

sites. According to SSL-Pulse data from December

2014, only 50.1% of SSL/TLS-enabled sites support

TLS 1.2. SSL-Pulse uses about 200,000 SSL/TLS

websites.

A second scan by Securitypitfalls

from Novem-

ber 2014, which uses 441,636 SSL/TLS websites

from Alexa’s top list

, indicates that 66.2% sup-

port TLS 1.2. The scan by Securitypitfalls shows

https://securitypitfalls.wordpress.com/2014/12/

http://www.alexa.com/topsites

DCNET2015-InternationalConferenceonDataCommunicationNetworking

that 56.7% of the surveyed sites support ECDHE and

49.5% support DHE.

Due to the numbers of the previous results and the

compatibility values from Table 3 we estimate that the

compatibility for this cipher string is between 50%

and 60%.

We used CiNeg to verify these values and ran a

scan with the top 1,000 and top 25,000 websites ac-

cording to Alexa’s top list. There are about 600 (60%)

websites in the top 1,000 that support SSL/TLS and

about 14,500 (58%) in the top 25,000.

We ﬁrst performed a scan with the cipher string

’ALL’ to see how many websites return an error

within the handshake, even when the cipher suites are

not limited. This value may vary slightly according

to the number of no responses on port 443, but this

should not severely skew our estimations.

We subtract the number of the errors within the

handshakes with all possible cipher suites from the

number of errors in the handshake with the limited ci-

pher suites, i.e. we removed cipher suites with limita-

tions such that the errors caused by these cipher suites

do not occur any more. The result for the shared ci-

pher suite percentage of cipher string A, when using

the top 1,000 websites according to Alexa, is 54.3%.

The result for the top 25,000 websites is 56.1%.

These results conﬁrm our initial estimation.

This quite limited compatibility is in line with the

goal of cipher string A, to focus on security and not

on compatibility with older systems.

The results of the CiNeg scan also include the ne-

gotiated cipher suites. Figure 2 shows the distribution

of negotiated cipher suites for the top 25,000 web-

sites. This chart shows that ECDHE-RSA-AES256-

GCM-SHA384 is used in about 65% of the successful

negotiations, although the DHE cipher suites are pre-

ferred by the client. Possible reasons for this might

be caused by the stronger support of the ECDHE ci-

pher suite or the fact, that - according to the scan by

Securitypitfalls - 67% of the websites use their own

priority order regarding their ciphers. It is also no-

table that about 95% of the negotiated cipher suites

use AES-GCM.

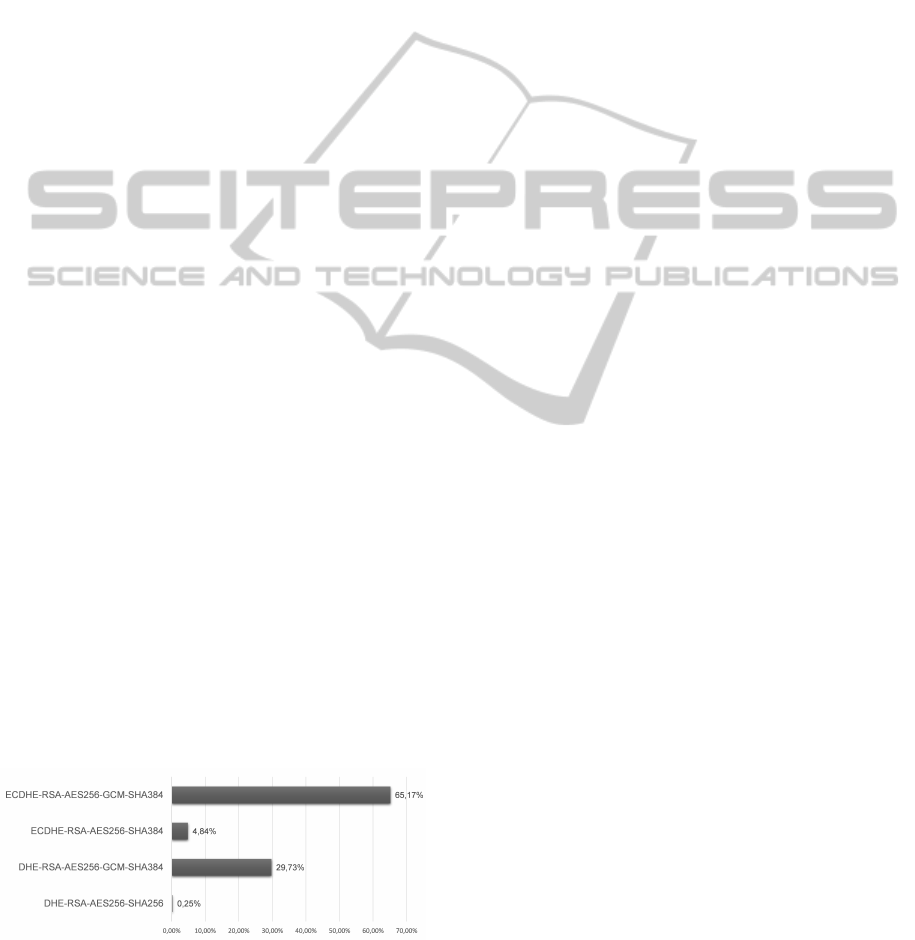

Figure 2: Percentage of cipher suites negotiated using ci-

pher string A with Alexa’s top 25,000 websites.

3.2.2 Compatibility Estimation for Cipher

String B

Cipher string B offers better compatibility than cipher

string A. The main reason for this fact is the support of

cipher suites which use RSA for key exchange. This

cipher string shares cipher suites with SSLv3, TLSv1,

TLSv1.1 and TLS1.2. The results of SSL-Pulse show

that nearly all of the websites support at least one of

these protocol versions and only 1.3% of the websites

support RC4 exclusively.

According to a scan by Securitypitfalls from

November 2014, only 0.02% of the SSL/TLS web-

sites from Alexa’s top 1 million sites only support

SSLv2. This scan used 441,636 SSL/TLS websites.

The results of this scan also show that RSA for key

exchange is supported by 94.2% of the websites, fol-

lowed by ECDHE with 56.7% and DHE with 49.5%.

AES for encryption is - according to this scan - sup-

ported by 93.6%. In this scan there are no different

results for AES128 and AES256. A different work

(Huang et al., 2014) using older data also found simi-

lar results concerning the distribution of AES128/256,

so this seems also valid for the newer values.

According to the previous numbers and the com-

patibility values from Table 3 we estimate that this

cipher string is compatible with about 95% of the

SSL/TLS websites.

We used CiNeg to verify this estimation in the

same way as described in the previous section. The

result for the shared cipher suite percentage of cipher

string B, when using the top 1,000 websites according

to Alexa’s list, is 98.3%. The result for the top 25,000

websites is 97.2%, i.e. the compatibility is slightly

better regarding the tested websites than estimated.

Figure 3 shows the distribution of negotiated ci-

pher suites for the top 25,000 websites when using

cipher string B. This chart shows that about 26.5%

of the websites negotiated the cipher suite AES128-

SHA, which does not offer perfect forward secrecy

(since using RSA as the key exchange method); this

cipher suite is the main reason for the better compati-

bility compared to cipher string A.

3.3 OpenSSL Support for Various

Cipher Suites

Openssl-compare, available at https://github.com/

azet/openssl-compare, provides the opportunity to in-

stall, execute and compare different OpenSSL ver-

sions. It offers the functionality to test a cipher string

against all OpenSSL versions present on the current

host. The command ciphersuite returns all the

shared cipher suites. To determine which cipher suite

SpeakinginTongues-PracticalEvaluationofTLSCipherSuitesCompatibility

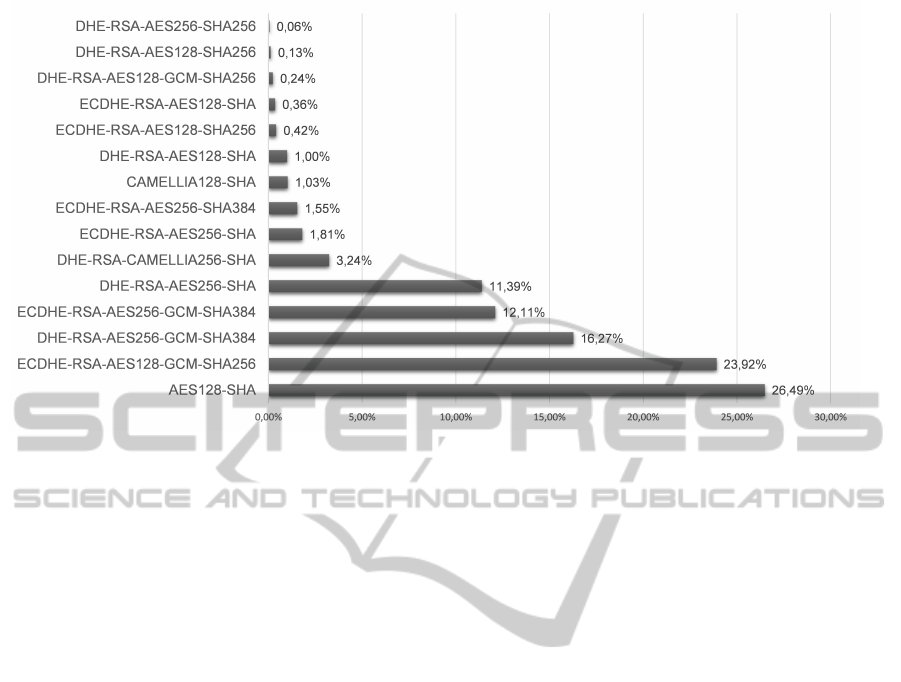

Figure 3: Percentage of cipher suites negotiated using cipher string B with Alexa’s top 25,000 websites.

of the shared cipher suites is actually negotiated dur-

ing a handshake, the command negotiate is used.

This tool was used to elaborate which cipher suite

is supported by which OpenSSL version. We also

used openssl-compare to test which cipher suite is

used for the different OpenSSL versions when a hand-

shake is executed with the cipher strings A and B of

the ACH project. The shared cipher suites where also

identiﬁed within these tests.

The following OpenSSL versions and sub-

versions where used:

• 0.9.6 (e,i-m)

• 0.9.7 (a-m)

• 0.9.8 (a-y,za,zb,zc)

• 1.0.0 (a,b,beta1-beta5,c-o)

• 1.0.1 (a,b,beta1-beta3,c-j)

• 1.0.2 (beta1-beta3)

3.3.1 Supported Cipher Suites

To determine the oldest OpenSSL version sup-

porting a speciﬁc cipher suite we used the com-

mand openssl-compare ciphersuite -s ’ALL’.

The cipher string ’ALL’ matches all the cipher suites

that are supported by default.

Table 3 shows an excerpt of supported cipher

suites. The compatibility values are the results of

scans using our CiNeg tool with the top 1,000 web-

sites according to Alexa’s list. The compatibility per-

centage is computed as described above.

Table 3 shows that AES is supported since version

0.9.7. It is also notable that ECDH and ECDHE are

supported since version 1.0.0. In version 1.0.1 major

modiﬁcations were made by introducing AES-GCM

(128 and 256), SHA256, and SHA384. AES256-

GCM is always used in a cipher suite with SHA384.

In TLS v1.2 AES256 is usually used in a cipher suite

with SHA256, except for cipher suites that include

ECDH(E), where SHA384 is used.

3.3.2 OpenSSL Support for Cipher String A

The command openssl-compare ciphersuite -s

was used to ﬁnd the OpenSSL versions which share

cipher suites with the cipher string A. The result

shows that this cipher string shares cipher suites only

with OpenSSL versions 1.0.1 and 1.0.2. These shared

cipher suites are:

• DHE-RSA-AES256-GCM-SHA384

• DHE-RSA-AES256-SHA256

• ECDHE-RSA-AES256-GCM-SHA384

• ECDHE-RSA-AES256-SHA384

The three beta versions of version 1.0.1 do

not support the cipher suite DHE-RSA-AES256-

SHA256. This cipher string only supports TLSv1.2.

To examine which cipher suites are negotiated

in a handshake the command openssl-compare

negotiate -s was used. The negotiated cipher suite

for all supported OpenSSL versions is DHE-RSA-

AES256-GCM-SHA384.

DCNET2015-InternationalConferenceonDataCommunicationNetworking

Table 3: OpenSSL versions’ cipher suite support and estimated compatibility for a given suite according to the top 1.000

Alexa websites. “x” denotes support for a cipher suite, “-” lack thereof.

OpenSSL Identiﬁer 0.9.6 0.9.7 0.9.8 1.0.0 1.0.1 1.0.2 Compatibility [%]

RC4-SHA x x x x x x 65.6

DES-CBC3-SHA x x x x x x 87.4

AES128-SHA - x x x x x 96.1

AES256-SHA - x x x x x 94.0

EDH-RSA-DES-CBC3-SHA x x x x x x 27.3

DHE-RSA-AES128-SHA - x x x x x 34.2

DHE-RSA-AES256-SHA - x x x x x 27.5

DHE-RSA-CAMELLIA128-SHA - - - x x x 17.1

DHE-RSA-CAMELLIA256-SHA - - - x x x 17.0

DHE-RSA-AES128-SHA256 - - - - x x 16.9

DHE-RSA-AES256-SHA256 - - - - x x 16.9

DHE-RSA-AES128-GCM-SHA256 - - - - x x 19.0

DHE-RSA-AES256-GCM-SHA384 - - - - x x 17.4

ECDHE-RSA-AES128-SHA - - - x x x 60.7

ECDHE-RSA-AES256-SHA - - - x x x 56.2

ECDHE-RSA-AES128-SHA256 - - - - x x 51.2

ECDHE-RSA-AES256-SHA384 - - - - x x 50.5

ECDHE-RSA-AES128-GCM-SHA256 - - - - x x 52.1

ECDHE-RSA-AES256-GCM-SHA384 - - - - x x 51.1

3.3.3 OpenSSL Support for Cipher String B

There is no shared cipher suite for any of the 0.9.6

OpenSSL versions. This cipher string causes prob-

lems with some of the older versions. In OpenSSL

versions 0.9.7 to 0.9.7l the cipher suite AES256-SHA

is incorrectly included. This is caused by parsing

problems

and is ﬁxed in 0.9.7m. 0.9.7m includes

the following cipher suites when tested with cipher

string B:

• AES128-SHA

• DHE-RSA-AES128-SHA

• DHE-RSA-AES256-SHA

The parsing problems also exist in versions 0.9.8

to 0.9.8d and the shared cipher suites are:

• AES128-SHA

• AES256-SHA

• DHE-RSA-AES128-SHA

• DHE-RSA-AES256-SHA

• ECDHE-RSA-AES128-SHA

• ECDHE-RSA-AES256-SHA (not in 0.9.8(a))

• ECDH-RSA-AES128-SHA

• ECDH-RSA-AES256-SHA

https://www.openssl.org/news/changelog.html

The ﬁve shared cipher suites, indicated in bold in

the listing above, should not be included in the shared

cipher suites in versions 0.9.8 to 0.9.8d. The ECDHE

cipher suites are according to the cipher string, but

they are not included by the default lists and should

not be used in version 0.9.8.

The parsing problems are ﬁxed in version 0.9.8e.

The versions 0.9.8e to 0.9.8zc share the following ci-

pher suites:

• AES128-SHA

• DHE-RSA-AES128-SHA

• DHE-RSA-AES256-SHA

In versions 1.0.0, 1.0.1 and 1.0.2 there are no

problems regarding parsing or negotiation of the ci-

pher suite. The 1.0.0 versions share the following ci-

pher suites:

• AES128-SHA

• CAMELLIA128-SHA

• DHE-RSA-AES128-SHA

• DHE-RSA-AES256-SHA

• DHE-RSA-CAMELLIA128-SHA

• DHE-RSA-CAMELLIA256-SHA

• ECDHE-RSA-AES128-SHA

• ECDHE-RSA-AES256-SHA

This list shows that in version 1.0.0 CAMELLIA

is also used in DHE cipher suites. The versions 1.0.1

SpeakinginTongues-PracticalEvaluationofTLSCipherSuitesCompatibility

and 1.0.2 also share the cipher suites of the 1.0.0 ver-

sions. Additional shared cipher suites in 1.0.1 and

1.0.2 are:

• DHE-RSA-AES128-GCM-SHA256

• DHE-RSA-AES128-SHA256

• DHE-RSA-AES256-GCM-SHA384

• DHE-RSA-AES256-SHA384

• ECDHE-RSA-AES128-GCM-SHA256

• ECDHE-RSA-AES128-SHA256

• ECDHE-RSA-AES256-GCM-SHA384

• ECDHE-RSA-AES256-SHA384

This list shows that AES-GCM, SHA256, and

SHA384 since are supported OpenSSL 1.0.1 (used by

only about 12% of installations, according to Table

1).

We then again utilized the openssl-compare tool

to ﬁnd the actual cipher suite negotiated when using

cipher string B; Table 4 lists our results.

Table 4: Negotiated cipher suite when using cipher string

Cipher Suite OpenSSL

ECDHE-RSA-AES128-SHA 0.9.8(a)

ECDHE-RSA-AES256-SHA 0.9.8b-d

DHE-RSA-AES256-SHA 0.9.8e-zc

DHE-RSA-CAMELLIA256-SHA 1.0.0

DHE-RSA-AES256-GCM-SHA384 1.0.1, 1.0.2

This test shows that the priority settings of the ci-

pher suites does not work properly for the versions

0.9.8 to 0.9.8d, because ECDHE is preferred, but ci-

pher suites including DHE should be preferred instead

and ECDHE should not be used with versions 0.9.8.

The following cipher string ﬁxes most of cipher

string B’s problems:

EDH +CAMELLIA: kEDH +aRSA +AES: EECDH

+aRSA +AESGCM: EECDH +aRSA +SHA256:

EECDH: +CAMELLIA128: +AES128: +SSLv3:

!aNULL: !eNULL: !LOW: !3DES: !MD5: !EXP:

!PSK: !DSS: !RC4: !SEED: !IDEA: !ECDSA:

CAMELLIA128 -SHA: AES128 -SHA.

The remaining problem with this cipher string is

that the cipher suite AES256-SHA is included in the

shared cipher suites for versions 0.9.7h-k and 0.9.8a.

This is caused by parsing problems of these versions.

The negotiated cipher suites using the modiﬁed cipher

string B are listed in Table 5. These results are accord-

ing to the priorities of the cipher suites in the cipher

string, i.e. it is working as intended.

If this cipher string should include all the cipher

suites mentioned for string B in (Breyha et al., 2015),

CAMELLIA256-SHA:AES256-SHA has to be added at

the end of the cipher string.

Table 5: Negotiated cipher suite when using modiﬁed ci-

pher string B.

Cipher Suite OpenSSL

DHE-RSA-AES256-SHA 0.9.7 - 0.9.8

DHE-RSA-CAMELLIA256-SHA 1.0.0

DHE-RSA-AES256-GCM-SHA384 1.0.1, 1.0.2

3.4 Analyzing Available Cipher Suites

Using O-Saft

In order to get all supported cipher suites of

web servers we used the tool O-Saft from

https://www.owasp.org/index.php/O-Saft. To au-

tomate the O-Saft scans we wrote a tool which

executes the O-Saft command cipherraw for a given

list of URLs and a tool which parses the results.

Figure 4 shows the results for the top 100 sites

according to Alexa. 58 websites of the 100 support

SSL/TLS. The cipher suite with the highest compati-

bility (96.6%) is AES128-SHA. It is also notable that

67.2% of the sites support RC4-SHA and 44.8% sup-

port RC4-MD5. Some of these values differ slightly

to results of other scans; this is caused by the small

sample size.

4 CIPHER SUITE PROPOSAL

After having evaluated the practical compatibility of

cipher strings A and B from (Breyha et al., 2015), our

goal was to create a cipher string that offers high se-

curity and is compatible with a wide range of web-

sites. Since the two cipher strings by (Breyha et al.,

2015) are designed for different requirements — one

of them for high security and one for best compatibil-

ity — the created cipher string should be placed in the

middle between these two.

The ﬁrst condition for the cipher string is that it

only uses cipher suites that support forward secrecy.

These are cipher suites using DHE or ECDHE for

key exchange. This reduces the compatibility, but

is a very important point. (Perfect) Forward Secrecy

(Huang et al., 2014) uses the private key of the web

server to sign a Difﬁe-Hellman (DH) key exchange

message. When using DH, the server always uses the

same key pair: i.e. when the private key gets stolen,

all sessions recorded in the past could be decrypted.

When using Difﬁe-Hellman ephemeral (DHE) a new

key pair is created for each session and the private

key of the session is never stored on the server after

the session has terminated. Gaining access to the pri-

vate keys of a server now only enables decryption of

the sessions currently in progress, but not of the ones

recorded in the past.

DCNET2015-InternationalConferenceonDataCommunicationNetworking

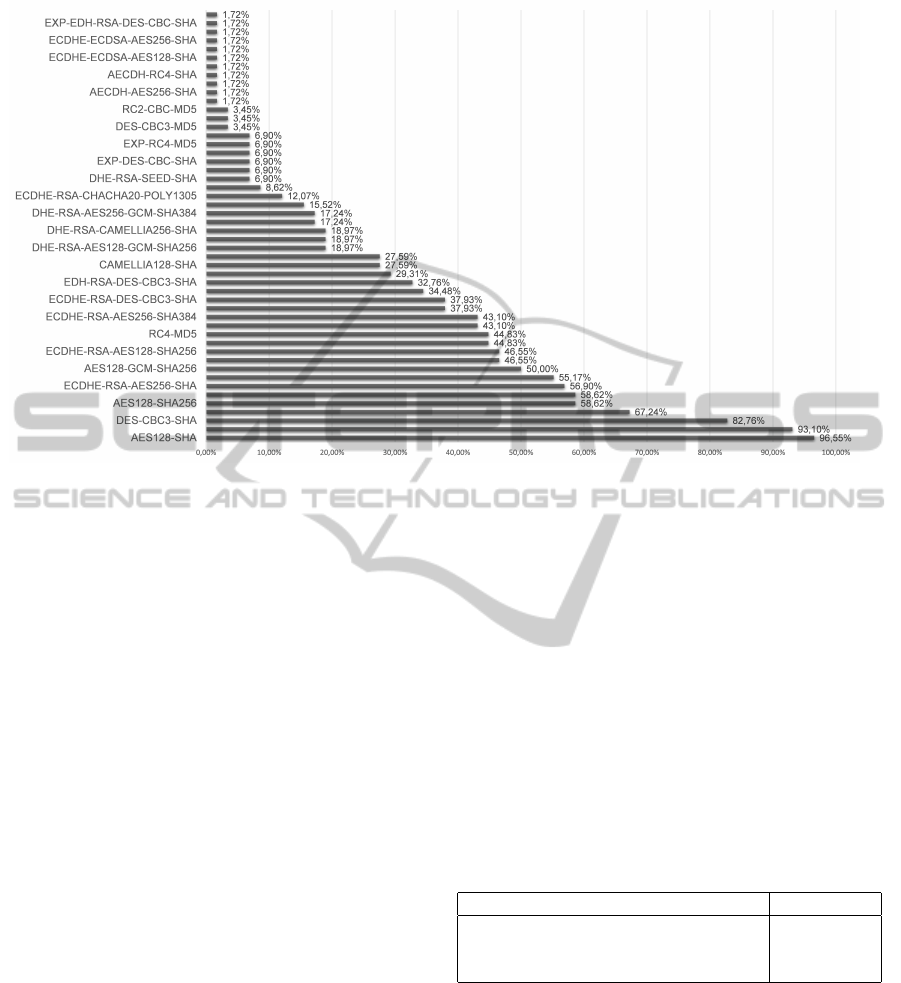

Figure 4: Results of the O-Saft scans, indicating how many percent of Alexa’s top 100 websites use a speciﬁc cipher suite.

In our cipher string proposal, TLS 1.2 cipher

suites are preferred. If the cipher suites have the same

protocol version, then ECDHE is preferred, because

according to (Huang et al., 2014) only 0.3% of the

websites support DH parameters with a size of 2048

bits. 99.3% of the websites support a parameter size

of 1024 bits and even 34% support a parameter size

of 512 bits.

The chosen encryption methods are AES and

CAMELLIA with key lengths of 128 and 256 bits, re-

spectively. These ciphers offer high security and are

widely supported; as MAC we only allow hash func-

tions from the SHA family.

The resulting cipher string is:

EECDH: kEDH +aRSA +AES: kEDH +aRSA

+CAMELLIA: +SSLv3: !aNULL: !eNULL:

!3DES: !IDEA: !RC4: !MD5: !EXP: !PSK:

!DSS: !ECDSA: !DES

The cipher suites shared by OpenSSL from ver-

sion 1.0.1 and up with this string are:

• DHE-RSA-AES128-GCM-SHA256

• DHE-RSA-AES128-SHA256

• DHE-RSA-AES128-SHA

• DHE-RSA-AES256-GCM-SHA384

• DHE-RSA-AES256-SHA256

• DHE-RSA-AES256-SHA

• DHE-RSA-CAMELLIA128-SHA

• DHE-RSA-CAMELLIA256-SHA

• ECDHE-RSA-AES128-GCM-SHA256

• ECDHE-RSA-AES128-SHA256

• ECDHE-RSA-AES128-SHA

• ECDHE-RSA-AES256-GCM-SHA384

• ECDHE-RSA-AES256-SHA384

• ECDHE-RSA-AES256-SHA

Table 6 gives an overview of the cipher suites ne-

gotiated by the different OpenSSL versions when us-

ing this newly proposed string. When compared to

cipher strings A and B from above, our string prefers

AES over CAMELLIA and elliptic curve versions of

Difﬁe-Hellman over the integer ones.

Table 6: Negotiated cipher suite when using our proposed

cipher string.

Cipher Suite OpenSSL

DHE-RSA-AES256-SHA 0.9.7 - 0.9.8

ECDHE-RSA-AES256-SHA 1.0.0

ECDHE-RSA-AES256-GCM-SHA384 1.0.1, 1.0.2

CiNeg was used to get an approximate value for

the compatibility. The result for the shared cipher

suite percentage of our cipher string proposal, when

using the top 1,000 websites according to Alexa, is

74.8%. The result for the top 25,000 websites is

77.9%. These results are showing that — in line with

the goal of the cipher string proposal — the compati-

bility is ranked between ACH’s cipher string A and B

(see also Table 7).

Figure 5 shows the distribution of negotiated ci-

pher suites for the top 25,000 websites when using

SpeakinginTongues-PracticalEvaluationofTLSCipherSuitesCompatibility

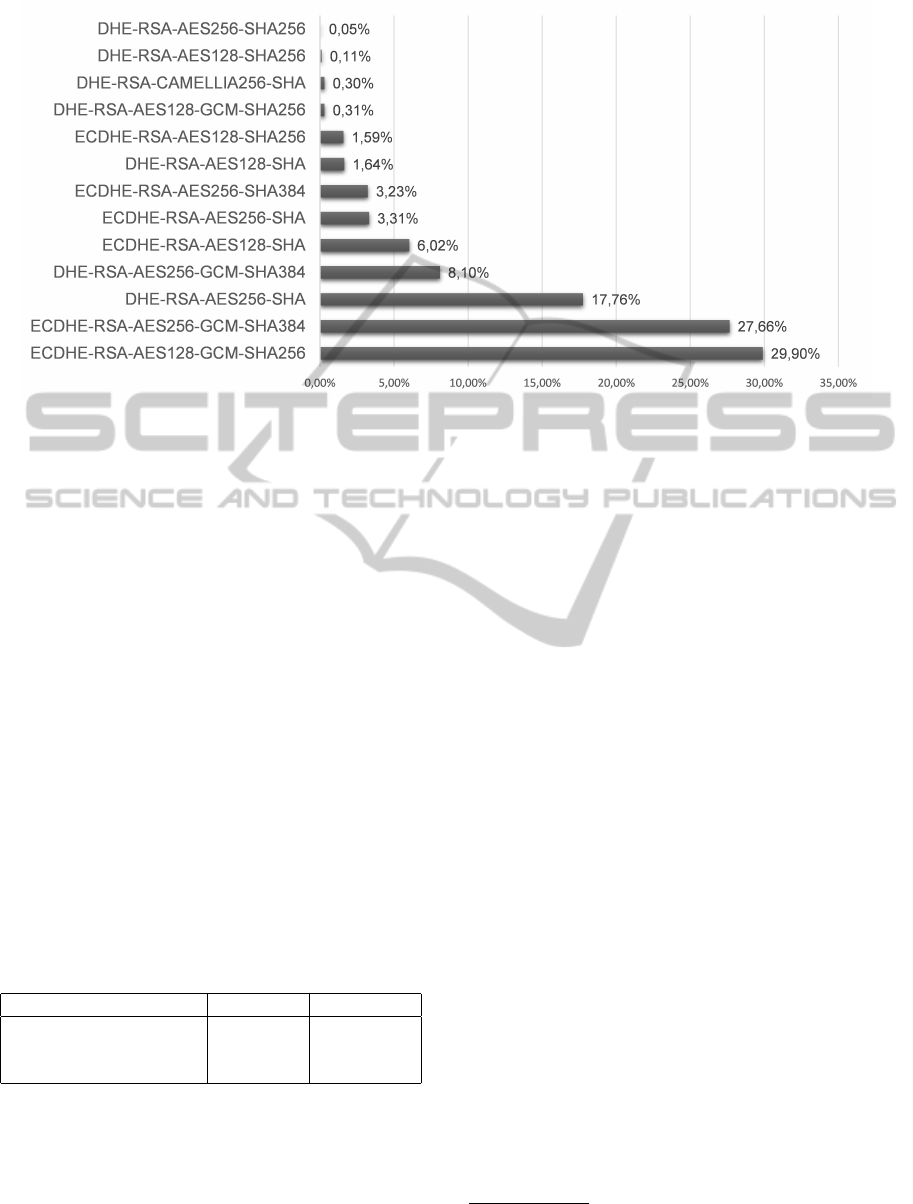

Figure 5: Percentage of cipher suites negotiated using our cipher string proposal with Alexa’s top 25,000 websites.

the cipher string proposal. 71% of the negotiated ci-

pher suites are TLS 1.2 cipher suites and this is ac-

cording to the priorities in the cipher string. It is also

notable that 66% of the negotiated cipher suites use

AES-GCM.

5 SUMMARY AND CONCLUDING

REMARKS

5.1 Comparing the Cipher Strings

Table 7 indicates the percentage of shared cipher

suites for the cipher string A, B and our proposal.

These are the results from the CiNeg scans with

Alexa’s top 1,000 and top 25,000 websites, respec-

tively.

Table 7: Cipher Strings A - B - Proposal, comparing the per-

centage of Alexa’s top 1,000/top 25,000 websites sharing at

least one cipher suite with the given cipher string (i.e. a

TLS handshake with a site would succeed for the respective

cipher string)

Top 1,000 Top 25,000

Cipher String A 54.30% 56.10%

Cipher String B 98.32% 97.17%

Proposed Cipher String 74.75% 77.9%

Cipher string A only supports TLS 1.2 cipher

suites which offer perfect forward secrecy, uses hash-

functions of the SHA-2 family and AES256. The goal

of this cipher string is to use strong cipher suites. This

leads to a lower compatibility.

Cipher string B does support some weaker ci-

pher suites in order to offer better compatibility. The

two fall back cipher suites are AES128-SHA and

CAMELLIA128-SHA; the other cipher suites offer

perfect forward secrecy. TLS 1.2 cipher suites are

preferred.

Our cipher string proposal supports only cipher

suites which offer perfect forward secrecy, but it is not

limited to TLS 1.2 cipher suites, i.e. ciphers suites us-

ing AES128 and CAMELLIA128 are also supported.

This offers a wider range of support than cipher string

A, with only a minor reduction in security.

5.2 Conclusion

Bruce Schneier’s words “Security is a process, not a

product

” clearly sums up that there will never be a

ﬁnal solution regarding security issues.

Everything concerning security underlies fast de-

velopment and rapidly changing requirements; there-

fore any security issues depend on individual condi-

tions. In this work we evaluated the practical usability

and compatibility of two OpenSSL cipher strings pub-

licly proposed by members of academia and industry,

using existing tools like O-Saft and Openssl-compare,

as well as our newly developed CiNeg tool.

In addition we propose a new cipher string

which provides better compatibility than ACH’s ci-

pher string A and stronger security than cipher string

B, with the caveat of being less secure than A and

lacking compatibility compared to B.

This again underlines the problem that there is no

single perfect cipher string which meets all possible

https://www.schneier.com/crypto-gram/archives/2000/

0515.html

DCNET2015-InternationalConferenceonDataCommunicationNetworking

requirements; administrators have to ﬁnd the right ci-

pher string by balancing security strength and com-

patibility regarding their individual needs, using the

tools available at their disposal.

Considering this complexity as well as recently

discovered attack vectors against TLS like FREAK

(Beurdouche et al., 2015) and Logjam (Adrian et al.,

2015), a point of further research should be to deter-

mine if the algorithm variability present in the TLS

protocol might in fact be a severe weakness and differ-

ent approaches on selecting cryptographic primitives

could be considered.

ACKNOWLEDGEMENTS

Manuel Koschuch is being supported by the MA23

- Wirtschaft, Arbeit und Statistik - in the course

of the funding programme “Stiftungsprofessuren und

Kompetenzteams f

ur die Wiener Fachhochschul-

Ausbildungen”.

REFERENCES

Adrian, D., Bhargavan, K., Durumeric, Z., Gaudry, P.,

Green, M., Halderman, J. A., Heninger, N., Springall,

D., Thom, E., Valenta, L., VanderSloot, B., Wus-

trow, E., Zanella-Bguelink, S., and Zimmermann, P.

(2015). Imperfect Forward Secrecy: How Difﬁe-

Hellman Fails in Practice. Technical report, IN-

RIA Paris-Rocquencourt and INRIA Nancy-Grand

Est, CNRS and Universit de Lorraine and Microsoft

Research and University of Pennsylvania and Johns

Hopkins and University of Michigan.

Beurdouche, B., Bhargavan, K., Delignat-Lavaud, A., Four-

net, C., Kohlweiss, M., Pironti, A., Strub, P.-Y., and

Zinzindohoue, J. K. (2015). A Messy State of the

Union: Taming the Composite State Machines of

TLS. In IEEE Security & Privacy 2015, preprint.

Breyha, W., Durvaux, D., Dussa, T., Kaplan, L. A., Mendel,

F., Mock, C., Koschuch, M., Kriegisch, A., Pschl,

U., Sabet, R., San, B., Schlatterbeck, R., Schreck, T.,

Wrstlein, A., Zauner, A., and Zawodsky, P. (2015).

Applied Crypto Hardening. Technical report.

Chown, P. (2002). RFC3268 - Advanced Encryption Stan-

dard (AES) Ciphersuites for Transport Layer Security

(TLS). Technical report, Network Working Group.

Dierks, T. and Allen, C. (1999). RFC2246 - The TLS Pro-

tocol Version 1.0. Technical report, Network Working

Group.

Dierks, T. and Rescorla, E. (2006). RFC4346 - The Trans-

port Layer Security (TLS) Protocol Version 1.1. Tech-

nical report, Network Working Group.

Dierks, T. and Rescorla, E. (2008). RFC5246 - The Trans-

port Layer Security (TLS) Protocol Version 1.2. Tech-

nical report, Network Working Group.

Difﬁe, W. and Hellman, M. (2006). New directions in cryp-

tography. IEEE Trans. Inf. Theor., 22(6):644–654.

Eronen, P. and Tschofenig, H. (2005). RFC4279 - Pre-

Shared Key Ciphersuites for Transport Layer Security

(TLS). Technical report, Network Working Group.

Freier, A., Karlton, P., and P.Kocher (2011). RFC6101

- The Secure Sockets Layer (SSL) Protocol Version

3.0. Technical report, Internet Engineering Task Force

(IETF).

Huang, L., Adhikarla, S., Boneh, D., and Jackson, C.

(2014). An experimental study of TLS forward se-

crecy deployments. In IEEE CS Security and Privacy

Workshops.

Lee, H., Yoon, J., and Lee, J. (2005). RFC4162 - Addition

of SEED Cipher Suites to Transport Layer Security

(TLS). Technical report, Network Working Group.

Medvinsky, A. and Hur, M. (1999). RFC2712 - Addition of

Kerberos Cipher Suites to Transport Layer Security

(TLS). Technical report, Network Working Group.

Moriai, S., Kato, A., and Kanda, M. (2005). RFC4132 - Ad-

dition of Camellia Cipher Suites to Transport Layer

Security (TLS). Technical report, Network Working

Group.

NIST (2001). Advanced Encryption Standard (AES) (FIPS

PUB 197).

NIST (2012). Secure Hash Standard (SHS) (FIPS PUB 180-

4).

Popov, A. (2015). RFC7465 - Prohibiting RC4 Cipher

Suites. Technical report, Internet Engineering Task

Force (IETF).

Rivest, R. L., Shamir, A., and Adleman, L. (1978). A

method for obtaining digital signatures and public-key

cryptosystems. Commun. ACM, 21(2):120–126.

Stallings, W. (2008). Cryptography and Network Security,

page 539. Pearson, 4th edition.

SpeakinginTongues-PracticalEvaluationofTLSCipherSuitesCompatibility
