Change Effort Estimation based on UML Diagrams

Application in UCP and COCOMOII

Dhikra Kchaou

, Nadia Bouassida

and Hanene Ben-Abdallah

1,2

University of Sfax, Sfax, Tunisia

King Abdulaziz University, Jeddah, K.S.A.

Keywords: Effort Estimation, Change, COCOMO, UCP.

Abstract: Change impact must be accounted for during effort estimation to provide for adequate decision making at the

appropriate moment in the software lifecycle. Existing effort estimation approaches, like the Use Case Point

method and the COnstructive COst MOdeL, estimate the effort only if the change occurs at one level, for

example when a new functionality is added (at functional level). However, they do not treat elementary

changes at the design level such as the addition of a class or a sequence diagram; because they incur several

modifications at different modelling levels, such changes are important to account for in effort estimation

during the software development. In this paper, we take advantage of intra and inter UML diagrams depend-

encies, first, to assist developers in identifying the necessary changes that UML diagrams must undergo after

a potential change, and secondly to estimate the necessary effort to handle any elementary change e.g. adding

a class, an attribute, etc. We use our traceability technique in order to adapt the UCP and COCOMO methods

to estimate the effort whenever a change occurs during the requirement or design phases.

1 INTRODUCTION

Software systems are inevitably subject to continuous

changes during their development as well as their ex-

ploitation. A change during any phase of a software

lifecycle often impacts several artifacts/models of the

software (requirements, design, code) and incurs ad-

ditional effort (i.e., cost) to handle it. Every change

must be therefore analyzed to account for its impacts

and incurred effort in order to provide for an adequate

decision making in the software project management.

A change impact analysis and management technique

should provide for both the identification of the ef-

fects of every change type on all software artifacts

and activities, and the estimation of the costs incurred

to handle these effects. The effort/cost estimation en-

sures the success of the software develop-

ment/maintenance project and can be used to decide

whether to undertake the change or to cancel it. Sev-

eral effort estimation methods have been adapted to

estimate changes in order to identify the factors that

should be included in a modified software—e.g. the

Use Case Point method (UCP) (Karner, 1993), the

COnstructive COst MOdeL (COCOMO II) (Boehm,

2000). However, current effort estimation methods

face two essential limits:

1. when they rely on the code which is produced

relatively late, their results must be revised each

time a change in the requirements or design hap-

pens. In addition, the projection of code changes

onto design/requirement changes is not straight-

forward because it is programming language and

style dependent. This limit makes code-based es-

timation methods unable to offer on-time and

precise support for adequate project manage-

ment; and

2. because they rely on one level of software mod-

elling (functional level for UCP and code level

for COCOMO), current estimation effort meth-

ods do not account for changes introduced in or

incurred on other software artefacts during all the

development phases—for instance, adding a

class to the design or an interaction in a sequence

diagram.

Our objective is to provide for a means to estimate the

effort required to deal with a change at the require-

ments and/or the design level, knowing that a change

may be elementary (affecting a class or an attribute)

yet it can affect the overall development effort. To at-

tain our objective, first, we make use of a graph-based

approach that ensures traceability among the different

software artifacts (e.g., the class, sequence and use

301

Kchaou D., Bouassida N. and Ben-Abdallah H..

Change Effort Estimation based on UML Diagrams Application in UCP and COCOMOII.

DOI: 10.5220/0005510503010308

In Proceedings of the 10th International Conference on Software Engineering and Applications (ICSOFT-EA-2015), pages 301-308

ISBN: 978-989-758-114-4

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

case diagrams) in order to identify all impacted ele-

ments. Secondly, we show how this information can

be used with UCP and COCOMO II to estimate the

effort in terms of work hours. (Note that our tracea-

bility approach applies to any method of effort esti-

mation.)

More specifically, our approach exploits intra and

inter UML diagrams dependencies to identify the af-

fected elements. It explicitly encodes the intra and in-

ter diagram semantic and syntactic dependencies and

integrates them into a model dependency graph

(MDG) to identify the affected elements at any mod-

elling level. Thanks to the model dependency graph,

for instance, when a change occurs in a design dia-

gram (class or sequence diagrams), affected elements

in a use case diagram can be determined in order to

be able to apply the effort estimation methods.

The remainder of this paper is organized as fol-

lows: Section 2 first overviews the steps in the UCP

and COCOMOII methods. Section 3 shows how the

model dependency graph integrating various UML

diagrams can be used to identify all elements affected

by a change at any modelling level. Section 4 illus-

trates the application of COCOMOII and UCP

through an example. Section 5 concludes with a sum-

mary of the presented work and a highlight of its ex-

tensions.

2 EFFORT ESTIMATE

METHODS: AN OVERVIEW

In this section, we first overview the most known ef-

fort estimation methods which are adapted to

changes: the Use Case Point (UCP) method (Karner,

1993) and the COnstructive Cost MOdel II

(COCOMOII) (Boehm, 2000). Secondly, we discuss

those change impact analysis approaches that calcu-

late the effort needed to handle a change.

2.1 Change Effort Estimation using

COCOMO II

COCOMO (Boehm, 2000) was first introduced by

Barry Boehm in 1981. It takes software size and a set

of factors as input and it estimates effort in person-

months according to equation (1):

PM = A* size

* П EM

(1)

where:

 A = 2.94 for COCOMO II.2000;

 the size is in Kilo Source Lines Of Code (KSLOC).

It is derived from estimating the size of software

modules that will constitute the application pro-

gram. It can also be estimated from unadjusted

function points (UFP) converted to SLOC

(Boehm, 2000) (Kama et al., 2013);

 the exponent E is an aggregation of five scale fac-

tors (SF) that account for the relative economies or

diseconomies of scale encountered for software

projects of different sizes:

E=B+0.01 *

∑

SFj





with B = 0.91 for COCOMO II.2000; and

 the effort multipliers (EM

) are used to adjust the

nominal effort, person-months, to reflect the soft-

ware product under development. For instance, the

Required Software Reliability (RELY) is the

measure of the extent to which the software must

perform its intended function over a period of time.

If the effect of a software failure is only a slight

inconvenience, then RELY is very low.

All the input parameters of the software cost esti-

mate model need to be consistent and available in the

early stages of a software project. However, very little

may be known about the size of the product to be de-

veloped, the nature of the target platform, the nature

of the personnel to be involved in the project, or the

detailed specificities of the process to be used.

Kama et al., (Kama et al., 2013) developed a new

change effort estimation model based on

COCOMOII. This contribution integrates the change

impact analysis technique SPD-CIF (Kama, 2011)

and COCOMO II effort estimation technique. Based

on the traceability between requirement, design arte-

facts and classes, the impact analysis is performed. To

estimate the change effort for a given change, the

modified, added, and canceled KSLOCs are deter-

mined. Weights are assigned to change types (addi-

tion, modification, cancellation). To calculate the

change effort for every change type, the constant A

(in equation (1)) is replaced by the weight of the

change type and the size is replaced by the amount of

changed (added, modified or cancelled) KSLOCs. Fi-

nally, the effort in person/months of every change

type is summed to obtain the overall change effort.

The change type’s weights are not justified. In addi-

tion, the effort of the deletion is subtracted from the

total effort (weight equals -1) which is not true in

terms of development since a deleted element incurs

changes in the models and hence effort to update

them.

2.2 Change Effort Estimation using

UCP

Introduced in 1993 by Karner (Karner, 1993), the Use

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

302

Case Points (UCP) method estimates effort in person-

hours based on use cases specifying the functional re-

quirements of a system. UCP is an adaptation of

Function Point (Albrecht, 1979) for measuring the

size of projects whose functional requirements speci-

fications are described by a use case model. The de-

sign of UCP takes into account three aspects of a soft-

ware project: Use cases, Technical qualities, and

Table 1: Adapted UCP estimation method.(Mohagheghi,

2005).

Steps Output

1.1. Classify all actors as

average, WF = 2.

Unadjusted Actor Weight

UAW = #Actors * 2

1.2. Count the number of

new/modified actors.

odified Unadjusted Acto

Weight(MUAW) = #New

or modified actors *2

2.1. Since each transaction in

the main flow contains one or

several transactions, count

each transaction as a single

use case.

2.2. Count each alternative

flow as a single use case.

2.3. Exceptional flows,

parameters, and events are

given weight 2. Maximum

weighted sum is limited to 15

(a complex use case).

2.4. Included and extended

use cases are handled

as base use cases.

2.5. Classify use cases as:

a) Simple- 2 or fewer

transactions,

WF = 5

b) Average- 3 to 4

transactions,

WF = 10

c) Complex-more than 4

transactions,

WF=15

Unadjusted Use Case

Weights (UUCW) =

∑ ( #Use Cases * WF) +

∑( #Use Case Points for

exceptional flows and pa-

rameters from 2.3)

2.6 Count points for modifica-

tions in use cases according

to rules 2.1-2.5 to calculate

the Modified Unadjusted Use

Case Weights (MUUCW)

Modified UUCW

(MUUCW) =

∑( #new or modified Use

Cases * WF) +

∑( # new or modified ex-

ceptional flows and

parameters )

3.1. Calculate UUCP for all

software.

UUCP = UAW + UUCW

3.2. Calculate Modified

UUCP (MUUCP)

MUUC = MUAW +

MUUCW

Assume average project. TCF = EF = 1.

5.1. Calculate adjusted Use

Case Points (UCP).

UCP = UUCP

5.2. calculate adjusted

Modified UCP (MUCP)

MUCP=MUUCP

Estimate effort for

new/modified use cases

Effort = MUCP *

PHperUCP

Development resources. Each actor and each use case

is classified at a complexity level (simple, average, or

complex) and assigned a corresponding weight (from

one to three points for the actors, and from 5 to 15 for

the use cases). The technical qualities of UCP are rep-

resented by a Technical Complexity Factor (TCF),

which consists of 13 technical qualities, each with a

specific weight (zero is “not applicable” and five is

“essential”), combined into a single factor. The devel-

opment resources for UCP are represented by the En-

vironment Factors (EF). The UCP model identifies

eight such factors contributing to the effectiveness of

the development team. To calculate the EF, an expert

must assess the importance of each factor and classify

it on a scale from zero to five (zero meaning “very

weak” five meaning “very strong”).

The UCP method was adapted by Mohagheghi et

al. (Mohagheghi, 2005) to incremental development.

Table 1 summarizes the steps of the adapted UCP

method as proposed in (Mohagheghi, 2005). This

UCP method has the advantage of measuring easily

the software functional size as early as possible in the

development cycle. Nevertheless, this method has

many problems, for instance, the same category labels

are used for use cases (simple, average, and complex).

However, it cannot be assumed that the categories and

the categorization process are similar, since different

entity types are involved (Abran, 2010). In addition,

both the technical and resource factors are evaluated

through a categorization process with integers from 0

to 5. Note that these numbers do not represent numer-

ical values on a ratio scale, but merely a category on

an ordinal scale type; that is, they are merely ordered

labels and not numbers. For instance, a programming

language assigned a difficulty level of 1 is considered

to be less difficult for the development team than a

programming language of difficulty level 2, but it

cannot be considered to be exactly one unit less diffi-

cult than a programming language categorized as hav-

ing a difficulty level of 2, since these levels are meas-

ured on an ordinal scale (Abran, 2010).

2.3 Effort Estimate in Change Impact

Management Approaches

Several works tried to calculate the cost of repairing

inconsistencies caused by changes. For instance, Dam

et al. (Dam, 2010) proposes an approach to support

change propagation within UML design models. This

approach first generates repair plans for each detected

consistency constraint. It then calculates the cost of

each generated repair plan instance to propose the

cheapest repair to the designer. Finally, the selected

repair plan instance is executed to update the design

ChangeEffortEstimationbasedonUMLDiagramsApplicationinUCPandCOCOMOII

303

model. This approach assumes that repair plans that

lead to fewer changes in the model, and thus have

lower costs, are preferable.

Briand et al. (Briand, 2006) propose another way

of calculating the cost of a repair. They define a dis-

tance between the changed elements and potentially

impacted elements that represents the number of im-

pact analysis rules invoked to identify the impacted

elements. Based on this distance, they assumption

that the larger the distance is, the less likely the model

element is to be impacted.

Sharif et al. (Sharif, 2012) compute the effort in

terms of the total working hours needed to implement

a requirement change. Based on an empirical investi-

gation, a regression equation is derived by performing

correlation and regression analysis on the change re-

quest data.

Overall, the above examined approaches estimate

the effort of changes in software artefacts in a partic-

ular development phase and do not account for

changes incurred in other related software artefacts.

To account for change propagation among artefacts,

we propose an adaptation of COCOMO and UCP es-

timate models to estimate the effort needed when

changes occur in the design and/or the requirements.

3 CHANGE IMPACT ANALYSIS

ACROSS ARTEFACTS

Our approach to effort estimate identifies and

measures the potential side effects of changes across

different UML diagrams; the focus in this paper is on

the use case, class and sequence diagrams which

cover the requirements and design phases where

changes are frequent. To identify the dependencies

among these UML diagrams, our method adopts a

graph-based technique to construct automatically a

model dependency graph (MDG). Based on the

change type and the MDG produced for the UML di-

agrams, our method determines the impacted ele-

ments for every change type. These elements are then

used to estimate the effort need to handle the overall

changes using any effort estimate method; we illus-

trate in this paper the use of COCOMOII and UCP.

3.1 Traceability among the Use Case,

Class and Sequence Diagrams

Based on the fact that UML diagrams can be assimi-

lated to graphs, the dependencies among UML dia-

gram elements could therefore be determined using a

graph reachability analysis technique. Indeed, ins

pired from the work of Lallchandani et al., (Lallchan-

dani, 2009) for static slicing of UML models, we de-

fined a method to construct the model dependency

graph (MDG), which is used to ensure traceability be-

tween the class, sequence and use case diagrams.

The UML class diagram is transformed into a

Class Dependency Graph (CDG) and every UML se-

quence diagram is transformed into a Sequence De-

pendency Graph (SDG). In addition, every UML use

case diagram is transformed into a Use Case Depend-

ency Graph (UCDG) based on a structured use case

description (Ali, 2005). To get all dependencies

among the various diagrams, the UCDG, CDGs and

SDGs are merged into one Model Dependency Graph

(MDG).

Our CDG and SDG construction and integration

method adapts the transformations initially proposed

by (Lallchandani, 2009). To trace the change impact

from the use case diagram across the class and se-

quence diagrams, the UCDG, CDG and SDGs are in-

tegrated into a single graph called Model Dependency

Graph (MDG) using an information retrieval tech-

nique. In fact, we use the cosine similarity measure to

identify the correspondence among the ordered ac-

tions and data objects (specifying the use case scenar-

ios) and the information present in the sequence dia-

grams.

3.2 Example: The ATM System

To illustrate the effort estimation and the traceability

through the MDG, let us consider the automatic teller

machine (ATM) system example (Russel, 2004). The

use case diagram comprises, essentially, four use

cases (Figure1): “System startup”, “system Shut-

down”, “Session” and “Transaction”. The “Session”

UC and the “Transaction” UC textual descriptions are

presented respectively in Table 2 and Table 3.

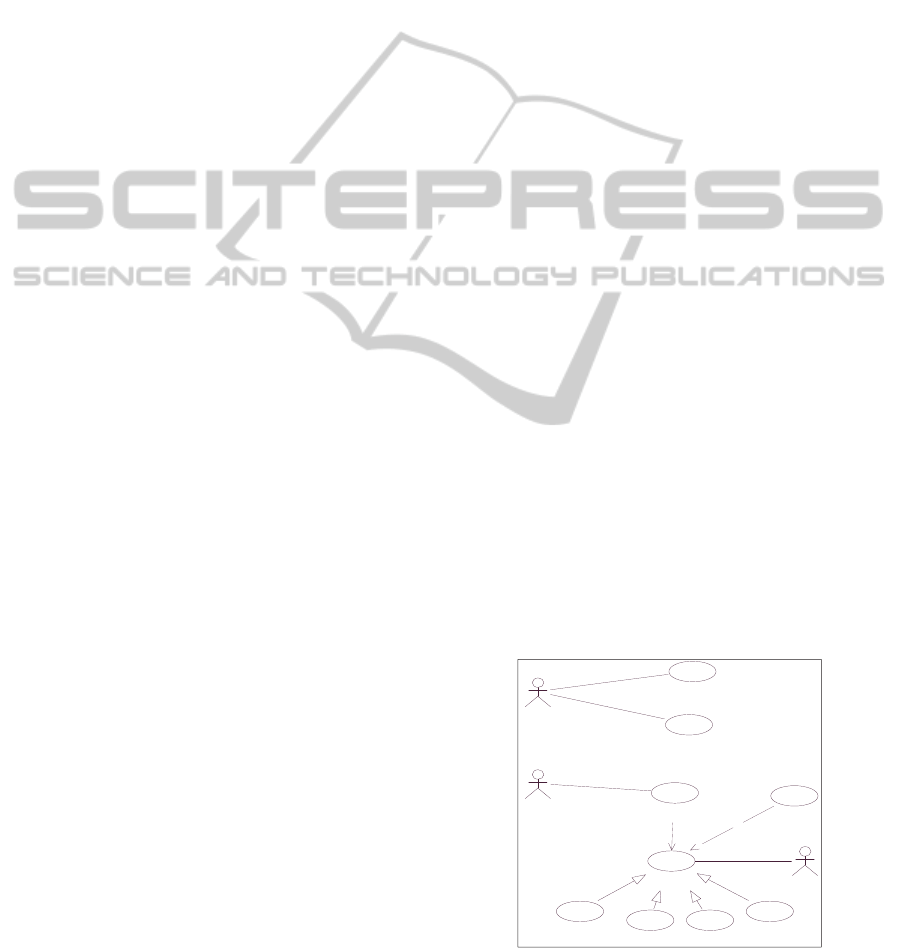

Figure 1: Main use-case diagram of the ATM system (Rus-

sel, 2004).

SystemStartup

Operator

SystemShutdown

Customer

Session

Bank

Transs action

InvalidPIN

<<include>>

<<extend>>

Withdrawal

Deposit Trans fer

Inquiry

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

304

The documentation of the use cases can be formalized

through the sequence diagrams shown in Figure 3 and

4 where the objects are instances of the classes shown

in the class diagram of Figure 2.

Table 2: UC1: Use case “Session” description.

+ Session

Actor

Customer

Precondition

ATM card is inserted into the card reader slot

of the machine

Postcondition

Nothing

Extension

Point

[Pin valid], use case «Transaction »

Normal

Scenario

NSa1.<The customer> < enters the card into

the machine>

NSa2. <The ATM> <reads the card >

NSa3.< The customer > < enter his/her

PIN>

NSa4.< The customer > <chooses from a

menu the type of transaction>

NSa5. < The customer > < performs a trans-

action>

NSa6.<The ATM> <ejects the card and

ends the session>

Alternatives

Scenario

<the reader cannot read the card, restart

from NSa2>

<AS1a1> <the ATM> <reject the card and dis-

plays an error screen>

Error

Scenario

< too many invalid PIN entries>

<ES1a1> <the ATM> < abort the session with

the card being retained in the machine >

Table 3: UC2: Use case “Transaction” description.

Use case Transaction

Actor

Bank

Precondition

the customer chooses a transaction type from a

menu of options

Postcondi-

tion

Nothing

Extension

Point

[PIN is invalid], use case « invalid PIN »

Normal

Scenario

NSa1.<The customer> < furnish appropriate

details (e.g. account(s) involved, amount)>

NSa2. <The ATM> < send to the bank the in-

formation from the customer's card and the PIN

the customer entered>

NSa3. < The ATM > < perform the transac-

tion>

NSa4. < The ATM > <print a receipt>

NSa5. < The ATM > < display a menu of pos-

sible types of transaction >

Alternatives

Scenario

<the reader cannot read the card, restart from

“session” use case>

AS1a1. <the ATM> <reject the card and dis-

plays an error screen>

Error

Scenario

< too many invalid PIN entries>

ES1a1. <the ATM> < abort the session with the

card being retained in the machine >

Let us suppose that the designer wants to make the

following change to the class diagram presented in

Figure 2 delete the “session” class. Based on the

MDG of Figure 5, the impacted elements in the use

case diagram can be determined: In the use case “ses-

sion”, the scenarios NSa3, NSa4, NSa5, NSa6 are af-

fected. The messages/actions I(k) from the deleted

class “ses

sion” are impacted by the change.

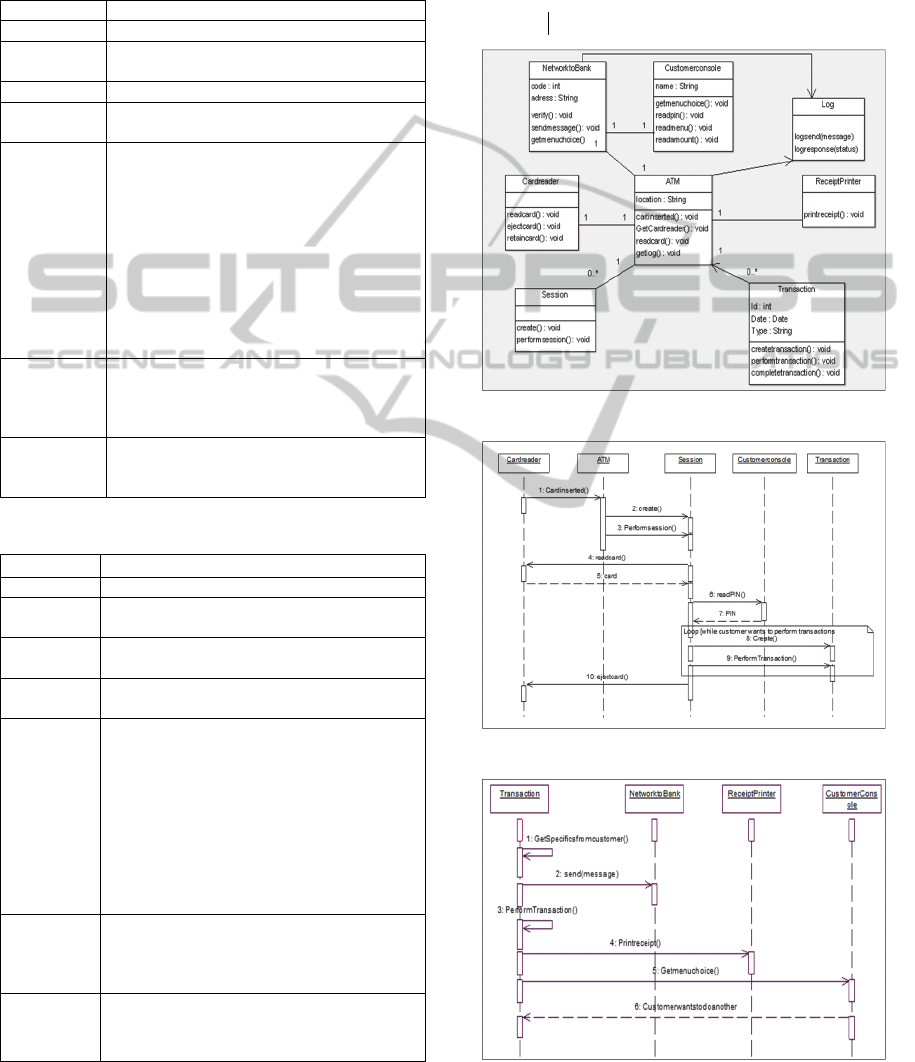

Figure 2: ATM system class diagram (CD) (Russel, 2004).

Figure 3: The sequence diagram “Session” (Russel, 2004).

Figure 4: The sequence diagram “Transaction” (Russel,

2004).

ChangeEffortEstimationbasedonUMLDiagramsApplicationinUCPandCOCOMOII

305

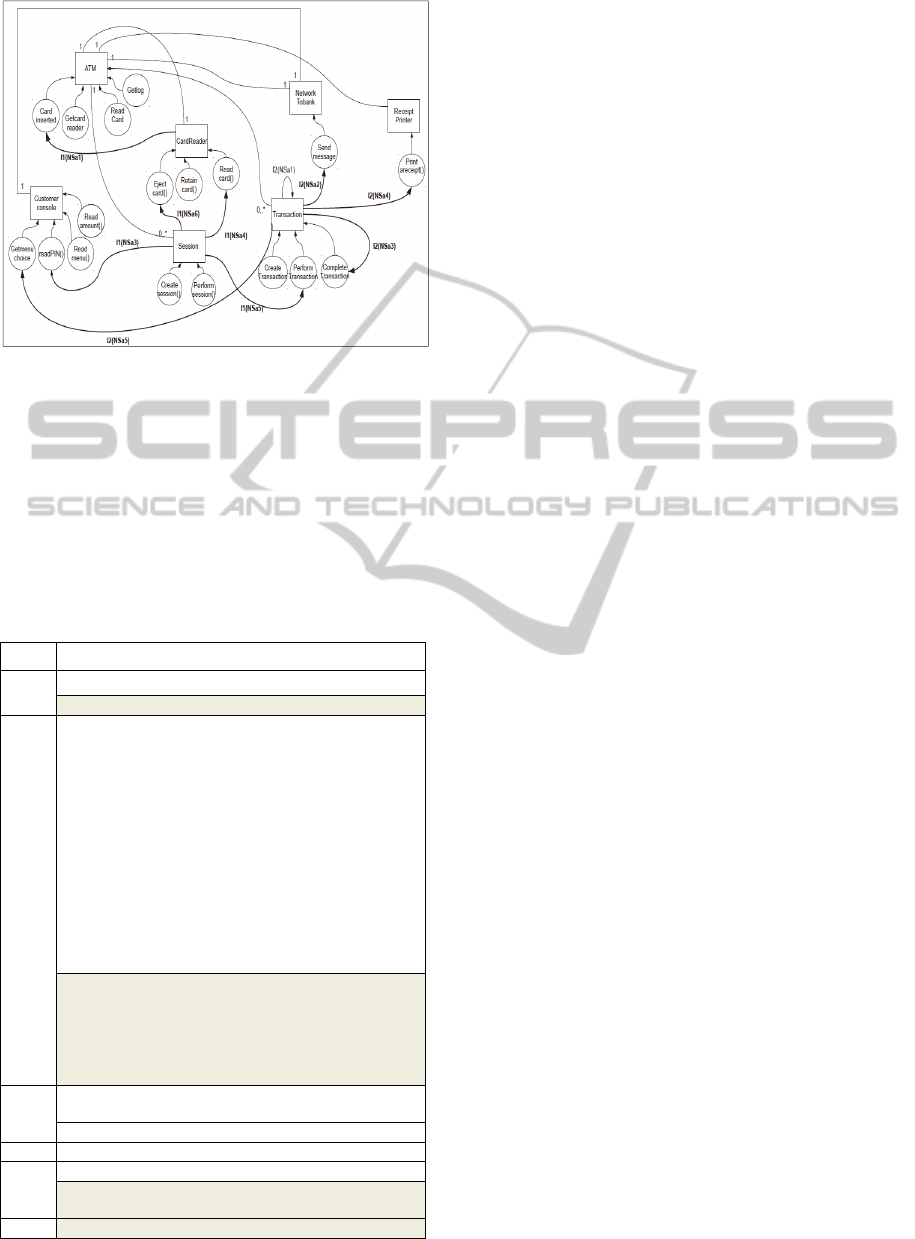

Figure 5: The model dependency graph integrating the CD,

UC1 and SD1.

3.3 UCP Application

Based on the impacted elements detected in the use

case diagram through the MDG, we can apply the

adapted UCP estimation method of Mohagheghi et al.

(Mohagheghi, 2005). Recall that the change (deleting

Table 4: Example of counting UUCP and MUUCP for the

use case “session”.

Steps UUCP & MUUCP values

UAW= 3*2= 6

MUAW = 0

Normal scenario/Main flow

#simple use cases =6

#Average use cases=0

#complex use cases = 0

Weight per simple use case=5

6*5=30

Alternative flow

#simple use cases =1

Weight per simple use case=5 1*5=5

Error flow

#simple use cases =1

Weight per error use case=5

1*5=5

Total =40

Normal scenario(Main flow)

#Average use cases=1 (the use case session with 4 new

or modified action)

Weight per Average UC = 10

1*10=10

Total for changed flow = 10

UUCP = 6+40

= 46

MUUC = 0+10=10

TCF = EF = 1.

UCP = UUCP = 46

MUCP = MUUCP

=10

Effort = 10 *36 =360

a class) occurs in the class diagram whereas the UCP

method depends on use cases. Our proposition has the

merit of determining the affected use cases (via the

MDG) in order to apply UCP. The application of the

adapted UCP is presented in Table 4.

To derive an appropriate duration for the project,

we need to know the team’s rate of progress through

the use cases. The literature on the UCP method pro-

poses from 20 to 36 PHperUCP. Mohagheghi et al.

(Mohagheghi, 2005) decided to ignore counting the

environmental factors and decided for the large num-

ber of complex use cases to choose the maximum

used number of PHperUCP that is 36. This means that

our example of 10 use case points corresponds to 360

hours of work.

Now let us suppose that a developer spend about

40 hours per week on project tasks. As a consequence,

he will spend about two month (360/40= 9 weeks) to

manage this change (the deletion of the “session”

class).

3.4 COCOMO II Application

To apply the COCOMOII model, we need the size pa-

rameter expressed in SLOC. Since the change occurs

in a design diagram, the size of changed elements is

calculated first in function points and then it is con-

verted to SLOC.

3.4.1 Function Points Calculation

The calculation of function points is based on the

principle of Albrecht’s function point analysis (FPA)

(Albrecht, 1979) where a system is decomposed into

functional units. The inputs represent information en-

tering the system, and the outputs represent infor-

mation leaving the system. The enquiries represent

requests for instant access to information. The inter-

nal logical files represent information held within the

system. Finally, the external interface files represent

information held by other systems used by the system

being analyzed.

Information domain of the use case “session”:

The information domain treats only the part of the use

case affected by the change. Based on the MDG in the

Figure 5, the deletion of the use case “session” im-

pacts the actions NSa3, NSa4, NSa5, NSa6. The in-

formation domain of these actions is extracted from

the lines in bold in Table 2.

External Inputs: the PIN, the selected transaction.

External Outputs: the types of transactions.

External inquiries: 0.

Internal logical files: 0.

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

306

External interface files: error screen, type of transac-

tion interface.

Table 5: Functional units with weighting factors.

Information Domain

Weights

Simple Average Complex

External Inputs 3 4 6

External Outputs 4 5 7

External Inquiries 3 4 6

Internal Logical Files 7 10 15

External Interface Files 5 7 10

Function point calculation:

Function points (FP) are calculated based on the

functional units extracted from the actions affected by

the change multiplied by their weights as defined in

Table 5:

FP =2*3 (simple External Inputs) +

1*4 (simple external outputs) +

2*5 (simple external interface files)

= 20 function-points.

For instance, in the case of the C++ programming

language, 1 FP = 29 LOC (Boehm, 2000), which

gives the following estimated size (ES):

ES =20* 29 = 580= 0.56 KLOC

Note that function points describe what the appli-

cation interacts with; but there is other implicit infor-

mation in addition to the interactions. We have to

scale the function value according to expectations.

These expectations are presented by scale factors and

cost drivers. The values of scale factors and cost driv-

ers are usually affected by experts based on their

judgment (Mohagheghi, 2005). In our work, we sup-

pose that the impact of the scale factors and cost driv-

ers is insignificant and it does not have a large impact

on the estimate in this particular example. Dropping

these factors is also suggested in other cost models

(Kemerer, 1987) (Mohagheghi, 2005).

3.4.2 Scale Factors Calculation

We suppose that all scale factors are nominal. The

nominal scale factors values presented in

COCOMOII 2000 (Boehm, 2000) are summed up to

calculate the exponent E.

E=B+0.01 *

∑







E=0.91+0.01*18.67= 1.0997

3.4.3 Effort Multiplier Calculation

Similarly to the scale factors, we suppose that cost

drivers are nominal. So, based on the values presented

by COCOMOII (Boehm, 2000), the effort multiplier

product is taken as 1.00.

Finally, the effort in terms of person-per-months can

be calculated:

Effort = 2.94 * (0.56)

1.0997

* 1 = 1.55

3 EMPIRICAL INVESTIGATION

We evaluated our method through an empirical eval-

uation based on a comparison between results (effort

needed to correct a change) built by applying our

method and results constructed by experts. Experts

are UML professionals and have years of experience

studying and developing projects designed with

UML.

More specifically, we choose six designers who

are responsible in updating projects (versioning, de-

sign improvement, error handling) and have already

made and managed changes. Our evaluation consists

in collecting information (actual effort, weighting

factors, programming language, etc.) for two change

types in order to calculate the effort based on our

adapted UCP and COCOMOII approach.

Table 6 presents a comparison between the efforts

(The number of weeks needed to manage a change)

estimated by experts (E1, E2…, E6) and effort esti-

mated by our adapted COCOMO II and UCP estima-

tion techniques.

Table 6: A comparative study.

Experts’

estimate

Adapted

COCOMOII

Adapted

UCP

C1 C2 C1 C2 C1 C2

E1 4,5 2,5 6 2,5 9 3,5

E2 2 3 2,5 3 5 5

E3 10 8 8 8 15 10

E4 6 2 5.5 3 8 5

E5 14 6 13 3 9 10

E6 2 7 3 6,5 5 10

Our preliminary evaluation affirmed that com-

pared to experts' estimate, COCOMOII estimate is

closer to the reality than UCP.

ChangeEffortEstimationbasedonUMLDiagramsApplicationinUCPandCOCOMOII

307

4 CONCLUSIONS

This paper illustrated the feasibility of integrating an

effort estimate method with a change impact analysis

technique early in the software development life cy-

cle. Effort estimate during the accommodation of a

change helps the designer and/or project manager to

decide whether to undertake a change or to cancel it.

Such a decision is needed during the requirements

and/or design phases since most often changes occur

during these phases and impact the overall software

project management.

Our integration approach explored the semantic

relations among the UML diagrams to ensure the

traceability of a change in one diagram in other dia-

grams. This paper illustrated through an example how

COCOMOII and UCP estimate models can be

adapted to estimate the effort needed when changes

occur in the design (class diagram) and/or the require-

ments (use case diagram).

Besides conducting a large-scale experimental

evaluation of our propositions, we are in the process

of extending the adaptation of COCOMO and UCP to

cover changes in the remaining UML diagrams.

REFERENCES

Abran, A., 2010. Software Metrics and SoftwareMetrology.

Wiley-IEEE Computer Society Press.

Albrecht, A.J., 1979. Measuring Application Development

Productivity. In: Proceedings of Joint Share, Guide and

IBM Application Development Symposium.

Ali M., Ben-Abdallah H., Gargouri F., 2005. Towards a

Validation Approach of UP Conceptual Models. In:

Proceeding of Consistency in Model Driven Engineer-

ing in European Conference on Model Driven Architec-

ture - Foundations and Applications Nuremberg.

Boehm, B., Brown, W., Madachy, R., Yang, Y., 2000.

COCOMO II Model Definition Manual, Center for

Software Engineering, Version 2.1.

http://csse.usc.edu/csse/research/COCOMOII/cocomo

2000.0/CII_modelman2000.0.pdf.

Briand, L. C., Labiche, Y., O’Sullivan, L., & Sówka, M. M.

2006. Automated impact analysis of UML models. J.

System Software,

Dam H. K., Winikof M.: Supporting change propagation in

UML models, 2010. IEEE International Conference on

Software Maintenance (ICSM).

Karner, G., 1993. Resource Estimation for Objectory Pro-

jects. Objective Systems SF AB.

Kama, N., Halimi, M., 2013. Extending Change Impact

Analysis Approach for Change Effort Estimation in the

Software Development Phase. In 13th WSEAS Interna-

tional Conference on APPLIED COMPUTER

SCIENCE.

Kama, N.M., 2011. A change impact analysis framework

for the software development phase. Thesis, University

of Western Australia.

Kemerer, C.F., 1987. An empirical validation of software

cost estimation models. In: Communications of the

ACM magazine. Volume 30, Issue 5.

Lallchandani, J.T., Mall, R., 2009. Static Slicing of UML

Architectural Models. Journal of object technology,

Vol. 8, No. 1.

Mohagheghi, P., Anda, B., Conradi, R., 2005. Effort esti-

mation of use cases for incremental large-scale software

development, In: 27th International Conference on

Software Engineering, IEEE.

http://www.math-cs.gordon.edu/courses/cs211/AT-

MExample/

Sharif B., Khan S. A., Bhatti M.W., 2012. Measuring the

Impact of Changing Requirements on Software Project

Cost: An Empirical Investigation, IJCSI International

Journal of Computer Science Issues.

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

308
