OCL for Rich Domain Models Implementation

An Incremental Aspect based Solution

Alberto-Manuel Fernández-Álvarez, Daniel Fernández-Lanvin and Manuel Quintela-Pumares

Computing Science Department, University of Oviedo, Oviedo, Asturias, Spain

Keywords: Constraint, Invariant, Incremental Checking, Domain Model, Object Orientation, OCL, AspectJ.

Abstract: Object Constraint Language (OCL) can be used to express domain model constraints. Those related to a

single object are easy to implement. However, when a constraint depends on the state of more than one

object (domain and class constraints) the problem turns much more complicated. Developers must deal with

several difficulties: how to write the invariant check, when to execute the constraint verification, over what

objects and what to do in case of a constraint violation. Things are harder if we add feasible performance as

requirement. We propose a tool that combines incremental OCL processing, with translation into aspect

code and execution inside an atomicity execution context. The output is aspect code, ready to be integrated

with business code that checks all the invariants efficiently at the end of the atomic operation.

1 INTRODUCTION

Domain modelling is a well-known practice to

capture the essential semantic of a rich domain. The

advantages of this approach have been widely

discussed in the software engineering literature

(Evans, 2003; Fowler, 2003; Olivé, 2005). The most

popular tool to model both static and dynamic

aspects of the domain model during the development

is UML. Even though UML is proven as an effective

and powerful resource, it is lacking in mechanisms

to represent efficiently some aspects of the system

under design. For instance, some complex domain

constraints cannot be easily graphically expressed in

UML.

Those constraints can be expressed in natural

language or by means of OCL expressions that

complement the UML models. Afterwards, the

developer will transform these OCL expressions into

source code.

Although the use of OCL fills the gap of UML

limitations, the subsequent implementation of these

constraints usually involves some difficulties that

can complicate the work of the programmers: (1)

how to write the invariant check, (2) when to execute

the constraint verification, (3) over what objects

should be executed and (4) what-to-do in case of a

constraint violation.

Constraints that affect only to one attribute or set

of attributes on the same object can be easily

checked (how), as invariants or post-conditions in a

Design by Contract (DbC) way. However, those that

affect to more than one object of the domain

(domain constraints) are determined by the state and

relationships of every concerned object. As changes

in any of the involved objects state can be produced

by different method calls it is difficult to know

where to place the constraint checking code. If we

apply DbC, these invariants will only be checked if

any public method of the invariant’s declaring class

object is executed, but modifications to the other

involved objects will not be detected (this is a

known limitation of DbC, referred as the framework

problem (Meyer, 2015)). The developer may then try

to scatter the constraint over several methods, even

in different classes. That will lead to code scattering,

code tangling and thigh coupling (Cachopo, 2007).

Regarding the “when” problem, in case of

domain constraints, immediate checking after every

single method call could simply not be possible as

low-level method calls may produce transient illegal

states that, eventually, will evolve to a final legal

state. That means the checking must be delayed until

the higher-level method finishes. Again, it may be

difficult to foresee at programming time whether a

high-level method is being called by another higher-

level call or not.

The third issue (over what objects) developers

must solve is to delimit the scope of the checking. A

complete checking of every constraint after any

modification would involve unfeasible performance

121

Fernández-Álvarez A., Fernández-Lanvin D. and Quintela-Pumares M..

OCL for Rich Domain Models Implementation - An Incremental Aspect based Solution.

DOI: 10.5220/0005517201210129

In Proceedings of the 10th International Conference on Software Paradigm Trends (ICSOFT-PT-2015), pages 121-129

ISBN: 978-989-758-115-1

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

rates. Ideally the programmer must keep track of

those constraints that might be compromised and the

affected objects and then, at the end of the high-level

method, check as few constraints, over as few

objects, as possible.

Finally, developers must guarantee the

consistence of the model in case a domain constraint

violation happens. There are many works on this

topic. Some applies backward error recovery

techniques (BER) that provide Atomicity, that is the

case of Reconstructors (Fernández Lanvin et al.,

2010). With that property in place, programmers can

assume that modifications are done in an all-or-

nothing way.

Although all these issues could be solved by

manual implementation, their high complexity

makes its development and maintenance an error

prone task that supposes a potential source of issues.

This paper describes the implementation of a tool

that (1) translates invariants code (OCL) into

executable code (AspectJ), (2) optimizes the

constraints by generating simpler (incremental)

versions regarding the events that affect the

constraint, (3) delays the execution of those

constraints until the close of the atomic context or a

high-level operation, (4) is easy to integrate with

atomic contexts such as Reconstructors, JPA

transactions (Bauer et al., 2014) or STM (Harris et

al., 2005) and (5) generates non-invasive code

(aspect code).

The remaining of this paper is organized as

follows: the second chapter summarizes the

proposal, the third presents a running example, the

tool is deep detailed in chapter four, chapter five

shows some results, chapter six comments related

work and chapter seven presents the conclusions.

2 PROPOSAL

We think that all the aforementioned difficulties

could be avoided and automatized by means of

appropriate consistency checking mechanisms that

complement atomicity contexts. Checking all

pending constraints when the atomic context is about

to close solves the when difficulty (2). What-to-do

(4) in case of failure is then solved due to the

atomicity property of the context. The other two,

how (1) and over what-object (3), can be solved

applying OCL analysis techniques and code

generation. Those techniques are able to convert the

original constraints into new incremental versions

(how) optimized for the events and objects affected

(what object). Consequently, programmers’ effort

would be reduced.

Developers must implement the domain model

classes as Plain Old Java Objects (POJO), and

provide all constraints expressed in OCL in a

separate unit.

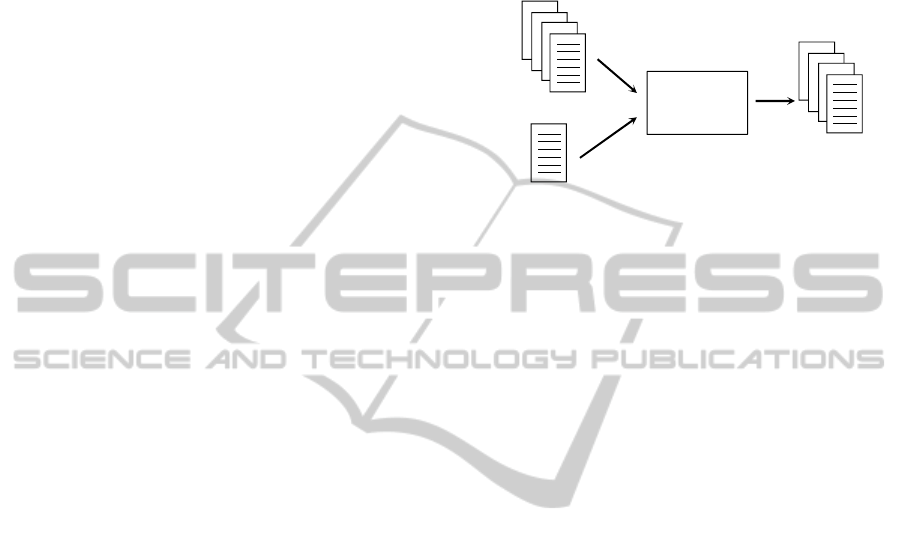

Figure 1: A tool to generate invariants code.

The tool (Figure 1) analyzes the model

implementation and the OCL constraints. The

constraint engine generates the code implementing

an incremental checking of the given constraints.

The output is the AspectJ code to be weaved with

the programmer’s code.

The programmer must also delimit the context of

the business operations, in the same way he/she

delimits transactions. At the end of the context every

check will be done. If any constraint is violated, an

exception will be raised indicating a constraint

violation in the business operation.

Context ctx = Context.createContext();

try {

ctx.close();

} catch (…) {

ctx.dispose();

}

Listing 1: Execution of business code inside a context.

Ideally this consistence integrity checking will be

done in combination with some kind of atomicity

handling context able to restore the model to its

previous state. The tool currently integrates with

Reconstructors (Fernández Lanvin et al., 2010), and

with the Hibernate ORM (Bauer et al., 2014). The

design would easily integrate also software

transactional memory solutions (Harris et al., 2008;

Dice et al., 2006).

3 RUNNING EXAMPLE

In order to illustrate different stages of the

Java code

Invariants

processor

OCL invariants

Incremental

Aspect code

ICSOFT-PT2015-10thInternationalConferenceonSoftwareParadigmTrends

122

constraints processing we will use a running

example based on the well-known Royal&Loyal

model proposed by Jos Warmer and Anneke Kleppe

(Warmer and Kleppe, 2003). We show a reduced

version of the Royal&Loyal system in Figure 2.

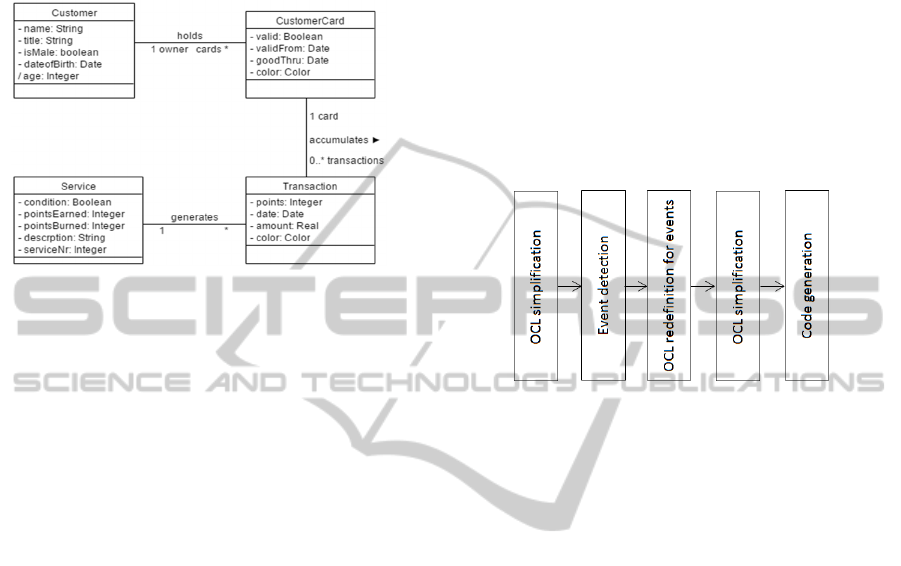

Figure 2: Reduced version of Royal&Loyal model.

Consider the following example restrictions

expressed as OCL invariants over this domain

model:

-- I1 Owner’s card must be an adult

context CustomerCard inv I1:

validFrom.diffYears(owner.dateOfBirth)

>= 18

-- I2 Every senior citizen's card must

have a positive credit in all his

transactions

context Customer inv I2:

self.age() >= 65

implies

self.cards

->forAll(c | c.transactions

->collect(t | t.points )

->sum() >= 0)

4 THE TOOL

The tool makes use of Dresden OCL ToolKit (DOT)

(Claas Wilke and Michael Thiele, 2010). It provides

a set of tools to parse and evaluate OCL constraints

on various models like UML, EMF and Java and is

also able to generate Java equivalent code. We take

advantage of the model loading feature to build a

representation of the domain model from Java

classes. The OCL parsing capabilities are also used

to build an AST representation of every OCL

constraint.

Over the AST representation of the constraint we

apply the algorithms proposed by (Cabot and

Teniente 2009), a transformation method of OCL

constraints into incremental and simpler versions.

That is, if the system is currently in a valid state and

we apply some modification over it, we do not need

to check all constraints over all instances (that would

be extremely inefficient), but just over the instances

affected and only those constraints that could

possibly be violated. Their algorithm transforms the

original constraints into an equivalent set of simpler

and optimized constraints according to the type of

modification (event type).

4.1 Processing Every Constraint

The processing, applied over every constraint AST,

consists of several stages as depicted in Figure 3.

Figure 3: Constraint processing.

4.1.1 Constraint Transformation

During the first stage OCL expressions are

simplified by translating them into a canonical form.

During this step some logical equivalences are

applied. An extensive relationship of this

equivalences can be found in (Cabot and Teniente,

2007). The process uses here a rule engine that

recursively applies every matching rule over the

AST until no more rules can be applied.

The second stage computes all possible structural

events that can affect a constraint. For this we follow

the process explained in (Cabot and Teniente, 2009).

Our implementation can detect five different types

of events:

• Insert: the creation of a new entity (call to new

operator)

• Delete: the deletion of an entity. There are some

extra difficulties here as in Java we cannot

delete an object. More on this later.

• Link: indicates the linking of two objects over

an association.

• Unlink: signals the unlinking of two objects.

• UpdAtt: indicates a change in the value of an

attribute (update attribute).

The third stage computes for each constraint-

event pair a new alternative equivalent to the first

but probably simpler and with fewer entities

OCLforRichDomainModelsImplementation-AnIncrementalAspectbasedSolution

123

involved. This new constraint is specialized for that

specific type of event.

After this transformation the simplification rule

engine is executed again with the addition of some

new rules (Cabot and Teniente 2009).

As a result of this process we end up with some

simpler constraints regarding every event for each

constraint. These new constraints will be simpler

and consequently, more efficient in execution.

Consider again the invariant example I1, it is

affected by the events UpdAtt(

CustomerCard.validFrom), Link(Holds), Insert(

CustomerCard) and UpdAtt( Customer.dateOfBirth).

Being the two last events better checked by the

redefinition I1-2 of the original invariant.

context Customer inv I1-2:

self.cards->forAll(v |

v.validFrom.diffYears(

v.owner.dateOfBirth )>= 18)

The invariant I2 is affected by the events

Link(Accumulates), Unlink(Accumulates),

Link(Holds) and UpdAtt(Transaction.points). For all

those events the I2-2 redefinition is better focused

then the original.

context CustomerCard inv I2-2:

not (self.customer.age() >= 65

or self.transactions->

collect(t | t.points)->sum() >= 0

4.2 Code Generation for Event

Detection

The output of the previous processing is a set of

classes, with the events and the invariants that

should be checked. The tool generates aspect code to

detect those events over the objects that form the

domain graph.

4.2.1 Attribute Modification

To detect this type of modification we create

pointcuts following this pattern:

protected pointcut <att>Set(<cl> obj):

set(* <cl>.<att>) && this(obj);

Where <cl> and <att> are placeholders for the

class name and the attribute name. We advise that

pointcut with a block of code as shown in Listing 2.

after(<cl> obj): <att>Set(obj) {

if (!ContextFactory.hasActiveContext())

return;

Method method = getInvariantMethod(

<cl>.class, "<invariant_name>");

ContextFactory

.getCurrentContext()

.add( new Invariant(obj, method) );}

Listing 2: Insertion into the context of an invariant checker

method after an event detection.

That code creates and registers an object in

charge of checking and invariant when invoked (new

Invariant(…)). This object will receive as argument

the affected object and the reflective representation

of the checking method to be executed. It is then

stacked on the context waiting for context close()

operation to be executed.

4.2.2 Linkage of Objects

We need to distinguish between linking to unique

association ends and many association ends. The

former are represented in Java by a reference to an

object, while the latter are usually supported by a

collection. One-side linking is detected with the

same pattern as for attribute modification detection.

In case of a many side, we need to detect

additions and removals to the underlying collection.

The tool introduces a proxy for the collection to

generate callbacks when a modification to the

underlying collection is done. That proxy must be

configured with the event types it has to notify

(additions or deletions). It is injected after the

assignment of the collection to the object’s field

during construction time. The pointcut we use here

follows a pattern like this:

pointcut <att>ColSetter(<cl> obj):

set(Set <att>)

&& within(<cl>)

&& target( obj );

With and after advise for that pointcut the proxy

is inserted:

after(<cl> obj) : <cl>ColSetter(obj){

Field field =

getField(<cl>.class, "<att>");

IncContainer ic = newProxy(obj, field);

applyValueToField(obj, field, ic);

ContainerEvent[] events;

Method method;

method = reflectivelyGetMethod(

<cl>.class, "<invariant>");

events = new ContainerEvent[]{<evnts>};

InvariantBuilder builder =

new InvariantBuilder(obj, method);

ic.registerInvariantBuilderForEvents(

builder, events);

}

Listing 3: After advise pattern for many side linking and

unlinking

ICSOFT-PT2015-10thInternationalConferenceonSoftwareParadigmTrends

124

The last line of code configures the proxy with

the events it must notify and an invariant builder

object whose mission is to create and insert into the

context an invariant checker (new Invariant(…))

whenever one of the specified events occurs.

4.3 Creation and Deletion of Objects.

Extent of a Class

Those OCL constraints that involve an allInstances

expression are especially difficult to compute due to

the fact that not all created objects are valid objects.

Just by detecting the construction of an object (with

a pointcut on the constructor execution) will not be

enough. Some objects could be created just as

temporal values (variables in methods) and others

could be unreferenced objects waiting for the

garbage collector to be removed. Several questions

comes to the fore here: Which objects are valid

objects? When does an object become invalid (i.e. it

is no longer used)? Where is the collection of valid

objects?

In our understanding, the objects that must be

considered valid are those in the domain object

graph. More precisely, those objects that are

reachable from the graph. In that way we can detect

the addition of a new object when it is linked to

another object already in the graph. Conversely an

object deletion will be produced after the removal of

all links that maintain the object linked to the graph.

We consider an object to be in-the-graph when it

is reachable though “any” link of “any” association

type its class can have. Using another aspect we

crosscut the domain entity classes with two

collections, one for forward references, and another

for the backward ones.

privileged aspect GraphNodeAspect {

boolean GraphNode.isInRepository;

List<GraphNode> GraphNode.forward;

List<GraphNode> GraphNode.backward;

…

}

When an insertion or deletion (Insert or Delete

events) is detected the affected object is then added

or removed to/from the corresponding allInstances

collection.

void GraphNode.removeFromAllInstances(){

Extents.get( this.getClass() )

.remove(this);

for(GraphNode entity: forward) {

if ( ! entity.isInGraph() ) {

entity.removeFromAllInstances();

}}}

We already know how to detect when two

objects are linked or unlinked. Now we need to

augment the body of the previous after advise

pattern (Listing 3) to check the reachability of both

objects after the link/unlink operation.

after(<cl> obj) : <cl>ColSetter(obj){

// same code as Listing 3

// extra code to detect Insert

events = new ContainerEvent[]{Insert};

method = getInvariantCheckerMethod(

<cl>.class, "<invariant>");

}

The system maintains a collection for every

domain class. The contents of these collections are

updated after the additions and removals.

There is one remaining question. A graph is a set

of interrelated objects, but there could be many

independent graphs. What is the real graph? In our

conception the graph must have some root nodes

(objects) to which other objects are connected after.

Those root nodes are usually well localized in the

design and stored in some type of collection

(Repository pattern in (Evans, 2003)). With that in

place we can state the condition an object must meet

to be considered in-the-graph: An object will be in

the graph if it is directly stored in a repository or is

reachable from another object that is already in the

graph.

public boolean GraphNode.isInGraph() {

return isInRepository

|| anyRelatedIsInGraph();}

boolean GraphNode.anyRelatedIsInGraph()

{

for(GraphNode n: backward) {

if (n.isInGraph()

&& n.forward.contains( this )) {

return true;}

}

return false;}

In this tool we use an annotation (@Repository)

to mark those collections that act as repositories.

Finally, by proxying those collections with and

aspect advise we are able to detect additions or

removals of root objects. Whenever a new object is

added its inRepository attribute is set to true, and the

opposite when it is removed. Consequently, all

objects reachable from this object will acquire or

lose their in-the-graph condition by reachability

(and will fire the respective Insert/Delete event).

4.4 Code Generation of Invariants

Once the invariants have been transformed in their

OCLforRichDomainModelsImplementation-AnIncrementalAspectbasedSolution

125

incremental versions they can be translated into

Java. For this step we use again the Dresden OCL

Toolkit. The output DOT code generator is a list of

strings, being the last one the final Boolean

expression used to raise and exception in case it

evaluates to false. The invariant checker method will

follow this pattern:

public void <inv_name>(<class> obj) {

if (! <DOT generated last line>) {

throw new ConstraintException(…);}}

4.5 Execution Context

All business operations must be executed within a

context (similar idea as a transaction). This

functionality is represented by the Context interface.

public interface Context {

public void add(Invariant i);

public void close() throws …

public void dispose() throws …

}

The developer must invoke the business

operations within an opened context as shown in

Listing 1. Explicitly context handling can be avoided

by annotating the business methods with @Context.

The tool put the context handling code behind the

scenes.

@Context public void doBusiness(…){…}

Context objects are obtained from a context

factory class that maintains the context object linked

to the current running thread. The add() method is

invoked from the event detectors to insert the

corresponding invariant checker method that, along

with other pending invariants, must be checked at

the end of the context (when the close() method is

called).

4.5.1 Event Simplification

During the execution of the business operation some

events may arise, and consequently the event

handler inserts an invariant checker method to verify

the corresponding constraint. The context stores

every checker object classified by its origin object,

event type and invariant method to call. With this

information in place there are some optimizations

that can be done to improve efficiency.

• In the case of UpdAtt events repeated over the

same object attribute, the context just store one.

If there is a previous Insert event then the

UpdAtt is irrelevant, as all invariant checkings

related to UpdAtt events are always verified by

an Insert event.

• With Delete events we must delete all previous

invariants for the same instance. Besides, if

there already an Insert event for the same entity

we do not even need to store the Delete event.

• The case of Unlink event is similar to the

previous one, if there already is a Link event for

the same association and object in the context

the Link event must be deleted. And if Link and

Unlink are in the same context, none of them

deserve to be checked.

• Finally, as different events could raise the same

invariant checking, the context object should

avoid registering the same object-invariant more

than once.

4.5.2 Final Execution

When the business operation is finished, the context

is closed and every pending check is executed. The

context catches and stucks every possible violation.

After that, all the accumulated exceptions are

gathered together in one final exception raised with

all that information in place. That way the

programmer can obtain information about every

broken constraint in one single shot.

5 RESULTS

We have tested our tool with the full version of the

Royal&Loyal model already presented (Warmer &

Kleppe, 2003). For that purpose we take the

invariant definitions available as example in the

Dresden Toolkit (Claas Wilke et al., 2009). The full

domain model consists of 11 entity classes and 2

extra types. It also has 20 OCL invariants of which 6

are of attribute or object type, 12 are of domain type

and 2 of class type.

Consider a use case in which a Customer

consumes a Service offered by a Program Partner of

a Loyalty Program to which both are associated and

is paid with the points accumulated on the Loyalty

Account by the previous customer’s Transactions.

During the operation the system has to register a

new Burning transaction for a number of points

specified by the service. Listing 4 shows the

involved invariants.

(1) context Burning

inv burningAsTransaction: points =

oclAsType(Transaction).points

(2) context ProgramPartner

inv totalPointsEarning:

ICSOFT-PT2015-10thInternationalConferenceonSoftwareParadigmTrends

126

self.services.transactions

->select(t| t.oclIsTypeOf(Earning))

->collect( tt | tt.points)

->sum() < 10000

(3) context ProgramPartner

inv totalPoints:

self.services.transactions

->collect(t | t.points)

->sum() < 10000

(4) context LoyaltyAccount

inv oneOwner:

self.transactions.card.owner->size()=1

(5) context LoyaltyAccount

inv transactionsWithPoints:

self.points <= 0

or self.transactions

->select(t | t.points > 0)

->size() > 0

Listing 4: Invariants generated.

As discussed before, in case of using a DbC

approach the object’s invariants would only be

checked due to object’s methods executions, and

thus the invariant’s affected object could be unware

of possible invariants violations due to changes in

other linked objects. As shown in Table 3, just one

invariant is of attribute or object type, therefore the

other invariants will not be checked (unless some

other methods of the related ProgramPartner and

LoyaltyAccount objects are executed).

Alternatively we can use an OCL interpreter,

widely used in some scenarios such as model to

model transformations. An interpreter checks all the

constraints against all objects in the model instance.

We can use the amount of objects visited as an

indicator for comparing the three approaches

mentioned.

After executing the tool we get 36 new invariants

related to 25 affecting events and 11 new AspectJ

files ready to be weaved with the entities

During the execution of the use case, several

affecting events will be produced indicating a

potential violation of their related constraints.

Table 1: Events raised by the use case execution.

Ev id Ev type Over entity type

1 Insert Transaction (base class of Burning)

2 Insert Burning

3 Link Transaction and Service

4 Link Transaction and CustomerCard

5 Link Transaction and LoyaltyAccount

6 UpdAtt LoyaltyAccount.points

The tool and the all related code for this testing can be

downloaded from http://www.di.uniovi.es/~alberto_mfa/

constraints.proto.zip

Table 2: Invariants stacked onto the context due to the

previous events (Id column relates with the id column of

Table 1).

Ev Id Context Invariant

2 Burning burningAsTransaction

ProgramPartner totalPointsEarning

ProgramPartner totalPoints

4 LoyaltyAccount

oneOwner

5 LoyaltyAccount

oneOwner

6 LoyaltyAccount transactionsWithPoints-19

In the Table 2 we can observe that event 1 has no

invariant associated, while event 3 has two of them.

Besides, the oneOwner-24 invariant is raised by two

different events. Thanks to context optimization

those repetitions are avoided and eventually only 5

invariants require to be checked.

Table 3: Type of each invariant and number of objects

accessed by each one (id refers to Listing 4). The symbol

(.) indicates the formula in the “Proposed Tool” column.

Inv Id Inv Type Proposed Tool OCL intrpr.

1 Attribute 1 N

* (.)

2 Domain 1 + S

* (1 + T

) N

* (.)

3 Domain 1 + S

* (1 + T

) N

* (.)

4 Domain 1 + (3 * T

) N

* (.)

5 Domain 1 || 1 + T

* (.)

Table 3 relates the invariant, the type and

number of objects accessed for its verification. The

third column indicates the number of objects using

the proposed tool while the fourth do the same for an

OCL interpreter. Here S

stands for the average

number of Service objects linked to a

ProgramPartner object, T

represents the average

number of Transactions linked to a Service, and T

means the average number of Transactions linked to

a LoyaltyAccount.

The OCL interpreter must execute each invariant

for every context class object in the system. That is

represented in the right column where N

stands for

the total number of Burning transactions in the

system; N

represents the total number of

ProgramPartners and NLA the total of

LoyaltyAccounts.

6 RELATED WORK

This idea of objects having to satisfy a set of

invariants traces back to the work of Hoare (Hoare,

1972). Later Meyer continued the idea with his

Design by Contract (DbC) methodology (Meyer,

1992). Nowadays this idea was also applied to many

other languages such as JML for Java (Leavens &

OCLforRichDomainModelsImplementation-AnIncrementalAspectbasedSolution

127

Cheon, 2005), Spec# for C# (Barnett et al., 2004),

etc.

Design by Contract is based on the principle of

an object being responsible for its own consistency.

This rule is practical for single objects not associated

with others (attribute and object constraints in our

classification), or just having references to its owned

objects (composition), but does not match with class

and domain constraints. Therefore, DbC is enough

for attribute and object constraints, but is not

practical for class and domain constraints.

There are also many works using OCL based

contracts. Some tools translate them into Java,

AspectJ (Cheon et al., 2008; Gopinathan &

Rajamani, 2008; Dzidek et al., 2006; Rebêlo et al.,

2008) or other contract languages such as JML

(Avila et al., 2008; Hamie, 2004) or CleanJava

(Cheon & Avila, 2010). All this works differ from

our approach in their adherence to DbC (attribute

and object constraints only). However, those that

generate AspectJ suggest techniques and templates.

In (Froihofer et al., 2007) the authors offers a

complete report and comparison of those techniques.

We take the idea of using proxies for them.

Henrique Rebêlo et al. (Leavens et al., 2014),

propose a JML to AspectJ compiler able to solve one

the problems addressed with our proposal, the

scattering of the contract specification among

different methods that may violate it. Their work

avoids contract scattering by centralizing the

contract specification in a common advice

complemented with JML. Our approach also avoids

scattering and promotes the invariants specification

as documentation by centralizing all invariants in

one single file.

Dzidel et al. (Dzidek et al., 2006) present another

OCL-contract to AspectJ tool, but leave as future

work some problems we try to solve with our

proposal: (1) the challenge of translating the OCL

allInstances expression into target code, and (2) the

runtime overhead of checking OCL collection

expressions as forAll, collect, etc. We have proposed

a possible solution to the allInstances problem using

the idea on being in-the-graph.

Another type of OCL tools are the interpreters

(Chimiak-Opoka et al., 2011). They are aimed to

check a model instance against its model and

constraints. That may seem a solution but they work

in a one shot fashion: they check every constraint

against the whole model instance. This solution is

practical for those situations in which the whole

model instance is created at once, for example in

model transformations (MDA). But this strategy will

lead to unfeasible performance rates for a domain

model being incrementally updated by business

logic method executions.

A common point in all these DbC and OCL tools

is that they do not perform any analysis of

constraints, thus the generated code is not

incremental. Although some of them can generate

code able to detect plain attribute modifications,

they insert the checking right after the modification

(Claas Wilke et al., 2009) or allow the programmer

to call the checking method later, leading to the

programmer the responsibility to explicitly decide

when and what method to call. They help with the

how difficulty, partially with the over-what object,

but neither with the when nor with the what-to-do

difficulties.

7 CONCLUSIONS

The proposed tool aids developers with the four

discussed difficulties. The generated code is able to

detect those potentially affecting events (what

object) which combined with the delayed checking

(when) and the transformed invariants translated to

executable code (how) is a key difference with all

DbC-like implementations for the specific case of

programs built around the domain model pattern.

The integration with atomicity contexts such as

Reconstructors (Fernández Lanvin et al., 2010) or

Hibernate (Bauer et al., 2014) solves the problem of

restoring the model to a previous state (what-to-do),

although that integration is not mandatory; the

generated code could work without that capability.

As we can conclude from results section the

efficiency is quite good. Due to the incremental

approach followed, every constraint is executed over

as few objects as necessary and the context

simplification process may reduce the number of

constraint checkings.

The tool also gives a possible implementation for

the allInstances problem, a classical problem when

translating OCL to Java code.

Finally, by maintaining all invariants in a single

source file it also helps with the problem of invariant

scattering while it preserves the invariants as

documentation for programmers.

ACKNOWLEDGEMENTS

This work has been funded by the European Union,

through the European Regional Development Funds

(ERDF); and the Principality of Asturias, through its

ICSOFT-PT2015-10thInternationalConferenceonSoftwareParadigmTrends

128

Science, Technology and Innovation Plan (grant

GRUPIN14-100).
