A Review of Detecting and Correcting Deviations on Software Processes

Manel Smatti

, Mourad Oussalah

and Mohamed Ahmed Nacer

LSI, USTHB, BP 32-Bab Ezzouar, Algiers, Algeria

LINA, Universit

e de Nantes, CNRS UMR 6241, 2 Rue de la Houssini

ere BP 92208-44322, Nantes, France

Keywords:

Software Process (SP), Deviation, Software Process Enactment, Detection, Correction.

Abstract:

Deviations are known as unexpected situations that could arise during Software Process (SP) enactment. They

are the difference between what is expected and what is carried out in real world. Experience has shown

that the appearance of such situations is unescapable, especially within large software development projects.

Moreover, their occurrence often leads to software development failure if they are not detected and corrected

as soon as they appear. This paper presents a literature review of deviation problem on software processes.

The most relevant approaches that have been dealing with this issue from the 90s until today are considered

within this study. The main goal is to have a clear insight of what has been achieved and what worth to be

considered by future works. To achieve this aim, we propose two comparison frameworks that highlight the

addressed approaches from two different perspectives, how to detect deviations and how to correct them. As a

result of this study, we propose a covering graph for each classiﬁcation framework which puts in advance the

strengths and the weaknesses of each approach.

1 INTRODUCTION

PSEEs (Process-centered Software Engineering En-

vironment) (Matinnejad and Ramsin, 2012) are spe-

cial environments dedicated to support (large) soft-

ware development projects that are conducted through

a set of steps that deﬁne their processes. The goal

of proposing such environments is to assess soft-

ware agents through the development steps in order

to achieve the desired quality within the ﬁnal prod-

ucts. Moreover, as they are often endowed of the

process model description using a Process Modeling

Language (PML) (Garc

ıa-Borgo

non et al., 2014), and

in ideal situation a clear view of what is carried out

in real world, PSEEs play an important role in pro-

cess understanding, training, when hiring new engi-

neers, and even organization strategies improvement,

they are the core of any software development process

(Fuggetta, 2000).

Because of their signiﬁcant importance, PSEEs

have gotten a great interest within the software engi-

neering ﬁeld. Many prototypes have been proposed

to cater for all the needs of software development

projects by offering means to model processes and

enacting them, but the lack of ﬂexibility, to cope with

unforeseen situations, within these environments has

led to their failure in being widely adopted within in-

dustry.

Deviations on Software Processes (SP) are known

as unexpected situations that could arise during soft-

ware development projects. They are either actions

that violate the SP model constraints or those per-

formed out of the control of the PSEE. In both cases,

the PSEE becomes unable to support the software de-

velopment and useless, though.

Many solutions have been proposed to address this

issue that is related to the evolution aspect of soft-

ware processes (Bandinelli et al., 1993) (Bandinelli

et al., 1994). Most approaches deal with deviations

at two different levels: (1) how to detect them, at

a ﬁrst time and (2) how to cope with them. Sev-

eral methods have been used to address the ﬁrst point

like logic formulas evaluation (Cugola et al., 1995)

(Kabbaj et al., 2008) (Almeida da Silva et al., 2011)

and algebraic-based analysis (Yang et al., 2007). On

the other hand, correcting the occurred deviations has

not been much considered except of some proposals

that aim at changing the process model so it could

further support the software development as done in

(Bandinelli et al., 1993) or the reconciliation approach

adopted in (Almeida da Silva et al., 2011).

Through this paper, we aim at offering an origi-

nal analysis of most approaches that have addressed

the problem of deviations on software processes. Our

main goal is to have a suitable classiﬁcation that high-

Smatti M., Oussalah M. and Ahmed Nacer M..

A Review of Detecting and Correcting Deviations on Software Processes.

DOI: 10.5220/0005517500150025

In Proceedings of the 10th International Conference on Software Engineering and Applications (ICSOFT-EA-2015), pages 15-25

ISBN: 978-989-758-114-4

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

lights a set of important features we believe they

should be considered when choosing an existing ap-

proach or proposing a new one. Such classiﬁcation

would be very useful to have a clear insight on what

has been achieved so far and what has been left and

worth to be considered by future works. Although we

have looked over several studies that have considered

the problem of deviations within different kinds of

processes, we will focus through this paper on study-

ing the most representative approaches that have ex-

plicitly considered this issue in the context of software

processes.

The paper is structured as follows. Section 2 gives

a general overview of deviations on software pro-

cesses, the deviation concept is introduced as well as

the motivations that have raised the interest devoted to

this research area. In Section 3, we focus on how de-

viations are detected within the existing approaches.

The comparison framework we have elaborated at this

aim is introduced after deﬁning each item belonging

to the set of criteria we have selected for this purpose.

Another comparison framework is given in Section 4.

Unlike the ﬁrst one, this second framework is con-

cerned with solutions proposed to correct deviations.

This framework is also built around a set of criteria we

deﬁne. Section 5 discusses the results achieved within

both frameworks. A covering graph is elaborated for

each classiﬁcation framework in order to get a clear

insight about what criteria have been covered/ignored

by each approach. Section 6 concludes the paper.

2 DEVIATIONS ON SOFTWARE

PROCESSES

2.1 Deviation Concept

A deviation is an action that violates the process

model constraints. It is the difference between what

is expected and what is carried out in real world.

In (Kabbaj et al., 2008), a consistency relationship,

which describes an ideal SP enactment, has been de-

ﬁned based on the interactions between SP agents and

the PSEE. Thus, deviations have been deﬁned as ac-

tions that break this consistency relationship.

When a deviation occurs, the PSEE becomes un-

able to support SP agents through the development

steps. The state resulting from such situation is called

inconsistency (Kabbaj et al., 2008). Such situations

are very likely to arise within any software devel-

opment project. Moreover, experience has shown

that the appearance of such situations is not an ex-

ception (Almeida Da Silva et al., 2013) because SP

agents have often to deviate from the software pro-

cess model. Thus, deviations are unescapable situa-

tions that need to be considered from the beginning

of the software development process.

2.2 Motivation

The huge software applications that companies claim

nowadays have increased the interest devoted to the

software process area. This interest results in many

contributions especially in SP modeling and SP en-

actment ﬁelds (Ruiz-Rube et al., 2012). The SP

modeling ﬁeld has reached an advanced level thanks

to the wide panoply of PMLs that have been pro-

posed (Garc

ıa-Borgo

non et al., 2014). Furthermore,

the proposition of the standard SPEM (sta, 2008) by

the OMG has facilitated the integration of such for-

malisms within industry. Whereas, most PSEEs have

failed to gain such success because of multiple rea-

sons, among them:

• PSEEs are built around SP models that are very

rigid while SP agents are requiring more and more

ﬂexibility to be able to act using their skills and

their previous experiences;

• New ways of development, like agile methods,

are based on customers’ implication within all of

the software development steps. Thus, ﬁnal re-

quirements are often changed or modiﬁed during

the software development life cycle, which often

leads to deviate from the SP model in order to

cope with these changes;

• Organizations often change their structures and

their strategies within (large-scale) software de-

velopment. New people are engaged while others

left, new tools are integrated and much certiﬁca-

tions are required. All these are important factors

that need to be considered within software pro-

cesses and their dedicated supports;

• Competition within software development com-

panies to gain international markets is based on

two important factors: time and cost of software

development. Thus, having special environments

that are able to support SP agents in a controlled

fashion has become very challengeable.

3 DETECTING DEVIATIONS

The most important research works that have been led

during the last twenty years to deal with deviations

on software processes are considered through this pa-

per. These approaches are classiﬁed and discussed

through a set of criteria we have selected.

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

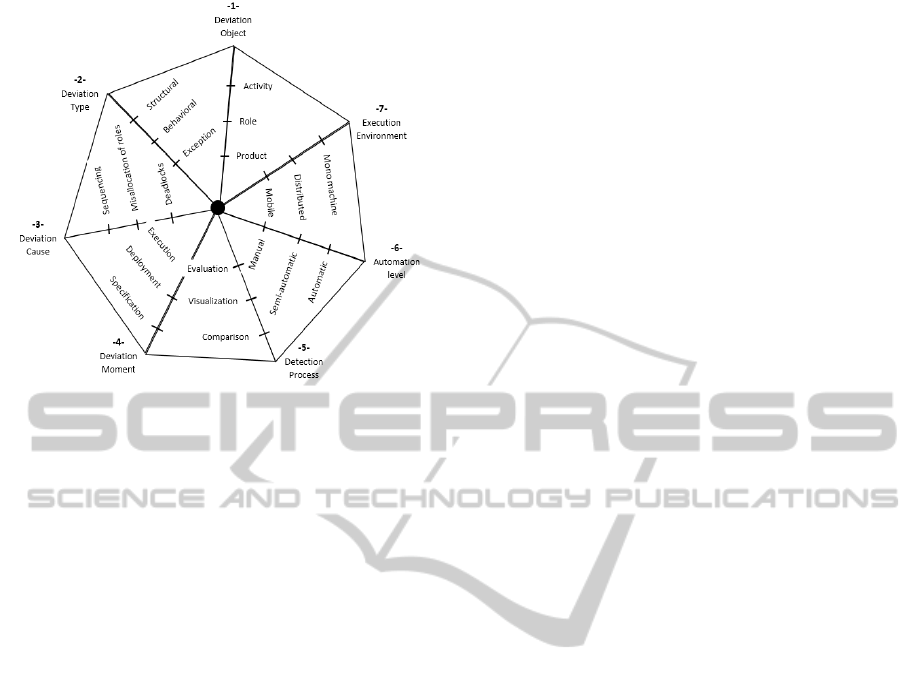

Figure 1: Detection framework criteria.

At a ﬁrst time, we start by classifying the ad-

dressed approaches based on how they proceed to de-

tect the encountered deviations. To achieve this goal,

we project each solution on the set of criteria designed

for this purpose (Figure 1). We deﬁne within the next

subsection each criterion, its role and the values it

could have.

3.1 Criteria

1. Deviation Object: we believe that it is very im-

portant to have information about the responsible

element for the deviation occurrence. Based on

the SPEM conceptual meta-model (sta, 2005), the

deviation object could be the activity, SP agent

through his role or the artefacts consumed and/or

generated within a software process activity. Get-

ting a clear insight about the identity of this ele-

ment would make the correction much easier.

2. Deviation Type: based on their

causes/consequences, several kinds of devia-

tions could be distinguished. Even if there is no

standard classiﬁcation, most approaches have

been built around a precise set of deviations they

deﬁne. Through the classiﬁcation framework we

have elaborated (Section 3.2), we will highlight

the most relevant deviation classes by enumerat-

ing the different types that have been proposed by

the existing approaches.

3. Deviation Cause: enumerating the possible

causes makes the analysis much easier and the so-

lution much effective. Based on the existing ap-

proaches, deviations may occur because of dif-

ferent reasons. Depending on the nature/size of

the process, the chosen process model and the SP

agents skills, a deviation may occur because of:

• A bad choice of the process model;

• Misunderstanding of customers needs or misal-

location of resources;

• Wrong execution of activities or a bad sequenc-

ing;

• ...etc.

4. Deviation Moment: most approaches deﬁne de-

viations as a problem related to SP enactment

and/or SP evolution. In fact, most deviations are

detected while the process is enacting but they are

not all the reason of an execution problem. Devia-

tions could be static, which means that they are re-

lated to the SP speciﬁcation and that the problem

has been encountered within the software process

model before any deployment. Deviations may

also occur during deployment due to a misunder-

standing of the SP model constraints or even be-

cause of a bad assignment of roles.

5. Detection Process: detecting the occurred devi-

ations within software processes falls into ﬁnd-

ing mechanisms to analyze and evaluate the soft-

ware process along all its steps. Based on the

chosen process model, the PML used to describe

it and the tools integrated within the PSEE, sev-

eral methods have been implemented for this pur-

pose. For instance, visualization-based method

and evaluation of ﬁrst order logic formulas are

two options that have been widely adopted by the

existing approaches.

6. Automation Level: PSEEs are supposed to sup-

port SP agents to achieve the desired quality

within the ﬁnal products. The automation level

offered by these environments play a key role in

the success of any software development project.

Thus, the ability of the PSEE to detect incorrect

actions or transitions without human intervention

is very important. In spite of the great number of

prototypes that have been designed to support de-

viations on software processes, we have noticed

that detecting such situations still require human

intervention in most cases. As a result, the detec-

tion operation is often semi-automatic or manual.

7. Execution Environment: a software process

could be enacted either within a mono machine

environment or a distributed one. Moreover, some

recent research works are focusing on ﬁnding out

solutions to easily integrate nomadic users within

software development projects. Thus, proposing

a support for deviations, or for any other problem

encountered within the software engineering ﬁeld,

requires a good estimate of the runtime environ-

AReviewofDetectingandCorrectingDeviationsonSoftwareProcesses

ment. It is obvious that the larger is the environ-

ment, the more difﬁcult is the solution to imple-

ment.

3.2 Classiﬁcation Framework

Deviations have been considered by researchers from

the beginning of the 90s. Since that, several ap-

proaches have been proposed to address this problem

within the different kinds of processes. The most rele-

vant approaches are listed in Table 1. To select the ap-

propriate papers, our work was partially inspired from

the methodology followed in (Ruiz-Rube et al., 2012)

when performing a systematic review. The papers re-

lated to our study have been selected based on a rig-

orous search using one of the three words: deviation,

inconsistency, evolution conjointly with the software

process expression. Searchers were performed on the

most known digital libraries such: IEEE Digital Li-

brary, Springer and ACM Digital Library. As a sec-

ond step, papers that have not treated the studied issue

as a main subject, but have just given an insight about

it, have been discarded.

Moreover, As we are interested to the Software

Process area, and to not have a cluttered tables and

graphs, we consider through this study only the most

representative approaches that have been proposed

within this ﬁeld.

We start within this section by classifying the se-

lected approaches based on how they proceed to de-

tect deviations on software processes. Each solution

is projected on the aforementioned set of criteria. The

results obtained from this classiﬁcation are presented

in Table 2. Some of the values listed in this table have

been explicitly extracted from their sources while oth-

ers constitute the outcome of the analysis we have per-

formed on each of the selected works.

Discussion. As we have mentioned before, the

problem of deviations on SP enactment is not recent.

SPADE (Bandinelli et al., 1993) and SENTINEL (Cu-

gola et al., 1995) are the most known approaches that

have dealt with this issue. Based on the SLANG

and LATIN languages respectively, these two proto-

types have been the basis of all the approaches that

have been proposed later. Although they have reached

an advanced level, especially after the proposition of

their successors SPADE-1 (Bandinelli et al., 1996)

and PROSYT (Cugola and Ghezzi, 1999) respec-

tively, these prototypes have failed in being adopted

within industry because of multiple reasons such as

the complexity of the languages used to conceive

them and the lack of ﬂexibility within SPADE that

does not support deviations until the process model is

changed. Moreover, the wide panoply of PMLs that

have been proposed in addition of the proposition of

SPEM has led to consider new features to model soft-

ware processes and enacting them.

On the other hand, recent approaches take advan-

tage from what has been achieved within the soft-

ware engineering ﬁeld and its dedicated tools and lan-

guages. For instance, (Kabbaj et al., 2008) propose

to support deviations within software processes de-

scribed as a UML proﬁle. Authors use XMI (XML

Metadata Interchange) to automatically generate ﬁrst

order logic formulas from the UML description of the

SP model. The analysis performed upon the obtained

formulas enable authors to easily detect the occurred

deviations.

4 CORRECTING DEVIATIONS

Detecting the unexpected situations that could arise

during a given software development project is very

important but the most important is to be able to

handle them. Among all the approaches considered

within this study, few have proposed a correction plan

to ﬁx the occurred deviations. Through this section,

correction mechanisms that have been adopted by the

covered approaches are highlighted. First, we start

by enumerating some motivations that have incited

to propose these correction plans. Then, we provide

a brief deﬁnition of the possible solutions that have

been widely adopted to deal with deviations on soft-

ware processes. Finally, as done for the detection

aspect, a classiﬁcation framework is elaborated after

deﬁning each item belonging to the selected set of cri-

teria.

4.1 Motivation

Offering a suitable development environment that

meets all the SP agents requirements, including ﬂex-

ibility, still remains a big challenge within the Soft-

ware Engineering ﬁeld.

Deviations are very likely to occur within any

software development project. At each moment, SP

agents may decide not to follow the software process

model because they think they are able to accomplish

things better than as described within the SP model.

Thus, they decide to act based on their skills or on

their previous experiences. Such deviations, even if

they are performed with a good faith, could be the

main reason of any software project failure. Offering

a good support for software processes results in:

• Considering the SP model as a plan that is sup-

posed to guide SP agents to achieve the ﬁnal goals

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

Table 1: Approaches dealing with deviations.

Year

Proposed Approach

19990-2000 2000-2010 2010-Today

(Bandinelli et al., 1993) (Thompson et al., 2007) (Yong and Zhou, 2010)

(Cugola et al., 1995) (Yang et al., 2007) (Almeida da Silva et al., 2011)

(Bolcer and Taylor, 1996) (Egyed et al., 2008) (Cugola et al., 2011)

(Dami et al., 1998) (Kabbaj et al., 2008) (Ge et al., 2011)

(Egyed et al., 2008) (Bendraou et al., 2012)

(Zhang et al., 2012)

(Hull et al., 2013)

(Rangiha and Karakostas, 2014)

Table 2: Classiﬁcation framework for detecting deviations on SP.

Deviation

object

Deviation

type

Deviation

causes

Deviation

moment

Detection

process

Automation

level

Execution

environment

(Bandinelli et al., 1993) -Activity

-Static

-Dynamic

-Changing in

requirements

-Changing

in the environ-

ment/organization

-Execution Ad-hoc analysis Manual

Mono

machine

(Cugola et al., 1995) -Role

-Environment

level

-Domain level

Violation of

activities’

constraints

Deployment

Evaluation of

logic formulas

Semi-

automatic

Mono

machine

(Thompson et al.,

2007)

-Activity

-Role

None

A predeﬁned

set of seven

causes

-Deployment

-Execution

Evaluation of

SQL queries

Semi-

automatic

Mono

machine

(Kabbaj et al., 2008)

-Activity

-Role

-Environment

level

-Domain level

-Violation of

Activities’ con-

straints

-Misallocation

of roles

Execution

Evaluation of

logic formulas

Automatic

Mono

machine

(Almeida da Silva

et al., 2011)

-Activity None

-Sequencing

Execution

Evaluation of

logic formulas

Automatic

Mono

machine

(Bendraou et al.,

2012)

-Activity

-Artefact

-Organizational

-Behavioral

-Structural

-Activities’

sequencing

-Violation of

methodological

guidelines

-Deployment

-Execution

Comparing the

execution trace

to a predeﬁned

set of rules

Automatic Distributed

without imposing a speciﬁc manner;

• Offering a suitable tool that brings together all the

SP modeling beneﬁts and the required ﬂexibility

within a single environment;

• Obtaining a complete environment that could be

easily integrated into industry.

4.2 Correction Plans

After detecting the occurred deviations, three pos-

sible solutions have been distinguished in (Cugola,

1998), these solutions have been adopted by all the

approaches that have been proposed later:

1. Nothing to Do: in this case, deviations are de-

tected but ignored. The software project is pur-

sued without correcting deviations consequences.

The PSEE has an erroneous view of what is

carried out in real world and becomes useless,

though.

2. Changing the Model: the process model is

changed to meet the new requirements that have

led to the triggered deviation. This solution is

very costly and may generate other problems es-

pecially if there are several running instances of

that model. In addition, a deviation may occur

temporarily and does not require changing the en-

tire SP model.

3. Tolerating the Deviation: in this case, the SP

model is not changed but mechanisms are inte-

grated within the PSEE to tolerate deviations un-

der its control. Moreover, the PSEE supports SP

agents to reconcile the observed process (the ob-

served process is the partial view, of what is car-

ried out in real world, owned by the PSEE (Cu-

gola, 1998) (Kabbaj et al., 2008), the expres-

sion Process deﬁnition enactment has been used

in (Cugola et al., 1996) and (Yang et al., 2007)

to indicate the same view) with the process model

(the planned process in (Zazworka et al., 2009)).

AReviewofDetectingandCorrectingDeviationsonSoftwareProcesses

Unlike Section 3 where we have focused on the

problem itself. Through this section, we will be deal-

ing with deviations from a solution perspective. To be

on the same wavelength, we start within the next sub-

section by deﬁning each item belonging to the chosen

set of criteria (Figure. 2). Approaches that have pro-

posed a correction plan are then discussed according

to these criteria.

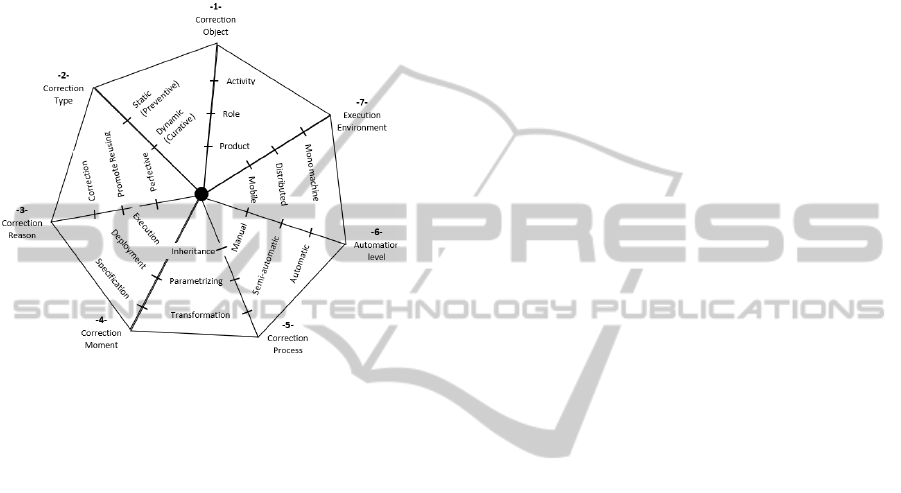

Figure 2: Correction framework criteria.

4.3 Criteria

1. Correction Object: A deviation is always caused

within one (or more) of the SP elements: activ-

ity, role or product. As well, the correction step

is applied within one, or more, of these items. It

could be the same that has caused the deviation or

another one. For instance, the deviation may be

detected within an output product while the cor-

rection is applied within the activity that has pro-

duced it.

2. Correction Type: based upon the correction

plans we have explained above. SP managers may

decide even to change the model to cope with the

triggered deviations or to change just the running

instance within which the deviation has occurred.

Thus, we are talking about static and dynamic

changes, respectively. We consider the ﬁrst kind

of corrections as preventive correction while the

second as curative correction.

3. Correction Reason: while interested to devi-

ations on software processes, most researchers

have focused their studies on how to detect these

deviations and how to correct their consequences.

We believe that holding this problem may have

more beneﬁts than just correction. For instance,

the implementation of a given correction could

have a perfective effect by improving the process

functionalities. Moreover, such correction may

improve the reusability of SP models by offering

reusable conﬁgurations.

4. Correction Process: when deviations occur, SP

agents/managers may choose multiple options

while performing their correction plans. For in-

stance, changing the component (activity, role or

product) parameters could be very useful to recon-

cile the enacting process with the process model.

The problem may also be solved by applying a set

of transformations or even by changing the com-

ponent by another one to add new concepts while

keeping the old ones (inheritance concept).

5. Correction Moment: to correct a given devia-

tion, changes could be applied to the process spec-

iﬁcation, while deployment or even during the

process enactment. Thus, the deviation is not nec-

essarily corrected at the same moment where it

has been detected. For instance, the deviation

may be detected at enactment time while changes

are applied to the process speciﬁcation (process

model) to correct it or to avoid it in future time.

6. Automation Level: as for the detection process,

correcting the occurred deviations may be done

manually by SP agents. In best cases, the cor-

rection is automatic if it is entirely done by the

PSEE without any human intervention. However,

based on what has been achieved by former re-

search works, this is almost impossible. Thus, a

suitable correction always involves both the PSEE

and SP agents (semi-automatic).

7. Execution Environment: through the different

approaches that have been proposed in the litera-

ture, we have noticed that the solution, when pro-

posed, is not always applicable at the same level

within which the process is conducted. Therefore,

the process may be led trough a distributed en-

vironment while the deviation support is imple-

mented in a mono machine environment.

4.4 Classiﬁcation Framework

The approaches that have proposed a correction pol-

icy are considered in this section. As mentioned be-

fore, we are interested at those approaches that have

explicitly proposed a correction plan within the con-

text of software processes. These approaches are clas-

siﬁed according to the set of criteria listed above. The

results obtained from this classiﬁcation are summa-

rized in Table 3.

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

Table 3: Classiﬁcation framework for correcting deviations on SP.

Correction

object

Correction

type

Correction

reason

Correction

moment

Correction

process

Automation

level

Execution

environment

SPADE

(Bandinelli et al.,

1993)

(Bandinelli et al.,

1994)

All SP elements Static Perfective Speciﬁcation Transformation Manual

Mono

machine

SENTINEL (Cugola et al., 1995) All SP elements

-Static

-Dynamic

-Perfective

-Corrective

Speciﬁcation

-Execution

Transformation

Semi-

automatic

Mono

machine

(Almeida da

Silva et al.,

2011)

All SP elements Dynamic Corrective Execution Restructuring

Semi-

automatic

Mono

machine

Table 4: Signiﬁcation of Covering Graphs values.

Qualiﬁcation

Detection Correction

Criterion Description Criterion Description

Low

Deviation

object

detecting deviations within just one SP element.

Correction

object

All the SP elements

Medium Two SP elements are considered Two SP elements are considered

High All the basic SP elements are considered One SP element is corrected

Low

Deviation

type

Behavioral

Correction

type

Static

Medium Functional Dynamic

High Behavioral & Functional Static & Dynamic

Low

Deviation

causes

One kind of deviations

Correction

reasons

Corrective or Perfective

Medium A predeﬁned set of possible causes Corrective & Perfective

High Causes related to each SP elements are distinguished Promote reusing

Low

Deviation

moment

Execution or deployment

Correction

moment

Speciﬁcation

Medium Execution and deployment Deployment

High Execution, deployment and speciﬁcation Execution

Low

Detection

process

Ad-hoc

Correction

process

Transformation or restructuring

Medium Using external tools Inheritance or parametrizing

High Integrated within the process speciﬁcation Design pattern

Low

Automation

level

Manual

Automation

level

Manual

Medium Semi-automatic Semi-automatic

High Automatic Automatic

Low

Execution

environment

Mono machine

Execution

environment

Mono machine

Medium Distributed Distributed

High Mobile Mobile

Discussion. As we can notice from this classiﬁca-

tion, in spite of the great number of contributions that

have addressed the problem of deviations on software

processes, just few of them have been interested at

proposing correction mechanisms. The others have

been much concerned with studying the problem it-

self than ﬁnding out solutions for it. The results are

several classiﬁcations and prototypes that aim at de-

tecting those deviations.

Through this section, we have highlighted those

approaches that aim at proposing some policies to

correct deviations. Approaches like (Zazworka et al.,

2009) have been discarded from this classiﬁcation be-

cause they do not propose an explicit solution except

pieces of advice authors give to help SP managers

ﬁnding out some resolutions that are supposed to ﬁx

the occurred deviations once applied.

Almost all approaches that have proposed correc-

tion mechanisms have been validated on simple pro-

totypes within mono machine environments. Some

authors have focused on studying the problem of de-

viations within distributed environments as done in

(Bendraou et al., 2012) but, as we have already men-

tioned, they have been much concerned with the prob-

lem than the solution.

5 RESULTS AND DISCUSSION

Within the previous sections, we have highlighted

the most relevant approaches that have dealt with the

problem of deviations on software processes. These

approaches have been classiﬁed according to two dif-

ferent axes: (1) how they detect deviations and; (2)

how they correct them.

As we may decide to choose one method or one

tool among the existing ones, and since this choice

is strongly based on the constraints (criteria) that

are most relevant to us, offering an explicit covering

AReviewofDetectingandCorrectingDeviationsonSoftwareProcesses

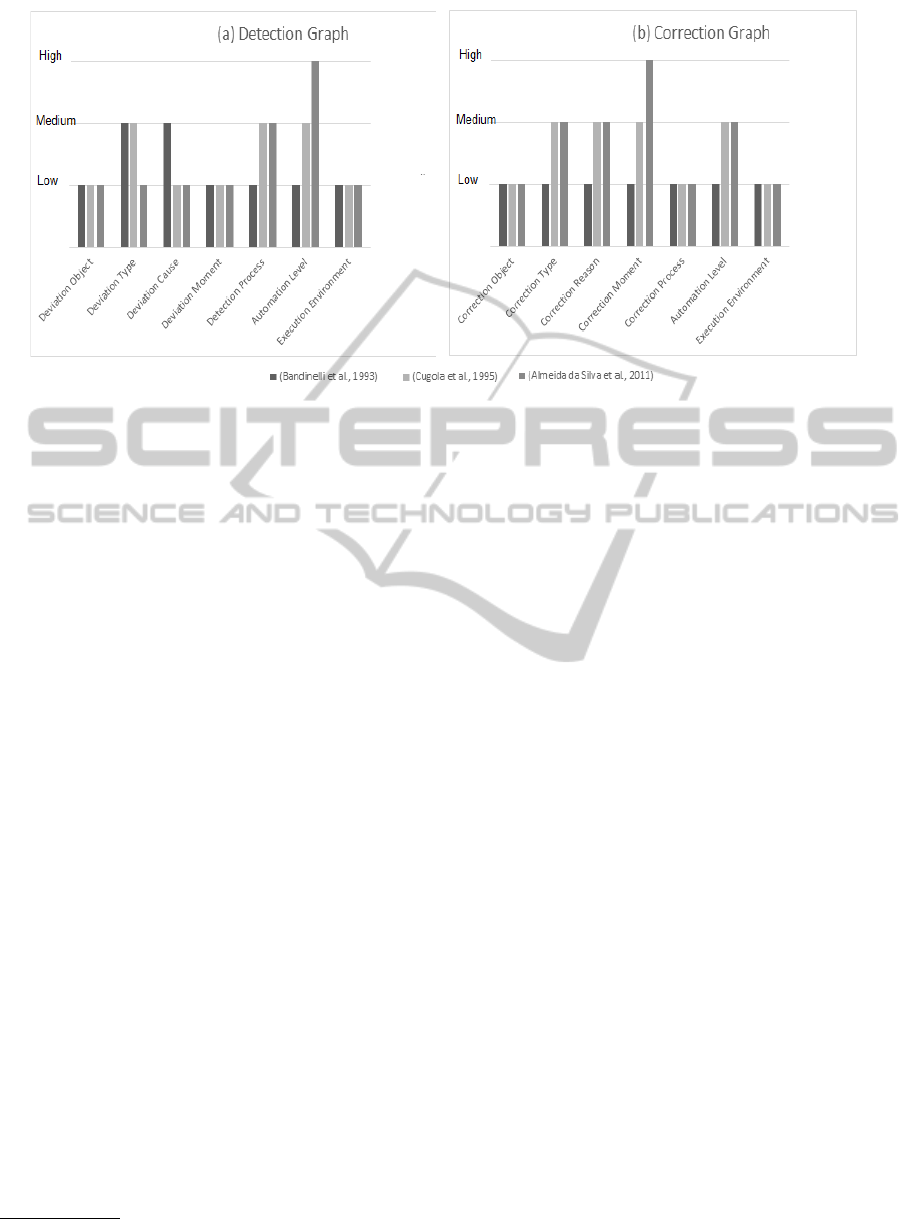

Figure 3: Coverings Graphs for detecting and correcting deviations on SP.

graph for both detection and correction aspects is very

important to make the choice much effective.

Through this section, and based on the results ob-

tained within sections 3 and 4, we draw a cover-

ing graph for each classiﬁcation framework. For a

sake of simplicity, each criterion, in both graphs, will

have three possible values: low, medium and high

For instance, for the Deviation Object criterion, if a

given approach is able to detect the occurred devi-

ations within just one SP element, the value low is

assigned to this criterion. If two SP elements are con-

sidered within the detection mechanisms, this crite-

rion would have medium as value. Otherwise, if all

SP elements are covered, the value high is assigned

to this criterion. On the other hand, when correct-

ing a deviation, we are interested at involving as less

components as possible into the correction procedure.

This is because the more components are involved,

the more expensive the correction is to apply, espe-

cially if there are several instances of that SP model.

Thus, if a given approach proposes to change/modify

just one SP element to correct the occurred deviation,

the criterion Correction Object gets High as value, if

two elements are involved, Medium is assigned to this

criterion. Otherwise, Low is assigned.

We apply the same reasoning for the remaining

items of both sets of criteria. Thus, we have no-

ticed that in spite of the great number of classiﬁca-

tions proposed in the literature (Deviation type), most

of them could be categorized into either behavioral,

related to SP agents, or functional, related to func-

tionalities provided by the SP environment. Accord-

ing to what has been achieved within previous works,

This is a choice of our own, authors may prefer to assign

other values for both sets of criteria.

we assume that detecting behavioral deviations is eas-

ier than functional ones because they are related to

SP agents behaviors that we are more familiar with.

Being able to detect functional deviations comes at a

second degree; such deviations could be the reason

of a misunderstanding of customers needs or because

of a bad execution of activities. In such cases, the

PSEE must be endowed of mechanisms that facilitate

the analysis of the enacting software process in order

to warn SP agents and help them to ﬁx these incon-

sistencies. Unfortunately, most of existing environ-

ments still require human intervention to detect such

deviations. Thus, if we are able to treat these two

classes of deviations, we would be able, we think, to

offer a suitable environment that could be adopted by

industrials. Once detected, the triggered deviations

must be corrected. Changing the model (static cor-

rection) is one alternative that could solve the prob-

lem but we argue that this solution is not much ef-

ﬁcient since some deviations are casual and do not

require to change the entire SP model. Thus, being

able to change the enacting SP instance (dynamic cor-

rection) without affecting the other instances is very

challengeable. Nevertheless, as they have a very long

lifecycle, some processes need to change their spec-

iﬁcation to ﬁt the new requirements of their environ-

ment. Therefore, we consider approaches that offer

the possibility of dynamic corrections, and static ones

when necessary, as the best approaches.

Deviations occur because of multiple reasons (De-

viation causes); treating one kind of deviations does

not seem to be very useful, especially if we consider

the huge size of some software processes. In addi-

tion, software processes tend to evolve during time;

consequently, limit the solution to a predeﬁned list of

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

possible deviations does not give any guarantee. The

most adequate solution is to be able to deﬁne cor-

rection patterns for each SP element independently

from the other ones. The reason of ﬁnding out mech-

anisms to support these deviations (Correction rea-

son) is to correct the mistakes occurred from not re-

specting SP models constraints (corrective). Ignor-

ing such mistakes could induce to software project

failure. Some SP agents may prefer to ignore these

inconsistencies within a given SP instance and apply

some changes/modiﬁcations in order to prevent them

in a next time (Perfective). An ideal solution when

supporting deviations is to offer mechanisms to cor-

rect them and avoid their further occurrence within

not just the software process within which they have

been detected but also within a wide spectrum of other

kinds of software processes. Thus, we assume that

proposing a correction pattern for each SP element is

the best solution to promote SP reusing.

Each software process passes by three important

phases: Speciﬁcation, deployment and execution. De-

tecting deviations during enactment (Detection mo-

ment) means that we were unable to perform an ear-

lier analysis that detects the existing anomalies (dur-

ing speciﬁcation or while deployment). We believe

that the sooner these deviations are detected, the

closer to success the software project is. On the other

side, correcting deviations should not affect the SP

model (SP speciﬁcation) in best cases. In fact, we are

interested at reducing the correction level as much as

possible while integrating the different correction pat-

terns into the SP speciﬁcation.

Deviations could be detected (Detection process)

due to an analysis performed by SP agents (ad-hoc)

or thanks to special analysis tools (external tools). In

best cases, the analysis mechanisms are offered within

the SP speciﬁcation and implemented while instanti-

ating the SP model. On another side, when correct-

ing deviations (Correction process), we can choose to

change the SP model even by restructuring the exist-

ing elements or by transforming them. In this case,

we are required to change all the enacting instances

so they could ﬁt the new SP model. Another solution

could be to keep the same SP model while changing

some parameters or adding some sub-elements in or-

der to facilitate difﬁcult tasks. The best solution re-

mains to integrate correction patterns that could be

changed when necessary without affecting the related

SP element.

The signiﬁcation of all the adopted values for each

criterion is summarized in Table 4.

To not have cluttered graphs, we will project

three approaches on each covering graph: detection

and correction. The results are shown on Figure 3.

We have intentionally projected the same three ap-

proaches on both graphs. Thus, the reader may have

a clear insight on how the same approach proceeds to

treat both detection and correction aspects.

As we may decide to choose one method or one

tool among the existing ones, and since this choice

is strongly based on the constraints (criteria) that

are most relevant to us, offering an explicit covering

graph for both detection and correction aspects is very

important to make the choice much effective.

6 CONCLUSIONS

Through this paper, we have highlighted the problem

of deviations on Software Processes. The most rele-

vant approaches that have dealt with this issue have

been considered within this study.

The paper starts by introducing the deviation con-

cept. A deviation is an unexpected situation that could

arise within a software development process. The

appearance of such situation, if not corrected, often

leads to the violation of SP model constraints and to

the software development failure, consequently. The

paper gives also an insight about the relevant reasons

that have incited to devote such interest to this re-

search area.

As it is almost impossible to cover, in one study,

all what has been achieved within a given research

ﬁeld. We have covered, through this paper, the most

important approaches that have explicitly considered

the deviation issue as a separate problem. Moreover,

approaches that have been concerned with this issue

within business processes have been discarded.

We have classiﬁed the selected approaches using

two comparative frameworks. These frameworks deal

with: (1) detecting deviations and (2) correcting them.

Our choice to make such a distinction while develop-

ing this study is justiﬁed by the following reasons:

• Holding thi problem on software processes falls

into two important directions: ﬁnding ways to de-

tect the occurred deviations and offering mecha-

nisms to correct them;

• Separating the classiﬁcation from these two per-

spectives makes the analysis much effective. The

reader would be easily awards of what has been

achieved and what has been left within both di-

rections.

For both classiﬁcation frameworks, we have con-

ceived a set of criteria. Then, we have detailed every

set by deﬁning each item belonging to it. After that,

we have projected the selected approaches on each

AReviewofDetectingandCorrectingDeviationsonSoftwareProcesses

set. To facilitate the comprehension of each classi-

ﬁcation, we have listed the obtained results within ta-

bles.

As a result, we can notice that besides the great

number of approaches proposed to deal with devia-

tions within software processes, just few works have

explicitly offered mechanisms to correct them. More-

over, we have realized that most of approaches are

tool-dependent. For instance, in (Bendraou et al.,

2012), authors say Having different modeling lan-

guages would not change anything to the proposed

solution because of the use of Praxis. On the other

side, within the Software Engineering ﬁeld, we are

not interested at having the same execution tool. The

goal has always been to offer generic solutions and let

the developers free about the choice of the execution

features.

To consider this last issue, we are currently work-

ing on proposing a platform-independent solution to

detect deviations and correcting them at a second

time. Our main objective is to offer a conceptual-

level approach that facilitate the detection of devia-

tions within a large spectrum of software processes.

Moreover, the challenge for us is to offer a reusable

approach since it is one of the main objectives within

the Software Engineering ﬁeld.

REFERENCES

(2005). Software Process Engineering Metamodel (SPEM)

1.1. Object Management Group.

(2008). Software Process Engineering Metamodel (SPEM)

2.0. Object Management Group.

Almeida da Silva, M., Bendraou, R., Robin, J., and Blanc,

X. (2011). Flexible deviation handling during soft-

ware process enactment. In Enterprise Distributed

Object Computing Conference Workshops (EDOCW),

2011 15th IEEE International, pages 34–41.

Almeida Da Silva, M. A., Blanc, X., Bendraou, R., and Ger-

vais, M. P. (2013). Experiments on the impact of de-

viations to process execution. Ing

enierie des syst

emes

d’information, 18(3):95–119.

Bandinelli, S., Di Nitto, E., and Fuggetta, A. (1994). Poli-

cies and mechanisms to support process evolution

in psees. In Software Process, 1994. ’Applying the

Software Process’, Proceedings., Third International

Conference on the, pages 9–20.

Bandinelli, S., Di Nitto, E., and Fuggetta, A. (1996).

Supporting cooperation in the spade-1 environ-

ment. Software Engineering, IEEE Transactions on,

22(12):841–865.

Bandinelli, S., Fuggetta, A., and Ghezzi, C. (1993). Soft-

ware process model evolution in the spade environ-

ment. Software Engineering, IEEE Transactions on,

19(12):1128–1144.

Bendraou, R., Almeida da Silva, M. A., Gervais, M. P., and

Blanc, X. (2012). Support for deviation detections

in the context of multi-viewpoint-based development

processes. In CAiSE Forum, pages 23–31.

Bolcer, G. A. and Taylor, R. N. (1996). Endeavors: A

process system integration infrastructure. In Soft-

ware Process, 1996. Proceedings., Fourth Interna-

tional Conference on the, pages 76–89. IEEE.

Cugola, G. (1998). Tolerating deviations in process sup-

port systems via ﬂexible enactment of process mod-

els. Software Engineering, IEEE Transactions on,

24(11):982–1001.

Cugola, G., Di Nitto, E., Fuggetta, A., and Ghezzi, C.

(1996). A framework for formalizing inconsisten-

cies and deviations in human-centered systems. ACM

Trans. Softw. Eng. Methodol., 5(3):191–230.

Cugola, G. and Ghezzi, C. (1999). Design and implemen-

tation of prosyt: a distributed process support system.

In Enabling Technologies: Infrastructure for Collabo-

rative Enterprises, 1999. (WET ICE ’99) Proceedings.

IEEE 8th International Workshops on, pages 32–39.

Cugola, G., Ghezzi, C., and Pinto, L. (2011). Process pro-

gramming in the service age: Old problems and new

challenges. In Tarr, P. L. and Wolf, A. L., editors,

Engineering of Software, pages 163–177. Springer

Berlin Heidelberg.

Cugola, G., Nitto, E., Ghezzi, C., and Mantione, M. (1995).

How to deal with deviations during process model en-

actment. In Software Engineering, 1995. ICSE 1995.

17th International Conference on, pages 265–265.

Dami, S., Estubler, J., and Amiour, M. (1998). Apel: A

graphical yet executable formalism for process mod-

eling. In Nitto, E. and Fuggetta, A., editors, Process

Technology, pages 61–96. Springer US.

Egyed, A., Letier, E., and Finkelstein, A. (2008). Gener-

ating and evaluating choices for ﬁxing inconsistencies

in uml design models. In Automated Software Engi-

neering, 2008. ASE 2008. 23rd IEEE/ACM Interna-

tional Conference on, pages 99–108.

Fuggetta, A. (2000). Software process: a roadmap. In Pro-

ceedings of the Conference on the Future of Software

Engineering, pages 25–34. ACM.

Garc

ıa-Borgo

non, L., Barcelona, M., Garc

ıa-Garc

ıa, J.,

Alba, M., and Escalona, M. (2014). Software process

modeling languages: A systematic literature review.

Information and Software Technology, 56(2):103–

116.

Ge, X., Paige, R. F., and McDermid, J. A. (2011). Failures

of a business process in enterprise systems. In EN-

TERprise Information Systems, volume 219 of Com-

munications in Computer and Information Science,

pages 139–146. Springer Berlin Heidelberg.

Hull, R., Su, J., and Vaculin, R. (2013). Data manage-

ment perspectives on business process management:

tutorial overview. In Proceedings of the 2013 interna-

tional conference on Management of data, pages 943–

948. ACM.

Kabbaj, M., Lbath, R., and Coulette, B. (2008). A deviation

management system for handling software process en-

actment evolution. In Wang, Q., Pfahl, D., and Raffo,

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

D. M., editors, Lecture Notes in Computer Science,

volume 5007, pages 186–197. Springer.

Matinnejad, R. and Ramsin, R. (2012). An analytical re-

view of process-centered software engineering envi-

ronments. In Engineering of Computer Based Sys-

tems (ECBS), 2012 IEEE 19th International Confer-

ence and Workshops on, pages 64–73.

Rangiha, M. and Karakostas, B. (2014). Process recommen-

dation and role assignment in social business process

management. In Science and Information Conference

(SAI), 2014, pages 810–818.

Ruiz-Rube, I., Dodero, J. M., Palomo-Duarte, M., Ruiz, M.,

and Gawn, D. (2012). Uses and applications of spem

process models. a systematic mapping study. Jour-

nal of Software Maintenance and Evolution: Research

and Practice, 1(32):999–1025.

Thompson, S., Torabi, T., and Joshi, P. (2007). A frame-

work to detect deviations during process enactment. In

Computer and Information Science, 2007. ICIS 2007.

6th IEEE/ACIS International Conference on, pages

1066–1073.

Yang, Q., Li, M., Wang, Q., Yang, G., Zhai, J., Li, J., Hou,

L., and Yang, Y. (2007). An algebraic approach for

managing inconsistencies in software processes. In

Software Process Dynamics and Agility, pages 121–

133.

Yong, Y. and Zhou, B. (2010). Software process devia-

tion threshold analysis by system dynamics. In Infor-

mation Management and Engineering (ICIME), 2010

The 2nd IEEE International Conference on, pages

121–125.

Zazworka, N., Basili, V., and Shull, F. (2009). Tool sup-

ported detection and judgment of nonconformance in

process execution. In Empirical Software Engineer-

ing and Measurement, 2009. ESEM 2009. 3rd Inter-

national Symposium on, pages 312–323.

Zhang, H., Kitchenham, B., and Jeffery, R. (2012). Toward

trustworthy software process models: an exploratory

study on transformable process modeling. Journal of

Software: Evolution and Process, 24(7):741–763.

AReviewofDetectingandCorrectingDeviationsonSoftwareProcesses
