Modeling Traceability for Heterogeneous Systems

Nasser Mustafa and Yvan Labiche

Carleton University, 1125 Colone by Drive, Ottawa, Ontario, Canada

Keywords: Traceability, Modeling, Heterogeneity, Characterization, Generic.

Abstract: In System Engineering, many systems encompass widely different domains of expertise; there are several

challenges in relating these domains due to their heterogeneity and complexity. Although, literature

provides many techniques to model traceability among heterogeneous domains, existing solutions are either

tailored to specific domains (e.g., Ecore modeling languages), or not complete enough (e.g., lack support to

specify traceability link semantics). This paper proposes a generic traceability model that is not domain

specific; it provides a solution for modeling traceability links among heterogeneous models, that is, systems

for which traceability links need to be established between artifacts in widely different modeling languages

(e.g., UML, block diagrams, informal documents). Our solution tackles the drawbacks of existing solutions,

and incorporates some of their ideas in an attempt to be as complete as possible. We argue that our solution

is extensible in the sense that it can adapt to new modeling languages, new ways of characterizing

traceability information for instance, without the need to change the model itself.

1 INTRODUCTION

Traceability refers to the ability of following the life

of software artifacts (Winkler and Pilgrim, 2010). It

has gained more attention in the past 20 years and is

mandated by many industries such as aviation,

automobile, and nuclear power. It is required to

certify or qualify systems and software products

(Pinheiro, 2004). Traceability needs arise due to

many problems during system development. For

example, during system development in the System

Engineering field there is a need to relate many

heterogeneous artifacts. These artifacts are not

necessarily software related; they can be also

mechanical or electrical. Moreover, these artifacts

can be modeled by different languages and different

tools. In this context, we use the term model in the

widest sense of the word, and the notion of model

includes (but is not restricted to) diagrams, plain

language texts, equations, and source codes.

Another problem arises due to the fluidity of

activities since not all traceability requirements are

known to the system engineer upfront. For example,

the granularity and the type of traced artifacts are not

easy to discover upfront. In several cases a system

engineer might need to obtain traceability

information of new artifacts, or he might want to

link two models, or a requirement to a model that

refines it. Therefore, the heterogeneity and fluidity

of artifacts require a traceability model that can

accommodate capturing the traceability information

of such artifacts. We have demonstrated the need of

such model in our previous work using the example

of full flight simulator.

Our search in the literature for a solution to the

problems discussed above was not successful

(Mustafa, 2015). The main reason is that, each

solution we found is tailored to a specific domain:

e.g., some solutions can only trace artifacts from

MOF-based models; and some solutions can only

trace during model transformation.

This paper contribution is manifold. It involves

the design of a generic traceability model oblivious

of the heterogeneity of the model’s elements that

need to be traced. We argue that our solution is

extensible in the sense that it can adapt to new

modeling languages, new ways of characterizing

traceability information for instance, without the

need to change the model itself. Our traceability

model should be able to receive different kinds of

artifacts in different kinds of models that are

generated from different tools. Our trace model

instance can then be used to support traditional

traceability management tasks such as querying to

identify broken traceability links (e.g., a requirement

is traced to a component, which is traced to a class

358

Mustafa N. and Labiche Y..

Modeling Traceability for Heterogeneous Systems.

DOI: 10.5220/0005520303580366

In Proceedings of the 10th International Conference on Software Engineering and Applications (ICSOFT-EA-2015), pages 358-366

ISBN: 978-989-758-114-4

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

operation, which does not trace to an

implementation). Note that the design of the

dedicated interpreters to feed the traceability model

instance from various modeling tools is outside the

scope of this paper, but others showed this is

possible in the limited case of I* and UML

(Cysneiros et al., 2003). Additionally, the use of

traceability information through query, visualization,

analysis, is outside the scope of this paper, although

there is no reason to believe this would be much

different than with other solutions. Our solution is

based on our previous work, where we identified the

requirements of a generic traceability model

(Mustafa, 2015).

The rest of the paper is structured as follows: we

discuss our solution, a traceability model, in section

2, justify our decisions, and argue that it brings

generality (heterogeneity of traces) and extensibility

(adapt to new models, new ways of characterizing

traceability information) without requiring changes

to the model itself, only its instantiation. Discussion

of related work can be found in our previous

publication (Mustafa, 2015) and is omitted from this

paper due to space constraints. We then validate our

solution in section 3, and conclude the paper in

section 4.

2 THE TRACEABILITY MODEL

In this section we discuss our traceability model

(section 2.2). Prior to this, we discuss the general

context of use of our solution: section 2.1.

2.1 Context of Use

We are proposing a new traceability modeling

solution to model traceability links between artifacts,

while accounting for requirements we stated in the

Introduction and in our previous work (Mustafa,

2015). We typically need to link artifacts that come

from widely different sources. We also want to

accommodate any taxonomy of traceability links

engineers may want to use. The solution should not

change when new artifacts, coming from newly

created modeling notations need to be traced, or

when new classification taxonomies need to be used.

One can view these two constraints as having to

identify a traceability model that can be extensible,

to accommodate new models, new artifacts,

different, possibly new ways of characterizing them,

without having to change the traceability model

itself. Only the instantiation (i.e., existing

traceability links) would have to be changed

(updated).

2.2 The Traceability Model Design

Our traceability model comprises classes that can

accommodate the capturing of traceability

information among heterogeneous artifacts. It

includes: the TraceabilityRoot class (Figure 1),

which acts as the root of the traceability model. Its

purpose is to hold the traceability information about

the artifacts under study. These include artifacts

created during a specific software/system

development. The name attribute is required to

retrieve or store all the traceability information that

the TraceabilityRoot instance holds (e.g., the

attribute name can be the name of the

software/system development which artifacts are

being traced to one another). A TraceabilityRoot

contains TraceElements (abstract class), which are

either instances of TraceLink, Trace, or Artifact. The

TraceElement class is associated to class

Characterization to allow the characterization of any

given trace element according to any taxonomy the

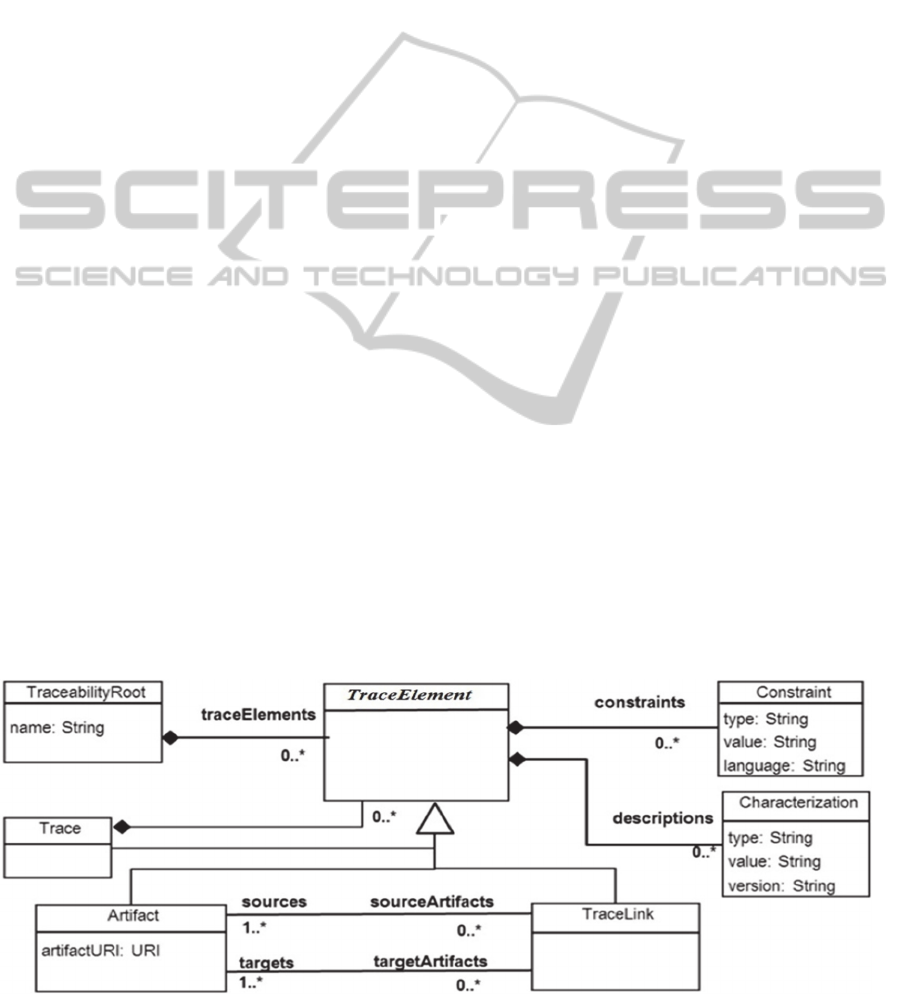

Figure 1: Generic Traceability Model.

ModelingTraceabilityforHeterogeneousSystems

359

user wishes to employ. These ideas are borrowed,

merged, and integrated from previous works, such as

(Ramesh and Edwards 1993; Drivalos et al., 2008;

Anquetil et al., 2010; Paige et al., 2011), though not

all come from a single of these works (we integrate

previous solutions). A Trace represents a sequence

(constraint {ordered} in the model) of chained trace

elements, generated during a sequence of model

transformations (e.g., as modeled by Falleri et al.,

(2006)), or simply to represent the transitive nature

of some traceability links where the target artifact of

a link becomes the source artifact of another link.

We opted for a composite pattern to provide

flexibility to the user of the model in handling a

Trace as a series of either TraceLink or Artifact

instances.

We decided to further specify, under the form of

an OCL constraint (not shown in the paper) that the

chained elements are either all Artifact or all

TraceLink instances, and forbid any mix of Artifact

and TraceLink instances (which is allowed by the

model class diagram) since we do not find it useful

to have such a mix; on the contrary we felt a mix

would hinder reasoning about the Artifact and

TraceLink instances that are involved in a Trace. In

addition to constraining the types being in the

sequence, the OCL constraint specifies that in case

the Trace instance is a sequence of TraceLink

instances, the target Artifact of the i

TraceLink

instance is the source Artifact of the (i+1)

TraceLink instance. Similarly, in case the Trace

instance is a sequence of Artifact instances, the i

and (i+1)

Artifact instances are the source and

target of a TraceLink instance.

A TraceLink instance represents a traceability

link between artifact(s): one or many source artifacts

and one or many target artifacts. Note that some

previous works limit those multiplicities to be

strictly 1, though we believe 1..* brings more

flexibility. Its purpose, thanks to (inherited)

associations to Characterization and Constraint, is

to capture information about the relationship

between source and target artifacts. The purpose of

Characterization is to characterize a TraceElement

according to zero or several taxonomies. Indeed, we

felt that different taxonomies characterizing

traceability links according to various dimensions

could be of interest in practice: e.g., the notions of

horizontal and vertical traceability, the categories

and traceability types (Ramesh and Edwards 1993),

categories of traceability types specific to MDE

software development (Paige et al., 2011).

We decided to exclude the specification of

specific taxonomies from our solution. The

advantage is that we are not tied to a specific set of

taxonomies, that we can use several taxonomies

together, and that our solution is therefore not

specific to either taxonomy and can evolve. In short,

the user can decide which taxonomies are important

to their context. The drawback is that our solution

may appear too generic or permissive: i.e., one can

provide meaningless characterization. This can

however be solved by requiring that

Characterization attribute only take allowed values

(in a specific set of taxonomies), which can be

enforced by means of constraints (class Constraint).

Class Artifact represents any traceable unit of

data such as a UML class diagram, a message in a

UML sequence diagram, a block in a block diagram,

a natural language requirement, a PDF document.

The resourceURI attribute specifies the exact

location of a traceable artifact, whether it is within a

model, a file, or a document. One very important

difference with many other attempts at modeling

traceability links, regarding the artifact specification,

is that our artifact specification is not tied to any

language with which the artifact being linked is

modeled: e.g., it is not tied to ECore languages as in

TML (Drivalos et al., 2008).

Artifact and TraceLink instances can be linked to

zero or several Constraint instances in order to

enforce some structural integrity of the model

instance, i.e., of the traceability information

(Drivalos et al., 2008; Paige et al., 2011). For

instance, one can specify that only certain types of

artifacts can be linked together, thereby forbidding

links between other kinds of artifacts; one can

specify that only specific characterizations can be

linked to a TraceLink (e.g., a trace link cannot be at

the same time horizontal and vertical). Since such

constraints are domain specific, they cannot be all

specified in the model and must be specified by the

Engineer. To that end, the Constraint class provides

attribute type to identify the constraint, attribute

value to specify the constraint itself, and attribute

language to specify the language in which the

description is written to then allow an algorithm to

trigger automatically the right constraints evaluation

engine: e.g., the type value could equal “OCL” and

the description could be an OCL expression. Our

traceability model is more generic than previously

published solutions since it can accommodate, by

design, tracing artifacts that come from widely

varying model types (i.e., class Artifact is not tied to

any other metamodel), tracing new kinds of artifacts

(because Artifact is not tied to any other

metamodel), from possibly new kinds of models,

and that those artifacts can be characterized in any

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

360

possible way the engineer sees fit (thanks to classes

Constraints and Characterization). Extensibility

without changing the model is ensured by the

abstract notion of Characterization, which can be

tailored (i.e., instantiated) to specific needs and can

be constrained thanks to class Constraint to enforce

structural integrity of the model instance. It is

interesting to note that the level of complexity of our

solution, for instance in terms of number of classes,

associations and attributes, is similar to that of other

solutions (e.g., (Drivalos et al., 2008; Anquetil et al.,

2010)), though it is more generic and addresses our

needs, contrary to those other solutions.

3 MODEL VALIDATION

Since our model is generic, its validation is not

trivial because we cannot define a threshold for the

required number of case studies to prove its

generality. Therefore, we envisioned the validation

in terms of four different criteria: (1) validity by

construction which means justifying the reasons for

the need of all our model elements (i.e., classes,

associations, cardinalities) as we have already done

in section 2.2; (2) showing that the existing

traceability models fail to accommodate all the

traceability requirements for our problem (Mustafa,

2015); (3) showing that our solution can model some

representative examples collected from related

works; and (4) showing that our solution can be

applied in a realistic industry context.

With respect to (2), we propose several

validation scenarios based on our design

requirements and show that all existing models fail

to satisfy some requirements (see requirements 1, 6,

7, 9, 10, 13, 14, 15, 19 in Table 1). The table shows

that each existing solution only satisfies at most six

of the 19 validation scenarios, and that together, all

solutions only satisfy 10 of the 19 validation

Table 1: Traceability model test cases and validation.

Traceability Model Characteristics Test Case Satisfied by

Independent of languages, tools,

frameworks

Check the characteristics of the existing models None

Horizontal traceability between artifacts of

heterogeneous models

Trace artifacts of heterogeneous models (Paige, 2011); (Anquetil, 2010).

Horizontal traceability across phases within

the same model.

Trace one requirement in one model to another

requirement in another model.

(Paige, 2011); (Anquetil, 2010);

(Pavalkis, 2008); (Drivalos, 2011);

(Falleri,2006); (Cysneiros, 2003).

Vertical traceability (i.e., tracing artifacts

within the same model or phase)

Trace one requirement in analysis phase to

another requirement at the same phase.

(Pavalkis, 2008); (Drivalos, 2011);

(Falleri,2006); (Cysneiros, 2003);

(Paige, 2011); (Anquetil, 2010).

5 Trace cardinality between artifacts: 1-1 Trace a source requirement to a target test case

(Pavalkis, 2008); (Drivalos, 2011)

(Falleri,2006); (Cysneiros, 2003);

(Paige, 2011); (Anquetil, 2010).

6 Trace cardinality between artifacts: 1-M

Trace one source requirement to two target

requirements that refine it.

None

7 Trace cardinality between artifacts: M-N Tracing many to many artifacts None

8 Bidirectional traceability Trace a requirement to a use case and vice versa.

(Pavalkis, 2008); (Cysneiros,

2003); (Anquetil, 2010).

More than one characterization to a trace

link

Use two orthogonal characterizations None

10 More than one characterization to an artifact Characterize an artifact by its type and location None

11 Tracing artifacts of different granularities Trace a requirement in a word file to a use case. (Anquetil, 2010).

12 Constraint to a trace, artifact, or trace link Apply an OCL constraint to a trace link

(Pavalkis, 2008); (Cysneiros,

2003); (Anquetil, 2010).

13 More than one constraint to a trace. Apply two OCL constraints to a trace None

14 More than one constraint to an artifact Apply two OCL constraints to a requirement None

15 More than one constraint to a trace link. Apply two OCL constraints to a trace link. None

Traceability information during model to

model transformation.

Identify a trace (chained trace links or artifacts)

in a sequence of model transformations.

(Falleri,2006).

17 Specifying the direction of the trace link.

Trace two artifacts A and B, where A is the

source and B is the target or vice versa

(Pavalkis, 2008); (Falleri, 2006);

(Paige, 2011); (Anquetil, 2010)

Prevents illegal links between certain

artifacts.

Define a constraint to prevent specific links. (Paige, 2011); (Anquetil, 2010).

19 Extensibility

Apply new characterization to a trace link by

creating a new instance of the characterization

class.

None

ModelingTraceabilityforHeterogeneousSystems

361

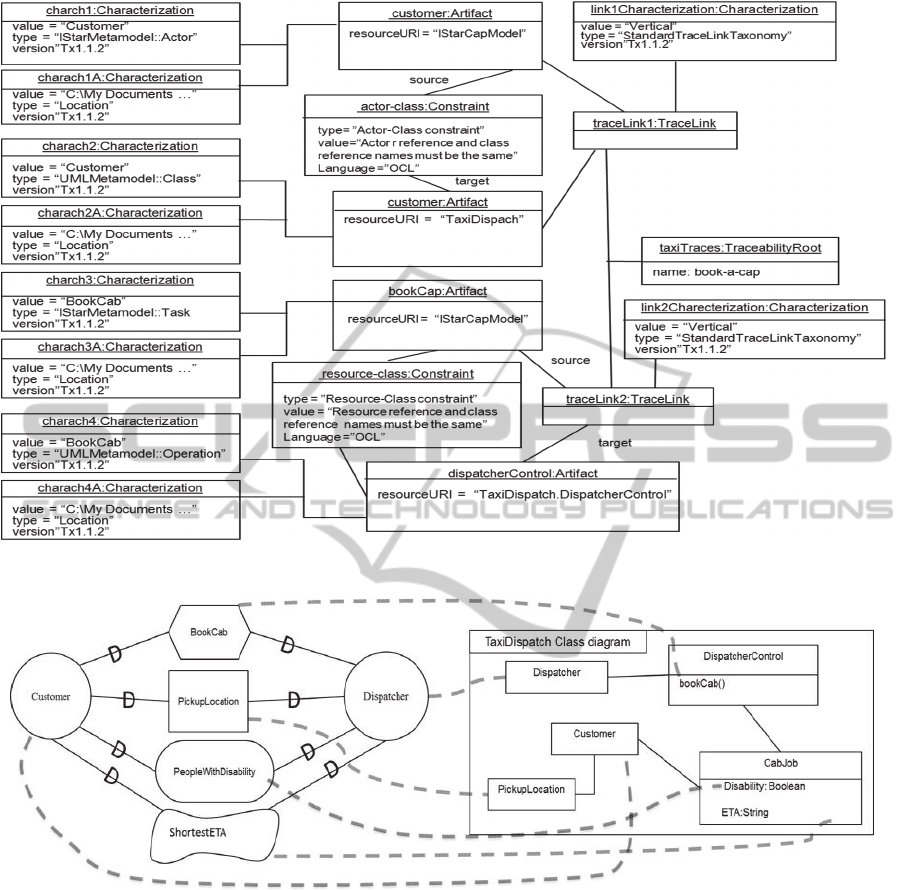

Figure 2: Traceability model instance for the example in Figure 3.

Figure 3: Traceability Example: I* (excerpt) model (left), UML (excerpt) class diagram (right), traceability links (grayed

dashed lines).

scenarios. Since, as discussed later, our solution

does satisfy all those scenarios, our solution is more

than the mere combination of existing ideas. For the

validation of our model against those unsatisfied

requirements, we instantiated all the examples

provided in the related work, sometimes adding to

the original examples to illustrates more aspects of

our solution. We used two examples from literature,

and validated most of those scenarios (section 3).

The instantiations of the two examples of this

paper show that our traceability model can

accommodate the traceability requirements (1, 9, 10,

14, 19) of Table 1, which cannot be satisfied by the

existing traceability models. It is not necessary to

validate requirements 6, 7, 13, and 15 with an

example since they are satisfied by construction:

multiplicities in our model; and they are not satisfied

by existing solutions (again by construction). Step

(4) is under way, and there would anyway not be

enough room in this paper due to size constraints to

do that in addition to step (3). Note that “None” in

Table 1 means that the existing models fail to satisfy

the required scenario.

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

362

3.1 Case Study 1: Traceability between

I* Model and UML Class

We use this example to validate the extensibility of

our model by demonstrating how an artifact or a

trace link can have different characterizations as

wished by the engineer, and how different

constraints can be applied to a source or target

artifacts without changing the model. When tracing

between an I* model and a UML class model (Paige

et al., 2011), I* actors and resources trace to UML

classes, I* goals, either hard or soft ones trace to

UML class attributes, and I* tasks trace to UML

class operations. We illustrate this using a cab

dispatching system, whereby a customer wants a

dispatcher to book a cab for a specific pick up

location, possibly requesting a cab that can

accommodate people with disabilities, and is

interested in the expected time of arrival (ETA): see

the I* excerpt diagram in Figure 3 (left), with I*

actors Customer and Dispatcher, I* resource

PickupLocation, I* goals PeopleWithDisability and

ShortestETA (hard and soft goals, respectively).

Figure 3 (right) shows a UML class diagram with

five different classes and some attributes and

operations. The figure shows, as greyed out dashed

lines between I* artifacts and UML class diagrams

artifacts, the traceability links that need to be

established according to Paige and colleagues (Paige

et al., 2011). In addition, we defined the following

constraints to be enforced on the artifacts and links

of I* and UML models:

 The instance of Attribute (Disability) that is

linked to an instance of HardGoal

(PeopleWithDisability) must be of Boolean type

to verify whether a hard goal is fulfilled or not.

 The name of an Actor in the I* model and the

name of the linked Class in the UML model

must be identical to ensure models are consistent.

 The name of a Resource in the I* model and the

name of the linked Class in the UML model

must be identical to ensure models are consistent.

(Note that, as per Table 1 such constraints cannot be

specified with the solution of Paige and colleagues).

Figure 2 shows the instantiation of our

traceability model for the traceability information in

Figure 3. This is only an excerpt, because of size

constraints, showing the traceability link of I*

Customer actor to the UML class Customer, and the

I* BookCab task to the UML BookCab(). The

instantiation illustrates many important aspects of

our traceability model. First, it can capture

traceability information of heterogeneous models

(i.e., I* and UML models). Second, it provides

flexibility to the model’s user to apply more than

one characterization to an artifact, for instance,

customer instance in Figure 3 is instantiated with

two characterizations (see test case 10, Table 1).

Third, the traceability model stayed unchanged,

although the traceability requirements can vary

based on application needs.

3.2 Case Study 2: Traceability in

Model Transformation

This example is borrowed from Falleri and

colleagues (Falleri et al., 2006) and demonstrates

how our model handles traceability in case of model

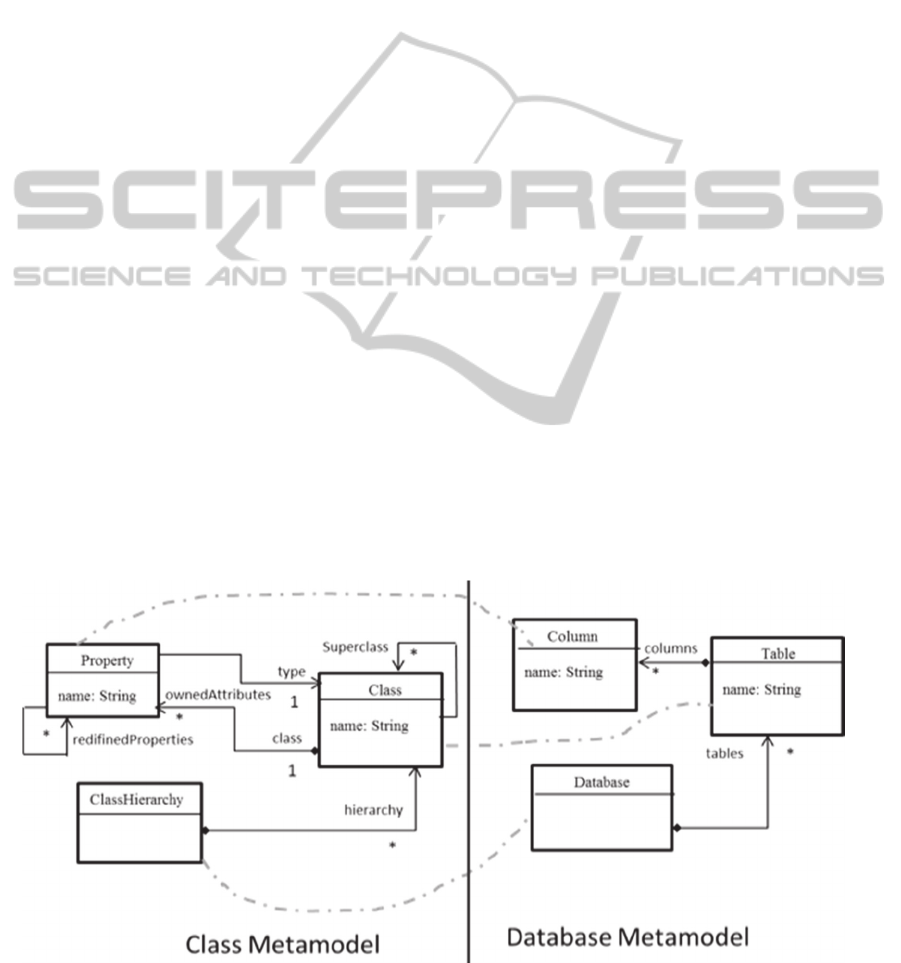

Figure 4: Metmodels of UML Class to Database mapping.

ModelingTraceabilityforHeterogeneousSystems

363

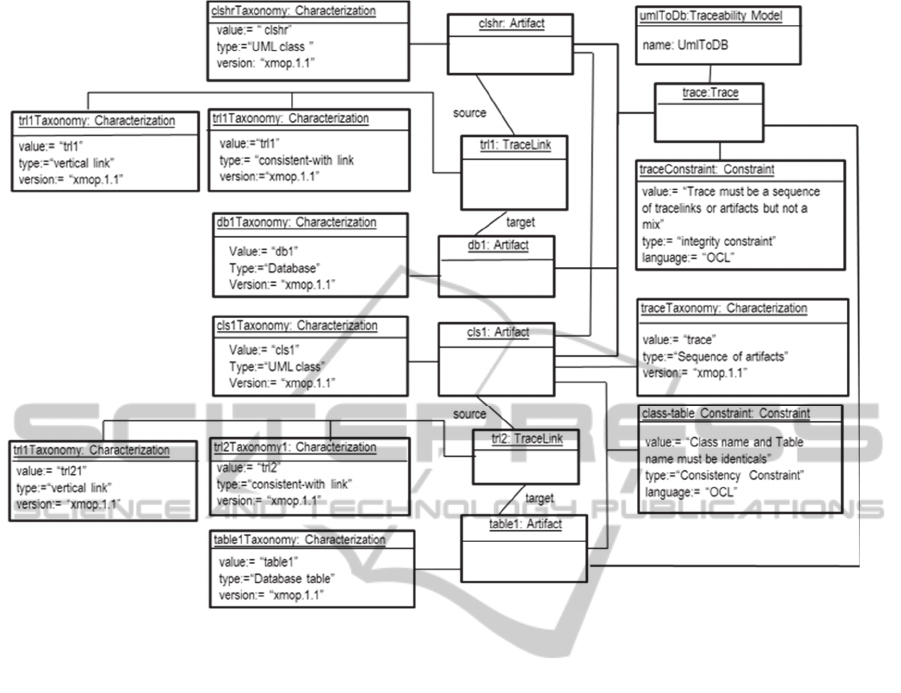

Figure 5: Traceability instance for the example in Figure 4.

transformation while applying constraints on the

traces, specifically, from a UML class diagram to a

database schema: Figure 4. The Trace class in our

model is utilized to handle such a transformation.

The greyed dashed lines in Figure 4 show a mapping

between a UML metamodel and database

metamodel. A class hierarchy in the UML model

must transform into a database, a class in the UML

model must transform into a database table, and a

property in the UML model must transform into a

database column. The following constraints must be

enforced during the transformation in addition to the

constraints on the Trace class mentioned in section

2: The name of a table that is transformed from a

class should be the same as that class’ name; The

name of a table column that is transformed from a

UML Property should be the same as this Property’s

name. In addition we identified the following trace

links with characterizations that belong to

orthogonal taxonomies: all the links are Vertical

links since they link artifacts at two levels of

abstraction; all the links are Consistent-with links

since they ensure consistency between the two

models.

Figure 5 shows an excerpt instantiation of our

traceability model that corresponds to Figure 4. Note

that the constraints are written in pure English for

demonstration purposes. Also, the instance of the

Trace class (trace) in this example represents an

ordered set of artifacts. This example demonstrates

different aspects about our model than the previous

case study. First, it demonstrates how our model can

accommodate model-to-model transformations using

the Trace class (test case 16 in Table 1). Second, it

allows the user to add constraints to an artifact (test

case 14, Table 1). Third, it allows the user to identify

multiple levels of granularity for a trace link

characterization: e.g., the Tracelink instance trl1 in

Figure 5 can have coarse grained characterization

(vertical) or fine grained characterization

(consistent-with), (test case 9, Table 1).

4 CONCLUSIONS

Traceability in its simplest form is the ability to

describe and follow the life of software artifacts

(Winkler and Pilgrim 2010). In our work we

consider traceability needs during the engineering of

systems that are realized through software and

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

364

hardware solutions, and that include a wide range of

disciplines and therefore heterogeneous modeling

notations.

We argued that, as a result, the solution to model

traceability information between artifacts in many

models that specify a system must be oblivious of

the solutions being used to model those artifacts.

Additionally, we argued that the solution to model

traceability should accommodate the situation where

new artifacts, possibly in new models, need to be

traced, where new ways of characterizing artifacts

and traceability links need to be used. The solution

to model traceability information should be flexible

to accommodate many different situations.

We have proposed a traceability model that can

address all those general issues, while at the same

time incorporating ideas from many previous works

on traceability modeling. We showed that this novel

fusion of previous ideas, to satisfy specific

requirements, is more than their sum. Indeed, we

derived validation scenarios from the requirements

and showed that each existing solution only satisfies

at most six of the 19 validation scenarios, and that

together, all solutions only satisfy 10 of the 19

validation scenarios.

Given the level of artifacts generality, validating

our solution is a challenge. On the one hand, we

argued that our traceability model addresses the

requirements by design: we described and justified

the classes, associations, and attributes in our model

based on our knowledge of the literature and the

problem we had to solve. One the other hand, we

proceeded with respect to validation of our solution

similarly to all the other traceability metamodeling

techniques we have reviewed, that is, we used (two)

instantiation examples we collected from the

literature and enriched. In doing so we showed

which aspect of our validation requirements are

illustrated with which case study to cover as many

cases as possible given space constraints. Future

work will necessarily involve additional validation

activities.

We have started is to systematically illustrate

how our solution can accommodate the examples

found in the literature (similarly to what we did in

section 2.2). We will also have access to realistic

traceability requirements from our industry partners.

REFERENCES

Aizenbud-Reshef, N., B. T. Nolan, J. Rubin, et al. (2006).

"Model traceability " IBM Sys. J. 45(3): pp. 515–526.

Amar, B., H. Leblanc and B. Coulette (2008). A

Traceability Engine Dedicated to Model

Transformation for Software Engineering. EC-MDA -

Traceability Workshop.

Anquetil, N., U. Kulesza, A. Moreira, et al. (2010). "A

model-driven traceability framework for software

product lines.” Softw. Syst. Model 9(4): pp. 427-451.

Cysneiros, F., A. Zisman and G. Spanoudakis (2003).

Traceability approach for I* and UML models. Int.

Workshop on Soft. Eng. for Large-Scale Multi-Agent

Systems.

Drey, Z., C. Faucher, F. Fleurey, et al. (2014). "Kermeta

language reference manual." Available at:

http://www.kermeta.org/docs/fr.irisa.triskell.kermeta.d

ocumentation/build/pdf.fop/KerMeta-Manual/

KerMeta-Manual.pdf. (Accessed 10 Sep 2014).

Drivalos, N., D. S. Kolovos, R. F. Paige, et al. (2008).

Engineering a DSL for software traceability. Software

Language Engineering.

Espinoza, A., P. Alarcon and J. Garbajosa (2006).

"Analyzing and Systematizing Current Traceability

Schemas." Software Engineering Workshop, Annual

IEEE/NASA pp. 21-32.

Falleri, J., M. Huchard and C. Nebut (2006). Towards a

traceability framework for model transformations in

kermeta. ECMDA - Traceability Workshop.

Gotel, O. and A. Finkelstein (1994). An Analysis of the

Requirements Traceability Problem. Proceedings of

the Int. Conf. on Requirements Eng..

Kolovos, D., R. Paige and F. Polack (2008). Detecting and

Repairing Inconsistencies Across Heterogeneous

Models. IEEE ICST.

Kolovos, D. S., L. Rose, A. Garcia-Dominguez, et al.

(2014). 'The Epsilon Validation Language', in (eds.)

The Epsilon Book. pp. 57-76.

Mustafa, N. and Labiche, Y. (2015). 'Toward Traceability

Modeling for the Engineering of Heterogeneous

Systems', Modelsward.

Object Management Group. (2014a). "Business process

Model Notation (BPMN)." Available at:

http://www.omg.org/bpmn/Documents/BPMN_1-

1_Specification.pdf. (Accessed 20 July, 2014).

Object Management Group. (2014b). "Object Constraint

Language (OCL)." Available at: http://www.omg.org/

spec/OCL. (Accessed 20 July, 2014).

Paige, F., N. Drivalos, D. S. Kolovos, et al. (2011).

"Rigorous identification and encoding of trace-links in

model-driven engineering." SoSyM 10(4): pp. 469-

487.

Pavalkis, S., L. Nemuraite and E. Milevičienė (2011).

Towards Traceability Metamodel for Business Process

Modeling Notation.

IFIP Advances in Information and

Communication Technology: pp. 177-188.

Pinheiro, F. A. C. (2004). 'Requirements traceability', in J.

C. Sampaio do Prado Leite and J. H. Doorn (eds.)

Perspectives on software requirements. Springer pp.

91-113.

Ramesh, B. and M. Edwards (1993). Issues in the

Development of a Requirements Traceability Model.

IEEE Int. Symp. on Requirements Eng.

Spanoudakis, G. and A. Zisman (2005). 'Software

ModelingTraceabilityforHeterogeneousSystems

365

Traceability: A road map', in S. K. Chang (eds.)

Handbook of Software Engineering and Knowledge

Engineering. pp. 395-428.

Winkler, S. and J. Pilgrim (2010). "A survey of

traceability in requirements engineering and model-

driven development." SoSyM 9(4): pp. 529-565.

Yu, E. (2009). 'Social modeling and I*', in A. T. C.

Borgida, V. K., P. Giorgini and E. S. Yu (eds.)

Conceptual Modeling: Foundations and Applications.

Springer. pp. 99-121.

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

366
