Feature and Decision Level Audio-visual Data Fusion in

Emotion Recognition Problem

Maxim Sidorov

, Evgenii Sopov

, Ilia Ivanov

and Wolfgang Minker

Institute of Communication Engineering, Ulm University, Ulm, Germany

Department of Systems Analysis and Operations Research, Siberian State Aerospace University, Krasnoyarsk, Russia

Keywords: Emotion Recognition, Speech, Vision, PCA, Neural Network, Human-Computer Interaction (HCI), Feature

Level Fusion, Decision Level Fusion.

Abstract: The speech-based emotion recognition problem has already been investigated by many authors, and

reasonable results have been achieved. This article focuses on applying audio-visual data fusion approach to

emotion recognition. Two state-of-the-art classification algorithms were applied to one audio and three visual

feature datasets. Feature level data fusion was applied to build a multimodal emotion classification system,

which helped increase emotion classification accuracy by 4% compared to the best accuracy achieved by

unimodal systems. The class precisions achieved by applying algorithms on unimodal and multimodal

datasets helped to reveal that different data-classifier combinations are good at recognizing certain emotions.

These data-classifier combinations were fused on the decision level using several approaches, which still

helped increase the accuracy by 3% compared to the best accuracy achieved by feature level fusion.

1 INTRODUCTION

Image classification is a complex machine learning

task that has been investigated by many authors.

There are numerous problems being solved in this

field, and as many practical applications. One such

application is the human emotion recognition

problem.

This work focuses on researching the idea of

audio-visual data fusion in an attempt to improve the

emotion recognition rate. First, the audio features are

extracted from audio streams, and video features are

extracted from video frame sequences. Once

extracted, the audio and video feature datasets

undergo a dimensionality reduction procedure by

applying PCA. The reduced datasets are used to build

unimodal emotion recognition systems by applying

two state-of-the-art classification algorithms: a

support vector classifier trained by a sequential

minimal optimization algorithm, and feed-forward

neural network.

The key idea of this work is to evaluate and

compare the classification rates of audio and visual

unimodal systems, and use the most effective of them

to perform feature level data fusion in order to check

if this helps to increase the emotion recognition rate.

Also, more detailed research is performed on emotion

class accuracies so as to determine which data-

algorithm combination is doing better at predicting

each emotion class.

Another aspect of this work is the decision level

fusion of the data-algorithm combinations that were

the best at predicting each emotion class. Such fusion

of the systems that do well on recognizing distinct

emotion classes supposedly will result in a higher

overall emotion classification rate.

Several video feature extraction algorithms are

used: Quantized Local Zernike Moments (QLZM),

Local Binary Patterns (LBP) and Local Binary

Patterns on Three Orthogonal Planes (LBP-TOP).

QLZM and LBP-TOP are state-of-the-art image and

video feature extraction algorithms that are designed

to grasp all the main features necessary for solving

such problems as human face identification, gender

recognition, age recognition, and emotion

recognition. LBP is a classical algorithm which is

used by many researchers in the field of image

recognition and pattern classification. This algorithm

is rather simple, and provides a good baseline

accuracy estimate in image recognition tasks.

The rest of the paper is organized as follows:

Significant related work is presented in Section 2,

Section 3 provides a description of methodology,

246

Sidorov M., Sopov E., Ivanov I. and Minker W..

Feature and Decision Level Audio-visual Data Fusion in Emotion Recognition Problem.

DOI: 10.5220/0005527002460251

In Proceedings of the 12th International Conference on Informatics in Control, Automation and Robotics (ICINCO-2015), pages 246-251

ISBN: 978-989-758-123-6

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

which includes feature extraction, dimensionality

reduction and classification steps. In Section 4 is

presented a description of the audio-visual database

that is used in this work, while Section 5 deals with

experiments setup and the results achieved.

Concluding remarks and plans for future work can be

found in Section 6.

2 SIGNIFICANT RELATED

WORK

The paper by Rashid et al. (Rashid et al., 2012)

explores the problem of human emotion recognition

and proposes the solution of combining audio and

visual features. First, the audio stream is separated

from the video stream. Feature detection and 3D

patch extraction are applied to video streams and the

dimensionality of video features is reduced by

applying PCA. From audio streams prosodic and mel-

frequency cepstrum coefficients (MFCC) are

extracted. After feature extraction the authors

construct separate codebooks for audio and video

modalities by applying the K-means algorithm in

Euclidean space. Finally, multiclass support vector

machine (SVM) classifiers are applied to audio and

video data, and decision-level data fusion is

performed by applying Bayes sum rule. By building

the classifier on audio features the authors received

an average accuracy of 67.39%, using video features

gave an accuracy of 74.15%, while combining audio

and visual features on the decision level improved the

accuracy to 80.27%.

Kahou et al. (Kahou et al., 2013) described the

approach they used for submission to the 2013

Emotion Recognition in the Wild Challenge. The

approach combined multiple deep neural networks

including deep convolutional neural networks

(CNNs) for analyzing facial expressions in video

frames, deep belief net (DBN) to capture audio

information, deep autoencoder to model the spatio-

temporal information produced by the human actions,

and shallow network architecture focused on the

extracted features of the mouth of the primary human

subject in the scene. The authors used the Toronto

Face Dataset, containing 4,178 images labelled with

basic emotions and with only fully frontal facing

poses, and a dataset harvested from Google image

search which consisted of 35,887 images with seven

expression classes. All images were turned to

grayscale of size 48x48. Several decision-level data

integration techniques were used: averaged

predictions, SVM and multi-layer perceptron (MLP)

aggregation techniques, and random search for

weighting models. The best accuracy they achieved

on the competition testing set was 41.03%.

In the work by Cruz et al. (Cruz et al., 2012) the

concept of modelling the change in features is used,

rather than their simple combination. First, the faces

are extracted from the original images, and Local

Phase Quantization (LPQ) histograms are extracted in

each n x n local region. The histograms are

concatenated to form a feature vector. The derivative

of features is computed by two methods: convolution

with the difference of Gaussians (DoG) filter and the

difference of feature histograms. A linear SVM is

trained to output posterior probabilities. and the

changes are modelled with a hidden Markov model.

The proposed method was tested on the Audio/Visual

Emotion Challenge 2011 dataset, which consists of

63 videos of 13 different individuals, where frontal

face videos are taken during an interview where the

subject is engaged in a conversation. The authors

claim that they increased the classification rate on the

data by 13%.

In (Soleymani et al., 2012) the authors exploit the

idea of using electroencephalogram, pupillary

response and gaze distance to classify the arousal of

a subject as either calm, medium aroused, or activated

and valence as either unpleasant, neutral, or pleasant.

The data consists of 20 video clips with emotional

content from movies. The valence classification

accuracy achieved is 68.5 %, and the arousal

classification accuracy is76.4 %.

Busso et al. (Busso et al., 2004) researched the

idea of acoustic and facial expression information

fusion. They used a database recorded from an actress

reading 258 sentences expressing emotions. Separate

classifiers based on acoustic data and facial

expressions were built, with classification accuracies

of 70.9% and 85%respectively. Facial expression

features include 5 areas: forehead, eyebrow, low eye,

right and left cheeks. The authors covered two data

fusion approaches: decision level and feature level

integration. On the feature level, audio and facial

expression features were combined to build one

classifier, giving 90% accuracy. On the decision

level, several criteria were used to combine posterior

probabilities of the unimodal systems: maximum –

the emotion with the greatest posterior probability in

both modalities is selected; average – the posterior

probability of each modality is equally weighted and

the maximum is selected; product - posterior

probabilities are multiplied and the maximum is

selected; weight - different weights are applied to the

different unimodal systems. The accuracies of

decision-level integration bimodal classifiers range

FeatureandDecisionLevelAudio-visualDataFusioninEmotionRecognitionProblem

247

from 84% to 89%, product combining being the most

efficient.

3 METHODOLOGY

3.1 Feature Extraction and

Dimensionality Reduction

The first step is to extract audio and visual features

from raw audio-visual data. Audio features are

extracted using openSMILE – open source software

for audio and visual feature extraction (Eyben et al.,

2010).Video features are extracted using 3 different

algorithms:

 Quantized Local Zernike Moments (QLZM)

(Sariyanidi et al., 2013);

 Local Binary Patterns (LBP);

 Local Binary Patterns on Three Orthogonal

Planes (LBP-TOP).

The QLZM and LBP algorithms extract features from

every single video frame in a video sequence,

whereas LBP-TOP deals with spatio-temporal space

which includes several consecutive frames. The

number of such frames is the LBP-TOP parameter

and can be changed. Images with their original

resolution were used as an input for QLZM algorithm,

whereas for LBP and LBP-TOP video frame images

were resized from 1280:1024 resolution to a width of

200 pixels, saving the width-height proportion. For

the LBP algorithm the following parameters were

used: uniform mapping type with 8 sampling points,

radius - 1. LBP-TOP parameters: radii along X, Y,

and T axis - (1; 1; 1), number of sampling points in

XY, XT and YT planes - (8; 8; 8).

The samples were constructed by means of

averaging over the whole audio/video sequence, thus

1 audio/video recording has 1 corresponding feature

vector.

All data was normalized, and PCA was applied to

the datasets for dimensionality reduction. The number

of principal components was truncated by using the

Kaiser's rule: the principal components whose ߣ

values were less than or equal to 1 were removed from

the model, where ߣ refers to dataset covariance

matrix eigen values.

A description of the extracted audio and video

samples is presented in table 1.

3.2 Classification

The resulting unimodal sets of audio and visual

features were used as an input for 2 classification

algorithms: a support vector classifier trained by a

sequential minimal optimization algorithm (W-SMO)

(Platt, 1998), and feed-forward Neural Network.

Rapidminer and R language algorithm

implementations were used. The classification

algorithms were applied on audio and every video

dataset to determine the emotion classification

accuracies of unimodal systems. Also, the emotion

class accuracies were determined for each data-

algorithm combination. The most promising datasets

regarding classification accuracy were combined into

a single dataset, i.e. feature level data fusion was

performed. Also the audio-visual dataset was

constructed by combining all available datasets.

Some data-algorithm combinations showed better

classification accuracies on distinct emotion classes.

These data-algorithm combinations outputs were

fused on the decision level by applying several

techniques:

 Voting - the class that gained the most votes

among base learners is chosen;

 Average class probabilities - the class probability

outputs of the base learners are averaged;

 Maximum class probabilities - the maximum class

probability is chosen among all base learners;

Table 1: Audio, video and combined datasets description, # of attributes (PCA) - number of attributes after dimensionality

reduction, QLZM - Quantised Local Zernike Moments, LBP - Local Binary Patterns, LBP-TOP - Local Binary Patterns on

Three Orthogonal Planes; one feature vector per one audio/video file.

Data # of attributes # of attributes (PCA) # of cases

Audio 984 131 480

QLZM 656 36 480

LBP 59 4 480

LBP-TOP 177 10 480

Audio + LBP-TOP - 140 480

Audio-visual (Audio + QLZM + LBP +

LBP-TOP)

- 180 480

ICINCO2015-12thInternationalConferenceonInformaticsinControl,AutomationandRobotics

248

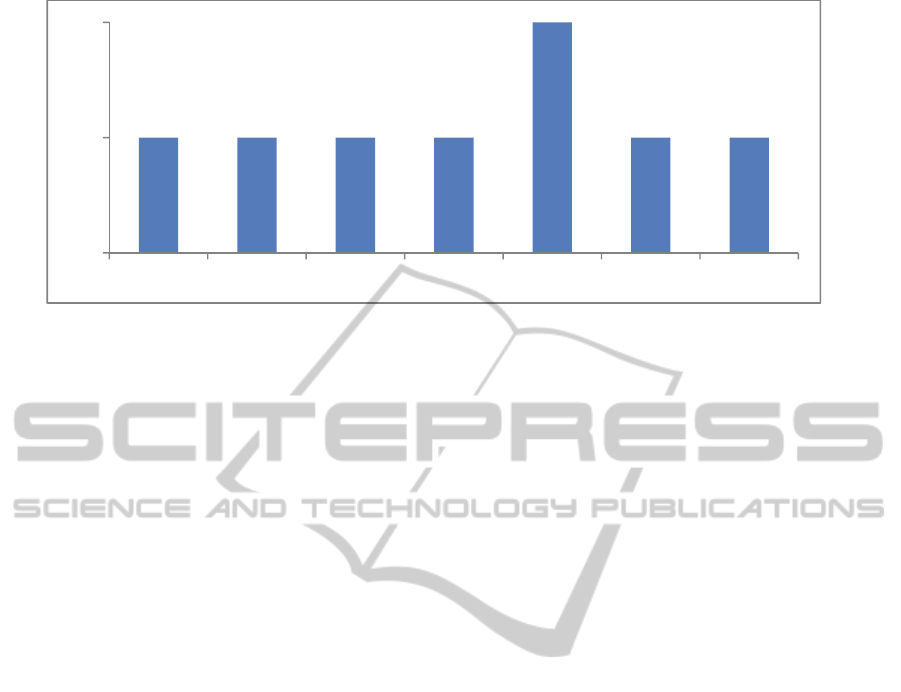

Figure 1: Database emotion classes distribution.

 SVM meta-classifier - an extra SVM meta-learner

is trained, the class probability outputs of the base

learners are used as input variables, the true class

label serves as output variable. The base learners

training and meta-learner training is performed on

disjoint parts of the training set.

4 DATABASE DESCRIPTION

The SAVEE database (Haq et al., 2009) was used as

a data source in this work. The database includes

audio-visual information of 4 male speakers reading

a pre-defined set of phrases with seven main

emotions: anger, disgust, fear, happiness, neutral,

sadness and surprise. The overall number of audio-

visual recordings is 480. The database includes audio

data, audio-visual clips, and sets of split video frames.

Fig. 1 shows the database emotion class distribution.

As can be observed, there are the same number of

video files with all emotions except for neutral state.

The small dataset size and the fact that there are only

male speakers in the dataset is a drawback, which

means that in future work the results presented in this

publication should be tried out on a larger dataset,

which may improve results.

5 EXPERIMENTS SETUP AND

RESULTS

Two classification algorithms were applied to solve

the emotion classification problem: W-SMO and

Neural Network. The independent speaker

classification scheme was used, which means that the

data on three speakers was used as a training dataset,

and the data on the remaining speaker was used as a

test dataset. The classification accuracies were

averaged over four different dataset train/test splits

(4-fold cross-validation). Neural network parameters:

# of hidden layers – 2, # of neurons per hidden layer

– (# of attributes + # of classes)/2 + 1, training cycles

– 200, learning rate – 0.3. W-SMO parameters: the

complexity constant C = 1, normalization is on,

tolerance parameter L = 0.001, fit logistic models to

SVM outputs is off, the polynomial kernel is used.

Experimental results can be found in table 2. As

can be observed from Table 2, audio and LBP-TOP

features yield better classification accuracy on both

algorithms. This can be explained by the fact that

audio and LBP-TOP features grasp more information

about human emotions than QLZM and LBP.

Combining audio and LBP-TOP features helped

improve classification accuracy up to 40.78%.

Table 4 shows class precision for different data-

algorithm combinations. As can be observed, all

emotions except for sadness can be recognized quite

well by using unimodal and multimodal datasets.

Anger is best recognized by applying the W-SMO

algorithm on the LBP-TOP dataset, happiness is best

recognized by applying a neural network on the

combined audio-visual dataset etc.

Table 3 shows the classification accuracies

achieved by applying decision level fusion techniques

on the data-algorithm combinations that achieved

best accuracies on distinct emotion classes.

Averaging class probability outputs of the base

learners improved the classification rate up to

43.48%, which is almost 3% higher compared to the

best accuracy achieved by applying feature level

fusion.

At the bottom of table 4 the class precision values

for decision level fusion systems are presented. It

turned out that the best class accuracies are achieved

by decision level fusion systems.

Table 2: Emotion classification accuracy (%), speaker independent classification, unimodal systems and feature level fusion.

120

Anger Disgust Fear Happiness Neutral Sadness Surprise

FeatureandDecisionLevelAudio-visualDataFusioninEmotionRecognitionProblem

249

Data W-SMO Neural Network

Audio 36.73 35.42

QLZM 14.58 14.44

LBP 20.35 14.24

LBP-TOP 29.03 26.39

Audio + LBP-TOP 40.78 35.18

Audio + QLZM + LBP + LBP-TOP 27.24 27.35

Table 3: Emotion classification accuracy (%), decision-level fusion over the most effective data-algorithm combinations

according to class precisions.

Decision level fusion technique Accuracy

Voting 41.88

Average class probabilities 43.48

Maximum class probabilities 33.75

SVM meta-classifier 43.12

Table 4: Class precision (%), feature level and decision level fusion of the most effective data-algorithm combinations.

Algorithm Data

Emotion

Anger Disgust Fear Happiness Neutral Sadness Surprise

W-SMO

Audio 41.90 38.31 43.21 35.61 39.95 27.71 30.56

QLZM 13.31 8.48 4.47 7.50 27.49 2.08 0.00

LBP 16.07 5.23 0.00 23.44 0.00 0.00 1.58

LBP-TOP

63.24

8.93 12.36 43.85 50.93 4.35 25.00

Audio + LBP-TOP 62.22

41.17

51.82 58.64 69.95

28.24 64.26

Audio + QLZM +

LBP + LBP-TOP

46.50 12.77 16.67 51.72

83.33

6.67 55.56

Neural Network

Audio 57.81 35.62 45.64 42.44 38.99 11.74 19.38

QLZM 3.40 32.84 20.35 12.50 60.30 1.67 11.36

LBP 5.58 2.34 0.00 21.70 8.33 0.00 0.00

LBP-TOP 43.75 7.63 20.77 25.14 19.24 19.71 23.30

Audio + LBP-TOP 51.34 39.54

53.95

58.66 66.40 21.16 56.74

Audio + QLZM +

LBP + LBP-TOP

39.50 21.31 32.86

61.31

51.89 3.70 52.78

Voting

68.65

38.63 48.66

65.00

71.82 19.91 76.39

Average class probabilities over all

algorithm/data combinations

50.85 35.52

71.76

46.78 66.87 33.93 68.75

Maximum class probabilities over all

algorithm/data combinations

57.97 38.92 50.62 55.95

93.69

35.96 0.00

SVM meta-classifier 63.89

41.91

62.44 58.16 86.74

38.89 90.00

ICINCO2015-12thInternationalConferenceonInformaticsinControl,AutomationandRobotics

250

6 CONCLUSIONS AND FUTURE

WORK

While the automatic emotion recognition problem

still remains a rather hard task, there are some ways

to solve it more effectively. First, the right corpora

should be chosen. In this article we tried several

audio-visual feature extraction algorithms to test if

combining audio-visual features on the feature level

would yield better performance. It turned out that for

both classification algorithms used in this work that

statement holds true. Also, the class precision results

made it possible to define data-algorithm

combinations that do best at recognizing certain

distinct emotions. Fusing those data-algorithm

combinations on the decision level improved the

classification rate by 3%.

In future the authors plan to perform a broader

research of the ideas included in this article, by

applying a wider variety of classification algorithms,

on a more extensive dataset. The idea of feature

selection will be researched as a substitute for using

the PCA for dimensionality reduction of audio-visual

datasets.

ACKNOWLEDGEMENTS

The authors express their gratitude to Mr. Ashley

Whitfield for his efforts to improve the text of this

article.

REFERENCES

Haq, S., Jackson, P. J. B. (2009) Speaker-dependent audio-

visual emotion recognition. In Proc. Int. Conf. on

Auditory-Visual Speech Processing (AVSP'09),

Norwich, UK, pp.53-58, September 2009.

Rashid, M., Abu-Bakar, S. A. R., Mokji, M. (2012). Human

emotion recognition from videos using spatio-temporal

and audio features. Vis Comput (2013), 29: 1269-1275.

Kahou, S. E., Pal, C., Bouthillier, X., Froumenty, P.,

Gulcehre, C., Memisevic, R., Vincent, P., Courville, A.,

Bengio, Y. (2013). Combining modality specific deep

neural networks for emotion recognition in video.

ICMI'13, December 9-13, 2013, Sydney, Australia.

Cruz, A., Bhanu, B., Thakoor, N. (2012). Facial emotion

recognition in continuous video. In Proceedings of the

21st International Conference on Pattern Recognition

(ICPR 2012), November 11-15, 2012, Tsukuba, Japan.

Soleymani, M., Pantic, M., Pun, T. (2012). Multimodal

emotion recognition in response to videos. IEEE

Transactions on affective computing, vol. 3, no. 2,

April-June, 2012.

Eyben, F., Wullmer, M., Schuller, B. (2010). openSMILE -

The Munich Versatile and Fast Open-Source Audio

Feature Extractor. In Proceedings ACM Multimedia

(MM), ACM, Florence, Italy, ISBN 978-1-60558-933-

6, pp. 1459-1462, 25.-29.10.2010.

Sariyanidi, E., Gunes, H., Gokmen, M., Cavallaro, A.

(2013). Local Zernike Moment Representation for

Facial Affect Recognition. BMVC'13.

Busso, C., Deng, Z., Yildirim, S., Bulut, M., Lee, C. M.,

Kazemzadeh, A., Lee, S., Neumann, U., Narayanan, S.

(2004). Analysis of Emotion Recognition using Facial

Expressions, Speech and Multimodal Information.

University of Southern California, Los Angeles,

http://sail.usc.edu.

Platt, J. (1998). Sequential Minimal Optimization: A Fast

Algorithm for Training Support Vector Machines.

TechReport MSR-TR-98-14, Microsoft Research.

FeatureandDecisionLevelAudio-visualDataFusioninEmotionRecognitionProblem

251
