Animation and Automatic Evaluation to Support Programming

Teaching

Paula Correia Tavares

, Pedro Rangel Henriques

and Elsa Ferreira Gomes

1,3

Departamento de Informática,Instituto Superior de Engenharia do Porto, Rua Bernadino de Almeida, Porto, Portugal

Departamento de Informática, Universidade do Minho, Campus de Gualtar, Braga, Portugal

GECAD- Knowledge Engineering Decision Support, Instituto Superior de Engenharia do Porto, Porto, Portugal

1 RESEARCH PROBLEM

Learning programming is a complex task that poses

significant challenges.

Students face different kinds of difficulties at

complex levels that traditional teaching/learning

methods are nor able to cope with resulting in a high

rate of failures.

Two very distinguished concepts that are

incredibly misunderstood by the students are:

learning programming and learning the syntax of a

programming language.

Programming is, first of all, to outline strategies

in order to solve problems, regardless of the

language used. In fact, this task involves several

steps that go from the understanding of the work

proposal to the test of the program, passing through

the algorithm development and codification.

Although we believe the codification is not the

main difficulty, previous studies had conclude that

(Gomes, 2010), the adopted programming paradigm

and the language used have a huge impact in the

learning process and consequently in the task

performance.

Learning how to program is an iterative process.

The solution to a complex problem can be obtained

in a successive steps solving simpler problems and

enriching the previous solutions.

It is only possible to learn how to program by

programming. Following this approach, students can

understand and acquire problem-solving strategies.

Therefore, it is obvious that an active behavior by

the student, instead of a passive behavior, leads to an

improvement in his ability to solve the proposed

problems.

However, teachers realize that in most cases,

when students are requested to solve a particular

problem, they are not able to start the task, neither

on paper nor in the computer. Even when they break

this initial inertia, they often become discouraged

and give up easily as soon as they face the first

hurdle. Under these circumstances, the students’

main difficulties are:

 Understanding the problem due to their

unfamiliarity with the subject or due to the

inability to understand the problem statement;

 Lacking logic thinking to write the correct

algorithm to solve a given problems;

 Learning the language syntax and semantics.

The above difficulties identified in learning

programming led to the creation of languages and

development environments that smooth the

designing of algorithms, or the writing and the

analyzing of programs.

New teaching/learning approaches must be

devised. The resort to computer supported education

specially tailored to programming activities shall be

explored

For this reason, several authors have researched

the pedagogical effectiveness of program

visualization and animation, and developed some

tools. Animation can help students on the analysis

and understanding of given programs, and can also

guide on the development of new ones.

Besides that, it is very important to give students

the opportunity to practice solving programming

exercises by themselves. Receiving feedback is

essential for knowledge acquisition. New tools arose

(especially in the area of programming contests) to

allow for the submission of solutions (programs

developed by the students) to the problem statements

presented by the teacher and to assess them,

returning immediately information about the

submitted answer. These tools can be incorporated

into teaching activities, allowing students to test

their work getting immediate feedback. Automatic

evaluation systems significantly improve students

performance.

In this article are shown two approaches to the

teaching of programming, animation and automatic

assessment are reviewed, and a new pedagogical

practice resulting from combination of both is

Correia Tavares P., Rangel Henriques P. and Ferreira Gomes E..

Animation and Automatic Evaluation to Support Programming Teaching.

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

proposed.

2 OUTLINE OF OBJECTIVES

The goal of the Ph.D. work is summarized below:

 To provide means for an easier understanding of

programs

 To make students increase their ability to

practice regularly programming, since the first

day, obtaining immediate feedback.

We believe that this can increase their motivation,

engagement and consequently improving the

academic success.

3 STATE OF THE ART

The animation tools provide a visual metaphor that

significantly help the understanding of complex

concepts. Therefore, these tools allow the students to

find the dynamics of hard to understand but

extremely important processes. In this way, the

student is stimulated to progress in his activity

(Hundhausen et al., 2002).

In this sector, beyond discussing the animation

strategy, we will also discuss the importance of

feedback in the teaching-learning process. In this

perspective, we will analyze the impact of tools for

automatic evaluation of programs when integrated in

teaching process.

3.1 Animation

Several authors have been concerned about the use

of graphic interfaces that enable a way of

communication between the user and the computer

not restricted to a textual form (Hansen et al., 1999)

(Stasko and Kehoe, 1996) (Hundhausen and

Douglas, 2000).

Aiming to enhance the learning process, many

educators and computer scientists have been

dedicated to the construction of animation,

visualization and simulation systems (computational

programs). The great motivation is to appeal to the

human visual system potential.

The key question is how to apply these methods

in order to help students to deal with complex

concepts.

Many researches (Brown and Sedgewick, 1985)

(Korhonen, 2003), (Kerren and Stasko, 2002) have

been working to identify the rules that should be

followed while designing and creating visualizations

and animations effective for teaching. As it

computational programs con be hard to understand

when presented in a textual format; however it is

expected that a better comprehension could be

achieved with an animated graphic format (Pereira,

2002).

An animation is a natural approach of expressing

behaviors. Particularly, the animation of an

algorithm is a dynamic visualization of their main

abstraction. So, its importance lies on the ability to

describe the algorithm logical essence.

When inspecting the control and data of a

program to understand its behavior, we have, at the

first time, two big choices: do it during code

execution (debugging), or simulate the execution in

another environment (Pereira, 2002). For teaching

purposes we believe that the second approach is

clearly the most interesting. Thus, means animation

system is a tool that allows build animations kind of

interactively. In this context, there are several tools

that try to introduce basic programming concepts

through a familiar and pleasant environment in order

to help students learn to program. The following list

shows some of these most well known tools:

BALSA (Saraiya, 2002), TANGO (Hughes and

Buckley, 2004), Jeliot (Silva et al., 2009), Alma

(Pereira and Henriques, 1999), SICAS (Mendes et

al, 2004), OOP-Anim (Santos et al., 2010) (Esteves

and Mendes, 2003), VILLE (Rajala et al., 2007),

JIVE (Lessa et al., 2011). All of these tools are

concerned with visualization or animation of

programs written in traditional programming

languages (C, Java, etc.). Besides these, there are

also some programming environments less

conventional that allow to edit, run, and view

programs developed in visual languages designed

for the purpose of facilitating the teaching of

programming: AMBAP (Xavier et al., 2004), Alice2

(see http://www.alice.org/), Scratch (see

http://scratch.mit.edu), etc. As referenced above,

several authors became interested in this problem.

They develop less complex and appealing

environments than the professional environments,

with important features for novice programmers.

These systems have long been used to allow

understanding important aspects in programming

through animation pseudo-code, flowcharts, or

programs written in specific or general programming

languages such as Pascal, C, Java, and others. The

most interesting and appealing are those that allow

students to introduce and simulate their own

algorithms and programs. The animation based at

simulation allows introduce the dynamic

visualization of the program and help student

AnimationandAutomaticEvaluationtoSupportProgrammingTeaching

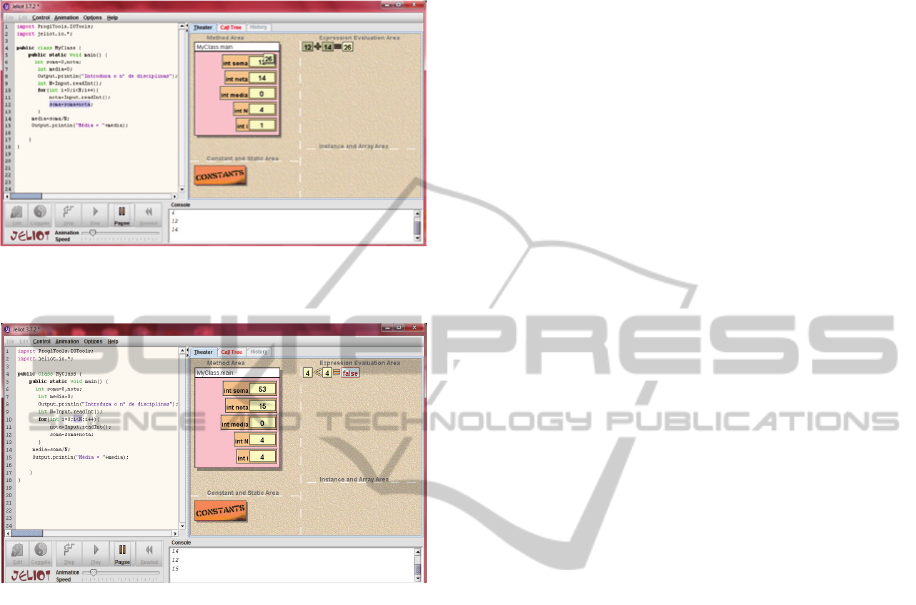

comprehension at his own pace. To understand this

idea, Figure 1 and Figure 2 show illustrative

screenshots of Jeliot System.

Figure 1: Jeliot interface - Java Class to calculate an

average.

Figure 2: Jeliot interface - Java Class to calculate an

average.

The figures show two moments in the animation

of a class to calculate an average. Figure 1 illustrates

the steps when a new value is being added to the

sum (execution of an assign statement); Figure 2

exhibits another step when cycle stop condition is

being evaluated. The sequence of these images,

corresponding to the execution of each statement

produces the animation of the class as desired.

3.2 Automatic Evaluation

It´s very important to give students the opportunity

to practice and solve programming exercises by

themselves.

The maximum effectiveness of this approach

requires the teacher's ability to rate and review each

resolution. Instant feedback is very important for the

acquisition of knowledge. Independently of the

particular learning strategy, it motivates students.

However, in large classes and with few lecture

hours, this approach is impractical. Individual

feedback may consume too much teacher´s time

with risk that students don’t benefit from it in due

time (Queirós and Leal, 2015).

To solve this problem, there are a large number

of online submission systems that support the

automatic evaluation for the programming problems

(Queirós and Leal, 2012).

Different studies show that these systems enable

students to autonomously develop programming

skills and significantly improve their performance

(Verdú et al., 2011).

Since not all students are motivated in the same

way, it is important to provide different learning

environments: individual (traditional), collaborative

(group work), competitive (competitions), among

others. Taking advantage of the human spirit of

competition, competitive learning increases

commitment and leads to a greater involvement of

students in practical activities.

Competitions with automatic evaluation are

becoming important for the practice of

programming. However, differences in motivation

and feelings between losers and winners can exist.

These negative effects can be minored through

different practices, such focusing on learning and

fun rather than in a competition.

New tools have emerged to facilitate and enable

their use in teaching activities, allowing students to

incorporate tests in its work. These tools increase the

level of satisfaction and motivation of students.

According to teachers and students, feedback should

be as quickly and detailed as possible. These tools

do not replace the teacher, but provide help and

increase the value of time in the classroom. The

proposed problems have different levels of difficulty

and feedback is useful for an increased

understanding of programming for the students.

Teachers should be able to select the problems they

intend to present to the students according to their

level of difficulty (Verdú et al., 2011). With suitable

software tools, correctness of the program can be

determined with an indication of the quality

according to a set of metrics. It´s not easy to find a

unique approach to the problem of assessment of

programming works. Different teachers can adopt

different strategies, depending on their specific goals

and objectives of the course, especially of his own

style and preferences (Joy et al., 2005). So, the

problem is related to the resources required to

manage the evaluation of practical exercises. The

students receive accurate feedback at the right time

to the benefit of their learning. Most of the tools

available for this purpose include the delivery of

works and automatic evaluation. This is adequate for

an initial learning where knowledge and

CSEDU2015-DoctoralConsortium

understanding are being tested. The final goal is to

provide new learning strategies to motivate students

and make programming more accessible and an

attractive challenge. Boss (Heng et al., 2005),

Mooshak (Leal and Silva, 2008) and EduJudge

(Verdú et al., 2011) are examples of such tools.

Their main goal, besides testing the students'

answers against a set of data input and give a rating,

is to allow the evaluator motivate students through

precise and rapid feedback.

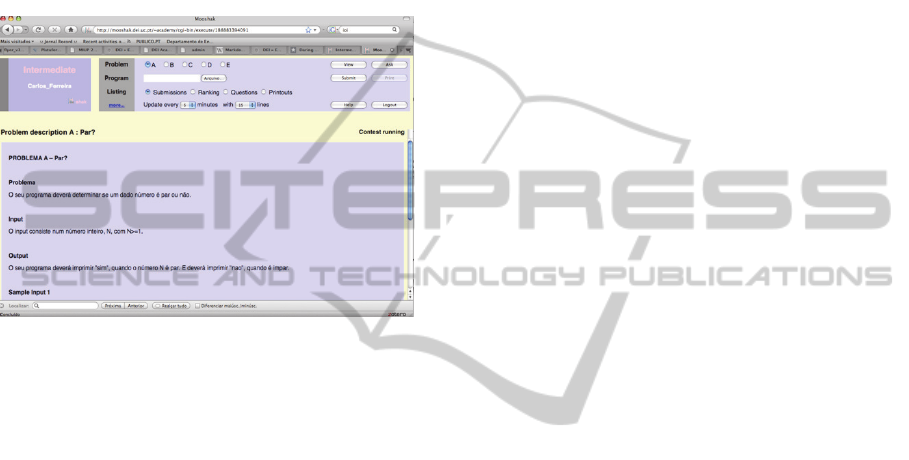

Figure 3: Mooshak System Interface.

Figure 3 shows a Mooshak screen illustrating the

simplicity and ease of its interface. In addition to the

statement of the problem to solve, shown in the

center window, it´s possible to see the different

options on the top window.

4 METHODOLOGY

To achieve this goal we intend to follow a method

based on the steps:

 Bibliographic research (theoretical and

technological);

 Reasoning about the research evidences and

writing;

 Proposal of a new approaches/strategies;

 Experimentation in the classroom.

According to the feedback obtained in the last phase,

we will iterate over the four steps above.

5 EXPECTED OUTCOME

In order to increase the motivation and self-

confidence of students of Introductory Programming

courses, we presented in this paper a proposal for a

doctoral thesis. Our goal is to clearly identify the

difficulties that actually arise in this process and

suggest different approaches, supported on computer

resources to minimize these difficulties.

So, the expected outcome of this Ph.D. work is a

set of strategies to improve the success of

programming courses. These strategies will be based

on the use of computers and computer applications

that can increase the involvement of students in

comprehension and development tasks. The proposal

will combine several tools originally created with

different objectives.

6 STAGE OF THE RESEARCH

The first year of this Doctoral Program, PDInf, was

devoted to literature review in order to write the

state-of-the-art chapters.

At present the first proposal design is

undergoing. It is based on the principal that students

should analyse a good solution (well-solved

examples) before starting their own resolution.

To be more concrete we introduce in the sequel a

summary of this proposal.

We suggest that for each topic to teach, the

teacher prepare two groups of similar exercises.

For the first group of exercises, the teacher

discusses the problem statement, outlines the

resolution (an algorithm) and presents the program

that solves it. Then the student can make its

animation and so analyse / understand the solution.

For the second set of exercises, after discussing

the proposal, the teacher asks the students to solve

and to test the solution produced through an

automatic evaluation system.

On a third moment, the teacher discusses with

students the feedback received from the evaluator.

This approach assumes that teachers select a

powerful animation tool and easy to use; and choose

an Automatic Evaluator System (AES) that, besides

friendly return feedback and provide a diagnosis. It

is also desirable that the Automatic Evaluator

Systems comment on the code quality. Currently the

idea is to do experiment Jeliot and Mooshak.

REFERENCES

Moore, R., Lopes, J., 1999. Paper templates. In

TEMPLATE’06, 1st International Conference on

Template Production. SCITEPRESS.

Smith, J., 1998. The book, The publishing company.

London, 2

edition.

Brown, M., Sedgewick, R., 1985. Techniques for

AnimationandAutomaticEvaluationtoSupportProgrammingTeaching

Algorithm Animation. IEEE SOFTWARE Vol2(1), pp

28-39.

Esteves, M., Mendes, A., 2003. OOP-Anim, a system to

support learning of basic object oriented programming

concepts. International Conference on Computer

Systems and Technologies - CompSysTech’2003.

Gomes, A., 2010. Difficulties of learning computer

programming. Contributions to the understanding and

resolution, Dificuldades de aprendizagem de

programação de computadores: contributos para a sua

compreensão e resolução. Dissertação submetida à

Universidade de Coimbra para obtenção do grau de

“Doutor em Engenharia Informática”.

Hansen, S., Narayanan, N., Schrimpsher, D., 1999.

Helping Learners Visualize and Comprehend

Algorithms. Proceedings of the World Conference on

Educational Multimedia, Hypermedia &

Telecommunications (ED-MEDIA'99).

Heng, P., Joy, M., Boyatt, R., Griffiths, N., 2005.

Evaluation of the BOSS Online Submission and

Assessment System.

Hughes, C., Buckley, J., 2004. Evaluating Algorithm

Animation for Concurrent Systems: AComprehension-

Based Approach. 16th Workshop of the Psychology of

Programming Interest Group. Carlow, Ireland, April.

In E. Dunican & T.R.G. Green (Eds). Proc. PPIG 16.

pp. 193-205.

Hundhausen, C., Douglas, S., Stasko, J., 2002. A Meta-

Study of Algorithm Visualization Effectiveness.

Journal of VisualLanguages and Computing 13, pp.

259-290.

Hundhausen, C., Douglas, S., 2000. Using Visualizations

to Learn Algorithms: Should Students Construct Their

Own, or View an Expert’s?. Proceedings 2000 IEEE

International Symposium on Visual Languages IEEE

Computer Society Press, Los Alamitos.

Joy, M., Griffiths, N., Boyatt, R., 2005. The BOSS Online

Submission and Assessment System. Journal on

Educational Resources in Computing, Volume 5 Issue

3, September.

Kerren, A., Stasko, J., 2002. Chapter 1 “Algorithm

Animation”, Volume 2269, pp. 1-15.

Korhonen, A., 2003. Visual Algorithm Simulation.

Dissertation for the degree of Doctor of Science in

Technology. At Helsinki University of Technology

(Espoo, Finland), November.

Leal, J., Silva, F., 2008. Using Mooshak as a Competitive

Learning Tool.

Lessa, D., Czyz, J., Jayaraman, B., 2011. JIVE: A

Pedagogic Tool for Visualizing the Execution of Java

Programs. SIGCSE 2011 Dallas, Texas, USA.

Mendes, A., Gomes, A., Marcelino, M., 2004. Evaluation

and evolution of a Environment Support for

Programming Learning, Avaliação e Evolução de um

Ambiente de Suporte à Aprendizagem da

Programação. VII Congresso Iberoamericano de

Informática Educativa.

Pereira, M., 2002. Systematization of Programs

Animation, Sistematização da Animação de

Programas. Dissertação submetida à Universidade do

Minho para obtenção do grau de doutor em

Informática, ramo Tecnologia da Programação,

Dezembro.

Pereira, M., Henrriques, P., 1999. Made Algorithms

Animation Systematic, Animação de Algoritmos

tornada Sistemática. In 1º Workshop Computação

Gráfica, Multimédia e Ensino. Leiria.

Queirós, R., Leal, J., 2012. Exercises Evaluation Systems -

An Interoperability Survey. In Proceedings of the 4th

International Conference on Computer Supported

Education (CSEDU), Volume 1, pp.83-90. Porto.

Queirós, R., Leal, J., 2015. Ensemble: An Innovative

Approach to Practice Computer Programming. In R.

Queirós (Ed.), Innovative Teaching Strategies and

New Learning Paradigms in Computer Programming

(pp. 173-201). Hershey, PA: Information Science.

Rajala, T., Jussi, M., Erkki, L., Salakoski, K., 2007.

VILLE – A Language-Independent Program

Visualization Tool. Seventh Baltic Sea Conference on

Computing Education Research (Koli Calling 2007),

Koli National Park, Finland, November 15-18.

Santos, Á., Gomes, A., Mendes, A., 2010. Integrating New

Technologies and Existing Tools to Promote

Programming Learning. Algorithms , Vol3, pp.183-

196.

Saraiya, P., 2002. Effective Features of Algorithm

Visualizations. Thesis submitted to the Faculty of the

Virginia Polytechnic Institute and State University for

the degree of Master of Science In Computer Science,

July.

Silva, M., D'Emery, R., Neto, J., Bezerra, Y., 2009.

Programming structures: A Experiment with

Jeliot,Estruturas de Programação: um Experimento

com Jeliot. IX Jornada de Ensino Pesquisa e Extensão

(JEPEX) da UFRPE.

Stasko, J., Kehoe, C.,1996. Using Animations to Learn

about Algorithms: An Ethnographic Case Study.

Technical Report GIT-GVU-96-20, September 1996.

Verdú, E., Regueras, L., Verdú, M., Leal, L., Castro, J.,

Queirós, Q., 2011. A distributed system for learning

programming on-line. Computers & Education 58, pp.

1–10.

Xavier, G., Garcia, D., Silva, G., Santos, A., 2004. Factors

that Influencing Introductory Learning Programming,

Estudo dos Fatores que Influenciam a Aprendizagem

Introdutória de Programação.

http://www.uefs.br/erbase2004/documentos/weibase.

CSEDU2015-DoctoralConsortium
