Secure Data Integration Systems

Fatimah

Y. Akeel

1,2

, Gary B. Wills

, Andrew M. Gravell

Electronics and Computer Science, University of Southampton, Southampton, U.K.

King Saud University, Riyadh, Saudi Arabia

Abstract: With the web witnessing an immense shift towards publishing data, integrating data from diverse sources

that have heterogeneous security and privacy levels and varying in trust becomes even more challenging. In

a Data Integration System (DIS) that integrates confidential data in critical domains to contain a problem

and make faster and reliable decisions, there is a need to integrate multiple data sources while maintaining

the security levels and privacy requirements of each data source before and during the integration. This

situation becomes even more challenging when using cloud services and third parties in achieving any part

of the integration. Therefore, such systems face a threat of data leakage that compromises data

confidentiality and privacy. The lack of literature addressing security in DIS encourages this research to

provide a data leakage prevention framework that focuses on the level prior to the actual data integration,

which is the analysis and early design of the system. As a result, we constructed SecureDIS, an architectural

framework that consists of several components containing guidelines to build secure DIS. The framework

was confirmed by 16 experts in the field and it is currently being prepared to be applied on a real-life data

integration context such as the cloud context.

1 RESEARCH PROBLEM

Integrating personal or sensitive data sources

originating from different organisations that vary in

security and privacy requirements is a challenging

task. The main reason for this is that the integration

occurs at two different levels, one is the data level

and the other is the level of the security and privacy

requirements that belong to each data source. The

latter raises concerns of conflict between security

and privacy requirements (Yau and Chen 2008). In

addition, there is an issue of difficulty in maintaining

those requirements throughout the complete

integration process. To further aggravate the

situation, the entities providing the information, or

participating in the integration, can vary in their

levels of trustworthiness. Hence, the integration

process should not be focused on the data level only.

It should address the level of combining security and

privacy requirements and consider trustworthiness.

Achieving data integration without considering

maintaining the combination of the Security,

Privacy, and Trust (SPT) aspects of the entities

participating in the integration process leads to

different threats. One important threat is

unauthorised access to data, caused by weakness,

mis-configuration, or inappropriate access controls

models (Braghin et al. 2003; Watson 2007; Pistoia et

al. 2007). Another example is the wide spectrum of

inference attacks occurring from failure to address

privacy (Fung et al. 2012; Boyens et al. 2004;

Whang and Garcia-Molina 2012; Clifton et al.

2004). Yet another example is the untrustworthy

behaviour caused by entities involved in the

integration process, such as initiating transitive trust

with other entities without the consent of the DIS

(Fung et al. 2012). These threats are combined under

a generic threat called Data Leakage, which is

defined as the disclosure of confidential information

to unauthorised entities intentionally or

unintentionally (CWE 2013).

As mentioned, the failure to combine the SPT

together in a system may allow data leakage to

occur. Additionally, the mis-design of the SPT

features of the system can lead, eventually, to data

leakage. Therefore, data leakage threats can be

controlled if the systems are designed to address

SPT from the start and consider the combination of

the SPT of each source and entity.

Current approaches found in the literature to

secure a DIS in general, are either focused on a

specific component of the system, such as the

integration approach, or focused on a specific

attribute over the whole system, such as privacy.

However, there is a need for an approach that

considers all the components of the system at the

same time as to considering several attributes that

contribute to the overall security of the system.

Akeel F., B. Wills G. and Gravell A..

Secure Data Integration Systems.

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

The data integration literature found covers the

aspect of privacy in a specific component of the

DIS, addressing privacy-preserving data integration

and data mining techniques extensively. However, in

terms of security requirements, there is a separate

body of literature that is concerned with combining

the security polices of entities collaborating together,

and not particularly in data integration context(Cruz

et al. 2008). Very limited literature has been found

that discusses these two levels together, such as the

work by Haddad, Hacid & Laurini (2012) and to the

best of my knowledge, no literature has addressed

the combination of SPT in a DIS context. In any

case, many approaches simply assume that the

entities collaborating or integrating are trustworthy.

This lack of literature encourages this research to

investigate the security in data integration contexts,

and to focus on the level prior to the actual data

integration, which is the analysis and early design of

the system.

2 OUTLINE OF OBJECTIVES

The main objective of this study is to find a solution

that allows integration, collaboration, and data

sharing between different organisations while

maintaining individual security policies of the

participating entities. We argue that maintaining the

confidentiality and protecting privacy while

considering trust in each entity in the DIS with a

middle layer (e.g. cloud) will reduce the threat of

data leakage.

Our approach focuses on guiding the design of

DIS to include confidentiality, privacy, and trust

aspects. This can be achieved by the following

stages:

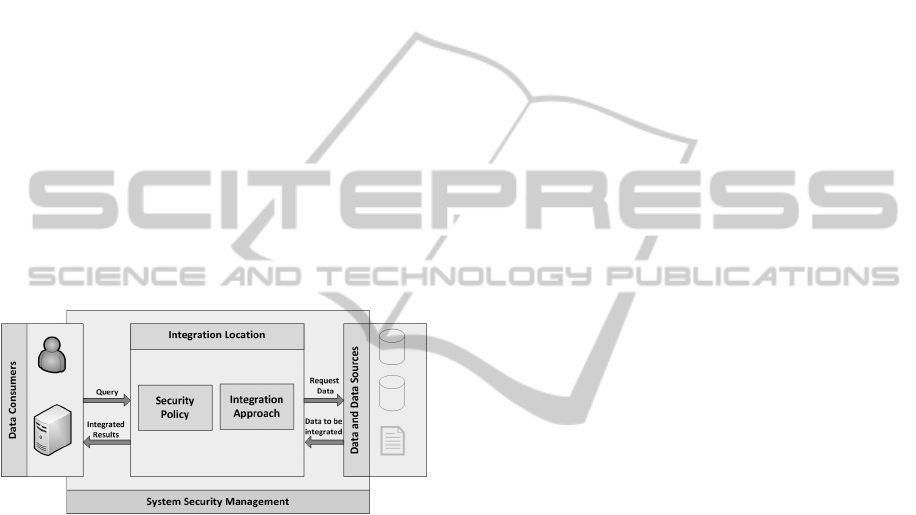

 Identifying the architectural components of

DIS with a middle layer.

 Identifying the possible data leakage locations

within the DIS architecture.

 Identifying the confidentiality, privacy and

trust weaknesses that cause data leakage threats

in DIS components.

 Creating a framework that contains the DIS

architectural components.

 Creating an initial set of guidelines that aim to

reduce possible data leakage threats.

 Linking the guidelines with the appropriate

framework components.

 Confirming the framework and its guidelines

with experts in the field.

 Using the framework on a cloud-computing

context to assess its usefulness in reducing

threats of data leakage.

3 STATE OF THE ART

This section provides the scope of the topics covered

by this study and defines the key concepts. In

addition, it discusses the themes of the reviewed

literature and provides a critique relevant to the

scope of this study.

3.1 Scope and Definitions

Data integration systems are usually complex

(Russom 2008) and have different variations and

forms. Therefore, to manage this study, the scope is

focused on DIS that use a middle layer to manage

the interaction between data sources and data

consumers and achieve integration. The data sources

used in such systems originate from different

organisations and hence they vary in security and

privacy requirements and trust levels.

The important aspects of the scope are defined as

follows:

Security: is usually defined as the combination

of confidentiality, integrity and availability (ISO

2014). The attribute of concern in this study is

confidentiality; other attributes are assumed to be

implemented. Confidentiality is achieved by limiting

access to data to aauthorised individuals, entities and

processes.

Privacy: is concerned with protecting personal

information (Gollmann 2006) and determining

when, how and what type of information can be

exposed to others (Jawad et al. 2013). The attribute

of concern is anonymity, to ensure that personal

information is not exposed.

Trust: is the belief that an entity will behave in a

predictable manner by following a security policy

(Ross et al. 2014).

Data leakage: is disclosing private information

intentionally or unintentionally to unauthorised

parties (CWE 2013).

3.2 Securing DIS Components

Few works in the published literature have suggested

securing DIS as a whole by considering privacy and

trust. However, trust is still an issue in distributed

systems. Prakash & Darbari (2012) discuss several

security approaches that aim to enforce trust, such as

the use of trust models. They also discussed risk

management as a method to evaluate trust. Van Den

SecureDataIntegrationSystems

Braak et al. (2012) propose a framework that aims to

support data sharing among different public

organisations. It preserves privacy through sharing

data based on a need-to-know principle, where data

is provided only when required for a specific

process. The authors propose the notion of a Trusted

Third Party (TTP). The TTP is responsible for

integrating and sharing data between different

government organisations. The proposed framework

contains two parts: the first part is data integration

techniques to achieve privacy, while the second part

provides guidelines on data sharing that ensure

security and trust. Nevertheless, the guidelines

provided mainly focus on the Integration Location

and Data and Data sources components of the DIS

rather than the system as a whole. However, the

integration covered was across government

organisations, and thus, still under the same security

policies; therefore, the risks of violating the

integrated security policy were not present as one of

the security and privacy challenges that the approach

overcomes. In addition, in this approach, trust is

assumed, and it lacks guidance on the need to

establish trust or evaluate it in relation to other

entities. Therefore, when security and privacy

challenges are discussed in this work, they do not

include trust threats because it is assumed in the first

place, and those challenges are not particularly

addressed as data leakage threats. Finally, although

the proposed guidelines are reasonable to prevent

data leakage threats, they are not linked to any

specific phase of the software development and

therefore it is not clear when to apply the guidelines

to the SDLC.

The approach proposed by Clifton et al. (2004) is

a privacy framework for data integration. The

purpose of the framework is to provide an insight

into the privacy challenges in data integration. It

provides several research directions, one of them

emphasizes the need for a privacy framework that

considers users privacy views to expose and hide

sensitive attributes, privacy policies implementing

these views and a purpose statement specifying

which data is allowed to be accessed and integrated.

The solutions discussed to preserve privacy in data

integration consider the following components: data

and data sources, integration approach, data

consumers and security policy only. The integration

location and the management of the process of the

integration are not addressed within the framework.

In addition, it is not presented with any link to

software development. It should be mentioned that

the authors have addressed data leakage mainly

through discussing the difficulty of preventing

multiple query attacks. The heterogeneity in the

security and privacy policies are only briefly

addressed and there is no specific focus on them in

terms of their relation to the Integration Approach.

Trust, on the other hand, is not addressed at all as

one of the challenges within the framework.

The work of Bhowmick et al. (2006) is very

similar to that of Clifton et al. (2004); however, it

proposes a more detailed architecture and a

framework for privacy-preserving data integration

and sharing deployable DIS. It includes security and

policy considerations by suggesting adding a

security policy component to the system. It also

provides several suggestions on preserving privacy

in different DIS components. The architecture

covers most of the DIS architectural components

except the management. However, the level of detail

provided in terms of integrating the various security

policies of the data sources and the integration

location is not sufficient. In addition, the suggestions

provided are not listed in the form of technical or

practical security guidelines. It also does not present

the framework from a clear specific development

phase.

A policy integration method that combines the

authorization policies of data sources integrating and

sharing data is proposed by Haddad, Hacid, &

Laurini (2012).The method focuses on creating a

global security policy that consists of local security

policies of the participating data sources in the

integration process. This global policy is enforced

within the mediator level i.e. Integration Location

component. According to this approach, queries will

not be processed unless they are authorised by a

source. Therefore, the access to sources will be

preserved. One of the limitations of this approach is

that it covers the security policies generated by Data

Sources and the Integration Location; but it does not

consider the actual data Integration Approach and

the Data Consumers, nor Management. In addition,

it does not consider the trustworthiness of the

entities participating in the integration process.

Furthermore, it does not explicitly specify the

software development phase in which the approach

can be used.

Another work by Jurczyk and Xiong (2008)

focuses on privacy preserving data integration. It

proposes several protocols for data anonymization in

addition, to a general architecture for data

integration. Hu and Yang (2011) propose a privacy

protection model for DIS by using semantic

approaches. The works reviewed in this section are

primarily focused on privacy, which can be related

to security, and little or no attention to trust is given

CLOSER2015-DoctoralConsortium

in these works. In addition, the approaches provided

are applicable to relational databases and do not

consider other data formats.

Generally, the literature provides practical and

applicable solutions expected to solve problems in a

specific DIS component. However, the security of

the whole system is discussed only in a limited way

in the literature. Studies usually assume that the

provided data is secure and comes from trustworthy

entities. However, from a security perspective, data

sources are considered an important and effective

element to guarantee the security of a DIS. Data

sources can therefore fall under the data-centric

security category within the information security

field, and having security-meta data would help in

distinguishing secure sources from unsecure ones.

In organisations that employ data integration to

integrate private data, there is a need to manage data

access and authorization. A carefully selected access

control model that enforces security policies is

essential. Therefore, organisations need to create

well-defined security policy that enforces data

security, privacy and protection. To ensure the

security of a DIS, the combination of the individual

security policies of each data source needs to be

carefully considered. There are many studies of

security policies and access controls that cover

policy integration in different contexts; however,

there is an evident lack in considering trust. One

possible reason is that organisations usually

integrate data coming from their own data sources,

which are assumed to be trustworthy.

In DIS, the resulted integrated data are normally

requested using queries by data consumers, which

can be humans or services. Data consumers are an

important component of any DIS, as they can be a

source of security and privacy violation. Many

attacks on information systems, including DIS, are

caused by data consumers, such as SQL-Injections

to gain access to data that they are not authorised to.

In the DIS context specifically, inference attacks and

attribute correlations that lead to data leakage threats

are usually carried out by data consumers. In

addition, the consumer use of access control models

that are not well evaluated leads to unauthorised data

access. Therefore, it is important to consider data

consumers from a threat point of view and plan to

build the system in a way that prevents such attacks.

The literature on DIS threats and attacks focuses on

privacy attacks conducted by data consumers; other

attacks are not discussed as they do not differ

fundamentally from any other web-based

applications attacks.

3.3 Integration Borders

This theme relates to the differences between

integrating data within or outside an organisation

and the effect this has on the security, privacy and

trust of the data integration process.

3.3.1 Integrating Data within the

Organisation

There are several domains where data is requested

and integrated within the border of a single

organisation or within a range of similar

organisations belonging to the same sector.

Enterprise Information Integration (EII) (Halevy et

al. 2006), healthcare (Bhowmick et al. 2006) and,

scientific research (Ray et al. 2009) are all examples

of where this type of integration can occur.

There is a large volume of published studies on

data integration that takes healthcare domains as a

context, such as the works by Boyens, Krishnan &

Padman(2004),Tian, Song & Huh (2011), and Eze,

Kuziemsky, Peyton, et al.(2010). There are also

several studies concerned with security and privacy

issues in healthcare in general, for example the one

by Meingast, Roosta & Sastry(2006). This large

body of existing work makes healthcare approaches

on security and privacy useful to survey. Healthcare

is a unique sector, with characteristics that are not

found in other sectors (Avison and Young 2007).

This means legislation and policies exist that

strive to protect this kind of domain to maintain data

integrity and confidentiality. In the UK, healthcare

organisations have to comply with the Data

Protection Act (Philip Coppel Qc 2012),whereas, in

the United States healthcare organisations follow the

HIPPA act (U.S. HHS 1996).

In many healthcare organisations, a DIS is

systematically monitored for compliance with

legislation and policy as well as other criteria (Eze et

al. 2010). Reviewing 20 of 30 Health On the Net

Foundation Code of Conduct (HONcode) accredited

American online healthcare appointment websites

for compliance with basic principles of security and

privacy, Hong, Patrick, & Gillis (2008) found that

only 8 of the 20 websites are secure and 12 of the 30

were not showing privacy notices to patients on their

websites. They found that there is a gap between the

ideal security and privacy requirements and the

reality in applying them. They therefore, propose

several steps to overcome this gap and make it

possible for healthcare organisations to be compliant

with legislation and security guidelines.

There are several requirements needed in the

SecureDataIntegrationSystems

healthcare domain. One is to balance security and

interoperability between healthcare actors and

organisations. Dawson, Qian, & Samarati (2000)

suggest an approach that allows multilevel secure

data sources to integrate and provide the results to

external applications while maintaining their

security levels. In addition to interoperability,

Armellin et al. (2010) propose a system that

publishes healthcare documents that provide

interoperability and complies with privacy laws.

Another requirement is aiming to preserve

privacy while integrating healthcare data. For

example, building automatic data mashups that are

aware of privacy concerns (Barhamgi, Benslimane,

Ghedira, Tbahriti, et al. 2011; Barhamgi,

Benslimane, Ghedira and Gancarski 2011). In

addition, access controls used in healthcare systems

can be extended to adapt to privacy requirements

(Hung 2005).

3.3.2 Integrating Data outside the

Organisation

Integrating data outside of the organisation means

that the integration location or part of it is outside

the organisation boundaries, for example, when data

sources are handled by cloud services and/or third

parties. In addition, the data sources may reside

outside the organisations boundaries. The following

subsections discuss each of these cases.

3.3.2.1 Using the Cloud as an Integration

Location

Clouds suffer from many security, privacy and trust

issues and therefore they need to comply with

regulatory laws for data protection (Takabi et al.

2010; Youssef and Alageel 2012). In addition, to

prevent unauthorised access, they need to deal with

the heterogeneity of security components and multi-

tenancy (Takabi et al. 2010). The fact that the clouds

are not under an organisation’s physical control

elevates the problem of managing data security

(Reeve 2013), especially when there are no standard

rules and regulations to deploying the cloud (Saeed et

al. 2014). These aspects should be considered in any

data integration security model, to emphasize the

importance of investigating the location of

integration.

3.3.2.2 Using Third Parties

Third parties are used in data integration

applications for different purposes. On one hand,

organisations may want to outsource the data to a

third party to analyse it and find out aggregation

statistics (Xiong et al. 2007). Alternatively, an

organisation may require an entity to handle access

control to personal integrated data, such as the

approach described by Van Den Braak et al. (2012)

which uses a trusted third party to handle access

controls to government data in the public sector. The

proposed approach uses privacy preserving data

integration and collaboration.

Harris, Khan, Paul, & Thuraisingham (2007)

argue that, in general, data integration applications

that handle critical data, such as emergency response

and healthcare awareness, need to share their data

with different organisation s to make effective

decisions. The authors discuss standard-based

approaches to secure data across organisations

covering different types of data and different types

of domains. Their work emphasizes the need to

enforce security policies and create standards or

guidelines to govern application in critical domains.

3.3.3 Accessing Data outside the

Organisation’s Boundaries

There are cases when there is a need to integrate

data from public data sources with an organisation’s

private data sources. This integration leads to

different challenges, such as the lack of a form of

privacy measurement, i.e. measuring the amount of

privacy lost when data is exposed (Pon and

Critchlow 2005). Another work, by Yau &

Yin(2008) proposes a repository for data integration

across data sharing services by collecting data based

on user’s requirements. If the repository is

compromised, only the result of the integration is

revealed and the original data will remain intact. The

work by Mohammed, Fung, & Debbabi (2011)

proposes two algorithms to overcome the challenges

of revealing data coming from different data

providers, using game theory.

3.3.4 Discussion

Integrating data within the organisation could be

considered safe to an extent. The reason is that many

of the entities involved in the integration process are

within the organisation and are under the same

security measures. The data sources are well known

and the integration location is within the

organisation’s boundary. Therefore, the concerns

about security are controllable, to some extent.

However, integrating data outside the

organisation can be very critical. The reason is that

many of the entities involved in the data integration

process use different security models and have

different privacy requirements. These entities can be

CLOSER2015-DoctoralConsortium

data providers or integration locations, which may

not be secure enough.

Integrating data coming from outside the

organisation raises issues on security policies. One

aspect to consider in integrating security policies,

especially when integrating data outside the

organisation boundary, is to include the

organisation’s own policies with the external

policies and the government legislation related to

data protection, to ensure the security of the overall

system.

Some organisations need to use trusted third

parties to handle their data. One possible reason is

that an organisation may have to respond to a

significant number of requests and cannot respond in

a timely manner. Another reason would be that an

organisation may have lack of technical skills or

infrastructure to handle the data. It therefore,

transfers this responsibility to a third party to take

over consumers’ requests. As a result, releasing data

to trusted third parties is critical, as the organisation

may not monitor or track private data processing and

movement exacerbating security concerns. In the

real world, companies rely on legal agreements of

data disclosure. Few use technical enforcement of

data movement. However, the literature lacks

coverage of this specific aspect in the data

integration context. One study, by Van Den Braak,

Choenni, Meijer, et al. (2012), proposes the use of

trusted third parties; however, security concerns still

arise.

3.4 Covering Security, Privacy and

Trust

In studies that aim to secure DIS, the focus on the

Security, Privacy and Trust (SPT) aspects varies.

Some studies focus on SPT as separate aspects;

other studies combine two of the SPT aspects.

However, only a very limited number of studies

have focused on SPT combination in a DIS context.

The following section investigates these studies and

how they focus on the aspects of SPT.

Secure data integration, mining, and sharing are

addressed in the literature as approaches to SPT

separately. In terms of security in DIS, several

recent studies, including the one by Haddad, Hacid,

& Laurini (2012) and Begum, Thakur, & Patra

(2010), have focused on security policy integration

and conflict reconciliation and their uses to answer

users’ queries. Other studies have proposed

extensions and improvement to RBAC to adapt to

the integration context, such as the work by Lamb,

Power, Walker, et al.(2006).

However, privacy in DIS has the lion’s share of

research. Privacy-preserving techniques are well

established in the literature, spanning a range of

different topics from privacy in peer-to-peer DIS to

anonymization techniques. Bhowmick et al.(2006)

propose a privacy preserving DIS framework that

emphasizes the need to consider the balance between

privacy and data sharing. This perspective has been

later addressed by many studies: the work by Pasierb

et al. (2011) presents different approaches to

privacy-preserving data integration in e-healthcare

systems, while the same concept applies to web

services and data mashups by Barhamgi,

Benslimane, Ghedira, et al. (2011b, 2011a).

Finally, in terms of trust in DIS, there are many

distributed trust models that can be adopted in DIS

and can be used to determine the level of

trustworthiness of either data providers or third

parties. The work by Treglia & Park(2009) suggests

a trust framework for intelligence information

sharing between agencies. Other approaches focus

on computational trust using either policy-based

trust or reputation-based trust (Artz and Gil

2007)which can also be applied to DIS. Other

studies acknowledge the need for a combination

between areas, for example, the work by (Hung

2005) combines security and privacy by extending

the RBAC model with privacy-based extensions.

Security combined with Privacy and Trust (SPT)

has recently gained attention from the research

community. Systems security is complicated and

influenced by many other areas and therefore it

cannot be addressed solely. Morton & Sasse (2012)

supports this argument by proposing an integrated

SPT framework to create an effective privacy

practice in any information system. Considering

human factors, another work in progress (Flechais et

al. 2013) also takes this holistic perspective. It

discusses authentication taking into account SPT in

banking context in Saudi Arabia. Other studies such

as that of Manan, Mubarak & Isa (2011) emphasize

the need for such a research direction. In addition, a

recent work on federated identity and access

management created an access control solution that

encompasses SPT, considered together (Khattak et

al. 2012).

This concept is applied in a limited data

integration context where Van Den Braak, Choenni,

Meijer, et al. (2012) provide a framework for

sharing and integrating data among public

organisations in which ensuring security and privacy

is achieved by using a trusted third party to manage

access controls to private data.

However, to the best of my knowledge there is

no single approach to preventing data leakage in DIS

SecureDataIntegrationSystems

that considers SPT aspects together, although they

are very important to protect confidentiality and

allow sharing data in a secure fashion.

3.5 Discussion of Data Leakage in DIS

Many vulnerabilities in software are caused by

flawed design (McGraw 2004). Therefore, data

leakage as a generic security threat can be caused by

weaknesses in DIS design. The following

subsections discuss these issues from security,

privacy, and trust perspectives.

3.5.1 Design Issues Related to Security

Due to the heterogeneity and distribution of DIS

components, security threats to DIS can arise from

any component of the system. Threats can start from

data sources that may not have adequate security and

privacy meta-data, which define their level of

sensitivity, and therefore, the DIS may face

difficulties in maintaining the data sources’ policies

throughout the whole system. Moreover, different

trust and security concerns may also be faced in the

middle layers such as the cloud, where the data is

mined, pre-processed, integrated, and prepared for

presentation, in addition to many different tasks.

Finally, data consumers where the data is accessed

and queries are answered may pose threats as well.

Security in DIS is important, as it is to any

information system. Having appropriate

organisational security objectives and conducting

early security analysis according to well-defined

security requirements help in shaping any DIS

towards providing a better security. Security is a

comprehensive feature that includes many attributes;

however, since many approaches proposed in a DIS

context mainly focus on creating global security

policies, enforcing security policies using access

controls, and managing access to data this study will

focus on the confidentiality as an attribute security.

Some examples of how confidentiality in a DIS is

applied: 1) Authorization to access data sources and

the results of the integration is utilized by access

control; 2) Data disclosure should not be disclosed

equally to all user roles but should be limited to

users with appropriate roles; 3) Considering security

and privacy policies associated with data sources.

However, mis-configured access control models

or selecting inappropriate ones can be a major

design flaw that causes systems to be unsecure. It is

important to adopt a suitable access control model to

guarantee authorization to access data and guarantee

its confidentiality.

Another issue that increases the possibility of

data leakage is lack of knowledge of DIS users.

Users’ ignorance about legal issues in data

management allows unauthorised access to

occur(Batty et al. 2010). This can include developers

and data managers as well. Therefore, a proper

training is required to base the DIS design on

updated knowledge of data management legal issues.

3.5.2 Design Issues Related to Privacy

Several design flaws that violate privacy cause data

leakage. Firstly, the data sources used in the DIS

may be originally predictable and very easy to link,

or it may miss very important security meta-data that

defines its level of sensitivity. Therefore, the DIS

becomes vulnerable to different privacy attacks. A

good design needs to create data sources that are

very hard to link, or, in case of external data sources,

it uses techniques that refine the data to minimize

the ability to link information.

Secondly, although anonymization techniques

are a popular solution to privacy, they are not always

sufficient, for two reasons. On one hand, it is not the

Personal Identifiable Information (PII) only that a

DIS needs to worry about; it should worry about all

the other attributes that cause inference attacks, such

as Quasi Identifier (QID). On the other hand, a DIS

needs to have customised anonymity levels that are

suitable for the users accessing the data, as failing to

manage anonymity discloses private data (Meingast

et al. 2006).

Thirdly, systems that allow multiple consecutive

queries to data sources (Clifton et al. 2004),

especially sensitive data sources, are prone to

privacy violation, as users can use the results for

inference attacks, such as inferring conditional

information from non-confidential data or from

statistical aggregates, as mentioned by Zhang, Zeng,

Wang, et al.(2011). Therefore, there is a need to

manage the number of queries to private data

sources, along with the users’ roles and

authorization level.

Considering these issues in DIS design will

result in minimizing threats such as inference

attacks, attribute correlations, and insiders attacks.

3.5.3 Design Issues Related to Trust

Designing systems that use external data sources

coming from different organisations entails trusting

the entities to provide accurate and reliable

information. Using cloud services that process and

integrate data, in addition to providing services to

query and analyse the data (Carey et al. 2012) is

CLOSER2015-DoctoralConsortium

very risky. Clouds are security and privacy critical

and they still require more effort to increase their

reliability (Saeed et al. 2014). The risks arise from

using multi-tenancy public clouds that share

physical infrastructure with untrustworthy users can

lead to different attacks, such as cross-virtual

machine attacks (Ristenpart et al. 2009).

Trusting third parties to handle data in any form

needs to be carefully considered. Computational

trust does not differ conceptually from human trust.

A trust in entities may be gained by their reputation

or by certain actions they perform to obtain trust.

Data leakage can occur from transitive trust where a

trusted entity reveals sensitive data to other entities

(Fung et al. 2012). Third party rights on the data

need to be determined (Meingast et al. 2006), and

many critical questions need to be answered during

the design of DIS systems, such as: Do third parties

have authority over the data similar to that of the

data owner?

Data transfer to clouds and third parties needs to

be based on trust (Saeed et al. 2014); hence trust

should be added to the design process, through

considering the entities that the system deals with

and conducting risk assessment and risk mitigation.

A DIS should be designed considering the

collaboration among other entities and enforcing

trust models between these entities to guarantee

security.

In a DIS context, trust is an issue to consider for

data sources and integration locations as well as

third parties involved in the DIS. It also extends to

data consumers, where granting roles to users

depends on their level of trustworthiness. Therefore,

trust is an important aspect in a DIS that cannot be

neglected; however, it needs to be balanced with

other properties to achieve secure and reliable

systems.

SPT issues are exacerbated in a DIS context due

to the complex and distributed nature of a DIS,

especially across organisations. These issues, which

are summarized and categorized in Table 1,

contribute to the threat of data leakage in DIS. The

full threat analysis is discussed in our previous work

(Akeel et al. 2014).

4 METHODOLOGY

The results of reviewing the literature and realising

the research gap and linking that to the study main

objective, the following research questions are

proposed:

RQ1: What is an Appropriate Framework to

Table 1: Summary of DIS Threats Causing Data Leakage.

Category Threats and Concerns

Security

Unauthorised access caused by:

1) Inappropriate access control

model

2) Access control weakness

3) Mi-configured access control

model

Ignorance of legal issues on data

management

Inapplicable confidentiality on merged

data

Confidentiality violations due to

inconsistent regulatory laws

Leaking data to the platform

Privacy

Inference attack: attribute linkage

Inference attack: linking data with QID

Inference attack: interval disclosure

Inference attack: gathering information

about queries

Inference attack: use of non-confidential

information and statistical aggregates,

namely record linkage

Inference attack: consecutive queries

attack

Insiders attack: data providers inferring

data

Trust

Using clouds to process data

Third parties rights on data

Third parties and transitive trust

Reduce Data Leakage Threats in a DIS with a

Middle Layer?

Focusing on the DIS architecture with a middle

layer, this research question is mainly concerned

with finding an appropriate framework that helps in

reducing data leakage threats. The proposed

framework aims to consist of the basic architectural

component of a DIS with a middle layer.

RQ2: In the Proposed Framework, What Are

the Confidentiality, Privacy and Trust Guidelines

Used to Reduce Data Leakage Threats?

Understanding data leakage threats and locations

in the context of a DIS helps in suggesting an

appropriate set of confidentiality, privacy and trust

guidelines that aim to reduce those threats. These

guidelines can be included in the framework under

each architectural component.

RQ3: How Can the Proposed Framework and

Guidelines Be Used to Reduce the Threats of

Data Leakage in a Real-life Scenario?

Using the framework and its guidelines in a real

scenario will help in evaluating the framework from

the practicality, applicability to context and

usefulness to reduce data leakage threats.

SecureDataIntegrationSystems

Based on the previously mentioned research

questions, Table 2 summarises the research activities

relevant to answer each research question.

Table 2: Research Activities.

Research Activities Purpose

Research

Question

Literature review

about DIS + Expert

reviews 1

Confirming the

components of

SecureDIS

RQ1

Literature review

about data leakage

threats + Expert

reviews 1 and 2

Identifying data

leakage threats and

their locations within

the DIS architecture

RQ1

Literature review

about reducing data

leakage

Create the guidelines

that aim to reduce data

leakage threats

RQ1

The synthesis and

analysis of the results

of each step of the

previous research

activities

A proposed

framework with

architectural

components

containing a set of

guidelines

(SecureDIS)

RQ1

Experts reviews 2

Confirming the

guidelines proposed

by SecureDIS

RQ2

Expert reviews 2

To find out whether

the proposed

guidelines are

comprehensive

RQ2

Expert reviews 2

To know whether the

proposed guidelines

are practical

RQ2

The synthesis and

analysis of the results

of each step of the

previous research

activities

The confirmed

framework and

guidelines

(SecureDIS)

RQ2

A case study analysis

To find out the

appropriate context to

use the guidelines in

RQ3

A case study analysis

+ study of data leakage

threats

To customise the

guidelines to the

appropriate context

and apply them

RQ3

A case study + metrics

To measure reduction

in data leakage

RQ3

The synthesis and

analysis of the results

of each step of the

previous research

activities

Confirming/refuting

the applicability of the

guidelines in a real-life

application

RQ3

5 SecureDIS: A FRAMEWORK

FOR SECURE DATA

INTEGRATION

This research conjectures that considering SPT

together in designing a DIS will reduce data leakage

threats in these systems. Hence, this section presents

a Secure Data Integration System (SecureDIS), an

architectural framework that consists of several

components, each of which includes a set of

guidelines designed specifically to prevent data

leakage. The following subsections discuss how

SecureDIS was created and evaluated.

5.1 SecureDIS Construction

There are two parts to SecureDIS framework

components and guidelines.

5.1.1 Constructing Components

Analysis of the previous studies (Gusmini and Leida

2011; Dicelie et al. 2001; Nachouki and Quafafou

2011) that build DIS with middle layer architecture,

together with understanding the implications of

using cloud computing, remote servers, and third

parties to achieve integration contributed

significantly to the formulation of SecureDIS

components. The initial components of SecureDIS

are data sources, the integration location, the

integration approach and the data consumers, as

adapted from the previous studies.

5.1.2 Creating SecureDIS Guidelines

The outcome of the careful review and analyses of

the literature created an understanding of how

several research areas relate to each other and

contribute to securing a DIS. A DIS encompasses

different levels: a low level that includes technical

details of achieving secure and privacy-preserving

integration to a much higher level of managing such

a system to a medium level of engineering and

designing a secure DIS. Synthesizing the results of

the analysis, a set of guidelines were created. These

guidelines are categorised into confidentiality,

privacy and trust requirements and some of the

guidelines overlap between these different

categories. After constructing DIS components, the

guidelines were grouped under each component.

Each guideline was inspected individually and in

relation to other guidelines in different components.

This process of refining the guidelines was iterative,

as many guidelines were moved around components

and grouped differently until the final version was

reached. A further analysis was conducted to link

each guideline to the data leakage threats found in

the data integration context and some guidelines

were eliminated as they were out of the scope. The

initial version of SecureDIS before evaluation can be

found in (Akeel et al. 2013).

CLOSER2015-DoctoralConsortium

5.2 SecureDIS Evaluation

To confirm the SecureDIS framework and its

guidelines, two expert reviews were conducted, one

for the components and another for the guidelines.

The following subsections provide an overview of

the results of the confirmation.

5.2.1 Confirming SecureDIS Components

Based on the results of the first expert reviews of

SecureDIS components, two additional components

are proposed: Security Policy and System Security

Management. Security policy was separated from

other components of the system due to its

importance in governing the security, privacy and

trust of the DIS, which is supported by the work of

Bhowmick, Gruenwald, Iwaihara, et al.(2006).

System Security Management is added to ensure

security measures are in place and to manage them,

which is needed in any information system. Figure 1

shows SecureDIS framework after the first expert

reviews.

Figure 1: SecureDIS framework componenets.

5.2.2 Confirming SecureDIS Guidelines

To confirm and extend the proposed guidelines and

answer the research questions, SecureDIS is planned

to be reviewed by a second group of experts. The

results will help in reshaping SecureDIS to an

accepted version that can be useful to the system

analysts and designers.

6 EXPECTED OUTCOME

The expected outcome of this study is a confirmed

framework and set of guidelines, namely SecureDIS,

which are comprehensive, practical and applicable to

different contexts including cloud-computing

environment. SecureDIS aims to help systems

analysts and early designers in their analysis phase

of building systems that considers security by design

to prevent data leakage threats.

7 STAGE OF THE RESEARCH

The research questions RQ1 and RQ2 were

answered. The current stage of the PhD is to

customise and apply SecureDIS to a real-life context

to assess its usefulness in preventing data leakage

threats in DIS contexts. Possible case is an

organisation using cloud services to integrate or

store data coming from different resources. The

results of the coming stage will help in answering

RQ3.

REFERENCES

Akeel, F. et al. 2013. SecureDIS: a Framework for Secure

Data Integration Systems. In: The 8th International

Conference for Internet Technology and Secured

Transactions. London, UK.

Akeel, F. Y. et al. 2014. Exposing Data Leakage in Data

Integration Systems. The 9th International Conference

for Internet Technology and Secured Transactions

(ICITST-2014), pp. 420–425.

Armellin, G. et al. 2010. Privacy preserving event driven

integration for interoperating social and health

systems. Secure Data Management, pp. 54–69.

Artz, D. and Gil, Y. 2007. A survey of trust in computer

science and the Semantic Web. Web Semantics:

Science, Services and Agents on the World Wide Web

5(2), pp. 58–71.

Avison, D. and Young, T. 2007. Time to rethink health

care and ICT communications. Communications of the

ACM (June 2007), pp. 69–74.

Barhamgi, M., Benslimane, D., Ghedira, C., Tbahriti, S.-

E., et al. 2011. A Framework for Building Privacy-

Conscious DaaS Service Mashups. In: 2011 IEEE

International Conference on Web Services.

Washington DC, USA: IEEE, pp. 323–330.

Barhamgi, M., Benslimane, D., Ghedira, C. and

Gancarski, A. L. 2011. Privacy-Preserving Data

Mashup. In: IEEE International Conference on

Advanced Information Networking and Applications.

Biopolis, Singapore: IEEE, pp. 467–474.

Batty, M. et al. 2010. Data mash-ups and the future of

mapping by. JISC TechWatch, pp. 1–45.

Begum, B. a. et al. 2010. Security policy integration and

conflict reconciliation for data integration across data

sharing services in ubiquitous computing

environments. In: International Conference on

Computer and Communication Technology

(ICCCT’10). Allahabad, India: IEEE, pp. 1–6.

Bhowmick, S. S. et al. 2006. PRIVATE-IYE: A

Framework for Privacy Preserving Data Integration.

SecureDataIntegrationSystems

In: Proceedings of the 22nd International Conference

on Data Engineering Workshops (ICDEW’06).

Washington, DC, USA: IEEE.

Boyens, C. et al. 2004. On privacy-preserving access to

distributed heterogeneous healthcare information. In:

Proceedings of the 37th Hawaii International

Conference on System Sciences. Big Island, Hawaii,

USA, pp. 1–10.

Van Den Braak, S. W. et al. 2012. Trusted third parties for

secure and privacy-preserving data integration and

sharing in the public sector. In: Proceedings of the

13th Annual International Conference on Digital

Government Research - dg.o ’12. College Park, MD,

USA: ACM Press, pp. 135 –144.

Braghin, C. et al. 2003. Information leakage detection in

boundary ambients. Electronic Notes in Theoretical

Computer Science (78), pp. 123–143.

Carey, M. J. et al. 2012. Data Services. Communications

of the ACM 55(6), pp. 86–97.

Clifton, C. et al. 2004. Privacy-preserving data integration

and sharing. In: Proceedings of the 9th ACM SIGMOD

workshop on Research issues in data mining and

knowledge discovery - DMKD ’04. Paris, France:

ACM Press, p. 19.

Cruz, I. et al. 2008. A Secure Mediator for Integrating

Multiple Level Access Control Policies. Knowledge-

Based Intelligent Information and Engineering

Systems, pp. 354–362.

CWE 2013. CWE-200: Information Leak (Information

Exposure). [Online] Available at: http://cwe.mitre.org/

data/definitions/200.html [Accessed: 2 August 2013].

Dawson, S. et al. 2000. Providing security and

interoperation of heterogeneous systems. Distributed

and Parallel Databases (8), pp. 119–145.

Dicelie, J. J. et al. 2001. Data integration system.

Eze, B. et al. 2010. Policy-based Data Integration for e-

Health Monitoring Processes in a B2B Environment:

Experiences from Canada. Journal of theoretical and

applied electronic commerce research 5(1), pp. 56–70.

Flechais, I. et al. 2013. In the balance in Saudi Arabia:

security, privacy and trust. In: Extended Abstracts on

Human Factors in Computing Systems CHI ’13. Paris,

France, pp. 823–828.

Fung, B. C. M. et al. 2012. Service-Oriented Architecture

for High-Dimensional Private Data Mashup. IEEE

Transactions on Services Computing 5(3), pp. 373–

386.

Gollmann, D. 2006. Computer Security. Second Edi. John

Wiley & Sons.

Gusmini, A. and Leida, M. 2011. A patent: Data

Integration System.

Haddad, M. et al. 2012. Data Integration in Presence of

Authorization Policies. In: IEEE 11th International

Conference on Trust, Security and Privacy in

Computing and Communications. Liverpool, UK:

IEEE, pp. 92–99.

Halevy, A. et al. 2006. Data integration: the teenage years.

In: 32nd International Conference on Very large data

bases VLDB’06. Seoul, Korea.

Harris, D. et al. 2007. Standards for secure data sharing

across organizations. Computer Standards &

Interfaces 29(1), pp. 86–96.

Hong, Y. et al. 2008. Protection of Patient’s Privacy and

Data Security in E-Health Services. In: 2008

International Conference on BioMedical Engineering

and Informatics. Sanya, China: IEEE, pp. 643–647.

Hu, Y. and Yang, J. 2011. A semantic privacy-preserving

model for data sharing and integration. In:

Proceedings of the International Conference on Web

Intelligence, Mining and Semantics - WIMS ’11.

Sogndal, Norway: ACM Press.

Hung, P. 2005. Towards a privacy access control model

for e-healthcare services. In: Third Annual Conference

on Privacy, Security and Trust. Andrews, New

Brunswick, Canada.

ISO 2014. ISO/IEC27000: Information technology —

Security techniques — Information security

management systems — Overview and vocabulary.

BSI Standards Publication.

Jawad, M. et al. 2013. Supporting Data Privacy in P2P

Systems. Security and Privacy Preserving in Social

Networks, pp. 1–51.

Jurczyk, P. and Xiong, L. 2008. Towards privacy-

preserving integration of distributed heterogeneous

data. In: Proceedings of the 2nd PhD workshop on

Information and knowledge management. Napa

Valley, California, USA, pp. 65–72.

Khattak, Z. et al. 2012. Evaluation of Unified Security,

Trust and Privacy Framework (UnifiedSTPF) for

Federated Identity and Access Management (FIAM)

Mode. International Journal of Computer

Applications 54(6), pp. 12–19.

Lamb, P. et al. 2006. Role-based access control for data

service integration. In: Proceedings of the 3rd ACM

workshop on Secure web services - SWS ’06.

Alexandria, VA,USA: ACM Press, pp. 3–12.

Manan, J. A. et al. 2011. Security, Trust and Privacy–A

New Direction for Pervasive Computing. In:

Proceedings of the 15th WSEAS international

conference on Computers. Stevens Point, Wisconsin,

USA, pp. 56–60.

McGraw, G. 2004. Software security. IEEE Security &

Privacy Magazine, pp. 80–83.

Meingast, M. et al. 2006. Security and privacy issues with

health care information technology. In: Proceedings of

the 28th IEEE Annual International Conference of

Engineering in Medicine and Biology Society. New

York, New York, USA, pp. 5453–5458.

Mohammed, N. et al. 2011. Anonymity meets game

theory: secure data integration with malicious

participants. The VLDB Journal—The International

Journal on Very Large Data Bases 20(4), pp. 567–

588.

Morton, A. and Sasse, M. 2012. Privacy is a process, not a

PET: a theory for effective privacy practice. In:

Proceedings of the 2012 workshop on new security

paradigms NSPW’12. Bertinoro, Italy, pp. 87–104.

CLOSER2015-DoctoralConsortium

Nachouki, G. and Quafafou, M. 2011. MashUp web data

sources and services based on semantic queries.

Information Systems 36(2), pp. 151–173.

Pasierb, K. et al. 2011. Privacy-preserving data mining,

sharing and publishing. Journal of Medical

Informatics & Technologies 18, pp. 70–76.

Philip Coppel Qc 2012. The Data Protection Act 1998 &

Personal Privacy. Statute Law Society 499(19 March

2012), pp. 1 – 31.

Pistoia, M. et al. 2007. When Role Models Have Flaws :

Static Validation of Enterprise Security Policies

Introduction : RBAC Systems. In: 29th International

Conference on Software Engineering. Minneapolis,

MN, USA.

Pon, R. and Critchlow, T. 2005. Performance-oriented

privacy-preserving data integration. Data Integration

in the Life Sciences, pp. 240–256.

Prakash, V. and Darbari, M. 2012. A Review on Security

Issues in Distributed Systems. International Journal of

Scientific & Engineering 3(9), pp. 1–5.

Ray, S. S. et al. 2009. Combining multisource information

through functional-annotation-based weighting: gene

function prediction in yeast. IEEE transactions on bio-

medical engineering 56(2), pp. 229–36.

Reeve, A. 2013. Cloud-Based Data Integration Adds

Concerns about Latency and Security [Online]

Available at: http://data-informed.com/cloud-based-

data-integration-adds-concerns-about-latency-and-

security/ [Accessed: 4 February 2014].

Ristenpart, T. et al. 2009. Hey, you, get off of my cloud:

exploring information leakage in third-party compute

clouds. In: Proceedings of the 16th ACM conference

on Computer and communications security. Chicago,

Illinois, USA.

Ross, R. et al. 2014. Systems security Eegineering an

integrated approach to building trustworthy resilient

systems. NIST Special Publication (800-160), p. 121.

Russom, P. 2008. Data Integration Architecture: What It

Does, Where It’s Going, and Why You Should Care

[Online] Available at: http://tdwi.org/articles/2008/

05/27/data-integration-architecture-what-it-does-

where-its-going-and-why-you-should-care.aspx.

Saeed, M. Y. et al. 2014. Insight into Security Challenges

for Cloud Databases and Data Protection Techniques

for Building Trust in Cloud Computing. Journal of

Basic and Applied Scientific Research 4(1), pp. 54–59.

Takabi, H. et al. 2010. Security and privacy challenges in

cloud computing environments. IEEE Security &

Privacy Magazine (December), pp. 24–31.

Tian, Y. et al. 2011. Dynamic content-based cloud data

integration system with privacy and cost concern. In:

Proceedings of the 8th Annual Collaboration,

Electronic messaging, Anti-Abuse and Spam

Conference on - CEAS ’11. Perth, Western Australia,

Australia: ACM Press, pp. 193–199.

Treglia, J. V. and Park, J.S. 2009. Towards trusted

intelligence information sharing. In: Proceedings of

the ACM SIGKDD Workshop on CyberSecurity and

Intelligence Informatics - CSI-KDD ’09. Paris, France:

ACM Press, pp. 45–52.

U.S. HHS 1996. Health Insurance Portability and

Accountability Act (HIPAA) [Online] Available at:

http://www.hhs.gov/ocr/privacy/hipaa/understanding/s

ummary/.

Watson, D. 2007. Web Application Attacks. Network

Security (October), pp. 10–14.

Whang, S. and Garcia-Molina, H. 2012. A model for

quantifying information leakage. Secure Data

Management.

Xiong, L. et al. 2007. Preserving data privacy in

outsourcing data aggregation services. ACM

Transactions on Internet Technology 7(3), p. 28.

Yau, S. and Chen, Z. 2008. Security policy integration and

conflict reconciliation for collaborations among

organizations in ubiquitous computing environments.

Ubiquitous Intelligence and Computing, pp. 3–19.

Yau, S. S. and Yin, Y. 2008. A Privacy Preserving

Repository for Data Integration across Data Sharing

Services. IEEE Transactions on Services Computing

1(3), pp. 130–140.

Youssef, A. and Alageel, M. 2012. A Framework for

Secure Cloud Computing. International Journal of

Computer Science 9(4), pp. 487–500.

Zhang, D. Y. et al. 2011. Modeling and evaluating

information leakage caused by inferences in supply

chains. Computers in Industry 62(3), pp. 351–363.

SecureDataIntegrationSystems
