Traffic Signs Detection and Tracking using Modified Hough

Transform

Pavel Yakimov

1,2

and Vladimir Fursov

1,2

Samara State Aerospace University, 34 Moskovskoye Shosse, Samara, Russia

Image Processing Systems Institute of Russian Academy of Sciences, 151 Molodogvardeyskaya Street, Samara, Russia

Keywords: Traffic Signs Recognition, Advanced Driver Assistance Systems, Graphics Processing Units, Image

Processing, Pattern Recognition.

Abstract: Traffic Signs Recognition (TSR) systems can not only improve safety, compensating for possible human

carelessness, but also reduce tiredness, helping drivers keep an eye on the surrounding traffic conditions. This

paper proposes an efficient algorithm for real-time TSR. The article considers the practicability of using HSV

color space to extract the red color. An algorithm to remove noise to improve the accuracy and speed of

detection was developed. A modified Generalized Hough transform is then used to detect traffic signs. The

current velocity of a vehicle is then used to predict the sign’s location in the adjacent frames in a video

sequence. Finally, the detected objects are being classified. The developed algorithms have been tested using

real scene images and the German Traffic Sign Detection Benchmark (GTSDB) dataset and showed efficient

results.

1 INTRODUCTION

Traffic Sign Recognition system is designed to

provide a driver with relevant information about road

conditions. There are several similar systems: 'Opel

Eye' of Opel, 'Speed Limit Assist' from the company

Mercedes-Benz, 'Traffic Sign Recognition', Ford and

others. Most of them are aimed at the detection and

recognition of road signs limiting the velocity of

movement (Shneier, 2005).

Traffic signs recognition is typically executed in

two steps: sign detection and subsequent recognition.

There are many different methods of detection:

(Nikonorov et al., 2013), (Ruta et al., 2009),

(Belaroussi et al., 2010). Most of them use a single

frame from a video sequence to detect an object. This

means they do not use the additional information

about the presence of the sign in the adjacent frames.

Such approaches usually have problems of operation

in real time and with detection accuracy. On the other

hand, several papers describe tracking algorithms,

which try to predict the location of signs in a sequence

images. In paper (Lafuente-Arroyo et al., 2006), the

authors show that the integration of the detection and

tracking improves the reliability of the whole system

due to the decrease of false detections. In (Lopez and

Fuentos, 2007), it is shown that tracking helps to

make the detection faster. However, the described

algorithms still have significant computational

complexity and cannot be used in real time.

This paper describes a detection algorithm that

uses the velocity obtained from the vehicle in real

time. It allows predicting not only the presence of an

object but also the scale and location. Thus, the

accuracy will be better, while the computational

complexity almost will not change.

In order to give a driver proper information about

a traffic sign, the system needs to classify the found

object. In fact, the recognition of a small size object

does not cause any difficulties in the presence of the

samples or patterns of possible traffic signs. In case

of a proper detection procedure, the recognition step

has accurate sign coordinates and scale. Therefore,

this paper only describes a simple template matching

algorithm, which shows good results combined with

the detection step.

The performance of existing portable computers

is not always enough for the real time detection of

traffic signs. Many detection algorithms are based on

Hough transform that allows you to effectively detect

parameterized curves in an image, but this algorithm

is very sensitive to the quality of digital images,

especially in the presence of noise. The more noise in

the image, the longer it will take to detect objects.

Thus, the possibility of detecting traffic signs in real

Yakimov P. and Fursov V..

Trafﬁc Signs Detection and Tracking using Modiﬁed Hough Transform.

DOI: 10.5220/0005543200220028

In Proceedings of the 12th International Conference on Signal Processing and Multimedia Applications (SIGMAP-2015), pages 22-28

ISBN: 978-989-758-118-2

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

time strongly depends on the quality of the image

preparation.

This paper describes the whole technology of

traffic sign detection with tracking and recognition.

The section with experimental results shows

processed real scene images.

2 TRAFFIC SIGNS

RECOGNITION SYSTEM

Figure 1 shows a road scene model used to design the

algorithms of detection and recognition. Here, α is the

camera angle in the horizontal projection; W is the

width of a road sign image; AC is the distance from

the car to the sign. Image width is the width of the

input image in pixels. In our case, the width of the

frame is equal to the width of FullHD, i.e. 1980

pixels.

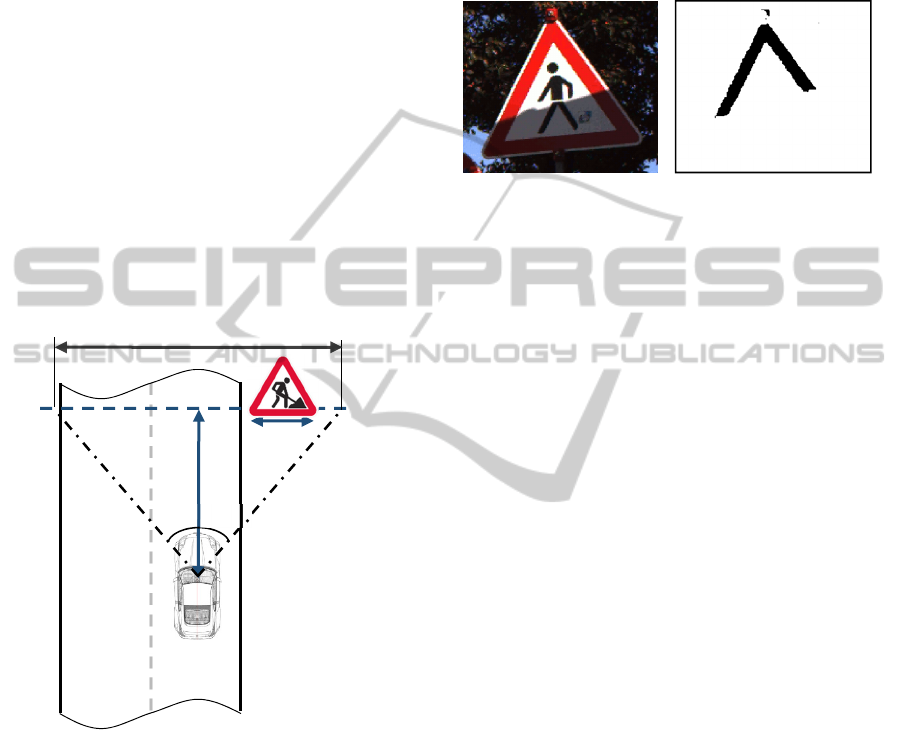

Figure 1: Road scene model.

This paper considers a whole traffic signs

recognition technology with three steps: image

preparation, detection and recognition. The detection

is based on the color information extracted from

images. Therefore, the image preparation starts with

color thresholding and denoising. Then, a

modification of Generalized Hough Transform is

used to localize signs in images. A tracking procedure

based on the vehicle’s velocity is performed to verify

a sign presence. Finally, the detected region is being

classified.

2.1 Color Analysis and Denoising

Some specific light conditions significantly affect the

ability of correct perception of the color in a scene.

When taking the actual traffic situation, there are a

number of different lighting conditions on the signs.

Figure 2: Example of color extraction in RGB.

The signs detection process becomes much more

complicated due to such effects as direct sunlight,

reflected light, shadows, the light of car headlights at

night. Moreover, the various distorting effects may

occur on one road sign at the same time (Figure 2).

Thus, it is not always possible to identify an area

of interest in the real images by simply applying a

color threshold filter directly in the RGB (Red, Green

and Blue) color space. Figure 2 shows an example of

applying a threshold filter to the red color channel.

To extract the red color from the input image it is

necessary to use the color information of each pixel,

regardless of uncontrolled light conditions. For this

purpose, the color space HSV (Hue, Saturation and

Value) was selected.

Most digital sensors obtain input images in the

format of RGB. Conversion to HSV color space is

widely described in (Koschan and Abidi, 2008).

Between the three components of H, S and V there

are certain dependencies. H component will not

matter if the S or V components are represented by

values that are close to zero. The display color will be

black if V is equal to 0. Pure white color is obtained

when V = 1 and S = 0.

The ideal red (R = 255, G = 0, B = 0) in the HSV

color space is defined by the following values

0.0 , 1, 1HSV=°= =

. The experimental method was

used to determine the optimal threshold values to

extract the red color of traffic signs in the space of

HSV:

(0.0 23 ) (350 360 )HH°≤ < ° ∨ °< < °

(1)

0.85 1S<≤

(2)

0.85 1V<≤

(3)

e width

TrafficSignsDetectionandTrackingusingModifiedHoughTransform

Figure 3 shows the result of image processing of

the road sign from Figure 2 with threshold values (1)-

(3) in HSV.

Figure 3: Threshold color filtering in HSV.

The binary image obtained using thresholding

satisfies the conditions of many algorithms of traffic

signs detection. However, one can easily notice the

presence of noise in the image. The picture in Figure

3 is well prepared for further processing, but the

situation with the frames captured from a real video

sequence is completely different.

The image in Figure 2 was obtained by a camera

with high resolution (8.9 megapixels), and shooting

conditions were significantly better than when using

a built-in car video sensor. Figure 4 shows a fragment

of a frame from the video sequence obtained during

the experiments containing a road sign.

Noise in the Figure 4b appears after thresholding

to extract the red color. It not only reduces the

performance of the system, but also affects the quality

of detection. This can lead to false detection of road

signs.

In order to avoid this point-like noise, a modified

algorithm based on the results obtained in paper

(Yakimov, 2013) was applied. This article describes

the denoising algorithm based on the detection and

retouching of point-like glares on the reproductions

of works of art. In order to detect these glares the

sliding windows algorithm was used. The main

advantage of such algorithm is that the parameters

can be set in such way that only point-like noise will

be removed. At the same time, parts of images of

signs stay unfiltered in the processed frames. The

result of processing the image from Figure 4b is

shown in Figure 4c.

Paper (Fursov et al., 2013) shows the effective

implementation of the denoising algorithm in the

massively multi-threaded environment CUDA.

CUDA is a parallel computing platform and

programming model provided by NVidia. It enables

dramatic increases in computing performance by

harnessing the power of the graphics processing unit

(GPU). The resulting acceleration on the GPU

relative to the CPU reached 60-80 times. Frame size

in the video sequence is 1920x1080 pixels. Image

processing execution time on the CPU is 0.7-1 sec.

Using CUDA on NVIDIA GeForce 335m has

reduced the execution time to 7-10 ms, which satisfies

the requirement of processing video in real time.

(a)

(b)

(c)

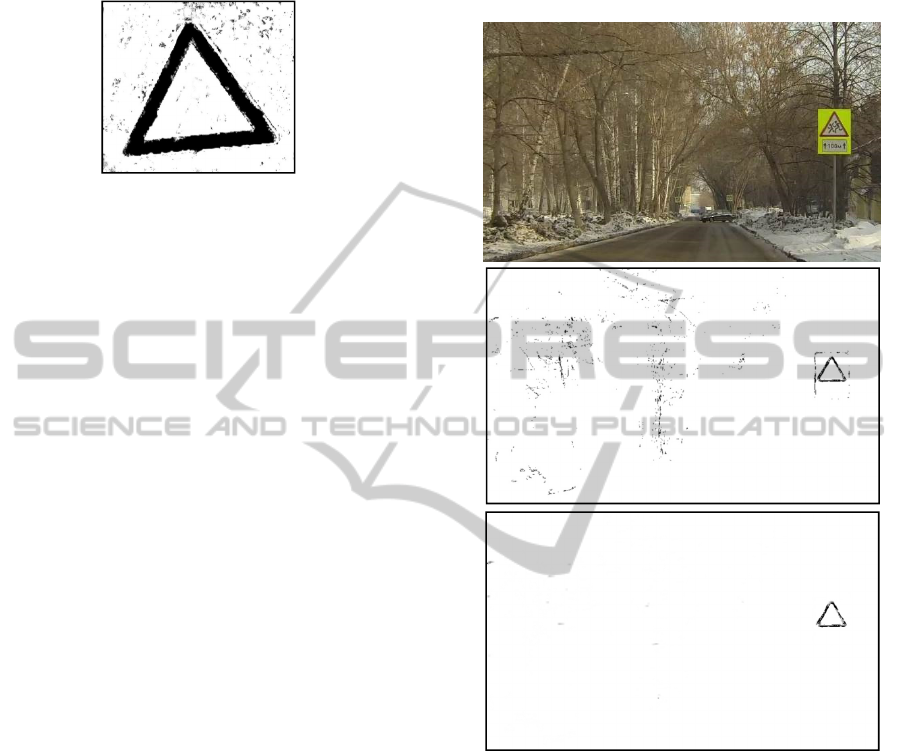

Figure 4: (a) A frame from video sequence; (b) Binary

image with extracted red; (c) Result of image denoising.

2.2 Detection and Tracking

2.2.1 Modified Hough Transform

Detecting traffic signs is implemented using a

modification of Generalized Hough transform (GHT)

(Ruta et al., 2008). Implementing classic GHT in Full

HD 1080p images leads to enormous execution time.

One of the main objectives of the TSR system is to

operate in real time. Therefore, there are maximum 50

milliseconds for processing one frame on the

detection step.

Many TSR systems are designed to detect only

circular signs. There is no difficulty to detect circles

SIGMAP2015-InternationalConferenceonSignalProcessingandMultimediaApplications

using an implementation of Hough transform, and

using CUDA makes it possible to implement it in real

time. All processing takes no more than 40 ms

including steps of color extraction, denoising,

detection and recognition. Other systems use various

machine-learning techniques such as Viola-Jones

(Møgelmose et al., 2012) or Support Vector Machine

(Lafuente-Arroyo et al., 2010), which do not always

suit the execution time limitation.

In this paper, we consider detection and

recognition of triangular signs in real time. The main

difference from the original GHT is in using some

other accumulator space (Figure 5b) and avoiding the

R-table construction. After applying a special

triangular template to the binary image in Figure 4c,

the point with the maximum value in Figure 5b is the

central point of the sought-for object. The case shown

in Figure 5 is for equal scales of a template object and

object in the real scene. The colors in the pictures are

inverted in comparison to the images used in the

algorithm.

(a) (b)

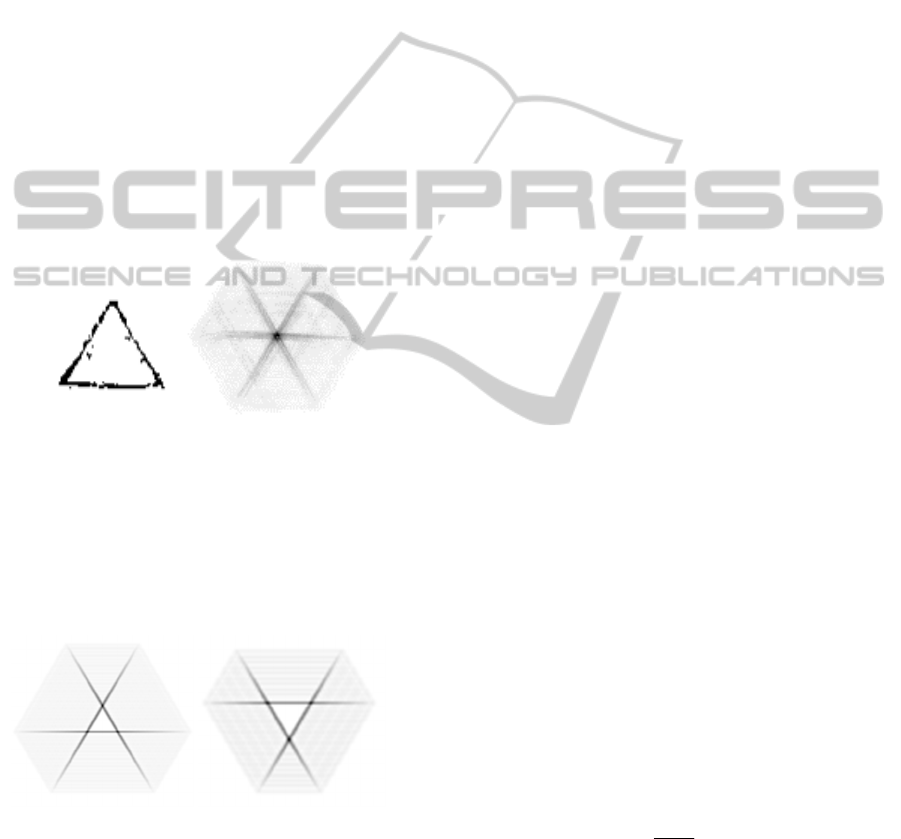

Figure 5: (a) An example of a triangular sign after color

extraction; (b) Accumulator space after implementing the

developed algorithm.

In case of different scales, we receive some more

extremum points in the accumulator, three points

when implementing the algorithm using a triangular

template (Figure 6).

(a) (b)

Figure 6: The accumulator space in case of

(a) template is smaller than the object in real scene;

(b) template is bigger than the object in real scene.

Assuming that the size of a sign is up to 150

pixels, we have found that the distance between two

of these points is up to 20 pixels. A sign with 150

pixels of width means that it is located in 3.5 meters

from the camera. There is no opportunity and no need

to detect a closer sign, because it moves out from the

view of a camera with α equal to 70 ° (Figure 1). It

allows computing the difference in scales of the

template and an object in real scene. Using this value,

we can precisely define the area of sign and then pass

it to the recognition step. The middle location of these

bright points in the accumulator is the coordinates of

an object’s center.

This paper shows the detection procedure of

triangular traffic signs only. However, the described

algorithm can also be used to detect rectangular and

circular objects in images, thus covering almost all of

the traffic sign classes. The main difference is the

template images used for detection.

2.2.2 Tracking with Prediction

The above-described traffic sign detection algorithm

is designed to localize objects in each two-

dimensional frame of a video sequence. However,

some researchers propose to use additional

information to increase the reliability of traffic sign

recognition. For example, in the article (Timofte et

al., 2014), the authors propose to combine data

obtained with a usual camera and three-dimensional

scene obtained with lidar.

In this paper, we assume that a vehicle is equipped

with only one FullHD camera. In this case, we can

only use two-dimensional consecutive frames of a

video sequence. The use of adjacent frames is

described in articles (Guo et al., 2012) and

(Mogelmose et al., 2012). Tracking traffic sign on

adjacent frames can not only increase the confidence

in the correct detection, but also reduce the

computational complexity of the algorithm by

reducing the search area in the adjacent frames.

In this article, tracking of traffic signs in a video

sequence is performed using the information on the

current vehicle speed. Most modern cars are equipped

with onboard computers or GPS receivers, which can

return the current vehicle speed V. In addition, we

know the number of received frames per second FPS.

Thus, we can get the exact difference of the distance

to the sign in adjacent frames:

FPS

Δ=

(4)

Consider the case of detecting a triangular traffic

sign shown in Figure 5, using the model of the road

scene shown in Figure 1. The distance from the

vehicle to the sign can be obtained using the

following equation:

TrafficSignsDetectionandTrackingusingModifiedHoughTransform

tan

rameWidth

SignWidth







(5)

Here, index

means that a value is in meters,

index

means a value in pixels.

The actual size of the road signs is known and in

our case is 0.7 m. We assume that the sign width in

pixels is equal to 31 pixels as this size is quite suitable

for the subsequent recognition step. α is equal to 70 °.

In this case, the distance AC is equal to 30 m.

Using the difference (4) and the distance (5), we

can calculate the exact size of the sign on the adjacent

frames:

C SignWidth

SignWidth

AC AC

+Δ

(6)

Thus, the detection with tracking uses vehicle

speed to predict the sizes of a detected traffic sign in

the adjacent frames. This significantly increases the

reliability of the correct detection and at the same

time reduces the required time for detection.

2.3 Recognition

For the recognition step, the algorithm uses the

specially prepared binary etalon images, which are

actually inner areas of traffic signs. Figure 7 shows

such etalons.

Figure 7: Etalon images for template matching.

After detection, the algorithm obtains images of

detected objects, which are quite similar to etalons

since they are previously resized to the constant size

of etalon images. To determine the type of a found

object, we can use any recognition method. However,

in case of successful object detection, and due to the

execution time limitation, it is expedient to use a

simple image subtraction and choose the lowest

value, which will point to the most similar etalon. In

case of large values, the algorithm gives a false

detection message, since no similar etalon images

were found.

The execution time of such recognition is 1-2 ms

in average with 32 types of image etalons. This

performance allows using several etalon images of

each type to increase the recognition efficiency and

reliability.

3 EXPERIMENTAL RESULTS

The developed algorithm was tested on the video

frames obtained on the streets of the city of Samara

using a camera GoPro Hero 3 Black Edition built in

to a car.

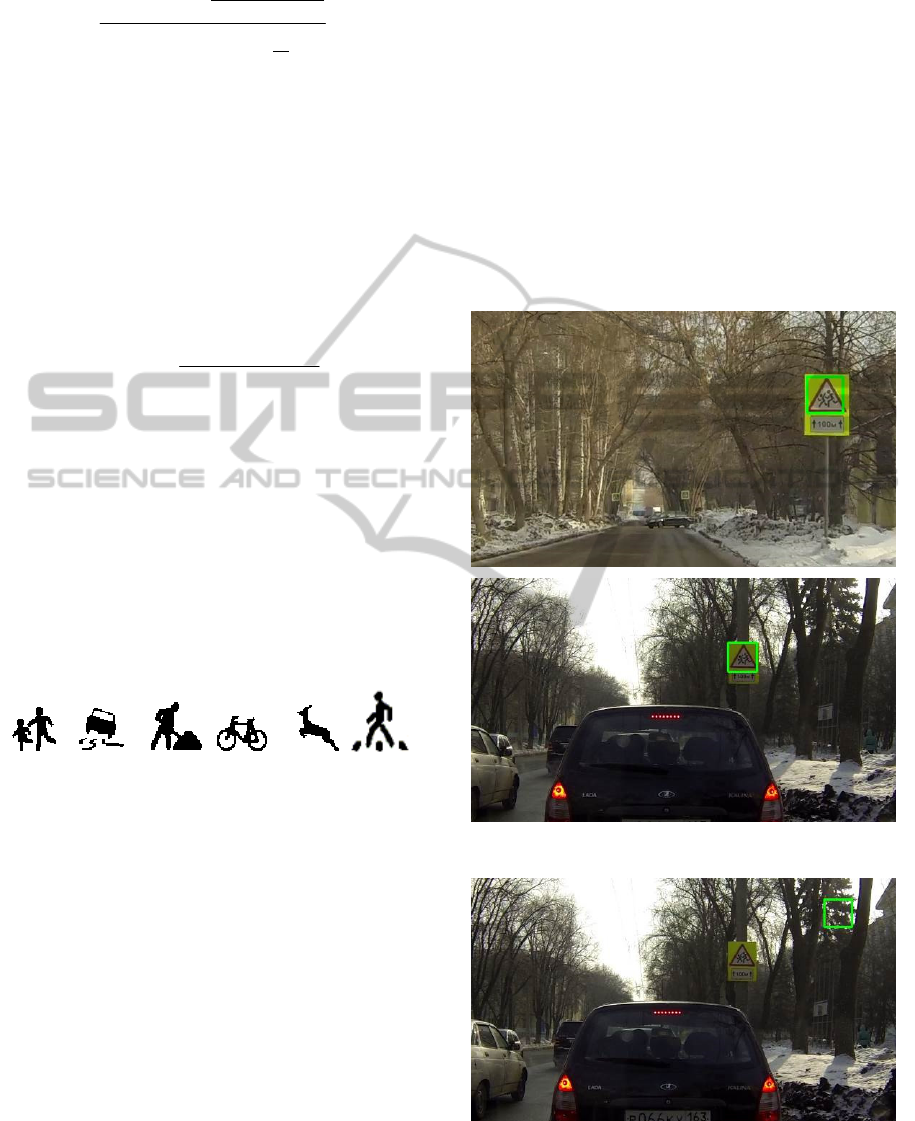

Figure 8 shows the fragments of the original

images with marked road signs on them.

Figure 9 shows the result image of the detection

algorithm without the prior application of the noise

reduction algorithm. It shows a case of false

detection. In this noisy image, the accumulator space

collected more votes for noisy part of the image than

for road sign is in the shade.

Figure 8: Frames with detected signs.

Figure 9: False detection.

Note that it took 80 ms to apply the detection

algorithm on the noisy image. While it took almost

SIGMAP2015-InternationalConferenceonSignalProcessingandMultimediaApplications

half as much time (41 ms) to process the denoised

image.

In order to evaluate the detection and recognition

algorithms accuracy, we used the German Traffic

Sign Detection Benchmark (GTSDB) (Houben et al.,

2013) and the German Traffic Sign Recognition

Benchmark (GTSRB) (Stallkamp et al., 2012). They

contain more than 50,000 images with traffic signs

registered in various conditions. To assess the quality

of the sign detection, we counted number of images

with correctly recognized traffic signs. When testing

the developed algorithms, we used only 9,987 images

containing traffic signs of the required shape and with

red contours. The experiments showed 97,3% of

correctly detected and recognized prohibitory and

danger traffic signs.

The remaining 2.7% of traffic signs were rejected

on the recognition step with the message “There is no

thresholds of recognition, we can increase the

accuracy of the whole procedure. Still, it is much

more important to avoid false detection cases in real

situation than to miss some traffic signs.

While several teams-participants of both

benchmarks reached 100% of detection and

recognition accuracy, they did not provide any

information about the algorithms performance. In this

article, we describe the implementation that can

operate in real time using hardware of limited power

consumption and comparatively low performance.

Table 1 shows the execution time of the proposed

traffic signs detection and recognition algorithms.

CPU results were obtained using Intel Core i5 3210m;

GPU results were obtained using CUDA-enabled

NVIDIA GeForce GT 750m.

Table 1: Traffic signs detection and recognition algorithms

performance.

Time FPS

CPU, 1920x1080 283 ms 3.53

CPU, 1280x720 142 ms 7.04

GPU, 1920x1080 23 ms 43.47

GPU, 1280x720 14 ms 71.42

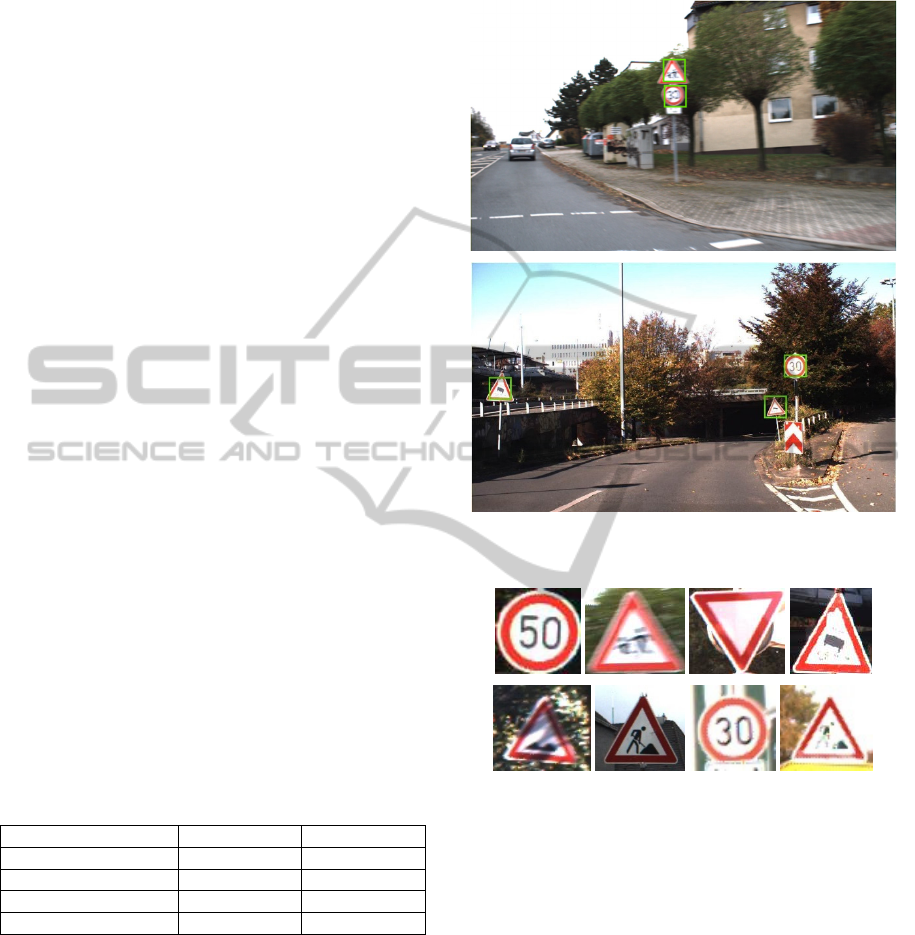

Figure 10 shows some examples of detected

traffic signs in the images from the German Traffic

Sign Detection Benchmark dataset. The detected

objects are marked with green rectangles.

In Figure 11, there are examples of detected and

recognized traffic signs from the German Traffic Sign

Recognition Benchmark dataset. Despite the bad

registration quality of some images, most of the

detected objects are recognized correctly, because the

coordinates of the inner area of a traffic sign are

detected quite precisely.

Figure 10: Traffic signs detection in images from the

GTSDB dataset.

Figure 11: Successfully recognized traffic signs from the

GTSRB dataset.

In future research, we plan to create a new traffic

sign detection and recognition dataset with annotated

videos instead of images, like in GTSDB and

GTSRB.

4 CONCLUSIONS

This paper proposes a whole technology for traffic

signs recognition, including image preprocessing,

detecting with tracking, and recognition of traffic

signs. The HSV color model was approved as the

most suitable one for the extraction of red color in the

images. The modified algorithm for removing noise

TrafficSignsDetectionandTrackingusingModifiedHoughTransform

helped not only to avoid false detection of signs, but

also accelerated the processing of images. The

developed algorithm can improve the quality and

increase the reliability of automotive traffic sign

recognition systems, and reduce the time required to

process one frame, which brings the possibility to

carry out the detection and recognition of signs in Full

HD 1920x1080 images from the video sequence in

real time.

An algorithm for detection of triangular signs is

considered in the paper. It is based on the Generalized

Hough Transform and is optimized to suit the time

limitation. The developed algorithm shows efficient

results and works well with the preprocessed images.

Tracking using a vehicle’s current velocity helped to

improve the performance. In addition, the presence of

a sign in a sequence of adjacent frames in predicted

areas dramatically improves the confidence in correct

detection. Recognition of detected signs makes sure

that the whole procedure of TSR is successful.

In this paper, we consider triangular traffic signs.

The developed detection algorithm makes it possible

to detect signs of any shape. It is only needed to

replace the template image with a sought-for shape.

The use of our TSR algorithms allows processing

of video streams in real-time with high resolution, and

therefore at greater distances and with better quality

than similar TSR systems have.

CUDA was used to accelerate the performance of

the described methods. In future research, we plan to

move all the designed algorithms to the mobile

processor Nvidia Tegra X1.

ACKNOWLEDGEMENTS

This work was partially supported by Project

#RFMEFI57514X0083 by the Ministry of Education

and Science of the Russian Federation.

REFERENCES

Shneier, M., 2005. Road sign detection and recognition.

Proc. IEEE Computer Society Int. Conf. on Computer

Vision and Pattern Recognition, pp. 215–222.

Nikonorov, A., Yakimov, P., Petrov, M., 2013. Traffic sign

detection on GPU using color shape regular

expressions. VISIGRAPP IMTA-4, Paper Nr 8.

Ruta, A., Porikli, F., Li, Y., Watanabe, S., Kage, H., Sumi,

K., 2009. A New Approach for In-Vehicle Camea

Traffic Sign Detection and Recognition. IAPR

Conference on Machine vision Applications (MVA),

Session 15: Machine Vision for Transportation.

Belaroussi, R., Foucher, P., Tarel, J. P., Soheilian, B.,

Charbonnier, P., Paparoditis, N., 2010. Road Sign

Detection in Images. A Case Study, 20th International

Conference on Pattern Recognition (ICPR), pp. 484-

488.

Lafuente-Arroyo, S., Maldonado-Bascon, S., Gil-Jimenez,

P., Gomez-Moreno, H., Lopez-Ferreras, F., 2006. Road

sign tracking with a predictive filter solution. IEEE

Industrial Electronics, IECON 2006 - 32nd Annual

Conference on, vol., no., pp.3314-3319.

Lopez, L.D. and Fuentes, O., 2007. Color-based road sign

detection and tracking. Image Analysis and Recogni-

tion, Lecture Notes in Computer Science. Springer.

Koschan, A., Abidi, M. A., 2008. Digital Color Image

Processing. ISBN 978-0-470-14708-5, p. 376.

Yakimov, P., 2013. Preprocessing of digital images in

systems of location and recognition of road signs.

Computer optics, vol. 37 (3), pp. 401-405.

Fursov, V.A., Bibikov, S.A., Yakimov, P.Y., 2013.

Localization of objects contours with different scales in

images using Hough transform. Computer optics. Vol.

37(4), pp. 496-502.

Ruta, A., Li, Y., Liu, X., 2008. Detection, Tracking and

Recognition of Traffic Signs from Video Input.

Proceedings of the 11th International IEEE Conference

on Intelligent Transportation Systems. Beijing, China.

Møgelmose, A., Trivedi, M., Moeslund, M., 2012. Learning

to Detect Traffic Signs: ComparativeEvaluation of

Synthetic and Real-World Datasets. 21st International

Conference on Pattern Recognition, pp. 3452-3455,

IEEE.

Lafuente-Arroyo, S., Salcedo-Sanz, S., Maldonado-

Basc´on, S., Portilla-Figueras, J. A., Lopez-Sastre, R. J.

2010. A decision support system for the automatic

management of keep-clear signs based on support

vector machines and geographic information systems.

Expert Syst. Appl., vol. 37, pp. 767–773.

Timofte, R., Zimmermann, K.,Van Gool, L., 2014. Multi-

view traffic sign detection, recognition, and 3D

localisation. Machine Vision and Applications, vol. 25,

pp. 633-647, Springer Berlin Heidelberg.

Guo, C., Mita, S., McAllester, D., 2012. Robust Road

Detection and Tracking in Challenging Scenarios

Based on Markov Random Fields With Unsupervised

Learning. Intelligent Transportation Systems, IEEE

Transactions on, vol.13, no.3, pp.1338-1354.

Mogelmose, A., Trivedi, M.M., Moeslund, T.B., 2012.

Vision-Based Traffic Sign Detection and Analysis for

Intelligent Driver Assistance Systems: Perspectives and

Survey. Intelligent Transportation Systems, IEEE

Transactions on, vol.13, no.4, pp.1484-1497.

Houben, S., Stallkamp, J., Salmen, J., Schlipsing, M., Igel,

C., 2013. Detection of Traffic Signs in Real-World

Images: The {G}erman {T}raffic {S}ign {D}etection

{B}enchmark. International Joint Conference on

Neural Networks.

Stallkamp J., Schlipsing M., Salmen J., Igel C., 2012. Man

vs. computer: Benchmarking machine learning

algorithms for traffic sign recognition. Neural

networks, vol. 32, pp. 323-332.

SIGMAP2015-InternationalConferenceonSignalProcessingandMultimediaApplications
