On A-posteriori Integration of Ecore Models and Hand-written Java

Code

Thomas Buchmann and Felix Schw

agerl

Chair of Applied Computer Science I, University of Bayreuth, Universit

atsstrasse 30, 95440 Bayreuth, Germany

Keywords:

Model-Driven Development, Ecore, Code Generation, Java, Reverse Engineering, Model Transformation.

Abstract:

Model-driven software engineering emphasizes using models as primary development artefacts. In many

cases, the static structure of a software system can be automatically generated from static models such as

class diagrams. However, hand-written source code is still necessary, either for specifying method bodies or

for integrating the generated code with already existing artefacts or frameworks. In this paper, we present a

concept and the corresponding technical solution, which allow to lift up hand-written code for method bodies

to the model level and tightly integrate it with the Ecore model. Furthermore, we demonstrate the feasibility

of our approach with the help of a concrete use case.

1 INTRODUCTION

Model-Driven Software Engineering (MDSE) (V

olter

et al., 2006) is a discipline which receives increasing

attention in both research and practice. It puts strong

emphasis on the development of high-level models

rather than on the source code. Models are not con-

sidered as documentation or as informal guidelines

how to program the actual system. In contrast, mod-

els have a well-deﬁned syntax and semantics. More-

over, MDSE aims at the development of executable

models. The resulting models are then transformed in

a series of subsequent transformation steps (Frankel,

2003) into source code which can be compiled and

executed on the respective target platform.

Ideally, software engineers operate only on the

level of executable models such that there is no need

to inspect or edit the actual source code (if any). In

this sense, models are the code (now written in a high-

level modeling language). However, practical experi-

ences have shown that language-speciﬁc adaptations

to the generated source code are frequently necessary.

Object-oriented modeling is centered around class

diagrams, which constitute the core model for the

structure of a software system. From class dia-

grams, parts of the application code may be gener-

ated, including method bodies for elementary oper-

ations such as creation/deletion of objects and links,

and modiﬁcations of attribute values. However, for

user-deﬁned operations only methods with empty

bodies may be generated which have to be ﬁlled in

by the programmer.

The Eclipse Modeling Framework (EMF) (Stein-

berg et al., 2009) has been established as an extensible

platform for the development of MDSE applications.

It is based on the Ecore metamodel which is compati-

ble with the OMG Meta Object Facility (MOF) spec-

iﬁcation (OMG, 2011).

In EMF, for instance, only structure is modeled

by means of class diagrams, whereas behavior is de-

scribed by modiﬁcations to the generated source code.

However, EMF is already tuned for efﬁcient program-

ming, as it demands for hand-written Java code for

method bodies. Users are able to annotate the respec-

tive parts and the Eclipse Modeling Framework uses

a code-merging generator to preserve these fragments

on subsequent code generation steps.

We apply our approach to a speciﬁc problem sce-

nario — the derivation of products in model-driven

software product lines. Nevertheless, the approach

can also be used in single system development.

This paper is structured as follows: In Section 2,

we discuss our contribution. A detailed example

showing a use case for our approach is described in

Section 3. Related work is discussed in Section 4 be-

fore Section 5 concludes the paper.

2 EMF - JAVA INTEGRATION

In this section, we describe our approach to unify

EMF modeling and Java programming. After giving a

Buchmann T. and Schwägerl F..

On A-posteriori Integration of Ecore Models and Hand-written Java Code.

DOI: 10.5220/0005552200950102

In Proceedings of the 10th International Conference on Software Paradigm Trends (ICSOFT-PT-2015), pages 95-102

ISBN: 978-989-758-115-1

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

brief overview about EMF and MoDisco (Bruneliere

et al., 2010), we discuss our solution in detail.

2.1 EMF Overview

The Eclipse Modeling Framework (EMF) with its

metamodel Ecore is the standard platform for model-

driven software development in Eclipse, and it is es-

pecially wide-spread in the academic community. It

follows a minimalistic and pragmatic modeling ap-

proach. Ecore only comprises the core concepts

of object-oriented modeling and thus allows for a

straightforward mapping to Java code.

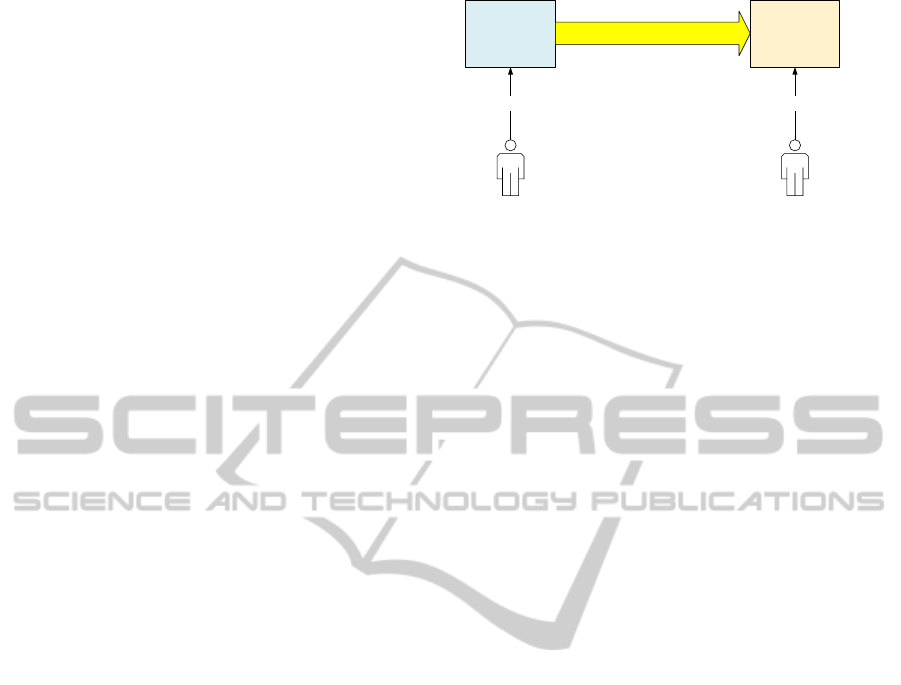

Figure 1 depicts the development process imposed

by EMF. Typically, modelers use Ecore class dia-

grams to describe the static structure of the software

system. The code generator provided with EMF maps

the class model to a set of corresponding Java inter-

faces and implementation classes. Furthermore, the

correct semantics of references between the classiﬁers

is ensured.

However, for user-deﬁned operations only the

headers of the corresponding Java methods are gen-

erated. Body implementations have to be speciﬁed

directly in Java afterwards. EMF uses a code-merging

generator in order to deal with these additions to the

generated code supplied by the user. Corresponding

Javadoc-tags mark regions in the source code which

should be preserved on subsequent EMF code gen-

eration runs. Unfortunately, these Javadoc-tags have

to be speciﬁed before the corresponding method dec-

laration. Thus, if a method declaration is annotated

with such a Javadoc-tag because it contains a user-

deﬁned body, it will never be modiﬁed by the EMF

code generator. In particular the following operations

may cause problems:

Deletion. In case the corresponding EOperation is

deleted from the class model, the resulting Java

code will still be present in the source code after

subsequent generation steps.

Modiﬁcation. If the EOperation is modiﬁed in the

Ecore class diagram (e.g., renaming, changing pa-

rameters or return type), these changes cannot be

propagated to the generated code, since the corre-

sponding code fragments are protected. Instead, a

new method declaration with empty body is gen-

erated.

2.2 Integration of Method Bodies

To avoid the problems described above, integrating

the hand-written method bodies in the Ecore model is

a possible solution. If the bodies are already present

Ecore Model Java Code

creates / updates creates / updates method bodies

generate

Figure 1: The typical MDSE Process in EMF.

when the EMF code generator starts its work, there is

no need to protect certain methods with correspond-

ing Javadoc-tags. As a consequence, changes in the

Ecore class diagram are propagated to the generated

code correctly:

Deletion. If an EOperation is deleted from the class

model, its corresponding body is deleted as well.

Modiﬁcation. All changes to the deﬁnition of an

EOperation (i.e. return types, parameters, or

name) are propagated to the generated code.

In the following, we describe how this integration

can be achieved automatically.

The EMF code generator is always invoked on a so

called generator model. The generator model wraps

the Ecore model and adds some generation-speciﬁc

meta information, e.g. target directories, code style,

and so forth.

Ecore models may be annotated with so called

EAnnotations for a number of different purposes.

These annotations are used to store information which

is not explicitly supported in the Ecore metamodel

(Steinberg et al., 2009). EMF’s standard annotations

may be classiﬁed into different categories based on

the source it uses for each kind:

Ecore. Annotations of this kind are attached to

EModelElements in order to specify additional in-

formation which is relevant at both runtime and

code generation.

GenModel. GenModel-sourced annotations are used

to attach information that is only relevant when

generating code to respective EModelElements.

Extended Metadata. Annotations of this kind are

used in models that were created from XML

Schema.

EMOFTags. Tags in EMOF are used for the same

purpose as EAnnotations are used in Ecore. Since

EMF provides an interchange between Ecore and

EMOF, EMOFTags are required to map EAnnota-

tions to corresponding tags.

Since the Ecore metamodel does not cover method

bodies, annotations are required to make them part of

ICSOFT-PT2015-10thInternationalConferenceonSoftwareParadigmTrends

a model. Since this information is required only dur-

ing code generation, GenModel annotations have to

be used. EMF already provides a pre-deﬁned anno-

tation for this purpose: A GenModel-sourced annota-

tion for the type EOperation exists. It allows to spec-

ify a key value pair. The key body indicates that the

corresponding value ﬁeld contains Java code that im-

plements the operation. However, iterating through

the model and adding corresponding annotations for

each user-deﬁned methods is a cumbersome and time-

consuming task. Thus, we strived for a complete au-

tomation of this process.

To this end, we use the MoDisco

framework.

Originally, MoDisco is dedicated to software mod-

ernization projects. It provides a set of discoverers

for different types of artefacts, e.g. a discoverer for

Java source code. Thus, it allows to parse existing

Java source code into an Ecore-based model, which

resembles the abstract syntax tree (AST) of the Java

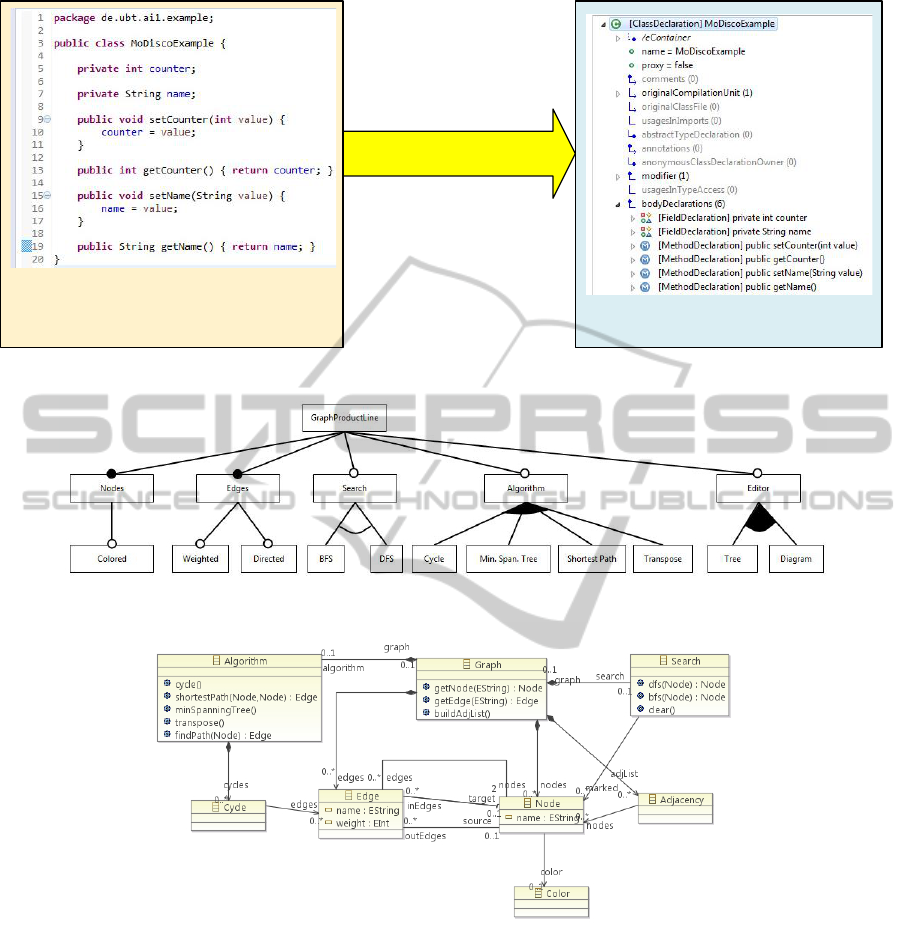

language (c.f. Fig. 2).

MoDisco also provides a code generator based on

Acceleo

, which allows to generate Java code from

the Ecore-based AST model.

In order to integrate hand-written method bodies

into the Ecore model automatically, ﬁrst the complete

Java code is discovered using MoDisco, resulting in

a Java AST model (based on Ecore). Then the proce-

dure iterates over the Ecore model and checks for each

EOperation if a corresponding body implementation

is present in the AST model. If this is the case, a cor-

responding GenModel-EAnnotation is created. The

EAnnotation uses a key-value pair to specify the pur-

pose. The value contains the Java code that realizes

the corresponding method implementation. In order

to obtain this Java code from the AST model, the code

generator is invoked only for the desired fragment (in

this case the Block which is contained in the corre-

sponding MethodDeclaration) and the resulting string

is stored in the value ﬁeld of the newly created EAn-

notation. Using our approach, the user has the full

beneﬁts of his preferred modeling environment (e.g.

the Ecore class diagram editor) and his preferred pro-

gramming environment (e.g. the Eclipse JDT Java ed-

itor). Furthermore, code completion and syntax high-

lighting are available when the hand-written body im-

plementations are created, which is not the case if the

standard EMF annotation editor is used.

The resulting Ecore model now contains the

static structure of the software system as well as all

hand-written body implementations for correspond-

ing EOperations. All subsequent changes to the struc-

tural model may now be propagated correctly to the

https://eclipse.org/MoDisco/

http://www.eclipse.org/acceleo

generated code, as there is no need to protect these

hand-written parts any longer.

3 EXAMPLE

In this section, we present a use case for our solution

in the context of model-driven software product line

engineering (MDPLE). Please note that the problem

is speciﬁc to MDPLE. However, the solution which is

presented here can be used in general for every model-

driven software project which is realized with the help

of EMF.

3.1 Problem Description

One area of our research is dedicated to model-

driven software product line engineering (SPLE).

SPLE (Clements and Northrop, 2001) addresses the

organized reuse of software artifacts. Feature models

(Kang et al., 1990) are used to capture the common-

alities and differences of members of a product line,

while feature conﬁgurations describe the characteris-

tics of a speciﬁc member thereof. Software product

line engineering is divided into two levels. (1) Do-

main engineering is used to analyze the domain and

capture the commonalities and variabilities in a fea-

ture model. Furthermore, the features are realized in a

corresponding implementation. In model-driven soft-

ware product lines, models represent the implementa-

tion at a higher level of abstraction. (2) Application

engineering deals with binding the variability deﬁned

in the feature model and deriving concrete products.

In SPLE, basically two different approaches ex-

ist to realize variability in the corresponding feature

implementation: (1) In approaches based on positive

variability, product-speciﬁc artifacts are built around

a common core. During application engineering,

composition techniques are used to assemble the ﬁnal

product using these artifacts. (2) In approaches based

on negative variability, a superimposition of all vari-

ants is created. The derivation of products is achieved

by removing all fragments of artifacts implementing

features which are not contained in the speciﬁc fea-

ture conﬁguration for the desired product.

Several approaches exist to associate elements

of the feature model with artifacts part of the do-

main model; in previous publications (Buchmann

and Schw

agerl, 2012) FAMILE has been presented,

an EMF-based tool chain for model-driven software

product line development using negative variability.

All common approaches for model-driven software

product line engineering only support homogeneous

artefacts. In (Buchmann and Schw

agerl, 2014) an

OnA-posterioriIntegrationofEcoreModelsandHand-writtenJavaCode

Java Model

(Ecore-based)Java Code

parse

Figure 2: Using MoDisco to parse Java code into an Ecore-based model.

Figure 3: Feature model for the graph product line.

Figure 4: Ecore model for the graph product line.

extension to FAMILE allowing for heterogeneous

projects is described. In this case, the platform of

the product line may consist of models and hand-

written source code. However, when deriving prod-

ucts, the variability information needs to be kept con-

sistent across all artefacts.

A prominent example in literature on software

product lines is a product line for graphs. The cor-

responding feature model is shown in Fig. 3. A graph

always consists of nodes and edges (ﬁlled dots) an op-

tionally (unﬁlled dots) one (unﬁlled arc) search strat-

egy (bfs or dfs) and an arbitrary number (ﬁlled arc) of

algorithms. Furthermore, edges may have a weight or

they may be directed.

Figure 4 depicts the multi-variant domain model

of the graph product line. Following the model-driven

approach, an object-oriented decomposition of the

underlying data structure is applied: A Graph con-

tains Nodes and Edges. Furthermore it may contain a

Search strategy and Algorithms operating on the graph

data structure. For performance reasons, the data

structure may be converted into an Adjacency list, to

ICSOFT-PT2015-10thInternationalConferenceonSoftwareParadigmTrends

speed up certain algorithms. As the model depicted

in Fig. 4 is the superimposition of all variants, the re-

lation between nodes and edges is expressed in mul-

tiple ways: (1) In case of undirected graphs, an edge

is used to simply connect two nodes, expressed by

the reference nodes. (2) Directed graphs on the other

hand demand for a distinction of the respective start

and end nodes of an edge. This fact is expressed by

two single-valued references named source and tar-

get, respectively.

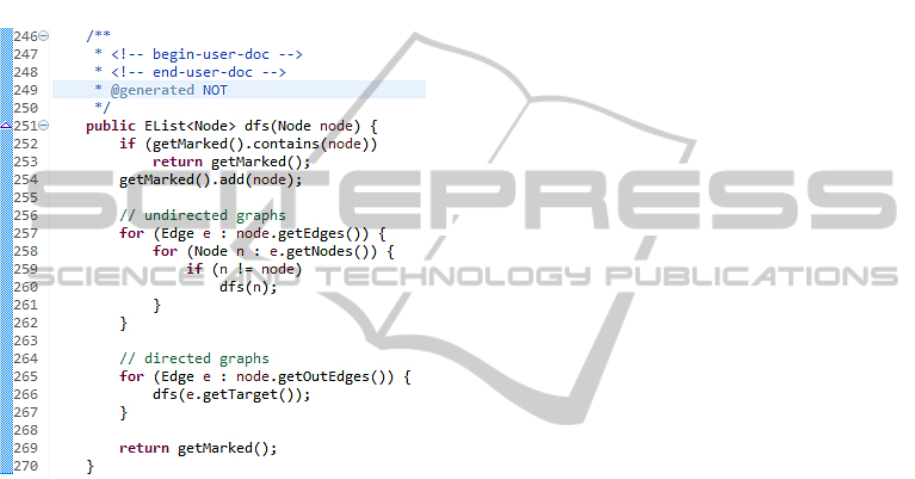

Figure 5: Example for a multi-variant method body written

in Java.

As stated above, Ecore only allows for structural

modeling, i.e., it does not provide support to model

method bodies. Thus, the standard EMF development

process (Steinberg et al., 2009) demands for a man-

ual speciﬁcation of an EOperation’s body by com-

pleting the generated source code. In the example,

hand-written Java source code for all operations con-

tained in the class diagram shown in Figure 4 has

been supplied. A small cut-out of a method imple-

mentation for the class Search is shown in Figure

5. In the corresponding Ecore model (cf. Fig. 4),

the Search class deﬁnes three EOperations. While

the EMF code generation only creates Java code for

the method header, the body implementation depicted

in Figure 5 was supplied manually. In this case,

the method implementation also contains variability

as the corresponding references between nodes and

edges are different depending on the presence or ab-

sence of the feature Directed in the current feature

conﬁguration. Please note that the level of granularity

supported by FAMILE’s variability annotations is ar-

bitrary, ranging from single Java fragments over state-

ments, blocks, methods, or even classes and packages.

As mentioned earlier, FAMILE supports the de-

velopment of software product lines based on nega-

tive variability. Thus, when deriving speciﬁc products

based on a concrete feature conﬁguration, all frag-

ments and artefacts which implement unselected fea-

tures have to be removed. Figure 6 depicts the situa-

tion that would occur if only standard EMF technol-

ogy without the mechanism described in this paper

would have been used.

During Domain Engineering, the platform con-

taining all variants is created. This can be done in

a model-driven way using Ecore models to describe

the static structure of the software. Then the Ecore

code generator is invoked (cf. step 1 in Fig. 6) and

hand-written Java code is used to supply the method

bodies. The hand-written code is added to the gener-

ated one and then discovered into an Ecore-compliant

AST model in order to be able to use FAMILE for

variability management on the source code fragments.

The user now may annoate the respective artefacts

with variability information. Annotations concerning

the structure are performed on the level of the Ecore

model. For example, class Search shown in Fig. 4,

contains the operations dfs(Node) and bfs(Node) re-

spectively, which represent the different search strate-

gies which are used in graphs and which are anno-

tated with the corresponding features from the feature

model (cf. Fig. 3). Feature annotations in the Ecore

model can be used on any level of granularity. E.g.

classes, attributes, methods, parameters or references

may be annotated.

As the variability information (for the static struc-

ture) that has been added to the Ecore model in do-

main engineering is not present in the generated code,

the discovered Java AST model also does not contain

it. Furthermore, annotating for example an EAttribute

in the Ecore class diagram would require the user to

annotate the corresponding ﬁeld declaration and the

respective accessor methods in the generated source

code. Of course this is not feasible, since one of the

goals of the FAMILE tool chain is to keep the anno-

tation effort for the user as small as possible. Fur-

thermore, in order to consistently annotate the Ecore

model and the generated parts in the Java model, the

user would require knowledge about the Ecore code

generator. However, the hand-written body imple-

mentations may also require variability. E.g. the im-

plementation of the method dfs(Node) contains differ-

ent fragments which are used for directed and undi-

rected graphs respectively. The user may annotate

these blocks with corresponding feature annotations.

Please note that these annotations are performed di-

OnA-posterioriIntegrationofEcoreModelsandHand-writtenJavaCode

EMF Model Java Model

EMF Model‘ Java Model‘

Java Code

generate

discover

Java Code‘

generate (1)generate (2)

derive derive

Application Engineering

Domain Engineering

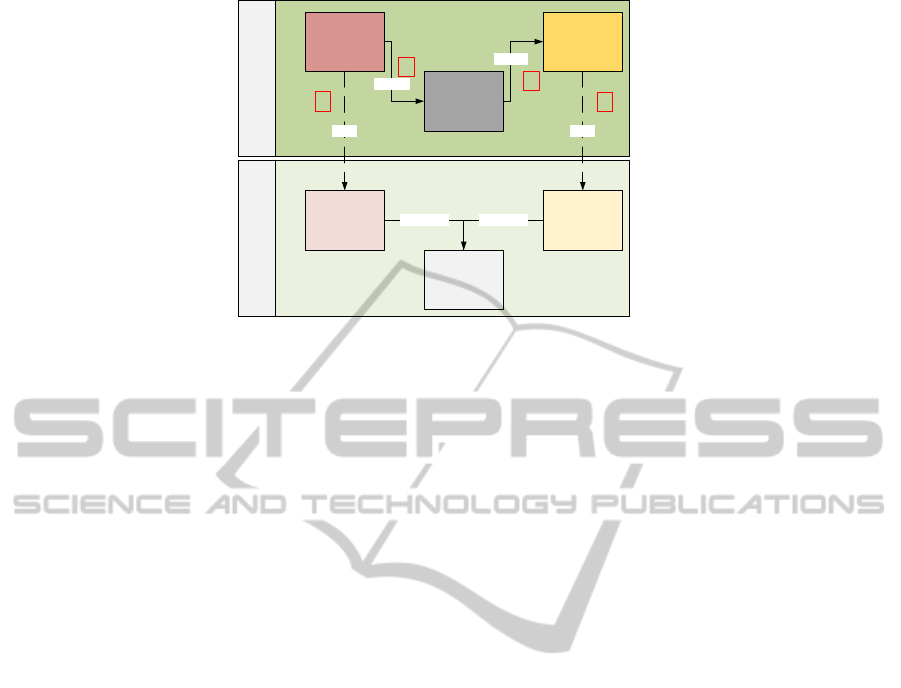

Figure 6: The interplay between model and hand-written code in (heterogeneous) model-driven software product lines.

rectly from the Eclipse JDT editor. The FAMILE

tool chain maps these annotations to the discovered

MoDisco Java model as FAMILE operates on Ecore-

based models only (cf. step 2 in Fig. 6).

During Application Engineering, when unused

fragments are ﬁltered from the multi-variant mod-

els, the corresponding target models are derived (EMF

Model’ and Java Model’ respectively, cf. step 3 in 6).

In an ideal world, i.e. if both models are in sync in

terms of variability information, the user could invoke

the code generation for the Java model and afterwards

the code generation of the EMF model in order to

obtain the ﬁnal source code for the desired product.

However, reality is different: The EMF code merging

generator does not remove ﬁles. For example, an an-

notated class of the Ecore model has been ﬁltered dur-

ing the derivation process, but it is still present in the

Java model. If the code generation for the Java model

is invoked ﬁrst, corresponding Java code for this class

is generated which is not deleted on a subsequent run

of the EMF code generation. The same holds for oper-

ations: The EMF code generation requires that hand-

written code is marked in order to preserve it during

subsequent generation steps. In case an EOperation

that has been extended with a hand-written body is

ﬁltered in the Ecore model, this mechanism prevents

it from being deleted.

A possible solution would be to add informa-

tion about the conceptual links between Ecore mod-

els and the corresponding generated Java code to the

FAMILE tool chain. However, due to the following

reasons, this is not feasible: (1) FAMILE is as gen-

eral as possible, as the only requirement is that the

domain models are based on Ecore. No assumptions

about certain concepts are made and thus FAMILE

may be used for a vast variety of artefacts. (2) The

EMF code generation could be modiﬁed by the EMF

developers which would then require modiﬁcations of

FAMILE.

Thus, the approach as described in this paper of-

fers a tool-independent solution for this problem.

3.2 Solution

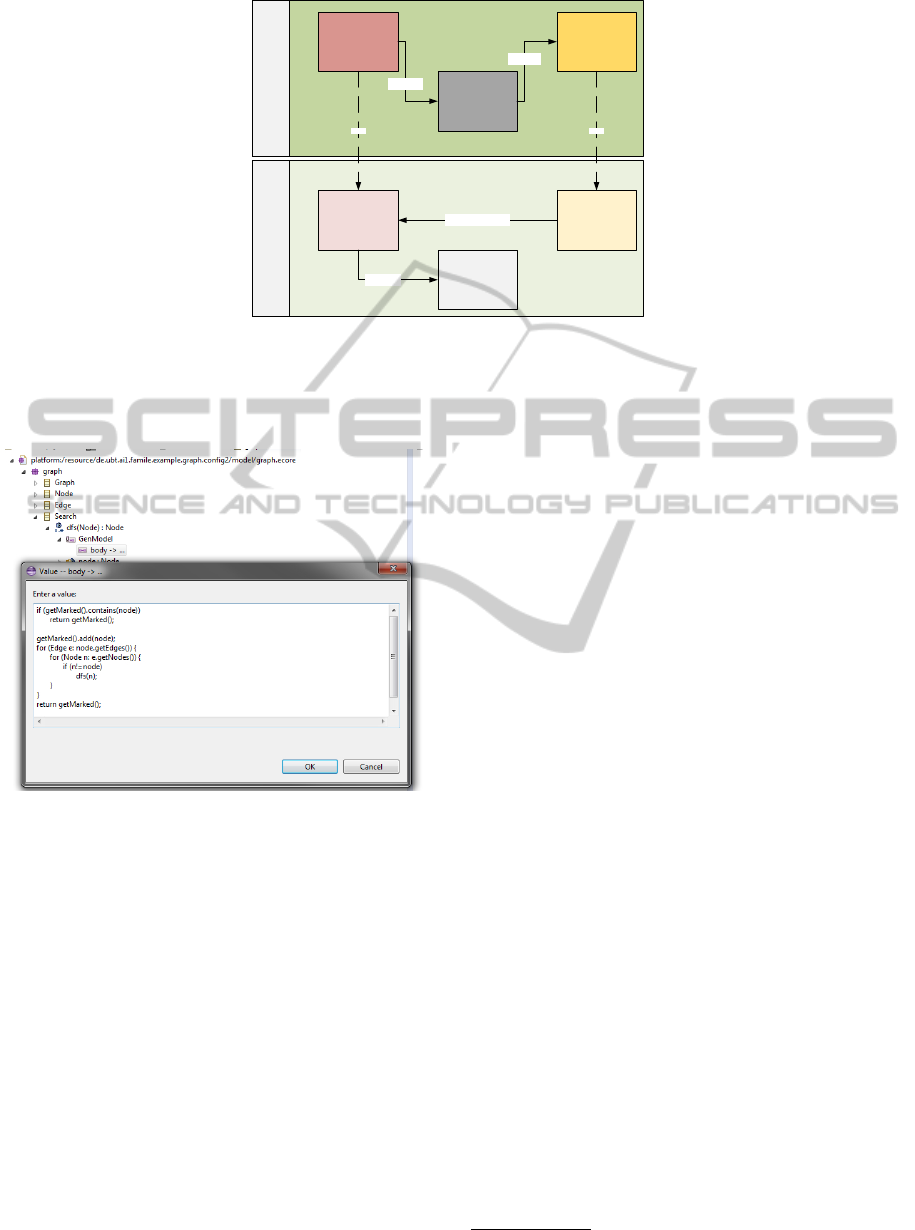

Figure 7 shows how the approach discussed in this

paper solves the problem shown above and related

problems of the same class. The domain engineer-

ing phase is carried out as described earlier. Once

both models are derived in application engineering,

there is no need to invoke two different code genera-

tion steps. In detail, our automated solution performs

the following tasks on both models:

Traverse Ecore Model. First, the Ecore model is tra-

versed and for each EOperation the following

tasks are performed:

Locate Method Implementation. In the Java

model, the corresponding MethodDeclaration is

located. We make sure, that it really contains a re-

spective body implementation and the appropriate

Javadoc tag.

Invoke Code Generation Template. If this is the

case, we need to invoke MoDisco’s Java code

generation only for this model fragment (i.e. the

block containing the body implementation).

Add EAnnotation. Finally, the EOperation from the

Ecore model is extended by an appropriate EAn-

notation: A GenModel-source annotation with

key body is created. The corresponding value is

the result of the code generation run in the previ-

ous task described above (cf. Fig. 8).

After the Ecore model has been traversed and the

above steps have been excuted for all user-deﬁned

EOperations, the models are in sync and the user only

needs to invoke the EMF code generator (just as in a

ICSOFT-PT2015-10thInternationalConferenceonSoftwareParadigmTrends

100

EMF Model Java Model

EMF Model‘ Java Model‘

Java Code

generate

discover

Java Code‘

derive derive

Application Engineering

Domain Engineering

integrate bodies

generate

Figure 7: Our solution applied for model-driven software product line engineering.

regular EMF project) in order to obtain the ﬁnal and

consistent Java source code for the desired product.

Figure 8: The ﬁnal Ecore model, after applying our solu-

tion.

Please note that the proposed solution is the only

feasible way to achieve consistency and to allow vari-

ability on arbitrary levels of granularity. E.g. a solu-

tion which would not use the Java model, but would

integrate the method bodies into the Ecore model di-

rectly in domain engineering does not allow to specify

variability in body implementations as shown above.

4 RELATED WORK

During the last few years, several approaches have

been published which extend EMF with capabilities

for behavioral modeling. Graph rewriting techniques

are used in Henshin (Arendt et al., 2010), MDELab

(Giese et al., 2009), or ModGraph (Buchmann et al.,

2011). While the ﬁrst ones are based on an interpreter,

i.e. there is no generated code, ModGraph on the

other hand generates method bodies for user-deﬁned

operations out of graph transformation rules.

However, while graph transformation rules pro-

vide a beneﬁt for some complex operations, they even

reduce the level of abstraction in terms of control ﬂow

or in case the problem which has to be solved de-

mands for an imperative solution rather than a declar-

ative one (Buchmann et al., 2012). Thus, hand-

written Java code is still required for large parts of

a software system.

Xcore

is a textual DSL which allows to deﬁne

both the static structure and the behavior of Ecore

models. It provides a code generator that allows

to generate Java code from the Xcore speciﬁcation.

However, although Xcore has a Java-like syntax, it is

another new language which users have to learn.

The problem described in this paper could also be

solved using an incremental bi-directional Model-to-

Text transformation. So far there is no tool which

meets these requirements. There are incremental code

generators (e.g. JET, Xpand or Acceleo) in the EMF

context, but they only operate in one direction.

To the best of our knowledge, our approach is

the only one which offers the possibility to combine

Ecore modeling and standard Java programming on

the modeling level.

5 CONCLUSIONS

In this paper, we presented an innovative approach

for bridging the gap between the model level and the

source code level. Furthermore, as a proof of con-

cept, we presented an implementation for the Eclipse

Modeling Framework. EMF requires hand-written

https://wiki.eclipse.org/Xcore

OnA-posterioriIntegrationofEcoreModelsandHand-writtenJavaCode

101

method bodies, since it only allows for structural

modeling. The EMF code generation engine is able to

preserve these user-supplied code fragments on sub-

sequent generation steps. However, using this mecha-

nism, modiﬁcations and deletions in the Ecore model

are no longer propagated to the corresponding code

fragments.

We presented an approach that makes use of so

called GenModel-Annotations, allowing to specify in-

formation which is not originally supported by the

Ecore metamodel. In advance, we use MoDisco to

automatically parse the Java source code into a cor-

responding AST model. Model transformations are

applied to extract the required information from the

AST model and to add it to the Ecore model using

EAnnotations.

Furthermore, we explained in detail how this ap-

proach provides a signiﬁcant improvement in model-

driven software product line engineering (MDPLE):

Since we use a generic tool chain for MDPLE, con-

ceptual links between different models, e.g. an Ecore

model and a corresponding Java model containing

body implementations cannot be hardcoded in the

tool. In order to provide consistency between these

types of models, the information stored in both of

them has to be integrated using the approach dis-

cussed in this paper.

ACKNOWLEDGEMENTS

The authors want to thank Bernhard Westfechtel for

his valuable and much appreciated comments on the

draft of this paper.

REFERENCES

Arendt, T., Biermann, E., Jurack, S., Krause, C., and

Taentzer, G. (2010). Henshin: Advanced concepts

and tools for in-place EMF model transformations. In

Petriu, D. C., Rouquette, N., and Haugen, Ø., editors,

Proceedings 13th International Conference on Model

Driven Engineering Languages and Systems (MOD-

ELS 2010), Part I, volume 6394, pages 121–135, Oslo,

Norway. Springer Verlag.

Bruneliere, H., Cabot, J., Jouault, F., and Madiot, F. (2010).

MoDisco: a generic and extensible framework for

model driven reverse engineering. In Proceedings

of the IEEE/ACM international conference on Auto-

mated software engineering, ASE ’10, pages 173–

174, New York, NY, USA. ACM.

Buchmann, T. and Schw

agerl, F. (2012). FAMILE: tool

support for evolving model-driven product lines. In

orrle, H., Botterweck, G., Bourdells, M., Kolovos,

D., Paige, R., Roubtsova, E., Rubin, J., and Tolvanen,

J.-P., editors, Joint Proceedings of co-located Events

at the 8th European Conference on Modelling Foun-

dations and Applications, CEUR WS, pages 59–62,

Building 321, DK-2800 Kongens Lyngby. Technical

University of Denmark (DTU).

Buchmann, T. and Schw

agerl, F. (2014). A model-driven

approach to the development of heterogeneous soft-

ware product lines. In Mannaert, H., Lavazza, L.,

Oberhauser, R., Kajko-Mattsson, M., and Gebhart,

M., editors, Proceedings of the Ninth International

Conference on Software Engineering Advances (IC-

SEA 2014), pages 300–308, Nice, France. ICSEA.

Buchmann, T., Westfechtel, B., and Winetzhammer, S.

(2011). MODGRAPH - A Transformation Engine for

EMF Model Transformations. In Proceedings of the

6th International Conference on Software and Data

Technologies, pages 212 – 219.

Buchmann, T., Westfechtel, B., and Winetzhammer, S.

(2012). The added value of programmed graph trans-

formations — a case study from software conﬁgura-

tion management. In Sch

urr, A., Varro, D., and Varro,

G., editors, Applications of Graph Transformations

with Industrial Relevance (AGTIVE 2011), Budapest,

Hungary. Presented at AGTIVE 2011, currently under

review for publication in the post-proceedings.

Clements, P. and Northrop, L. (2001). Software Product

Lines: Practices and Patterns. Boston, MA.

Frankel, D. S. (2003). Model Driven Architecture: Apply-

ing MDA to Enterprise Computing. Wiley Publishing,

Indianapolis, IN.

Giese, H., Hildebrandt, S., and Seibel, A. (2009). Im-

proved ﬂexibility and scalability by interpreting story

diagrams. ECEASST, 18.

Kang, K. C., Cohen, S. G., Hess, J. A., Novak, W. E.,

and Peterson, A. S. (1990). Feature-oriented do-

main analysis (FODA) feasibility study. Technical Re-

port CMU/SEI-90-TR-21, Carnegie-Mellon Univer-

sity, Software Engineering Institute.

OMG (2011). Meta Object Facility (MOF) Core. Object

Management Group, Needham, MA, formal/2011-08-

07 edition.

Steinberg, D., Budinsky, F., Paternostro, M., and Merks,

E. (2009). EMF Eclipse Modeling Framework. The

Eclipse Series. Boston, MA, 2nd edition.

olter, M., Stahl, T., Bettin, J., Haase, A., and Helsen, S.

(2006). Model-Driven Software Development: Tech-

nology, Engineering, Management. John Wiley &

Sons.

ICSOFT-PT2015-10thInternationalConferenceonSoftwareParadigmTrends

102
