Using GDT4MAS as a Formal Support for Engineering Multi-Agents

Systems

Bruno Mermet and Ga¨ele Simon

GREYC-UMR 6072 and University of Le Havre, Universit´e de Caen Basse-Normandie,

Campus Cˆote de Nacre, Boulevard du Mar´echal Juin, 14032, CAEN cedex 5, France

Keywords:

Agent-oriented Software Engineering, Formal Speciﬁcation, Formal Veriﬁcation.

Abstract:

This paper focuses on multi-agent systems engineering process. An assessment of current needs in this do-

main, based on the analysis of systems already developed, is performed. This assessment shows that the formal

veriﬁcation of MAS is one of these needs. It is then shown how the formal approach GDT4MAS provides

answer to many of the other needs. This approach is based on a MAS formal speciﬁcation associated to a

proof process allowing to establish the correctness of properties of the system. The main purpose of this pa-

per is to show that, unlike most other formal approaches for MAS, GDT4MAS can at the same time propose

formal aspects making a proof possible and contribute to different general aspects of agent-oriented software

engineering, even when formal veriﬁcation is not a concern.

1 INTRODUCTION

Most failures in software development are a con-

sequence of miss-adapted methodologies or of the

weaknesses of tools that are used. In the domain

of standard software, recent years led to the design

of new methodologies (relying on the agile concepts)

and to the development of new tools to reduce the ra-

tio of unsucessful developments (Beck et al., 2001;

Martin, 2009).

However, as it has been explained in other

works (Ahmad and Rahimi, 2009), Multi-Agent Sys-

tems are speciﬁc softwares and require their own

methods and tools. Moreover, we are mainly inter-

ested in formal speciﬁcation and formal veriﬁcation,

and these techniques, which are also very speciﬁc, re-

quire their own methods and tools.

This led to the design of the GDT4MAS method

and model, presented in (Mermet and Simon, 2009).

GDT4MAS proposes its own language to specify, de-

sign and implement MAS. But, as this model relies on

concepts that are shared by most MAS architectures,

it provides characteristics that may be useful for any-

one interested in the development of MAS, even for

people that are not interested in formal methods.

The goal of this article is then to show how

GDT4MAS tackles many requirements that are ex-

hibited by several works dealing with Agent Oriented

Software Engineering and why using GDT4MAS

may help MAS designers.

In the next section, we present the concepts of

GDT4MAS that must be known to understand this ar-

ticle. In section 3, we explain why it may be interest-

ing to verify Multi-Agent Systems, and we show why

GDT4MAS is a good candidate to perform such a

task. Then, we explain how this model helps in the de-

velopment process where several kinds of stakehold-

ers take place. Section 5 presents how incremental de-

velopment can be instanciated thanks to GDT4MAS.

In the next section, it is shown how several kinds of

MAS architectures can be modeled thanks to the ex-

pressiveness of GDT4MAS.

2 GDT4MAS

2.1 Main Concepts

We only summarize here the essential parts of

GDT4MAS.More details can be found in (Mermet

and Simon, 2009; Mermet and Simon, 2011; Mermet

and Simon, 2013).

When specifying MAS with GDT4MAS, 3 parts

have to be speciﬁed: the environment, the types of

agents and the agents themselves, that are instances of

each type of agent, with speciﬁc initialisation values.

In the sequel, we brieﬂy present these different parts.

407

Mermet B. and Simon G..

Using GDT4MAS as a Formal Support for Engineering Multi-Agents Systems.

DOI: 10.5220/0005556904070412

In Proceedings of the 10th International Conference on Software Engineering and Applications (ICSOFT-EA-2015), pages 407-412

ISBN: 978-989-758-114-4

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

The environment is speciﬁcied by a set of typed

variables and an invariant property i

The type of an agent is speciﬁed by a set of typed

variables, an invariant and a behaviour.

The behaviour of an agent is mainly deﬁned by a

Goal Decomposition Tree (GDT). The GDT is a tree

of goals, whose root corresponds to the main goal

of the agent (in the standard version of GDT4MAS,

agents have only one main goal). A plan is associated

to each goal. Such a plan, when executed with suc-

cess, must achieve the goal and is expressed either by

a single action of by a set of subgoals linked together

by a decomposition operator.

A goal G is mainly described by a name n

, a sat-

isfaction condition sc

and a guaranted property in

case of failure gpf

The satisfaction condition (SC) of a goal is spec-

iﬁed formally by a formula that is satisﬁed when the

execution of the goal succeeds. On the other hand,

the GPF of a goal speciﬁes what happens when a goal

execution fails (of course, it is meaningless for an NS

goal, that is to say a goal that always succeed).

SC and GPF are state transition formulae (STF),

because they express a relation between two states,

called initial state and ﬁnal state. In the sequel, we

will use the term non-deterministic state transition

formula when for a given initial state, several ﬁnal

states satisfy the STF. For example, formula x

′

> x is

a non-deterministic STF because, for a given initial

state (x = 0 for instance), several ﬁnal states (x

′

= 2,

′

= 10) satisfy the formula.

2.2 GDT Example

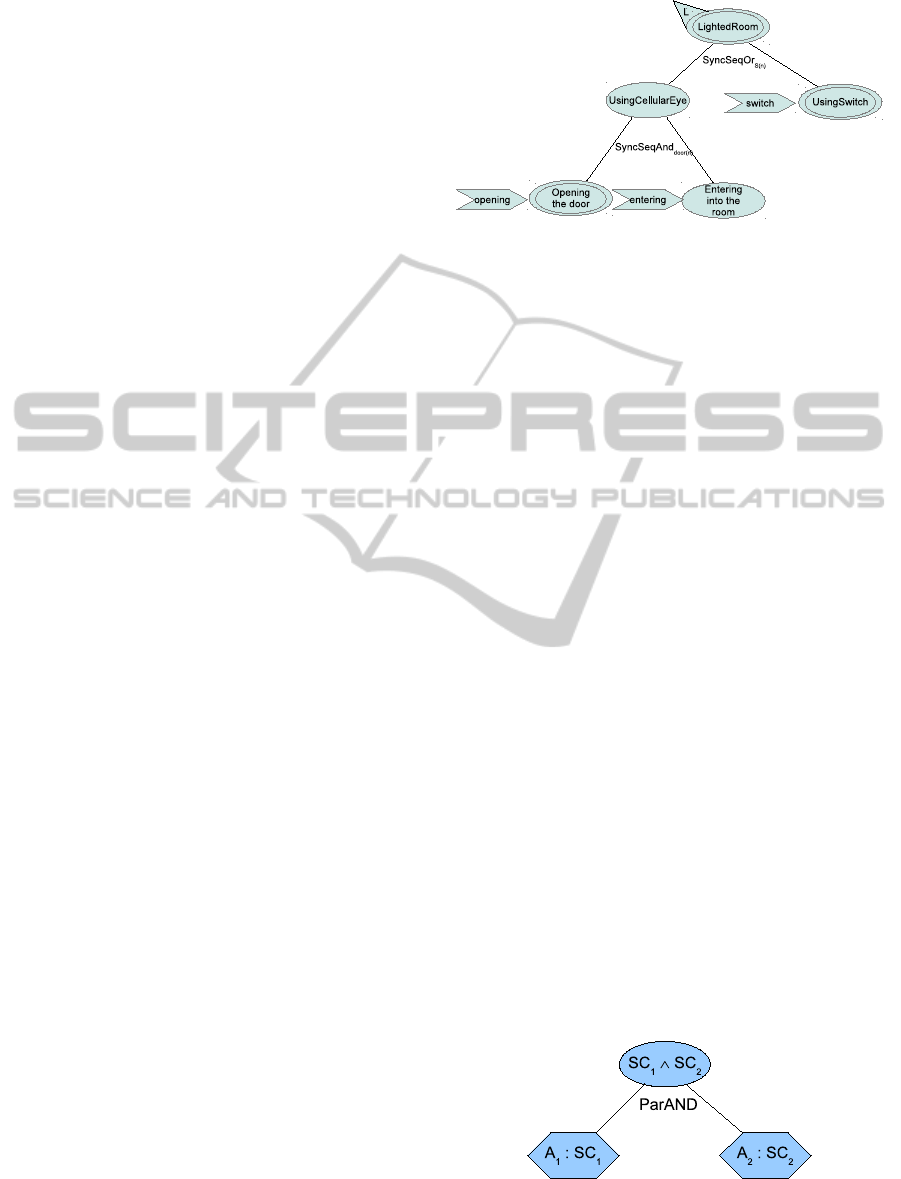

Figure 1 shows an example of GDT. The goal of this

behaviour is to light a given room n (n is a parameter

of the GDT). In order to do that, the agent tries to

enter into the room. As a cellular eye detects when

someone enters into the room and switches the light

on, this looks like a suitable plan. However, if the

cellular eye does not work as expected (this is why

the goal Entering into the room is NNS, i.e. not NS),

the agent will have to use the switch. More details can

be found in (Mermet and Simon, 2013)

2.3 Agents

Agents are speciﬁed as instances of types of agents,

with effective values for the agent type parameters.

2.4 Proof Principles

The proof mechanism provided by GDT4MAS aims

at proving the following properties: agents pre-

Figure 1: Example of a GDT.

serve invariant properties (Mermet and Simon, 2013),

agents behaviour are sound, that is to say, plans asso-

ciated to goals are correct and agents achieve liveness

properties that may be associated to their agent type.

Moreover, this proof mechanism relies on a few

important principles: proof obligations (properties to

be proven) can be generated automatically from a

GDT4MAS speciﬁcation, proof obligations are ex-

pressed in ﬁrst-order logic and can be veriﬁed by any

adequate automatic theorem prover and ﬁnally, the

proof system is compositional: the proof of the cor-

rectness of an agent is decomposed into several small

independent proof obligations.

2.5 Holonic GDT4MAS

An extension of GDT4MAS has been presented

in (Mermet and Simon, 2011), where it has been

shown that the execution of the goal of an agent can

be performed thanks to several sub-agents (a holonic

agent is itself made of sub-agents).

Figure 2 illustrates the usage of the ParAnd opera-

tor. The root goal in this ﬁgure corresponds to one of

the goals of a holonic agent. To achieve this goal, two

sub-agents, A

and A

, represented by hexagons, are

started by the holonic agent. A

(whose behaviour is

described by a GDT that is not presented here) tries to

achieve its main goal, whose satisfaction condition is

and A

tries to achieve a goal whose satisfaction

condition is SC

. If either A

or A

fails, the execu-

tion of the other sub-agent is stopped. But if both sub-

agents achieve their main goal, then the parent goal is

achieved.

Figure 2: Example of a holonic agent.

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

408

3 VERIFICATION OF AGENT

BEHAVIOURS

For more than ten years, many papers have focused

on the necessity to bring guarantees on the correct-

ness of multi-agents systems. Indeed, it appears that it

is one of the main reasons explaining the small accep-

tance of MAS in industry (Ahmad and Rahimi, 2009).

Moreover, it is also established that formally verifying

MAS is certainly the adequate solution (Demazeau,

2004).

However, papers dealing with formal speciﬁcation

of MAS are scarce, for several reasons:

• formally verifying MAS is a very hard problem.

Indeed, formal veriﬁcation of standard software

is already a complex problem, and solutions pro-

vided by formal methods cannot be applied to

whole huge systems. So, as MAS are more com-

plex systems, trying to formally verifying them

seem vain for many people.

• Most MAS formal veriﬁcation systems con-

sider verifying the whole system behaviour (as

METATEM for instance (Fisher, 2006)), which

is certainly a too complex task on real-size sys-

tems. On Standard softwares, formal veriﬁca-

tion generally concern only the safety core of the

sofware (Abrial, 1996); So, trying to apply formal

veriﬁcation techniques to whole MAS is likely to

lead to failure.

• Many formal veriﬁcation works use a dedicated

speciﬁcation language that is only used for the

speciﬁcation and for the veriﬁcation and then, the

system must be implemented in a traditional pro-

gramming language. As a consequence, they may

be few links between the veriﬁed speciﬁcation and

the implemented program (Ahmad and Rahimi,

2009; Abrial, 1996).

• Trying to reuse standard formal veriﬁcation meth-

ods to MAS leads to defeat. In particular, the au-

tonomy of agents is not consistent with the main

concepts of these tools: indeed, standard formal

methods rely on the fact that the whole system is

known when the veriﬁcation is performed (Abrial,

1996). This is not suitable to MAS, where au-

tonomous agents can be part of the system.

• most work so far dealing with formal veriﬁcation

of MAS rely on model-checking (Raimondi and

Lomuscio, 2004; Kacprzak et al., 2004), which

is not the most suitable choice in most cases. In-

deed, model-checking is a veriﬁcation mechanism

that is mainly dedicated to ﬁnite-state systems, as

it consists in an exhaustive test of the system. But

in multi-agent systems, as agents actions are in-

terlaced, studying the whole set of possible traces

is most of the time not feasible.

GDT4MAS clearly proposes a solution to the ﬁrst

problem, as it is a method designed to perform formal

veriﬁcation.

Moreover, when using GDT4MAS, it is easy to

formally specify and verify safety parts, while not

verifying less essential parts. Of course, in this lat-

ter case, the correctness is established under the as-

sumption that non-formalized parts are correct. This

clearly provides a solution to the second problem.

An other important characteristics of GDT4MAS

is that a generalized translation system of a

GDT4MAS speciﬁcation in any imperative language

using automata has been designed (and formally veri-

ﬁed), and a version for Java as been implemented. So,

the veriﬁed speciﬁcation can be automatically trans-

lated into Java to be executed, or to interact with other

Java programs. As a consequence, the formal speci-

ﬁcation need not to be transcripted by hand in a pro-

gramming language.

In addition, as GDT4MAS has been designed to

verify MAS, the autonomy of agents is well taken

into account. Veriﬁcation of agents are performed

independently of the other agents, and only proofs

depending on agents interactions (based on external

goals) take into account the instances of agent types.

Finally, GDT4MAS relies on theorem proving,

that seems, for us, to be a quite better solution than

model-checking. Indeed, model-checking is well

suited for ﬁnite-state systems, which is not true for

MAS. When considering the potential huge number

of agents in a MAS, and the massive distributed as-

pect that it implies, it greatly reduces the potential ap-

plications of techniques relying on model-checking.

To conclude, GDT4MAS proposes a wide-

purpose method, going from the early speciﬁcation to

the executable code via formal veriﬁcation.

4 SEPARATION OF

ENGINEERING TASKS

During the whole development process of a software,

several tasks have to be performed, and these tasks

may be devoted to different persons, according to

their skills. In standard software development pro-

cesses, the following tasks are often distinguished:

requirement engineering, design (preliminary and de-

tailed), implementation and test. When dealing with

formal veriﬁcation, an other task must be added: the

veriﬁcation task. However, the way the result of each

task is used by the others is often fuzzy.

UsingGDT4MASasaFormalSupportforEngineeringMulti-AgentsSystems

409

Distinguishing tasks and roles is a very important

point in a software developmentprocess, for two main

reasons:

• it helps in scheduling the development process

and in parallelizing work;

• it helps in attributing to each stakeholder the most

suitable tasks.

When using GDT4MAS, the development process

is also decomposed into several steps:

• the ﬁrst step consists in determining agent types

(with their capabilities) and environment vari-

ables;

• the second step consists in specifying the root

goals and the variables of the agent types;

• the third step consists in progressively decompos-

ing goals of agents into sub-goals.

These steps matched more or less the requirement

engineering, preliminary design and detailed design

tasks. The implementation task is missing because it

may be performed automatically at the end of the third

step.

The formal aspects can be handled in parallel dur-

ing each step:

• during the ﬁrst step, it consists in formally speci-

fying the environment invariant and the agent ac-

tions;

• during the second step, it consists in formally

specifying the main goal (satisfaction condition

and gpf) of each agent type and the invariant of

each agent type;

• during the third step, it consists in formally spec-

ifying each subgoal, and in verifying invariants

and goal decompositions.

The fact that formal aspects may be isolated from

the rest is very important. Indeed, a developer is sel-

dom at ease with formal methods, and a method that

clearly separates the formal aspects from the other

tasks has greater chances to please. Indeed, an indus-

trial ﬁrm may continue to use the skills of its employ-

ees, and only a few new ones should be hired. More-

over, when speciﬁcation and veriﬁcation roles are dis-

tinguished, the hardest part (the veriﬁcation) can be

devoted to an expert of the prover.

This segregation of formal aspects is seldom

present in formal veriﬁcation systems that are pro-

posed for MAS, and this is certainly one of the major

aspects that explain they are seldom used (Ahmad and

Rahimi, 2009).

However, tests are not tackled by GDT4MAS. Of

course, when formal methods are used, tests are less

necessary. But they remain useful, as they consider

also parameters that are not taken into account by the

formal veriﬁcation (the environment of execution, the

system or the compiler for instance). So, it is the re-

sponsibilty of the development team to manage tests.

But we aim at improving GDT4MAS in order to use

it to help in writing test cases.

5 INCREMENTAL

DEVELOPMENT

For several years, it has been established that most

software development projects fail because they are

badly managed (Zeller, 2009). Thus, recent develop-

ment methods rely on incremental technique. This

is for instance the case of the “incremental develop-

ment”, but this is also the basis of the Test-Driven-

Development technique (Beck, 2002).

Incremental development can be considered in

two opposite directions. In standard development,

the incremental aspect is mainly implemented in a

bottom-up way: a small compoment is ﬁrst designed

and developed to obtain a ﬁrst prototype, and then,

new components are progressively designed, devel-

oped and merged with the previous propotype.

When developing agents, it is not easy to use

a bottom-up incremental development because the

goal-oriented speciﬁcation of agents and the notion

of plan look more like a top-down speciﬁcation.

And this is exactly one of the main principles of

GDT4MAS. Specifying the resolution of a goal by

a set of subgoals and a decomposition operator di-

rectly implements a top-down method. Moreover, in

GDT4MAS, two principles are essential to make this

process efﬁcient.

Firstly, decompositions of sibling nodes are in-

dependant. This facilitates the progressive design of

the resolution process of different subgoals of a given

goal, and this is a very important notion to facilitate

incremental development.

Secondly, decompositions rely on the reﬁnement

principle. The reﬁnement notion is a key notion in the

formal speciﬁcation domain. There are several def-

initions of reﬁnement, but all the deﬁnitions of the

action reﬁnement share a common aspect that we can

informally summarize by the following sentence: an

action a

reﬁnes an action a

if and only if all the state

changes allowed by a

are also allowed by a

(Back

and Sere, 1991). For instance, x

′

> x is reﬁned by

′

> x+ 5, which is reﬁned by x

′

= x+ 10.

This implies that thanks to reﬁnement, we can re-

duce indeterminism of goals, and as a consequence,

it is completely possible to use indeterminism in goal

speciﬁcations. In GDT4MAS, indeterminism is al-

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

410

lowed in goals speciﬁcations via non-deterministic

STF, and so, we have extended the notion of action

reﬁnement to the notion of goal reﬁnement.

Reﬁnement is a key notion to make incremental

top-down development. Indeed, a top level goal can

be abstract and non deterministic. It is then possible

to reﬁne it by decomposing it into more deterministic

goals, that can then be also reﬁned and so on. More-

over, reﬁnement makes possible the introduction of

new variables. Indeed, as the STF x

′

> x does not

specify anything on variable y, it can be reﬁned by the

following STF: y

′

= 4∧ x

′

= x+ y

′

. It is so possible to

start with very high level goals, and incrementally de-

tail their implementation by reducing the indetermin-

ism thanks to goal reﬁnement/goal decomposition.

6 MODELING DIFFERENT

AGENT MODELS

As explained in section 4, when using GDT4MAS,

during the third development step, agent behaviours

must be designed. Depending on the agent type, dif-

ferent models of agents may be used. GDT4MAS

gives to the designer a large choice of models. The

goal of this section is to show how some of them can

be speciﬁed with GDT4MAS.

6.1 Specifying Agents with Goals

Whatever the model of agents is used, agents are most

of the time described using the notion of goal. This

is for instance the case in models relying on BDI

agents, like Agentspeak (Rao, 1996). This is also

the case of GDT4MAS. Moreover, goals are often

divided into two categories: achievement goals and

maintain goals. Both types are present in GDT4MAS.

Achievement goals are represented by standard

goals of GDT4MAS. However, two types of achieve-

ment goals are distinguished: progress goals (the re-

sulting state is expressed as a modiﬁcation of the ini-

tial state, for instance x

′

= x + 1) and state-reaching

goal (the resulting state is expressed in an absolute

way, for instance, x

′

= 5).

The semantics given to “maintain goals” varies

from one article to another. A maintain goal con-

sists either in guaranteeing that a property remains al-

ways true or in re-establishing a property each time

it becomes false. The ﬁrst case can be directly ex-

pressed in GDT4MAS by invariants. In the second

case, a progress goal can be expressed thanks to an

agent whose main goal expresses the property to es-

tablish, and whose triggering context is the negation

of this property. So, as soon as the property becomes

false, the execution of the agent begins in order to re-

establish the desired property.

In many agent models or agent-oriented lan-

guages, when an agent must achieve a goal, it tries

a plan then perhaps another, and so on. But it is not

clear to understand why the agent tries an other plan

or not, according to the goal. Is it because the goal

has not been achieved ? Or because the plan could

not be completed ? And when a goal is removed from

the goal base, is it because it has been achieved ? Or

because it seems it is impossible to achieve ? Or be-

cause it is obsolete ? In GDT4MAS, we determine

which goals are non-necessarily satisﬁable, and the

operational semantics of the GDT operators relies on

the fact that a goal has been achieved or not. This

criterion is seldom considered in agent speciﬁcation

models.

GDT4MAS takes into account that a goal may be

achieved even if the execution of the plan associated

to this goal (ie. its decomposition) has failed. In-

deed, it has been shown that, because of side effects,

this may happen (Mermet and Simon, 2009).Forget-

ting this fact may lead to specify incorrect behaviours.

6.2 Expressiveness of GDT4MAS

Through several articles, the expressiveness of

GDT4MAS seems adapted to model most problems

tackled by multi-agent systems.

For instance, it has been shown in (Mermet and

Simon, 2011) that agents mixing cognitive and reac-

tive behaviours can be easily speciﬁed thanks to the

holonic extension of GDT4MAS.

The exception management is also a key issue

in MAS (Klein et al., 2003), But it is rarely han-

dled by MAS models and languages (Platon et al.,

2008) like AgentSpeak for instance. However, once

again, thanks to the holonic extension of GDT4MAS,

this can be clearly speciﬁed with GDT4MAS, as ex-

plained in (Mermet and Simon, 2011).

Finally, many communication styles can ben spec-

iﬁed with GDT4MAS. To our knowledge, this is the

only formal model dedicated to MAS that manage this

aspect of MAS. Communications are indeed ignored

in other formal systems such as METATEM for in-

stance.

7 CONCLUSION

Throughout this article, we have shown that

GDT4MAS presents very interesting characteristics

to help in engineering multi-agent systems. Although

UsingGDT4MASasaFormalSupportforEngineeringMulti-AgentsSystems

411

this model has been designed in order to formally ver-

ify MAS, its characteristics can be re-used in a wider

context of MAS engineering. It is moreover interest-

ing to notice that, most of the time, these character-

istics were not preconceptions, but they are the con-

sequence of the will of the designers of the model to

have a usable formal veriﬁcation system.

Of course, an important requirement to use a

model to support engineering is that CASE-tools exist

for this model. We have chosen not to detail this as-

pect in this article to focus on the characteristics of the

model. But it is important to notice that GDT4MAS

has been designed from the beginning to be supported

by tools. For instance, a platform has been developed

to execute speciﬁcations either automatically or step

by step. This platform also generates proof obliga-

tions in a format compatible with the automatic prover

PVS. Morover, a web application is being developed

to help in editing GDT4MAS speciﬁcations.

In order to increase the use of Multi-Agent Sys-

tems, it is crucial to provide models that help in de-

signing and implementing such complex systems, and

it is also important to provide techniques that increase

the conﬁdence in such systems. GDT4MAS is cer-

tainly a good candidate for that.

REFERENCES

Abrial, J.-R. (1996). The B-Book. Cambridge Univ. Press.

Ahmad, R. and Rahimi, S. (2009). Motivation for a new for-

mal framework for agent-oriented software engineer-

ing. IJAOSE, 3(2/3):252–276.

Back, R.-J. and Sere, K. (1991). Stepwise reﬁnement of

action systems. Structured Programming, 12(1):17–

30.

Beck (2002). Test Driven Development: By Exam-

ple. Addison-Wesley Longman Publishing Co., Inc.,

Boston, MA, USA.

Beck, K. et al. (2001). Manifesto for agile software devel-

opment.

Demazeau, Y., editor (2004). Systmes Multi-Agents, vol-

ume 29 of ARAGO. OFTA.

Fisher, M. (2006). Metatem: The story so far. In Proceed-

ings of the Third International Conference on Pro-

gramming Multi-Agent Systems, ProMAS’05, pages

3–22, Berlin, Heidelberg. Springer-Verlag.

Kacprzak, M., Lomuscio, A., and Penczek, W. (2004). Ver-

iﬁcation of multiagent systems via unbounded model

checking. In AAMAS’04.

Klein, M. et al. (2003). Using domain-independent excep-

tion handling services to enable robust open multi-

agent systems: The case of agent death. Autonomous

Agents and Multi-Agent Systems, 7(1-2):179–189.

Martin, R. C. (2009). Clean Code: A handbook of agile

software craftsmanship. Prentice Hall.

Mermet, B. and Simon, G. (2009). GDT4MAS: an exten-

sion of the GDT model to specify and to verify Multi-

Agent Systems. In et al., D., editor, Proc. of AAMAS

2009, pages 505–512.

Mermet, B. and Simon, G. (2011). Specifying recursive

agents with gdts. Autonomous Agents and Multi-Agent

Systems, 23(2):273–301.

Mermet, B. and Simon, G. (2013). A new proof system to

verify gdt agents. In Zavoral, F., Jung, J. J., and Bad-

ica, C., editors, IDC, volume 511 of Studies in Com-

putational Intelligence, pages 181–187. Springer.

Platon, E., Sabouret, N., and Honiden, S. (2008). An archi-

tecture for exception management in multiagent sys-

tems. IJAOSE, 2(3):267–289.

Raimondi, F. and Lomuscio, A. (2004). Veriﬁcation of mul-

tiagent systems via orderd binary decision diagrams:

an algorithm and its implementation. In AAMAS’04.

Rao, A. S. (1996). AgentSpeak(L): BDI agents speak out

in a logical computable language. In van Hoe, R., ed-

itor, Seventh European Workshop on Modelling Au-

tonomous Agents in a Multi-Agent World, Eindhoven,

The Netherlands.

Zeller, A. (2009). Why Programs Fail: A Guide to System-

atic Debugging. Morgan Kaufmann, Burlington, MA,

2 edition.

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

412
