Extended Techniques for Flexible Modeling and Execution of Data

Mashups

Pascal Hirmer, Peter Reimann, Matthias Wieland and Bernhard Mitschang

Institute of Parallel and Distributed Systems / Application Systems,

University of Stuttgart, Unversitaetsstrasse 38, D-70569 Stuttgart, Germany

Keywords:

Data Mashups, Ad-hoc Data Integration, Patterns, Data Flow, Sensor Data.

Abstract:

Today, a multitude of highly-connected applications and information systems hold, consume and produce huge

amounts of heterogeneous data. The overall amount of data is even expected to dramatically increase in the

future. In order to conduct, e.g., data analysis, visualizations or other value-adding scenarios, it is necessary to

integrate speciﬁc, relevant parts of data into a common source. Due to oftentimes changing environments and

dynamic requests, this integration has to support ad-hoc and ﬂexible data processing capabilities. Furthermore,

an iterative and explorative trial-and-error integration based on different data sources has to be possible. To

cope with these requirements, several data mashup platforms have been developed in the past. However, existing

solutions are mostly non-extensible, monolithic systems or applications with many limitations regarding the

mentioned requirements. In this paper, we introduce an approach that copes with these issues (i) by the

introduction of patterns to enable decoupling from implementation details, (ii) by a cloud-ready approach to

enable availability and scalability, and (iii) by a high degree of ﬂexibility and extensibility that enables the

integration of heterogeneous data as well as dynamic (un-)tethering of data sources. We evaluate our approach

using runtime measurements of our prototypical implementation.

1 INTRODUCTION AND

BACKGROUND

Data mashups are used for the ad-hoc, ﬂexible access

to interesting data sources and for the dynamic, data-

driven integration of relevant data (Daniel and Matera,

2014). Due to user requirements, such data mashups

have to offer a scalable, tenant-aware solution that sup-

ports heterogeneous data, i.e., structured as well as

unstructured data. However, existing solutions have

several limitations. To analyze their shortcomings, we

compared the existing mashup solutions Yahoo Pipes

IBM Mashup Center

, Intel Mashmaker

and OpenIoT

Mashup

regarding the mentioned aspects. We found

out that there are several limitations regarding (i) cop-

ing with different requirements of various scenarios,

i.e., universality of the implementation, (ii) usability

by non IT-experts, (iii) handling of heterogeneous – es-

pecially unstructured – data, and even if basically sup-

ported, (iv) scalability due to an oftentimes complex,

http://pipes.yahoo.com/pipes/

http://pic.dhe.ibm.com/infocenter/mashhelp/v3/

http://intel.ly/1BW2crD

http://openiot.eu/

monolithic architecture. Furthermore, the handling of

“live data”, e.g., sensor data streams, is only supported

by one of these solutions – OpenIoT Mashup. How-

ever, this implementation can cope with sensor data,

exclusively. In this paper, we tackle these limitations

by an approach that (i) uses patterns to abstract from

implementation details, which enables using a tailor-

made implementation speciﬁc to a respective scenario,

(ii) enables usage by non IT-experts by exclusively us-

ing means speciﬁc to their domain, (iii) enables avail-

ability and scalability by providing our solution in the

cloud using web technologies and stateless, scalable

services, exclusively, (iv) facilitates the integration of

various kinds of data through a generic, extensible

approach, and (v) enables dynamic (un-)tethering of

data sources. To prove the feasibility of our approach,

we created a prototype that implements the introduced

concepts. Furthermore, an evaluation of our approach

is conducted through runtime measurements.

The remainder of this paper is structured as follows:

in Section 2, the basics of data mashups are described.

In Section 3 to Section 5, the main contribution of our

paper is presented: we introduce extended techniques

for ﬂexible modeling and execution of data mashups.

In Section 6, we present a prototype of our concepts

111

Hirmer P., Reimann P., Wieland M. and Mitschang B..

Extended Techniques for Flexible Modeling and Execution of Data Mashups.

DOI: 10.5220/0005558201110122

In Proceedings of 4th International Conference on Data Management Technologies and Applications (DATA-2015), pages 111-122

ISBN: 978-989-758-103-8

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

Exception

Cause: Part stuck in

machine

Resolution:

Remove part

manually

Machine

Worker

Log Storage

EIS

(Private) Cloud Environment

Pattern-based Data

Mashup

Exception

Resolution

Exception

Analysis

Exception

Generation

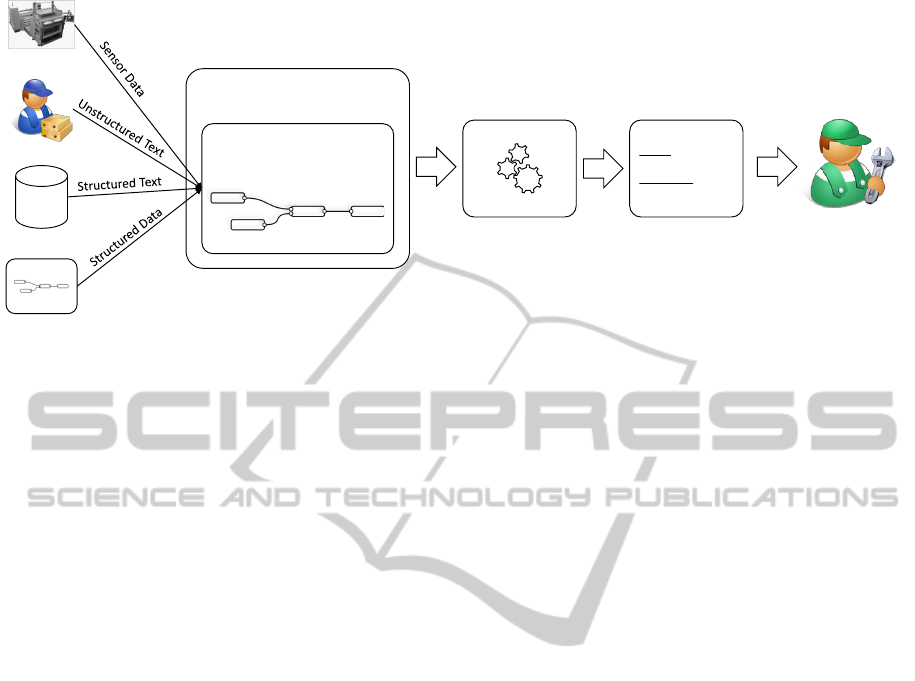

Figure 1: Motivating Scenario based on (Kassner and Mitschang, 2015).

as well as a runtime-based evaluation and in Section 7,

we describe related work. Finally, we give a summary

and present future work in Section 8.

1.1 Motivating Scenario

To further clarify our approach, we introduce the fol-

lowing motivating scenario, which is based on (Kass-

ner and Mitschang, 2015) and shown in Figure 1: a

car company producing a large amount of cars per

day operates a multitude of IT systems that produce

heterogeneous data. The data sources in this produc-

tion environment are: (i) the sensors of the manufac-

turing machines, (ii) enterprise information systems

(EIS) (e.g., to coordinate processes), (iii) structured

databases (e.g., containing logs), and (iv) unstructured

text e.g., submitted by factory workers. In this pro-

duction environment, an occurring exception in one

of these systems oftentimes leads to a complete pro-

duction stop, which results in high costs. Solving

these exceptions in an efﬁcient manner would reduce

these costs severely due to enabling a fast resumption

of the production process. However, to realize such

an efﬁcient exception resolution, we need a means to

automatically recognize occurring exceptions and to

initiate their solution. For example, a damaged ma-

chine could be recognized based on the machine’s log

data, its sensor data and additional textual input of a

worker describing the error. Once the damage is rec-

ognized, a corresponding repair worker can be called

automatically to repair it.

To realize this scenario, exceptions have to be rec-

ognized based on the factory’s data sources. To do

so, we need a means to integrate highly heterogeneous

data sources and conduct data analysis on the inte-

grated result. Each exception could be recognized

based on the integration of different kinds of data

sources. As a consequence, static Extract-Transform-

Load (ETL) processes should not be used in this sce-

nario. Furthermore, the integration has to cope with a

huge amount of data (e.g., sensor data), handle their

heterogeneity, i.e., structured and unstructured data,

process the integration efﬁciently, and has to allow an

easy adding or removing of data sources to be inte-

grated, depending on which sources are necessary to

recognize a speciﬁc exception. For example, if the

integration of log ﬁles and sensor data do not lead to

the recognition of an exception, another data source

has to be added such as textual input of a worker. As a

consequence, ad-hoc processing and ﬂexibility are an

important requirement in this scenario. The integrated

result is used for data analysis of occurred exceptions.

In case no exception has been recognized, additional

data sources have to be integrated. The introduced

approach in this paper enables such scenarios by pro-

viding extended techniques for ﬂexible modeling and

execution of data mashups. In the following, we de-

scribe our concepts based on this motivating scenario.

2 CHARACTERISTICS OF DATA

MASHUPS

Data mashup platforms aim at enabling the ﬂexible, ad-

hoc integration of heterogeneous data sources (Daniel

and Matera, 2014). In contrast to application mashups,

they focus on the data layer, exclusively. Data mashups

are usually deﬁned by the execution of data operations,

such as ﬁlter or join operations, which extract, alter

and integrate data from different sources. The result is

a single data source that holds the integrated data. The

data to be extracted and mashed up is speciﬁed by the

user before the mashup is executed.

Figure 2(a) displays the typical steps to create and

DATA2015-4thInternationalConferenceonDataManagementTechnologiesandApplications

112

Mashup Modeling

Static, Non Domain-Specific Modeling

Visualization

GUI

Mashup Execution

Automated Execution

Selection of

Data Sources

Selection of

Data Operations

Data Extraction and

Execution of

Data Operations

(a) State of the Art of Mashups

Definition of

Data Operations

Definition of

Data Sources

Mashup Plan Modeling

Domain-specific Modeling

Mashup Plan Transformation

Pattern-based Transformation

Mashup Plan Execution

Automated execution

Time-

Critical

Robust

…

Data Extraction and

Execution of

Data Operations

Result Storage

Result Utilization

Optional Repetition

Transformation-

Pattern Selection

Mashup Plan

Transformation

Executable

Mashup Plan

(b) Extended Mashup Approach

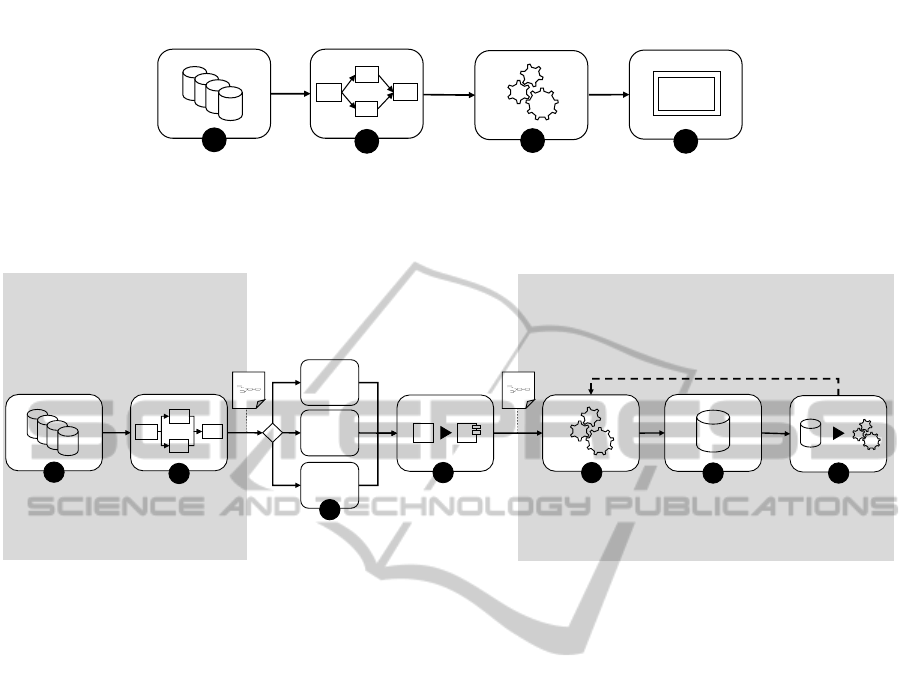

Figure 2: Comparison of Traditional Mashup Approaches and our Extended Approach.

execute a data mashup. In the ﬁrst step, the user de-

ﬁnes the data sources to be integrated as well as the

speciﬁc data to be extracted. In the second step, the

data operations for the mashup and their execution or-

der are determined. By doing so, the user speciﬁes how

the extracted data should be altered, enhanced, ﬁltered

or aggregated to achieve the desired result. After that,

the automated steps of the data mashup are processed.

In step three, the mashup application receives the user

input, extracts the data from the sources and executes

the data operations in the speciﬁed order. After that,

in step four, the result is usually visualized or stored

into a suitable data store.

The interested reader is referred to the work of

Hoyer et al. (Hoyer et al., 2011) that describes the

beneﬁts of data mashups regarding ﬁnancial, business,

operational and user aspects. Furthermore, we recom-

mend the work of Daniel et al. (Daniel and Matera,

2014), summarizing the state of the art of mashups.

3 EXTENDED DATA MASHUP

APPROACH

This section contains an overview of the main contri-

bution of our paper, introducing extended techniques

for data mashups that enable “click & run” for inte-

gration scenarios. To enable an effective provisioning

of our solution in the cloud as well as usability by

domain-experts, we subdivide the approach into three

abstraction levels that are shown in Figure 2(b): (i)

the modeling level, (ii) the transformation level, and

(iii) the execution level. In the context of this pa-

per, a domain-expert is, e.g., a scientist or a business

person such as a sales analyst, lacking necessary pro-

gramming skills or technical knowledge about data

integration.

In contrast to traditional data mashups as shown in

Figure 2(a), our extended approach (depicted in Fig-

ure 2(b)) offers highly-increased ﬂexibility for model-

ing and executing data mashups. In the ﬁrst two steps

of our extended approach, a domain-expert deﬁnes the

data sources as well as the data operations to be exe-

cuted for the mashup, using a domain-speciﬁc model

called Mashup Plan. In step 3, so called transforma-

tion patterns are selected to choose an implementation

suitable for the respective scenario (e.g., time critical

or robust). After that, in step 4, the Mashup Plan is

transformed into an executable model depending on

the transformation pattern that was selected in step 3.

In step 5, this executable model is executed using a

ExtendedTechniquesforFlexibleModelingandExecutionofDataMashups

113

Domain-Expert

models

Mashup Plan

Data Source

Descriptions

accesses

DSD

Repo.

Endpoint

Node

Data Processing

Descriptions

IT-Expert

DPD

Repo.

creates

Figure 3: Overview of the Modeling Level.

suitable engine. After execution, the integrated result

is stored into a data store (step 6) and it is available

for visualization, data analysis or other value-adding

scenarios (step 7).

Each of the introduced abstraction levels focuses

on one of the main requirements of our solution that

were introduced in Section 1. The modeling level,

representing the user interface, mainly focuses on the

usability issue. Thereby, a domain-speciﬁc model is

introduced to deﬁne data sources and data operations

for the mashup in a non-technical manner, i.e., suit-

able for domain-experts. In addition, transformation

patterns are deﬁned to enable choosing a suitable im-

plementation for respective use case scenarios. The

transformation pattern “Time-Critical Mashup” e.g.,

ensures an efﬁcient execution of the mashup, whereas

the transformation pattern “Robust Mashup” refers

to an implementation that guarantees some kind of

robustness, e.g., regarding stability and communica-

tion problems. The transformation level enables the

support of various kinds of data by means of a ﬂexi-

ble, automatic transformation of the domain-speciﬁc

model into an executable model. Furthermore, the

selection of a corresponding implementation depends

on the transformation patterns deﬁned on modeling

level. Finally, the execution level mainly focuses on

the scalability of our solution. Therefore, all system

components are provisioned in a cloud environment.

That is, the solution is composed of stateless cloud

services, exclusively, which can be automatically pro-

visioned (Binz et al., 2014) as well as scaled and man-

aged, independently.

4 MASHUP PLAN MODELING

The modeling level offers a cloud service to the end

user of our approach, i.e., to a domain-expert. The

user’s goal is to deﬁne and execute mashup scenarios

by exclusively using means speciﬁc to the domain s/he

is familiar with. By doing so, all technical and im-

plementation aspects should be abstracted in order to

remove the burden to deal with such low-level details

from domain-experts. We introduce three concepts at

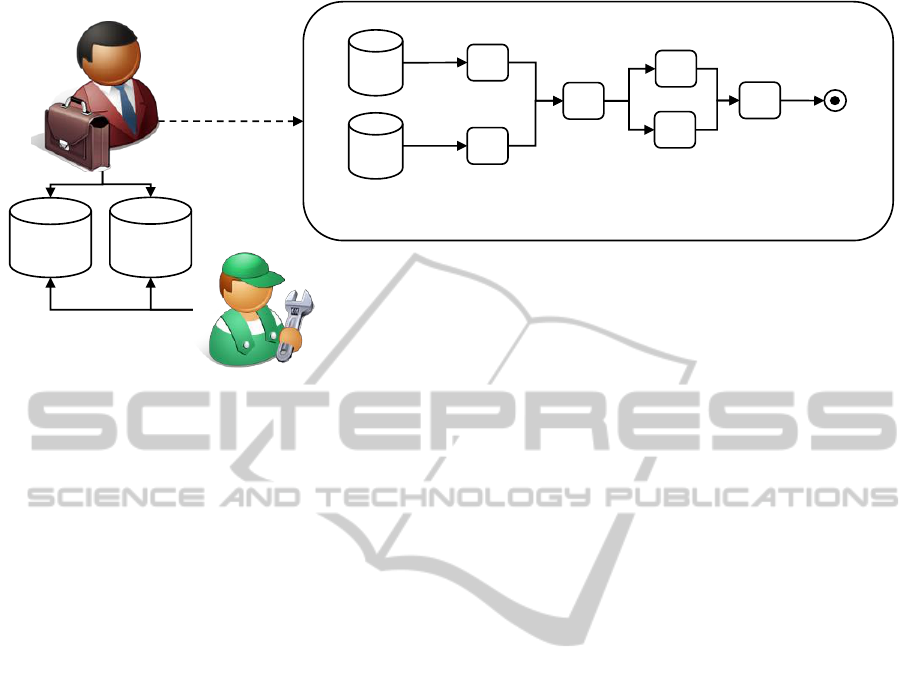

this abstraction level that are displayed in Figure 3: (i)

Data Source Descriptions (DSD) that describe the data

sources to be used for the mashup in a non-technical

manner, (ii) domain-speciﬁc Data Processing Descrip-

tions (DPD), representing data operations (e.g., ﬁlter

or aggregation operations) to be executed, and (iii)

Mashup Plans, deﬁning the order of Data Source De-

scriptions and Data Processing Descriptions. DPDs

and DSDs can be arranged as modeling patterns, how-

ever, this is part of our future work.

4.1 Mashup Plans

As mentioned before, mashups are realized by extract-

ing data from their sources and by executing an ar-

bitrary number of data operations in a predeﬁned or-

der. To enable domain-speciﬁc modeling, we intro-

duce Mashup Plans that are related to the Pipes and

Filters (Meunier, 1995) pattern and contain descrip-

tions of the data sources to be integrated as well as

an arbitrary number of Data Processing Descriptions,

abstracting from ﬁne-grained data operations. Simi-

lar to existing work, e.g., of Zweigle et al. (Zweigle

et al., 2009), a Mashup Plan is a directed, cohesive

DATA2015-4thInternationalConferenceonDataManagementTechnologiesandApplications

114

ﬂow graph containing nodes and edges. A node in the

Mashup Plan is either a DSD or a DPD and the edges

connecting these nodes describe the data and control

ﬂow. Mashup Plans are modeled manually by domain-

experts. Because of that, it is reasonable to simplify

the plan creation by enabling graphical modeling. The

format of Mashup Plans is arbitrary, however, using

existing languages such as XML or JSON can ease

modeling and processing due to available tool support.

We further deﬁne the following restrictions for the

Mashup Plan: (i) a completely modeled Mashup Plan

contains at least one Data Source Description and at

least one Data Processing Description, (ii) the modeled

Data Source Descriptions represent the starting points

of the ﬂow-based Mashup Plan, thus, may only contain

outgoing data ﬂow connections, the DPDs may be

connected in an arbitrary manner, and (iii) a Mashup

Plan has a single output represented by an endpoint

node (depicted in Figure 3). The DSDs and DPDs used

to model Mashup Plans are stored in corresponding

repositories, which can be accessed by the user during

modeling (cf. Figure 3).

4.2 DSD Modeling

When modeling Mashup Plans, the user ﬁrst deﬁnes

the data sources to be integrated using Data Source

Descriptions. These descriptions are predeﬁned and

contained in the DSD repository. Each DSD contains

information about the data source location and its

access information, e.g., a database port, a URL, a

sensor API path etc. The data source access infor-

mation have to be predetermined in the DSD repos-

itory by a technical expert, e.g., an IT expert of an

enterprise. The DSD repository enables extensibility

of these descriptions. Once a sufﬁcient set of Data

Source Descriptions is available, usually no more ex-

pert interaction is necessary. In addition to the access

information, the Data Source Descriptions determine

the data to be integrated in a human-readable format

tailor-made for domain-experts. This can be accom-

plished using artifact-centric approaches (K

unzle et al.,

2011), (Cohn et al., 2009). The data is represented by

so-called business artifacts that correspond to business-

relevant objects and abstract from the speciﬁc data. In

the motivating scenario introduced in Section 1, this

includes production machines, machine logs, infor-

mation systems and factory workers. The artifacts

manage relevant information about these business ob-

jects and about their life cycle in a domain-speciﬁc

and thus abstract way. The speciﬁc data of a machine

artifact, e.g., is produced by a multitude of sensors, the

artifact of an information system contains structured

production process information, and the artifact of a

worker incorporates references to a machine, an infor-

mation system and contains unstructured textual input

describing a problem that occurred. These artifacts

and their domain-speciﬁc descriptions make the mod-

eling of data sources tailor-made to domain-experts.

Using mapping approaches, they can be bound to vari-

ous kinds of underlying data structures – ranging from

traditional relational databases to unstructured text

data (Sun et al., 2014).

In conclusion, the use of an artifact-centric ap-

proach enables domain-experts to model domain-

speciﬁc business objects (e.g., a speciﬁc production

machine) in the Mashup Plan without any necessary

knowledge of low-level data structures such as sensors,

relational databases or unstructured data formats.

4.3 DPD Modeling

Existing mashup and data integration solutions often-

times require the user to deﬁne technical data opera-

tions to be executed, including low-level details. This

leads to applications that cannot be directly used by

domain-experts. To cope with this issue, we introduce

abstract, parameterized Data Processing Descriptions,

which are speciﬁc to the user’s domain and describe

data operations for the mashup in a non-technical man-

ner. DPDs can be further divided into several abstrac-

tion levels as described by Reimann et al. (Reimann

et al., 2014) to enable a separation of concerns. We

describe two examples of such descriptions:

Data Selection DPD.

The data selection DPD can

be used as a ﬁlter in the Mashup Plan. This DPD

is connected to exactly one data source and selects

speciﬁc data from it. Information about the data to be

selected is determined by the user during modeling of

the Mashup Plan and is attached as a parameter to the

DPD. In the motivating scenario, a domain-expert may

use this DPD, associate it with artifacts of a production

log, and specify it to select relevant entries, exclusively

(e.g., within a speciﬁc time frame).

Data Combination DPD.

The data combination

DPD can be used to combine data of two or more

sources. The actual implementation of the DPD can be

realized by technical data operations, such as data join,

union or aggregation, which depend on the kind of

data being combined. When modeling the data combi-

nation DPD, the artifact-centric models introduced in

Section 4.2 are combined. In the motivating scenario

for example, data from machine-, log- and worker-

artifacts may be grouped according to a speciﬁc failure

type or time frame.

The introduced DPDs and artifact-centric DSDs

represent domain-speciﬁc means for the Mashup Plan

modeling, which lead to high usability and it allows

ExtendedTechniquesforFlexibleModelingandExecutionofDataMashups

115

Mashup Plan

Executable

Mashup Plan

eDPN

Repo.

Pattern

Selection

Pattern-based

Mashup Plan

Transformation

Trans-

formation

Figure 4: Mashup Plan Transformation Components.

non-technical users to model mashup scenarios they

are interested in.

5 MASHUP PLAN

TRANSFORMATION AND

EXECUTION

The proposed approach to a modeling of Mashup Plans

needs to be complemented by a transformation of the

non-technical, domain-speciﬁc Mashup Plans into an

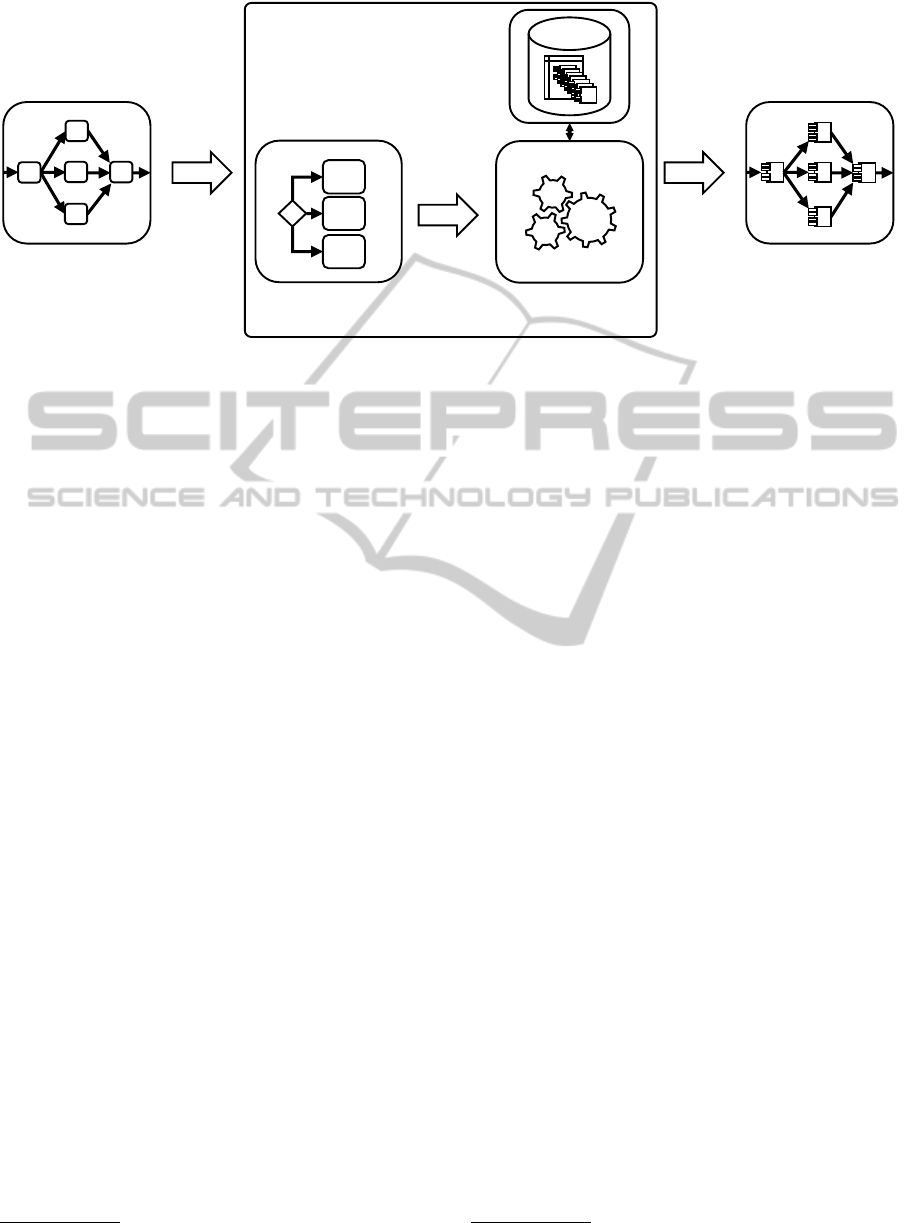

efﬁciently executable model. Figure 4 shows this trans-

formation. In the following, the transformation result

is referred to as executable Mashup Plan. An exe-

cutable Mashup Plan is also in the format of a directed

graph, exclusively containing executable data process-

ing nodes (eDPN) as nodes and the data and control

ﬂow between them as edges.

An eDPN represents an implementation, i.e., a

piece of code, to be invoked (e.g., a Java Webservice)

that executes data extraction (i.e., serves as data source

adapter), data processing, e.g., implementing ﬁlter or

join operations, or data storage operations. Informa-

tion about the eDPN access (e.g., a Web Service URL)

and their input parameters are described by the eDPN

Repository, which is also implemented as a cloud-

ready service. We recommend using existing data ﬂow

languages for the executable description. This pre-

vents efforts for the creation of a self-made format and,

as a consequence, a self-made execution engine (cf.

Section 5.3).

Besides traditional workﬂow languages and en-

gines (e.g., BPEL and ApacheODE), event processing

engines such as CEP-Esper

or other data processing

http://www.espertech.com/

engines such as Node-RED

are also highly suitable

for the deﬁnition and execution of executable Mashup

Plans. Note that we are not restricted to a speciﬁc

technical execution language at the execution level

since we generate the right execution plans depending

on the respective use case, i.e., on the transformation

patterns.

5.1 Transformation Patterns

The transformation level allows the selection of trans-

formation patterns that contain additional information

about the scenario the mashup is executed in. As

mentioned in (Daniel and Matera, 2014), different

implementations are necessary for different mashup

scenarios. Note that a detailed deﬁnition of transforma-

tion patterns as well as the creation of a transformation

pattern catalog are part of our future work.

The following transformation patterns could, e.g.,

be selected: the transformation patterns Time-Critical

Mashup or Real-Time Mashup deﬁne scenarios in

which the run time of the mashup is an important fac-

tor. It is crucial that the corresponding implementation

is chosen to be efﬁcient rather than being robust. The

transformation pattern Robust Mashup requires a ro-

bust execution, of course, the time-critical and robust

transformation patterns cannot be both annotated to

a Mashup Plan. A robust mashup has to be highly-

available and has to offer exception handling as well

as data persistence. The transformation pattern Big

Data Mashup requires that the corresponding imple-

mentation has to support the processing of huge data

sets in reasonable runtime. Note that more than one

transformation pattern can be annotated to a Mashup

Plan, however, some of these transformation patterns

http://www.nodered.org/

DATA2015-4thInternationalConferenceonDataManagementTechnologiesandApplications

116

cannot be combined. In future work, we detail on this

approach.

The implementation, e.g., the used data ﬂow lan-

guage and execution engine is chosen according to the

selected transformation patterns (cf. Section 5.2).

5.2 Mashup Plan Transformation

During the mashup plan transformation, ﬁrst the trans-

formation pattern is selected (e.g., “Robust Mashup”,

“Time-Critical Mashup”). The selection can be done

statically, e.g., for all Mashups within a domain or it

can be done for each mashup transformation individu-

ally by any user.

Afterwards, the DSDs and DPDs of the Mashup

Plan are transformed to eDPNs that can be executed

using a suitable execution engine. We use data source

adapters, i.e., eDPNs implementing the extraction of

data from given data sources. In the ﬁrst step of the

transformation, data source adapter eDPNs for each

of the artifact-centric DSDs of the Mashup Plan are

inserted into the executable model. As discussed in

Section 4.2, a mapping of such artifact-centric descrip-

tions to adapter eDPNs can be done, e.g., according to

Sun et al. (Sun et al., 2014). By doing so, the domain-

speciﬁc artifact models, e.g., an enterprise information

system, are mapped to technical data structures such

as a database table, a ﬁle-based storage or an unstruc-

tured text document. To support various kinds of data

structures, the eDPN repository describes several data

source adapters, each coping with different technical

data structures. During the transformation, adapters

suitable for given data structures are selected and in-

serted into the executable model. Next, eDPNs are

inserted for the DPDs modeled in the Mashup Plan.

Each DPD can be realized by an arbitrary number of

eDPNs with a predeﬁned execution order, depending

on its context and the data to be processed. The corre-

sponding eDPNs are taken from the eDPN repository.

A mapping of DPDs to eDPNs through several ab-

straction levels could, e.g., be realized by a rule-based

approach, as described by Reimann et al. (Reimann

et al., 2014) or by Falkenthal et al. (Falkenthal et al.,

2014). In our approach, the inserted eDPNs depend

not only on their parameterization, but also on the

position of the corresponding DPD in the Mashup

Plan, i.e., on its predecessors and successors. In other

words, the mapping of DPDs to eDPNs has to consider

the given context. Furthermore, the mapping has to

consider the selected transformation patterns. In our

prototype, we implemented a mapping of two different

transformation patterns to corresponding implementa-

tions: (i) implementing the “Robust Mashup” trans-

formation pattern by realizing the executable model

as workﬂow containing web service invocations (the

eDPNs) as workﬂow steps and (ii) implementing the

“Time-Critical Mashup” transformation pattern using

the data processing engine Node-RED by implement-

ing adapter eDPNs as HTTP REST resource calls and

executable DPDs as JavaScript nodes (cf. Section 6).

In the future, we will introduce further transformation

patterns, e.g., suitable for CEP engines.

5.3 Mashup Plan Execution

After the Mashup Plan has been transformed into an ex-

ecutable one, it is executed by a suitable execution en-

gine. We use a scalable, cloud-based execution engine

like Node-RED or a workﬂow engine as described by

Vukojevic-Haupt et al. (Vukojevic-Haupt et al., 2013)

to process the executable Mashup Plan. An execution

engine is a data ﬂow-, workﬂow- or event processing-

engine that invokes eDPNs in the order deﬁned in

the executable model. Furthermore, the execution en-

gine controls the eDPN orchestration, data transfer and

error handling. The eDPNs that are invoked by the

execution engine have to be up and running, so they

can be accessed efﬁciently during execution. We use

a cloud-based, scalable runtime environment (e.g., a

cloud-based web server), hosting the executable imple-

mentations of all available eDPNs. The input parame-

ters and the paths to the implementations are described

by the eDPNs. Their concrete implementation as well

as the used execution engine depends on the selected

transformation patterns. Using the OASIS standard

TOSCA (OASIS, 2013) and the results of our previous

work (Hirmer et al., 2014), we are able to deploy and

execute the needed components (e.g., a workﬂow en-

gine, a web server etc.) for each transformation pattern

implementation automatically in a cloud environment.

This enables a high degree of ﬂexibility regarding the

usage of different implementations, depending on the

use case scenario.

6 PROTOTYPICAL

IMPLEMENTATION AND

EVALUATION

We implemented the Time-Critical Mashup and the

Robust Mashup transformation patterns using different

execution models and engines to prove the feasibility

of our approach. These implementations are based

on the motivating scenario described in Section 1. A

paper describing the second transformation pattern im-

plementation is – among other concepts – published

in (Hirmer et al., 2015). In this section, we describe

ExtendedTechniquesforFlexibleModelingandExecutionofDataMashups

117

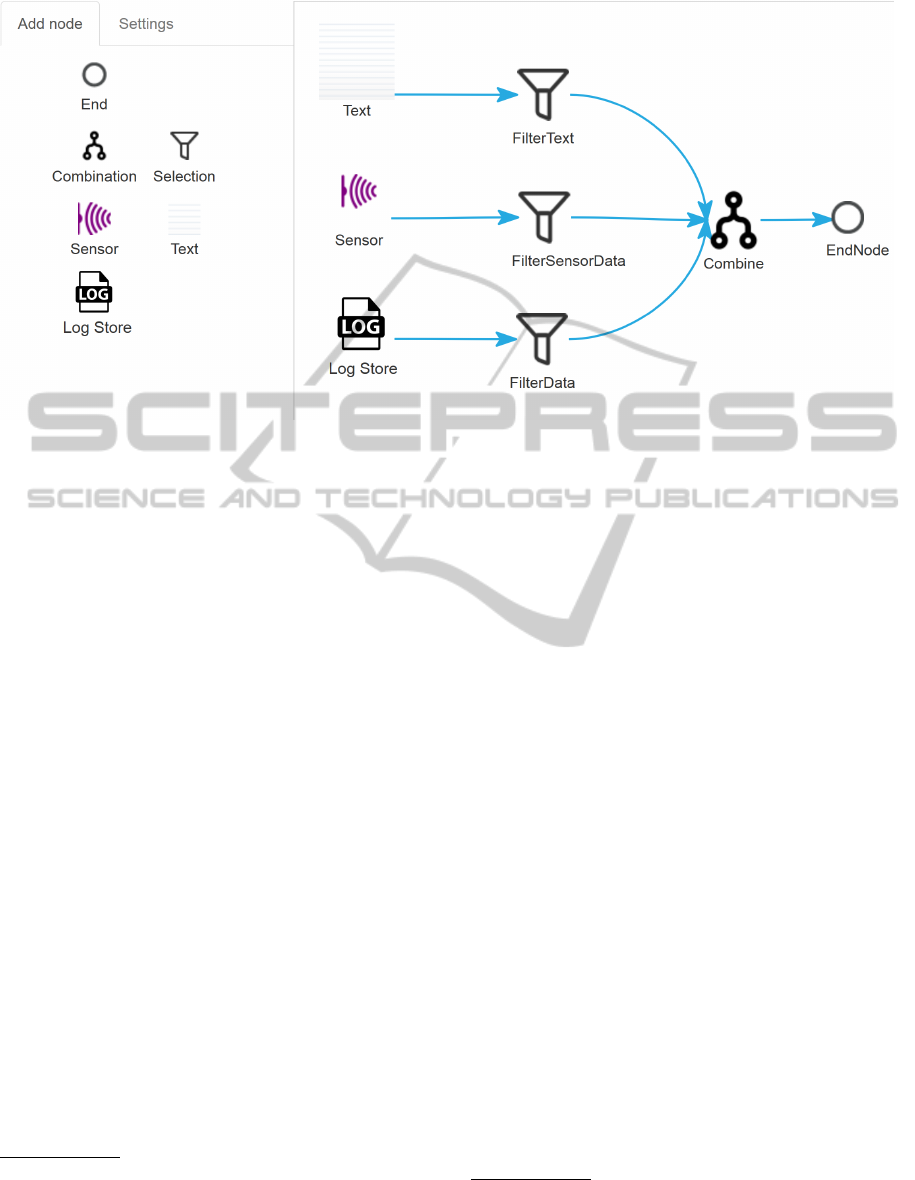

Figure 5: Mashup Plan Graphical Modeling Tool.

the implementation at modeling level. The transfor-

mation and execution levels are described for each

implemented transformation pattern, separately.

A domain-speciﬁc Mashup Plan is realized in

XML. For the modeling, we implemented a web-based,

graphical modeling service based on Java, JavaScript

and the JavaScript library AlloyUI

, which is hosted

by the platform-as-a-service provider IBM BlueMix

(cf. Figure 5). The DSD and DPD repositories have

been implemented using MongoDB

key-value store

services, containing an initial set of DSDs and DPDs.

As data sources, we support structured MySQL

databases, unstructured text input feeds and sensor

data. As Data Processing Descriptions, we support

data combination and data selection DPDs introduced

in Section 4.3.

In this scenario, the data sources could, e.g., be

used to compare log information stored in a database

with corresponding text messages and sensor data out-

put. Furthermore, the transformation patterns “Robust

Mashup” or “Time-Critical” Mashup can be selected

at transformation level. After modeling, the transfor-

mation can be invoked through the modeler’s UI. In

the following, we introduce the implementations of

the “Robust Mashup” and “Time-Critical” transforma-

tion patterns as shown in Figure 6(a) and Figure 6(b),

respectively.

http://www.alloyui.com/

http://www.bluemix.net

https://mms.mongodb.com/

http://www.mysql.de/

Transformation Pattern 1 – Robust Mashup:

For

this transformation pattern, the transformation of

the Mashup Plan to an executable model is realized

by BPEL workﬂows (cf. Figure 6(a)), executed

by the ApacheODE

workﬂow engine to ensure

robustness. We used workﬂow technologies in

this scenario due to the compliance with business

requirements such as logging and exception handling.

Furthermore, by using this transformation pattern

we deﬁne that the mashup is not time-critical so the

overhead produced by the engine is not relevant.

The components of this implementation have been

implemented as independent cloud services using

IBM BlueMix. We use a cloud service, implementing

the transformation of the Mashup Plan to a BPEL

workﬂow description. The workﬂow transformation

so far uses a hard-coded DSD/DPD-to-eDPN mapping

implemented in Java. The eDPNs to be executed

are implemented as Java web services. We further

implemented a service registry component using a

MongoDB key-value store service that contains the

Web Service Description Language (WSDL)

ﬁles of

all implemented web services. These WSDL ﬁles are

used to create BPEL service invocation nodes, i.e., the

eDPNs, for the DSDs and DPDs of the Mashup Plan,

which are executed when executing the workﬂow.

We implemented data source adapter web services

for the MySQL, sensor and text data sources as well

as web services for the data combination and data

selection DPDs. After the workﬂow is created, we

http://ode.apache.org/

https://oasis-open.org/committees/wsbpel/

http://w3.org/TR/wsdl

DATA2015-4thInternationalConferenceonDataManagementTechnologiesandApplications

118

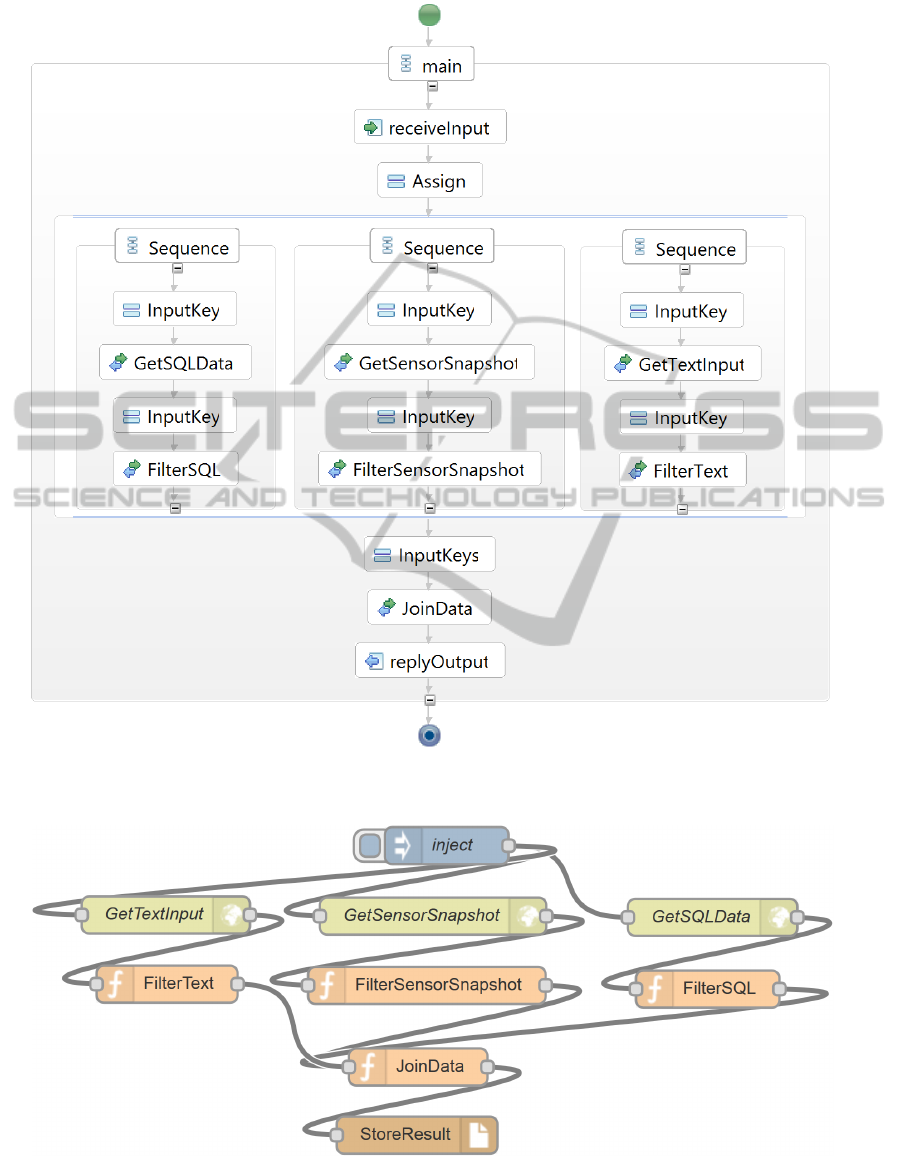

(a) Executable Mashup Plan as BPEL Workﬂow

(b) Executable Mashup Plan as Node-RED Flow

Figure 6: Different Implementations of the Same Executable Mashup Plan.

ExtendedTechniquesforFlexibleModelingandExecutionofDataMashups

119

Table 1: Runtime Measurements.

Transformation Pattern Transformation Time I Deployment Time I Execution Time I

Robust 284,4 ms 193,8 ms 2382 ms

Time-Critical 215,8 ms 134,6 ms 5,6 ms

execute it using the ApacheODE workﬂow engine.

Table 1 shows the runtime measurements of this

implementation.

Transformation Pattern 2 – Time-Critical Pattern:

In this implementation, we used the same Mashup Plan

as in the ﬁrst implementation, however, we annotated

it with the Time-Critical Mashup transformation

pattern, i.e., we deﬁne real-time requirements. The

Mashup Plan is mapped to an executable model based

on JSON that is executed in the event processing

engine Node-RED (cf. Figure 6(b)). The data is

provided by REST resources that can be accessed

through HTTP by the Node-RED processing nodes,

i.e., the eDPNs for the DSDs. Furthermore, the DPDs

are transformed to JavaScript nodes (the eDPNs) that

are executed in the Node-RED engine respective to

the order deﬁned in the Mashup Plan. Table 1 shows

the runtime measurements of this implementation.

As shown in this table, the Time-Critical Mashup

transformation pattern leads to a highly improved

runtime, however, it lacks robustness.

Comparison of the Implementations:

As al-

ready mentioned, we created two implementations

focusing on different aspects. The ﬁrst one imple-

ments a robust data mashup that copes with occurring

errors in an effective manner using a workﬂow engine

that is executing BPEL workﬂows. The second

implementation enables processing very time-critical

Mashup scenarios, e.g., in the Internet of Things area

as described by (Hirmer et al., 2015). As shown in

Table 1, transformation time and deployment time

only show slight differences, which are mainly caused

by internal data structures for representing the process

models. However, the execution time measurements

of these implementations differ greatly.

The robust execution runs a lot slower due to the

heavy-weight workﬂow engine that is being used. The

overhead produced by this engine mainly originates

from a more complex implementation of the workﬂow

navigation and from additional features enabling a ro-

bust workﬂow execution, such as auditing or workﬂow

compensation. Furthermore, the engine requires the

modeled data operations to be implemented by exter-

nal Java-based web services, which leads to lots of

communication overhead.

In contrast, the runtime of the time-critical imple-

mentation is signiﬁcantly faster. This is enabled by the

Internet of Things runtime environment Node-RED

that is based on NodeJS, a platform made for efﬁcient,

data-intensive applications

. The extraordinary run-

time of 5,6 ms is achieved through a more lightweight

approach of workﬂow navigation that omits features

for a robust workﬂow execution. In addition, Node-

RED offers integrated and tailor-made data processing

operators, which are much faster and prevent unneces-

sary communication overhead.

7 RELATED WORK

In general, other integration approaches, such as ETL

processes, cannot cope with the requirements of the

introduced scenario (cf. Section 1) due to several lim-

itations. Firstly, ETL processes are very complex,

hence difﬁcult to scale, and require a huge amount

of technical expertise for their creation, thus, cannot

support an ad-hoc integration by only domain-experts.

Secondly, ETL processes are static and lack ﬂexibility

and dynamics. The goal of this paper is not to substi-

tute ETL processes, however, the realization of ad-hoc

integration scenarios as presented in this paper, needs

a more ﬂexible approach.

In the following, we discuss related work that has

been published: Soi et al. (Soi et al., 2014) mention

the complexity and huge time-consumption faced dur-

ing the creation of mashup platforms and the need

for easier mashup development. By introducing the

Mashup Development Kit (MDK), containing a new

mashup language, the development of mashup plat-

forms should be eased. Furthermore, De Vrieze et

al. (de Vrieze et al., 2011) describe how to build en-

terprise mashups in a service-oriented way, using web

services and workﬂow engines for their execution. Fi-

nally, Tietz et al. (Tietz et al., 2011) present a task-

based approach for data mashups. In their paper, data

mashups are executed by the consecutive execution

of tasks, i.e., data operations. In contrast to our ap-

proach, these approaches do not focus on reducing

the complexity of modeling data mashups in order to

make it suitable for domain-experts. In our approach,

we take the abstraction one step further by introduc-

ing domain-speciﬁc Mashup Plans, which are suitable

for domain-experts. In addition, our concepts abstract

from implementation details; this enables using differ-

https://nodejs.org/

DATA2015-4thInternationalConferenceonDataManagementTechnologiesandApplications

120

ent implementations, suitable for the respective scenar-

ios. In other mashup approaches, the implementation

is static and only ﬁts a predeﬁned scenario, i.e., it is not

generic enough. Furthermore, through a cloud-ready

approach, we can provide availability and scalability

of our solution, which is an important factor, espe-

cially for coping with large volumes. Our approach

can provide these features due to the provisioning of

our solution in the cloud, using independently scalable

cloud services. Finally, our solution enables extensi-

bility, i.e., it is not bound to a ﬁxed set of data sources

and data operations. We enable this through a generic

approach using extensible repositories and a ﬂexible,

transformation pattern-based transformation.

Wieland et al. (Wieland et al., 2015) present a simi-

lar approach to Mashup Plans and their transformation

by introducing Situation Templates, a model for the

integration of sensor data used for situation recogni-

tion in so called smart environments. However, in this

approach, the focus is on integrating sensor data, i.e.,

other data sources such as relational databases or text

sources are not supported.

8 SUMMARY AND FUTURE

WORK

In this paper, we introduced extended techniques for

ﬂexible modeling and execution of data mashups. We

enable the non-technical modeling and execution of

ad-hoc integration scenarios by domain-experts. As

described in the introduction, our goals were (i) the

support of different use cases and scenarios through a

generic mashup approach, (ii) the ﬂexible, ad-hoc data

integration by domain-experts, (iii) exploiting hetero-

geneous, i.e., structured and unstructured data sources,

(iv) the creation of a scalable, stable and reusable solu-

tion, as well as (v) the dynamic (un-)tethering of data

sources. The ﬁrst goal (i) was realized by the introduc-

tion of transformation patterns that enable ﬂexibility

regarding different scenarios by a pattern-based trans-

formation implementation selection. We enabled (ii)

by introducing the modeling level, on which domain-

experts can create their own integration scenarios using

a domain-speciﬁc model. (iii) was achieved by the in-

troduction of extensible DSD and DPD repositories.

As a consequence, the support for heterogeneous data

sources – either structured or unstructured – can be pro-

vided by technical experts, implementing these compo-

nents, so the user can use them in an abstracted format

themselves. We further enabled (iv), by creating a

stable, reusable solution through the subdivision into

stateless, scalable cloud services that can be managed

independently. Finally, the last goal (v) is supported

by the re-modeling and re-execution of Mashup Plans

enabled by domain-speciﬁc models.

In this paper, we introduced a ﬁrst version of our

approach. In the future, we will continue working on

these concepts by introducing a transformation pattern

catalog containing further transformation patterns and

corresponding implementations. We will also consider

privacy and accountability aspects in the future due to

the provisioning of our solution in a cloud environment.

Our approach towards privacy and accountability in

Mashups will build on existing work (Mohammed

et al., 2009), (Zou et al., 2013). Furthermore, we

will improve the domain-speciﬁc Mashup Plan model

by introducing modeling patterns.

ACKNOWLEDGEMENT

This work is supported by the Deutsche Forschungs-

gemeinschaft (DFG, German Research Foundation)

within the Cluster of Excellence Simulation Technol-

ogy (EXC 310/1) and within the project SitOPT (Grant

610872). We would like to thank the group of Prof.

Frank Leymann of the Institute of Architecture of Ap-

plication Systems

for their support and cooperation

in these projects as well as the reviewers for their help-

ful comments.

REFERENCES

Binz, T., Breitenb

ucher, U., Kopp, O., and Leymann, F.

(2014). TOSCA: Portable Automated Deployment and

Management of Cloud Applications, pages 527–549.

Advanced Web Services. Springer, New York.

Cohn, D. et al. (2009). Business artifacts: A Data-centric Ap-

proach to Modeling Business Operations and Processes.

Bulletin of the IEEE Computer Society Technical Com-

mittee on Data Engineering.

Daniel, F. and Matera, M. (2014). Mashups - Concepts,

Models and Architectures. Data-Centric Systems and

Applications. Springer.

de Vrieze, P. et al. (2011). Building enterprise mashups.

Future Generation Computer Systems.

Falkenthal, M. et al. (2014). From Pattern Languages to

Solution Implementations. In Proceedings of the Sixth

International Conferences on Pervasive Patterns and

Applications (PATTERNS 2014), Venice, Italy.

Hirmer, P., Breitenb

ucher, U., Binz, T., and Leymann, F.

(2014). Automatic Topology Completion of TOSCA-

based Cloud Applications. In Proceedings des Cloud-

Cycle14 Workshops auf der 44. Jahrestagung der

Gesellschaft f

ur Informatik e.V. (GI), volume 232 of

LNI, pages 247–258, Bonn. Gesellschaft f

ur Informatik

e.V. (GI).

http://www.iaas.uni-stuttgart.de/

ExtendedTechniquesforFlexibleModelingandExecutionofDataMashups

121

Hirmer, P., Wieland, M., Schwarz, H., Mitschang, B., Breit-

enb

ucher, U., and Leymann, F. (2015). SitRS - A Situ-

ation Recognition Service based on Modeling and Exe-

cuting Situation Templates. In Proceedings of the 9th

Symposium and Summer School On Service-Oriented

Computing (SummerSOC).

Hoyer, V. et al. (2011). What Are the Business Beneﬁts

of Enterprise Mashups? In System Sciences (HICSS),

44th Hawaii International Conference on System Sci-

ences.

Kassner, L. B. and Mitschang, B. (2015). MaXCept–

Decision Support in Exception Handling through Un-

structured Data Integration in the Production Context.

An Integral Part of the Smart Factory. In Proceedings

of the 48th Hawaii International Conference on System

Sciences.

unzle, V. et al. (2011). PHILharmonicFlows: Towards

a Framework for Object-aware Process Management.

Journal of Software Maintenance and Evolution: Re-

search and Practice.

Meunier, R. (1995). The pipes and ﬁlters architecture. In

Pattern languages of program design, pages 427–440.

ACM Press/Addison-Wesley Publishing Co.

Mohammed, N. et al. (2009). Privacy-preserving Data

Mashup. In Proceedings of the 12th International Con-

ference on Extending Database Technology: Advances

in Database Technology.

OASIS (2013). Topology and Orchestration Speciﬁcation

for Cloud Applications.

Reimann, P. et al. (2014). A Pattern Approach to Conquer

the Data Complexity in Simulation Workﬂow Design.

In Proceedings of the 22nd International Conference

on Cooperative Information Systems (CoopIS 2014),

Amantea, Italy.

Soi, S. et al. (2014). Conceptual Development of Custom,

Domain-Speciﬁc Mashup Platforms. ACM Trans. Web.

Sun, Y. et al. (2014). Modeling Data for Business Processes.

In Proceedings of the 30th IEEE International Confer-

ence on Data Engineering (ICDE), Chicago, USA.

Tietz, V. et al. (2011). Towards Task-based Development

of Enterprise Mashups. In Proceedings of the 13th

International Conference on Information Integration

and Web-based Applications and Services.

Vukojevic-Haupt, K. et al. (2013). On-demand Provisioning

of Infrastructure, Middleware and Services for Sim-

ulation Workﬂows. In Proceedings of the 6th IEEE

International Conference on Service Oriented Comput-

ing & Applications (SOCA), Kauai, USA.

Wieland, M., Schwarz, H., Breitenb

ucher, U., and Leymann,

F. (2015). Towards Situation-Aware Adaptive Work-

ﬂows. In Proceedings of the 11th Workshop on Context

and Activity Modeling and Recognition (COMOREA)

@ IEEE Conference on Pervasive Computing (Per-

Com).

Zou, J. et al. (2013). Accountability in Enterprise Mashup

Services. Adv. Soft. Eng.

Zweigle, O., H

aussermann, K., K

appeler, U.-P., and Levi, P.

(2009). Supervised Learning Algorithm for Automatic

Adaption of Situation Templates Using Uncertain Data.

In Proceedings of the 2Nd International Conference on

Interaction Sciences: Information Technology, Culture

and Human, ICIS ’09, pages 197–200, New York, NY,

USA. ACM.

DATA2015-4thInternationalConferenceonDataManagementTechnologiesandApplications

122
