An Approach for Automated Scenario-based Testing of Distributed and

Heterogeneous Systems

Bruno Lima

1,2

and Jo

ao Pascoal Faria

1,2

Faculty of Engineering, University of Porto, Porto, Portugal

INESC TEC, Porto, Portugal

Keywords:

Software testing, Distributed systems, Scenario-based Testing, Heterogeneous Systems, Systems of Systems.

Abstract:

The growing dependence of our society on increasingly complex software systems, makes software testing ever

more important and challenging. In many domains, such as healthcare and transportation, several independent

systems, forming a heterogeneous and distributed system of systems, are involved in the provisioning of end-

to-end services to users. However, existing testing techniques, namely in the model-based testing ﬁeld, provide

little tool support for properly testing such systems. Hence, in this paper, we propose an approach and a toolset

architecture for automating the testing of end-to-end services in distributed and heterogeneous systems. The

tester interacts with a visual modeling frontend to describe key behavioral scenarios, invoke test generation

and execution, and visualize test results and coverage information back in the model. The visual modeling

notation is converted to a formal notation amenable for runtime interpretation in the backend. A distributed

test monitoring and control infrastructure is responsible for interacting with the components of the system

under test, as test driver, monitor and stub. At the core of the toolset, a test execution engine coordinates test

execution and checks the conformance of the observed execution trace with the expectations derived from the

visual model. A real world example from the Ambient Assisted Living domain is presented to illustrate the

approach.

1 INTRODUCTION

Due to the increasing ubiquity, complexity, critical-

ity and need for assurance of software based sys-

tems (Boehm, 2011), testing is a fundamental lifecy-

cle activity, with a huge economic impact if not per-

formed adequately (Tassey, 2002). Such trends, com-

bined with the needs for shorter delivery times and

reduced costs, demand for the continuous improve-

ment of software testing methods and tools, in order

to make testing activities more effective and efﬁcient.

Nowadays software is not more like simple appli-

cations but has evolved to large and complex system

of systems (DoD, 2008). A system of systems con-

sists of a set of small independent systems that to-

gether form a new system. The system of systems

can be a combination of hardware components (sen-

sors, actuators, etc.) and software systems used to

create big systems or ecosystems that can offer mul-

tiple different services. Currently, systems of systems

capture a great interest from the software engineering

research community.

Testing these distributed and heterogeneous soft-

ware systems or systems of systems, running over

interconnected mobile and cloud based platforms, is

particularly important and challenging. Some of the

challenges are: the difﬁculty to test the system as a

whole due to the number and diversity of individual

components; the difﬁculty to coordinate and synchro-

nize the test participants and interactions, due to the

distributed nature of the system; the difﬁculty to test

the components individually, because of the depen-

dencies on other components.

An example of a distributed and heterogeneous

system is the Ambient Assisted Living (AAL) ecosys-

tem that was prototyped in the context of the na-

tionwide AAL4ALL project (AAL4ALL, 2015). The

AAL4ALL ecosystem comprises a set of interop-

erable AAL products and services (sensors, actua-

tors, mobile and web based applications and services,

middleware components, etc.), produced by different

manufacturers using different technologies and com-

munication protocols (web services, message queues,

etc.). To assure interoperability and the integrity of

the ecosystem, it was developed and piloted a testing

and certiﬁcation methodology (Faria et al., 2014), en-

241

Lima B. and Faria J..

An Approach for Automated Scenario-based Testing of Distributed and Heterogeneous Systems.

DOI: 10.5220/0005558602410250

In Proceedings of the 10th International Conference on Software Engineering and Applications (ICSOFT-EA-2015), pages 241-250

ISBN: 978-989-758-114-4

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

compassing the speciﬁcation of ‘standard’ interfaces

and component categories, the speciﬁcation of unit

(component) and integration test scenarios, and the

test implementation and execution on candidate com-

ponents by independent test labs. A major problem

faced during test implementation and execution was

related with test automation, due to the diversity of

component types and communication interfaces, the

distributed nature of the system, and the lack of sup-

port tools. Similar difﬁculties have been reported in

other domains, such as the railway domain (Torens

and Ebrecht, 2010). In fact, we found in the literature

limited tool support for automating the whole process

of speciﬁcation-based testing of distributed and het-

erogeneous systems.

Hence, the main objective of this paper is to pro-

pose an approach and a toolset architecture to au-

tomate the whole process of model-based testing of

distributed and heterogeneous systems in a seamless

way, with a focus on integration testing, but support-

ing also unit (component) and system testing. As

compared to existing approaches, the proposed ap-

proach and architecture provide signiﬁcant beneﬁts

regarding efﬁciency and effectiveness: the only man-

ual activity required from the tester is the creation

(with tool support) of partial behavioral models of

the system under test (SUT), using feature-rich indus-

try standard notations (UML 2 sequence diagrams),

together with model-to-implementation mapping in-

formation, being all the needed runtime test compo-

nents provided by the toolset for different platforms

and technologies; the ability to test not only the inter-

actions of the SUT with the environment, but also the

interactions among components of the SUT, follow-

ing an adaptive test generation and execution strategy,

to improve fault detection and localization and cope

with non-determinism in the speciﬁcation or the SUT.

The rest of the paper is organized as follows: Sec-

tion 2 describes the state of the art. Section 3 presents

an overview of the proposed approach and test pro-

cess. Section 4 introduces the toolset architecture.

Section 5 concludes the paper and points out future

work. A running example from the AAL domain is

used to illustrate the approach presented.

2 STATE OF THE ART

We analyze in this section work in areas most closely

related with speciﬁcation-based (model-based) test-

ing of distributed and heterogeneous systems.

2.1 Model-based Testing

Model based testing (MBT) techniques and tools have

attracted increasing interest from academia and in-

dustry (Utting and Legeard, 2007), because of their

potential to increase the effectiveness and efﬁciency

of the test process, by means of the automatic gen-

eration of test cases (test sequences, input test data,

and expected outputs) from behavioral models of the

system under test (SUT). However, MBT approaches

found in the literature suffer from several limitations

(Dias Neto et al., 2007). The most common limitation

is the lack of integrated support for the whole test pro-

cess. This is a big obstacle for the adoption of these

approaches by industry, because of the effort required

to create or adapt tools to implement some parts of the

test process. Other common problems with existing

MBT approaches are the difﬁculty to avoid the explo-

sion of the number of test cases generated (in the ﬁrst

stages of the test automation process) and the difﬁ-

culty to bridge the gap between the model and the im-

plementation (in the last stages of test automation pro-

cess, namely in the conversion of abstract test cases

to concrete test cases). In recent MBT approaches

(Moreira and Paiva, 2014; Faria and Paiva, 2014), re-

searchers try to overcome the ﬁrst problem (test case

explosion) by the usage of behavioral models focus-

ing on speciﬁc scenarios or patterns, and the second

problem (test case concretization) by providing test

concretization and execution mechanisms that require

simple mapping information from the user.

2.2 Model-based Testing Approaches

using UML Sequence Diagrams

Being a feature-rich industry standard, UML 2 se-

quence diagrams (SD) are particularly well suited for

supporting scenario-based MBT approaches. With

the features introduced in UML 2, parameterized se-

quence diagrams (SD) can be used to model both sim-

ple and complex behavioral scenarios, with control

ﬂow variants, temporal constraints, and conformance

control operators. Although some works exist to de-

rive test scenarios (partial behavioral speciﬁcations)

from state machine based behavioral models (full be-

havioral speciﬁcations), the construction of partial be-

havioral speciﬁcations (SDs or natural language coun-

terparts) seems more accessible for industrial adop-

tion than the construction of full behavioral speciﬁ-

cations. For that reason, we privilege the usage of

UML SDs (irrespective of whether they are created

from scratch by the user or generated automatically

from other behavioral models).

In the literature it can be found some test automa-

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

242

tion approaches based on UML SDs, but those ap-

proaches fall short for the testing of distributed and

heterogeneous systems.

Of particular relevance in the context of this pa-

per is the UML Checker toolset developed in recent

work of the authors (Faria, 2014; Faria and Paiva,

2014), with several advantages over other approaches,

namely regarding the level of support of UML 2 fea-

tures. The toolset supports the conformance testing

of standalone object-oriented applications against test

scenarios speciﬁed by means of so called test-ready

SDs. Test-ready SDs are ﬁrst translated to a form

of extended Petri Nets (Event-Driven Colored Petri

Nets) for efﬁcient incremental conformance check-

ing, with a limited support for parallelism and con-

currency. Besides external interactions with users and

client applications, internal interactions between ob-

jects in the system are also monitored using Aspect-

Oriented Programming (AOP) techniques (Kiczales

et al., 1997), and checked against the ones speciﬁed

in the model. The testing of distributed systems is

not supported, but some of the techniques developed

have the potential to be reused for the testing of dis-

tributed and heterogeneous systems, where, instead of

modeling and testing interactions between objects in

a standalone application, one is interested in model-

ing and testing interactions between components in a

distributed system.

Other examples of test automation approaches

based on UML SDs are the SCENTOR tool, targeting

e-business EJB applications (Wittevrongel and Mau-

rer, 2001), the MDA-based approach of (Javed et al.,

2007), and the IBM Rational Rhapsody TestCon-

ductor AddOn (IBM, 2013), targeting real time em-

bedded applications. A comparison of the strengths

and weaknesses of these approaches can be found in

(Faria and Paiva, 2014).

2.3 Test Automation for Distributed

Systems

Although we didn’t ﬁnd in the literature MBT ap-

proaches supporting in an integrated fashion the

whole test automation process for distributed systems,

we found several works supporting parts of the pro-

cess, that can help in the construction of an integrated

approach and toolset. The most relevant ones are

mentioned next.

An additional difﬁculty in applying MBT tech-

niques for distributed systems is that their distributed

nature imposes theoretical limitations on the confor-

mance faults that can be detected by the test com-

ponents, depending on the test architecture used (Hi-

erons et al., 2011; Hierons, 2014); ﬁnding a test archi-

tecture that simultaneously maximizes the fault detec-

tion capability and minimizes the overhead and delays

caused by test coordination is still an open problem.

Existent MBT approaches for distributed systems also

lack the support for: internal interaction monitoring

(between the SUT components), to improve fault de-

tection and localization; adaptive (online) test gener-

ation strategies, to cope with non-determinism in the

speciﬁcation or the SUT (Hierons, 2014); feature-rich

industry standard notations such as UML SDs.

Regarding test concretization and execution for

distributed and heterogeneous systems, we found

in the literature several reference architectures and

frameworks that can be adapted for building a fully

integrated test automation solution: test architectures

for testing distributed systems proposed by (Ulrich

and K

onig, 1999); the STAF software testing automa-

tion framework, that can be used for coordinating

distributed test components running on multiple plat-

forms (STAF, 2014); the RemoteTest framework for

testing distributed systems, which design was pro-

posed in (Torens and Ebrecht, 2010); the FiLM run-

time monitoring tool for distributed systems (Zhang

et al., 2009); the DiCE approach for continuously and

automatically exploring and checking the behavior

of federated and heterogeneous distributed systems,

which design was proposed in (Canini et al., 2011);

the hybrid SUT test monitoring framework proposed

in (Hierons, 2014).

3 APPROACH AND PROCESS

Our main objective is the development of an approach

and a toolset to automate the whole process of model-

based testing of distributed and heterogeneous sys-

tems in a seamless way, with a focus on integration

testing, but supporting also unit (component) and sys-

tem testing. The only manual activity (to be per-

formed with tool support) should be the creation of

the input model of the SUT.

To that end, our approach is based on the follow-

ing main ideas:

• the adoption of different ‘frontend’ and ‘back-

end’ modeling notations, with an automatic trans-

lation of the input behavioral models created by

the user in an accessible ‘frontend’ notation (using

industry standards such as UML (OMG, 2011)),

to a formal ‘backend’ notation amenable for in-

cremental execution at runtime (such as extended

Petri Nets as in our previous work for object-

oriented systems (Faria and Paiva, 2014));

• the adoption of an online and adaptive test strat-

egy, where the next test input depends on the se-

AnApproachforAutomatedScenario-basedTestingofDistributedandHeterogeneousSystems

243

Translation

tool

1. Visual Modeling

2. Visual to Formal

Model Translation

Visual Behavioral

Model

Modeling

tool

Formal Runtime

Model

3. Test Generation and Execution

Distributed System

Under Test

Annotated Visual

Behavioral Model

Test

execution

tools

Test Results

(coverage & errors)

4. Test Results

Mapping

tool

3.4 Distributed Test

Monitoring

3.5 Test Diagnosis

and Reporting

Execution Traces

Model Execution &

Coverage Status

3.1 Model Execution &

Conformance Checking

3.3 Distributed Test

Driving

(to all inner activities)

Modeler/

Tester

3.2 Test Input

Generation

Legend: Artifact Activity Dataflow

Figure 1: Dataﬂow view of the proposed test process.

quence of events that has been observed so far and

the resulting execution state of the formal backend

model, to allow for non-determinism in either the

speciﬁcation or the SUT (Hierons, 2014);

• the automatic mapping of test results (coverage

and errors) to the ‘frontend’ modeling layer.

Figure 1 depicts the main activities and artifacts

of the proposed test process based on the above ideas.

The main activities are described in the next subsec-

tions and illustrated with a running example.

3.1 Visual modeling

The behavioral model is created using an appropriate

UML proﬁle (OMG, 2011)(Gross, 2005) and an ex-

isting modeling tool. We advocate the usage of UML

2 SDs, with a few restrictions and extensions, because

they are well suited for describing and visualizing the

interactions that occur between the components and

actors of a distributed system. UML deployment di-

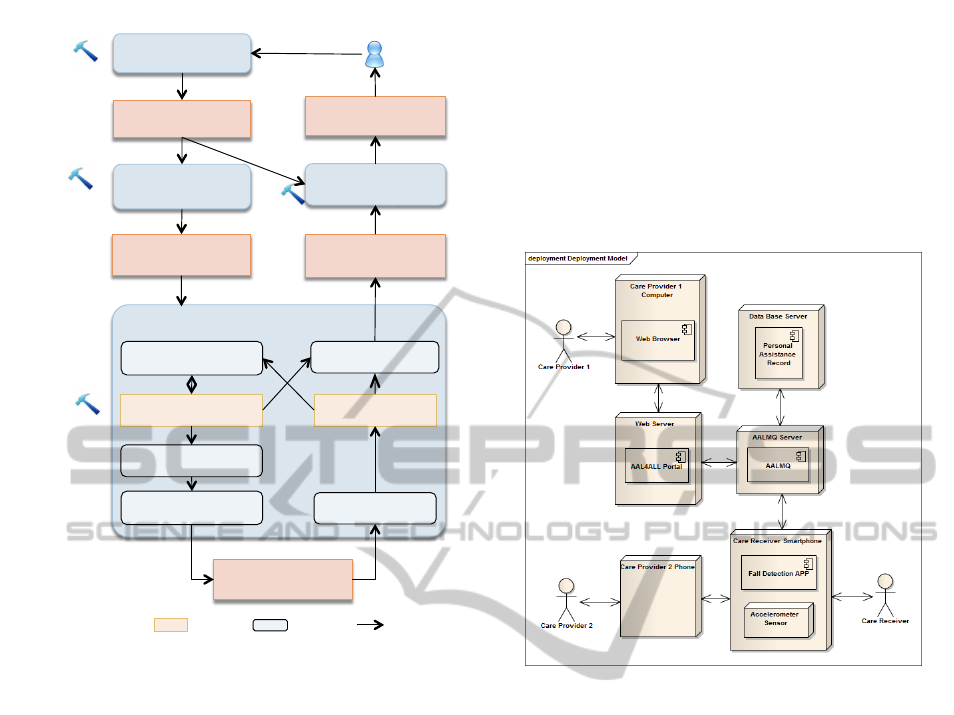

agrams can also be used to describe the distributed

structure of the SUT. Mapping information between

the model and the implementation, needed for test ex-

ecution (such as the actual location of each compo-

nent under test), may also be attached to the model

with tagged values.

To illustrate the approach, we use a real world ex-

ample from the AAL4ALL project, related with a fall

detection and alert service. As illustrated in Figure 2,

this service involves the interaction between different

heterogeneous components running in different hard-

ware nodes in different physical locations, as well as

three users.

Figure 2: UML deployment diagram of a fall detection sce-

nario.

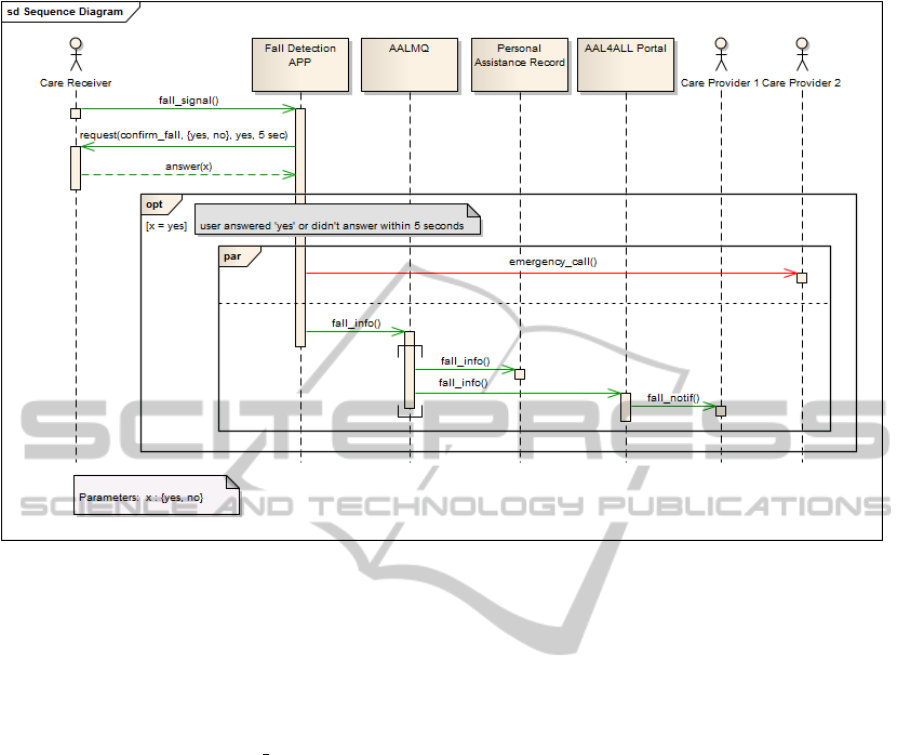

A behavioral model for a typical fall detection sce-

nario is shown in Figure 3. In this scenario, a care

receiver has a smartphone that has installed a fall de-

tection application. When this person falls, the ap-

plication detects the fall using the smartphone’s ac-

celerometer and provides the user a message which

indicates that it has detected a drop giving the pos-

sibility for the user to conﬁrm whether he/she needs

help. If the user responds that he/she does not need

help (the fall was slight, or it was just the smartphone

that fell to the ground), the application does not per-

form any action; however, if the user conﬁrms that

needs help or does not respond within 5 seconds (use-

ful if the person became unconscious due to the fall),

the application raises two actions in parallel. On the

one hand, it makes a call to a previously clearcut num-

ber to contact a health care provider (in this case can

be a formal or informal caregiver); on the other hand,

it sends the fall occurrence for a Personal Assistance

Record database and sends a message to a portal that

is used by a caregiver (e.g. a doctor or nurse) that

is responsible for monitoring this care receiver. The

last two actions are performed through a central com-

ponent of the ecosystem called AALMQ (AAL Mes-

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

244

Figure 3: UML sequence diagram representing the interactions of the fall detection scenario. The diagram is already painted

after a failed test execution in which the fall detection application didn’t send an emergency call.

sage Queue), which allows incoming messages to be

forwarded to multiple subscribers, according to the

publish-subscribe pattern (Gamma et al., 1994). To

facilitate the representation of a request for input from

the user with a timeout and a default response, we use

the special syntax request(conﬁrm fall, {yes, no}, yes,

5 sec), where the ﬁrst argument identiﬁes the mes-

sage, the second argument is the set of valid answers,

the third is the default answer in case of timeout, and

the last argument is the timeout time.

3.2 Visual to Formal Model Translation

For the formal runtime model, we advocate the us-

age of Event-Driven Colored Petri Nets – a sort of

extended Petri Nets proposed in our previous work

for testing object-oriented systems (Faria and Paiva,

2014), with the addition of time constraints as found

in Timed Petri Nets. We call the resulting Petri Nets

Timed Event-Driven Colored Petri Nets, or TEDCPN

for short. Petri Nets are well suited for describing in

a rigorous and machine processable way the behavior

of distributed and concurrent systems, usually requir-

ing fewer places than the number of states of equiv-

alent ﬁnite state machines. Translation rules from

UML 2 SDs to Event-Driven Colored Petri Nets have

been deﬁned in (Faria and Paiva, 2014). Rules for

translating time and duration constraints in SDs to

time constraints in the resulting Petri Net can also be

deﬁned.

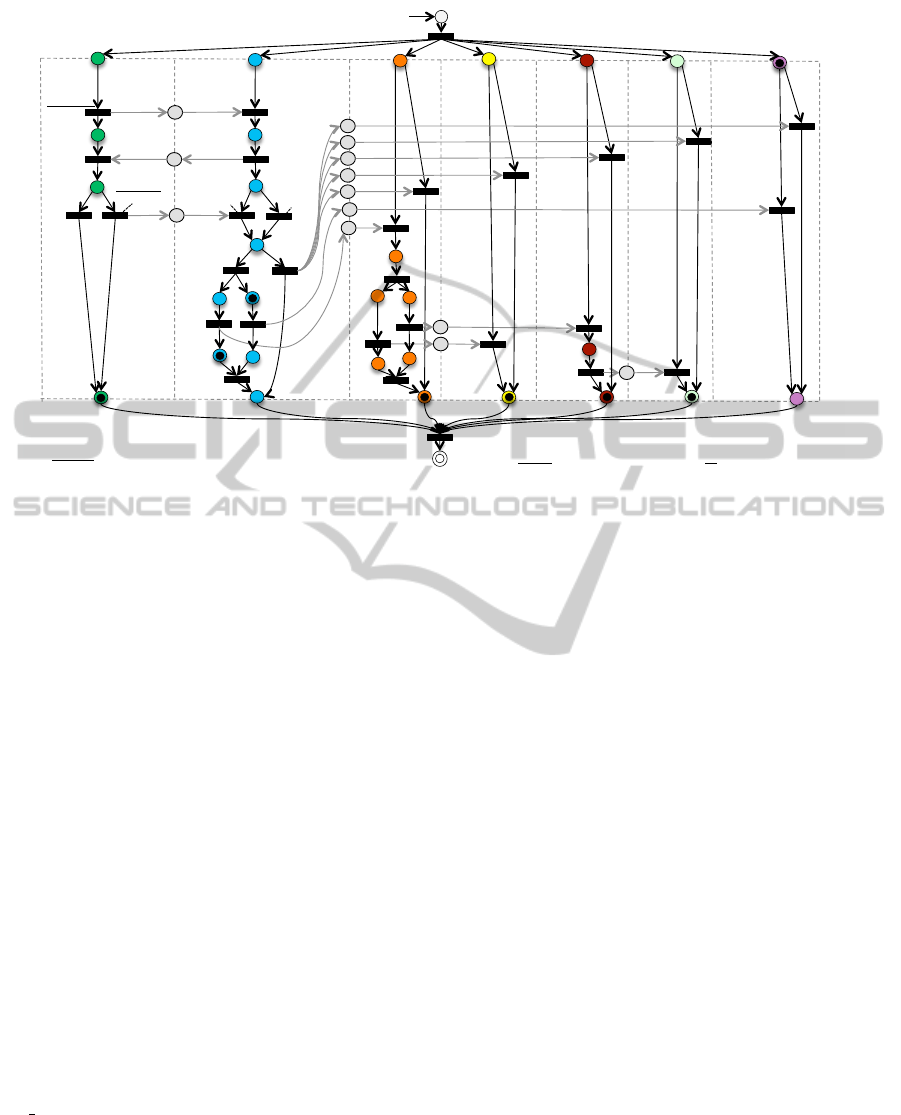

Figure 4 shows the TEDCPN derived from the SD

of Figure 3, according to the rules described in (Faria

and Paiva, 2014) and additional rules for translating

time constraints.

The generated TEDCPN is partitioned into a set

of fragments corresponding to the participants in the

source SD. Each fragment describes the behavior lo-

cal to each participant and the communication with

other participants via boundary places.

Transitions may be optionally labeled with an

event, a guard (with braces) and a time interval (with

square brackets). Events correspond to the sending

or receiving of messages in the source SD. Guards

correspond to the conditions of conditional interac-

tion fragments in the source SD. Time intervals cor-

respond to duration and time constraints in the source

SD. A transition can only ﬁre when there is at least

one token in each input place, the event (if deﬁned)

has occurred, the guard (if deﬁned) holds, and the

time elapsed since the transition became enabled (i.e.,

since there is a token in each input place) lies within

the time interval (if deﬁned).

Incoming and outgoing arcs of a transition may be

labeled with a pattern matching expression describing

AnApproachforAutomatedScenario-basedTestingofDistributedandHeterogeneousSystems

245

?fall_info

!fall_notif

!fall_info

AALMQ

start

Care

Receiver

Fall !

Detection APP

!fall_signal

?fall_signal

!conf_fall

?conf_fall

!emergency_call

!fall_info

?fall_info

Personal

Assistance

Record

AAL4ALL

Portal

Care

Provider

Care

Provider 2

?emergency_call

?fall_info

?fall_notif

!answer(x)

[0, 5 sec]

?answer(x)

[0, 5 sec]

yes

]5 sec,∞[

Variables: x ∈ {yes, no}

Legend: !m - send m; ?m - receive m; !m - controllable event

!fall_info

Figure 4: TEDCPN derived from the SD of Figure 3. The net is marked in a ﬁnal state of a failed test execution in which the

fall detection application didn’t send an emergency call.

the value (token) to be taken from the source place or

put in the target place, respectively, being 1 the de-

fault. For example, in Figure 4 the transition labeled

“?answer(x)” has an input arc labeled “x”, where “x”

represents a local variable of the transition. The tran-

sition can only ﬁre if the value of the token in the

source place is the same as the value of the argument

of the event. Then, the value of “x” is placed in the

target place.

For testing purposes, the events in the runtime

model are marked as observable (default) or control-

lable. Controllable events (underlined) are to be in-

jected by the test harness (playing the role of a test

driver, simulating an actor) when the corresponding

transition becomes enabled. Controllable events cor-

respond to the sending of messages from actors in the

source SD. All other events are observable, i.e., they

are to be monitored by the test harness. For example,

when the TEDCPN of the example starts execution

(i.e., a token is put in the start place), the initial un-

labeled transition is executed and a token is placed

in the initial place of each fragment. At that point,

the only transition enabled is the one labeled with the

“!fall signal” controllable event, so the test harness

will inject that event (simulating the user) and test ex-

ecution proceeds.

This mechanism provides a uniﬁed framework

with monitoring, testing and simulation capabilities.

In one extreme case, all events in the model may be

marked as observable, in which case the test system

acts as a runtime monitoring and veriﬁcation system.

In the other extreme case, all events in the model may

be marked as controllable, in which case the test sys-

tem acts as a simulation system. This also allows, the

usage of the same model with different markings of

observable and controllable events for integration and

unit testing.

3.3 Test Generation and Execution

3.3.1 Test Generation

Using the UML 2 interaction operators, a single SD,

and hence the TEDCPN derived from it, may describe

multiple control ﬂow variants, that require multiple

test cases for being properly exercised.

In the running example, from the reading of the

set of interactions represented in Figure 3, one eas-

ily realizes that there are three test paths to be exer-

cised (with at least one test case for each test path).

The ﬁrst test path (TP1) is the case where the care re-

ceiver responds negatively to the application and the

application doesn’t trigger any action. The second

test path (TP2) is the situation where the user con-

ﬁrms to the application that he/she needs help and af-

ter that the application triggers the actions. The last

test path (TP3) corresponds to the situation where the

user doesn’t answer within the deﬁned time limit and

the application triggers the remaining actions auto-

matically. If one wants also to exercise the boundary

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

246

values of allowed response time (close to 0 and close

to 5 seconds), then two test cases can be considered

for each of the test paths TP1 and TP2, resulting in a

total of 5 test cases.

Equivalently, in order to exercise all nodes, edges

and boundary values in the TEDCPN, several test

cases are needed. In the example, one could exercise

the two outgoing paths after the “?conf fall” event,

the two possible values of variable “x” in the “!an-

swer(x)” event, and the two boundary values of the

“[0, 5 sec]” interval, in a total of 5 test cases.

In general, the required test cases can be gener-

ated using an ofﬂine strategy (with separate genera-

tion and execution phases) or an online test strategy

(with intermixed generation and execution phases)

(Utting et al., 2012). In an ofﬂine strategy, the test

cases are determined by a static analysis of the model,

assuming the SUT behaves deterministically. But that

is not often the case, so we prefer an online, adaptive,

strategy, in which the next test action is decided based

on the current execution state. Whenever multiple al-

ternatives can be taken by the test harness in an exe-

cution state, the test harness must choose one of the

alternatives and keep track of unexplored alternatives

(i.e., model coverage information) to be exercised in

subsequent test repetitions.

3.3.2 Test Execution

Test execution involves the simultaneous execution

of: (i) the set of components under test (CUTs); (ii)

the formal runtime model (TEDCPN), dictating the

possible test inputs and the expected outputs from the

CUTs in each step of test execution; (iii) a local test

component for each CUT, running in the same node

of the CUT, able to perform the roles of test driver

(i.e., send test inputs to the CUT, simulating an actor)

and test monitor (i.e., monitor all the messages sent or

received by the CUT).

The collection of monitored events (message

sending and receiving events) forms an execution

trace. Testing succeeds if the observed execution

trace conforms to the formal behavioral model, in the

sense that it belongs to the (possibly inﬁnite) set of

valid traces deﬁned by the model.

Conformance checking is performed incremen-

tally as follows: (i) initially, the execution of the TED-

CPN is started by placing a token in the start place

and ﬁring transitions until a quiescent state is reached

(a state where no transition can ﬁre); (ii) each time a

quiescent state is reached having an enabled transition

labeled with a controllable event, the test harness it-

self generates the event (i.e., the message speciﬁed in

the event is sent to the target CUT by the appropriate

test driver) and the execution status of the TEDCPN

is advanced to a new quiescent state; (iii) each time

an observable event is monitored (by a test monitor),

the execution state of the TEDCPN is advanced until

a new quiescent state is reached; (iv) the two previous

steps are repeated until the ﬁnal state of the TEDCPN

is reached (i.e., a token is placed in the ﬁnal place),

in which case test execution succeeds, or until a state

is reached in which there is no controllable event en-

abled and no observable event has been monitored for

a deﬁned wait time, in which case test execution fails.

The latter situation is illustrated in Figure 4. Depend-

ing on the conformance semantics chosen, the obser-

vation of an unexpected event may also be considered

a conformance error.

To minimize communication overheads, the TED-

CPN can itself be executed in a distributed fashion,

by executing each fragment of the ‘global’ TEDCPN

(describing the behavior local to one participant and

the communication with other participants via bound-

ary places) by a local test component. Communica-

tion between the distributed test components is only

needed when tokens have to be exchanged via bound-

ary places.

When a ﬁnal (success or failure) state is reached,

the Test Diagnosis and Reporting activity is responsi-

ble to analyze the execution state of the TEDCPN and

the collected execution trace, and produce meaningful

error information.

Model coverage information is also collected dur-

ing test execution, to guide the selection of test inputs

and the decision about when to stop test execution, as

follows: when it is reached a quiescent state of the

TEDCPN with multiple controllable events enabled

leading to different execution paths, the test harness

shall generate an event that leads to a previously un-

explored path; when a ﬁnal state of the TEDCPN is

reached, test execution is restarted if there are still un-

explored (but reachable) paths.

3.4 Test Results Mapping

At the end of test execution it is important to reﬂect

the test results back in the visual behavioral model

created by the user. As an example, the marking

shown in the net of Figure 4 corresponds to the ﬁ-

nal state of a failed test execution in which the Fall

Detection App didn’t send an emergency call. By a

simple analysis of this ﬁnal state (and traceability in-

formation between the source SD and the TEDCPN),

it is possible to point out to the tester which messages

in the source SD were covered and what was the cause

of test failure (missing ”emergency call” message), as

shown in Figure 3.

AnApproachforAutomatedScenario-basedTestingofDistributedandHeterogeneousSystems

247

4 TOOLSET ARCHITECTURE

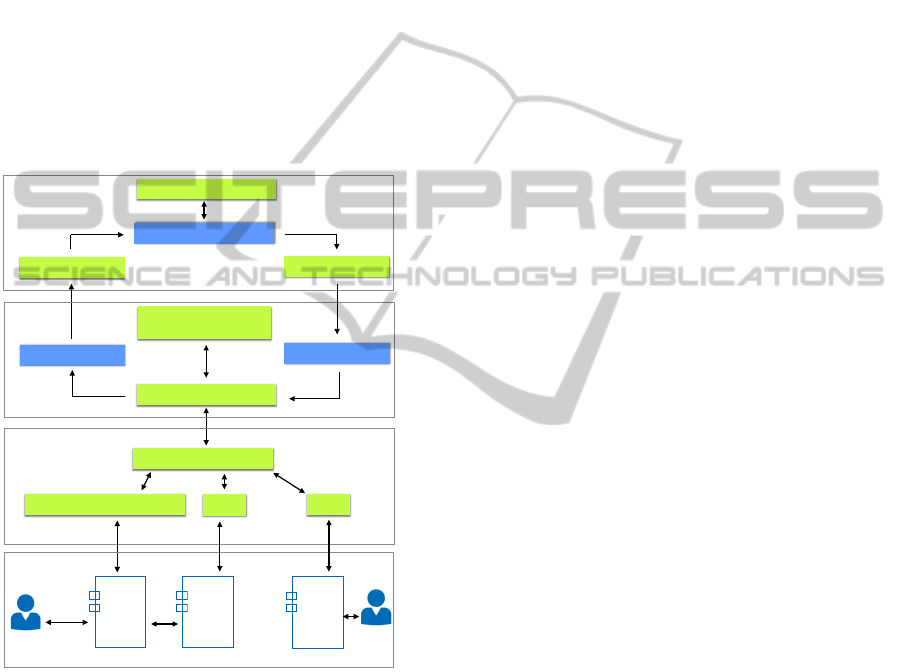

Figure 5 depicts a layered architecture of a toolset for

supporting the test process and approach described in

the previous section, promoting reuse and extensibil-

ity.

At the bottom layer in Figure 5, the SUT is com-

posed by a set of components under test (CUT), ex-

ecuting potentially in different nodes (OMG, 2011).

The CUT interact with each other (usually asyn-

chronously) and with the environment (users or ex-

ternal systems) through well deﬁned interfaces at

deﬁned interaction points or ports (Hierons, 2014;

Gross, 2005).

The three layers of the toolset are described in the

following sections.

Visual Behavioral Model

Translation Tool

Modeling Tool

Mapping Tool

Model Execution &

Conformance Checking

Formal Runtime Model

Test Execution Manager

Test Results

…

Test Communication Manager

Local Test Driving and Monitoring

LTDM

SUT

CUT

…

CUT

DTMCI

TEE

VME

Figure 5: Toolset architecture.

4.1 Visual Modeling Environment

At the top layer, we have a visual modeling environ-

ment, where the tester can create a visual behavioral

model of the SUT, invoke test generation and execu-

tion, and visualize test results and coverage informa-

tion back in the model.

This layer also includes a translation tool to auto-

matically translate the visual behavioral models cre-

ated by the user into the formal notation accepted by

the test execution manager in the next layer, and a

mapping tool to translate back the test results (cover-

age and error information) to annotations in the visual

model.

The model transformations can be implemented

using existing MDA technologies and tools (V

olter

et al., 2013).

4.2 Test Execution Engine

At the next layer, the test execution engine is the core

engine of the toolset. It comprises a model execution

& conformance checking engine, responsible for in-

crementally checking the conformance of observed

execution traces in the SUT against the formal run-

time model derived from the previous layer, and a test

execution manager, responsible for initiating test ex-

ecution (using the services of the next layer), forward

execution events (received from the next layer) to the

model execution & conformance checking engine, de-

cide next actions to be performed by the local test

driving and monitoring components in the next layer

of the system, and produce test results and diagnosis

information for the layer above.

The model execution & conformance checking

engine can be implemented by adapting existing Petri

net engines, such as CPN Tools (Jensen et al., 2007).

4.3 Distributed Test Monitoring and

Control Infrastructure

We adopt a hybrid test monitoring approach as pro-

posed in (Hierons, 2014), combining a centralized

‘tester’ and a local ‘tester’ at each port (component

interaction point) of the SUT, that was shown to lead

to more effective testing than a purely centralized

approach (where a centralized tester interacts asyn-

chronously with the ports of the SUT) or a purely dis-

tributed approach (where multiple independent dis-

tributed testers interact synchronously with the ports

of the SUT).

Hence, the Distributed Test Monitoring and Con-

trol Infrastructure comprises a set of local test driv-

ing and monitoring (LTDM) components, each com-

municating (possibly synchronously) with a compo-

nent under test (CUT), performing the roles of test

monitor, driver and stub; and a test communication

manager (TCM) component, that (asynchronously)

dispatches control orders (coming from the previous

layer) to the LTDMs and aggregates monitoring infor-

mation from the LTDMs (to be passed to the previous

layer).

During test execution, the TEDCPN may be ex-

ecuted in a centralized or a distributed mode, de-

pending on the processing capabilities that can be

put in the LTDM components. In centralized mode,

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

248

the LTDM components just monitor all observable

events of interest and send them to the central TEM;

they also inject controllable events when requested

from the central TEM. In distributed mode, a copy

of each fragment (up to boundary places) is sent to

the respective LTDM component for local execution.

When there is the need to send a token to a bound-

ary place, the LTDM sends the token to the central

TEM, which subsequently dispatches it to the con-

sumer LTDM. Because of possible delays in the com-

munication of tokens through boundary places, the

LTDM components must be prepared to tentatively

accept observable events before receiving enabling to-

kens in boundary places.

This infrastructure may be implemented by adapt-

ing and extending existing test frameworks for dis-

tributed systems, such as the ones described in Sec-

tion 2.3.

Different LTDM components will be implemented

for different platforms and technologies under test,

such as WCF (Windows Communication Founda-

tion), Java EE (Java Platform, Enterprise Edition),

Android, etc. However, a LTDM component imple-

mented for a given technology will be reused without

change to monitor and control any component under

test that uses that technology. For example, in our pre-

vious work for automating the scenario-based testing

of standalone applications written in Java, we devel-

oped a runtime test library able to trace and manipu-

late the execution of any Java application, using AOP

(aspect-oriented programming) instrumentation tech-

niques with load-time weaving. In the case of a dis-

tributed Java application, we would need to deploy

a copy of that library (or, more precisely, a modi-

ﬁed library, to handle communication) together with

each Java component under test. In the case of a dis-

tributed system implemented using other technologies

(with different technologies for different components

in case of heterogeneous systems), similar test mon-

itoring components suitable for the technologies in-

volved will have to be deployed.

5 CONCLUSIONS

In this paper, it was presented a novel approach and

process for automated scenario-based testing of dis-

tributed and heterogeneous systems. It was also pre-

sented the architecture of a toolset able to support and

automate the proposed test process. Based in a mul-

tilayer architecture and using a hybrid test monitor-

ing approach combining a centralized ‘tester’ and a

local ‘tester’ this toolset promotes reuse and extensi-

bility. In the approach proposed, the tester interacts

with a visual modeling front-end to describe key be-

havioral scenarios of the SUT using UML sequence

diagrams, invoke test generation and execution, and

visualize test results and coverage information back

in the model using a color scheme (see Figure 3). In-

ternally, the visual modeling notation is converted to

a formal notation amenable for runtime interpretation

(see Figure 4) in the back-end. A distributed test mon-

itoring and control infrastructure is responsible for in-

teracting with the components of the SUT, under the

roles of test driver, monitor and stub. At the core of

the toolset, a test execution engine coordinates test ex-

ecution and checks the conformance of the observed

execution trace with the expectations derived from the

visual model. For better understanding the approach

and toolset architecture proposed, a real world exam-

ple from the AAL domain was presented along the

paper.

As future work we will implement a toolset fol-

lowing the architecture (represented in Figure 5) and

working principles presented in this paper, taking ad-

vantage of previous work for automating the integra-

tion testing of standalone object-oriented systems. To

experimentally assess the beneﬁts of the approach and

toolset, industrial level case studies will be conducted,

with at least one in the AAL domain.

With such a toolset, we expect to signiﬁcantly

reduce the cost of testing distributed and heteroge-

neous systems, from the standpoint of time, resources

and expertise required, as compared to existing ap-

proaches.

ACKNOWLEDGEMENTS

This work is supported by project NORTE-07-

0124-FEDER-000059, ﬁnanced by the North Por-

tugal Regional Operational Programme (ON.2 - O

Novo Norte), under the National Strategic Reference

Framework (NSRF), through the European Regional

Development Fund (ERDF), and by national funds,

through the Portuguese funding agency, Fundac¸

para a Ci

encia e a Tecnologia (FCT).

REFERENCES

AAL4ALL (2015). Ambient Assisted Living For All.

http://www.aal4all.org.

Boehm, B. (2011). Some Future Software Engineering Op-

portunities and Challenges. In Nanz, S., editor, The

Future of Software Engineering, pages 1–32. Springer

Berlin Heidelberg.

Canini, M., Jovanovi

c, V., Venzano, D., Novakovi

c, D.,

and Kosti

c, D. (2011). Online Testing of Federated

AnApproachforAutomatedScenario-basedTestingofDistributedandHeterogeneousSystems

249

and Heterogeneous Distributed Systems. SIGCOMM

Comput. Commun. Rev., 41(4):434–435.

Dias Neto, A. C., Subramanyan, R., Vieira, M., and Travas-

sos, G. H. (2007). A Survey on Model-based Testing

Approaches: A Systematic Review. In Proceedings

of the 1st ACM International Workshop on Empiri-

cal Assessment of Software Engineering Languages

and Technologies: Held in Conjunction with the

22Nd IEEE/ACM International Conference on Auto-

mated Software Engineering (ASE) 2007, WEASEL-

Tech ’07, pages 31–36, New York, NY, USA. ACM.

DoD (2008). Systems Engineering Guide for Systems of

Systems. Technical report, Ofﬁce of the Deputy Under

Secretary of Defense for Acquisition and Technology,

Systems and Software Engineering Version 1.0.

Faria, J. (2014). A Toolset for Conformance

Testing against UML Sequence Diagrams.

https://blogs.fe.up.pt/sdbt/.

Faria, J. and Paiva, A. (2014). A toolset for confor-

mance testing against UML sequence diagrams based

on event-driven colored Petri nets. International Jour-

nal on Software Tools for Technology Transfer, pages

1–20.

Faria, J. P., Lima, B., Sousa, T. B., and Martins, A. (2014).

A Testing and Certiﬁcation Methodology for an Open

Ambient-Assisted Living Ecosystem. International

Journal of E-Health and Medical Communications

(IJEHMC), 5(4):90–107.

Gamma, E., Helm, R., Johnson, R., and Vlissides, J. (1994).

Design patterns: elements of reusable object-oriented

software. Pearson Education.

Gross, H.-G. (2005). Component-Based Software Testing

with UML. Springer Berlin Heidelberg.

Hierons, R. M. (2014). Combining Centralised and Dis-

tributed Testing. ACM Trans. Softw. Eng. Methodol.,

24(1):5:1–5:29.

Hierons, R. M., Merayo, M. G., and N

nez, M.

(2011). Scenarios-based testing of systems with dis-

tributed ports. Software: Practice and Experience,

41(10):999–1026.

IBM (2013). IBM

 Rational

 Rhapsody

 Automatic

Test Conductor Add On User Guide, v2.5.2.

Javed, A., Strooper, P., and Watson, G. (2007). Automated

Generation of Test Cases Using Model-Driven Archi-

tecture. In Automation of Software Test , 2007. AST

’07. Second International Workshop on, pages 3–3.

Jensen, K., Kristensen, L., and Wells, L. (2007). Coloured

Petri Nets and CPN Tools for modelling and valida-

tion of concurrent systems. International Journal on

Software Tools for Technology Transfer, 9(3-4):213–

254.

Kiczales, G., Lamping, J., Mendhekar, A., Maeda, C.,

Lopes, C., Loingtier, J.-M., and Irwin, J. (1997).

Aspect-oriented programming. In Aks¸it, M. and Mat-

suoka, S., editors, ECOOP’97 — Object-Oriented

Programming, volume 1241 of Lecture Notes in Com-

puter Science, pages 220–242. Springer Berlin Hei-

delberg.

Moreira, R. M. and Paiva, A. C. (2014). PBGT Tool:

An Integrated Modeling and Testing Environment for

Pattern-based GUI Testing. In Proceedings of the 29th

ACM/IEEE International Conference on Automated

Software Engineering, ASE ’14, pages 863–866, New

York, NY, USA. ACM.

OMG (2011). OMG Uniﬁed Modeling LanguageTM

(OMG UML), Superstructure. Technical report, Ob-

ject Management Group.

STAF (2014). Software Testing Automation Framework

(STAF).

Tassey, G. (2002). The Economic Impacts of Inadequate

Infrastructure for Software Testing. Technical report,

National Institute of Standards and Technology.

Torens, C. and Ebrecht, L. (2010). RemoteTest: A Frame-

work for Testing Distributed Systems. In Software En-

gineering Advances (ICSEA), 2010 Fifth International

Conference on, pages 441–446.

Ulrich, A. and K

onig, H. (1999). Architectures for Testing

Distributed Systems. In Csopaki, G., Dibuz, S., and

Tarnay, K., editors, Testing of Communicating Sys-

tems, volume 21 of IFIP — The International Fed-

eration for Information Processing, pages 93–108.

Springer US.

Utting, M. and Legeard, B. (2007). Practical Model-Based

Testing: A Tools Approach. Morgan Kaufmann Pub-

lishers Inc., San Francisco, CA, USA.

Utting, M., Pretschner, A., and Legeard, B. (2012). A tax-

onomy of model-based testing approaches. Software

Testing, Veriﬁcation and Reliability, 22(5):297–312.

olter, M., Stahl, T., Bettin, J., Haase, A., and Helsen, S.

(2013). Model-driven software development: technol-

ogy, engineering, management. John Wiley & Sons.

Wittevrongel, J. and Maurer, F. (2001). SCENTOR:

scenario-based testing of e-business applications. In

Enabling Technologies: Infrastructure for Collabora-

tive Enterprises, 2001. WET ICE 2001. Proceedings.

Tenth IEEE International Workshops on, pages 41–46.

Zhang, F., Qi, Z., Guan, H., Liu, X., Yang, M., and Zhang,

Z. (2009). FiLM: A Runtime Monitoring Tool for

Distributed Systems. In Secure Software Integration

and Reliability Improvement, 2009. SSIRI 2009. Third

IEEE International Conference on, pages 40–46.

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

250
