Formalization of Secure Service Oriented Product Line
Ines Achour, Lamia Labed and Henda Ben Ghezala
Department of Computer Science, RIADI-GDL, ENSI, Manouba, Tunisia
Keywords: Secure Service Oriented Product Line, Software Security, Secure Domain Engineering, Secure Application
Engineering, Map.
Abstract: In this work, we focus on the SOPL approach (Service Oriented Product Line) which can be used in various
domains where SOA based applications are needed such as e/m government, e-business, e-learning and so
on. This approach is a combination of Service-Oriented Architecture (SOA) and Software Product Line
(SPL). Ensure secure services are vital in order to establish trust between users and service providers. In this
context, we aim to propose guidelines for using Secure SOPL which process leads to produce secure
service-oriented applications. In fact, with the diversity of the means that allow us to perform security
activities, the use of Secure SOPL is difficult especially for developers whose lack experience in the
security software, SPL and SOA fields which are the basis the Secure SOPL. Thus, we choose the Map
formalism which is a decision-oriented model to formalize the two phases of our Secure SOPL.
1 INTRODUCTION
Nowadays, companies rely on distributed
architectures and more specifically on the
architecture based services namely SOA (Service
Oriented Architecture). This type of architecture is a
solution to problems of integration and
interoperability within services. In addition,
companies hope satisfying customers’ needs such as
reducing cost, effort and time to market of software
products. These advantages are offered by SOPL
approach (Service Oriented Product Line) which is a
combination of the key concepts of SOA and those
of SPL (Software Product Line). SOPL enhance the
systematic reuse of services but doesn't offer
solutions to security problems especially as we live
in a connected and in an opened world. In (Achour
et al., 2015) we have integrated security activities
throughout SOPL development cycle. The
underlying idea is that the improvement of software
products must go through improving their
development process (Finkelstein et al., 1994). This
leads us to propose Secure SOPL: a development
process that integrates security in the SOPL process
and that aims to produce secured software products
based on SOA. However, the variety of means
(methods, tools, etc.) that allow to perform security
activities (that we have introduced on Secure SOPL)
and the immaturity of SOPL approach make it
difficult to implement Secure SOPL. Also, the
security activities appear as just listing the existing
techniques and tools. All these reasons lead us to
thought on formalizing the Secure SOPL based on a
decision-oriented approach. Our proposal must help
developers, specifically if they are non experimented
in security and/or SOA and/or or PLE which are in
the core of secure SPL. The help consists in the
choice of the activity to proceed and in the choice of
the mean to perform this activity. The Map (Rolland
et al., 1999) process meta-model is a decision-
oriented process and it seems to best fit our needs. In
fact, the Map formalism permits to represent the
different steps and activities of the Secure SOPL as
intentions and the means (guidelines) to use to
perform those as strategies. The Map aims at
flexibility: it provides a view that does not impose
activities to take up, but enhances what can be done
(next) and how it can be done.
In this paper, we present in section 2 an overview of
the Secure SOPL process. In section 3, we present
the Map formalism and the Map relating to the
realization of the two phases of Secure SOPL.
Section 4 is reserved to give an overview of related
works. Section 5 presents an illustrative example.
Finally, section 6 summarizes our proposal and
outlines our future work.
93
Achour I., Labed L. and Ben Ghezala H..
Formalization of Secure Service Oriented Product Line.
DOI: 10.5220/0005559100930100
In Proceedings of the 10th International Conference on Software Engineering and Applications (ICSOFT-EA-2015), pages 93-100
ISBN: 978-989-758-114-4
Copyright
c
2015 SCITEPRESS (Science and Technology Publications, Lda.)

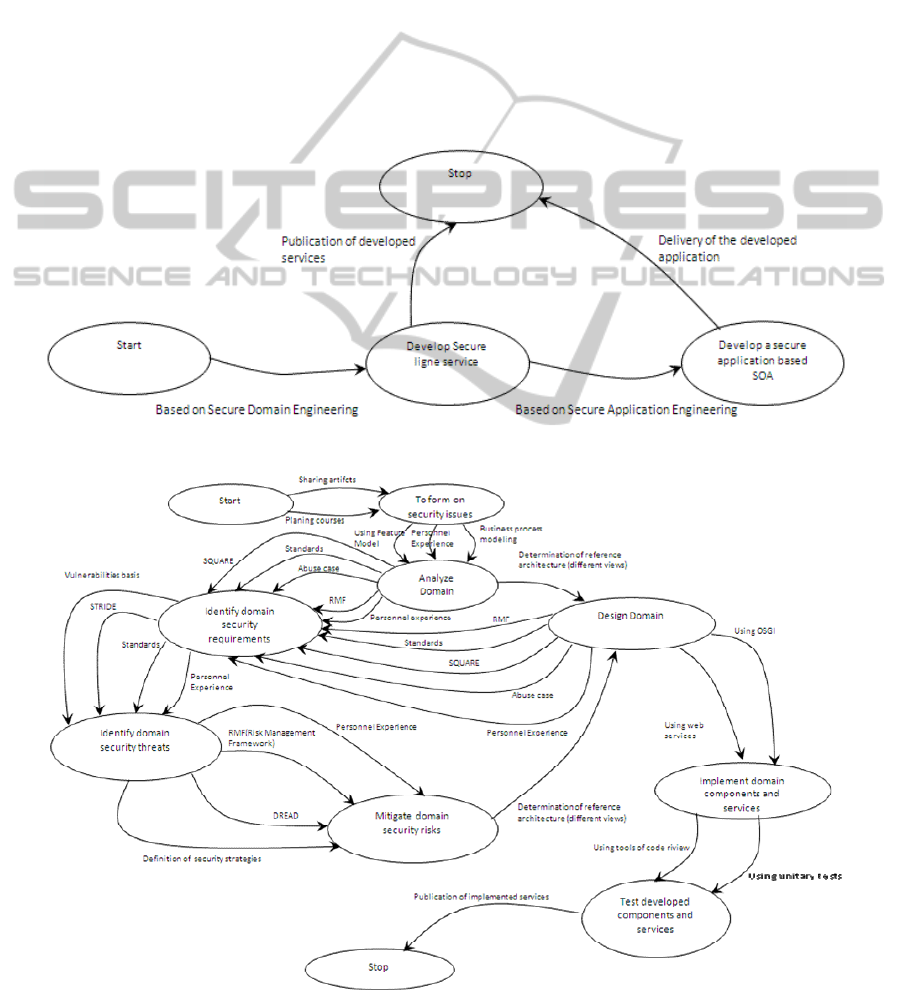

Figure 1: Map for Secure SOPL.
2 SECURE SOPL PROCESS
Service Oriented Product Line (SOPL) was
introduced at the 11th edition of the International
Conference SPLC (the ‘Software Product Line
Conference’) in 2007. The SOPL approach is a
combination of Software Product Line engineering
and Service Oriented Architecture approach
providing thus solutions to many common software
problems as reuse and interoperability issues
(Medeiros et al., 2009). It allows developing
applications oriented SOA as Software Product
Lines (SPL).
In order to add a security dimension to the SOPL
approach, we have injected in (Achour et al., 2015)
security activities on the SOPL process life cycle,
mainly domain engineering (development for reuse)
and application (development with reuse) phases

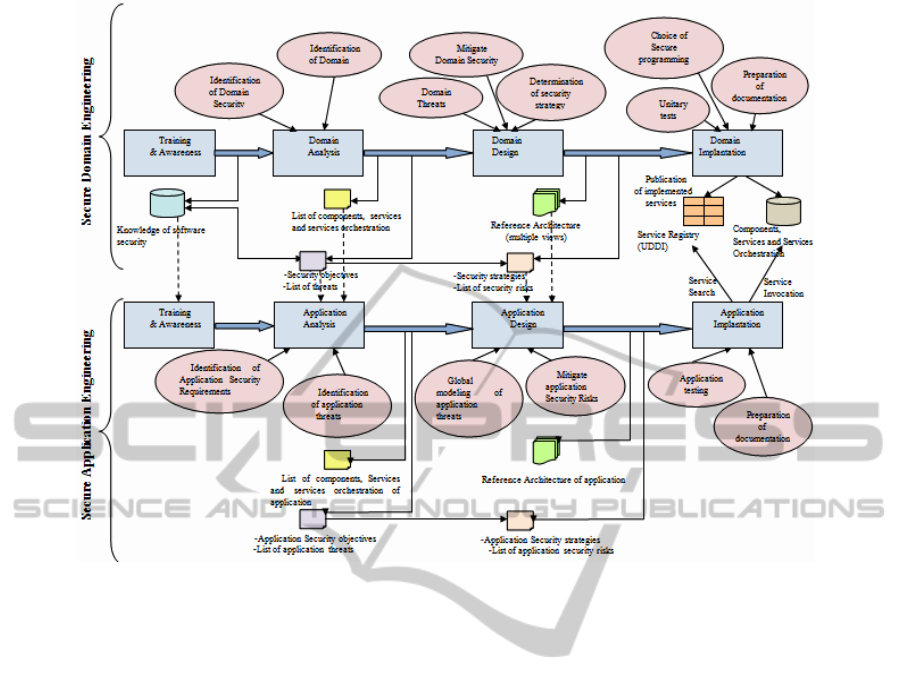

(see Fig. 1), and proposed Secure SOPL. The Secure
SOPL process begins with a domain engineering
phase (Achour et al., 2015). This phase begins with
a training and awareness step on which developers
community for reuse are trained in security
engineering basics. This will increase their awareness
about the importance of the domain problems on
which they operate (De Win et al., 2009), (Lipner,
2004), (McGraw et al., 2004), (Owasp Corporation
et al., 2005). The developers use the feature model
and the business process model as inputs (Berger et
al., 2008), in order to produce during the domain
analysis a list of components, services and
composite services candidates for reuse. Also, to
reinforce security, they identify the domain security
requirements by several means, we quote: Abuse
Case Diagram (McDermott et al., 1999) SQUARE
method (Mead et al., 2005), RMF (Risk
Management Framework) (McGraw et al., 2004) or
standards such as the Common Criteria (Common
Criteria - Part 1, 2,3, 2009).
During this step, developers mitigate security
risks which consist on the synthesis and
prioritization of risks (developers can use RMF
(McGraw et al., 2004), STRIDE (Microsoft
Corporation, 2015) or DREAD (Meier et al., 2003),
etc) and the definition of the risk mitigation strategy
(for example they can remove a feature, solve the
problem, etc. (McGraw et al., 2004)).
We conclude this phase with the implementation
of different components, services and services
orchestration. The developers must respect a set of
ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications
94
practices (Howard, 2008) to improve the security
code such as: choosing a programming language that
offers more security (such J2EE (Krakowiak et al.,
2006)), using security standards for service (for
example using XML Encryption to provide
confidentiality (Toms, 2009)), using code analysis
tools (Security Innovation Corporation, 2004), etc.
Also they must prepare documentation to the
development community with reuse and they
perform unitary tests for such components and
services (we can use White-hat or Black-hat
approaches (De Win et al., 2009)).
The application engineering phase (Achour et al.,
2015) starts with training and awareness step on
which developers community by reuse are trained in
security engineering basics. Next, developers begin
the application analysis step where they select
components, services and services orchestration
from the list identified in the domain engineering.
The selection responds to the functionalities required
by the developed application. For security needs,
developers must select common security
requirements and also common threats from the
knowledge gained on the domain analysis and they
must identify specific security requirements and
specific threats which are not common for the
applications of our line service and characterize the
studied application. This step can be conducted by
using the same means as those led on the domain
analysis.
Then, the configuration and the specialization of
selected components, services and composite
services are performed in order to propose a specific
architecture of the developed application. The threat
modeling in the secure domain engineering phase is
conducted for each component, services and services
orchestration separately but here they are all
integrated to form a specific application. So, the
developers must conduct a global threat modeling
approach. This can be done by STRIDE method
(Microsoft Corporation, 2015).
Product construction concludes the application
implantation step.
3 FORMALIZATION OF OUR
SECURE SOPL
In this section, we start with the presentation of the
Map formalism and we present the different
formalization of Secure SOPL, Secure Domain
Engineering and Secure Application Engineering
according to this formalism.
3.1 Overview of Map Formalism
The Map (Rolland et al., 1999) process meta-model
is classified in the category of processes of our
interest. This is a directed graph in which the nodes
are intentions and the arcs are strategies for ways to
carry out the intentions.
Each Map has two special intentions, Start and
Stop to start and stop respectively the process. Also,
the Map is based on the section concept. A section is
a triplet < Ii, Ij, Sij>
which is a way to accomplish
the intention targeted Ij from the source intention Ii
using the strategy Sij. The Map contains a finite
number of paths each requires a different way to
achieve a final goal. The progress in the Map is
provided by different types of directives, it offers:
─ Directive of Intention Realization (DIR): It can
provide operational means to meet the target for
the section. It can be of three types: simple,
tactical (plan or choice) or strategic.
─ Directive of Strategy Selection (DSS): It
determines the strategies that connect two
intentions and helps to choose the most
appropriate one depending on the situation.
─ Directive of Intention Selection (DIS): It
determines the intentions that follow a given one
and helps to select one of them.
The two last ones are always tactic.
3.2 Formalization of Secure SOPL
For synthesizing the most important and essential
security activities for secure development process,
we based our study on (De Win et al., 2009),
(McGraw et al., 2004), (Essafi et al., 2014), (Owasp
Corporation et al., 2005), and (Lipner, 2004), we
summarize in table 1 the principle activities and
techniques ensuring security on the different
software development process phases.
Based on this table we tried to formalize the
Secure SOPL. In fact, Fig. 2 illustrates Secure SOPL
modelized with the Map formalism. In fact, we
progress to the “Develop Secure line service”
intention based on Secure Domain Engineering
which represents the first phase. Also, we progress
to the “Develop Secure application based SOA”
intention based on Secure Application Engineering
which is the second phase. These phases are
represented by two DIR for fulfilling intentions cited
above.
FormalizationofSecureServiceOrientedProductLine
95
Table 1: Activities and techniques ensuring security
through the different phases of the software development
process.
Phases of
process
development
Activities
ensuring security
techniques
Training
and awareness
-Plan regular
courses which
cover the latest
security software
issues
-Promote sharing
and
communication
artifacts
-Assign a security
adviser to the
project
Requirement
engineering
and Analysis
Identification
of
security
requirements
-Abuse Case Diagram
(McDermott et al., 1999)
-SQUARE methods
(Mead et al., 2005)
-RMF (Risk
Management Framework
(McGraw et al., 2004))
-Standards (such as
Common Criteria
(Common Criteria - Part
1, 2,3, 2009)), etc.
Identification
of threats
-Bases of vulnerabilities
(OSF, 2015)
-STRIDE method
(Microsoft Corporation,
2015), etc.
Design
Threats modeling
-Attack Tree (Essafi et
al., 2014)
-Threat Tree (Essafi et
al., 2014)
-Standards (such as
Common Criteria
(Common Criteria - Part
1, 2,3, 2009)) , etc.
Mitigate Security
Risks
-RMF (McGraw et al.,
2004)
-STRIDE method
(Microsoft Corporation,
2015)
-DREAD method (Meier
et al., 2003), etc.
Implan
tation
Impleme
ntation
Secure
programming
language
-J2EE (Krakowiak et al.,
2006)
-using XML Encryption
to provide
confidentiality (Toms,
2009)
-using code analysis tools
(Security Innovation
Corporation, 2004) , etc.
Preparation of
documentation
Testing
Unitary tests
-White-hat or -Black-
hat approaches (De Win
et al., 2009) , etc.
3.3 Formalization of Secure Domain
Engineering
In this section we model the DIR that allows the
development of a secure line. In fact, we represent
on Fig. 3 all intentions that represent required steps
and strategies to perform the first phase of our
proposal.
We can view the intentions corresponding to the
first phase of the classic SOPL: to form on security
issues (relative to training and awareness), analyze
domain, design domain and implement domain
components and services (relative to domain
implantation) and intentions corresponding to
activities added to prevent security problems:
identify domain security requirements, identify
domain security threats, mitigate domain security
risks and test developed components and services.
The DIR defines the way an intention could be
released and could be simple, strategic or tactical.
For example, “Using Feature Model” strategy, in
<To form on security issue, Analyze domain, Using
Feature Model > section, could be refined into: (a)
“Using Feature Model”: Thus a <To form on
security issue, Analyze domain, Using Feature
Model > section which not requires the integration
of non-functional attributes, and (b) “Using
Extended Feature Model”: Thus a <To form on
security issue, Analyze domain, Using Extended
Feature Model > section which requires the
integration of non-functional attributes.
The DIR (“Using Extended Feature Model”)
mentioned above could be also refined. We notice
that the construction of the extended feature model
must integrate the non-functional attributes
(Benavides, 2005) and the analysis of such models
can be performed by Extend Flame tool (Achour et
al., 2014).
3.4 Formalization of Secure
Application Engineering
We refine on Fig. 4 the DIR that allows the
development of a secure application based on SOA,
which corresponds to the second phase of our Secure
SOPL. We can view the intentions corresponding to
the second phase of classic SOPL: to form on
security issues (relative to training and awareness),
analyze application, design application and
implement secure application and intentions
corresponding to activities added to prevent security
problems: identify application security requirements,
identify application security threats, mitigate
application security risks and test application.
ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications
96
4 RELATED WORKS
Extensive work has been carried out on software
security during the last few years, and there are
several works that deal with security at the early
stages of the development lifecycle, the same as
Secure SOPL. We summarize some proposals
particularly close in topic to ours and we explain
their relation to our Secure SOPL.
SREP (Mellado et al., 2007) (Security
Requirements Engineering Process) describes how
to integrate security requirements into the software
engineering process in a systematic and intuitive
way.
In order to achieve this goal, the approach is
based on the integration of the Common Criteria
(CC) (ISO/IEC 15408) into the software lifecycle
model.
However, SREP is only focused on the activities
directly concerning security requirements elicitation
and specification, while our proposal deals with all
the lifecycle. Also our approach concerns the SOPL
approach but SREP is applied to classical software
development lifecycle.
SREPLine (Mellado et al., 2008), Security
Requirements Engineering Process for software
Product Lines (SREPPLine), which is a standard-
based process that describes how to integrate
security requirements into the software engineering
process in a systematic and intuitive way, as well as
Figure 2 : Map for Secure SOPL.
Figure 3 : Map for Secure Domain Engineering.
FormalizationofSecureServiceOrientedProductLine
97
a simple integration with the rest of requirements and
the different phases/processes of the SPL
development lifecycle. Additionally, this process will
facilitate the fulfillment of the IEEE 830:1998
standard. However, SREPLine is only focused on
security requirements and it is applied to SPL, while
our proposal deals with the two phases of SOPL
approach.
S2D-ProM (Essafi et al., 2007), (Essafi et al.,
2014) (Secure Software Development Process
Model). This approach is a strategy oriented process
model, with respect to the Map formalism, that
allows to provide two level guidance: (a) a strategic
guidance helping the developer to choose one among
of existing techniques, methods, standards and best
practices which are useful for producing secure
software and (b) a tactical guidance on how to
achieve his selection. However, S2D-ProM is applied
to classical software development lifecycle, while
Secure SOPL deals with SOPL approach.
5 ILLUSTRATIVE EXAMPLE
In order to show the feasibility of our Secure SOPL,
we choose to study a range of governmental services
offered by the Tunisian Ministry of the interior and
local development (PRF Tunisian National Project,
"Projet de Recherche Fédéré", where we are one of
the parrtners) as the demand of National Identity
Card (CIN), Passport and Bulletin n°3 (which is an
official paper to mention if the person has corruption
or not). We proceed by instantiating the different
Maps. Due to the space limitations, we are going to
present only some steps of the instantiation of the
Secure Domain Engineering Map presented by Fig.
3. In order to analyze our domain which is an
intention of the cited Map (see Fig. 3), after the study
of the business requirements of our service line, we
modeled the feature model of the online
administration.
This model is based on a hierarchy of
composition of characteristics (functional, non
functional or parameters) where some branches are
mandatory, some are optional, and others are
mutually exclusive (Kang et al., 1990). It can show
us commonality and variability of services. To
achieve the intention “Identify domain security
requirements", we choose to model our security
requirements with abuse case diagram.
To accomplish “Identify domain security threats”
intention, we use the OSVDB (Open Source

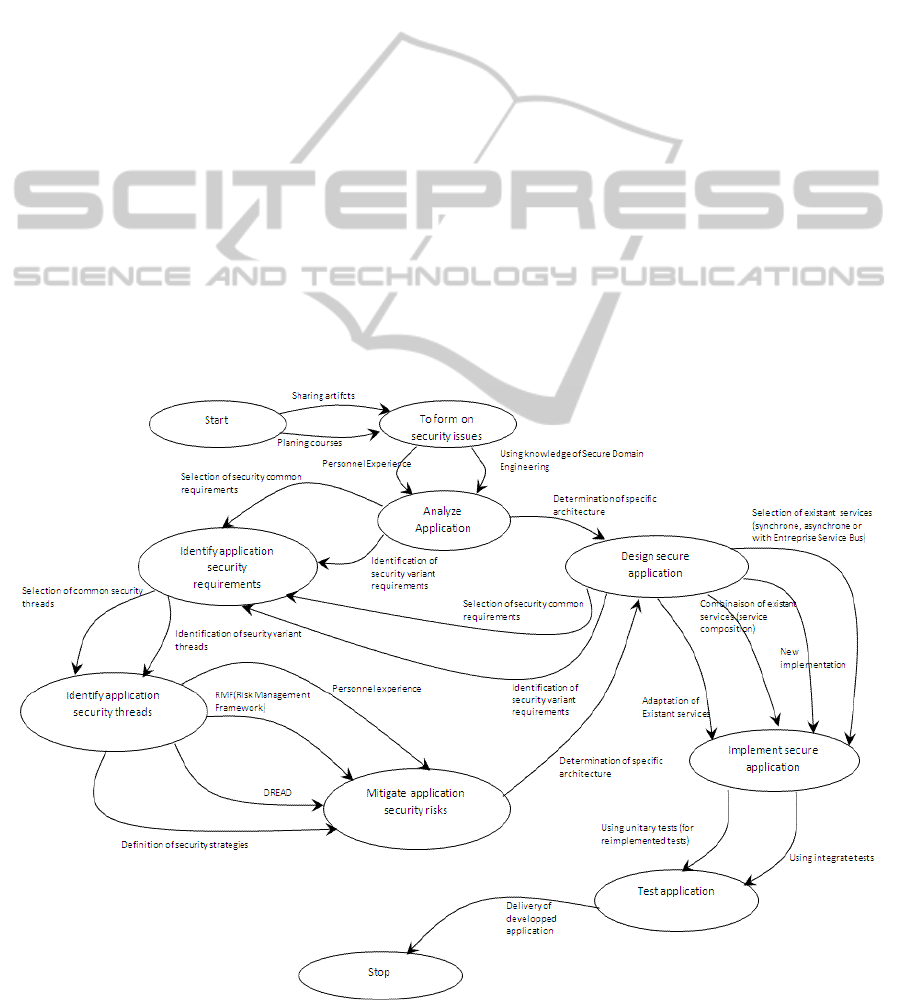

Figure 4: MAP for Secure Application Engineering.
ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications
98
Vulnerability Database) (OSF, 2015) to determine
threats related to security requirements mentioned on
our abuse case diagram.
To carry out the intention “Mitigate Domain
Security Risks” we choose DREAD method (Meier et
al., 2003) to evaluate risks.
Finally, to perform “Design domain” intention, we
modeled our reference architecture.
6 CONCLUSIONS
The principle aim of this work is to propose
guidelines for developers using Secure SOPL
(Achour et al., 2015). We are based on Map
formalism which permits to orient the developer for
using security methods, concepts, standards and
frameworks (such as RMF, STRIDE and Common
Criteria) all well suited for given situations and
contexts. This work aims to ensure the development
of a product (based on SOA) by taking advantages of
three concepts contributions: a large-scale reuse
system (product line engineering), service-oriented
architecture and software security. We presented an
illustrative example related to a range of
governmental services offered by the Tunisian
Ministry of the interior and local development to
show the feasibility of our proposal. Our perspectives
are first to provide a tool which supports Secure
SOPL. Second, we would like to validate the
proposed approach in different contexts such as e-
commerce, e-learning, etc.
REFERENCES
Achour, I., Labed, L., Ben Ghezala, H., 2014. Toward an
Extended Tool for Analysis of Extended Feature
Models, In: the International Symposium on Network,
Computer and Communications ISNCC'14.
Hammamet, Tunisia.
Achour, I., Labed, L., Ben Ghezala, H., 2015. Proposition
of Secure Service Oriented Product Line, In: the 6th
International Conference on Information Systems and
Economic IntelligenceSIIE'15. Hammamet, Tunisia.
Benavides, D., Trinidad, P., Ruiz-cortés, A., 2005.
Automated Reasoning on Feature Models. LNCS,
Advanced Information Systems Engineering. In: 17th
International Conference, CAISE.
Berger, T., Gunther, S., 2008. Service-Oriented Product
Lines: Towards a Development Process and Feature
Management Model for Web Services, In: 12th
International Software Product Line Conference
(SPLC 2008), Limerick, Ireland.
Common Criteria for Information Technology Security
Evaluation Norm ISO 15408 – Part 1: Introduction and
general model – version 3.1 2009.
Common Criteria for Information Technology Security
Evaluation Norm ISO 15408 – Part 2: Security
functional requirements– version 3.1, 2009.
Common Criteria for Information Technology Security
Evaluation Norm ISO 15408 – Part 3: Security
assurance requirements– version 3.1, 2009.
De Win, B., Scandariato, R., Buyens, K., Grégoire, J.,
Joosen, W., 2009. On the secure software development
process: CLASP, SDL and Touchpoints compared.
Information and Software Technology, Vol. 51, No. 7,
pp. 1152-1171.
Essafi, M., 2014. Approche multi-démarches avec guidage
flexible pour le développement de logiciels sécurisés,
Thesis, Manouba University.
Essafi, M., Labed L., Ben Ghezala, H., 2007. S2D-ProM:
A Strategy Oriented Process Model for Secure
Software Development, In : the second International
Conference on Software Engineering Advances (ICSEA
2007), Cap Esterel, French Riviera, France.
Finkelstein, A., Kramer, J., Nuseibeh, B., 1994. Software
Process Modelling and Technology, Advanced
Software Development Series, Research Studies
Press/John Wiley &Sons..
Howard, M., 2008. Microsoft Corporation: Fundamental
practices for secure software development, Stacy
Simpson, SAFECode.
Kang, K., Cohen, S., Hess, J., Novak, W., Peterson, S.,
1990. Feature-Oriented Domain Analysis (FODA)
Feasibility Study. Technical report CMU/SEI-90-TR-
21, Software Engineering Institute, Carnegie Mellon
University, Pittsburgh.
Krakowiak, S., Coupaye, T., Quema, V., Seinturier, L.,
Stefani, J., 2007. Intergiciel et Construction
d’Applications Réparties.
Lipner, S., 2004. The Trustworthy Computing Security
Development Lifecycle, Computer Security
Applications Conference, 20th Annual Publication,
ISSN: 1063-9527, ISBN: 0-7695-2252-1, pages 2-13.
McDermott, J., Fox, C., 1999. Using Abuse Case Models
for Security Requirements Analysis, In: 15th Annual
Computer Security Applications Conference, Phoenix,
Arizona.
McGraw, G., 2004. Software Security: Building Security,
In. IEEE Computer Society, IEEE Security and
Privacy.
Mead, N. R., Hough, E. D., Stehney, T. R., 2005. Security
Quality Requirements Engineering (SQUARE)
Methodology, Technical report CMU/SEI-2005-TR-
009, Carnegie Mellon University.
Medeiros, F., Romero, S., Santana, E., 2009. Towards an
Approach for Service-Oriented Product Line
Architectures. In: 13th International Software Product
Line Conference (SPLC 2009), San Fransisco, CA,
USA.
Meier, J. D., Mackman, A., Vasireddy, S., Dunner, M.,
Escamilla, R., Murukan, A., 2003. Improving Web
Application Security: Threats and Countermeasures.
Microsoft Corporation.
FormalizationofSecureServiceOrientedProductLine
99
Mellado, D., Fernández-Medina, E., Piattini, M. , 2007. A
common criteria based security requirements
engineering process for the development of secure
information systems, Computer Standards and
Interfaces Volume 29 (2), pp 244–253.
Mellado, D., Fernández-Medina, E., Piattini, M., 2008.
Towards security requirements management for
software product lines: A security domain requirements
engineering process, Computer Standards & Interfaces
Volume 30, Issue 6, pp 361–371,.
Microsoft Corporation, 2015. The STRIDE Threat Model,
http://msdn.microsoft.com/en-
us/library/ee823878%28v=cs.20%29.aspx.
Open Security Foundation (OSF), 2015. Open Source
Vulnerability Database (OSVDB). http://osvdb.org.
OWASP Corporation, 2006. CLASP Comprehensive
Lightweight Application Security Process.
Rolland, C., Prakash, N., Benjamen, A., 1999. A Multi-
Model View of Process Modelling, Requirements
Engineering Journal.
Security Innovation Corporation, 2004. Hacker Report:
Static Analysis Tools.
Toms, A., 2009. Threats, Challenges and Emerging
Standards in Web Services Security. Technical report
HS-IKI-TR-04-001, Department of Computer Science,
University of Skövde.
ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications
100
