Iterative Mapreduce MPI Oil Reservoir Simulator

Madina Mansurova, Darkhan Akhmed-Zaki, Adai Shomanov,

Bazargul Matkerim and Ermek Alimzhanov

Department of Computer Science, al-Farabi Kazakh National University, Almaty, Kazakhstan

Keywords: MapReduce, MPI, Distributed Parallel Computing, Memory-mapped Files.

Abstract: Paper presents an advanced Iterative MapReduce MPI oil reservoir simulator. First we present an overview

of working implementations that make use of the same technologies. Then we define an academic example

of numeric problem with an emphasis on its computational features. We present a distributed parallel

algorithm of hybrid solution of the problem using MapReduce Hadoop and MPI technologies and describe

an improved variant of the algorithm using memory-mapped files.

1 INTRODUCTION

At present, effective solution of large-scale

computational problems of oil-gas industry is related

to the use of high-performance computational

technologies. According to (Tokarev et al., 2012),

“of the 500 most powerful supercomputers of the

world, their use in geophysics by the companies of

oil-gas service for searching, prospecting and mining

of deposits holds the third place”. Thus, the choice

of the corresponding parallel software and parallel

models of computations depending on the volumes

of scientific calculations is an actual problem. In

many cases, solution of problems of oil-gas industry

comes to oil reservoir simulation.

This work presents the results of scientific

investigations on creation of hybrid solutions for the

problems of oil-gas industry. The earlier developed

constructive approach of hybrid combination of

MapReduce and MPI technologies (Mansurova et

al., 2014) was used to solve the problem of

calculating fluid pressure in an oil reservoir. In order

to accomplish this task we first identify key features

of the existing solutions in this domain in Section 2.

Section 3.1 describes a mathematical model of the

problem of fluid in elastic porous anisotropic

medium. Section 3.2 presents a distributed algorithm

of the problem solution using Mapreduce Hadoop

technology. Section 3.3 presents a distributed

parallel algorithm of hybrid solution of the problem

using MapReduce Hadoop and MPI technologies.

Section 3.4 describes an improved variant of the

algorithm using memory-mapped files. Section 4

presents implementation and evaluation of

algorithms performance. Finally, Section 5

concludes the paper.

2 RELATED WORK

The principles of organization of parallel and

distributed computing have been known for a long

time (Chen et al., 1984, Gropp et al., 1996,

Sunderam et al., 1994). MPI and MapReduce can be

referred to the most used technologies. MPI

technology is the main instrument for parallel

computing, when solving a wide spectrum of

problems. However, with the increase in the volume

of the data being processed there arise a question of

reliability of MPI applications. In recent years the

technologies of distributed computing MapReduce is

being more widely recognized.

Creation of hybrid solutions allows using of the

advantages of separate technologies. There exist a

great variety of such solutions. The authors of

(Hoefler et al., 2009) made the first attempt to write

MapReduce with MPI. They implemented

MapReduce using basic point-to-point and collective

operations based on the original MapReduce model.

The authors of the paper (Lu et al., 2011) compare

MPI and MapReduce technologies from the point of

view of the system failure. A numerical analysis is

made to study the effect of different parameters on

failure resistance. The authors believe that their

research will be useful in answering the question: at

what volumes of data it is necessary to decline MPI

456

Mansurova M., Akhmed-Zaki D., Shomanov A., Matkerim B. and Alimzhanov E..

Iterative Mapreduce MPI Oil Reservoir Simulator.

DOI: 10.5220/0005559204560461

In Proceedings of the 10th International Conference on Software Engineering and Applications (ICSOFT-EA-2015), pages 456-461

ISBN: 978-989-758-114-4

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

and use MapReduce in case of possible failures of

the system. They implemented the original

MapReduce model using MPI and obtained a speed

improvement comparing to Hadoop based on MPI

communications. The study of primitives of MPI

and MapReduce communications allowed the

authors (Mohamed et al., 2012) to assert the fact that

MPI can give the rise in performance of MapReduce

applications.

The work (Slawinski et al., 2012) considerable

differs from the above presented works in which

MPI technology is built in the environment of

MapReduce. The authors describe the reverse task –

the start of MapReduce applications in MPI

environment. It is pointed out that several additional

MPI functions should be written for full support of

MapReduce.

The authors (Mohamed et al., 2012) modified the

MapReduce model to achieve speed up using MPI.

In the model, the authors propose the idea of

overlapping the map, the communication and the

reduce phases with a more detailed policy for the

communication and data exchange.

Nevertheless, many of these functions are, as a

rule, recognized to be important and are developed

in MPI to support other modern paradigms of

programming and parallelization. In (Srirama et al.,

2011) the essence of the approach is considered to

be division of implementation of MPI applications to

sequence of computation stages each of which is

completed by the stage of communication. This

approach is based on the conception of adapters

distributed in conventional utilities for coordination

of the requirements to applications and platform

hardware.

Other applications for adaptation of MapReduce

model to organization of parallel computing are

given in (Matsunaga et al., 2008, Biardzki et al.,

2009, Ekanayake et al., 2010, Bu et al., 2012,

http://mapreduce.sandia.gov). As a whole, the

problems of effective organization of iterative

computing on MapReduce model remain, especially;

the problems of scalability of such algorithms and

their adaptation for a wide range of scientific

problems, there are neither rigorous approach to

provide reliability of such systems.

3 THE WORK OF ITERATIVE

MAPREDUCE MPI OIL

RESERVOIR SIMULATOR

3.1 A Mathematical Model of Fluid

Pressure in the Oil Reservoir

Let us consider a hypercube in anisotropic elastic

porous medium

}10,10,10{],0[













zyxKT

Let equation (1) describes the fluid dynamics in

hypercube  under initial conditions (2) and

boundary conditions:

),,,()),,((

)),,(()),,((

zyxtf

zyx





















(1)

P(0, x, y, z) =



(0, x, y, z)

(2)

0





(3)

Here  under conditions (3) is the surface of cube .

In equation (1) the solution function P(t, x, y, z) is

seam pressure in point (x, y, z) at the moment t;



(x,

y, z) is diffusion coefficient in the reservoir; f(x, y, z)

is density of sources. To solve (1)-(3) Jacobi’s

numerical method was used (Imankulov et al.,

2013). For problem (1)-(3) a parallel algorithm of

solution was realized using MPI technology

presented in (

Matkerim et al., 2013).

3.2 Iterative MapReduce Architecture

According to MapReduce paradigm, realization of

the algorithm for iteration processes is a series of

MapReduce tasks (Ekanayake et al., 2010, Bu et al.,

2012). Algorithm of numerical solution of the

problem (1)-(3) with the help of MapReduce

Hadoop technology consists of two stages: the stage

of initialization at which MapReduce work of the

first level is performed only once and the iteration

stage at which a cycle of MapReduce works of the

second level is performed. Mapper of the first level

loads data from the file system HDFS. Then,

Mapper distributes the data between Reducer

processes on slabs, thus realizing 1D decomposition

of the data. Reducer, in its turn, performs

computations, duplications boundary slabs into the

ghost slabs of the neighbors and stores the obtained

IterativeMapreduceMPIOilReservoirSimulator

457

results. The data used by Reducer for computations

are divided into two kinds: local data, i.e. the data

which refer to the interior slab and shared boundary

data (boundary slab). Reducer enters local computed

data directly into a local file system and enter the

shared boundary data into the output file of the

distributed file system HDFS, which will be an input

file for Mapper of the second level at the next

iteration. At each iteration Mapper of the second

level distributes the updated boundary data among

Reducers, thus providing the exchange of boundary

values between slabs. The fluid of data

corresponding to the description is presented in

Figure 1.

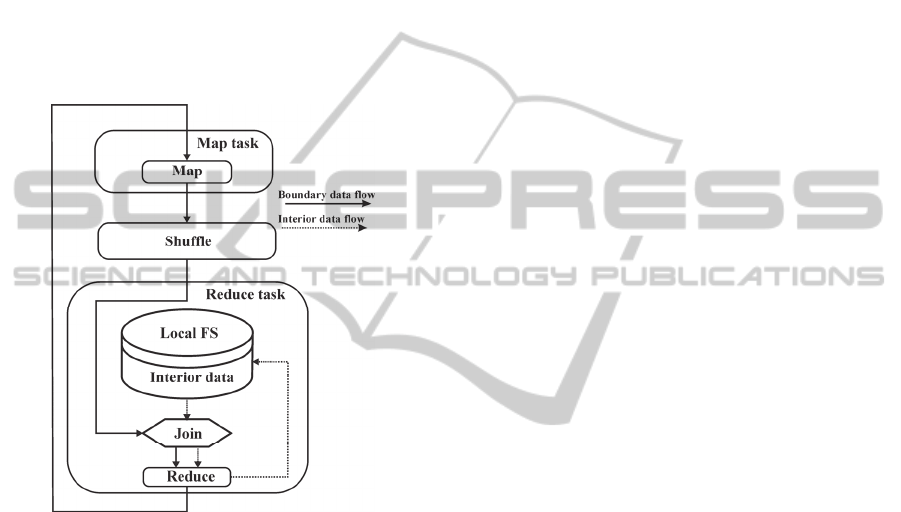

Figure 1: Iterative MapReduce framework scheme.

3.3 The Distributed Algorithm of the

Fluid Dynamics in Oil Reservoir

based on MapReduce Hadoop

Technology

The distributed algorithm consists of two stages:

‐ The stage of initialization;

‐ The iteration stage.

The stage of initialization is a MapReduce task

“Initial” in which there takes place initialization and

writing of files necessary for computations in the

process of iterations.

The iteration stage is a MapReduce task

“Iterations”. At each iteration in Mapper, points of

the field with the same keys, i.e. numbers of

subcubes, are grouped. The input data of Mapper are

the output data of Reducer. In Reducer, the main

computations are performed according to the

formulae of the explicit method. Then, writing of

the interior parts of files into the local file system

and transfer of values of boundary slabs to the

output of Reducer “Iterations” are performed.

3.4 A Distributed Parallel Algorithm of

the Fluid Dynamics in an Oil

Reservoir based on MapReduce-

Hadoop and MPI Technologies

A distributed parallel algorithm of numerical

solution of the problem (1)-(3) consists of the

following main steps:

1. Initiation of the script on the main node of

the cluster which copies the parameters of

dimensions of computation region, the numbers of

MPI processes, the number of nodes of Hadoop

cluster necessary for computations onto all

computational nodes of the cluster.

2. The stage of initialization. Initiation of

MapReduce task which performs computations in

every point of computation region at the zero

moment of time with fulfillment of initial

conditions.

3. The iteration stage. Initiation at i

iteration

of MapReduce task to the input of which enter all

computed values in points of computation region

from the (i-1) iteration. If the number of iteration is

equal to zero, all data from the initial stage enter, in

other cases, the input data are formed only from the

boundary values of points which were obtained at

the previous iteration.

On each of Reducers, non-boundary data are

stored on the node in which the given Reducer

operates and the boundary values Reduce into the

distributed file system so that later they can be

distributed onto other nodes which share the

boundary values with the current node.

After reading out boundary and non-boundary

values, each of the Reducers initiates the process of

distribution of points to different files so that the

number of MPI processes and each MPI process will

perform computations in its subregion of data which

it reads out from the file with the name

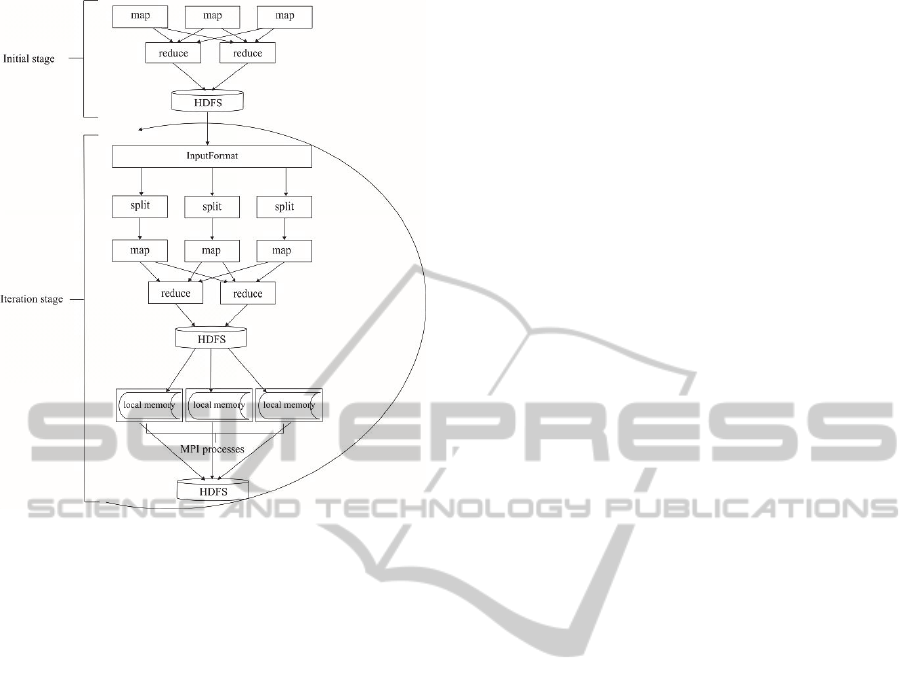

corresponding to its rank (Fig. 2). After reading out

the data from the file corresponding to its rank, each

MPI process performs computations of the pressure

equation in its subregion of data. After that, it

performs writing of new values of points into the file

from which it read out the data. After completing all

MPI processes, Reducer gathers data and, depending

on the fact whether the point is boundary or not, it

performs operations of reducing or writing into the

local memory of the node.

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

458

Figure 2: Scheme of MapReduce MPI algorithm.

3.5 A Distributed Parallel Algorithm of

the Fluid Dynamics in Oil

Reservoir using Memory-Mapped

Files

Realization of the distributed parallel algorithm with

writing of data into files for their subsequent

processing by MPI processes showed that reading /

writing operations cause significant delays of

performance. In this regard, in this section we

propose to use the kind of files called memory-

mapped files (MMF).

The peculiarity of these files is that, when

working with them, the whole file or a definite

continuous part of this file is corresponded by a

definite site of memory (range of addresses of

operative storage), that allowing to considerably

accelerate realization of reading/ writing operations

(http://en.wikipedia.org/Memory-mapped-file).

To realize the algorithm of MapReduce MPI, we

used the method of data exchange between Hadoop

and MPI which uses the library Java Chronicle. Java

Chronicle is a data base which is stored in operative

memory and possesses the following properties:

1) A low level of delays;

2) High capacity;

3) Persistence (i. e. after completion of the

program the data are stored in memory)

This library allows to work with memory-

mapped files writing and reading out large volumes

of information which will be physically stored in the

disk but, if necessary, loaded into operative memory.

Files of this type perform reading/ writing operations

of much quicker compared to reading/ writing

operations of usual file. A memory-mapped file is a

segment of virtual memory which is in a direct bite

correspondence with a definite part of file or other

file-like resource. The main advantage of these files

is the increase in the rate of operations of reading /

writing, especially, on files of large volumes. It is

for this reason that we have chosen this method of

data exchange between Hadoop application and MPI

application. The main idea of the problem solution is

the same as in the method with the use of exchange

with usual files but the general rate of the program

operation increases.

Static data on coordinates of points and their

corresponding values which are stored in each of

reducers locally as well as boundary values or initial

values and coordinates of points which were

distributed to the given Reducer from the Map-stage

are read and recorded into Chronicle so that MPI-

processes can read out the points of computation

region corresponding to their ranks for their parallel

processing.

The library Chronicle allows to create a definite

indexing of objects, which are contained in a definite

copy of the database Chronicle. This property of

indexing was used in order that each MPI process

can determine, according to the correspondence of

its rank and index of the object (a three-dimensional

file), a definite copy of the data base Chronicle

which was assigned to this process for performing

computations.

After the branch process completes its operation

it is necessary to read out the result of MPI-

processes using the methods of reading given by the

library Chronicle and, depending on the fact whether

these points are boundary or not, the read out data

will be reduced or stored locally on this node.

4 IMPLEMENTATION AND

EVALUATION

Numerical solution of problem (1)-(3) was carried

out for a particular case with functions:

),,(sinsinsin),,( zyxazayaxezyxf







(4)

222

),,( zyxzyx 



(5)

azayaxzyx sinsinsin),,,0(





(6)

IterativeMapreduceMPIOilReservoirSimulator

459



 ba

For problem (1)-(3) with the pre-determined

functions (4)-(6) there is an analytical solution equal

zyxezyxtP



sinsinsin),,,(





which was used

for comparison of the exact and numerical solutions

of the problem.

Figures 3-5 present the results of testing of

algorithms: a distributed algorithm of the problem of

fluid in an oil reservoir based on MapReduce

Hadoop technology, a distributed parallel algorithm

based on MapReduce and MPI, a distributed parallel

algorithm based on MapReduce Hadoop and MPI

with memory-mapped files.

To estimate the execution time of three

algorithms experimental computations were

executed with this number of points:

1) 120120120 = 1,728,000;

2) 240240240 = 13,824,000;

3) 360360360 = 46,656,000;

4) 480480480 = 110,592,000.

Figure 3: Running time of MR algorithm.

The obtained results demonstrate the achievement of

a significant gain of time, when using the library

Java Chronicle. In the course of experiments it was

noted that in case when the dimensionality of the

transferred object (a three-dimensional file) makes

up more than 20 million of values of the type with a

double floating points the library Chronicle does not

allow to transfer the whole array of data in one

operation of reading/ writing. To solve this problem,

a three-dimensional array of data was divided by the

first measuring x into numerous parts so that each

part was smaller or equal to the permissible limit of

reading/writing in one operation. Consequently, in

this case there takes place the change of indexation,

i.e. for each MPI-process a range of indexes from

which it will read out the data for calculations is

formed. Thus, the problem of solving for large

dimensionalities of data arrays was solved.

Figure 4: Running time of MR+MPI algorithm.

Figure 5: Running time of MR+MPI algorithm with MMF.

5 CONCLUSIONS

Iterative MapReduce MPI oil reservoir simulator

developed within the framework of scientific

investigations allows to organize distributed parallel

computations on heterogeneous systems for solution

of oil production tasks. The earlier developed

constructive approach of hybrid combination of

MapReduce and MPI technologies was used to solve

the problem of calculating fluid pressure in an oil

reservoir. The novelty of the research includes

the

use of the library Chronicle with the aim of a more

effective realization of reading/writing operations.

The comparison of testing results of oil-gas industry

problem confirms feasibility of the research, and

further actions primarily include adjusting further

action in accordance with the actual results.

ACKNOWLEDGEMENTS

Presented research is funded under Kazakhstan

government research grant.

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

460

REFERENCES

Biardzki, C., Ludwig, T. 2009. Analyzing Metadata

Performance in Distributed File Systems. In:

Malyshkin, V. (ed.): PACT 2009. LNCS. Vol. 5698:

8–18.

Bu, Y., Howe, B., Balazinska, M., Ernst, M.D., 2012. The

HaLoop approach to large-scale iterative data

analysis. VLDB Journal 21(2): 169–190.

Chen, S. S., Dongarra, J. J., Hsiung, C. C., 1984.

Multiprocessing linear algebra algorithms on the

CRAY X-MP-2 - experiences with small granularity.

Journal of Parallel and Distributed Computing, 1(1):

22–31.

Ekanayake, J., Li, H., Zhang, B., Gunarathne, T., Bae, S.-

H., Qiu, J., and Fox, G., 2010. Twister: a runtime for

iterative MapReduce. In: HPDC, pages 810–818.

ACM.

Gropp, W., Lusk, E., and Doss, N., 1996. A high-

performance, portable implementation of the MPI

message passing interface standard. Parallel

Computing 22(6): 789-828.

Hoefler, T., Lumsdaine, A., and Dongarra, J., 2009.

Towards efficient MapReduce using MPI. In: Ropo,

M., Westerholm, J., Dongarra, J. PVM/MPI, Lecture

notes in computer science, Springer, 5759: 240–249.

http://en.wikipedia.org/Memory-mapped-file.

http://mapreduce.sandia.gov.

Imankulov, T. S., Mukhambetzhanov, S. T., and Ahmed-

Zaki, D.Zh. 2013. Simulation of generalized plane

fluid filtration in a deformable environment. Bulletin

of the D.Serikbaev East Kazakhstan State Technical

University. Computational technologies. Part 1, № 3,

pages 183–191.

Lu, X., Wang, B., Zha, L., and Xu, Z., 2011. Can MPI

Benefit Hadoop and MapReduce Applications? In

Proceeding ICPPW '11 Proceedings of the 2011 40th

International Conference on Parallel Processing

Workshops, pages 371–379.

Mansurova, M., Akhmed-Zaki, D., Kumalakov, B., and

Matkerim, B., 2014. Distributed parallel algorithm for

numerical solving of 3D problem of fluid dynamics in

anisotropic elastic porous medium using MapReduce

and MPI technologies. In Proceedings of 9th

International Joint Conference on Software

Technologies, Vienna, Austria, pages 525–528.

Matkerim, B., Akhmed-Zaki, D., and Barata, M. 2013.

Development High Performance Scientific Computing

Application Using Model-Driven Architecture.

Applied Mathematical Sciences. Vol. 7, №. 100, pages

4961–4974.

Mohamed, H., and Marchand-Maillet S., 2012. Enhancing

MapReduce Using MPI and an Optimized Data

Exchange Policy In Proceeding ICPPW '12

Proceedings of the 2012 41st International

Conference on Parallel Processing Workshops, pages

11–18.

Matsunaga, A., Tsugawa, M., Fortes, J. 2008.

CloudBLAST: Combining MapReduce and

virtualization on distributed resources for

bioinformatics applications in eScience’08. In

Proceeding IEEE 4th Int. Conference. IEEE.

Mohamed, H., and Marchand-Maillet S., 2012. Distributed

media indexing based on MPI and MapReduce.

Springer, Science+Business Media.

Slawinski, J., and Sunderam, V., 2012.Adapting MPI to

MapReduce PaaS Clouds: An Experiment in Cross-

Paradigm Execution. In Proceedings of the 2012

IEEE/ACM Fifth International Conference on Utility

and Cloud Computing, pages 199–203.

Srirama, S. N., Batrashev, O., Jakovits, P., et al. 2011.

Scalability of parallel scientific applications on the

cloud. Scientific programming, 19(2-3): 91–105.

Sunderam, V. S., Geist, G. A., and Dongarra, J., 1994. The

PVM concurrent computing system – evolution,

experiences, and trends. Parallel Computing 20(4):

531–545.

Tokarev, M. Y., Tyurin, E. A., and Sinitsyn, M. N. 2012.

Supercomputer technologies in science, education and

industry. Moscow State University.

IterativeMapreduceMPIOilReservoirSimulator

461
