Experimental Extraction of Shared Secret Key from Fluctuations of

Multipath Channel at Moving a Mobile Transceiver in an Urban

Environment

Alexey D. Smolyakov, Amir I. Sulimov, Arkadiy V. Karpov and Aidar A. Galiev

Department of Radio Physics, Institute of Physics, Kazan Federal University, 18

Kremlyovskaya St.,

Kazan, Russian Federation

Keywords: Encryption Key Distribution, Shared Randomness, Multipath Radio Propagation, Mobile Communications,

Carrier Phase, Wireless Synchronization, Entropy.

Abstract: The Wireless Key Distribution is one of the most promising and fast growing areas in modern applied

cryptography. This area covers various techniques of secure secret key distribution between two legitimate

users who share a common radio channel with unpredictable signal fading in a multipath environment. In

essence, the pair of legitimate nodes uses their multipath radio channel as a source of common randomness

to establish a shared encryption key. There are a number of studies have been presented in recent

publications devoted to experimental implementation of the Wireless Key Distribution using random

variations in the received power of fading signal. Despite a number of valuable benefits, there is a much

fewer experimental verifications of phase method with all of them are limited to a key distribution within

some indoor environments only. Apparently, this is due to the technical difficulties of precise

synchronization of legitimate users’ equipment to provide coherent carrier phase measurements in a

microwave radio frequency range. In this regard, our experiments can be considered as the first

experimental verification of secure Wireless Key Distribution by observing random variations in the carrier

phase of multipath signal at moving a mobile user within a real outdoor environment. To perform this, we

used wireless Internet transmission of concurrent service data to maintain a required level of

synchronization of one stationary and one mobile legal nodes. Despite the humble key generation rates we

have achieved in practice, our results show possibility of secure wireless key distribution between the base

station and mobile subscriber in a cellular communications scenario.

1 INTRODUCTION

Information security in wireless systems is vital in

developing the modern telecommunications. Being

the most popular type of wireless systems, the

cellular communications continuously increase their

demands for confidentiality of traffic data of mobile

subscribers. To fulfill these severe requirements, a

secure secret key distribution between the base

station and legal subscriber’s cell phone could be

used. The Wireless Key Distribution (WKD)

proposed firstly in (Hershey, 1995; Hassan, 1996)

solves this problem along with unpredictable

variation in time of naturally random secret key. The

key is established through observing the stochastic

fluctuations in characteristics of communication

channel between the base station and mobile phone

arising due to signal fading in an urban environment.

To establish a shared key, two legal nodes (say,

Alice as mobile phone and Bob as base station)

exchange with a series of radio signals to measure

their stochastic fluctuations at receiving. The

channel reciprocity property ensures the

measurements to be identical at both sides. Such

common randomness is a source to create two copies

of the shared key. Due to a rapid spatial

decorrelation of radio signal in real multipath

environments (Prettie, 2002; Hamida, 2009;

Madiseh, 2009) a key interception is very unlikely in

practice.

In (Zhu, 2013) an experimental verification of

WKD has been presented for the case of mobile

communications established in an outdoor

environment. In this study, two legitimate nodes

placed into the moving cars created a secret key by

establishing a common multipath channel and

observing random variations in the received signal

355

D. Smolyakov A., I. Sulimov A., Karpov A. and V. Galiev A..

Experimental Extraction of Shared Secret Key from Fluctuations of Multipath Channel at Moving a Mobile Transceiver in an Urban Environment.

DOI: 10.5220/0005561703550360

In Proceedings of the 12th International Conference on Security and Cryptography (SECRYPT-2015), pages 355-360

ISBN: 978-989-758-117-5

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

strength (RSSI). However, we believe that the

measurements of signal carrier phase have a number

of valuable benefits and would be more appropriate

for cryptographic applications. There are at least

three advantages of the carrier phase approach.

Firstly, the probability distribution of carrier phase is

usually closer to uniform as opposed to the

distribution of RSSI, which is a Rician random

variable (Rappaport, 1996). Secondly, the RSSI

based method is mainly limited to a fixed link length

communication scenario. On the other hand, the link

length is extremely variable in a mobile scenario.

This leads to a strong variation in the median RSSI

level. Therefore, a continuous system adjustment is

required to maintain the RSSI based key generation.

Finally, the phase measurements have the ambiguity

property making key interception more complicate

in practice. This property follows directly from the

fact that the same carrier phase value φ∈[-π;π] can

be simultaneously observed at infinite set of

receiving points separated by an integer number of

wavelengths λ. As a result, if the separation between

a possible eavesdropper and a legal node is larger

than λ/2 then unconditional recovering of the phase

value detected by user is impossible. According to

the prognosis of development of wireless

communications given by (Rappaport, 2013), a

move of the 5G cellular systems into the 30GHz

frequency range is expected in the nearest 5-10

years. The corresponding wavelengths of the order

of 1 centimeter exclude any practical possibility of a

key interception.

Despite all the above benefits, there are a few

experimental verifications of the phase method have

been presented in recent publications. The main

difficulty in its implementation is the need for

precise carrier frequency synchronization of both

legitimate nodes. In (Smolyakov, 2013; Sulimov,

2014) a WKD with the phase method has been

implemented but within the test indoor environment

only. The synchronization issue was solved by a

direct cable connection between the two key

generation parties. Apparently, such a solution is

inappropriate in the outdoor mobile scenario.

Therefore, it is necessary to keep the sides

synchronized within a few nanoseconds precision by

wireless methods solely. Though being technically

difficult, this problem is resolvable.

The aim of our research was an experimental

WKD verification by extracting a common

randomness from the fluctuations of carrier phase of

multipath signal at moving a mobile user within a

real urban environment. As will be shown in the

following sections, we succeeded in our goal, but a

further wireless synchronization enhancement is

required to achieve better system performance.

2 SCENARIO OF THE

EXPERIMENTS

A pair of identical transceiving test devices (M1 and

M2) has been designed to implement the

experimental verification. The M1 test device (let’s

call it Bob) was placed at the 14

floor of our

research facility at approximately 45 meters above

the mean roof height to serve as a base station. The

M2 test device (let’s call it Alice) was placed into a

car to be moved on the closed route within the

surrounding urban environment (see Fig.1). The

route was of 1680 meters in length with the average

car speed of about 10 m/s. The data collecting time

was T

OBS

= 300 seconds, which allowed the car to

pass two full laps on the route.

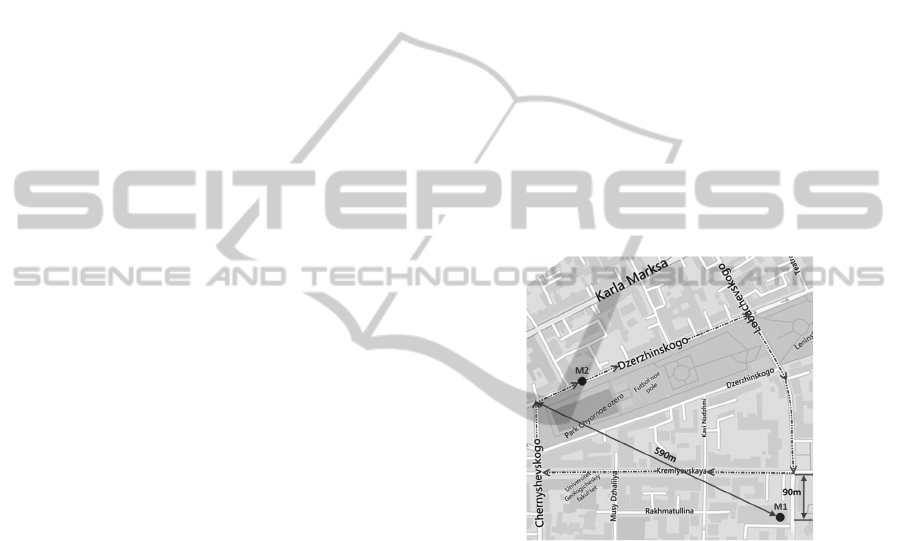

Figure 1: Moving route of mobile user.

During the data collecting procedure Alice and

Bob kept on transmitting the sounding signals at the

carrier frequency f = 963 MHz in a time-division

duplex mode. At receiving the signal each node was

measuring its amplitude and carrier phase to observe

random fluctuations of the multipath channel. The

signal amplitude values were used to track a current

channel quality that possibly could be unsatisfactory

due to deep fades. However, only the phase

measurements were used to create a secret key.

To ensure synchronous operationing of Alice and

Bob with the required accuracy of phase

measurements, each side has been equipped with the

FS725 rubidium frequency standard. In addition to

the test device M1 and frequency standard FS1,

mobile user Alice also used a laptop L1 to manage

all the equipment and WKD process. The base

station Bob used a laptop L2 in a similar way to

SECRYPT2015-InternationalConferenceonSecurityandCryptography

356

manage his test device M2 and frequency standard

FS2. The L1 and L2 laptops were connected through

the wireless Internet to transmit all the service data

needed to maintain the WKD process. This Internet

connection served just as an auxiliary open

communication channel and was not used to transfer

any secret phase measurements. The software

implementation of the WKD protocols stack was

running both on the L1 and L2 laptops and included

synchronization procedure for the FS1 and FS2

frequency standards.

Our synchronization protocol consisted of two

stages. At the first stage, the FS1 and FS2 frequency

standards were being adjusted by the GPS 1PPS-

clock pulses. At the second stage, Alice and Bob

were exchanging with a series of test signals to

collect a correcting sample of phase measurements.

After that, Bob sent Alice his sample to allow her to

perform calculations of necessary correction

coefficient to adjust the FS2 output frequency. The

resultant correction data transmitted to Alice through

the Internet connection. Such synchronization

allowed keeping a relative frequency mismatch

between the FS1 and FS2 standards within the

3*10

-12

bound that was enough to provide desired

coherent measurements of the carrier phase.

However, our experimental data showed that a large

short-term instability remained causing an

instrumental error of phase measurement up to 30

degrees in magnitude.

3 DATA ANALYSIS

Two samples of 30000 phase measurements in size

have been collected at each node during the data

collecting procedure of T

OBS

= 300 seconds duration.

Unfortunately, a large part of the collected data

corresponded to a nonlinear operating mode of phase

detectors caused by deep fades and power lack of the

received signal. Therefore, all the phase

measurements with strong nonlinear distortion have

been eliminated from the sample with only N = 4575

measurements left after that. Nevertheless, even

reduced amount of experimental data was sufficient

to assess basic probability properties of the observed

parameters of multipath signal.

As was shown in (Smolyakov, 2013; Sulimov,

2014) the maximum achievable rate of encryption

key distribution can be estimated by the formula (1).

Here we denote the entropy of observed signal

parameter (in our case, this is the carrier phase) as

H(ϕ), and N

is the amount of phase measurements

that are suitable for the key generation. As follows

from the formula (1), the key generation rate is

defined mainly by the physical properties of

multipath channel.

TNHR /)(

0ma

(1)

Collected experimental data allowed estimation

of the entropy of carrier phase H(ϕ) along with the

proportion of the sample (N

/N) suitable for the key

generation in the mobile scenario close to actual

practice of mobile communications.

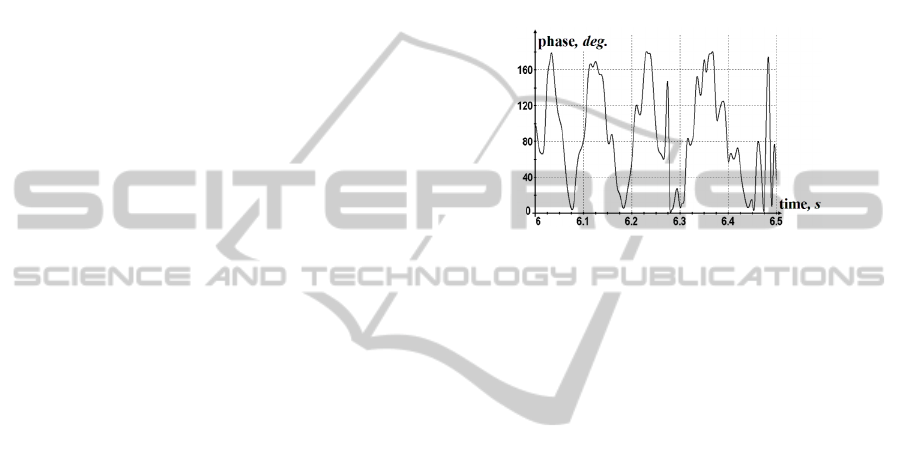

Figure 2: An extract of carrier phase fluctuations observed

at mobile side while moving in an outdoor environment.

Fig. 2 shows a fragment of carrier phase

fluctuations of received multipath signal as it was

observed by Alice while she was moving on the car

within the urban environment. The presented

fluctuations clearly show a presence of some

deterministic component along with random

variations caused by fast fading. Obviously, such

deterministic component is caused by the line-of-

sight wave (LOS), which presence reduces entropy

of carrier phase. Unfortunately, our attempt to

suppress the LOS wave resulted in such low

received signal strength that it was insufficient for

the correct operation of the phase detector. For this

reason, the samples {ϕ

}

and {ϕ

}

that were

collected by Alice and Bob, respectively, contained

only the measurements corresponding to the

dominance of LOS wave within the received signal.

A significance of the multipath component and

fading phenomena is commonly characterized by the

Rician factor k

(Rappaport, 1996). An analysis of

the data, collected while Alice was moving along the

route depicted at Fig.1, shows that the value of k

was varying in the range from 11 to 20 dB with the

average value about 15 dB. Thus, the LOS wave was

at 15 dB stronger than the multipath component. In

(Sulimov, 2013) was shown that in the case of the

fixed link length scenario such k

value causes the

carrier phase to have a non-uniform probability

distribution with a pronounced peak located at the

phase of the LOS wave. However, in a mobile

scenario the dominant mode of probability

ExperimentalExtractionofSharedSecretKeyfromFluctuationsofMultipathChannelatMovingaMobileTransceiverin

anUrbanEnvironment

357

distribution is moving within the entire range of

phase variation ϕ∈[−π;π]. This slightly improves a

uniformity of the phase sample but does not exclude

a high temporal autocorrelation of successive

measurements. The presence of such autocorrelation

reduces the N

value.

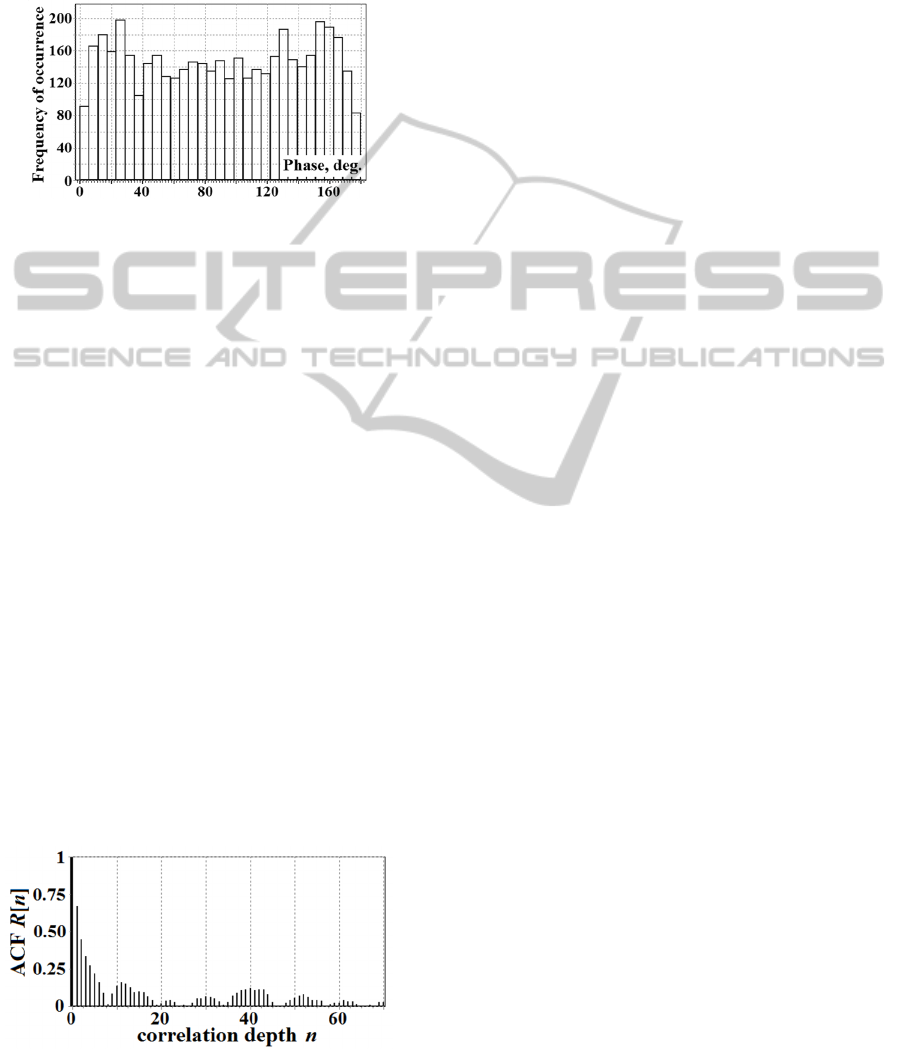

Figure 3: Probability distribution histogram of the

collected sample of phase measurements.

Fig. 3 shows empirical probability distribution

histogram of the phase measurements sample

collected by Alice. As expected, due to presence of

strong LOS wave the histogram is non-uniform. This

weakens entropy of the generated key. In addition,

non-uniformity of probability distribution

complicates the bit extraction procedure at

processing the phase measurements. In particular,

the sample pre-randomization becomes necessary.

Although, the probability histogram does not reveal

any dominant mode, the sample autocorrelation

function R[n] clearly indicates the cross-correlation

of neighboring measurements (see Fig. 4).

The presented sample autocorrelation function

(ACF) also indicates a need for sample decorrelation

to create unpredictable binary key sequence. The

decorrelation step n

is determined by the condition:

ε≤][

nR , where ε is a threshold correlation level.

After the sample decorrelation is finished, its

effective size is reduced to N

= N/n

measurements.

From the physical point of view, the step n

characterizes a channel coherence time that depends

on the channel variability determined by Alice’s

movement speed.

Figure 4: Autocorrelation function of the collected sample

of carrier phase measurements.

Given the probability histogram of phase

measurements presented at Fig.3, we were able to

estimate a value of the carrier phase entropy using

the formula (2). Here

is a normalized empirical

frequency of occurrence of phase measurements

within the i-th column of the histogram, Δϕ is a

quantization interval width and H

(δϕ) is entropy of

the phase measurement error caused by both channel

noise and imperfection of measuring equipment.

)()/

(log

)(

δϕ−ϕΔ−=ϕ



HppH

(2)

In our experiments, standard deviation σ(δϕ) of

the phase measurement error did not exceed 1°. An

estimation of the measurement error entropy showed

the value of H

(δϕ) ~ 0.01 bits. At the same time,

estimation of the carrier phase entropy showed the

value

)(

ϕH

= 7.5 bits. Thus, theoretically we could

extract up to 7.5 random bits in average from every

single measurement of the carrier phase. However,

these values characterize only the maximum

achievable key generation rate R

max

. In the Section 5

we present actually achieved values R

of the key

generation rate.

4 STATISTICAL PROPERTIES OF

EXTRAСTED KEY SEQUENCE

The main reason for the statistical properties of

generated key sequence to degrade is autocorrelation

within the primary sample of phase measurements.

To eliminate its effect, a sample decorrelation

procedure should be performed (Croft, 2011). The

decorrelation implies secondary sampling of the

primary sample with the step n

determined by the

condition:

ε≤][

nR , where ε is a permissible

correlation level. After this the decorrelated sample

takes the form

...},,{

1211

ϕϕϕ

with effective

size reduced to N

= N/n

measurements. It may be

said that the improvement of statistical properties of

the key is achieved through the n

-times waste in its

generation rate.

Next we implemented an entropy-based bit

extraction scheme (Sulimov, 2014) to create a

shared key. To assess its uniformity, we used the

NIST statistical tests suite (NIST, 2010). Among the

15 tests in the NIST suite, we run only 10-12 tests

and find that the extracted bits can pass these tests.

The other tests require larger input size, and we plan

to run them in the future. The testing has been

SECRYPT2015-InternationalConferenceonSecurityandCryptography

358

performed for the two following values of the

allowable correlation: ε

= 0.3 and ε

= 0.1. The

decorrelation steps corresponding them are

4)(

=εn and 14)(

=εn , respectively. The

generated key sequence has successfully passed all

the enabled tests. By using the ε

threshold the

smallest p-value equal to 0.43 was observed in the

«Non Overlapping Template» test. Similarly, by

using the ε

threshold the smallest p-value equal to

0.55 was observed in the «Longest Run» test. In

summary, by reducing the permissible correlation ε

from 0.3 down to 0.1 we were able to improve

statistical properties of the key sequence and to

increase average p-value at 33%.

The testing results also revealed their sensibility

to the number of bits m extracted from each single

phase measurement. In the following, we will refer

to this variable as the codeword length. During the

bit extraction procedure we were varying the

codeword length m within the range from 1 to 6 bits

per measure. The best testing results were achieved

with the m = 2 and m = 3 values. In the case of m = 1

the resultant key sequence was too short to provide a

good statistics. On the other hand, at high values of

m there was insufficient size N of the primary phase

measurements sample to provide its accurate

randomization. Even at m = 6 to succeed in the

sample randomization, it is required that the carrier

phase values to fill all the 64 quantization intervals

uniformly with equal frequencies of occurrence

within them. The amount of our experimental data

(4575 values) was insufficient to fulfill this

requirement, because we had only 71 values of

carrier phase in average for each quantization

interval.

Summarizing the testing results, we can conclude

that the generated key sequence satisfies the criteria

of randomness.

5 KEY DISTRIBUTION RESULTS

The samples of carrier phase measurements {ϕ

}

and {ϕ

}

collected by Alice and Bob allowed

generation of two copies K

and K

of the shared

secret key. Unfortunately, the {ϕ

}

and {ϕ

}

samples revealed a significant mismatch |ϕ

- ϕ

leading to samples low cross-correlation:

cor(ϕ

,ϕ

)=0.571. Based on this value of cross-

correlation a preliminary estimation of the key

mismatch rate gives p

~ 32% (Sulimov, 2014).

From the technical point of view, such a high phase

measurements mismatch is explained by a strong

short-term instability of output frequencies of the

FS1 and FS2 rubidium standards. This was due to

large ping delay (up to 1 second and more) of the

wireless Internet channel. Therefore, the required

synchronization data sent by Bob was reaching Alice

with a significant time-lag. During this time-lag the

measuring equipment of Alice and Bob was going

out of the synchronized state.

The presence of phase measurements mismatch

required implementation of a key reconciliation

procedure. We used the cyclic redundancy codes

(CRC-16) for the K

and K

reconciliation. This is

similar to a more secure approach based on the

privacy amplification (Bennet, 1995) but easier to

implement. In this case, the choice of optimal

codeword length m* for the bit extraction procedure

becomes a crucial moment. Increasing the value of

m we can extract more random bits from each single

carrier phase measurement but causing a higher key

mismatch rate p

. It’s a trap because high key

mismatch rate may result in total rejection of the key

at its reconciliation. By denoting the efficiency of

key reconciliation as η the actual key generation rate

may be expressed by the formula (3).

)./(

0 OBS

TnmNR ⋅

(3)

Fig. 5 shows the dependence of achieved key

generation rate calculated by the formula (3) as the

function of the codeword length. Due to a high

mismatch in the phase measurements of Alice and

Bob the optimal codeword length takes its minimum

possible value m* = 1. All our attempts to extract

more random bits from each carrier phase value led

to a sharp increase in the key mismatch rate p

and to

expected decrease in the reconciliation efficiency η.

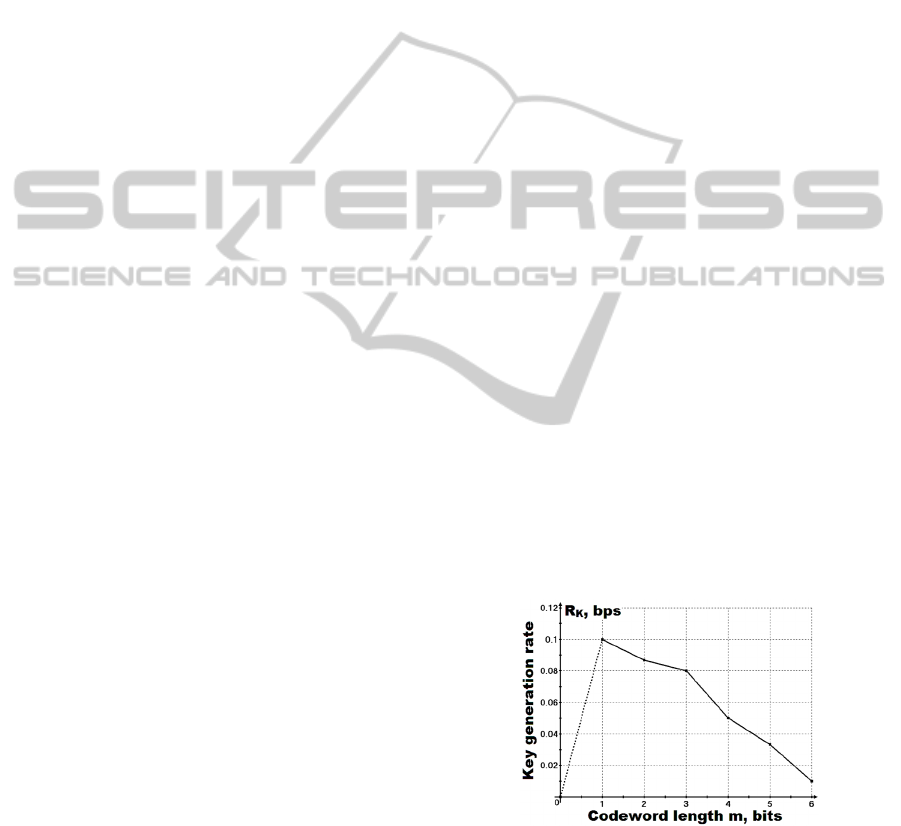

Figure 5: Key generation rate as a function of the

codeword length.

We used the ε

= 0.3 allowable correlation to

implement the bit extraction procedure. Given the

value of decorrelation step

4)(

=εn , 1144 random

bits have been extracted at each channel side, of

which 324 bits were in a mismatch indicating the

ExperimentalExtractionofSharedSecretKeyfromFluctuationsofMultipathChannelatMovingaMobileTransceiverin

anUrbanEnvironment

359

key mismatch rate p

= 28.3%. During the key

reconciliation each block of 23 key sequence bits in

length has been verified with the CRC-16 code.

After successful block verification we excluded 16

arbitrary bits from this block to prevent a key

leakage caused by the CRC-code transmission. The

achieved reconciliation efficiency was about η =

2.6%. Thus, collecting the multipath fluctuations

data for 300 seconds Alice and Bob were able to

extract 30-bit shared key sequence. Despite the

humble key generation rate achieved in practice, our

experiments prove a feasibility of the Wireless Key

Distribution based on the carrier phase fluctuations

in a mobile communications scenario.

6 CONCLUSIONS

Our experiments proved a feasibility of the Wireless

Key Distribution based on the carrier phase method

for the case of mobile communications within a real

urban environment. The key generation rate about

~ 0.1 bits per second (bps) has been achieved at

satisfactory statistical properties of the generated

key. Despite the humble key generation rates

achieved in practice, we believe in a great potential

of the method for the secure wireless key

distributing between the base station and mobile

subscriber in a cellular communications scenario.

However, a further improvement of synchronization

protocol for the legitimate users’ equipment is

required to achieve better system performance.

A key interception probability evaluation and its

spatial decorrelation problem should be addressed in

the following experiments.

REFERENCES

Bennett, C. H., Brassard, G., Crepeau, C., Maurer, U. M.,

1995. Generalized privacy amplification. In IEEE

Trans. on Inf. Theory, vol.41, iss.6, pp. 1915-1923.

Croft, J. E. D., 2011. Shared secret key establishment

using wireless channel measurements. Ph.D. thesis,

Dept. Elect. Eng., University of Utah, USA.

Hamida, S. T. B., Pierrot, J. B., Castelluccia, C., 2009. An

adaptive quantization algorithm for secret key

generation using radio channel measurements. In

NTMS’09, Proceedings of 3rd Int. Conf. on New

Technologies, Mobility and Security, pp. 1-5.

Hassan, A. A., Stark, W. E., Hershey, J. E., Chennakeshu,

S., 1996. Cryptographic key agreement for mobile

radio. In Digital Signal Processing, vol.6, iss.4, pp.

207-212.

Hershey, J. E., Hassan, A. A., Yarlagadda, R., 1995.

Unconventional cryptographic keying variable

management. In IEEE Transactions on

Communications, vol.43, iss.1, pp.3-6.

Madiseh, M. G., He, S., McGuire, M. L., Neville, S. W.,

Dong, X., 2009. Verification of secret key generation

from UWB channel observations, In Proceedings of

the IEEE ICC’09, pp. 593-597.

NIST, 2010. A Statistical Test Suite for Random and

Pseudorandom Number Generators for Cryptographic

Applications. NIST Special Publication 800-22.

Prettie, C., Cheung, D., Rusch, L., Ho, M., 2002. Spatial

correlation of UWB signal in a home environment. In

Proceedings of IEEE Conference on Ultra Wideband

Systems and Technologies, pp. 65-69.

Rappaport, T., 1996. Wireless communications: Principle

& Practice, IEEE Press, Prentice Hall, 641 p.

Rappaport, T. S., Sun, S., Mayzus, M. et al., 2013.

Millimeter Wave Mobile Communications for 5G

Cellular: It Will Work!. In IEEE Access, vol.1, pp.

335-349.

Smolyakov, A. D., Sulimov, A. I., Karpov, A. V.,

Sherstyukov, O.N., 2013. Experimental Verification of

Possibility of Secret Encryption Keys Distribution

with a Phase Method In a Multipath Environment. In

SIBCON-2013, Proc. of 2013 IEEE Int. Siberian Conf.

on Control and Communications.

Sulimov, A. I., Sherstyukov, O. N., Karpov, A. V.,

Smolyakov A.D., 2013. Simulation of Encryption Key

Distribution Process Based on a Multipath Radio

Propagation. In SIBCON-2013, Proc. of 2013 IEEE

Int. Siberian Conf. on Control and Communications.

Sulimov, A. I., Smolyakov, A. D., Karpov, A. V.,

Sherstyukov, O.N., 2014. Experimental Study of

Performance and Security Constraints on Wireless

Key Distribution Using Random Phase of Multipath

Radio Signal. In Proceedings of the 11th International

Conference on Security and Cryptography (SECRYPT-

2014), pp. 411-416.

Zhu, X., Xu, F., Novak, E. et al., 2013. Extracting secret

key from wireless link dynamics in vehicular

environments, In Proc. of IEEE INFOCOM 2013, pp.

2283-2291.

SECRYPT2015-InternationalConferenceonSecurityandCryptography

360
