Mosaic-based Privacy-protection with Reversible Watermarking

Yuichi Kusama, Hyunho Kang and Keiichi Iwamura

Department of Electrical Engineering, Tokyo University of Science,

6-3-1 Niijuku, Katsushika-ku, Tokyo 125-8585, Japan

Keywords:

Video Surveillance, Privacy Protection, Reversible Watermarking.

Abstract:

Video surveillance has been applied to many ﬁelds, speciﬁcally for detecting suspicious activity in public

places such as shopping malls. As the use of video-surveillance cameras increases, so too does the threat

to individual privacy. Therefore, video-surveillance technologies that protect individual privacy must be im-

plemented. In this study, we propose a scheme in an MPEG2 video-encoding environment that successfully

employs mosaicking, encryption, and restoration of faces captured in videos.

1 INTRODUCTION

Surveillance cameras are installed in various places,

such as street corners, convenience stores, and metro

stations. The main purpose of installing surveillance

cameras is to deter criminals and record criminal ac-

tivity. However, privacy is an issue with surveillance

cameras, particularly because it is unclear how to han-

dle ostensibly private information such as facial iden-

tiﬁcations. Thus, we may display surveillance-camera

pictures on television or in newspapers or Internet ar-

ticles, but privacy is typically protected by applying a

mosaic to the faces of bystanders.

In this way, it is often necessary to conceal faces

such that individuals are not identiﬁed. Such mask-

ing is typically accomplished with a mosaic (or ‘pix-

elization’ ) applied to privacy-infringing areas of the

surveillance-camera picture. However, it is some-

times desirable for mosaicked areas of the picture

to be restored, if the video is used to investigate

some crime for instance. Therefore, when utilizing

a surveillance-camera picture for some legitimate rea-

son, techniques must be available to restore concealed

faces.

Techniques to conceal private areas are common.

Conventional mosaic techniques can divided into re-

versible and irreversible conversions. Irreversible

conversions take the mean or the median of the tar-

get range and change the target range to the mean

or the median. On the other hand, for reversible

conversions, it is common to change the target-range

pixel location. However, even if a reversible mosaic

is applied beforehand, individuals can nevertheless

be identiﬁed, because reversible conversions merely

change the pixel location of the target range. There-

fore, in this paper, we suggest a novel and reversible

mosaic technique that encrypts the image.

Our proposed method encrypts the information

needed to remove a mosaic, and it embeds the en-

crypted information using reversible watermarking

when a mosaic is applied. This method ensures pri-

vacy protection, insofar as only valid users who know

the encryption key can restore a mosaic. Moreover,

upon reversing a mosaic, the image is restored with-

out any deteriorated information.

Watermarking is a technique to embed informa-

tion in a way that cannot be perceived by the user.

Watermarking can be classiﬁed into reversible wa-

termarking and irreversible watermarking. With re-

versible watermarking, the content is identical to

the original image when the watermark is removed.

Therefore, reversible watermarking is used for med-

ical imaging, for instance, where the deterioration of

content is unacceptable. Irreversible watermarking,

however, cannot reverse the watermark, even after the

information is extracted.

There have been several methods proposed to

address the issue of privacy in surveillance cam-

eras (Dufaux and Ebrahimi, 2008), (Carrillo et al.,

2009), (Peng et al., 2013), (Li et al., 2009), (Yu and

Babaguchi, 2007), (Saini et al., 2014). In this pa-

per, we propose a new method for protecting privacy,

using reversible watermarking to encrypt information

and a novel mosaic technique.

We implemented the proposed method in order to

meet the following three conditions:

Kusama Y., Kang H. and Iwamura K..

Mosaic-based Privacy-protection with Reversible Watermarking.

DOI: 10.5220/0005562500980103

In Proceedings of the 12th International Conference on Signal Processing and Multimedia Applications (SIGMAP-2015), pages 98-103

ISBN: 978-989-758-118-2

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

(1) The picture that is masked by a mosaic is nat-

ural (seamless) and retains as a digital watermark the

information needed to restore the picture.

(2) The embedded information is preserved even

after the video is compressed.

(3) The illegal restoration of the embedded infor-

mation is prohibited, and only an authorized person

can remove a mosaic.

This paper organized as follows. Section 2 ex-

plains the background research. In Section 3, we ex-

plain proposed method. Section 4 presents the exper-

imental results from a simulation, and Section 5 con-

cludes the paper.

2 PRELIMINARY

2.1 MPEG2

MPEG2 is a method to compress digital videos. Once

compressed, the original quality cannot be restored.

2.1.1 Picture Types in MPEG2

With MPEG2 compression, there are three types of

pictures deﬁned: I, P and B.

An example of the MPEG2 frame constitution is

shown in Figure 1.

ࡣ ᑐ ㇟ ⠊ ᅖ ࡢ ࣆ ࢡ ࢭ ࣝ ್ ࢆ ධ ࢀ ᭰ ࠼ࡓࡔࡅ࡞ࡢ࡛ 㸪 ࠶

ࡽ ࠿ ࡌ ࡵ ྍ ㏫ ኚ ᥮ ࡛ ࣔ ࢨ ࢖ ࢡ ࢆ ࠿ ࡅ ࡚ ࠸ ࡚ ࡶ 㸪 ື ⏬ ࡀ

ὶ ฟ ࡋ ࡚ ࡋ ࡲ ࡗ ࡓ ሙ ྜ ಶ ே ࡀ ≉ ᐃ ࡉࢀ࡚ࡋࡲ࠺ྍ⬟ᛶ

ࡀ ࠶ ࡿ 㸬ࡑ ࡇ ࡛ 㸪ᮏ ✏ ࡛ ࡣ ㏻ ᖖ ࡢ ࣔ ࢨ ࢖ ࢡ ࢆ ฼ ⏝

ࡏ ࡎ 㸪 ᩥ ⊩ ࡢ ࣔ ࢨ ࢖ ࢡ ࢆ ฼ ⏝ ࡍ ࡿ 㸬

ᩥ ⊩ ࡢ ࣔ ࢨ ࢖ ࢡ ࡣ 㸪ࣔ ࢨ ࢖ ࢡ ࢆ 㝖 ཤ ࡍ ࡿ ࡢ ࡟ ᚲ せ

࡞ ᝟ ሗ ࢆ ᬯ ྕ ໬ ࡋ 㸪 ྍ ㏫㟁 Ꮚ ㏱ ࠿ ࡋ ࡛ ᇙ ࡵ ㎸ ࢇ ࡛ ࣔ ࢨ

࢖ ࢡ ฎ ⌮ ࢆ ⾜ ࠺ 㸬 ࡇ ࢀ ࡟ ࡼ ࡗ ࡚ 㸪 ᬯ ྕ 㘽 ࢆ ▱ ࡿ ṇ ᙜ ࡞

ࣘ ࣮ ࢨ ࡢ ࡳ ࡀ ඖ ࡢ ⏬ ീ ࡟ ᡠ ࡍ ࡇ ࡜ ࡀ࡛ࡁࡿ࡜࠸ ࠺ Ᏻ ඲

ᛶ ࡜ 㸪 ᡠ ࡋ ࡓ ⏬ ീ ࡣ ᝟ ሗ ࢆ ኻ ࠺ ࡇ ࡜࡞ࡃ᚟ඖࡉࢀࡿ࡜

࠸ ࠺ ྍ ㏫ ᛶ ࢆ ྠ ᫬ ࡟ ᐇ ⌧ ࡛ ࡁ ࡿ 㸬

㟁 Ꮚ ㏱ ࠿ ࡋ ࡜ ࡣ ⏬ ീ ࡸ ື ⏬ 㸪㡢 ᴦ࡜࠸ࡗࡓࢹ࢕ࢪࢱ

ࣝ ࢥ ࣥ ࢸ ࣥ ࢶ ࡟ ே ࡟ ࡣ ▱ ぬ ࡛ ࡁ ࡞ ࠸ࡼ࠺࡟ ᝟ ሗ ࢆ ᇙ ࡵ

㎸ ࡴ ᢏ ⾡ ࡢ ࡇ ࡜ ࡛ ࠶ ࡿ 㸬㟁 Ꮚ ㏱ ࠿ ࡋࢆྍ㏫ᛶ࡟ࡼࡾศ

㢮 ࡍ ࡿ ࡜ 㸪 ྍ ㏫㟁 Ꮚ ㏱ ࠿ ࡋ ࡜ 㠀 ྍ ㏫㟁Ꮚ㏱࠿ࡋ࡟ศࡅ

ࡽ ࢀ ࡿ 㸬 ྍ ㏫㟁 Ꮚ ㏱ ࠿ ࡋ ࡣ ᝟ ሗ ࢆ ᇙࡵ㎸ࢇ࡛ ࡑ ࡢ ᝟ ሗ

ࡢ ᢳ ฟ ࢆ ⾜ ࠺ ࡜ ཎ ⏬ ീ ࡟ ᡠ ࡿ ࡓ ࡵ 㸪 ࢥ ࣥ ࢸ ࣥ ࢶ ࡢ ရ ㉁

ࡀ ຎ ໬ ࡋ ࡞ ࠸ 㸬 ࡑ ࡢ ࡓ ࡵ 㸪 ࢥ ࣥ ࢸ ࣥ ࢶ ࡢ ຎ ໬ ࡀ チ ࡉ ࢀ

࡞ ࠸ ་ ⒪ ⏬ ീ ࡞ ࡝ ࡟ ฼ ⏝ ࡉ ࢀ ࡿ 㸬㠀ྍ㏫㟁Ꮚ㏱࠿ࡋࡣ

ᇙ ࡵ ㎸ ࢇ ࡔ ㏱ ࠿ ࡋ ᝟ ሗ ࢆ ᢳ ฟ ࡋ ࡚ ࡶཎ⏬ീ࡟ᡠࡽ ࡞ ࠸

ࡀ 㸪 ⴭ స ᶒ ࢆ ୺ ᙇ ࡍ ࡿ ࡜ ࡁ ࡞ ࡝ 㸪 ୍⯡࡟ᙉ࠸⪏ᛶࢆࡶ

ࡓ ࡏ ࡓ ࠸ ࡜ ࡁ ࡟ ฼ ⏝ ࡉ ࢀ ࡿ 㸬

┘ ど ࢝ ࣓ ࣛ ࡟ ࡼ ࡿ ࣉ ࣛ ࢖ ࣂ ࢩ ࣮ ၥ 㢟 ࢆ ゎ Ỵ ࡍ ࡿ ᪉

ἲ ࡜ ࡋ ࡚ 㸪 ᩥ ⊩ ࡀ ࠶ ࡿ 㸬

ࡋ ࠿ ࡋ 㸪 ࣉ ࣛ ࢖ ࣂ ࢩ ࣮ ၥ 㢟 ࢆ ゎ Ỵ ࡍࡿᡭἲ࡛ࣔࢨ࢖

ࢡ ࡀ ⮬ ↛ ࡛ ࠿ ࡘ 㧗 ࠸ Ᏻ ඲ ᛶ ࡀ ☜ ಖ ࡉ ࢀ ࡚ ࠾ ࡾ 㸪 ື ⏬ ࡟

㐺 ⏝ ࡋ ࡓ ࡶ ࡢ ࡀ ࡯ ࡜ ࢇ ࡝ ࡞ ࠸ 㸬 ࡼ ࡗ ࡚ 㸪 ᮏ ◊ ✲ ࡛ ࡣ ୗ

グ ࡢ ࡘ ࡢ ᮲ ௳ ࢆ ‶ ࡓ ࡍ ࡼ ࠺ ࡟ ᐇ ⿦ ࢆ ࡋ ࡓ 㸬

 ࣔ ࢨ ࢖ ࢡ ࢆ࠿ࡅࡓᫎീࡀ୙⮬↛ ࡛ ࡞ ࡃ 㸪ᫎ ീ ࢆ

᚟ ඖ ࡍ ࡿ ࡓ ࡵ ࡢ ᝟ ሗ ࢆ 㟁 Ꮚ ㏱ ࠿ ࡋ ࡜ࡋ࡚ಖᣢࡍࡿ㸬

 ື ⏬ ࡢ ᅽ ⦰ฎ⌮ࢆ⾜ࡗ࡚ࡶ㸪ᇙ ࡵ ㎸ ࢇࡔ㏱࠿ࡋ

᝟ ሗ ࡀ ኻ ࢃ ࢀ ࡞ ࠸ 㸬

 ᇙ ࡵ ㎸ ࡳ ᝟ሗࡢ୙ṇ࡞᚟ඖ࡟⪏ ᛶ ࡀ ࠶ ࡾ ࠊ≉ ᐃ

ࡢ ே ≀ ࡢ ࡳ ࡀ ࣔ ࢨ ࢖ ࢡ ࢆ 㝖 ཤ ࡍ ࡿ ࡇ࡜ࡀ࡛ࡁࡿ㸬

 ᮏ ✏ ࡛ࡣ㸪➨ ❶ ࡛ ࡣ 㸪 ࡟ ࡘ ࠸ ࡚ ゎㄝ ࢆ ࡋ 㸪

➨ ❶ ࡛ ࡣ ᩥ ⊩ ࡢ ྍ ㏫㟁 Ꮚ ㏱ ࠿ ࡋ ᡭ ἲ ཬ ࡧ ᩥ ⊩

ࡢ ྍ ㏫ ࣔ ࢨ ࢖ ࢡ ࡟ ࡘ ࠸ ࡚ ㄝ ᫂ ࢆ ࡍ ࡿ㸬ࡑࡋ࡚㸪➨ ❶

࡛ ࡣ 㸪 ᐇ ⿦ ཬ ࡧ ᐇ 㦂 ⤖ ᯝ ࡟ ࡘ ࠸ ࡚ ゎㄝࢆࡍࡿࠋ᭱ᚋ࡟

➨ ❶ ࡛ ࡣ 㸪 ᮏ ✏ ࡢ ࡲ ࡜ ࡵ ࢆ ♧ ࡍ 㸬

ᅽ

⦰

ࡣ ື ⏬ ࡢ ࢹ ࢕ ࢪ ࢱ ࣝ ࢹ ࣮ ࢱ ࢆ ᅽ ⦰ ࡍ ࡿ ᪉ ᘧ

࡛ ࠶ ࡾ ࠊ ୍ ᗘ ᅽ ⦰ ࢆ ࡋ ࡓ ࡽ ရ ㉁ ࡀ ࡶ࡜࡟ᡠࡽ࡞࠸㠀ྍ

㏫ ᅽ ⦰ ࡛ ࠶ ࡿ ࠋ ࡣ ࡸ ࢹ ࢕ ࢪ ࢱ ࣝ ᨺ

㏦ ࡞ ࡝ ᖜ ᗈ ࡃ ฼ ⏝ ࡉ ࢀ ࡚ ࠸ ࡿ 㸬

䝣

䝺䞊䝮

ࡢ ື ⏬ ࡣ ✀ 㢮 ࡢ ࣇ ࣞ ࣮ ࣒ ࠿ ࡽ ᵓ ᡂ ࡉ ࢀ ࡿ 㸬

ࡢ ࣇ ࣞ ࣮ ࣒ ᵓ ᡂ ౛ ࢆ ᅗ ࡟♧ ࡍ 㸬

ᅗ

1 M P EG 2 ࣇࣞ ࣮ ࣒

ࣇ ࣞ ࣮ ࣒ 㸸 ௚ ࡢ ࣇ ࣞ ࣮ ࣒ ᝟ ሗ ࢆ ౑ ⏝ ࡏ ࡎ ࠊ ࡑ ࢀ ⮬

㌟ ࡢ ࣇ ࣞ ࣮ ࣒ ࡢ ࡳ ࡛ ➢ ྕ ໬ ࡉ ࢀ ࡿ 㸬

ࣇ ࣞ ࣮ ࣒ 㸸 ᫬ 㛫 ⓗ ࡟ ๓ ࡢ ࣇ ࣞ ࣮ ࣒ ࡲ ࡓ ࡣ ࣇࣞ

࣮ ࣒ ࢆ ฼ ⏝ ࡋ ࡚ ᫬ 㛫 ⓗ ࡟ ๓ ᪉ ྥ ࡢ ືࡁண᝿➢ྕ໬ࡉࢀ

ࡿ 㸬

ࣇ ࣞ ࣮ ࣒ 㸸 ᫬ 㛫 ⓗ ࡟ ๓ ࡜ ᑗ ᮶ ࡢ ࣇ࣮࣒ࣞࡲࡓ ࡣ

ࣇ ࣞ ࣮ ࣒ ࢆ ฼ ⏝ ࡋ ࡚ ࠊ ᫬ 㛫 ⓗ ࡟ ๓ ࡲ ࡓ ࡣ ᚋ ᪉ ྥ ࡟ ື

ࡁ ண ᝿ ➢ ྕ ໬ ࡉ ࢀ ࡿ 㸬

ࡲ ࡓ 㸪 ࡣ ྛ ࣇ ࣞ ࣮ ࣒ ࡀ ⊂ ❧ ࡋ࡚࠸ࡿࢃࡅ࡛ࡣ

࡞ ࡃ ࢢ ࣝ ࣮ ࣉ ࣭ ࢜ ࣈ ࣭ ࣆ ࢡ ࢳ ࣕ ࡜ ࠸ ࠺ ࣇ ࣞ ࣮ ࣒

ࡢ 㞟 ྜ ༢ ఩ ࡛ ᅽ ⦰ ࡀ ⾜ ࢃ ࢀ ࡿ 㸬 ᮏ ◊ ✲ ࡛ ࡣ 㸪 ࡣ

ࣇ ࣞ ࣮ ࣒ ࡢ ࡳ ࡛ ᵓ ᡂ ࡉ ࢀ ࡿ 㸬

➢

ྕ໬

➢ ྕ ໬ ࡢ ࣈ ࣟ ࢵ ࢡ ᅗ ࢆ ᅗ ࡟ ♧ ࡍ 㸬

ᅗ

➢ ྕ ໬ ࡢ ࣈ ࣟ ࢵ ࢡ ᅗ

ධ ຊ ⏬ ീ ࡣ 㸪㔞 Ꮚ ໬ 㸪ྍ ኚ 㛗 ➢ ྕ ໬ ࡉ ࢀ ࣅ ࢵ ࢺ

ࢫ ࢺ ࣜ ࣮ ࣒ ฟ ຊ ࡜ ࡞ ࡿ 㸬 ࣇ ࣞ ࣮ ࣒ ࡞ ࡝ ࡢ ᫬ 㛫 ⓗ ࡟ ๓

ࡢ ࣇ ࣞ ࣮ ࣒ ࢆ ཧ ↷ ࡍ ࡿ ᚲ せ ࡢ ࠶ ࡿ ࣇ࣮࣒ࣞࡢሙྜ㸪᫬

㛫 ⓗ ࡟ ๓ ࡢ ࣇ ࣞ ࣮ ࣒ ࡟ ୍ ᫬ ⓗ ࡟ ㏫㔞Ꮚ໬㸪㏫ ࢆ ⾜

࠺ 㸬 ࡑ ࡋ ࡚ 㸪 ୍ ᫬ ⓗ ࡟ ࣇ ࣞ ࣮ ࣒ ࢆ ᚟ ඖ ࡋ 㸪 ண ࣓ ࣔ ࣜ

ࢆ స ࡾ ࣓ ࣔ ࣜ ࡟ ಖ Ꮡ ࡋ ࡚ ࠾ ࡃ 㸬 ḟ ࡟ ᫬ 㛫 ⓗ ࡟ ๓ ࡢ ࣇ ࣞ

࣮ ࣒ ࡜ ⌧ ᅾ ࡢ ࣇ ࣞ ࣮ ࣒ ࢆ ື ࡁ ᳨ ฟ ࡟ࡼࡾ㸪 ẚ ㍑ ࡋ 㸪 ື

ࡁ ࣋ ࢡ ࢺ ࣝ ࢆ ồ ࡵ ࡿ 㸬 ື ࡁ ࣋ ࢡ ࢺ ࣝ ࡜ ๓ ࡢ ࣇ ࣞ ࣮ ࣒ ࠿

ࡽ ື ࡁ ಖ 㞀 ࣇ ࣞ ࣮ ࣒ ࢆ ⏕ ᡂ ࡍ ࡿ 㸬 ືࡁಖ㞀ࣇ࣮࣒ࣞ࡜

䠣䠫䠬䠖䠥䠞䠞䠬

I B B P I

⏬ീධຊ

㔞Ꮚ໬ ྍኚ㛗➢ྕ໬

䝡䝑䝖䝇䝖䝸䞊䝮ฟຊ

᧯స䜢ຍ䛘䜛

㏫㔞Ꮚ໬

㏫

䝣䝺䞊䝮

䝯䝰䝸

ື䛝᳨ฟ

ື䛝ಖ㞀

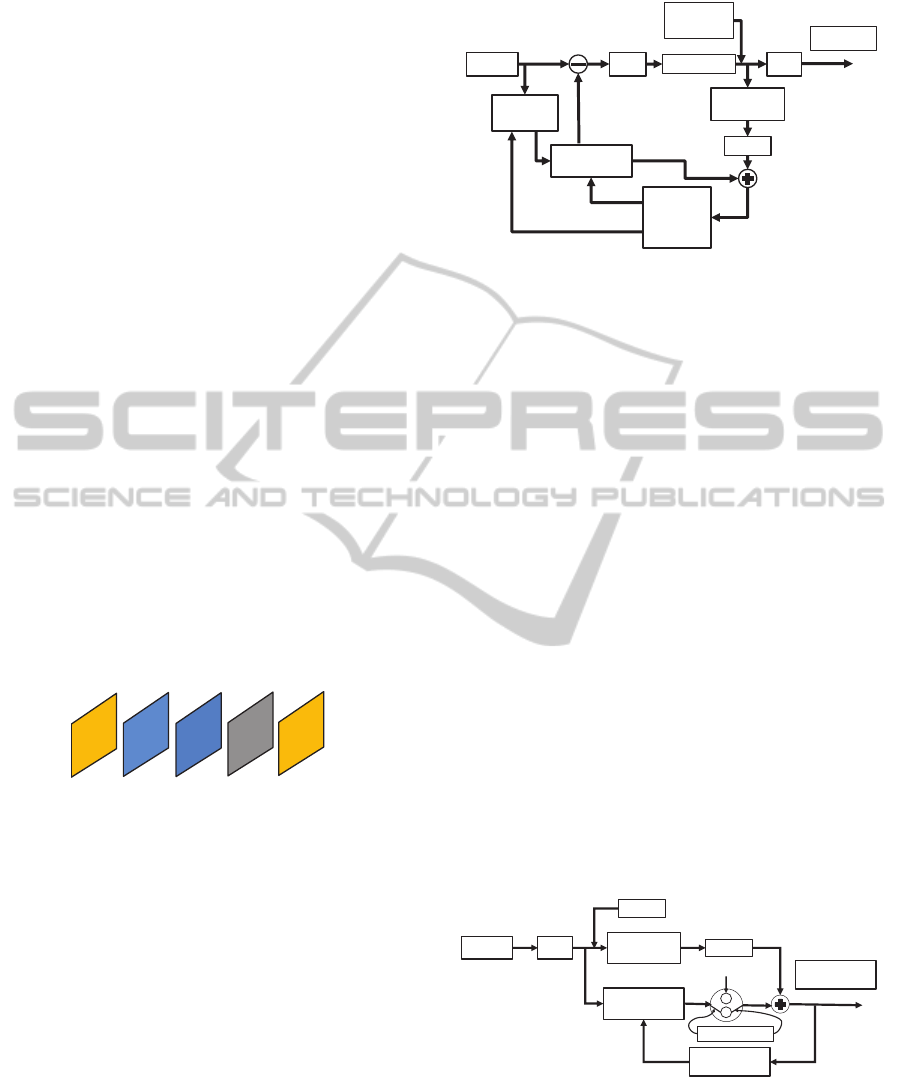

Figure 1: Example of the MPEG2 frame constitution.

I-frames: Encoded with a frame of its own, with-

out using information from other frames.

P-frames: Encoded using the forward-motion-

compensated prediction from the preceding I or P

frame.

B-frames: Encoded using bidirectional-motion-

compensated prediction from previous and subse-

quent I or P frames.

In addition, with MPEG2, the frames are not in-

dependent, and compression is performed by a unit of

the frame called the GOP (group of pictures). In this

study, the GOP is composed exclusively of I-frames.

2.1.2 MPEG2 Video Encoding

A block diagram for MPEG2 video encoding is shown

in Figure 2.

INPUT DCT

Quantization

VLC

OUTPUT

Mosaicking

Embedding

Inv.

Quantization

Inv.DCT

Frame

Memory

Motion

Compensation

Motion

Estimation

Figure 2: Example of the MPEG2 encoder.

The input image becomes the bit-stream output af-

ter 2D-DCT (two-dimensional discrete cosine trans-

form) processing, quantization, and VLC (variable-

length coding). When a frame must refer to other

frames, such as P-frames for forward prediction, we

perform inverse quantization and inverse 2D-DCT

processing to the preceding frame. After temporarily

restoring a forward frame and converting a predicted

frame to a local decoder, the frame is saved in the Pre-

vious Frame Memory. Next, we compare the previous

frame with the current frame using motion estima-

tion and calculate a motion vector. We then generate

a motion-compensated frame from the motion vector

along with a forward frame . The difference between

the motion-compensated frame and current frame is

calculated to determine the prediction errors. Finally,

we generate a P-frame applying the prediction errors

to 2D-DCT, quantization, and VLC. In our study, we

embed information in watermarks and apply a mosaic

for privacy protection.

2.1.3 MPEG2 Video Decoding

A block diagram for MPEG2 video decoding is shown

in Figure 3.

INPUT VLC

Inv.

Quantization

Inv.DCT

Motion

Compensation

Recover

Side Information

Reconstructed

Block

Frame Memory

Figure 3: Example of the MPEG2 decoder.

The input bit-stream encoded with the MPEG2 en-

coder is decoded by VLC decoding, inverse quanti-

zation, and inverse 2D-DCT processing . In addi-

tion, the motion compensation used for encoding is

selected among the encoding information from the

Mosaic-basedPrivacy-protectionwithReversibleWatermarking

encoded area, and a reference signal is obtained af-

ter motion compensation. We generate the decoded

frame by adding the prediction errors formed in the

reference signal and encoding. In our study, we re-

store mosaicked area by adding operations just before

inverse quantization.

2.2 Reversible Watermarking

We employ (Xuan et al., 2007) as a method to embed

information for restoring mosaicked areas.

This approach applies JPEG compression to the

DCT coefﬁcient after quantization, and it embeds re-

versible information in the JPEG images. The qual-

ity of the picture after embedded this information re-

mains high, and this was the main reason for employ-

ing this method. In our study, we applied MPEG-2

compression. Because we secured an embedding do-

main, we must change the range in order to embed the

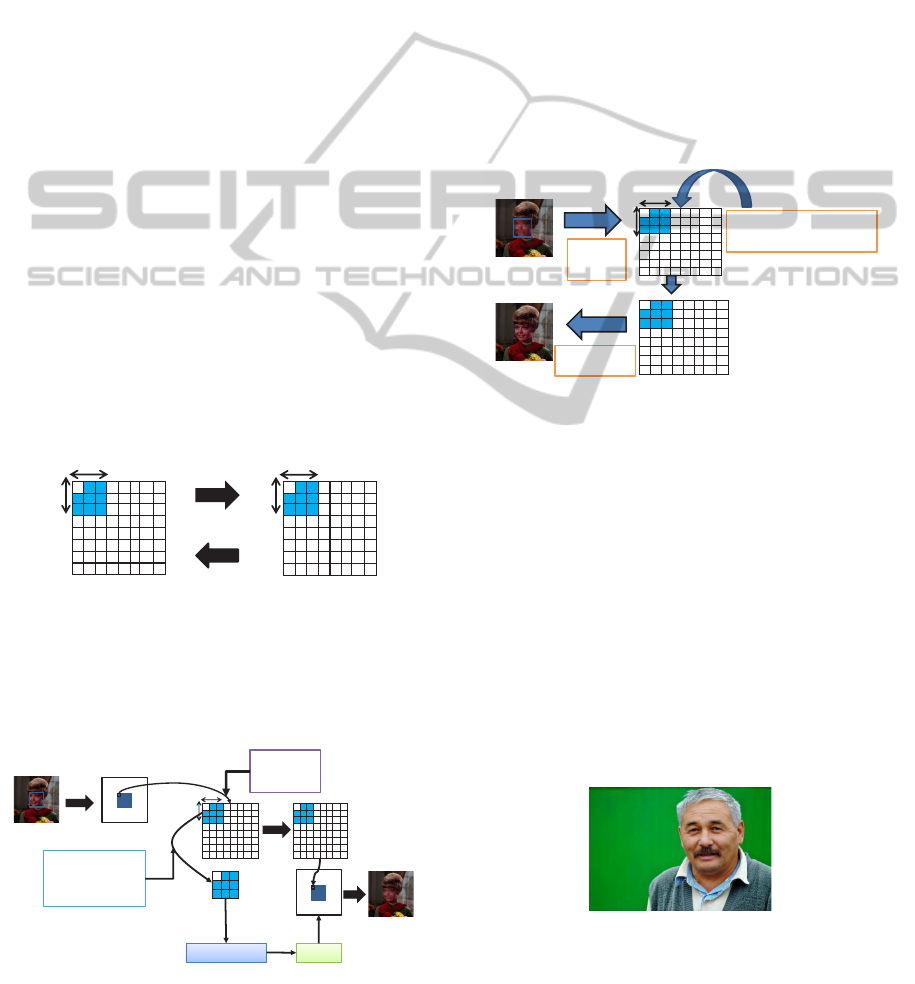

mosaic information, as shown in Figure 4.

1 2 6 7

3 5 8

4 9

1 2 6 7

3 5 8

4 9

Approach method Xuan et al.., 2007

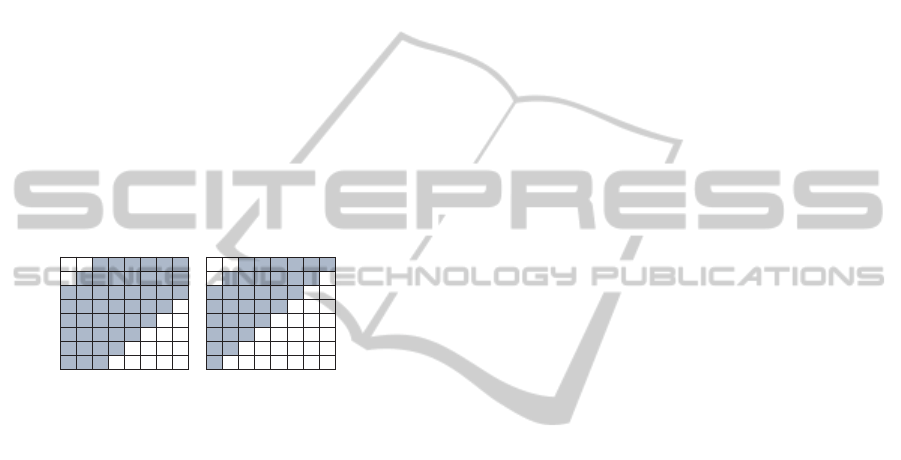

Figure 4: Mosaic range.

2.2.1 Basis Theory (Histogram Pairs)

Xuan et al. proposed a method for reversible water-

marking based on the deﬁnition of a histogram pair.

We turn now to a brief discussion of this approach.

First, we assume that the DCT coefﬁcients take

x[a,b], where ‘a’ and ‘b’ are the immediately neigh-

boring feature values (b = a+1, a > b, where ‘a’ and

‘b’ are integers). Then, the histogram pair is denoted

as follows: h=[h

], where h

and h

are the fre-

quent feature valuesinan 8x8 DCT coefﬁcients block,

given that one of the two frequencies is zero. There-

fore, the histogram pair can be applied with the fol-

lowing conditions:

(1) a≥0 and h=[h

,0] (2) a<0 and h=[0,h

]

Furthermore, when the histogram is not zero, then

its original position and the thing that is zero is ex-

panding. Embedding and extracting watermarks pro-

ceeds as follows.

(1) a≥0

 When the bit to embed is ‘1’. Change one fre-

quent in the original position to the expanding posi-

tion.

 When the bit to embed is ‘0’. Nothing.

(2) a<0

 When the bit to embed is ‘1’. Change one fre-

quent in the original position to the expanding posi-

tion.

 When the bit to embed is ‘0’. Nothing.

2.2.2 Histogram Expansion

The histogram is expanded to secure a domain for em-

bedding information. In this section, we describe how

the histogram is expanded. The expansion proceeds

as follows:

Decide the thresholds T and S.

If T ≥ 0, add 1 to all the values larger than T.

If T < 0, subtract 1 from all the values smaller

than T. The following describes how the expansion of

the histogram is inverted.

 If T ≥ 0, subtract 1 from all the values larger

than T.

 If T < 0, add 1 to all the values smaller than T.

2.2.3 Embedding and Extraction

The watermark is embedded and extracted according

to the following algorithm.

[Embedding]

(1) Decide the region for embedding in the 8x8

block.

(2) Decide the thresholds T and S.

(3) Expand the histogram.

(4) Embed the information.

(5) Change the threshold T.

 If T≥0, T changes to -T.

 If T<0, T changes to -T-1.

(6) If the embedding process is incomplete, repeat

Steps (3) through (5). Upon reaching the threshold S,

the embedding process is complete and the histogram

is expanded.

[Extraction]

In order to extract the watermark, the thresh-

old, the embedding region, and the payload must be

known. We begin with the threshold S (i.e., the stop-

ping value).

(1) Extract the information.

(2) Inverse the expansion of the histogram.

(3) Change the threshold T.

 If T≥0, T changes to -T-1.

 If T<0, T changes to -T.

(4) If the extraction is incomplete, Steps (1)

through (3) are repeated.

SIGMAP2015-InternationalConferenceonSignalProcessingandMultimediaApplications

100

3 PROPOSED METHOD

3.1 Proposed Method

With JPEG compression, our proposed method can

remove a mosaic without deteriorating the image.

This is accomplished by embedding the information

that is needed to restore the original image with re-

versible watermarking. In addition, unauthorized re-

constructions of this information are prevented by en-

crypting the information needed for removing a mo-

saic. This ensures that the proposed method protects

against the infringement of privacy. In this study, we

apply MPEG2-style coding (exclusively to I-frames).

3.1.1 Generating the Mosaic

In order to obtain a JPEG image, the following steps

are undertaken.

(1) The original image is divided into 8x8-sized

blocks.

(2) The blocks are transformed using DCT.

(3) Blocks are quantized.

(4) VLC encoding is performed.

After quantization, the NxN blocks around the

discrete cosine component are set to zero. This dis-

torts the image, providing the mosaic. To remove the

mosaic, the original value is set to 0. The method for

generating mosaics is illustrated in Figure 5.

㻠㻣㻜㻜㻜㻜㻜㻜㻜

㻜㻜㻜㻜㻜㻜㻜㻜

㻡㻝㻞㻜㻜㻜㻜㻜

㻜㻜㻜㻜㻜㻜㻜㻜

㻠㻣㻞㻜㻜㻜㻜㻜㻜

㻢㻜㻝㻜㻜㻜㻜㻜

㻙㻝㻝㻜㻜㻜㻜㻜㻜

㻡㻝㻞㻜㻜㻜㻜㻜

㻜㻜㻜㻜㻜㻜㻜㻜

mosaic

remove

Figure 5: Generation a mosaic (n=3).

3.1.2 Generating Reversible Mosaics

The method for applying a reversible mosaic is shown

in Figure 6.

Original

-1

EncryptingEncrypting

㻠㻣㻜㻜㻜㻜㻜㻜㻜

㻜㻜㻜㻜㻜㻜㻜㻜

Watermarked-Mosaic

㻠㻣㻞㻜㻜㻜㻜㻜㻜

㻢㻜㻝㻜㻜㻜㻜㻜

㻙㻝㻝㻜㻜㻜㻜㻜㻜

㻜㻜㻜㻜㻜㻜㻜㻜

EmbedEmbed

Block-division

2D-DCT

Quantization

Preserve

An coefficient of n*n

surrounding the DC

coefficient.

Figure 6: Applying a reversible mosaic.

In order to apply a reversible mosaic, the follow-

ing steps are required during the JPEG compression.

An NxN component is stored around the discrete co-

sine component after the image is divided into blocks,

DCT processing, and quantization. The NxN compo-

nents are set to zero, with the exception of the discrete

cosine component. The information is then embedded

and stored as a reversible watermark using the tech-

nique proposed by (Xuan et al., 2007). (Assuming a

watermarked mosaic picture as follows). Finally, the

JPEG-compressed and watermarked mosaic picture is

produced with entropy encoding.

3.1.3 Removing a Reversible Mosaic

Figure 7 illustrates the process for removing a re-

versible mosaic.

Entropy

Decode

I substitute an original

value before zeroing it

Mosaicked

Restored

Inv.DCT

Inv.Quantization

㻠㻣㻜㻜㻜㻜㻜㻜㻜

㻜㻜㻜㻜㻜㻜㻜㻜

㻠㻣㻞㻜㻜㻜㻜㻜㻜

㻢㻜㻝㻜㻜㻜㻜㻜

㻙㻝㻝㻜㻜㻜㻜㻜㻜

㻜㻜㻜㻜㻜㻜㻜㻜

Figure 7: Decrypting and restoring a reversible mosaic.

In order to remove a reversible mosaic, the follow-

ing steps are required after the JPEG compression.

First, entropy decoding is performed on the JPEG-

compressed and watermarked mosaic picture. Sec-

ond, the watermark information is extracted using the

technique proposed by (Xuan et al., 2007). Third, the

information that was extracted for an NxN component

and set to zero is substituted, with the exception of

the discrete cosine component. Thus, the mosaic is

removed.

3.1.4 Problem

In large-sized images, this method does not conceal

areas completely, as shown in Figure 8.

N=1,n=5

Figure 8: Insufﬁciently concealing a private area.

As shown in Figure 9, we use the same values for

multiple blocks in the vicinity of NxN, changing the

Mosaic-basedPrivacy-protectionwithReversibleWatermarking

101

particle size of the mosaic. Thus, it is possible to ap-

ply a mosaic to a large-sized image.

Figure 9: Method for applying a mosaic to a large-sized

image.

As shown in Figure 10 , the private are is sufﬁ-

ciently concealed.

N=8,n=5

Figure 10: Mosaic successfully applied to a large-sized im-

age.

3.2 Implementation Approach

We combinethe two techniques respectivelyproposed

in Sections 2 and 3 for implementation, as shown in

Figures 11 and 12.

Original

Face

Detection

Encode, Embed information

Position

Number-of-

face

Pixel

Informatin

Mosaicking

Preserve

Encrypting

Output

Watermarked mosaic

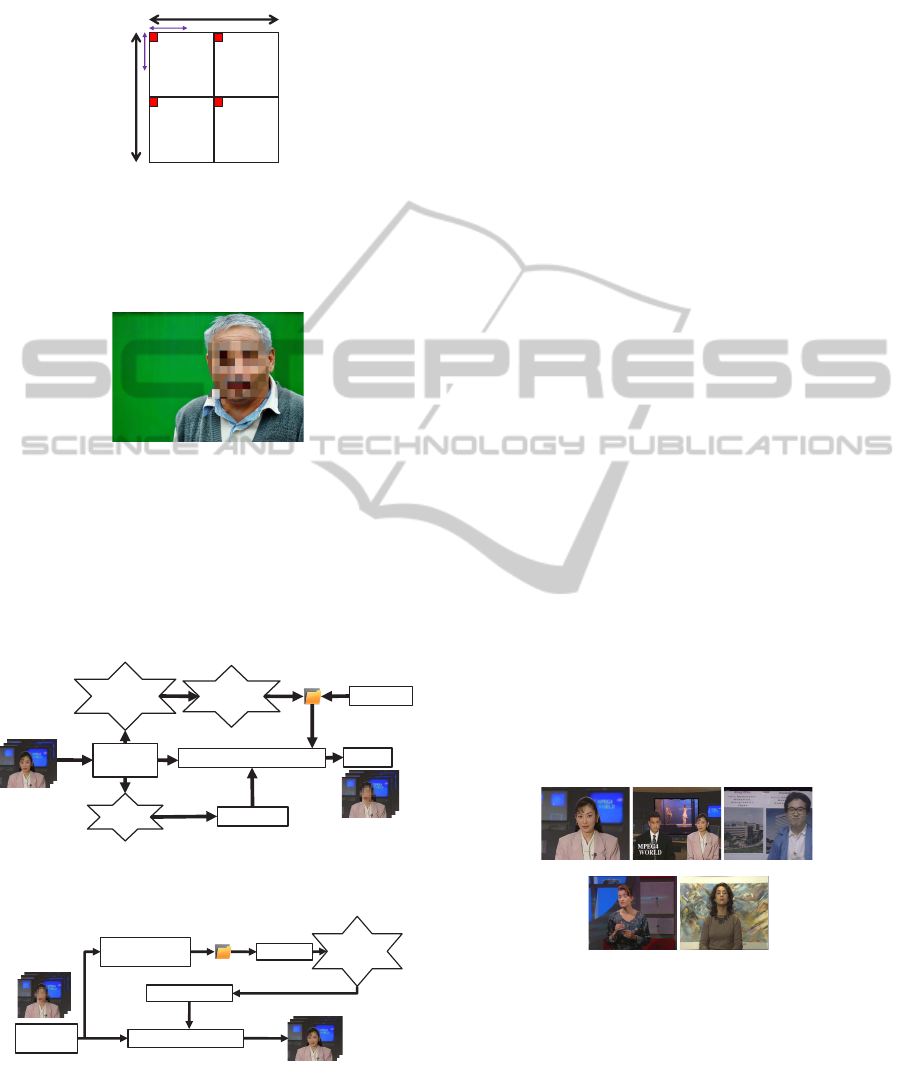

Figure 11: General view of the proposal in terms of apply-

ing mosaics and encryption.

Input

information

Decode

Preprocessing

Extract information

Extracted

information

Decrypting

Removing Mosaic

Restored

Pixel

Position

Number-of-face

Figure 12: General view of the proposal in terms of decryp-

tion and restoration.

To realize a reversible mosaic after MPEG2 com-

pression (with a GOP exclusively for I-frames) four

steps are required.

First, the positional information is obtained for the

face using the face-detection technique proposed by

(Bradski, 1998). Second, the number of faces is deter-

mined and the pixel information for these faces is de-

rived based on the positional information. Third, the

positional information for all faces is encrypted, along

with the pixel information and information regarding

the number of faces. Finally, the video is compressed

(using MPEG2 compression), embedding the infor-

mation that was encrypted and generating a reversible

mosaic for the facial areas. The following explains

the steps for removing the reversible mosaic from the

MPEG2-compressed video.

First, the watermark information is extracted and

decrypted. Then, the reversible mosaic is removed

used three types of information (viz., pixel informa-

tion, positional information, and the number of faces).

In this study, we used 128-bit AES (advanced encryp-

tion standard) encryption in CBC (cipher block chain-

ing) mode, applying MPEG2 compression (Hoelzer,

2015).

4 EXPERIMENTAL RESULTS

In this section, we discuss the results from a simula-

tion we conducted to evaluate the proposed method.

We used 352288 CIF (common intermediate format)

sequences in our study.

Still images from some of the original videos used

for the simulation are shown in Figure 13. The exper-

imental results are shown in Figures 14–18. For the

experiment, we used 128-bit AES encryption in CBC

mode, and we set the thresholds T and S at 190 and 0,

respectively. The quality scale was 3.

(a) (b)

(c)

(d)

(e)

Figure 13: Experimental objects-(a)Akiyo, (b)News,

(c)Pamphlet, (d)Sign-Irene, (e)Silent.

We implemented our proposal in an effort satisfy

the three conditions discussed in the Introduction, as

seen in Figures 14–18. The mosaicked areas in the

image are hidden completely and naturally. Thus, the

ﬁrst condition is met. Furthermore, we calculated

the PSNR (peak signal-to-noise ratio) and the SSIM

(structural similarity) index for the images from each

SIGMAP2015-InternationalConferenceonSignalProcessingandMultimediaApplications

102

䝕䞊䝍

(2) (3)

(1)

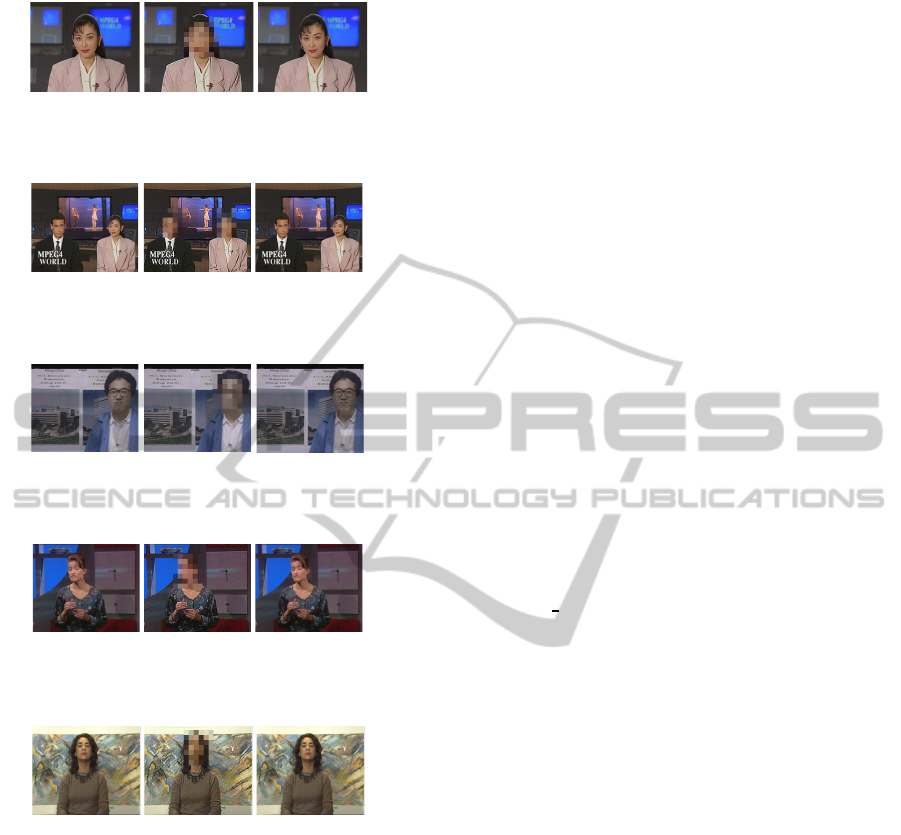

Figure 14: Akiyo -(1)Original, (2)Watermarked mosaic, (3)

Restored.

䝕䞊䝍

(2) (3)

(1)

Figure 15: News - (1)Original, (2)Watermarked mosaic, (3)

Restored.

䝕䞊䝍

(2)

(3)

(1)

Figure 16: Pamphlet - (1)Original, (2)Watermarked mosaic,

(3) Restored.

䝕䞊䝍

(2)

(3)

(1)

Figure 17: Sign-irene - (1)Original, (2)Watermarked mo-

saic, (3) Restored.

䝕䞊䝍

(2)

(3)

(1)

Figure 18: Silent - (1)Original, (2)Watermarked mosaic, (3)

Restored.

video. The PSNR was inﬁnity, and the SSIM was 1.

This result shows that the image is reversible. Thus,

these results demonstrate that the proposal meets the

second condition. Finally, the information for restor-

ing the mosaicked area was successfully encrypted,

satisfying the third condition.

5 CONCLUSIONS

In this paper, we described a technique to facilitate

the deterrence of crime with video surveillance while

ensuring privacy protection. In future research, we

shall consider the introduction of variable-length cod-

ing and frames other than I-frames, and we shall aim

to increase the processing speed with a hardware im-

plementation.

ACKNOWLEDGEMENTS

The authors would like to thank Junya Yamazaki for

his valuable contribution.

REFERENCES

Bradski, G. (1998). Real time face and object tracking as a

component of a perceptual user interface. In Applica-

tions of Computer Vision, 1998. WACV ’98. Proceed-

ings., Fourth IEEE Workshop on, pages 214–219.

Carrillo, P., Kalva, H., and Magliveras, S. (2009). Compres-

sion independent reversible encryption for privacy in

video surveillance. EURASIP Journal on Information

Security, 2009(1):429581.

Dufaux, F. and Ebrahimi, T. (2008). Scrambling for privacy

protection in video surveillance systems. Circuits and

Systems for Video Technology, IEEE Transactions on,

18(8):1168–1174.

Hoelzer, S. Mpeg-2 overview and matlab codec

project. http://www.cs.cf.ac.uk/Dave/Multimedia/

Lecture

Examples/Compression/mpegproj/ accessed

Jan,15,2015.

Li, G., Ito, Y., Yu, X., Nitta, N., and Babaguchi, N. (2009).

Recoverable privacy protection for video content dis-

tribution. EURASIP Journal on Information Security,

2009(1):293031.

Peng, F., wen Zhu, X., and Long, M. (2013). An roi pri-

vacy protection scheme for h.264 video based on fmo

and chaos. Information Forensics and Security, IEEE

Transactions on, 8(10):1688–1699.

Saini, M., Atrey, P., Mehrotra, S., and Kankanhalli, M.

(2014). W3-privacy: understanding what, when, and

where inference channels in multi-camera surveil-

lance video. Multimedia Tools and Applications,

68(1):135–158.

Xuan, G., Shi, Y. Q., Ni, Z., Chai, P., Cui, X., and Tong, X.

(2007). Reversible data hiding for jpeg images based

on histogram pairs. In Proceedings of the 4th Inter-

national Conference on Image Analysis and Recogni-

tion, ICIAR’07, pages 715–727, Berlin, Heidelberg.

Springer-Verlag.

Yu, X. and Babaguchi, N. (2007). Privacy preserving: Hid-

ing a face in a face. In Yagi, Y., Kang, S., Kweon, I.,

and Zha, H., editors, Computer Vision ACCV 2007,

volume 4844 of Lecture Notes in Computer Science,

pages 651–661. Springer Berlin Heidelberg.

Mosaic-basedPrivacy-protectionwithReversibleWatermarking

103
