An Automated Semantic Annotation Tool Supported by an Ontology in

the Computer Science Domain

Rodrigo Espinoza

1,2

and Andr

es Melgar

1,3

Grupo de Reconocimiento de Patrones e Inteligencia Artiﬁcial Aplicada,

Pontiﬁcia Universidad Cat

olica del Per

u, Lima, Peru

Especialidad de Ingenier

ıa Inform

atica, Facultad de Ciencias e Ingenier

ıa,

Pontiﬁcia Universidad Cat

olica del Per

u, Lima, Peru

Secci

on de Ingenier

ıa Inform

atica, Departamento de Ingenier

ıa,

Pontiﬁcia Universidad Cat

olica del Per

u, Lima, Peru

Keywords:

Semantic Annotation, Automated Annotation, Annotation Tool, Ontology, Automated Semantic Tool.

Abstract:

The annotation of documents can be performed manually, semi-assisted or automated, also it can use the help

of different knowledge resources as a set of rules or ontology. In this paper, we show the design of a semantic

annotation tool that works automatically on power in order to efﬁciently manage academic documents in

spanish produced in the university related to computer science. The tool uses an ontology annotations to

provide a corpus of documents the necessary attributes to be managed using other tools that use annotations as

searchers or indexers. This is done by relating the concepts found in documents with concepts in the ontology

performing semantic and syntactic comparisons, it is produced using open source tools for natural language

processing and knowledge management.

1 INTRODUCTION

The Web was designed to be understood by humans,

so most of the information it contains can be neither

understood nor processed by machines. This results

in problems in searching, organizing and maintaining

pages hosting. The Knowledge Management (KM)

problems in it are closely related to the size of the

Web; while there are more number of pages, searches

and information maintenance become worst (Berners-

Lee et al., 2001). This situation causes the upload of

redundant information every day, in consequence the

efﬁciency of Knowledge Retrieval (KR) in the Web

decreases. Also inefﬁcient searches generate a lot

of transactions, which saturates the global network,

it cause huge maintenance costs and forcing new so-

lutions on how to improve their infrastructure. On

the other hand, not being able to analyze the content

of the pages generate many problems in the transfer-

ence of knowledge (Studer et al., 2000). Knowing

the problems with the Web, the solution may be that

machines should be able to understand the resources

(pages) found on the Web, be able to process and ana-

lyze them to perform better searchs and classiﬁcations

based on the content of the pages. One way to do that

is to provide them with properly structured metadata,

that it have consistent information on the most impor-

tant concepts of the documents content by domain.

Metadata is information about the content of a docu-

ment, which facilitate processing by software agents

(Wolfe, 2000).

One of the resources capable of providing that en-

riched information to the pages are the semantic an-

notation tools that make use of ontologies. The goal

is to use metadata to annotate pages and documents

according to the information that they contain, that is

made using an ontology in the respective domain of

information from documents in question. The use of

ontologies allows us to unify a single concept in var-

ious heterogeneous representations. The analysis can

be done in a word or a phrase by linking the main

content of the page and the existing elements in the

ontology (Corcho, 2006).

This paper propose an automatic semantic annota-

tion tool that uses an ontology whose domain is com-

puter science. The tool will be used to semantically

annotate documents produced in university who be-

long to the domain of ontology. These annotations

allow other search tools and information management

promote the documents among the university commu-

Espinoza, R. and Melgar, A..

An Automated Semantic Annotation Tool Supported by an Ontology in the Computer Science Domain.

In Proceedings of the 7th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2015) - Volume 2: KEOD, pages 133-138

ISBN: 978-989-758-158-8

133

nity.

This paper is structured as follows: after this intro-

duction, we present the literature review about seman-

tic web, annotation, annotation with ontologies, meta-

data and natural language processing. Subsequently,

some related works are presented. In the following

sections the proposed semantic annotation tools is de-

scribed. Then, we present the developed prototype,

the results and the discussion. Finally, in the last sec-

tion, we present the conclusions and future works.

2 LITERATURE REVIEW

2.1 Semantic Web

Now what we call Web would become the syntac-

tic Web, which perform searches simply by ﬁnding

matches of words or phrases that we indicate. The

Semantic Web does not have the same nature, but

rather it is an extension of syntactic, it provides se-

mantic support to the content of the pages and that

allows both people and computers work together with

information from the Web (Berners-Lee et al., 2001).

This aggregate on pages is compounded for metadata

or meta-information that will allow machines to un-

derstand and process their content just like a human

would (Davies et al., 2003). Actually we can see KR

with the behaviour of the Semantic Web in corporate

intranets and information systems of large multina-

tionals, the information for these organizations is one

of their most important assets (Daconta et al., 2003).

But the Semantic Web goes beyond that enter-

prise’s beneﬁts, his goal is that knowledge can reach

all and use in the best possible way the computing re-

sources; economizing the Web and allowing it to ﬁnd

useful information without being redundant which is

a goal that will require hard work and commitment

of the entire community, although the beneﬁts that

would bring are incalculable (Daconta et al., 2003).

2.2 Annotation

They are a source of information that can be captured

in comments, notes, explanations referring to a docu-

ment or part of a document. They can be considered

external type if the do not modify the document or in-

ternal if they do. Conceptually, annotations are con-

sidered as metadata which we provide with informa-

tion about a piece of data (Meena et al., 2004). People

in the academic segment have been using the annota-

tions in books, papers, magazines. with various pur-

poses such as marking information that requires our

attention for future reviews, mark sections where ad-

ditional references are needed to understand its con-

tent, highlighting the most important text, annotate

any idea regarding what they read (Wolfe, 2000). An-

notations can be used to manage the content that is in

the Web pages, but not all of them are useful, for this

we need to have a level of formality. Following this

approach we can classify the annotations in formal

and informal annotations. Formal annotations have a

level of formality that ensures interoperability among

different agents. Theoretically these annotations are

more apt to be interpreted in the same way by differ-

ent consultation mechanisms, an example of this type

of annotation is a metadata would following speciﬁc

standards in structure and assigned their values using

conventional authorized names. On the other hand,

informal annotations would become notes or anno-

tations that you write in a book or article while you

read; these notes may have different utilities such as

reminders, quotes, reviews (Marshall, 1998).

2.3 Ontologies in Annotation

According to Gruber, to deﬁne what an ontology is,

we must ﬁrst understand the meaning of conceptu-

alization. Conceptualization can be deﬁned as an

abstract representation of a world we want to rep-

resent, namely representing existing objects or con-

cepts in certain areas and the relationships between

them. Therefore ontologies would become an ex-

plicit speciﬁcation of a conceptualization, namely in

a formal way (Gruber, 1995). For artiﬁcial intelli-

gence ontologies refers to a specialized vocabulary

for a certain domain of knowledge. Language could

be changed without affecting the ontology conceptu-

alization. Identify vocabulary and conceptualizations

requires a thorough analysis of the types of objects

and relations of their domain (Studer et al., 2000). Be-

ing able to manage a clear deﬁnition whatever the vo-

cabulary or who is using it is one of the reasons why

ontologies are becoming very popular in KR (Davies

et al., 2003). To the Semantic Web, ontologies are im-

portant to support the information seeking in the de-

limit the domain searches and reach sources that are

actually useful for the query being performed. They

also help in the reuse and classiﬁcation of information

and to be able to handle concepts in a clearer manner

regardless of the source or where agents come.

2.4 Metadata

Metadata is information about information, a part of

a secondary information refers to primary resource.

Examples of metadata include schema, integrity con-

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

134

straints, comments on the data, ontologies, quality pa-

rameters, comments, notes, sources and security poli-

cies (Srivastava and Velegrakis, 2007). In information

management, metadata is very useful to clarify the

information meanings, to prevent misunderstandings

and facilitate their handling and extraction. Another

aspect that favors their use is that they can be added to

a variety of documents on the Web, on our computers,

on physical books. Also it can be expressed in many

languages and vocabularies also be available in both

hard and electronic (Corcho, 2006). It offers great ad-

vantages in KR in the Web as providing formalization

to the contents of the annotated documents for facil-

itate their searching and sorting, also emphasize that

the metadata are very ﬂexible tools that can be eas-

ily understood by humans and by machines (Agosti

and Ferro, 2007). This ﬂexibility and simplicity in

their performance favors the use of annotation meta-

data using ontologies. They used together are espe-

cially useful in the semantic annotation because they

are easy to understand, simple to build and maintain,

and is easy to reach a consensus on the information

provided (Uren et al., 2006).

3 RELATED WORKS

Publications related to semantic annotation tools in-

clude the use of NLP for the treatment of various

information sources on the web (Joksimovic et al.,

2013). This used APIs for processing plain text and

then proceed to their respective semantic annotation

using a speciﬁc knowledge base. In (Chechev et al.,

2012) the API used was Gate an open-source frame-

work for NLP, but for reasons of language’s corpus, a

library that works best with the Spanish language will

be used. Respect to use of ontologies in (Pipitone and

Pirrone, 2010), using upper-level ontologies for real-

ization of semantic annotations is recommended. The

ontology will serve us to infer the semantic meaning

in previously processed texts. And as for the identi-

ﬁcation of the correct meaning for texts analyzed in

(Hotho et al., 2003), different strategies disambigua-

tion of terms which make use of ontologies and may

be useful in conjunction with other knowledge basis.

4 SEMANTIC ANNOTATION

TOOL

The proposed tool, seeks to facilitate the manage-

ment of academic papers produced at the university

through semantic annotations and ontologies. These

documents are in Spanish and mostly in PDF format.

The structure of the tool consists of 6 components (see

ﬁgure 1). Below is a brief description of each compo-

nent.

Annotations

Database

Ontology

Corpus

NLP

Module

User

Interface

Annotation

Module

Disambiguation

Module

Figure 1: Architecture of the Tool.

4.1 User Interface

It is basically a simple user interface which allows

load the ontology to be used, the documents that make

up the corpus will process and the connection infor-

mation for the database where the annotations will be

saved. The interaction between the user and the tool

will be minimal, because the annotations will be made

automatically.

4.2 NLP Module

This module is in charge of the ﬁrst processing per-

formed of the corpus to be annotated. His ﬁrst task is

to transform the contents of the corpus in plain text to

facilitate their treatment. Then, it will produce a list

of terms for each of the documents in the corpus. To

make this list, the plaintext obtained tokenization pro-

cess, separation of prayers and part-of-speech tagging

is submitted. The library that perform these processes

must have support for the Spanish language since the

NLP mechanisms vary depending on the language be-

ing analyzed. The terms obtained will be related to the

document from which they were extracted and will

work both with them and with their lemmas for easy

identiﬁcation with the concepts in the ontology.

4.3 Ontology

The structure of the ontology to be used is related

to the curricula of courses in college, this will allow

them to be used for different ﬁelds of study but in this

paper we will limit the ﬁeld of computer science. The

An Automated Semantic Annotation Tool Supported by an Ontology in the Computer Science Domain

135

ontology consists of 6 classes (see ﬁgure 2) according

to the organizational structure of the subjects taught

in college. These classes are:

• Concept. The most basic kind of ontology repre-

sents all concepts pertaining to courses.

• Learning Unit. Represents a speciﬁc topic con-

taining a set of concepts.

• Program of the Course. It consists of learning

units and represents the program of a course in a

given period of time.

• Course. Represents the courses at the university,

is composed of units of learning, for example:

Programming Languages I, Fundamentals of

Programming.

• Department. Represents the department that dic-

tates the respective course.

• Faculty. Is composed of a set of departments.

Each of these classes contains the property Has

which indicates that it contains another class of lower

rank. Also for the Concept class have another prop-

erty called terms which contains explicit representa-

tions of it.

Concept

Course

Program

of the Course

Faculty

Department

Learning

Unit

Has

Figure 2: Hierarchy of the Ontology.

4.4 Disambiguation Module

This module would become the core of the tool, it

will link the terms obtained in the previous module

with the concepts of ontology. To make this task, it

use libraries to navigate between classes in the on-

tology. And to choose the right concepts, one of the

disambiguation strategy described in (Hotho et al.,

2003) were applied, it called disambiguation by con-

text. This strategy helps to deﬁne the correct concept

of a term according to a vicinity semantic concepts

(see ﬁgure 3). The process begins by ﬁnding the pos-

sible concepts of the term under review (would each

term extracted from the documents of the initial cor-

pus) in the ontology, then take as its vicinity con-

cepts belonging to the learning unit, analytical pro-

List of

Terms

Vicinity

Concept 1

Vicinity

Concept 2

Concept

Ontology

Figure 3: Disambiguation Process.

gram, course and faculty according to the unit Learn-

ing to which it belongs. Finally using the property

in terms of concepts, be checked if the context of the

document where the term is obtained coincides with

the context belonging to the learning unit and course

concept. The concept chosen is determined by a merit

function based on the terms of matching. This process

is repeated for every term from the corpus and the out-

put will be a of concepts belong to the ontology.

4.5 Annotation Module

This module is responsible for assembling the anno-

tations based on the terms and concepts linked in the

phase of disambiguation. Those annotations will be

in RDF format and contain information on the con-

cept of the term, the learning unit concept,the ontol-

ogy on which was built and the document to which it

belongs.

4.6 Annotations Database

The last proposed module is responsible for the per-

sistence of annotations made on processed corpus.

They will be in a relational database which can be

used for queries on semantic annotation of documents

produced in the University. This technology is cho-

sen because it is easy to use and it would be difﬁcult

to transform the metadata stored in it whether it is in

RDF format or another markup language.

5 TOOL IMPLEMENTATION

In the implementation of the tool we use open-source

resources in general. Java was used to create the in-

terface and for the interaction between the libraries

used. The library Apache Tika

was used to trans-

Apache Tika

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

136

form the content of the corpus to plain text. When al-

ready has the plain text, is subjected to corresponding

NLP tasks, to do that we use the Freeling(Padro and

Stanilovsky, 2012)

processing library because it has

excellent results in the analysis contained in the Span-

ish language. With the help of Freeling were able to

extract the terms of the corpus, which were limited

to nouns and adjectives to facilitate their relationship

with the concepts in the ontology, to have that rule

the extraction of terms is not limited to the domain of

knowledge ontology used.

Regarding the creation of ontology, Prot

e(Jain

and Singh, 2013)

tool was used because it was easy

to use and it have a lot of documentation. The inter-

action of ontology with the other components of the

tool was performed using the Jena

library and its en-

gine SPARQL(P

erez et al., 2006) for query language

with which navigate in the ontology to ﬁnd concepts

to assign to the terms. Finally the annotations will be

stored in RDF format in a relational database, in this

case a mysql engine was used.

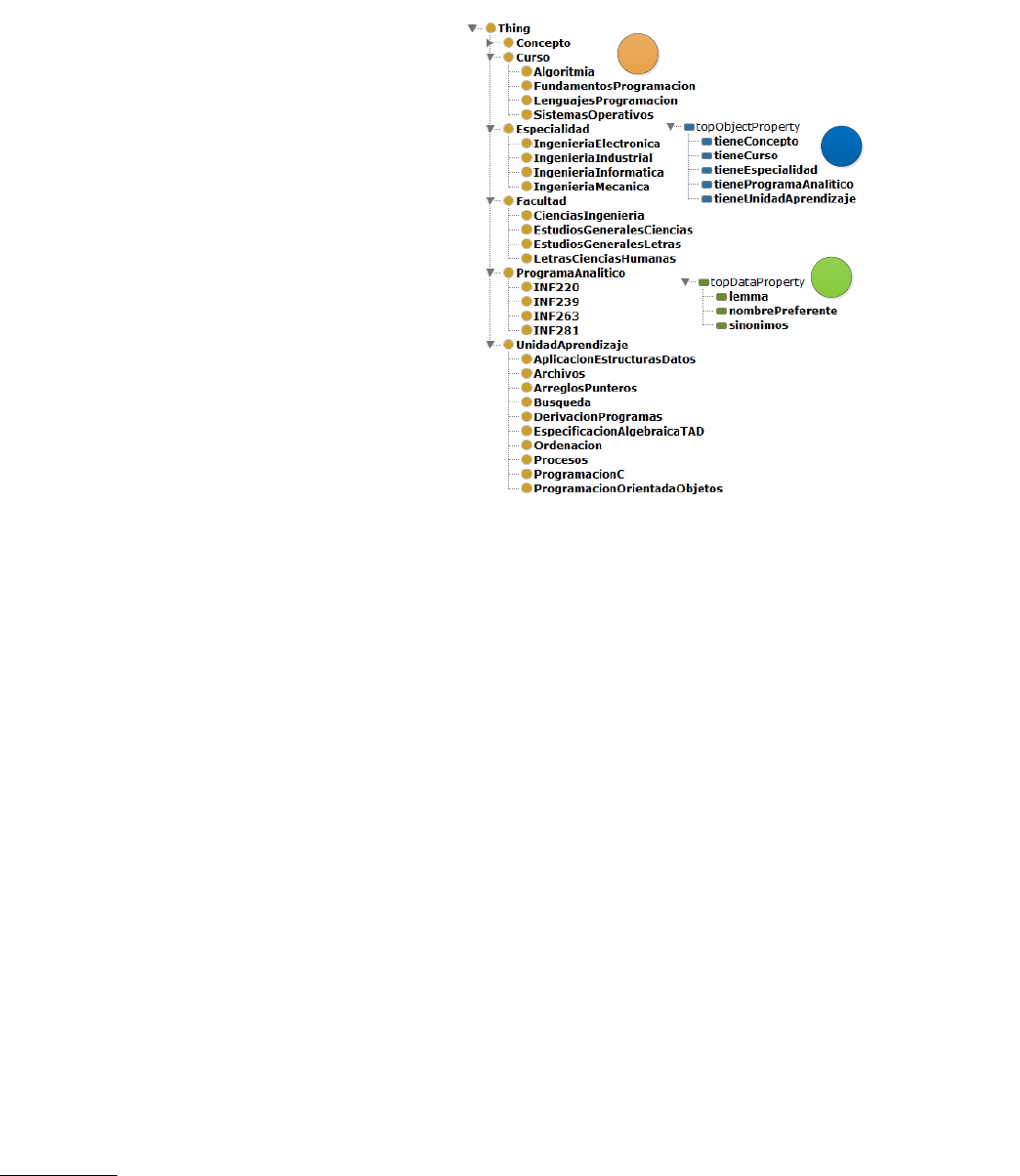

Figure 4-1 shows the main classes including:

Concepto (concept), Curso (course), Especialidad

(academic units), Facultad (faculty), Programa

Analitico (syllabus) and Unidad Aprendizaje

(learning unit). Because the ontology aims query ex-

pansion, we added the properties lemma, preferred

name and synonyms for all classes (see ﬁgure 4-3).

For example the Archivos (ﬁles in english) class, has

archivos (plural form of ﬁle in Spanish) as a preferred

name, archivo (singular form of ﬁle in Spanish) as

lemma and ﬁchero (synonym of ﬁle in Spanish) as a

synonym.

The object properties can be seen in the ﬁgure 4-2.

The main property is tieneConcepto (haveConcept).

This property, associates learning units with certain

concepts in the computer science domain. Through

this relationship is possible to perform QE. The other

properties allow linking other concepts. Learning

units are part of syllabus which in turn are made for a

speciﬁc course. The courses belong to one academic

unit that make up a speciﬁc faculty.

6 RESULTS

Tool tests were conducted with a corpus composed

of 20 documents produced at the university in the fac-

ulty of computer engineering. The processing of these

present some complications because some of these

http://nlp.lsi.upc.edu/freeling/

http://protege.stanford.edu/

https://jena.apache.org/

Figure 4: Ontology for CC Curricula.

were contained in Spanish and English, even some

words like shell and void is often used along with

the rest of the content in Spanish because they have

no exact translations in academic context. The is-

sue of language inﬂuences the efﬁciency of the phase

of NLP, because when English words are analyzed,

inferring that are in Spanish, you can take these as

nouns which would render the remaining tasks of the

tool those terms. However, queries using ontology fa-

cilitate the debugging process much of terms thanks to

the efﬁciency of the engine used in SPARQL queries.

To cite a few examples, in Spanish there are words

with different meanings like DERIVACI

ON (in En-

glish derivation), which is related to grammar, math-

ematics and algorithms. The efﬁciency of the tool

will measure based on the values of precision and re-

call on concepts that could be identiﬁed in the corpus.

Their values are calculated based on the number of re-

trieved concepts that are semantically to the term, the

recovered concepts that do not correspond and con-

cepts that could not be retrieved from the corpus. The

concepts recovered in the corpus of 20 papers were

133, with a value of 81 of precision and 86 of recall .

The texts used were taken to test students in college.

7 CONCLUSION

About development of the tool we can conclude that

his accuracy depends on the efﬁciency of the libraries

An Automated Semantic Annotation Tool Supported by an Ontology in the Computer Science Domain

137

used in the phase of NLP as well as the strategy dis-

ambiguation of words used when choosing the best

concept to translate into an annotation. Also the

language adds a bit of difﬁculty, which when we

are working in languages like English have more re-

sources than when we work in Spanish. It is also

worth noting the structure of the ontology which al-

lows its extension to other subjects or areas of study

within the university. Finally, the proposed architec-

ture is designed so that we can use other resources

both to analyze the corpus as the creation and interac-

tion of other sources of knowledge than an ontology.

8 FUTURE WORKS

In the development of this tool, we focus on an on-

tology of the domain of computer science but domain

knowledge used can vary, as the language of the cor-

pus we process. The architecture of this tool is de-

signed to work with any type of ontologies and other

strategies disambiguation of words to help us perform

automatic annotations. Could improve tool perfor-

mance enhancing NLP phase and testing new strate-

gies disambiguation of words.

REFERENCES

Agosti, M. and Ferro, N. (2007). A formal model of anno-

tations of digital content. ACM Transactions on Infor-

mation Systems (TOIS), 26(1):3.

Berners-Lee, T., Hendler, J., Lassila, O., et al. (2001). The

semantic web. Scientiﬁc american, 284(5):28–37.

Chechev, M., Gonz

alez, M., M

arquez, L., and Espa

na-

Bonet, C. (2012). The patents retrieval prototype in

the molto project. In Proceedings of the 21st inter-

national conference companion on World Wide Web,

pages 231–234. ACM.

Corcho, O. (2006). Ontology based document annota-

tion: trends and open research problems. Interna-

tional Journal of Metadata, Semantics and Ontolo-

gies, 1(1):47–57.

Daconta, M. C., Obrst, L. J., and Smith, K. T. (2003). The

semantic web: a guide to the future of XML, web ser-

vices, and knowledge management. John Wiley &

Sons.

Davies, J., Fensel, D., and Van Harmelen, F. (2003). To-

wards the semantic web. Ontology-Driven Knowledge

Management. Chichester.

Gruber, T. R. (1995). Toward principles for the design of

ontologies used for knowledge sharing? International

journal of human-computer studies, 43(5):907–928.

Hotho, A., Staab, S., and Stumme, G. (2003). Ontologies

improve text document clustering. In Third IEEE In-

ternational Conference on Data Mining, pages 541–

544. IEEE.

Jain, V. and Singh, M. (2013). Ontology development and

query retrieval using prot

e tool. International Jour-

nal of Intelligent Systems and Applications (IJISA),

5(9):67.

Joksimovic, S., Jovanovic, J., Gasevic, D., Zouaq, A.,

and Jeremic, Z. (2013). An empirical evaluation of

ontology-based semantic annotators. In Proceedings

of the seventh international conference on Knowledge

capture, pages 109–112. ACM.

Marshall, C. C. (1998). Toward an ecology of hypertext an-

notation. In Proceedings of the ninth ACM conference

on Hypertext and hypermedia: links, objects, time and

space—structure in hypermedia systems: links, ob-

jects, time and space—structure in hypermedia sys-

tems, pages 40–49. ACM.

Meena, E., Kumar, A., and Romary, L. (2004). An exten-

sible framework for efﬁcient document management

using rdf and owl. In Proceeedings of the Workshop

on NLP and XML (NLPXML-2004): RDF/RDFS and

OWL in Language Technology, pages 51–58. Associ-

ation for Computational Linguistics.

Padro, L. and Stanilovsky, E. (2012). Freeling 3.0: Towards

wider multilinguality. In Proceedings of the Language

Resources and Evaluation Conference (LREC 2012),

Istanbul, Turkey. ELRA.

erez, J., Arenas, M., and Gutierrez, C. (2006). Semantics

and complexity of sparql. In The Semantic Web-ISWC

2006, pages 30–43. Springer.

Pipitone, A. and Pirrone, R. (2010). A framework for au-

tomatic semantic annotation of wikipedia articles. In

6th Workshop on Semantic Web Applications and Per-

spectives.

Srivastava, D. and Velegrakis, Y. (2007). Intensional asso-

ciations between data and metadata. In Proceedings

of the 2007 ACM SIGMOD international conference

on Management of data, pages 401–412. ACM.

Studer, R., Decker, S., Fensel, D., and Staab, S. (2000).

Situation and perspective of knowledge engineering.

Knowledge Engineering and Agent Technology, pages

237–252IOS.

Uren, V., Cimiano, P., Iria, J., Handschuh, S., Vargas-Vera,

M., Motta, E., and Ciravegna, F. (2006). Semantic an-

notation for knowledge management: Requirements

and a survey of the state of the art. Web Semantics:

science, services and agents on the World Wide Web,

4(1):14–28.

Wolfe, J. L. (2000). Effects of annotations on student read-

ers and writers. In Proceedings of the ﬁfth ACM con-

ference on Digital libraries, pages 19–26. ACM.

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

138
