The Web Integration & Interoperability Layer (WIIL)

Turning Web Content into Learning Content using a Lightweight Integration and

Interoperability Technique

Sokratis Karkalas, Manolis Mavrikis and Patricia Charlton

London Knowledge Lab, UCL Institute of Education, University of London, London WC1N 3QS, U.K.

Keywords:

Learning Management Systems, Learning Platforms, Interoperability, Integration.

Abstract:

This paper presents a technique that enables integration and interoperability of web components with learning

platforms. This technique is proposed as a lightweight alternative to IMS LTI and OpenAjax and is especially

suited to simple client-side widgets that have no back-end dependencies and potential security risks. The

technique has already been used successfully in an experimental learning platform to provide data generated

by various heterogeneous components for intelligent support and learning analytics.

1 INTRODUCTION

Educators have always been trying to take advantage

of technology affordances of their time and introduce

innovative approaches in their teaching. One ma-

jor component of teaching and learning is the devel-

opment and delivery of courseware material. Since

TCP/IP and the advent of WWW a multitude of sys-

tems emerged as precursors of modern Learning Man-

agement Systems (LMS). Systems like TrainingPart-

ner (by GeoMetrix)

, Teachers Toolbox and Interac-

tive Learning Network (by CourseInfo)

and ASAP

(by ePath Learning)

attempted to leverage the po-

tential of new technologies and offer efﬁcient organi-

sation, management and dissemination of teaching re-

sources. The appearance of modern LMSs like Moo-

dle

, Blackboard

, Sakai

and ANGEL Learning

and the development of standards like SCORM

changed radically the educational landscape (Bohl

et al., 2002). In the 00s the level of acceptance and

adoption started to dramatically increase and the LMS

established itself as the dominant technology for more

than a decade. Nowadays LMSs are mature and cur-

http://www.trainingpartner.com/

http://en.wikipedia.org/wiki/CourseInfo

http://www.epathlearning.com/services/lms/

https://moodle.org/

http://uki.blackboard.com/sites/international/globalmaster/

https://sakaiproject.org/

http://www.angellearning.com/community/higher ed.html

http://www.adlnet.gov/scorm.html

rent implementations are stable, robust and reliable

but that is just one side of the coin. LMSs ended

up being treated like any other large-scale enterprise-

wide application (Severance et al., 2010). The

primary concern gradually shifted from education-

related issues to considerations like system stability

and reliability. As a consequence of that the process

of integrating new functionality and instructional con-

tent became more difﬁcult (Severance et al., 2010).

The new challenge now is the ability to balance inno-

vation with stability. The solution for stability was a

shift to an architectural approach that offers the ability

to decouple functionality into independent and self-

sufﬁcient components that interoperate via standard-

ised communication protocols potentially over a net-

work (Gonz

alez et al., 2009). Innovation is empow-

ered by the ability and the freedom to combine poten-

tially heterogeneous learning components into forma-

tions that offer new and unique learning experiences.

The solution employed for the stability problem led to

the development of a new market for learning compo-

nents. These components are typically fully-ﬂedged

web-based applications equipped with their own in-

frastructure in terms of security and operations and

able to provide their services as stand-alone appli-

cations. The need for these applications to integrate

with LMSs without sacriﬁcing stability led to the de-

velopment of standards like the IMS Learning Tools

Interoperability (LTI) speciﬁcation and OpenAjax

This is deﬁnitely a step forward but educators are

http://www.openajax.org/index.php

Karkalas, S., Mavrikis, M. and Charlton, P..

The Web Integration & Interoperability Layer (WIIL) - Turning Web Content into Learning Content using a Lightweight Integration and Interoperability Technique.

In Proceedings of the 7th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2015) - Volume 2: KEOD, pages 139-146

ISBN: 978-989-758-158-8

139

still ﬁnding development in LMSs too restrictive for

their purposes (Mott, 2010). LMSs are designed to

be very controllable and well-structured. That makes

them very efﬁcient in supporting administrative func-

tions but relatively inﬂexible in supporting student-

centered learning scenarios. Nowadays, educators see

learning platforms as highly customisable mashup ap-

plications that don’t necessarily impose prefabricated

and static teaching-centered material to students. Ed-

ucators want the freedom to easily develop forma-

tions of components that are available on the web and

make them part of their educational practice with lit-

tle or no conﬁguration overhead in a way that resem-

bles systems like (Gurram et al., 2008). This is a

browser-based application composition environment

and run-time that simpliﬁes development on top of ex-

isting complex systems. This new trend leads to sys-

tems that deviate from the basic LMS norm. These

systems are called Personal Learning Environments

(PLE) (Severance et al., 2008) or Personal Learn-

ing Networks (PLN) and are expected to be used in

conjunction with LMSs. Another, more radical ap-

proach is the Open Learning Network (OLN) (Mott,

2010) that uniﬁes both worlds in a single platform.

The logic behind these systems is radically different

and promises greater ﬂexibility, portability, adaptabil-

ity and openness but the stringent and expensive to

implement processes of LTI still remain and have to

be used even when practically they have nothing to

offer.

In this paper we propose a new lightweight tech-

nique that can be used instead of LTI and OpenA-

jax for integration and interoperability of web com-

ponents with learning platforms. This technique pro-

vides learning content authors the ability to utilise

any type of web component with minimal devel-

opment and administrative overhead. Furthermore,

it promises robustness, better functionality and efﬁ-

ciency in every respect.

2 MOTIVATION

This work started as part of the MCSquared project

(EU-funded). The purpose of this project is to design

and develop an intelligent digital environment that en-

ables authoring and utilisation of creative books (c-

books). These are e-books that offer interactivity over

rich media content and enhance creativity of mathe-

matical thinking. The platform is deployed as a web-

based application and features a ﬂexible authoring en-

vironment that supports the dynamic integration of

web components at design time. These components

may be specialised learning widgets or any other type

of component that provides a basic API and is avail-

able on the web.

A typical component of that category has the follow-

ing characteristics:

1. It is deployed either as an individual widget or as

a part of a JavaScript library that offers a logically

interrelated collection of tools.

2. It is freely available and no copyright or license

issues abide. Potential users are free to execute,

copy, amend and distribute the software.

3. It offers an API through which its functionality

can be made available to the users. Through this

API it is possible to load, initialise, get/set its state

and intercept user/system interactions with it.

4. It executes in the browser and there are no depen-

dencies on back-end components.

5. It may include a visual part to be presented as part

of the page.

6. There is no registration requirement for the com-

ponent to be used.

7. It is hosted in a public Content Delivery Network

(CDN) or it is downloadable and able to be hosted

locally.

8. There is no ability to amend the implementation

of the component. It is not possible or feasible

to change its source and make it compatible with

a potential host or extend it with some interoper-

ability method remotely.

The motivation for this work was to devise a method

that provides seamless integration of web compo-

nents with the platform, with minimal technical sup-

port and administrative overhead. The method should

be able to support efﬁcient two-way communication

with no server round trips (network trafﬁc and back-

end dependencies) and the implementation should be

lightweight enough in order not to burden excessively

the browser. The interface for this communication

should be generic and able to support any type of stan-

dard like the W3C widget interface

or non-standard

widget-speciﬁc interfaces. Cross-widget communica-

tion should be safe but not artiﬁcially constrained. It

should be up to the implementer to decide what is ex-

posed from widget interfaces and how it can be used

by the rest of the system. In this work we are not

concerned with general architectural issues regarding

distribution of learning widgets for the web (Wilson

et al., 2007; Wilson et al., 2008). Issues like widget

packaging, deployment and description are beyond

the scope of this project.

http://www.w3.org/TR/widgets-apis/

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

140

The considerations that played a crucial role in this

discussion can be summarised as follows:

1. Component heterogeneity: Nowadays the

plethora of these components in the web is over-

welming. There components are disparate and

heterogeneous and their exposed APIs are always

dissimilar. Integration with a platform requires

a technique that is generic and independent of

widget-speciﬁc functionality. The method should

be able to overcome variability by providing a

very simple interface, usable by any type of com-

ponent.

2. Platform compliance: Another consideration

is the potential to re-use the method in future plat-

forms as well. The method should not be depen-

dent on platform-speciﬁc functionalities and id-

iosyncrasies.

3. Registration: The integration process should

not require the execution of protracted and cum-

bersome procedures. It should be possible to reg-

ister the component with the platform with mini-

mal effort and technical expertise.

4. Communication: Once the component is embed-

ded in the platform, it should be relatively easy

and inexpensive (in terms of resource utilisation

and complexity) to exchange messages with its

host. Passing messages should be based on a con-

nectionless communication protocol and rely on

system stability at both ends of the channel.

5. Roles: A crucial question is whether it is accept-

able to consider the host (platform) and the guest

(component) nodes as two equal entities in this

relationship. In this case, implementation is sim-

ple and can be used globally by both sides in the

same way. In the case that host and guest need

to be treated unequal, the method should be based

on the assumption that there are certain host and

guest-speciﬁc functionalities that must be imple-

mented. If this is deemed unnecessary, it obvi-

ously must be avoided.

6. Browser security restrictions: Modern

browsers are not very tolerant with pages that in-

termix content from different domains and most

web components will most likely originate from

foreign domains. The method should be able

to overcome security constraints and browser-

speciﬁc idiosyncrasies.

7. Performance: Building a system as a dynamic

and arbitrary collection of heterogeneous compo-

nents, implies that these entities have their own

space and distinct purpose in the system. It makes

sense for these components to be able to operate

in parallel and communicate asynchronously with

the platform. In multi-processor systems this is

not just a matter of asynchronous behaviour, but

it can also make a huge difference in the overall

performance of the application.

8. Memory: Memory footprint is becoming a serious

issue in browser-based fat-client implementations.

The interoperability part must not be a substantial

burden in the memory balance.

9. Security: Security is always a major issue when

integrating foreign and potentially non-trusted

components with a system. The tendency is to

create integration methods with artiﬁcial barriers

in order to prevent developers from making dan-

gerous mistakes. This approach obviously may

have a major impact on the functionality that is

eventually exposed and reused. The method in

this project should allow for maximum ﬂexibil-

ity in terms of what is exposed and what is not.

It should allow both secure containment of unsafe

material and unrestricted exposure of data and op-

erations wherever needed. It should be up to the

designer/developer to decide what is secure and

what is not.

3 THE METHOD

The method devised can logically be thought of as a

combination of two parts: communication protocol

and node interfacing. The terms we use to identify

the interoperable parts (nodes) are host and guest. The

nodes are treated as equals and two-way unrestricted

communication between them is assumed. The imple-

mentation is based on a thin JavaScript wrapper that

abstracts the node implementation from its interface

and encapsulates its internal speciﬁcs. The wrappers

provide the ability to selectively externalise any part

of the nodes’ functionality in a generic way. The func-

tionality is exposed through the deﬁnition of a public

interface that maps internal implementations to pub-

licly available methods. These methods can then be

callable by the communicating parties through mes-

sage passing.

3.1 Browser Security

A major challenge when integrating content from dif-

ferent domains over the web is the Same-Origin

Policy (SOP) enforced by all modern browsers. This

is a policy that aims to prevent unauthorised access to

conﬁdential information by malicious scripts and thus

protect data integrity.

A simple solution to the problem is to reference

the components directly as JavaScript libraries in the

The Web Integration & Interoperability Layer (WIIL) - Turning Web Content into Learning Content using a Lightweight Integration and

Interoperability Technique

141

host page. The origin in this case is deﬁned by the

location of the containing page. Therefore, even if we

have to load multiple components from various ori-

gins, the ﬁles will eventually run in the origin of the

page that includes them. The biggest problem with

this scenario is the possible use of mixed content in

the case of ﬁles coming from both secured (HTTPS)

and non-secured (HTTP) origins. Behaviour in this

case is browser-dependent and typically problematic.

Another problem is that code, regardless of origin,

will run under the same context as a single-threaded

application. Performance-wise this is not desirable.

The third issue is code organisation. Intermixing code

from different sources in the same global namespace

is a potential risk. Accidental name clashes that inval-

idate data are not uncommon problems in this case. In

conclusion this method is obviously not an option.

Another method for performing cross-origin

requests is JavaScript Object Notation with

Padding (JSONP). This is essentially a hack based

on the premise that JavaScript code referenced di-

rectly from a page, eventually runs in the origin of

that page. This method presupposes a great deal of

control over the component source and JSONP-aware

services. It also suffers from most of the problems

mentioned above. For these reasons this approach is

inadequate for our purposes. A third method (that is

also a hack) is to circumvent the policy by not mak-

ing any cross-origin requests at all. This apparently

requires an extra logical tier in the system that re-

sides at the server side. Requests are sent to a server-

side proxy that has the same origin as the page. This

approach is cleaner than the previous ones but re-

quires an extra server-side component which makes

it somewhat cumbersome. Another alternative is

to use Cross-origin Resource Sharing (CORS).

The assumption again is that we have access over

the server processes and we can overcome SOM by

adding an HTTP header in the response. This header

can then instruct the browser not to consider the call

a SOM violation. Apart from the previously men-

tioned issues, this approach has the additional prob-

lems of potential browser incompatibility and header

removal by ﬁrewalls. Modern browsers have the abil-

ity to bypass SOP by making calls to WebSocket ad-

dresses. In this case it is the WebSocket server that

does the security checks and allows the caller to re-

ceive an answer or not. Server dependencies and other

obvious problems make this approach equally inade-

quate as the above. A ﬁfth method is to use iframes

by explicitly declaring in JavaScript that the nodes

have the same origin. This can be done by setting

the property document.domain to the same domain

name at both ends. A system called Subspace (Jack-

son and Wang, 2007) is using this technique to imple-

ment cross-domain communication for web mashup

applications. The actual behaviour depends on the

browser and another problem is that resetting the do-

main property may not have the expected result. A

typical problem is that the port number may be set

to null (empty) by that process. Implementation is

again browser-dependent.

The only method that overcomes all of the above

obstacles is to embed the component in a sandbox

and communicate through HTML5 messaging. In

HTML terms this can be a common iframe element

that hosts a separate page containing the external li-

brary. The component is kept isolated in the sandbox

and executes in its own context as a separate applica-

tion. That provides the advantages of code safety and

parallel execution. The component interoperates with

its host through a messaging system inherently sup-

ported by HTML5 (J

arvinen, 2011). Concurrency is

maintained by asynchronous message passing at ei-

ther direction. Execution and data interchange take

place entirely in the browser and there is no network

and server overhead involved.

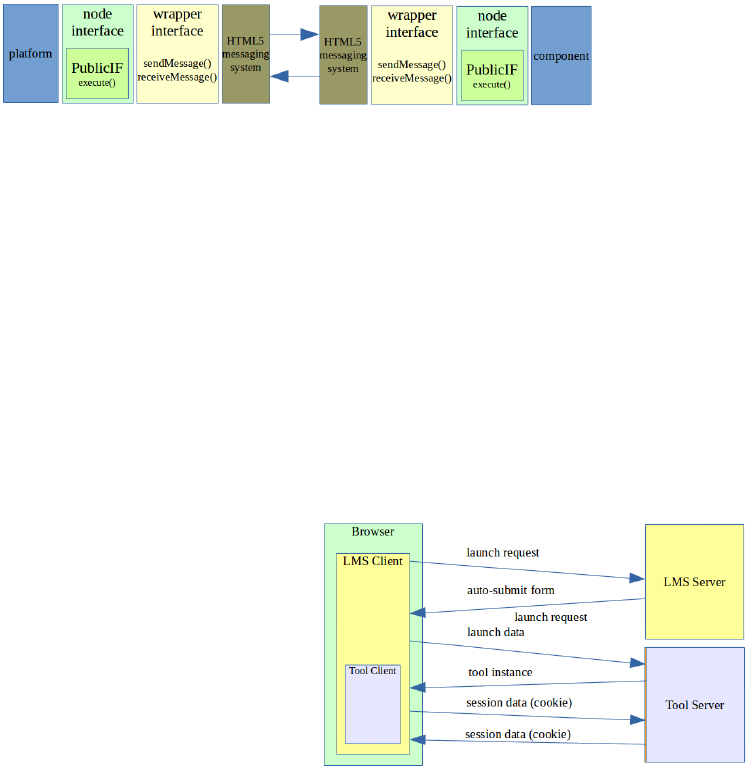

3.2 Interfacing

As explained above, node diversity is hidden within a

wrapper. The wrapper provides a very generic inter-

face through which basic communication can be car-

ried out. The interface comprises the following two

functions:

• sendMessage(message)

• receiveMessage(event)

This system provides the ability for two-way com-

munication between the host and the guest. In both

cases the data is sent in the form of a message ob-

ject. The only difference is that in the latter case the

message is received as a property of an event object.

Message passing in the HTML5 system is carried out

using events.

The format of the message object follows:

• origin: This property serves as the unique identi-

ﬁer of the component that sends the message. It is

not the same as the homonymous property of the

event object that carries it when in transit. The lat-

ter corresponds to the domain of the sender. This

property is just some text that uniquely identiﬁes

the component in the system.

• content: This property can contain data of any

type. The purpose in this case is to send some

data and let the receiver decide what to do with it.

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

142

• command: This is an instruction (command) that is

possibly sent along with some data in the form of

arguments. The intention in this case is to utilise

receiver-speciﬁc functionality and perform some

processing there. This functionality is exposed

in the form of a public interface that the receiver

makes available to other communicating parties.

The command can only be given as a string

(text).

• args: This is an array of values that accompany

the command. These values are addressed to a

method of the receiver’s public interface. That

method is what the command property refers to.

• callback: This is a string value (text) that cor-

responds to a function exposed in the public in-

terface of the sender. The receiver, upon receipt

of the message, performs the requested operation

and then sends the resulting value as argument to

the callback function of the sender. This prop-

erty permits the asynchronous continuation of the

same logical process in the sender after a remote

call in the receiver is completed.

This message gives the ability to either pass some data

to another node for internal consumption or instruct

the other node to execute a function (remotely) and

possibly send back the results. Since the communi-

cating parties do not have direct access to each other’s

APIs, the instruction (command) can only be sent in

the form of text. The receiving wrapper uses this text

to identify the actual function that needs to be called

and request the operation.

A message object is not valid if:

• command is not a string

• args is not an array

• callback is not a string

• both content and command are not given

• args is given without a command

• callback is given without a command

The above validation rules are enforced by wrappers.

Components by their nature are expected to be very

diverse in terms of functionality. As a consequence

of that their interfaces are expected to be heteroge-

neous. On the other hand platform - widget interop-

erability should be based on a standardised uniform

way of communication. The solution to this problem

is to enable interprocess communication through the

above message objects. Instead of extending the ba-

sic interface presented above with more functions, we

pass method names and parameters as properties of

messages. By using this technique we keep a simple

and uniform interface that facilitates basic communi-

cation for any type of node (component or platform)

and at the same time we accommodate the utilisation

of the nodes’ particular functionalities without con-

straints.

According to the above system every wrapper

must deﬁne an object called publicIF that exposes

the node’s particular functionality to the rest of the

world. This functionality can be utilised locally by

calling this object’s public member methods. The

same methods can also be called remotely through

a special executor method that is also provided by

publicIF. If, for example, there is a method called

add(a, b) that performs addition, this method can be

called in two ways:

locally: publicIF.add(a, b)

remotely: publicIF.execute({’command’:’add’,

’args’:[a, b], ’callback’:’log’})

The only argument of the executor is the message ob-

ject described above. The information about the ac-

tual function to be executed, its arguments and the

callback is given as properties of the object.

3.3 Communication Protocol

The communication protocol for platform - widget

communication doesn’t have to be particularly com-

plex. There are four communication scenarios that

can possibly take place:

a. The guest wants to inform the host about its avail-

ability. This message is supposed to be sent immedi-

ately after the guest loads up and is fully functional

within its page. The message follows:

content: ’ready’

command: null

args: null

callback: null

b. The node (guest or host) wants to send a message to

the other party without any instruction as to what the

receiver should do with it. This is a simple message

with some content (like the previous one).

content: ’some content’

command: null

args: null

callback: null

c. The node (guest or host) wants to use a service

provided by the other party. That entails the execution

of a remote method. An answer may be required as

well. The message looks like the following in this

case:

content: null

command: ’add’

The Web Integration & Interoperability Layer (WIIL) - Turning Web Content into Learning Content using a Lightweight Integration and

Interoperability Technique

143

Figure 1: The interfacing stack.

args: [2,3,4]

callback: ’display’

The receiver is expected to perform the operation and

return the result to the caller (enclosed within another

message). The new message takes the form of another

function call to the caller’s display function.

d. The node (guest or host) wants to send some data

and instruct the receiver explicitly what to do with the

data. That, again, entails the execution of a remote

method. The data is send as an argument for the re-

mote method to be executed. The message would look

like the following in this case:

content: null

command: ’logActions’

args: [{action1},{action1},..,{actionN}]

callback: null

It is, of course, up to the implementer of the integra-

tion to decide what the protocol should be able to do.

In the scenario presented above the assumption is that

once the guest becomes fully functional, an uninter-

ruptible (HTML5) communication channel becomes

available. If the host knows that the guest exists and

is available, then it is safe to assume that the guest

will remain available throughout the whole session.

But that may not be true if the guest crashes or the el-

ement holding the sandbox is removed from the host’s

DOM for some reason. The communication protocol

could be used in a less connection-less manner in this

case and check for availability at certain time inter-

vals.

3.4 Component Installation

Third-party components are typically considered ex-

ternal to an application and therefore an installation

is required prior to their use. This type of process

can take many forms in web-based applications. In

Moodle, for example, plug-ins must physically be-

come part of the application codebase. If the compo-

nent is hosted externally and is LTI-compliant, there

is a registration process that provides conﬁguration

parameters and a method of authentication (OAuth).

Conﬁguration parameters typically include the URL

referencing the tool, the user credentials under which

a trust relationship can be established (consumer key

and shared secret in Moodle) and launch instructions.

Our system is designed to work with external non-

LTI-compliant components. Installation is much sim-

pler and registration is more lax since authentication

is not required. A mutual trust relationship can be

established by injecting the trusted foreign domain

names to the nodes.

3.5 Component Launch

The LTI Launch protocol can be a long-winded pro-

cess for non-LTI-compliant components. Making a

simple client-based web component LTI-compliant

just for the sake of making it interoperable with the

platform is an overkill. The LTI launch process is de-

picted in ﬁgure 2.

Figure 2: The LTI launch protocol.

The tool is selected by the user in the LMS environ-

ment (browser). The LMS server prepares the neces-

sary information for the launch as a HTML form and

sends it back to the browser. Upon arrival the form

gets automatically submitted to the tool. The user

gets authenticated and the tool provider sends back a

tool instance. After that, session information is main-

tained in cookies during server roundtrips.

If the component does not include any native

server-side logic, then according to the LTI launch

protocol, some server-side code must be introduced.

The self-submitting form that contains launch infor-

mation is sent to the server through a POST HTTP

method. There has to be something at the back-end to

receive and process the values. Apart from the extra

processing tier, this method entails unnecessary net-

work trafﬁc.

In our system, the launch protocol is much sim-

pler. The tool is invoked by the user in the LMS en-

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

144

vironment and a request is sent to the tool provider.

An instance of the tool is returned and loaded into

the guest’s DOM. The guest informs the host that the

tool is ready to be used and the host sends a message

with initialisation data. After that the tool sends data

updates whenever user activity is detected. The pro-

cess does not involve any server-side processing and

network trafﬁc is not incurred. After instantiation the

tool communicates with its host locally through mes-

sage passing.

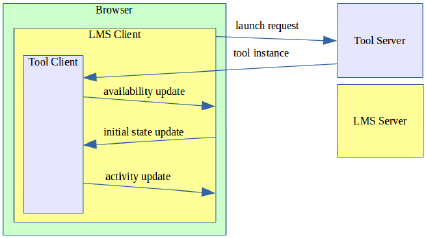

Figure 3: A simpler launch protocol.

3.6 Cross-component Communication

Typically the framework used for this part does not

deviate a lot from the basic principles of OpenA-

jax. In the OpenAjax world cross-component com-

munication takes place through managed or unman-

aged hubs. A component may take the role of a pro-

ducer that publishes messages to the hub and/or a

consumer that subscribes to receive messages from

the hub. The hub is designed around the concept of

anonymous broadcasting. Producers and consumers

are not aware of each other. Point-to-point messag-

ing, cross-component property management and re-

mote procedure calls are not inherently supported.

In the approach proposed here communication be-

tween components is possible only through the plat-

form’s wrapper. In that respect this wrapper plays the

role of a hub. Components live in their own secure en-

vironment (sandbox) and exchange information with

the platform through message passing. This is where

the similarities end.

An important difference is that the platform itself

is a component. In this case communication is direct

and unrestricted. System integrators are allowed to

expose a widget functionality (or part of it) and make

it available to its host and vice versa. Components

are able to exchange messages and to make remote

procedure calls. Property management is also pos-

sible through the same mechanism. Communicating

parties are fully aware of each other’s exposed func-

tionality and are free to utilise it. A distinguishing

feature of this system is the ability to asynchronously

execute a logical process in the sender after a remote

procedure call is completed.

4 A WORKED EXAMPLE

In this section we present a sample application that

demonstrates a basic but complete integration sce-

nario. The guest in this case is a page that hosts a

learning activity developed in Geogebra. The host

is just a simple page that coordinates the operations.

The wrapper of Geogebra in the guest registers a few

event handlers and intercepts user interactions with

the tool. In this activity the student uses the slid-

ers to change values in variables. User activity data

along with the current state of the construction are

sent through the wrappers to the host.

updateObjectHandler = function(object)

{

var args={’object’:object,’action’:’updated’};

var message =

createMessage(null,’logAction’,[args],null);

sendMessage(message);

}

The only thing that needs to be done in the host is to

implement and expose a function that processes the

input data.

//private method

function logAction(action)

{

database.log(action);

}

//public method

publicIF.logAction = logAction;

The actual data is received in the form of an event

object but the wrapper transparently handles unpack-

aging of the content and delivers the data directly to

the requested method.

The host inserts the data into a local JavaScript

database that is linked to visualisations on the page.

As the student interacts with the tool and the data

changes in the database, the host displays real-time

user activity/performance statistics in histograms.

The visualisations are themselves separate widgets

hosted in their own guest sandboxes and communi-

cate with the host using the same system.

One additional feature of this implementation is that

the host analyses the data dynamically using a rule-

based expert system and provides real-time intelligent

support to the student. If the student achieves some-

thing that seems to be leading to the correct direction,

the host displays a message to reinforce this attempt.

The Web Integration & Interoperability Layer (WIIL) - Turning Web Content into Learning Content using a Lightweight Integration and

Interoperability Technique

145

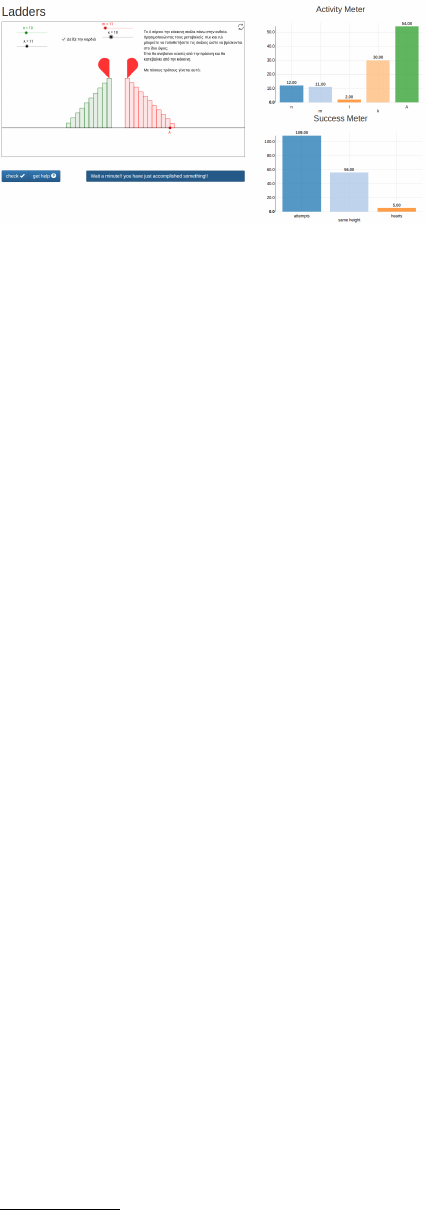

Figure 4: The ’Ladders’ Activity from Geogebra Tube.

The student can also ask for help and check whether

the objective has been accomplished or not. All this

processing uses data coming dynamically through the

interoperability sub-system.

5 CONCLUSION

The technique presented in this paper has been used

in an experimental system that was developed as part

of the EU project MC2

at London Knowledge Lab,

IOE UCL

. Preliminary test results showed that the

method works as expected and fulﬁls the original de-

sign goals. The method deals effectively with com-

ponent heterogeneity and seamlessly integrates dis-

parate components into a seemingly homogeneous

whole. Registration, instantiation and initialisation

of these components is simple and efﬁcient. Op-

eration is safe and the system performs well when

the components asynchronously communicate with

the platform. The method overcomes browser secu-

rity restrictions and the overhead in terms of mem-

ory and processing power needed is minimal. It is

estimated that the experimental implementation has

successfully processed so far approximately 37,000

events. Sample tests showed that messages are being

exchanged with 0% loss at a speed that allows a very

smooth interaction between different components. In

future versions of the system we envisage to imple-

ment an on-line editor that simpliﬁes the integration

process by inserting wrapper boilerplate code to the

nodes and by providing the ability to visually manip-

ulate them.

ACKNOWLEDGEMENTS

The research leading to these results has re-

ceived funding from the European Union Seventh

http://www.mc2-project.eu

http://www.lkl.ac.uk

Framework Programme (FP7/2007-2013) under grant

agreement N

◦

610467 - project ”M C Squared”. This

publication reﬂects only the author’s views and the

EU is not liable for any use that may be made of the

information contained therein.

REFERENCES

Bohl, O., Scheuhase, J., Sengler, R., and Winand, U. (2002).

The sharable content object reference model (scorm)-

a critical review. In Computers in education, 2002.

proceedings. international conference on, pages 950–

951. IEEE.

Gonz

alez, M. A. C., Penalvo, F. J. G., Guerrero, M. J. C.,

and Forment, M. A. (2009). Adapting lms architec-

ture to the soa: an architectural approach. In Internet

and Web Applications and Services, 2009. ICIW’09.

Fourth International Conference on, pages 322–327.

IEEE.

Gurram, R., Mo, B., and Gueldemeister, R. (2008). A web

based mashup platform for enterprise 2.0. In Web

Information Systems Engineering–WISE 2008 Work-

shops, pages 144–151. Springer.

Jackson, C. and Wang, H. J. (2007). Subspace: secure

cross-domain communication for web mashups. In

Proceedings of the 16th international conference on

World Wide Web, pages 611–620. ACM.

arvinen, H. (2011). Html5 web workers. In T-111.5502

Seminar on Media Technology BP, Final Report,

page 27.

Mott, J. (2010). Envisioning the post-lms era: The open

learning network. Educause Quarterly, 33(1):1–9.

Severance, C., Hanss, T., and Hardin, J. (2010). Ims learn-

ing tools interoperability: Enabling a mash-up ap-

proach to teaching and learning tools. Technology, In-

struction, Cognition and Learning, 7(3-4):245–262.

Severance, C., Hardin, J., and Whyte, A. (2008). The

coming functionality mash-up in personal learning

environments. Interactive Learning Environments,

16(1):47–62.

Wilson, S., Sharples, P., and Grifﬁths, D. (2007). Extend-

ing ims learning design services using widgets: Initial

ﬁndings and proposed architecture.

Wilson, S., Sharples, P., and Grifﬁths, D. (2008). Distribut-

ing education services to personal and institutional

systems using widgets. In Proc. Mash-Up Personal

Learning Environments-1st Workshop MUPPLE, vol-

ume 8, pages 25–33.

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

146
