An Efficient and Secure Mutual Authentication Mechanism in

NEMO-based PMIPv6 Networks: A Methodology and Simulation

Analysis

Sirine Ben Ameur

, Salima Smaoui

, Faouzi Zarai

, Mohammad S. Obaidat

and Balqies Sadoun

LETIlaboratory, University of Sfax, Sfax, Tunisia

Computer Science and Software Engineering Department, University of Monmouth, NJ 07764, West Long Branch, U.S.A.

College of Engineering, Al-Balqa’ Applied University, Hay Al-Mayamin, As Salt, Jordan

Keywords: Network Mobility, Proxy Mobile IPv6, Security, AVISPA.

Abstract: Currently, Network Mobility (NEMO) Basic Support protocol enables the attachment of mobile networks to

different points in the Internet. It permits session continuity for all nodes in the mobile network to be

reachable as the network moves. While this standard is based on the MobileIPv6 standard, it inherits these

disadvantages such as security vulnerabilities. To manage the problems of NEMO, many schemes combine

it with a network-based approach such as Proxy Mobile IPv6 (PMIPv6). Despite the fact that this latter

expedites the real deployment of IP mobility management; it suffers from lack of security. Therefore, we

propose an Efficient and Secure Mutual Authentication Mechanism during initial attachment in NEMO-

based Proxy Mobile IPv6 Networks called EMA-NEMO based PMIPv6 in order to provide mutual

authentication between a mobile router and diameter server during initial attachment of the mobile router to

a PMIPv6 domain. Moreover, we evaluate the performance of our scheme using the Automated Validation

of Internet Security Protocols and Applications (AVISPA) software which has proved that authentication

goals are achieved.

1 INTRODUCTION

In the present Internet environment NEMO Basic

Support (V. Devarapalli et al., 2005) is a protocol

that enables mobile networks to attach to different

points in the Internet. This protocol is based on the

Mobile Internet protocol version 6 (MIPv6) (D.

Johnson et al., 2011). Consequently, it inherits its

disadvantages, such as lack of security and handover

latency. Many schemes in the literature (I. El

Bouabidi, et al., 2014; S. Smaoui et al., 2014; A.H.

A.Hashim et al., 2013) attempt to adapt layer 3

mobility protocols of a terminal for a Mobile

Network. Unlike, host-based mobility management

schemes such as MIPv6 and Hierarchical MIPv6

(HMIPv6) (J. Kempf, 2007), a Network-based

Localized Mobility Management (NETLMM)

scheme (H. Soliman et al., 2008), like PMIPv6 (S.

Gundavelli et al., 2008), can expedite the real

deployment of IP mobility management.

Contrary to MIPv6, by using PMIPV6 the network

can be in charge of the mobility of mobile node, and

Mobility Access Gateway (MAG) entity can

recognize the mobility of L2 connection

information, and send the Proxy Binding Update

(PBU) message to the Local Mobility Anchor

(LMA) on behalf of the mobile node. Hence,

without any modifications to the host's TCP/IP

Protocol stack, the mobile node can change its point

of attachment to the Internet with the same IP

address

. At the same time, when the mobile node (in

our case mobile router) attaches to the MAG, the

deployment of security protocols on this link should

ensure that the network-based mobility management

service is offered only after the authorization and

authentication of the mobile node to that service.

Authors in (S. Gundavelli et al., 2008), assume that

there is an established trust between the mobile node

and the MAG before the protocol operation begins.

However, they do not specify how this is achieved.

As a first step, we study the security issues related to

the PMIPv6 protocol (C. Vogt and J. Kempf, 2007).

We can conclude that there are many threats in the

link between the MR and the MAG.

After carefully analyzing various pieces of related

schemes, we found that the standard in (J. Korhonen

Ben Ameur S., Smaoui S., Zarai F., S. Obaidat M. and Sadoun B..

An Efﬁcient and Secure Mutual Authentication Mechanism in NEMO-based PMIPv6 Networks: A Methodology and Simulation Analysis.

DOI: 10.5220/0005580200130021

In Proceedings of the 5th International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH-2015),

pages 13-21

ISBN: 978-989-758-120-5

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

Figure 1: Architecture of EMA-NEMO based PMIPv6.

et al., 2008) gives an example of interaction between

different network nodes. This example is based on

Extensible Authentication Protocol (EAP). In

addition, it uses the Diameter EAP Application for

signaling exchanges between the MAG and the

HAAA. The LMA uses the Network Access Server

Requirements (NASREQ) Diameter Application to

authorize the MN with the HAAA server.

At present, several EAP methods are available, but

only a few of them are standardized by the Internet

Engineering Task Force (IETF). Among these, we

can mention the EAP-MD5-Challenge, which is

described in (B. Aboba, 2008) and based on the

Challenge Handshake Authentication Protocol

(CHAP) (W. Simpson, 1996). Despites it does not

require a lot of resources for treatment, it is

acknowledged as vulnerable to dictionary and brute

force attacks. In addition it is a unilateral method.

A second method named Extensible Authentication

Protocol Transport Layer Security (EAP-TLS) (D.

Simon et al., 2008) based on a password associated

with a user name or an identity was proposed. This

method offers a good level of security since it allows

mutual authentication between the client and the

server. However, the major disadvantage is that it

relies on Public Key Infrastructure (PKI) for client

and server’s certificate management. In fact, the PKI

is extremely expensive and complex and is not very

well applicable to the mobile context.

As a third method we mention the Extensible

Authentication Protocol Authentication and Key

Agreement (EAP-AKA) used in the 3rd generation

mobile networks such as Universal Mobile

Telecommunications System (UMTS). It is based on

symmetric keys. This method presents also several

vulnerabilities as declared in (Y.E.H.E. Idrissi et al.,

2012; A. H. Hassanein et al., 2013; B. Yu et al.,

2014; H. Mun et al., 2009). Among these

vulnerabilities, we mention the disclosure of the

International Mobile Subscriber Identity (IMSI)

since on the first connection; the user equipment

(UE) must send his permanent identity to the AAA

server. Therefore, an attacker can abuse the IMSI

and seizes a legal subscriber’s identity. A man in the

middle attack is also present in the EAP-AKA

protocol. In fact, when the UE and the AAA server

successfully authenticate each other, an EAP

Success message including the MSK key must be

sent to the Access Point (AP) and the UE without a

previous authentication for this AP. Consequently,

this MSK key can be received by an attacker who

impersonates the AP and then sends a forged key to

the UE or sends this legal key to an unauthorized

UE. The list of vulnerabilities of EAP-AKA

continues with the possibility of disclosure of the all

procedure of EAP-AKA. Indeed, only one

symmetric key K is used for the generation of the

session keys. Therefore, the disclosure of this key

brings to the disclosure of all the procedure. For

These reasons, and based on the security solutions in

(J. Korhonen et al., 2008), we propose in this paper

to establish trust relationship between PMIPv6

domain (especially MAGs) and the MR node using

diameter server. We have attempted to authenticate

and authorize the MR before allowing it to access to

the PMIPv6 network in order to eliminate the threats

on the interface between the MAG and the MR.

SIMULTECH2015-5thInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

The rest of this paper is structured as follows.

Section 2 describes our proposed scheme for initial

authentication of NEMO in PMIPv6 domain. Then,

section 3, analyses the security aspect of the

proposed scheme and evaluates it using the AVISPA

and SPAN software. Finally, section 4 concludes the

paper.

2 PROPOSED PROTOCOL:

EMA-NEMO BASED PMIPv6

Based on the given signaling flow example during

PMIPv6 using the AAA interactions in the standard

(J. Korhonen et al., 2008), we proposed our protocol

named Efficient and Secure Mutual Authentication

Mechanism in NEMO-based PMIPv6 Networks

(EMA-NEMO based PMIPv6).

2.1 Architectural Components and

Terminologies

In this paper, we focus on the authenticationmethod

used under the network evaluation of integration of

NEMO supporting mobility and network-based

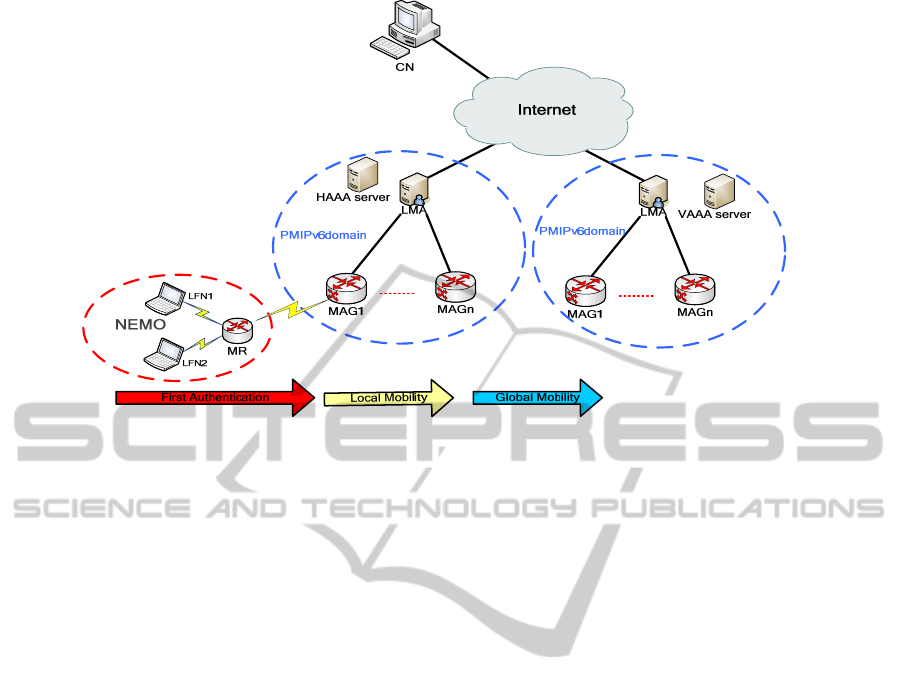

PMIPv6. Our architecture,is illustrated in Figure 1,

and structured as follows:

• Mobile Networks includes:

-Two Locals Fixed Nodes (LFN) that have no

mobility support stack. All handover will be

treated with a transparent manner.

-A mobile router (MR) which acts as a gateway

between LFNs and PMIPv6 entities.

• Proxy Mobile IPv6 Domain includes:

-Local Mobility Anchor (LMA) which is like a

Home Agent (HA) for the mobile router in a

PMIPv6 domain. It is the topological anchor

point that manages the mobile router's binding

state.

-Mobile Access Gateway (MAG) is a function

on an access router that manages mobility-

related to signaling for the mobile router.

• Diameter server based on Authentication,

Authorization, and Accounting (AAA)

properties:

-Home AAA server (HAAA), is responsible for

Authentication, Authorization, and Accounting

of network entities.

2.2 Hypothesis and Notations

In our protocol, we assume the existence of the

following keys:

• PSK: Pre-Shared Key shared between HAAA

and MR,

• ShK

LMA/HAAA

: Shared key between HAAA

and LMA,

• ShK

MAG1/LMA

: Shared key between MAG1

and LMA,

• KPubS: Public key of the HAAA.

Our scheme is described with the notation

summarized in Table 1 shown below.

Table 1: Notations used in the proposed scheme.

Notation Description

|| Concatenation operation.

A nonce genereted randomly by i

IDx Identity of a node x.

{M}

Encrypted message M using the key K.

Autn

Authentication token, generated by

node X.

SQN Sequence number

F1,F2,F3,

F4,F5

These functions are used to generate

fields used during an authentication

session, the choice of their algorithm is

specific to the operator.

2.3 Proposed EMA-NEMO

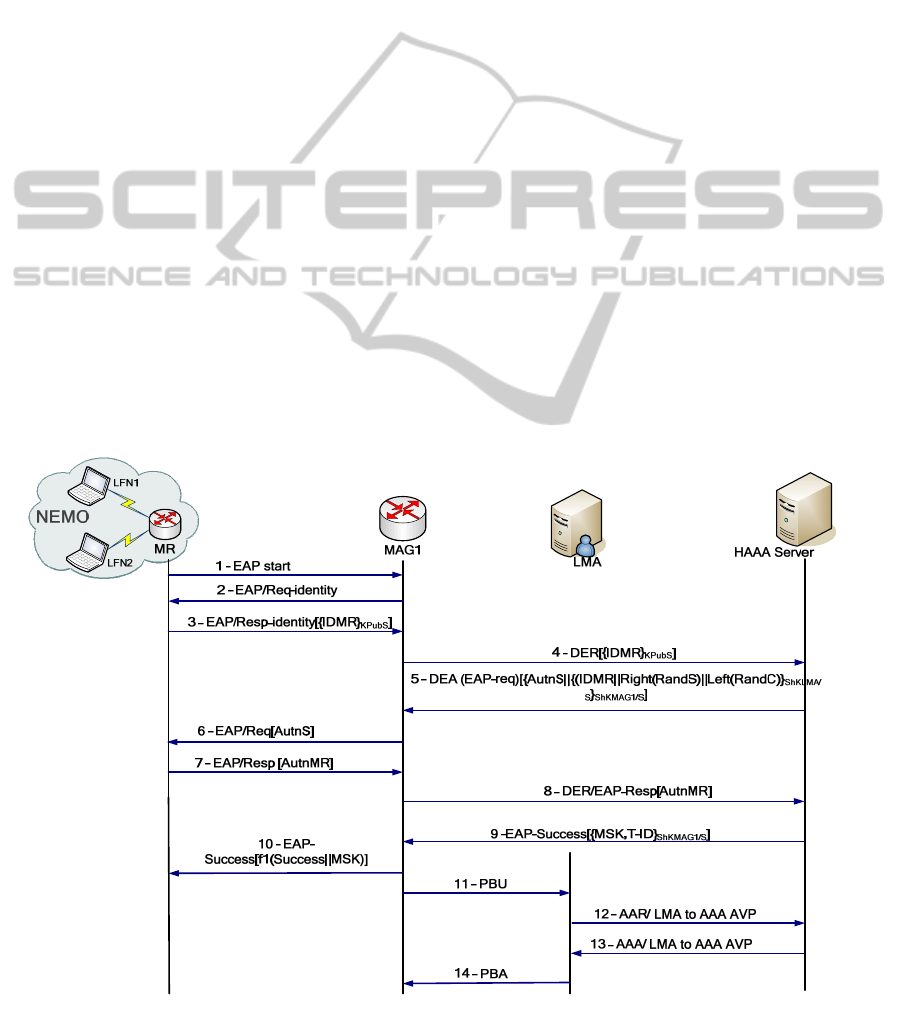

As show in Figure 2, our solution describes the

scenario of first authentication of the MR in a

PMIPv6 domain.

Step 1: MR MAG1: EAP start

Firstly, the MR sends a message named EAP start

(Extensible Authentication Protocol. We can use the

EAPOL “Over LAN” message) to initiate the

authentication.

Step 2: MAG1MR: EAP/Request-Identity

In the second step, the MAG asks for the MR

identity.

Step 3: MRMAG1: EAP/Response-Identity; {ID

LF1

|| ID

LF2

||SQN || N

|| ID

}KPubS || MAC

In the third step, the link layer identity of the MR

(IMSI or MAC address) is encrypted, with generated

Random (N

) and sequence number (SQN), using

the public key of the server.

This message must contain the list of the LFNs

identifiers linked to the MR.

And to prevent attacks against integrity, we can add

a Message Authentication Code (MAC = F1(PSK||

LF1

|| ID

LF2

||SQN || N

|| ID

In the next authentication, the MR must send the

temporary identity computed based on the (IMSI or

AnEfficientandSecureMutualAuthenticationMechanisminNEMO-basedPMIPv6Networks:AMethodologyand

SimulationAnalysis

MAC address) concatenated with the N

generated

in this authentication.

Step 4: MAG1HAAA: DER; (ID

LF1

|| ID

LF2

||SQN

|| N

|| ID

)KPubS ||MAC

After receiving the EAP/Response-Identity message,

the MAG transfers the encrypted field and integrity

code to the server using Diameter-EAP-Request

message.

Step 5: HAAA  MAG1: DEA (EAP-request);

{AutnS|| {SQN||(T-ID

= F5(ID

||N

))

||(Right(N

)||Left(N

)}ShK

LMA/HAAA

}

ShK

MAG1/HAAA

When the server receives the message from MAG1,

it:

 Decrypts the encrypted field and verifies the

MR identity (ID

) and its subscription

information for authentication,

 Then, verifies the integrity of the received

fields and executes the synchronization

procedure using the SQN value.

 Next, it generates a new nonce (N

 It computes the authentication token (AutnS)

field, when AutnS = MAC ||{ID

||IDs||N

}

. The server uses the Message

Authentication Code (MAC=F1(PsK||N

))

field to improve the integrity of the nonce

generated, and it uses an encryption key

=F2(PsK||N

) against brute force attack.

 Computes an encrypted field using the shared

key between the LMA and the server. This

field will be used in step 11 to improve that

the MR is authenticated via the MAG1 node.

 Finally, it sends a Diameter-EAP-Answer

(DEA)

Step 6:MAG1MR: EAP-Request

The MAG1 transmits the AutnS field to MR.

Step 7: MRMAG1: EAP-Response

When the MR receives the message from MAG1, it:

 Computes the encryption key EK1,

 Decrypts the encrypted field using EK1 and

verifies its identity and the identity of the

server, then it authenticates the server,

 Keeps the nonce (NS) and verifies its

integrity by checking the MAC value.

 Finally, it computes the AutnMR value and

sends it to the server via the MAG1 using

EAP-Response.

Autn

= F4(NSK|| ID

||ID

), when the NSK is a

new shared key between the MR and the server. This

key is used for the next authentication instead of the

key PSK against attacks.

NSK= F3(PsK||N

||N

)

Step 8: MAG1HAAA: DER

The MAG1 transmits the Autn

field to the server.

Figure 2: Initial authentication in PMIPv6 domain.

SIMULTECH2015-5thInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

Step 9: HAAAMAG1: DEA (EAP-Success);

When the server receives the message from MAG1,

it:

 Calculate the Autn’MR, then it verifies if

there are an equality between the calculated

and received field to authenticate the MR.

 If the MR is authenticated, the server must

computes a MSK key, and sends it to the

MAG1. These keys are used to encrypt data

and verify integrity of messages between MR

and MAG1 in this session.

Step 10: MAG1  MR; EAP-Success

(MAC = F1(Success field ||MSK))

Step 11: MAG1LMA: PBU; (SQN||(T-

||(Right(N

)||Left(N

)) ShK

LMA/HAAA

|| 0]

ShK

MAG1/LMA

When the MAG1 receives the DEA message, it

keeps the MSK key then transmits the EAP-Success

message with an MAC field using the MSK key.

At the same time, the MAG1 sends a PBU (Proxy

Binding Update) message to the LMA. This message

must include the field kept in the step 5 ({SQN||(T-

= F5(ID

||N

)) ||(Right(N

)||Left(N

)}

ShK

LMA/HAAA

) with the ID of the last MAG1 witch

the MR is attached. Since it is an initial

authentication (first attachment of the MR to the

network), and then this field must be set to zero.

Step 12: LMA HAAA: AAR;

Upon receiving the PBU message, the LMA:

 Decrypts the field encrypted with

theShK

MAG1/LMA,

 Then, notes that this is the first attachment of

MR to the network (If ID

MAG

field equal to

zero, then MR is not related to any node in

the network)

 Afterward, decrypts the field encrypted with

the ShK

LMA/AAA

to know the T-ID

MR.

 Finally, it sends an AA Request message to

the server to fetch the relevant parts of the

authorization information and subscriber

policy profile related to this mobility service

session. This message must contain the T-ID

encrypted using shared key between the

LMA and the server.

Step 13: HAAALMA: AAA;

The diameter server has the role of a Proxy MIPv6

remote policy store.

So, the server sends an AA Answer (AAA)

containing the authorization information and

subscriber policy profile related to the MR (ID

(Right (N

)||Left(N

)),Related MAG,…)

Step 14: LMAMAG1: PBA;

After verifying the equality between fields received

from the MAG1 and the server, the LMA sends a

proxy binding acknowledgment (PBA) to the

MAG1.

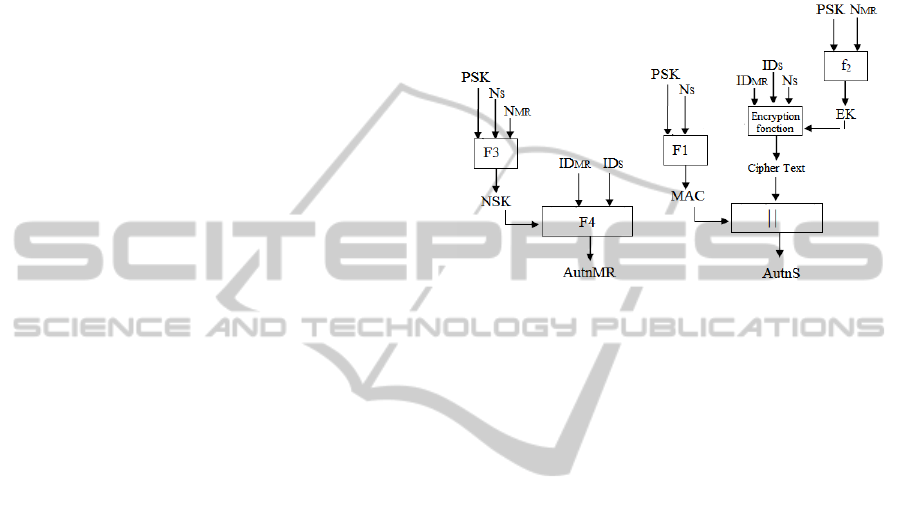

Figure 3, presents the composition of the

generated tokens of authentication.

Figure 3: Compositions of the Autn

and Autn

3 ANALYSIS AND

VERIFICATION OF THE

PROPOSED SCHEME

Providing an efficient and secure strong

authentication support is one of the critical

challenges in new wireless networks generations.

This is why our principal target in this paper is to

overcome the limitation of the first authentication

scheme between mobile router and PMIPv6 domain.

In this section, we present the security analysis of the

proposed scheme using the SPAN tool.

3.1 Security Analysis and Resistance

against Attacks

Our scheme is carefully designed to not only achieve

mentioned goal (strong authentication support) but

also to prevent against some typical attacks such as

reply attack and to guarantee confidentiality as well

as integrity of fields exchanged between network

nodes. In this subsection, we will enumerate the

enclosed security requirements of our proposed

scheme.

a. Authentication

In order to prevent spoofing attack, our

proposed scheme guarantees strong

authentication between HAAA and MR. When

the MR enters in PMIPv6 domain, a mutual

AnEfficientandSecureMutualAuthenticationMechanisminNEMO-basedPMIPv6Networks:AMethodologyand

SimulationAnalysis

authentication is performed through the Autn

and Autn

fields.

b. Confidentiality

In our scheme, we attempted to ensure the

confidentiality of critical fields:

 Shared keys

To ensure the secrecy of keys, we attempt to not

exchange them in the network. However, if this

is not possible, it is necessary to choose a secure

manner to share them.

• Using some elements exchanged, the MR

and the server should be able to calculate the

NSK using the flowing fields:

-The PSK initially shared between the MR

and the server

-The nonce N

calculated by the MR,

which must be sent encrypted

-The nonce N

calculated by the HAAA,

which must be sent encrypted.

• To exchange the MSK between HAAA and

MAG1, we use the shared key between

HAAA and MAG1. Whereas, the MR must

be able to compute this key using the

previous exchanged fields.

 Generated nonces

To exchange the nonce NMR and NS between

the MR and HAAA privately and therefore

avoid being modified by an attacker, MR sends

its generated nonce NMR encrypted with the

HAAA’s public key (KpubS) and the HAAA

server sends its generated nonce NS encrypted

with the computed key EK1.

c. Integrity

In order to verify the integrity of critical

exchanged fields, MAC is used. It protects

against falsification attack and validates the

authenticity of the sender node. Any malicious

node will not be able to modify the contents of

the exchanged fields specifically nonces (NMR,

NS) and response of the server in the end of the

authentication transition (Success or Failure).

d. Anti Replay attack resistance

In order to prevent the malicious effect of the

reply attack, sequence number (SQN) field is

integrated. This SQN is generated by the MR

node and it must be encrypted. So message is

considered only if the sequence number is in the

correct range.

e. Identity protection

In the first connection, unlike some EAP

protocols (like EAP-AKA) we use an encrypted

identity to be protected and not exposed to

attackers. In the next authentication, we assume

that the MR sends a Temporary identity

computed based on the (IMSI or MAC) and the

NS generated in this authentication. Besides,

the server will receive an encrypted new T-

IDMR in every re-authentication process.

Therefore, our solution provides a strong user

identity protection against identity related

attack.

f. Man in the middle attack protection

In our protocol, the encryption key EK1, is

randomly generated and no keys (MSK) are

transmitted in clear. Also, the identity of the

MR is encrypted. In addition, the critical fields

are protected by an MAC. Therefore our

protocol can resist against the man in middle

attack.

g. Brute force attack resistance

In general, a key which is used for a long time

can be under brute force attack.

For this reason, some items must be taken into

consideration:

Assume that the length of keys is long enough.

 Assume that the PMIPV6 entities domain

should change their shared keys

(ShKHAAA/MAG1, ShKHAAA/LMA)

periodically to reduce the probability of

hacking due to brute force attacks.

 Use of a new computed EK key for each

authentication.

 Refreshe the key PSK, in the next

authentication, using the generated nonce

NMR.

3.2 Security Screening of Proposed

Protocol using the AVISPA and

SPAN Software Tool

AVISPA (AVISPA, 2003; A. Armando, 2005) tool

provides the High Level Protocol Specification

Language (HLPSL) (2006) to specify concerned

protocols and formally validate them. Many security

protocols and systems are verified using AVISPA as

given in (Collections of Security Protocols).

a. Authentication

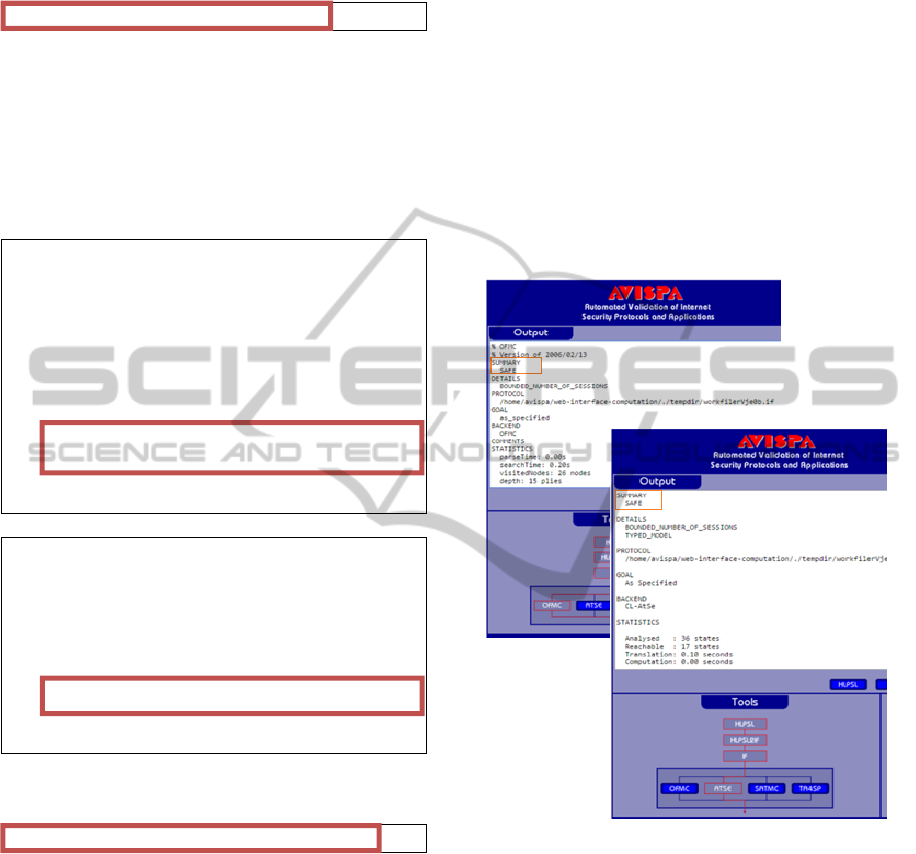

Using the AVISPA/SPAN tools, we are able to check

and verify the mutual authentication between MR

and HAAA server. Based on HLPSL language; we

use the witness and request events to verify the

authentication goal between MR and the server.

In general, the request event defines the

authenticator agent (A) and the authenticated agent

SIMULTECH2015-5thInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

(B) as the first and second arguments. Moreover, the

third argument (A_B) is used to associate the witness

and request predicates with each other and to refer to

them in the goal section. It should be declared as a

constant of type protocol_id in the top-level role.

Finally, the receiver (A) must make sure that the

fourth value (K) was indeed created by the sender

(B); it was created for it and that it was not replayed

from a previous session. To achieve this, we must

write a line like the following:

Request (A,B,A_B,K)

Every request event must be accompanied and

preceded by an accompanying witness event. In

addition, for our type of authentication (strong

authentication), no agent should accept the same

value more than once from the same partner of

communication. This is the definition offered by

Lowe’s notion of agreement (G. Lowe, 1997):

witness (B,A,A_B,K)

• HAAA authenticates MR:

When we write our code based on HLPSL

language we must add, in the role of the HAAA, the

following line:

Role S %server

…

8. State=1

RCV(der_eap_res(F4(F3(PsK.NS’.Nmr’).I

Dmr.IDS)))

=|> State':=2

Request

(S,MR,auth_1,F3(PsK.NS’.Nmr’))

The interpretation of this request is as follows.

The server requires that MR exists and agrees on the

value F3(PsK.NS.Nmr

)and also intend it to be

used for the protocol id auth_1.

Then, we must add the accompanying witness

predicate in role of MR, as part of the transition in

which the value F3(PsK.NS'.Nmr’) is sent to the

server as follows.

Role MR

…

6. State=2

RCV(eap_req({F1(PsK.NS').IDmr.IDS.NS'

}_F2(PsK.Nmr’)))

=|> State':=3

SND(eap_res(F4(F3(PsK.NS'.Nmr’).IDmr.

IDS)))

/\ request(MR,S,auth_2,NS')

witness(MR,S,auth_1,F3(PsK.NS'.Nm

r’))

The interpretation of this witness is as follows.

Agent MR asserts that we want to be the peer of

agent S(server), agreeing on the value

F3(PsK.NS'.Nmr’

) in an authentication effort

identified by the protocol_id auth_1.

Hence, in the goal section of the protocol, we add

the following lines:

authentication_on auth_1

• MR authenticates HAAA server

The same thing for MR, and also the same

explanations are repeated.

In the role of MR, we add the request event in the

corresponding position:

Role MR

…

6. State=2

RCV(eap_req({F1(PsK.NS').IDmr.IDS.NS'

}_F2(PsK.Nmr’)))

=|> State':=3

SND(eap_res(F4(F3(PsK.NS'.Nmr’).IDmr.

IDS)))

request(MR,S,auth_2, NS')

witness

(MR,S,auth_1,F3(PsK.NS'.Nmr’))

In the role of HAAA, we add the matching witness

event as follows.

Role S %sever

4. State=0

/\ RCV(der({SQN'.IDmr'.Nmr'}_KpubS))

=|> State':=1

/\ NS':=new()

/\ SND(

dea_eap_req({{F1(PsK.NS').IDmr'.IDS.N

S'}_F2(PsK.Nmr').{SQN'.F5(NS'.IDmr').

Right(Nmr').Left(NS')}_KlmaS}_KmagS))

witness(S,MR,auth_2,NS')

AnEfficientandSecureMutualAuthenticationMechanisminNEMO-basedPMIPv6Networks:AMethodologyand

SimulationAnalysis

Then, in the goal section of the protocol, we add the

following line.

authentication_on auth_2

a. Confidentiality and secrecy of keys

The secret event is the goal fact related to

confidentiality. For security goal, we are able to

check the secrecy of MSK key, generated nonces (N

and N

) and the SQN number among MR and

HAAA. We achieve this, generally, by placing such

secret facts in the role that creates the value that

should be secret.

Role MR

1. State=0

/\ RCV(start)

=|> State':=1

/\ SND(EAPpol)

2. State=1

/\ RCV(RequetID)

=|> State':=2

/\ Nmr':=new() /\ SQN':=new()

/\ secret(SQN',sec_1,{LMA,S,MR})

/\ secret(Nmr’,sec_2,{S,MR})

…

Role S

…

4.State=0

/\ RCV(der({SQN'.IDmr'.Nmr'}_KpubS))

=|> State':=1

/\ NS':=new()

/\ secret(NS',sec_3, S,MR})

And, in the goal section of our protocol, we must add

the following line.

secrecy_ofsec_1,sec_2,sec_3

b. Results and discussion

AVISPA and SPAN tools assume that all transitions

between nodes pass through an intruder. This

intruder tries to exploit given information that was

collected for constructing attacks against the

simulated protocol. In general, if one of security goal

is violated the used output tool shows that the

protocol is found unsafe. Then, the back-ends display

the violated goal, provide the attack trace and explain

the sequence of events leading up to the violation.

Else, if you show that the tool output has declared

that your protocol is found safe under specific goals,

these mean that no violation is found.

In our work, we validated our scheme using the On-

the-fly Model-Checker (OFMC) (D. Basin et al.,

2005), which performs the protocol analysis by

exploring the transition system in a demand-driven

way and the Constraint-Logic-based Attack Searcher

(CL-AtSe) (M. Turuani, 2006), which applies

constraint solving with powerful simplification

heuristics and redundancy elimination techniques.

The back-ends are called with the default options.

The tool outputs shown in Figure 4 shows that our

protocol has been found to be a safe scheme and that

no attack has been found. This means that the stated

security goals are successfully checked by the back-

ends.

Figure 4: OFMC and ATSE performance analysis results.

4 CONCLUSIONS

While the number of attacks within the network

increases, security has become an important a crucial

issue these days. For this reason, we are concerned in

this paper to propose a new method of authentication

based on EAP protocol in order to provide trust

between a mobile router and a PMIv6 domain. Our

proposed protocol has been modeled and validated

using the AVISPA software tool. After this

verification, we can confirm that our protocol has

achieved its main objectives. As a future work, we

SIMULTECH2015-5thInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

detail the necessary steps for the re-authentication of

MR within the same PMIPv6 domain when it

removes between different MAGs and the re-

authentication of MR between different PMIPv6

domains.

REFERENCES

V. Devarapalli, R. Wakikawa, A. Petrescu and P. Thubert,

“Network Mobility (NEMO) Basic Support Protocol”,

IETF, RFC 3963, January 2005.

D. Johnson, C. Perkins, and J. Arkko, “Mobility Support

in IPv6”, IETF, RFC 6275, July 2011.

I. El Bouabidi, S. Ben Ameur, S. Smaoui, F. Zarai and M.

S. Obaidat, L. Kamoun, “Secure macro mobility

protocol for new generation access network”,

International Wireless Communications and Mobile

Computing Conference (IWCMC), Nicosia, pp. 518–

523, 4-8 August 2014.

S. Smaoui, S. Ben Ameur, I. El Bouabidi, F. Zarai and

M.S. Obaidat, “Secure micro mobility protocol for

new generation wireless network”, International

Wireless Communications and Mobile Computing

Conference (IWCMC), Nicosia, pp. 895–900, 4-8

August 2014.

A. H. A. Hashim, W. H. Hassan, S. Islam, R. A. Saeed,

1M.K. Hasan, J I. Daoud and O. O. Khalifa”, An

Enhanced Macro Mobility Management Scheme in

NEMO Environment to Achieve Seamless Handoff”,

World Applied Sciences Journal (Mathematical

Applications in Engineering), Vol. 21, pp. 35-39,

2013.

J. Kempf, “Goals for Network-Based Localized Mobility

Management (NETLMM)”, IETF, RFC 4831, April

2007.

H. Soliman, C. Castelluccia, K. El Malki and L. Bellier

‘Hierarchical Mobile IPv6 Mobility Management

(HMIPv6)”, Network Working Group RFC 5380,

Standards Track, October 2008.

S. Gundavelli, V. Devarapalli, K. Chowdhury, B. Patil and

K. Leung, “Proxy Mobile IPv6”, IETF, RFC 5213,

August 2008.

C. Vogt and J. Kempf, “Security Threats to Network-

Based Localized Mobility Management (NETLMM)”,

IETF, RFC 4832, April 2007.

J. Korhonen, J. Bournelle, K. Chowdhury, A. Muhanna,

U. Meyer, “Diameter Proxy Mobile IPv6: Mobile

Access Gateway and Local Mobility Anchor

Interaction with Diameter Server”, IETF, RFC 5213,

August 2008.

B. Aboba, L. Blunk, J. Vollbrecht, J. Carlson and H.

Levkowetz, “Extensible Authentication Protocol

(EAP)”, IETF, RFC 3748, June 2008.

W. Simpson, “PPP Challenge Handshake Authentication

Protocol (CHAP)”, IETF, RFC 1994, August 1996.

D. Simon, B. Aboba and R. Hurst, “The EAP-TLS

Authentication Protocol,’’ IETF, RFC 5216, Mach

2008.

Y.E.H.E. Idrissi, N. Zahid, M. Jedra, “Security Analysis of

3GPP (LTE) – WLAN Interworking and A New Local

Authentication Method based on EAP-AKA”, Future

Generation Communication Technology (FGCT), pp.

137 – 142, 12-14 December 2012.

A. H. Hassanein, A. A. Abdel Hafez, A. E. H. A. Gaafar,

“New Authentication and Key Agreement Protocol for

LTE-WLAN Interworking”, International Journal of

Computer Applications,Vol. 61, No.19, pp. 20-24,

January 2013.

B. Yu, J. Zhang, Z. Wu, “Improved EAP-AKA Protocol

Based on Redirection Defense”, P2P, Parallel, Grid,

Cloud and Internet Computing (3PGCIC), 2014 Ninth

International Conference, pp. 543 – 547, 8-10

November 2014.

H. Mun, K. Han, k. Kim, “3G-WLAN Interworking:

Security Analysis and New Authentication and Key

Agreement based on EAP-AKA”, Wireless

Telecommunications Symposium, pp. 1-8, April 2009.

AVISPA: Automated validation of internet security

protocols and applications (2003) FET Open Project

IST-2001-39252. http://www.avispa-project.org/

A. Armando, D. Basin, Y. Boichut, Y. Chevalier, L.

Compagna, J. Cuellar, P. Hankes Drielsma, P.-C

Heam., O. Kouchnarenko, J. Mantovani , S.

Modersheim , D. von Oheimb, M. Rusinowitch, J.

Santos Santiago, M. Turuani, L. Vigano, and L.

Vigneron, “The AVISPA Tool for the automated

validation of internet security protocols and

applications”, In K. Etessami and S. Rajamani, editors,

17th International Conference on Computer Aided

Verification, CAV2005, Lecture Notes in Computer

Science, 3576, 281285, Edinburgh, Scotland, 2005.

HLPSL Tutorial available at http://www.avispa-

project.org/package /tutorial.pdf/ June 30, 2006.

Collections of Security Protocols, available at

http://www.avispa-project.org.

G. Lowe. “A hierarchy of authentication specifications”,

Proceedings of the 10th IEEE Computer Security

Foundations Workshop (CSFW’97), pp. 31–43, 1997.

D. Basin, S. Mödersheim, and L. Vigano, “OFMC: A

Symbolic Model-Checker for Security Protocols”,

International Journal of Information Security, Vol. 4,

No. 3, pp. 181-208, June 2005.

M. Turuani, “The cl-atse protocol analyser”, 17th

international Conference, on Term Rewriting and

Applications (RTA), USA, pp. 277-286 August 2006.

AnEfficientandSecureMutualAuthenticationMechanisminNEMO-basedPMIPv6Networks:AMethodologyand

SimulationAnalysis
