Visual Syntax of UML Class and Package Diagram Constructs as an

Ontology

Anitta Thomas

, Aurona J. Gerber

2,3

and Alta van der Merwe

School of Computing, University of South Africa, The Science Campus, Florida Park, South Africa

Department of Informatics, University of Pretoria, Pretoria, South Africa

Center for Artiﬁcial Intelligence Research (CAIR), CSIR Meraka, Pretoria, South Africa

Keywords:

Visual Syntax Speciﬁcation, UML Class Diagrams, UML Package Diagrams, OWL, Ontology, Ontology

Reasoner, Prot´eg´e.

Abstract:

Diagrams are often studied as visual languages with an abstract and a concrete syntax (concrete syntax is

often referred to as visual syntax), where the latter contains the visual representations of the concepts in the

former. A formal speciﬁcation of the concrete syntax is useful in diagram processing applications as well as

in achieving unambiguous understanding of diagrams. Uniﬁed Modeling Language (UML) is a commonly

used modeling language to represent software models using its diagrams. Class and package diagrams are two

diagrams of UML. The motivation for this work is twofold; UML lacks a formal visual syntax speciﬁcation

and ontologies are under-explored for visual syntax speciﬁcations. The work in this paper, therefore, explores

using ontologies for visual syntax speciﬁcations by specifying the visual syntax of a set of UML class and

package diagram constructs as an ontology in the Web ontology language, OWL. The reasoning features of

the ontology reasoners are then used to verify the visual syntax speciﬁcation. Besides formally encoding the

visual syntax of numerous UML constructs, the work also demonstrates the general value of using OWL for

visual syntax speciﬁcations.

1 INTRODUCTION

The prevalence of diagrams in our day-to-day lives

has led to much research interest in studying diagrams

(Peter Cheng and Haarslev, 2000). Formal speciﬁca-

tions of the syntax and semantics of diagrams are con-

sidered valuable in promoting unambiguous under-

standing of diagrams between humans andcomputers,

and computers and computers (Marriott et al., 1998).

As a knowledge representation tool, ontologies have

been successfully used to model domain knowledge

(Wyner and Hoekstra, 2012). However an investiga-

tion of the current literature indicates a gap in the use

of ontologies for the concrete syntax speciﬁcation of

diagrams. This work tries to address this gap by ex-

ploring the use of ontologies for the concrete syntax

speciﬁcation of diagrams.

The concrete syntax of a visual language describes

the visual layout of the diagrams that are part of

the language (Drewes and Klempien-Hinrichs, 2000),

where diagrams may have both graphical and textual

elements (Marriott et al., 1998) (Minas, 2006). This

syntax is essential for describing the visual language

(Minas, 2006) and it can be useful for applications

that support the automated generation and interpre-

tation of diagrams in such visual languages (Marriott

et al., 1998) (Minas, 2006). Such applications are par-

ticularly useful for visually impaired users who rely

on text instead of graphics for understanding and gen-

erating diagrams.

Uniﬁed Modeling Language (UML) is a visual

language that uses both text and graphical elements

(uml, 2012a). Class and package diagrams are two

types of UML diagrams (Moody and van Hillegers-

berg, 2009) used to represent a static structure of an

object oriented model (uml, 2012b). The constructs

of UML are standardized with a speciﬁcation, the

current version being UML 2.4.1 (uml, 2012a) (uml,

2012b). Although UML 2.4.1 speciﬁcation includes

the syntax and semantics of its constructs, it lacks a

formal representation of the visual syntax of its dia-

grams. Evidence of this lack is that the concrete syn-

tax (hereafter referred to as visual syntax) of UML

constructs is speciﬁed as textual descriptions of ac-

cepted notations along with sample ﬁgures only (uml,

2012a) (uml, 2012b). The lack of a formal visual syn-

Thomas, A., Gerber, A. and Merwe, A..

Visual Syntax of UML Class and Package Diagram Constructs as an Ontology.

In Proceedings of the 7th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2015) - Volume 2: KEOD, pages 17-28

ISBN: 978-989-758-158-8

tax representation is another motivation for consider-

ing UML class and package diagrams for visual syn-

tax speciﬁcation in this work.

A drawback with a lack of formal visual syntax

speciﬁcation is that even UML compliant tools could

generate UML diagrams differently, which can cause

confusion when users interpret them (Elaasar and

Labiche, 2011). As a visual representation tool, the

visual syntactical structure of UML diagrams should

be consistent irrespective of the tools that generated

it. The use of a formal visual syntax speciﬁcation in

UML tools is one way to ensure consistent rendering

of its diagrams. Moreover, given that non-compliant

UML tools can also generate visually valid UML di-

agrams, such tools can also make use of a formal vi-

sual syntax speciﬁcation to promote consistent view

of these diagrams.

Numerous techniques in different formalisms

such as grammatical, logical and algebraic have been

used for visual syntax speciﬁcations. Within the log-

ical formalism, Description Logics (DL) have also

been explored for visual syntax speciﬁcations (Mar-

riott et al., 1998). Although DL have inﬂuenced

the Web ontology language, OWL, (Horrocks et al.,

2003), the use of OWL ontologies itself for visual lan-

guage speciﬁcations is under-explored.

Given the fact that ontologies are under-explored

for visual syntax speciﬁcations and UML lacks a for-

mal visual syntax representation, the work in this pa-

per addresses these gaps by specifying the visual syn-

tax of selected constructs of UML class and package

diagrams as an OWL ontology. In particular, it spec-

iﬁes the visual syntax of a selected number of UML

constructs that are typically used in class and package

diagrams (uml, 2012b). The reasoning features of the

ontology reasoners are then examined to see how they

can be utilized to verify such a visual syntax speciﬁ-

cation.

The contribution of this research is threefold; it

provides a formal encoding of the visual syntax of se-

lected UML class and package diagram constructs, it

explores OWL for visual syntax speciﬁcations and it

explores the value of OWL reasoners to verify visual

syntax speciﬁcations. The latter two aspects entail

a generic contribution to the ﬁeld of visual language

speciﬁcation.

This paper is structured as following: section 2

provides background information to the work pre-

sented in the paper. This includes a brief introduction

to the research on visual languages, UML class and

package diagram constructs used in this paper, OWL

and qualitative spatial relationships used in this paper.

Section 3 brieﬂy presents related work to this research

study. Section 4 describes the visual syntax ontology,

which is the visual syntax speciﬁcation of the selected

UML class and package diagram constructs. Section

5 explores the reasoning features of the ontology rea-

soners that can be used to verify the visual syntax

speciﬁcation given in section 4. A possible enhance-

ment for the developed visual syntax speciﬁcation is

discussed in section 6. Section 7 concludes with a

summary, a reﬂection and the value of this work, and

future research.

2 BACKGROUND

This section includes brief background information

on various topics covered in this paper and places this

work within the existing work on visual languages.

2.1 Visual Languages

In Computer Science (CS), diagrams are studied as vi-

sual languages, where diagrams in a given visual lan-

guage follow a common syntactical structure (Drewes

and Klempien-Hinrichs, 2000). When studying a vi-

sual language in CS, researchers are faced with two

main tasks; symbolic speciﬁcation of its visual syntax

and semantics in a suitable formalism, and the study

of the use of such speciﬁcations in technical applica-

tions (Marriott et al., 1998). The work in this paper

only focuses on the speciﬁcation of the visual syntax

of a selected set of UML class and package diagram

constructs.

Although the visual syntax speciﬁcation pre-

scribes the visual structure of valid diagrams, more

than one correct speciﬁcation is possible for a given

visual language. These variations occur because a

spatial structure can be modeled in different ways

(G Costagliola and Tortora, 1997) based on the cho-

sen spatial relationships and the granularity of primi-

tive elements. Thus in view of these variations there

can be numerous visual syntax speciﬁcations for a vi-

sual language like UML.

Numerous techniques in grammatical, logical, al-

gebraic formalisms have been explored for visual lan-

guage speciﬁcations. Such speciﬁcations have also

been used in numerous diagram processing applica-

tions as well. The paper by (Marriott et al., 1998) in-

cludes an overview of the various visual syntax spec-

iﬁcation techniques and applications. The speciﬁca-

tion formalism used in this work is logic with ontol-

ogy as the speciﬁcation technique.

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

2.2 UML Class and Package Diagram

Constructs

UML is a widely used modeling language for repre-

senting software models (Moody and van Hillegers-

berg, 2009), overseen by the standards consortium

Object Management Group (OMG) (uml, 2012a).

UML provides thirteen diagrams (Moody and van

Hillegersberg, 2009) for representing structural and

dynamic aspects of software systems (Javed et al.,

2005) and it can be used in the design, analysis, im-

plementation and documentation of software applica-

tions (uml, 2012b) (uml, 2012a). UML has an interna-

tionally accepted standard (uml, 2012b) (uml, 2012a)

that speciﬁes its syntax and semantics.

UML class and package diagram constructs are

speciﬁed in the Classes package of the UML 2.4.1

speciﬁcation. Classes package includes ﬁfty six con-

structs that can be used to represent an object ori-

ented (OO) model using class, package and object

diagrams. These UML constructs include both OO

constructs (example: Class) as well as non-OO con-

cepts (example: Comment). Some of these UML con-

structs are represented exclusively using text (exam-

ple: MultiplicityElement), some using only graphi-

cal elements (example: Generalization) and majority

uses both graphical and text elements (example: In-

terface). Some UML constructs do not have their own

distinct notations (example: DirectedRelationship) as

the notations are meant to be deﬁned using specializa-

tions of these constructs (example: ElementImport)

(uml, 2012b).

The set of UML class and package diagram con-

structs that are considered in this work are Class, In-

terface, Package, Association, Aggregation, Compo-

sition, Dependency, Generalization, Usage, Realiza-

tion, InterfaceRealization, PackageMerge and Pack-

ageImport. These thirteen constructs were chosen be-

cause they are the typical constructs used in class and

package diagrams and similarly the notations consid-

ered are the notations used for these constructs as in-

dicated on pages 147 to 150 in the UML 2.4.1 spec-

iﬁcation (uml, 2012b). Based on these selected nota-

tions, Association, Interface and PackageImport have

two notations each while the other ten constructs have

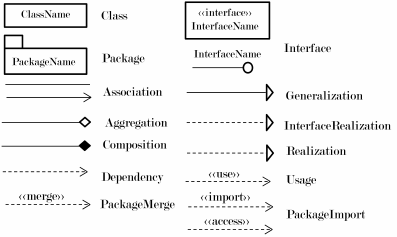

one notation each. Figure 1 lists the UML constructs

and their notations (uml, 2012b) used in this paper.

The chosen notations are not the only notations

for the selected UML constructs. For example a

Class can be represented using a rectangle with three

compartments and additional strings to represent data

members and methods in addition to the class name.

However, such variations are intentionally excluded

from this paper to limit the scope of the notations.

Figure 1: A subset of UML class and package diagram

constructs and their respective notations considered in this

work.

2.3 OWL

OWL is a prominent ontology language (Motik et al.,

2008) for the Semantic Web (Parreiras and Staab,

2010). OWL makes use of DL for its logical founda-

tions, which allow reasoners to infer aspects based on

what is speciﬁed in an ontology (Motik et al., 2008).

Ontologies are used for knowledge representation in

numerous disciplines such as biology, medicine, ge-

ography, astronomy and agriculture (Motik et al.,

2008).

An OWL ontology models a domain using classes,

properties, instances and data values (Horrocks et al.,

2012). A class represents a set of objects, a prop-

erty describes a possible relationship between objects,

instances describe the objects themselves and a data

value links an instance to a speciﬁc data type (Hor-

ridge et al., 2009). OWL provides a rich set of con-

structs such as union, intersection and negation to de-

scribe classes and characteristics such as transitivity,

symmetry and reﬂexivity to describe properties. Due

to the compositional nature of OWL, complex classes

can be described using other classes in the ontology

(Horridge et al., 2009) (Parreiras and Staab, 2010).

An ontology reasoner can be used to check the

correctness as well as to infer new knowledge based

on what is described in the ontology. In other words,

it helps in detecting inconsistencies in the ontology

as well as maintaining the class hierarchies by infer-

ence based on the explicitly stated information in the

ontology. The automated reasoning capabilities of an

ontology reasoner are vital in maintaining correct on-

tologies (Horridge et al., 2009).

There are numerous OWL ontology development

editors (examples include Prot´eg´e and SWOOP) and

reasoners (examples include HermiT, RacerPro and

Pellet) available (Bock et al., 2008). This work uses

Prot´eg´e as the ontology development editor and Her-

miT as the ontology reasoner.

Visual Syntax of UML Class and Package Diagram Constructs as an Ontology

2.4 Spatial Relationships

A spatial layout can be described using spatial rela-

tionships between objects in a given space. Spatial

relationships can be classiﬁed into categories of direc-

tion, distance, topology, alignment and size (Zhang,

2007). A spatial relationship in general can be de-

scribed qualitatively without any reference to the

quantitative (example: geometric) information that is

required to establish these relationships (Renz, 2002).

In this study spatial relationships are expressed quali-

tatively with the assumption that the mapping of these

relationships to the quantitative information or vice

verse is dealt separately, which is beyond the scope of

this paper.

In this work four topological relationships, dis-

connected, contains, overlapping and touching, are

used to describe the spatial relationship between two

visual objects (Zhang, 2007). A visual object x can be

described using three sets of points: a set of interior

points I(x), a set of boundary points B(x) and a set

of all its points D(x) = I(x) ∪ B(x). Then for two vi-

sual objects a and b the four topological relationships

mean the following:

• disconnected(a, b) iff D(a) ∩ D(b) =

0 (Zhang,

2007)

• contains(a, b) iff D(b) ⊆ D(a) (Zhang, 2007)

• overlapping(a, b) iff B(a) ∩ B(b) 6=

0 and I(a) ∩

I(b) 6=

• touching(a, b) iff B(a) ∩ B(b) 6=

0 and I(a) ∩

I(b) =

The visual representations of these four spatial re-

lationships are given in ﬁgure 2 (Zhang, 2007).

Figure 2: Visual representations of four topological spatial

relationships (Zhang, 2007).

3 RELATED WORK

Numerous techniques for and applications of visual

syntax speciﬁcation are reported in the literature. Ex-

amples of visual syntax speciﬁcation techniques in-

clude graph grammars and DL. Visual syntax spec-

iﬁcations have been used in technical applications

that interpret images of diagrams and drawing tools

that support users in creating syntactically correct di-

agrams (Marriott et al., 1998). The work in (Mar-

riott et al., 1998) includes a survey of different spec-

iﬁcation techniques and applications of visual syntax

speciﬁcations.

Since DL provide the logical foundations for

OWL (Motik et al., 2008), a brief summary of DL for

visual languages is included in this section. A general

DL formalism has been successfully used for the for-

mal speciﬁcation of entity-relationship diagrams and

a visual programming language, Pictorial Janus (Mar-

riott et al., 1998). The visual syntax speciﬁcation of

entity-relationship diagrams was then used in DL sys-

tems CLASSIC and LOOM to automate diagram rea-

soning to realize a syntax-directed diagram editor that

can validate diagrams (Haarslev, 1996). The visual

syntax of Pictorial Janus was used to formalize its se-

mantics, which was also used to realize a diagram ed-

itor that veriﬁes the semantics of diagrams of Pictorial

Janus (Haarslev, 1995).

An investigation of the current literature indicates

a lack with regards to publications on the use of OWL

ontologies for visual syntax speciﬁcations. A visual

syntax speciﬁcation in this context refers to a sym-

bolic encoding of the visual syntax of diagrams that

are part of a visual language. On the other hand

there exists ontologies that model shapes and graph-

ical concepts in general; the ontology presented in

(Niknam and Kemke, 2011) is one such ontology.

Note that such generic ontologies do not capture vi-

sual syntax of diagrams in speciﬁc visual languages.

The lack of studies exploring OWL ontologies for

visual language speciﬁcation and the lack of formal

visual syntax speciﬁcation for UML class and pack-

age diagram constructs, provide sufﬁcient motivation

for this study.

4 VISUAL SYNTAX

SPECIFICATION OF UML

CONSTRUCTS

The visual syntax of the selected UML constructs is

modeled using primitive elements and spatial rela-

tions as in (Haarslev, 1996) and (Haarslev, 1995). A

discussion on the primitive elements and the spatial

relationships and how they are modeled in the OWL

ontology is included in the next two subsections, fol-

lowed by the visual syntax deﬁnitions of the thirteen

UML constructs in section 4.3.

4.1 Primitive Elements

The primitive elements for the thirteen UML con-

structs are arrow, circle, ﬁlled diamond, unﬁlled di-

amond, double rectangle, line, dotted line, rectan-

gle, triangle and string. The visual representations of

these ten primitive elements are illustrated in ﬁgure 3.

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

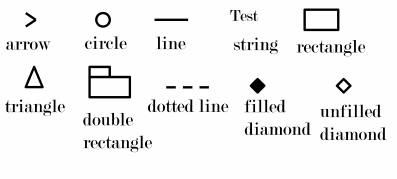

Figure 3: Primitive elements of the selected UML class and

package diagram constructs.

The ten primitive elements are modeled as ten

OWL classes namely Arrow, Circle, DiamondFilled,

DiamondUnﬁlled, DoubleRectangle, Line, Dotted-

Line, Rectangle, Triangle and String, as subclasses of

an OWL class Primitives.

4.2 Spatial Relationships

The four spatial relationships discussed in section 2.4

are included as object properties in the OWL ontol-

ogy. The OWL object properties disconnected, con-

tains, overlapping and touching represent these four

spatial relationships in the ontology.

4.3 UML Class and Package Diagram

Constructs

In this section, the visual syntax of the selected UML

class and package diagram constructs is speciﬁed us-

ing the primitive elements and spatial relationships

given in sections 4.1 and 4.2. The thirteen UML con-

structs are deﬁned as thirteen OWL classes namely

UMLClass, Interface, Package, Association, Aggre-

gation, Composition, Dependency, Generalization,

Realization, InterfaceRealization, Usage, PackageIm-

port and PackageMerge. These thirteen classes are

deﬁned as subclasses of an OWL class, UMLCon-

structs, a sibling class of Primitives (see section 4.1).

The visual syntax of the UML constructs is speciﬁed

as class deﬁnitions as given below.

4.3.1 Class

The UML construct Class is represented using a rect-

angle and a string to represent the class name. An

OWL class named UMLClass to represent this Class

construct is speciﬁed as:

Class: UMLClass

EquivalentTo:

Rectangle

and (contains some String)

4.3.2 Interface

As shown in Figure 1, an Interface can be represented

using two different notations. The ﬁrst notation uses

a circle, a line and a string to represent the interface

name. The second notation is similar to that of a Class

construct except that it contains two strings. Thus the

OWL class Interface is speciﬁed as:

Class: Interface

EquivalentTo:

Line and (disconnected some String)

and (touches some Circle),

Rectangle and (contains min 2 String)

4.3.3 Package

A Package is represented using a double rectangle and

a string to represent the package name. The visual

syntax of Package is speciﬁed in the OWL class Pack-

age as given below:

Class: Package

EquivalentTo:

DoubleRectangle and (contains some String)

4.3.4 Association

Similar to the UML construct Interface, Association

also has two notations; one using a line and the other

one using a line and an open arrow. The presence

of an arrow in an association indicates navigability

while the absence of an arrow indicates undetermined

navigability between two Classes (uml, 2012b). An

OWL class named Association to specify the visual

syntax of Association is given as:

Class: Association

EquivalentTo:

Line

and (touches min 2 UMLClass),

Line and (touches some UMLClass)

and (touches some (Arrow and

(touches some UMLClass)))

Note that the deﬁnition of the class Association

makes use of the class UMLClass.

4.3.5 Aggregation

An Aggregation relationship between two

Class

es,

is represented using an unﬁlled diamond and a line.

Thus an OWL class named Aggregation is speciﬁed

as:

Class: Aggregation

EquivalentTo:

Line and (touches some UMLClass)

and (touches some (DiamondUnfilled

and (touches some UMLClass)))

Similar to the OWL class Association, Aggrega-

tion also makes use of the class UMLClass.

Visual Syntax of UML Class and Package Diagram Constructs as an Ontology

4.3.6 Composition

The UML construct Composition, a type of relation-

ship between two

Class

es, is represented using a ﬁlled

diamond and a line. Thus an OWL class named Com-

position is speciﬁed as:

Class: Composition

EquivalentTo:

Line and (touches some UMLClass)

and (touches some (DiamondFilled

and (touches some UMLClass)))

Similar to the OWL class Aggregation, Composi-

tion is also deﬁned in terms of the class UMLClass.

4.3.7 Dependency

Dependency is represented using a dotted line and

an arrow either between two

Class

es or two

Pack-

age

s. In order to distinguish between package level

and class level dependency, two subclasses of an

OWL class Dependency namely ClassDependency

and PackageDependency are deﬁned as follows:

Class: ClassDependency

EquivalentTo:

LineDotted and (touches some UMLClass)

and (touches some (Arrow

and (touches some UMLClass)))

SubClassOf: Dependency

Class: PackageDependency

EquivalentTo:

LineDotted and (touches some Package)

and (touches some (Arrow

and (touches some Package)))

SubClassOf: Dependency

ClassDependency and PackageDependency are

composed of the OWL classes UMLClass and Pack-

age respectively.

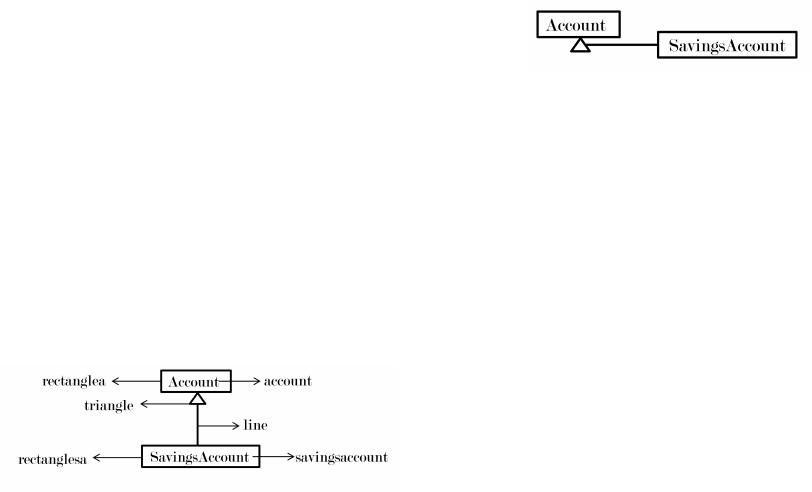

4.3.8 Generalization

Generalization, a type of relationship between two

Class

es, is represented using a triangle and a line.

The visual syntax of Generalization is speciﬁed in the

OWL class named Generalization as follows:

Class: Generalization

EquivalentTo:

Line and (touches some UMLClass)

and (touches some (Triangle

and (touches some UMLClass)))

Again the deﬁnition of Generalization is com-

posed of the OWL class UMLClass.

4.3.9 Realization

Realization is represented using a triangle and a dot-

ted line between two

Class

es. The visual syntax of

Realization is speciﬁed in the OWL class named Re-

alization as follows:

Class: Realization

EquivalentTo:

LineDotted and (touches some UMLClass)

and (touches some (Triangle

and (touches some UMLClass)))

Again the deﬁnition of Realization is composed of

the OWL class UMLClass.

4.3.10 InterfaceRealization

The UML construct, InterfaceRealization, is speciﬁed

between an

Interface

and a Class using a triangle and

a dotted line. Thus an OWL class named InterfaceRe-

alization is deﬁned as:

Class: InterfaceRealization

EquivalentTo:

LineDotted and (touches some UMLClass)

and (touches some (Triangle

and (touches some Interface)))

The class deﬁnition of InterfaceRealization is also

deﬁned in terms of the OWL classes UMLClass and

Interface.

4.3.11 Usage

Usage

is a type of Dependency represented using the

keyword use placed next to the visual representation

of Dependency. Similar to Dependency,

Usage

ex-

ists either between two Classes or between two

Inter-

face

s. Thus using the selected four spatial relation-

ships, two subclasses of an OWL class Usage namely

ClassUsage and PackageUsage are speciﬁed as fol-

lows:

Class: PackageUsage

EquivalentTo:

PackageDependency and (disconnected

some String)

SubClassOf: Usage

Class: ClassUsage

EquivalentTo:

ClassDependency and (disconnected

some String)

SubClassOf: Usage

The deﬁnitions of PackageUsage and ClassUsage

are deﬁned in terms of PackageDependency and

ClassDependency respectively.

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

4.3.12 PackageImport

Similar to

Usage

, PackageImport is also a type of De-

pendency that can exist between two

Package

s. Pack-

ageImport is represented using the keyword import or

access near to the Dependency representation. Thus

using the four spatial relationships, an OWL class

named PackageImport is deﬁned as:

Class: PackageImport

EquivalentTo:

PackageDependency and (disconnected

some String)

The deﬁnition of PackageImport is also deﬁned in

terms of PackageDependency.

4.3.13 PackageMerge

Similar to PackageImport, PackageMerge is also a

kind of Dependency between two Packages repre-

sented using the keyword merge. The OWL class for

the visual syntax of PackageMerge is deﬁned as the

following:

Class: PackageMerge

EquivalentTo:

PackageDependency and (disconnected

some String)

The deﬁnition of PackageMerge is also deﬁned in

terms of PackageDependency.

Although these thirteen UML constructs were in-

dividually deﬁned in terms of the selected primitives

and spatial relationships, no veriﬁcation is performed

on the ontology. The veriﬁcation of the visual syntax

of the UML constructs is discussed in the next sec-

tion.

5 REASONER FEATURES FOR

VISUAL SYNTAX

VERIFICATION

All notations illustrated in ﬁgure 1 are distinct, mean-

ing that all the selected UML constructs have dis-

tinct notations. It should be noted that even though

the notations for InterfaceRealization and Realization

are the same in ﬁgure 1, the former UML construct

connects an Interface to a Class but the latter con-

struct connects two Classes resulting in two distinct

visual representations. This distinction in notations

means that the visual syntax deﬁnitions of these con-

structs must be also distinct. In this section, various

OWL reasoner features are applied to verify the dis-

tinctness of the visual syntax deﬁnitions. This section

also highlights how various features in Prot´eg´e can be

used for visual syntax veriﬁcation.

5.1 Class Equivalence

When two OWL classes are equivalent the sets of ob-

jects represented by these classes are the same (Hor-

rocks et al., 2012). Class equivalence between two

OWL classes can be explicitly stated or inferred by

the reasoner based on the class descriptions. In the

context of a visual syntax ontology, identiﬁcation of

equivalent classes based on its class descriptions is

signiﬁcant.

When the visual syntax is speciﬁed as an OWL

ontology, class equivalence can be used to check

whether the syntax deﬁnitions of any two visual con-

structs are the same. If two OWL classes are inferred

to be equivalent based on its deﬁnitions, it means that

the syntax deﬁnitions are not distinct. When a dis-

tinct mapping is required between a visual language

concept and its visual syntax, then class equivalency

is not desirable. Detecting class equivalency between

two OWL classes representing two concepts that do

not have the same visual structure prompts a redeﬁni-

tion of their visual syntax deﬁnitions.

Detecting equivalent classes, in other words, de-

tecting visual concepts with the same syntax deﬁni-

tions can be achieved by invoking the reasoner in

Prot´eg´e, which highlights equivalent classes in the

Class hierarchy (inferred)

tab as well as in individual

class deﬁnitions speciﬁed in

EquivalentTo

descrip-

tion.

For the ontology given in section 4, three classes,

PackageImport, PackageMerge and PackageUsage

were reported to be equivalent, meaning that the syn-

tax deﬁnitions of these UML constructs are not dis-

tinct. Although this inferred equivalency is valid

based on their class deﬁnitions, it is not desired based

on the notations in ﬁgure 1. These incorrect visual

syntax deﬁnitions indicate that the selected spatial re-

lationships are not sufﬁcient to describe the syntax

of these constructs. As the differences in these con-

structs are in the content of the strings placed next to

the graphical objects, we redeﬁne these three OWL

classes to make use of three different data properties

of type string as given below:

Class: PackageUsage

EquivalentTo:

PackageDependency

and (disconnected some StringUse)

SubClassOf:

Usage

where the OWL class StringUse is deﬁned as:

Visual Syntax of UML Class and Package Diagram Constructs as an Ontology

Class: StringUse

EquivalentTo:

hasStringValue some

xsd:string[pattern "use"]

SubClassOf:

String

Class: PackageImport

EquivalentTo:

PackageDependency

and (disconnected some

(StringAccess or StringImport))

where the OWL classes StringAccess and StringIm-

port are deﬁned as:

Class: StringImport

EquivalentTo:

hasStringValue some

xsd:string[pattern "import"]

SubClassOf:

String

Class: StringAccess

EquivalentTo:

hasStringValue some

xsd:string[pattern "access"]

SubClassOf:

String

Class: PackageMerge

EquivalentTo:

PackageDependency

and (disconnected some StringMerge)

where the OWL class StringMerge is deﬁned as:

Class: StringMerge

EquivalentTo:

hasStringValue some

xsd:string[pattern "merge"]

SubClassOf:

String

After the redeﬁnitions of the OWL classes, Pack-

ageImport, PackageMerge and PackageUsage as de-

scribed above,no more equivalentclasses are reported

in the class hierarchy inferred by the reasoner.

5.2 Class Subsumption

If an OWL class A is subsumed by B, it means an in-

stance of A is also an instance of B (Horrocks et al.,

2012). Class subsumption is a reasoner service (Hor-

rocks et al., 2012), which is key in inferring the class

relationships in an OWL ontology.

Class subsumption can be used to verify the in-

ferred class hierarchy to ensure that the visual syntax

deﬁnitions in an ontology do indeed model the rela-

tionships between the modeled visual constructs cor-

rectly. For example, although both UMLClass and In-

terface use Rectangle and String, semantically a Class

is not an Interface or vice verse.

In Prot´eg´e, after invoking the reasoner on an on-

tology, the class subsumptions can be read in the

Class hierarchy (inferred)

tab as well as in the

Sub-

Class Of

section of individual class deﬁnitions.

Invoking the reasoner on the ontology in section 4,

which has been updated in section 5.1, highlights two

undesired subsumption relationships. One is where

Interface is subsumed by UMLClass and the second

one is InterfaceRealization, which is subsumed by

Realization. These two inferred subsumptions are se-

mantically incorrect for UML class diagrams since an

object cannot be an InterfaceRealization and a Real-

ization. Similarly an object, if relevant, has to be ei-

ther an Interface or a Class.

The OWL class Interface is inferred to be a sub-

class of UMLClass because the class Interface con-

tains at least 2 strings where as UMLClass contains

at least 1 string, which means the former class is

a specialization of the latter class. This subsump-

tion relationship between UMLClass and Interface

also leads to the undesired subsumption relationship

between InterfaceRealization and Realization. The

OWL class InterfaceRealization is speciﬁed in terms

of UMLClass and Interface. Since UMLClass sub-

sumes Interface, the OWL class InterfaceRealization

is inferred to be a subclass of Realization.

A possible solution to eliminate these undesired

subsumption relationships is discussed in section 5.4.

5.3 Class Disjointness

When two OWL classes are disjoint no object is com-

mon between the sets of objects represented by these

classes. Class disjointness is not a reasoner service

but an OWL class descriptor that needs to be explic-

itly stated for the classes in an ontology (Horrocks

et al., 2012).

In a visual syntax ontology, disjointness between

OWL classes is another check that can be used to en-

sure that the visual syntax deﬁnitions are distinct. It

also ensures that two disjoint visual constructs cannot

have an instance in common. If disjointness between

OWL classes results in inconsistency in OWL classes,

it will be highlighted in both the tabs Class hierarchy

and

Class hierarchy (inferred)

in Prot´eg´e.

For the ontology given in section 4, which has

been updated in section 5.1, no two classes can have a

common object except between Dependency and Us-

age, PackageImport and PackageMerge because the

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

latter three concepts are deﬁned in terms of the ﬁrst

concept. So, for example, an instance of PackageIm-

port can be an instance of Dependency as well. How-

ever, enforcing disjointness among the set of thirteen

OWL classes as described above highlights unsatisﬁ-

able deﬁnitions of the classes Interface and Interface-

Realization, which is incorrect because these are two

distinct concepts. The problem arises because of the

contradictions introduced by disjointness between In-

terface and UMLClass, and InterfaceRealization and

Realization, when subsumption relationships are in-

ferred between Interface and UMLClass, and Inter-

faceRealization and Realization.

A possible solution to eliminate these unsatisﬁable

class deﬁnitions is discussed in section 5.4.

5.4 Class Satisﬁability

If an OWL class is unsatisﬁable then an object of the

class cannot exist (Horrocks et al., 2012). Checking

for class satisﬁability is an automated reasoner ser-

vice (Horrocks et al., 2012), which can be used for

checking the correctness of the class descriptions in

an ontology.

As discussed in section 5.3, the classes Interface

and the class InterfaceRealization are not satisﬁable.

Unsatisﬁable classes are highlighted in red in both the

tabs Class hierarchy and

Class hierarchy (inferred)

Prot´eg´e.

One solution to resolve these two unsatisﬁable

classes is to redeﬁne the OWL class UMLClass as:

Rectangle and (contains min 1 (String

and not StringInterface))

where the OWL class StringInterface is deﬁned as:

Class: StringInterface

EquivalentTo:

hasStringValue some

xsd:string[pattern "interface"]

SubClassOf:

String

This redeﬁnition is based on the fact that an Inter-

face contains the keyword interface but a UMLClass

does not use the keyword interface (refer to ﬁgure 1).

This redeﬁnition of UMLClass makes all classes de-

ﬁned under UMLConstructs (see section 4.3) satisﬁ-

able and removes the undesired subsumption relation-

ships (described in section 5.2) between UMLClass

and Interface, and InterfaceRealization and Realiza-

tion.

5.5 Instance Checking

a is inferred to be an instance of class A if a sat-

isﬁes the class description of A (Horrocks et al.,

2012). Instance checking is an automated reasoner

service (Horrocks et al., 2012), which makes use of

the explicitly stated and inferred information about

the classes and instances to determine whether an in-

stance belongs to a class.

Instance checking can be used to check whether

the syntax deﬁnitions indeed capture the visual struc-

ture of concepts by comparing the instances inferred

by the reasoner to the concepts identiﬁed by a human

expert for a given diagram. For example, the simple

class diagram given in ﬁgure 4 depicts the UML con-

cept Class twice (Account and SavingsAccount) and

the UML concept Generalization once (relationship

between Account and SavingsAccount).

Figure 4: A sample class diagram with two UML Classes

namely Account and SavingsAccount where Account inher-

its from SavingsAccount (Generalization).

In order to check whether the reasoner infers the

UML concepts in ﬁgure 4 correctly, the UML class

diagram has to be described using the primitive ele-

ments and spatial relationships given in sections 4.1

and 4.2. Ideally one topological spatial relationship

should be speciﬁed between each pair of primitive el-

ements. However, the given list of spatial relation-

ships is not an exhaustive list of spatial relationships

for a given space. For example, the spatial relation-

ship of a visual object to itself and the spatial relation-

ship between a contained object to the container ob-

ject cannot be described using the selected four spatial

relationships. Nevertheless, the UML class diagram

in ﬁgure 4 is added to the visual syntax ontology as

follows:

Individual: account

Types: String, not (StringInterface)

Facts: disconnected savingsaccount,

disconnected rectanglesa, disconnected

triangle, disconnected line

Individual: savingsaccount

Types: String, not (StringInterface)

Facts: disconnected account,

disconnected rectanglea,

disconnected triangle, disconnected

line

Individual: rectanglea

Types: Rectangle

Visual Syntax of UML Class and Package Diagram Constructs as an Ontology

Facts: disconnected savingsaccount,

disconnected line, disconnected

rectanglesa, contains account,

touching triangle

Individual: rectanglesa

Types: Rectangle

Facts: disconnected account,

disconnected triangle, disconnected

rectanglea, contains savingsaccount,

touching line

Individual: line

Types: Line

Facts: disconnected account, disconnected

savingsaccount, disconnected rectanglea,

touching triangle, touching rectanglesa

Individual: triangle

Types: Triangle

Facts: disconnected account, disconnected

savingsaccount, disconnected rectanglesa

touching rectanglea, touching line

For ease of reference, the UML class diagram in

ﬁgure 5 is annotated with the relevant instance names

used in the ontology.

Figure 5: UML class diagram in ﬁgure 4 annotated with

instance names used in the ontology.

After invoking the reasoner on an ontology in

Prot´eg´e, the instances can be read in the

Class hier-

archy

in the

Members

section of individual class de-

scriptions. The

DL Query

facility in Prot´eg´e can also

be used for querying instances.

For the visual syntax ontology with the instances,

the reasoner infers two instances of UMLClass (rect-

angleA and rectangleSA) and one instance of Gener-

alization (line), which is the correct interpretation of

UML concepts for the class diagram in ﬁgure 4.

Note that the translation of ﬁgure 4 to OWL el-

ements is done manually here. This is not ideal as it

becomes cumbersome and error-prone when the num-

ber of constructs in the diagram increases. Ideally

there should be a tool that the modeler can use to draw

or import the diagram, which automatically generates

the OWL entries. An investigation of such tools is not

done for this work.

6 POSSIBLE ENHANCEMENT OF

THE UML VISUAL SYNTAX

SPECIFICATION

UML constructs generally follow accepted guide-

lines for its notations, which are not explicitly stated

in the UML speciﬁcation. For example, ﬁgure 6

demonstrates an uncommon notation of Generaliza-

tion, which can be comparedto the generally followed

notation in ﬁgure 4.

Figure 6: An uncommon representation of Generalization.

The visual syntax ontology in sections 4 and 5

does not take into account such general presentation

guidelines. Thus using the developed visual syntax

ontology, the Generalization notation in ﬁgure 6 will

indeed be classiﬁed by the reasoner as an instance

of the OWL class Generalization because the trian-

gle and line are touching although it does not follow

the general presentation guideline of Generalization

where the line should touch a triangle opposite to the

point where the triangle touches the super class (here

Account). The correctness of such an instance clas-

siﬁcation of Generalization is debatable among UML

users.

A possible enhancement for the given visual syn-

tax speciﬁcation is to capture such general presenta-

tion guidelines to align it closelyto the real-world rep-

resentations of UML constructs without contradicting

the UML speciﬁcation.

7 CONCLUSION, REFLECTION

AND FUTURE WORK

In this work visual syntax of a subset of notations

of thirteen UML class and package constructs were

modeled using primitive graphical elements and spa-

tial relationships. As a novel approach, an OWL on-

tology was successfully used to specify the visual syn-

tax of the selected UML constructs. Furthermore it is

demonstratedthat numerous automated reasoning ser-

vices of the ontology reasoners can be used to verify

a visual syntax speciﬁcation.

Based on the work presented in this paper, it can

be concluded that an OWL ontology can indeed be

used for visual syntax speciﬁcation provided that the

visual constructs can be modeled using classes, prop-

erties, objects and data types as required by OWL.

The main advantage of using an OWL ontology is the

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

use of ontology reasoners to verify the syntax spec-

iﬁcation. Using OWL is of value because it allows

the reuse of mature software artifacts including OWL

ontology editors and reasoners for visual syntax spec-

iﬁcation.

Although this work focuses on UML as the visual

language, it is also of value to the broader ﬁeld of

visual syntax speciﬁcation. The process of modeling

visual constructs, specifying the visual syntax in an

OWL ontology and utilizing the ontology reasoners

as demonstrated in this work can be equally applied

to another visual language as well.

It should be noted that this work focused on a lim-

ited number of UML constructs and notations, and

hence no claim on the completeness of the visual syn-

tax can be made. Needless to say that how well the

automated reasoning features can be utilized, depends

on the number of constructs encoded in the ontol-

ogy and how the constructs are modeled. As stated

in section 2.1, the same set of UML notations can

be modeled differently, which may result in a differ-

ent visual syntax ontology. Similarly, the applications

of the given visual syntax are also not considered in

this paper. It is envisaged that a technical application

that processes the visual layout of diagrams can make

use of such a visual syntax ontology. Such applica-

tions generally perform an interpretation to produce a

literal translation or a semantic interpretation of dia-

grams. As discussed in the introduction, such appli-

cations can be valuable for visually impaired users to

improve the accessibility of diagrams.

Future research would include expanding the de-

veloped ontology to incorporate all the UML con-

cepts in the Classes package of UML speciﬁcation

and general presentation guidelines (as discussed in

section 6), conducting an in-depth study of the auto-

mated reasoner services for the veriﬁcation of visual

syntax speciﬁcations and analyzing the computational

efﬁciency of reasoning services based on the number

of classes and instances in a visual syntax ontology.

REFERENCES

(2012a). Information technology - Object Management

Group Uniﬁed Modeling Language (OMG UML), In-

frastructure. Object Management Group.

(2012b). Information technology - Object Management

Group Uniﬁed Modeling Language (OMG UML), Su-

perstructure. Object Management Group.

Bock, J., Haase, P., Ji, Q., and Volz, R. (2008). Benchmark-

ing OWL Reasoners. In van Harmelen, F., Herzig,

A., Hitzler, P., Lin, Z., Piskac, R., and Qi, G., edi-

tors, Proceedings of the ARea2008 Workshop. CEUR

Workshop Proceedings.

Drewes, F. and Klempien-Hinrichs, R. (2000). Picking

Knots from Trees: The Syntatic Structure of Celtic

Knotwork. In Michael Anderson, P. C. and Haarslev,

V., editors, Theory and Application of Diagrams, First

International Conference, Diagrams 2000, volume

1889 of Lecture Notes in Artiﬁcal Intelligence, pages

89–104. Springer.

Elaasar, M. and Labiche, Y. (2011). Diagram Deﬁnition: a

Case Study with the UML Class Diagram. In MoD-

ELS 2011, Lecture Notes in Computer Science, pages

364–378. Springer.

G Costagliola, A De Lucia, S. O. and Tortora, G. (1997).

A Framework of Syntactic Models for the Implemen-

tation of Visual Languages. In Proceedings of IEEE

Symposium on Visual Languages, pages 58–65. IEEE.

Haarslev, V. (1995). Formal Semantics of Visual Lan-

guages using Spatial Reasoning. In Visual Languages,

Proceedings., 11th IEEE International Symposium on,

pages 156–163.

Haarslev, V. (1996). Using Description Logic for Reason-

ing about Diagrammatical Notations. In L. Padgham

(Ed.) Proceedings of the International Workshop on

Description Logics, pages 124–128.

Horridge, M., Drummond, N., Jupp, S., Moulton, G., and

Stevens, R. (2009). A Practical Guide To Build-

ing OWL Ontologies Using Prot´eg´e 4 and CO-ODE

Tools. University of Manchester.

Horrocks, I., Parsia, B., and Sattler, U. (2012). OWL 2

Web Ontology Language: Direct Semantics (Second

Edition). World Wide Web Consortium.

Horrocks, I., Patel-Schneider, P. F., and van Harmelen, F.

(2003). From SHIQ and RDF to OWL: the making of

a Web Ontology Language. Web Semantics: Science,

Services and Agents on the World Wide Web, 1(1):7 –

26.

Javed, F., Mernik, M., Bryant, B. R., and Gray, J. (2005). A

Grammar-Based Approach to Class Diagram Valida-

tion. In Fourth International Workshop on Scenarios

and State Machines: Models, Algorithms and Tools

(SCESM), St. Louis, MO.

Marriott, K., Meyer, B., and Wittenburg, K. B. (1998). Vi-

sual Language Theory. chapter A Survey of Visual

Language Speciﬁcation and Recognition, pages 5–85.

Springer-Verlag New York, Inc., New York, NY, USA.

Minas, M. (2006). Syntax Deﬁnition with Graphs. Electron.

Notes Theor. Comput. Sci., 148(1):19–40.

Moody, D. and van Hillegersberg, J. (2009). Evaluating

the Visual Syntax of UML: An Analysis of the Cog-

nitive Effectiveness of the UML Family of Diagrams.

In Gaˇsevi´c, D., L¨ammel, R., and Van Wyk, E., ed-

itors, Software Language Engineering, volume 5452

of Lecture Notes in Computer Science, pages 16–34.

Springer Berlin Heidelberg.

Motik, B., Cuenca Grau, B., and Sattler, U. (2008). Struc-

tured Objects in OWL: Representation and Reasoning.

In Proceedings of the 17th International Conference

on World Wide Web, WWW ’08, pages 555–564, New

York, NY, USA. ACM.

Niknam, M. and Kemke, C. (2011). Modeling Shapes and

Graphics Concepts in an Ontology. In Janna Hastings,

Visual Syntax of UML Class and Package Diagram Constructs as an Ontology

Oliver Kutz, M. B. and Borgo, S., editors, Proceedings

of the First Interdisciplinary Workshop on SHAPES.

Parreiras, F. S. and Staab, S. (2010). Using Ontologies with

UML Class-based Modeling: The TwoUse Approach.

Data & Knowledge Engineering, 69(11):1194 – 1207.

Special issue on contribution of ontologies in design-

ing advanced information systems.

Peter Cheng, M. A. and Haarslev, V. (2000). Preface. The-

ory and Application of Diagrams, First International

Conference, Diagrams 2000.

Renz, J. (2002). Qualitative Spatial Reasoning with Topo-

logical Information. Springer-Verlag, Berlin, Heidel-

berg.

Wyner, A. and Hoekstra, R. (2012). A Legal Case OWL

Ontology with an Instantiation of Popov V. Hayashi.

Artif. Intell. Law, 20(1):83–107.

Zhang, K. (2007). Spatial Speciﬁcation. In Visual Lan-

guages and Applications, pages 37–57. Springer US.

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development
