Clustering Analysis using Opposition-based API Algorithm

Mohammad Reza Farmani and Giuliano Armano

Department of Electrical and Electronic Engineering, University of Cagliari, Cagliari, Italy

Keywords: Pachycondyla Apicalis Ants, Opposition-based, Clustering Analysis.

Abstract: Clustering is a significant data mining task which partitions datasets based on similarities among data. In

this study, partitional clustering is considered as an optimization problem and an improved ant-based

algorithm, named Opposition-Based API (after the name of Pachycondyla APIcalis ants), is applied to

automatic grouping of large unlabeled datasets. The proposed algorithm employs Opposition-Based

Learning (OBL) for ants' hunting sites generation phase in API. Experimental results are compared with the

classical API clustering algorithm and three other recently evolutionary-based clustering techniques. It is

shown that the proposed algorithm can achieve the optimal number of clusters and, in most cases,

outperforms the other methods on several benchmark datasets in terms of accuracy and convergence speed.

1 INTRODUCTION

Research investigations in different organizations

have recently shown that huge amount of data are

being stored and collected in databases and this large

amount of stored data continues to grow fast.

Valuable knowledge which is hidden in this large

amount of stored data should be revealed to improve

the decision-making process in organizations.

Therefore, a field called knowledge discovery and

data mining in databases has emerged due to such

large databases (Han and Kamber, 2001). Data

mining analysis includes a number of technical

approaches such as classification, data

summarization, finding dependency networks,

clustering, regression, and detecting anomalies

(Amiri and Armano, 2014).

The process of grouping data into classes or

clusters such that the data in each cluster share a

high degree of similarity while being very dissimilar

to data from other clusters is called data clustering.

Generally speaking, hierarchical and partitional

clustering are the two main categories of clustering

methods (Kao et al., 2008). Hierarchical clustering

results in a tree which presents a sequence of

clustering while each cluster is a group of dataset

(Leung et al., 2000). Partitional clustering

decomposes a dataset into a set of disjoint clusters.

Many partitional clustering algorithms try to

minimize some measure of dissimilarity in the

samples within each cluster while maximizing the

dissimilarity of different clusters.

Swarm Intelligence (SI) is an innovative artificial

intelligence category inspired by intelligent

behaviors of insect or animal groups in nature, such

as ant colonies, bird flocks, bee colonies, bacterial

swarms, and so on. Over the recent years, the SI

methods like ant-based clustering algorithms were

successful dealing with clustering problems. Ants

have an incredible optimizing capacity due to their

ability to communicate indirectly by means of

pheromone deposits (Bonabeau et al., 1999). In most

research works, clustering analysis is considered as

an optimization problem and solved by using the

different types of ACO and ant-based algorithms.

The idea is to make a group of ants to explore the

search space of the optimization problems and find

the best candidates of solutions. These candidates

create clusters of the datasets and are selected

according to a fitness function, which evaluate their

quality with respect to the optimization problem.

In order to improve the convergence of the ant-

based clustering algorithm, a combination of the

popular k-means algorithm and the stochastic and

exploratory behavior of clustering ants is proposed

in (Monmarche et al., 1999). An ant system and

ACO, which is based on the parameterized

probabilistic model of the pheromone, is presented

by Dorigo (Dorigo et al., 1999). Slimane et al.

applies explorative and stochastic principles from

the ACO meta-heuristic combined with deterministic

and heuristic principles of k-means (Slimane et al.,

1999). A novel strategy called ACLUSTER is

developed in (Ramos and Merelo, 2002) to deal with

Farmani, M. and Armano, G..

Clustering Analysis using Opposition-based API Algorithm.

In Proceedings of the 7th International Joint Conference on Computational Intelligence (IJCCI 2015) - Volume 1: ECTA, pages 39-47

ISBN: 978-989-758-157-1

unsupervised clustering as well as data retrieval

problems. Two other ant-based clustering

algorithms, named Ant-Clust and AntTree, are

presented in (Labroche et al., 2003), respectively. In

Ant-Clust, the ants proceed according to chemical

properties and odors to recognize themselves as

similar or not. Both algorithms are applied to

unsupervised learning problems. Hartmann added a

neural network to each ant in his proposed algorithm

which enables the ants to take the objects of their

vicinity as input, and return the move action, the

pick up or drop action, as outputs (Hartmann, 2005).

An advanced clustering algorithm called ant colony

ISODATA is proposed in (Wang et al., 2007) for

applying in real time computer simulation. Ant

clustering algorithm is also used in (Chen and Mo,

2009) to improve k-means and optimize the rule of

ant clustering algorithm.

The API algorithm, named after “apicalis” in

Pachycondyla apicalis, is inspired by a model of the

foraging behavior of a population of primitive ants

(Monmarché et al., 2000). It is demonstrated in

(Aupetit et al., 2006) that API can be applied to

continuous optimization problems and achieved

robust performance for all the test problems. Despite

being powerful, the ant-based algorithms, including

API, can remain trapped in local optimums. This

situation can occur when a certain component is

very desirable on its own, but leads to a sub-optimal

solution when combined with other components.

Moreover, most of the reported ant-based clustering

methods need the number of clusters as an input

parameter instead of determining it automatically on

the run. Many practical situations show that it is

impossible or very difficult to determine the

appropriate number of groups in a previously

unlabeled datasets. Also, if a dataset contains high-

dimensional feature vectors, it is practically

impossible to graph the data for determining its

number of clusters.

This paper has two objectives. First, it attempts

to show that application of the API algorithm in

clustering problems, with a modification of using

Opposition-Based Learning (OBL) in hunting sites

generation, can achieve very promising results. The

improvement is based on the idea of opposition

numbers and attempt to increase the exploration

efficiency of the solution space (Tizhoosh, 2006).

The modification focuses on the initialization of

sites' positions. Second, it tries to determine the

optimal number of clusters in any unlabeled dataset

automatically. A comparison of the proposed

algorithm's results with classical API, and the

reported results of three other automatic clustering

methods including Genetic Algorithm (GA)

(Bandyopadhyay and Maulik, 2002), Particle Swarm

Optimization (PSO) (Omran et al., 2005), and

Differential Evolution (DE) (Das et al., 5008) has

been investigated. The accuracy of the final

clustering results, the capability of the algorithms to

achieve nearly similar results over randomly

repeated runs (robustness), and the convergence

speed are used as the performance metrics in the

comparative analyses.

Organization of the rest of this paper is as follows.

In Section 2, the clustering problem is defined in a

formal language. The API algorithm is shortly

reviewed in Section 3. The proposed algorithm

optimization algorithm and the clustering scheme

used in this study are presented in Sections 4 and 5. A

set of experimental results are provided in Section 6.

Finally, the work is concluded in Section 7.

2 CLUSTERING PROBLEM

Clustering problem consists of dividing a set of data

into different groups based on one or more features

of the data. In the area of machine learning,

clustering analysis is considered as an unsupervised

learning method that constitutes a main role of an

intelligent data analysis process. This tool explores

the data structure and attempt to group objects into

clusters such that the objects in the same clusters are

similar and objects from different clusters are

dissimilar. It is called unsupervised learning

because, unlike classification (known as supervised

learning), no a priori labeling of patterns is available

to use in categorizing the cluster structure of the

whole dataset. As the aim of clustering is to find any

interesting grouping of the data, it is possible to

define cluster analysis as an optimization problem in

which a given function, called the clustering validity

index, consisting of within cluster similarity and

among clusters dissimilarities needs to be optimized.

In every optimization algorithm it is necessary to

measure the goodness of candidate solutions. In this

problem, the fitness of clusters must be evaluated. In

order to achieve this, one given clustering definition

called the clustering validity index has been

considered, that is the objects inside a cluster are

very similar, whereas the objects located in distinct

clusters are very different. Thereby, the fitness

function is defined according to the concepts of

cohesion and separation:

1) Cohesion: The variance value of the objects in a

cluster indicates the cluster’s compactness. In other

ECTA 2015 - 7th International Conference on Evolutionary Computation Theory and Applications

words, the objects within a cluster should be as

similar to each other as possible.

2) Separation: The objects inside different clusters

should be as dissimilar to each other as possible. To

achieve this objective, different distance measures

such as Euclidean, Minowsky, Manhatann, the

cosine distance, etc are used as the cluster

separation’s indication (Jain et al., 1999).

The clustering validity index is also used to

determine the number of clusters. Traditionally, the

clustering algorithms were run with a different

number of clusters as an input parameter. Then,

based on the best gained validity measure of the

dataset partitioning, the optimal number of clusters

was selected (Halkidi and Vazirgiannis, 2001). Since

the definitions of cohesion and separation are given,

the fitness function of clustering can be introduced.

There are some well-known clustering validity

indexes in the literature which their maximum and

minimum values indicate proper clusters. Therefore,

these indexes can be used to define the fitness

functions for optimization algorithms. In the current

paper, a validity measure, named CS measure index

(Chou et al., 2004) is employed in the study of

automatic clustering algorithm. This index is

introduced as follows:

First the centroid of the cluster C

is calculated as the

average of the elements within that cluster:



∈



(1)

Then the CS measure can be formulated as:

{}

[]





≠∈

=∈

∈













jiijKj

iCX

mmd

XXd

KCS

),(min

),(max

)(





(2)

),(

XXd



is a distance metric between any two data

points



and



. The CS measure is also a

function of the sum of within-cluster scatter to

between-cluster separation. It is stated in (Chou et

al., 2004) that while dealing with datasets of

different densities and/or sizes the CS measure is

more efficient than the other measures introduced in

the literature.

3 API ALGORITHM

The API algorithm is inspired by the colonies of P.

APIcalis ants in tropical forests near the Guatemala

border in Mexico (Monmarché et al., 2000). In this

algorithm, a population of n

ants

),,,(

aaa 

located in search space S to minimize objective

function f. API contains two parameters named O

rand

and O

explo

. O

rand

generates a random point (named

nest N) that indicates a valid solution in search space

S according to a uniform distribution and O

explo

generates a new points in the neighbourhood of N

and also hunting sites. In the beginning, the nest

location N placed randomly in the search space

using parameter O

rand

. Then, each ant a

of the n

ants leaves the nest to create hunting sites randomly

and utilizes O

explo

with an amplitude A

site

) of the

neighbourhood centred in N. The A

site

) values are

set as:

01.0)(,,01.0

)(,,01.0)1(

×=

×==

asite

sitesite

xnA

xiAA



(3)

where

()

01.01=

. Afterwards, local search

starts and each ant a

goes to one of its p hunting

sites s' in the neighbourhood of its site s using O

explo

with an amplitude A

local

). A

local

) is set to

site

)/10 based on the behaviour of real ants. If

)()( sfsf <

′

, the local search will be considered as

successful (a prey has been caught) and ant a

will

memorize point s' and update its memory from s to s'

and does a new exploration in the vicinity of the new

site. On the contrary, a

will randomly choose

another site among its p sites saved in memory in the

next exploration. If ant a

cannot catch any prey in a

hunting site which has been explored successively

for more than t

local

) times, that hunting site will be

forgotten and repeated by a new site created using

explo

Figure 1: Search space of the API algorithm. s

, s

, and s

are sites randomly generated around nest N and their

maximum distance from the nest being given by A

site

. The

small squares denote local exploration of site s

(points

situated at a maximum distance of A

local

from the site

center s

Clustering Analysis using Opposition-based API Algorithm

Then, nest N moves after T movements of the n

ants (after every n

× T individual moves) and goes

to the best point found since its own last

displacement. Finally, all sites will be erased from

the ants' memories to avoid local minima. It is

presented in Figure 1. how the initial solution space

is divided into smaller search spaces in the AIP

algorithm. The API algorithm usually terminates

after a specific number of iterations or when the

best-so-far solution achieves a desired value.

4 OPPOSITION-BASED API

ALGORITHM

In most instances, Evolutionary Algorithms (EAs)

start with random initial populations and attempt to

lead them toward some optimal solutions. This

searching process usually terminates when EAs meet

some predefined criteria. However, the distance of

these initial guesses from the optimal solutions has a

significant effect on the computation effort and the

obtained solutions' quality. The concept of

Opposition-Based Learning (OBL) is introduced by

(Tizhoosh, 2006) to increase the chance of starting

from fitter initial (closer to optimal solutions) points

in the search space. In the proposed method, the

opposition points of the initial guesses are found

simultaneously. After making a comparison between

initial solutions and their opposites in the search

space, the fitter ones are chosen as the initial

solutions. The judgment between a point and its

opposite position is made based on their

corresponding fitness function values. This

procedure has the potential to improve the

convergence speed and quality of solutions and can

be applied not only to initial points but also

continuously to each solution in the current

population. The concept of opposite point can be

defined as (Tizhoosh, 2006):

Let

),,,(

21 D

xxxX =

be a point in a D-

dimensional space, where

ℜ∈

xxx ,,,



and

},,2,1{],[ Dibax

iii

∈∀∈

. The opposition point

),,,(

21 D

xxxX =

is defined by its components by:

iiii

xbax −+=

(4)

Now assume that

)( Xf

and

)(Xf

are the

fitness function values which are evaluated

simultaneously to measure the fitness of the main

point X and its opposition position

in the search

space. Making a comparison between these two

fitness values we continue the optimization process

with the fitter one. In other words, If

)()( XfXf ≥

then point X can be replaced with

; otherwise, the

process will be continued by X.

In this study, we enhance the hunting sites'

creation step of the API algorithm by using OBL

scheme. We choose the original API as the main

algorithm and the proposed opposition-base idea is

embedded in API to improve its performance and

convergence speed.

In this part, we explain the OBL approach added

to the original API algorithm. Based on optimization

literature, the common method to create initial

solutions, in absence of a priori knowledge, is

random number generation. Therefore, as explained

previously, by applying the OBL concept, fitter

starting candidate solutions can be obtained when

there is no a priori knowledge about the solutions.

The implementation of opposition-based

initialization for API can be presented as:

1) Create hunting sites

{

}

sssS ,,,

=

randomly

using O

explo

where

),,(

Djijj

xxs =

and

{}

aiiij

njDibax ,,1},,,2,1{],[  ∈∈∀∈

2) Calculate opposite points

{

}

sososoSo ,,,

=

the initialized random sites by:

ijiiij

xbaxo −+=

(5)

where

),,(

Djijj

xoxoso =

3) Select n

fittest hunting sites from

}{ SoS ∪

initial hunting sites using fitness function values.

A similar approach is applied to the algorithm

when an ant loses all of its p sites and needs to

create new hunting sites (steps 8-9 in Tab. 1.).

Therefore, after making new sites by that ant,

hunting sites which are ideally fitter than current

created ones will be established in each iteration.

5 CLUSTERING FORMULATION

AND FITNESS FUNCTION

The clustering method we applied in this work is the

scheme proposed by (Das et al. 2008), in which the

chromosomes of a Differential Evolution (DE)

algorithm (Storn and Price, 1997) are assigned to

vectors of real numbers. These vectors contain 2K

max

entries, where K

max

is the maximum number of

clusters specified by user. To control the activation

of each cluster during the clustering process, first

max

elements of the defined vectors are assigned to

ECTA 2015 - 7th International Conference on Evolutionary Computation Theory and Applications

random positive floating numbers T

i,j

(for jth cluster

center in the ith vector) in [0,1]. These floating

numbers are called activation thresholds. In this

model, if

5.0

≥

, the jth cluster center in the ith

vector will be used for clustering of the associated

data. In contrast, if

5.0

, the corresponding jth

cluster center will not be considered in the

partitioning process. In other words, T

i,j

's are used as

selection rules in each vector controlling the

activation of cluster centers. The second part of

vectors contains K

max

D-dimensional centroids.

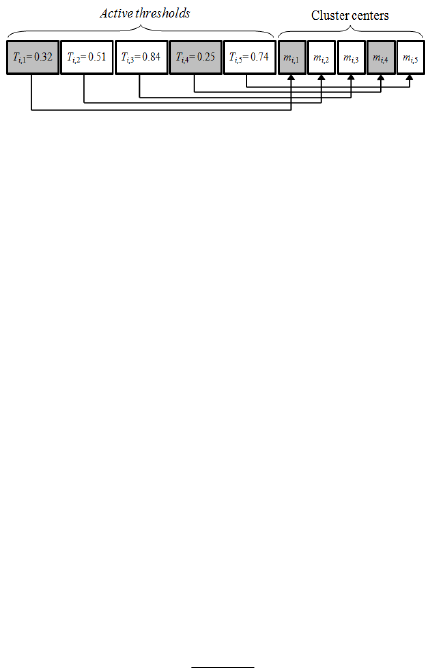

Figure 2 shows a vector with five centroids and their

corresponding activation thresholds. As it can be

seen, only three of those centroids are active (have

activation thresholds more than 0.5) in this vector.

Figure 2: Active thresholds and their corresponding cluster

centroids in vector i (the white and grey centroids are

active and inactive, respectively).

In this scheme, when a new vector is constructed,

the T values are used to active the cancroids of

clusters. If in a vector all T

i,j

's are smaller than 0.5,

two of the thresholds will be selected randomly and

their values will be reinitialized between 0.5 and 1.0

which means the minimum number of clusters in a

vector is 2.

In OBAPI, each clustering vector is considered

as a hunting site. Ants are moving on the search

space and can take or drop centroids according to the

behavioral rules of the algorithm. Then, the nest is

brought closer to the proper hunting sites and ants go

back to new fruitful sites to try another pick up. To

compare the performance of our proposed algorithm

with the performance of other reported algorithms

(Das et al., 2008), we applied the CS measure

introduced in Section 2. Therefore, the fitness

functions is constructed as:

)(

KCS

(6)

where CS

is the clustering index defined in Eqs. (2).

These index evaluates the quality of the clusters

delivered by vector i. Since all selected centroids

and their opposites are always built inside the

boundary of the dataset, there is no probability of a

division by zero while computing the CS measures.

6 EXPERIMENTAL RESULTS

AND DISCUSSION

6.1 Results and Discussions

In this work, five real world clustering problems

from the UCI database (Blake et al., 1998), which is

a well-known database repository for machine

learning, are used to evaluate the performance of the

Opposition-Based API (OBAPI) algorithm. The

datasets are briefly summarized as (Here, n is the

number of data points, d is the number of features,

and K is the number of clusters):

1) Iris (n = 150, d = 4, K = 3): This dataset with 150

random samples of flowers from the iris species

setosa, versicolor, and virginica consists 50

observations for sepal length, sepal width, petal

length, and petal width in cm.

2) Wine (n = 178, d = 13, K = 3): This dataset is the

results of a chemical analysis of wines grown in the

same region in Italy but derived from three different

cultivars. The analysis determined the quantities of

13 constituents found in each of the three types of

wines. There are 178 instances with 13 numeric

attributes in the wine dataset. All attributes are

continuous and there is no missing attributes.

3) Wisconsin breast cancer (n = 683, d = 9, K = 2):

The Wisconsin breast cancer database has 9 relevant

features: clump thickness, cell size uniformity, cell

shape uniformity, marginal adhesion, single

epithelial cell size, bare nuclei, bland chromatin,

normal nucleoli, and mitoses. The dataset has two

types: benign (239 objects) or malignant (444

objects) tumors.

4) Vowel (n = 871, d = 3, K = 6): This dataset

consists of 871 Indian Telugu vowel sounds. The

dataset has 3 features which are the first, second, and

third vowel frequencies, and 6 overlapping classes

named d (72 objects), a (89 objects), i (172 objects),

u (151 objects), e (207 objects), and o (180 objects).

5) Glass (n = 214, d = 9, K = 6): This dataset

presents 6 different glass types called building

windows ﬂoat processed (70 objects), building

windows nonﬂoat processed (76 objects), vehicle

windows ﬂoat processed (17 objects), containers (13

objects), tableware (9 objects), and headlamps (29

objects), respectively. Each of these types has 9

features: refractive index, sodium, magnesium,

aluminium, silicon, potassium, calcium, barium, and

iron.

The performance of the OBAPI algorithm is

compared with three recently proposed partitional

clustering algorithms called automatic clustering

Clustering Analysis using Opposition-based API Algorithm

using an improved deferential evolution (ACDE)

(Das et al., 2008), genetic clustering with an

unknown number of clusters K (GCUK)

(Bandyopadhyay and Maulik, 2002), and dynamic

clustering particle swarm optimization (DCPSO)

(Omran et al., 2002). The improvement effects of

our modified algorithm with normal API have been

also investigated dealing with similar clustering

problems. We used the default parameter settings,

selected in (Monmarché et al., 2000), for all

conducted experiments:

• Number of ants, N

= 20.

• Number of iterations (explorations performed

by each ant between two nest moves), T =50.

• Number of hunting sites, p = 2.

• Search number (number of times ant a

cannot

catch any prey in a hunting site which has

been explored successively), t

local

) = 50, i =

1, ..., N

For API and OBAPI, the hunting sites (cluster

centroids) are selected randomly between the

minimum and maximum numerical values of any

feature of the datasets. Parameter O

rand

generates a

uniformly distributed random point within those

intervals. Parameter O

explo

is also used to create new

hunting site

),...,(

1 D

xxs

′′

′

from site

),...,(

1 D

xxs =

as follows:

[]

DiabAUxx

iiii

,,1)( ∈∀−××+=

′

(7)

where

},,2,1{],[ Dibax

iii

∈∀∈

, U is a uniformly

distributed value within

[]

5.0,5.0 +−

and A is the

maximum amplitude of the move introduced in Eq.

(3). The maximum and minimum number of

clusters, K

max

and K

min

, are set to 20 and 2,

respectively.

In this study, a comprehensive comparison

between the results of the API and OBAPI

algorithms and the results of the ACDE, GCUK, and

DCPSO reported in (Das et al., 2008) has been made

to verify the performance of our proposed approach.

We compare the convergence speed of all the

algorithms by measuring the number of function

calls (NFCs) which is most commonly and fair used

metric in optimization literature. The quality of

obtained solutions, determined by the CS measure,

and ability of the algorithms to find the optimal

number of clusters have been also considered as two

other evaluation metrics. In order to minimize the

effect of the stochastic nature of API and OBAPI on

the metrics, our reported results for each clustering

problem is the average over 40 independent trials

which is equal to the number of independent the

algorithms' runs reported in (Das et al., 2008). The

results of two sets of experiments are presented by

utilizing the five evolutionary clustering algorithms

(API, OBAPI, ACDE, GCUK, and DCPSO) while

CS measure is separately considered as their fitness

function. For a detailed discussion on the parameter

settings and simulation strategy of the ACDE,

GCUK, and DCPSO algorithms please refer to (Das

et al., 2008., Bandyopadhyay and Maulik, 2002,

Omran et al., 2002, and Monmarché et al., 2000) We

implemented both the API and OBAPI algorithms in

Python 2.7.6 on a Intel Core i7, with 2.4 GHz, 8 GB

RAM in Ubuntu 14.04 environment.

In order to compare the accuracy of OBAPI and

API with ACDE, DCPSO, and GCUK, maximum

NFCs is set to

and considered as the termination

criterion for each clustering algorithm. Afterwards,

final solutions are considered as the number of

clusters found, final value of fitness function, and

two other metrics called inter-cluster and intra-

cluster distances. The inter-cluster distance shows

the average of distances among centroids of the

obtained clusters and the intra-cluster distance

presents the average of distances among data vectors

inside a cluster. To achieve crisp and compact

Table 1: Mean and standard deviation values of average

number of found clusters and CS over 40 independent

trials (NFCs = 10

is set as the termination criterion).

Dataset Algorithm

Ave. number of

clusters found

CS value

Iris

OBAPI

3.11±0.05214 0.6122±0.053

API 3.42±0.02451 0.6812±0.142

ACDE 3.25±0.0382 0.6643±0.097

DCPSO 2.23±0.0443 0.7361±0.671

GCUK 2.35±0.0985 0.7282±2.003

Wine

OBAPI 3.16±0.0874

0.9622±0.047

API 3.21±0.0456 0.9132±0.0514

ACDE 3.25±0.0391 0.9249±0.032

DCPSO

3.05±0.0352

1.8721±0.037

GCUK 2.95±0.0112 1.5842±0.328

Breast

Cancer

OBAPI

2.00±0.00

0.4726±0.015

API 2.15±0.0496 0.4869±0.637

ACDE

2.00±0.00 0.4532±0.034

DCPSO 2.25±0.0632 0.4854±0.009

GCUK 2.00±0.0083 0.6089±0.016

Vowel

OBAPI

6.13±0.0421 0.9011±0.624

API 5.77±0.0645 0.9232±0.224

ACDE 5.75±0.0751 0.9089±0.051

DCPSO 7.25±0.0183 1.1827±0.431

GCUK 5.05±0.0075 1.9978±0.966

Glass

OBAPI

6.00±0.00 0.3112±0.647

API 6.11±0.0324 0.4236±0.278

ACDE 6.05±0.0148 0.3324±0.487

DCPSO 5.96±0.0093 0.7642±0.073

GCUK 5.85±0.0346 1.4743±0.236

ECTA 2015 - 7th International Conference on Evolutionary Computation Theory and Applications

clusters, the clustering algorithms try to maximize

the inter-cluster distance and minimize intra-cluster

distance, simultaneously. Table 1 and Table 2 show

the average number of found clusters, the final CS

values (Eq. 2), and the inter-cluster and intra-cluster

distances obtained by OBAPI and API and the other

three algorithms. Then, we need to compare the

different algorithms in term of convergence speed.

For each dataset, a cutoff value of CS fitness

function is selected as a threshold. This values is

somewhat larger than the minimum CS fitness

function amount obtained by each algorithm in

Table 1. The NFCs that each algorithm takes to

achieve the cutoff CS fitness function value is given

in Table 3 and Table 4. Best obtained values are

shown in boldface in all the tables.

It is demonstrated in Tabs. 1 and 2 that for the

iris dataset the OBAPI has gained the lowest values

of the final CS measure and the best values of mean

intra- and inter-cluster distances. As discussed in

(Das et al., 2008), the considerable overlap between

two clusters (virginica and versicolor) in the iris

dataset has caused GCUK and DCPSO to gain only

two clusters on average while OBAPI, API, and

Table 2: Mean and standard deviation values of inter- and

intra-cluster distances over 40 independent trials (NFCs =

is set as the termination criterion).

Dataset Algorithm Mean intra- cluster

distance

Mean inter-cluster

distance

Iris

OBAPI

2.8736±1.542 2.7211±0.362

API

3.2232±0.324 2.4516±0.024

ACDE

3.1164±0.033 2.5931±0.027

DCPSO

3.6516±1.195 2.2104±0.773

GCUK

3.5673±2.792 2.5058±1.409

Wine

OBAPI

4.005±0.004 3.6411±0.324

API

4.096±0.041 3.1123±0.745

ACDE

4.046±0.002 3.1483±0.078

DCPSO

4.851±0.184 2.6113±1.637

GCUK

4.163±1.929 2.8058±1.365

Breast

Cancer

OBAPI

4.3232±0.214 3.2114±0.526

API

4.4568±0.0354 3.0412±2.324

ACDE

4.2439±0.143 3.2577±0.138

DCPSO

4.8511±0.373 2.3613±0.021

GCUK

4.9944±0.904 2.3944±1.744

Vowel

OBAPI

1406.32±9.324 2796.67±0.547

API

1434.85±0.457 2732.11±0.213

ACDE

1412.63±0.792 2724.85±0.124

DCPSO

1482.51±3.973 1923.93±1.154

GCUK

1495.13±12.334 1944.38±0.747

Glass

OBAPI

521.278±65.23 896.31±6.123

API

550.217±14.52 871.35±3.662

ACDE

563.247±134.2 853.62±9.044

DCPSO

599.535±10.34 889.32±4.233

GCUK

594.673±30.62 869.93±1.789

ACDE were successful in finding about three

clusters and among them OBAPI has yielded the

closest value to the real number of iris clusters. For

the wine dataset, all the algorithms have been

outperformed by DCPSO in term of number of

clusters. OBAPI has achieved the best average

values of fitness functions, and intra- and inter-

cluster distances.

It is also observed in Tabs. 1 and 2 that for the

breast cancer dataset, despite the fact that OBAPI,

ACDE, and GCUK were competitively successful to

yield high accurate vales of the number of clusters,

ACDE has outperformed the other algorithms in

terms of the other metrics. As it can be seen the

difference between the final solutions of the two best

algorithms (ACDE and OBAPI) is not significant.

Tables 1 and 2 also show that the OBAPI algorithm

has provided better results than the other four

algorithms dealing with vowel and glass datasets

which consist of large number of data vectors as

well as six overlapping clusters.

Table 3 and Table 4 clearly illustrate the

effectiveness of the proposed OBAPI algorithm

dealing with clustering of the benchmarks. As it is

Table 3: Mean and standard deviation values of NFCs

required by clustering algorithms to reach the defined

cutoff thresholds over 40 independent trials.

Dataset Algorithm Cutoff value for

CS measure

Ave. of required NFCs

Iris

OBAPI

0.95

284567.23±24.36

API

432578.36±84.65

ACDE

459888.95±20.50

DCPSO

679023.85±31.75

GCUK

707723.70±120.21

Wine

OBAPI

1.90

42311.84±77.12

API

66251.32±87.59

ACDE

67384.25±56.45

DCPSO

700473.35±31.42

GCUK

785333.05±21.75

Breast

Cancer

OBAPI

1.10

165278.32±15.36

API

273111.67±14.56

ACDE

292102.50±29.73

DCPSO

587832.50±7.34

GCUK

914033.85±24.83

Vowel

OBAPI

2.50

292487.32±14.36

API

405524.65±32.11

ACDE

437533.35±51.73

DCPSO

500493.15±35.47

GCUK

498354.10±74.60

Glass

OBAPI

1.80

288524.62±74.32

API

408975.41±98.32

ACDE

443233.30±47.65

DCPSO

566335.80±25.73

GCUK

574938.65±82.64

Clustering Analysis using Opposition-based API Algorithm

shown, a significantly lower NFCs is needed by our

algorithm to reduce both CS fitness function values

to the cutoff thresholds in all cases. After OBAPI,

ACDE, API, DCPSO, and GCUK have needed

lesser NFCs to achieve cutoff threshold values,

respectively. Moreover, OBAPI has yielded the best

amount of mean intra- and inter-cluster distances

over most datasets.

To conclude, the obtained results indicate that

OBAPI surpass normal API on the clustering of all

the benchmarks. The OBL method applied to the

API led to accuracy improvements in most

clustering problems and convergence speed-ups

reaching about 33%. It is interesting to see that

improvements of the convergence speed were

relatively similar for all benchmark datasets. In

contrast, OBAPI was not as successful as ACDE

dealing with the breast cancer dataset in term of

accuracy. In general, it seems that OBL performs

well with the more difficult problems, as it helps the

learning process. These results are very encouraging,

as they demonstrate that opposition can help

improve performance. However, it is important to

Table 4: Mean and standard deviation values of inter- and

intra-cluster distances required to reach to reach the

defined cutoff thresholds in Table 3 over 40 independent

trials.

Dataset Algorithm Mean intra- cluster

distance

Mean inter-cluster

distance

Iris

OBAPI

3.3145±0.471 2.8674±0.547

API

3.9124±0.841 2.0456±0..875

ACDE

3.7836±0.509 2.0758±0.239

DCPSO

3.9637±1.666 2.0093±0.795

GCUK

3.9992±2.390 1.9243±1.843

Wine

OBAPI

3.9165±0.874 3.5211±0.0774

API

4.6232±0.547 2.8765±0.145

ACDE

4.9872±0.148 3.1275±0.0357

DCPSO

4.0743±0.093 1.9967±1.828

GCUK

5.9870±1.349 2.1323±1.334

Breast

Cancer

OBAPI

5.1221±0.132 2.8011±0.411

API

5.43266±0.025 2.832±0.741

ACDE

4.9744±0.105 3.0096±0.246

DCPSO

5.6546±0.241 2.1173±0.452

GCUK

8.0442±0.435 2.0542±1.664

Vowel

OBAPI

1475.32±0.852 2932.64±1.459

API

1482.65±0.741 2687.57±0.573

ACDE

1494.12±0.378 2739.85±0.163

DCPSO

1575.51±3.786 1923.93±1.154

GCUK

1593.72±1.789 2633.45±1.213

Glass

OBAPI

572.326±65.78 861.56±0.901

API

600.985±42.32 852.11±0.324

ACDE

590.572±34.24 853.62±0.44

DCPSO

619.980±15.98 846.67±0.804

GCUK

615.88±20.95 857.34±1.465

consider here that OBAPI performs better than

normal API according to the current comparison

strategies as well.

6.2 Pros, Cons, and Future Works

The obtained results show that the enhanced OBAPI

technique has a good performance and is very

promising. In fact, this method can significantly

decrease the number of function evaluations in

comparison with the original API and other

evolutionary techniques without having bad effects

on the quality of solutions. Moreover, OBAPI is able

to automatically find the optimal number of clusters

and does not need to know them in advance. I is

important to note that the results gained in this work

are only examined and valid for five numerical test

functions. In other words, the proposed

approximation technique within API algorithm

makes a heuristic method which is only designed

and studied for solving the introduced problems.

This method also does not add any new parameter to

conventional form of the algorithm. As a part of our

future work we plan to improve and study the

opposition-based technique in order to solve high

dimensional optimization problems with minimum

decrease in quality of results.

Computational complexity analysis of OBAPI is

also another task that we decide to perform in the

future. The main disadvantage of OBAPI is its

computational cost which basically is due to the

evolutionary nature of this method. Therefore, in

order to gain a deeper understanding of when

OBAPI is expected to work well (or poorly) for a

given complex problem and why, its computational

time complexity should be analyzed. It is still

unclear how powerful theoretically OBAPI is in

solving high dimensional clustering problems, and

where the real theoretical power of OBAPI is in

comparison with more traditional deterministic

algorithms. Impact of the parameters on the average

computation of OBAPI is another aspect that must

be analyzed. Especially, proper number of ants and

hunting sites bring robustness and efficiency to

OBAPI and it is important to compare different

values theoretically.

To conclude, experimental studies will be carried

out to validate and complement our theoretical

analysis. The expected outcomes of this method will

not only deepen our understanding of how and when

OBAPI works, but also guide the design of more

efficient algorithm in practice.

ECTA 2015 - 7th International Conference on Evolutionary Computation Theory and Applications

7 CONCLUSIONS

The main motivation for the current work was

utilizing the notion of opposition values to accelerate

an ant-based algorithm called API (after the name of

Pachycondyla APIcalis ants) for crisp clustering of

real-world datasets. The performance of the

proposed algorithm is studied by comparing it with

three different state-of-the-art clustering algorithms

and original version of API. The obtained results

over five benchmark datasets show that the

enhanced API algorithm, called OBAPI, is able to

outperform four other algorithms over a majority of

the datasets. The proposed method can significantly

decrease the number of function evaluations while

improving the quality of solutions in most cases

without adding any new parameter to the original

API. The proposed technique makes a heuristic

method which is only studied for clustering datasets

with average number of features.

REFERENCES

Aupetit, S., Monmarché, N., Slimane, M., Liardet, P.,

2006. An Exponential Representation in the API

Algorithm for Hidden Markov Models Training,

Artificial Evolution, Lecture Notes in Computer

Science (3871) 61-72.

Amiri, A. M., Armano. G., 2013. Early diagnosis of heart

disease using classification and regression trees, The

2013 International Joint Conference on Neural

Networks (IJCNN), IEEE 1-4.

Amiri, A. M., Armano. G., 2014. A Decision Support

System to Diagnose Heart Diseases in Newborns,

2014. 3rd International Conference on Health Science

and Biomedical Systems (HSBS 2014) NANU 16-21.

Bandyopadhyay, S., Maulik, U., 2002. Genetic clustering

for automatic evolution of clusters and application to

image classification, Pattern Recognition (35) 1197–

1208.

Blake, C., Keough, E., Merz, C. J., 1998. UCI Repository

of Machine Learning Database. [Online]. Available:

http://www.ics.uci.edu/~mlearn/MLrepository.html

Bonabeau, E., Dorigo, M., Theraulaz, G., 1999. Swarm

Intelligence: From Natural to Artificial Systems,

Oxford University Press, New York.

Chen, Q., Mo, J., 2009. Optimizing the ant clustering

model based on k-means algorithm, in: Proceeding of

the 2009 WRI World Congress on Computer Science

and Information Engineering, 699–702.

Chou, C. H., Su, M. C., Lai, E., 2004. A new cluster

validity measure and its application to image

compression, Pattern Analysis and Applications (7)

205–220.

Das, A., Abraham, A., Konar, A., 2008. Automatic

clustering using an improved differential evolution

algorithm, IEEE Tran. on Systems, Man, and

Cybernetics (38) 218–237.

Dorigo, M., Caro, G. D., Gambarella, L. M., 1999. Ant

algorithms for discrete optimization, Artificial Life (5)

137–172.

Halkidi, M., Vazirgiannis, M., 2001. Clustering validity

assessment: finding the optimal partitioning of a

dataset, in: Proceeding of IEEE ICDM, San Jose, CA,

187–194.

Han, L., Kamber, M., 2001. Data Mining: Concepts and

Techniques, Morgan Kaufmann, San Francisco, USA.

Hartmann, V., 2005. Evolving agents swarms for

clustering and sorting, in: Genetic Evolutionary

Computation Conference, GECCO, ACM Press,

Prague, Czech Republic, 217–224.

Jain, A. K., Murty, M. N., Flynn, P. J.,1999. Data cluste-

ring: A review, ACM Comput. Surv. (31) 264–323.

Kao, Y. T., Zahara, E., Kao, I., 2008. A hybridized

approach to data clustering, Expert Systems with

Applications (34) 1754–1762.

Labroche, N., Monmarche, N., Venturini, G., 2003.

Antclust: ant clustering and web usage mining, in:

Genetic and Evolutionary Conference, Chicago,25–36.

Leung, Y., Zhang, J., Xu, Z., 2000. Clustering by scale-

space filtering, IEEE Transaction on Pattern Analysis

and Machine Intelligence (22) 1396–1410.

Monmarché, N., Venturin, G., Slimane, M., 2000. On how

Pachycondyla apicalis ants suggest a new search

algorithm, Future Gener Comput Syst (16) 937–946.

Monmarché, N., Slimane, M., Venturini, G., 1999. On

improving clustering in numerical databases with

artificial ants, Advances in Artificial Life 626–635.

Omran, M., Salman, A., Engelbrecht, A., 2005. Dynamic

clustering using particle swarm optimization with

application in unsupervised image classification, in:

Proceedings of the 5thWorld Enformatica Conference

(ICCI), Cybernetics and Informatics, International

Institute of Informatics and Systemics, Prague, Czech

Republic, 398–403.

Ramos, V., Merelo, J., 2002. Self-organized sstigmergic

document maps: environment as a mechanism for

context learning, in: E. Alba, F. Herrera, J. J. Merelo

et al. Eds, AEB2002, First Spanish Conference on

Evolutionary and Bio-inspired Algorithms,

Rockefeller University, Spain, 284–293.

Slimane, N., Monmarche, N., Venturini, G., 1999. Atclass:

discovery of clusters in numeric data by an

hybridization of an ant colony with k-means

algorithm, in: Rapport interne 213, Laboratoire

d’Informatique de l’Universite de Tours, E3i Tours.

Storn, R., Price, K., 1997. Differential evolution - A simple

and efficient heuristic for global optimization over

continuous spaces, Journal of Global Optimization

(11) 341–359.

Tizhoosh, H. R., 2006. Opposition-based reinforcement

learning, Journal of Advanced Computational Intelli-

gence and Intelligence Informatics (10) 578–585.

Wang, Y., Li, R., Li, B., Zhang, P., Li, Y., 2007. Research

on an ant colony isodata algorithm for cluster analysis

in real time computer simulation, in: Proceeding of

Second Workshop on digital Media and its

Application in Museum and Heritage, 223–229.

Clustering Analysis using Opposition-based API Algorithm
