When Textual Information Becomes Spatial Information Compatible

with Satellite Images

Eric Kergosien

, Hugo Alatrista-Salas

, Mauro Gaio

abio N. G

uttler

, Mathieu Roche

and Maguelonne Teisseire

GERiiCO, Univ. Lille, Lille, France

Pontiﬁcia Universidad Cat

olica del Per

u, Lima, Peru

LIUPPA, Univ. Pau, Pau, France

ICube, Univ. Strasbourg, Strasbourg, France

UMR TETIS & LIRMM, Montpellier, France

Keywords:

Natural Language Processing, Information Retrieval, Spatial Information, Land-use Planning.

Abstract:

With the amount of textual data available on the web, new methodologies of knowledge extraction domain

are provided. Some original methods allow the users to combine different types of data in order to extract

relevant information. In this context, we present the cornerstone of manipulations on textual documents and

their preparation for extracting compatible spatial information with those contained in satellite images. The

term footprint is deﬁned and its extraction is performed. In this paper, we describe the general process and

some experiments conducted in the ANIMITEX project, which aims to match the information coming from

texts with those of satellite images.

1 INTRODUCTION

Nowadays, impressive amounts of high spatial reso-

lution satellite data are available. This raises the is-

sue of fast and effective satellite images analysis as it

still requires a costly human implication. In this con-

text, automated and semi-automated remote sensing

approaches attempt to tackle this challenge.

Such large amount of data is also related to in-

creasing temporal repetitivity of Earth Observation

satellites (i.e. one image every 5 days for the new

satellite Sentinel-2 instead of 16 days for the current

Landsat-8). At the same time, the web offers a large

amount of textual data and many researcher commu-

nities are interested in the issue of knowledge extrac-

tion including spatial information.

The ANIMITEX project aims at processing mas-

sive and heterogeneous textual data (i.e. big data con-

text) in order to provide relevant information to enrich

the analysis of satellite images. The project has many

application areas such as image annotation (Forestier

et al., 2012). For instance, identifying the precise type

of crop or the function of a building is not always pos-

sible using only remote sensing images. Nevertheless,

textual data could contain this kind of information and

give additional meaning to the images. The devel-

opment of approaches based on image/text matching

becomes crucial in order to complete image analysis

tasks. It also enables a better classiﬁcation of data.

Moreover, image-text matching will enrich Informa-

tion Retrieval (IR) methods and it will provide users a

more global context of data (Sallaberry et al., 2008).

This can be useful for experts involved in land-use

planning and management.

In this paper, we investigate one speciﬁc scenario:

The construction of a bypass north of Villeveyrac (a

small town close to Montpellier, south of France).

The aim of this case study is to show how to enrich

images with spatial information present in newspa-

per articles provided by Midi Libre (French newspa-

per). The main difﬁculty in extracting spatial infor-

mation, e.g. Spatial Features (SF), is the ambiguity

inherent in natural language. SF extraction methods

generally exploit two complementary fonctionalities:

toponym recognition (geoparsing) and toponym res-

olution (geocoding) (Leidner and Lieberman, 2011).

The problem of the recognition of toponyms (place

names) in text, can be seen as a particular category of

named entity recognition and classiﬁcation (NERC).

According to Smith and Mann (Smith and Mann,

Kergosien, E., Alatrista-Salas, H., Gaio, M., Güttler, F., Roche, M. and Teisseire, M..

When Textual Information Becomes Spatial Information Compatible with Satellite Images.

In Proceedings of the 7th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2015) - Volume 1: KDIR, pages 301-306

ISBN: 978-989-758-158-8

301

2003) there are actually several types of ambiguity

involved in toponym resolution (i.e. associate a to-

ponym with its spatial representation). The use of

contextual elements (other than toponyms), such as

words that have a geographical denotation (”river”,

”town”, ”basin” , etc.), can be extremely important

in a toponym disambiguation task (Hollenstein and

Purves, 2010).

This paper focuses on the use and adaptation of

Natural Language Processing (NLP) techniques for

recognition of the spatial representation throughout

the document. To achieve this, we have collected a

set of newspaper articles (corpus of 3809 textual doc-

uments) about the Thau basin territory from 2010 up

to 2013. NLP methods based on lexico-syntactic pat-

terns (Gaio and Nguyen, 2011) were then used to au-

tomatically annotate linguistic expressions conveying

more or less complex spatial information. In the pro-

posed approach, SF appearing in a text, are composed

of at least one named-entity allowing a geolocation

and one or more spatial indicators specifying its lo-

cation (Lesbegueries et al., 2006). Once the SF ex-

tracted, the problem is to identify their spatial char-

acteristics in order to deﬁne a spatial representation

throughout the document.

The paper is structured as follows. In Section 2,

an overview of SF extraction methods is presented.

In Section 3, the method to identify SF representa-

tion is detailed. Section 4 gives a short description

of the corpus, reports experiments and lists associated

prospects. The paper ends with conclusions and some

perspectives.

2 RELATED WORK

NERC methods automatically annotate different

types of named entities: dates, people, organisa-

tions, themes, numeric values, as well as place names.

There is a signiﬁcant number of systems available,

both proprietary and open source, such as OpenNLP

from Apache, OpenCalais

from Thomson Reuters,

and CasEN (Maurel et al., 2011). More speciﬁc meth-

ods that are solely concerned with geographical data

are known as geoparsing (Leidner and Lieberman,

2011). In our work, we focus on this category and

a ﬁrst issue is to precisely identify named-entities al-

lowing a geolocation using the deﬁnition proposed in

(Lesbegueries et al., 2006).

In this model, SF can then be identiﬁed in two dif-

ferent ways:

https://opennlp.apache.org/

http://www.opencalais.com/

• an Absolute Spatial Feature (A SF) one Named-

Entity (NE) allowing a geolocation, such as:

< (spatialIndicator)

∗

, NE of Location>

A spatialIndicator is a term contained within a

geographic lexicon (“river”, “town”, “mountain”,

etc.). Two examples of this type of SF are the

”The Thau basin” and ”the town of S

ete”;

• a Relative Spatial Feature (R SF) one spatial re-

lationship (topological or Euclidean) with at least

one SF. An R SF, including one A SF at the end

of a pattern, is deﬁned as:

< (spatialRelation)

1..∗

, A SF > or

< (spatialRelation)

1..∗

, R SF >.

Five spatial relation types are considered: orien-

tation (“in the south of”, etc.), distance (“20 kilo-

metres from”, etc.), adjacency (“near”, etc.) , in-

clusion (“in”, etc.) , and geometry which deﬁnes

the union or intersection linking two SFs (between

A and B, etc.). An example of this type of SF is

“in the area of Cuzco” according to the pattern

< (spatialRelation)

1..∗

, A SF >.

A second issue is related to the identiﬁcation of

spatial representation for each SF. In this sub-domain,

ﬁrst research works in the 90s have been focused

on the representation of complex qualitative relation-

ships such as orientation (Frank, 1991). The direc-

tion of a SF is deﬁned taking as reference the position

of a second SF. To achieve this, the author proposes

the model with cones to represent the four cardinal

points: north, east, south, west. A second proposal

was to represent the orientation relationship using a

3x3 grid in which the central cell is called the ”neutral

zone”. Cells around represent eight cardinal points,

north, northeast, east on southeast, etc. In (Hern

andez

et al., 1995), the authors focus on the study of the

representation of qualitative distances (far, near, etc.)

and propose a representation model of for ﬂexible dis-

tances at different levels of granularity. In (Cohn,

1996), a state-of-the-art of SF representation is drawn.

At ﬁrst, the author focuses on the use of an ontol-

ogy of geographic objects and presents a study on

the extension of basic physical objects (points, lines,

etc..) to build more complex ﬁgures (regions , roads,

etc..). In a second step, the author takes into account

the topological relationships between SF and relations

(orientation, distance, size and shape of related ob-

jects). These representations, enabling to take into

account the underlying abstractions, are then used to

create complex qualitative models.

More recently, in (Davis, 2013), the authors rely

on a corpus of citations to identify the spatial relation-

ships between spatial objects. The authors describe

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

302

several problems related to the identiﬁcation of rela-

tionships between SF, such as ambiguity in the recog-

nition of the spatial representation, continuity of geo-

metrical objects and many others.

3 SPATIAL FOOTPRINT AND

DOCUMENTS

3.1 General Process to Match Satellite

Images and Textual Documents

In the context of ANIMITEX project, we pro-

pose a new approach which is designed to semi-

automatically match satellite images and textual doc-

uments in land-use planning contexts. This general

approach is divided into three stages (see Figure 1).

In the ﬁrst stage, the approach focuses on the semi-

automatic extraction of image objects from satellite

images, using temporal clustering and segmentation.

In the second stage, NLP methods have been applied

in order to identify linguistic features concerning spa-

tial information in the documents. The use of lexicons

and dedicated rules (Gaio and Nguyen, 2011) allows

us (1) to identify the absolute (e.g., ”Madrid”) and rel-

ative (e.g., ”south of Madrid”) Spatial Features (AS F

and R SF) and (2) to calculate the footprint of each

document. In the ﬁnal stage, we propose to select tex-

tual documents in relation with the studied land-use

planning project.

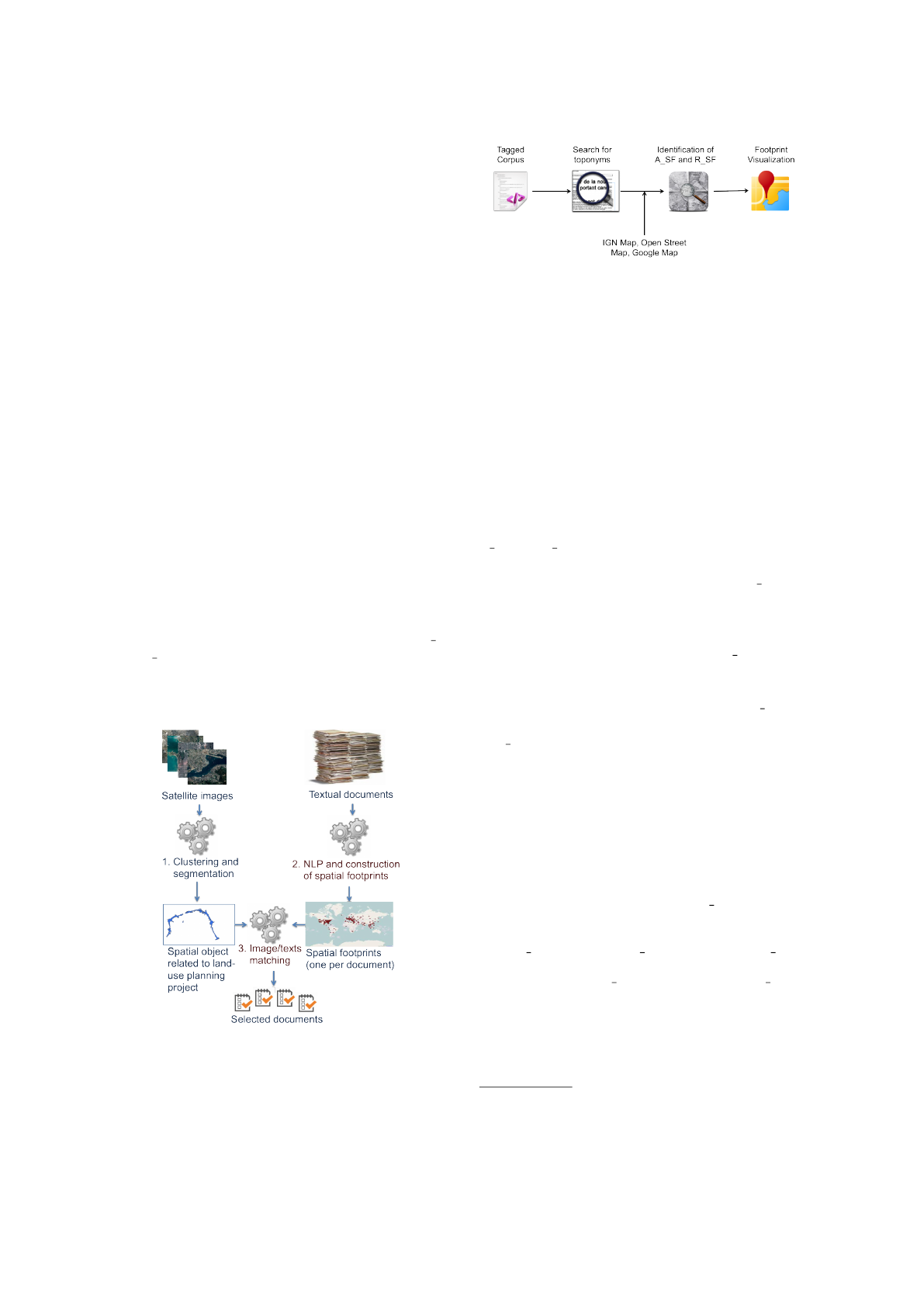

Figure 1: General process of the ANIMITEX project.

In this paper, we focus on the second and third

stages. The following section describes the proposed

approach to construct footprints from textual docu-

Figure 2: From document to footprint deﬁnition: the three-

steps process.

ments, and then to match these documents with satel-

lite images using spatial representation.

3.2 Footprint Identiﬁcation Process

To calculate the footprint, we propose a process con-

sisting of three steps (see Figure 2).

SF Marking: the text marking step is achieved

through an automatic framework containing all spec-

iﬁcations proposed in (Gaio and Nguyen, 2011). This

framework outputs a structure incorporating the SF

deﬁnition proposed in the previous section. A list of

A SF and R SF can be extracted from each document

of the treated corpus.

SF Validation: for each identiﬁed A SF, we

check on external resources if there is a corresponding

spatial representation. In particular, we have used lay-

ers provided by the IGN

(municipalities, roads, rail-

ways, buildings, etc.). In addition, if an A SF does not

present on IGN resources, we use gazetteers (Geon-

ames and Open Street Maps) to complete the infor-

mation. Concerning the representation of R SF, we

use spatial indicators of topological order associates

to A SF.

Following the scopes proposed in (Sallaberry

et al., 2008), the spatial indicators of topological

order have been grouped in ﬁve categories:

• Proximity: Different indicators can be used in

relationship of proximity, such as “near”, “around”,

“beside”, “close to”, ”periphery”, etc. To represent

this relationship, we deﬁne a Tolerance Zone T Z.

This area built around the studied A SF will be cal-

culated as follows:

T Z(A SF) = sur f ace(A SF) + φ ∗ sur f ace(A SF)

where sur f ace(A SF) is the surface of A SF on

which the relationship is docked. The value of φ is

ﬁxed by taking into account the needs of experts and

in particular the size of the studied area.

• Distance: The indicators used in this relation-

ship are of the form: “x km”, “x miles”, etc. Two

National Institute of Geographic and Forestry Informa-

tion - www.ign.fr

When Textual Information Becomes Spatial Information Compatible with Satellite Images

303

representations are then proposed in our approach: 1)

calculus of distance from the centroid of the A SF and

construction of a circular buffer of size x from the cen-

troid; 2) regarding the shape of the A SF and building

a buffer of size x from the edge of the processed A SF.

• Inclusion: This binary operation allows us to

check if an A SF is inside another by taking into ac-

count indicators such as “center”, “in the heart”, “in”,

“inside”, etc. Two types of inclusion are considered:

1) full inclusion, for instance, the expression “the

town of Sete is in the Herault region”; 2) partial in-

clusion (i.e. intersection), for instance, “departmental

road RD2 crosses (partly included) Poussan town”.

• Orientation: This unary relationship has been

broadly studied in the literature. Different approaches

have been proposed to identify a cardinal points of an

A SF. We have chosen to use the conical model pro-

posed in (Frank, 1991). For this, we use the centroid

of A SF and we build a buffer around. The size of

this buffer will be calculated by taking into account

the surface of the studied A SF. Then we decompose

the buffer into four equal areas (forming a “X”) from

the centroid. Each intersection between the buffer and

cones thus formed represent the four cardinal points.

• Geometry: Geometry relations are built from at

least two A SF. These relationships are, for example,

the union, the adjacency, the difference or a position

of an A SF with respect to other A SF, for example,

C between A and B (where A,B and C are A SF), etc.

Representation of the Footprint: After the ex-

traction step and spatial representation of the A SF

and R SF, the footprint associated with the treated

document can be mapped. In this process, two main

problems have been identiﬁed. The ﬁrst one is the

persistent ambiguity of some named entity contained

in SF because some named entities correspond to sev-

eral places, e.g. ”Montagnac”. To address this issue,

a conﬁgurable spatial ﬁlter based on predeﬁned sce-

narios has been developed. For example, to identify

events related to a speciﬁc land-use planning project

occurred in a part of the area of the Thau lagoon, only

the SF contained in this area will be explored. The

second issue is related to the use of external resources

and the identiﬁcation of the spatial representation ap-

propriate to each A SF. Taking into account the spatial

indicator (e.g. ”town”, ”road”, etc.) preceding by the

toponymic name is a ﬁrst answer because it allows us

to specify the type of the SF and thus take into account

the appropriate spatial representation.

4 EXPERIMENTS

4.1 Data Preprocessing

A set of newspaper articles (i.e. 3809 documents)

concerning the Thau basin from 2010 up to 2013 has

been acquired. A second part of the data set is com-

posed of three Pleiades satellite images (2 m pixel size

and 4 spectral bands) covering the entire Thau basin

region. Satellite images are available via the GEO-

SUD Equipex

As cited before, in this article we propose a pro-

cess to identify and construct footprints from textual

documents to help the remote sensing analysts to ex-

plain changes. To achieve this, we need two inputs.

1) In one hand, we have to identify a spatial rep-

resentation of a spatial object related to the land-use

planning project that we want to address. This spatial

representation is obtained thanks to a remote sensing

process applied over a time series of satellite images.

The goal is to ﬁnd abrupt and unexplained changes in

this time series. The three Pleiades images used in

this work were acquired on 10 July 2012, 14 Septem-

ber 2012, and 15 March 2013 (see Figure 3).

0 500 1000 m

10 July 2012 14 September 2012 15 March 2013

Figure 3: Visible color composite of the three Pleiades

images showing the construction of a bypass north of

Villeveyrac (France).

First, a temporal clustering is performed over the

Villeveyrac area (K-means algorithm with 12 classes).

One of the obtained clusters (see Figure 4.a. - blue

color) is related to the atypical change represent-

ing the bypass construction. Then, a segmentation

(MeanShift algorithm) is applied over the temporal

clustering results. In total, 1711 objects are obtained

from the segmentation (see Figure 4.b.) and 8 of them

correspond to the bypass construction. These 8 ob-

jects are exported as a single multi-polygon vecto-

rial layer (see Figure 4.c.) and represent the footprint

of the Villeveyrac bypass extracted from the Pleiades

time series.

2) In the other hand, we have at our disposal an

extract of our corpus containing 3809 newspapers ar-

ticles provided by the French press Midi Libre. This

corpus is related to the Thau basin region from 2010

up to 2013.

http://www.equipex-geosud.fr/

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

304

0 500 1000 m

Figure 4: Clustering, segmentation and vector output from

the Pleiades time series processing around the Villeveyrac

area.

4.2 The Process to Match Images and

Textual Documents

Once the textual corpus collected, the process, de-

scribed in Section 3.2, has been applied to extract

SF (see Table 1). There are two outputs ﬁles. The

ﬁrst one is A XML ﬁle, in which SF are identiﬁed

and marked by a tag < SF >. A SF is validated if it

is present in the external geographical resources used

(IGN and gazetteers).

In the XML ﬁle, one of the tags expresses a spatial

relationship between one or two SF. Indeed, tag indi-

rection represents one of the ﬁve categories of spatial

relations described in Section 3. We can take advan-

tage of indirections to build R SF. To do this, all com-

ponents in < indirection > tag are explored in order

to extract information to extend A SF to R SF. In this

manner, some SF associated to spatial relationships

can be extended to approximate SF towards the spatial

representation of the event identiﬁed in the use-case.

The second ﬁle (structured in JSON format) rep-

resents the geographical characteristics of conﬁrmed

SF. In fact, once SF is validated, geographical infor-

mation describing the SF is collected from resources.

This information is, for example, the Lambert coor-

dinates, the resource name, times that SF appears in

resources, etc. This information is presented follow-

ing a JSON structure.

Figure 5 represents validated spatial entities ex-

tracted from 3809 documents. As presented in Table

1 (see line 1), 252575 spatial entities are identiﬁed

and validated.

In this context, an important issue has to be tack-

led: a validated SF could represent different locations.

For example, the SF “Croissiles” is a municipality lo-

cated in 3 different areas in France: Pas-de-Calais,

Calvados and Orne. In the same way, “Calais” is a

Figure 5: Spatial entities identiﬁed from corpus over the

French territory.

town located in United States and as well in the north

of France.

To address this problem and reduce the noise as-

sociated to the ambiguity of spatial entities, we have

ﬁltered spatial entities located in the studied area (us-

ing Lambert coordinates). The treated experimental

land-use planning project is the construction of the

Villeveyrac bypass, which represents a small part of

the Thau basin region. Thanks to this ﬁltering step,

we reduce by 95% potentially SF candidates (from

252575 points to 2090 SF, see Table 1, lines 1 and 2).

Nevertheless, our goal is to be as close as possible

to an event that appeared in a speciﬁc area located

thanks to our scenario. The representation using a

simple point is not enough. In this work, we pro-

pose to take into account representation of A SF and

R SF extracted by our process (see Section 3.2). For

instance, the A SF “the town of Villeveyrac” can be

represented by a polygon (corresponding to territory

of the municipality), the A SF “the road R2” can be

represented by lines (it is a departmental road), etc.

These representations are obtained using external re-

sources as IGN maps, GeoNames, etc. We have pro-

posed a top-down geographic granularity level, from

departments to buildings (in France). However, three

types of representations have been considered for our

experiments: municipalities, roads, and buildings be-

cause of the studied scenario that covers a relatively

small area. Figure 6 shows 4 footprints, generated by

our approach, which are in intersection relation with

the spatial object representing the Villeveyrac bypass.

As presented in Section 3.2, a footprint is obtained by

the union of all validated SF extracted from a docu-

ment.

We note that footprints are spatially closer to

event previously identiﬁed in the representation of the

treated spatial object (extracted from satellite images

and related to the Villeveyrac bypass construction)

thanks to Absolute and Relative Spatial Features (cf.

SF and R SF). Our method enables to identify a

footprint for 754 textual documents, e.g. these doc-

uments contain at least one SF located in the studied

area (see Table 1, line 4). From this selection, 279

When Textual Information Becomes Spatial Information Compatible with Satellite Images

305

Table 1: Experiments on a corpus of 3809 articles.

Steps Nb Documents Nb Points Nb SF Nb A SF Nb R SF

1. Initial corpus 3809 252575 - - -

2. Filtering by the spatial area 758 2090 - - -

3. Intersection with points 0 0 - - -

4. Documents with footprints 758 - 2090 1992 98

5. Intersection with footprints 279 - 763 677 96

2 km

SF of the Villeveyrac bypass

SF of the "road R2"

SF of the "city of Villeveyrac"

(present in all documents)

Footprint of document id=89

Footprint of document id=393

Footprint of document id=2701

Footprint of document id=1453

Map Key

Mediterranean

Sea

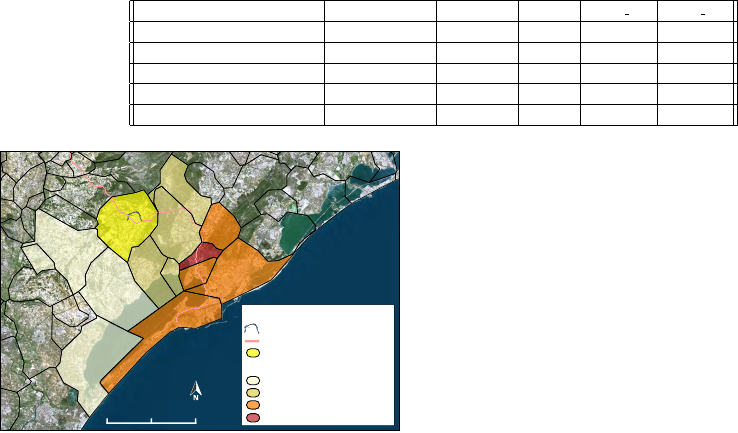

Figure 6: Representation of footprint related to 4 selected

documents.

documents have got a footprint in intersection with

the spatial object representing the Villeveyrac bypass

(see Table 1, line 5).

In this work the footprints are identiﬁed, the next

step is to analyze the document content to identify the

ones referring to the event deﬁned in the scenario.

5 CONCLUSION AND FUTURE

WORK

This paper presents the ﬁrst step of a methodology

for extracting spatial footprint associated with textual

documents. The main issue is to identify textual docu-

ments containing spatial footprint associated to satel-

lite images, and this work is part of the ANIMITEX

project. We have used the spatial relation of inter-

section to identify textual documents related to the

same area of the spatial object representing the sce-

nario. The second step will be performed via several

spatial operators (i.e. distance, orientation, covering,

etc.) according to a protocol which has to be ﬁxed and

in adequacy with the needs of the experts.

Finally, we propose to evaluate the reproducibil-

ity and relevance of experiments on other corpora and

associated to a distinct land-use planning context.

ACKNOWLEDGEMENTS

The authors thank Midi Libre (French newspaper)

for its expertise on the corpus, and all of the part-

ners of ANIMITEX. This work is partially funded by

Mastodons CNRS grant, and GEOSUD Equipex.

REFERENCES

Cohn, A. G. (1996). Calculi for qualitative spatial reason-

ing. Artiﬁcial Intelligence and Symbolic Mathemati-

cal Computation, 1138(5):124–143.

Davis, E. (2013). Qualitative spatial reasoning in interpret-

ing text and narrative. Spatial Cognition & Computa-

tion, 13(4):264–294.

Forestier, G., Puissant, A., Wemmert, C., and Ganc¸arski,

P. (2012). Knowledge-based region labeling for re-

mote sensing image interpretation. Computers, Envi-

ronment and Urban Systems, 36(5):470–480.

Frank, A. (1991). Qualitative spatial reasoning with cardi-

nal directions. Seventh Austrian Conference on Artiﬁ-

cial Intelligence, 287:157–167.

Gaio, M. and Nguyen, V. (2011). Towards heterogeneous

resources-based ambiguity reduction of sub-typed ge-

ographic named entities. In Int. Conf. of GeoSpatial

Semantics (GeoS), pages 217–234.

Hern

andez, D., Clementini, E., and Felice, P. (1995). Qual-

itative distances. Spatial Information Theory A Theo-

retical Basis for GIS, 988:45–57.

Hollenstein, L. and Purves, R. (2010). Exploring place

through user-generated content: Using ﬂickr tags to

describe city cores. J. Spatial Information Science,

1(1):21–48.

Leidner, J. L. and Lieberman, M. D. (2011). Detecting ge-

ographical references in the form of place names and

associated spatial natural language. SIGSPATIAL Spe-

cial, 3(2):5–11.

Lesbegueries, J., Gaio, M., and Loustau, P. (2006). Geo-

graphical information access for non-structured data.

In ACM Symposium on Applied Computing (SAC ’06),

ACM, pages 83–89.

Maurel, D., Friburger, N., Antoine, J.-Y., Eshkol-Taravella,

I., and Nouvel, D. (2011). Casen: a transducer cascade

to recognize french named entities. TAL, 52(1):69–96.

Sallaberry, C., Gaio, M., and Lesbegueries, J. (2008).

Fuzzying gis topological functions for gir needs. In

5th ACM Work. On Geog. Inf. Ret., pages 1–8.

Smith, D. A. and Mann, G. S. (2003). Bootstrapping to-

ponym classiﬁers. In Proceedings of the HLT-NAACL

2003 Workshop on Analysis of Geographic References

- Volume 1, pages 45–49.

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

306
