LODLI: Linked Open Data Back-End System

for Libraries Interoperability

Miriam Allalouf

, Alex Artyomov

and Dalia Mendelsson

Azrieli College of Engineering (JCE), Jerusalem, Israel

The Hebrew University of Jerusalem, Jerusalem, Israel

Keywords:

Linked Open Data for Library Catalog Data, Mapping MARC to Ontologies.

Abstract:

Linked Data principles offer signiﬁcant advantages over current practices when publishing data. Linked Data

allows library interoperability by linking to data from other organizations with authoritative data, which en-

riches library catalog-user search results. This paper describes LODLI, a Linked Open Data Back-End system

that we designed and developed to enhance library catalog searches. We integrated our system with the He-

brew University library catalog, HUﬁnd. While our platform can be used as is, it can also be customized

by Linked Open Data providers that desire to convert their MARC records into Linked Data information li-

brary systems, making their data far more accessible. This research project faced the following challenges:

ﬁnding the most efﬁcient way to translate binary MARC into MARC records; mapping the MARC records

into a variety of information models, such as Dublin Core, FRBR, RDA, OWL and FOAF, while selecting

the most appropriate MARC ﬁeld combinations; and providing links to resources in external datasets using a

distance algorithm to identify string similarity. LODLI is a generic system to which additional ontologies can

easily be added. We have demonstrated the system with two types of clients: FRBR visualization client and

VIAF-extension client.

1 INTRODUCTION

Linked Data is a web-based method used for creat-

ing typed links between data from different sources

that can be very diverse. The data sources can be

databases at two organizations in different geograph-

ical locations, or heterogeneous systems within a

given organization that historically haven’t experi-

enced easy interoperability at the data level. Linked

Data (Berners-Lee, 2009; Bizer et al., 2009) refers to

data published on the web in such a way that its mean-

ing is explicitly deﬁned and can therefore be pro-

cessed by machines, which enables data from differ-

ent sources to be connected and queried. Linked Data

forms RDF graph located in a database that can be tra-

versed to createa context for the described resources

RDF predicates that share common domains are de-

ﬁned in ontologies.

Linked data principles makes data more accessible

and useful by publishing it in a machine-readable for-

mat. For example, when a user agent queries a base

to collect data about Venus, it should clearly under-

http://www.w3.org/TR/2004/

REC-rdf-primer-20040210/

stand the entity this data applies to —be it Venus (the

planet) or Venus de Milo (the statue). Organizations

including VIAF

(The Virtual International Authority

File), WorldCat

, and Wikipedia’s databases (DBpe-

dia and the newer Wikidata) collect data from varied

resources on the web, process and store it in their Link

Data database, and then reinsert it on the web.

Nowadays, libraries around the world desire to

enjoy the beneﬁts and advantages of linked data

(Schilling, 2012; Coyle, 2010; Gonzales, 2014). The

academic library catalog allows end users to search

for and ﬁnd the requested information. The Google-

like search method inﬂuenced the way that library cat-

alogs are being developed to offer a similar user expe-

rience (Emanuel, 2011), (Ramdeen and Hemminger,

2012). Presently, library catalogs offer academic re-

sources based on the advances of information re-

trieval technologies (Merˇcun and

Zumer, 2008; Ten-

nant, 2005) that allow predictivesearch features (such

as “Did you mean?”); user proﬁle-awarecontent, such

as tags, ratings, reviews, and comments; and a faceted

classiﬁcation. The new concept was developed only

http://viaf.org/

http://www.worldcat.org/

Allalouf, M., Artyomov, A. and Mendelsson, D..

LODLI: Linked Open Data Back-End System for Libraries Interoperability.

In Proceedings of the 7th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2015) - Volume 2: KEOD, pages 269-278

ISBN: 978-989-758-158-8

269

at the presentation layer of the Online Public Access

Catalog (OPAC) and did not require changes in the

Integrated Library Systems’ (ILS) core. Most library

catalogs, in order to supply basic functionality of re-

source description and discovery, describe their bibli-

ographic records in MARC (Machine-Readable Cat-

aloging). The extractable information from a typical

MARC record is limited and fails to meet growing

user expectations and needs in terms of sharing li-

brary collections and external resources access. Given

world-wide emerging data collection and web pub-

lishing, it is essential and beneﬁcial to apply Linked

Data principles to information library systems.

We are not aware of any off-the-shelf Linked Data

back-end systems for individual libraries. We there-

fore designed and developed LODLI (a Linked Data

Back-End system). LODLI is a generic platform

aimed at mapping MARC records to a Linked-Data

information model that will serve the libraries in two

possible scenarios:

1. Publish their own collections using Linked Data’s

machine-readable APIs ;

2. Enrich library catalog results with supplementary

information taken from remote organizations.

In the ﬁrst scenario, a library has its own collec-

tions, stores them in the LODLI repository and pub-

lishes the collections using Linked Data’s machine-

readable APIs such that other libraries may enjoy

them. The design of LODLI requires a preliminary re-

search stage to deﬁne these client applications. Given

that the data interoperability area is still emerging and

the use cases are not fully known or resolved, we had

to attempt to predict the types of client applications

and then build LODLI in a way that would address all

the cases. Hence, the research questions for this sce-

nario are: 1) Which objects and typed-connections a

client library may require the new repository to have?

and 2) Which Linked-Data information model and on-

tology, the MARC records will be converted to?

Our research observed that FRBR (Functional Re-

quirements for Bibliographic Records) (Tillett and

Cristian, 2009) is an appropriate information model

to serve many types of client libraries that wish to

ﬁnd the semantic details of an item. FRBR applies

a new model to the metadata of information objects

in place of the ﬂat record concept underlying the cur-

rent MARC format. Linked Data concepts provide

similar hierarchy and conform to the FRBR informa-

tion model. The FRBR visualization client and the

details behind the speciﬁc mapping of MARC ﬁelds

to FRBR categories are described in Section 2.1. We

also mapped the MARC records to the properties as-

sociated with Dublin Core that is suitable to describe

library resources such as books and digital media,

FOAF and OWL. Each structure was observed and

selected according to its suitability to common client

applications and will be described in Section 2.

The second scenario consists of libraries that wish

to enhance their catalog capabilities by storing and

managing external links to other data sets that de-

scribe the same resource. One challenging research

question is which repositories to access for this re-

source and how to ﬁnd the intended one. There are

organizations with a large set of data that was col-

lected from smaller libraries. The goal is to access a

higher-tiered repository. For example, VIAF is a focal

point for authoritative information collected from all

the national libraries and it makes sense for LODLI

to access it when looking for an author’s metadata.

We have tried to determine the repository access route

that will be common to many catalog discovery ap-

plications. We provided the implementation of one

pattern to be detailed in Section 2.2 where the client

accesses ﬁrst WorldCat and then VIAF.

Moreover, each organization that collects meta-

data for the same item, identiﬁes it differently using

their own ID. It will be convenient to access a higher-

tiered repository assuming the ID is already known

and we can correctly identify the required informa-

tion. Thus, if LODLI is owned and customized by

a national library that is aware of VIAF ID per each

item, the access to the correct item will be easy. Oth-

erwise, LODLI applies a fuzzy matching algorithm to

ensure the remotely accessed item is the intended one.

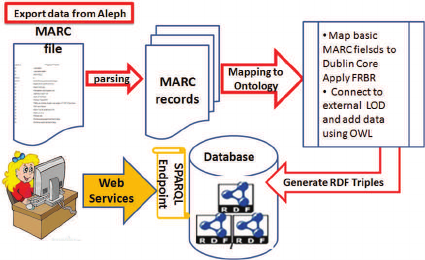

Figure 1: LODLI Flow.

Figure 1 is a LODLI dataﬂow diagram. The red

arrows show the 3-stage generation and population of

the Linked Data storage process, which occurs upon

database creation and the addition of new database

updates. Note that libraries that use LODLI to enrich

their catalog using remote information have to covert

their MARC records and store them in LODLI, as

well. The orange arrow at the bottom represents a li-

brary catalog user who triggers a LODLI client, which

provides access to external datasets. LODLI offers an

end-to-end solution for a Linked Open Data publish-

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

270

ing system and its architecture design followed the

requirements for modularity and possible future ex-

tensions of additional information models, ontologies

and discovery routes.

HUﬁnd (http://huﬁnd.huji.ac.il/) is the modern

catalog used by the Hebrew University of Jerusalem,

which serves its eight libraries and various faculties

on the university’s four campuses. The university’s

Library Authority, which is responsible for managing

information technology for all university libraries, ex-

pressed the desire for enhanced catalog capabilities,

which would enable them to access other libraries

across the globe via a linked data system. LODLI’s

client were designed to be integrated with HUﬁnd.

Section 2 characterizes the applications that will

access LODLI and describes the mapping process

of MARC records to an ontology-annotated RDF

database. Section 3 describes the LODLI architec-

ture. Section 4 presents the experimental setup and

system evaluation. Section 5 provides related works

in the ﬁeld.

2 CLIENTS AND MARC

MAPPING

To allow many types of client library applications,

the LODLI system utilizes a full set of Linked Data

principles, offering a platform to libraries that de-

sire a Linked Open Data web system. The plat-

form receives a ﬁle containing one or several MARC

records as an input, extracts all records from the

ﬁle, applies an FRBR structure to each record, maps

the MARC records to the properties associated with

Dublin Core, FOAF, OWL models, connects them to

external datasets for additional information, and then

stores them as RDF triples in a dedicated database.

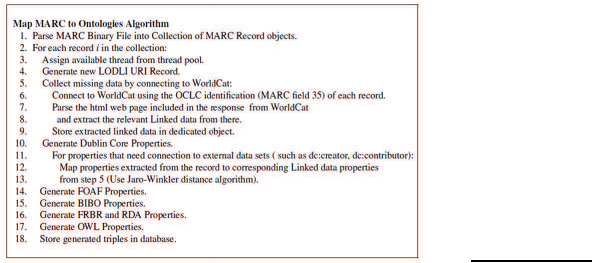

The pseudocode of the main algorithm performed by

LODLI is depicted in Figure 2.

In this paper, we described two variants of LODLI

Figure 2: Main Algorithm for MARC Parsing and RDF

Generation.

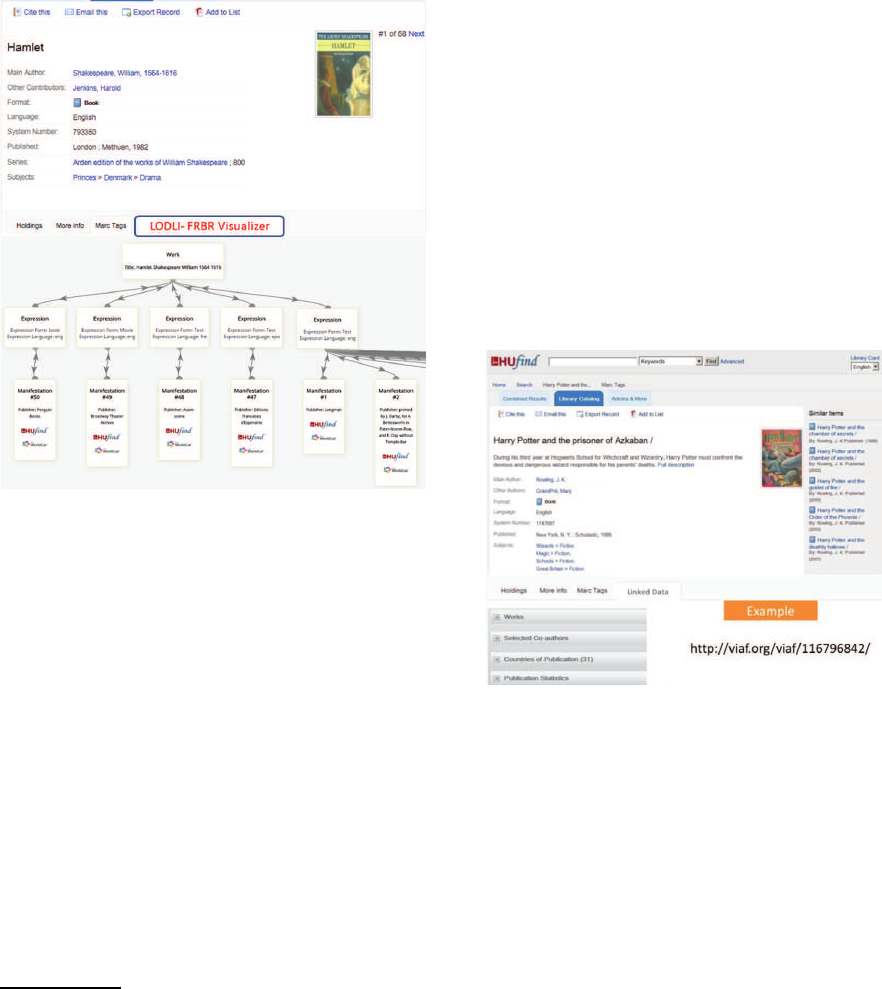

clients: LODLI FRBR visualization client (Section

2.1) and the LODLI VIAF WorldCat client (Section

2.2). Both were implemented using standard client-

side language, such as JavaScript, HTML and CSS.

Cross-browser clients were tested and found to be

fully functional in all commonly used browsers, such

as Google Chrome, Mozilla Firefox, Opera, and In-

ternet Explorer (starting version 8).

2.1 FRBR Visualization Client

FRBR is a 1998 standard that was created by the In-

ternational Federation of the Library Associations and

Institutions (IFLA) to reconstruct catalog databases

and to reﬂect the conceptual structure of information

resources (Tillett and Cristian, 2009). FRBR applies

a new model to the metadata of information objects

replacing the ﬂat record concept underlying the cur-

rent MARC format. The FRBR model belongs to the

family of entity-relationship models and contains four

levels of representation:

Work. A distinct intellectual or artistic creation, such

as a URI representing the title ”The Tragedy of

Hamlet, Prince of Denmark”.

Expression. The intellectual or artistic realization of

a work, such as a URI representing the English-

language version of Hamlet.

Manifestation. The physical embodiment of an ex-

pression of a work. For example a URI represent-

ing the publisher of Hamlet.

Item. The book itself-e.g., a copy of Hamlet.

The use of FRBR to describe the data in the li-

brary offers a better user experience and superior re-

source discovery. For example, user searches for ”The

Tragedy of Hamlet, Prince of Denmark” in the li-

brary site result in a list with the various expressions

and manifestations of Hamlet in the library, such as a

movie based on the play or translations into different

languages.

For HUJI’s library catalog, HUﬁnd, we developed

an FRBR visualization client. Figure 3 displays a

Hamlet MARC record in the library identiﬁed by a

given id. Clicking

on the LODLI FRBR Visual-

ization button (in red) displays an interactive FRBR

graph containing the three levels of the FRBR struc-

ture. The manifestation level displays hyperlinks to

record pages in HUﬁnd and WorldCat.

LODLI maps the MARC ﬁelds to FRBR-

annotated RDF triples. We followed the Library of

Congress mapping choice of MARC (Delsey, 2002),

This client is ready and expected to be integrated with

HUﬁnd soon

LODLI: Linked Open Data Back-End System for Libraries Interoperability

271

where attributes associated with the FRBR entity

work appear in the heading and title MARC ﬁelds.

Attributes of the FRBR entity expression are recorded

in textual form in a number of heading and title sub-

ﬁelds as well as in certain material, physical and/or

note ﬁelds. Attributes of expression are recorded as

ﬁxed length data elements, and attributes of the mani-

festation tend to be concentrated in the numbers, title,

title-related ﬁelds, edition, and imprint ﬁelds.

Figure 3: An FRBR visualization client integrated with

HUﬁnd.

2.2 VIAF and WorldCat Client

Figure 4

depicts an example for a client applica-

tion that enriches HUﬁnd user’s search result using

the LODLI system in the HUJI catalog. The upper

part of the page in Figure 4 is a regular HUﬁnd’s

presentation for the item Harry Potter and the Pris-

oner from Azkaban. Clicking on the Linked Data

tab at the center of the page triggers our LODLI

client implementation, which, in turn, accesses the

link http://www.viaf.org/viaf/116846492/, which is a

VIAF Authority File for J.K. Rowling the author of

Harry Potter . As a result, a drop-down menu appears

below the tabs, displaying additional search options.

This Linked Data tab provides access to 18 national

libraries around the world in addition to hundreds of

other sources.

The Dublin Core Schema is a small set of vocabu-

This client is ready and expected to be integrated with

HUﬁnd soon

lary terms used to describe web resources (video, im-

ages, web pages, etc.), as well as physical resources

such as books or CDs. The Library of Congress, the

British Library, and Cornell University Library have

conducted considerable work in the area of mapping

MARC ﬁelds to corresponding Dublin Core proper-

ties and each of those libraries published a list of

recommendations as to which mappings are prefer-

able. On the basis of their recommendations, we used

a combination of mappings in creating LODLI. The

creator property describes the content of the resource

and may refer to a person, an organization, or a ser-

vice. We mapped creator by MARC ﬁelds 110, 111,

112. For the contributor property we followed the

British Library recommendations that distinguishes

between a person or an organization according to the

MARC ﬁeld and subﬁeld. The Cornell University Li-

brary maps the contributor property by MARC ﬁelds

700, 710, 711 and 720. The Library of Congress sug-

gested a slightly different mapping for the contribu-

tor, which is 700, 710, 711$e and 720$e. We chose

the British Library recommendation that is more pre-

cise. The additional Dublin Core properties that are

mapped in LODLI are summarized in Table 1.

Figure 4: HUﬁnd with LODLI Picture from VIAF.

A full Linked Open Data platform requires a con-

nection to external Linked Data repository. Accord-

ingly, some of our RDF triples were created by con-

necting our dataset with external datasets, such as

VIAF and WorldCat. Connections were constructed

by creating links between entities from our datasets

(such as books and authors) to the same entities

described in other datasets. For example, in our

dataset, if ”Harry Potter and the chamber of secrets”

by J.K. Rowling is identiﬁed by http://hujilinkeddata/

Record/HUJ001747095 and in WorldCat the same

book it’s identiﬁed by http://www.worldcat.org/oclc/

318422828, by generating and storing the http://

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

272

Table 1: A summary of all the model properties mapped from MARC ﬁelds in LODLI.

Name Properties

FRBR Functional Requirements Work, Expression,

for Bibliographic Records Manifestation, RealizationOf, Realization,

http://purl.org/vocab/frbr/core Embodiment, EmbodimentOf

contributor, coverage, creator, created, issued, description, format,

dc Dublin Core identiﬁer, relation, rights, source, subject, title, type, isFormatOf, hasFormat,

http://purl.org/dc/terms/1.1/ isPartOf, haslanguage, publisher,isVersionOf, hasVersion, isReferencedBy,

requires, Part, isReplacedBy, replaces, extent

Bibo The Bibliographic Ontology

Isbn, isbn10, isbn13, Conference

http://purl.org/ontology/bibo

foaf - Friend of a Friend

Person,Agent,Organization, Name

http://xmlns.com/foaf/0.1/

OWL Web Ontology Language

SameAs

http://www.w3.org/2002/07/owl

RDA Resource Description and IdentiﬁerForTheWork, Title,

Access http://rdvocab.info/Elements/ IdentiﬁerForTheExpression, LanguageOfExpression

hujilinkeddata/Record/HUJ001747095 owl:SameAs

http://www.worldcat.org/oclc/318422828 RDF triple

we connect our dataset to the WorldCat.

HUJI’s MARC record of Harry Potter (or any

other item) does not include the VIAF ID of the author

but it includes the WorldCat ID of the book. In order

to connect HUJI’s Authority entities (person names)

to a VIAF object we used WorldCat linked data store.

When the linked data is extracted from WorldCat,

we fetch all the creators

and contributors properties

of a particular book and then map them to the cre-

ators and contributors from our dataset using the dis-

tance algorithm for string matching. We had to use

a string matching algorithm because in some records,

the spelling of the names of creators and contributors

is different in WorldCat from that in our dataset. Ad-

ditionally, some authors that appear in our dataset as

creators appear in WorldCat as contributors, and vice

versa. By using the distance algorithm that calculates

a similarity score for any two strings (e.g., authors

names), we can perform mapping accurately thereby

minimizing the mapping mistakes. Note, that if the

VIAF ID is included in the library records, LODLI

will insert it to its database and the string matching

process will not be required any more. For the cur-

rent client that wishes to ﬁnd more information about

an author of a certain item, we access ﬁrst WorldCat,

then VIAF and ﬁnally apply string matching. Other

applications will require other discovery paths.

Another example of a client application we be-

lieve will serve library catalog users is an applica-

tion that recommends authors. In this application

the user provides the name of an author he likes and

the application recommends similar authors. Author

Similarity is based on the topics associated with the

creator and contributor are Dublin Core properties that

describe authors and contributors

books written by the given author. These topics can

be found in the MARC records. To retrieve the in-

formation LODLI will access VIAF for more authors

and WorldCat for their books and topics. This work

has not terminated yet and we have only preliminary

results.

A summary of all the model properties mapped

from MARC ﬁelds in LODLI appears in Table 1. The

ontology name along with its namespace URI appears

in the ﬁrst column. All the properties that were imple-

mented in LODLI appears in the third column.

3 SYSTEM ARCHITECTURE

LODLI’s platform is depicted in Figure 5 and con-

sists of Parsing Module, which parses MARC ﬁles

into an intermediate collection of marc records that

can serve as inputs to other modules; RDF Genera-

tion Module, which builds valid RDF triples from the

MARC record data, Interconnectivity Module, which

enriches the dataset by interconnecting it with ex-

ternal sources; and Database Access Module, which

manages all interactions using the Virtuoso database.

The interaction between all the modules is done

through explicitly deﬁned interfaces, such that each

module can be easily replaced, extended or modi-

ﬁed without affecting other parts of the platform. We

adopted an Inversion of Control(IoC) programming

paradigm to create loosely coupled and high cohesion

components. The binding process between different

modules was achieved using a dependency injection

pattern that enables performing coupling at the run-

time. For error logging, we used the aspect-oriented

programming paradigm, implemented through Spring

Framework

. In order to improve the system’s per-

http://spring.io/

LODLI: Linked Open Data Back-End System for Libraries Interoperability

273

formance, we used the boss/workers multithreaded

model, implemented with a conﬁgurable thread pool.

By adding multithreaded processing, operational la-

tency of the system was reduced by more than 14

times on average, as can be seen in Section 4.

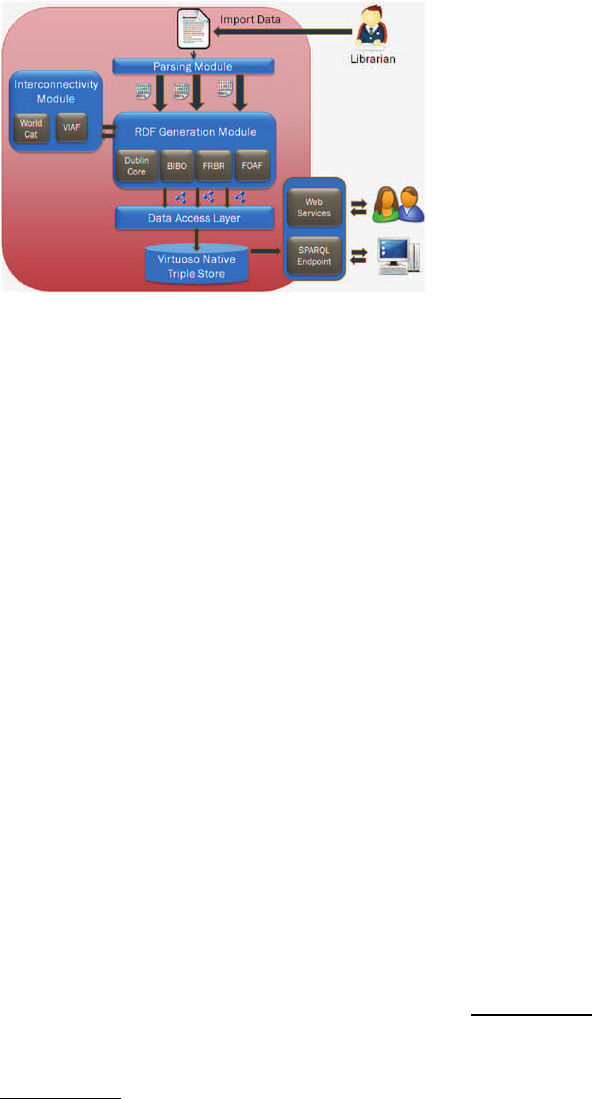

Figure 5: LODLI System Architecture.

Parsing Module receives a ﬁle that contains

MARC records stored in an ISO2709 binary format as

an input and then parses it into a collection of Java ob-

jects. Each of these objects contains a single record’s

metadata arranged into a set of nested objects and data

structures that provide effective ways to access and

manipulate the objects’ properties. This module code

is based on MARC4J

, an open source Java toolkit.

RDF Generation Module is responsible for cre-

ating RDF triples from MARC-record properties us-

ing the mapping rules described in Section 2. The

module consists of a collection of Java classes each of

which is responsible for creating RDFs for a speciﬁc

ontology. Each class encapsulates all requisite logic

and business rules for fetching ontology-related data

from a single MARC record. We mapped the MARC

records into properties of Dublin Core, FOAF, OWL

and other information models, as described in Table

1. All ontology classes implement a single common

IOntology interface. IOntology interface uses a fa-

cade design pattern for simplifying the creation of all

ontologyproperties. This architecture allows us to dy-

namically introduce new ontologies into the platform

without changing any exiting code.

Interconnectivity Module handles the discov-

ery routes and establishes connections between our

dataset and external ones, such as VIAF and World-

Cat. Connections are made by creating links between

entities from external datasets, such as books and au-

thors in other datasets. The functionality of this mod-

ule was described in Section 2.2.

Database Access Layer deals with storing and re-

https://github.com/marc4j/marc4j

trieving RDF triples from our database. The layer is

implemented using a repository design pattern, expos-

ing an interface IRepository to all its consumers. Any

database used as our storage platform will have to im-

plement IRepository interface. Applying this archi-

tecture enables the decoupling of the actual database

from other modules. Thus, the choice as to which

database to utilize, and its implementation, will have

no effect on other parts of the system. For LODLI

we used the open source edition of Virtuoso Univer-

sal Server

that exposes SPARQL endpoint that can

be used by clients to query the platform-generated

dataset; demonstrated the best performance in most of

the benchmark results, according to Berlin SPARQL

Benchmark

; and supports both horizontal and ver-

tical scaling. Horizontal scaling, including clustering

and replication, are available in the commercial edi-

tion. All the RDF triples generated by LODLI are

stored in Virtuoso RDF Quad Store and accessed us-

ing a Virtuoso Jena RDF Data Provider

4 LODLI RESULTS AND

EVALUATION

A Visualized LOD example consists of the generated

RDF triples for the ”Hamlet” MARC record is pre-

sented in Figure 6.

The blue ellipses in the ﬁgure contain string

literals that were extracted from MARC ﬁelds, or

from a remote resource, and weren’t a reference point

(i.e., they are leaves in the RDF graph). Cyan rect-

angles represent LODLI complex entities containing

additional properties capable of being dereferenced

(e.g., http://hujilinkeddata/Record/HUJ00257250,

which represents the Hamlet MARC record that

appears in the center). Orange rectangles represent

corresponding entities in external datasets, such

as VIAF and WorldCat. The generated content of

LODLI’s database enables queries such as: 1) ”Given

the work Hamlet, what are the different expressions

in English?” where expression means book or video

and it is searched for in a variety of repositories; or 2)

”What is the full set of the associated topics for the

book title Hamlet?”.

In this work we identiﬁed several types of interest-

ing applications that can be employed only when us-

ing our system. Consequently, we addressed the ﬁrst

Virtuoso Universal Server: http://virtuoso.

openlinksw.com/

http://wifo5-03.informatik.uni-mannheim.de/bizer/

berlinsparqlbenchmark/results/V7/#machine

Jena: http://jena.apache.org/

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

274

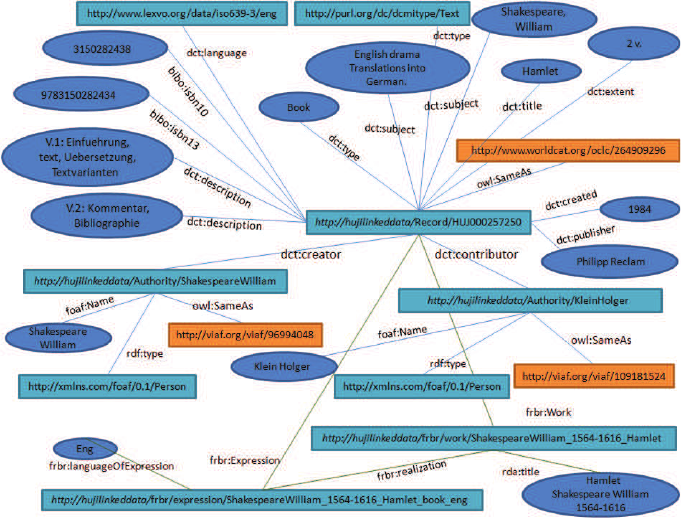

Figure 6: An example of the generated RDF triples for one MARC record (Hamlet). The links dct, foaf, rda,

frbr and bibo are represented by the http://purl.org/dc/terms, http://xmlsns.com/foaf/0.1, http://rdvocab.info/Elements,

http://purl.org/vocab/frbr/core# and bibo - http://purl.org/ontology/bibo URIs resptectively.

scenario research questions, namely ”Which objects

and typed-connectionsa client library may require the

new repository to have”? and ”Which Linked-Data

information model and ontology, will the MARC

records be converted to”?. Obviously, newer to come

applications may require other information models or

ontologies than those we have suggested. In our opin-

ion, the design of an automatic tool to generate more

RDF triples annotated with other ontologies should

be deferred until more usage knowledge is obtained.

However, LODLI is generic enough to allow for its

extension with new structures.

Obtaining information from remote repositories

raises the research question ”which repositories

should be accessed for a resource and how to ﬁnd

the intended one?”. The problem comprises select-

ing the repository that contains the most metadata

(”higher-tier” LOD) and ﬁnding the intended item in

this repository by obtaining its ID or by performing

fuzzy matching. We use the term ’discovery route’

for the list of the repositories, along with the appro-

priate ID that an application has to access in order to

answer a speciﬁc query. For example, the discovery

route for the VIAF client (described in 2.2) will be ac-

cessing WorldCat using WorldCat ID and then access-

ing VIAF using string matching. An important future

research subject concerns the design of an automatic

tool to maintain the discovery routes. This tool will

identify the repository tiers and the existence of ap-

propriate IDs to access the intended item or topic with

regard to the selected LOD. Each type of application

will be assigned an optimal discovery route that ﬁts

the asked queries in this application in terms of data

volume and accuracy.

For Performance Evaluation, the LODLI plat-

form was set up, integrated, and tested. We used a

single server platform, but we’re aware that any fu-

ture production system will require multi-server ar-

chitecture that can be vertically scaled to enhance per-

formance and to tolerate faults. Hence, we chose to

use Virtuoso because it is scalable. For the server we

used an Intel Core i7-2600 CPU @ 3.40 GHz with 4

Cores, 8 Threads and 8MB Cache. The server con-

tains 2 * 4 GB DDR3-1333MHz RAM and a 1.5 TB

Seagate Barracuda SATA disk. The operating system

was Windows 7 64 bit SP1.

We used two benchmarks to evaluate LODLI’s

performance. The ﬁrst tests the platform processing

performance where new MARC records are parsed,

translated into annotated RDF triples and inserted into

the database. The second benchmarkchecks the query

latency time experienced by a LODLI client.

The Parsing Benchmark was performed under

two different dataset loads, a small number of MARC

records (196 records) and a larger number of MARC

records (47,527). It utilized thread pools of 1,4,16,32

LODLI: Linked Open Data Back-End System for Libraries Interoperability

275

Table 2: Results of parsing a small set of records and a larger set of records.

Number of Average RAM Average Average processing

threads in the Memory CPU Util˙ time in milliseconds

thread pool Consumption Percentage

The Parsing Benchmark with 196 MARC records

1 87MB 13% 102249 ms (1 minutes 42 sec)

4 88MB 13% 23934 ms (24 seconds)

8 91MB 13% 14036 ms (14.036 seconds)

16 91MB 15% 7231 ms (7.231 seconds)

32 96MB 18% 5606 ms

64 104MB 21% 3874 ms

The Parsing Benchmark with 47,527 MARC records

1 1.35GB 13% 3898842 ms (1 hour 4 minutes 58 sec)

16 1.15GB 15% 291376 ms (4 minutes 51 sec)

32 1.174GB 16% 229066 ms (3 minutes 49 sec)

64 1.204GB 19% 215663 ms (3 minutes 35 sec)

and 64 threads. Each thread was assigned several

processing tasks where the parsing and RDF gener-

ation parts could be performed in parallel. How-

ever, the insertion of RDF triples into the database

by each thread was conducted sequentially, which

could lead to a bottleneck. We therefore evaluated

the level of parallelism versus the database access rate

under using a different number of threads. For each

thread pool value we performed ten runs of parsing

group records and measured maximum CPU, maxi-

mum memory consumption, and the time required to

parse the records and store them in a database. The

benchmark results appear in Table 2. As can be seen,

Figure 7: FRBR SPARQL Query.

when the size of the input is very small, the addition

of parallel processing to the platform signiﬁcantly im-

proves the processing time. Operational latency was

reduced by more than 14 times when 16 threads were

used, and by more than 26 times for 64 threads. For

low thread pool values there was no signiﬁcant im-

pact on CPU or memory consumption, since database

insertions were operated serially. When a larger num-

ber of cases were involved, the results still demon-

strated an improved processing time when increasing

the number of threads. The resulting speedup was

smaller than in the ﬁrst case. It was improved by

16 times for 16 threads relative to one thread. To

estimate the rate Viruoso inserts triples, we have ran

benchmarks to insert 1 Million RDF triples using 16

and 64 threads. The demonstrated averaged latency

times were 25 minutes for 16 threads and 27 minutes

(2 minutes more) for 64 thread.

The Query Benchmark gauges the latency time

of a complex query by measuring platform response

time when it is populated by 1,158,110 triples. The

benchmark was performed by using the FRBR visu-

alization client described in 2.1. Figure 7 presents the

SPARQL query used by the client. Latency time was

the average result achieved from ten runs. We found

that the average response time for this query ranged

between 20 to 35 milliseconds.

5 RELATED WORK

Libraries and other cultural institutions’ are currently

undergoing tumultuous change. The Google-like

search method inﬂuenced the way that library cata-

logs are being developed to offer a similar user expe-

rience (Emanuel, 2011), (Ramdeen and Hemminger,

2012). Nowadays, libraries’ catalogues offer aca-

demic resources based on the advances of the in-

formation retrieval technologies; they are trying to

meet the readers’ new expectations and enhance their

experience by making library catalogues more user

friendly, intuitive, and visually attractive (Tennant,

2005). The breakthrough of providing web-based on-

line public access to library collections and resources

was developed only at the presentation layer of the

Online Public Access Catalogue (OPAC). The Inte-

grated Library Systems’ (ILS) core was not changed

and the fact that its content is encoded in natural lan-

guage rather than as data infers library data integra-

tion with the Web (Coyle, 2010; Gonzales, 2014).

Library standards serve only the library community,

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

276

and changes in library technology are often totally

dependent on the expertise of vendors (Baker et al.,

2011). Schilling (Schilling, 2012) provides an ex-

cellent survey of the issues dealing with the transfor-

mation of library metadata into Linked Library Data.

Barbara Tillett, who undertook the task of leading

the selection and implementation of the Library of

Congress’ ﬁrst Integrated Library System (ILS) and is

well known for her development of the FRBR model

stated in (Tillett, 2011) ”Our online catalogs based on

MARC are no more than electronic versions of card

catalogs with similar linear displays of textual infor-

mation.” ”

There is a high commonality between libraries’

traditional information management and interests (in-

cluding constructing vocabularies, describing prop-

erties of resources, identifying resources, exchang-

ing and aggregating metadata) and Semantic Web

technologies, such as Linked Data principles (Heery,

2004). Currently, the web consists of links between

resources and rich social interaction, providing some

serendipity in their search results, while the library

catalog offers little beyond search and retrieve. Coyle

and Bourg (Bourg, 2010) have discussed the serendip-

ity factor that linked data may add to library catalog

search results. Bowen (Bowen, 2010) points to the

need to develop tools for transiting libraries’ existing

legacy data to linked data, and describes the eXten-

stible Catalog (XC) schema for linked-data-based cat-

alogs.

In order to enrich library catalogs with Linked

Data, standard technical tools need to be created.

Additionally, library-related ontologies and value vo-

cabularies have to be modeled. Styles et al.(Styles

et al., 2008) discusses the possibilities of represent-

ing the most prevalent form of MARC, MARC21, as

RDF for the Semantic Web. Heath et al.(Bizer and

Hearh, 2011) describe the set of Linked Data publish-

ing mechanisms. The primary consideration in select-

ing a workﬂow for publishing Linked Data includes

the nature of the input data, the data preparation for-

mat, and data storage. Our selection of RDF storage

for LODLI was a natural one, given that the fact that

MARC records are structured input data. XSL Trans-

formation (XSLT)

is the most common way to con-

vert data into RDF from XML, though it requires that

the MARC record ﬁrst be translated to XML. The Li-

brary of Congress FRBR Display Tool (Aalberg et al.,

2006) uses MARC4J, an open source Java toolkit, to

convert MARC records stored in an ISO2709 binary

format, to MARCXML, and then uses XSLT style

sheets to convert them into MODS (Metadata Object

Description Schema). Some of the drawbacks asso-

http://www.w3.org/TR/xslt20/

ciated with using XSLT for RDF transformation, in

addition to being cumbersome, are huge memory con-

sumption during the parsing process and performance

degradation. Hence, in LODLI we avoided XSLT and

parsed MARC ﬁles into Java objects using MARC4J.

6 CONCLUDING REMARKS

This paper describes the LODLI platform we devel-

oped with the aim of enabling library catalogs, such

as that at the Hebrew University, to link to other re-

sources such as WorldCat and VIAF, thereby pro-

viding access to larger amounts of information. As

a result of our mapping to Dublin Core, FOAF and

FRBR model, libraries will be able to display relation-

ships between novels, translated works, and all edi-

tions in the catalog as well as connecting the metadata

to other cultivated resources. This platform can eas-

ily be extended and modiﬁed to add new ontologies,

offering the functionality of Linked Open Data for li-

braries that wish to contribute their datasets. More-

over, LODLI enables the development of many inter-

esting client and library-aware ontologies.

ACKNOWLEDGEMENTS

We thank Talia Cohen for running performance tests

while working on the ”Author Recommendation” tool

and for helpful discussions.

REFERENCES

Aalberg, T., Haugen, F. B., and Husby, O. (2006). A tool for

converting from marc to frbr. Research and Advanced

Technology for Digital Libraries, ECDL 2006.

Baker, T., Berm, E., Coyle, K., Dunsire, G., Isaac,

A., Murray, P., Panzer, M., Schneider, J., Singer,

R., Summers, E., Waites, W.and Young, J., and

Zeng, M. (2011). Library linked data incubator

group ﬁnal report. www.w3.org/2005/Incubator/lld/

XGR-lld-20111025 (Accessed August 30, 2015).

Berners-Lee, T. (2009). Linked data. in design is-

sues. www.w3.org/DesignIssues/LinkedData.html,

Accessed August 30, 2015.

Bizer, C. and Hearh, T. (2011). Linked data: Evolving the

web into a global data space. book, 7(3).

Bizer, C., Heath, T., and Berners-Lee, T. (2009). Linked

data - the story so far. Int. J. Semantic Web Inf. Syst.,

5:1–22.

Bourg, C. (2010). Linked data = rationalized serendipity.

Federal Librarian (blog).

LODLI: Linked Open Data Back-End System for Libraries Interoperability

277

Bowen, J. (2010). Moving library metadata toward linked

data: Opportunities provided by the extensible cata-

log. International Conference on Dublin Core and

Metadata Applications, DC-2010.

Coyle, K. (2010). Understanding the semantic web: Bibli-

ographic data and metadata. Library Technology Re-

ports., 46(1).

Delsey, T. (2002). Functional analysis of the marc

21 bibliographic and holdings formats. http://

www.loc.gov/marc/marc-functional-analysis/source/

analysis.pdf.

Emanuel, J. (2011). Usability of the vuﬁnd next-generation

online catalog. Information Technology and Libraries,

30(1).

Gonzales, B. M. (2014). Linking libraries to the web:

Linked data and the future of the bibliographic record.

Information Technologies and Libraries, 33(4).

Heery, R. (2004). Metadata futures: Steps toward semantic

interoperability. Metadata in Practice.

Merˇcun, T. and

Zumer, M. (2008). New generation of cata-

logues for the new generation of users: A comparison

of six library catalogues. Program.

Ramdeen, S. and Hemminger, B. M. (2012). A tale of

two interfaces: How facets affect the library catalog

search. JASIST, 63(4):702–715.

Schilling, V. (2012). Transforming library metadata into

linked library data. American Library Association.

http://www.ala.org/alcts/resources/org/cat/research/

linked-data (Accessed August 30, 2015).

Styles, R., Ayers, D., and Shapir, N. (2008). Semantic marc,

marc21 and the semantic web. Talk at the WWW 2008

Workshop: Linked Data on the Web (LDOW2008),

April 22, 2008 in Beijing, China.

Tennant, R. (2005). Lipstick on a pig. Library Journal,

130(7).

Tillett, B. (2011). Keeping libraries relevant in the semantic

web with resource description and access (rda). Seri-

als, 24(3).

Tillett, B. and Cristian, A. (2009). Iﬂa cataloguing princi-

ples: the statement of international cataloguing prin-

ciples (icp) and its glossary in 20 languages.

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

278
