A Structural Model of Internet Organization Discovery

Zi-yu Yang, Xiao-yun Wang, Hong-mei Ma and Li Qin

Library, China Defense Science and Technology Information Center, Beijing, China

Keywords: Organization Discovery, Social Network, IP Allocations, Routing Registry.

Abstract: This paper presents a highly structured model to automatically discover Internet organizations from the data

of RIR (Regional Internet Registry) and IRR (Internet Routing Registry), where network operators register

their networking resources such as IP addresses and routing policies. Our basic idea is to discover network

operators that have close ties among each other from those registry activities, and consider them as being

from the same organization. With the data from two RIRs, this model produces to date the first organization

level network of current Internet. The model shows its reasonability in our validation with real Internet

routing data, and is likely to be applied extensively in networking area.

1 INTRODUCTION

The Internet is running under the administration of

thousands of organizations, each of which can be an

institution, a company or a university. An Internet

Organization (IORG) is an organization that uses at

least an IP network to host application services or

access the Internet. Despite the important role of

IORGs in advancing the Internet forward, neither

those organizations nor the relationships in between

have been well understood or characterized yet. In

fact, even how to identify IORGs is still an open

question, making the further studies such as their

formed ecosystem impossible.

IORG discovery is difficult for several reasons.

First of all, considering the tremendous size of the

Internet, the amount of organizations is huge as well.

Secondly, there is no authoritative source of IORG

data. Last but not least, as the growth of the Internet,

IORGs are highly dynamic. Some IORGs may

vanish while some new ones may appear. Therefore,

any approach that used to discover IORGs should be

highly structured and automated such that the

discovery process can be regularly repeated with

new input.

In this paper, we design and propose a highly

structured model to automatically discover IORGs

from the data of RIR (Regional Internet Registry),

where network operators register their networking

resources such as IP addresses and routing policy.

Let network operators be the representative of

organizations in the registry activities, our basic idea

is to discover network operators that have close ties

among each other from those registry activities, and

consider them as being from the same organization.

To our best knowledge, this has been no similar

research in the direction of IORG discovery so far.

Researches closest to ours are (Siganos and

Faloutsos, 2007) and (Cai and Heidemann, 2010).

Siganos et al. used the allocation records from RIRs,

registered ISP (Internet Service Provider) routing

policy from IRR(Internet Routing Registry) to detect

erroneous and suspicious routing behaviour.

However, they restricted their work on data only,

and did nothing about IORGs. Cai et al. aimed for an

AS(Autonomous System)-to-Organization map that

allows a more accurate view of Internet in the

granularity of AS. Since the size of organizations

vary largely, and only large organizations are

qualified to apply for AS numbers, their work

actually focused on only large organizations. On the

contrary, we provide a finer granularity to observe

the organization-level Internet. Beside, different

from that both these two studies rely on ad-hoc

methods and require a large amount of manual

intervention, our model is highly structured and

automated.

The remainder of this paper is structured as

follows. Section 2 introduces the registry activities

of network operators that serve as the base of our

model. We present the discovery methodology in

section 3. The discovery and validation results are

shown in section 4, and we conclude this paper in

section 5.

344

Yang, Z., Wang, X., Ma, H. and Qin, L..

A Structural Model of Internet Organization Discovery.

In Proceedings of the 7th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2015) - Volume 1: KDIR, pages 344-349

ISBN: 978-989-758-158-8

2 INTERNET REGISTRY

ACTIVITIES

The virtual activities we consider to be the mirror of

IORGs activities in real world are Internet registry

activities, which can be divided into two categories,

regarding Internet number resources and routing

policies respectively.

2.1 Registry of Resource Allocations

Internet number resources refer to IP addresses and

AS numbers, which are essentials to access the

Internet or perform network management on AS

level.

IANA (Internet Assigned Numbers Authority)

serves as the root of resource allocation chain to

ensure the unique use of Internet number resources.

RIRs are set up to coordinate the allocation of those

resources inside their own regions on behalf of

IANA. There are currently five RIRs: ARIN, APNIC,

AFRNIC, RIPE and LACNIC. RIRs subsequently

allocate number resources received from IANA to

NIRs (National Internet Registry, e.g. CNNIC), or

directly to LIRs (Local Internet Registry, e.g. AT&T)

which are usually large ISPs (Internet Service

Provider). NIRs and LIRs can further allocate the

resources they received from RIRs to end users or

other ISPs.

The allocation activities of number resources are

required to be registered in related RIR databases.

To ensure the completeness and freshness of registry

information, RIRs usually carry out strict policy to

assure that allocation activities are registered in time.

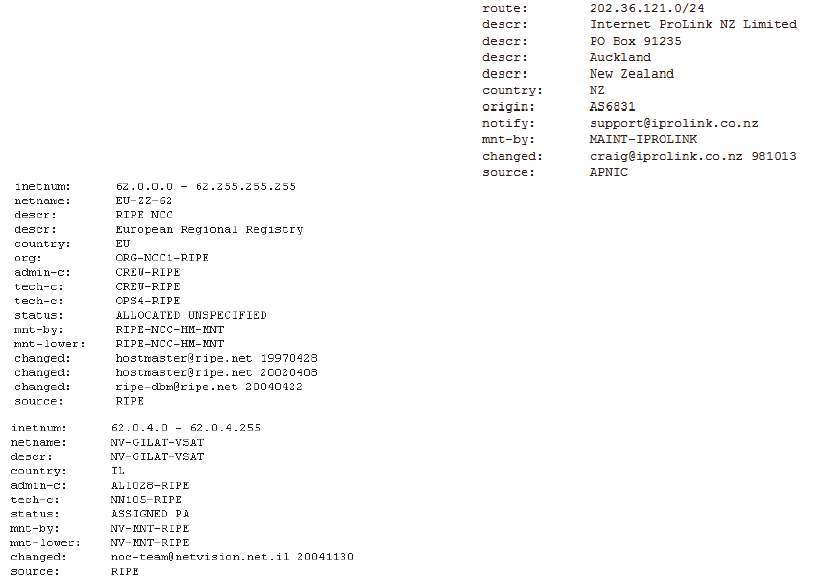

Figure 1: IP allocations registered by two institutes.

For example, ARIN claims that every allocation or

assignment that contains eight or more IP addresses

should be recorded in its database. If not, future

allocations would be impacted. Similarly, RIPE will

check the correctness of relevant registry

information when a LIR or ISP requests for a new

allocation.

In Figure 1, there are two allocation records of IP

address, registered by RIPE-NCC and Netvision

company respectively. Based on these two records,

we can know that RIPE-NCC has the administration

authority over IP addresses ranging from 62.0.0.0 to

62.255.255.255, while Netvision company owns the

network 62.0.4.0~62.0.4.255.

2.2 Registry of Routing Policy

Routing registry is used to improve the Internet wide

routing by sharing routing policies among ISPs, and

the institution in charge is IRR (Internet Routing

Registry). An ISP can leverage IRR to publish its

routing policy, or look up peering agreements to

optimize its routing policy. IRR consists of several

distributed databases that usually mirror each other.

For instance, RIPE has mirrored more than 10

partners, including ARIN-RR, APNIC, NTTCOM

DB, Merit RADB and so on.

Figure 2: A route object registered by an Internet company.

Figure 2 depicts a route record registered by

Internet ProLink NZ Limited, a company located in

Auckland, New Zealand. By registering this record

in the database of APNIC, this company claims that

AS6831 is authorized to originate the network prefix

202.36.121.0/24 in Internet routing system, and ISPs

worldwide can use this information to filter false

announcements regarding this network.

2.3 Route Policy Specific Language

RIRs use different languages to describe resource

allocations and registered routing polices. Currently,

ARIN uses SWIP (Shared Whois Project), RIPE and

APNIC use RPSL(Route Policy Specific Language),

while LACNIC uses a mix of both. Our model is

A Structural Model of Internet Organization Discovery

345

based on RPSL for its wider usage, and it can be

applied to SWIP with tiny modifications.

RPSL is designed to specify routing policy at

various levels, ranging from router to AS. In an ideal

case, low-level router configurations can be directly

generated from the routing policies described at AS

level. Like typical object-orientated language, RPSL

comprises several classes, each of which uses a set

of attributes to describe its object instances. In our

model, RPSL classes are classified into three

categories: PoC(Point of Contact), NR(Number

Resource) and RP(Routing Policy), according to the

content being described.

(1) PoC classes.

PoC classes describe contact information. For

details, PoC classes include mntner, person and role

class. The mntner class specifies authentication

information required to add, delete or modify other

objects. The person class describes the information

necessary to contact a person. The role class is very

similar to person class except for that instead of

describing a human being, a role object describes a

role performed by one or more human beings. In this

way, role does not have to change when a person

performing this role changes.

(2) NR classes.

NR classes describe Internet number resources,

such as inetnum, inet6num and domain class in

RPSL.

(3) RP classes.

RP classes are used to describe routing policy.

For example, the inet-rtr class defines a router via

this router’s DNS name, the IP address of each

interface, the AS number of the AS which owns or

operates this router and such information.

The NR and RP objects can establish direct

connections with network operators by referring to

the class key of PoC objects through their admin-c,

tech-c and mnt-* attributes(including mnt-by, mnt-

lower, mnt-routes and so on), as shown in Figure 3.

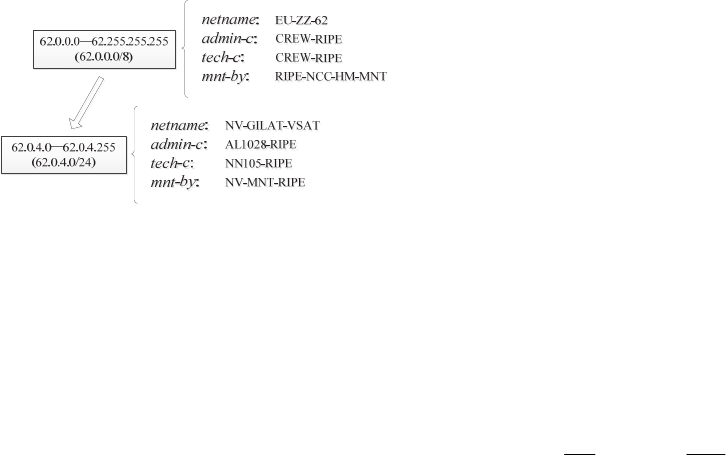

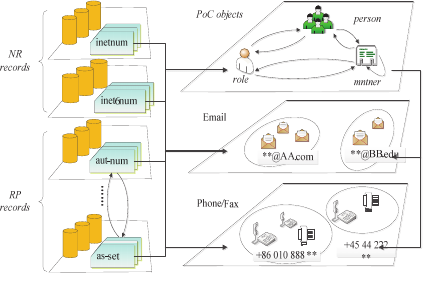

Figure 3: PoC objects are referred as contact points.

While admin-c attribute usually refers to

someone who is physically located at the site of the

network, the tech-c attribute indicates a person

responsible for the day-to-day operation of the

network, but does not need to be physically located

at the site of the network.

3 METHODOLOGY

Our methodology is as follows. Firstly, we build a

MDN (multiple dimension network) to characterize

the interrelationship of various elements in registry

data, which is the outcome of network operators’

registry activities. Secondly, we quantify how close

are two network operators with the tie strength in

between, which is calculated based on the paths

between these two operators in the built MDN. At

last, network operators are grouped into clusters

according to the tie strength among them, and each

cluster is considered as an organization.

3.1 Building Multi-Dimension Network

Let symbol D={as-block,as-set,aut-num,inet6num,

inetnum ,mntner…, mail, phone/fax number} denote

the dimension vector of the MDN, each element in

D represents either a RPSL or a user-defined class.

3.1.1 Vertexes of MDN

Let V

(i)

denote the set of vertexes from dimension i

∈ D, then V

(i)

should be the union set of all the

object instances’ class keys of class i. Similarly, the

vertex sets of email and phone/fax number

dimension are all the email addresses and phone/fax

numbers that appeared in the dataset.

3.1.2 Discovering Links from RPSL Objects

MDN links are primarily generated from RPSL

objects, each of which is essentially a collection of

attributes. For each RPSL object r, it has a key

attribute (r.k) and a set of non-key attributes (r.NK).

For each attribute x∈NK, the non-key attribute x can

be:

(1) Key of other RPSL objects. The definition of

r leverages the information that has already been

defined by some other RPSL objects. In this case, a

link k→x is added to the link set.

(2) Plain text. Since natural language processing

is not so accurate, no links are generated in this case

to avoid importing uncertainty.

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

346

(3) Email, phone/fax number. By referring to

email addresses, phone or fax numbers, we know

how to reach the personnel responsible for record r.

In this case, we generate a link between k and x, and

add it to the link set.

3.1.3 Discovering Links via Correlation

within Dimension

Within each dimension i ∈ D, our purpose is to

discover any two vertexes whose key attributes are

related, and generate a link between these two

vertexes.

Take dimension inetnum as an example, as

shown in Figure 1, since the IP address block

62.0.4.0-62.0.4.255 is a subset of another, 62.0.0.0-

62.255.255.255, we add a link between these two

inetnum objects, as shown in Figure 4. This method

also works for dimension as-block, and we do not

repeat here for the sake of brevity.

Figure 4: Adding a link between two inetnums relevant.

As for email dimension, we manually build a

blacklist of domain names that are from RIRs or

public email services, such as Gmail, Yahoo, then

add a link for every two email addresses that sharing

the same domain name.

Correlations within fax and phone dimension

may also be useful in link generation. However,

since there is no universe method to parse phone

number into country code, region code and

institution code, we prefer to be conservative and do

not perform this correlation.

3.1.4 Discovering Links via Correlation

across Dimensions

Correlations across dimensions occur between set

object and its member objects. For example, an as-

block object usually describes several consecutive

AS numbers, thus we can add a link between this as-

block object and every aut-num object whose AS

number is included. This theory also works for irt-

set object (a set of routers) and inet-irt object (a

router), rtr-set (a set of routes) and route object(a

route), and so on.

3.2 Calculating Tie Strength

We then derive a weighted graph of network

operators G

=<V

, E

> that V

consists of all the

PoC objects and E

is the link set. For any two

vertexes u, v∈V

, there is a link (u, v)∈E

if and

only if they are connected in MDN. Let w

(u, v)

denote

the strength of link (u, v) in G

, it is defined to be the

accumulated strength of the multiple paths between

u and v that may traverse through one or multiple

dimensions in MDN.

Moreover, the strength of a path is linearly

proportional to the strength of each single link on

that path for these links are in series.

Let S be a n-dimension matrix(n is the number of

dimensions in MDN that n=|D|), and each of its

element s

i,j

(1≤i, j≤n) be the strength of a link

between two vertices within the i

dimension and j

dimension respectively, the tie strength of link (u,v)

∈E should be

0)(-1)(

),(

,),(











vuPl

lji

ddvu

skw

Where P(u,v) denotes all the paths between vertex

u and v, k is the length of path l, ɑ is a constant

between 0 and 1, and d

is the dimension where

vertex i is from.

3.3 Classifying Network Operators into

Clusters

To group network operators into clusters, we

adopted the algorithm presented in (Blondel and

Guillaume, 2008), which aims to maximum the

network’s modularity, defined as





),(][

Where A

i,j

represents the weight of the link

between i and j, k

is the sum of the weights of the

links attached to vertex i, c

is the community to

which vertex i is assigned. The  function (u,v) is 1

if u=v and 0 otherwise, and m is the sum of weights

of all the links in the network.

4 INTERNET ORGANIZATION

DISCOVERY

In this section, we first show the clustering results

A Structural Model of Internet Organization Discovery

347

with real data from two RIRs, and then validate the

reasonability and effectiveness of the obtained

results.

4.1 Datasets and Parameter Settings

The datasets used in this paper are collected from

RIPE and APNIC, both of which provide allocation

registry service and routing registry service with a

shared database.

Table 1: Datasets.

Data APNIC RIPE

, Jun 2008 AP-1 RP-1

, Dec 2010 AP-2 RP-2

, Feb 2014 ⁄ RP-3

, Aug 2015 AP-3 RP-4

Our datasets include 7 snapshots of RIR data at 4

distinct time points, as shown in Table 1. For

validation purpose, we also collected 4 BGP (Border

Gateway Protocol) route tables at each time points

from RIPE-RIS project (collector rrc03 is chosen for

it has more peering ASes). While time diversity

enables us to observe the evolution of RIR data over

time, these datasets are not consistent with each

other for the change of RIR policy in data release. In

particular, the dataset here is largely different from

that used in (Cai,2010) in the following three aspects.

 No org Attributes, including AP-1, AP-2 and

AP-3. While the org attribute provided a good

coverage on the AS objects (90% in percentage)

in (Cai and Heidemann, 2010), APNIC did not

use this attribute at all.

 Partially Anonymous, including RP-1. PoC

objects are anonymized by replacing the

associated phone numbers, emails with

+31205354444, the number of RIPE NCC and

unread@ripe.net, respectively. However, the

admin-c and tech-c attributes of other objects are

still available.

 Completely Anonymous, including RP-2, RP-3

and RP-3. Compared with RP-1, not only

telephone numbers and email addresses, but also

admin-c and tech-c attributes are removed.

As for the parameters used in the calculation of

tie strength between network operators, we set a to

be 1/2, and each element s

i,j

(1≤i, j≤n) of matrix S is

set to be 1 for simplicity. That is, no matter a link

goes across two dimensions or not, it contributes the

same amount of strength to the tie between network

operators.

4.2 Discovery Results

The IORG discovery results are shown in Table 2.

The first column denotes the number of vertexes in

the built MDN, while the second column denotes the

number of links (links generated via correlation

procedure are also included).

As for the datasets, we can observe a clear trend

that both the vertexes and links grow fast as time

goes on, while RIPE has a higher speed. However,

the number of IORGs in both APNIC and RIPE

grow much slower than vertexes and links.

Table 2: Discovery results of IORGs.

Dataset #of vertexes #of links #of IORGs

AP-1 838,143 7,459,473 56,236

AP-2 973,218 9,138,517 57,861

AP-3 1,051,342 10,496,599 57,964

RP-1 1,004,208 9,663,494 73,247

RP-2 3,824,610 38,219,328 75,336

RP-3 4,936,486 53,807,697 75,912

RP-4 5,534,401 70,021,241 76,238

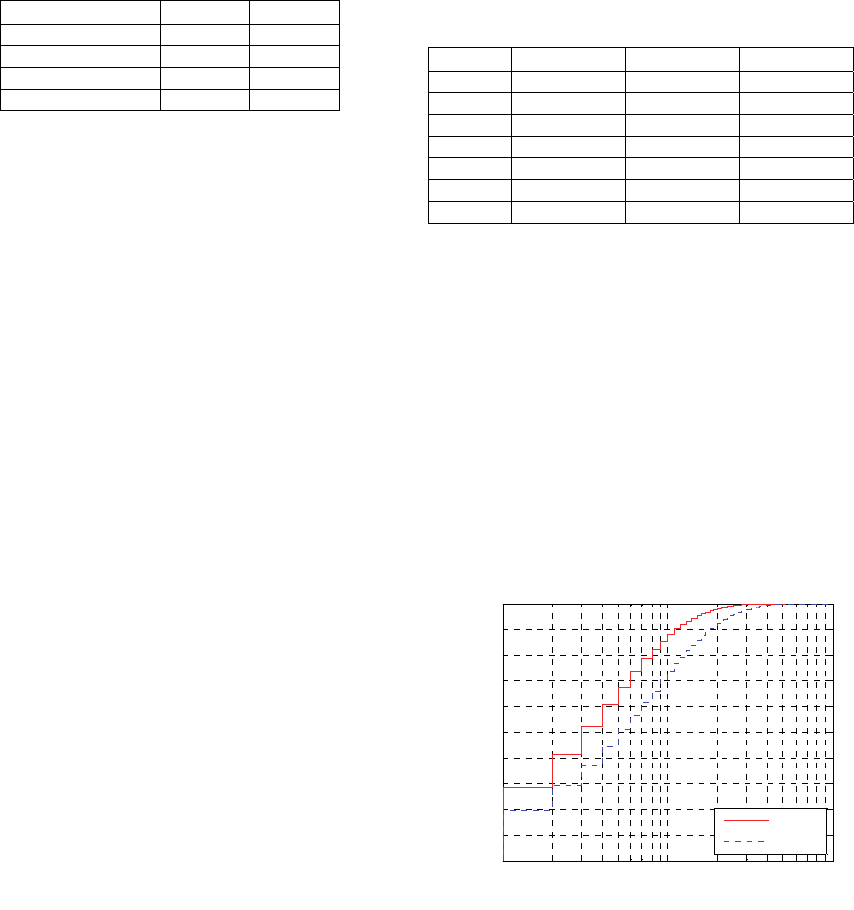

Figure 5 depicts the Cdf (Cumulative distribution

function) of the size of IORGs (the number of RPSL

person objects in each IORG) from AP-2 and RP-2

dataset respectively.

As we can see, 20.0% of the IORGs in RIPE and

28.7% in APNIC contain only 1 person object, and

IORGs consisting of fewer than 10 person objects

account for 69.5% in RIPE and 81.3% in APNIC.

That is, most of the IORGs are very small in scale.

In fact, although there are more and more IORGs in

the datasets as time goes, as shown in Table 2, the

fraction of small size IORGs is becoming larger and

larger. We attribute this increase to the fact that

more and more users are required to register their

allocations in RIR databases.

Figure 5: Cdf of the size of IORGs.

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

Number of PoC objects in an IORG

Cumulative Percentage

APNIC

RIPE

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

348

4.3 Validation with IP-to-AS Mappings

The IP-to-AS mappings (prefix, originator AS) in

BGP routing reflect the up-to-date usage of Internet

number resources. In an ideal case, an organization

would advertise its IP prefixes with its own AS

numbers, producing mappings whose prefix and AS

number belong to the same organization. However,

since not all the organizations are qualified to apply

for AS numbers, an organization can also delegate

its prefixes to ISP providers for advertisement in

BGP. In this case, this organization and its providers

are supposed to be relevant and close to each other

in G

Two indicators are defined to quantify the

relativeness and closeness of the two organizations

and O

) that own the IP prefix and AS number

respectively involved in a (prefix, originator AS)

mapping observed from BGP route tables.

Relativeness(γ): Assuming that most of current

usages are reasonable, a mapping is considered

connected if the corresponding O

and O

are

connected in G

. Relativeness γ is defined to be the

fraction of connected mappings, compared with the

mappings whose O

and O

can be pinpointed in

the organization graph.

Closeness(): This indicator is defined to be the

fraction of mappings whose O

and O

belong to

the same organization, compared with mappings that

are connected in G

The validation results are shown in Table 3. Our

conclusions are two-fold. First, the relativeness

indicator γ is really high. That is, for most of the IP-

to-AS mappings, the two organizations O

and O

have a close tie in between. This finding means that

our discovery results can be used to detect prefix

hijacking, routing leak or similar events, as Siganos

et al. had done in (Siganos and Faloutsos, 2007).

Second, the closeness indicator  is actually the ratio

that O

and O

belong to the same organization.

This is the upper bound of accuracy that traditional

methods such as (Siganos and Faloutsos, 2007) can

reach if they do not perform clustering operation on

network operators.

Table 3: Validation results.

Dataset γ



AP-1 94.5% 78.3%

AP-2 95.2% 80.5%

AP-3 94.6% 76.9%

RP-1 98.8% 84.3%

RP-2 96.5% 85.7%

RP-3 96.1% 84.4%

RP-4 97.0% 82.1%

5 CONCLUSIONS

In this paper, we develop a systematic approach to

discover organizations in the Internet. Our basic idea

is to discover network operators that have close ties

among each other, and consider them as being from

the same organization. To be honest, the model is

still very coarse. However, the preliminary

discovery results can enable us to start looking into

the organization level Internet ecosystem.

In our future work, we would continue adjusting

our model and related approach, and then extend this

approach to ARIN, AFRNIC and LACNIC to obtain

an organization level picture of the global Internet.

REFERENCES

Siganos, G., Faloutsos, M., 2007. Neighborhood watch for

Internet Routing: Can we improve the robustness of

Internet Routing today?. In INFOCOM’07, 26th IEEE

Annual Conference on Computer Communications.

IEEE Press.

Cai, X., Heidemann, J., Krishnamurthy, B., Willinger, W.,

2010. Towards an AS-to-organization map. In ACM

IMC’10, 10th Annual Conference on Internet

Measurement. ACM Press.

Blondel, V. D., Guillaume, J.L., Lambiotte, R., Lefebvre,

E., 2008. Fast unfolding of communities in large

networks. Journal of Statistical Mechanics: Theory

and Experiment.

SWIP, Shared Whois Project.

http://www.arin.net/reference/database.html.

RFC2622, 1999. Routing Policy Specification Language

(RPSL). IETF rfc.

RIPE-RIS Project.

http://ris.ripe.net.

A Structural Model of Internet Organization Discovery

349
