LimeDS and the TraPIST Project: A Case Study

An OSGi-based Ontology-enabled Framework Targeted at Developers in Need of an

Agile Solution for Building REST/JSON-based Server Applications

Stijn Verstichel, Wannes Kerckhove, Thomas Dupont, Bruno Volckaert, Femke Ongenae,

Filip De Turck and Piet Demeester

Department of Information Technology (INTEC), Ghent University – iMinds, G. Crommenlaan 8/201, 9050, Gent, Belgium

Keywords:

LimeDS, TraPIST, REST/JSON, OSGi, Semantics, Reasoning, Transportation.

Abstract:

Real-Time Travel Information (RTTI) for rail commuters is still used inefﬁciently today and is rarely combined

with other knowledge to come to a truly personalised and situation-aware multimodal travelling assistance.

It is up to the travellers themselves to look for important info about their trip through static schedules or

dedicated non-personalised applications. In a highly dynamic context such as that of public transportation, it

would make life easier if one was able to consult the right information at the right time (removing superﬂuous

information), for a variety of multimodal public transportation options, taking into account the context of

the person travelling. In this paper we present the LimeDS framework, allowing application developers to

rapidly deﬁne data workﬂows from a variety of data sources, deploy these workﬂows in a scalable and resilient

manner and expose results to client applications as REST endpoints. A Proof-of-Concept (PoC) shows how

our proposed framework can be used to tie together different open transportation data sources in order to create

highly dynamic multimodal travel assistance applications by semantically enriching the data into knowledge,

checking for ontological consistency and reason over the resulting knowledge.

1 INTRODUCTION

The current generation of applications based on Real-

Time Train Information (RTTI) is still not fully us-

ing (open) data to facilitate rail travel. They are often

based on only one source, even though other sources

can be relevant for the passenger’s journey (e.g. trans-

portation vehicle load sensor data, passenger data,

weather forecast, tourist events and promotions, etc.).

The high-level goal of the Train Passenger In-

terfaces for Smart Travel (TraPIST) (iMinds VZW,

2014) project is to offer public transportation trav-

ellers relevant information pro-actively, at the right

time and through the most appropriate channel. The

development of a framework that collects, analyses,

classiﬁes and ﬁlters data from various sources, based

on a dynamic traveller proﬁle, is at the heart of the

project. Based on this info, speciﬁc traveller appli-

cations are developed giving passengers direct access

to the information they need. The moment when the

information is presented is triggered by the situation,

such as a speciﬁc time, a location, an event or the trav-

ellers own circumstances (e.g. present company, des-

tination, activities).

It quickly became apparent that the develop-

ment of these situation-aware knowledge consolida-

tion applications introduced a lot of common over-

head (consulting multiple open data sources, pro-

cessing their results, dealing with sudden unavail-

ability of sources, etc.) and as such, the deci-

sion was made to develop a generic framework for

building REST/JSON-based ontology-enabled appli-

cations, named a Lightweight modular environment

for Data-oriented Services (LimeDS) (IBCN, 2014).

Some of the main properties of LimeDS are:

• Rapid & User-friendly HTTP Web Exposure:

through the built-in support to expose Represen-

tational State Transfer (REST) endpoints

• Agile Dependency Injection: each component

can be injected and called in the context of other

components without the need for boiler plate code

• Flexible Storage System: the actual storage im-

plementation is abstracted from the speciﬁcation

and can easily be replaced according to the re-

quirements at hand

Verstichel, S., Kerckhove, W., Dupont, T., Volckaert, B., Ongenae, F., Turck, F. and Demeester, P..

LimeDS and the TraPIST Project: A Case Study - An OSGi-based Ontology-enabled Framework Targeted at Developers in Need of an Agile Solution for Building REST/JSON-based Server

Applications.

In Proceedings of the 7th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2015) - Volume 2: KEOD, pages 501-508

ISBN: 978-989-758-158-8

501

• Scalability and Proﬁling Toolkit: support for

load-balancing services and data caching

• Support for Processing of JSON-LD: formatted

data and reasoning on that data

• Polyglot Environment: support for multiple pro-

gramming languages: Java, JavaScript and Python

• Powerful Management User Interface (UI).

The remainder of this paper is structured as fol-

lows: Section 2 introduces the PoC application while

LimeDS, the foundation for the TraPIST develop-

ments is presented in Section 3. In Section 4 a num-

ber of important modules are detailed. A selection of

related work is enlisted in Section 5. Finally, we con-

clude this paper in Section 6.

2 PoC DEMONSTRATOR

To demonstrate the strength of the presented LimeDS

framework, a PoCs has been deﬁned and is being im-

plemented. This PoC concerns the personalisation

of feasible connections at interchange stations. The

steps needed to create such an application using the

LimeDS framework are presented in this section.

In general, we will employ an ontology to describe

public transport related concepts, and to classify us-

ing a combination of OWL DL and SWRL based rea-

soning. The LimeDS framework can then be used to

compose the data ﬂows for speciﬁc applications, al-

lowing to connect a variety of data producers (e.g.

railway timetable information providers) with reason-

ing modules drawing conclusions based on the cur-

rently available information and context, and expos-

ing these reasoning results as REST endpoints for vi-

sualisation by (mobile) client applications.

2.1 Personalised Connections

An important aspect of a satisfactory travel experi-

ence for all travellers is the fact that transportation in-

formation should be correct and accurate at all times,

and preferably tuned for the speciﬁc situation or con-

text of the person at hand. Let us clarify this with

an example: a connecting public transportation option

may not be feasible to catch for every type of person

if only ﬁve minutes are scheduled between arriving

at a station and boarding that scheduled connection

leaving from a different platform, as there is a need

to disembark, orient yourself and ﬁnd/make your way

to the other platform and ﬁnally board the connect-

ing transport. In other words, the time a traveller re-

quires to transfer between public transport platforms

can be dependent on the context (e.g. a ﬁrst time visit

versus daily use/knowledge of the station layout) and

physical limitations of that person (e.g. people with

physical disabilities or in wheelchairs, elderly, peo-

ple using a child carrier or heavy travelling luggage).

In order to come up with a true personalised travel

guidance system, this contextual information needs to

be captured and taken into account before presenting

travelling guidance to the user.

2.1.1 Ontology Engineering

In support of this scenario an ontology has been cre-

ated extending two existing ontologies:

• Transit (Davis, 2011): A vocabulary for describ-

ing transit systems and routes, and

• Weather (Gajderowicz, 2011): Based on the on-

tology created by Aaron Elkiss (Elkiss, 2011).

Starting from the Transit and Weather ontolo-

gies an extension has been modelled, representing

the railway timetable from Nationale Maatschappij

Belgische Spoorwegen (Belgian National Railways)

(NMBS)/SNCB (SNCB/NMBS, 2015) at a number of

Belgian railway stations. This represents the railway

schedule as it should be if everything runs accord-

ing to plan. The main new Web Ontology Language

(OWL) class has been named Connection. Individuals

of these Connections represent the actual running of

that service on a speciﬁc date and are used at-runtime

to determine which of the Connections at any given

railway station can be caught for the given traveller’s

proﬁle. To perform the classiﬁcation, a combination

of OWL DL as well as SWRL reasoning is adopted.

A number of illustrative axioms are presented in the

following paragraphs.

For a Connection to be classiﬁed as suitable for

travellers with a mobility impairment, the OWL deﬁ-

nition is given below, based on the terms available in

the Transit vocabulary. It speciﬁes that the Connec-

tion should be on a route which has a pre-arrangement

for mobility impaired passenger, this arrangement

should have been conﬁrmed by the operator and the

Connection should depart from a platform at ground

level:

MobilityImpairmentSuitableConnection

<=>

(route some owl:Thing)

and (hasAccessArrangement value prearranged)

and (platform some xsd:int[> "-1"ˆˆxsd:int])

and (isArrangementOK value true)

It should be clear that for other situations or other

transport modes, such as bus, taxi or cycle hire, other

deﬁnitions can be speciﬁed in the domain ontology,

used for that speciﬁc operator deployment. How-

ever, thanks to the generic notion of a MobilityIm-

SSEO 2015 - Special Session on Enterprise Ontology

502

pairmentSuitableConnection, the UI visualising this

information does not need to be aware of the speciﬁc

deﬁnitions in place for that speciﬁc situation. The rea-

soner performs the job of ﬁltering and classiﬁcation.

In ﬁrst instance, the use of as much DL-based axioms

as possible has been pursued, for the reason of gener-

icness and to support the ability to exchange multiple

OWL DL enabled reasoner implementations. How-

ever, sometimes it might not be possible to purely rely

on OWL DL. To facilitate those more complex situ-

ations, support for SWRL rules has been included as

well. An example of using SWRL to support complex

rules and to take the real-time running information of

the Conections into account, is given below:

MobilityImpairmentSuitableConnection

(?connection),

currentTime(Now, ?ct),

departureTime(?connection, ?departuretime),

hasDelay(?connection, ?delay),

add(?earliestdeparturetime, ?ct, 900000),

add(?realdeparturetime,

?departuretime, ?delay),

greaterThan(?realdeparturetime,

?earliestdeparturetime)

MobilityImpairmentTimedSuitableConnection

(?connection)

This SWRL rule speciﬁes that, for a Con-

nection to be classiﬁed as a MobilityImpair-

mentTimedSuitableConnection, it should already

have been classiﬁed as a MobilityImpairmentSuit-

ableConnectionthe and in addition its actual departure

time should be at least 15 minutes in the future.

Other deﬁnitions have been included for other cat-

egories of passengers as well, such as HearingImpair-

mentSuitableConnection or VisualImpairmentSuit-

ableConnection in case of Connections with speciﬁc

requirements for an on-board Passenger Information

System (PIS) or taking into account the earlier intro-

duced Weather ontology. Examples include a Frost-

SuitableConnection, SnowSuitableConnection or Bi-

cycleSuitableConnection.

2.1.2 LimeDS Data Flow

Once the ontology and its deﬁning axioms has been

agreed upon, the implementation within the LimeDS

framework can start. For this, the LimeDS Flow

Builder can be used. For the scenario presented in this

section, the Data Flow as modelled using the LimeDS

Flow Builder is illustrated in Figure 1.

The main Flow Function is illustrated in the mid-

dle of the ﬁgure. This represents the conﬁgura-

tion of the reasoner. In addition, the conﬁguration

also allows to specify the endpoint which should

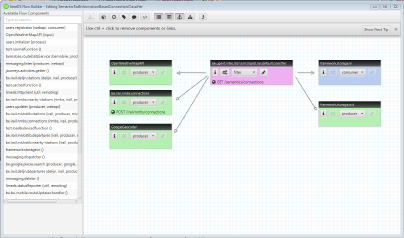

Figure 1: Data Flow to classify the personalised connec-

tions.

be exposed and used by client applications to trig-

ger the Data Flow, as well as extra-functional prop-

erties for caching, load-balancing and authentica-

tion/authorisation characteristics, and this in a user

friendly manner without the need to write any boiler

plate code.

Finally, on the left hand side in Figure 1, sev-

eral input components (data producers) can be seen.

These ensure that the correct information is (i) fetched

from the online data sources (e.g. for retrieving the

at-runtime information of the railway operations, the

weather at a certain location and optionally geocod-

ing that location), and (ii) converted into JSON-LD

ready for processing by the reasoner component, il-

lustrated in the middle of the ﬁgure. On the right hand

side, components are visualised and linked to the rea-

soner for persistency functionality. As indicated in

Section 3, built-in support for persistency by means

of MongoDB (Chodorow, 2013) is provided by the

framework.

3 LimeDS

The TraPIST applications are built on top of LimeDS,

which facilitates development by leveraging on the

Data Flow abstraction. In this section we highlight

how LimeDS has been engineered and how it supports

the processing of semantically enriched knowledge to

support data-oriented situation-aware applications.

3.1 Data Flows

The Data Flow abstraction adds structure to the way

in which data travels through the system by specifying

a number of generic components that each represent a

speciﬁc role in the way the data can be consolidated.

By leveraging LimeDS, the TraPIST applications are

able to respond in an agile manner to the dynamic en-

vironment in which they will be deployed, e.g.:

LimeDS and the TraPIST Project: A Case Study - An OSGi-based Ontology-enabled Framework Targeted at Developers in Need of an

Agile Solution for Building REST/JSON-based Server Applications

503

• A public transport operator provides a new API

which facilitates access to information that was

not readily available before, making some of the

TraPIST components obsolete.

• A new algorithm is published that would greatly

enhance the way in which new information can

be derived from historic passenger records, but it

requires additional data that is already available

via another framework component currently not

involved in the process.

The Data Flow system revolves around two con-

ceptual component types (Figure 2):

• Flow Functions: components that take in an op-

tional JSON argument and can optionally produce

processed JSON data.

• Flow Processes: components that execute a spe-

ciﬁc set of actions when triggered.

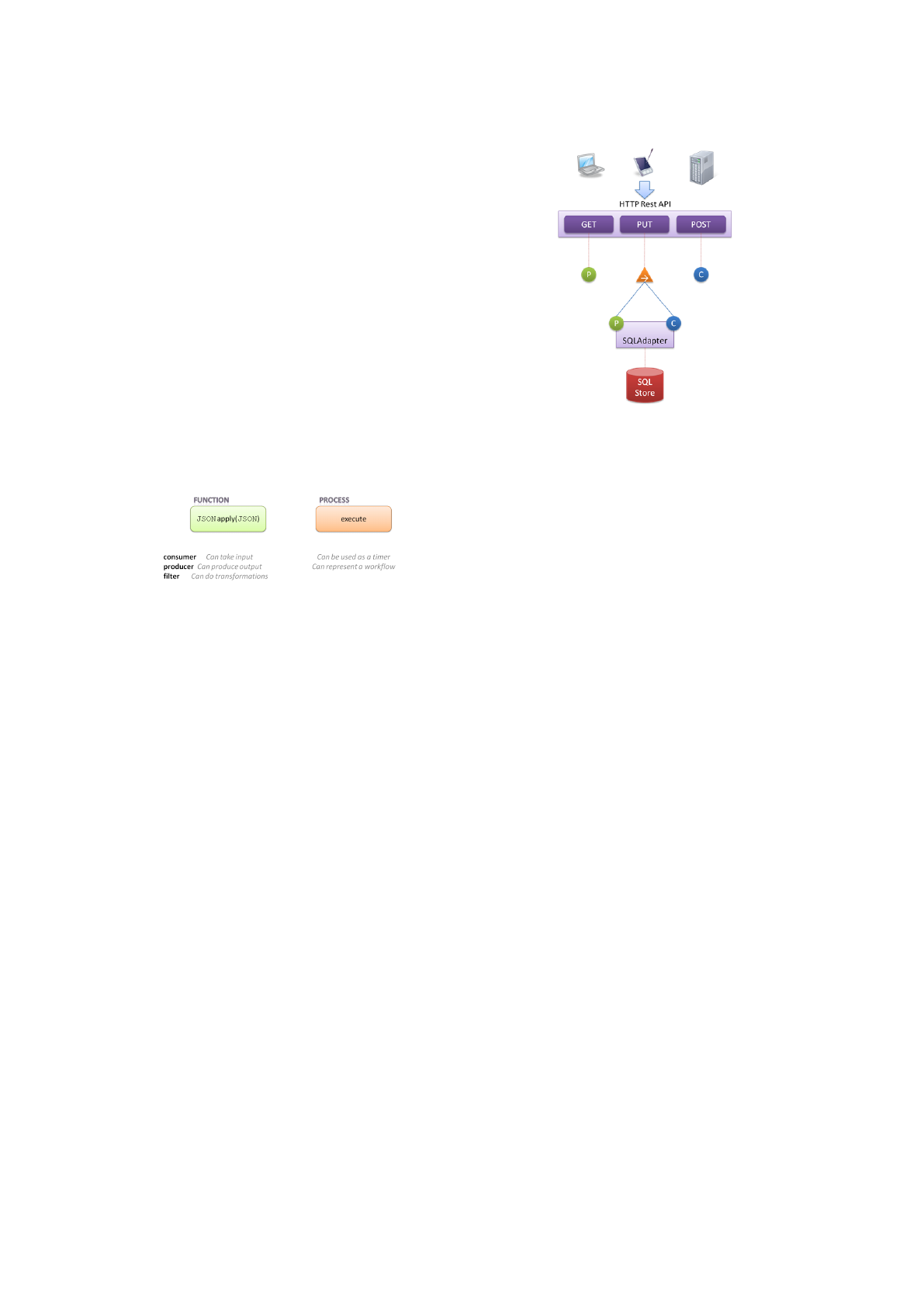

Figure 2: The Data Flow paradigm.

Using these two conceptual types, complex data-

oriented services can be built by combining instances

of Flow Functions and Flow Processes components to

create a modular and dynamic implementation of the

required functionality. In LimeDS, each such compo-

nent can be:

• implemented in the language best-suited for the

developer (a.o. JavaScript, Java, Python),

• exposed as a REST endpoint,

• protected against unwanted behaviour by auto-

mated dependency management,

• guarded by means of authentication and authori-

sation mechanisms, using a user-friendly conﬁg-

urable strategy,

• automatically load balanced and cached,

• proﬁled to allow for performance tracking,

• (graphically) connected into a Data Flow, and

• reused from existing Data Flows and changed to

other Data Flow components introducing novel

Data Flows.

An important requirement for the LimeDS frame-

work is that it must interact with all sorts of ex-

ternal systems, such as mobile applications, web

applications, operator management software, public

transport time table sources, geographical databases,

Figure 3: Data Flow involving external systems.

weather information services, etc. As the primary

mechanism for communication within the framework,

the Data Flow model must hence facilitate this.

Figure 3 demonstrates how the Data Flow model

can support external systems by means of two exam-

ples: (i) clients connecting to a public HTTP REST

API and (ii) a SQL database system. Retrieval re-

quests (e.g. HTTP GET) from public API can be

redirected to a relevant Flow Function that can an-

swer the requests, while other Flow Functions are

well suited to handle requests that provide new con-

tent (e.g. HTTP POST). External system calls could

also trigger a Flow Function, for example by send-

ing update requests (e.g. HTTP PUT) that change

the context of a ﬁeld of an object. In the diagram

this results in an operation on a SQL database, using

producers and consumers, i.e. speciﬁc Flow Function

implementations provided by a module that is able to

communicate with the external SQL store.

3.2 Dynamic Module System

The dynamic module system for LimeDS has been

based on an existing standard speciﬁcation called

Open Services Gateway initiative (OSGi) (OSGi Al-

liance, 2003). A module in OSGi is called a bundle.

Bundles are represented as plain JAR-ﬁles that con-

tain additional meta-data in the manifest of the JAR.

This meta-data is what deﬁnes the bundles and in-

cludes two important concepts: (i) a bundle version

identiﬁer and (ii) an explicit speciﬁcation of imported

and exported packages.

The OSGi framework hides everything that is in-

side the bundle, unless a package is explicitly ex-

ported (as deﬁned in the manifest). Other bundles can

only use the classes that are in the exported package

by explicitly importing the package. This concept of

code hiding and explicit sharing enforces modularity

SSEO 2015 - Special Session on Enterprise Ontology

504

and all the beneﬁts that come with it.

It is considered good practice to use code shar-

ing through exports/imports only to share deﬁnitions

(interfaces) and model classes between bundles and

employ the OSGi service model to do the actual col-

laboration.

3.3 Service Layer

The OSGi speciﬁcation also consists of a service

model that provides a very good match with the

LimeDS service layer that was envisioned as illus-

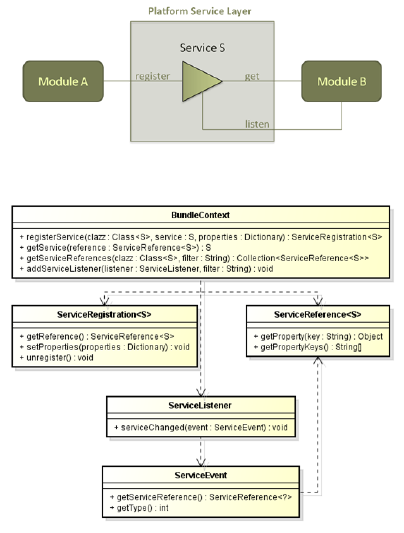

trated in Figure 4. The service layer is one of the

most important concepts of the framework as it allows

modules to communicate while still retaining a loose

coupling, enabling functionality to be extended or re-

placed at-runtime. It also provides the foundation for

the Data Flow system that is the basis of the presented

approach and further explained in Section 4.

Figure 5 shows the Application Programming In-

terface (API) of the OSGi service model. Via the

BundleContext, which can be retrieved for each bun-

dle or module, developers can access the three main

operations that are required for the LimeDS frame-

work: registering a service, retrieving a service and

Listening to a service.

3.4 TraPIST API

The system is self-documenting for all APIs that are

Figure 4: TraPIST service layer.

Figure 5: OSGi service model.

implemented using LimeDS Data Flows. Input and

output formats for the API can reference LimeDS

JSON schema documents that are locally stored or

through an accessible URL. The schema documents

can describe JSON objects of a speciﬁc type and

can be used to automatically validate Data Flow

messaging. The input and output JSON formats

of Flow Functions can be documented using the

@Documentation annotation in Java or through the

conﬁguration window of the Flow Builder client for

Javascript or Python-based implementations. Once

the input and output formats are deﬁned, these meta

JSON-objects can be used as a mechanism of validat-

ing the actual input and output of the Flow Functions

at-runtime.

In contrast to more elaborate JSON description

formats such as JSON schema (JSON–schema.org,

2015), our goal is to keep the format simple and rep-

resentative of how an actual instance of a JSON item

that matches the format looks, while still retaining a

valid JSON structure. Four basic concepts are intro-

duced, namely (i) Primitive types, (ii) JSON Objects,

(iii) JSON arrays and (iv) References.

The ﬁrst two concepts are straightforward. A

JSON array is represented in the same way as it would

occur in an actual JSON instance, but instead of mul-

tiple values of a certain type, it will only contain a

single item that represents the type of the potential

contents of the array. In reality, this item will either

be a primitive type description, an object description

or another array description. When the item that is

contained in the array is marked as optional, this ap-

plies to the ﬁeld that holds the array. The format al-

lows references to other JSON documentation objects

through the @typeRef ﬁeld, e.g.

{

"@typeRef" :

"http://example.org/list/example/Address.json"

}

The validator is compatible with these references

and will recursively evaluate the links to process the

actual ﬁeld descriptors.

4 FRAMEWORK MODULES

OVERVIEW

For ease of reference, the framework modules are split

into three categories: (i) TraPIST speciﬁc modules

(TraPIST Modules), (ii) generic LimeDS modules

that are required when developing any TraPIST mod-

ule (LimeDS Developer Modules) and (iii) modules

that are part of the LimeDS framework’s internal de-

tails (LimeDS Internal Modules).

LimeDS and the TraPIST Project: A Case Study - An OSGi-based Ontology-enabled Framework Targeted at Developers in Need of an

Agile Solution for Building REST/JSON-based Server Applications

505

4.1 Reasoner Conﬁguration Module

The tools.reasoning.configurator bundle can

be used instantiating the speciﬁed reasoner conﬁgu-

rations into fully functional Flow Function compo-

nents, integrating semantic reasoning into the Data

Flows. To instantiate a new reasoner, one needs to

create a conﬁguration ﬁle with four different proper-

ties (i) name, (ii) tags, (ii) url (refering to the ontol-

ogy that is used as the base model for this reasoner

instance) and (iv) reasoner (currently supported rea-

soners are Pellet (Sirin et al., 2007) and the Jena OWL

DL reasoner (Carroll et al., 2004)). Each new conﬁg-

uration will result in a Flow Function becoming avail-

able with the speciﬁed name. This Flow Function can

then be used as any other normal Data Flow compo-

nent. The following request schema applies to this

Flow Function:

{ "type" : "String [add, get, dump]

(The type of the request.)",

"body" : {

"@typeInfo" : "Object *

(A JSON-LD object when the request

is of the type add.)"

"query" : "String *

(A SPARQL query when the request

is of the type get.)"}

Each reasoner instance supports three operations:

• add: Adds the JSON-LD object encapsulated in

the body of the request to the ontology.

• get: Retrieves information from the ontology by

executing the SPARQL query encapsulated in the

query of the request.

• dump: Dumps current state as a RDF/XML ﬁle.

4.2 Communication Subsystem

The LimeDS framework supports the standard spec-

iﬁcation JAX-RS (Burke, 2009), allowing the auto-

mated generation of REST Web Services. The prin-

ciple is very similar to how Flow Functions can be

scheduled (see Subsection 4.4): JAX-RS annotated

services are added to the service registry. The anno-

tations contain information about the REST service

path and the available HTTP methods. The JAX-RS

Bridge module connects with the service registry and

is continually scanning for new annotated services.

As shown in Figure 6, the JAX-RS Bridge then

calls Apache Wink (Apache Software Foundation,

2015) for each discovered service. Wink is a li-

brary that translates the annotated resources to HTTP

servlets, which can be hosted by a servlet container.

To facilitate calling the services provided in this way

Figure 6: Service to HTTP bridge.

(or external REST services), a client utility library has

been developed to easily call REST services with a

minimal amount of code. The REST Client API al-

lows expressing REST calls in a rather natural way,

e.g. in order to post a JSON object to an example

service, one can write the following statement:

JsonNode jsonObject =

Json.from("\"{ \"example\" :

\"Hello world!\" }");

client

.target("http://example.com/API/example")

.post(jsonObject).returnNoResult();

With both a way to easily expose REST services

(server-side) and a way to ﬂuently call and make use

of these services (client-side), the framework pro-

vides all the features that are required of a basic com-

munication system.

4.3 Load Manager Subsystem

The framework provides a Load Manager System

which facilitates Data Flow component developers

in adding robustness and scalability to their services.

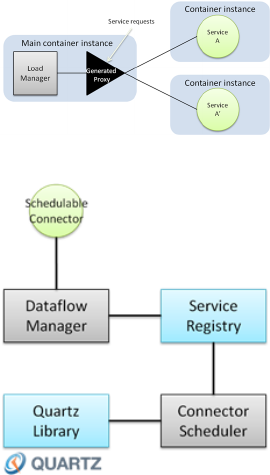

Figure 7 shows the basic principle that is used to

implement this system. For each registered service,

the Load Manager will generate a proxy service that

transparently captures all requests sent to the original

service and redirects it to the service instance (run-

ning locally or remote) that is currently best suited to

answer the request. This decision can be based on

the number of requests for each instance, the mean

response times, etc.

4.4 API and Scheduling Subsystem

This bundle includes important constants and values,

the complete Data Flow API and a deﬁnition of the

storage system. Flow Functions can be activated pe-

riodically to perform certain tasks, e.g. a Flow Func-

tion that enriches all stored places of interest with up-

to-date weather information can be activated hourly.

SSEO 2015 - Special Session on Enterprise Ontology

506

Figure 7: Load manager system.

Figure 8: Scheduling functionality.

To support this functionality, the framework must in-

tegrate a scheduler. Figure 8 shows the high level

modules which are involved to enable this speciﬁc

feature. We use the Quartz library (Cavaness, 2006)

to actually trigger the recurring tasks while a Connec-

tor Scheduler is responsible for the synchronisation

of schedulable Flow Functions available from the ser-

vice registry with the triggers that are enabled within

the Quartz scheduler.

Finally, the architecture of the framework adds

support for dynamic languages (e.g. JavaScript). As

the framework does not rely on a ﬁxed data repre-

sentation, static typed languages (such as Java) could

introduce unnecessary development overhead for cer-

tain types of use-cases. Dynamic languages are not

hindered by ﬁxed deﬁnitions and could prove to be

more elegant for simple cases.

5 RELATED WORK

5.1 JAX-RS

Java API for Restful Web Services (JAX-RS) (Burke,

2009) is the Java standard speciﬁcation for a Java

API that allows implementing REST-based applica-

tions. It relies on annotations added as meta-data

on classes to transform these into REST resources

that are exposed as HTTP-endpoints. Various imple-

mentations of this standard exist ranging from Jer-

sey (Oracle Corporation, 2015), to Resteasy (RedHat,

2015) and Apache Wink (Apache Software Founda-

tion, 2015).LimeDS uses Apache Wink as a base layer

and thus offers support for JAX-RS resources. On top

of this, the Data Flow mechanism allows developers

to build Web API with integrated support for reliabil-

ity, scalability and security with a minimal amount of

code that can easily be modiﬁed at-runtime.

5.2 Dropwizard

Dropwizard (Dallas, 2014) is an open-source Java

project that integrates a number of mature libraries

into a light-weight ecosystem targeted at developing

REST-based applications. This is done by allowing

JAX-RS resources to be wired with various support

services, ranging from logging, to storage and authen-

tication / authorisation. The goal of Dropwizard is

similar to that of LimeDS, but the focus and scope

differs. While Dropwizard is a very powerful frame-

work to build high-performance REST-based applica-

tions that are easy to monitor and maintain, LimeDS

provides a more dynamic environment where changes

can be made on-the-ﬂy while the application is run-

ning. Dropwizard also focuses on a single-node setup,

while LimeDS can be conﬁgured to run as a cluster

with load balancing.

5.3 OSGi

OSGi (OSGi Alliance, 2003) is a proven standard

that speciﬁes a modular middleware framework for

Java. OSGi implementations such as Apache Fe-

lix or Eclipse Equinox (The Eclipse Foundation,

2015) provide an execution environment where soft-

ware modules (bundles) can be installed at-runtime

and communicate safely in highly dynamic circum-

stances. While a lot of applications could beneﬁt from

the (at-runtime) modularity and loose coupling of the

OSGi framework, a lot of developers struggle to un-

lock its true potential because of the steep learning

curve. LimeDS is built on top of OSGi and can offer

developers OSGi features such as dynamic reconﬁgu-

ration of dependencies and at-runtime addition of new

functionalities in a much easier to use package – albeit

for a more restricted set of REST-based applications.

5.4 Vert.x

Vert.x (Clement Escofﬁer, 2015) is a Java-based

framework that allows developers to build ‘reactive’

applications by setting up modular components called

Verticles and by routing data between these compo-

nents using a distributed event bus. The ‘reactive’

keyword refers to the framework using event-driven,

LimeDS and the TraPIST Project: A Case Study - An OSGi-based Ontology-enabled Framework Targeted at Developers in Need of an

Agile Solution for Building REST/JSON-based Server Applications

507

non-blocking calls and the fact that it is designed from

the ground up to support high availability. Some of

the additional services provided by Vert.x are: (i) the

ability to use multiple programming languages (Java,

JavaScript, Groovy, Ruby), (ii) integration of stor-

age solutions (MongoDB, SQL, Redis), (iii) support

for clustering, advanced capturing of metrics on a

per-component basis and (iv) built-in support for au-

thentication and authorisation. Vert.x and LimeDS

overlap in some features, but the latter focuses on

HTTP/JSON-based applications with a clear choice to

build upon the services model of OSGi, while Vert.x

offers a more generic approach. When developing

those type of applications, LimeDS has an edge as

there is no need for boiler plate code in setting up the

HTTP endpoints. Additionally, LimeDS has built-in

support for semantic reasoning.

6 CONCLUSIONS AND

OUTLOOK

In this paper we presented LimeDS, an OSGi-based

framework allowing for agile development of data

processing applications which rely on a multitude

of heterogeneous open data and knowledge sources.

LimeDS has been employed in the TraPIST research

project to develop multimodal public transportation

applications with a focus on offering personalised and

context-ﬁltered information to the end-user, allowing

that end-user to be presented with information tai-

lored to his or her needs and (physical) disabilities.

LimeDS is able to deal with sudden unavailability

of select data sources and offers a developer-friendly

way of reasoning over this data. Furthermore it can

(visually) aid with the construction of data process-

ing/reasoning workﬂows and provides inherent and

conﬁgurable support for scaling, resilience and fall-

back scenarios. Current plans are to release LimeDS

in Open Source format to the community at the end of

the TraPIST project (i.e. January 2016).

ACKNOWLEDGEMENTS

The iMinds TraPIST project is co-funded by iMinds

(Interdisciplinary Institute for Technology), a re-

search institute founded by the Flemish Govern-

ment. Companies and organisations involved in

the project are Televic Rail, Be-Mobile, Digitopia,

NMBS/SNCB and TreinTramBus, with project sup-

port of IWT.

REFERENCES

Apache Software Foundation (2015). Apache Wink – a

simple yet solid framework for building RESTful Web

Services. Online. https://wink.apache.org/.

Burke, B. (2009). RESTful Java with JaX-RS. O’Reilly

Media, Inc.

Carroll, J. J., Dickinson, I., Dollin, C., Reynolds, D.,

Seaborne, A., and Wilkinson, K. (2004). Jena: im-

plementing the semantic web recommendations. In

Proceedings of the 13th international conference on

World Wide Web, Alternate track papers & posters

(WWW Alt. 2004), pages 74–83, New York, NY, USA.

ACM.

Cavaness, C. (2006). Quartz Job Scheduling Framework:

Building Open Source Enterprise Applications. Pear-

son Education.

Chodorow, K. (2013). MongoDB: the deﬁnitive guide.

O’Reilly Media, Inc.

Clement Escofﬁer, M. K. (2015). Vert.x – a toolkit for

building reactive applications on the JVM. Online.

http://vertx.io/.

Dallas, A. (2014). RESTful Web Services with Dropwizard.

Packt Publishing Ltd.

Davis, I. (2011). TRANSIT: A vocabulary for de-

scribing transit systems and routes. Online.

http://vocab.org/transit/terms/.html.

Elkiss, A. (2011). A weather ontology. Online.

http://www.csd.abdn.ac.uk/∼ggrimnes/AgentCities/

WeatherAgent/weather-ont.daml.

Gajderowicz, B. (2011). Using Decision Trees for In-

ductively Driven Semantic Integration and Ontology

Matching.

IBCN (2014). LimeDS – An OSGi-based Java frame-

work targeted at developers that need an agile solution

for building REST/JSON-based server applications in

rapidly changing environments (a.k.a. when the cus-

tomer does not know what she/he needs). Online.

http://bit.ly/1Qy0qWO.

iMinds VZW (2014). TraPIST – Information for train

passengers on a silver platter. Online. https://

www.iminds.be/en/projects/2014/03/20/trapist.

JSON–schema.org (2015). JSON Schema – JSON Schema

describes your JSON data format. Online. http://

json-schema.org/.

Oracle Corporation (2015). Jersey – RESTful Web Services

in Java. Online. https://jersey.java.net/.

OSGi Alliance (2003). OSGi Service Platform, Release 3.

IOS Press, Inc.

RedHat (2015). RestEASY – Distributed peace of mind.

Online. http://resteasy.jboss.org/.

Sirin, E., Parsia, B., Grau, B. C., Kalyanpur, A., and Katz,

Y. (2007). Pellet: A practical OWL-DL reasoner.

Journal of Web Semantics, 5(2):51–53.

SNCB/NMBS (2015). SNCB/NMBS – Belgian national

railways. Online. http://www.belgianrail.be/en/

Default.aspx.

The Eclipse Foundation (2015). Equinox – an implemen-

tation of the OSGi core framework speciﬁcation. On-

line. http://www.eclipse.org/equinox/.

SSEO 2015 - Special Session on Enterprise Ontology

508
