Knowledge-based Engineering of Automation Systems using

Ontologies and Engineering Data

Matthias Glawe

, Christopher Tebbe

, Alexander Fay

and Karl-Heinz Niemann

Institute of Automation Technology, Helmut Schmidt University / University of the Federal Armed Forces,

Holstenhofweg 85, 22043 Hamburg, Germany

Faculty I – Electrical Engineering and Information Technology, University of Applied Sciences and Arts Hannover,

Ricklinger Stadtweg 120, 30459 Hannover, Germany

Keywords: Ontology, Knowledge-based Engineering, Semantic Web, CAEX, IT Security.

Abstract: Ontologies provide an effective way for describing and using knowledge of a specific domain. In

engineering workflows the reusability and quick adoption of knowledge is needed for solving several tasks

in efficient ways. Engineering data is mostly structured in hierarchical documents and exchange formats,

but is not represented in ontologies. Therefore a connection between engineering data and the knowledge in

ontologies is needed. In this article we present a bridge concept for connecting engineering data with an

OWL-based ontology. For this we use an example ontology containing security knowledge of automation

systems.

1 INTRODUCTION

The engineering of an automation system for a

production plant or a building requires significant

effort and a dedicated workflow, organised in

subsequent phases (Vogel-Heuser et al., 2014).

Within this engineering workflow, some tasks

require creativity, whereas other phases are

characterised to be repetitive and tedious tasks,

which makes the use of software tools advisable

(Frank et al., 2012). Especially for the repetitive

tasks, the use of knowledge-based support tools has

proven to be advantageous in terms of effort savings,

time savings, and quality assurance (Strube et al.,

2011, Runde and Fay, 2011, Legat et al., 2013). If

the engineering expert’s knowledge can be

formulated in IF-THEN statements, these rules can

be applied on the engineering data of the current

engineering project. These form the facts

of the

current problem, from the perspective of the

knowledge-based systems (Russell and Norvig,

2010; Fulcher and Jain, 2008).

In the engineering workflow, rule-based systems

can not only support the creation of engineering

”The term facts mean information that is considered reliable.

Expert systems draw inferences using facts.” (Giarratano 2005,

p. 72).

results (e.g. Schmidberger and Fay, 2007; Güttel et

al., 2008) but also the analysis of engineering results

regarding e.g. completeness, reliability (e.g.

Christiansen, 2011) and safety (e.g. Schreiber,

2007). Recently, the analysis of the automation

system’s design regarding IT security threats has

become more important due to increased

vulnerability of commercial-of-the-shelf components

and standard communication technologies in

automation systems. Therefore, IT security analyses,

denoted as security analyses in the following, of the

automation system have to be conducted. These

analyses should take place during the design of the

automation system as well as along its operation

(IEC 62443-2-1). Security analyses might be highly

complex and time consuming, as many details

regarding the automation system and the

implementation environment have to be considered.

Likewise, they require a significant amount of up-to-

date security knowledge. Due to resource

limitations, however, in practice there is not always

time to conduct such an analysis, and the required

knowledge is often not available, particularly in

small and medium-size companies.

In the research project INSA

, a tool to support

security analyses during the engineering and opera-

ut.hsu-hh.de/insa

Glawe, M., Tebbe, C., Fay, A. and Niemann, K..

Knowledge-based Engineering of Automation Systems using Ontologies and Engineering Data.

In Proceedings of the 7th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2015) - Volume 2: KEOD, pages 291-300

ISBN: 978-989-758-158-8

291

tion of automated systems has been developed. This

tool exploits the capabilities of a rule-based system

on the combination of engineering data and security

ontologies. This combination concept is discussed in

this paper.

The rest of the paper is structured as follows. In

Chapter 2 the chosen data formats for representing

facts about the automation system and the domain

knowledge for security analyses are introduced.

Chapter 3 provides a concept for connecting the

facts, given in an engineering data format, with the

security domain knowledge represented in the

ontology. A design concept for a suitable user

interface is illustrated in Chapter 4 to provide an

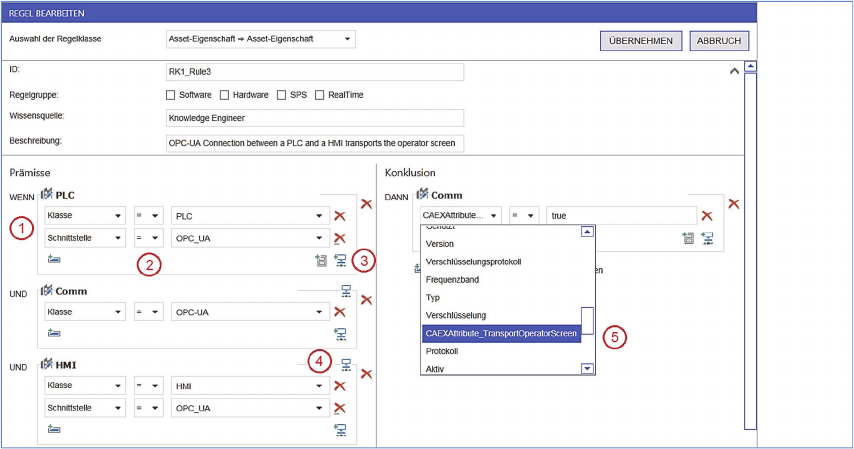

intuitive possibility for creating complex rules.

Finally, a short conclusion and an outlook to further

development and possible implementations of the

presented concepts for other engineering tasks are

given in Chapter 5.

2 DOMAIN & TECHNOLOGIES

In this chapter a brief introduction to the domain of

security, engineering data and ontologies is given. In

our work we designed an exemplary automation

system to proof our methods and concepts. A part of

this exemplary automation system is shown in

Figure 1.

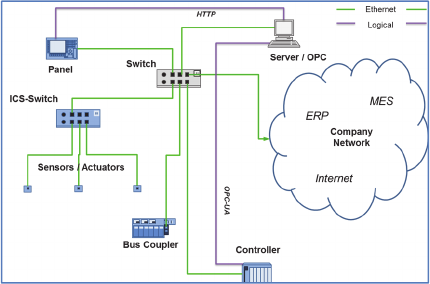

Figure 1: Part of an automation system.

The automation system consists of Ethernet-

based intelligent sensors/actuators, further

sensors/actuators connected to a bus coupler and a

controller (PLC = Programmable Logic Controller),

which runs the automation system.

This controller communicates automation data

via OPC-UA, an automation specific communication

standard, to an industrial server. This server provides

this data via a WebServer for other users. In this

case a panel collects this data by a HTTP

communication.

The elements of the automation system are

connected by industrial Ethernet and have a

connection to the companies’ network to

communicate with other instances like a MES

(Manufacturing Execution System), an ERP

(Enterprise Resource Planning System) or the

Internet. This structure is used in the following

chapters to illustrate specific elements of our

approach.

2.1 Security of Automation Systems

While security mechanisms have been present in

Home- and Enterprise-IT for a long time, many

industrial automation systems do not have an

acceptable level of IT-Security up to now. This

originates in the fact that automation systems used to

consist of proprietary components which were not in

focus of hackers and had (nearly) no connection to

external systems. A change in mind was needed

when modern automation systems adopted more and

more standard IT techniques, like the Ethernet and

standard software. For example the industrial server

in our example runs a Windows-based operating

system while the operation system of the controllers

is Linux-based.

Especially for small- and medium-sized

companies it is hard to reach an acceptable level of

security in their automation system due to low

knowledge about security and the high effort for

implementing security in automation systems. In our

research we focus on the creation of a rule-based

system to support companies in the execution of a

security analysis for their automation systems.

For the creation of a rule-based system,

knowledge of the specific domain has to be gathered

for the current problem. It is necessary to analyse the

structure of the domain knowledge that shall be

represented, as a basis for the rule-based system. In

the case of security knowledge for automation

systems, this information can be found for example

in (IEC 62443-2-1).

The structure of an automation system is the

initial information needed to execute a security

analysis. Within this information assets must be

defined. These assets describe all elements that

should be protected. Assets and their environment

are subject to threats that can reduce the security of

the automation system. The implementation of

protection measures mitigates these threats and

improves the security of the automation system. We

described this in a generic model of a security

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

292

analysis. A similar model is briefly introduced by

(Valenzano, 2014).

2.2 Engineering Data in CAEX

In order to acquire asset data as the input for a

security analysis and therefore as facts of a

knowledge-based system, we decided to use existing

engineering exchange data formats. One of the most

recognized standards for exchanging engineering

data is the XML-based data format Computer Aided

Engineering Exchange (CAEX) (IEC 62424). A

current implementation of CAEX is represented by

the data format AML defined by the AutomationML

e.V. (www.automationml.org). For AML, various

implementations are available, e.g. an editor for

creating AML files and a .NET-based engine for

manipulating AML files.

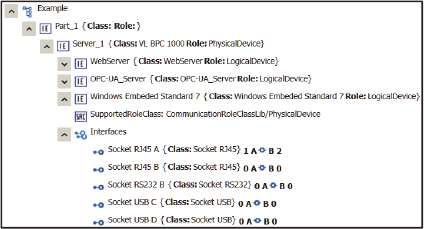

The CAEX Model mainly consists of four

libraries, which are defined as follows:

 InstanceHierachyLibrary (IHL)

An InstanceHierarchy (IH) is a description of a

specific hierarchy of components from top-level

plant (the automation system) down to single

components (InternalElements, IEs) (e.g. the

Controller) with interfaces (ExternalInterfaces,

EIs) and relations (InternalLinks, ILs) between

these interfaces.

 SystemUnitClassLibrary (SUCL)

The reusable SystemUnitClasses (SUCs) define

the component types with their respective

technical realizations. In our example a

SystemUnitClassLibrary was created which

contains all possible components of the

automation system. These SystemUnitClasses

were used to create the InternalElements in the

InstanceHierachy. A component-catalogue from

a particular vendor is a different example of a

SystemUnitClassLibrary.

 RoleClassLibrary (RCL)

In the RoleClassLibrary, RoleClasses (RCs) are

defined as abstract description of component

requirements. Therefore standard

RoleClassLibraries are provided by the standard

and can be complemented by the user. In our

example the Panel fulfils the Role “HMI”

(Human-Machine-Interface), which describes

abstract control equipment without giving any

information about the specific component.

 InterfaceClassLibrary (ICL)

The InterfaceLibrary consists of reusable

InterfaceClasses (ICs) for specifying connection

points of RCs, SUCs, and interface types of EIs.

Regarding knowledge-based systems,

RoleClassLibrary, SystemUnitClassLibrary and

InterfaceClassLibrary contain domain knowledge

about possible parts of the automation system, while

the InstanceHierachyLibrary contains facts about

the specific project under investigation.

2.3 Ontologies

Besides the information about automation systems,

the security knowledge must also be formalized. A

possible approach for the required formalization is

the use of ontologies. In computer science the term

ontology defines an explicit and formal specification

of a conceptualization of a part of the real world

(Antoniou and van Harmelen, 2012). Ontologies

have already proven to be useful for the engineering

of automation systems (e.g. Runde and Fay, 2011,

Linnenberg et al., 2013). Donner and Ekelhart

(Donner, 2003; Ekelhart et al., 2007) have shown

that security knowledge can be described in form of

ontologies, which allows the processing of queries

by using existing query languages such as SPARQL.

Based on the aforementioned works, we also

decided to use ontologies for our task. Specifically

in the research project INSA, the "Web Ontology

Language" (OWL) (W3C 2014 OWL) has been

applied to describe the structure and content of the

security knowledge in form of an ontology. OWL is

specified as a Semantic Web standard by the W3C.

It can be interpreted by humans as well as machines.

The main part of our ontology consists of security

threats, protection measures, their properties and the

relationships between them.

Regarding the inference capabilities of the expert

system, it is necessary that a reasoner (inference

mechanism) can execute an analysis in a limited

time frame. This is why we used OWL DL as a

subset of the full OWL language. The appendix DL

stands for description logic, which means OWL DL

is comparable to the well-studied description logic.

OWL full is known to be undecidable

(http://www.w3.org/TR/owl-ref/), whereas OWL

DL, with its restrictions, is decidable. This permits

efficient reasoning support.

In order to use rules which can easily describe

the relations between concepts of the real world

(assets, threats and protection measures in our case),

we used the Semantic Web Rule Language (SWRL).

SWRL enables the usage of Horn-like rules (W3C

2014 SWRL) for OWL ontologies. This is another

reason for using OWL DL because SWRL is based

on OWL DL and RuleML and combines them. The

implication rules of SWRL are perfectly usable to

Knowledge-based Engineering of Automation Systems using Ontologies and Engineering Data

293

represent security knowledge in our ontology.

Contrary to OWL, SWRL is not a W3C standard,

but has the status of a W3C Member Submission and

is used in many applications. The syntax of rules in

SWRL is:

antecedent => consequent

This allows to define all dependencies on the

“antecedent”-side (IF-part) and the resulting

consequence on the “consequent”-side, which only

applies if the “antecedent” is satisfied (THEN-part).

Contrary to our project, the works of (Donner,

2003) and (Ekelhart et al., 2007) analyse Enterprise-

IT-Security and are not based on an import

document, which contains the assets. In their works,

it is supposed that security threats are analysed by

human experts before the ontology can be evaluated.

From our point of view, the generation of security

threats from a given system infrastructure (assets)

appears to be the most difficult task. Therefore, in

our approach, the structure of the automation system

is exported as a CAEX file during the engineering

process, and this file is imported into the rule-based

system.

3 COMBINATION CONCEPT

3.1 Basic Concept

As described before, the security domain knowledge

is given in OWL/SWRL. This includes knowledge

about possible threats and protection measures as

well as rules, which infer new knowledge from the

given facts. The facts about the automation system

and the domain knowledge about possible

components of the automation system are

represented in CAEX. Thereby facts of the

automation system are represented in the IHL, while

domain knowledge about possible components of an

automation system given in the SUCL, RCL and

ICL. For executing the rules, a connection between

the CAEX structure and OWL/SWRL is needed.

Therefore, we developed a concept to connect all

elements of the CAEX model with the OWL

ontology by a small number of explicit and well

defined operators, usable in SWRL rules. These

operators are based on OWL Properties (object and

data properties) and are used as part of the SWRL

Rules in such a way that all relevant parts of the

CAEX model could be addressed. Therefore the

CAEX meta model, defined in (IEC 62424), gives

an idea which elements have to be addressed. Before

defining the specific operators a basic operator

structure is defined. The operators should always

look like:

COP_AOP_SOP(SWRL_Att1, SWRL_Att2)

In this notation, COP is a compare operator to define

the sort of comparison between the CAEX element

and the SWRL attribute. Up to now, compare

operators for equality (

has) and non-equality

(

hasNOT) as well as operators like more (hasMore)

or less (

hasLess) for version numbers or countable

attribute values have been implemented. The further

operators

in and notIN check whether a given

element is part of an enumeration which is

represented in the ontology.

AOP represents the

address operator which defines the elements of the

CAEX Meta Model (RoleClassLibrary,

SystemUnitClassLibrary and InterfaceClassLibrary)

to look for. It is the most important part of the

operator which points to specific positions in the

CAEX model. For supplementary information, the

AOP operator can, in some cases, be extended by the

supplementary operator

SOP. The SWRL attributes

SWRL_Att1 and SWRL_Att2 can either be a

variable pointing to an element of the CAEX Model,

an OWL individual, or the value which should be

checked. The

AOP and the optional SOP operators

will be described in the following chapter.

3.2 CAEX Operators

In this chapter the operators pointing to the parts of

the CAEX model are explained. As the facts for the

current problem are given in the InstanceHierachy,

the InternalElements in this library have to be

checked. Due to this, the operators should be able to

address all elements of these InternalElements. For a

better understanding Figure 2 shows a part of the

InstanceHierachy from our example describing the

industrial server.

Figure 2: CAEX Representation of an industrial server.

As the InternalElements are instances of the

SystemUnitClasses, an operator is needed which

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

294

checks, if the InternalElement is the instance of a

SystemUnitClass. For this reason the

AOP operator

CAEXClass(?var, "Classname") is defined,

which checks, if an InternalElement

?var is an

instance of the SystemUnitClass

"Classname". In

this case

has is the COP operator equals. Due to the

hierarchical structure of the

SystemUnitClassLibraries,

"Classname" can be the

name of a specific SystemUnitClass or a group of

SystemUnitClasses. In our example the class “VL

BPC 1000” is a child class of the class “Hardware”.

Due to this the operator

has_CAEXClass(?x,

"Hardware") would also return true for the

industrial server.

In the same way like described for

SystemUnitClasses the operators

CAEXRole(?var,

"Rolename")and CAEXInterface(?var,

"Interface")

are defined to check the RoleClass

and the Interfaces of an InternalElement. Deviating

from the SystemUnitClass for RoleClasses it is

necessary to differentiate between RoleClasses and

SupportedRoleClasses. For this reason, the operator

can be expanded by the

SOP "Supported".

Additionally InternalElements can contain

attributes. Attributes are described by a name and

the associated value. A general definition for all

possible attributes is not possible, because attributes

can be defined by the users without restrictions. By

this, an operator is needed which can be defined

generally but adopted dynamically to the existing

attributes. Therefore an operator was defined as

CAEXAttribute_AttName(?var,"AttVal").

This operator can match all attributes by just adding

the appropriate attribute name as SOP. Because an

attribute can be added to Interfaces, as well as

InternalElements, a comparable operator is needed

to access attributes of an Interface. This operator

was defined as

CAEXInterfaceAttribute_AttName(?var,

"AttName"). By this a combination of checks for

Interfaces and the concerning attributes of this

interfaces is possible. For example a check like

has_CAEXInterface(?x,"Socket_RJ45"),

has_CAEXInterfaceAtribute_Used(?x,true)

checks for all InternalElements with at least one

RJ45 interface which is used. This operator will

return true for the industrial server if one of the RJ45

sockets is used.

After having defined all operators to check the

parts of an InternalElement, it is necessary to enable

the rules to represent the structure of the automation

system depicted in the InstanceHierachy. For this

two more operators are needed to connect

InternalElements.

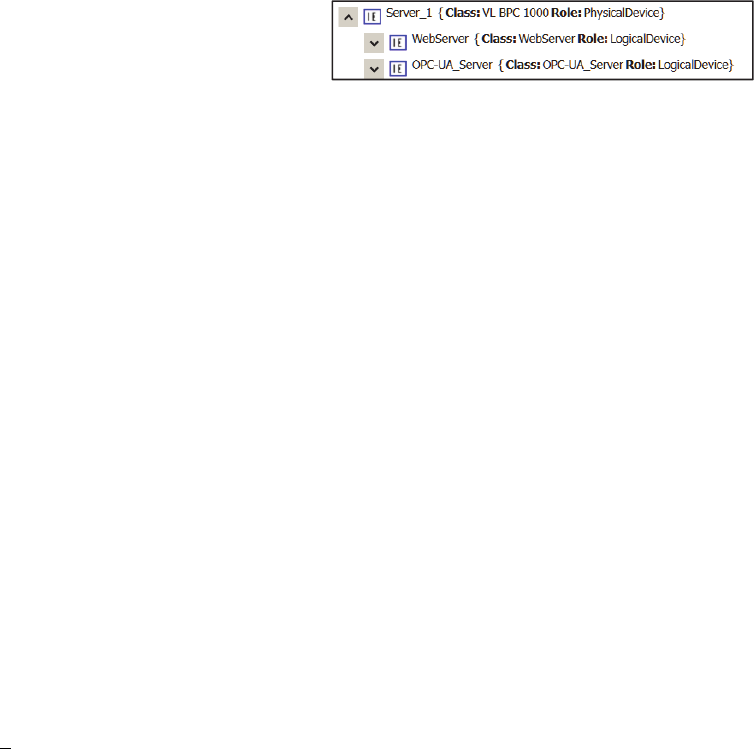

Figure 3: InternalElement including InternalElement.

Due to the hierarchical structure of CAEX,

InternalElements can include other Internal

Elements. The example in Figure 3 shows a

controller used in an automation system which

includes two other InternalElements representing the

firmware of the controller and an OPC-UA Client.

This enables the controller to communicate

automation data to an associated OPC-UA server.

To check for such structures the operator

CAEXInternalElement(?var1,?var2) has been

defined for checking whether the InternalElement

represented by ?var2 is part of the InternalElement

represented by ?var1. A check for a part of the

structure, shown in Figure 3, looks like

has_CAEXClass(?x,"VL_BPC_1000"),

has_CAEXClass(?y,"WebServer"),

has_CAEXInternalElement(?x,?y)

In a similar way the operator

CAEXInternalLink(?var1,?var2) has been

defined to check for Internal Links. InternalLinks

connect two Interfaces to each other, thus

representing physical or logical connections or other

types of relationships.

3.3 Combining Operators and

Implementation

With the given operators (AOP) and their

supplementing operators

(SOP), all facts given in an

InstanceHierachy can be addressed. The

combination with the compare operators

(COP)

leads to the complete operator. Although not all

combinations of

AOP and COP are possible, the

compare operators

has and hasNOT- are combinable

with all CAEX operators.

Contrary to this, the compare operators

hasMore

and

hasLess, which check whether a value is

greater or lower than a given value, can only be

interpreted for countable values like version

numbers as a possible attribute. For

CAEXInternalElement and CAEXInternalLink

the operators

in and NOTin are useless. These

relationships can either exist or not, i.e. they cannot

have any other state. The possible combinations of

compare operator and address operator are shown in

Table 1.

Knowledge-based Engineering of Automation Systems using Ontologies and Engineering Data

295

Table 1: Possible combination of compare operator and

address operator.

CAEXClass

CAEXRole

CAEXInterface

CAEXAttribute

CAEXInerface

Attribute

CAEXInternal

Element

CAEXInternal

Link

has X X X X X X X

hasNOT X X X X X X X

hasMore X X

hasLess X X

in X X X X X

NOTin X X X X X

With these operators defined a reasoner is

needed to process the SWRL rules. As shown

before, the operators (OWL properties) directly

address parts of the CAEX Model (using OWL

Literals). By this, new methods are needed to check

all parts of a rule, containing operators of our

concept. AutomationML, as an implementation of

CAEX, is used as part of the reasoner. The existing

AutomationML Engine (Automation-ML 2015) is

used to provide the functionalities needed to

implement the defined operators. Up to now all

operators can be implemented and connections to the

OWL Elements can be evaluated. The rules created

within our security ontology easily describe the

relation between assets, threats and protection

measures. For example a rule combines all hardware

elements with an USB Interface with the threat TH4

that represents the threat

"storage elements

are not properly checked before being

used"

at this element. This rule can be represented

as follows:

has_CAEXClass(?x,"Hardware"),

has_CAEXInterface(?x,"USB")

-> Threat(TH4)

With our additional methods, based on the

AutomationML Engine, we are able to evaluate this

rule and to infer corresponding OWL individuals

(threats and protection measures). By this we can

proof that our concept is able to connect CAEX

models given in AML with ontologies given in

OWL by using well defined OWL/SWRL operators.

After an initial test of the designed methods, the

operators are currently intensively tested to find

potential needs for further adjustment of the

implementation. By now only small adjustments

have been required, and no further operators had to

be defined.

3.4 Comparison to Existing Works

Another way to combine ontologies and engineering

data is the conversion of CAEX to OWL.

Theoretically OWL is able to represent all

knowledge stored in CAEX. There already are

works in this field like (Runde et al., 2009) and

(Abele et al., 2013) which are converting CAEX

structures to OWL to use existing query tools for

solving some explicit tasks. The approach of (Abele

et al., 2013) is aiming on answering single questions

to check a CAEX Model for inconsistencies.

Therefore the questions are given in existing query

languages like SPARQL and are not using SWRL

for a rule-based system. Also this approach provides

the possibility to create SWRL Rules, the creation of

rules and the preparation of the conversion from

CAEX to OWL needs a high effort of preparation.

The approach of (Runde et al., 2009) uses a

knowledge-based system with SWRL rules for

assisting the engineering in building automation.

This approach can be adapted to other problem

domains but intends much effort in the preparation

of the transformation.

Due to the transformation to OWL both

approaches can use existing reasoning or

questioning tools and do not need additional

reasoning tools. But both approaches are only

transforming the CAEX Model to OWL and are

applying checks. Concerning these facts these

approaches should always be used to solve specific

questions concerning the CAEX Model without

creating changes to the CAEX Model.

On the other hand adapting changes to the CAEX

Model is hard to be done. In the cases of (Abele et

al., 2013) a transformation back to a CAEX Model is

not intended and will lead to a loss of information.

Therefore the adaption of information to the CAEX

Model is not possible. The approach of (Runde et

al., 2009) enables the transformation back to a

CAEX File but assumes the creation of a special

transformation, which contains meta information

about the CAEX model and its transformation. The

handling of these is complicated and prone to errors.

By direct access to the CAEX Model our concept

provides the possibility to use the CAEX Model

after applying the knowledge in other tools without

the risk of information loss. Also it allows a direct

adoption of changes in the CAEX model without

any additional effort.

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

296

4 USER INTERFACE CONCEPT

For checking special structures in automation

systems, complex rules need to be created. Figure 4

shows a simple example of a possible part of an

automation system which should be covered by the

defined operators. In this example, a Programmable

Logic Controller (PLC) communicates via an OPC-

UA based communication with a Human-Machine

Interface (HMI). One attribute of the OPC-UA

communication is the attribute

"transport

operator screen"

. This describes that

information about the operator screen is transported

from the PLC to a displaying unit. This attribute

should be appended to this OPC-UA communication

and set to

"true"

, if not existing.

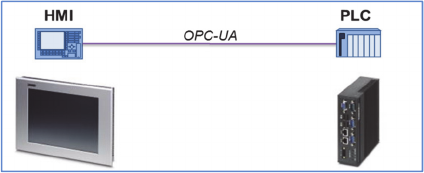

Figure 4: Part of an automation system.

Creating this rule, using the provided concept, it

looks like depicted below.

has_CAEXClass(?PLC, "PLC"),

has_CAEXInterface(?PLC, "OPC_UA"),

has_CAEXInternalLink(?PLC,?Comm),

has_CAEXClass(?Comm, "OPC-UA"),

has_CAEXInternal_Link(?Comm,?HMI),

has_CAEXInterface(?HMI, "OPC_UA"),

has_CAEXClass(?HMI, "HMI") ->

has_CAEXAttribute_

TransportOperatorScreen(?Comm, "true")

It is easy to understand that it is already difficult to

create such rules in ontology editors like Protégé

(http://protege.stanford.edu/). It becomes even more

difficult when one tries to read or edit the XML code

directly. Representing the SWRL rule in XML/RDF,

the depicted rule contains of more than 100 lines of

XML code. Editing such a complex rule manually it

is likely to create syntactical wrong rules which are

prone to errors.

Therefore a user interface concept was needed

which matches the following requirements.

 Allow an intuitive creation of Rules which

reference to a CAEX model.

 Ensure that the created rules are syntactical

correct and formulated in the right way.

 Allow a visible connection between the variable,

used as SWRL-Attribute and the CAEX

Element.

 Reduce the needed knowledge about

OWL/SWRL and CAEX when creating rules

 Provide all possible search elements and findable

values to the user while creating the rule.

 Only allow to create permitted combinations of

compare operators and address operators.

Following these requirements using a graphical user

interface (GUI) for rule creation is the best solution

to support the knowledge engineer. At this point we

focus on rules just containing operators pointing to

elements of the CAEX model. In our project we

created rule parts for elements of the example OWL

security ontology. Up to now an extension for

variable knowledge from other knowledge domains

given in OWL ontologies is undone. The GUI was

developed for German small and medium-sized

enterprises. For this reason, some wordings in the

example view given in Figure 5, are shown in

German.

To develop an intuitive interface for rule

creation, it is necessary to show the

InternalElements in a compact and sorted view,

where all operators assigned to it stick together. This

was developed in a way that one or more operators

for one InternalElement can be added. This is shown

on the left side (1) of Figure 5 were the antecedent

elements of the described rule were shown. The

elements are grouped by the InternalElement they

represent. To prevent creation of ineligible

combinations of compare operators and address

operators, the compare operators are provided based

on the address operator, selected before (2). For

example: After choosing

"Class

”

(in German

"Klasse"

in Figure 5) only the permitted compare

operators are selectable.

Especially the operators for checking

InternalLinks and the hierarchy of InternalElements

are complex. Larger rules to check complex

structures with more than two InternalElements

make rules more complex and hard to understand.

To mitigate this problem on the lower right side of

an InternalElement (3) two buttons allow an

intuitive generation of these structures. The existing

structures are shown on the upper right side (4) of an

InternalElement. This is shown at the assets

"Comm"

and

"HMI"

It is an important requirement to use elements

that can be inferred only. This prevents rules from

pointing to elements not contained in the CAEX

model. For solving this problem we assume that the

parts of the CAEX model belonging to the domain

knowledge fulfil all requirements which the

Knowledge-based Engineering of Automation Systems using Ontologies and Engineering Data

297

Figure 5: Knowledge Engineers view for rule creation.

knowledge engineer needs to create the rules.

Otherwise these elements must be added to the

libraries (SystemUnitClassLibrary,

RoleClassLibrary, InterfaceClassLibrary). Before

starting to create rules, these libraries are searched

for all possible elements. Only these elements can be

chosen in the drop-down fields. This is shown in

Figure 5 on the right side (5) where the attribute

"TransportOperatorScreen"

is chosen as part

of the consequent (German:

"Konklusion"

) of the

rule.

To keep the knowledge base decidable, only

rules using existing individuals from the ontology in

both body and head are used. These are so called

"dl-safe-rules" (Staab and Studer, 2009). Based on

an OWL DL ontology, a reasoner is able to infer

new knowledge in a finite time. In INSA this allows

to infer protection measures for given assets. For

keeping our ontology decidable in this view we

enabled our knowledge engineering component to

add all used operators as object respectively data

properties to our ontology. The object properties are

used to point to existing individuals and the data

properties point to the CAEX model using Literals.

By the described system a GUI for the

knowledge engineer was designed. This GUI is easy

to learn and enables the knowledge engineer to

create rules in short terms. In first tests knowledge

engineers of the domain of security knowledge can

use the GUI after half an hour of introduction.

Depending on the complexity of the rule to create,

they needed up to a few minutes to create it.

Parts of the knowledge base had to be created

using Protégé. After the implementation and usage

of the GUI the experts found it easier and more

comfortable to create new rules or find and edit

existing rules. They needed up to 50% less time for

the creation of new rules especially for complex

rules.

5 VALIDATION & CONCLUSION

To validate our concepts we created a small

ontology containing out of approximately 50 threats

and protection measures represented in OWL and 20

Rules given in SWRL. We applied this knowledge

base to the CAEX Model representing the

automation system shown in Figure 1 to identify the

appropriate threats and protection measures for this

automation system. In the result a security concept

based on the knowledge base and the CAEX Model

was generated in less than a second. We proofed,

that basing on the given knowledge the security

concept was generated correct. In a further step a

much larger knowledge base with 200 threats and

protection measures and nearly 400 rules was

created by security experts. The much more complex

security concepts generated with this knowledge

base are currently reviewed by security experts to

validate their correctness.

Up to now we have shown a concept for

connecting engineering data given in CAEX with

security knowledge represented in OWL by using

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

298

SWRL rules with specific operators. Additionally

we presented a user concept for an easy creation of

these specific rules basing on the domain knowledge

from the CAEX model. In addition to that we have

shown a current implementation and the feasibility

of main parts from the described concept.

Intensive testing is performed to identify possible

optimization potential. In a further step, we plan to

extend our concept to other engineering tasks. It is

also necessary to enable the GUI to access variable

OWL ontologies as a basis for the implementation in

other tools (for example the editor for

AutomationML files). With such an implementation,

engineers can easily create checks, supplements or

manipulation to large CAEX files with just creating

some rules. This supports the execution of extensive

and error-prone tasks, making them more easy and

manageable.

ACKNOWLEDGEMENTS

The authors would like to thank the Federal Ministry

of Economic Affairs and Energy (BMWi) and the

participating partners in the INSA project for their

funding and support.

REFERENCES

Vogel-Heuser, B., Diedrich, C., Fay, A., Jeschke, S.,

Kowalewski, S., Wollschlaeger, M., Göhner, P., 2014,

Challenges for Software Engineering in Automation.

Journal of Software Engineering and Applications, 7,

pp. 440-451.

Frank, T., Eckert, K., Hadlich, T., Fay, A., Diedrich, C.,

Vogel-Heuser, B, 2012, Workflow and decision

support for the design of distributed automation

systems. IEEE Int. Conf. on Industrial Informatics

(INDIN), Beijing, China.

Strube, M., Runde, S., Figalist, H., Fay, A.: Risk

Minimization in Modernization Projects of Plant

Automation – a Knowledge-Based Approach by

means of Semantic Web Technologies, IEEE

International Conference on Emerging Technologies

and Factory Automation, 2011

Runde, S., Fay, A., 2011, Software Support for Building

Automation Requirements Engineering - An

Application of Semantic Web Technologies in

Automation, IEEE Transactions on Industrial

Informatics, Volume 7, Issue, 4 pp. 723-730.

Giarratano, J.C., Riley, G.D., 2005, ExpertSystems –

Priciples and Programming, Course Technology,

Thomson Learning, Boston

Legat, C., Lamparter, S., Vogel-Heuser, B., 2013,

Knowledge-Based Technologies for Future Factory

Engineering and Control In: Service Orientation in

Holonic and Multi Agent Manufacturing and Robotics

2013, Springer, Berlin

Russel, S., Norvig, P., 2010, Artifical Intelligence: A

modern approach, Pearson, Boston

Fulcher, J., Jain, Lakhmi, 2008, Computational

Intelligence: A Compendium, Springer-Verlag

Schmidberger, T., Fay, A., 2007, A rule format for

industrial plant information reasoning, IEEE Int. Conf.

on Emerging Technologies and Factory Automation

(ETFA), Patras, Greece.

Güttel, K., Weber, P., Fay, A., 2008, Automatic generation

of PLC code beyond the nominal sequence, IEEE Int.

Conf. on Emerging Technologies and Factory

Automation (ETFA), Hamburg, Germany.

Christiansen, L., Fay, A., Opgenoorth, B., Neidig, J.,

2011, Improved Diagnosis by Combining Structural

and Process Knowledge, IEEE Int. Conf. on Emerging

Technologies and Factory Automation (ETFA),

Toulouse, France.

Schreiber, S., Schmidberger, T., Fay, A., May, J., Drewes,

J., Schnieder, E., 2007, UML-based safety analysis of

distributed automation systems, IEEE Int. Conf. on

Emerging Technologies and Factory Automation

(ETFA), Patras, Greece.

IEC 62443-2-1, 2010, Security for industrial automation

and control systems - Establishing an industrial

automation and control system security program, IEC,

www.iec.ch

Valenzano, A., 2014, Industrial Cybersecurity –

Improving Security Through Access Control Policy

Models, In IEEE Industrial Electronics Magazine

June 2014, IEEE

Antoniou, G., van Harmelen, F., 2012, A semantic web

primer. MIT Press, Cambridge, Mass.

Runde, S., Dibowski, H., Fay, A., Kabitzsch, K., 2009,

Semantic Requirement Ontology for the Engineering

of Building Automation. IEEE Int. Conf. Emerging

Technologies and Factory Automation (ETFA),

Mallorca, Spain.

Linnenberg, T., Mueller, A. W., Christansen, L., Seitz, C.,

Fay, A., 2013, OntoEnergy - A lightweight ontology

for supporting energy efficiency tasks. Int. Conf.

Knowledge Engineering and Ontology Development

(KEOD), Faro, Portugal.

World Wide Web Consortium, 2014, OWL. Web

Ontology Language.

http://www.w3.org/2001/sw/wiki/OWL

Donner, M., 2003, Toward a security ontology, In IEEE

Security and Privacy, IEEE

Ekelhart, A., Fenz, S., Klemen, M., Weippl, E., 2007,

Security Ontologies: Improving Quantitative Risk

Analysis, In IEEE Proceedings of the 40

Hawaii

International Conference on System Sience, IEEE

World Wide Web Consortium, 2014, SWRL. A Semantic

Web Rule Language Combining OWL and RuleML,

http://www.w3.org/Submission/SWRL/

IEC 62424, 2008, IEC 62424:200x - Specification for

Representation of process control engineering requests

in P&I Diagrams and for data exchange between

Knowledge-based Engineering of Automation Systems using Ontologies and Engineering Data

299

P&ID tools and PCE-CAE

Runde, S., Fay, A., Wutzke, W.-O., 2009, Knowledge-

based requirement-engineering of building automated

systems by means of semantic web technologies, In

IEEE International Conference on Industrial

Informatics (INDIN), Cardiff, U.K.

Abele, L., Legat, C., Grimm, S., Müller, A., 2013,

Ontology-based Validation of Plant Models. In IEEE

11th International Conference, IEEE

Staab, S., Studer, R., 2009, Handbook on ontologies.

International handbooks on information systems.

Springer, Berlin.

AutomationML, 2015, AML-Engine version 3.1,

https://www.automationml.org/o.red/uploads/dateien/1

427889211-AutomationML%20Engine_v3.1.zip, last

checked 06.07.2015.

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

300
