CBIR Search Engine for User Designed Query (UDQ)

Tatiana Jaworska

Sysytems Research Institute, Polish Academy of Sciences, 6 Newelska Street, 01-447, Warsaw, Poland

Keywords: CBIR, Search Engine, GUI, User Designed Query.

Abstract: At present, most Content-Based Image Retrieval (CBIR) systems use query by example (QBE), but its

drawback is the fact that the user first has to find an image which he wants to use as a query. In some

situations the most difficult task is to find this one proper image which the user keeps in mind to feed it to

the system as a query by example. For our CBIR, we prepared the dedicated GUI to construct a user

designed query (UDQ). We describe the new search engine which matches images using both local and

global image features for a query composed by the user. In our case, the spatial object location is the global

feature. Our matching results take into account the kind and number of objects, their spatial layout and

object feature vectors. Finally, we compare our matching result with those obtained by other search engines.

1 INTRODUCTION

The users of a CBIR system have at their disposal a

diversity of methods depending on their goals, in

particular, search by association, search for a

specific image, or category search (Smeulders et al.,

2000). Search by association has no particular aim

and implies a highly interactive iterative refinement

of the search using sketches or composing images

from segments offered by the system. The search for

a precise copy of the image in mind, or for another

image of the same object, assumes that the target can

be interactively specified as similar to a group of

given examples. The user requirements are reflected

in the query asking methods.

The underlying assumption is that the user has an

ideal query in mind, and the system’s task is to find

this ideal query (Urban et al., 2006). So far, the

methods that have fulfilled these requirements can

be generally divided into:

 Interactive techniques based on feedback

information from the user, commonly known as

relevance feedback (RF) (Azimi-Sadjadi et al.,

2009);

 Automated techniques based on the global

information derived from the entire collection

known as browser-based;

 Automated (might also be interactive in some

cases) techniques based on local information

from the top retrieved results, commonly known

as local feedback or collaborative image retrieval

(CIR) (Zhang et al., 2012) which is used

generally as a powerful tool to narrow down the

semantic gap between low- and high-level

concepts

Nowadays, for image and video retrieval the scale

invariant feature transformation (SIFT) and some of

its variants are the most strongly recommended

(Lowe, 1999), (Lowe, 2004), (Mikolajczyk and

Schmid, 2004), (Tuytelaars and Mikolajczyk, 2007)

as their task is: ‘to retrieve all images containing a

specific object in a large scale image dataset, given

a query image of that object’ (Arandjelović and

Zisserman, 2012).

Our approach is different, more user oriented,

and that is why we propose a special, dedicated

user’s GUI which enables the user to compose their

ideal image from the image segments. The data

structure and the layout of the GUI reflect the way

of the search engine works. In this paper we present,

as our main contribution, a new search engine which

takes into account the kind and number of objects,

their features, together with different spatial location

of segmented objects in the image.

In order to help the user create the query which

they have in mind, a special GUI has been prepared

to formulate composed queries. Some of such

queries can be really unconventional as we can see

in (Deng et al., 2012).

An additional contribution is the comparison of

our empirical studies of the proposed search engine

372

Jaworska, T..

CBIR Search Engine for User Designed Query (UDQ).

In Proceedings of the 7th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2015) - Volume 1: KDIR, pages 372-379

ISBN: 978-989-758-158-8

with the results of other academic engines.

The system concept is universal. In the

construction stage we focus on estate images but for

other compound images (containing more than

several objects) other sets of classes are needed.

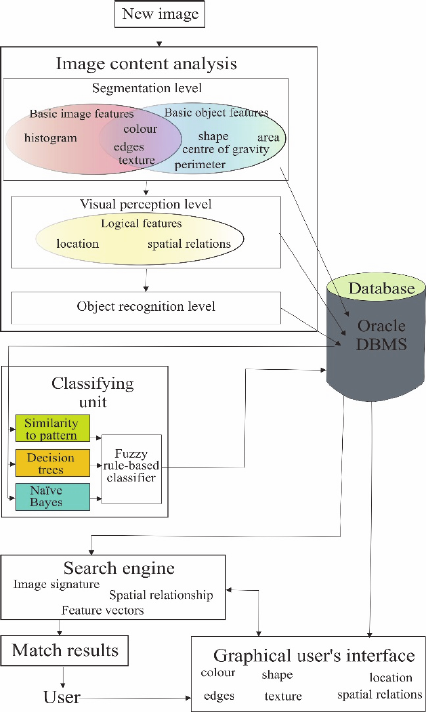

Figure 1: The block diagram of our content-based image

retrieval system.

1.1 CBIR Concept Overview

In general, the presented system consists of five

main blocks (see Figure 1) applied in Matlab except

the database:

 the image pre-processing block, responsible for

image segmentation and extraction of image

object features, cf. (Jaworska, 2007);

 the classification module comprises similarity to

pattern, decision tree, Naïve Bayes and fuzzy

rule-based classifiers (Jaworska, 2014), used

further by the search engine and the GUI.

Classification helps in the transition from rough

graphical objects to human semantic elements.

 the Oracle Database, storing information about

whole images, their segments (here referred to as

graphical objects), segment attributes, object

location, pattern types and object identification,

cf. (Jaworska, 2008). We decided to prepare our

own DB for two reasons: (i) when the research

began (in 2005) there were few DBs containing

buildings which were then at the centre of our

attention and (ii) some existing benchmarking

databases offered separate objects (like the Corel

DB) which were insufficient for our complex

search engine concept. At present, our DB

contains more than 10 000 classified objects of

mainly architectural elements, but not only;

 the search engine (Jaworska, 2014) responsible

for the searching procedure and retrieval process,

based on a number of objects, the feature vectors

and spatial relationship of these objects in an

image. A query is prepared by the user with the

GUI;

 the user-friendly semantic graphical user's

interface (GUI) which allows users to compose

the image they have in mind from separate

graphical objects, as a query (in detail in sec. 3).

2 SEARCH ENGINE CONCEPT

2.1 Graphical Data Representation

A classical approach to CBIR consists in image

feature extraction (Zhang et al., 2004). Similarly, in

our system, at the beginning the new image, e.g.

downloaded from the Internet, is segmented,

creating a collection of objects. Each object, selected

according to the algorithm presented in detail in

(Jaworska, 2011), is described by some low-level

features, such as: average colour k

, texture

parameters T

, area A, convex area A

, filled area A

centroid {x

, y

}, eccentricity e, orientation α,

moments of inertia m

, m

, major axis

length m

long

, minor axis length m

short

, solidity s and

Euler number E and Zernike moments Z

,…,Z

All features, as well as extracted images of

graphical objects, are stored in the DB. Let Fo be a

set of features F

= {k

, T

, A, A

,…, E}. We

collected 45 features for each graphical object. For

an object, we construct a feature vector F containing

the above-mentioned features.

2.2 Object Classification

Thus, the feature vector F is used for object

CBIR Search Engine for User Designed Query (UDQ)

373

classification. We have to classify objects in order to

use them in a spatial object location algorithm and to

offer the user a classified group of objects. So far,

four classifiers have been implemented in this

system:

 a comparison of features of the classified object

with class patterns;

 decision trees (Fayyad and Irani, 1992). In order

to avoid high error rates resulting from as many

as 40 classes, we use the hierarchical method. A

more general division is achieved by dividing the

whole data set into five clusters, applying

k-means clustering. The most numerous classes

of each cluster constituting a meta-class are

assigned to five decision trees, which results in 8

classes for each one.

 the Naïve Bayes classifier (Rish, 2001);

 a fuzzy rule-based classifier (FRBC) (Ishibuchi

and Nojima, June 27-39, 2011), (Jaworska, 2014)

is used in order to identify the most ambiguous

objects. According to Ishibuchi, this classifier

decides which of the three classes a new element

belongs to. These three classes are taken from

the three above-listed classifiers.

2.3 Spatial Object Location

Thanks to taking into account spatial object location,

the gap between low-levelled and high-levelled

features in CBIR has diminished. To describe spatial

layout of objects, different methods have been

introduced, for example: the spatial pyramid

representation in a fixed grid (Sharma and Jurie,

2011), spatial arrangements of regions (Smith and

Chang, 1999), (Candan and Li, 2001). In some

approaches image matching is proposed directly,

based on spatial constraints between image regions

(Wang et al., 2004).

Here, spatial object location in an image is used

as the global feature (Jaworska, 2014). The objects’

mutual spatial relationship is calculated based on the

centroid locations and angles between vectors

connecting them, with an algorithm proposed by

Chang and Wu (Chang and Wu, 1995) and later

modified by Guru and Punitha (Guru and Punitha,

2004) to determine the first principal component

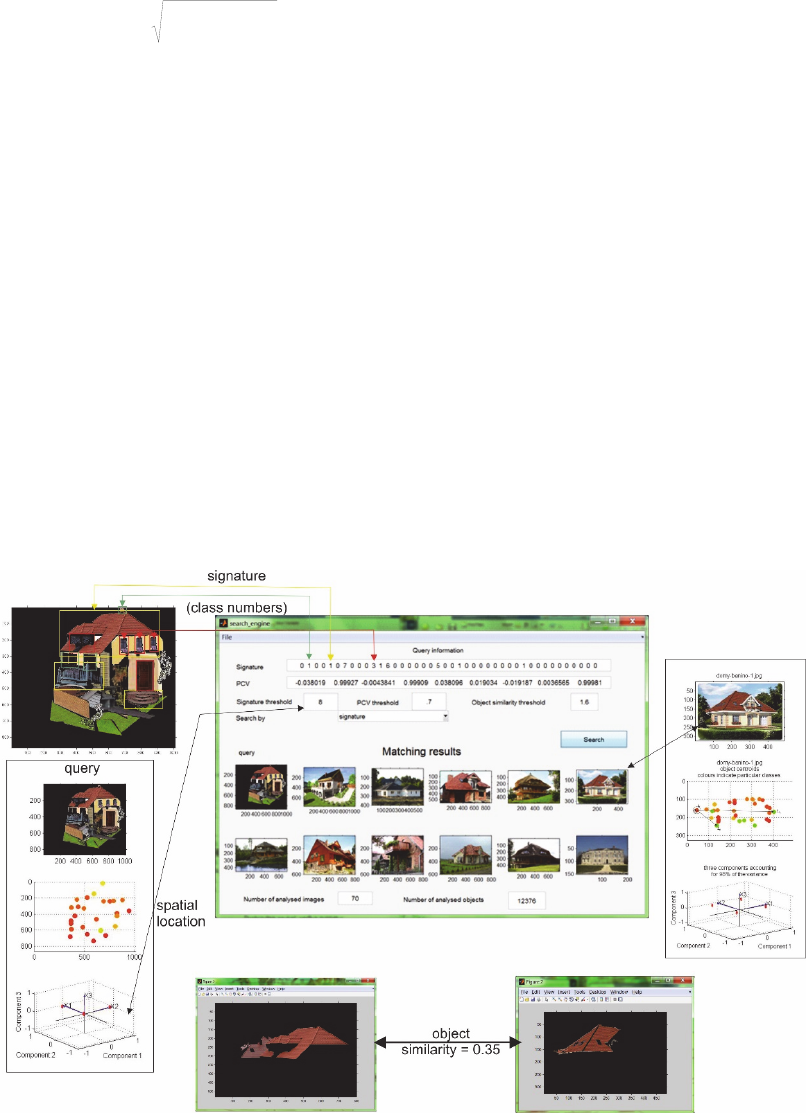

vectors (PCVs). The idea is shown in the side boxes

in Figure 2.

2.4 Search Engine Construction

Now, we will describe how the similarity between

two images is determined and used to answer a

query. Let the query be an image I

, such as

= {o

, o

,…, o

}, where o

are objects. An

image in the database is denoted as I

, I

= {o

,…, o

}. Let us assume that there are, in total,

M = 40 classes of the objects recognized in the

database, denoted as labels L

, L

, …, L

. Then, by

the image signature I

we mean the following vector:

Signature(I

) = [nobc

, nobc

, …, nobc

] (1)

where: nobc

denotes the number of objects of class

present in the representation of an image I

, i.e.

such objects o

In order to answer the query I

, we compare it

with each image I

from the database in the

following way. A query image is obtained from the

GUI, where the user constructs their own image

from selected DB objects. First of all, we determine

a similarity measure sim

sgn

between the signatures of

query I

and image I





biqibq

II )nob(nob),(sim

sgn

(2)

computing it as an analogy with the Hamming

distance between two vectors of their signatures

(cf. (1)), such that sim

sgn

≥ 0 and

)nob(nobmax

biqi



≤ tr, tr is the limit of the number

of elements of a particular class by which I

and I

can differ. It means that we prefer images with the

same classes as the query. Similarity (2) is non-

symmetric because if some classes in the query are

missing from the compared image the components

of (2) can be negative.

If the maximum component of (2) is bigger than

a given threshold (a parameter of the search engine),

then image I

is rejected, i.e. not considered further

in the process of answering query I

. Otherwise, we

proceed to the next step and we find the spatial

similarity sim

PCV

(3) of images I

and I

, based on

the Euclidean, City block or Mahalanobis distance

between their PCVs as:







PCV

)(1),(sim

qibibq

PCVPCVII

(3)

If the similarity (3) is smaller than the threshold (a

parameter of the query), then image

is rejected.

The order of steps 2 and 3 can be reversed because

they are the global parameters and hence can be

selected by the user.

Next, we proceed to the final step, namely, we

compare the similarity of the objects representing

both images I

and I

. For each object o

present in

the representation of the query I

, we find the most

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

374

similar object o

of the same class, i.e. L

= L

. If

there is no object o

L

, then sim

, o

) = 0.

Otherwise, similarity sim

, o

) between objects

of the same class is computed as follows:





bjlqilbjqi

FFoo

)(1),(sim

(4)

where l indexes the set of features used to represent

an object. Thus, we obtain the vector of similarities

between query I

and image I

In order to compare images I

with the query I

we compute the sum of sim

, o

) and then use

the natural order of the numbers. Therefore, the

image I

is listed as the first in the answer to the

query I

, for which the sum of similarities is the

highest.

Figure 2 presents the main elements of the search

engine interface with reference images which are

present in the CBIR system. The main (middle)

window displays the query signature and PCV, and

below it the user is able to set threshold values for

the signature, PCV and object similarity. At this

stage of system verification it is useful to have these

thresholds and metrics at hand. In the final Internet

version these parameters will be invisible to the user,

or limited to the best ranges. The lower half of the

window is dedicated to matching results. In the top

left of the figure we can see a user designed query

comprising elements whose numbers are listed in the

signature line. Below the query there is a box with a

query miniature, a graph showing the centroids of

query components and, further below, there is a

graph with PCV components (cf. subsec. 2.3). In the

bottom centre windows there are two elements of the

same class (e.g. a roof) and we calculate their

similarity. On the right side there is a box which is

an example of PCA for an image from the DB. The

user introduces thresholds to calculate each kind of

similarity.

The search engine has been constructed to reduce

the semantic gap in comparison with CBIR systems

based only on low-level features. The introduction

of the image signature and object spatial relations to

the search engine yields much better matching with

regard to human intuition, in spite of the missing

annotations.

3 USER DESIGNED QUERY

CONCEPT

At present, most systems use query by example

(QBE), but its drawback is the fact that the user first

has to find an image which he wants to use as a

query. In some situations the most difficult task is to

find this one proper image which the user keeps in

Figure 2: The main concept of the search engine.

CBIR Search Engine for User Designed Query (UDQ)

375

mind to feed it to the system as a query by example.

An evident example is shown in (Xiao et al., 2011)

where face sketches are needed for face recognition.

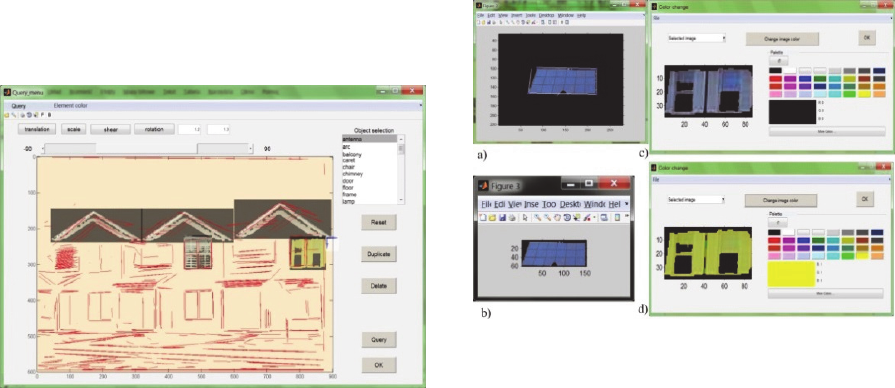

Figure 3: The main GUI window. An early stage of a

terraced house query construction.

We propose a graphical editor which enables the

user to compose the image he/she has in mind from

the previously segmented objects (see Figure 3). It is

a bitmap editor which allows for a selection of linear

prompts in the form of contour sketches generated

from images existing in the DB. The contours are

computed as edges based on the Canny algorithm

and as a vector model set to the DB during the pre-

processing stage. Next, from the list of object classes

the user can select elements to prepare a rough

sketch of an imaginary landscape. There are many

editing tools available, for instance:

 creating masks to cut off the redundant

fragments of a bitmap (see Figure 4 a));

 changing a bitmap colour (Figure 4 c) and d));

 basic geometrical transformation, such as:

translation, scale, rotation and shear;

 duplication of repeating fragments;

 reordering bitmaps forwards or backwards.

This GUI is a prototype, so it is not as well-

developed as commercial programs, e.g. CorelDraw,

nevertheless, the user can design an image consist-

ing of as many elements as they need. The only

constraint at the moment is the number of classes

introduced to the DB, which now stands at 40 but is

set to increase. Once the image has been drafted, the

UDQ is sent to the search engine and is matched

according to the rules described in sec. 2.

However, in case of the absence of UDQ, the

search engine can work with a query consisting of a

full image downloaded, for example, from the

Internet.

Figure 4: Main components of the GUI. We can draw a

contour of the bitmap (see a) and b)) and change the

colour of an element (see c) and d)).

4 RESULTS

In this section, we conduct experiments on the

colour images generated with the aid of the UDQ,

full images taken from our DB and we will compare

our results with another academic CBIR system and

the Google image search engine.

In all tables images are ranked according to

decreasing similarity determined by our system. All

images are in the JPG format but in different sizes.

Although there are different sizes of matched

images, all of them are resized to the query

resolution.

Only in order to roughly compare our system’s

answer to the query, we used the universal image

similarity index (SSIM) proposed by Wang and

Bovik (Wang et al., 2004), being aware that it is not

fully adequate to present our search engine ranking.

SSIM is based on the computation of three

components, namely the luminance, contrast and

structural component, which are relatively

independent. In case of a big difference of images

the components can be negative which may result in

a negative index.

4.1 User Designed Query

A query is generated by the UDQ interface and its

size depends on the user’s decision, as well as the

number of elements (patches). The search engine

displays a maximum of 11 best matched images

from our DB. Although the user designed few

details, the search results are quite acceptable (see

Table 1).

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

376

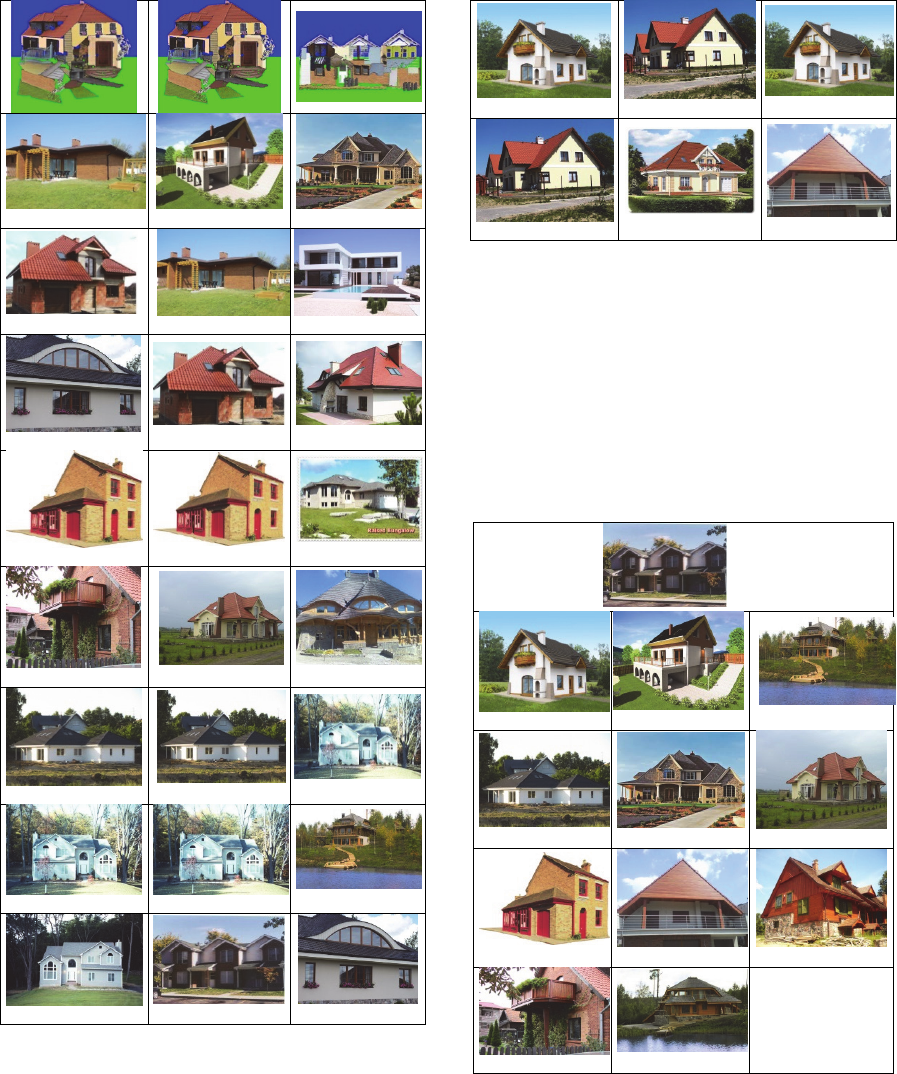

Table 1: The matching results for queries (in the first row)

and the universal image similarity index for these matches

when PCV similarity is calculated based on: (column 1)

the Euclidean distance, (column 2) the City block distance

(for thresholds: signature = 17, PCV = 3.5, object = 0.9),

(column 3) the City block distance (for thresholds:

signature = 20, PCV = 4, object = 0.9).

0.1571

0,1492

0.1745

0.1099

0,1571 0.1399

0.0237

0,1099

0.0571

0.1525

0,1525

0.1443

0.1089

0,1346

0.1505

0.0541

0,0542

0.0012

0.0062

0,0062

-0.0378

0.0196

0,0419

0.0642

Table 1: The matching results for queries (in the first row)

and the universal image similarity index for these matches

when PCV similarity is calculated based on: (column 1)

the Euclidean distance, (column 2) the City block distance

(for thresholds: signature = 17, PCV = 3.5, object = 0.9),

(column 3) the City block distance (for thresholds:

signature = 20, PCV = 4, object = 0.9). (cont.)

0.1149

0,1497

0.2009

0,1496

0,1154

0.0833

4.2 Full Image

Applying the UDQ is not obligatory. The user can

choose their QBE from among the images of the DB

if they find an image suitable for their aim. Then the

matching results are presented in Table 2.

Table 2: The matching results for QBE when PCV

similarity is calculated based on the Euclidean distance.

Images are ranked according to our search engine; below

each there is the SSIM.

query

0.2519

0.2175

-0.0255

0.1276

0.3129

0.2908

0.1002

0.2888 0.2366

0.0151

0.0738

CBIR Search Engine for User Designed Query (UDQ)

377

4.3 Comparison to Another Academic

CBIR System

We decided to compare our results with the Curvelet

Lab system which is based on the Fast Discrete

Curvelet Transform (FDCT), developed at Caltech

and Stanford University (Candes et al., 2006) as a

specific transform based on the FFT. The FDCT is,

among others, dedicated to post-processing

applications, such as extracting patterns from large

digital images and detecting features embedded in

very noisy images.

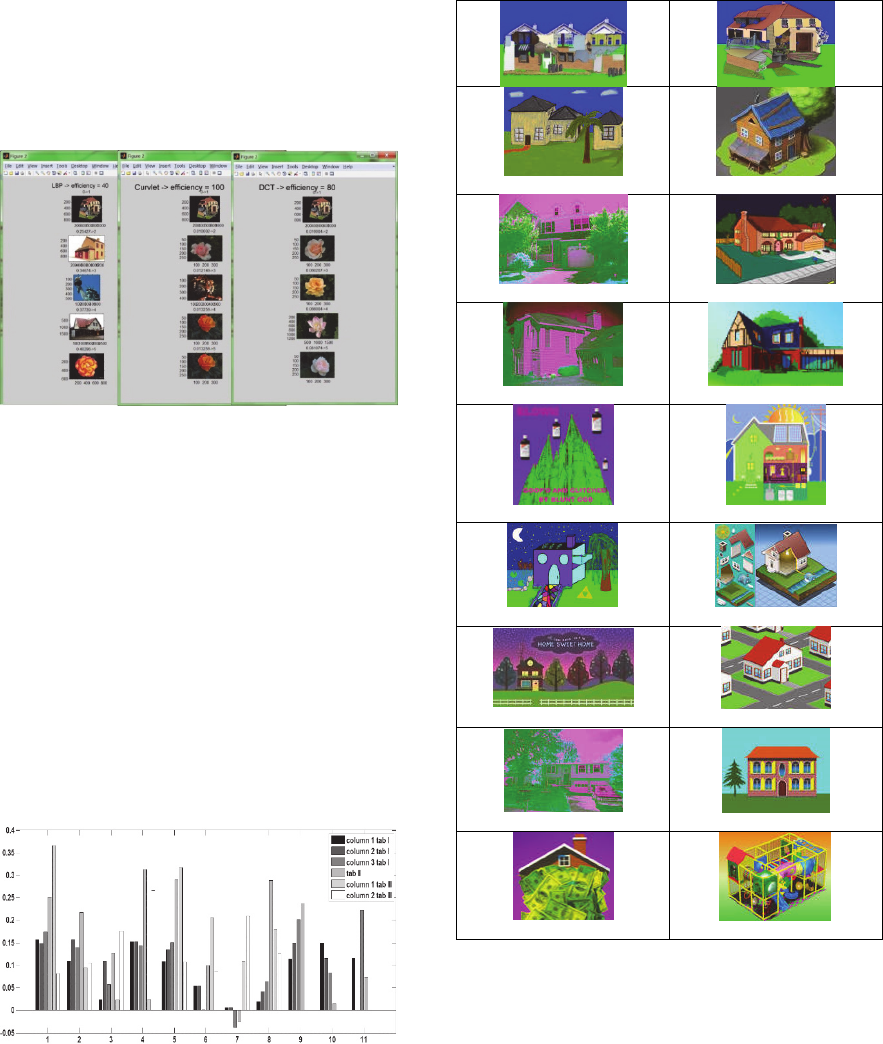

Figure 5: An example of the Curvelet Lab system retrieval

for our query. (Efficiency according to Curvelet Lab

system).

The Curvelet Lab system additionally offers

image retrieval, based on such transforms as: DCT

(Discrete Cosine Transform), LBP (Local Binary

Pattern), colour and combine.

FigureFigure 5

presents the results obtained for a joint set of

images, namely ours and Curvelet Lab system’s.

4.4 Comparison with the Google Image

Search Engine

We also decided to compare our results with the

Google image search engine. The results are

presented in Table 3.

Figure 6: The comparison of SSIMs for the above-

presented results from all tables.

In order to better visualise the obtained results,

we compare only the SSIMs from tab. 1, 2 and tab. 3

in the form of a bar chart (see Figure 6).

Table 3: Matches for the Google image search engine and

their SSIM. (Queries in the first row.)

0.3658

0.0821

0.0939

0.1054

0.0232

0.1765

0.0240

0.2666

0.3174

0.1076

0.2056

0.0876

0.1095

0.2089

0.1807

0.1267

5 CONCLUSIONS

We built and described a new image retrieval

method based on a three-level search engine. The

underlying idea is to mine and interpret the

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

378

information from the user’s interaction in order to

understand the user’s needs by offering them the

GUI. A user-centred, work-task oriented evaluation

process demonstrated the value of our technique by

comparing it to a traditional CBIR.

As for the prospects for future work, to evaluate

a method more qualitative than the SSIM should be

prepared. Next, the implementation of an on-line

version should test the feasibility and effectiveness

of our approach. Only experiments on large scale

data can verify our strategy. Additionally, a new

image similarity index should be prepared to

evaluate semantic matches.

REFERENCES

Arandjelović, R. & Zisserman, A., 2012. Three things

everyone should know to improve object retrieval.

Providence, RI, USA, s.n., pp. 2911-2918.

Azimi-Sadjadi, M. R., Salazar, J. & Srinivasan, S., 2009.

An Adaptable Image Retrieval System With

Relevance Feedback Using Kernel Machines and

Selective Sampling. IEEE Transactions on Image

Processing, 18(7), pp. 1645-1659.

Candan, S. K. & Li, W.-S., 2001. On Similarity Measures

for Multimedia Database Applications. Knowledge

and Information Systems, Volume 3, pp. 30-51.

Candes, E., Demanet, L., Donoho, D. & Ying, L., 2006.

Fast Discrete Curvelet Transforms, pp. l-44.: raport.

Chang, C.-C. & Wu, T.-C., 1995. An exact match retrieval

scheme based upon principal component analysis.

Pattern Recognition Letters, Volume 16, pp. 465-470.

Deng, J., Krause, J., Berg, A. & Fei-Fei, L., 2012.

Hedging Your Bets: Optimizing Accuracy-Specificity

Trade-offs in Large Scale Visual Recognition.

Providence, RI, USA, s.n., pp. 1-8.

Fayyad, U. M. & Irani, K. B., 1992. The attribute selection

problem in decision tree generation. s.l., s.n., pp. 104-

110.

Guru, D. S. & Punitha, P., 2004. An invariant scheme for

exact match retrieval of symbolic images based upon

principal component analysis. Pattern Recognition

Letters , Volume 25, pp. 73–86.

Ishibuchi, H. & Nojima, Y., June 27-39, 2011. Toward

Quantitative Definition of Explanation Ability of Fuzzy

Rule-Based Classifiers. Taipei, Taiwan, IEEE Society,

pp. 549-556.

Jaworska, T., 2007. Object extraction as a basic process

for content-based image retrieval (CBIR) system.

Opto-Electronics Review, Dec., 15(4), pp. 184-195.

Jaworska, T., 2008. Database as a Crucial Element for

CBIR Systems. Beijing, China, World Publishing

Corporation, pp. 1983-1986.

Jaworska, T., 2011. A Search-Engine Concept Based on

Multi-Feature Vectors and Spatial Relationship. In: H.

Christiansen, et al. eds. Flexible Query Answering

Systems. Ghent: Springer, pp. 137-148.

Jaworska, T., 2014. Application of Fuzzy Rule-Based

Classifier to CBIR in comparison with other

classifiers. Xiamen, China, IEEE, pp. 1-6.

Jaworska, T., 2014. Spatial representation of object

location for image matching in CBIR. In: A. Zgrzywa,

K. Choros & A. Sieminski, eds. New Research in

Multimedia and Internet Systems. Wroclaw: Springer,

pp. 25-34.

Lowe, D. G., 1999. Object Recognition from local scale-

invariant features. Corfu, Greece, s.n., pp. 1150-1157.

Lowe, D. G., 2004. Distinctive Image Features from

Scale-Invariant Keypoints. International Journal of

Computer Vision, 60(2), pp. 91-110.

Mikolajczyk, K. & Schmid, C., 2004. Scale & Affine

Invariant Interest Point Detectors. International

Journal of Computer Vision, pp. 63-86.

Rish, I., 2001. An empirical study of the naive Bayes

classifier. s.l., s.n., pp. 41-46.

Sharma, G. & Jurie, F., 2011. Learning discriminative

spatial representation for image classification.

Dundee, s.n., pp. 1-11.

Smeulders, A. W. M. et al., 2000. Content-Based Image

Retrieval at the End of the Early Years. IEEE

Transactions on Pattern Analysis and Machine

Intelligence, Dec, 22(12), pp. 1349-1380.

Smith, J. R. & Chang, S.-F., 1999. Integrated spatial and

feature image query. Multimedia Systems, Issue 7,

pp. 129–140.

Tuytelaars, T. & Mikolajczyk, K., 2007. Local Invariant

Feature Detectors: A Survey. Computer Graphics and

Vision, 3(3), pp. 177–280.

Urban, J., Jose, J. M. & van Rijsbergen, C. J., 2006. An

adaptive technique for content-based image retrieval.

Multimedial Tools Applied, July, Issue 31, pp. 1-28.

Wang , Z., Bovik, A. C., Sheikh, H. R. & Simoncelli, E.

P., 2004. Image Qualifty Assessment: From Error

Visibility to Structural Similarity. IEEE Transactions

on Image Processing, April, 13(4), pp. 600–612.

Wang, T., Rui, Y. & Sun, J.-G., 2004. Constraint Based

Region Matching for Image Retrieval. International

Journal of Computer Vision, 56(1/2), pp. 37-45.

Xiao , B., Gao, X., Tao, D. & Li, X., 2011. Recognition of

Sketches in Photos. In: W. Lin, et al. eds. Multimedia

Analysis, Processing and Communications. Berlin:

Springer-Verlag, pp. 239-262.

Zhang, L., Wang, L. & Lin, W., 2012. Conjunctive

patches subspace learning with side information for

collaborative image retrieval. IEEE Transactions on

Image Processing, 21(8), pp. 3707-3720.

Zhang, Y.-J., Gao, Y. & Luo, Y., 2004. Object-Based

Techniques for Image Retrieval. In: S. Deb, ed.

Multimedia Systems and Content-Based Image

Retrieval. Hershey, London: IDEA Group Publishing,

pp. 156-181.

CBIR Search Engine for User Designed Query (UDQ)

379
