Inedited SVM Application to Automatically Tracking and

Recognizing Arm-and-Hand Visual Signals to Aircraft

Giovanni Saggio

, Francesco Cavrini

and Franco Di Paolo

Department of Electronic Engineering, University of Rome “Tor Vergata”, via del Politecnico 1, Rome, Italy

Captiks S.r.l., via Giacomo Peroni 442-444, Rome, Italy

Keywords: Visual Signalling, Sensory Glove, SVM.

Abstract: An electronic demonstrator was designed and developed to automatically interpret the signalman’s arm-and-

hand visual signals. It was based on an “extended” sensory glove, which is a glove equipped with sensors to

measure fingers/wrist/forearm movements, an electronic circuitry to acquire/condition/feed measured data

to a personal computer, SVM based routines to classify the visual signals, and a graphical interface to

represent classified data. The aim was to furnish to the Italian Aircraft Force a tool for ground-to-ground or

ground-to-air communication, which can be independent from the full view of the vehicle drivers or aircraft

pilots, and which can provide information redundancy to improve airport security.

1 INTRODUCTION

According to the International Code of Signals, by

National Imagery and Mapping Agency (United

States Edition, revised 2003), the Visual Signalling

(VS) is any method of communication, the

transmission of which is capable of being seen. The

VS can be implemented by means of different

methods, among which the arm-and-hand based one,

treated here.

This method of signalling is mandatory for

communication of deaf people, can generally

improve communication in task collaboration

(Gander, 1996), and becomes strategical for

particular communications when radios cannot be

used or are unavailable. Inter alia, here we consider

a VS application suitable to meet the requirements

of the “Armaereo” (a Military Aircraft Force of the

Italian Ministry of Defence), which funded our

research. However, the basic idea can be easily

extended to any field where VS is standardized, as it

occurs for the Army (reference: visual signals for

armor fighting vehicles, GTA 17-02-019), for the

Navy and Marine (reference: Offensive combat I and

combat signs, by United States Marine Corps, TACT

3022, Apr 2011), for the Road rules (as an example

of reference: Washington State Legislature, Rules of

the road, Chapter 46.61.310), and for sport activities

(as an example of reference: Basic Officials Manual

of the USA Hockey, updated August 2013).

The VS refers to code meanings related to

specific vocabulary, receipting, acknowledging and

identification procedures (Visual Signals,

Department of the army, FM 21-60). Here we

consider the ground-to-ground or ground-to-air

visual signal communications between the

signalman and the vehicles or aircrafts, with the aim

of furnishing an automatic electronic way of

interpreting the signalman’s visual signals, so to

replicate the decoded signal meaning inside the

military vehicle or inside the aircraft, allowing

double check to the driver or to the pilot. This

system has the advantages of being independent on

the full view of the driver or the pilot, of offering

information redundancy for management or security

improvement, and of allowing information recording

for realizing a sort of a “black box airport runway”,

similar to the well-known “black box flight

recorder”.

The signalman is in charge of communicating

with standard signals (among which: cut engine(s),

hook-up complete, release, move right/ left/ ahead/

rearward/ downward/ upward, depart, land, do not

land) or emergency signals (among which: ok,

affirmative, negative, do not attempt to land, stop).

These signals are arm-and-hand based and can be

tracked by means of different technologies.

Currently, the mostly adopted method of tracking

relies on optical cameras (Song et al., 2011), but our

project intended to avoid any camera, so to be

Saggio, G., Cavrini, F. and Paolo, F..

Inedited SVM Application to Automatically Tracking and Recognizing Arm-and-Hand Visual Signals to Aircraft.

In Proceedings of the 7th International Joint Conference on Computational Intelligence (IJCCI 2015) - Volume 3: NCTA, pages 157-162

ISBN: 978-989-758-157-1

157

independent by camera distance, camera occlusion,

number of cameras, and insufficient lighting. In

particular, our system implemented a sort of

“extended” sensory glove, that is, a glove equipped

with sensors to measure not only flex/extensions of

the fingers, but also wrist and forearm movements.

The sensory glove has been finding very

different applications, among which the real-time

control of a granular sound synthesis process

(Costantini et al., 2010), the monitoring of hand

rehabilitation (Park et al., 2009; Mohan et al., 2013)

or clinical hand assessment (Williams et al., 2000),

the human-computer interaction (Saggio et al., 2012;

Berlia and Santosh, 2014), the sign-to-language

conversion (Cavallo et Saggio, 2014), the objective

surgical skill assessment (Saggio et al., 2015), the

serious games for training of rescue teams

(Mugavero et al., 2014), the tele-robotic

manipulations for astronauts (Saggio and Bizzarri,

2014), and so on. As far as we know, this is the first

time the sensory glove is utilized for Aircraft Force

or Army purposes.

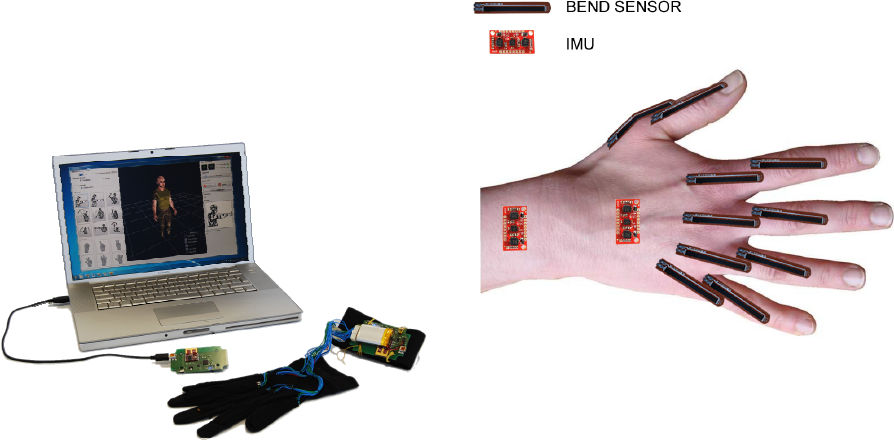

Figure 1: The “extended” sensory glove, the electronic

circuitry (both the source and the receiving one), the

virtual representation on a personal computer.

Here, we present an electronic framework, made of:

an “extended” sensory glove, an electronic circuitry,

a suitable classifier, and a virtual representation. The

framework was aimed to measure, record, recognize

and virtually represent the arm-and-hand visual

signals. Figure 1 shows the ensemble.

2 MATERIALS AND METHODS

The arm-and-hand tracking framework consisted of

hardware and software levels. In particular, we

distinguish a sensory glove and an electronic

conditioning circuitry for the so termed “source sub-

system”; an electronic receiving circuitry, a

mathematical classifier, and a virtual avatar

representation for the so termed “receiving sub-

system”.

2.1 The Sensory Glove

Our “extended” sensory glove includes a supporting

Lycra®-based glove equipped with ten

flex/extension sensors place on-top of the

metacarpo-phalangeal (MCP) and proximal-inter-

phalangeal (PIP) joints of each fingers, and two 6

degree-of-freedom (DoF) inertial measuring units

(IMUs), respectively necessary to measure the wrist

and forearm movements (Figure 2). Total source

signals were then 10+2x6=22.

Figure 2: Sensors placings: ten flex sensors on-top of the

MCP and PIP joints, one 6DoF IMU on the dorsal aspect

of the hand, and one 6DoF IMU on the forearm. The

supporting glove is not showed here for clarity reasons.

We did not measure the distal-inter-phalangeal

(DIP) joints since their flex/extension capabilities

are normally correlated to the PIP ones in known

percentages (Ghosh, 2013).

We used ten flex/extension sensors termed

“Bend Sensors®”, (by Flexpoint Sensor Systems

Inc., Draper, Utah, USA), adopted because of their

lightness and suitable repeatability and reliability

characteristics previously measured and reported

(Saggio and Bizzarri, 2014).

The two IMUs were the Sparkfun Razor ones (by

SparkFun Electronics, Niwot, Colorado, USA), each

with a 3-axis accelerometer and a 3-axis gyroscope.

2.2 The Electronic Circuitry

For the electronic circuitry we can distinguish the

“source” and the “receiving” subsystems.

NCTA 2015 - 7th International Conference on Neural Computation Theory and Applications

158

Let’s start considering the source-subsystem

(Figure 3a) necessary to acquire signals from the

sensors, to provide A/D conversions, and to

wired/wireless transmit data to the receiving-

subsystem. The wired transmission is intended for

testing purposes, while the wireless one to be in-

field adopted.

Resistance values from the ten flex sensors have

been converted into voltage values by means of an

equal number of voltage dividers, while voltage

values from the IMUs fed directly the circuitry. The

core of the source-subsystem was the integrated

circuit PIC18F47J53 (by Microchip, Chandler, AZ,

US), 48Mhz-clocked, capable of 12bit A/D

conversion.

Table 1: Speed, range and consumption transmission

values among different protocols/standards.

Protocol/

Standard

Speed Range

Consumption

[mW]

IEEE802.15.4 /

ZigBee

20-250[kbps] <1km 40

Bluetooth-

Bluetooth Smart/

IEEE802.15.1

1-24 [Mbps] <100m 200

IEC62591/

WirelessHART

250 [kbps] <100m 40

ISA100.11a 250 [kbps] <100m 40

DASH7

27.7-200

[kbps]

<10km

Z-WAVE 10-40 [kbps] <300m 80

ANT 1 [Mbps] <30m 40

Wavenis

4.8-100

[kbps]

<200m 80

This IC offer only 10 analog inputs so that, in order

to acquire all the 22 signals from the extended

sensory glove, we used a 2x16 channel multiplexer,

the ADG726 (by Analog Devices, Norwood, MA,

USA) (its 10 spare input channels can be used for

eventually additional requirements).

Requests for the wireless protocol included short

(or medium) transmission range, low-medium

transmission speed, low-power consumption, and

scalability so to handle data of up to four sensory

gloves at a time, all in an auto user-independent

configuration mode. To respond to these requests,

we analysed different protocols/standards, in

particular the Bluetooth and Bluetooth smart

IEEE802.15.1, the IEC62591/ WirelessHART, the

ISA100.11a, the DASH7, the Z-Wave, the ANT, the

Wavenis, and the IEEE802.15.1/ ZigBee. Table 1

reports a comparison among speed, range and

consumption of the aforementioned protocol/

standards. The IEEE802.15.1/ ZigBee was our

choice, since it better covers the commitment

requirements.

(a)

(b)

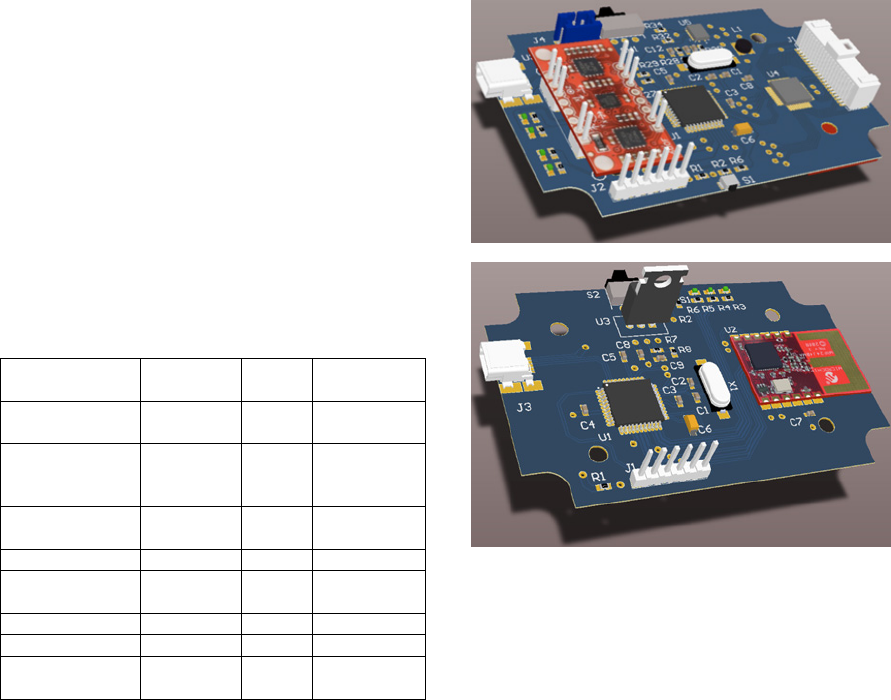

Figure 3: The electronic circuitry, designed using an

electronic design automation (EDA) tool by Altium

Designer (by Altium, Belrose, NSW, Australia), of the (a)

source-subsystem and of the (b) receiving-subsystem.

Transmission security was not a mandatory

parameter for our purposes; anyway the

aforementioned protocols can be considered

reasonably “similar” from a cryptography point of

view. The interested reader can find a survey

comparison in Gomez and Paradells (2010).

Our wireless transmission was then obtained

with the IEEE 802.15.4 radio transceiver module

MRF24J40MA (by Microchip, Chandler, AZ, USA),

which allows a 0dBm transmission within a 100

meters range.

The DC power supply was realized with a Li-Ion

single-cell battery, charged and controlled by the IC

BQ25015 (by Texas Intruments, Dallas, TX, USA),

which includes a DC-DC buck converter capable of

300mA @3,3V.

Let’s now consider the receiving-subsystem

(Figure 3b), necessary to receive signals and to feed

them, via USB port, to the personal computer. It was

based on the same integrated circuit MRF24J40MA

of the source-subsystem. The USB transmission was

based on the inner full-speed module of a second

Inedited SVM Application to Automatically Tracking and Recognizing Arm-and-Hand Visual Signals to Aircraft

159

PIC18F47J53. The DC power supply was obtained

from the USB port, with its 5V reduced to the

necessary 3.3V adopting an LDO voltage regulator.

2.3 Set of Visual Signals

The visual signals we intended to discriminate come

from the Field Manual No. 21-60 – Visual Signals,

by Defence Department, USA, 1987.

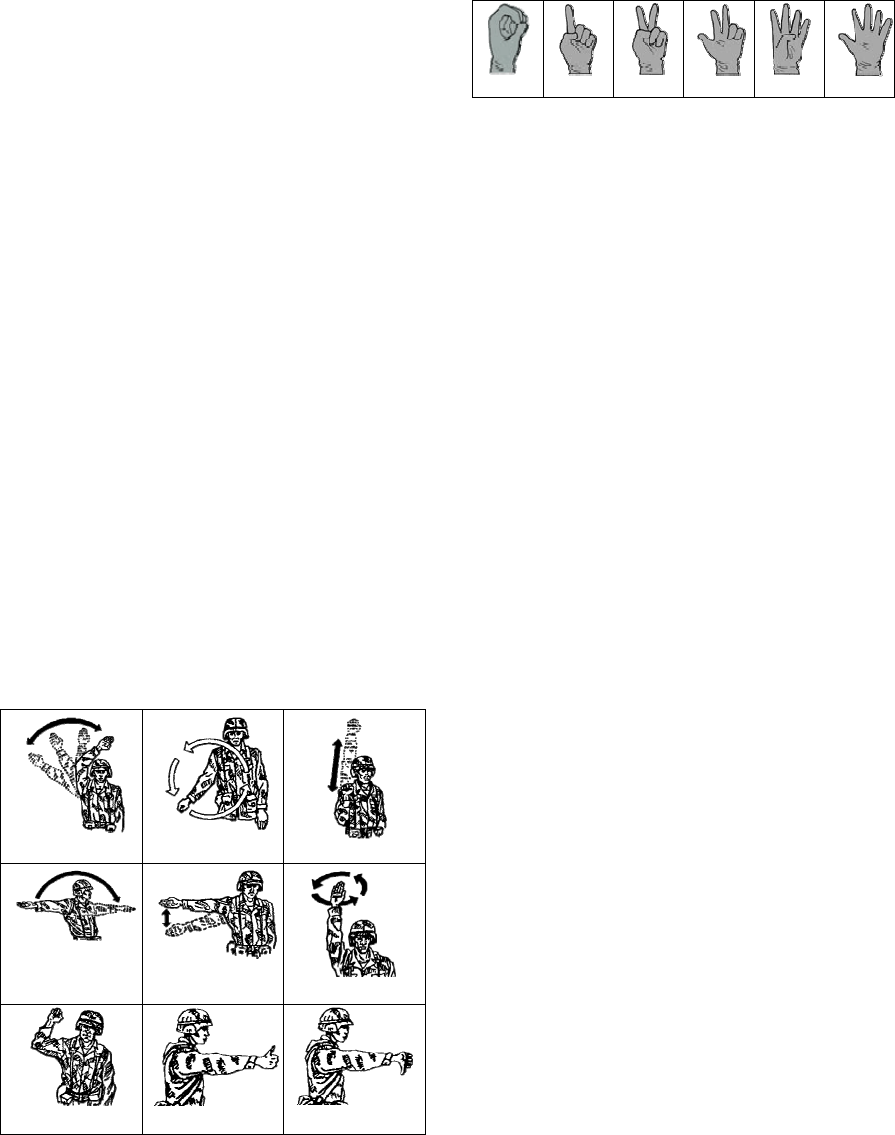

In particular we selected the arm-and-hand

signals for ground forces, used for controlling

vehicle drivers (Figure 4 a, b, c, d, e), for combat

formations (Figure 4 a, c, e, f), for patrolling (Figure

4 g), for recovery operations (Figure 4 b, h, i). In

addition, we considered to recognize six numbers

(from 0 to 5) represented by the hand, as in Figure 5.

These particular set of visual signals were

considered as the most representative for our

purposes, and included both static (maintained for at

least 3secs) than dynamic (repeated cycling at least

three times) gestures.

In order to recognize the dynamic visual signals,

i.e. the signals performed with arm-and-hand

moving and cycling to represent a gesture (Figure

4a-g), it was necessary to acquire electric signals

from all the sensors of the “extended” sensory glove,

but in order to recognize the static visual signals, i.e.

the signals performed keeping the arm-and-hand in a

static pose (Figure 4 h and i, Figure 5a-f), data from

IMUs were not necessary, therefore omitted.

(a)

(b)

(c)

(d)

(e)

(f)

(g)

(h)

(i)

Figure 4: Visual signals selected as representative for our

application, in particular: (a) attention or column, (b) start

engine or in haul the main winch, (c) increase speed or

rush, (d) advance, (e) slow down or quick time, (f) rally or

coil, (g) freeze, (h) ok, (i) nack.

(a)

(b)

(c)

(d)

(e)

(f)

Figure 5: Hand visual signals performing six numbers,

from 0 to 6.

2.4 Classifier

We intended to discriminate an arm-and-hand

gesture within a subset of visual gestures, and this

was possible by means of a suitable classifier.

This classifier could better perform when

preceded by pre-processing and feature extraction

phases. The pre-processing phase was aimed at

reduction of the undesired noise components by

means of digital IIR (Infine Impulse Response)

filtering. The feature extraction phase involved the

use of Fourier and Wavelet Transforms (Walker,

2008), and the calculation of statistical quantities

(e.g. energy, mean value, variance).

Concerning the classifier, among the mostly

adopted ones for recognition of human upper limb

posture and movement, we may include Artificial

Neural Network (ANN) (Mitra and Acharya, 2007),

Hidden Markov Model (HMM), and Support Vector

Machine (SVM) (He, 2011). The latter was here

selected as the most suitable for our purposes for

some of its peculiarities, in particular: its lower

tendency to overfitting (compared, for instance, to

ANN), and its good performance even if the data set

used in the learning phase is of contained dimension.

The metrics we used to evaluate the SVM

performances involved the Accuracy=C/T (C:

number of correctly classified trials, T: total number

of trials), the ErrorRate=E/T (E: number of wrongly

classified trials), the AbstentionRate=A/T (A:

number of abstentions).

2.5 Virtual Representation

We implemented software routines to reveal events

of connection of new sensory gloves (up to four), to

allow training and testing protocols, to acquire and

store data from the classifier, to present a graphical

interface (GUI, Figure 6) with interactive commands

for the user, and to virtually represent, via human

avatar, the movements related to the recognized

visual commands by the signalman.

NCTA 2015 - 7th International Conference on Neural Computation Theory and Applications

160

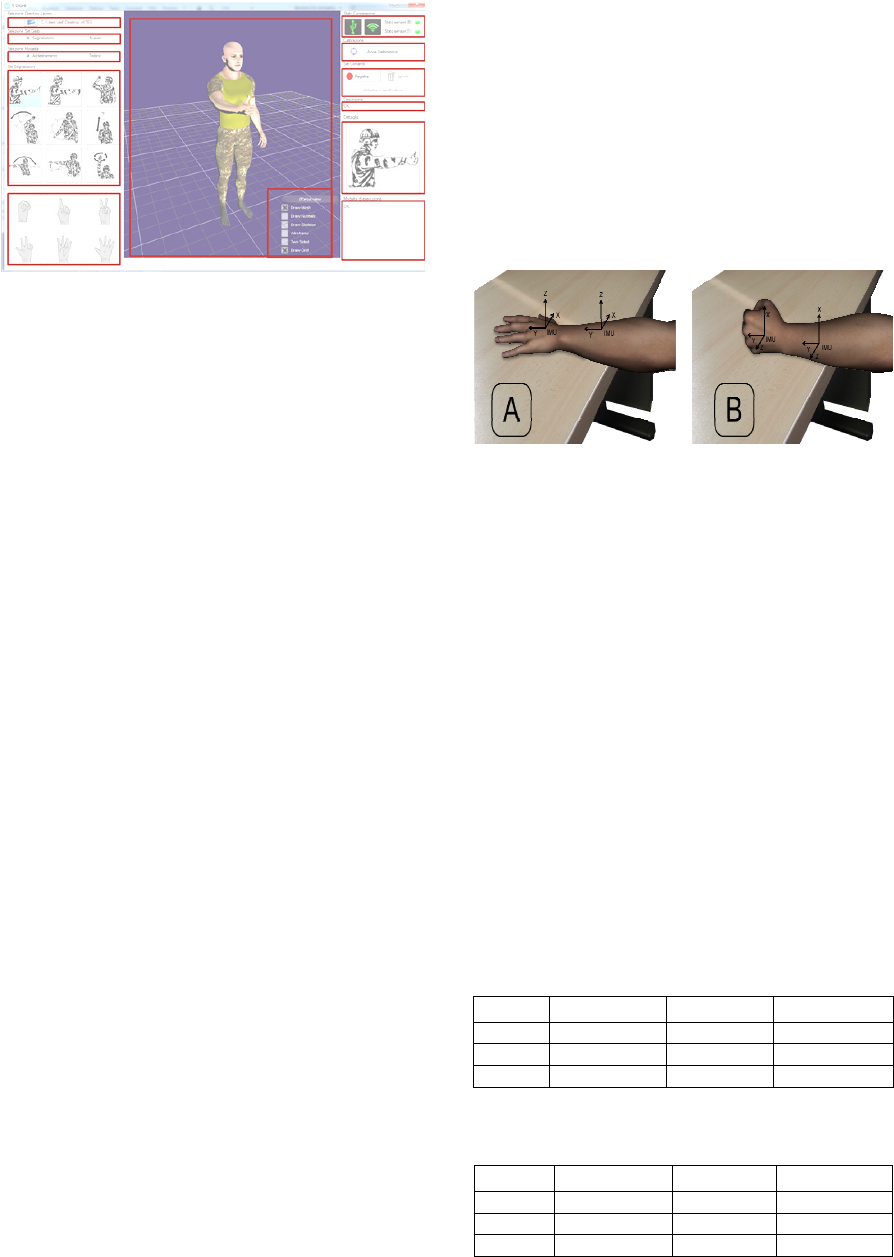

Figure 6: The graphical user-friendly pc-interface for

training and testing purposes. On the right column the

recognized gesture, on the middle column the animation of

the selected gesture via human avatar.

2.6 Training/Testing Protocol

Three subjects took part in the experimental

evaluation of the system. They were male 22-35

aged (average 27.6) right handed, with no motor or

intellectual limitations.

Our training/testing procedure started with a

calibration phase, which consisted in dressing the

sensory glove, and posing the hand in a full-open

(Figure 7a) and full-closed (fist, Figure 7b) position.

The two positions have to be maintained for two

seconds each, to allow the acquisition of a sufficient

number of sample data, from all the sensors, further

averaged.

During full-open/full-closed hand position

(Figure 7a/b), we measured both the

minimum/maximum electric values (resistances

converted into voltages) of each of the ten flex

sensors, and the electrical values (voltages) coming

from the x,y/z axis of the accelerometers and

gyroscopes of both IMUs.

The training/testing protocol always started from

the same condition, that is, the user was standing-up

with his/her arms along the body, and followed these

steps:

1. Glove dressing and calibration;

2. Training: three replays of each arm-and-hand

visual signal;

3. Glove removal and rest period;

4. Glove dressing and calibration;

5. Training: two replays of each arm-and-hand

visual signal;

6. Testing: five replays of all the visual signals;

7. Glove removal and rest period;

8. Glove dressing and calibration;

9. Testing: five replays of all the visual signals.

For the number postures we used a training/testing

protocol identical to the one described above. It

follows that, both for visual signals and numbers, we

acquired 5 training repetitions and 10 testing

repetitions of each posture/gesture. We feel it is

worth to stress that both training and test data has

been acquired in two distinct settings, i.e. after glove

removal and re-dressing, so to improve the

generalization capability of the classifier (during

learning) and better estimate performance in a real-

usage scenario (during testing).

Figure 7: The two hand poses (flat hand and fist) for the

calibration steps. The sensory glove is omitted in the

figure for clarity reasons.

3 RESULTS AND DISCUSSION

Table 2 and Table 3 show the system performance in

visual signals (Figure 4) and number recognition

(Figure 5), respectively. It is possible to observe that

in the latter task the classifier obtained optimal

performance, i.e. 100% accuracy, for all of the

involved subjects. In visual signals recognition,

performance was also close to optimal. In fact,

subject A reached 100% accuracy, and subjects B

and C obtained an high accuracy (above 95%) with

no errors but only abstentions. This is of particular

importance in all those scenarios in which the wrong

recognition of a signal could result in damage to

persons and/or things.

Table 2: Classifier performances related to the command

gestures.

Subject Accuracy(%) ErrRate(%) AbstRate(%)

A 100 0 0

B 97.78 0 2.22

C 95.56 0 4.44

Table 3: Classifier performances related to the gestures of

numbering.

Subject Accuracy(%) ErrRate(%) AbstRate(%)

A 100 0 0

B 100 0 0

C 100 0 0

Inedited SVM Application to Automatically Tracking and Recognizing Arm-and-Hand Visual Signals to Aircraft

161

4 CONCLUSIONS

Here we designed and developed a camera-free arm-

and-hand tracking framework, and implemented

SVM-routines capable to interpret signalman’s

gestures, so to obtain an automatic tool not prone to

human misinterpretation.

Preliminary experimental results with 3 subjects

have been quite encouraging (100% mean accuracy

for the number recognition task and over 97% mean

accuracy for visual signals identification) and thus

motivate us for a further investigation involving a

greater number of users and, possibly, real-time

continuous-recognition too. Future work will also

concentrate on the investigation of in-situ usability,

i.e. in a real or realistic environment.

ACKNOWLEDGEMENTS

This work was funded by the “Armaereo”

(Direzione Generale degli Armamenti Aeronautici,

Ministero della Difesa), Contract #a2009.90, for

which we would like to thank T.Col. GArn Aldo

Spagnolini and T.Col. GArn Salvatore Vignola.

REFERENCES

Berlia R., Santosh P., Mouse Brace: A convenient

computer mouse using accelerometer, flex sensors and

microcontroller. In: Contemporary Computing and

Informatics (IC3I), International Conference on:

IEEE) pp 558-61, 2014.

Cavallo P., Saggio G., Conversion of Sign Language to

Spoken Sentences by means of a Sensory Glove,

Journal of Software, Vol 9, No 8 (2014), 2002-2009,

Aug 2014.

Costantini G., Todisco M., Saggio G., A Cybernetic Glove

to Control a Real Time Granular Sound Synthesis

Process, in: Proceedings of the International Multi-

Conference on Complexity, Informatics and

Cybernetics (IMCIC), Orlando, Florida USA, 2010.

Song Y., Demirdjian D., Davis R., Tracking body and

hands for gesture recognition: Natops aircraft handling

signals database, in: Proceedings of the 9th IEEE

International Conference on Automatic Face and

Gesture Recognition, 2011.

Ghosh S., Capturing human hand kinematics for object

grasping and manipulation, Thesis submitted to the

Office o0f Graduate Studies of Texas and A&M

University, for the Degree of Master of Science, 2013.

Gomez C., Paradells J., Wireless home automation

networks: A survey of architectures and technologies,

in IEEE Communications Magazine, vol. 48, no. 6, pp.

92-101, 2010.

He Z., Accelerometer Based Gesture Recognition Using

Fusion Features and SVM, Journal of Software, vol. 6,

no. 6, 2011.

Mitra S. and Acharya T., Gesture Recognition: A Survey,

IEEE Transactions on Systems, Man, and Cybernetics,

Part C: Applications and Reviews, vol. 37, no. 3, pp.

311 –324, May 2007.

Mohan A., Devasahayam S. R., Tharion G., George J., A

Sensorized Glove and Ball for Monitoring Hand

Rehabilitation Therapy in Stroke Patients. In: India

Educators' Conference (TIIEC): IEEE) pp 321-7.

Park C-Y, Bae J-H, Moon I., Development of wireless

data glove for unrestricted upper-extremity

rehabilitation system. In: ICCAS-SICE, 2009: IEEE)

pp 790-3.

Saggio G., Lagati A., Orengo G., Wireless Sensory Glove

System developed for advanced Human Computer

Interface, International Journal of Information Science

2012, 2(5): 54-59.

Saggio G., Bizzarri M., Feasibility of Teleoperations with

Multi-Fingered Robotic Hand for Safe Extravehicular

Manipulations, Aerospace Science and Technology 39

(2014) 666–674.

Saggio G., Lazzaro A., Sbernini L., Carrano F. M., Passi

D., Corona A., Panetta V., Gaspari A. L., Di Lorenzo

N., Objective Surgical Skill Assessment: An Initial

Experience by Means of a Sensory Glove Paving the

Way to Open Surgery Simulation?, Journal of

Surgical Education, 2015.

Walker J. S., A Primer on Wavelets and Their Scientific

Applications, 2nd ed. Chapman and Hall/CRC, 2008.

Williams N. W., Penrose J. M. T., Caddy C. M., Barnes

E., Hose D. R., Harley P., A goniometric glove for

clinical hand assessment construction, calibration and

validation, Journal of Hand Surgery (British and

European Volume) 25 200-7, 2000.

NCTA 2015 - 7th International Conference on Neural Computation Theory and Applications

162
