Conceptual Object Exchanges among Software Games by

Non-programmers

Iaakov Exman and Guy Shimoni

Software Engineering Dept., The Jerusalem College of Engineering – JCE - Azrieli, POB 3566, Jerusalem, Israel

Keywords: Conceptual Objects, Software UFOs, Unidentified Flying Objects, Software Games, On-the-Fly, Conceptual

Exchanges, Embedding, Non-programmers.

Abstract: A non-programmer, who is an expert game player, could easily grasp the idea of improving his jumping

avatar by importing a flying property found in another game. But in order to actually exchange conceptual

objects between games one would need a suitably transparent software infra-structure. We propose the

usage of UFOs – Unidentified Flying Objects – that can be smoothly transmitted and embedded into the

target game, and except for their conceptual label, are so-to-speak unidentified by the non-programmer. This

approach has been designed and implemented into a distributed system of multiple software games in

different mobile computers. Beyond games, this system serves as a feasibility proof for on-the-fly exchange

of Conceptual Objects among any kinds of software applications.

1 INTRODUCTION

Software reuse ideas led to the proposal of software

design patterns, of which GoF patterns (Gamma,

1995) are a widely known example. The latter kind

of patterns is indeed composed of small groups of

classes, but their reuse is not supposed to be done in

terms of whole untouchable classes. Software

engineers usually modify internal attributes and

functions of some of the pattern classes, essentially

disrupting class encapsulation.

On the one hand, there is widespread

manipulation of software in daily life by human end-

users which are non-programmers. In the specific

context of software games, people may be expert

players – perfectly understanding the games’

conceptual world – without being aware of the

intricacies of the underlying software. Thus, for such

users, keeping conceptual neatness is very desirable,

in order to preserve world view consistency.

On the other hand, given the trend of increasing

level of abstraction (Exman, 2015) in software

design and implementation, it is suitable from

software development and maintenance

considerations, to work with conceptual classes –

which besides faithfully representing natural

language concepts of the end-users’ world, do not

disrupt encapsulation.

This work demonstrates, in the context of

software games, a system designed, implemented

and run as a feasibility proof of conceptual objects

exchange between different programs located in

diverse mobile computers. The system is usable by

non-programmers, since except for the conceptual

labels natural for the human end-user, the conceptual

exchange software infra-structure is transparent to

the end-user.

In this paper we thoroughly examine the

meaning of “conceptual objects”, describe the

software system architecture, and employ case

studies to demonstrate the approach.

1.1 Related Work

Since we deal with conceptual objects exchanged

among games, a primary question to be asked is

about the scope of these concepts. A generic answer

may be provided by a game ontology. Calleja

(Calleja, 2007) in his course on Computer Game

Theory provides a good introduction to Game

Ontology as a development of a critical vocabulary

for computer games. Zagal and Bruckman (2008)

describe a game ontology project in the context of

learning; a more general description of the same

project is found in Zagal et al., (2005). Chan and

Yuen (2008) refer to a Digital Game Ontology for

developing web game applications. Aarseth

Exman, I. and Shimoni, G..

Conceptual Object Exchanges among Software Games by Non-programmers.

In Proceedings of the 6th International Workshop on Software Knowledge (SKY 2015), pages 18-25

ISBN: 978-989-758-162-5

(Aarseth, 2010) discusses the purpose of game

ontologies stressing the gap between lay language

and academic language in this domain.

A less formal approach with the same purpose –

to define a vocabulary of games – is taken by

Costikyan (Costikyan, 2002). The issue at stake is

the relevant vocabulary to design games.

Another issue is the characterization of players

as non-programmers. Non-programmers should face

a simple, almost self-explanatory, user interface to

use and compose games. A particular example is the

case of youth which learn “programming” visually

by manipulating blocks, with “Scratch”, as in

Maloney et al., (2008). Poremba’s Master’s thesis

deals with the player as author of digital games

(Poremba, 2003).

Modification of existing games is coined

“modding”. Specific references on this sub-topic

include Sotamaa (Sotamaa, 2005), and Mactavish

(Mactavish, 2005).

There have been systematic efforts for generic

end-user (non-programmers) development or

tailoring of computer programs. Lieberman et al.,

(2006) characterize development by non-

professional end-users and refer to it as an emerging

paradigm. A more recent and more generic review is

found in (Gulwani, 2010), which analyses different

dimensions of program synthesis.

1.2 Paper Organization

In the remaining of the paper we define Conceptual

Objects Exchange (section 2), shortly introduce the

Software Games context (section 3), overview the

UFOs software architecture (section 4), discuss case

studies as a demonstration of the approach (section

5), deal with implementation issues (section 6) and

conclude with a discussion (section 7).

2 CONCEPTUAL OBJECTS

EXCHANGE

In this section we try to specify our understanding of

conceptual objects and their exchange by non-

programmers, e.g. to modify software games.

2.1 Non-programmers

Before we specify the meaning of conceptual objects

we need to characterize non-programmers.

A non-programmer (Exman, 2013) is a person –

a layman – which is neither a professional software

engineer nor a programmer, but it is here assumed to

have two definite characteristics:

 Software Usage Proficiency – the person

skilfully manipulates a common activity

involving software – e.g. playing a software

game;

 Conceptual Comprehension – the person

perfectly grasps the notions of the software

activity, i.e. has a good understanding of the

activity concepts.

2.2 Conceptual Objects

Nowadays it is common to design software systems

using UML – Unified Modelling Language – see

e.g. (Booch, 2005). Within UML there are a set of

diagrams to describe the structure and behavior of

the system. A typical description of the structure of a

software system is provided by a class diagram.

Classes should be designed to represent the main

concepts of a system. In our view of the highest

abstraction levels of the software system, a class

diagram is equivalent to an application ontology

(Exman, 2014b) which represents the system

concepts. In other words, if we abstract ourselves of

the internal details of a class, each class is equivalent

to a single concept in the particular application

ontology linked to the system. In this general sense,

every class is a concept, and its instances – the

objects – are necessarily conceptual objects.

But in this work we use “conceptual objects” to

denote more specific entities. We shall refer to the

objects related to the activity concepts grasped by

non-programmers as “conceptual objects”.

What are conceptual objects?

Conceptual objects technically are instances of

software classes labelled by terms belonging to the

vocabulary of non-programmers. As such their

labels are well-understood by non-programmers. For

instance, “jumping” is a well-understood concept

within games.

What are not conceptual objects?

Labels of conceptual objects do not necessarily

belong to ontologies of the respective domain. They

could be naturally added to the respective

ontologies.

Conceptual objects and their labels are usually

not given a dictionary definition or ontological

definition by the software classes. The non-

programmer is aware of say the “jumping” concept

through his previous knowledge of games or by

receiving an informal explanation on how to play the

game.

Conceptual Object Exchanges among Software Games by Non-programmers

2.3 Conceptual Objects Exchange by

Non-programmers

The goal of this work is to allow reasoned decision

of software systems modifications by non-

programmers at their will. This can be achieved,

among other possible ways, by exchanging

conceptual objects between existing systems. In this

way one avoids the need to build from scratch an

object. It already exists in another system.

In order to enable non-programmers to

efficiently exchange conceptual objects between

different programs, one needs to build a transparent

software infra-structure, which externally is easy to

manipulate. The non-programmer does not need to

understand the internal mechanisms of the infra-

structure.

The conceptual object exchange should be

applicable to any software system whatsoever in any

domain. For the purposes of proof of feasibility and

practical demonstration, in this work we apply it to

software games. But the idea is general.

2.4 Conceptual Framework for Objects

Exchange by Non-programmers

There are requirements on a few conditions to allow

the envisioned conceptual exchange by non-

programmers:

 Ontological Super-type – in the relevant

ontological hierarchy, the ontological super-type

should be internally recognized by the software

system; for instance, if one is dealing with

“jumping”, “flying” or “running”, which are

kinds of motion, either a “motion” super-type or

an even higher “player” super-type should be

present in the software game;

 User-interface – existence of some available

GUI (Graphical User Interface – such as

“buttons” or “menus”) to receive the activity

commands and communicate them to the internal

functions within the conceptual objects.

3 THE SOFTWARE GAMES

CONTEXT

The software games context is used in this work just

to convey a feasibility proof for the more general

claim of “conceptual objects exchange” by non-

programmers. This context is convenient, since it is

easily understood due to its concrete visualization of

the demonstration.

Within the software games context we focus for

simplicity on 2-D Platform games. This should

minimize development efforts on inessential issues,

enabling one to concentrate on the essentials of

conceptual objects exchange.

3.1 2-D Platform Games

2-D platform games (Reyno, 2008) are characterized

by a guided avatar which moves and jumps into

suspended platforms, while performing activities

such as overcoming obstacles and collecting prizes.

The player should guide his avatar through the

several stages of the game.

In this work we consider two kinds of concepts

involved in these games:

a. Avatar Appearance – this is seen by the graphic

representation of the avatar, e.g. a ball (smiley)

or a humanoid (astronaut);

b. Kind of Motion – e.g. smooth lateral motion,

jumping or flying.

3.2 Fast Programming by

Non-programmers

The idea of fast programming by non-programmers

is the existence of an infra-structure to exchange

whole concepts from a software system in a given

computer to another software system in a different

computer. Thus software systems are modified by

moving around conceptual objects. It is fast as it is

simple to do it. It is a sort of composition of up-to-

now unknown objects into a different existing

system.

4 SOFTWARE ARCHITECTURE

In this section we shortly describe the system

software architecture principles and the essential

UFOs exchangeable classes within the software

system architecture.

4.1 Software Architecture Principles

There were two main principles guiding the software

architecture:

1. Game Engine Separation – in order to avoid

detailed development of games, we decided to

base the development upon a ready-made game

engine providing the basic library of game

functions;

2. UFO Uniformity – all the exchangeable classes

SKY 2015 - 6th International Workshop on Software Knowledge

should inherit from the same basic class, and be

composable into a “super-type” referred above.

4.2 UFOs Software Architecture

The system software architecture is schematically

seen in Fig. 1. It has four modules:

1. Game Engine Class – from which all the active

classes of the games inherit (named Behavior

Class – see the implementation section 6 in this

paper for details) ;

2. Player Class – this is the referred super-type

which is composed of the exchangeable classes;

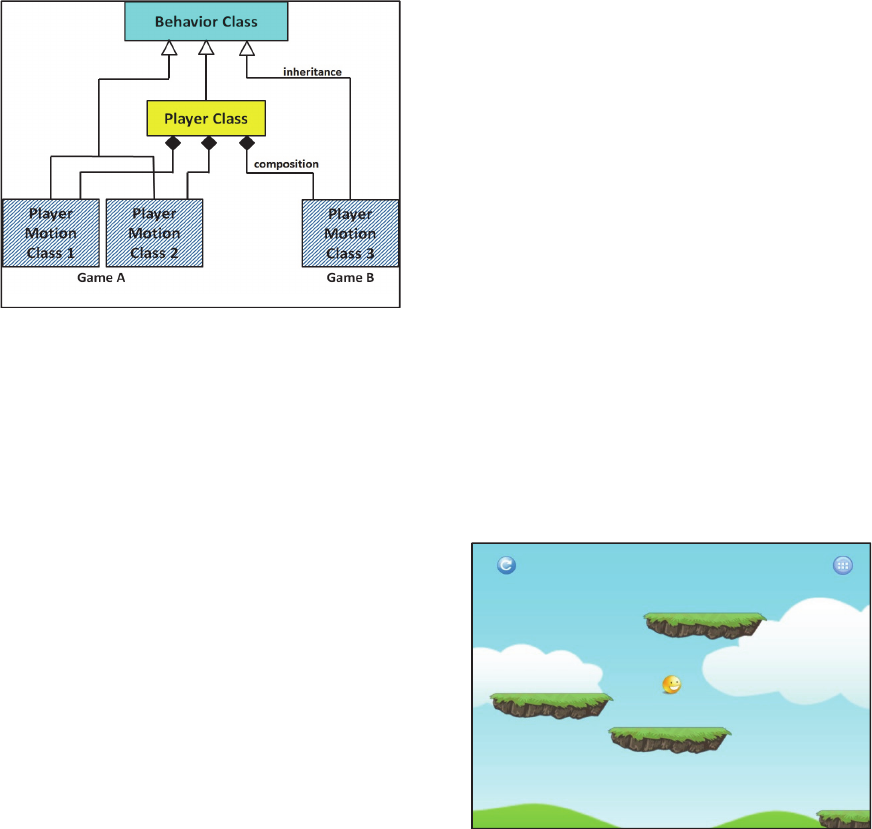

Figure 1: SYSTEM SOFTWARE ARCHITECTURE – It

has four main class types: 1. Game Engine Class (in light

blue background, named Behavior Class), from which all

active classes inherit; 2. Player Class (in yellow

background) is the “super-type” for exchangeable

uniformity among different games; 3. Player Motion

classes (the exchangeable UFOs: dark blue hatched

background) from which the Player Class is composed; 4.

Game Classes – are additional non-exchangeable classes

(not shown in this figure). In this scheme Game A has two

kinds of PlayerMotion (Class 1 and Class 2), while Game

B has just one PlayerMotion (Class 3).

3. PlayerMotion – the exchangeable motion classes

(the UFOs) existing in different games;

4. Game Classes – additional classes that are not

exchangeable; for instance the graphical

background of the games (not shown in the

scheme of Fig. 1)

One can see that this architecture obeys the above

guiding principles (in sub-section 4.1): it separates

the Behavior Class obtained from the Game Engine

from other classes; it displays a super-type – the

Player Class – composed of exchangeable classes.

The diagram in Fig. 1 clarifies the infra-structure

for conceptual object exchange. For instance, one

could send PlayerMotion Class 2 from Game A to

Game B, since both games have the same “super-

type” PlayerClass. This is analogous to extensible

design patterns such as Strategy (Gamma, 1995).

5 CASE STUDIES

The case studies in this section – two games with

different avatars and distinct player motions

developed with the special purpose to exchange

conceptual objects – illustrate what happens when

appearances and motion objects are exchanged.

The purpose of these case studies is to be a

feasibility proof of conceptual object transfer. They

are not intended to be either an extensive exploration

of the of the games’ space, or a detailed examination

of performance and network bandwidth issues.

A series of experiments was performed:

exchanging avatars with their original properties;

exchanging avatars keeping the properties of the

current game; adding motions to the original avatar.

Next we describe the simplest experiment.

5.1 The Jumping Smiley Game as a

Source

The Jumping Smiley game has a Smiley as an

avatar. The Smiley has two motions:

a. Left-Right motion – on top of a platform;

b. Jumping – continuous jumping up and down on

top of a platform;

The Left-Right motions are performed by means of

keyboard arrows. The Jumping motion is continuous

from the beginning of the game. Its GUI is seen in

Fig. 2. This game is the source of the conceptual

object to be sent to the target game.

Figure 2: JUMPING SMILEY GAME GUI – It displays

the Smiley above a platform and below another one, a

series of platforms, a menu button on top-right and a

restart button on top-left.

Conceptual Object Exchanges among Software Games by Non-programmers

5.2 The Space Adventure Game as a

Target

The Space Adventure game has an Astronaut as an

avatar. The astronaut has two kinds of motion:

a. Left-Right motion – on top of a platform;

b. Flight – to achieve another platform from the

present one.

The motions are performed by means of keyboard

arrows. Its GUI is seen in Fig. 3. This game in a

second computer is a target of the conceptual object

to be sent from the source game.

Figure 3: SPACE ADVENTURE GAME GUI – It

displays the astronaut above the middle platform, a left

platform with two square obstacles and a yellow “prize” in

between to be collected, an upper-right platform with

another prize on top of it, a menu button on top-right and a

restart button on top-left.

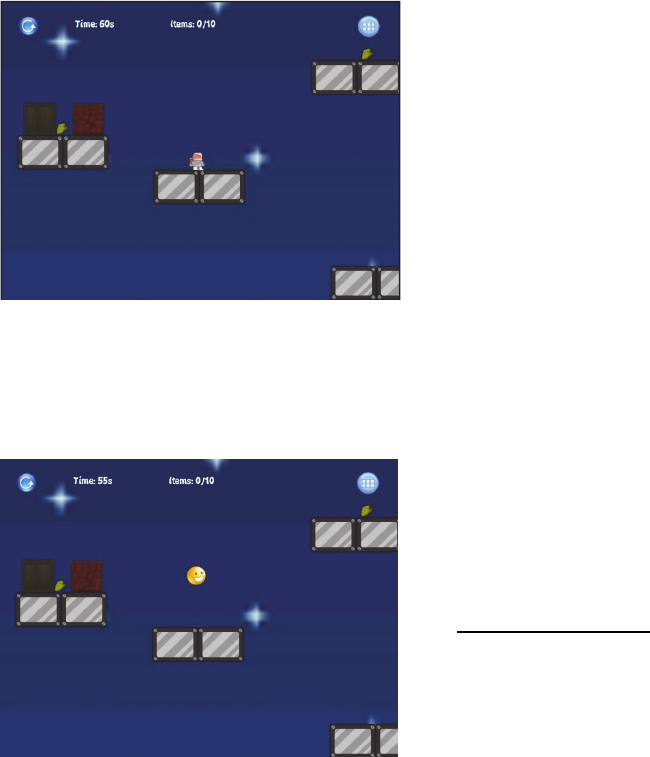

Figure 4: SPACE ADVENTURE GAME GUI WITH

JUMPING SMILEY – It displays the Smiley, instead of

the astronaut jumping above the middle platform, a left

platform with two square obstacles and a yellow “prize” to

be collected, a right platform with another prize on top of

it, a menu button on top-right and a restart button on top-

left.

After the Smiley is sent from the source game to

the target game, the GUI is as seen in Fig. 4.

The outcomes of the exchange of the astronaut

by the Smiley are:

a. The background has not changed: it is still the

outer Space;

b. The avatar appearance has changed;

c. The motions have changed: the avatar now is

able to perform Left-Right motions and jumping

motions.

6 UFOs SOFTWARE

IMPLEMENTATION

In this section we give details of the UFOs software

system implementation: programming using a game

engine, the tasks performed by the system modules

and characteristics of the main GUI.

6.1 Programming of 2-D Platform

Games

In order to avoid dealing with detailed problems of

Game development – which in this work are only

used for a feasibility proof – we used a ready-made

game engine and its libraries.

The game engine is Unity (Goldstone, 2011),

which has been applied to various devices in several

projects. Unity supports the programming languages

C# and JavaScript. The games were written in C#.

6.2 Implementation of the UFOs

Exchange Software System

The whole UFOs Exchange Software system

involves a series of modules performing the tasks

listed in the next text list:

TASKS in MODULES

a. Transparent Connection – Connect other game

by TCP/IP wireless network;

b. Choice of Classes to Transmit – select objects

(avatar appearance as a jpg file and motion types

as C# classes) in the source game;

c. Classes Packing – serialize (Carpenter, 1999)

and pack the chosen classes into an XML file to

be transmitted through the network;

d. Transmission – transmit the XML file;

e. Classes Unpacking – unpack the transmitted

classes using an XML parser;

SKY 2015 - 6th International Workshop on Software Knowledge

f. Chose Classes to Apply – in order to apply

classes in the new game, they must be compiled

at run time;

g. Compile the Chosen Classes – using the Mono

compiler (Mono, 2015) from the Xamarin

company; the compiler is installed in a Windows

operating system;

h. Add the Compiled feaTures to Avatar – in order

to be usable;

i. Final Choice of Game Features – using a

suitable menu (see sub-section 6.3);

j. Play the New Choice.

6.3 GUI for Exchangeable UFOs

We developed a series of friendly menus enabling

the choices referred above. In Fig. 5 one sees a menu

to choose the desired features.

The possible choices are:

a. Original Avatar – with its local properties in the

target game;

b. Newly Added Avatar – with the original

properties in the source game;

c. Newly Composed Avatar – with any combination

of local and original properties.

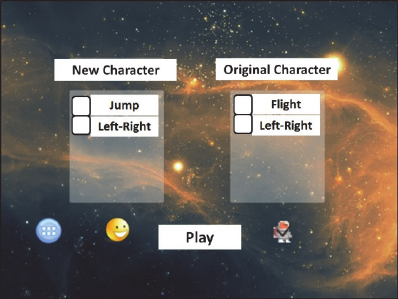

Figure 5: MENU IN SPACE ADVENTURE GAME

WITH ADDED JUMPING SMILEY – A player may

choose to play with: a- the original astronaut (the current

avatar, marked by a black V sign); b- the newly added

Smiley (which can be chosen by clicking it); c- any of the

two avatars as a newly composed character with any

desired combination of chosen motions.

7 DISCUSSION

This discussion is divided into a few different topics:

fundamental issues, some practical considerations,

applications and future work. It is concluded with a

short statement of the main contribution.

7.1 Fundamental Issues

There have been previous efforts whose purpose is

end-user development and program tailoring, as

referred to in the Related Work sub-section 1.1 in

this paper. The main differences between the current

work and preceding efforts are our focus on two

aspects:

a. Conceptual Objects – The internal modularity

(Exman, 2014a) of our software system

corresponds to the well grasped concepts of the

non-programmer end-user. This characteristic

keeps the software architectural neatness.

b. Interplay between Existing Programs – We are

using two or more programs to move the

conceptual objects among them. In our

demonstration case studies, we move avatars and

their properties from a source game to a target

game.

The next issue to be considered is conceptual

consistency. In the game’s world, probably

astronauts should fly and smileys should jump. But

there are no hard rules, at least for these cases. One

can easily think about inconsistencies in different

worlds, in need of ways to constraint them.

A deeper issue is the eventual and possibly

unpredictable relationships between different

software systems with different goals and strategies.

Keeping control of the different actors in such

systems is a significant problem, beyond the scope

of this work.

7.2 Practical Considerations

Among the practical considerations, we refer to

motion combinations. Any combined motions, such

as both jumping and flying, are added in a

“vectorial” way. In our experiments we observed

that one may add twice the same kind of motion.

Note that both the astronaut and the Smiley may

perform Left-Right motions (as seen in the menu in

Fig. 5). If one adds both motions of the same kind,

the actual outcome is performing twice the same

motion, which means moving a double distance.

In a more sophisticated system, one should add a

few specific functionalities:

 Internal limits – to regulate the number of times

one performs the same motion consecutively;

 Selected Property Transfer – to enable

communication efficiency, e.g. to avoid

transferring motions that one does not intend to

Conceptual Object Exchanges among Software Games by Non-programmers

apply; in other words separating properties from

a “character” (or avatar).

7.3 Applications

One should consider real applications with critical

demands. These may include robotic applications in

medical domains or in dangerous environments.

A possible example, of such a complex situation

in a medical domain, is the combination of motions

in a robotic system for remote surgery by a non-

programmer surgeon. In the middle of a surgical

operation, the surgeon could decide as needed to

send a different set of scalpel motions to a remote

system.

Another example, in a dangerous environment, is

to send robots to deal with radioactive materials in

case of disaster such as an earthquake. The robot

may send back to the human controllers photos of

unexpected obstacles, implying additional motions

to overcome the referred obstacles.

7.4 Future Work

A most interesting set of open problems is to extend

the infra-structure to other worlds, besides the very

limited 2-D platform games.

It is an open question, to be investigated in

depth, whether the software architecture principles

formulated in sub-section 4.1 are necessary and

sufficient to apply the approach to more

sophisticated worlds.

In particular we refer to the “super-type”

condition: is it enough for any kind of application?

Or on the contrary, it is too restrictive concerning

the system flexibility: what are the requirements in

order to allow combinations of two or more kinds of

applications?

In straightforward practical terms, the feasibility

proof of this work was done with computers running

Windows operating systems. It would be interesting

to extend these capabilities to diverse platforms, as a

demonstration of the robustness of the core infra-

structure.

7.5 Main Contribution

The main contribution of this work is the feasibility

proof that a non-programmer may modify and

indeed “program” anew existing software systems,

based upon well-understood conceptual objects.

REFERENCES

Aarseth, E., “Define Real, 2010. Moron! Some Remarks

on Game Ontologies”, in Gunzel, S., Liebe, M. and

Marsch, D., (eds.) DIGAREC Keynote-Lectures

2009/10, Potsdam University Press pp. 050-069. Web

site:

http://pub.ub.unipotsdam.de/volltexte/2011/4981/[urn:

nbn:de:kobv:517-opus-49810].

Booch, G., Rumbaugh, J. and Jacobson, I., 2005. The

Unified Modeling Language User Guide, Addison-

Wesley, Cambridge, MA, USA, 2

ed.

Calleja, G., 2007. “Game Ontology”, Session 2 in the

“Computer Game Theory”. Web site:

http://www.gordoncalleja.com.

Carpenter, B., Fox, G., Ko, S. H. and Lim, S., 1999.

“Object Serialization for Marshalling Data in a Java

Interface to MPI”, Syracuse University, 18 pages. Web

site:http://www.newsubmit.pdfnpac.org/users/fox/doc

uments/JG99mpi/c427resubmit.pdf.

Chan, J. T. C. and Yuen, W. Y. F., 2008. “Digital Game

Ontology: Semantic Web Approach on Enhancing

Game Studies”, in Proc. 9

Int. Conf. on Computer-

Aided Industrial Design and Conceptual Design,

IEEE.

Costikyan, G., 2002. “I Have no Words & I Must Design:

Toward a Critical Vocabulary for Games”, in Proc. of

Computer Games and Digital Cultures Conf., F.

Mayra (ed.), Tampere University Press, pp. 9-33.

Exman, I. and Alfia, A., 2013. “Knowledge-Driven Game

Design by Non-Programmers”, in Proc. SKY’2013 Int.

Workshop on Software Knowledge, pp. 47-54,

ScitePress, Portugal.

Exman, I. 2014a. “Linear Software Models: Standard

Modularity Highlights Residual Coupling”, Int.

Journal of Software Engineering and Knowledge

Engineering, Vol. 24, pp. 183-210, DOI:

10.1142/S0218194014500089.

Exman, I. and Iskusnov, D., 2014b. “Apogee: Application

Ontology Generation from Domain Ontologies”, in

Proc. SKY’2014 Int. Workshop on Software

Knowledge, pp. 31-42, ScitePress, Portugal.

Exman, I., Llorens, J., Fraga, A. and Alvarez-Rodriguez,

J.M., 2015. “SKYWare: The unavoidable convergence

of Software towards Runnable Knowledge”, Accepted

for publication.

Gamma, E., Helm, R., Johnson, R. and Vlissides, J., 1995.

Design Patterns: Elements of Reusable Object-

Oriented Software, Addison-Wesley, Boston, MA,

USA.

Goldstone, W., 2011. Unity 3.x Game Development

Essentials, 2

edition, Packt Publishing, Birmingham,

UK.

Gulwani, S., 2010. “Dimensions in Program Synthesis”, in

Proc. of PPDP’10 12

Int. ACM SIGPLAN Symp.

Principles and Practice of Declarative Programming,

pp. 13-24. DOI: 10.1145/1836089.1836091.

Lieberman, H., Paterno, F., Klann, M. and Wulf, V., 2006.

“End-User Development: An Emerging Paradigm”, in

Human-Computer Interaction Series, Vol. 9, pp. 1-8,

SKY 2015 - 6th International Workshop on Software Knowledge

Springer-Verlag, Berlin, Germany. DOI: 10.1007/1-

4020-5386-X_1

Mactavish, A., 2003. “Game Mod(ifying) Theory: The

Cultural Contradictions of Computer Game Modding”,

in Power Up: Computer Games, Ideology, and Play,

Bristol, UK.

Maloney, J., Peppler, K., Kafai, Y. B., Resnick, M. and

Rusk, N., 2008. “Programming by Choice: Urban

Youth Learning Programming with Scratch”, pp. , in

Proc. SIGCSE’08, 39th SIGCSE Technical

Symposium on Computer Science Education, pp. 367-

371.

Mono Compiler, 2015. Web site: http://www.mono-

project.com/docs/about-mono/languages/csharp.

Poremba, C., 2003. “Player as Author: Digital Games and

Agency”, Master Thesis, Dept. Computing Arts and

Design Sciences, Simon Fraser University.

Reyno, E. M. and Cubel, J. A. C., 2008. ”Model-Driven

Game Development: 2D Platform Game Prototyping”,

Polytechnic University of Valencia, 3 pages.

Sotamaa, O., 2005. “Have Fun Working with our Product!

Critical Perspectives on Computer Game Mod

Competitions”, Proc. DiGRA 2005 Conference:

Changing Views – Worlds in Play, Vol., pp. 1-13.

Zagal, J. P., Mateas, M., Fernandez-Vara, C., Hochhalter,

B. and Lichti, N., 2005. “Towards an Ontological

Language for Game Analysis”, in Proc. DiGRA 2005

Conference: Changing Views – Worlds in Play, Vol.

3, pp. 1-13.

Zagal, J. P. and Bruckman, A., 2008. “The game ontology

project: supporting learning while contributing

authentically to game studies”, in Proc. ICLS’08 8

Int. Conf. for the Learning Sciences, pp. 499-506.

Conceptual Object Exchanges among Software Games by Non-programmers
