Towards Reusability of Computational Experiments

Capturing and Sharing Research Objects from Knowledge Discovery Processes

Armel Lefebvre, Marco Spruit

and Wienand Omta

Department of Information and Computer Sciences, Utrecht University, Princetonplein 5, Utrecht, The Netherlands

Keywords: Knowledge Discovery, Reproducible Research, Bioinformatics, Research Objects, Software Development.

Abstract: Calls for more reproducible research by sharing code and data are released in a large number of fields from

biomedical science to signal processing. At the same time, the urge to solve data analysis bottlenecks in the

biomedical field generates the need for more interactive data analytics solutions. These interactive solutions

are oriented towards wet lab users whereas bioinformaticians favor custom analysis tools. In this position

paper we elaborate on why Reproducible Research, by presenting code and data sharing as a gold standard

for reproducibility misses important challenges in data analytics. We suggest new ways to design interactive

tools embedding constraints of reusability with data exploration. Finally, we seek to integrate our solution

with Research Objects as they are expected to bring promising advances in reusability and partial

reproducibility of computational work.

1 INTRODUCTION

Over the last few years, calls from researchers

defending better data and code sharing for

computational experiments (CE) are propagated in

high-ranked journals (McNutt, 2014; Peng,

2011).Usually grouped under Reproducible Research

(RR), these invitations elevate reproducibility or

replicability as a central key of the scientific method.

One of the interpretations presents reproduction as an

application, by independent researchers, of identical

methods on identical data to obtain similar results

whereas replication is similar except that different

data is selected. According to RR proponents,

benefits would be numerous.

First, for verifying results of a published study

(Peng, 2011). Second, for reusing previous work and

build new knowledge. While the latter brings a

constructive and enriching dimension to reproducible

science, the first one is clearly oriented to alleviating

scientific misconduct, particularly in Life Sciences

(Laine et al., 2007).

Despite the fact that RR proponents are focused

on suggesting to exchange code and data as a minimal

threshold for “good science”, they do not examine the

methods used or people participating in CEs.

Methods are not of interest to RR as the main focus

lays on getting similar results for verification. Hence,

the end product of a CE is seen as a script, or package

that should be made available by the authors of a

paper as supplementary material.

The issue investigated in this work emerged from

three phenomena: (1) the notorious increase of data

generation and resource intensive analytics. Here in

the biomedical domain, (2) ignorance about data

generation processes and their impact in terms of

modelling. For instance, the sequencing instruments

and custom bioinformatics pipelines producing

analytical data and how well they represent

underlying biological facts and (3) non-specialists,

not trained in data analytics, eager to participate in

computationally intensive experiments but preferably

via convenient end-user interfaces instead of custom

scripts or programs (Holzinger et al., 2014).

The phenomena described above were observed

during a design science research (DSR) (Hevner &

Chatterjee, 2010) we conducted in the domain of

biomedical genetics. Our research was focused on

designing an interactive data mining tool for

biologists to identify interesting outliers in RNA-Seq

count tables. Ultimately, the goal is to seek how to

facilitate access and how to reuse scripts and

packages for bioinformaticians and biologists at the

same time. After one design cycle of a technical

artifact and its evaluation by three focus groups

gathering biologists and bioinformaticians (n=15) we

collected evidence against some practices proposed

by RR and suggest potentially fruitful improvements.

456

Lefebvre, A., Spruit, M. and Omta, W..

Towards Reusability of Computational Experiments - Capturing and Sharing Research Objects from Knowledge Discovery Processes.

In Proceedings of the 7th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2015) - Volume 1: KDIR, pages 456-462

ISBN: 978-989-758-158-8

Indeed, reproducibility of CEs should not be

reduced to code and data sharing as it does not cover

fundamental characteristics of modern data analysis

in biology. We state that web resources and their

support for multiple representations that satisfy the

interest of both types of users involved will have a

positive impact on reproducibility by facilitating

reusability first.

2 BACKGROUND

Two aspects of knowledge creation and sharing are

presented. Together, they clarify what issues emerge

from code and data sharing when all stakeholders

involved in a CE are not considered. We make use of

a standard knowledge cycle, the Integrated

Knowledge Cycle (IKC) (Dalkir, 2005) to emphasize

the issues of codification implied by Reproducible

Research. In knowledge management, codification

aims at making implicit knowledge (from an

individual) available as an object that is separated

from the individual (Hislop, 2005). This can also be

seen as the goal of RR which distributes experiments

as packages.

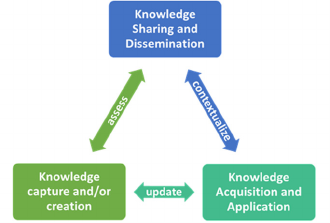

Figure 1: Integrated Knowledge Cycle with three stages

(Dalkir, 2005).

The IKC is illustrated in Figure 1. We focus our

discussion on the knowledge capture and creation

and knowledge sharing and dissemination phases.

The last phase acquisition is not discussed here as we

believe it to be the role of academia or industry in

general.

2.1 HCI-KDD

We start with Human-computer Interaction (HCI)

which is the “study of the way in which computer

technology influences human work and activities.”

(Dix, 2009). Knowledge discovery from databases

(KDD) is defined by Fayyad as “the nontrivial

process of identifying valid, novel, potentially useful,

and ultimately understandable patterns in data”

(Fayyad et al., 1996).

The first aspect is that an end-user should be able

to analyze data by using steps from the knowledge

discovery process but interactively. This combination

between KDD and human-computer interaction was

theorized by Holzinger (2013). Tailored to the

biomedical field, the process emphasizes that an end-

user needs powerful visualization tools as much as

data management and analytics capabilities.

Holzinger also stresses the fact that reproducibility

should be investigated further as it represents a major

problem with data intensive experiments (Holzinger,

2013).

The steps of the HCI-KDD are integration, pre-

processing and data mining. Integration is the

activity of merging structured or unstructured data

sets. Pre-processing applies normalization or

transformation techniques to make the data sets

suitable for data analysis. Data mining is the design

and application of algorithms to identify patterns,

associations or outliers.

2.2 Reproducible Research

The second aspect is the need for better

reproducibility of experiments which are conducted

with computers. Here we integrate notions belonging

to two approaches to reuse context and computational

material.

On the one hand, based on literate programming

(Knuth, 1984), dynamic documents (Pérez and

Granger, 2007) and compendiums (Gentleman and

Lang, 2007) constrain design choice to add human

and machine readable context to executable code.

Compendiums aggregate dynamic documents.

Dynamic documents are executable files that contain

code with descriptive information. They are currently

available with authoring packages in R (Knitr,

Sweave) or Python (IPython notebooks, Jupyter).

On the other hand, an ontology based approach

for dissemination of reusable components is assured

by semantically enriched objects aggregating

resources about the context of an experiment and its

material. These are called Research Objects (RO)

(Bechhofer et al., 2013).

3 DISCUSSION

As we noticed, the fact that one end-user deals with

each step is, at least, a very optimistic view on data

analytics. The HCI-KDD process implemented in our

prototype was discussed among participants (see

Towards Reusability of Computational Experiments - Capturing and Sharing Research Objects from Knowledge Discovery Processes

457

section 3.1). The questions were oriented to the flow

of analysis and presence or absence of components

(e.g. charts, packages, result tables, context…) in the

interface. Additionally, a survey was answered by 11

respondents (n=11) about how they are dealing with

data and Reproducible Research.

3.1 Focus Groups Result

Inside our three focus groups we divide participants

according to their main interests, i.e.

bioinformaticians and biologists.

For the first type of participants,

bioinformaticians, a friendly user interface is

rejected. Scripts are preferred for analyzing data.

Regarding methods applied, a participant indicated

that a method is sometimes selected because “it

works” and is not a matter of “hidden” assumptions.

By assumption we refer to prior knowledge of the

state of the world embedded in packages or statistical

models. Not being aware of them makes a package

acting as a “black-box” with unknown consequences

on the rest of the processing.

For the second type of participants, biologists,

they estimated the presence of such methods as

appropriate. The indications given on the website

(package name, version, reference paper, running

environment and online documentation) are sufficient

if kept up-to-date. The web interface offered the

possibility to apply different methods on the same

data set. This was judged as beneficial because the

influence of a choice could be assessed by the user

interactively. In that case, another concern raised by

bioinformaticians is about the interpretation of

results by users that would not be trained in statistics.

Regarding reproducibility, the lab part of an

experiment has strong influences on the rest of the

pipeline and it is perceived as challenging to integrate

in the tool. Efforts for improving reproducibility are

welcome but full reproducibility is impossible, as

indicated by participants in the third focus group.

3.2 Code and Data for Verification

It is the view of Peng (2011) that executable code and

data form a gold standard of reproducible research.

We argue that these elements are not of interest for

each important type of stakeholder involved in a

computational experiment. We may admit though that

what the author tries to achieve is a minimal level of

reproducibility for verification purposes. The idea is

that a reviewer would carefully inspect code shared

with a paper, e.g. as an R package on Bioconductor.

With that package, the entire computational workflow

is runnable and shows figures that are identical to

their online or printed counterpart.

But as even noticed by Peng (2011), papers

validating previous work are rarely acclaimed by

publishers which expect “new” knowledge to be

submitted. This may be an explanation while results

from our survey showed a poor interest in full

replication. On a scale from 1 (never) to 5 (always).

The need for full replication has a Mode of 2

(Median=2). Partial replication did slightly better

with a Mode of 3 (Median=3).

3.3 Reusability and Interactivity

Regarding Research Objects, they sometimes appear

to be developed as external solutions or repositories.

We would lose a major group of researchers if the

goal of an application is to purely manage research

objects. Instead, the software application should

produce resources that might be automatically

aggregated in a RO. This is a transparent manner for

users more interested in advanced visualization

capabilities.

Therefore, we claim that Research Objects could

be a hidden component of any interactive mining tool.

By doing this, we encourage RO generation and usage

without transforming such tools in a “reproducibility

manager” for users interested in getting precious

insights from their experiments. Exaggerating any

requirement of RO management for these

stakeholders will most probably result in a rejection

of the entire application. This could be achieved by

automatically extracting information from earlier

processing stages and intermediate data sets in the

analysis flow.

3.4 Resources and Representations

An interesting proposal in compendium design was

the notion of transformer. We present it in this work

as the creation of a representation (or view) from a

single resource. A resource is an object of interest

whereas a representation is a usable form of a

resource which corresponds to the consumer’s

interest. We designate by consumers both human and

machine readers or interpreters.

In the RO world, it implies to work on ontologies

and machine readable standards. For biologists, it

means that a chart resource has to render a dynamic

representation. We can imagine that after exchanging

a RO, we find a data object resource and a chart

resource. A chart shows the content of a data object

as, for instance, a scatterplot. We expect an end-user

to be willing to select parts of this scatterplot, zoom-

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

458

Figure 2: The Reproducible Research Oriented Knowledge Discovery in Databases (RRO-KDD) process.

in or display labels. We also expect that this chart

resource is identical to what was generated by a team

of researchers which created this RO.

As we show in the next section, open source

technologies for visualization “as a resource” exist

and are under heavy development. They are able to

create Json or html/JS serialization of a chart resource

while providing enough interactivity for end-users.

4 SOLUTION

The evaluation of our prototype yielded limitations of

both HCI-KDD and current practices defended by

Reproducible Research. Hence, we suggest an

improved knowledge discovery process embedding

the HCI-KDD in an extended process named

Reproducible Research Oriented Knowledge

Discovery in Databases (RRO-KDD).

When conducting a DSR, four stages appear at

each design cycle (Hevner and Chatterjee, 2010). The

problem specification resulted from a literature

review and meetings with experts in biomedical

genetics. The other steps found in design science

research are Intervention, Evaluation and Reflection.

Each of them are described in the next

subsections.

4.1 Specification

The problem addressed in this work encompasses

reproducibility and visualization for researchers in

biology who are collaborating with bioinforma-

ticians. As explained in the background section,

computational experiments are not only conducted on

the bioinformatics side of data analysis. Hence, an

application enabling self-service data analytics for

biologists has additional constraints. Self-service is

understood as letting users perform analytics tasks

without advanced knowledge of programming or

statistical modelization.

4.2 Intervention

As technical outcome of the DSR we conducted, a

prototype was developed and deployed in a research

lab for structural genomics at the University Medical

Centre Utrecht (UMCU) in the Netherlands.

The prototype started from the HCI-KDD process

by implementing interactive visualization capabilities

together with methods to pre-process and mine data

sets. Pre-processing consisted in normalization and

transformation of table of counts generated by RNA-

Seq technologies and tools. A table of counts has

samples of patients in columns and a list of genes as

rows (60 000 in the files used).

This table is the result of a bioinformatics

pipeline. Hence, analytical data is generated by

various levels of data processing from raw DNA

sequence quality checks to counting how many RNA

fragments found in a patient tissue overlap a gene.

Via the web interface, users start with these tables

Towards Reusability of Computational Experiments - Capturing and Sharing Research Objects from Knowledge Discovery Processes

459

in a virtual experiment (gathering data and contextual

information). Then a possibility is offered to

normalize or transform data sets by calling packages

from Bioconductor. Normalization is an important

pre-processing task to make samples comparable due

to the presence of (technical) biases in the raw data.

4.3 Evaluation

Exploratory focus groups with biologists and

bioinformaticians provided input for conducting

additional iterations, similar to an agile approach.

From requirements and discussions with specialists a

set of functionalities for KDD and visualization were

implemented. The facet of RR was imposed as it was

not a primary requirement from the field experts.

Hence, design choices for RR were inspired by

previously described literature about compendiums

and ROs.

Next, three confirmatory focus groups invited

bioinformaticians and biologists to discuss about the

prototype and judge the applicability of the KDD

steps implemented. We addressed results obtained

from the focus groups in section 3. These results are

further processed is section 4.4. We present a design

proposition which is an outcome of the evaluation of

the prototype. Furthermore, our design proposition

covers architectural choices which are mainly

grounded in the web architecture.

4.4 Reflection

The lessons learned from our DSR are described in

the RRO-KDD process. We processed the input of

three confirmatory focus groups with 15 participants.

We described the results earlier and elaborate on their

processing further in the next section.

4.5 RRO-KDD Process

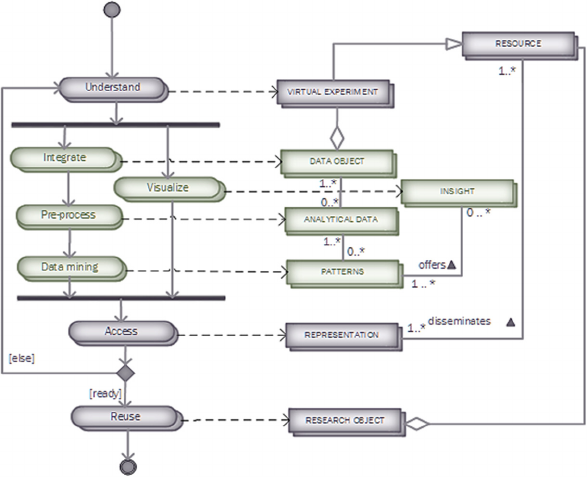

In Figure 2, the RRO-KDD process is modeled with

its related “deliverables” in a so-called process-

deliverable diagram (PDD) (Weerd and

Brinkkemper, 2008). Here, the elements of the HCI-

KDD process are integrated with contextual and

technological outputs. These outputs are directed to

reusability of previous experiment code, data and

methods. Below, we shortly describe the steps and

deliverables:

1) Understand is an activity where sufficient

description of the data sets are provided. For instance,

information about instruments, sequencing platforms,

sample preparation. It builds a container for an

experiment which is denoted by virtual experiment.

Virtual experiments are uniquely identified

aggregation of resources and group data sets together

with context and methods.

2) Integrate, pre-process and data mining are the

steps elaborated by the HCI-KDD process.

Visualization is an activity that occurs in parallel to

KDD and enables to get insight of what happens at

each step. For instance, it helps the users to judge the

impact of pre-processing methods on the data set.

Activity Integrate results in data objects, and Pre-

process will normalize or transform these integrated

data sets into analytical data which are more easily

interpretable than raw data, e.g. from sequencing

instruments. Finally, data mining results find useful

patterns from data, according to Fayyad’s definition

(Fayyad et al., 1996). Visualization is here a subpart

of the whole HCI field of research as it was not

extensively investigated in this work.

3) Visualization has a deliverable called insight,

which informs researchers on patterns, scores or

relations in their data on an interactive manner.

Interactive plots were rendered with bokeh, a python

library for creating browser compatible

visualizations.

4) Access presents previous, interactively created

components of an experiment (like charts and new

data objects) as REST resources that might be

accessed without the user interface via RESTAPIs.

5) These resources, aggregated in a virtual

experiment can be semantically enriched for reuse as

ROs. This is made possible because each component

is uniquely identified and accessible via a

programming interface. As an example, a mining task

created by a biologist is reusable via a RO with its

unique identifier.

The code of the prototype is hosted on GitHub

under MIT license and is available here:

https://github.com/armell/RNASEqTool.

5 CONCLUSION

Results suggest that reproducibility cannot be

reduced to data and code sharing and that the field of

biomedical genetics suffers from a lack of software

solutions that are both satisfactory for

bioinformaticians and biologists who are mutually

engaged in CEs. There are overlapping data analytics

practices but also serious apprehensions from

bioinformaticians to offer such a type of application

to biologists if they exceed data visualization.

Despite these concerns, we found that there is gap

to fill both in terms of data analytics and reuse of

previous work.

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

460

As we have seen biologists were more inclined to

ask more visualization capabilities whereas

bioinformaticians expect a solution where scripting or

custom data processing is allowed. Unique identifier

of resources and platform-independent information

exchange via REST enables this. Nevertheless, HCI

alone for biologists is not satisfactory as they want to

query data and compare the impact of different

methods. These comparisons require pre-processing

and mining.

Reusability of data, workflows or parts of

experiments seems to be more interesting for the two

types of end-users which evaluated the artifact than

reproducibility.

6 FUTURE WORK

The suggested RRO-KDD is still in a design

proposition phase that needs to be evaluated in other

settings and the interest in sharing Research Objects

must be assessed. For this assessment, the mining

tools have to be upgraded and provide more realistic

possibilities to exchange and reuse virtual

experiments and their components.

In addition, extending the RRO-KDD to

distributed systems will have similar problems

encountered in previous studies and known as

workflow decay. This issue still holds in the RRO-

KDD context which is built around web services and

URLs that may be inactive after some time.

Permanent Identifiers may moderate accessibility

issues but not the support of data objects or remote

implementations of analysis packages.

Recommendations to face these issues are an

integration with virtual environments or containers

(e.g. Docker), dynamic documents and proper data

management solutions. More research on integrating

virtual containers for reusability of computational

experiments for bioinformaticians and biologists is

needed. Dynamic documents generated by the tool

could also play a role for bioinformaticians to

understand what decisions were taken by biologists

processing data via a user-friendly interface.

These investigations should be made by

effectively combining HCI and KDD as suggested by

Holzinger. But the multiplicity of actors, analysis

tools and techniques remains a great challenge first

for reusability then for reproducibility.

Hence, reproducibility arguments in literature

should be replaced by better designs for reusability in

IT solutions, at least for enhancing collaboration

between bioinformatics and biologists. Reusability is

broader than reproducibility as it enables repurposing

of previous work and, in essence, reproducibility.

ACKNOWLEDGEMENTS

Our thanks go to Dr. Wigard Kloosterman (UMCU)

and his team for hosting us, providing any resource to

conduct our research and assisting at the demo

sessions.

REFERENCES

Bechhofer, S., Buchan, I., De Roure, D., Missier, P.,

Ainsworth, J., Bhagat, J., … Goble, C. (2013). Why

linked data is not enough for scientists. Future

Generation Computer Systems, 29(2), 599–611.

doi:10.1016/j.future.2011.08.004

Dalkir, K. (2005). Knowledge Management in Theory and

Practice. Knowledge Management (Vol. 4).

Dix, A. (2009). Human-Computer Interaction. In L. LIU &

M. T. ÖZSU (Eds.), Encyclopedia of Database Systems

SE - 192 (pp. 1327–1331). Springer US.

doi:10.1007/978-0-387-39940-9_192

Fayyad, U., Piatetsky-Shapiro, G., & Smyth, P. (1996).

Knowledge Discovery and Data Mining: Towards a

Unifying Framework. In Proc 2nd Int Conf on

Knowledge Discovery and Data Mining Portland OR

(pp. 82–88).

Gentleman, R., & Lang, D. (2007). Statistical analyses and

reproducible research. Journal of Computational and

…, 16(1), 1–23.

Hevner, A., & Chatterjee, S. (2010). Design research in

information systems. Springer New York.

Hislop, D. (2005). Knowledge management in

organizations: A critical introduction. Management

Learning (Vol. 36).

Holzinger, A. (2013). Human-Computer Interaction and

Knowledge Discovery (HCI-KDD): What is the benefit

of bringing those two fields to work together? In

Lecture Notes in Computer Science (including

subseries Lecture Notes in Artificial Intelligence and

Lecture Notes in Bioinformatics) (Vol. 8127 LNCS, pp.

319–328). doi:10.1007/978-3-642-40511-2_22

Holzinger, A., Dehmer, M., & Jurisica, I. (2014).

Knowledge Discovery and interactive Data Mining in

Bioinformatics - State-of-the-Art, future challenges and

research directions. BMC Bioinformatics, 15 Suppl

6(Suppl 6), I1. doi:10.1186/1471-2105-15-S6-I1

Knuth, D. E. (1984). Literate Programming. The Computer

Journal, 27(2), 97–111. doi:10.1093/comjnl/27.2.97

Laine, C., Goodman, S. N., Griswold, M. E., & Sox, H. C.

(2007). Reproducible Research : Moving toward

Research the Public Can Really Trust. Annals of

Internal Medicine, 146(6), 450–453. Retrieved from

http://annals.org/article.aspx?articleid=733696

Towards Reusability of Computational Experiments - Capturing and Sharing Research Objects from Knowledge Discovery Processes

461

McNutt, M. (2014). Journals unite for reproducibility.

Science, 346(6210), 679–679.

Peng, R. D. (2011). Reproducible research in computational

science. Science (New York, N.Y.), 334(6060), 1226–7.

doi:10.1126/science.1213847

Pérez, F., & Granger, B. E. (2007). IPython: A system for

interactive scientific computing. Computing in Science

and Engineering, 9, 21–29. doi: 10.1109/MCSE.

2007.53

Weerd, I. Van De, & Brinkkemper, S. (2008). Meta-

modeling for situational analysis and design methods.

Handbook of Research on Modern Systems Analysis

and Design Technologies and Applications, 38–58.

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

462
