A Continuum among Logarithmic, Linear, and Exponential Functions,

and Its Potential to Improve Generalization in Neural Networks

Luke B. Godfrey and Michael S. Gashler

Department of Computer Science and Computer Engineering,

University of Arkansas, Fayetteville, AR, U.S.A.

Keywords:

Neural Networks, Activation Function.

Abstract:

We present the soft exponential activation function for artiﬁcial neural networks that continuously interpolates

between logarithmic, linear, and exponential functions. This activation function is simple, differentiable, and

parameterized so that it can be trained as the rest of the network is trained. We hypothesize that soft exponential

has the potential to improve neural network learning, as it can exactly calculate many natural operations that

typical neural networks can only approximate, including addition, multiplication, inner product, distance, and

sinusoids.

1 INTRODUCTION

Each neuron in an artiﬁcial neural network applies

a non-linear activation function to a weighted sum

of its inputs. The activation function serves the im-

portant role of enabling the neural network to ﬁt to

non-linear curves and surfaces. If omitted, even deep

multi-layered neural networks reduce to be function-

ally equivalent to simple linear regression. Hence, the

activation function endowsthe neural network with its

representational power.

One might ask, which activation function is best

for neural networks? For years, the logistic and tanh

functions have been popular choices (Kalman and

Kwasny, 1992). More recently, rectiﬁed linear units

have been shown to possess desirable properties (Nair

and Hinton, 2010; Zeiler et al., 2013). While these

functions perform well empirically, little theoretical

basis has been found to justify their extensive use over

many other potential functions. We present the soft

exponential function, a novel activation function with

many desirable theoretical properties. It continuously

interpolates between logarithmic, linear, and expo-

nential activation functions. It enables neural net-

works to exactly compute many natural mathemati-

cal structures that can only be approximated by neural

networks that use traditional activation functions, in-

cluding addition, multiplication, exponentiation, dot

product, Euclidean and L-norm distance, Gaussian ra-

dial basis functions, and Fourier neural networks.

The next section derives soft exponential and the

remainder of the paper discusses its desirable proper-

ties.

2 DERIVATION

It is well known that multiplication can be imple-

mented by means of addition in logarithmic space.

That is,

p∗ q = e

(log

p)+(log

. (1)

This property can enable neural networks that use

a mixture of logarithmic, linear, and exponential ac-

tivation functions to exactly perform the basic math-

ematical operation of multiplication. However, using

a mixture of different activation functions in a single

neural network adds a signiﬁcant component of com-

plexity. Speciﬁcally, it leaves the user to determine

which activation function should be used with each

neuron in the network. If a function can be found that

continuously generalizes between logarithmic, linear,

and exponential functions, then a neural network with

a single activation function would be empowered to

autonomously learn to add, multiply, exponentiate,

and compute the logarithms as needed to accomplish

arbitrary tasks. Because these mathematical opera-

tions have proven to have signiﬁcant value in nearly

all other areas of science, it is natural to suppose that

neural networks should be given the ability to per-

form the same operations when they attempt to au-

tonomously model various phenomena.

Godfrey, L. and Gashler, M..

A Continuum among Logarithmic, Linear, and Exponential Functions, and Its Potential to Improve Generalization in Neural Networks.

In Proceedings of the 7th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2015) - Volume 1: KDIR, pages 481-486

ISBN: 978-989-758-158-8

481

A simple equation that continuously interpolates

between linear and exponential functions is

g(α, x) =

αx

− 1

+ α. (2)

Note that lim

α→0

g(α, x) = x, and g(1, x) = e

This function does not become a logarithmic function

(i.e. when α = −1), so it does not provide a complete

solution to our objective. However, we can invert g

with respect to x to obtain a function that interpolates

between logarithmic and linear functions:

−1

(α, x) =

log

(1+ α(x− α))

. (3)

Since g and g

−1

are equivalent when α = 0, we

can mathematically piece them together along that

edge without breaking continuity. We negate α in the

case of the inverse function and obtain the following

continuous piecewise function:

f(α, x) =











−

log

(1−α(x+α))

for α < 0

x for α = 0

αx

−1

+ α for α > 0.

(4)

Equation 4 interpolates between logarithmic, lin-

ear, and exponential functions. Although it is spliced

together, it is continuous both with respect to α and

with respect to x, and has a number of properties that

render it particularly useful as a neural network acti-

vation function. We call f the soft exponential activa-

tion function.

We can now address the challenge of creating a

continuum of operations between addition and multi-

plication. By substituting f into Equation 1, we ob-

tain a continuous generalization between these two

operations:

h(β, p, q) = f (β, f(−β, p) + f(−β, q)). (5)

If β = 0, this function adds p and q. If β = 1, it

multiplies p and q. Figure 1 illustrates this continuum

between addition and multiplication with the arbitrary

values p = 3 and q = 7. At β = 0, it correctly calcu-

lates 3 + 7 = 10, and at β = 1, it correctly calculates

3∗ 7 = 21.

3 ANALYSIS

Some of the nice properties of soft exponential in-

clude:

• f(−1, x) = log

(x)

-0.1

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

1.1

(

3,7)

Figure 1: A plot of h(β, 3, 7). When β = 0, it correctly

calculates 3+ 7 = 10. When β = 1, it correctly calculates

3∗ 7 = 21.

• f(0, x) = x

• f(1, x) = e

• For other values of α, f(α, x) does something con-

tinuous and reasonable.

• The equation is simple, and can be implemented

in code with very few operations.

• It appears reasonably smooth when plotted. (See

Figures 2 and 3.)

• Negating α inverts the function, such that

−1

(α, x) = f(−α, x).

• For any constant value of α, f(α, x) is monotonic.

• It is continuously differentiable with respect to x,

∂f

∂x

(

1−α(α+x)

for α < 0

αx

for α ≥ 0

(6)

because

lim

α→0

∂f

∂x

≡ lim

α→0

−

∂f

∂x

≡ 1.

• And it is continuously differentiable with respect

to α,

∂f

∂α











log

(1−(α

+αx))−

2α

+αx

+αx−1

for α < 0

+ 1 for α = 0

+(αx−1)e

αx

for α > 0

(7)

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

482

-5

-4

-3

-2

-1

-5

-4

-3

-2

-1

(

)

(1,

(-1,

)=log ( )

(0,

Figure 2: A plot of f(α, x) for α =

{−1, −0.9, −0.8,··· , 0.8, 0.9, 1.0} from red to purple.

-0.5

(

)

( ,

-5)

( ,

-1

0.5

-10

-5

Figure 3: A plot of f(α, x) for x =

{−5, −4.5, −4, ··· , 4, 4.5, 5} from red to purple.

because

lim

α→0

∂f

∂α

≡ lim

α→0

−

∂f

∂α

≡

+ 1.

• Because it is differentiable, it is possible to train

a neural network with soft exponential using gra-

dient descent. The alpha parameter of the activa-

tion function is updated in the same manner as the

weights, by stepping in the gradient direction that

reduces some objective function.

4 INNER PRODUCT

Another operation we might want to generalize is in-

ner product. The inner product is typically imple-

mented as, p · q = p

+ p

+ . . .. Inner

Figure 4: A neural network implementation of inner product

using soft exponential as an activation function. All of the

weights represented with lines in this ﬁgure have a value of

1. All other weights have a value of 0.

product could be implemented using a 3-layer neural

network as depicted in Figure 4. This network uses

soft exponential for the activation function in each of

its units. The ﬁrst layer computes the logarithm of all

the elements in p and q. (All the units in this layer use

α = −1.) The second layer adds corresponding ele-

ments of p and q, and exponentiates the result. (All

the units in this layer use α = 1.) The third layer sums

all the pair-wise products together. (The unit in this

layer uses α = 0.)

One possible use for this generalization of inner

product is to implement a neural network version

of matrix factorization, a useful algorithm for rec-

ommender systems (Koren et al., 2009) and missing

value imputation for sparse matrix completion (Cai

et al., 2010). Matrix factorization has also proved to

be effective for document clustering (Xu et al., 2003),

text mining and spectral data analysis (Berry et al.,

2007), and molecular pattern discovery (Brunet et al.,

2004). A neural network with our activation function

can exactly compute inner product and matrix factor-

ization, and thus it should be able to achieve accuracy

at least as good as approaches that do not use neural

networks. Because of the ﬂexibility of this general-

ized approach, it has the potential to outperform direct

matrix factorization. For example, in a recommender

system, our approach facilitates augmenting user and

item proﬁle vectors with static proﬁle vectors for ad-

dressing the cold-start problem (Koren et al., 2009).

5 DISTANCE

Suppose we want to compute the distance between

A Continuum among Logarithmic, Linear, and Exponential Functions, and Its Potential to Improve Generalization in Neural Networks

483

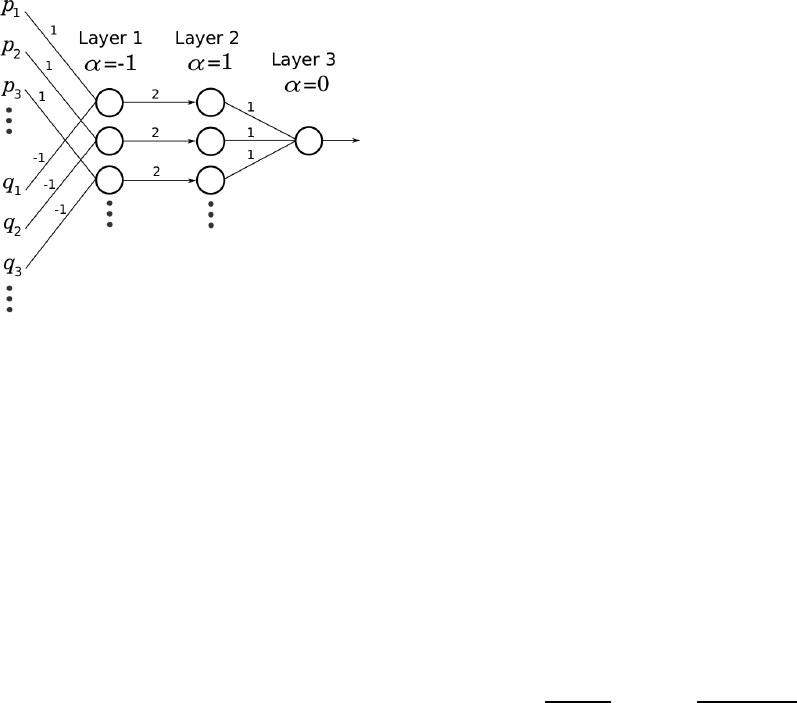

Figure 5: A neural network implementation of squared dis-

tance using soft exponential as an activation function. To

compute Euclidean distance (the square root of this), only

one additional network unit would be required.

two vectors, p and q. This could also be done with a

neural network that uses soft exponential for its acti-

vation functions. To do this, we will use the property,

= e

blog

(a)

Figure 5 shows a neural network that computes the

squared distance between two vectors. (If you want

to take the square root, to make it Euclidean distance,

just change the unit in layer 3 to use α = −1, and add

a layer 4 with one unit. This unit would use α = 1,

and its incoming weight would be set to 0.5.)

6 RADIAL BASIS FUNCTION

NETWORKS

A gaussian radial basis kernel uses the formula,

−rs

where r is a weight that controls the squared radius

of the kernel, and s is either the squared distance be-

tween the input vector and the center of the kernel,

or the inner product with the input vector. This func-

tion is important to a number of classiﬁcation mod-

els, including support vector machines that use a ra-

dial basis function and radial basis function networks

(Sch¨olkopf et al., 1997; Chen et al., 1991; Qasem and

Shamsuddin, 2011). This could be implemented in

a network using only f as an activation function by

simply adding a single unit with α = 1 to the neural

networks in Figures 4 or 5. The weight feeding into

this unit would be −r. If we added a layer to combine

several of these, we would have a radial basis function

network without using any specialized units.

Although it is already well-known that neural

networks are universal function approximators (Cy-

benko, 1989), it is worth noting that soft exponen-

tial enables common architectures to be exactly im-

plemented using a neural network with minimal ar-

chitectural overhead. If a simple model sufﬁciently

models a set of data, it is generally preferable and

yields better predictions than an unnecessarily com-

plex one. If these architectures were implemented us-

ing a network with a sigmoidal activation function,

for example, the resulting models would be very large

networks that would probably take more training data

to train it to generalize well.

7 FOURIER NETWORKS

Fourier neural networks use a sinusoidal activation

function to transform a signal from the time or space

domain to the frequency domain in a process similar

to the Fourier transform (Silvescu, 1999; Tan, 2006;

Zuo et al., 2009). If α is allowed to have a complex

value, soft exponential can be used as the activation

function in a Fourier neural network. Let α

be the

real component of α, and α

be the imaginary compo-

nent of α, such that α = α

+ iα

. For simplicity, we

assume that x is real, and α

= 0. Then the equation

for f becomes

f(α

, x) =

sin(α

+ i



−

cos(α

x) + 1



. (8)

Without these assumptions, the resulting equation

contains several additional terms. Figures 6 and 7

show the real and imaginary components respectively

of f over a range of values for α

. It can be seen in

these ﬁgures that the imaginary component of α de-

termines the frequency of the sinusoidal wave. (Al-

though it also affects the amplitude, this is not signif-

icant because the outgoing weight can compensate to

achieve any desired amplitude).

We have shown that Fourier networks are effective

for extrapolating real-world time-series data (Gashler

and Ashmore, 2014). In a pending publication, we

showed that this approach is even more effective at

generalizing when it it combined with other activa-

tion functions (Godfrey and Gashler, 2015). Because

soft exponential can be logarithmic, exponential, lin-

ear, or sinusoidal when α is allowed to be complex,

we can create a Fourier network with only this activa-

tion function and achieve the same level of accuracy

for generalization and extrapolation.

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

484

-15

-10

-5

-10

-5

(

)

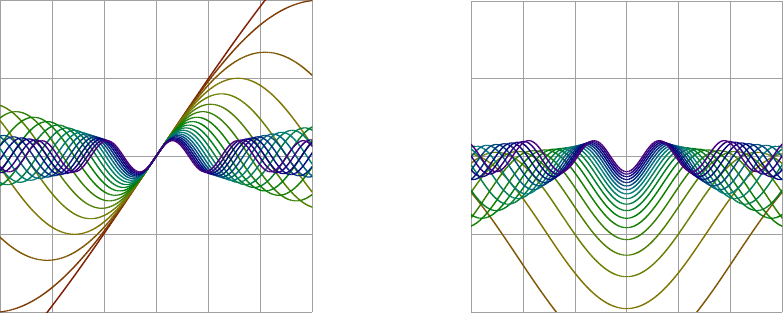

Figure 6: A plot of the real component of soft exponential

over a range of values for α

8 PROPOSED ARCHITECTURE

We conclude our discussion by describing a deep neu-

ral network architecture that could potentially use this

novel activation function to autonomously achieve all

of these representational capabilities as needed to ad-

dress a wide range of challenges. Because complex

values for α cause each unit to output two values, in-

stead of one, it may not be immediately clear how to

apply such a network to arbitrary problems. How-

ever, if the α parameter values in the output layer are

constrained to take only real values, then this network

will behave like traditional neural networks, mapping

from any number of input values to any number of

output values. Allowing hidden units to take on com-

plex values for α should not present any problems be-

cause the additional values may simply be fed into the

next layer as if the preceding layer were twice as big.

Hence it should be reasonable to use f as the activa-

tion function for every unit in a deep neural network.

The α parameter for each unit could be initialized

to 0+ 0i. This has the very desirable property of ini-

tially causing the entire network to behave like lin-

ear regression. As training proceeds, it will take on

non-linearities only as necessary to ﬁt the data. All of

the weights would be initialized with random values

drawn from a normal distribution, then normalized

such that the primary eigenvalue is 1. Since all of the

activation functions are initially the identity function,

the problem of vanishing gradients is initially miti-

gated, enabling very deep networks to be trained efﬁ-

ciently. This activation function does not impose any

particular topology on the rest of the network, so the

layers could fully-connected or arranged with sparse

connections, such as in convolutional layers.

-15

-10

-5

-10

-5

(

)

Figure 7: A plot of the imaginary component of soft expo-

nential over a range of values for α

Likewise, the differentiability of soft exponential

facilitates optimization with batch gradient descent,

stochastic gradient descent, or many other optimiza-

tion techniques. α can be updated along with the

weights in the manner of steepest descent. L

regular-

ization should be applied to promote sparsity. It can

be observed that the various common architectures

that we can demonstrated with this activation function

use sparse connections. It follows, therefore, that L

regularization may be expected to work particularly

well with this activation function. Note that L

reg-

ularization can be applied to the α parameter as well

as the weights of the network. When α is pulled to-

ward zero, the network approaches linear regression.

Hence, regularizing the α parameter has the desirable

effect of causing the surface represented by the neural

network to straighten out.

9 CONCLUSION

We presented a novel activation function, soft expo-

nential, that continuously generalizes among logarith-

mic, linear, and exponential functions. This function

exhibits many desirable theoretical properties that

make it well-suited for use as an activation function

with neural networks. Empirical validation of these

theoretical properties still needs to be performed as

future work. Because of the signiﬁcant potential that

this activation function has to impact the effective-

ness of deep neural networks, we are anxious to share

these ideas with the broader research community now,

instead of waiting for our attempts at achieving vali-

dation, so that the community may participate in the

process of discovering its potential and limitations.

A Continuum among Logarithmic, Linear, and Exponential Functions, and Its Potential to Improve Generalization in Neural Networks

485

REFERENCES

Berry, M. W., Brown, M., Langville, A. N., Pauca, V. P.,

and Plemmons, R. J. (2007). Algorithms and ap-

plications for approximate nonnegative matrix factor-

ization. Computational Statistics & Data Analysis,

52(1):155–173.

Brunet, J. P., Tamayo, P., Golub, T. R., and Mesirov, J. P.

(2004). Metagenes and molecular pattern discovery

using matrix factorization. Proceedings of the Na-

tional Academy of Sciences, 101(12):4164–4169.

Cai, J., Cand`es, E. J., and Shen, Z. (2010). A singular value

thresholding algorithm for matrix completion. SIAM

Journal on Optimization, 20(4):1956–1982.

Chen, S., Cowan, C. F., and Grant, P. M. (1991). Orthog-

onal least squares learning algorithm for radial basis

function networks. IEEE Transactions on Neural Net-

works, 2(2):302–309.

Cybenko, G. (1989). Approximation by superpositions of

a sigmoidal function. Mathematics of control, signals

and systems, 2(4):303–314.

Gashler, M. S. and Ashmore, S. C. (2014). Training deep

fourier neural networks to ﬁt time-series data. Lecture

Notes in Bioinformatics, 8590:48–55.

Godfrey, L. B. and Gashler, M. S. (2015). Neural decompo-

sition of time-series data for effective generalization.

Publication Pending.

Kalman, B. L. and Kwasny, S. C. (1992). Why tanh: choos-

ing a sigmoidal function. In Neural Networks, 1992.

IJCNN., International Joint Conference on, volume 4,

pages 578–581. IEEE.

Koren, Y., Bell, R., and Volinsky, C. (2009). Matrix factor-

ization techniques for recommender systems. Com-

puter, 42(8):30–37.

Nair, V. and Hinton, G. E. (2010). Rectiﬁed linear units

improve restricted boltzmann machines. In Proceed-

ings of the 27th International Conference on Machine

Learning (ICML-10), pages 807–814.

Qasem, S. N. and Shamsuddin, S. M. (2011). Radial

basis function network based on time variant multi-

objective particle swarm optimization for medical dis-

eases diagnosis. Applied Soft Computing, 11(1):1427–

1438.

Sch¨olkopf, B., Sung, K.-K., Burges, C. J., Girosi, F.,

Niyogi, P., Poggio, T., and Vapnik, V. (1997). Com-

paring support vector machines with gaussian kernels

to radial basis function classiﬁers. Signal Processing,

IEEE Transactions on, 45(11):2758–2765.

Silvescu, A. (1999). Fourier neural networks. In Neural

Networks, 1999. IJCNN’99. International Joint Con-

ference on, volume 1, pages 488–491. IEEE.

Tan, H. (2006). Fourier neural networks and generalized

single hidden layer networks in aircraft engine fault

diagnostics. Journal of engineering for gas turbines

and power, 128(4):773–782.

Xu, W., Liu, X., and Gong, Y. (2003). Document clustering

based on non-negative matrix factorization. In Pro-

ceedings of the 26th annual international ACM SIGIR

conference on Research and development in informa-

tion retrieval, pages 267–273. ACM.

Zeiler, M. D., Ranzato, M., Monga, R., Mao, M., Yang,

K., Le, Q. V., Nguyen, P., Senior, A., Vanhoucke, V.,

Dean, J., et al. (2013). On rectiﬁed linear units for

speech processing. In Acoustics, Speech and Signal

Processing (ICASSP), 2013 IEEE International Con-

ference on, pages 3517–3521. IEEE.

Zuo, W., Zhu, Y., and Cai, L. (2009). Fourier-neural-

network-based learning control for a class of nonlinear

systems with ﬂexible components. Neural Networks,

IEEE Transactions on, 20(1):139–151.

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

486
